# 2/14: More Transportation Planning & Production Scheduling Roll call Return homework Go over homework Transportation planning w/ transshipments Revisiting.

## Presentation on theme: "2/14: More Transportation Planning & Production Scheduling Roll call Return homework Go over homework Transportation planning w/ transshipments Revisiting."— Presentation transcript:

2/14: More Transportation Planning & Production Scheduling Roll call Return homework Go over homework Transportation planning w/ transshipments Revisiting production scheduling using the transportation Excel model Small group exercise Assign homework

About the Homework Scoring 4 of 8 per assignment (chapter) for trying. 4 of 8 per assignment for getting correct answer 3-4 possible bonus points for answering the questions. What’s cheating? What’s not cheating?

Homework due today #7-2: \$435.00 #7-4: \$10,400.00 #7-5: \$11,900.00 #7-15: 26 hours

Review: Transportation Planning Calculating minimum cost for shipping a product from multiple sources to multiple destinations. Use Excel model here.here

Transportation Planning with Transshipments A variation on the transportation model: Plants ship to warehouses, which ship to stores. EX: 3 plants, 2 warehouses, 4 stores. Plant 1: 600 Plant 2: 700 Plant 3: 300 Ware 1 Ware 2 Store 1: 400 Store 2: 300 Store 3: 500 Store 4: 400 2 3 4 1 3 6 2 3 1 4 22 5 3

Transportation Planning with Transshipments Note: Looks like two transportation networks, with the outputs of #1 equaling the inputs of #2. Plant 1: 600 Plant 2: 700 Plant 3: 300 Ware 1 Ware 2 Store 1: 400 Store 2: 300 Store 3: 500 Store 4: 400 2 3 4 1 3 6 2 3 1 4 22 5 3 Network #1 Network #2

Transportation Planning with Transshipments Model in Excel: two transportation models that are linked: see example.example Plant 1: 600 Plant 2: 700 Plant 3: 300 Ware 1 Ware 2 Store 1: 400 Store 2: 300 Store 3: 500 Store 4: 400 2 3 4 1 3 6 2 3 1 4 22 5 3 Network #1 Network #2

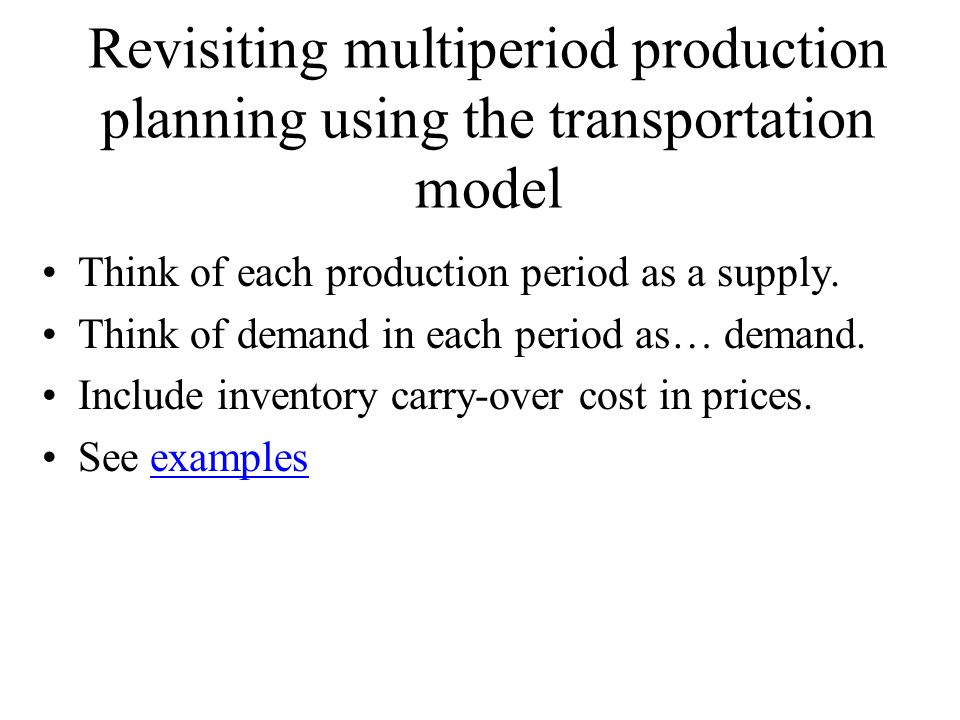

Revisiting multiperiod production planning using the transportation model Think of each production period as a supply. Think of demand in each period as… demand. Include inventory carry-over cost in prices. See examplesexamples

Small Group Exercise 3 plants, 2 warehouses, 4 customers. Minimize transportation cost w/ Excel. Ware. 1Ware. 2Capacity Plant 1\$4\$7450 Plant 2\$8\$5600 Plant 3\$5\$6380 Cust. 1Cust. 2Cust. 3Cust. 4 Ware. 1\$6\$4\$8\$4 Ware. 2\$3\$6\$7 Demand300 400

Homework Ch. 7 #26 – Solve w/ Excel Ch. 7 #28 – Solve w/ Excel Ch. 7 #31 – Solve w/ Excel (the Contois Carpet problem was one of our in-class examples) Ch. 7 #32 – Solve w/ Excel
