1. applied research laboratory David E. Taylor Users Guide: Fast IP Lookup (FIPL) in the FPX Gigabit Kits Workshop 1/2002

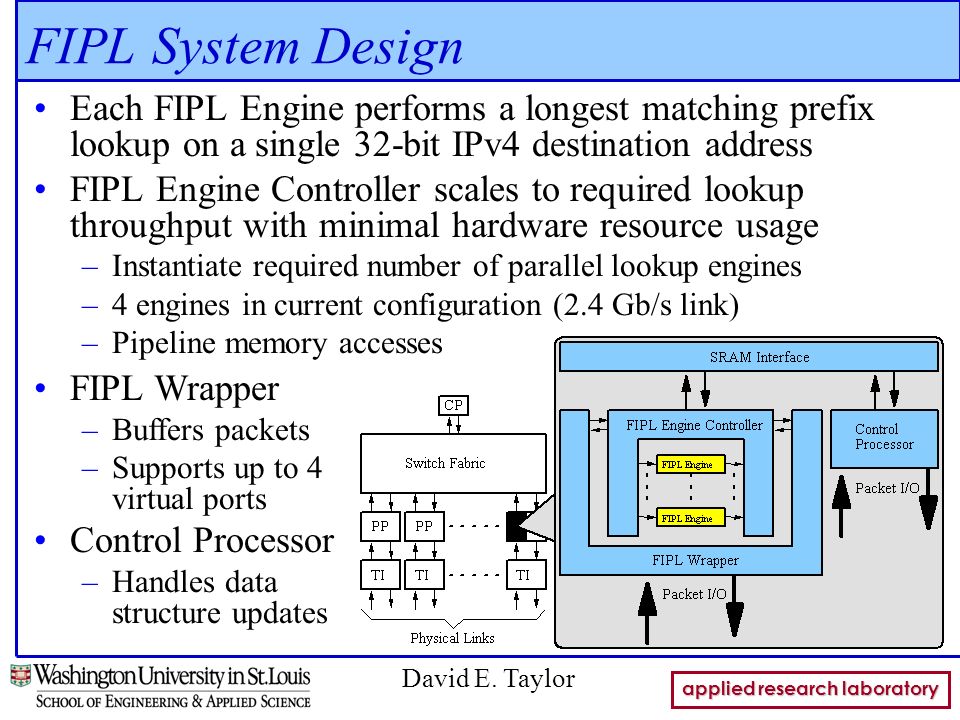

2. applied research laboratory David E. Taylor FIPL System Design Each FIPL Engine performs a longest matching prefix lookup on a single 32-bit IPv4 destination address FIPL Engine Controller scales to required lookup throughput with minimal hardware resource usage –Instantiate required number of parallel lookup engines –4 engines in current configuration (2.4 Gb/s link) –Pipeline memory accesses FIPL Wrapper –Buffers packets –Supports up to 4 virtual ports Control Processor –Handles data structure updates

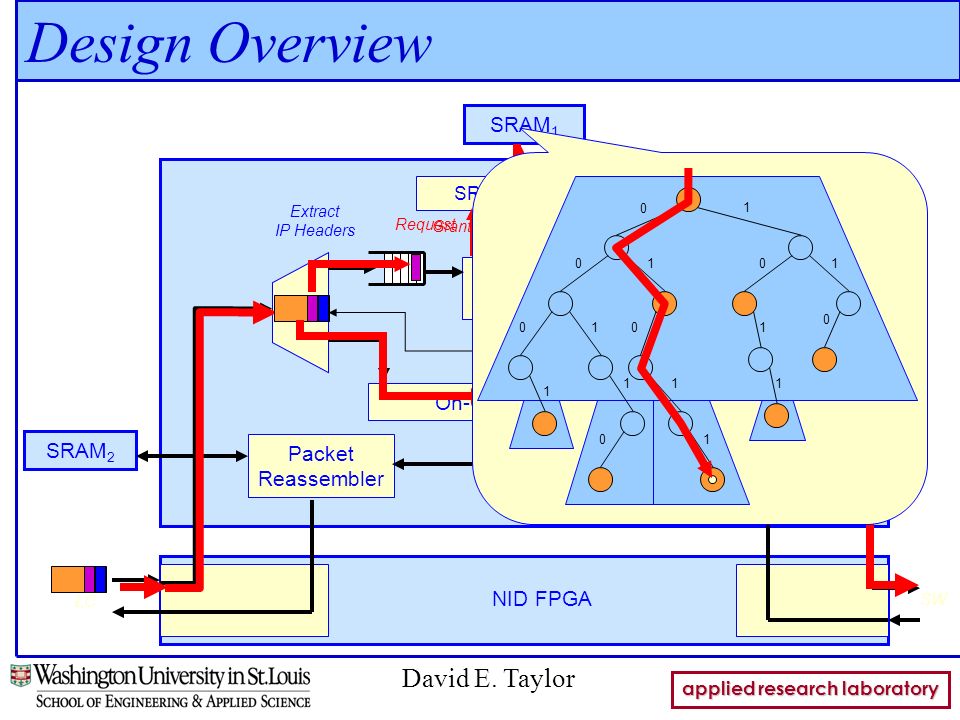

3. applied research laboratory David E. Taylor Design Overview SRAM 1 SRAM 2 IP Lookup Engine counter On-Chip Cell Store SRAM 1 Interface Control Cell Processor Packet Reassembler RAD FPGA NID FPGA Extract IP Headers Remap VCIs for IP packets LC SW Request Grant 0 1 0 00 0 0 0 11 1 11 1 1 1 1

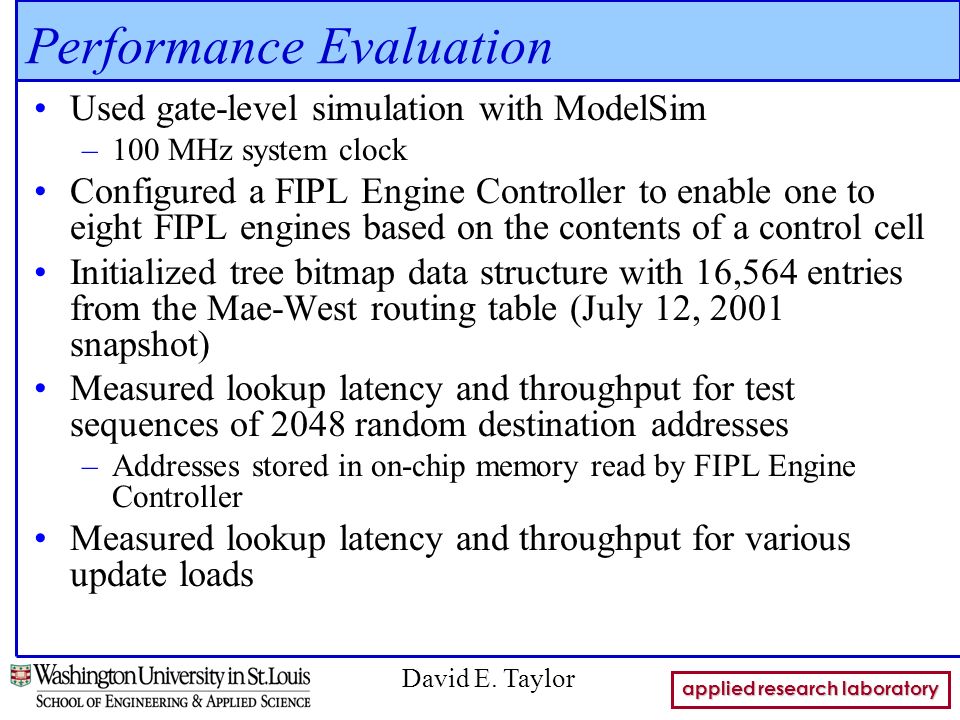

4. applied research laboratory David E. Taylor Performance Evaluation Used gate-level simulation with ModelSim –100 MHz system clock Configured a FIPL Engine Controller to enable one to eight FIPL engines based on the contents of a control cell Initialized tree bitmap data structure with 16,564 entries from the Mae-West routing table (July 12, 2001 snapshot) Measured lookup latency and throughput for test sequences of 2048 random destination addresses –Addresses stored in on-chip memory read by FIPL Engine Controller Measured lookup latency and throughput for various update loads

5. applied research laboratory David E. Taylor Throughput and latency performance

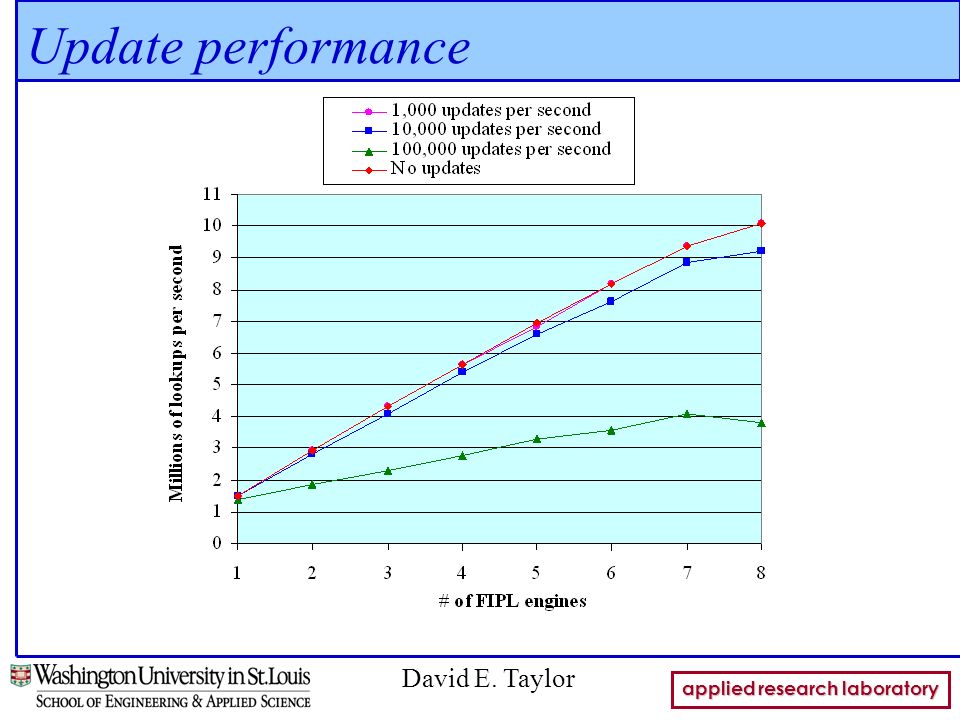

6. applied research laboratory David E. Taylor Update performance

7. applied research laboratory David E. Taylor Performance on WU Research Platform Based on results, a 4 engine configuration was targeted to the WUGS/FPX research platform –Sustained 1.988 Gb/s throughput on single-cell packets = 4.7 M packets/sec  Limited by 2 Gb/s switch interface of FPX (32-bit at 62.5 MHz)  Verified using bandwidth monitoring software, the cell multiplying feature of the WUGS, and four traffic sources sending at different rates with corresponding 24-bit prefix entries in the route table –Utilizes only 8% of available logic resources and 12.5% of on- chip memory resources  4 FIPL Engines and FIPL Engine Controller utilizes 6% of logic resources  FIPL Wrapper utilizes 2% of logic resources and 12.5% of on-chip memory resources

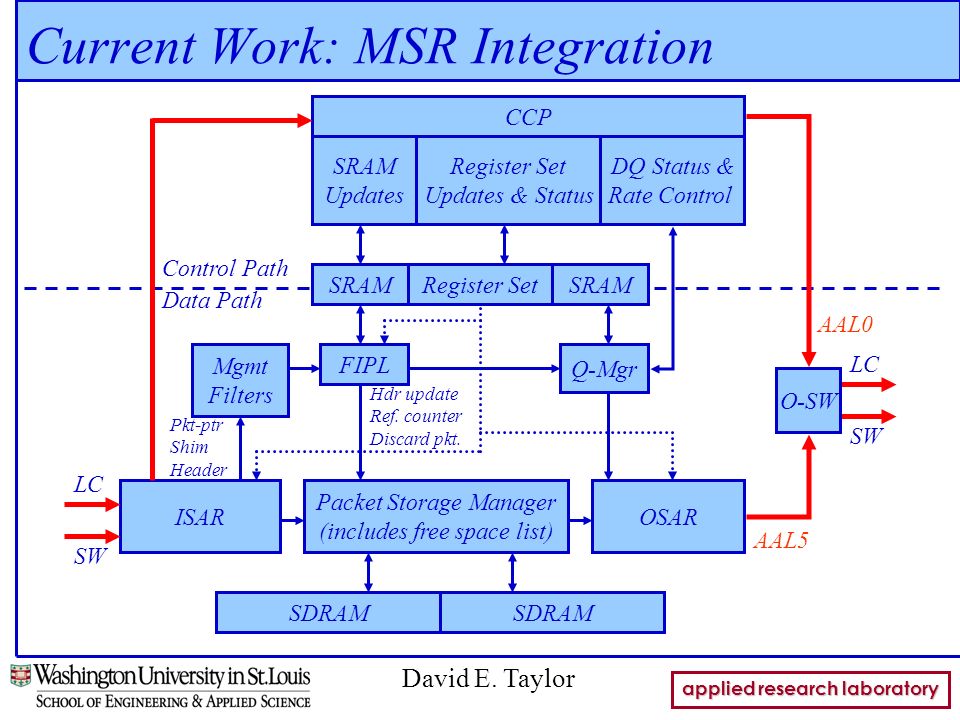

8. applied research laboratory David E. Taylor Current Work: MSR Integration Control Path Data Path SRAM Updates DQ Status & Rate Control Register Set Updates & Status CCPSRAM Register Set FIPL Q-Mgr Mgmt Filters ISAROSAR Packet Storage Manager (includes free space list) SDRAM Pkt-ptr Shim Header Hdr update Ref. counter Discard pkt. LC SW LC SW AAL0 O-SW AAL5

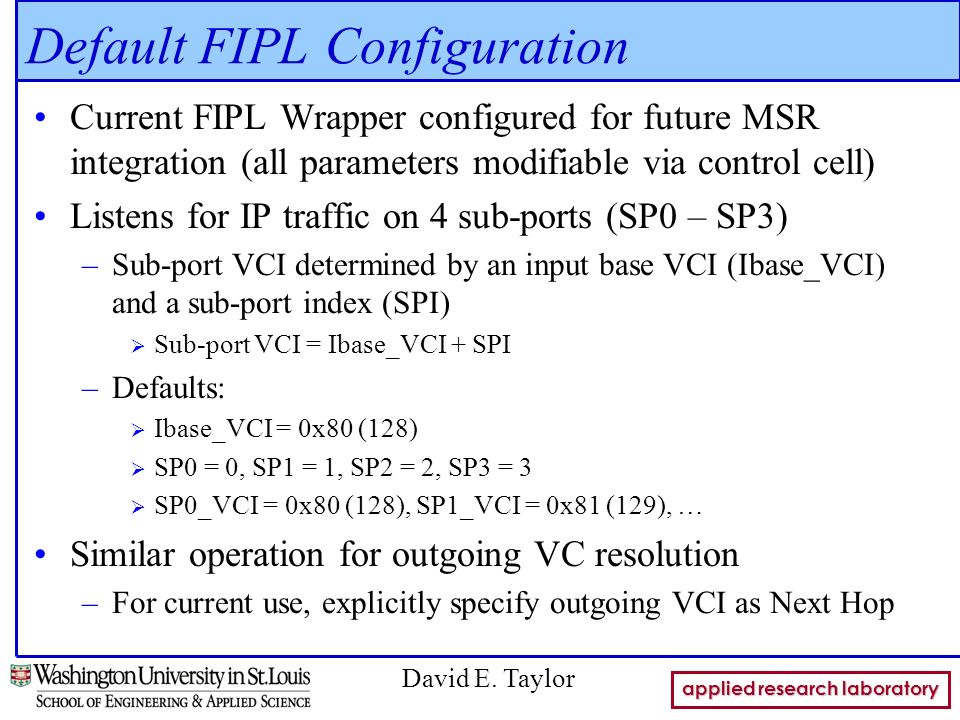

9. applied research laboratory David E. Taylor Default FIPL Configuration Current FIPL Wrapper configured for future MSR integration (all parameters modifiable via control cell) Listens for IP traffic on 4 sub-ports (SP0 – SP3) –Sub-port VCI determined by an input base VCI (Ibase_VCI) and a sub-port index (SPI)  Sub-port VCI = Ibase_VCI + SPI –Defaults:  Ibase_VCI = 0x80 (128)  SP0 = 0, SP1 = 1, SP2 = 2, SP3 = 3  SP0_VCI = 0x80 (128), SP1_VCI = 0x81 (129), … Similar operation for outgoing VC resolution –For current use, explicitly specify outgoing VCI as Next Hop

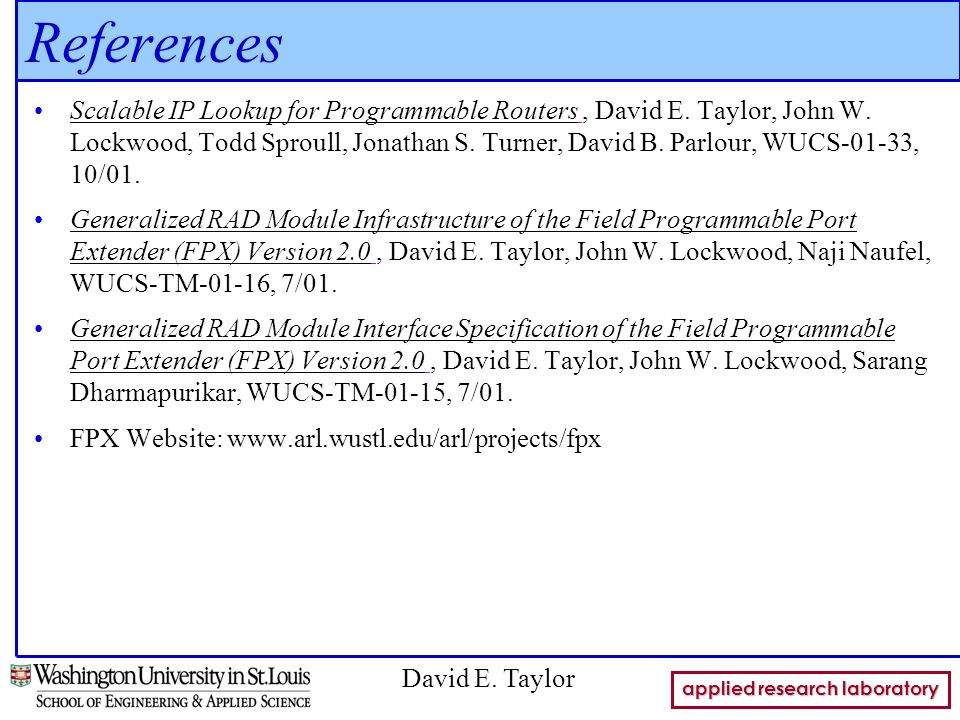

10. applied research laboratory David E. Taylor References Scalable IP Lookup for Programmable Routers, David E. Taylor, John W. Lockwood, Todd Sproull, Jonathan S. Turner, David B. Parlour, WUCS-01-33, 10/01. Generalized RAD Module Infrastructure of the Field Programmable Port Extender (FPX) Version 2.0, David E. Taylor, John W. Lockwood, Naji Naufel, WUCS-TM-01-16, 7/01. Generalized RAD Module Interface Specification of the Field Programmable Port Extender (FPX) Version 2.0, David E. Taylor, John W. Lockwood, Sarang Dharmapurikar, WUCS-TM-01-15, 7/01. FPX Website: www.arl.wustl.edu/arl/projects/fpx

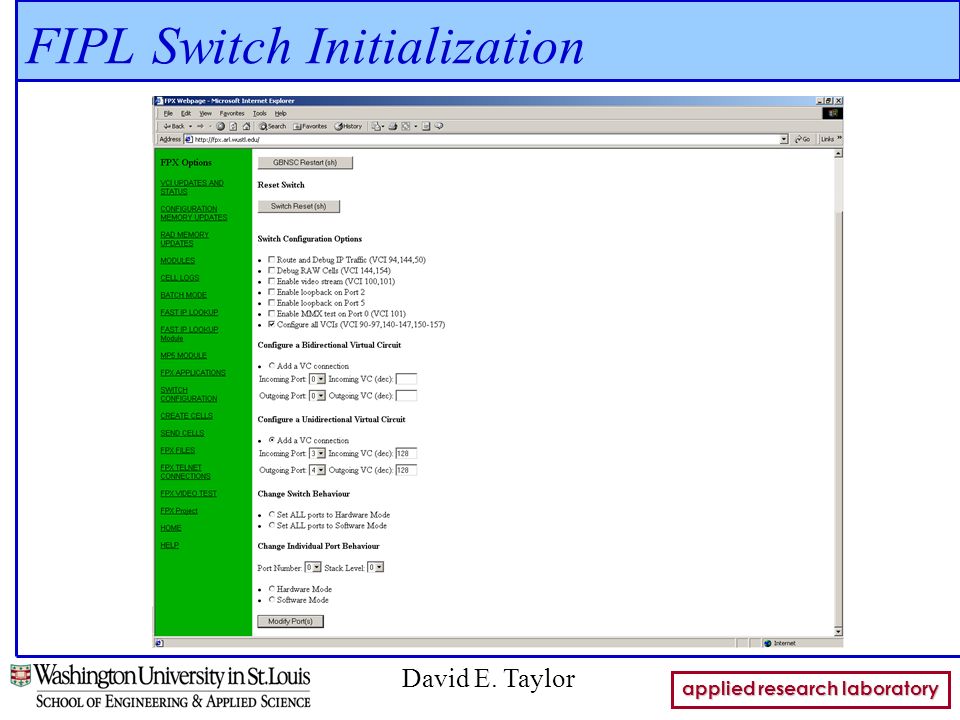

11. applied research laboratory David E. Taylor FIPL Switch Initialization

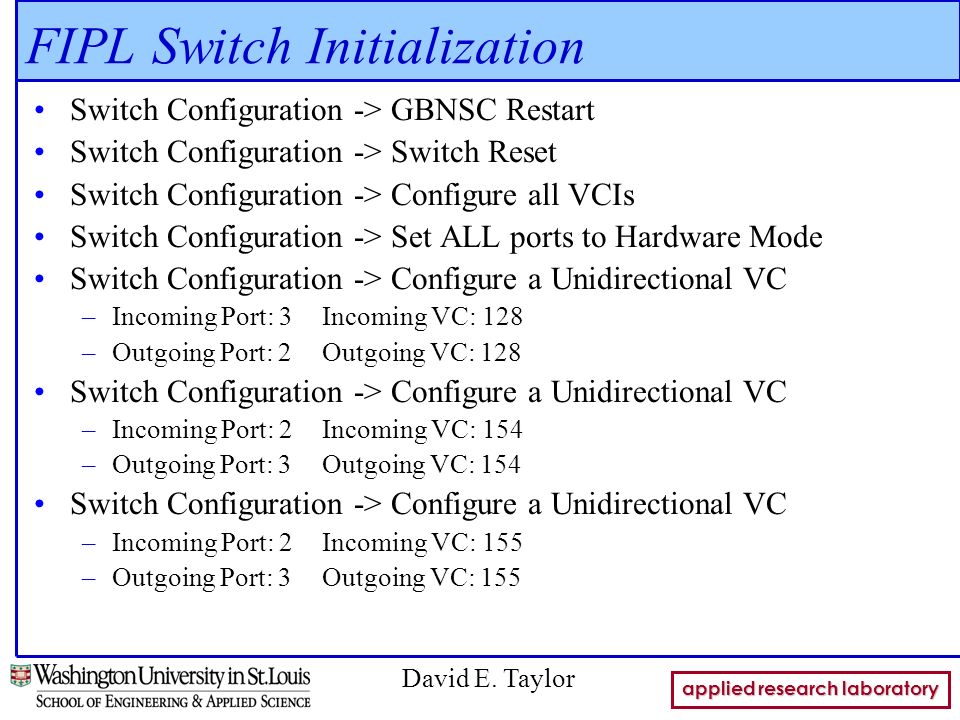

12. applied research laboratory David E. Taylor FIPL Switch Initialization Switch Configuration -> GBNSC Restart Switch Configuration -> Switch Reset Switch Configuration -> Configure all VCIs Switch Configuration -> Set ALL ports to Hardware Mode Switch Configuration -> Configure a Unidirectional VC –Incoming Port: 3Incoming VC: 128 –Outgoing Port: 2Outgoing VC: 128 Switch Configuration -> Configure a Unidirectional VC –Incoming Port: 2Incoming VC: 154 –Outgoing Port: 3Outgoing VC: 154 Switch Configuration -> Configure a Unidirectional VC –Incoming Port: 2Incoming VC: 155 –Outgoing Port: 3Outgoing VC: 155

13. applied research laboratory David E. Taylor FIPL – Control Software FPX Applications –Start Application  NCHARGE on all ports FPX Applications –Start Application  FIPL Memory Manager (Port 2, Stack 0)

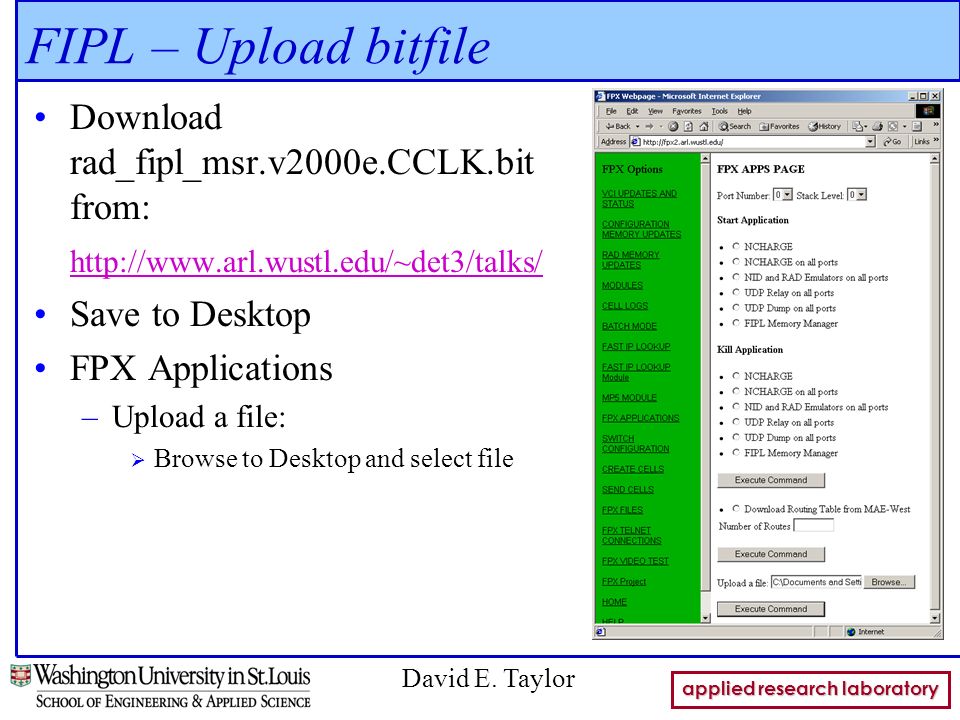

14. applied research laboratory David E. Taylor FIPL – Upload bitfile Download rad_fipl_msr.v2000e.CCLK.bit from: http://www.arl.wustl.edu/~det3/talks/ Save to Desktop FPX Applications –Upload a file:  Browse to Desktop and select file

15. applied research laboratory David E. Taylor FIPL – Programming the RAD Configuration Memory Updates –Complete Configuration (filename given after upload)

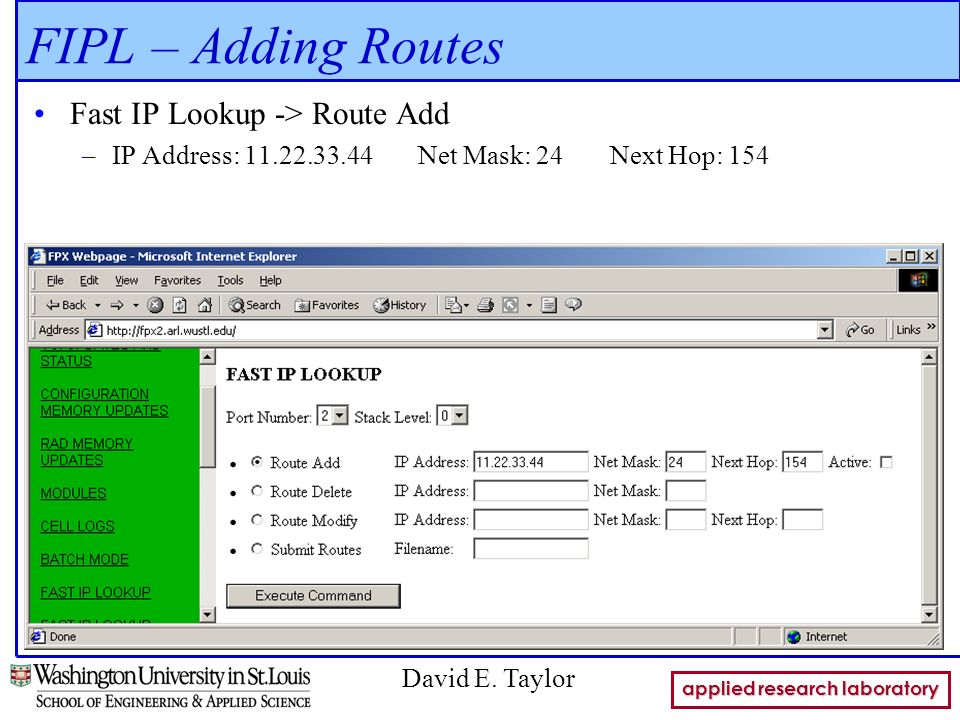

16. applied research laboratory David E. Taylor FIPL – Adding Routes Fast IP Lookup -> Route Add –IP Address: 11.22.33.44Net Mask: 24Next Hop: 154

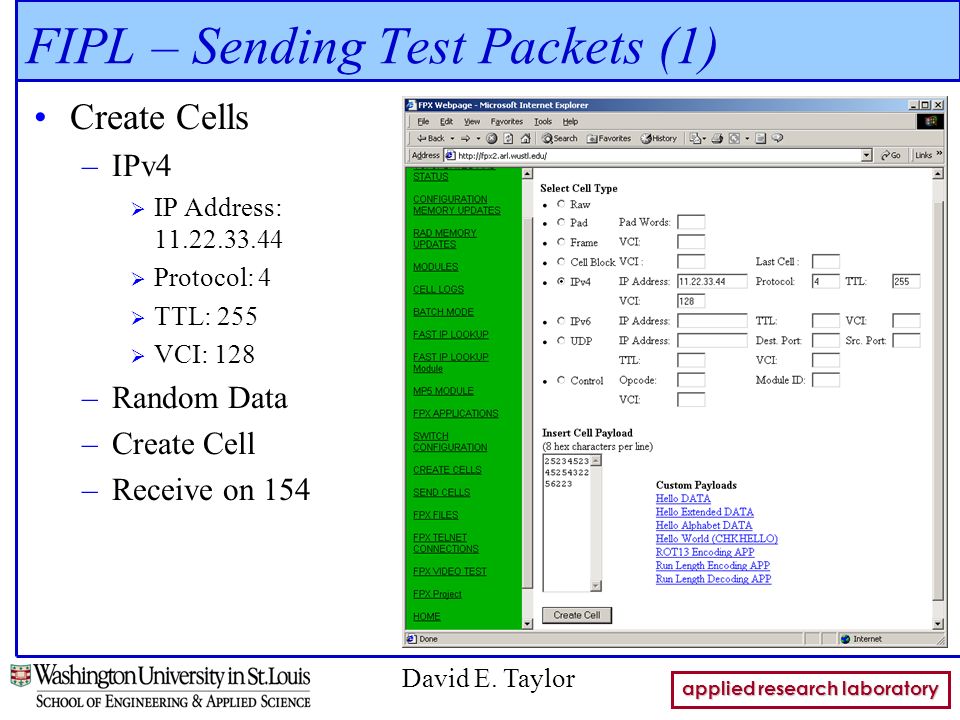

17. applied research laboratory David E. Taylor FIPL – Sending Test Packets (1) Create Cells –IPv4  IP Address: 11.22.33.44  Protocol: 4  TTL: 255  VCI: 128 –Random Data –Create Cell –Receive on 154

18. applied research laboratory David E. Taylor FIPL – Sending Test Packets (2)

19. applied research laboratory David E. Taylor Route Modify and Delete Modify Route 11.22.33.44/24 155 Create Cell 11.22.33.44 (transmit on 128) –Receive on 155 –Receive on 154 (should timeout, no cell received) Add Route 11.22.55.66/16 154 –Create cell 11.22.33.44  Should still receive on 155 (not 154) Delete Route 11.22.33.44/24 –Create cell 11.22.33.44  Should now receive on 154
