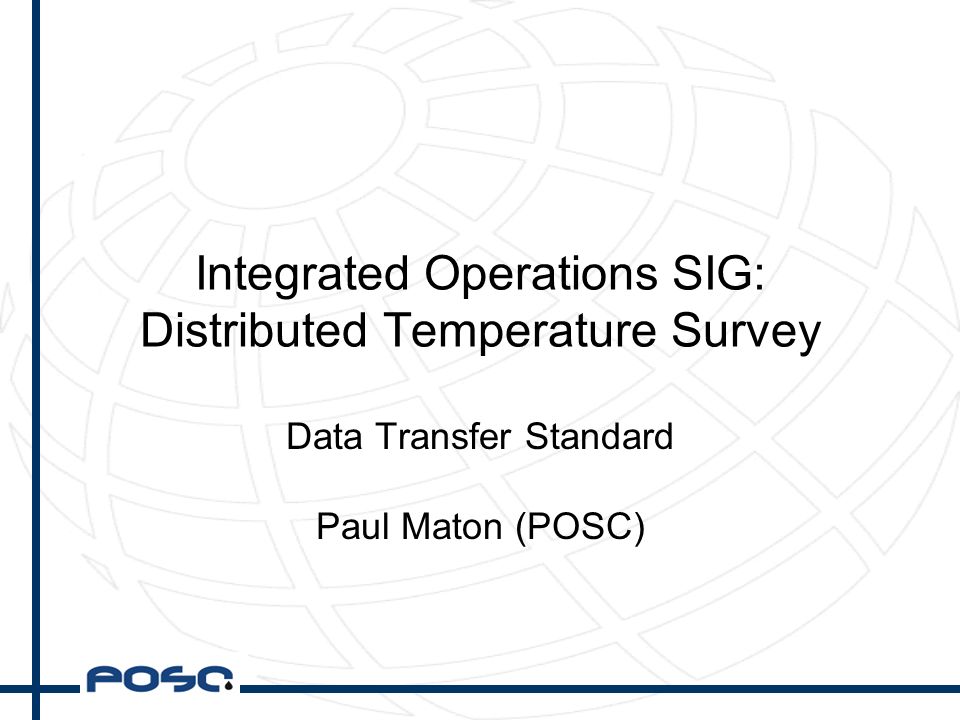

1. Integrated Operations SIG: Distributed Temperature Survey Data Transfer Standard Paul Maton (POSC)

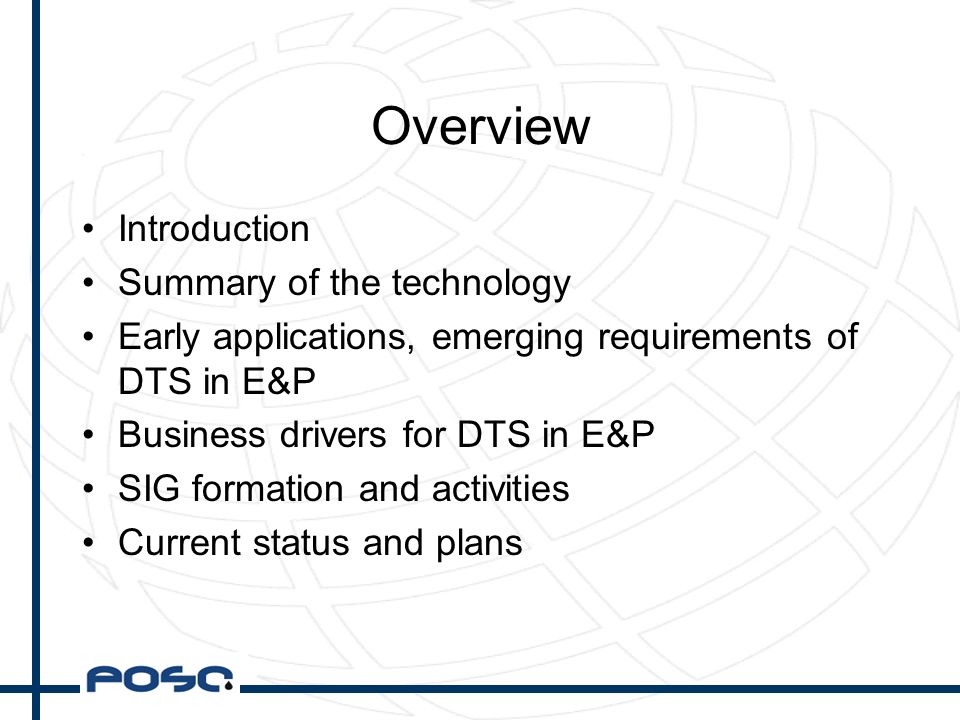

2. Overview Introduction Summary of the technology Early applications, emerging requirements of DTS in E&P Business drivers for DTS in E&P SIG formation and activities Current status and plans

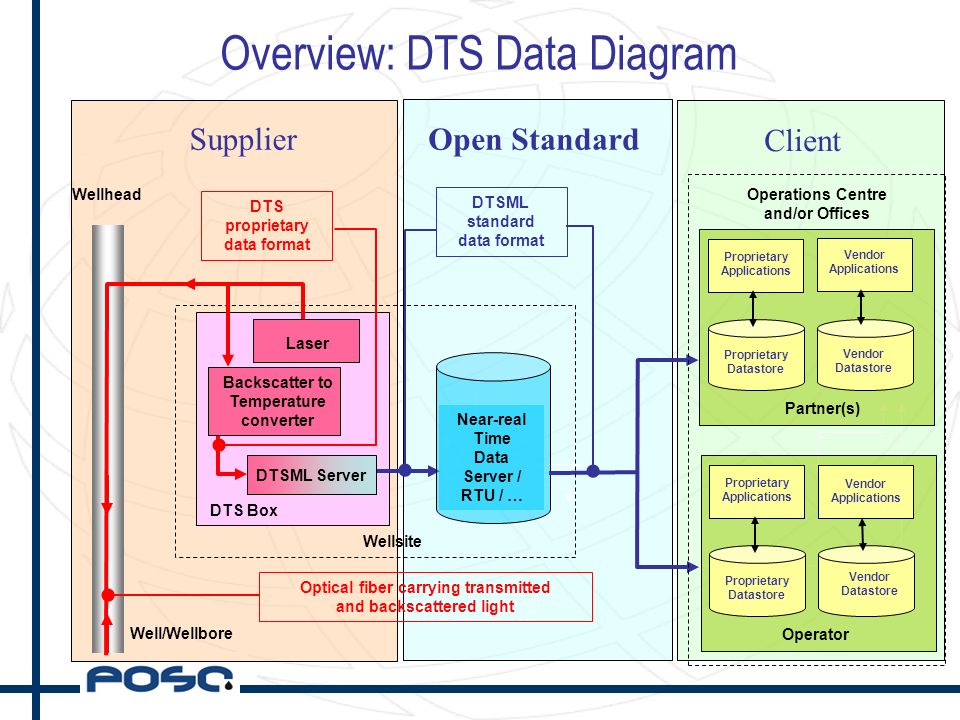

3. DTS proprietary data format Well/Wellbore Backscatter to Temperature converter Near-real Time Data Server / RTU / … Vendor Datastore Vendor Applications Proprietary Datastore Proprietary Applications Partner(s) Wellsite Operations Centre and/or Offices DTSML standard data format Overview: DTS Data Diagram Vendor Datastore Vendor Applications Proprietary Datastore Proprietary Applications Operator Wellhead Optical fiber carrying transmitted and backscattered light DTSML Server Laser DTS Box SupplierOpen Standard Client

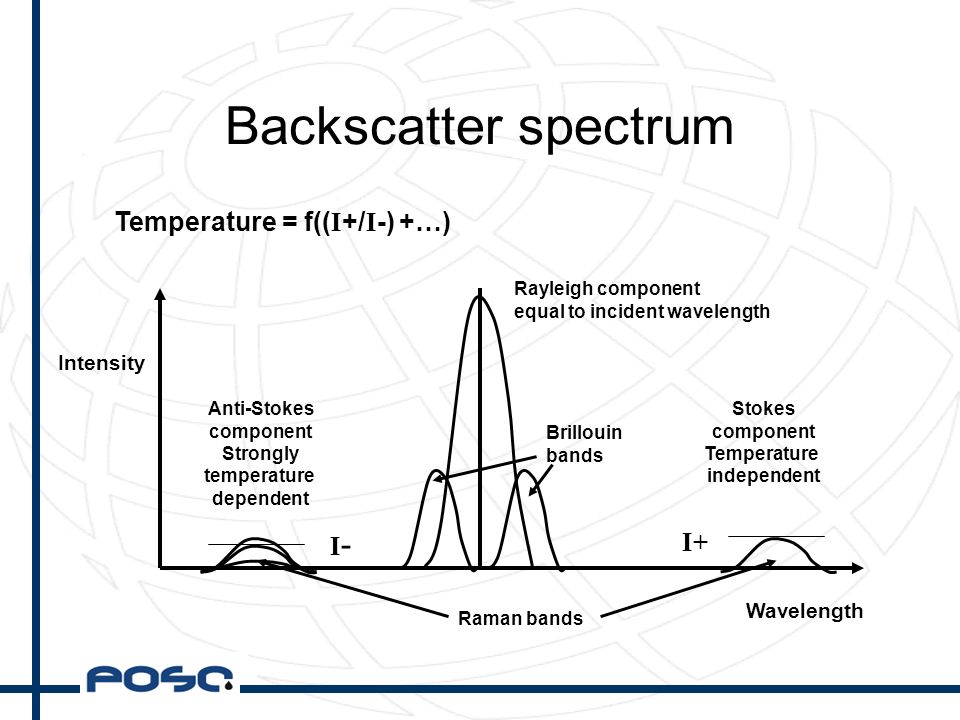

4. Backscatter spectrum Stokes component Temperature independent Raman bands Wavelength Intensity Brillouin bands Rayleigh component equal to incident wavelength Anti-Stokes component Strongly temperature dependent Temperature = f(( I +/ I -) +…) I-I- I+

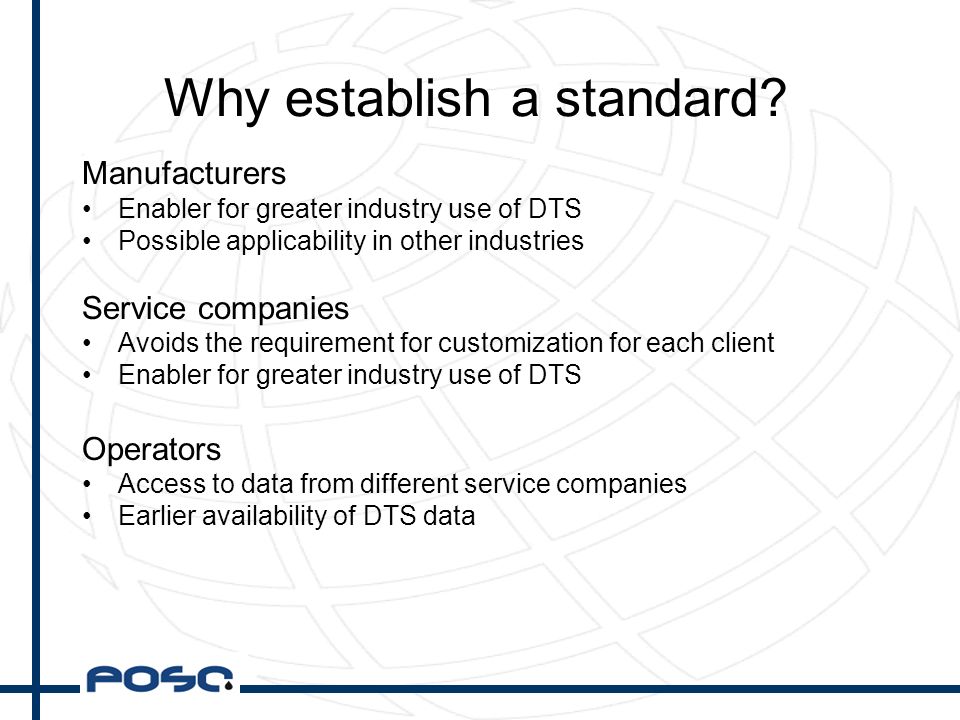

5. Why establish a standard? Manufacturers Enabler for greater industry use of DTS Possible applicability in other industries Service companies Avoids the requirement for customization for each client Enabler for greater industry use of DTS Operators Access to data from different service companies Earlier availability of DTS data

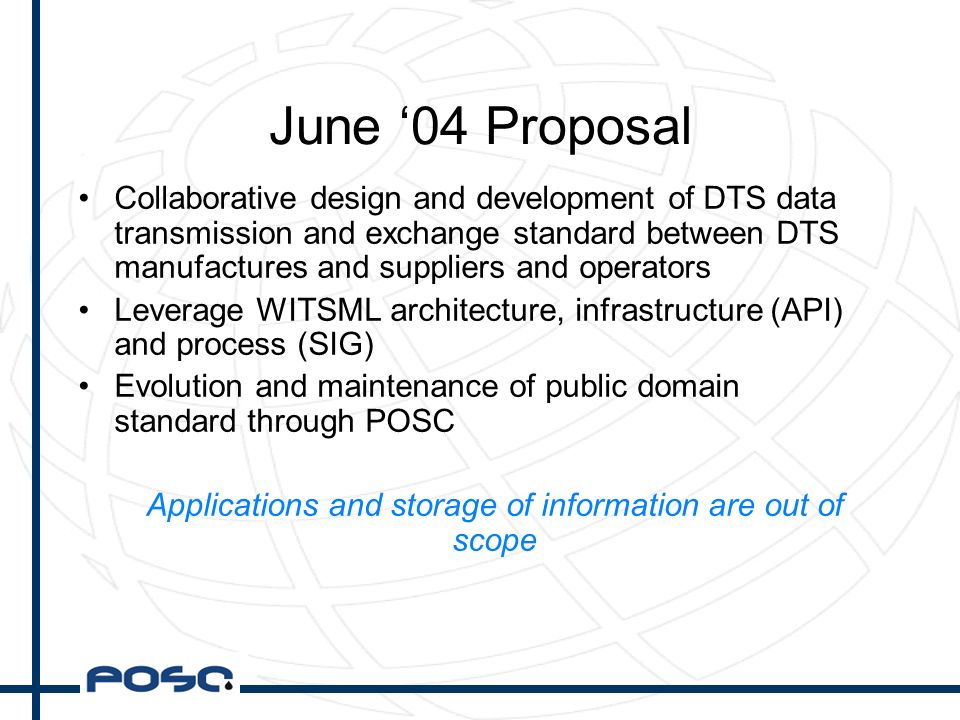

6. June ‘04 Proposal Collaborative design and development of DTS data transmission and exchange standard between DTS manufactures and suppliers and operators Leverage WITSML architecture, infrastructure (API) and process (SIG) Evolution and maintenance of public domain standard through POSC Applications and storage of information are out of scope

7. Deliverables Definition of data content requirements Standard vocabulary and thesaurus of vendor specific terminology to standard Analysis of the usability of the candidate technologies (XML, WITSML, OPC) Revision of the draft XML implementation proposed by BP –based on WITSML, will include schema, stylesheet, sample DTS data, and documentation

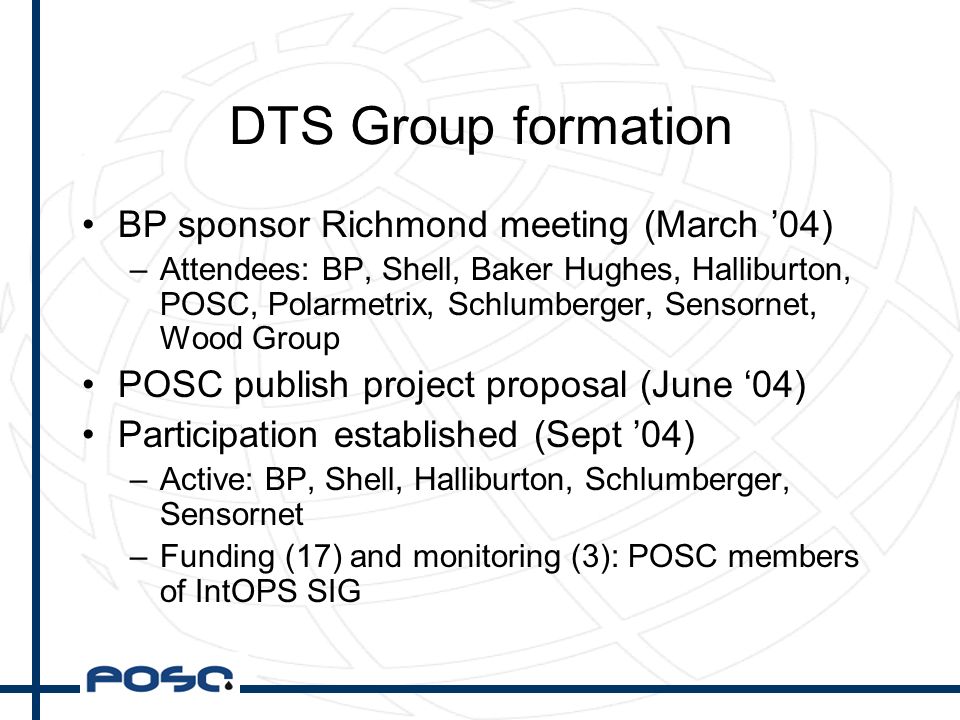

8. DTS Group formation BP sponsor Richmond meeting (March ’04) –Attendees: BP, Shell, Baker Hughes, Halliburton, POSC, Polarmetrix, Schlumberger, Sensornet, Wood Group POSC publish project proposal (June ‘04) Participation established (Sept ’04) –Active: BP, Shell, Halliburton, Schlumberger, Sensornet –Funding (17) and monitoring (3): POSC members of IntOPS SIG

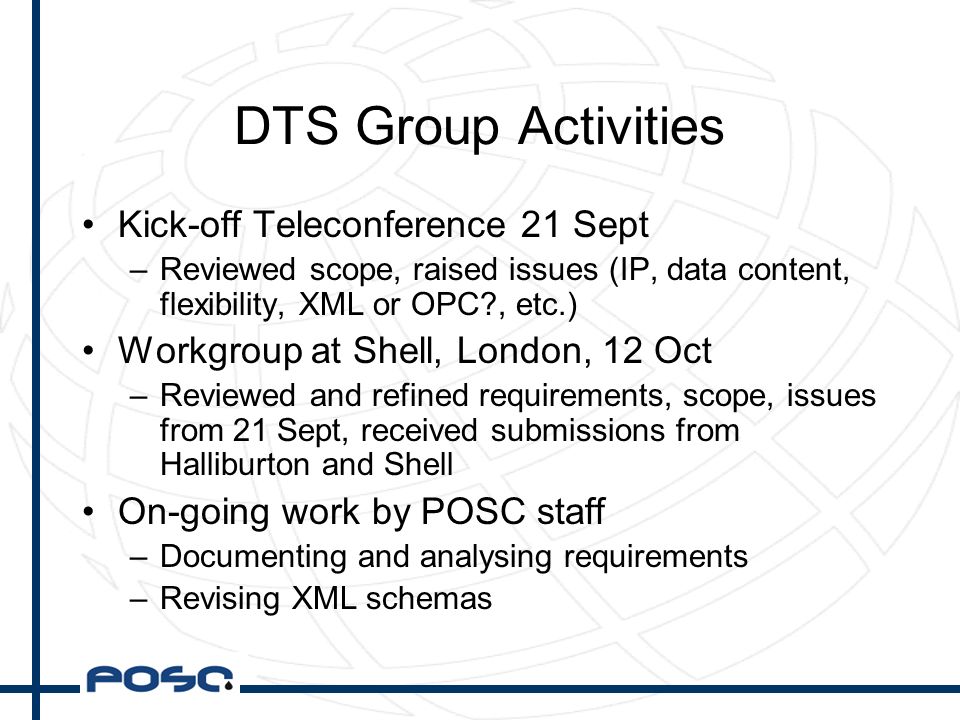

9. DTS Group Activities Kick-off Teleconference 21 Sept –Reviewed scope, raised issues (IP, data content, flexibility, XML or OPC?, etc.) Workgroup at Shell, London, 12 Oct –Reviewed and refined requirements, scope, issues from 21 Sept, received submissions from Halliburton and Shell On-going work by POSC staff –Documenting and analysing requirements –Revising XML schemas

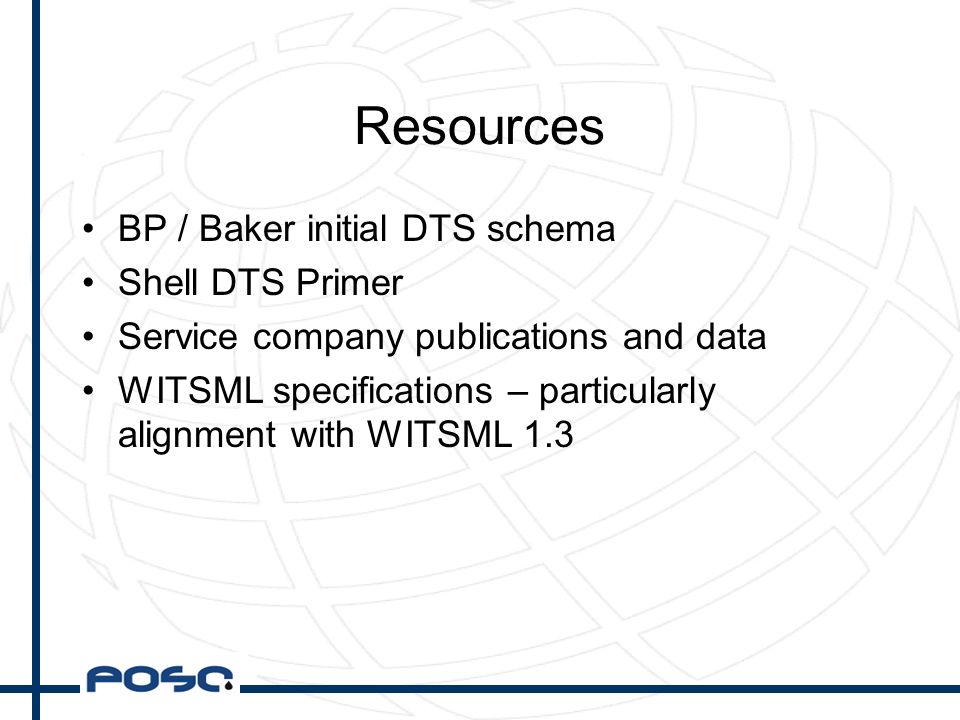

10. Resources BP / Baker initial DTS schema Shell DTS Primer Service company publications and data WITSML specifications – particularly alignment with WITSML 1.3

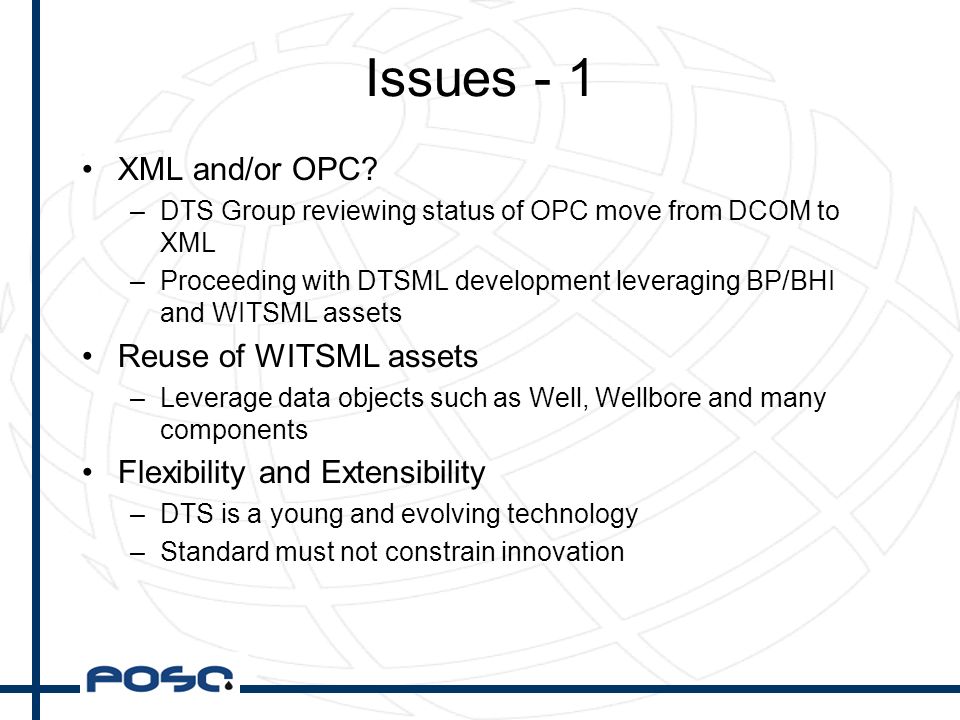

11. Issues - 1 XML and/or OPC? –DTS Group reviewing status of OPC move from DCOM to XML –Proceeding with DTSML development leveraging BP/BHI and WITSML assets Reuse of WITSML assets –Leverage data objects such as Well, Wellbore and many components Flexibility and Extensibility –DTS is a young and evolving technology –Standard must not constrain innovation

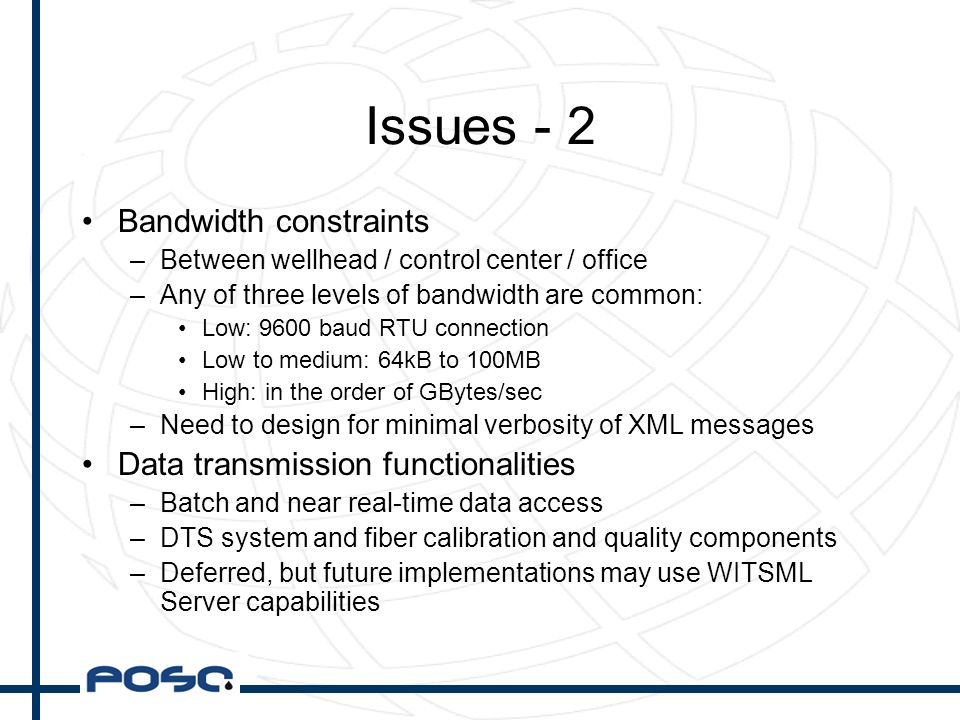

12. Issues - 2 Bandwidth constraints –Between wellhead / control center / office –Any of three levels of bandwidth are common: Low: 9600 baud RTU connection Low to medium: 64kB to 100MB High: in the order of GBytes/sec –Need to design for minimal verbosity of XML messages Data transmission functionalities –Batch and near real-time data access –DTS system and fiber calibration and quality components –Deferred, but future implementations may use WITSML Server capabilities

13. Requirements - 1 System installation data –Well and wellbore contextual data –Fiber and ‘DTS box’ contextual data –Permanent and temporary installations –Various fiber installation patterns –Interchange of equipment Calibration of DTS system and data to wellbore –Determining position of DTS measurements along fiber and in wellbore –Calibrations used to convert Stokes/Anti-Stokes intensity ratio to temperature and apply other corrections OTDR (Optical Time Domain Reflectometry): –self-checking fiber and system functionality

14. Requirements – 2 DTS data types –Stokes, anti-Stokes, OTDR, raw Temperature, calibrated Temperature –Routine ability to select all or some of the above Flexible DTS Message Content –Enable selection of calibration, context and temperature types for particular purposes –Need to satisfy transfers between wellsite to office, office to wellsite, and office to office

15. (DTS) Fiber configuration patterns Single straight fiber Single straight fiber plus independent sensor Partially returned fiber or ‘J’ Fully returned fiber or ‘U’ Wellhead level

16. Outline DTS Message Data Model dtsMessage uidMessage, dTim, …. dtsBox mfr, serial#, dTim… dtsCalibration(s) Attributes OTDR 0..n*[ I rayleigh ] fiber mfr, serial#, … fiberInWellbore length, mD, dTim… wellbore nameWellbore, … well nameWell, field… temperatures dTim, Stokes, antiStokes, tRaw, tCal

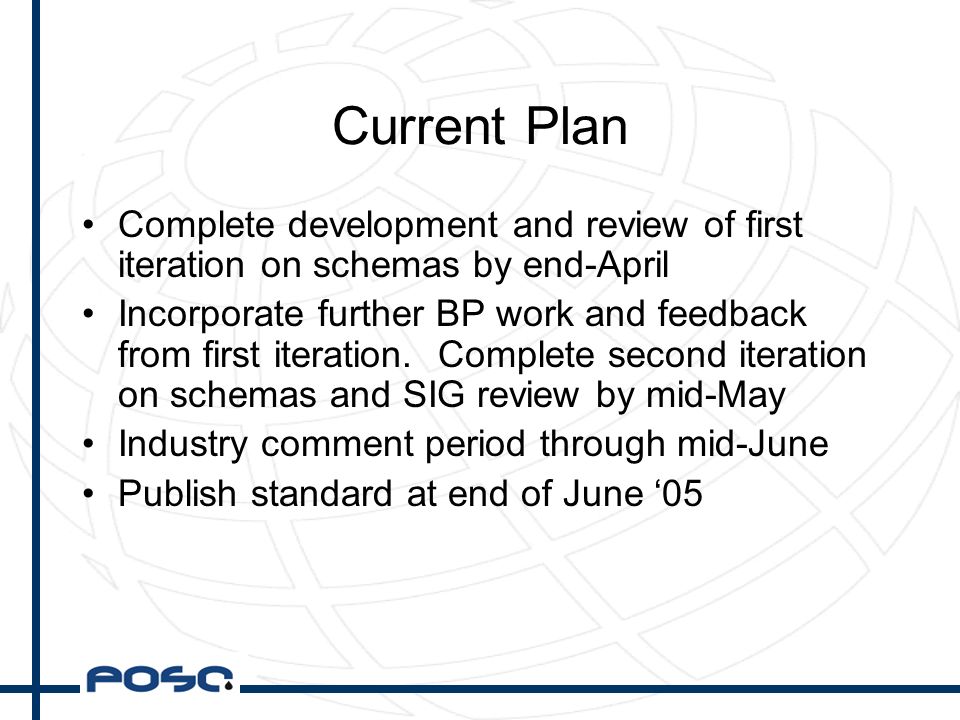

17. Current Plan Complete development and review of first iteration on schemas by end-April Incorporate further BP work and feedback from first iteration. Complete second iteration on schemas and SIG review by mid-May Industry comment period through mid-June Publish standard at end of June ‘05

18. Conclusions Business case exists for DTS data transfer standard: with benefits to Operators, Service Companies and DTS system manufacturers Clear, focussed objectives and community of interest established Requirements, Issues and Resources collected, analysed, draft schemas and documentation in preparation. Publication of standard anticipated in June ’05, within 9-months from Kick-off. Further participation is invited in reviews and subsequent implementation pilot(s)

19. More information from Paul Maton maton@posc.orgmaton@posc.org Tel: +44 1932 828794

20. Context Initiation BP hosted meeting in March 2004, Richmond –Proposed a new DTS data standard –Sought support from service and oil companies –Scope proposed as data transfer only –Recommendation to pursue through POSC POSC SIG meetings (June 04 Stavanger, Houston) –Presented project proposal

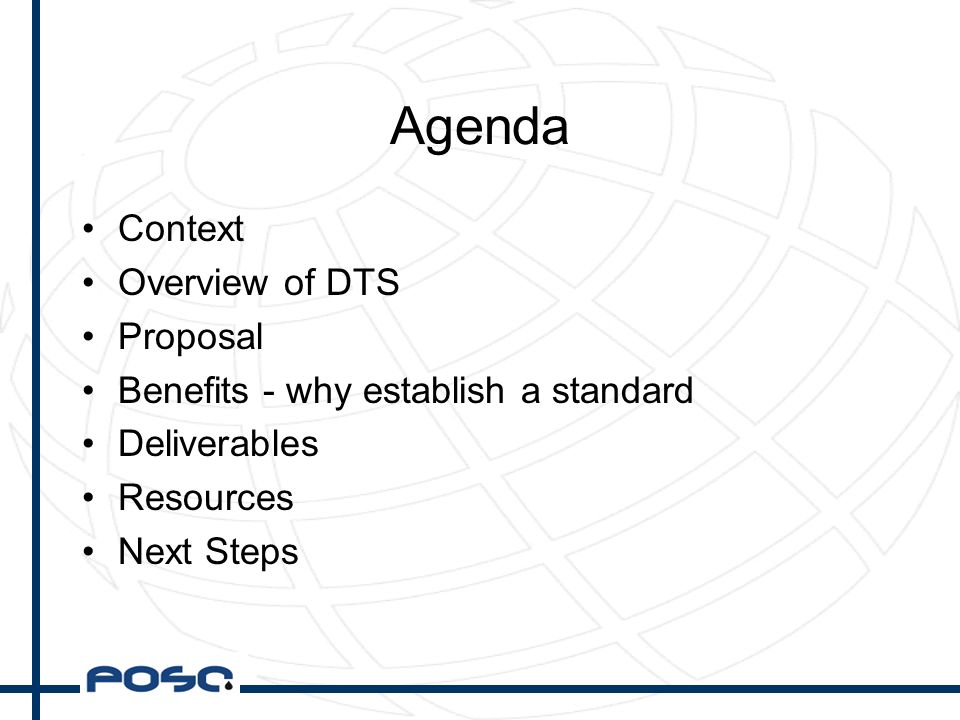

21. Agenda Context Overview of DTS Proposal Benefits - why establish a standard Deliverables Resources Next Steps

22. Potential Resources Funding –POSC IntegratedOperations SIG SIG funding needed for requirements and facilitation Optionally from existing SIG members who elect to support DTS Additionally from members who join SIG to support DTS –Supplementary sponsorship POSC internal resources for XML Schema work Additional cash to cover any shortfall Expertise –Operators, Oil Service companies, DTS system manufacturers, POSC

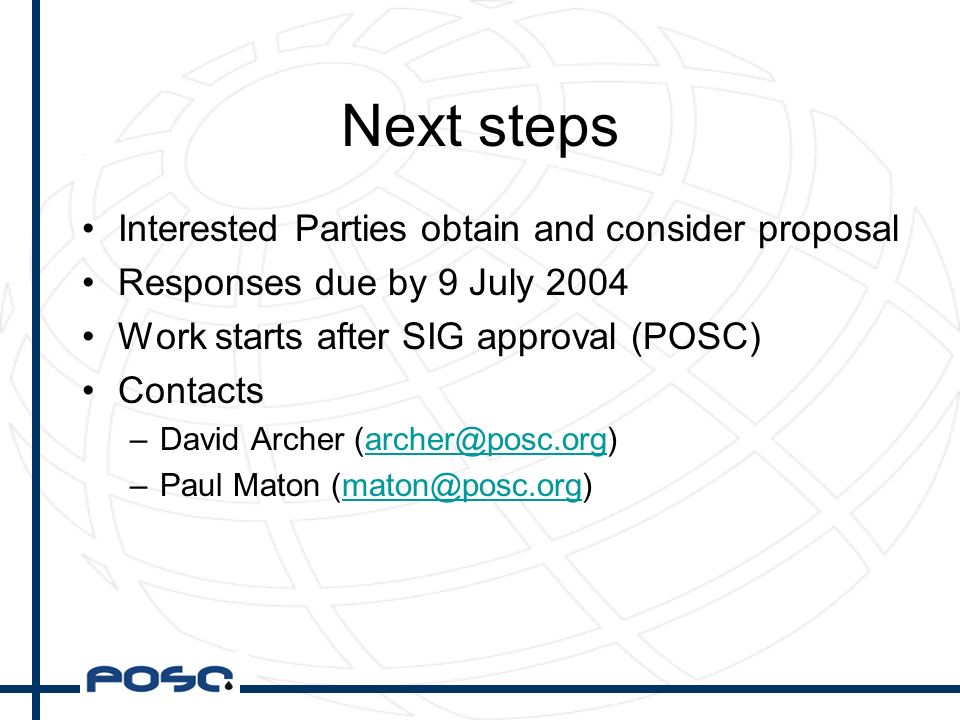

23. Next steps Interested Parties obtain and consider proposal Responses due by 9 July 2004 Work starts after SIG approval (POSC) Contacts –David Archer (archer@posc.org)archer@posc.org –Paul Maton (maton@posc.org)maton@posc.org
