Force A push or pull exerted on an object..

Similar presentations

Presentation on theme: "Force A push or pull exerted on an object.."— Presentation transcript:

1 Force A push or pull exerted on an object.

2 Forces… Forces are vectors Net Force
Have both magnitude and directions Net Force Vector sum of all forces acting on a body When the net force on an object is zero, the object is in equilibrium In otherwords, the acceleration is zero.

3 Force & Motion Forces cause accelerations Change in velocity
Speed and/or direction Consider the book on the table. In order for the book to move, an unbalanced force has to act on the book.

4 Systems When considering how a force affects motion, it is important to identify the object of interest. This object is called the system. Everything around the object that exerts forces on it is called the external world. The identifiable cause is called an agent.

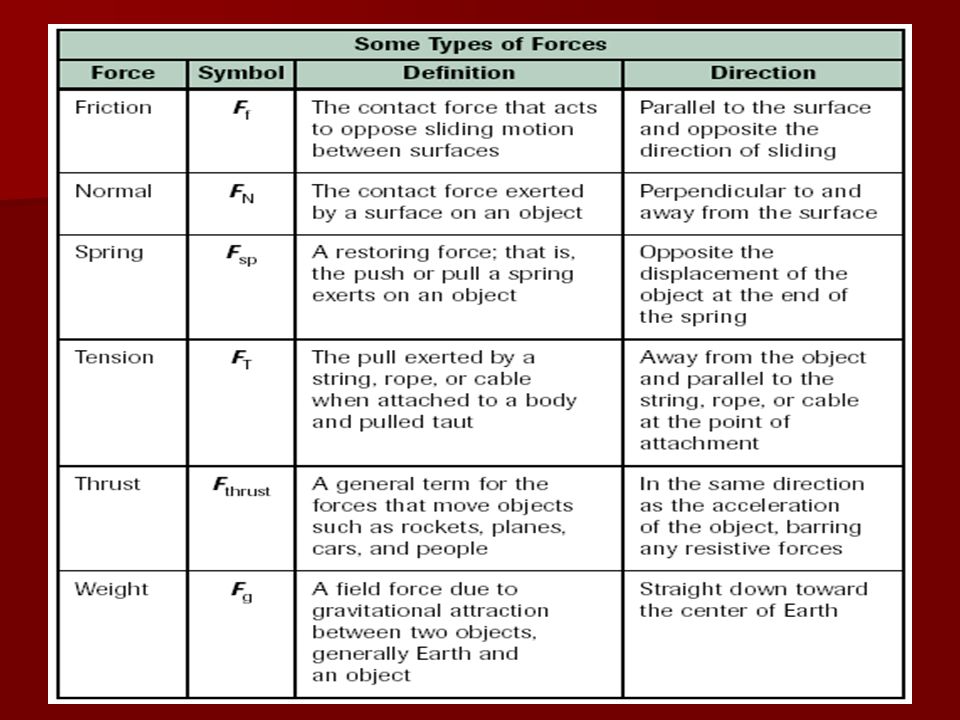

5 Contact Forces A contact force exists when an object from the external world touches a system and thereby exerts a force on it. Tension Friction Applied Normal

6 Field Forces Field forces are exerted without contact. Electrical
Also known as non contact forces or action at distances forces Magnetic Gravitational Electrical


8 Free Body Diagram Free Body Diagram: a physical model that shows all the forces acting on the system. Each force is drawn as a vector leading away from the object. *Must be drawn for every problem

9 FBD Example A car accelerating to the right experiencing friction.
Normal Friction Applied Weight

10 Newton’s First Law Also known as the law of inertia!!!
An object in motion, stays in motion; an object at rest stays at rest unless acted on by a net force. Also known as the law of inertia!!!

11 Inertia…

12 Inertia An object’s resistance to change its state of motion.
An object’s mass is a measurement of the object’s inertia. The more mass an object has, the more resistance it will have to change its state of motion.

13 Mass vs. Weight Mass Weight Amount of matter present in an object
Constant – same everywhere in the universe A measurement of an object’s inertia Measured using a BALANCE Weight Force due to gravity W = mg Changes as the acceleration due to gravity changes Measured using a SCALE

14 Newton’s 2nd Law Acceleration is directly proportional to the net force acting on the object and inversely proportional to the object’s mass. F = ma

15 F = ma F = force m = mass a = acceleration Measured in Newtons
Measured in kilograms a = acceleration Measured in m/s2

16 Newton’s 3rd Law For every action force there is an equal and opposite reaction force.

17 Interactions All forces result from interactions between objects.
Action-Reaction force pairs act on different objects. Action-Reaction forces do NOT cancel out because they act on different objects.
