1. HDD Partition Setup Insert Booting Diskette to A: drive and turn on the power. Then it will be boot by floppy diskette. 1 Type FDISK and press Enter.

Similar presentations


Presentation on theme: "1. HDD Partition Setup Insert Booting Diskette to A: drive and turn on the power. Then it will be boot by floppy diskette. 1 Type FDISK and press Enter."— Presentation transcript:

1 1. HDD Partition Setup Insert Booting Diskette to A: drive and turn on the power. Then it will be boot by floppy diskette. 1 Type FDISK and press Enter key 2 Why does DVR have to be divided partition in Hard disk. As DigiNet save data to Hard disk, DVR is not overwrite to Hard disk but automatically format drive and save data to Hard disk. 1. After installing DVR and perform DVR at the beginning, format drive D and save data. 2. Automatically format drive E, if D drive is full. 3. Rest of the drive will be proceeded as same as No.2 4. If Hard drive is full, automatically format drive D again and save data and previous data will not be existed. Therefore, each partition of drive will be divided as possible as small size(1~2GB), but is need for your attention, if you have plan to add Hard disk. Each saving data drive will be divided from D to Y maximally If it is included backup system, the system will be required a drive, so last two drives will be made for backup. Microsoft(R) Windows 98 (C) Copyright Microsoft Corp 1981-1999 A:\> A:\>FDISK This is the example of FDISK when 20GB Hard is installed.

2 HDD Size is over 2GB, so press Enter key 3 You computer has a disk larger than 512 MB. This version of Windows includes improved support for large disks. Resulting in more efficient use of disk space on large drivers, and allowing disks over 2 GB to be IMPORTANT : If you enable large disk support and create any new drives on this Disk, you will not be able to access the new drive(s) using other operating system, including some versions of Windows 95 and Windows NT, as well as earlier versions of Windows of Windows and MS-DOS. In addition, disk utilities that Were not designed explicitly for the FAT32 files system will not be able To work with this disk. If you need to access this disk with other operating systems or older disk utilities, do not enable large drive support. Do you wish to enable large disk support (Y/N)……………………..….? [Y] Should be created Dos partition is Logical Dos drive, so press Enter key 4 Microsoft Windows 98 Fixed Disk Setup Program (C) Copyright Microsoft Corp. 1983 – 1998 FDISK Options Current fixed disk drive : 1 Choose one of the following: 1. Create DOS partition or Logical DOS Drive 2. Set active partition 3. Delete partition or Logical DOS Drive 4. Display partition information 5. Change current fixed disk drive Enter choice : [1] Press Esc to exit FDISK

3 First, it should be created primary Dos partition. 5 Create DOS Partition or Logical DOS Drive Current fixed disk drive : 1 Choose one of the following : 1. Create Primary DOS Partition 2. Create Extended DOS Partition 3. Create Logical DOS Drive(s) in the Extended DOS Partition Enter choice : [1] Press Esc to return to FDISK Options Create Primary DOS Partition Current fixed disk drive : 1 Verifying drive integrity, 10% Complete. Create Primary DOS Partition Current fixed disk drive : 1 Do you wish to use the maximum available size for a Primary DOS Partition (Y/N)………………………………………………………………….? [Y] Press Esc to return to FDISK Options Check to drive

4 Create Primary DOS Partition Current fixed disk drive : 1 Total disk space is 19571 Mbytes (1 Mbyte = 1048576 bytes) Verifying drive integrity, 14% Complete. Type N then press Enter key 6 Create Primary DOS Partition Current fixed disk drive : 1 Total disk space is 19571 Mbytes (1 Mbyte= 1048576 bytes) Maximum space available for partition is 19571 Mbytes (100%) Enter partition size in Mbytes or percent of disk space (%) to create a Primary DOS Partition……………………………………………………[19571] Press Esc to return to FDISK Options Check to drive Create Primary DOS Partition Current fixed disk drive : 1 Do you wish to use the maximum available size for a Primary DOS Partition (Y/N)………………………………………………………………….? [N] Press Esc to return to FDISK Options This is to create Primary DOS partition

5 Type 2048 then press Enter key 7 Create Primary DOS Partition Current fixed disk drive : 1 Partition Status Type Volume Label Mbytes System Usage C: 1 PRI DOS 2048 UNKNOWN 10% Primary DOS Partition created, drive letters changed or added Press Esc to Continue Press Enter key 9 Press Esc key 8 Create Primary DOS Partition Current fixed disk drive : 1 Total disk space is 19571 Mbytes (1 Mbyte= 1048576 bytes) Maximum space available for partition is 19571 Mbytes (100%) Enter partition size in Mbytes or percent of disk space (%) to create a Primary DOS Partition……………………………………………………[2048] Press Esc to return to FDISK Options Microsoft Windows 98 Fixed Disk Setup Program (C) Copyright Microsoft Corp. 1983 – 1998 FDISK Options Current fixed disk drive : 1 Choose one of the following: 1. Create DOS partition or Logical DOS Drive 2. Set active partition 3. Delete partition or Logical DOS Drive 4. Display partition information 5. Change current fixed disk drive Enter choice : [1] Press Esc to exit FDISK

6 Type 2 then press Enter key 10 Create Extended DOS Partition Current fixed disk drive : 1 Partition Status Type Volume Label Mbytes System Usage C: 1 PRI DOS 2048 UNKNOWN 10% Verifying drive integrity, 19% Complete. Create Extended DOS Partition Current fixed disk drive : 1 Partition Status Type Volume Label Mbytes System Usage C: 1 PRI DOS 2048 UNKNOWN 10% Total disk space is 19571 Mbytes (1 Mbyte= 1048576 bytes) Maximum space available for partition is 17524 Mbytes (90%) Enter partition size in Mbytes or percent of space (%) to create an Extended DOS Partition.………………………………………………[17524] Press Esc to return to FDISK Options. This step is to Create Extended DOS partition Press Enter key Check to drive 11 Create DOS Partition or Logical DOS Drive Current fixed disk drive : 1 Choose one of the following : 1. Create Primary DOS Partition 2. Create Extended DOS Partition 3. Create Logical DOS Drive(s) in the Extended DOS Partition Enter choice : [2] Press Esc to return to FDISK Options

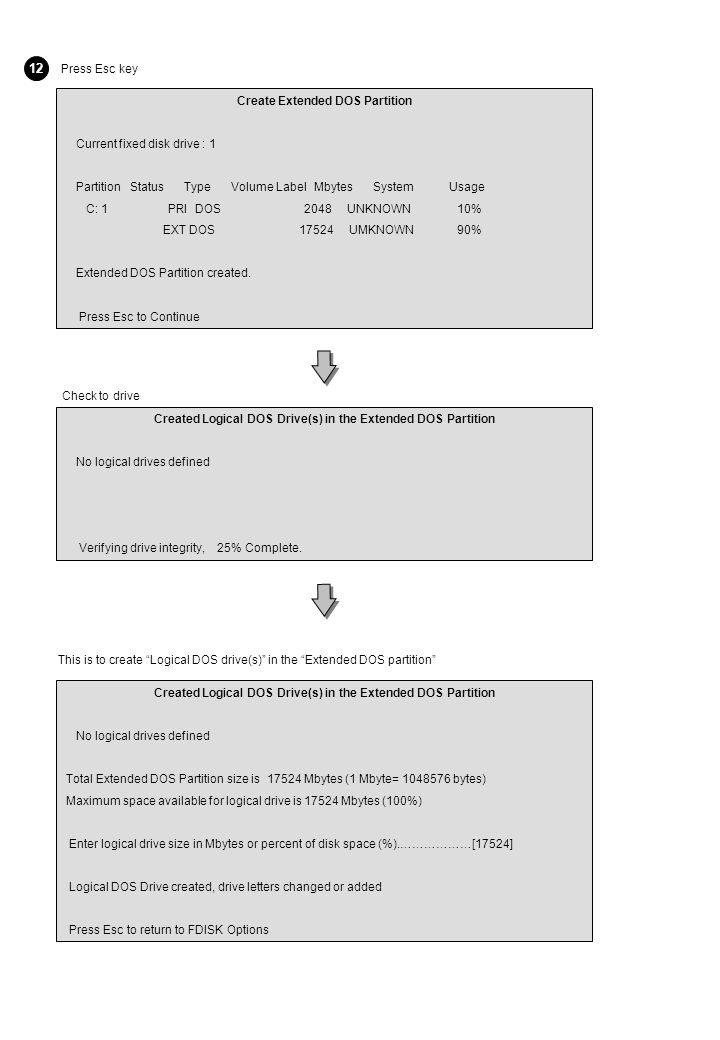

7 Press Esc key Create Extended DOS Partition Current fixed disk drive : 1 Partition Status Type Volume Label Mbytes System Usage C: 1 PRI DOS 2048 UNKNOWN 10% EXT DOS 17524 UMKNOWN 90% Extended DOS Partition created. Press Esc to Continue Created Logical DOS Drive(s) in the Extended DOS Partition No logical drives defined Verifying drive integrity, 25% Complete. Created Logical DOS Drive(s) in the Extended DOS Partition No logical drives defined Total Extended DOS Partition size is 17524 Mbytes (1 Mbyte= 1048576 bytes) Maximum space available for logical drive is 17524 Mbytes (100%) Enter logical drive size in Mbytes or percent of disk space (%).………………[17524] Logical DOS Drive created, drive letters changed or added Press Esc to return to FDISK Options 12 Check to drive This is to create Logical DOS drive(s) in the Extended DOS partition

8 Created Logical DOS Drive(s) in the Extended DOS Partition Drv Volume Label Mbytes System Usage D: 17524 UNKNOWN 100% All available space in the Extended DOS Partition is assigned to logical drives. Press Esc to continue 13 Type 17524 or 100%, then press Enter key Created Logical DOS Drive(s) in the Extended DOS Partition No logical drives defined Total Extended DOS Partition size is 17524 Mbytes (1 Mbyte= 1048576 bytes) Maximum space available for logical drive is 17524 Mbytes (100%) Enter logical drive size in Mbytes or percent of disk space (%).………………[17524] Press Esc to return to FDISK Options D: Drive is created in the Extended DOS partition, then press ESC key

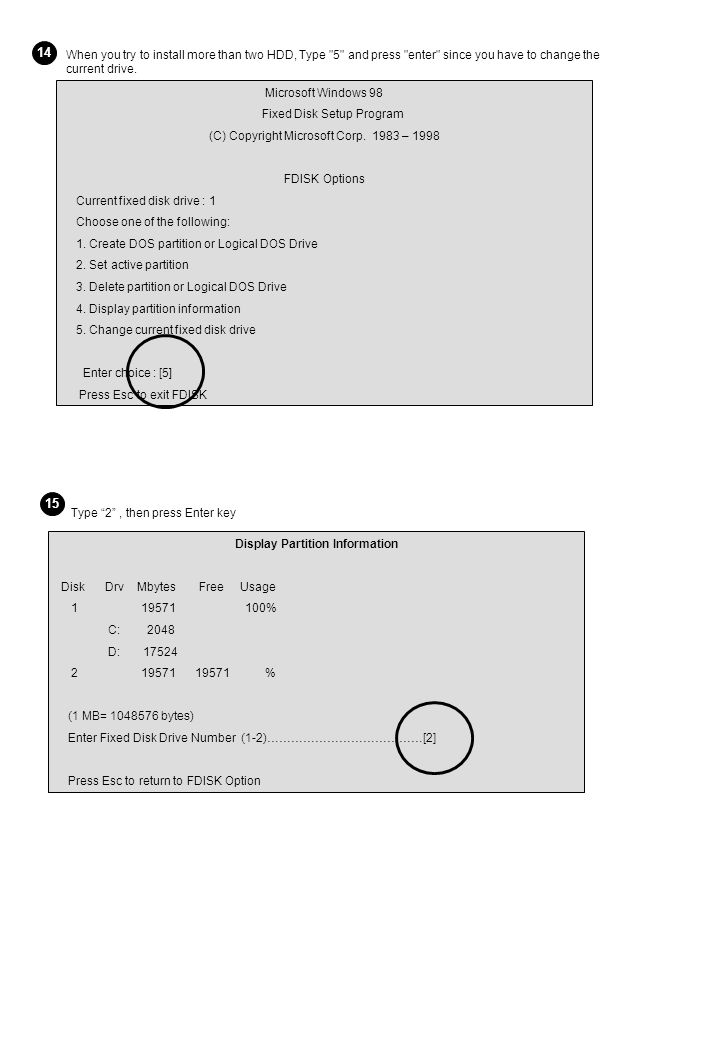

9 14 Microsoft Windows 98 Fixed Disk Setup Program (C) Copyright Microsoft Corp. 1983 – 1998 FDISK Options Current fixed disk drive : 1 Choose one of the following: 1. Create DOS partition or Logical DOS Drive 2. Set active partition 3. Delete partition or Logical DOS Drive 4. Display partition information 5. Change current fixed disk drive Enter choice : [5] Press Esc to exit FDISK When you try to install more than two HDD, Type "5" and press "enter" since you have to change the current drive. Display Partition Information Disk Drv Mbytes Free Usage 1 19571 100% C: 2048 D: 17524 2 19571 19571 % (1 MB= 1048576 bytes) Enter Fixed Disk Drive Number (1-2) ………………………………… [2] Press Esc to return to FDISK Option Type 2, then press Enter key 15

10 Check Change current fixed disk drive are created normally. Microsoft Windows 98 Fixed Disk Setup Program (C) Copyright Microsoft Corp. 1983 – 1998 FDISK Options Current fixed disk drive : 2 Choose one of the following: 1. Create DOS partition or Logical DOS Drive 2. Set active partition 3. Delete partition or Logical DOS Drive 4. Display partition information 5. Change current fixed disk drive Enter choice : [1] Press Esc to exit FDISK 16 Should be created Dos partition is Logical Dos drive, so press Enter key Microsoft Windows 98 Fixed Disk Setup Program (C) Copyright Microsoft Corp. 1983 – 1998 FDISK Options Current fixed disk drive : 2 Choose one of the following: 1. Create DOS partition or Logical DOS Drive 2. Set active partition 3. Delete partition or Logical DOS Drive 4. Display partition information 5. Change current fixed disk drive Enter choice : [1] Press Esc to exit FDISK 17

11 Type 2 then press Enter key 18 Create Extended DOS Partition Current fixed disk drive : 2 Verifying drive integrity, 19% Complete. Check to drive Create DOS Partition or Logical DOS Drive Current fixed disk drive : 1 Choose one of the following : 1. Create Primary DOS Partition 2. Create Extended DOS Partition 3. Create Logical DOS Drive(s) in the Extended DOS Partition Enter choice : [2] Press Esc to return to FDISK Options Create Extended DOS Partition Current fixed disk drive : 2 Total disk space is 19571 Mbytes (1 Mbyte= 1048576 bytes) Maximum space available for partition is 19563 Mbytes (100%) Enter partition size in Mbytes or percent of space (%) to create an Extended DOS Partition.………………………………………………[19563] Press Esc to return to FDISK Options. This step is to Create Extended DOS partition Press Enter key 19

12 Press Esc key Create Extended DOS Partition Current fixed disk drive : 2 Partition Status Type Volume Label Mbytes System Usage 1 EXT DOS 17524 UMKNOWN 100% Extended DOS Partition created. Press Esc to Continue 20 Created Logical DOS Drive(s) in the Extended DOS Partition No logical drives defined Verifying drive integrity, 25% Complete. Check to drive Created Logical DOS Drive(s) in the Extended DOS Partition No logical drives defined Total Extended DOS Partition size is 19563 Mbytes (1 Mbyte= 1048576 bytes) Maximum space available for logical drive is 19563 Mbytes (100%) Enter logical drive size in Mbytes or percent of disk space (%).………………[19563] Logical DOS Drive created, drive letters changed or added Press Esc to return to FDISK Options This is to create Logical DOS drive(s) in the Extended DOS partition

13 Created Logical DOS Drive(s) in the Extended DOS Partition Drv Volume Label Mbytes System Usage D: 19563 UNKNOWN 100% All available space in the Extended DOS Partition is assigned to logical drives. Press Esc to continue 21 Type 19563 or 100%, then press Enter key Created Logical DOS Drive(s) in the Extended DOS Partition No logical drives defined Total Extended DOS Partition size is 19563 Mbytes (1 Mbyte= 1048576 bytes) Maximum space available for logical drive is 19563 Mbytes (100%) Enter logical drive size in Mbytes or percent of disk space (%).………………[19563] Press Esc to return to FDISK Options D: Drive is created in the Extended DOS partition, then press ESC key Press Esc to return to FDISK Options 14 If you have two HDD to add, repeat the same way from item to item 21

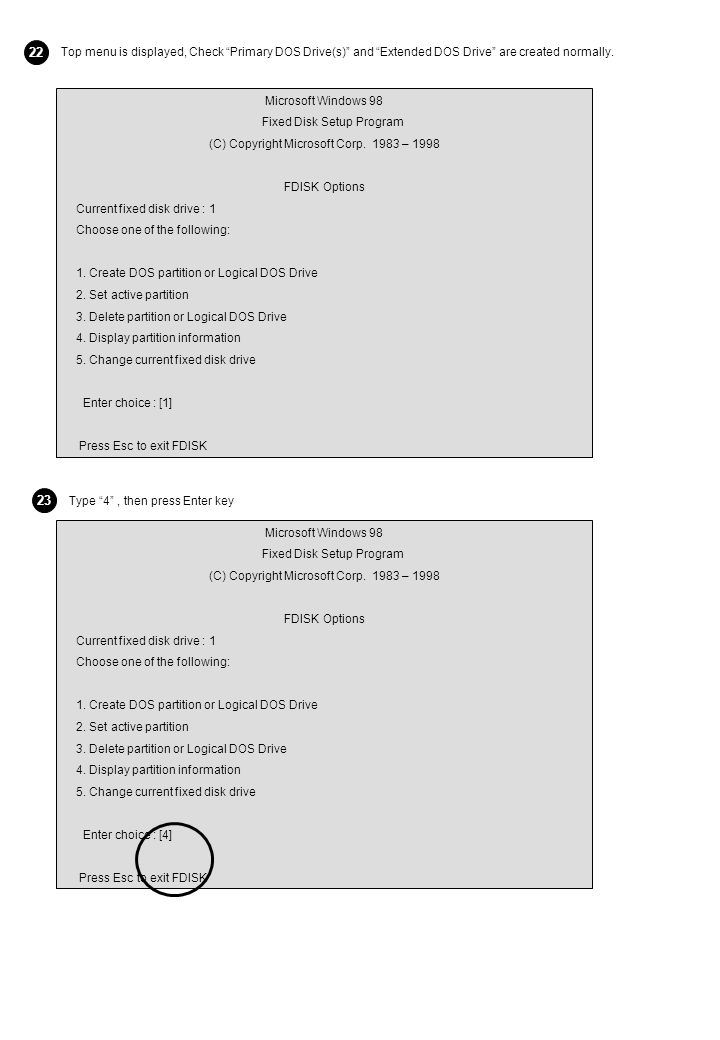

14 Type 4, then press Enter key 22 Top menu is displayed, Check Primary DOS Drive(s) and Extended DOS Drive are created normally. 23 Microsoft Windows 98 Fixed Disk Setup Program (C) Copyright Microsoft Corp. 1983 – 1998 FDISK Options Current fixed disk drive : 1 Choose one of the following: 1. Create DOS partition or Logical DOS Drive 2. Set active partition 3. Delete partition or Logical DOS Drive 4. Display partition information 5. Change current fixed disk drive Enter choice : [1] Press Esc to exit FDISK Microsoft Windows 98 Fixed Disk Setup Program (C) Copyright Microsoft Corp. 1983 – 1998 FDISK Options Current fixed disk drive : 1 Choose one of the following: 1. Create DOS partition or Logical DOS Drive 2. Set active partition 3. Delete partition or Logical DOS Drive 4. Display partition information 5. Change current fixed disk drive Enter choice : [4] Press Esc to exit FDISK

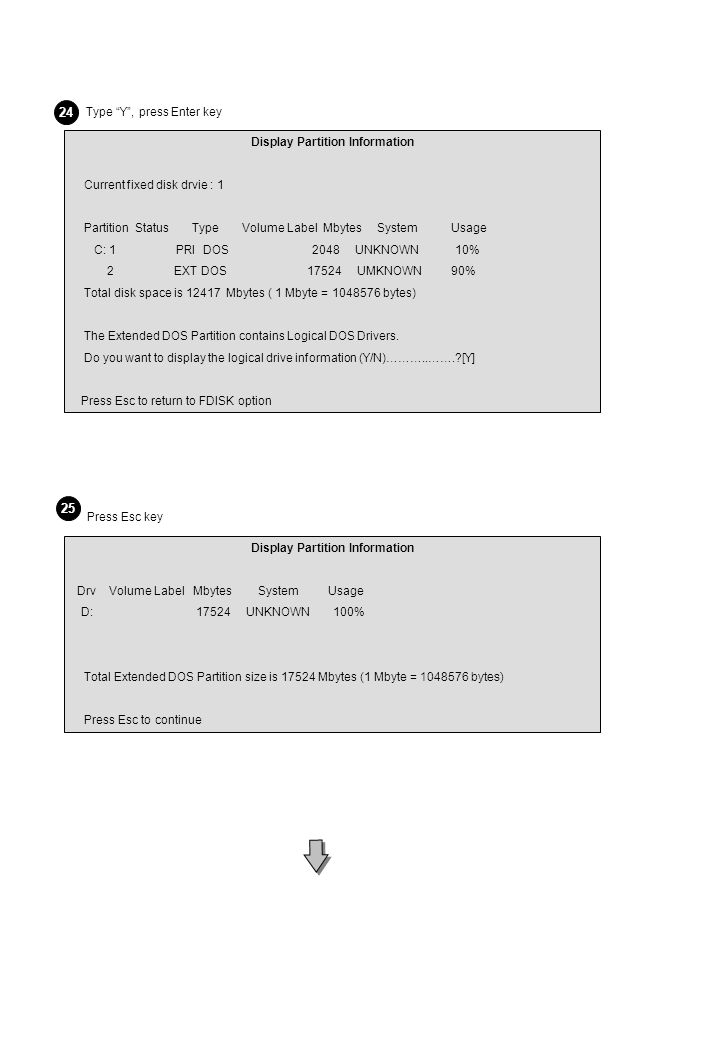

15 Display Partition Information Drv Volume Label Mbytes System Usage D: 17524 UNKNOWN 100% Total Extended DOS Partition size is 17524 Mbytes (1 Mbyte = 1048576 bytes) Press Esc to continue Display Partition Information Current fixed disk drvie : 1 Partition Status Type Volume Label Mbytes System Usage C: 1 PRI DOS 2048 UNKNOWN 10% 2 EXT DOS 17524 UMKNOWN 90% Total disk space is 12417 Mbytes ( 1 Mbyte = 1048576 bytes) The Extended DOS Partition contains Logical DOS Drivers. Do you want to display the logical drive information (Y/N)………..…….?[Y] Press Esc to return to FDISK option 24 Type Y, press Enter key Press Esc key 25

16 26 Top menu is displayed To boot normally Active partition must be set. Type 2, Press Enter key Microsoft Windows 98 Fixed Disk Setup Program (C) Copyright Microsoft Corp. 1983 – 1998 FDISK Options Current fixed disk drive : 1 Choose one of the following: 1. Create DOS partition or Logical DOS Drive 2. Set active partition 3. Delete partition or Logical DOS Drive 4. Display partition information 5. Change current fixed disk drive Enter choice : [1] Press Esc to exit FDISK Microsoft Windows 98 Fixed Disk Setup Program (C) Copyright Microsoft Corp. 1983 – 1998 FDISK Options Current fixed disk drive : 1 Choose one of the following: 1. Create DOS partition or Logical DOS Drive 2. Set active partition 3. Delete partition or Logical DOS Drive 4. Display partition information 5. Change current fixed disk drive Enter choice : [2] Press Esc to exit FDISK

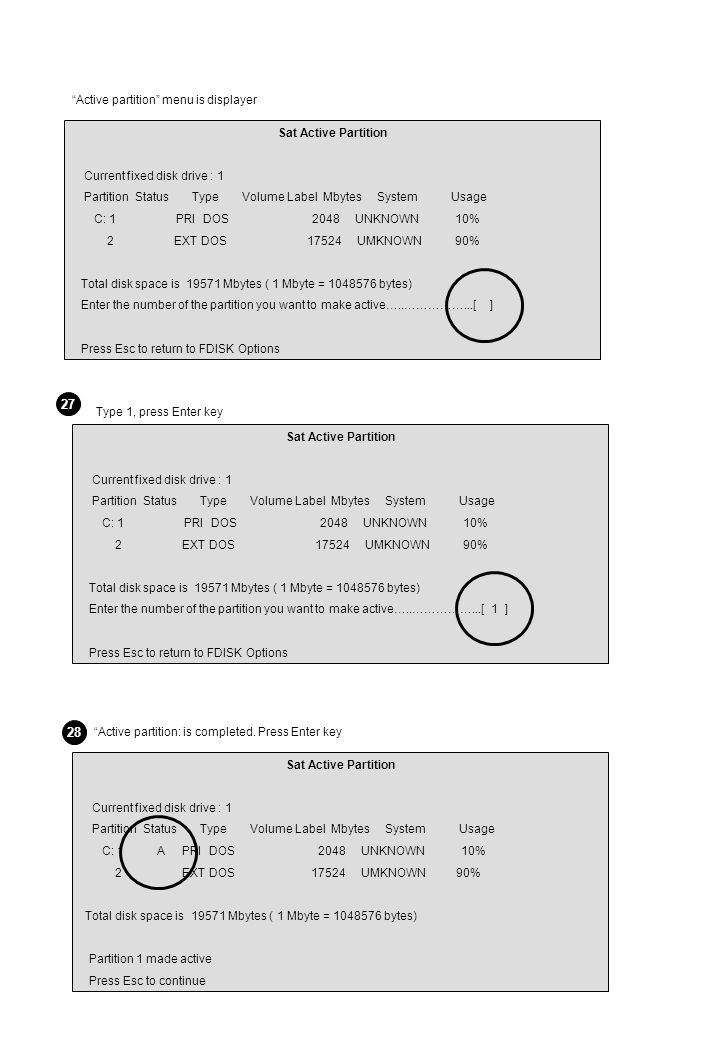

17 Sat Active Partition Current fixed disk drive : 1 Partition Status Type Volume Label Mbytes System Usage C: 1 PRI DOS 2048 UNKNOWN 10% 2 EXT DOS 17524 UMKNOWN 90% Total disk space is 19571 Mbytes ( 1 Mbyte = 1048576 bytes) Enter the number of the partition you want to make active…..……………...[ ] Press Esc to return to FDISK Options 27 Active partition menu is displayer Type 1, press Enter key Sat Active Partition Current fixed disk drive : 1 Partition Status Type Volume Label Mbytes System Usage C: 1 A PRI DOS 2048 UNKNOWN 10% 2 EXT DOS 17524 UMKNOWN 90% Total disk space is 19571 Mbytes ( 1 Mbyte = 1048576 bytes) Partition 1 made active Press Esc to continue Active partition: is completed. Press Enter key 28 Sat Active Partition Current fixed disk drive : 1 Partition Status Type Volume Label Mbytes System Usage C: 1 PRI DOS 2048 UNKNOWN 10% 2 EXT DOS 17524 UMKNOWN 90% Total disk space is 19571 Mbytes ( 1 Mbyte = 1048576 bytes) Enter the number of the partition you want to make active…..……………...[ 1 ] Press Esc to return to FDISK Options

18 You MUST restart your system for your changes to take effect. Any drives you have created or changed must be formatted AFTER you restart. shut down Windows before restarting. Press Esc to exit FDISK 30 29 FDISK is completed. Microsoft(R) Windows 98 (C) Copyright Microsoft Corp 1981-1999 A:\> Dos mode is displayed. You must restart your system. Press Ctrl + Alt + Del key, or turn off power. 31 Microsoft Windows 98 Fixed Disk Setup Program (C) Copyright Microsoft Corp. 1983 – 1998 FDISK Options Current fixed disk drive : 1 Choose one of the following: 1. Create DOS partition or Logical DOS Drive 2. Set active partition 3. Delete partition or Logical DOS Drive 4. Display partition information 5. Change current fixed disk drive Enter choice : [2] Press Esc to exit FDISK Top menu is displayed. Press Esc key

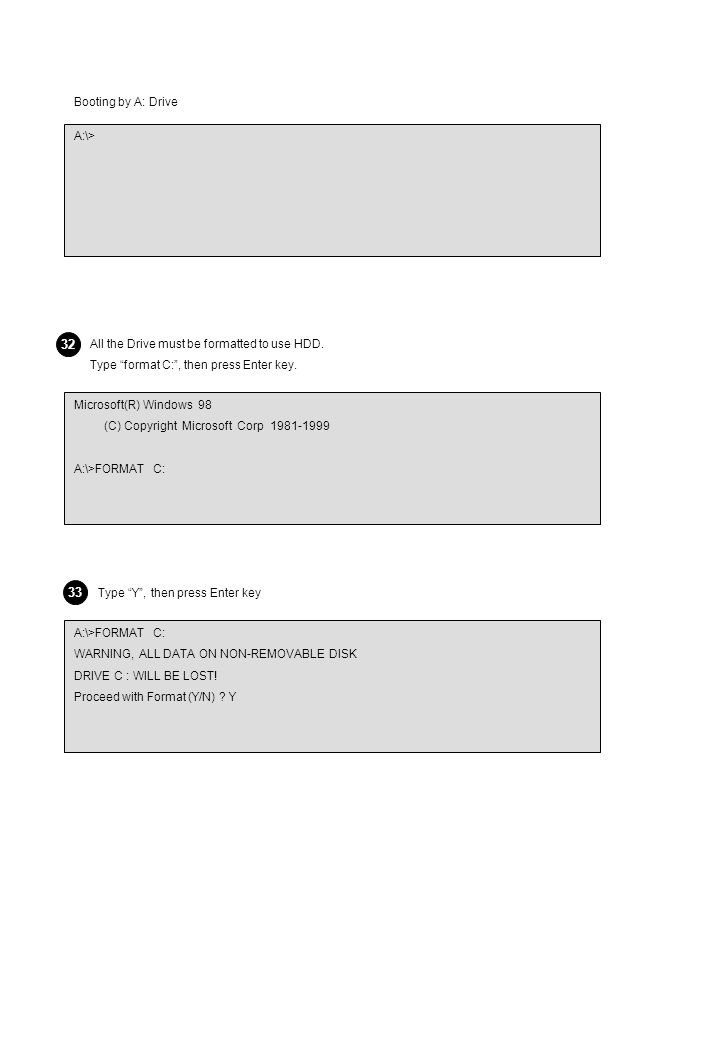

19 Booting by A: Drive A:\> All the Drive must be formatted to use HDD. Type format C:, then press Enter key. Type Y, then press Enter key Microsoft(R) Windows 98 (C) Copyright Microsoft Corp 1981-1999 A:\>FORMAT C: WARNING, ALL DATA ON NON-REMOVABLE DISK DRIVE C : WILL BE LOST! Proceed with Format (Y/N) ? Y 32 33

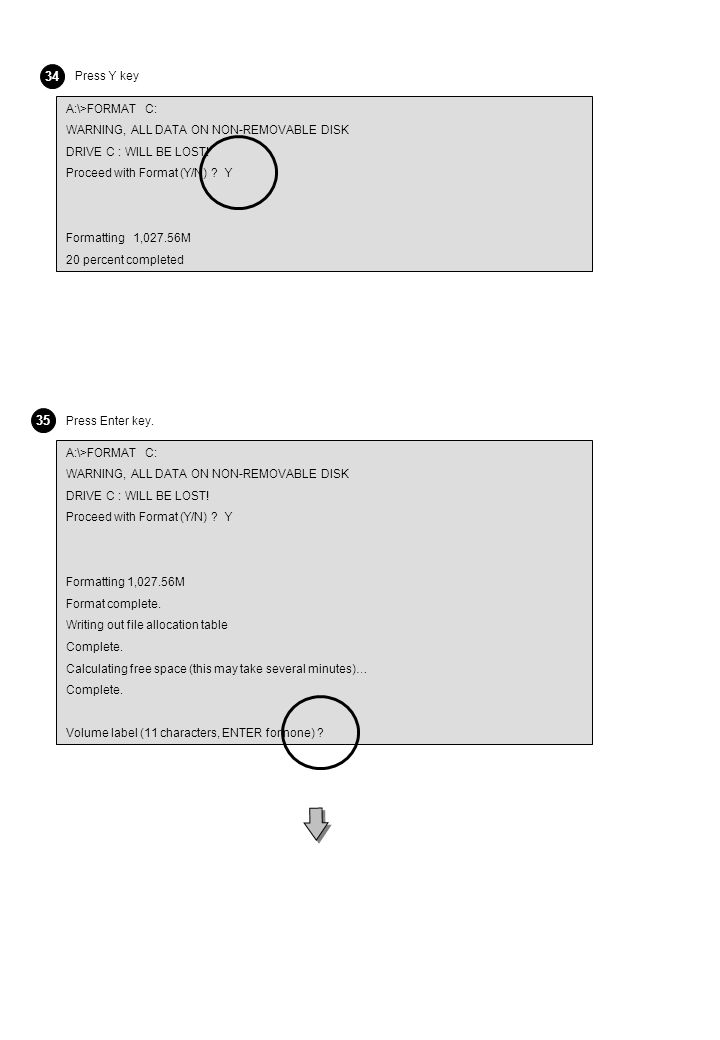

20 A:\>FORMAT C: WARNING, ALL DATA ON NON-REMOVABLE DISK DRIVE C : WILL BE LOST! Proceed with Format (Y/N) ? Y Formatting 1,027.56M Format complete. Writing out file allocation table Complete. Calculating free space (this may take several minutes)… Complete. Volume label (11 characters, ENTER for none) ? Press Y key A:\>FORMAT C: WARNING, ALL DATA ON NON-REMOVABLE DISK DRIVE C : WILL BE LOST! Proceed with Format (Y/N) ? Y Formatting 1,027.56M 20 percent completed 34 Press Enter key. 35

21 A:\>FORMAT C: /S WARNING, ALL DATA ON NON-REMOVABLE DISK DRIVE C : WILL BE LOST! Proceed with Format (Y/N) ? Y Formatting 2048M Format complete. Writing out file allocation table Complete. Calculating free space (this may take several minutes)… Complete. Volume label (11 characters, ENTER for none) ? 2,049,359,744 bytes total disk space 411,136 bytes used by system 2,049,359,744 bytes available on disk 4,096 bytes in each allocation unit. 262,538 allocation units available on disk. Volume Serial Number is 4225-16F2 A:\> Format rest drive(D:, E:, F:, G:…) as same way EX) A:\>FORMAT D: A:\>FORMAT E: A:\>FORMAT F: A:\>FORMAT G: 36 Display DOS prompt mode.
