2. Booting From Flash  System Startup  Initialization Files  Build Process  Hex AIS  Flashburn  Lab 2 T TO Technical Training Organization

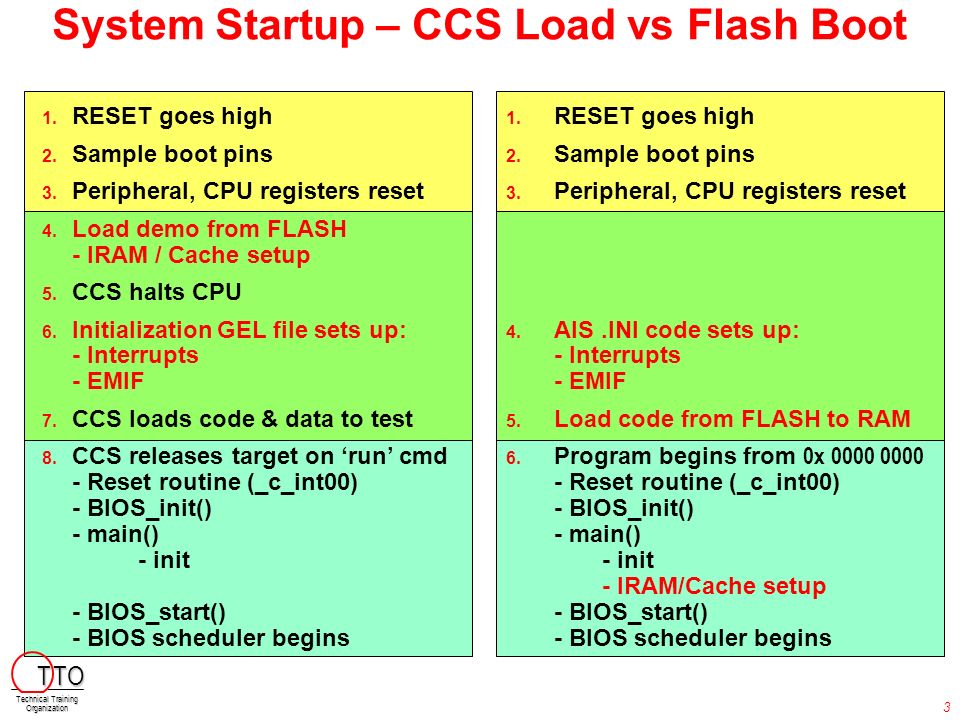

3. System Startup – CCS Load vs Flash Boot 1. RESET goes high 2. Sample boot pins 3. Peripheral, CPU registers reset 4. Load demo from FLASH - IRAM / Cache setup 5. CCS halts CPU 6. Initialization GEL file sets up: - Interrupts - EMIF 7. CCS loads code & data to test 8. CCS releases target on ‘run’ cmd - Reset routine (_c_int00) - BIOS_init() - main() - init - BIOS_start() - BIOS scheduler begins 1. RESET goes high 2. Sample boot pins 3. Peripheral, CPU registers reset 4. AIS.INI code sets up: - Interrupts - EMIF 5. Load code from FLASH to RAM 6. Program begins from 0x 0000 0000 - Reset routine (_c_int00) - BIOS_init() - main() - init - IRAM/Cache setup - BIOS_start() - BIOS scheduler begins 3 T TO Technical Training Organization

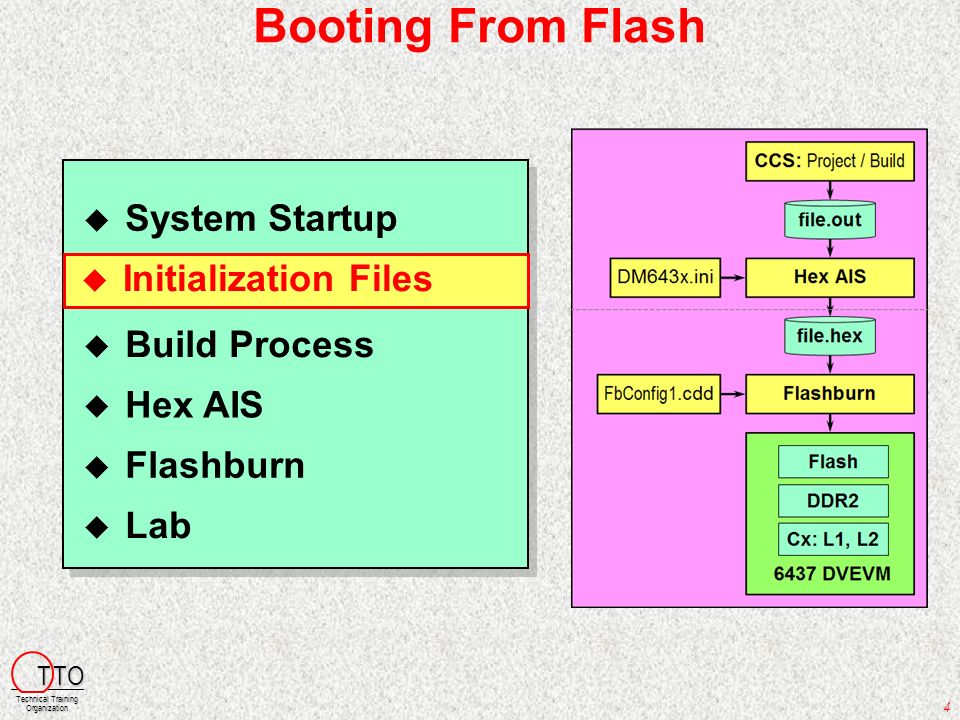

4. Booting From Flash  System Startup  Initialization Files  Build Process  Hex AIS  Flashburn  Lab 4 T TO Technical Training Organization

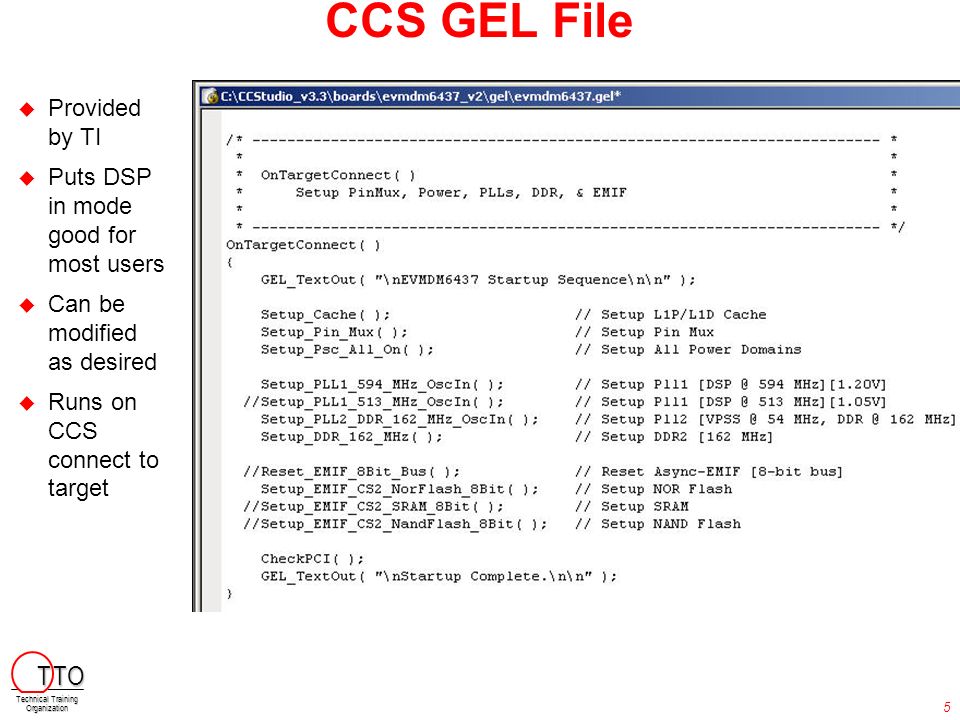

5. CCS GEL File  Provided by TI  Puts DSP in mode good for most users  Can be modified as desired  Runs on CCS connect to target 5 T TO Technical Training Organization

6. hexAIS Conversion.ini File  Provided by TI  Puts DSP in mode good for most users  Can be modified as desired  Runs on boot from flash  Specifies behavior of  Boot Mode  PLL  DDR  EMIF  PinMux  Pwr Domains 6 T TO Technical Training Organization

7. Cache Setup via BCACHE API #include // headers for BIOS Cache functions setCache() { char *DDR2BASE = (char *) 0x80000000;// Pointer to DDR2 base addr struct int DDR2SZ = 0x07D00000;// size of DDR2 area on DM6437 EVM BCACHE_Size cachesize;// L1 and L2 cache size struct BCACHE_setMode(BCACHE_L1D, BCACHE_NORMAL);// set L1D cache mode to normal BCACHE_setMode(BCACHE_L1P, BCACHE_NORMAL);// set L1P cache mode to normal BCACHE_setMode(BCACHE_L2, BCACHE_NORMAL);// set L2 cache mode to normal cachesize.l1dsize = BCACHE_L1_32K;// L1D cache size 32k bytes cachesize.l1psize = BCACHE_L1_32K;// L1P cache size 32k bytes cachesize.l2size = BCACHE_L2_0K;// L2 cache size ZERO bytes BCACHE_setSize(&cachesize);// set the cache sizes BCACHE_inv(DDR2BASE, DDR2SZ, TRUE);// invalidate DDR2 cache region BCACHE_setMar(DDR2BASE,DDR2SZ,BCACHE_MAR_ENABLE); // all DDR2 is now cacheable } 7 T TO Technical Training Organization

8. Cache Setup via Config Tool 8 T TO Technical Training Organization

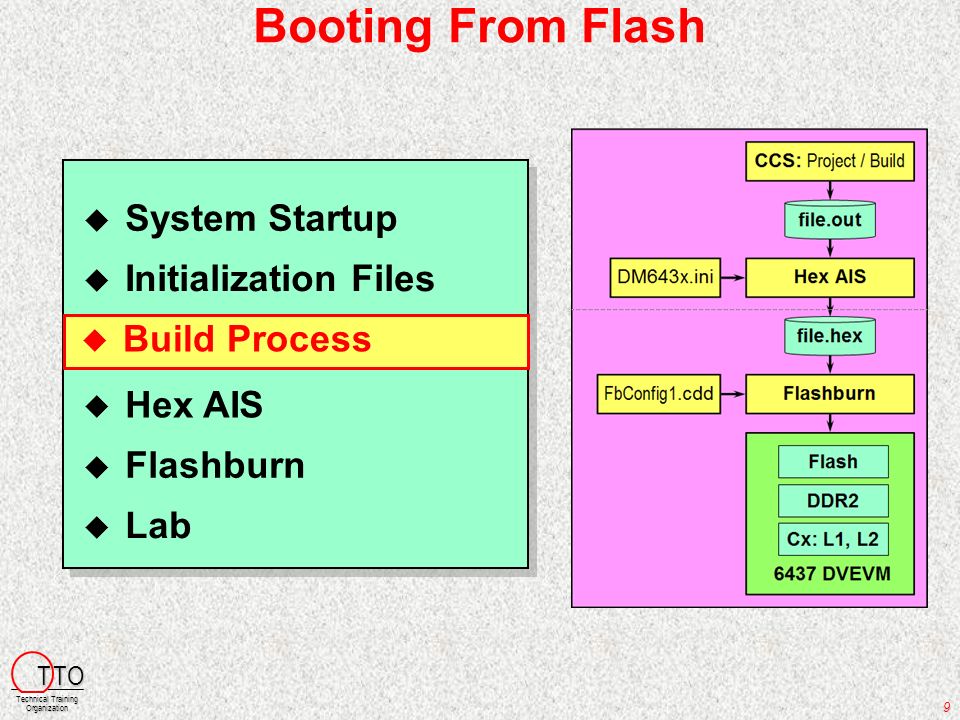

9. Booting From Flash  System Startup  Initialization Files  Build Process  Hex AIS  Flashburn  Lab 9 T TO Technical Training Organization

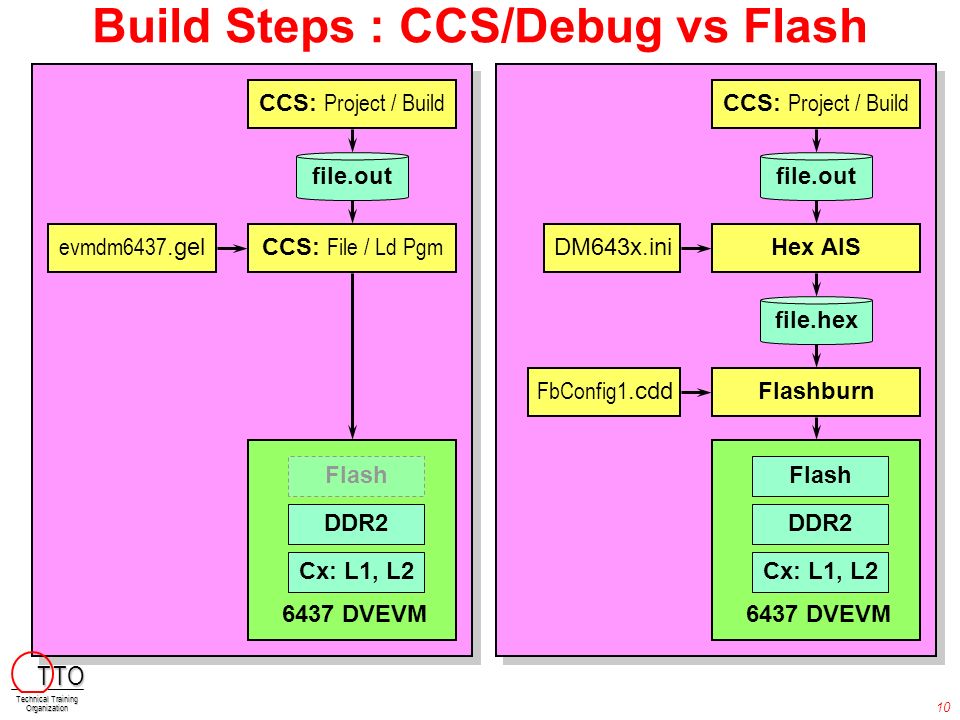

10. CCS: Project / Build Build Steps : CCS/Debug vs Flash file.out CCS: File / Ld Pgm CCS: Project / Build file.out Flashburn DDR2 6437 DVEVM Hex AIS file.hex DM643x.ini FbConfig1.cdd Cx: L1, L2 Flash DDR2 6437 DVEVM Cx: L1, L2 Flash evmdm6437.gel 10 T TO Technical Training Organization

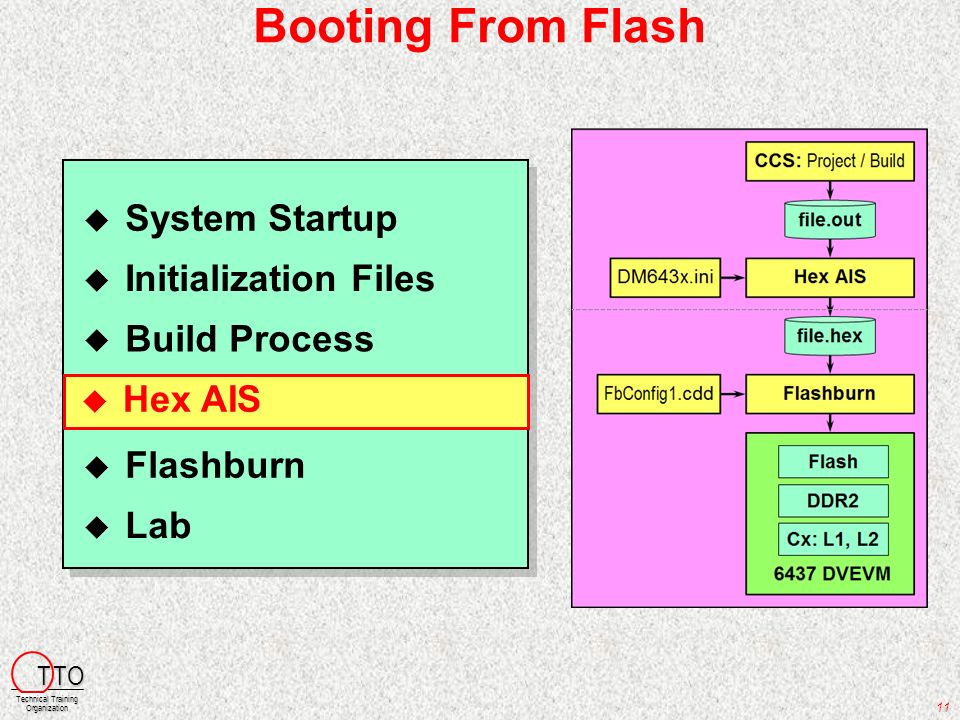

11. Booting From Flash  System Startup  Initialization Files  Build Process  Hex AIS  Flashburn  Lab 11 T TO Technical Training Organization

12. Hex Conversion Utility (hex6x.exe) hex.ini app.out hex6x app.hex  ASCII-hex  Tektronix  Intel MCS-86  Motorola-S  TI-tagged  Converts an “.out” file into one of several hex formats suitable for loading into an EPROM programmer  Boot-loader copies code/data from FLASH to IRAM/SDRAM  When using the hardware boot, you do not have to relink your program with run/load addresses - HEX6x takes care of this for you  If desired, code/data can still be accessed from flash at run-time 12 T TO Technical Training Organization

13. Map file representation of COPY_TABLE CONTENTS: 64000000..6400011f.boot_load 64000120..640003ff FILL = 00000000 64000400..6400af13 BOOT TABLE.hwi_vec : btad=64000400 dest=00003000 size=00000200.sysinit : btad=6400060c dest=00003520 size=00000360.trcdata : btad=64000974 dest=00002d68 size=0000000c.gblinit : btad=64000988 dest=00002d74 size=00000034.cinit : btad=640009c4 dest=00003880 size=00001454.pinit : btad=64001e20 dest=00002da8 size=0000000c.const : btad=64001e34 dest=00002db4 size=000000cf.text : btad=64001f0c dest=00004ce0 size=00003960.bios : btad=64005874 dest=00008640 size=00003ee0.stack : btad=6400975c dest=0000c520 size=00000400.trace : btad=64009b64 dest=0000c920 size=00000200.rtdx_text : btad=64009d6c dest=0000cf60 size=00000ee0.args : btad=6400ac54 dest=00002fc0 size=00000004.log : btad=6400ac60 dest=00002fc4 size=00000030.LOG_system$buf : btad=6400ac98 dest=0000e300 size=00000100.logTrace$buf : btad=6400ada0 dest=0000e400 size=00000100.sts : btad=6400aea8 dest=0000e2a0 size=00000060 6400af14..6407ffff FILL = 00000000 Example-hex.map  By default, HEX AIS adds all “initialized” sections to the bootloader table 13 T TO Technical Training Organization
