9.5 Trigonometric ratios How are trigonometric ratios used to find missing sides of right triangles?

Similar presentations


Presentation on theme: "9.5 Trigonometric ratios How are trigonometric ratios used to find missing sides of right triangles?"— Presentation transcript:

1 9.5 Trigonometric ratios How are trigonometric ratios used to find missing sides of right triangles?

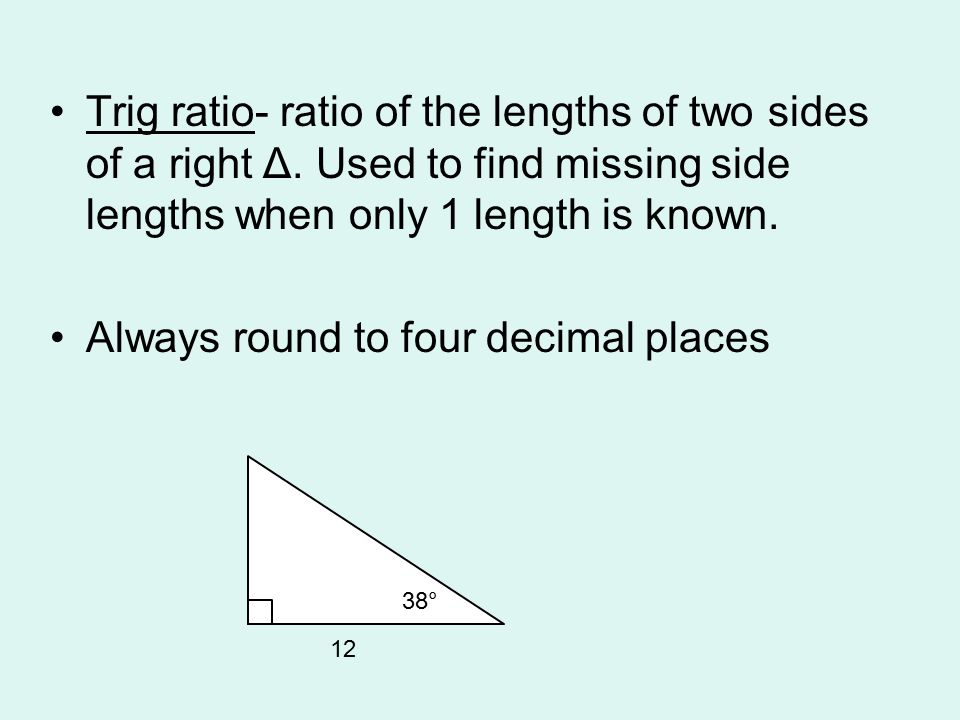

2 Trig ratio- ratio of the lengths of two sides of a right Δ. Used to find missing side lengths when only 1 length is known. Always round to four decimal places 38° 12

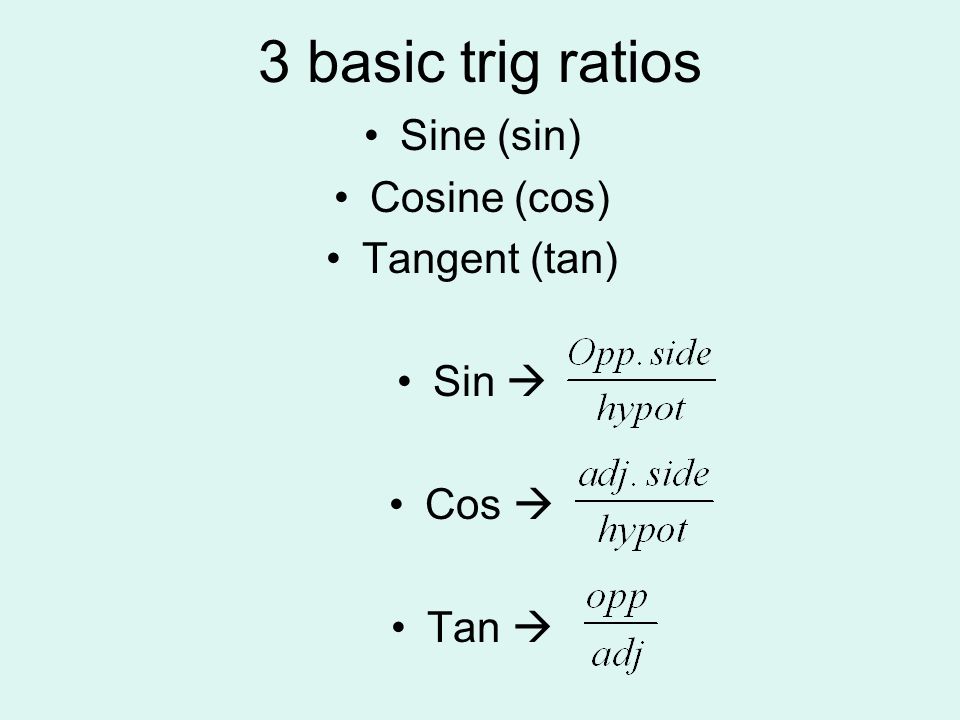

3 3 basic trig ratios Sine (sin) Cosine (cos) Tangent (tan) Sin  Cos  Tan 

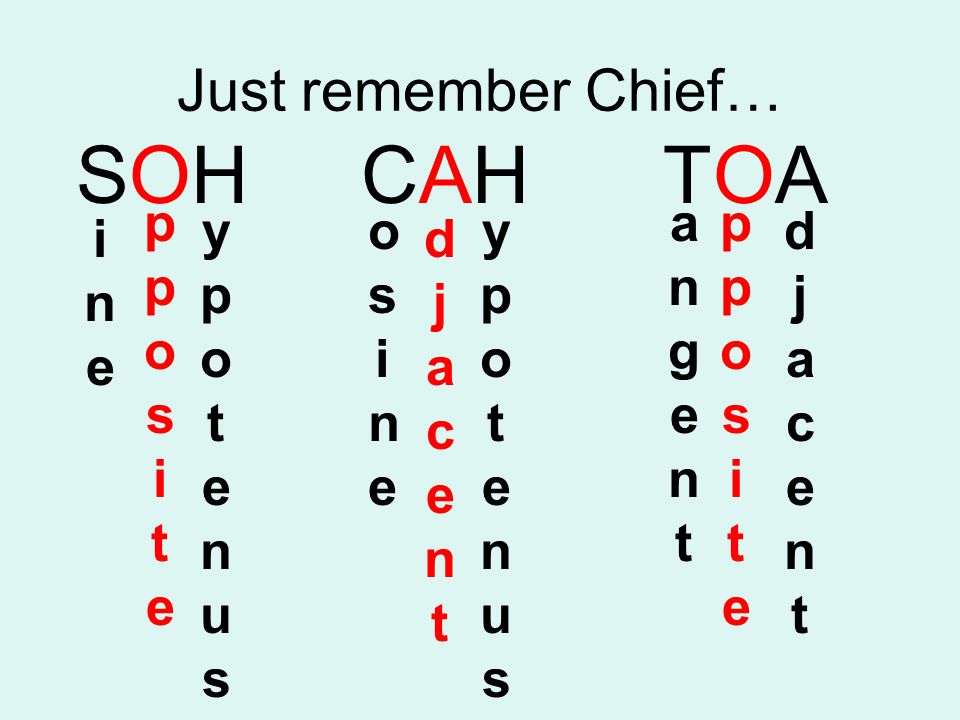

4 Just remember Chief… SOH CAH TOA ineine ppositepposite ypotenusypotenus osineosine djacentdjacent ypotenusypotenus angentangent ppositepposite djacentdjacent

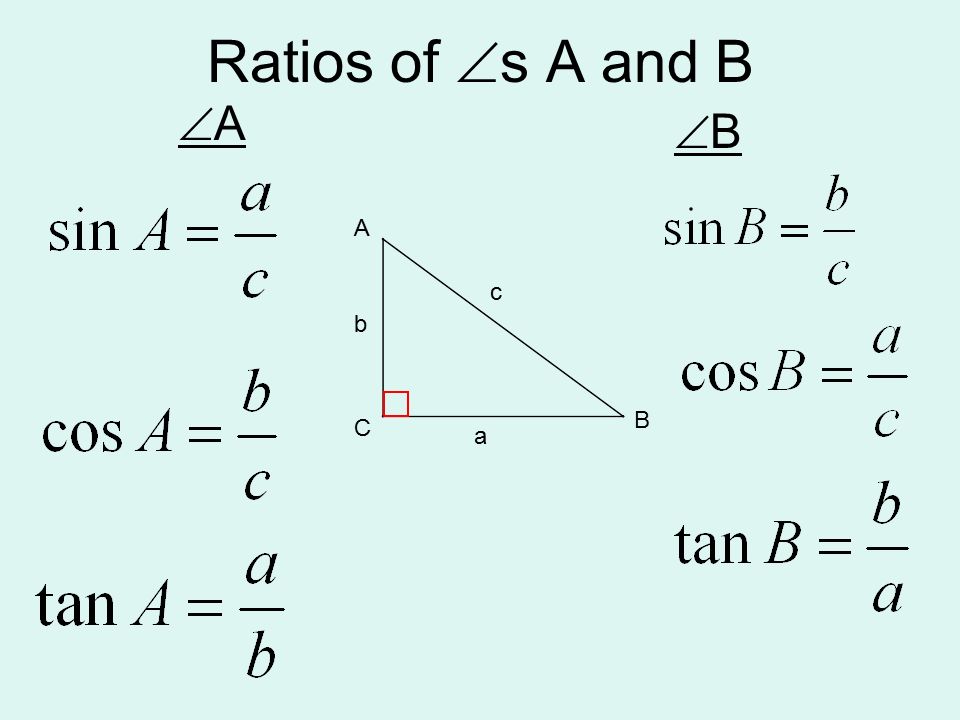

5 Ratios of  s A and B AA BB A B C a b c

6 Ex: Find sin, cos, & tan of  A &  B. AA sin A= 12/13 =.9231 cos A= 5/13 =.3846 tan A= 12/5 = 2.4 BB sin B= 5/13 =.3846 cos B= 12/13 =.9231 tan B= 5/12 =.4167 C A B 13 12 5

7 Example 30 60 __ 1 2 A B C sin A= ½ or.5 sin 30=.5 Find sin A and sin 30 o.

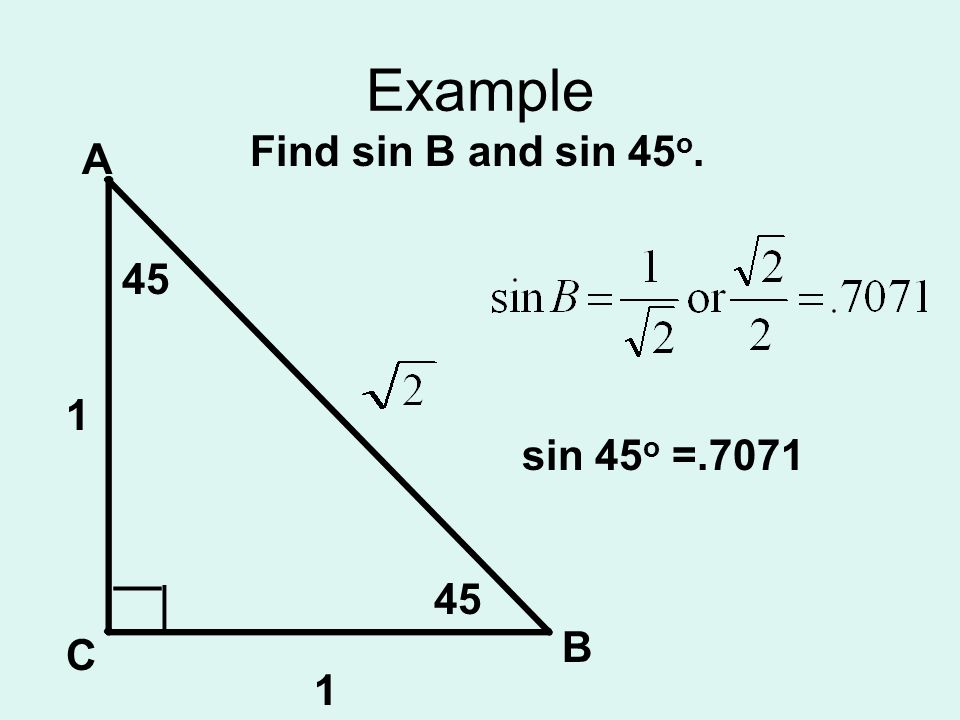

8 Example 45 __ A B C 1 1 sin 45 o =.7071 Find sin B and sin 45 o.

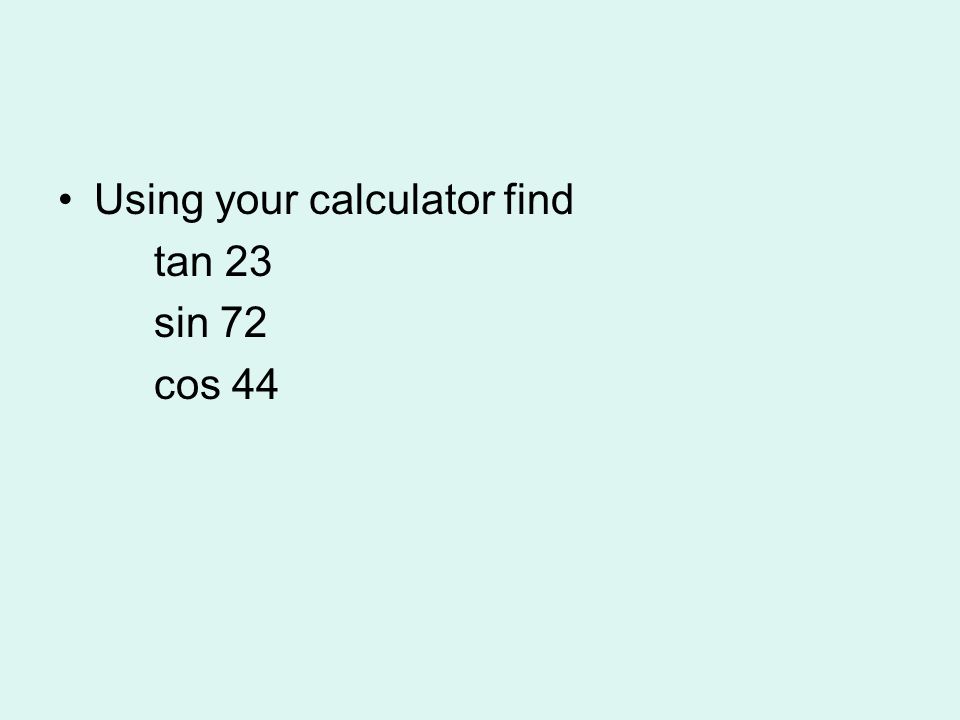

9 Using your calculator find tan 23 sin 72 cos 44

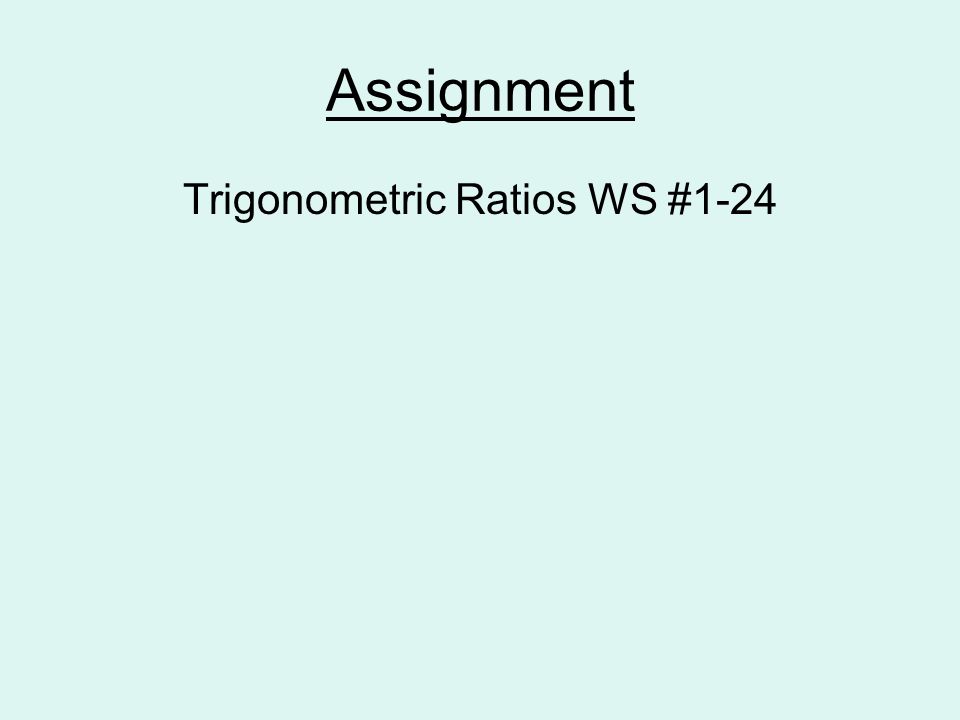

10 Assignment Trigonometric Ratios WS #1-24

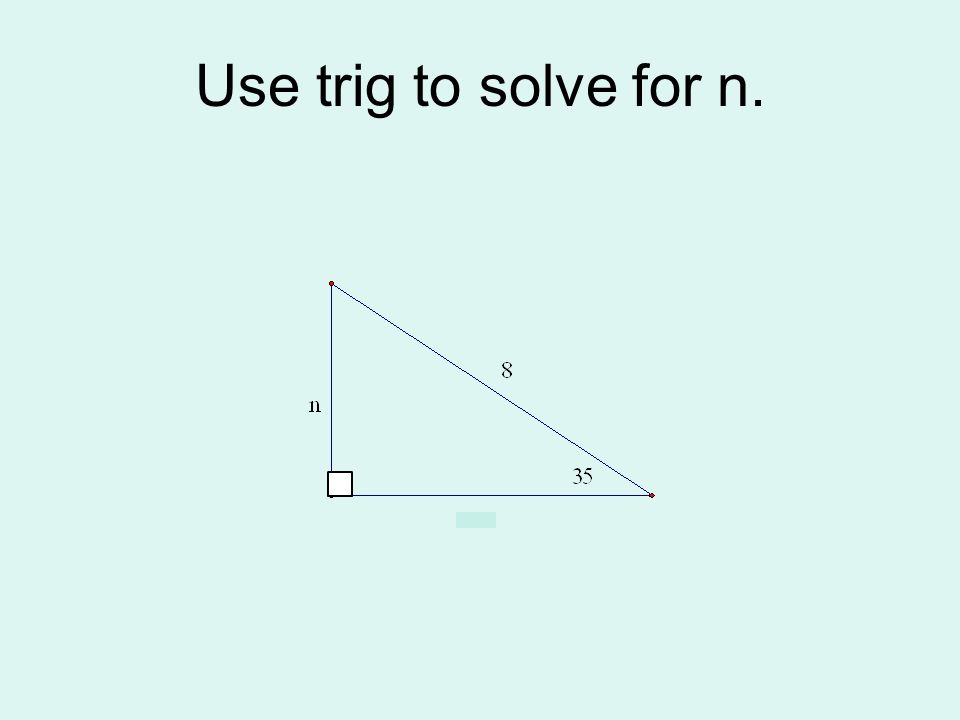

11 Use trig to solve for n.

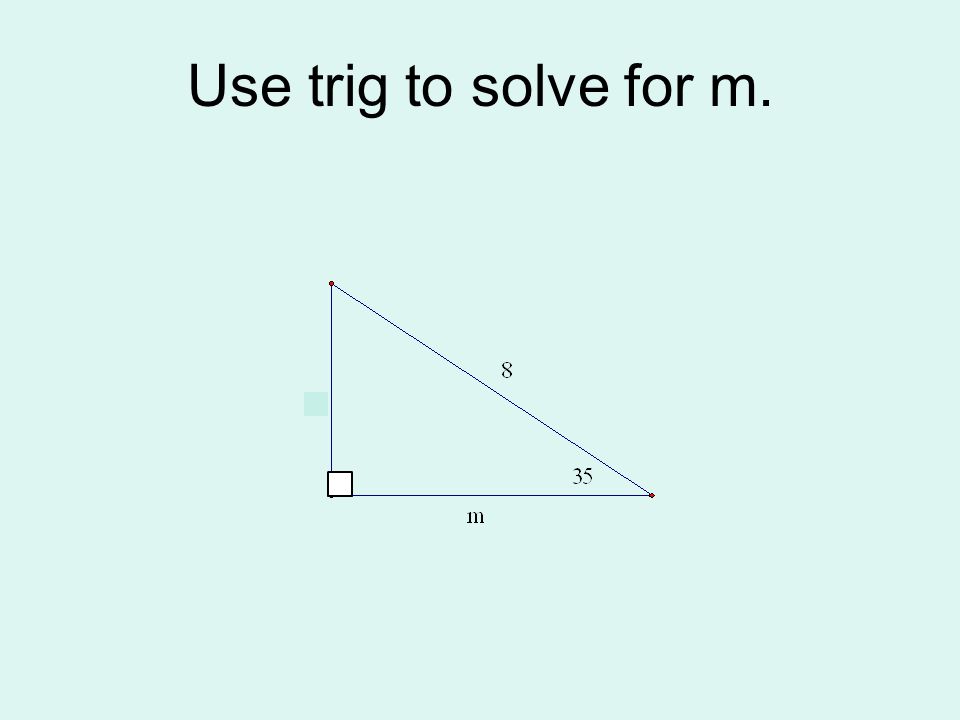

12 Use trig to solve for m.

13 Use trig to find t.

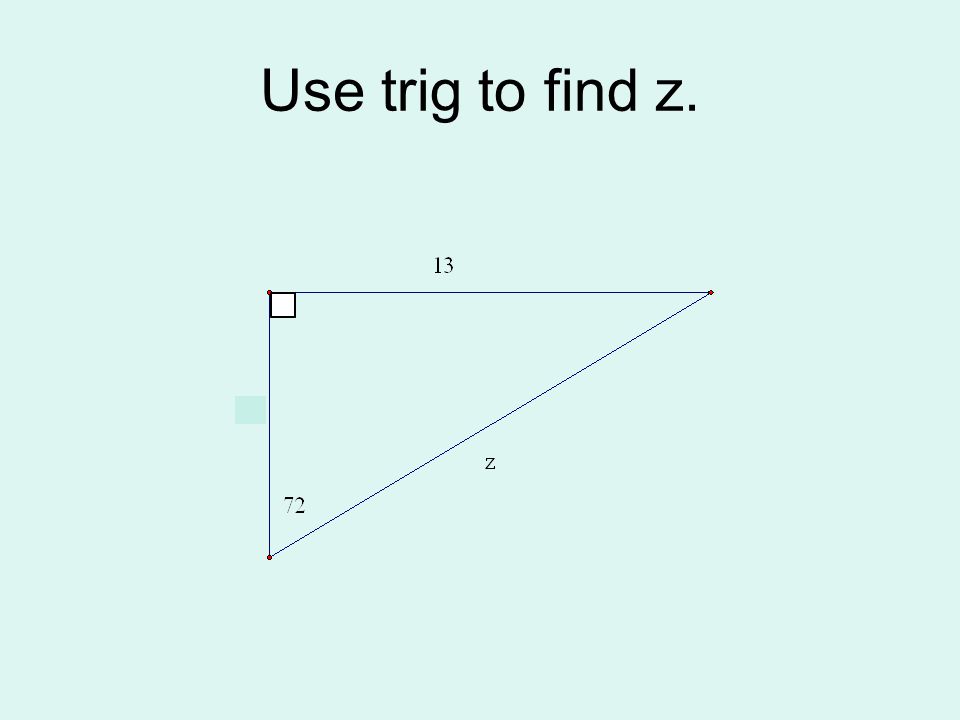

14 Use trig to find z.

15 Angle of elevation  ground angle of elevation

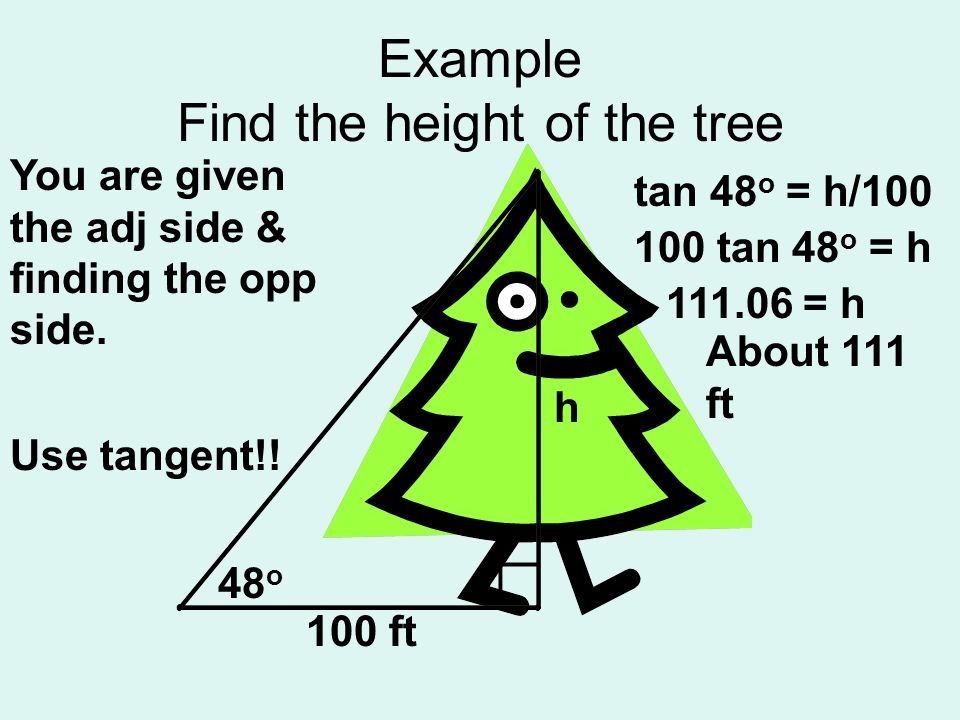

16 Example Find the height of the tree 48 o 100 ft __ h You are given the adj side & finding the opp side. Use tangent!! tan 48 o = h/100 111.06 = h About 111 ft 100 tan 48 o = h

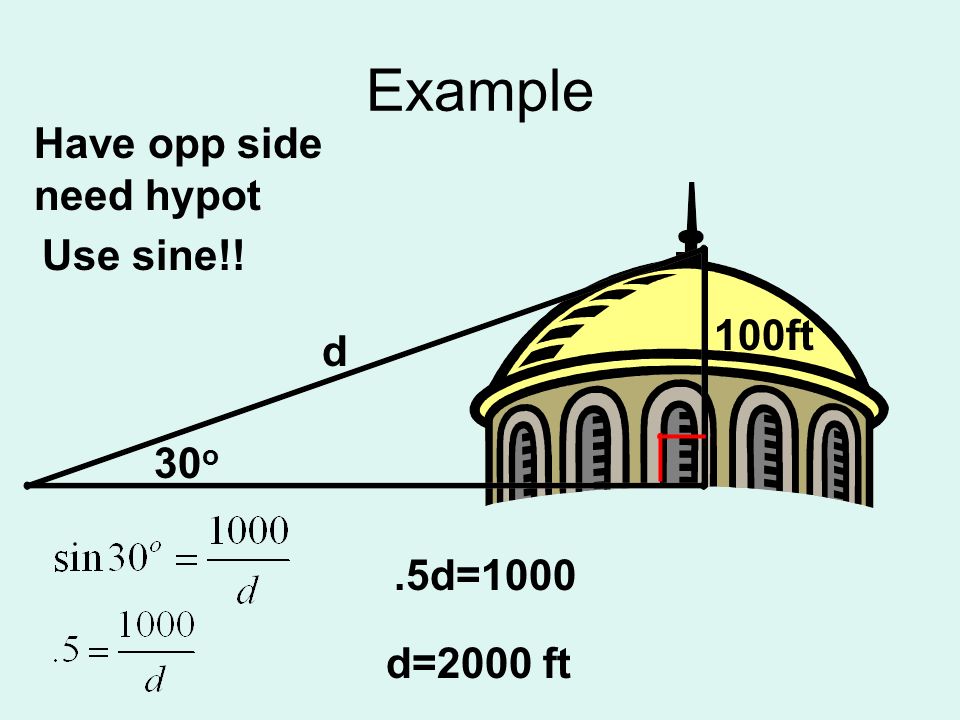

17 Example 100ft 30 o d __ Have opp side need hypot Use sine!!.5d=1000 d=2000 ft

18 Assignment Assignment Trigonometry WS #1-18 Assignment
