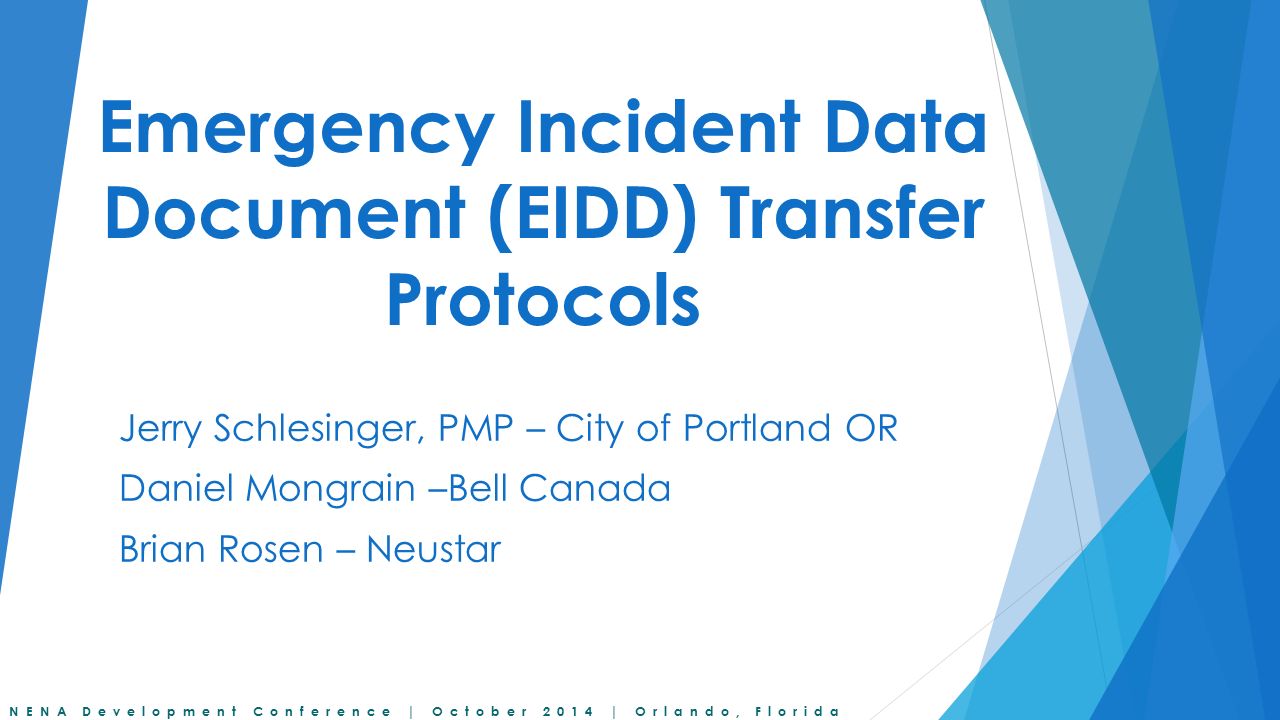

1. NENA Development Conference | October 2014 | Orlando, Florida Emergency Incident Data Document (EIDD) Transfer Protocols Jerry Schlesinger, PMP – City of Portland OR Daniel Mongrain –Bell Canada Brian Rosen – Neustar

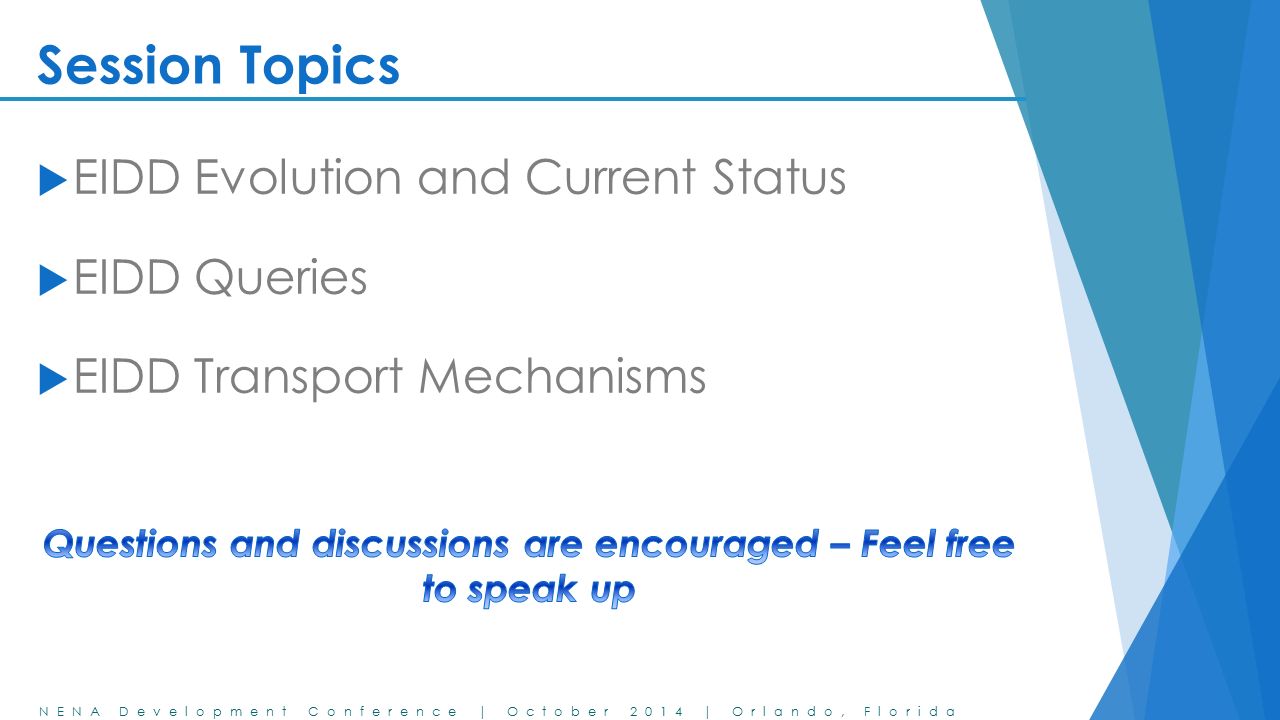

2. NENA Development Conference | October 2014 | Orlando, Florida Session Topics  EIDD Evolution and Current Status  EIDD Queries  EIDD Transport Mechanisms

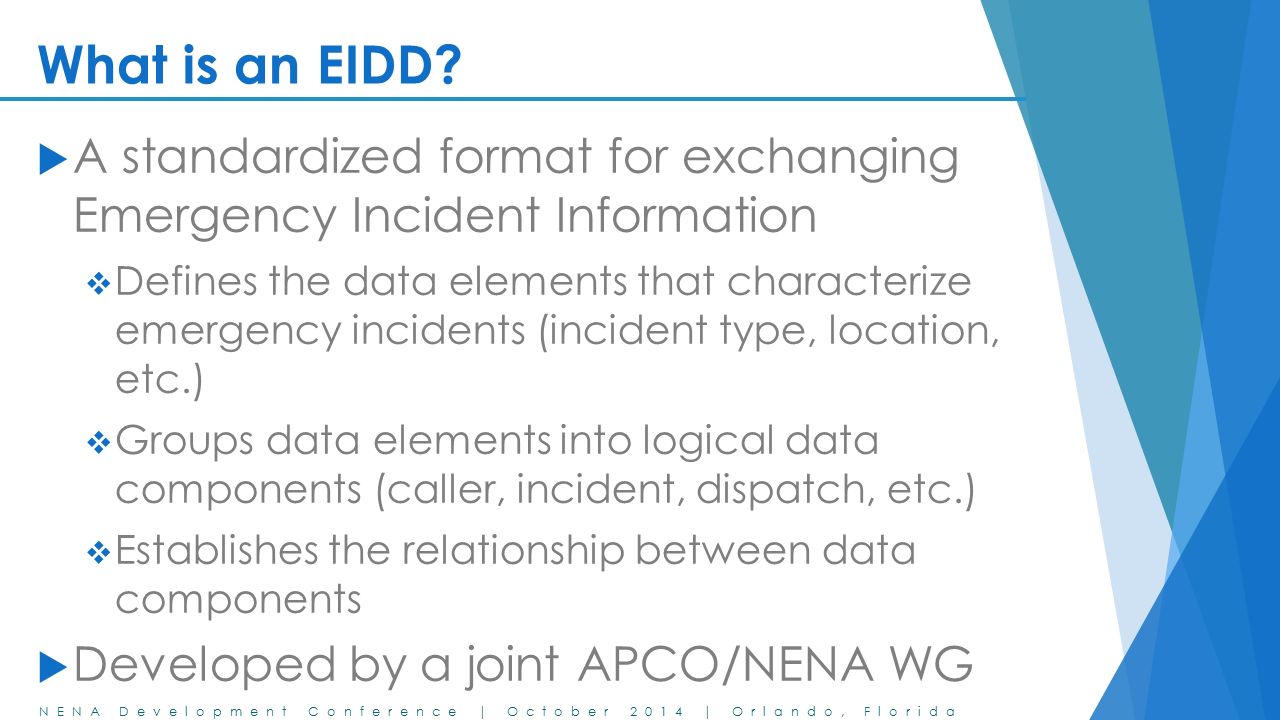

3. NENA Development Conference | October 2014 | Orlando, Florida What is an EIDD?  A standardized format for exchanging Emergency Incident Information  Defines the data elements that characterize emergency incidents (incident type, location, etc.)  Groups data elements into logical data components (caller, incident, dispatch, etc.)  Establishes the relationship between data components  Developed by a joint APCO/NENA WG

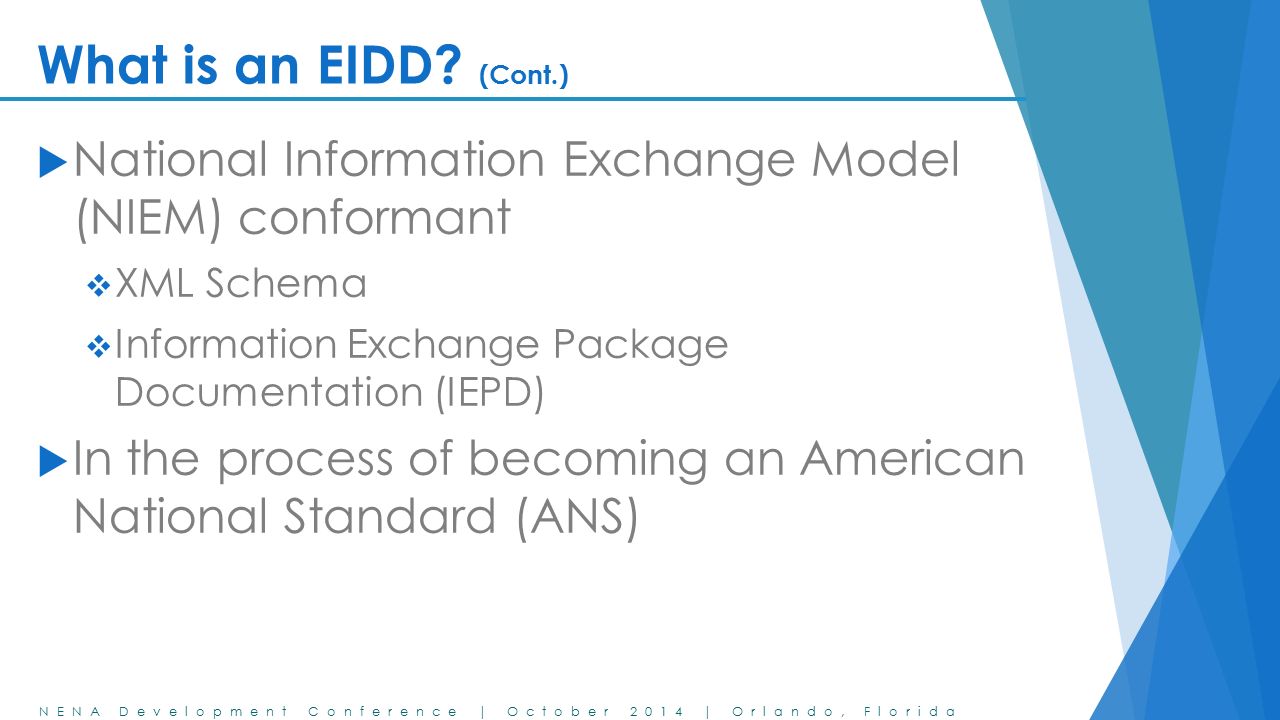

4. NENA Development Conference | October 2014 | Orlando, Florida What is an EIDD? (Cont.)  National Information Exchange Model (NIEM) conformant  XML Schema  Information Exchange Package Documentation (IEPD)  In the process of becoming an American National Standard (ANS)

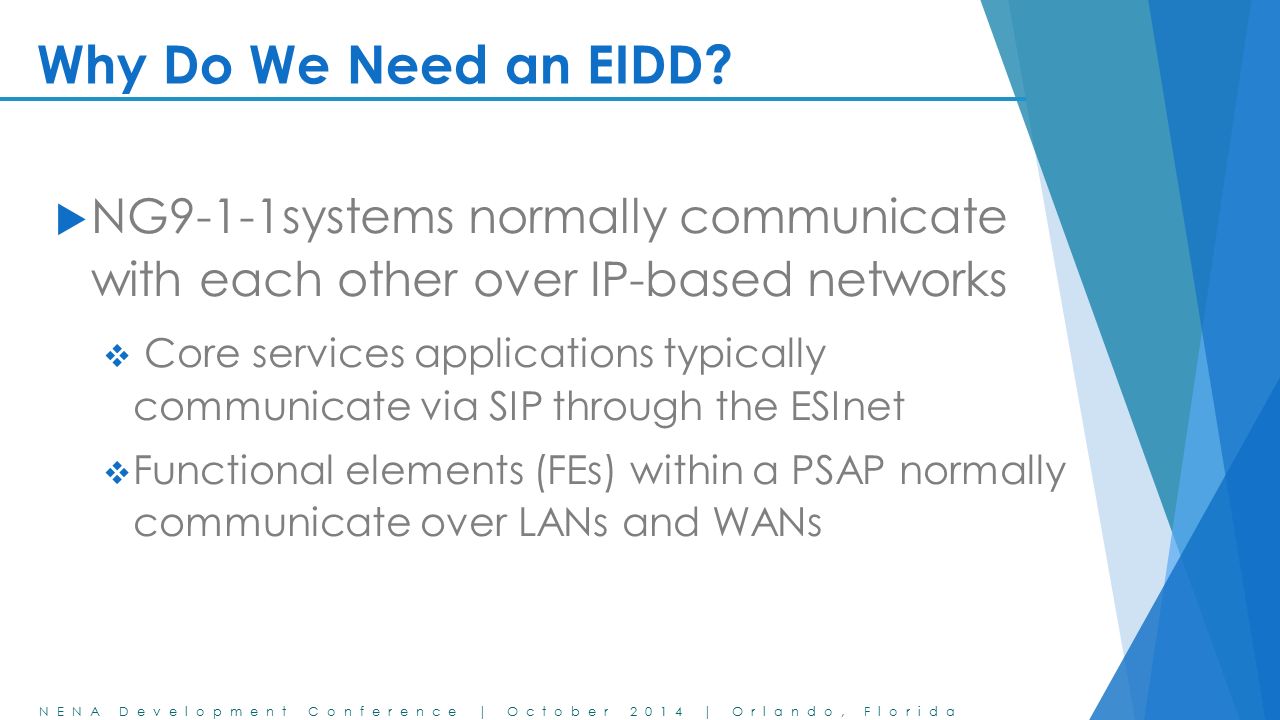

5. NENA Development Conference | October 2014 | Orlando, Florida Why Do We Need an EIDD?  NG9-1-1systems normally communicate with each other over IP-based networks  Core services applications typically communicate via SIP through the ESInet  Functional elements (FEs) within a PSAP normally communicate over LANs and WANs

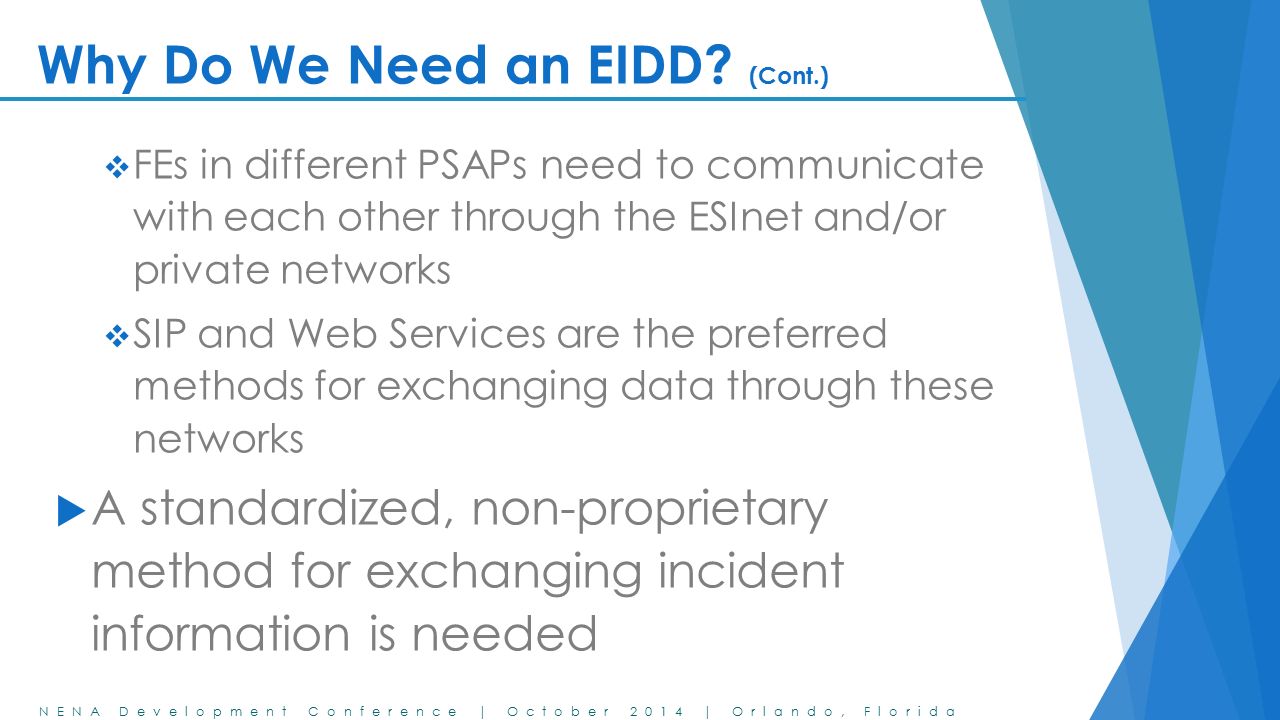

6. NENA Development Conference | October 2014 | Orlando, Florida Why Do We Need an EIDD? (Cont.)  FEs in different PSAPs need to communicate with each other through the ESInet and/or private networks  SIP and Web Services are the preferred methods for exchanging data through these networks  A standardized, non-proprietary method for exchanging incident information is needed

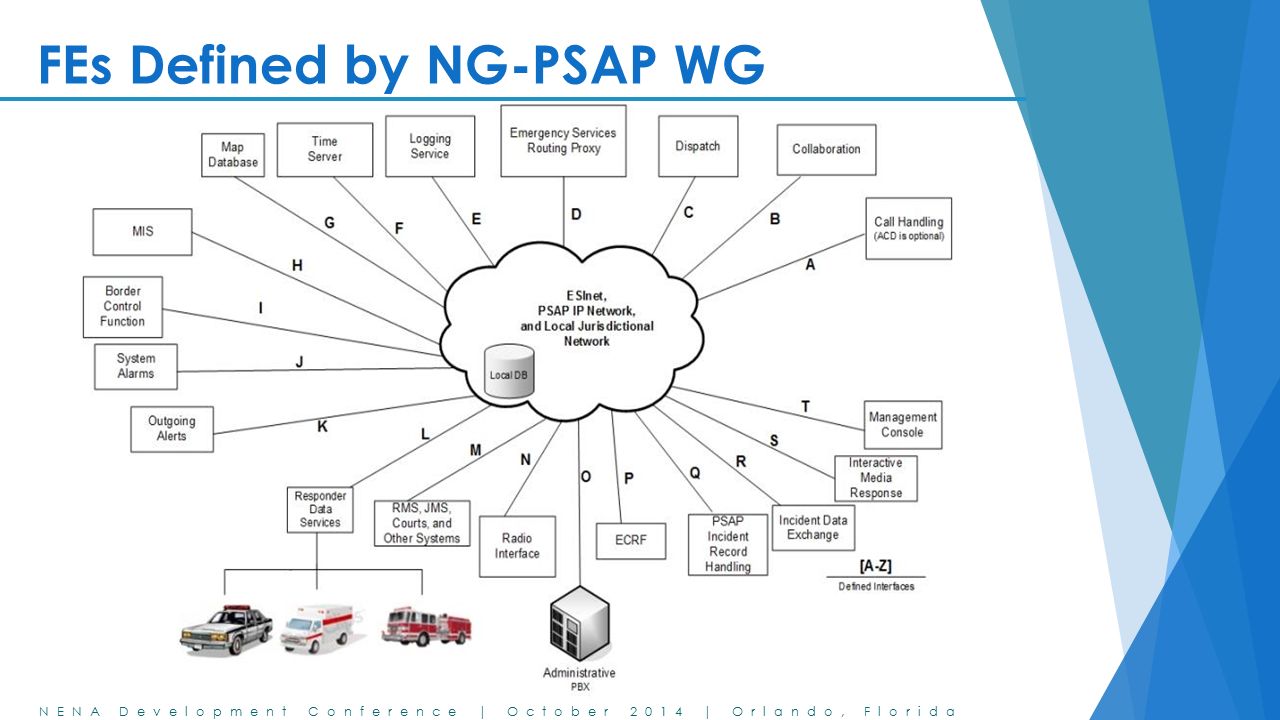

7. NENA Development Conference | October 2014 | Orlando, Florida FEs Defined by NG-PSAP WG

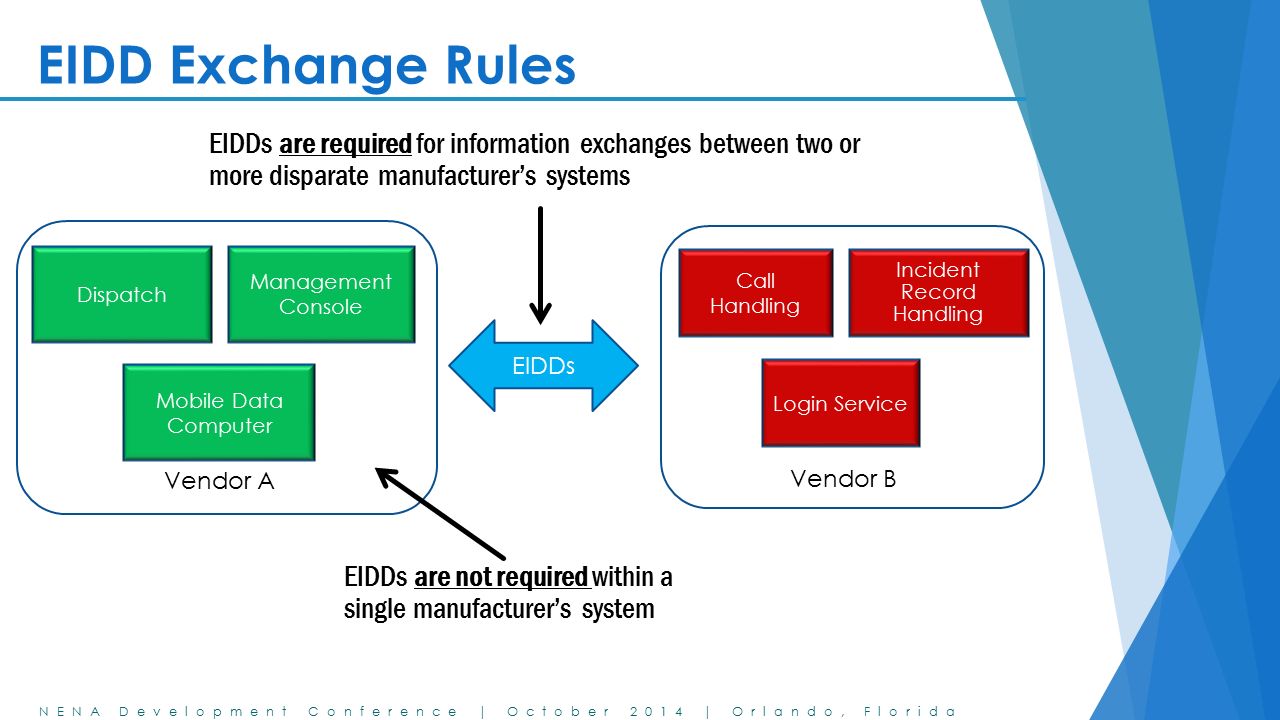

8. NENA Development Conference | October 2014 | Orlando, Florida EIDD Exchange Rules Dispatch Management Console Mobile Data Computer Vendor A Login Service Call Handling Incident Record Handling Vendor B EIDDs are required for information exchanges between two or more disparate manufacturer’s systems EIDDs EIDDs are not required within a single manufacturer’s system

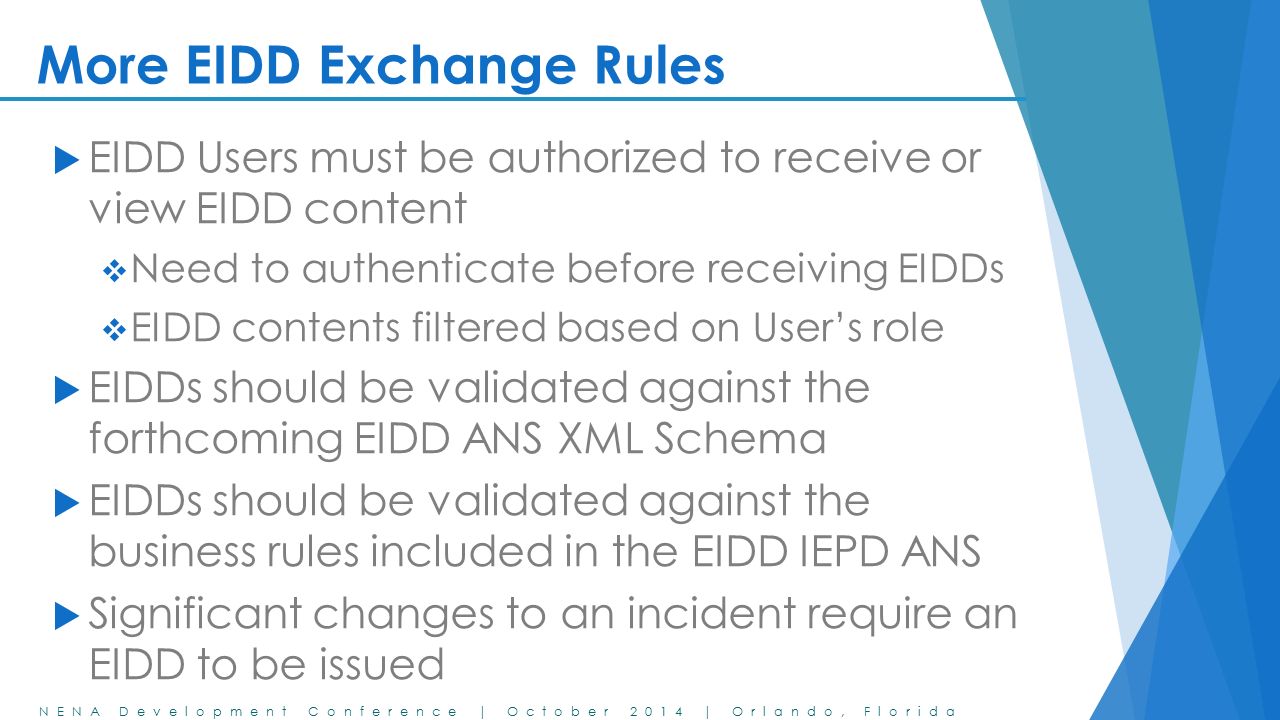

9. NENA Development Conference | October 2014 | Orlando, Florida More EIDD Exchange Rules  EIDD Users must be authorized to receive or view EIDD content  Need to authenticate before receiving EIDDs  EIDD contents filtered based on User’s role  EIDDs should be validated against the forthcoming EIDD ANS XML Schema  EIDDs should be validated against the business rules included in the EIDD IEPD ANS  Significant changes to an incident require an EIDD to be issued

10. NENA Development Conference | October 2014 | Orlando, Florida Typical EIDD Exchanges within PSAPs  Call Handling to Incident Handling  Incident Handling to Dispatch  Dispatch to Incident Handling  Dispatch to Mobile Data  Mobile Data to Dispatch  All FEs to Logging Services (recorder)  Most interactions between FEs involve EIDD exchanges

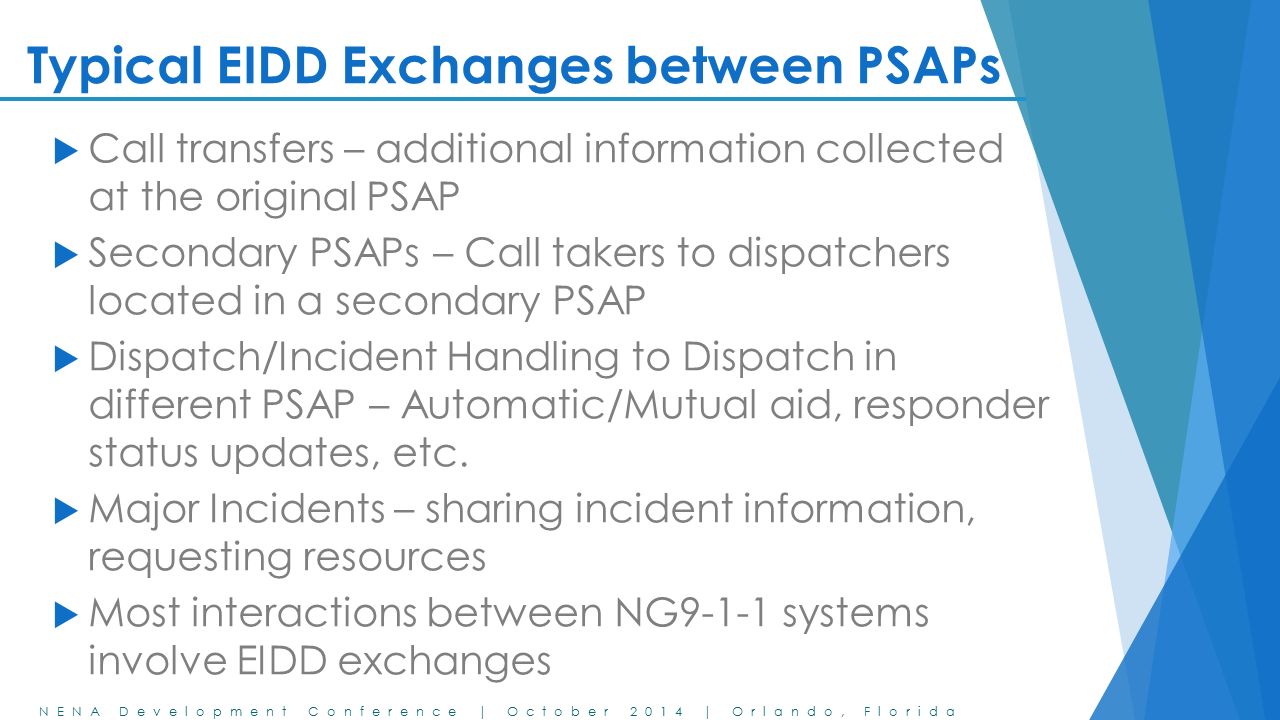

11. NENA Development Conference | October 2014 | Orlando, Florida Typical EIDD Exchanges between PSAPs  Call transfers – additional information collected at the original PSAP  Secondary PSAPs – Call takers to dispatchers located in a secondary PSAP  Dispatch/Incident Handling to Dispatch in different PSAP – Automatic/Mutual aid, responder status updates, etc.  Major Incidents – sharing incident information, requesting resources  Most interactions between NG9-1-1 systems involve EIDD exchanges

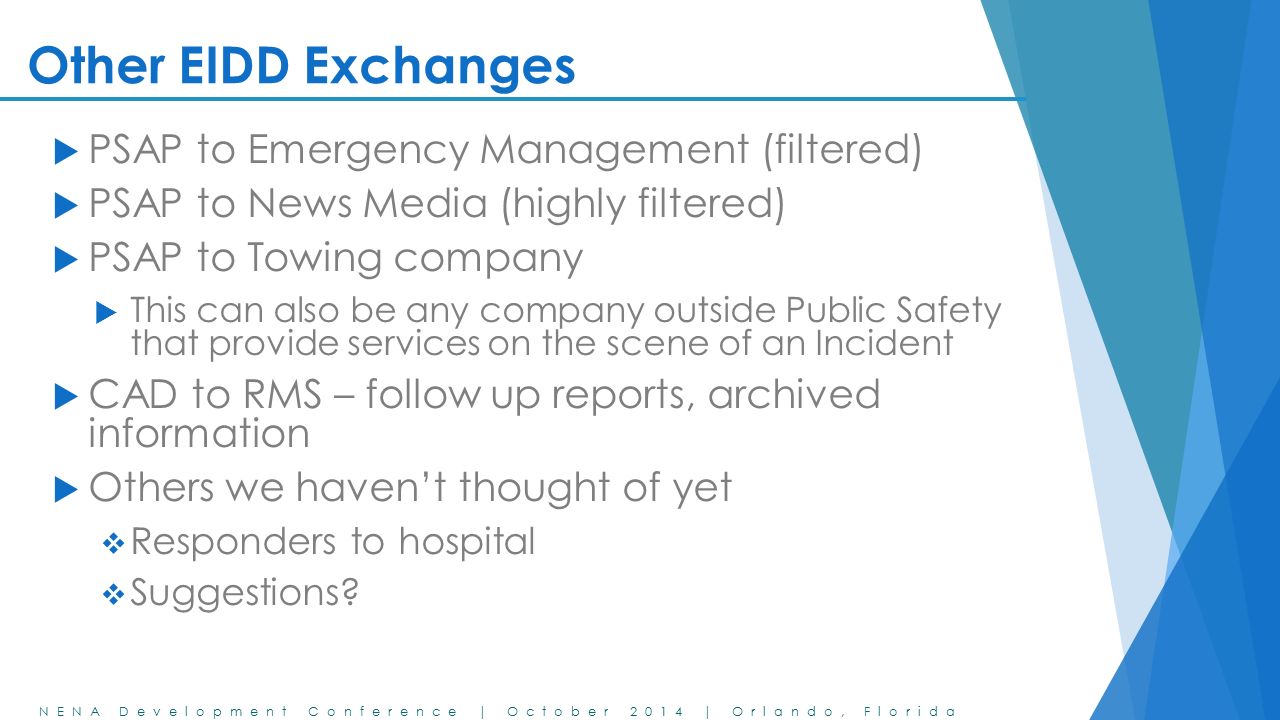

12. NENA Development Conference | October 2014 | Orlando, Florida Other EIDD Exchanges  PSAP to Emergency Management (filtered)  PSAP to News Media (highly filtered)  PSAP to Towing company  This can also be any company outside Public Safety that provide services on the scene of an Incident  CAD to RMS – follow up reports, archived information  Others we haven’t thought of yet  Responders to hospital  Suggestions?

13. NENA Development Conference | October 2014 | Orlando, Florida EIDD ANS Status  EIDD Information Document published on NENA Website (NENA-INF-005, 2/21/14)  EIDD WG moved from NENA to APCO to complete the EIDD ANS process  SEARCH developed a NIEM conformant IEPD based on the EIDD INF

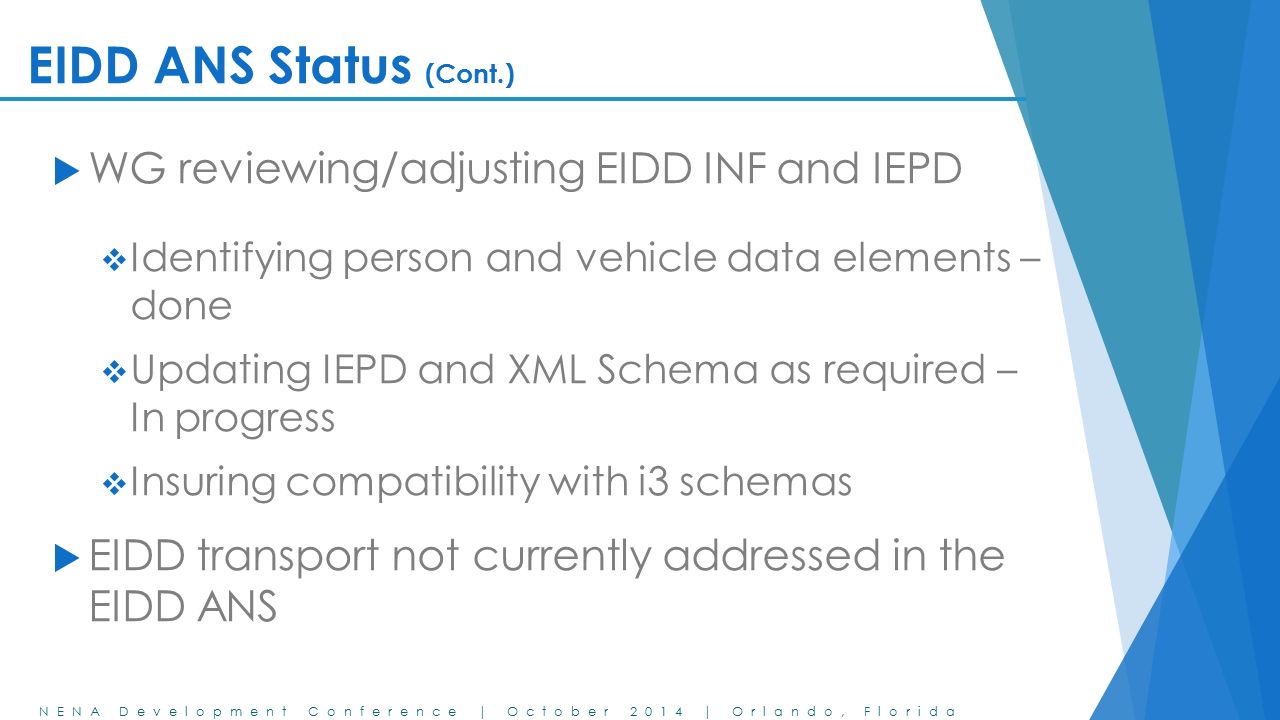

14. NENA Development Conference | October 2014 | Orlando, Florida EIDD ANS Status (Cont.)  WG reviewing/adjusting EIDD INF and IEPD  Identifying person and vehicle data elements – done  Updating IEPD and XML Schema as required – In progress  Insuring compatibility with i3 schemas  EIDD transport not currently addressed in the EIDD ANS

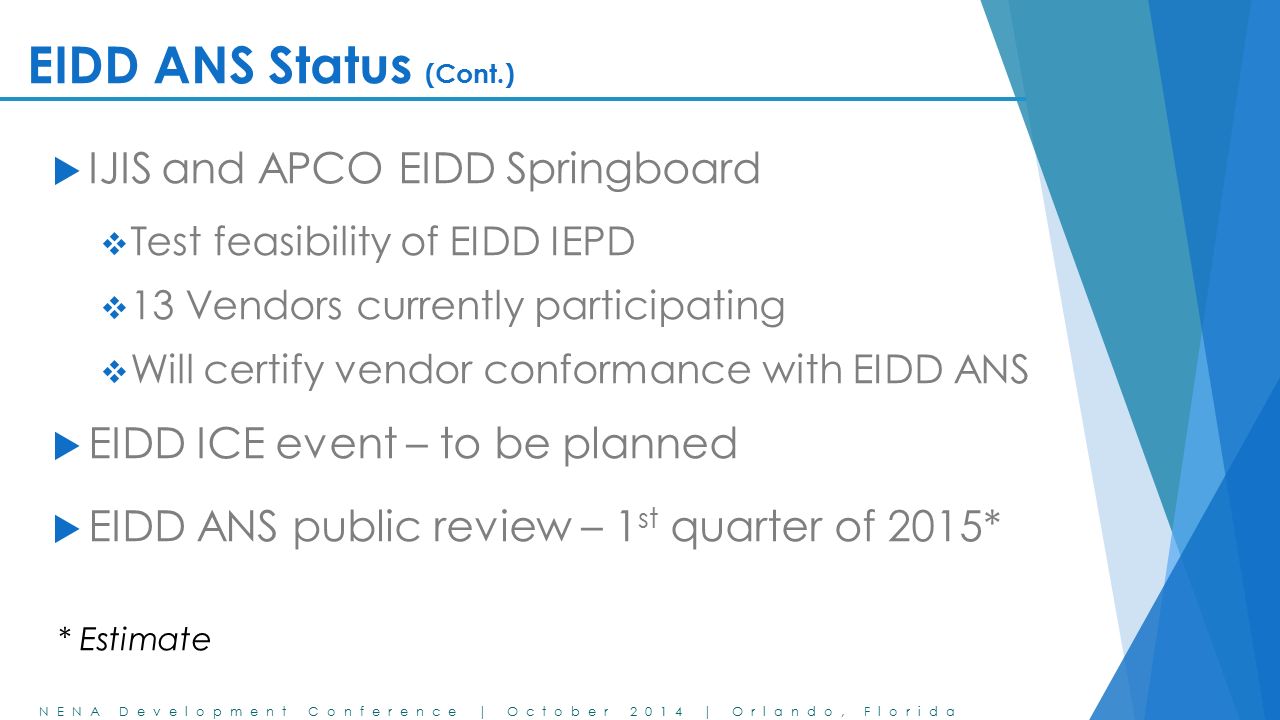

15. NENA Development Conference | October 2014 | Orlando, Florida EIDD ANS Status (Cont.)  IJIS and APCO EIDD Springboard  Test feasibility of EIDD IEPD  13 Vendors currently participating  Will certify vendor conformance with EIDD ANS  EIDD ICE event – to be planned  EIDD ANS public review – 1 st quarter of 2015* * Estimate

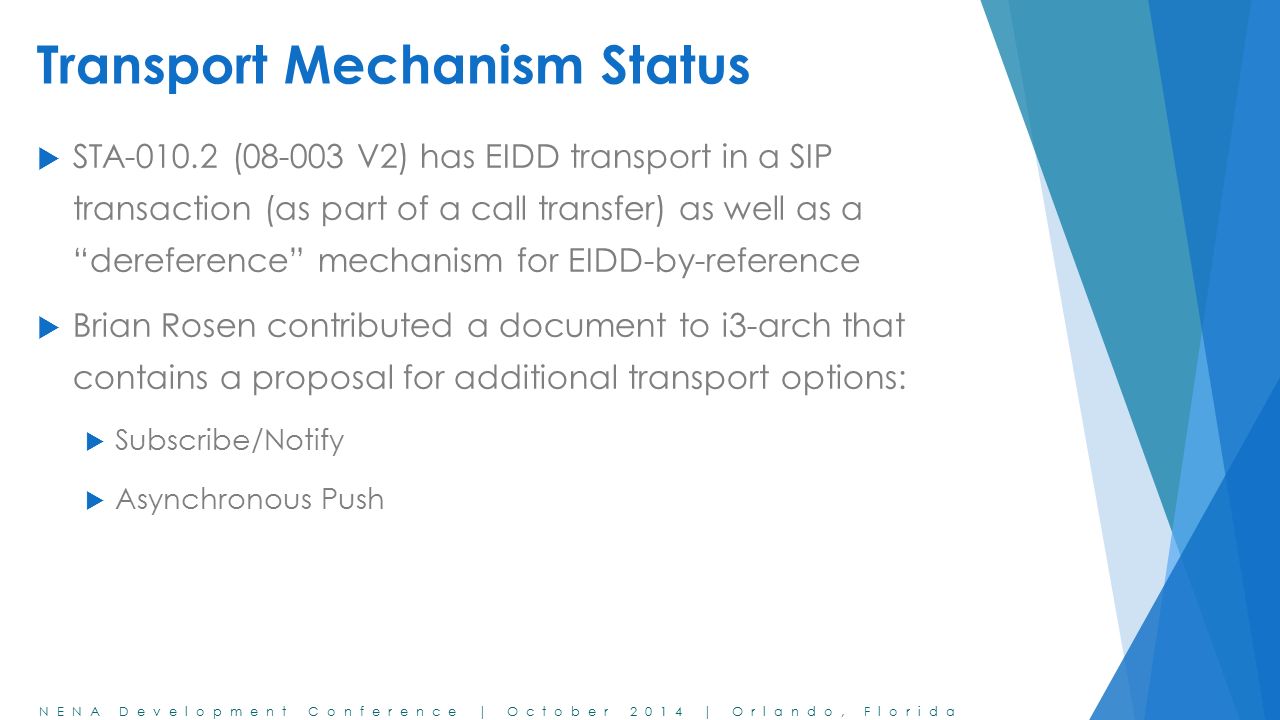

16. NENA Development Conference | October 2014 | Orlando, Florida Transport Mechanism Status  STA-010.2 (08-003 V2) has EIDD transport in a SIP transaction (as part of a call transfer) as well as a “dereference” mechanism for EIDD-by-reference  Brian Rosen contributed a document to i3-arch that contains a proposal for additional transport options:  Subscribe/Notify  Asynchronous Push

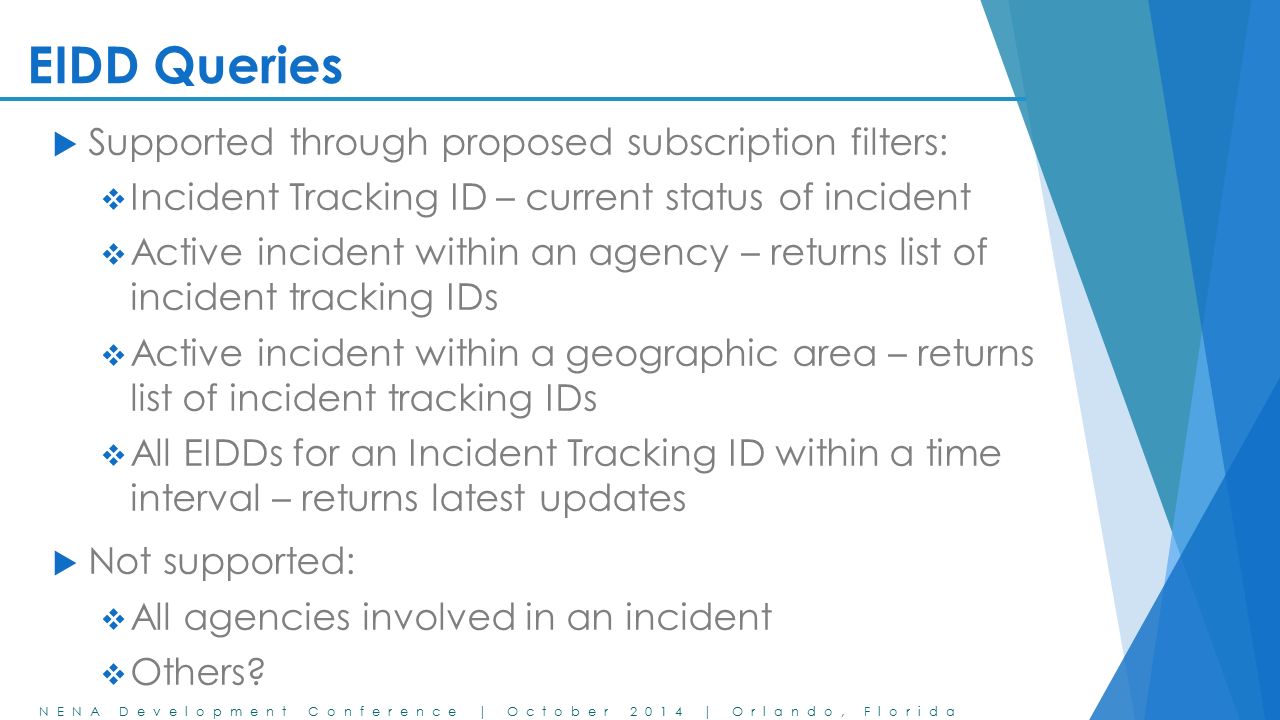

17. NENA Development Conference | October 2014 | Orlando, Florida EIDD Queries  Supported through proposed subscription filters:  Incident Tracking ID – current status of incident  Active incident within an agency – returns list of incident tracking IDs  Active incident within a geographic area – returns list of incident tracking IDs  All EIDDs for an Incident Tracking ID within a time interval – returns latest updates  Not supported:  All agencies involved in an incident  Others?

18. NENA Development Conference | October 2014 | Orlando, Florida EIDD Transport in 9-1-1 Calls  Required during a conference and/or transfer with another agency  EIDD is found in the Call-Info header, with a purpose of “eidd”  The INVITE includes the EIDD by value (actual data) or by reference (a link where to get the data)  Reference embedded in Call’s SIP and EIDD retrieved via dereferencing (HTTP GET)  Embedded EIDD requires prior filtering  Dereferencing enables filtering based on real-time authentication

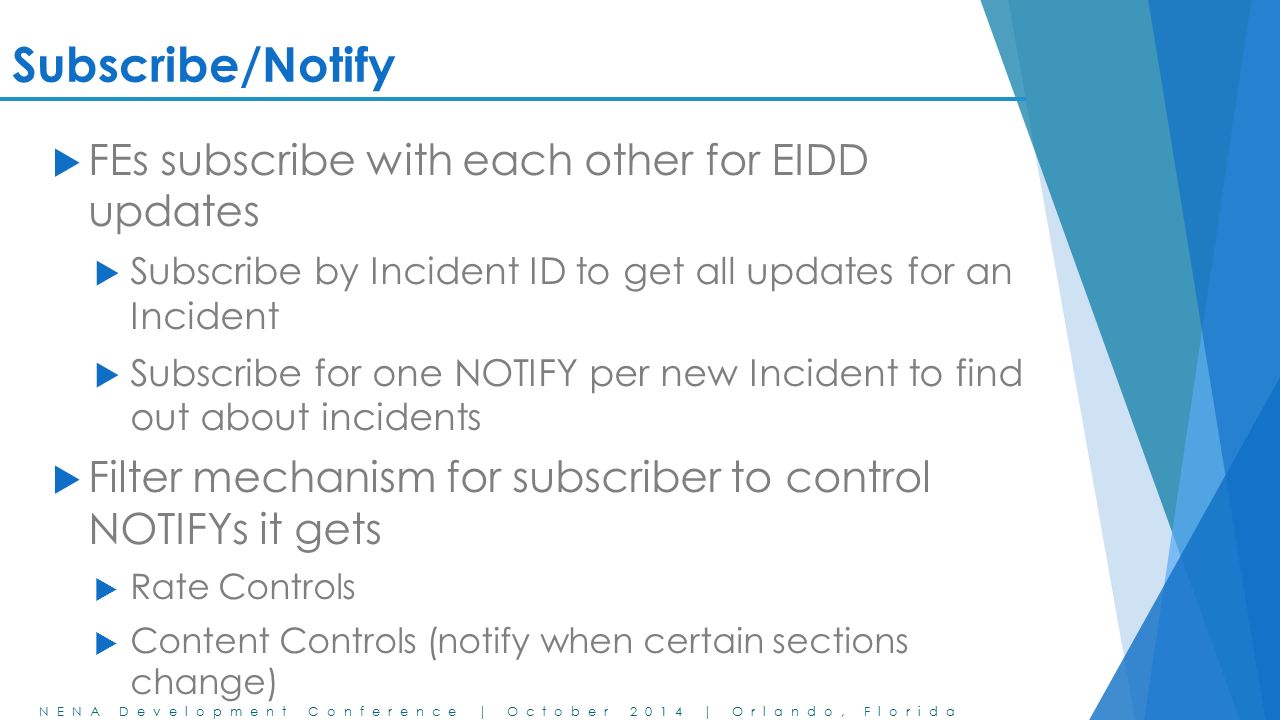

19. NENA Development Conference | October 2014 | Orlando, Florida Subscribe/Notify  FEs subscribe with each other for EIDD updates  Subscribe by Incident ID to get all updates for an Incident  Subscribe for one NOTIFY per new Incident to find out about incidents  Filter mechanism for subscriber to control NOTIFYs it gets  Rate Controls  Content Controls (notify when certain sections change)

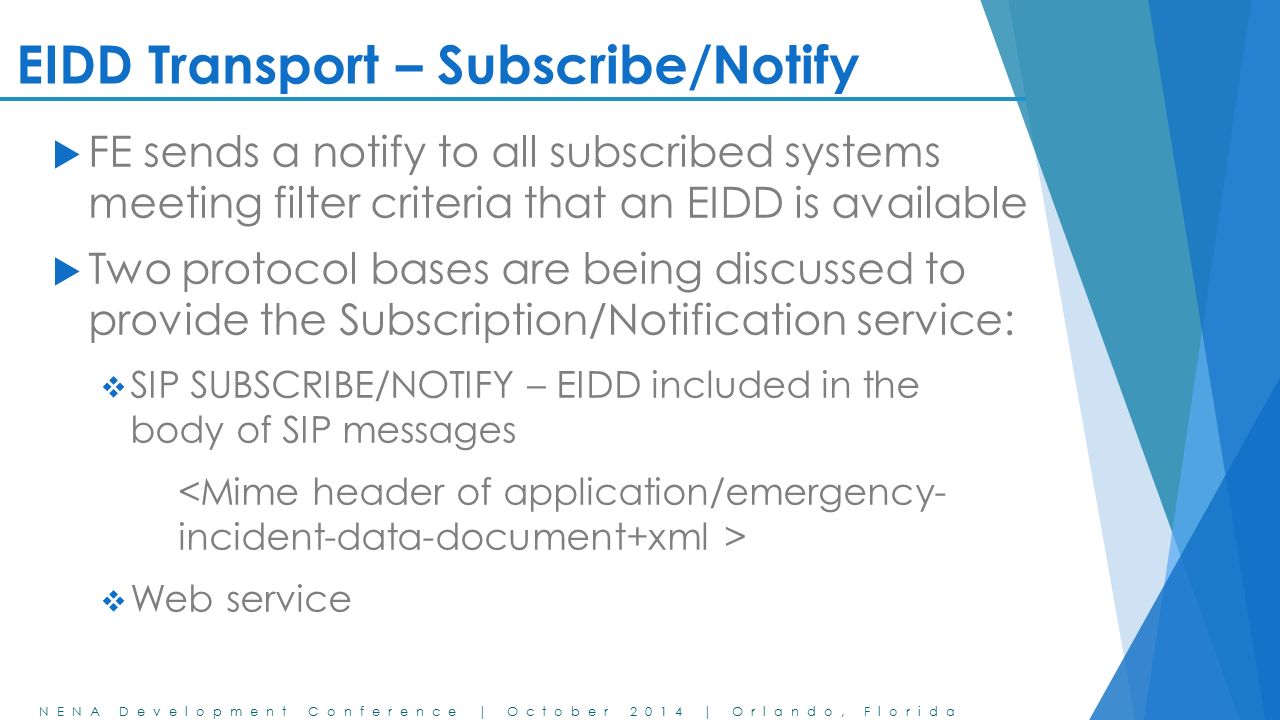

20. NENA Development Conference | October 2014 | Orlando, Florida EIDD Transport – Subscribe/Notify  FE sends a notify to all subscribed systems meeting filter criteria that an EIDD is available  Two protocol bases are being discussed to provide the Subscription/Notification service:  SIP SUBSCRIBE/NOTIFY – EIDD included in the body of SIP messages  Web service

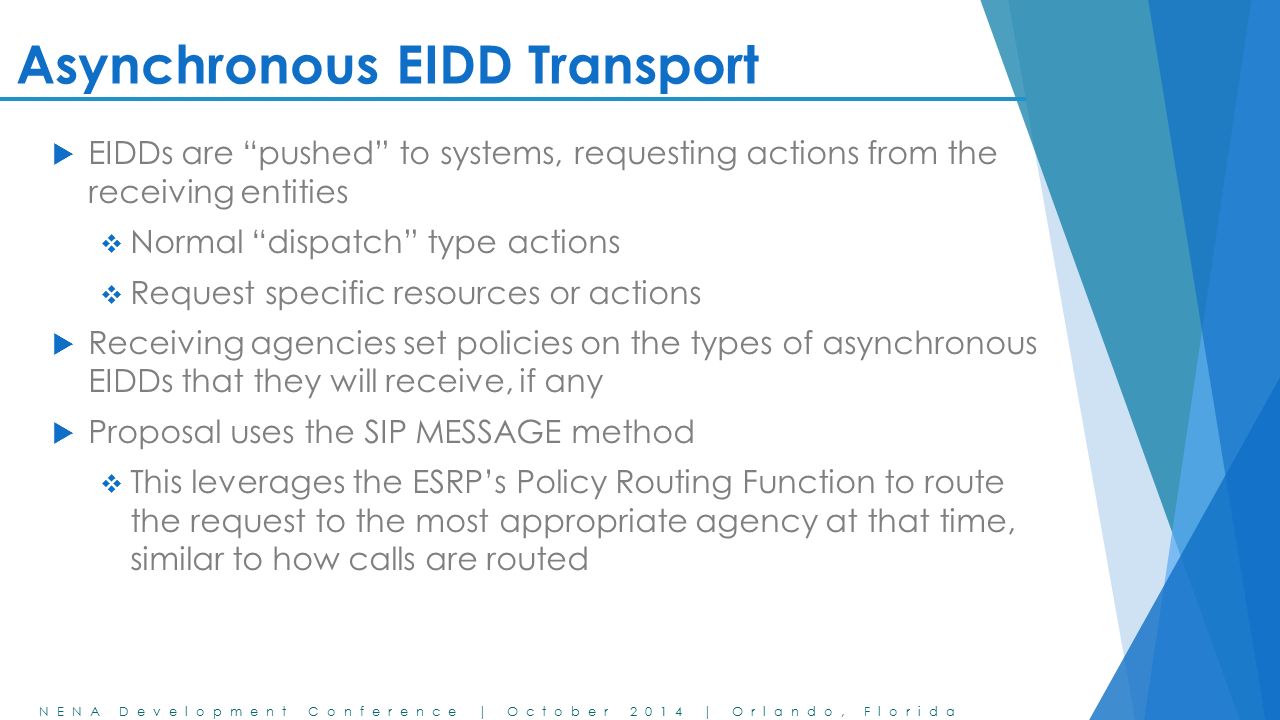

21. NENA Development Conference | October 2014 | Orlando, Florida Asynchronous EIDD Transport  EIDDs are “pushed” to systems, requesting actions from the receiving entities  Normal “dispatch” type actions  Request specific resources or actions  Receiving agencies set policies on the types of asynchronous EIDDs that they will receive, if any  Proposal uses the SIP MESSAGE method  This leverages the ESRP’s Policy Routing Function to route the request to the most appropriate agency at that time, similar to how calls are routed

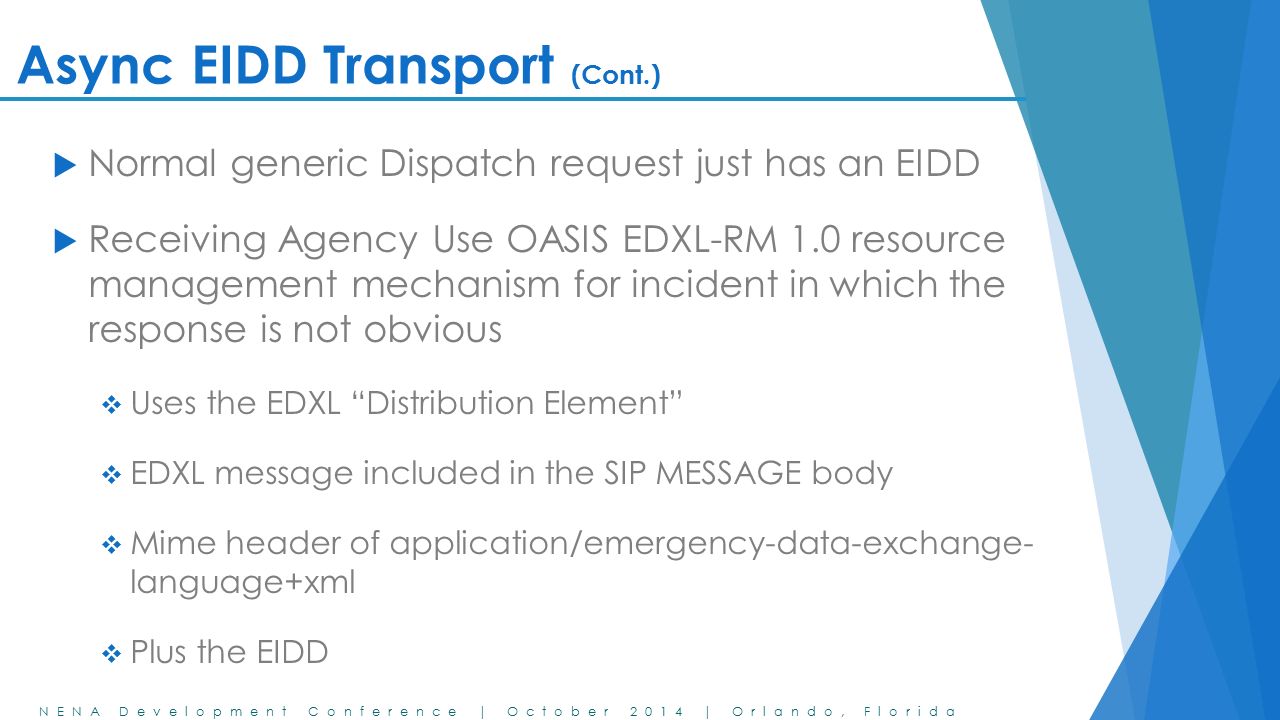

22. NENA Development Conference | October 2014 | Orlando, Florida Async EIDD Transport (Cont.)  Normal generic Dispatch request just has an EIDD  Receiving Agency Use OASIS EDXL-RM 1.0 resource management mechanism for incident in which the response is not obvious  Uses the EDXL “Distribution Element”  EDXL message included in the SIP MESSAGE body  Mime header of application/emergency-data-exchange- language+xml  Plus the EIDD

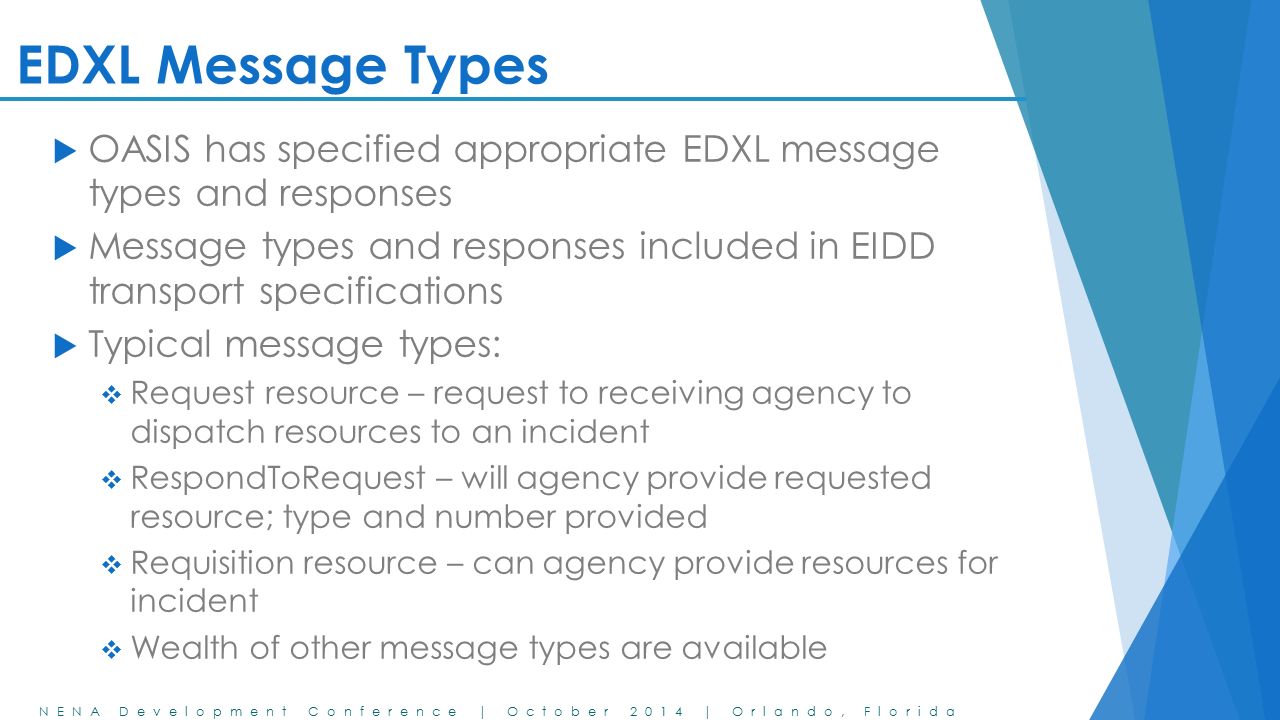

23. NENA Development Conference | October 2014 | Orlando, Florida EDXL Message Types  OASIS has specified appropriate EDXL message types and responses  Message types and responses included in EIDD transport specifications  Typical message types:  Request resource – request to receiving agency to dispatch resources to an incident  RespondToRequest – will agency provide requested resource; type and number provided  Requisition resource – can agency provide resources for incident  Wealth of other message types are available
