Office 2003 Advanced Concepts and Techniques M i c r o s o f t Excel Integration Feature Object Linking and Embedding (OLE) and Web Discussions.

Published byBaldwin Francis Modified over 8 years ago

Similar presentations

Presentation on theme: "Office 2003 Advanced Concepts and Techniques M i c r o s o f t Excel Integration Feature Object Linking and Embedding (OLE) and Web Discussions."— Presentation transcript:

1 Office 2003 Advanced Concepts and Techniques M i c r o s o f t Excel Integration Feature Object Linking and Embedding (OLE) and Web Discussions

2 Excel Integration Feature: Object Linking and Embedding (OLE) and Web Discussions 2 Objectives Differentiate among the three methods of copying objects between applications Link an Excel worksheet and chart to a Word document Edit a linked Excel workbook Save and access an Office document using a discussion server

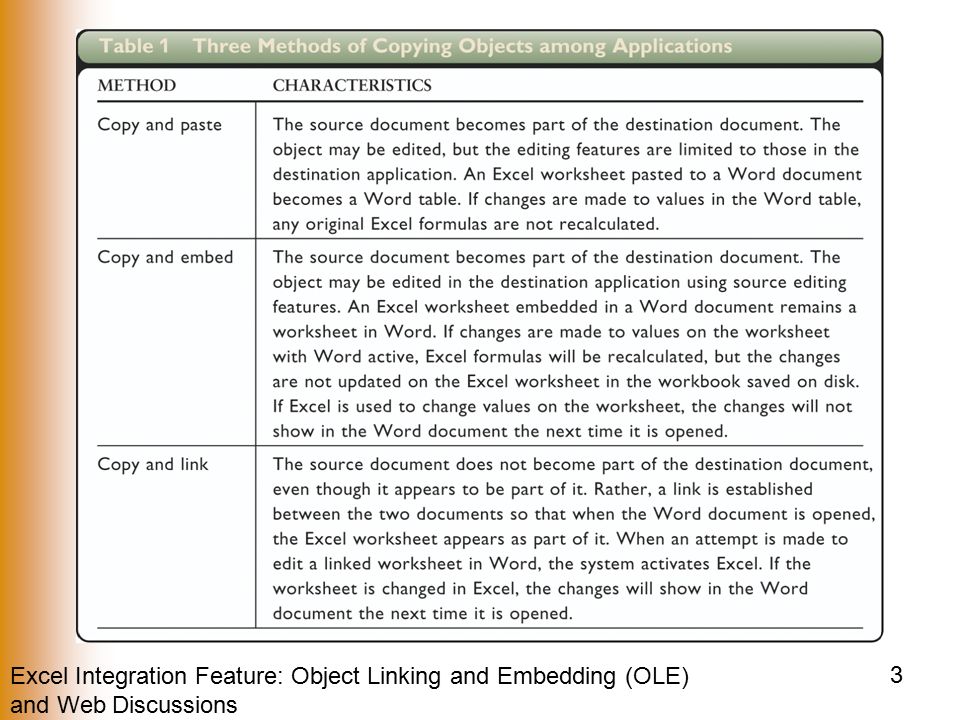

3 Excel Integration Feature: Object Linking and Embedding (OLE) and Web Discussions 3

4 4 Opening a Word Document and an Excel Workbook Open the Weekly Sales Memorandum Word document, which is located on your Data Disk If necessary, click the Normal View button in the lower-left corner of the screen Click the blank line at the bottom of the document Open the Weekly Sales Summary Excel file, which is located on your Data Disk

5 Excel Integration Feature: Object Linking and Embedding (OLE) and Web Discussions 5

6 6 Linking an Excel Worksheet and Chart to a Word Document With the Excel window active, select the range A1:G28 on the Weekly Sales Summary sheet Click the Copy button to copy the selected range to the Office Clipboard Click the Weekly Sales Memorandum program button on the Windows taskbar to activate the Word window Click Edit on the menu bar

7 Excel Integration Feature: Object Linking and Embedding (OLE) and Web Discussions 7 Linking an Excel Worksheet and Chart to a Word Document Click Paste Special on the Edit menu When the paste Special dialog box appears, click Paste link in the Source area, and then click Microsoft Office Excel Worksheet Object in the As list Click the OK button

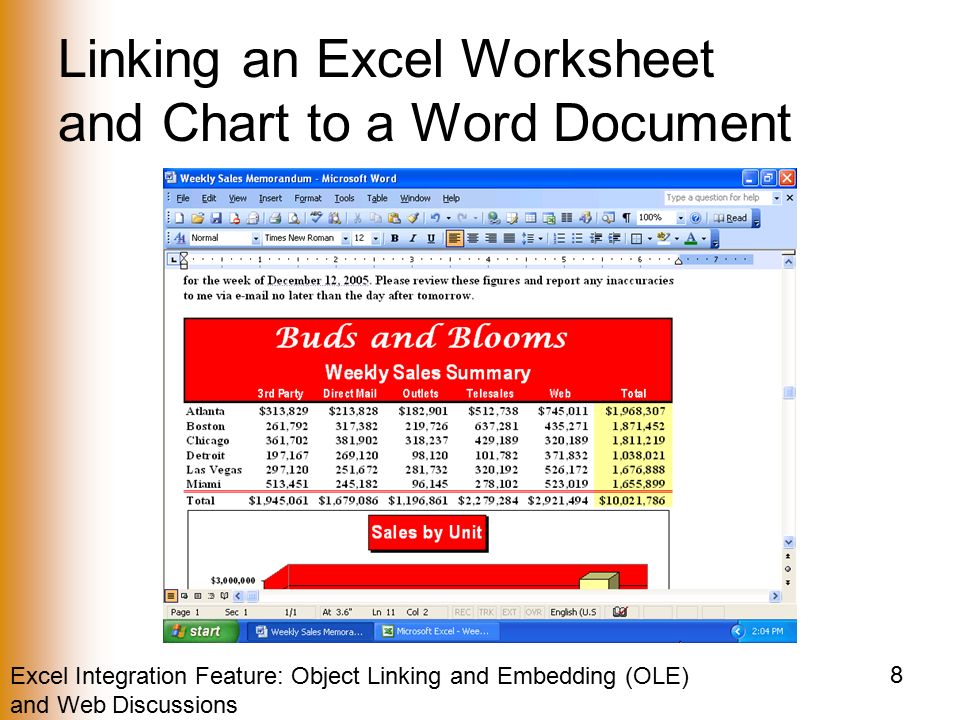

8 Excel Integration Feature: Object Linking and Embedding (OLE) and Web Discussions 8 Linking an Excel Worksheet and Chart to a Word Document

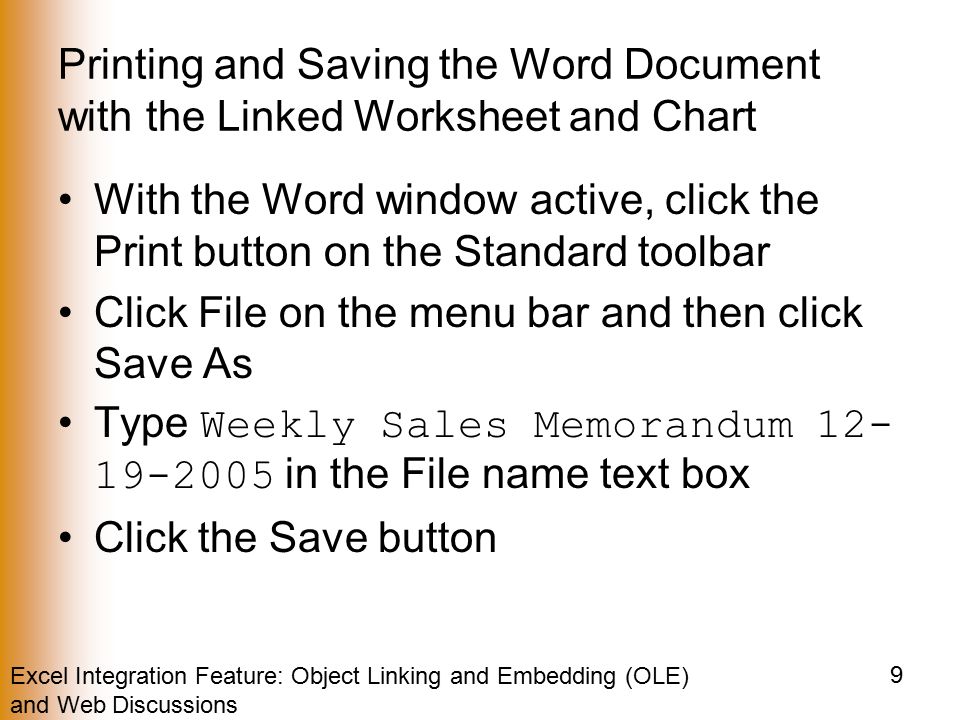

9 Excel Integration Feature: Object Linking and Embedding (OLE) and Web Discussions 9 Printing and Saving the Word Document with the Linked Worksheet and Chart With the Word window active, click the Print button on the Standard toolbar Click File on the menu bar and then click Save As Type Weekly Sales Memorandum 12- 19-2005 in the File name text box Click the Save button

10 Excel Integration Feature: Object Linking and Embedding (OLE) and Web Discussions 10 Printing and Saving the Word Document with the Linked Worksheet and Chart Right-click the Excel program button on the Windows taskbar and then click Close on the shortcut menu When Excel displays the Microsoft Excel dialog box, click the No button Right-click the Word program button on the Windows taskbar and then click Close on the shortcut menu

11 Excel Integration Feature: Object Linking and Embedding (OLE) and Web Discussions 11 Printing and Saving the Word Document with the Linked Worksheet and Chart

12 Excel Integration Feature: Object Linking and Embedding (OLE) and Web Discussions 12 Editing the Linked Worksheet Start Excel and open the Weekly Sales Summary workbook located on the Data Disk in drive A When Excel displays the Weekly Sales Summary workbook, click cell E7 and then enter 500000 as the new value for the Telesales unit in Detroit Click the Save button on the Standard toolbar and then click the Close button on the right side of the Excel title bar

13 Excel Integration Feature: Object Linking and Embedding (OLE) and Web Discussions 13 Editing the Linked Worksheet Start Word and open the Weekly Sales Memorandum 12-19-2005 document located on the Data Disk in drive A When the Microsoft Office Word dialog box appears, click the Yes button to update links Click the Close button on the right side of the Word title bar When the Microsoft Office Word dialog box appears, click the No button

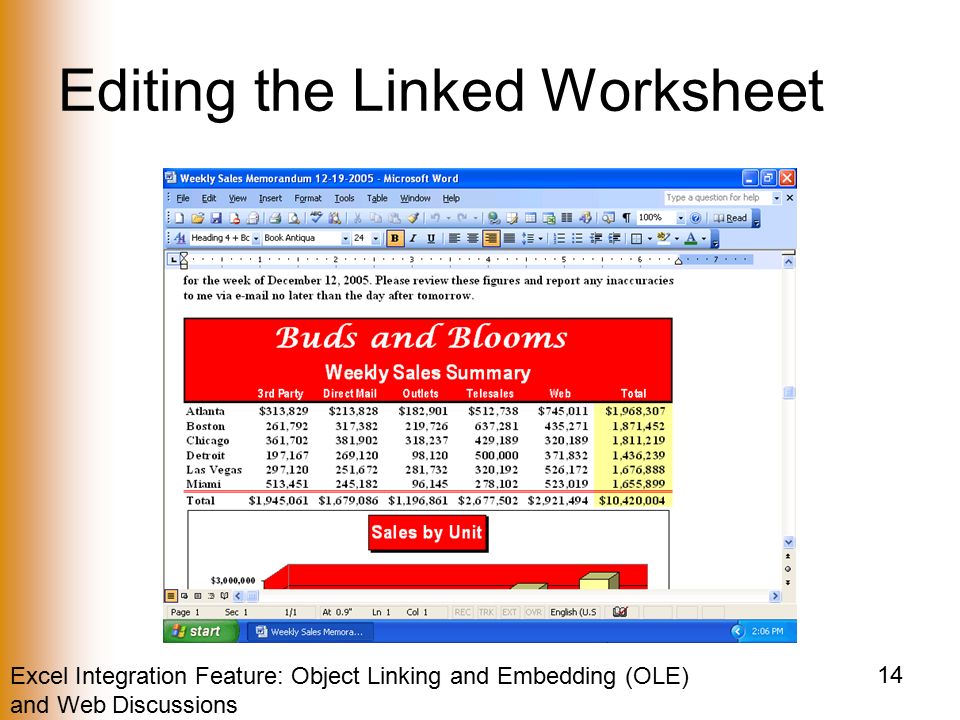

14 Excel Integration Feature: Object Linking and Embedding (OLE) and Web Discussions 14 Editing the Linked Worksheet

15 Excel Integration Feature: Object Linking and Embedding (OLE) and Web Discussions 15 Saving the Word Document as a Web Page and Using the Web Discussions Feature to Enter a Comment Start Word and open the Weekly Sales Memorandum 12-19-2005 document located on the Data Disk in drive A Click File on the menu bar Click Save as Web Page on the File menu When Word displays the Save As dialog box, click the Save as type box arrow, and then click Single File Web Page Click the My Network Places button in the lower- left corner of the Save As dialog box

16 Excel Integration Feature: Object Linking and Embedding (OLE) and Web Discussions 16 Saving the Word Document as a Web Page and Using the Web Discussions Feature to Enter a Comment Double-click a Web server you have rights to use Click the folder to which you plan to save the Web page Click the Save button in the Save As dialog box and then click the Close button on the right side of the Word title bar View the Web page Weekly Sales Memorandum 12-19-12005.mht in the browser Click the Discuss button on the Standard Buttons toolbar

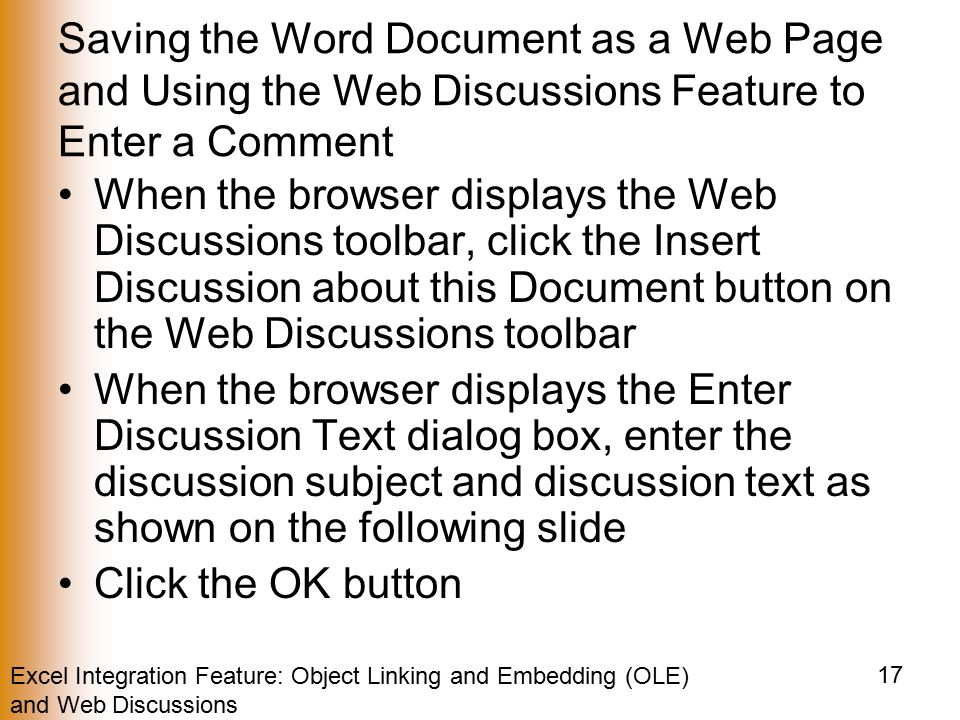

17 Excel Integration Feature: Object Linking and Embedding (OLE) and Web Discussions 17 Saving the Word Document as a Web Page and Using the Web Discussions Feature to Enter a Comment When the browser displays the Web Discussions toolbar, click the Insert Discussion about this Document button on the Web Discussions toolbar When the browser displays the Enter Discussion Text dialog box, enter the discussion subject and discussion text as shown on the following slide Click the OK button

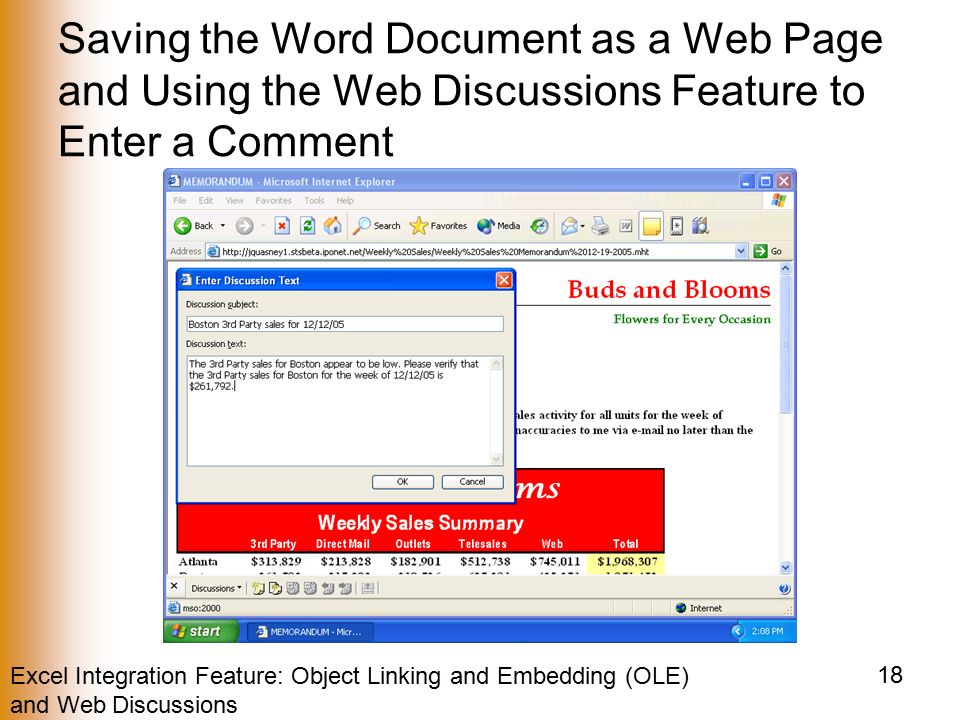

18 Excel Integration Feature: Object Linking and Embedding (OLE) and Web Discussions 18 Saving the Word Document as a Web Page and Using the Web Discussions Feature to Enter a Comment

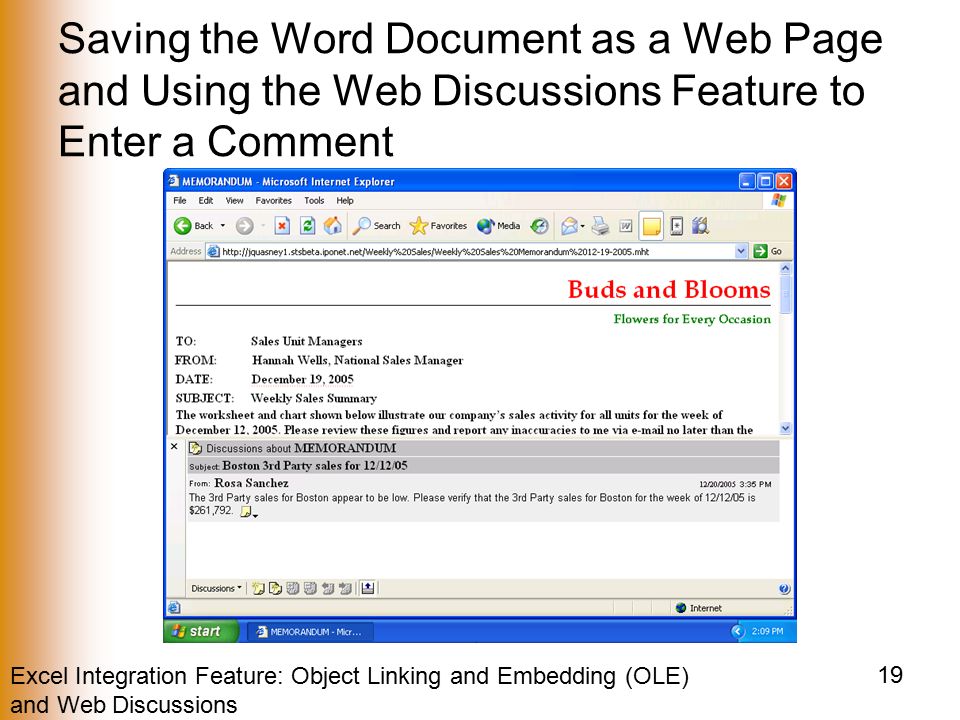

19 Excel Integration Feature: Object Linking and Embedding (OLE) and Web Discussions 19 Saving the Word Document as a Web Page and Using the Web Discussions Feature to Enter a Comment

20 Excel Integration Feature: Object Linking and Embedding (OLE) and Web Discussions 20 Replying to a Comment on a Discussion Server With the comment in the Discussion pane, click the Show a menu of actions button that appears after the comment Click Reply on the shortcut menu When the browser displays the Enter Discussion Text dialog box, enter the discussion text as shown on the following slide

21 Excel Integration Feature: Object Linking and Embedding (OLE) and Web Discussions 21 Replying to a Comment on a Discussion Server

22 Excel Integration Feature: Object Linking and Embedding (OLE) and Web Discussions 22 Replying to a Comment on a Discussion Server Click the OK button Right-click the Discussion pane and then click the Print command on the shortcut menu to print the comments Click the Discuss button on the Standard Buttons toolbar Click the Close button on the right side of the browser’s title bar

23 Excel Integration Feature: Object Linking and Embedding (OLE) and Web Discussions 23 Replying to a Comment on a Discussion Server

24 Excel Integration Feature: Object Linking and Embedding (OLE) and Web Discussions 24 Summary Differentiate among the three methods of copying objects between applications Link an Excel worksheet and chart to a Word document Edit a linked Excel workbook Save and access an Office document using a discussion server

25 Office 2003 Advanced Concepts and Techniques M i c r o s o f t Excel Integration Feature Complete
