1. Pertemuan 08 Systems Analysis and Design of a Business Event Driven System Matakuliah: M0034 /Informasi dan Proses Bisnis Tahun: 2005 Versi: 01/05

2. Learning Outcomes Pada akhir pertemuan ini, diharapkan mahasiswa akan mampu : Menjelaskan tahapan dalam menganalisa dan merancang aplikasi TI

3. Outline Materi Model-model tahapan Analisis & Perancangan Sistem Informasi (Cont'..) – Evolution Of AIS Modeling – Prototyping – Building an IT Application Prototype

4. Lanjutan Dari Pertemuan 12

5.  The McGraw-Hill Companies, Inc., 2000 Irwin/McGraw-Hill Exhibit 4-17 Evolution Of AIS Modeling Stage 1 Manual Systems Stage 2 Automated Systems Stage 3 Resources: Manual Process: Acct Cycle Data Stores (Files): Journals & Ledgers Resources: Information Technology Process: Acct Cycle Data Stores (Files): Journals & Ledgers Event Driven IT Applications Resources: Information Technology Process: Record, Maintain, Report Business Activity Data Data Stores: Business Activity Data Integrated Stores Bias: Generate financial statements Bias: Generate financial statements Bias: Support Planning, Control & Evaluation Activities of Various Information Customers

6.  The McGraw-Hill Companies, Inc., 2000 Irwin/McGraw-Hill Prototyping: Preliminary Steps Step 1: Review the business process and identify the business events of interest.

7.  The McGraw-Hill Companies, Inc., 2000 Irwin/McGraw-Hill Prototyping: Preliminary Steps Step 1: Review the business process and identify the business events of interest. Step 2: Analyze each event to identify the event resources, agents, and locations.

8.  The McGraw-Hill Companies, Inc., 2000 Irwin/McGraw-Hill Prototyping: Preliminary Steps Step 1: Review the business process and identify the business events of interest. Step 2: Analyze each event to identify the event resources, agents, and locations. Step 3: Identify the relevant behaviors, characteristics, and attributes of the event, resources, agents, and locations.

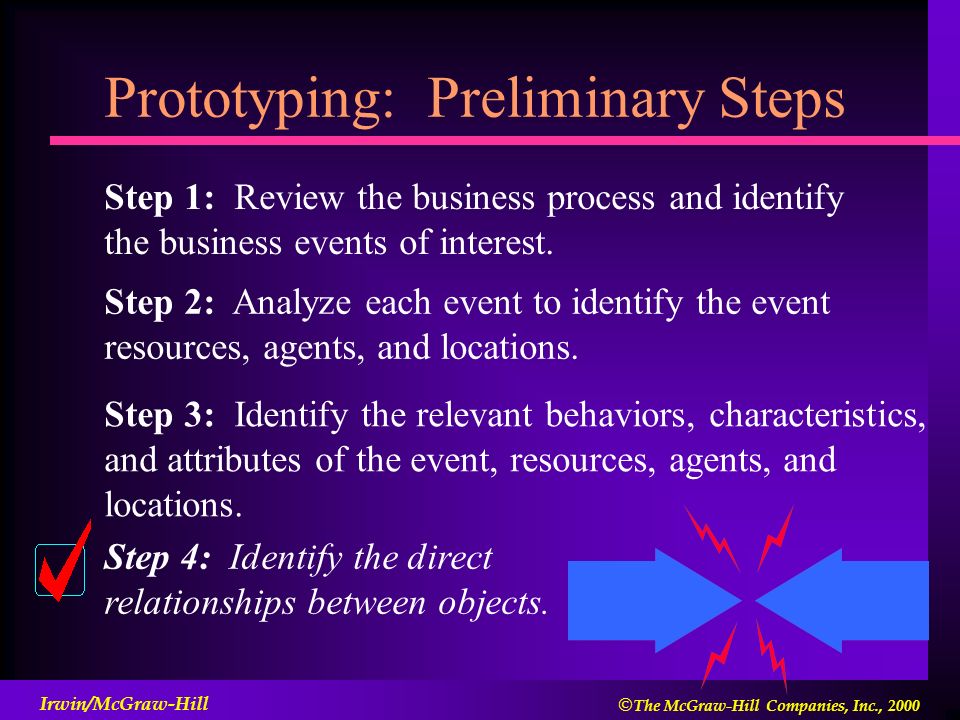

9.  The McGraw-Hill Companies, Inc., 2000 Irwin/McGraw-Hill Prototyping: Preliminary Steps Step 1: Review the business process and identify the business events of interest. Step 2: Analyze each event to identify the event resources, agents, and locations. Step 3: Identify the relevant behaviors, characteristics, and attributes of the event, resources, agents, and locations. Step 4: Identify the direct relationships between objects.

10.  The McGraw-Hill Companies, Inc., 2000 Irwin/McGraw-Hill Prototyping: Preliminary Steps Step 1: Review the business process and identify the business events of interest. Step 2: Analyze each event to identify the event resources, agents, and locations. Step 3: Identify the relevant behaviors, characteristics, and attributes of the event, resources, agents, and locations. Step 4: Identify the direct relationships between objects. Step 5: Validate the model with the business person.

11.  The McGraw-Hill Companies, Inc., 2000 Irwin/McGraw-Hill Planning an Event-Driven Application ¶ Identifying the business events of interest · Identifying the resources, agents, and locations of each event of interest ¸ Identifying the relevant behaviors, characteristics and attributes of the events, resources, agents, and locations ¹ Identifying the direct relationship between objects º Validating your business process model with business persons Chapter2Chapter2 Chapter2Chapter2

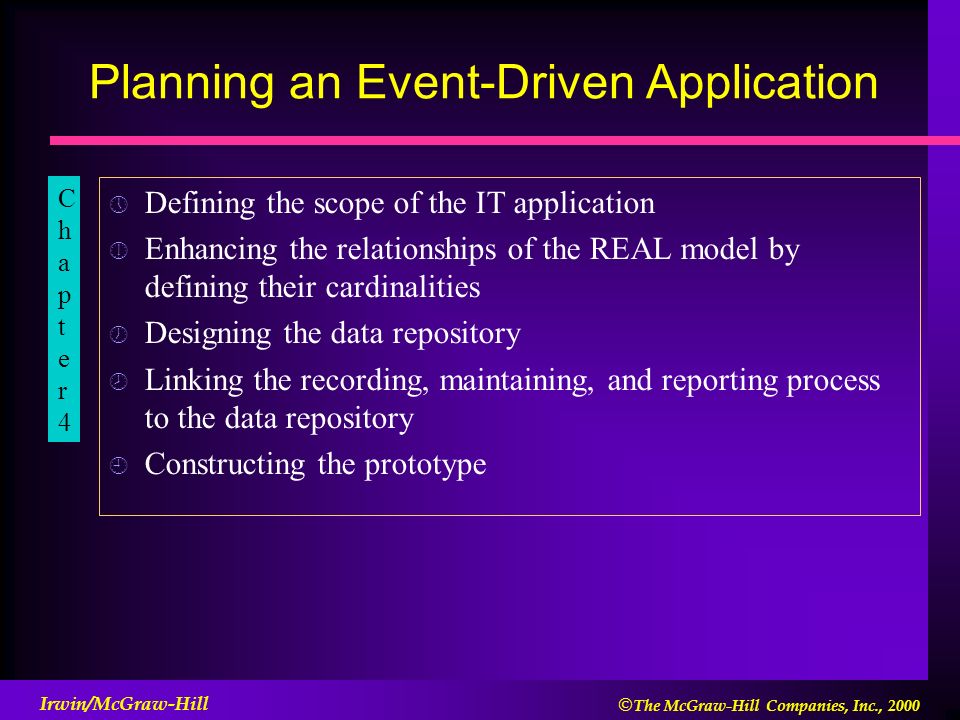

12.  The McGraw-Hill Companies, Inc., 2000 Irwin/McGraw-Hill Planning an Event-Driven Application » Defining the scope of the IT application ¼ Enhancing the relationships of the REAL model by defining their cardinalities ½ Designing the data repository ¾ Linking the recording, maintaining, and reporting process to the data repository ¿ Constructing the prototype Chapter4Chapter4

13.  The McGraw-Hill Companies, Inc., 2000 Irwin/McGraw-Hill McKell’s Retail Sale Store Sale Customer Merchandise Salesperson Register

14.  The McGraw-Hill Companies, Inc., 2000 Irwin/McGraw-Hill Application Context Diagram EVENT-DATA Definitions of various data flows for each business event within the application scope MAINTENANCE-DATA Definitions of various data flows for maintaining application reference data RESPONSES Definitions of various responses provided by the application NOTIFICATIONS Definitions of various notifications provided by the application REPORTS Definitions of various reports provided by the application Event-Data Reports Application Context Response Notification Maintenance-Data

15.  The McGraw-Hill Companies, Inc., 2000 Irwin/McGraw-Hill McKell’s Retail Sale Context Diagram EVENT-DATA Example= Sale-Data = Sale-Date + Register # + Customer # + Employee # + {Merchandise # + Qty-Sold} MAINTENANCE-DATA Example= Definitions of various data flows for maintaining customer, salesperson, and register reference data RESPONSE Example= Sales-Invoice = Invoice# +Sale-Date + Register # + Customer Name + Salesperson Name + {Merchandise Name + Qty-Sold + Price + Item-Total} + Sale-Total NOTIFICATION Example = Warehouse-notification = Invoice#+{Merchandise# + Qty-Sold} REPORT Example = Product-Sales = Report-Date + {Merchandise # + Merchandise Description + Qty-Sold + %Margin + $ Contribution} Accounting-Revenue = Report-Date + Reporting-Period + Revenue for Reporting-Period Sales-by-Salesperson = Report-Date + {Salesperson Name + {Merchandise-Description + Qty-Sold + $ Contribution} Total Sales + Total Contribution Customer-Profile = Report-Date + Name + State + Birthdate + Telephone + {Merchandise Description + Qty-Sold} Event-Data Reports Application Context Response Notification Maintenance-Data

16.  The McGraw-Hill Companies, Inc., 2000 Irwin/McGraw-Hill Additional Prototyping Steps: Step 6: Define the scope of the application. Step 7: Enhance the relationships of the REAL model by defining their cardinalities. object 1(min, max) --- object 2(min, max) minimums denote business rules maximums help establish data structures both help structure your audit trail

17.  The McGraw-Hill Companies, Inc., 2000 Irwin/McGraw-Hill McKell’s Retail Sale REAL Model With Cardinalities Sale Customer Merchandise Salesperson Register (1,1) (0,*) (1,1) (0,*) (1,1) (1,*) (0,*)

18.  The McGraw-Hill Companies, Inc., 2000 Irwin/McGraw-Hill Additional Prototyping Steps: Step 6: Define the scope of the application. Step 7: Enhance the relationships of the REAL model by defining their cardinalities. Step 8: Design the data repository structure. tables or objects primary keys posted keys nonkey attributes

19.  The McGraw-Hill Companies, Inc., 2000 Irwin/McGraw-Hill McKell’s Retail Sale Store - Tables Register(Register#, Merchandise(Merchandise#, Sale(Sale#, Customer(Customer#, Salesperson(Employee#, Sale-Merchandise([Sale#], [Merchandise#],

20.  The McGraw-Hill Companies, Inc., 2000 Irwin/McGraw-Hill McKell’s Retail Sale Store - Tables Register(Register#, Merchandise(Merchandise#, Sale(Sale#, [Register#], [Customer#], [Employee#], Customer(Customer#, Salesperson(Employee#, Sale-Merchandise([Sale#], [Merchandise#],

21.  The McGraw-Hill Companies, Inc., 2000 Irwin/McGraw-Hill McKell’s Retail Sale Store - Tables Register(Register#, Store, Date-Purchased, Cost,... Merchandise(Merchandise#, Description, Current-Price, Current-Cost,... Sale(Sale#, [Register#], [Customer#], [Employee#], Time,... Customer(Customer#, Name, Address, State, Zip, Birthdate, Telephone#, Marital-Status,... Salesperson(Employee#, Name, Commission-Rate,... Sale-Merchandise([Sale#], [Merchandise#], Qty-Sold, Historical-Cost, Historical-Price,...

22.  The McGraw-Hill Companies, Inc., 2000 Irwin/McGraw-Hill Additional Prototyping Steps: Step 6: Define the scope of the application. Step 7: Enhance the relationships of the REAL model by defining their cardinalities. Step 8: Design the data repository structure. Step 9: Link the recording, maintenance, and reporting processes to the data repository. Record events Maintain resources, agents, and locations Report (source documents, queries, reports)

23.  The McGraw-Hill Companies, Inc., 2000 Irwin/McGraw-Hill Additional Prototyping Steps: Step 6: Define the scope of the application. Step 7: Enhance the relationships of the REAL model by defining their cardinalities. Step 8: Design the data repository structure. Step 9: Link the recording, maintenance, and reporting processes to the data repository. Step 10: Build the application prototype.

24.  The McGraw-Hill Companies, Inc., 2000 Irwin/McGraw-Hill McKell’s Retail Sale Updated REAL Model With Cardinalities Sale Customer Merchandise Salesperson Register (1,1) (0,*) (1,1) (0,*) (1,1) (1,*) (0,*) Receive Payment Receipts Clerk Cash (0,*) (1,1) (0,*) (1,1) Store (1,1) (0,*) (1,*)

25.  The McGraw-Hill Companies, Inc., 2000 Irwin/McGraw-Hill McKell’s Retail Sale Store Tables: Merchandise Customer Salesperson Sale-Merchandise Register We are able to satisfy multiple views by the data we collect : What happened? When? What resources were involved and how much? Where did it occur? Who was involved and what roles did they play? Sale

26. Steps for Building an IT Application Prototype 1. Build a table for each table defined using the REAL model, 2. Build a menu system that has the following choices: Record Event Data, Maintain Data, Reports, and Exit. 3. Develop the necessary forms and procedures to collect event data and store it in the appropriate tables. 4. Develop the necessary forms and procedures to maintain the resource, agent, and location tables. 5. Develop queries required to generate desired information. 6. Develop report formats for each report. 7. Write the procedures required to execute the queries and format the reports. 8. Link each recording, maintaining, and reporting form to the application menu defined in step 2. Each form becomes a choice under either the Record Event Data, Maintenance, or Reports menu options.

27.  The McGraw-Hill Companies, Inc., 2000 Irwin/McGraw-Hill Customer Places Order Package and Deliver Product Receive Payment Salesperson Product Components Packager Carrier Customer Customer Payment Clerk Cash Package Customer Service Center Distribution Center Customer Returns Merchandise Returns Clerk REAL Business Process Modeling of Mail Order Sales/Collection Process

28. Berlanjut ke Pertemuan 14
