1 13.18 Carbon-13 NMR

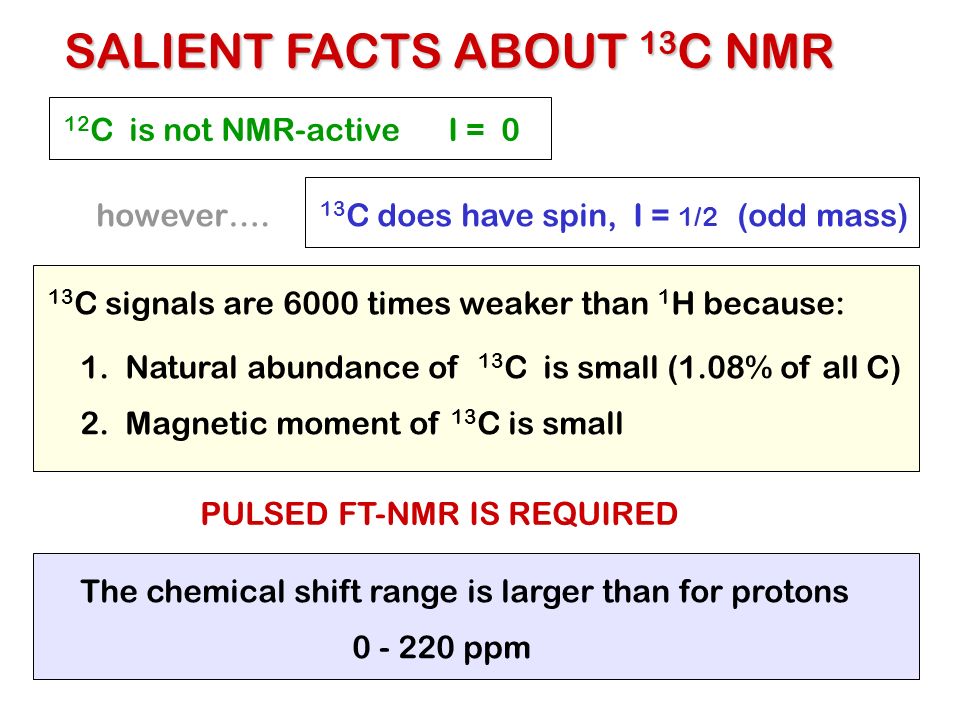

2 12 C is not NMR-activeI = 0 however…. 13 C does have spin, I = 1/2 (odd mass) 1. Natural abundance of 13 C is small (1.08% of all C) 2. Magnetic moment of 13 C is small 13 C signals are 6000 times weaker than 1 H because: SALIENT FACTS ABOUT 13 C NMR PULSED FT-NMR IS REQUIRED The chemical shift range is larger than for protons 0 - 220 ppm

3 COUPLING TO ATTACHED PROTONS

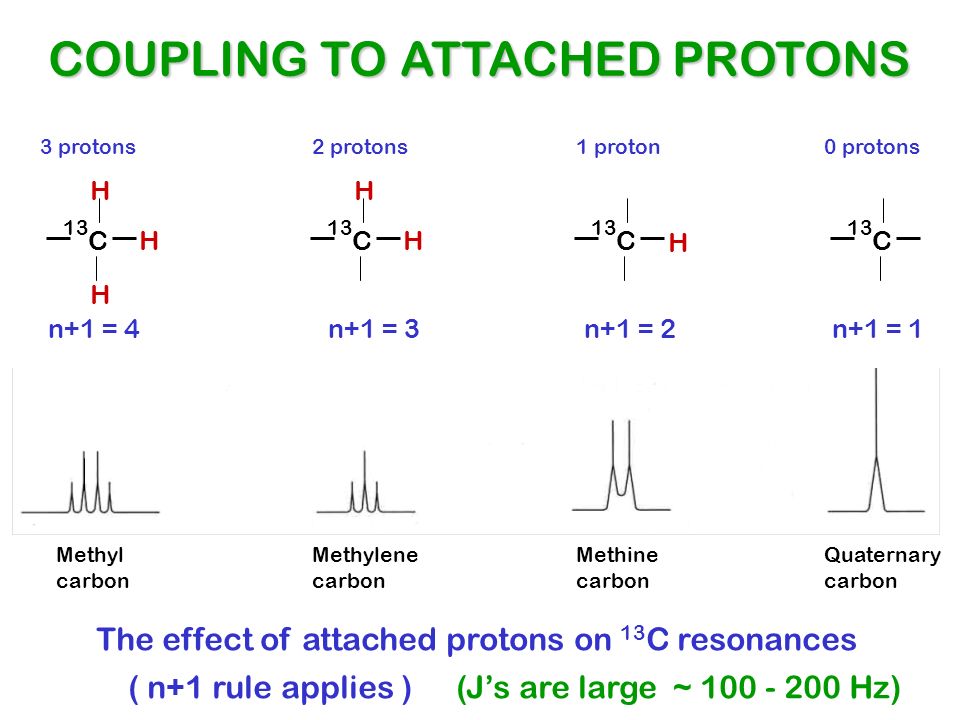

4 The effect of attached protons on 13 C resonances n+1 = 4n+1 = 3n+1 = 2n+1 = 1 C 13 3 protons2 protons1 proton0 protons H H H C 13 H H C H C Methyl carbon Methylene carbon Methine carbon Quaternary carbon ( n+1 rule applies ) COUPLING TO ATTACHED PROTONS (J’s are large ~ 100 - 200 Hz)

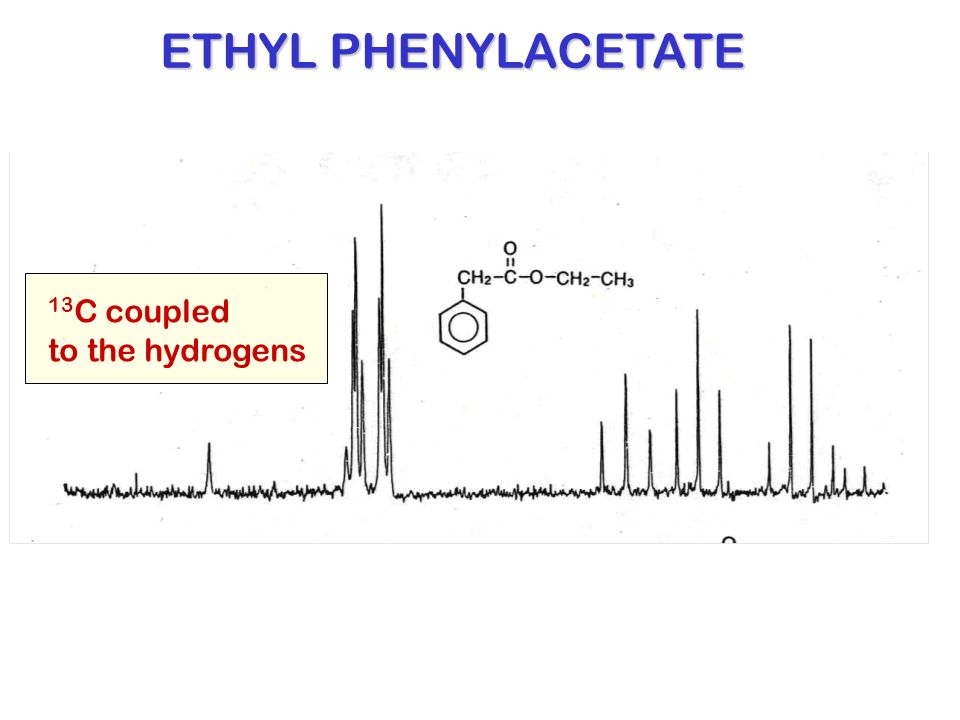

5 ETHYL PHENYLACETATE 13 C coupled to the hydrogens

6 DECOUPLED SPECTRA

7 ETHYL PHENYLACETATE 13 C coupled to the protons 13 C decoupled from the protons in some cases the peaks of the multiplets will overlap this is an easier spectrum to interpret

8 CHEMICAL SHIFTS OF 13 C ATOMS

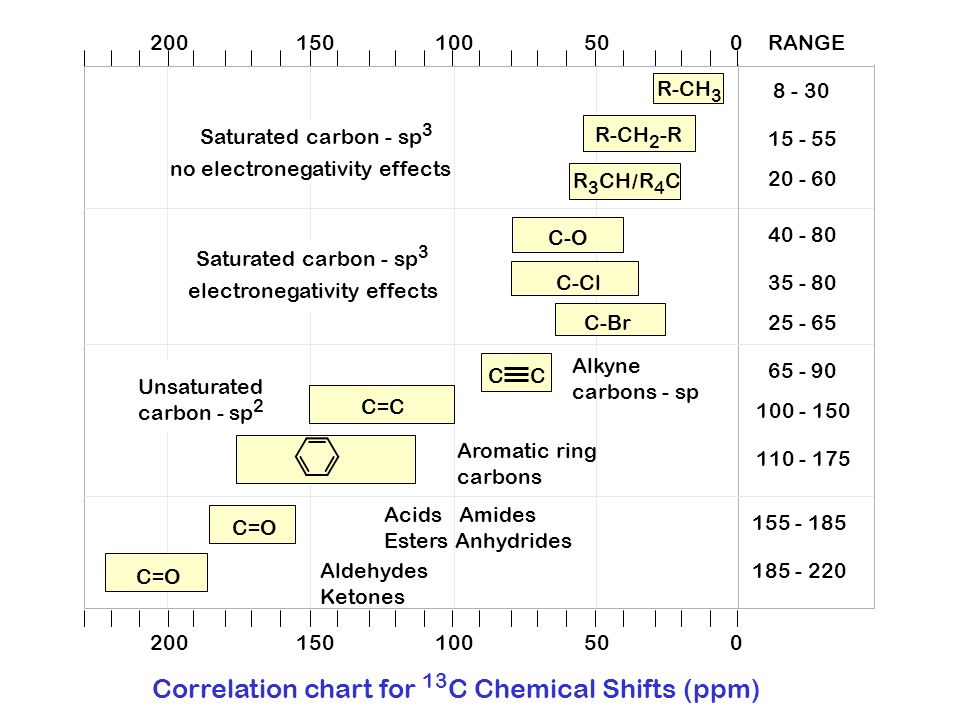

9 Aldehydes Ketones Acids Amides Esters Anhydrides Aromatic ring carbons Unsaturated carbon - sp 2 Alkyne carbons - sp Saturated carbon - sp 3 electronegativity effects Saturated carbon - sp 3 no electronegativity effects C=O C=C C 200150100500 200150100500 8 - 30 15 - 55 20 - 60 40 - 80 35 - 80 25 - 65 65 - 90 100 - 150 110 - 175 155 - 185 185 - 220 Correlation chart for 13 C Chemical Shifts (ppm) C-O C-Cl C-Br R 3 CHR4CR4C R-CH 2 -R R-CH 3 RANGE /

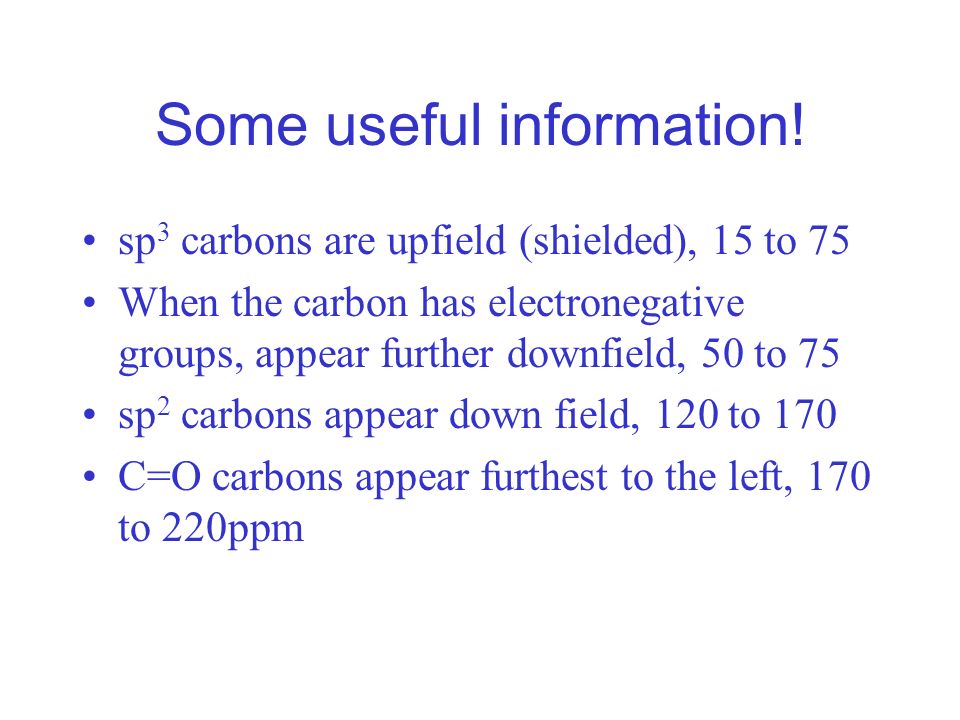

10 Some useful information! sp 3 carbons are upfield (shielded), 15 to 75 When the carbon has electronegative groups, appear further downfield, 50 to 75 sp 2 carbons appear down field, 120 to 170 C=O carbons appear furthest to the left, 170 to 220ppm

11 SPECTRA

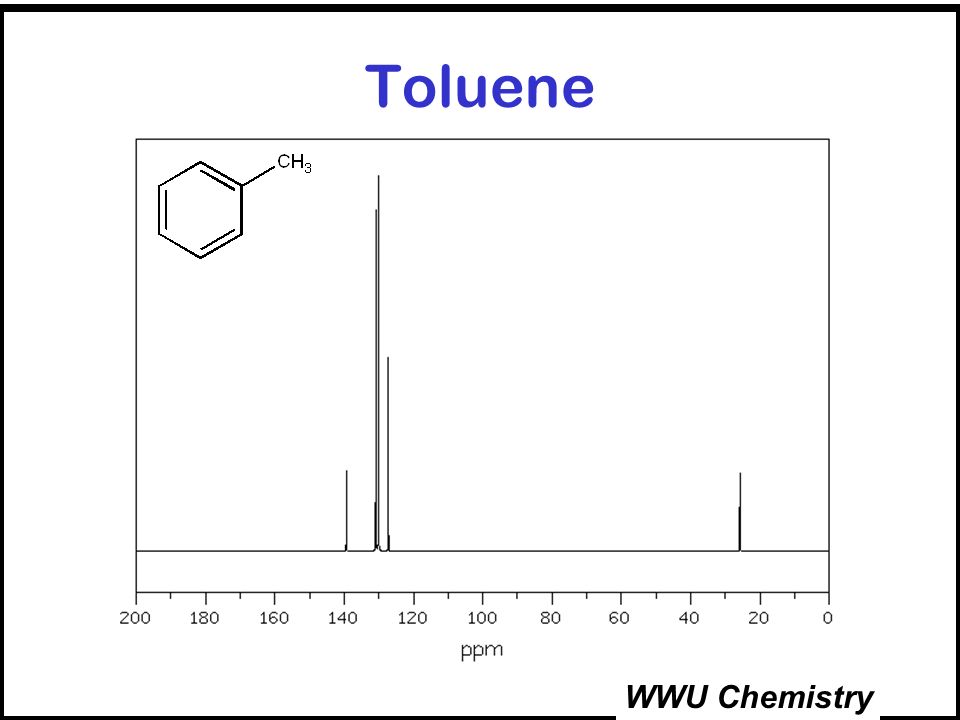

12 WWU Chemistry Toluene

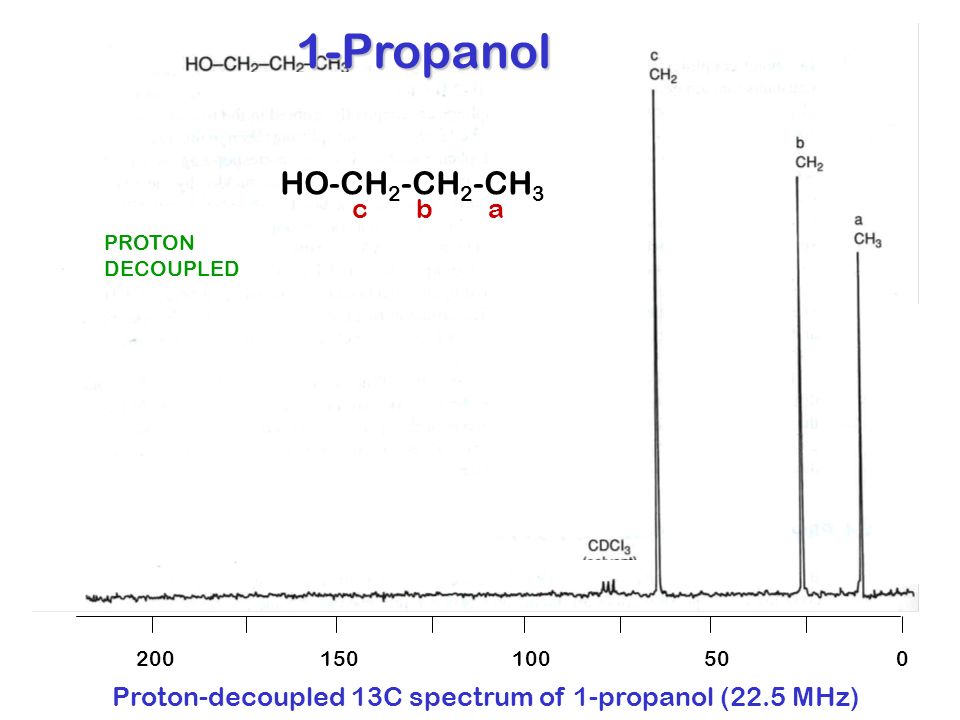

13 Proton-decoupled 13C spectrum of 1-propanol (22.5 MHz) 200150100500 1-Propanol PROTON DECOUPLED HO-CH 2 -CH 2 -CH 3 cba

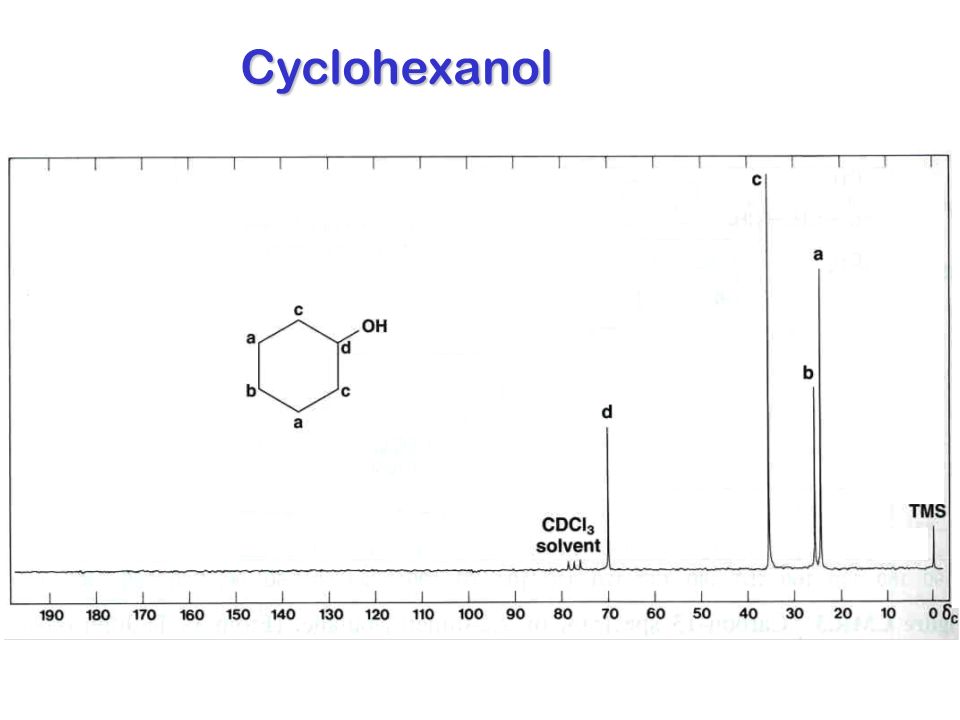

14 Cyclohexanol

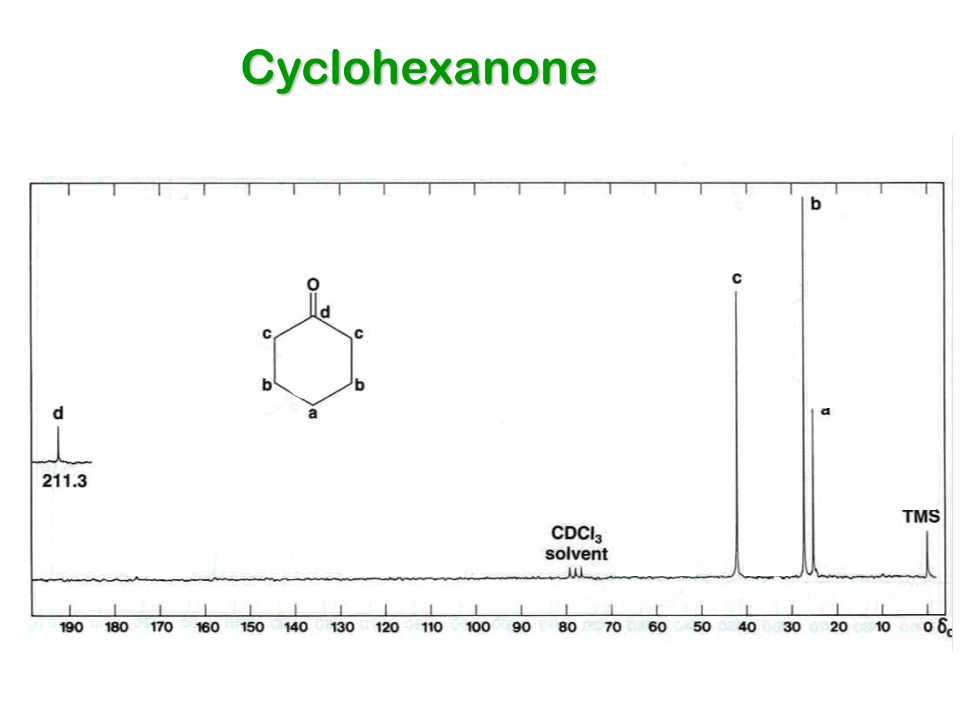

15 Cyclohexanone

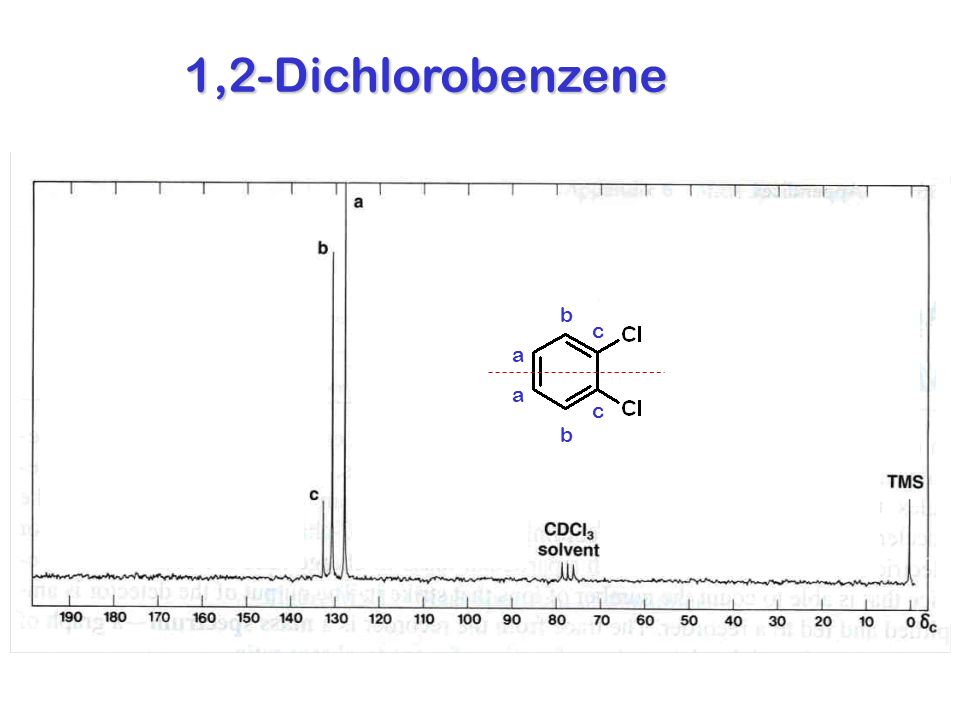

16 a a b b c c 1,2-Dichlorobenzene

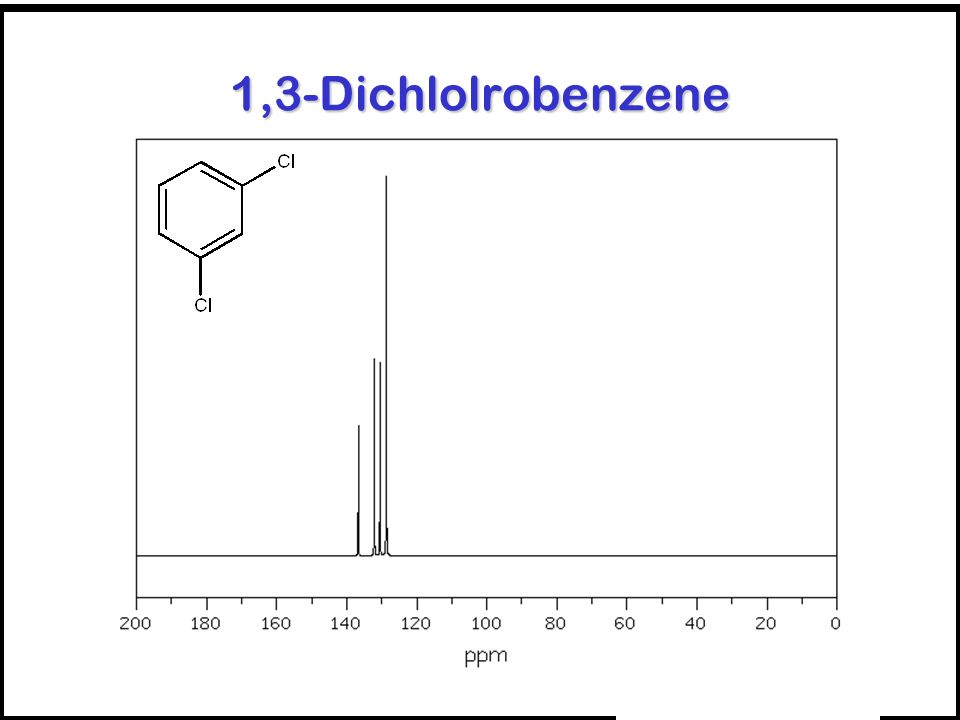

17 1,3-Dichlolrobenzene

18 1,4-Dichlorobenzene

19 Some Unknowns! The next three slides are carbon-13 spectra for: Cyclohexanol Cyclohexanone 2-Methylcyclopentanone Assign them! Hit the enter key to see the answer.

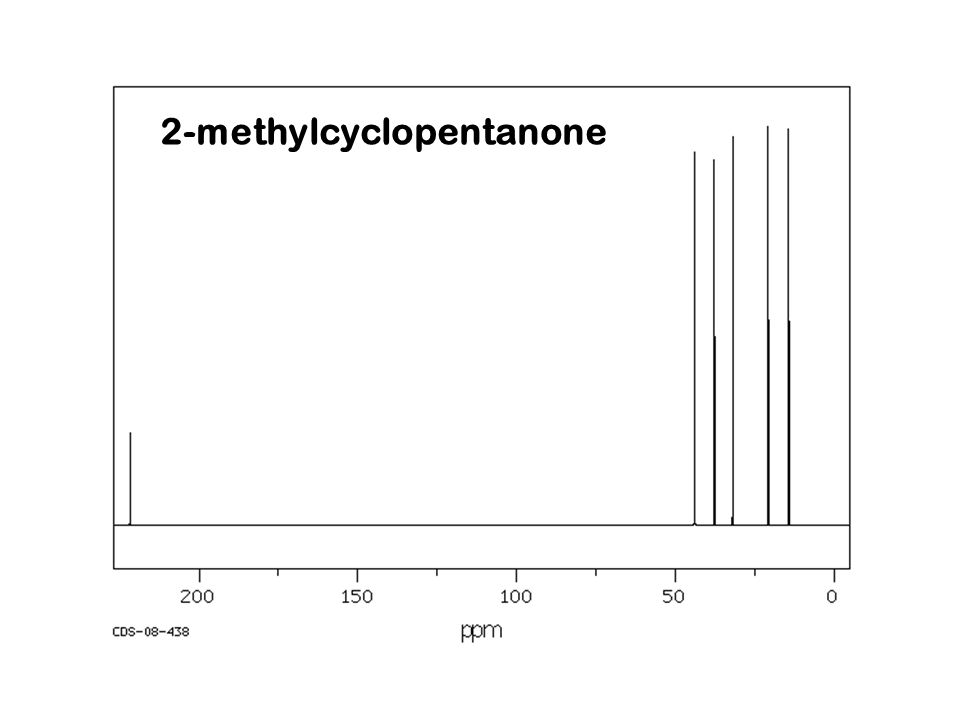

20 2-methylcyclopentanone

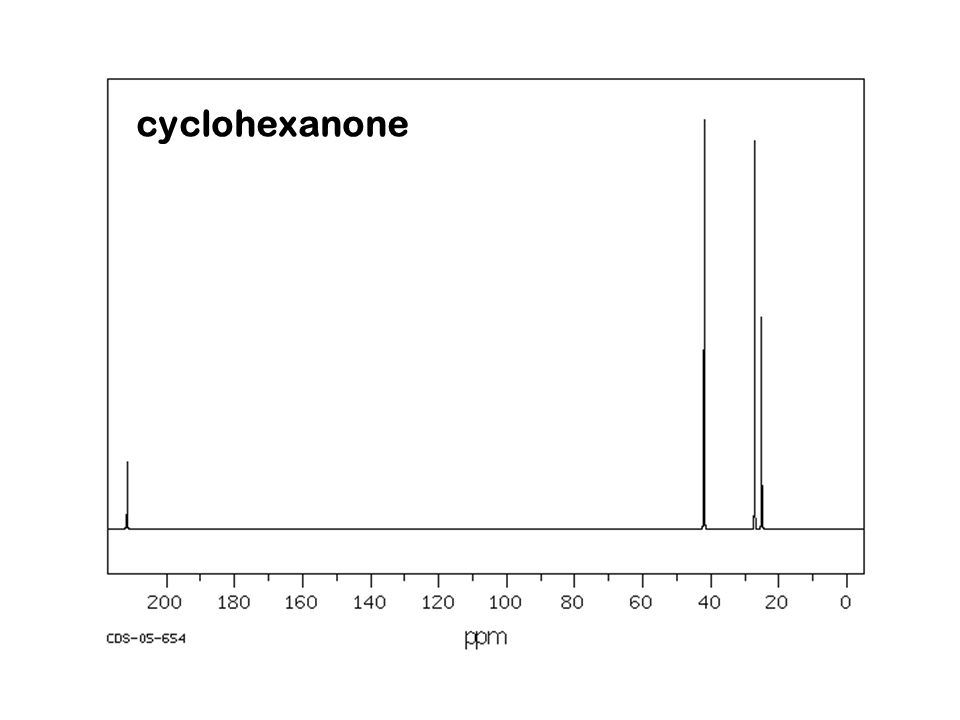

21 cyclohexanone

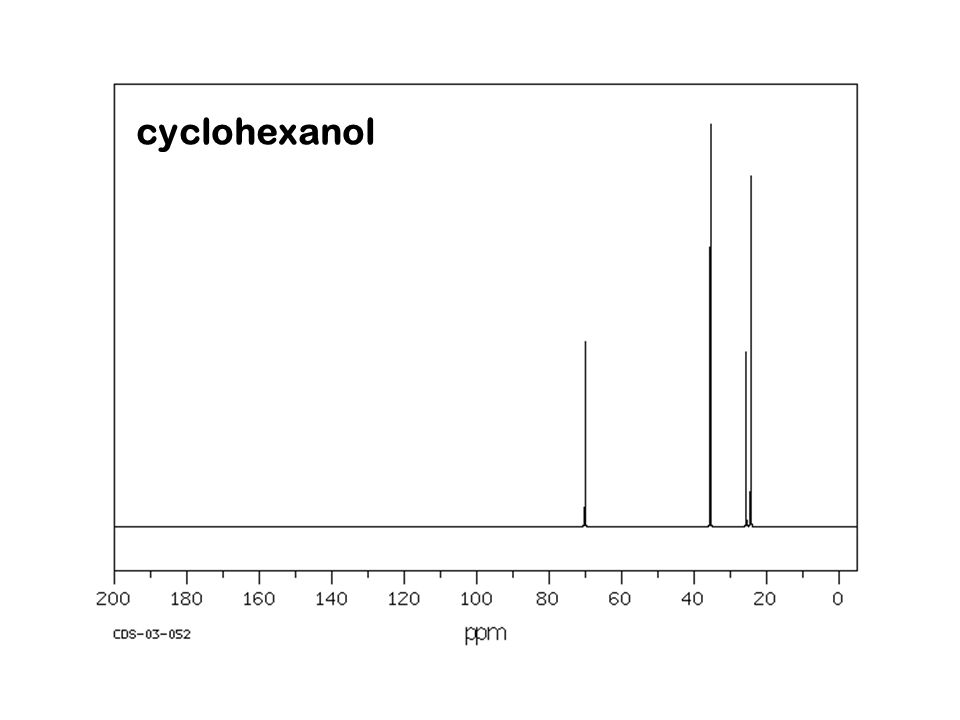

22 cyclohexanol

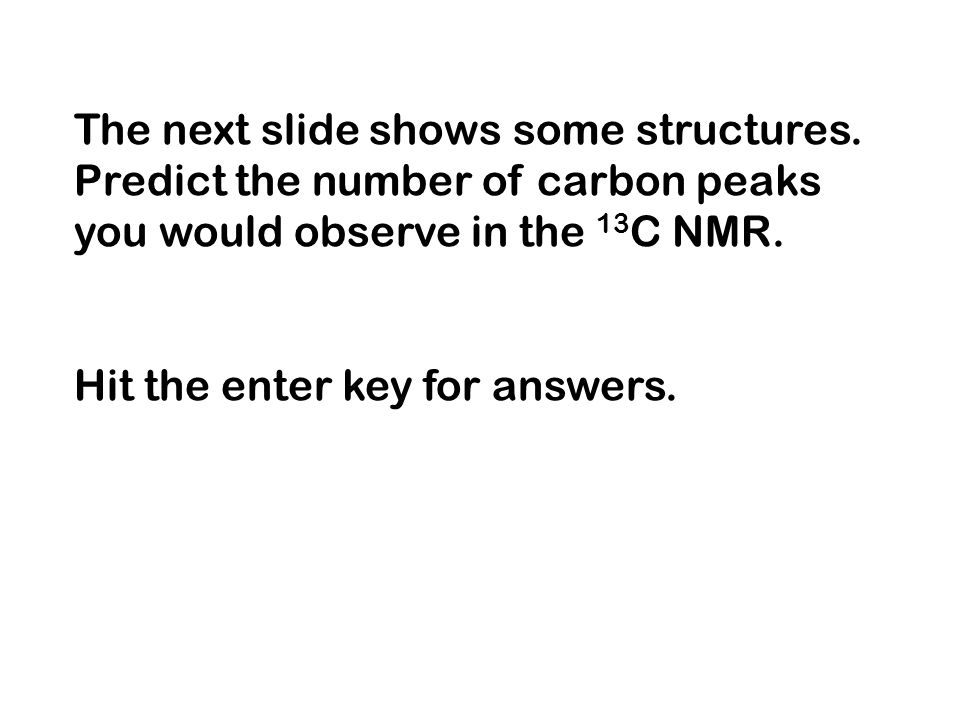

23 The next slide shows some structures. Predict the number of carbon peaks you would observe in the 13 C NMR. Hit the enter key for answers.

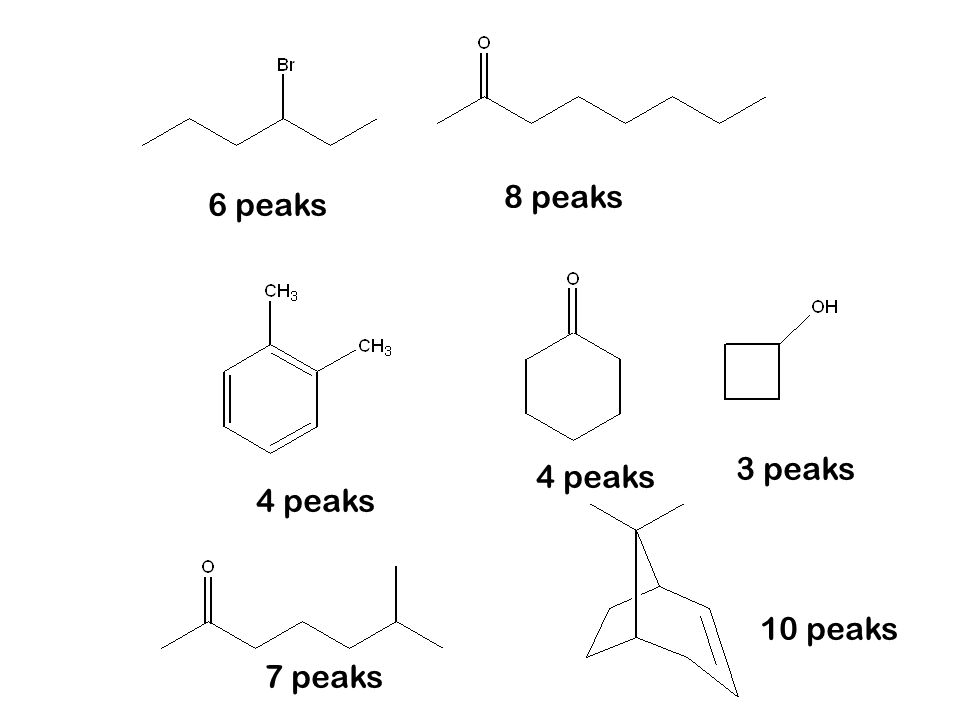

24 6 peaks 8 peaks 4 peaks 3 peaks 7 peaks 10 peaks

25 The following four slides show carbon spectra for four isomers. They all have the formula C 7 H 14 O. They all show strong peaks at 1715 cm -1 in the infrared spectrum. Determine the structures for each. Possible answers: 4-heptanone 2-heptanone 2,4-dimethyl-3-pentanone 5-methyl-2-hexanone

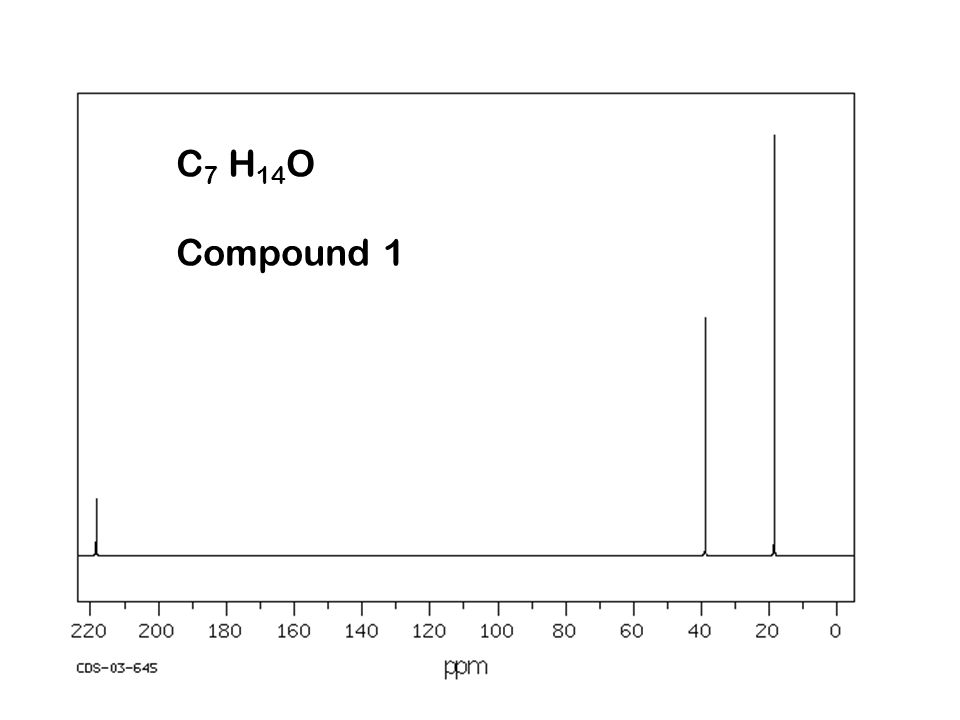

26 C 7 H 14 O Compound 1

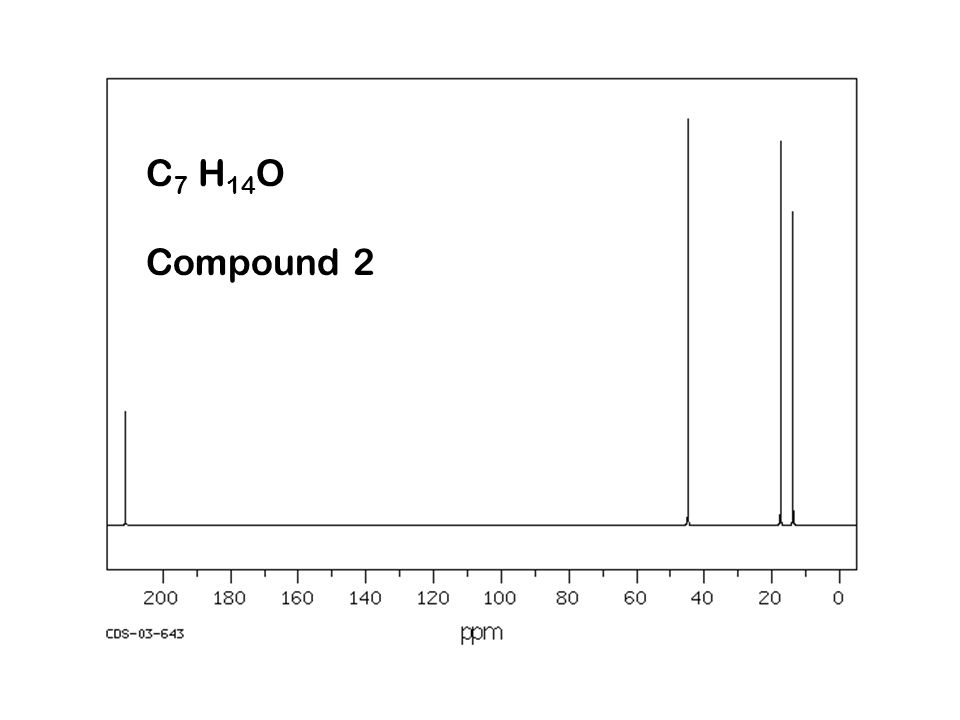

27 C 7 H 14 O Compound 2

28 C 7 H 14 O Compound 3

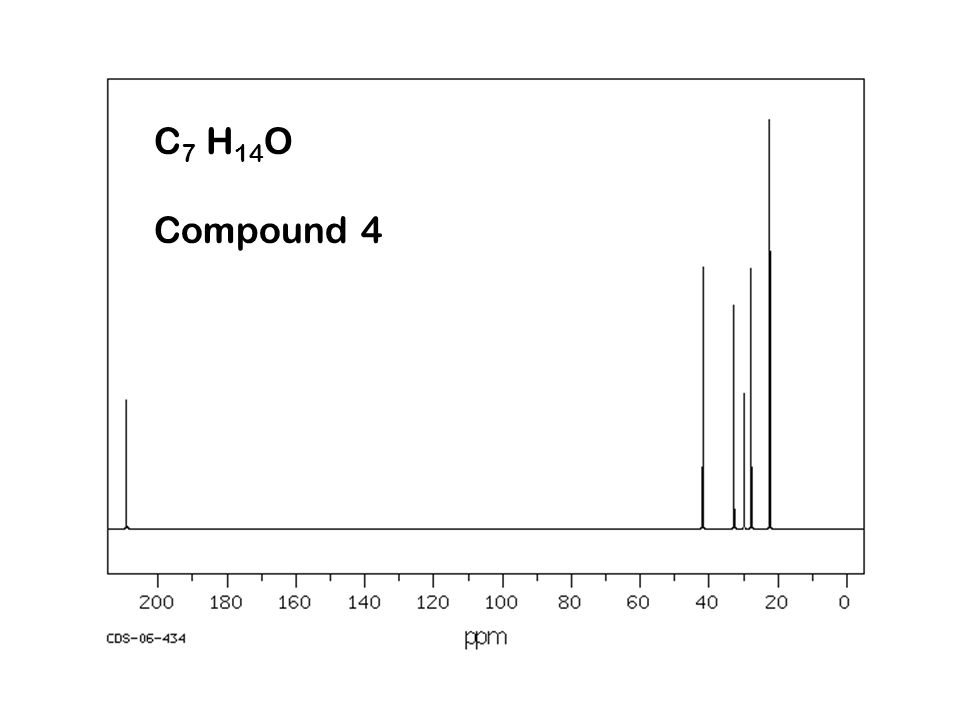

29 C 7 H 14 O Compound 4

30 Answers to the previous four spectral questions: 1) 2,4-dimethyl-3-pentanone 2) 4-heptanone 3) 2-heptanone 4) 5-methyl-2-pentanone
