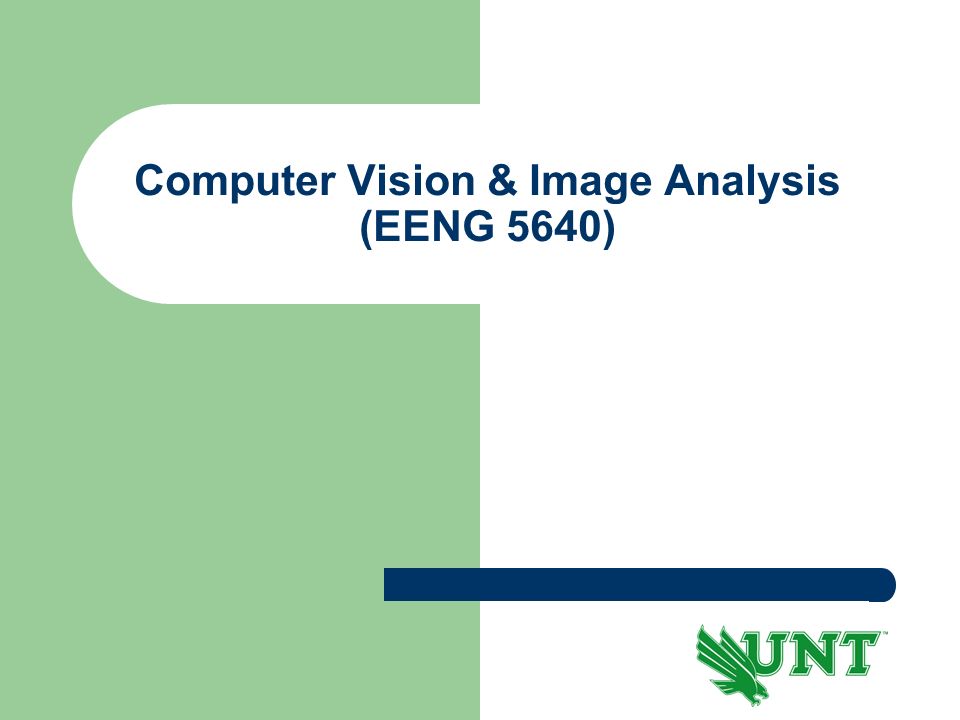

1. Computer Vision & Image Analysis (EENG 5640)

2. Introduction to Computer Vision Image Processing System Computer Vision/ Image Analysis/ Image Understanding System Image Image/ Scene Description Pattern Recognition System Pattern Vector (with Image measurements as components in the current application) Pattern Classification Label Computer Vision generally involves pattern recognition

3. Typical Computer Vision Applications Medical Imaging Automated Manufacturing (some experts use Machine vision as the term to describe Computer Vision for Industrial applications; others use it as synonym for computer vision) Remote Sensing Character Recognition Robotics

4. Binary Image Analysis Grey scale to Binary transformation (Otsu’s method) Counting holes Counting objects Connected Component Labeling Algorithms – Recursive Algorithm – Two Pass Row by Row Labeling Algorithm

5. Two-Pass Algorithm: Illustrative Example 1111111111 1111111111 1111 111111111111 1111 111111111111 1111 1111 11111111111 11111111111 1111122222 1111122222 1122 111111222222 1122 333111444222 3344 3344 33333333333 33333333333 3 1 4 2 1234-- 0112 Label Parent

6. Binary Image analysis (Contd.) Morphological Processing – Dilation, Erosion, Opening and Closing Operations – Example to Illustrate the effects of the operations Region Properties – Area – Perimeter – Circularity

7. Medical Application of Morphology

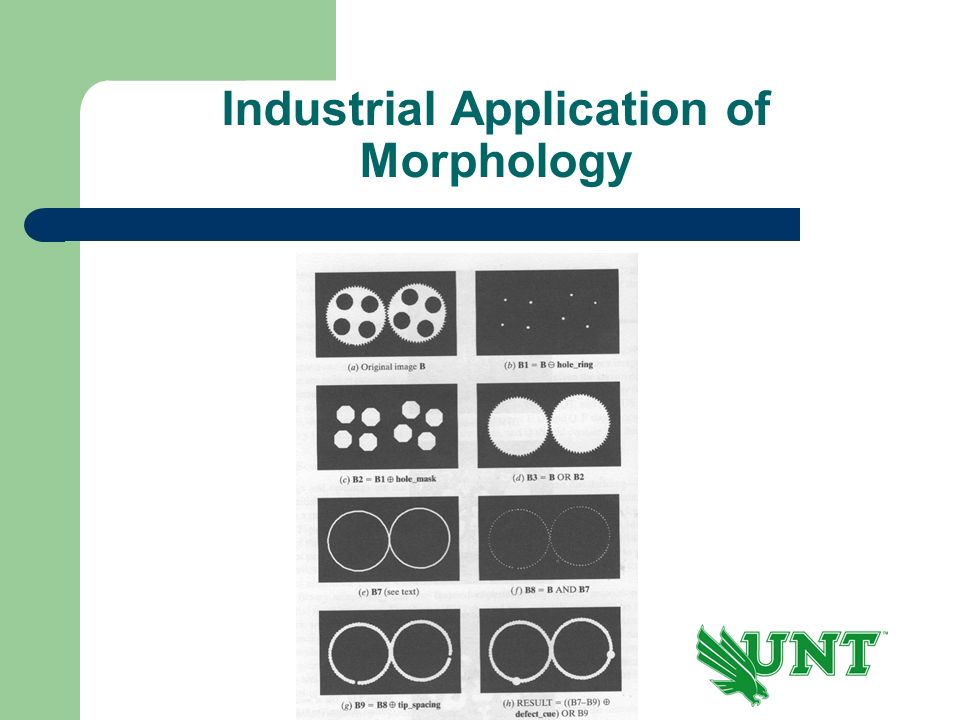

8. Industrial Application of Morphology

9. Grey Level Image Processing Image Enhancement Methods – Histogram Equalization and Contrast Stretching – Mitigation of Noise Effects Image Smoothing Median Filtering Frequency Domain Operations (Low Pass Filtering) Image Sharpening and Edge Detection – High Pass Filtering – Differencing Masks (Prewitt, Sobel, Roberts, Marr- Hildreth operators) – Canny Edge Detection and Linking

10. Histogram Equalization- Original Image

11. Histogram Equalization- Equalized Image

12. Low Contrast Image

13. Contrast Stretching (Linear Interpolation between 79-136)

14. Histogram Equalization

15. Color Fundamentals [0, 0, 0] Black [0, 1, 0] Green [1, 0, 0] Red [0, 0, 1] Blue [1, 0, 1] Magenta [1, 1, 1]White [1, 1, 0] yellow [1, 1, 0] yellow [0, 1, 1] Cyan [0, 1, 0] Green [1, 1, 0] yellow [1, 1, 0] yellow [1, 0, 0] Red [1, 0, 1] Magenta [0, 0, 1] Blue [0, 1, 1] Cyan [1, 1, 1]White

16. RGB and HSI (HSV) Systems

17. RGB-HSI Convesion

18. RGB to HSI Conversion- Final Formulae

19. HIS-RGB Conversion Method is given. You need to reason out why? Or explore web for answer.

20. YIQ and YUV Systems for TVs, etc. YIQ system is used in TV Signals. Its components are: Luminance Y = 0.30R + 0.59G + 0.11B R-Cyan I = 0.60R - 0.28G - 0.32B Magenta-Green Q = 0.21R - 0.52G + 0.31B In some digital products and JPEG/MPEG Compression algorithms, YUV System as follows is used: Y = 0.30R + 0.59G + 0.11B U = 0.493* (B – Y) V = 0.877*(R – Y) Advantage: Luminance and Chromaticity components can be coded with different number of bits.

21. Optical Illusion - I

22. Optical Illusion - II

23. Optical Illusion - III

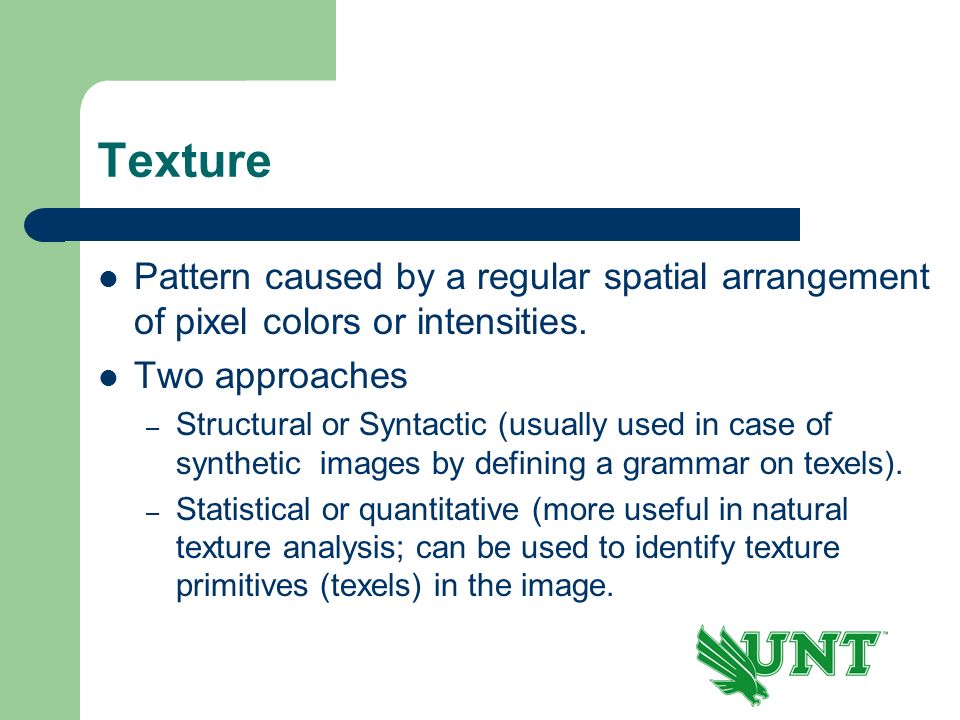

24. Texture Pattern caused by a regular spatial arrangement of pixel colors or intensities. Two approaches – Structural or Syntactic (usually used in case of synthetic images by defining a grammar on texels). – Statistical or quantitative (more useful in natural texture analysis; can be used to identify texture primitives (texels) in the image.

25. Quantitative Texture Measures Edge related – Edginess (proportion of strong edges in a small window around pixels. – Edge direction histograms (the pattern vector constituted by the proportion of the edgels in the horizontal, vertical, and other quantized directions among the total pixels in a chosen window around a pixel (I,j) under consideration Co-occurrence matrix based

26. Co-occurrence matrix based Measures Construction of Co-occurrence matrix C d [i,j] where d is the displacement of j from i (e.g. (0,1), (1, 1), etc. Normalized and symmetric co-occurrence matrices N d [i,j] and S d [i,j]. Zucker and Terzopoulos’s Chi-square metric to choose the best d (i.e. d with most structure). Numeric measures from N d [i,j]

27. Choice of the Best Co-occurrence Matrix and Computation of Features

28. Laws’ Texture Energy Measures Simple because masks are used 2-D masks are created using 1-D masks: – L5 (Level) = [ 1 4 6 4 1] – E5 (Edge) = [-1 -2 0 2 1] – S5 (Spot) = [-1 0 2 0 -1] – W5 (Wave) = [-1 2 0 -2 1] (not in the text!) – R5 (Ripple) = [ 1 – 4 6 -4 1] (e.g. 5x5 matrix of L5E5 mask is obtained by multiplying transpose of L5 by E5).

29. Laws’ Algorithm for Texture Energy Pattern Vector Construction

30. Laws’ Texture Segmentation Results- I

31. Laws’ Texture Segmentation Results- II

32. Laws’ Texture Segmentation Results- III

33. Gabor Filter Based Texture Analysis Where Gabor Filter is mathematically represented by (refer Wikipedia): and θ  Orientation of the normal to parallel stripes λ  Wavelength or inverse of the frequency of the cosine function   Spatial aspect ratio  Sigma of the Gaussian function σ ψ  Phase offset of the cosine function

34. Image Segmentation Contour-Based Methods (e.g. Canny Edge Detection and Linking) Region-Based Methods Partitioning/Clustering (e.g. K-Means Clustering, Isodata clustering, Ohlander’ et al.’s recursive histogram- based technique) Region Growing (e.g. Haralick and Shapiro Method)

35. Clustering Algorithms Clustering (partitioning) of pixels in the pattern space Each pixel is represented by a pattern vector of properties. For example, in case of a colored image, we could have could be of any dimensionality (even 1, i.e. could be a scalar as in case of a grey level image). Depending upon the problem, may include other measurements on texture, shading, etc. that constitute additional dimensional components of the pattern vector. Note: i and j denote pixel row & columns.

36. K-Means Clustering algorithm

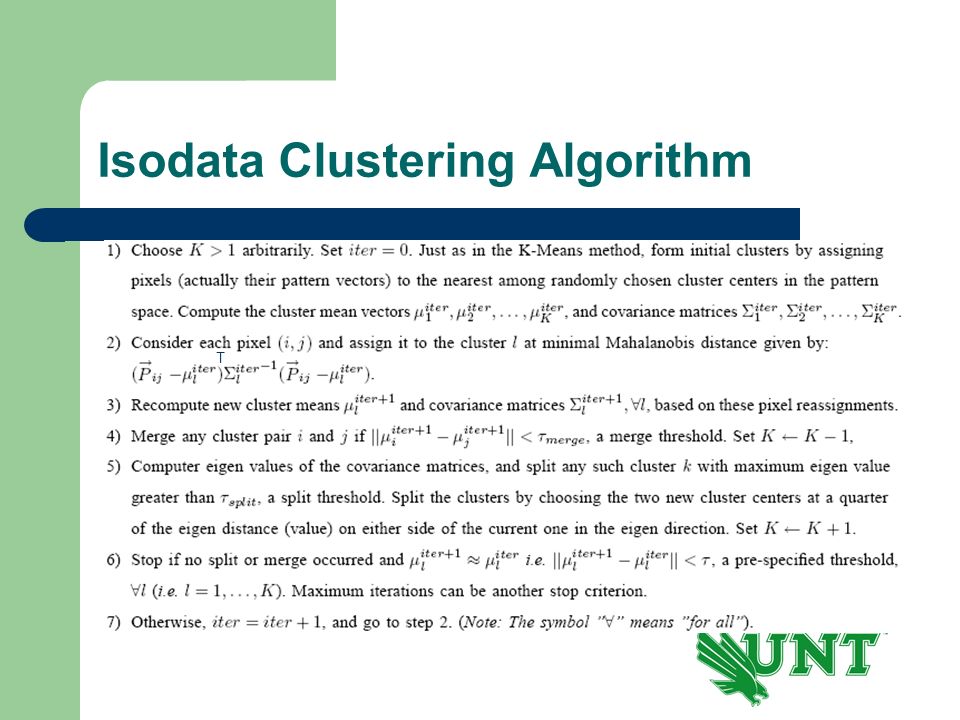

37. Isodata Clustering Algorithm T

38. ISODATA Clustering Problem r  g 33 11 22 To which cluster does X belong to? If split threshold TS = 3.0 and Merge Threshold TM = 1.0, what will be the new cluster configuration? Get new cluster means in case of a Split.

39. Image Databases- Content-Based Image Retrieval Any Problem with Traditional Text (in Caption) Based Retrieval? Typical SQL (Structured Query Language) Query: SELECT * FROM IMAGEDB WHERE CATEGORY = ‘GEMS’ AND SOURCE = ‘SMITHSONIAN’ AND (KEYWORD = ‘AMETHYST’ OR KEYWORD = ‘CRYSTAL’ OR KEYWORD = ‘PURPLE’) This will retrieve the gem collection of the Smithsonian Institute from its IMAGEDB database restricting its search based on the logical combination of the keyword specified. Looks like no problem here!

40. Limitations of the Key Word Based Retrieval Human coding of key words is expensive; but still some keywords by which one likes to retrieve the image cannot be visualized and hence may be left out. Key words may sometimes retrieve unexpected images as well! What kind of images do you expect with the key word ‘pigs’?

41. Unexpected Retrieval- An Example

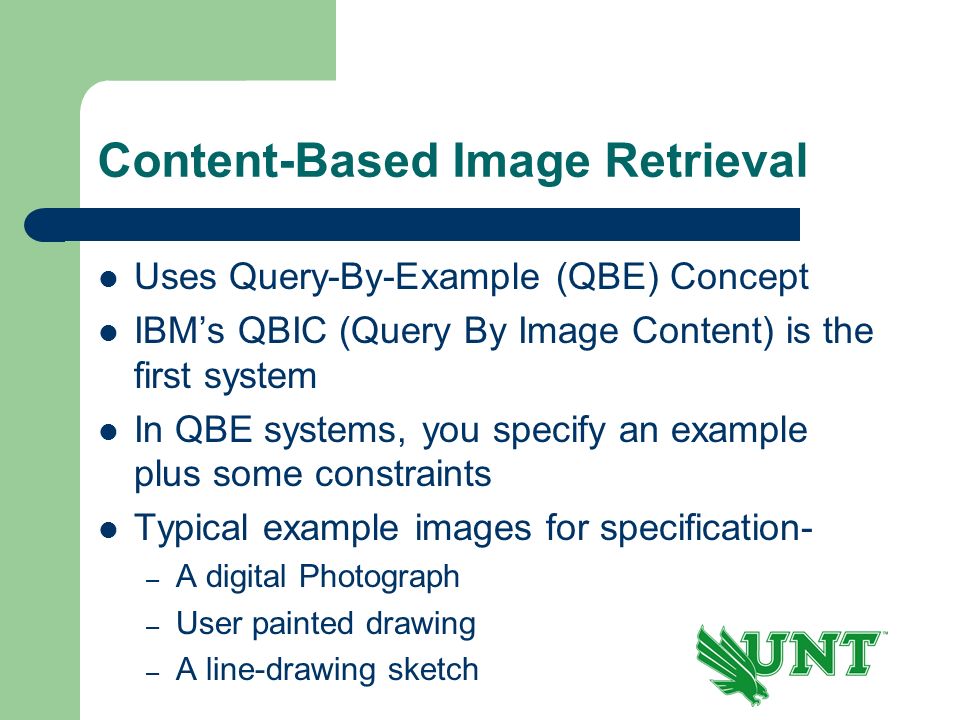

42. Content-Based Image Retrieval Uses Query-By-Example (QBE) Concept IBM’s QBIC (Query By Image Content) is the first system In QBE systems, you specify an example plus some constraints Typical example images for specification- – A digital Photograph – User painted drawing – A line-drawing sketch

43. Matching- Image Distance (Similarity Measures) 4 Major classes: Color Similarity Texture Similarity Shape Similarity Object and relationship similarity

44. Color Similarity Measures QBIC lets the user choose up to 5 colors from the color table and specify their percentages Color histograms (K-bin) can be used Here h(I) and h(Q) are K-bin histograms of images I and Q, and A is (K x K) similarity matrix.

45. Color-Layout-Based Similarity Distances between corresponding grid squares of the database and example images are found and summed up. Each grid square spans over multiple pixels. Then how do you compare grid squares? – Use Mean Color – Use Mean and Standard Deviation – Use Multi-bin Histogram

46. Texture-Based Similarity Measure Pick-and-Click distance Grid based texture similarity can be found by the same process as in the gridded color case

47. Shape-Based Similarity Measures Histogram approach is difficult to apply particularly when you want scale and rotation invariance. Boundary Matching Granlund’s Fourier Descriptors for Translation, Scale, starting point (for boundary tracing), and rotation invariant matching.

48. Boundary (Sketch) Matching Obtain a normalized image- reduce the original image to a fixed size, e.g., (64x64) & median filter 2 stage edge detection-global and local thresholds. Perform linking and thinning. Find Correlation between line drawing (L)’s grid square and various shifts (n) of the DB image A’s grid square & sum up best correlations.

49. Line Sketch of a Horse

50. Retrieved Images of Paintings

51. Granlund’s Fourier Descriptors Let be the points on the boundary of the query shape. The k-th discrete Fourier coefficient is given by Leaving out and, we can compute translation, rotation, starting-point and scale invariant shape descriptors ) as follows:

52. Invariant Properties of Fourier Descriptors Translation Rotation |.| takes care of the problem because Scale By using for scaling, we are eliminating c. Starting point- Once again |.| operation helps!

53. Relational Similarity Spatial Relationship- relational graphs indicating inter-object relationships can be constructed. Once objects are identified, relationships can be matched, by graph matching techniques. Abstract Relationship- Happy face; it involves separation and identification of a face region first, and then checking whether it is a happy or sad face.

54. Matching in 2D Transformation- Mapping from one coordinate space to another. – linear or nonlinear (called warps) – one to one correspondence between points if linear – Invertible or non-invertible Image Registration- Process of establishing point by point correspondence between two images of a scene.

55. Affine Transformation (Mapping) Wikipedia Definition: Affine (Latin affinis  Connected with) mapping between two vector (affine) spaces is a linear transformation followed by translation. It preserves: – Collinearity of points – Ratios of distances along a line

56. Image Operations Represented by Affine Transformation Can we write the affine transformation Y = A.X + t (Can we absorb t into A)? For scaling and rotation, yes. For translation, does not seem to be possible. What is the way out?

57. Homogeneous Coordinates Introduced by August Ferdinand Mobius (1790- 1868), a German mathematician and theoretical astronomer. (x, y)  (w.x, w.y, w); (2.x, 2.y, 2) = (3.x, 3.y, 3) (x, y, z)  (w.x, w.y, w.z, w); Same concept an be extended to any n-dimensional space. You can represent a point at infinity (how?)

58. Usage of Homogeneous Coordinates The rotation, scaling, and translation can be modeled as matrix multiplication operations as follows: If control (easily distinguishable) points of two images are identified, and registered with an affine mapping, it is easy to identify the presence of the same object(s) in both- Recognition by Alignment.

59. Shears and Reflections (0, 0) (0, 1) (e y, 1) (1, 0) (1, 1)(1+e y, 1) xx yy (0, 0) (0, 1)(1, 1) (1, 0) xx yy (1, 1+e x ) (1, e x ) Horizontal Shear Vertical Shear Reflections about x-axis (x, y)  (x, -y) Reflections about y-axis (x, y)  (-x, y) You can express these also as an affine transformations.

60. General Affine Transformation You may consolidate all the previous affine transformations (translation, rotation, scale, shear, and reflection) into the general affine transformation as follows:

61. Best 2D Transformation with Least- Squares Fitting Let (x j, y j ), j = 1, n the control points in an image, and (x’ j, y’ j ) are the corresponding points in the transformed image. Then the least-squares fit method seeks to minimize the error: Setting the 6 partial derivatives of the form corresponding to the 6 translation parameters to zero, we get 6 equations for 6 unknowns.

62. 2D-Object Recognition via Affine Mapping- Local Feature Focus Method Local-Feature-Focus-Method { For each pair of model and image features { Find the maximal subset of matching neighboring features; Find Best T; If enough features align, confirm the presence of the model object; } Model F Model E Image F1 F2 F3 F4 E1 E2 E3 E4 G1 G2 G3 G4 G8 G5 G6G7

63. 2D-Object Recognition via Affine Mapping- Pose Clustering Method Pose-Clustering-Method (P, L) { // P is the set of image features // L is the set of stored model features For each pair (P i, P j ) of image features For each pair (L m, L n ) of model features of the same type { Compute the affine (RST) parameters   Each  will be a point in the parameter space } Examine the parameter space for large cluster modes return all  k ‘s corresponding to dominant modes } ‘L’ Junction‘Y’ Junction ‘T’ Junction Arrow Junction ‘X’ Junction Some Typical Model Features

64. 2D-Object Recognition via Affine Mapping- Geometric Hashing Useful when model database (DB) is very large and an object in the image is known to be an affine transform of one of the DB models e 00 e 01 e 10 Te 00 Te 01 Te 10 TxTx x If e 00, e 01, and e 10 are any three non-collinear feature points from the model feature point set M, any point x e M can be represented as follows using the affine basis set (coordinate set) constructed from these 3 points: x =  (e 10 – e 00 ) +  (e 01 – e 00 ) + e 00 We use the property that under an affine transform, the same relation holds: T x =  (Te 10 – Te 00 ) +  (Te 01 – Te 00 ) + Te 00

65. Geometric Hashing Method (Contd.) GH-Offline-Preprocessing (D, H) { //D- Database Model Set // H- Initially empty hash table for each model M in D { Extract feature set F M ; For each non-collinear triplet E of F M For each other point x of F M { Calculate ( ,  ) for x with respect to E Store (M, E) in the table H at index ( ,  ) }

66. Geometric Hashing Method (Contd.) GH-Online-Recognition (D, H) { //- Database Model Set; H- Hash table constructed in the offline processing for each possible (M, E) tuple in the database { set Bin-Count (M, E) = 0; } Extract image feature set F I ; for each non-collinear triplet E of F I and for each other point x of I M { Calculate ( ,  ) for x with respect to E; Retrieve (M, E) pairs in the table H at index ( ,  ); Increment the Bin-Count of those (M, E) pairs; } Return (M, E) values with highest Bin-Count values. }

67. Practical Problems in Geometric Hashing Errors in feature point coordinates Missing and extra feature points Occlusions and multiple objects Unstable bases Weird affine transforms on subsets points and consequent hypotheses for presence of hallucinated objects (This problem is present in pose clustering and focus feature methods also). (a) Image Points (b) Hallucinated Object

68. General Framework for 2D-Object Recognition via Relational Matching Consistent Labeling Problem is a 5-tuple (P, L, R P, R L, f) P- Object Parts (found in the image) L- Object Labels (names of stored model features) R P – Set of Relationships between Parts; R L – Set of Constraint Relationships between Labels f is a mapping such that if (p i, p j )  R P, then (f(p i ), f(p j ))  R L

69. Brute Force Method for Consistent Labeling - Interpretation Tree Search Bool Interpretation-Tree-search(P, L, R P, R L, f) { p = first(P); for each I in L { f’ = f U {(p, I)};//add part-label to interpretation OK = true; for each N-tuple (p 1, …, p N ) in R P containing p { if then OK = false; break; } if OK then { P’ = P – {p}; if is-empty(P’) then output(f’); else Interpretation-Tree-Search(P’, L, R P, R L, f’) } } C1 C2 C3C4 C5C6 C7C8 H1 H2 H3H4 P2 P1 P3 P4 P5 Nil (a) Labels (b) Image Parts (c) Interpretation Tree P1 = H1 P1 = C1

70. Discrete Relaxation Labeling Discrete Relaxation Labeling(P, S, R) { // P i, i = 1, …, D, is the set P of the detected image features // S is the set of sets S(P i ), i = 1, …, D, of initially compatible labels for P i s // R = set of relationships over which compatibility is determined repeat { for each (P i, S(P i )) { for each label L k  S(P i ) for each relation R(P i, P j ) over image parts If there exists L m  S(P j ) with R(L k, L m ) in model then keep L k in S(Pi) else delete L k from S(Pi) } } until no change in any S(P i ) return (S) }

71. Continuous (Probabilistic) Relaxation Loop on and until labels of all parts stabilize and become unique compatibility values

72. Extraction of 3D Information from 2D Images- Shape from “X” Techniques Direct 3D perception- Range Imaging (Costly) How do human perceive depth/3D shape? – Stereo – Shading – Monocular cues, e.g., Relative depth information from occlusions of the background objects by foreground objects, perspective view with farther objects appearing smaller with distance Shape from X (X = binocular stereo/ photometric stereo/shading/texture/ boundary/motion

73. Binocular Stereo f d P z x' x’’x’/f = OP/(f + z) x’’/f = (OP + d) / (f + z) (x’’-x’)/f = d/(f + z) z = f. d /(x’’ – x’) - f Depth can be inferred from the disparity (x’’-x’) Only problem remains to be solved is the correspondence problem.

74. Surface Orientation from Reflectance Models x y z i e g i = angle of incidence e = angle of emittance g = phase angle n, n g, and n s are unit vectors along the surface normal, view direction, and source direction, respectively. nngng nsns For specular (smooth mirror-like) surfaces, maximum amount of light is reflected in the direction of what is called specular angle, and it reduces in the directions away from this one. An estimate of the cosine of the difference between the specular and viewing angles is given by: C = 2cos(i) cos(e) – cos (g). For dusty/matte (Lambertian) surfaces, reflectivity in any direction is proportional to angle of incidence. A general formula that includes both effects is: L(i, e, g) = s C n + (1 – s) cos (i) 0 <= s <= 1. Larger the n, sharper the peaking in the specular direction.

75. Reflectance Map for Lambertian Surfaces p q R = r 0 n.n s … (1) The spatially varying reflectance factor r 0 is called albedo. For a surface z = f(x, y), let p =  z/  x and q =  z/  y xx yy x y z  z= (  z/  x).  x+   p.  x (  x, 0, p.  x ) T || l to (1, 0, p) T = r x, say (0,  y, p.  y) T || l to (0, 1, q) T = r y, say n  r x x r y = (-p, -q, 1) T n s  (-p s, -q s, 1) r Putting in (1), we get R(p, q) n 0.9 0.8 0.7

76. Photometric Stereo With 3 sources of light R k (x, y) = I k (x, y) = r o (n k.n) k = 1, …, 3 I = r 0 N. n where I = [I 1 (x, y), I 2 (x, y), I 3 (x, y) ] T and r o = |N -1 I| n = 1/ r 0. N -1 I p q R 1 (p, q) = 0.9 R 2 (p, q) = 0.75 R 3 (p, q) = 0.5 Solution point

77. Shape from Shading We know that (-p, -q, 1) is the vector in the direction of surface normal and (-p s, -q s, 1) is the corresponding vector for source direction, the reflectance (i.e. image intensity) for a Lambertian surface is given by: At each pixel site (k, l) we need to find the best (p kl, q kl ) pair that gives an R kl matching with the image intensity E kl. In other words, we minimize This may not have unique solution. Hence, we used in photometric stereo 3 images to resolve the ambiguity. Here we use surface continuity for the same: Overall we minimize We get the final solution by setting and

78. Shape from Shading- Ikeuchi’s Relaxation Approach Continuing from the previous slide by setting and, we get and Now, the equations for obtaining p and q iteratively by Ikeuchi’s relaxation approach are: Advantage: Relaxation method can enforce the boundary conditions and get good solutions. Limitation: In the current formulation, occluding boundary with p and q at  causes a problem. How to solve this problem? Mask to compute average p and q

79. Photometric Stereo by Relaxation Approach Same relaxations equations can be extended to the photometric stereo problem involving n (= 2 or more) images: Here and represent the intensity at the pixel site in the image captured with the th light source, and the corresponding reflectance map, respectively. Advantage: Relaxation method can enforce the boundary conditions and get good solutions. Limitation: In the current formulation, occluding boundary with p and q at  causes a problem. How to solve this problem? See the next slide!

80. Solution to the Problem of Infinite Gradients at Occluding Boundary Ikeuchi suggested to formulate the problem in polar coordinates and solve! If P is a point on a surface patch, and OP is a unit normal, the x, y, and z components of this vector are given by: (sin . cos , sin . sin , cos  ) … (1) We can represent similarly the x, y, and z components of the unit vector in the direction the light source with polar coordinates (  s,  s ) as: (sin  s. cos  s, sin  s. sin  s, cos  s ) Since, for Lambertian surfaces, R = r o. cos i where i is the angle between the two directions, we can rewrite R as the following function of  and  : R ( ,  ) = r o. (sin  sin  s cos  cos  s + sin  sin  s sin  sin  s + cos  cos  s ) = r o. ( sin  sin  s cos(  -  s ) + cos  cos  s ). At the occluding boundary  =  /2 and  = tan -1  y/  x. The same equations as before hold with  and  replacing p and q. From  and  to p and q may be done in the end using (1).   x y z O P

81. Needle Diagram (Display of Unit Normal Vectors in the Image Space) (a) Image of a resin Droplet on a flower of a plant (b) Needle diagram for the image in (a)

82. Depth Construction from the (p, q) tuples (Needle Diagram) Since p =  z/  x and q =  z/  y, Because of imperfect (p, q) values, this integral may not yield correct values. The values may be sensitive to the path chosen for integration. Integral around a close loop of pixels may not vanish. Hence, better approach is to choose p and q that minimizes:. From the calculus of variations, an integral of the form can be minimized by solving the Euler equation:. For our problem, the Euler equation would yield:

83. Z-map Construction Algorithm 1.Convolve the p and q maps with horizontal and vertical Prewitt/Sobel masks to get p x and q y maps and add them up to get s= p x +q y map. 2.Start with a random configuration of z-values on the image grid. Or, preferably obtain a crude z-map by starting with z (0, 0) = 0 and applying the integral for computing z from p and q values by visiting the cell sites in raster scan fashion. 3.Convolve the z-image with horizontal Prewitt/Sobel mask to get  z/  x - image. Convolve again the resultant image with same mask to get  2 z/  x 2. Convolve again the z-image with vertical Prewitt/Sobel mask to get  z/  y -image. Convolve again the resultant image with same mask to get  2 z/  y 2. Add the two resultant images to get  2 z-image. 4.For all (i, j), update z ij by z ij + .(  2 z Ij – s ij ) where  is a small constant. 5.If none of the updated z ij s change significantly, stop. Otherwise, go to step 3.

84. Moving Objects- Optical Flow Whether the observer or the scene objects are moving, the relative motion gives a lot of information about depth because the points closer to the observer seem to be moving faster. Motion stereo is the name of phenomenon (or body of techniques) for depth perception based on motion information. Brightness patterns in the image move as the objects that give rise to them move. Optical flow is the apparent motion of the brightness pattern. Basic optical flow equation: Expanding the left hand side by Taylor series and equating terms, we get Velocity in the direction of brightness gradient is given by We can’t determine flow in the iso- brightness (right angles) direction. This is called aperture problem. Constraint line I x u+I y v+I t = 0 (I x,I y ) I x =  I/  x I y =  I/  y I t =  I/  t u v -

85. Optical Flow Estimation- Horn and Sjoberg’s Relaxation Method As before, we need to minimize conjointly two constraints: (i, j) (i+1, j+1) (i, j) (i+1, j+1) (i, j) (i+1, j+1) (i, j) (i+1, j+1) (i, j) (i+1, j+1) (i, j) (i+1, j+1) Frame t Frame t+1 I x Computation I y Computation I t Computation

86. Shape/Structure from Motion x y z P = (X, Y, Z) T  x  y  z  T O Now, equating each component of, we get: If are the image point corresponding to the 3-D object point P, we have from perspective projection: and (assuming f = 1, and Z >> f). Now, the optical flow components and are: and Now, using (1), we can get expressions for and in terms of Z and 6 motion parameters.

87. Shape from Motion- Pure Translation Case From the imaging geometry, the (x, y) coordinates of the image points corresponding to the 3D-Object point (X, Y, Z) are given by: Now, if we ignore terms related to rotation from the equations of u and v on the previous slide, we get In order to match the estimated (u, v) values with computed values, we need to minimize the function:

88. Shape/Object Representation and Recognition Objects/Shapes 2-D (Planar)3-D Representation of closed boundaries (Recognition Sensitive to Noise and Occlusions) e.g., Fourier Descriptors Noise and Occlusion-tolerant Representation of parts and their interrelationships (e.g., Connectivity, adjacency). Parts could be regular shaped objects such as circles, squares, triangles recognizable by Hough transform, or curve segments represented using polynomial forms (B-Splines) Volumetric/binary voxel representation (e.g. for 3-D medical image constructed from 2D-slices) Surface based representations(e.g. Coon’s surface patches represented by 2-D polynomials, generalized cylinders )

89. Reconstruction Imaging- Computer Aided Tomography (CAT) Scans g(x , y  ) X-ray source
