1. Colour (cont.d) Lesson aim
To understanding that white light is made from different colours
To understand how coloured filters work and why we see coloured objects as we do.

2. Learning Outcomes
By the end of the lesson pupils should know:
how coloured filters change white light
to combine knowledge from different sources to explain how coloured filters work
how coloured objects appear in white light and in different colours of light

3. Remember: splitting white light up
Until now we have used the title ‘splitting white light up’. However this process has a scientific name.
The splitting of white light into a spectrum of colours is called DISPERSION.
But why does white light get dispersed?

4. Dispersion
Each of the colours [ROYGBIV] has a slightly different waveform - what is different?
They each have a different wavelength [].

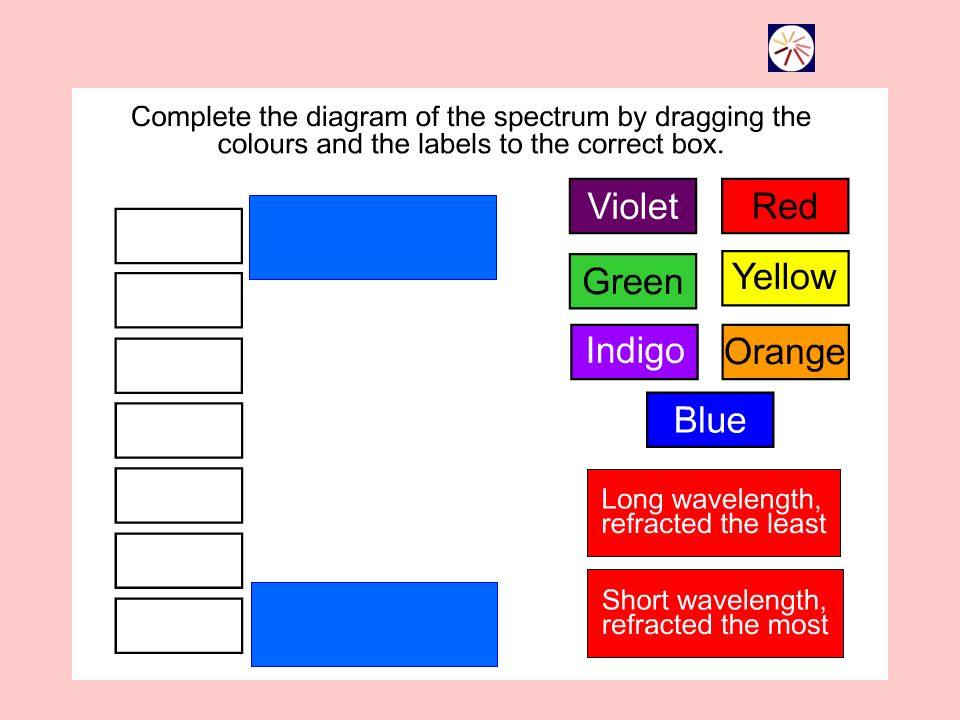

5. But which colour do you think is bent the most?
Dispersion
Because the different colours of light have different wavelengths they are bent (refracted) by different amounts.
But which colour do you think is bent the most?
Red light is refracted least because it has a long wavelength.
Violet light is refracted the most because it has the shortest wavelength.

7. Colour : joining the colours back together
Remember how you dispersed white light to give a spectrum of colours?
Now do the opposite to it - you’ll need 2 prisms!
A similar effect can also be seen using a colour wheel [or Newton’s disc].

8. Newton’s disc

9. Seeing colours How do we see objects like a book?
We see objects by light striking an object and then reflecting into our eye.
How do we see colour?
Why does a red dress look red?
Why does a green apple look green?

10. Primary Colours Animation

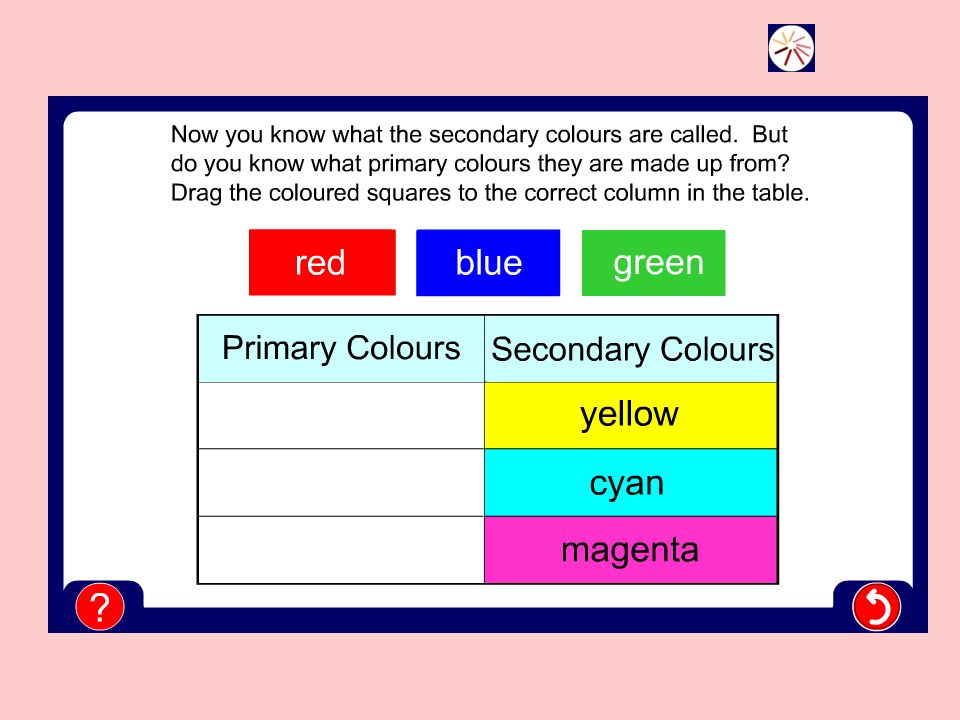

11. Primary Colours
You can make any colour by mixing three colours. Do you know what they are?
Yellow
The colours labelled in blue text are called SECONDARY COLOURS. They can be made by mixing the primary colours
Green
Red
The colours labelled in black text are the PRIMARY COLOURS.
Cyan
Magenta
Blue

13. Red objects Why does a red snooker ball look red in white light?
Remember white light is made of a spectrum of colours.
The snooker ball absorbs all the colours of the spectrum EXCEPT red, so red light is reflected into our eye. The snooker ball appears red.

14. Green objects Why does a green snooker ball look green in white light?
The snooker ball absorbs all the colours of the spectrum EXCEPT green, green light is reflected into our eye. The snooker ball appears green.

15. Black objects Why does a black snooker ball look black in white light?
The snooker ball absorbs all the colours of the spectrum. NO light is reflected into our eye. The snooker ball appears black.

16. White objects Why does a white snooker ball look white in white light?
The snooker ball doesn’t absorb any of the colours of the spectrum. The whole spectrum of light is reflected into our eye. The snooker ball appears white.

17. Why does a magenta ball look magenta in white light?
Magenta objects
Why does a magenta ball look magenta in white light?
The ball absorbs all the colours of the spectrum EXCEPT red and blue, red and blue light is reflected into our eye. The ball appears to be magenta, a mixture of red and blue light.

18. Look at the clothes below.
What colour light is reflected by these clothes?

19. Filters
Filters let certain colours of light pass through, but absorb all other colours.
Using different coloured filters placed in front of your eye, look around the classroom and see what effect they have on your vision.
filter
Object

20. Red, blue and green filters
… apart from red light
Red filters absorb all colours….
… apart from blue light
Blue filters absorb all colours….
… apart from green light
Green filters absorb all colours….

21. Magenta, cyan and yellow filters
Magenta filters absorb all colours….
… apart from red and blue light
Cyan filters absorb all colours….
… apart from blue and green light
Yellow filters absorb all colours….
… apart from red and green light

22. True or false?

23. The red light shines on the ball.
Why do colours look different in different coloured light?
Lets start with the example of a red ball in red light.
The red light shines on the ball.
The red ball reflects red light and so appears red.

24. The green light shines on the ball.
What about the red ball in green light?
The green light shines on the ball.
The red ball only reflects red light so it absorbs the green light and reflects nothing. Because it doesn’t reflect any type of light it appears black.
The green ball only reflects green light so it absorbs the red light and reflects nothing. Therefore it appears black.
So what colour does a green ball appear in blue light?

25. But what if the filter you are using lets through more than one type of light. For example what will our red ball look like in magenta light.
The magenta light shines on the ball. Remember that magenta is a mixture of blue and red light
The ball reflects only red light. Therefore it absorbs the blue light and reflects the red light. It will appear to be red.

26. Over the next two slides you will be shown the a girl
Over the next two slides you will be shown the a girl. She will be standing in a different coloured light each time. The colour of this light is written at the top of the slide.
Your task is to choose the correct shirt and trousers to represent what those clothes would look like in each coloured light.

27. Drag and drop activity

28. Drag and drop activity

29. Complete the table below by adding in the colour that each object would appear to be in the conditions listed.
Object (Colour)
Colour Filter
Appearance
red ball
red
blue
blue book
green
magenta
green apple
cyan
red and blue tie
red
black
black
blue
green
black
red and black

30. Homework
Suggest what clothes you would wear on a night out, where the lighting on the dance floor was mainly red and green.
Draw an outfit you might wear, explaining why you chose those colours.
Revise for a test next lesson

31. Actvity
Flag colours
For the flag shown, draw what it will look like in:
a) Red light b) Green light c) Blue light

32. Multiple Choice Questions

33. Which of the following is not a light source?
The Sun
A star
Traffic lights
A book 

34. Which of the following is not seen by reflected light?
Your hand
Jupiter
Light bulb
The Moon 

35. Which of the following is the most dense?
Air
Water
Glass
Lead 

36. When light changes direction as it moves from one medium to another we call this effect what?
Reflection
Refraction
Diffraction
Total internal reflection 

37.  It continues with no change of direction It bends towards the normal
If a ray of light moves from a more dense medium to a less dense medium at an angle to the normal what happens?
It continues with no change of direction
It bends towards the normal
It bends away from the normal
It stops 

38. Which colour has the longest wavelength?
Blue
Indigo
Yellow
Red 

39. Which colour below is refracted (bent) the least by a glass prism?
Red
Orange
Yellow
Green 

40. Which of the following is not a primary colour?
Red
Blue
Cyan
Green 

41. Which two primary colours make magenta?
Red and cyan
Red and yellow
Red and blue
Blue and violet 

42. If white light passed through a magenta filter and then a blue filter, what colour would emerge?
Red
Red and blue
Blue
Black 

43. What colour would a red dress look in cyan light?
Green
Blue
Black 
