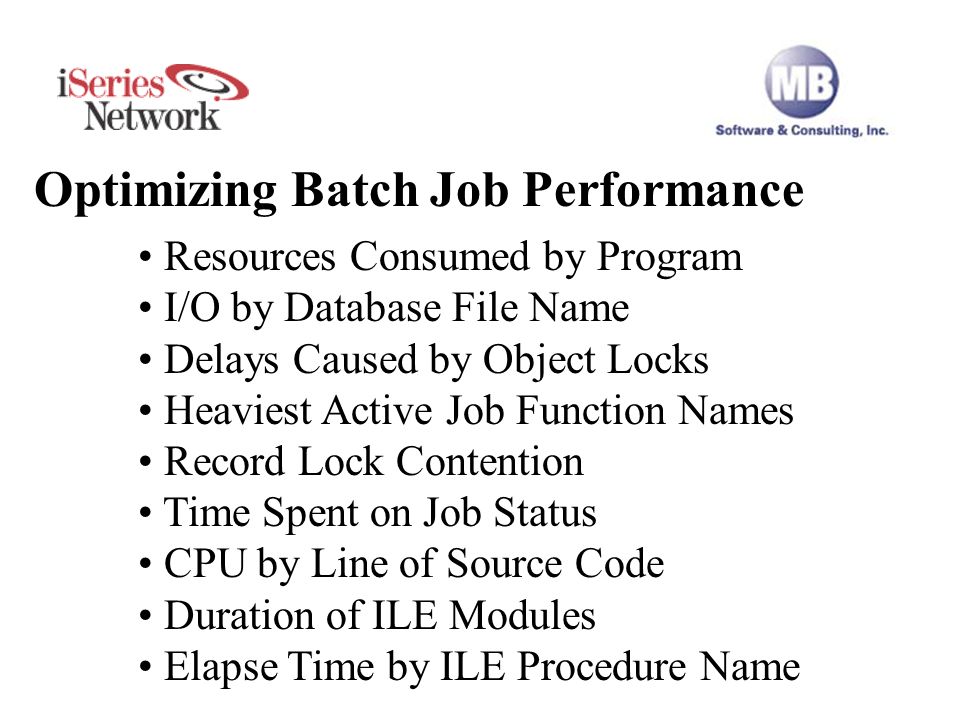

1. Optimizing Batch Job Performance Resources Consumed by Program I/O by Database File Name Delays Caused by Object Locks Heaviest Active Job Function Names Record Lock Contention Time Spent on Job Status CPU by Line of Source Code Duration of ILE Modules Elapse Time by ILE Procedure Name

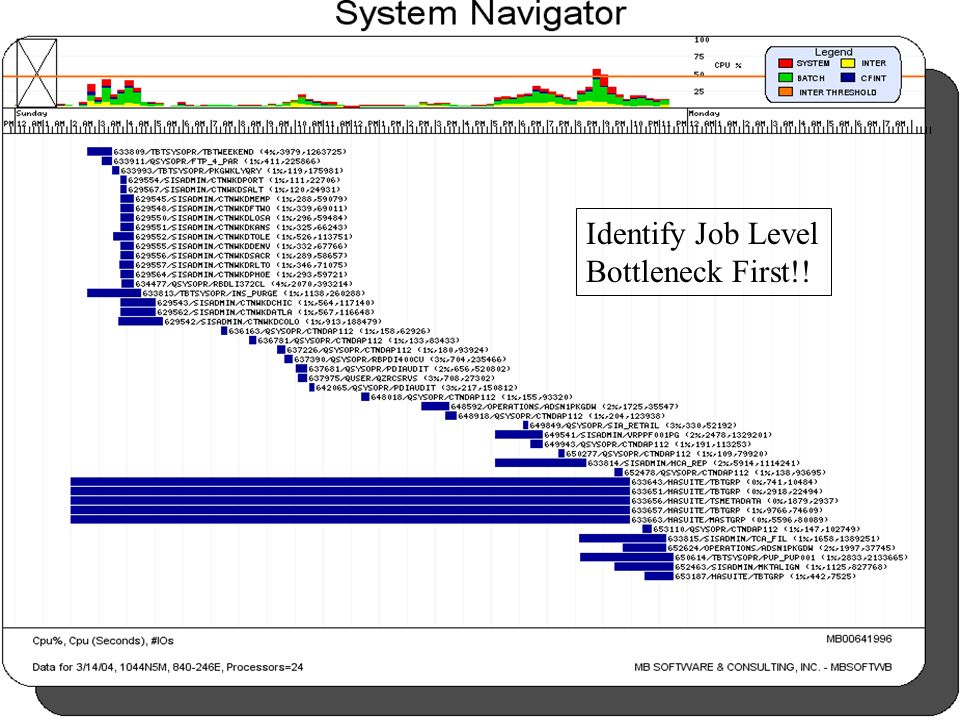

2. System Navigator Identify Job Level Bottleneck First!!

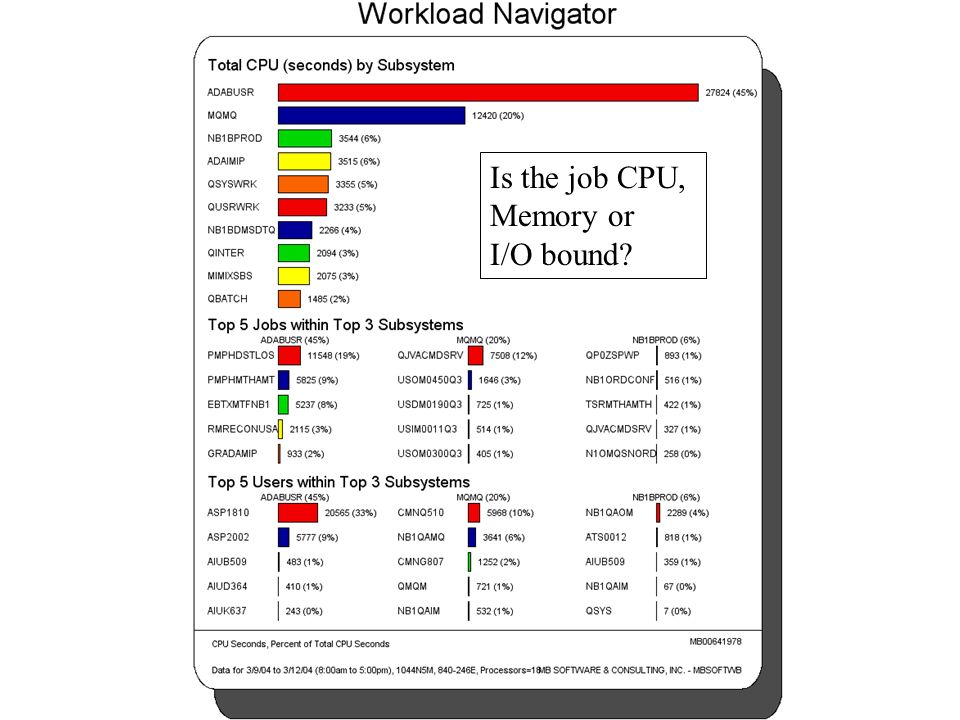

3. Workload Navigator Is the job CPU, Memory or I/O bound?

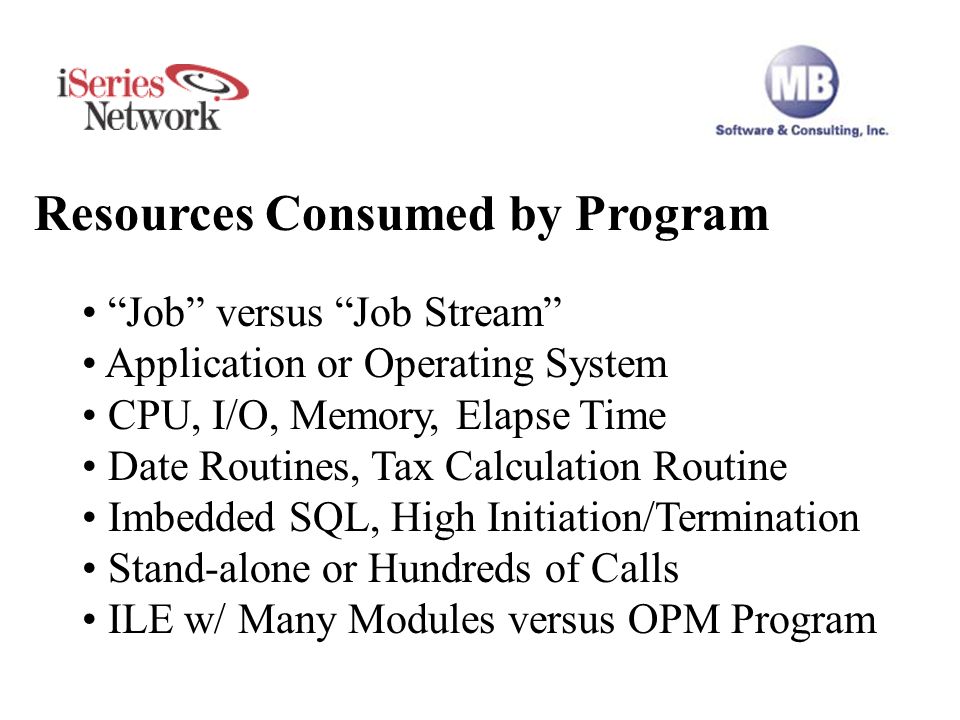

4. Resources Consumed by Program “Job” versus “Job Stream” Application or Operating System CPU, I/O, Memory, Elapse Time Date Routines, Tax Calculation Routine Imbedded SQL, High Initiation/Termination Stand-alone or Hundreds of Calls ILE w/ Many Modules versus OPM Program

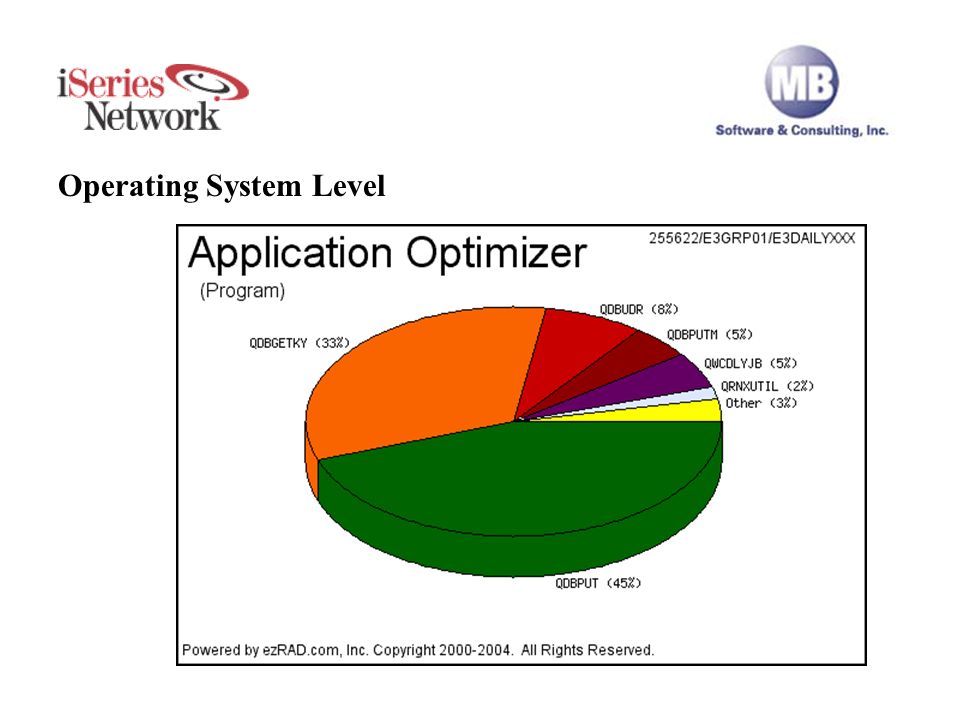

5. Operating System Level

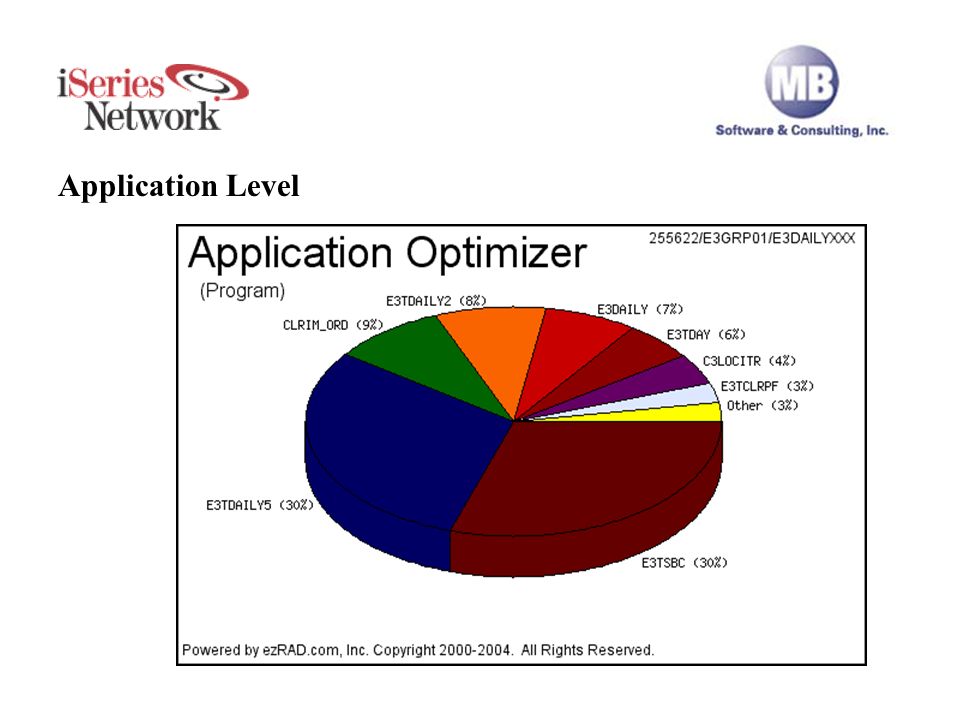

6. Application Level

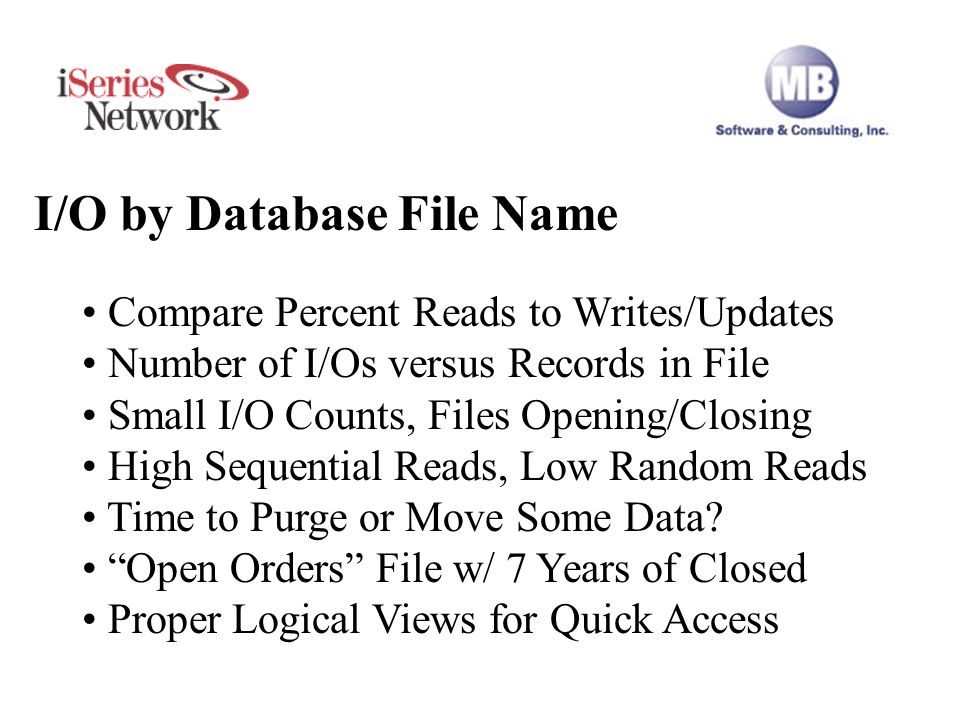

7. I/O by Database File Name Compare Percent Reads to Writes/Updates Number of I/Os versus Records in File Small I/O Counts, Files Opening/Closing High Sequential Reads, Low Random Reads Time to Purge or Move Some Data? “Open Orders” File w/ 7 Years of Closed Proper Logical Views for Quick Access

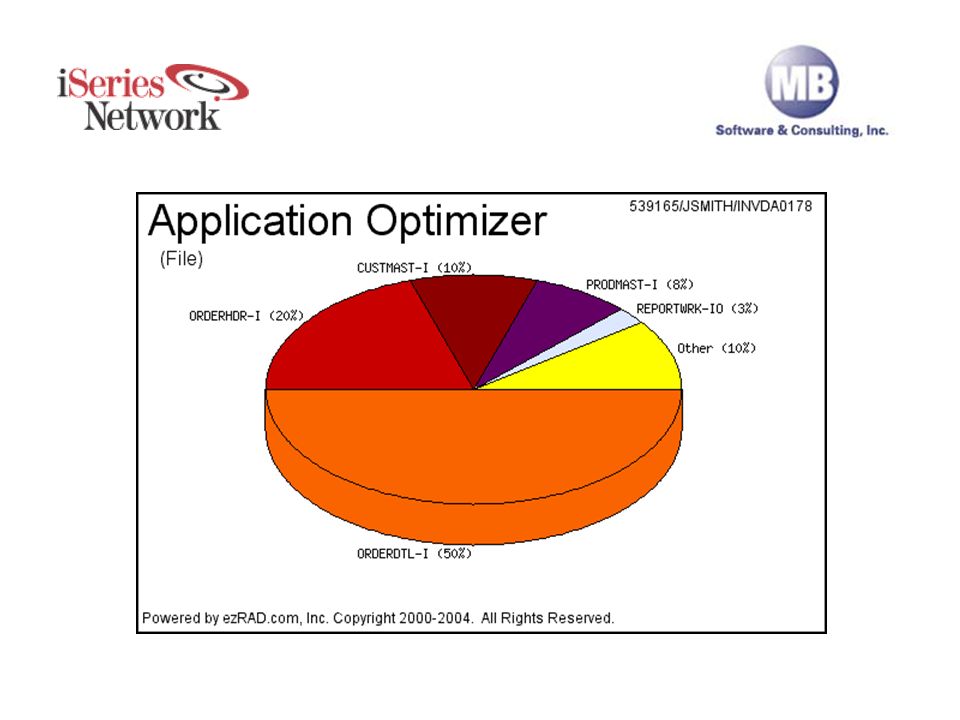

8. I/O Example

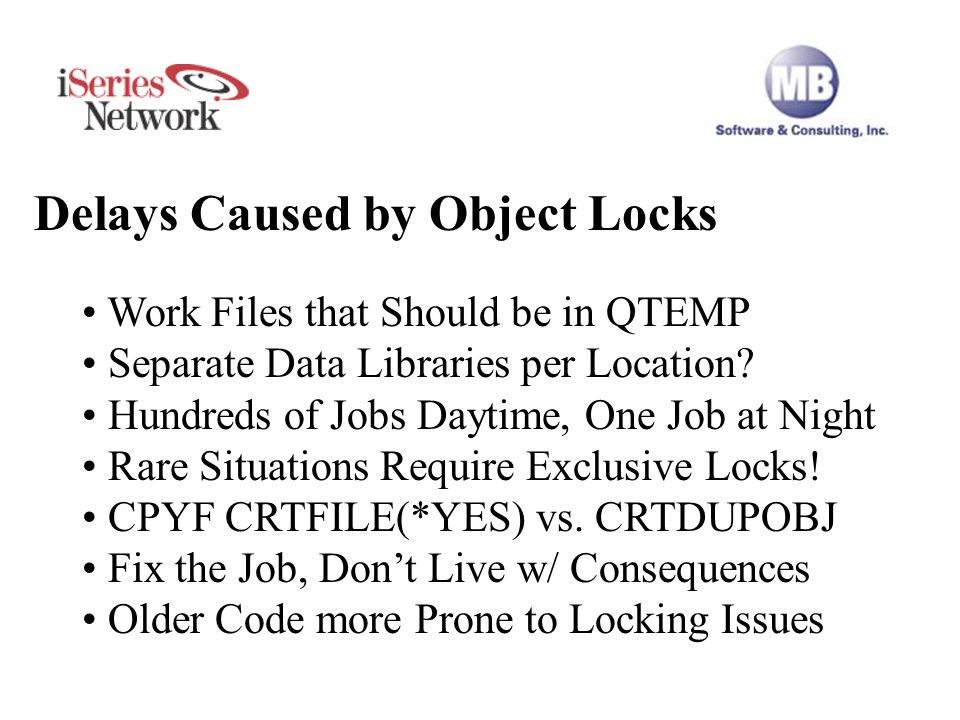

9. Delays Caused by Object Locks Work Files that Should be in QTEMP Separate Data Libraries per Location? Hundreds of Jobs Daytime, One Job at Night Rare Situations Require Exclusive Locks! CPYF CRTFILE(*YES) vs. CRTDUPOBJ Fix the Job, Don’t Live w/ Consequences Older Code more Prone to Locking Issues

10. Lock Wait Job Status

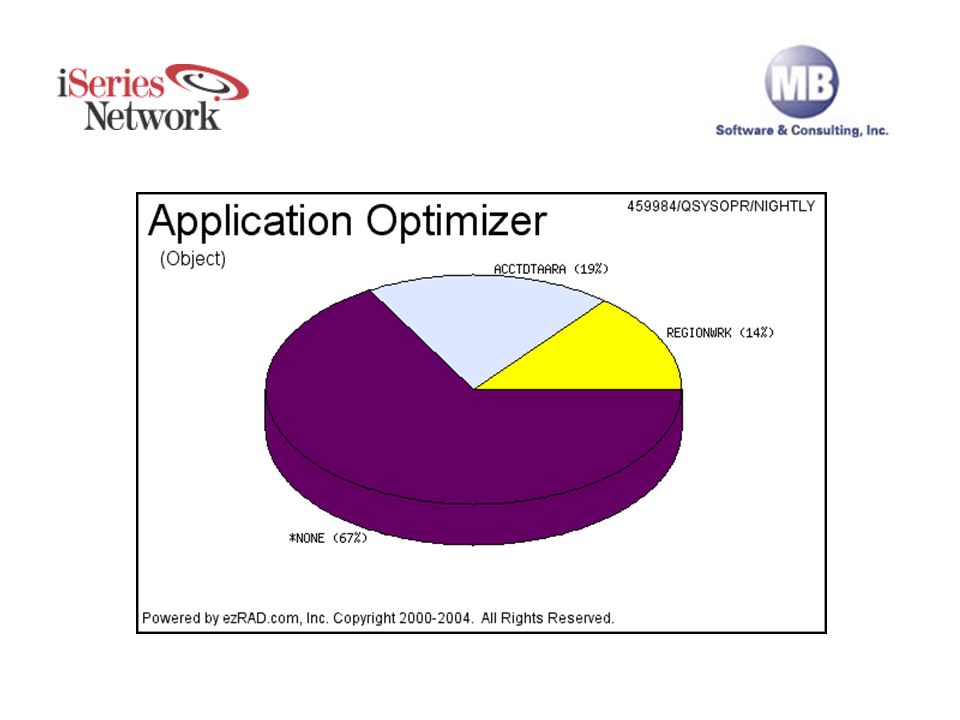

11. Locks by Object Name

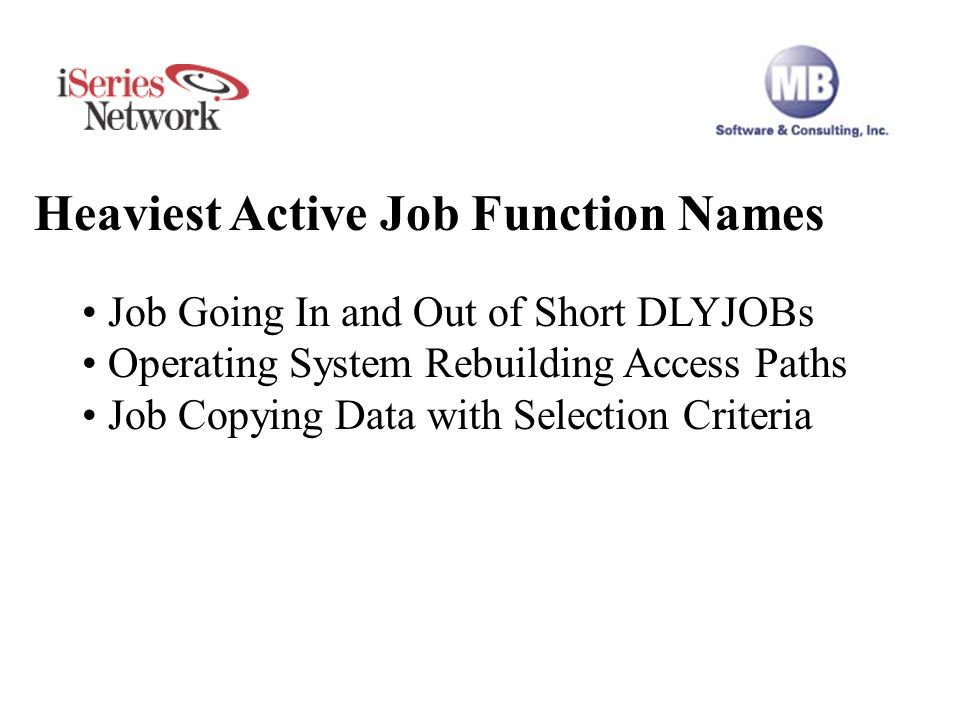

12. Heaviest Active Job Function Names Job Going In and Out of Short DLYJOBs Operating System Rebuilding Access Paths Job Copying Data with Selection Criteria

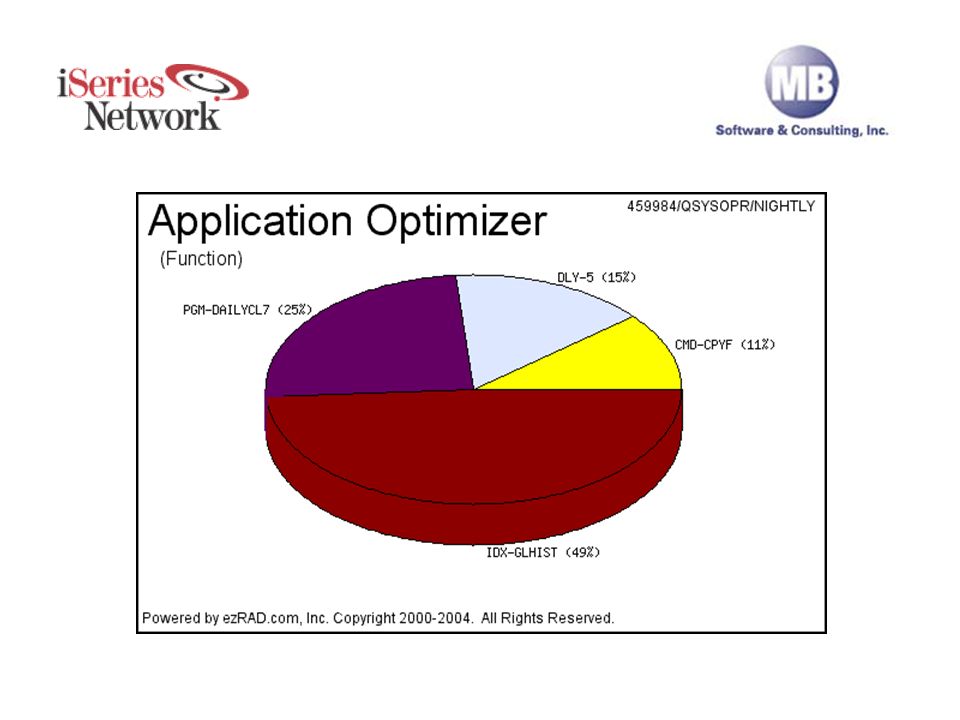

13. Job Function Example

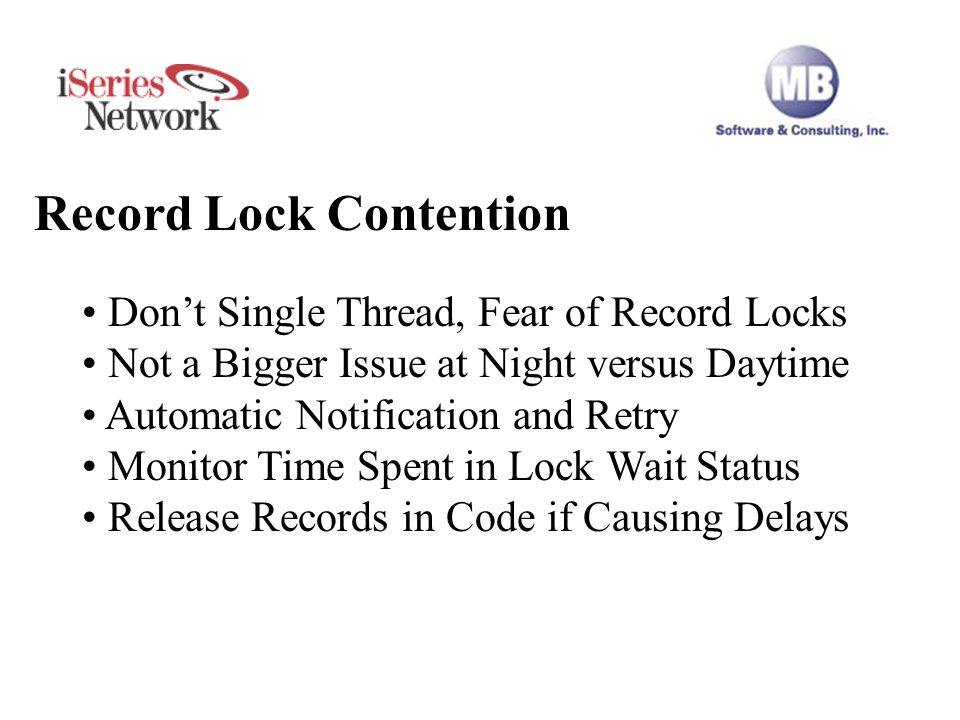

14. Record Lock Contention Don’t Single Thread, Fear of Record Locks Not a Bigger Issue at Night versus Daytime Automatic Notification and Retry Monitor Time Spent in Lock Wait Status Release Records in Code if Causing Delays

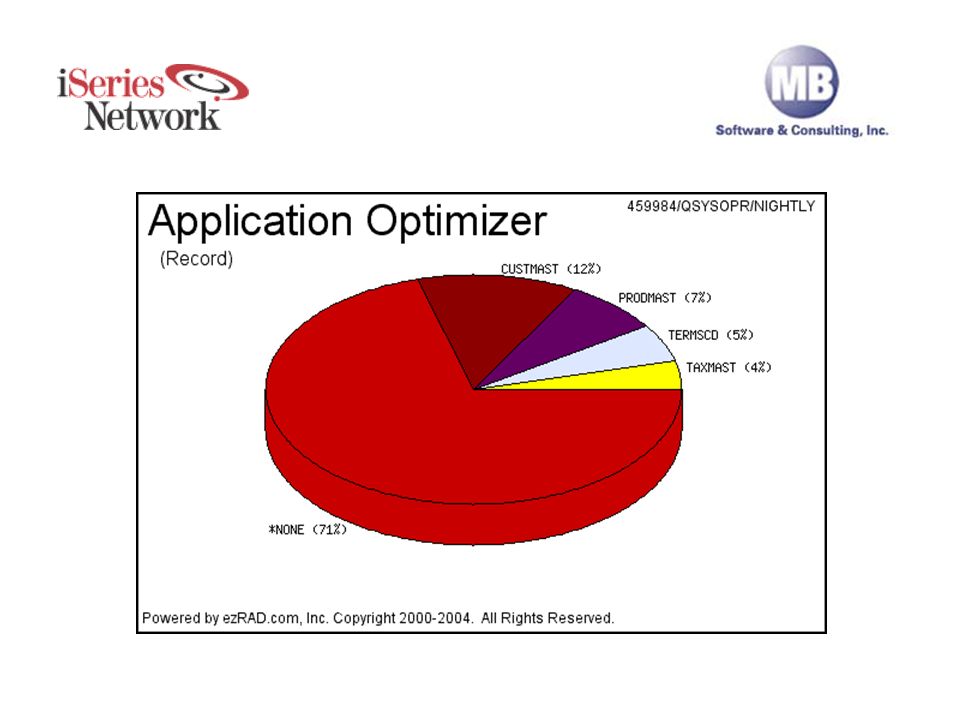

15. Record Lock Example

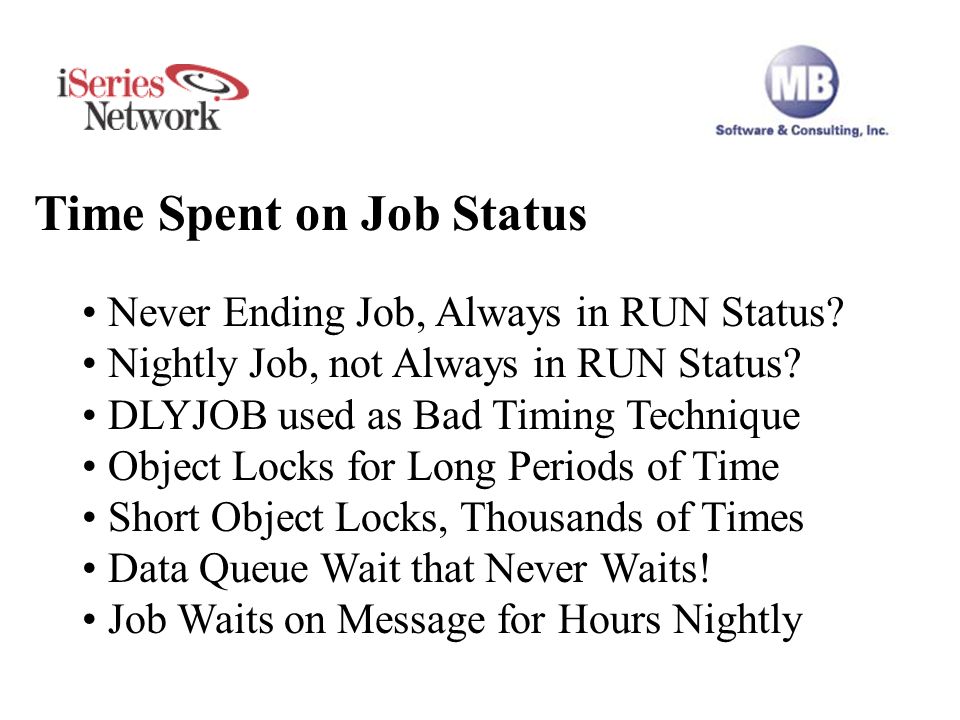

16. Time Spent on Job Status Never Ending Job, Always in RUN Status? Nightly Job, not Always in RUN Status? DLYJOB used as Bad Timing Technique Object Locks for Long Periods of Time Short Object Locks, Thousands of Times Data Queue Wait that Never Waits! Job Waits on Message for Hours Nightly

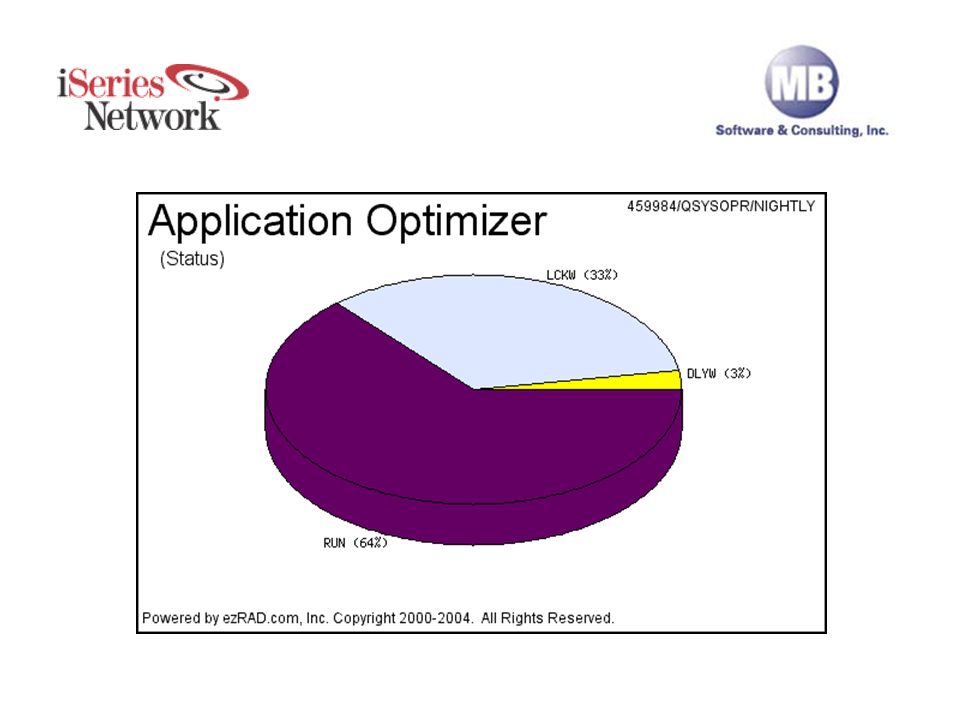

17. Job Status Example

18. CPU by Line of Source Code Is There One Bad Line of Code? SETON LR at end of Date Routine CHAIN to CustMast for Every Line Item Open/Close 50 Files for Each Line Item OPNQRYFs are 73% of CPU and Elapse CALL to Tax Routine, 85% of Elapse Format Date Routine, 93% of Duration

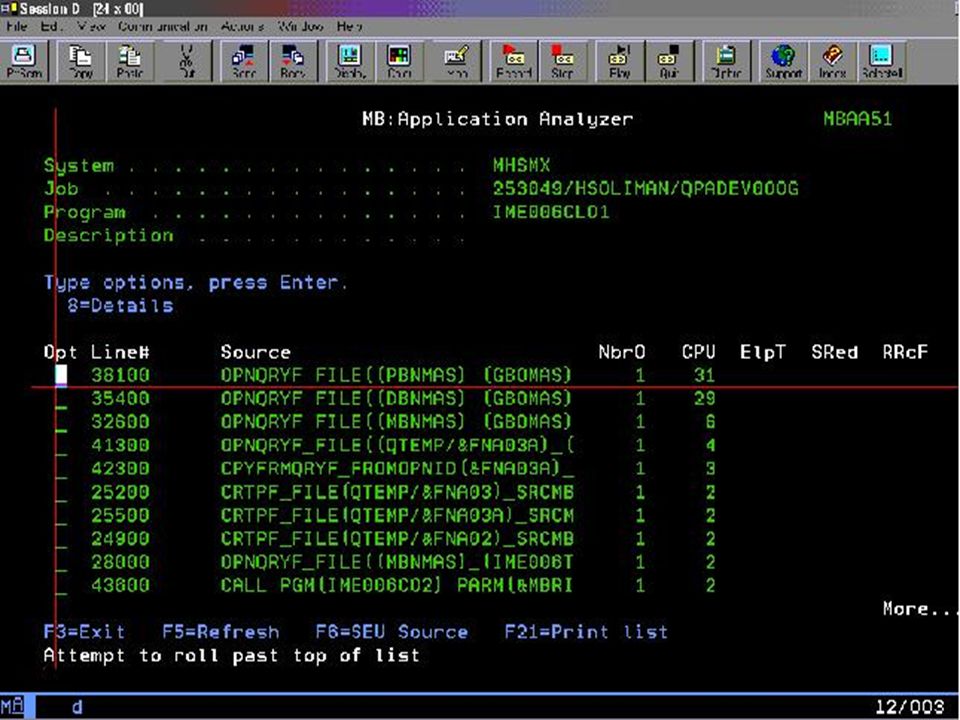

19. Source Code Example

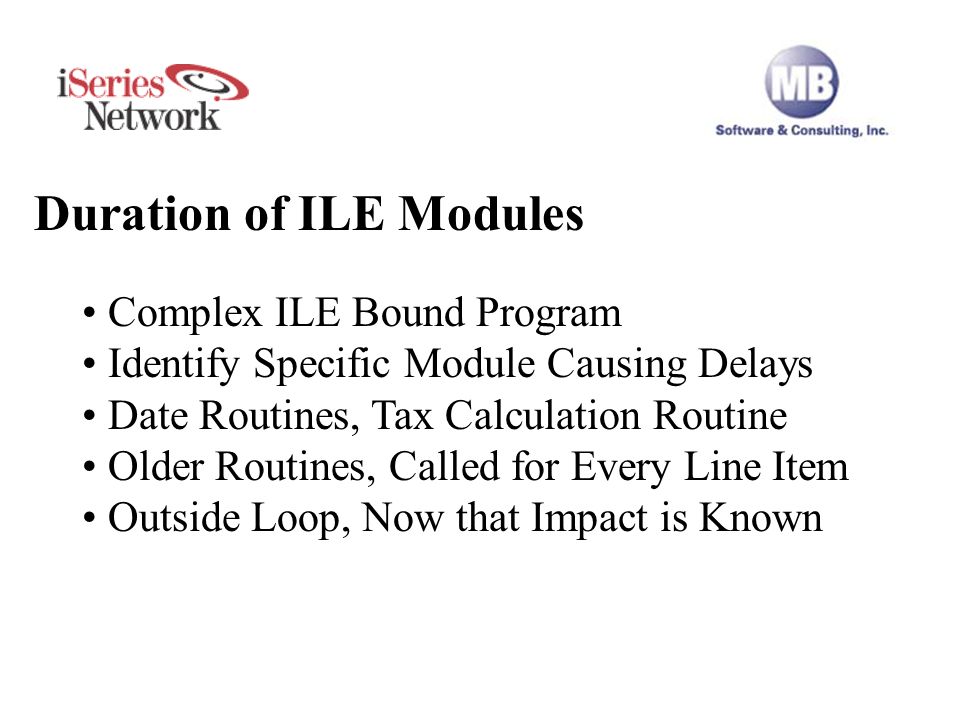

20. Duration of ILE Modules Complex ILE Bound Program Identify Specific Module Causing Delays Date Routines, Tax Calculation Routine Older Routines, Called for Every Line Item Outside Loop, Now that Impact is Known

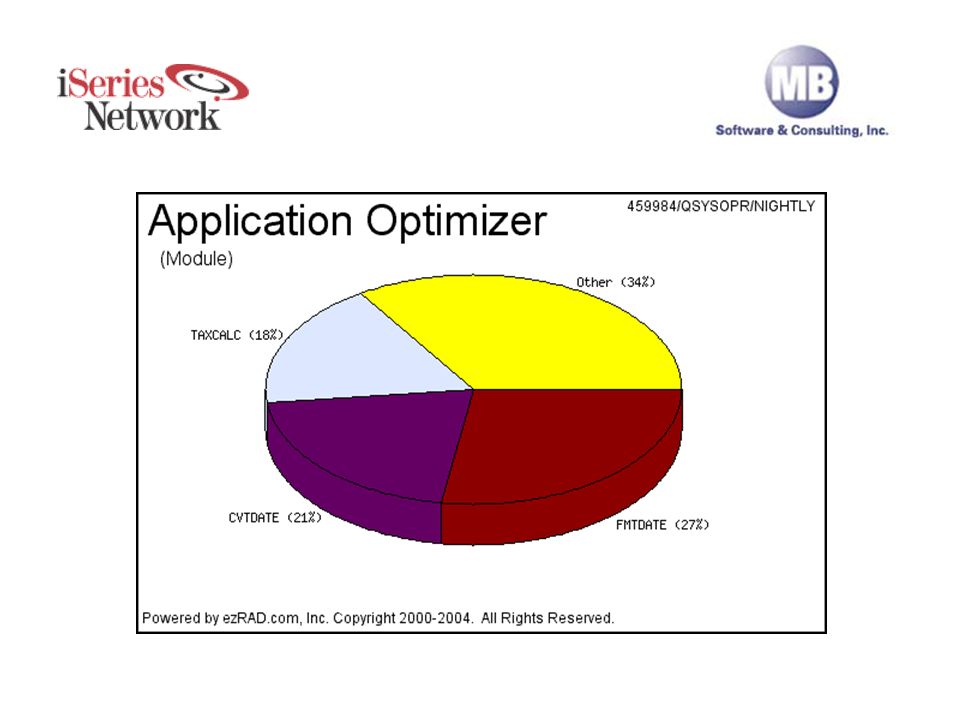

21. ILE Modules Example

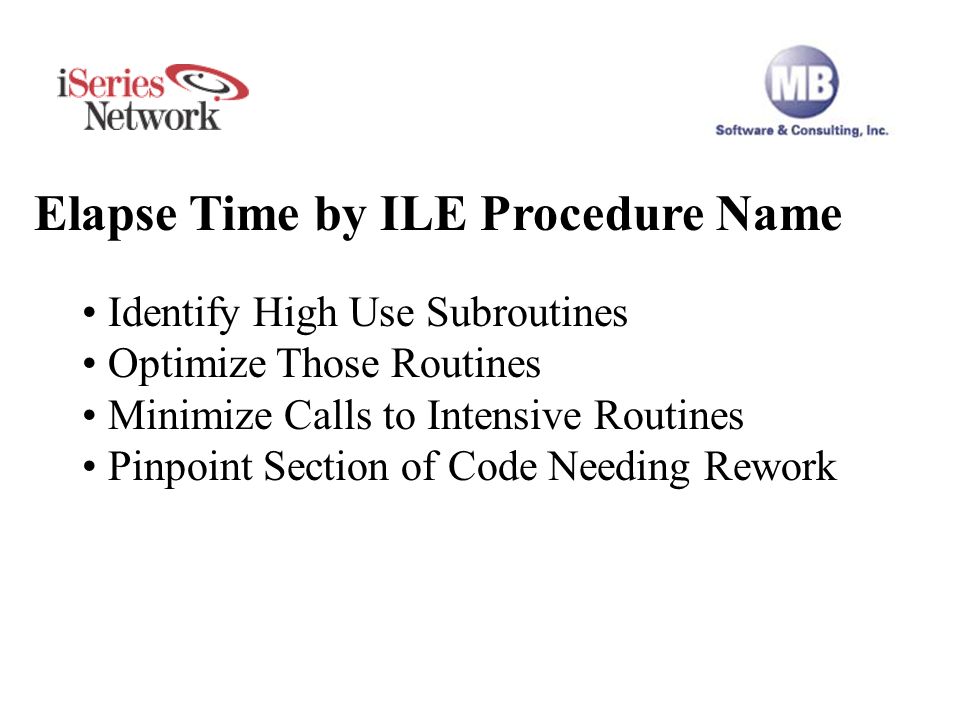

22. Elapse Time by ILE Procedure Name Identify High Use Subroutines Optimize Those Routines Minimize Calls to Intensive Routines Pinpoint Section of Code Needing Rework

23. ILE Procedure Name Example

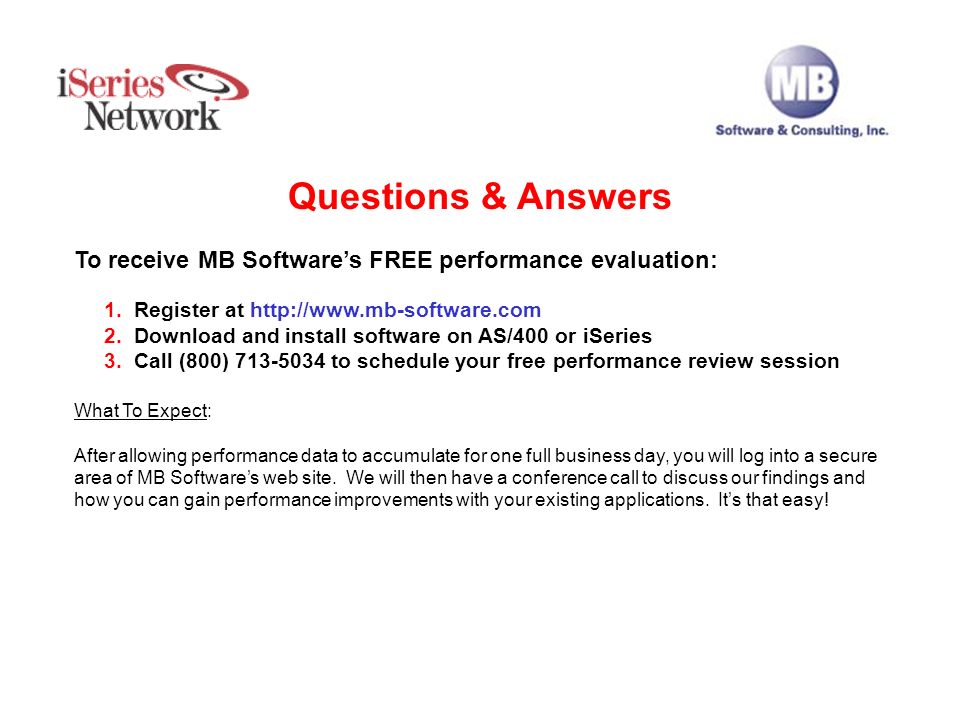

24. Q&A To receive MB Software’s FREE performance evaluation: 1. Register at http://www.mb-software.com 2. Download and install software on AS/400 or iSeries 3. Call (800) 713-5034 to schedule your free performance review session What To Expect: After allowing performance data to accumulate for one full business day, you will log into a secure area of MB Software’s web site. We will then have a conference call to discuss our findings and how you can gain performance improvements with your existing applications. It’s that easy! Questions & Answers
