1. Installing and Supporting IDX Flowcast™ Web Desktops Alan Beckwith and Pete Chunis, Flowcast Development

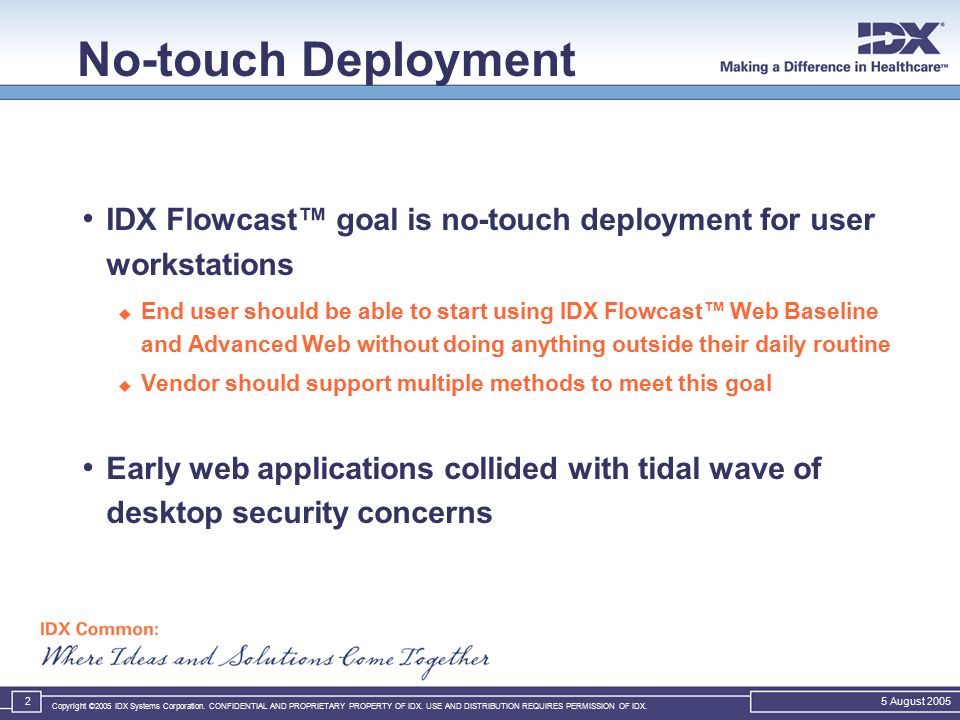

2. 5 August 2005 Copyright ©2005 IDX Systems Corporation. CONFIDENTIAL AND PROPRIETARY PROPERTY OF IDX. USE AND DISTRIBUTION REQUIRES PERMISSION OF IDX. 2 No-touch Deployment IDX Flowcast™ goal is no-touch deployment for user workstations  End user should be able to start using IDX Flowcast™ Web Baseline and Advanced Web without doing anything outside their daily routine  Vendor should support multiple methods to meet this goal Early web applications collided with tidal wave of desktop security concerns

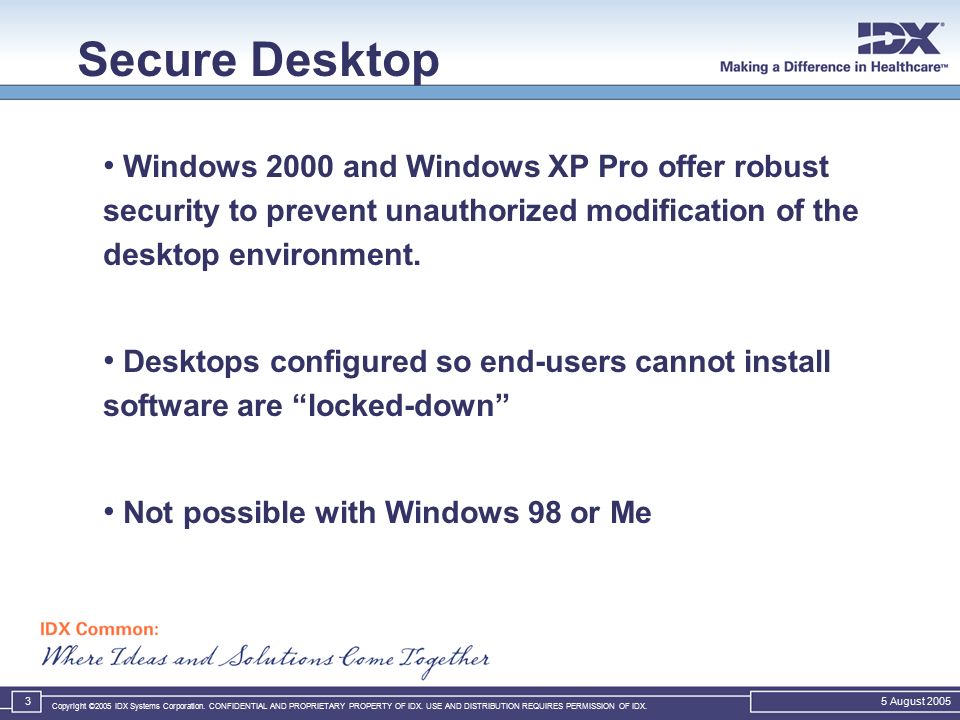

3. 5 August 2005 Copyright ©2005 IDX Systems Corporation. CONFIDENTIAL AND PROPRIETARY PROPERTY OF IDX. USE AND DISTRIBUTION REQUIRES PERMISSION OF IDX. 3 Secure Desktop Windows 2000 and Windows XP Pro offer robust security to prevent unauthorized modification of the desktop environment. Desktops configured so end-users cannot install software are “locked-down” Not possible with Windows 98 or Me

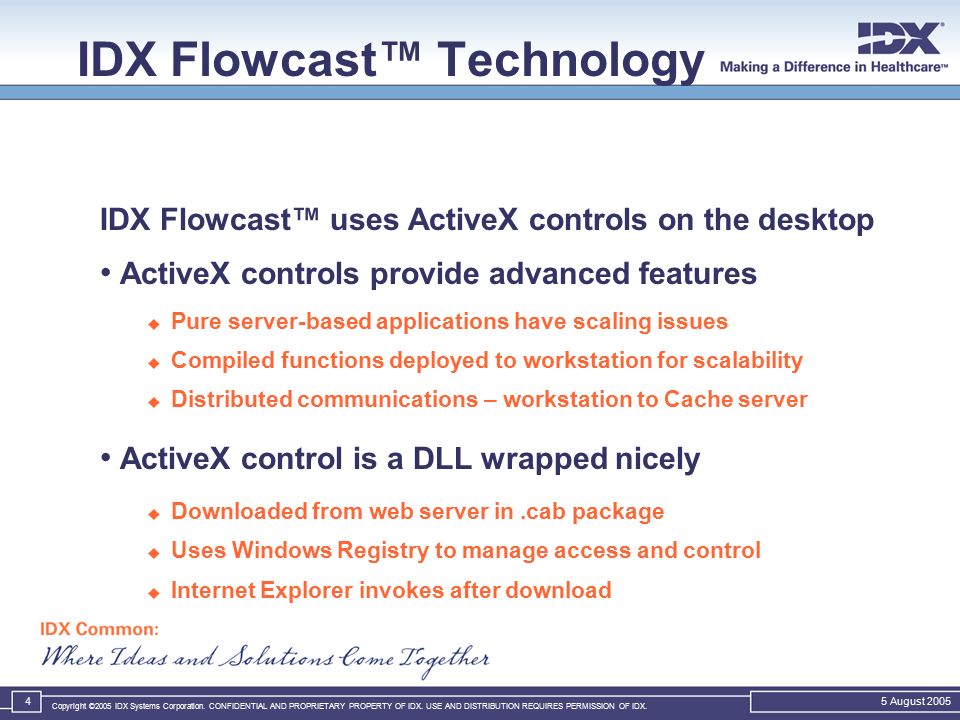

4. 5 August 2005 Copyright ©2005 IDX Systems Corporation. CONFIDENTIAL AND PROPRIETARY PROPERTY OF IDX. USE AND DISTRIBUTION REQUIRES PERMISSION OF IDX. 4 IDX Flowcast™ Technology IDX Flowcast™ uses ActiveX controls on the desktop ActiveX controls provide advanced features  Pure server-based applications have scaling issues  Compiled functions deployed to workstation for scalability  Distributed communications – workstation to Cache server ActiveX control is a DLL wrapped nicely  Downloaded from web server in.cab package  Uses Windows Registry to manage access and control  Internet Explorer invokes after download

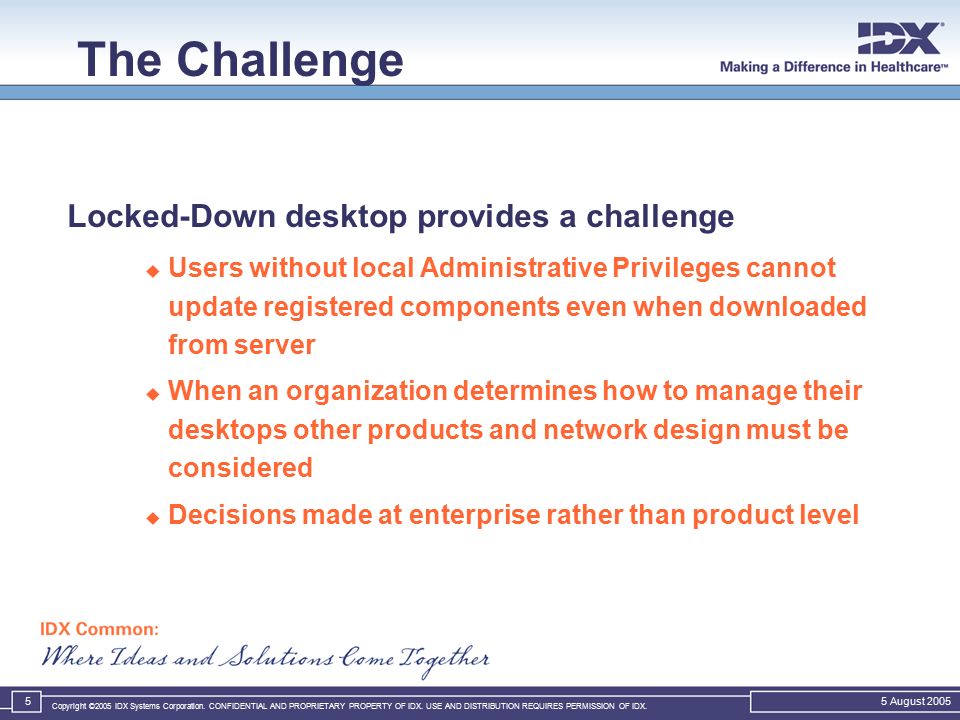

5. 5 August 2005 Copyright ©2005 IDX Systems Corporation. CONFIDENTIAL AND PROPRIETARY PROPERTY OF IDX. USE AND DISTRIBUTION REQUIRES PERMISSION OF IDX. 5 The Challenge Locked-Down desktop provides a challenge  Users without local Administrative Privileges cannot update registered components even when downloaded from server  When an organization determines how to manage their desktops other products and network design must be considered  Decisions made at enterprise rather than product level

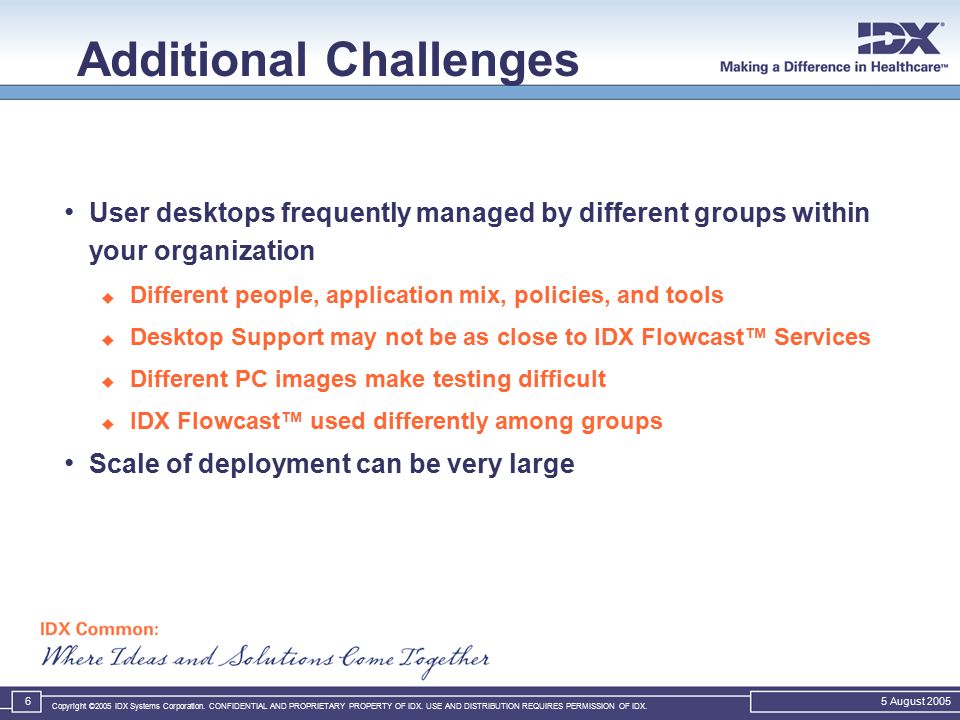

6. 5 August 2005 Copyright ©2005 IDX Systems Corporation. CONFIDENTIAL AND PROPRIETARY PROPERTY OF IDX. USE AND DISTRIBUTION REQUIRES PERMISSION OF IDX. 6 Additional Challenges User desktops frequently managed by different groups within your organization  Different people, application mix, policies, and tools  Desktop Support may not be as close to IDX Flowcast™ Services  Different PC images make testing difficult  IDX Flowcast™ used differently among groups Scale of deployment can be very large

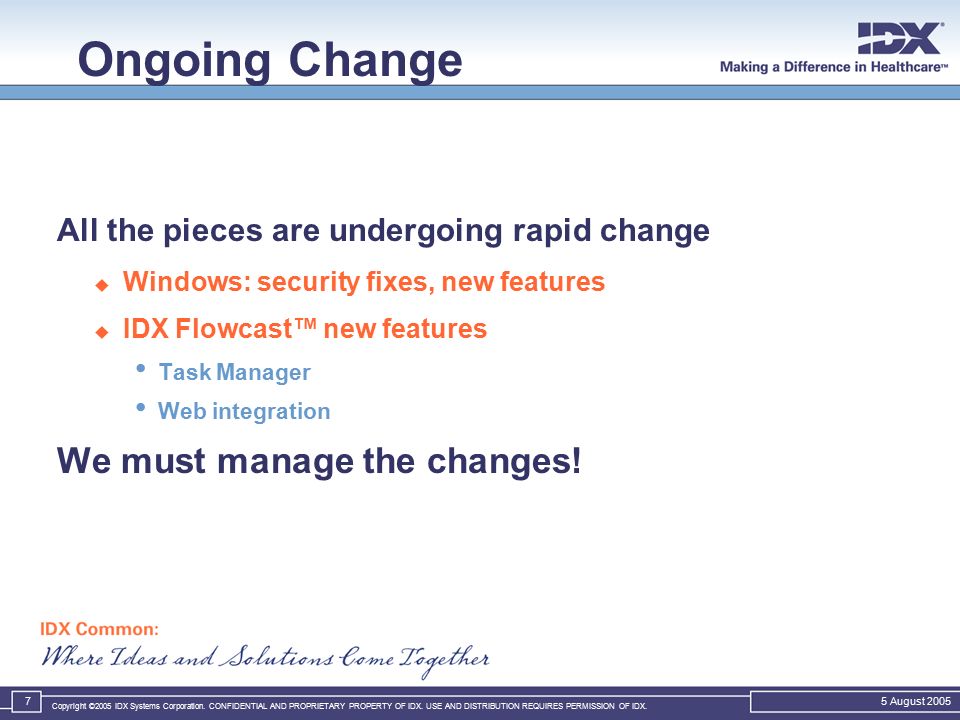

7. 5 August 2005 Copyright ©2005 IDX Systems Corporation. CONFIDENTIAL AND PROPRIETARY PROPERTY OF IDX. USE AND DISTRIBUTION REQUIRES PERMISSION OF IDX. 7 Ongoing Change All the pieces are undergoing rapid change  Windows: security fixes, new features  IDX Flowcast™ new features Task Manager Web integration We must manage the changes!

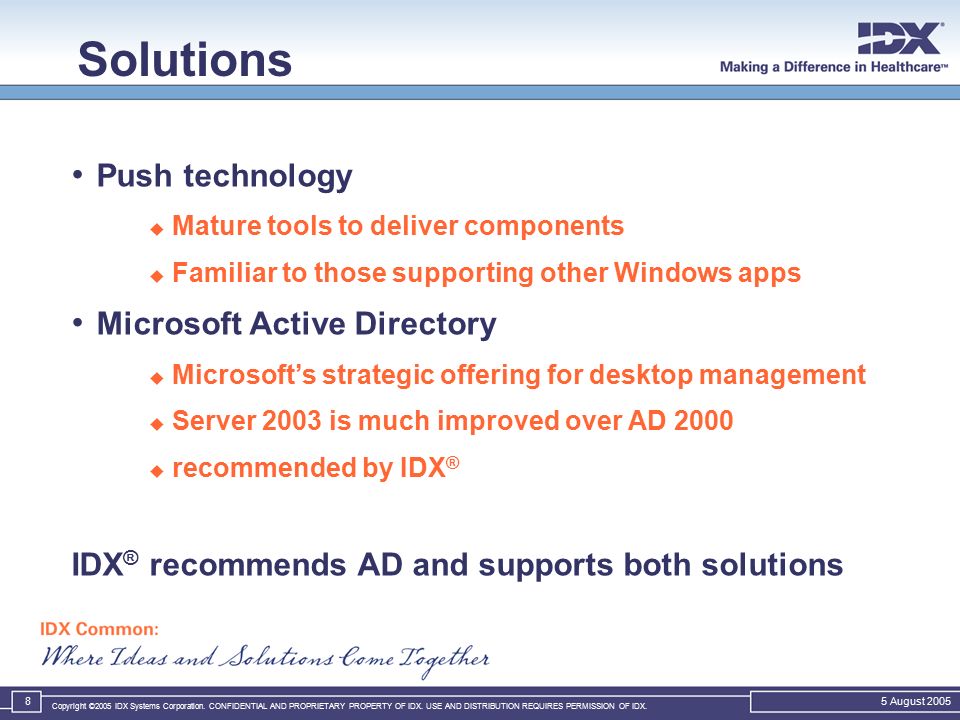

8. 5 August 2005 Copyright ©2005 IDX Systems Corporation. CONFIDENTIAL AND PROPRIETARY PROPERTY OF IDX. USE AND DISTRIBUTION REQUIRES PERMISSION OF IDX. 8 Solutions Push technology  Mature tools to deliver components  Familiar to those supporting other Windows apps Microsoft Active Directory  Microsoft’s strategic offering for desktop management  Server 2003 is much improved over AD 2000  recommended by IDX ® IDX ® recommends AD and supports both solutions

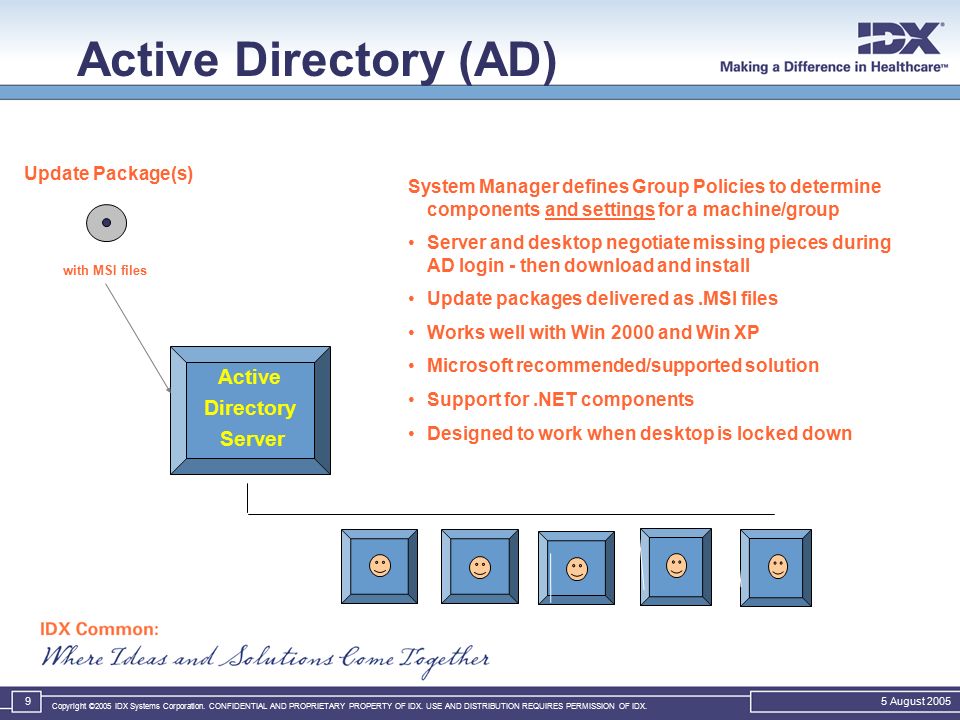

9. 5 August 2005 Copyright ©2005 IDX Systems Corporation. CONFIDENTIAL AND PROPRIETARY PROPERTY OF IDX. USE AND DISTRIBUTION REQUIRES PERMISSION OF IDX. 9 Active Directory (AD) Active Directory Server System Manager defines Group Policies to determine components and settings for a machine/group Server and desktop negotiate missing pieces during AD login - then download and install Update packages delivered as.MSI files Works well with Win 2000 and Win XP Microsoft recommended/supported solution Support for.NET components Designed to work when desktop is locked down Update Package(s) with MSI files

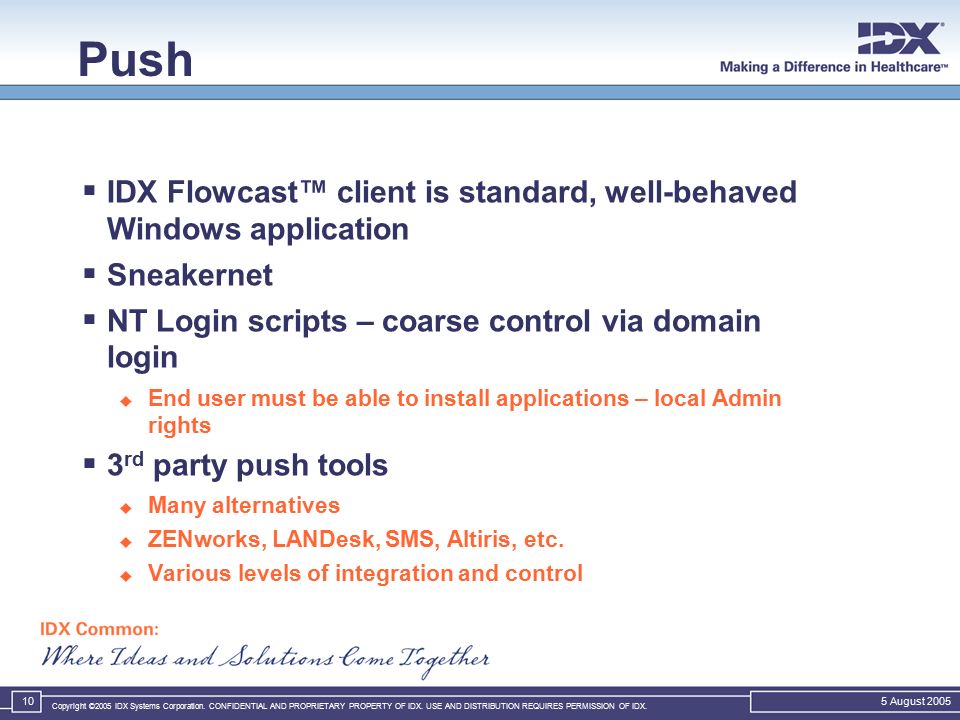

10. 5 August 2005 Copyright ©2005 IDX Systems Corporation. CONFIDENTIAL AND PROPRIETARY PROPERTY OF IDX. USE AND DISTRIBUTION REQUIRES PERMISSION OF IDX. 10 Push  IDX Flowcast™ client is standard, well-behaved Windows application  Sneakernet  NT Login scripts – coarse control via domain login  End user must be able to install applications – local Admin rights  3 rd party push tools  Many alternatives  ZENworks, LANDesk, SMS, Altiris, etc.  Various levels of integration and control

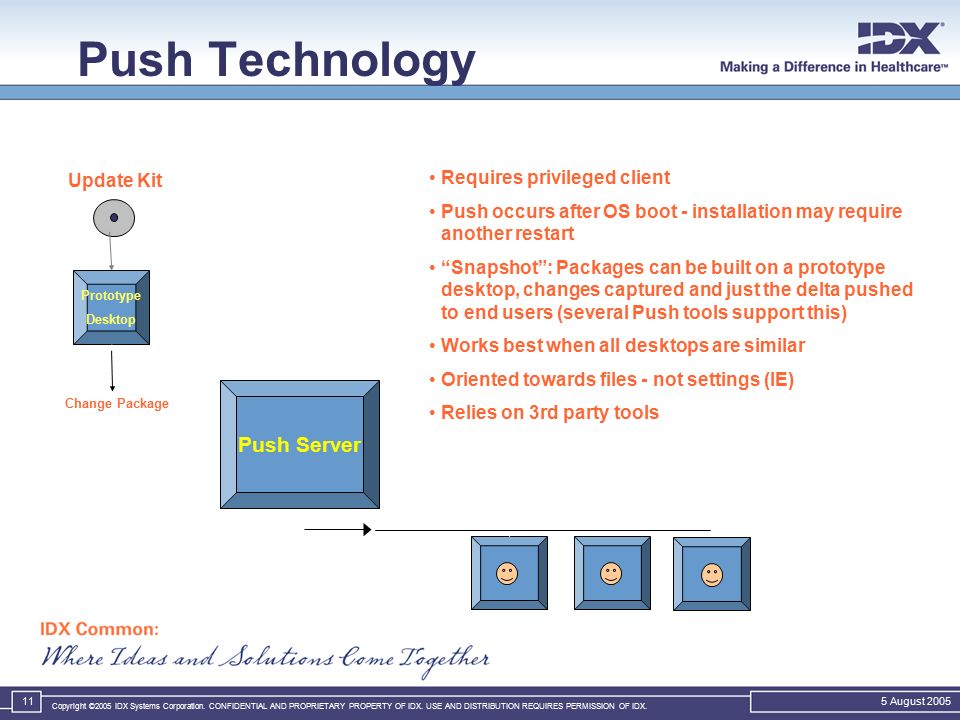

11. 5 August 2005 Copyright ©2005 IDX Systems Corporation. CONFIDENTIAL AND PROPRIETARY PROPERTY OF IDX. USE AND DISTRIBUTION REQUIRES PERMISSION OF IDX. 11 Push Technology Push Server Requires privileged client Push occurs after OS boot - installation may require another restart “Snapshot”: Packages can be built on a prototype desktop, changes captured and just the delta pushed to end users (several Push tools support this) Works best when all desktops are similar Oriented towards files - not settings (IE) Relies on 3rd party tools Prototype Desktop Update Kit Change Package

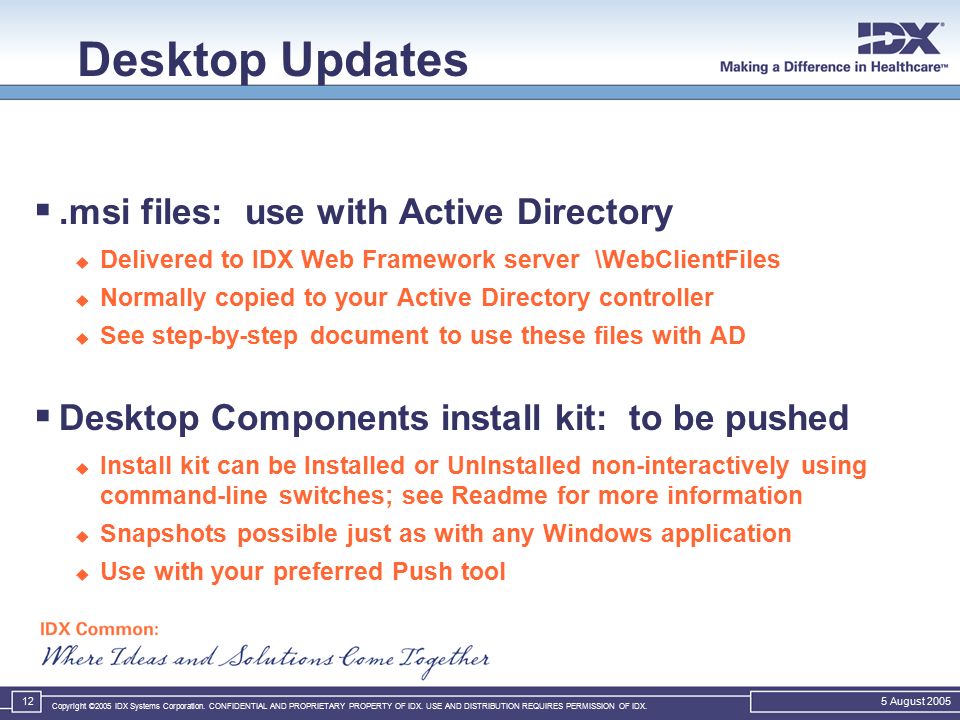

12. 5 August 2005 Copyright ©2005 IDX Systems Corporation. CONFIDENTIAL AND PROPRIETARY PROPERTY OF IDX. USE AND DISTRIBUTION REQUIRES PERMISSION OF IDX. 12 Desktop Updates .msi files: use with Active Directory  Delivered to IDX Web Framework server \WebClientFiles  Normally copied to your Active Directory controller  See step-by-step document to use these files with AD  Desktop Components install kit: to be pushed  Install kit can be Installed or UnInstalled non-interactively using command-line switches; see Readme for more information  Snapshots possible just as with any Windows application  Use with your preferred Push tool

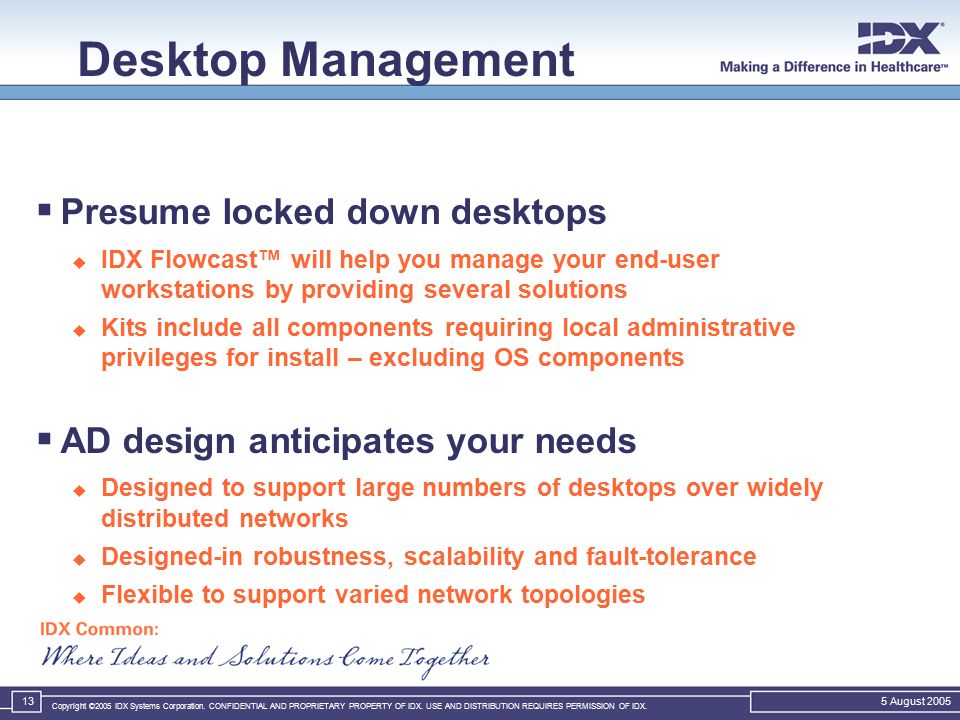

13. 5 August 2005 Copyright ©2005 IDX Systems Corporation. CONFIDENTIAL AND PROPRIETARY PROPERTY OF IDX. USE AND DISTRIBUTION REQUIRES PERMISSION OF IDX. 13 Desktop Management  Presume locked down desktops  IDX Flowcast™ will help you manage your end-user workstations by providing several solutions  Kits include all components requiring local administrative privileges for install – excluding OS components  AD design anticipates your needs  Designed to support large numbers of desktops over widely distributed networks  Designed-in robustness, scalability and fault-tolerance  Flexible to support varied network topologies

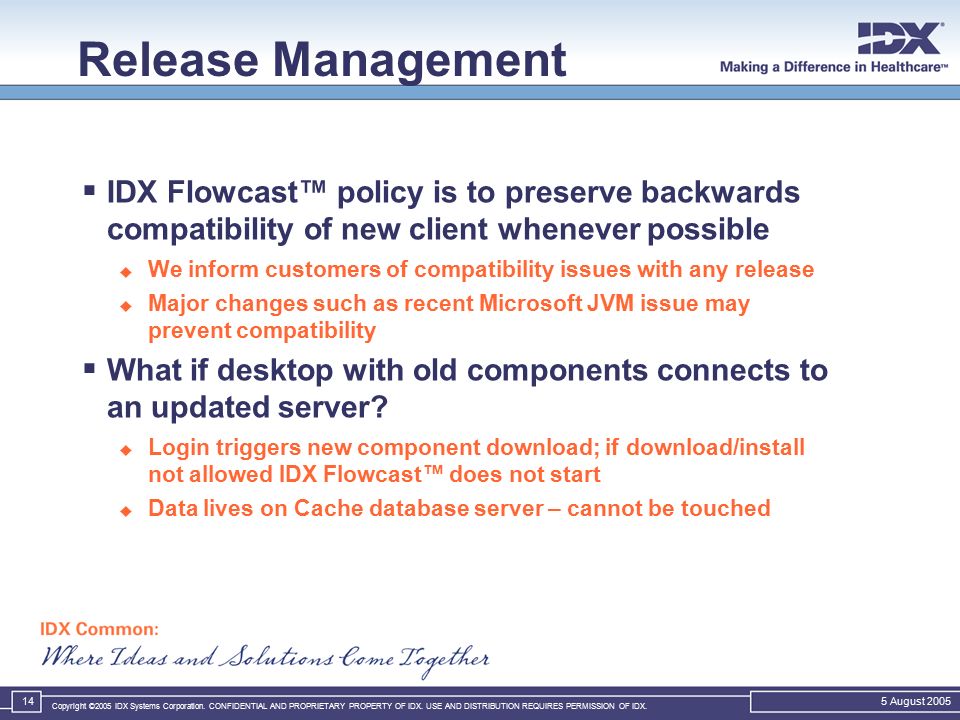

14. 5 August 2005 Copyright ©2005 IDX Systems Corporation. CONFIDENTIAL AND PROPRIETARY PROPERTY OF IDX. USE AND DISTRIBUTION REQUIRES PERMISSION OF IDX. 14 Release Management  IDX Flowcast™ policy is to preserve backwards compatibility of new client whenever possible  We inform customers of compatibility issues with any release  Major changes such as recent Microsoft JVM issue may prevent compatibility  What if desktop with old components connects to an updated server?  Login triggers new component download; if download/install not allowed IDX Flowcast™ does not start  Data lives on Cache database server – cannot be touched

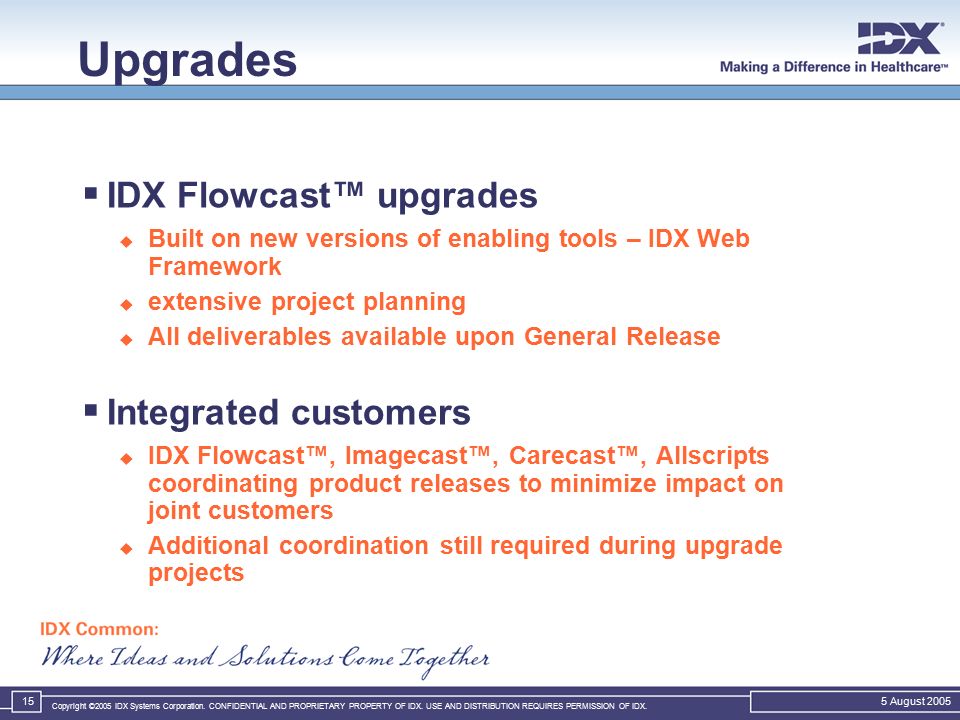

15. 5 August 2005 Copyright ©2005 IDX Systems Corporation. CONFIDENTIAL AND PROPRIETARY PROPERTY OF IDX. USE AND DISTRIBUTION REQUIRES PERMISSION OF IDX. 15 Upgrades  IDX Flowcast™ upgrades  Built on new versions of enabling tools – IDX Web Framework  extensive project planning  All deliverables available upon General Release  Integrated customers  IDX Flowcast™, Imagecast™, Carecast™, Allscripts coordinating product releases to minimize impact on joint customers  Additional coordination still required during upgrade projects

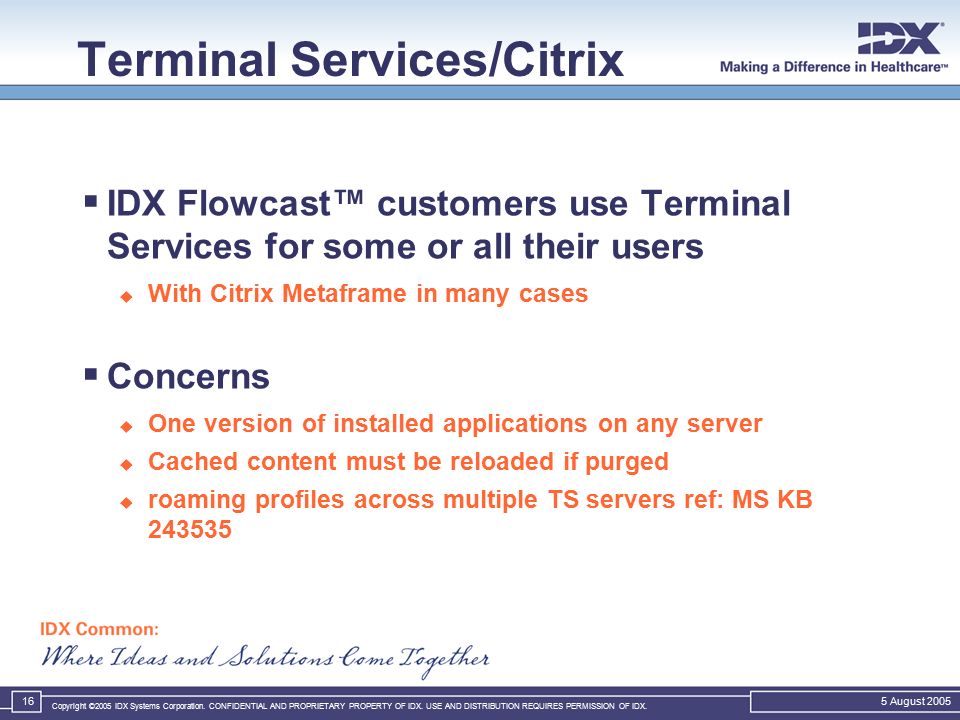

16. 5 August 2005 Copyright ©2005 IDX Systems Corporation. CONFIDENTIAL AND PROPRIETARY PROPERTY OF IDX. USE AND DISTRIBUTION REQUIRES PERMISSION OF IDX. 16 Terminal Services/Citrix  IDX Flowcast™ customers use Terminal Services for some or all their users  With Citrix Metaframe in many cases  Concerns  One version of installed applications on any server  Cached content must be reloaded if purged  roaming profiles across multiple TS servers ref: MS KB 243535

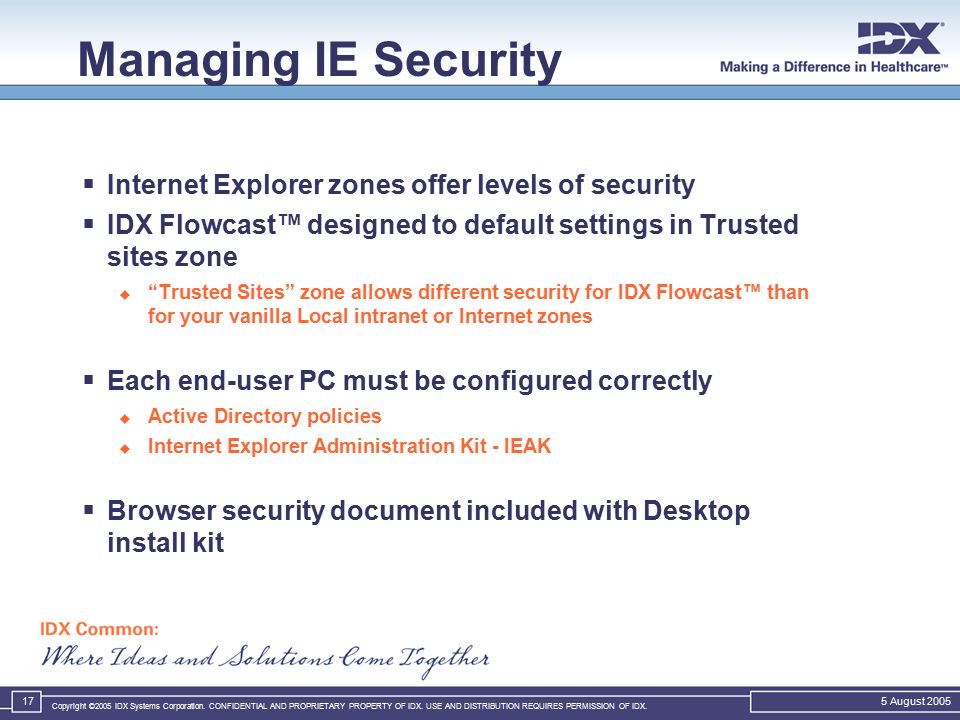

17. 5 August 2005 Copyright ©2005 IDX Systems Corporation. CONFIDENTIAL AND PROPRIETARY PROPERTY OF IDX. USE AND DISTRIBUTION REQUIRES PERMISSION OF IDX. 17 Managing IE Security  Internet Explorer zones offer levels of security  IDX Flowcast™ designed to default settings in Trusted sites zone  “Trusted Sites” zone allows different security for IDX Flowcast™ than for your vanilla Local intranet or Internet zones  Each end-user PC must be configured correctly  Active Directory policies  Internet Explorer Administration Kit - IEAK  Browser security document included with Desktop install kit

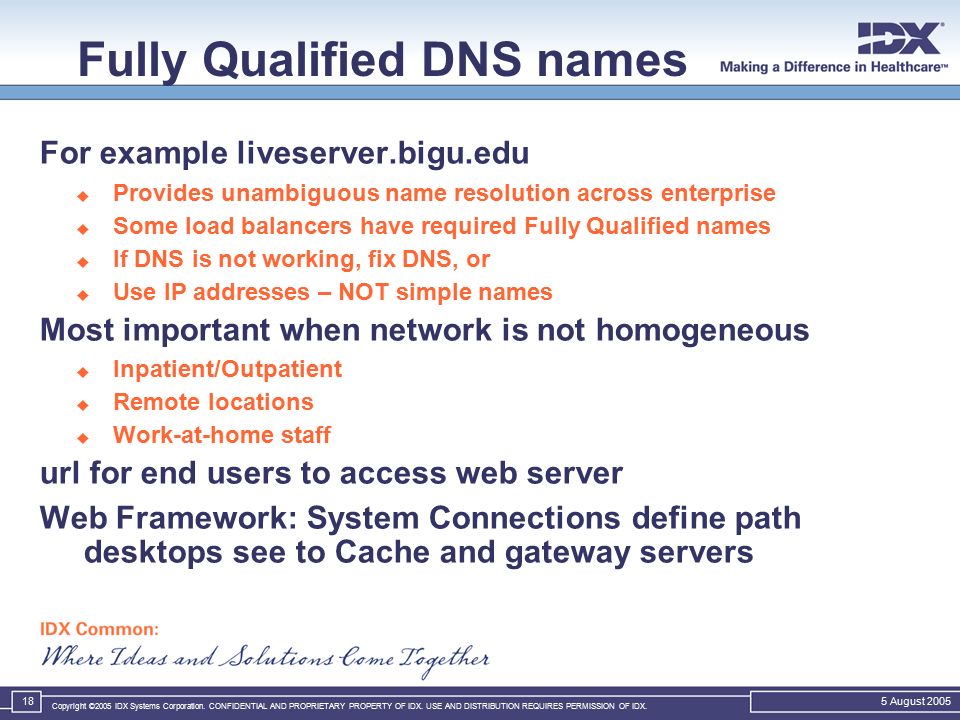

18. 5 August 2005 Copyright ©2005 IDX Systems Corporation. CONFIDENTIAL AND PROPRIETARY PROPERTY OF IDX. USE AND DISTRIBUTION REQUIRES PERMISSION OF IDX. 18 Fully Qualified DNS names For example liveserver.bigu.edu  Provides unambiguous name resolution across enterprise  Some load balancers have required Fully Qualified names  If DNS is not working, fix DNS, or  Use IP addresses – NOT simple names Most important when network is not homogeneous  Inpatient/Outpatient  Remote locations  Work-at-home staff url for end users to access web server Web Framework: System Connections define path desktops see to Cache and gateway servers

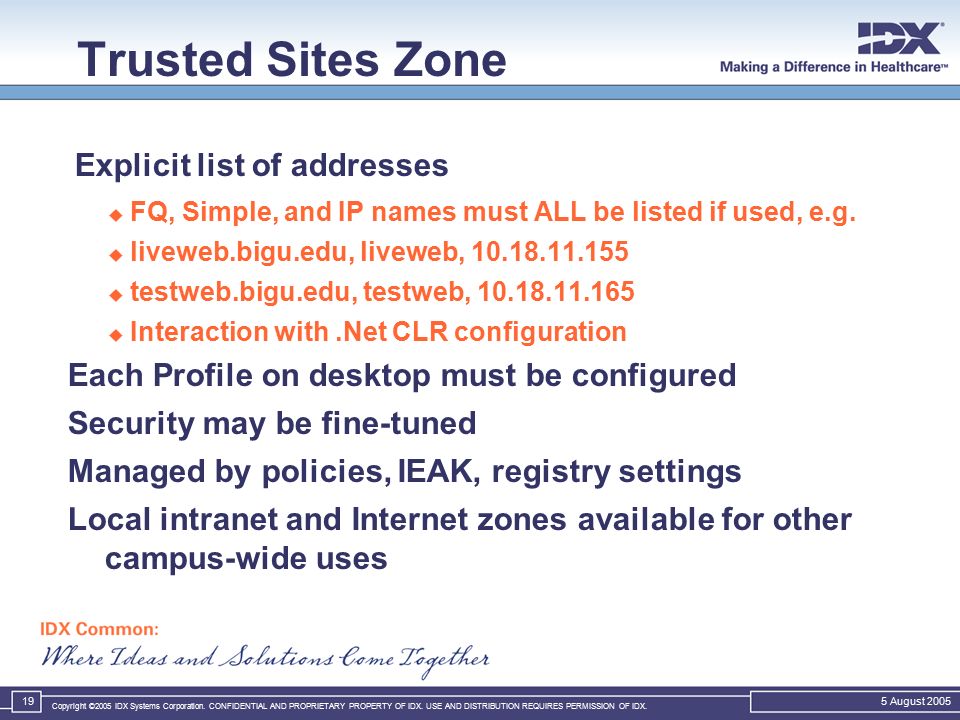

19. 5 August 2005 Copyright ©2005 IDX Systems Corporation. CONFIDENTIAL AND PROPRIETARY PROPERTY OF IDX. USE AND DISTRIBUTION REQUIRES PERMISSION OF IDX. 19 Trusted Sites Zone Explicit list of addresses  FQ, Simple, and IP names must ALL be listed if used, e.g.  liveweb.bigu.edu, liveweb, 10.18.11.155  testweb.bigu.edu, testweb, 10.18.11.165  Interaction with.Net CLR configuration Each Profile on desktop must be configured Security may be fine-tuned Managed by policies, IEAK, registry settings Local intranet and Internet zones available for other campus-wide uses

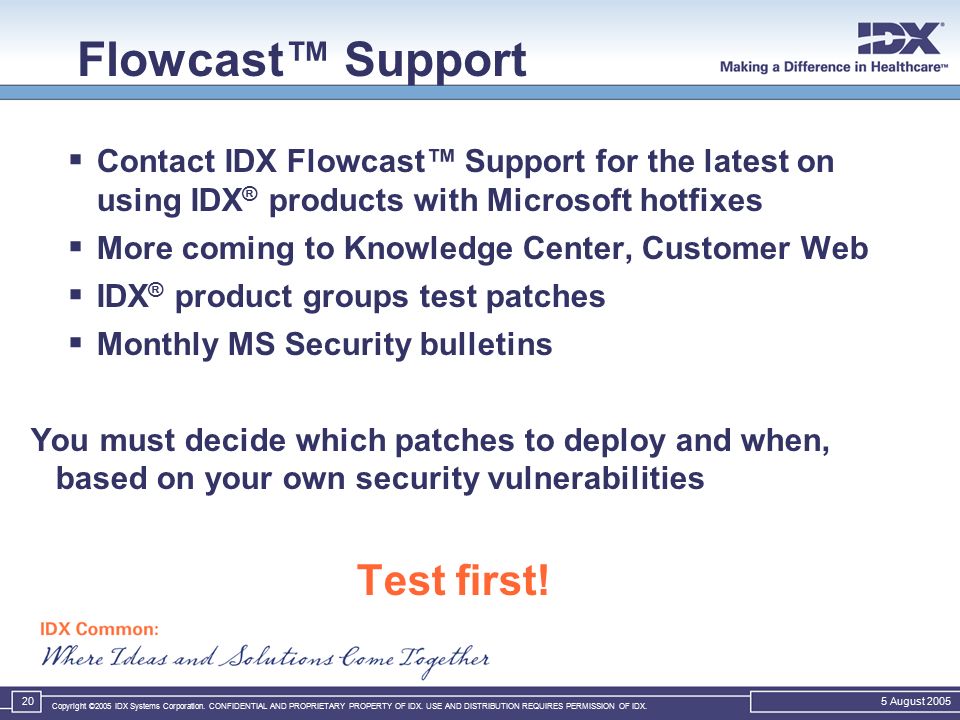

20. 5 August 2005 Copyright ©2005 IDX Systems Corporation. CONFIDENTIAL AND PROPRIETARY PROPERTY OF IDX. USE AND DISTRIBUTION REQUIRES PERMISSION OF IDX. 20 Flowcast™ Support  Contact IDX Flowcast™ Support for the latest on using IDX ® products with Microsoft hotfixes  More coming to Knowledge Center, Customer Web  IDX ® product groups test patches  Monthly MS Security bulletins You must decide which patches to deploy and when, based on your own security vulnerabilities Test first!

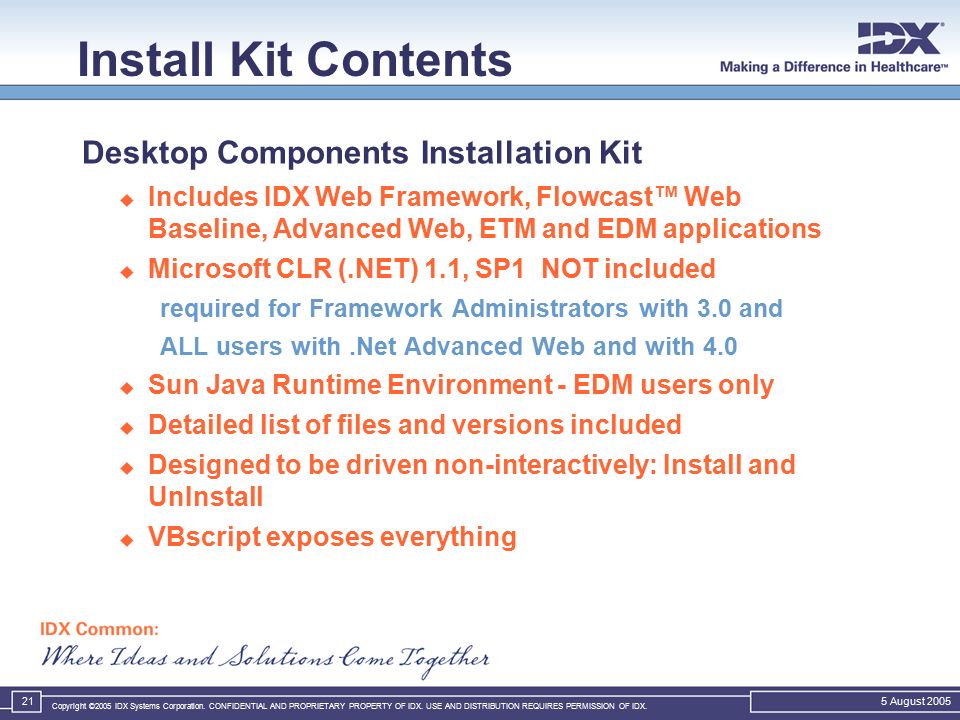

21. 5 August 2005 Copyright ©2005 IDX Systems Corporation. CONFIDENTIAL AND PROPRIETARY PROPERTY OF IDX. USE AND DISTRIBUTION REQUIRES PERMISSION OF IDX. 21 Install Kit Contents Desktop Components Installation Kit  Includes IDX Web Framework, Flowcast™ Web Baseline, Advanced Web, ETM and EDM applications  Microsoft CLR (.NET) 1.1, SP1 NOT included required for Framework Administrators with 3.0 and ALL users with.Net Advanced Web and with 4.0  Sun Java Runtime Environment - EDM users only  Detailed list of files and versions included  Designed to be driven non-interactively: Install and UnInstall  VBscript exposes everything

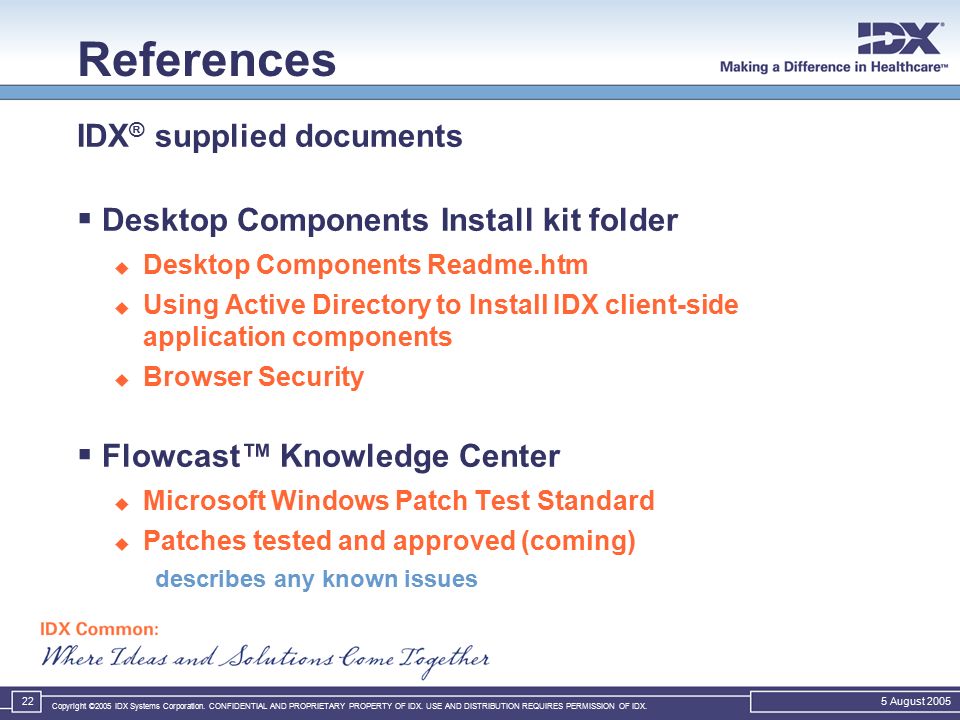

22. 5 August 2005 Copyright ©2005 IDX Systems Corporation. CONFIDENTIAL AND PROPRIETARY PROPERTY OF IDX. USE AND DISTRIBUTION REQUIRES PERMISSION OF IDX. 22 References IDX ® supplied documents  Desktop Components Install kit folder  Desktop Components Readme.htm  Using Active Directory to Install IDX client-side application components  Browser Security  Flowcast™ Knowledge Center  Microsoft Windows Patch Test Standard  Patches tested and approved (coming) describes any known issues

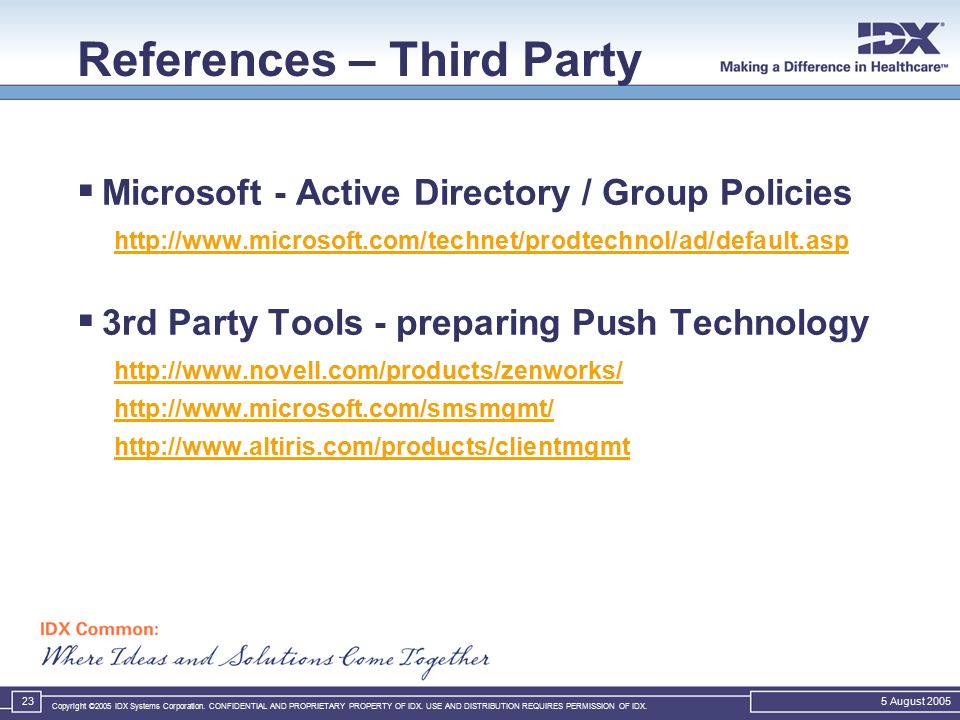

23. 5 August 2005 Copyright ©2005 IDX Systems Corporation. CONFIDENTIAL AND PROPRIETARY PROPERTY OF IDX. USE AND DISTRIBUTION REQUIRES PERMISSION OF IDX. 23 References – Third Party  Microsoft - Active Directory / Group Policies http://www.microsoft.com/technet/prodtechnol/ad/default.asp  3rd Party Tools - preparing Push Technology http://www.novell.com/products/zenworks/ http://www.microsoft.com/smsmgmt/ http://www.altiris.com/products/clientmgmt

24. 5 August 2005 Copyright ©2005 IDX Systems Corporation. CONFIDENTIAL AND PROPRIETARY PROPERTY OF IDX. USE AND DISTRIBUTION REQUIRES PERMISSION OF IDX. 24 Web Desktop Management
