1. Adjoint Method and Multiple-Frequency Reconstruction Qianqian Fang Thayer School of Engineering Dartmouth College Hanover, NH 03755 Thanks to Paul Meaney, Keith Paulsen, Margaret Fanning, Dun Li, Sarah Pendergrass, Timothy Raynolds

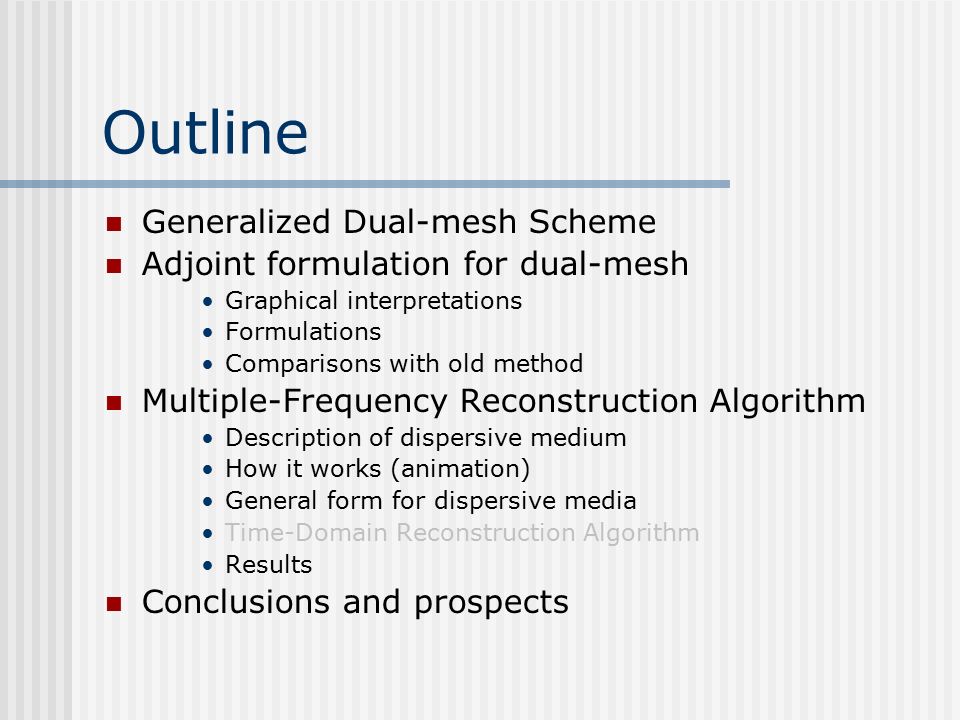

2. Outline Generalized Dual-mesh Scheme Adjoint formulation for dual-mesh Graphical interpretations Formulations Comparisons with old method Multiple-Frequency Reconstruction Algorithm Description of dispersive medium How it works (animation) General form for dispersive media Time-Domain Reconstruction Algorithm Results Conclusions and prospects

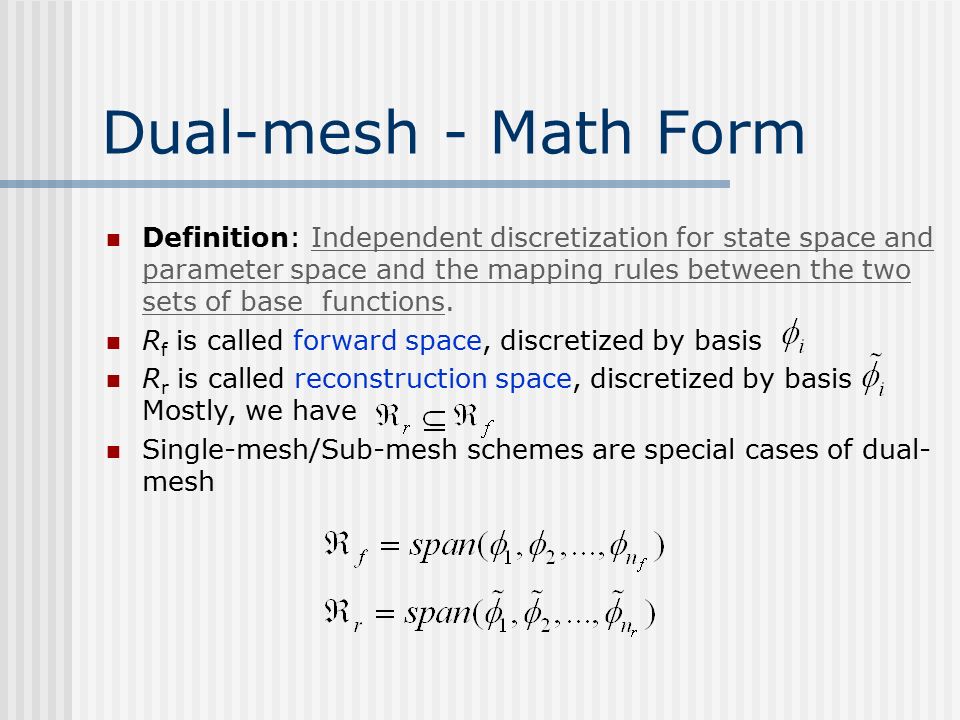

3. Dual-mesh - Math Form Definition: Independent discretization for state space and parameter space and the mapping rules between the two sets of base functions. R f is called forward space, discretized by basis R r is called reconstruction space, discretized by basis Mostly, we have Single-mesh/Sub-mesh schemes are special cases of dual- mesh

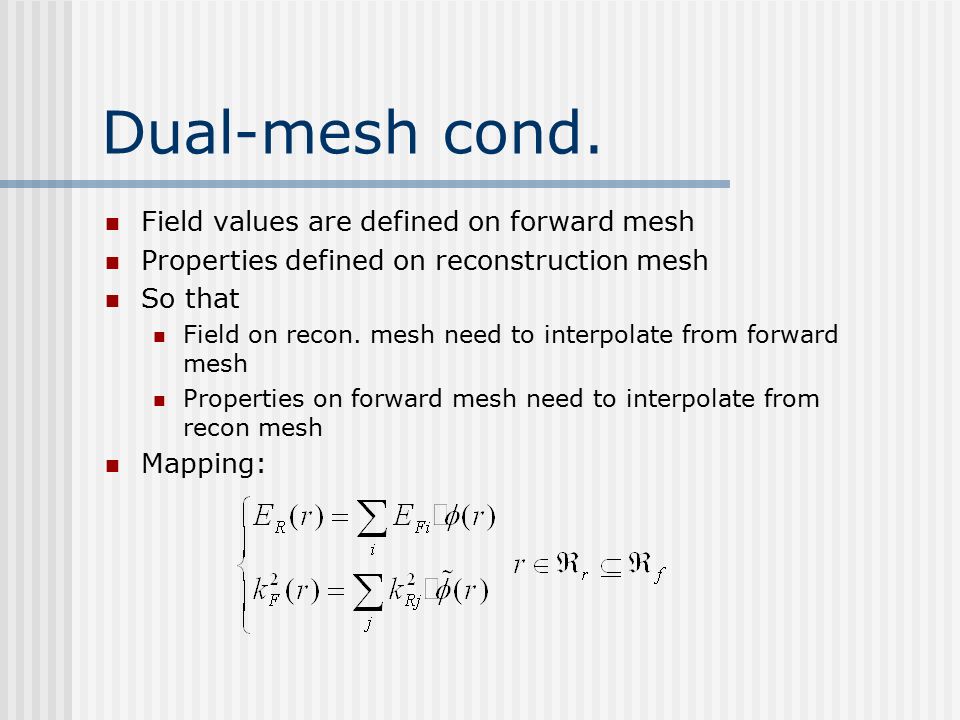

4. Dual-mesh cond. Field values are defined on forward mesh Properties defined on reconstruction mesh So that Field on recon. mesh need to interpolate from forward mesh Properties on forward mesh need to interpolate from recon mesh Mapping:

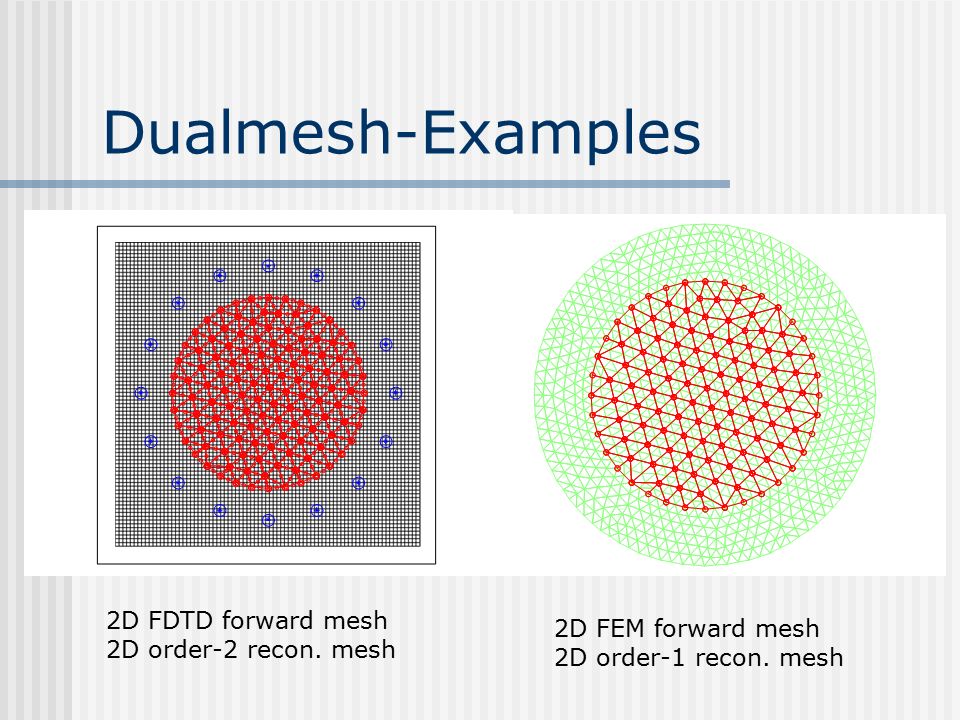

5. Dualmesh-Examples 2D FDTD forward mesh 2D order-2 recon. mesh 2D FEM forward mesh 2D order-1 recon. mesh

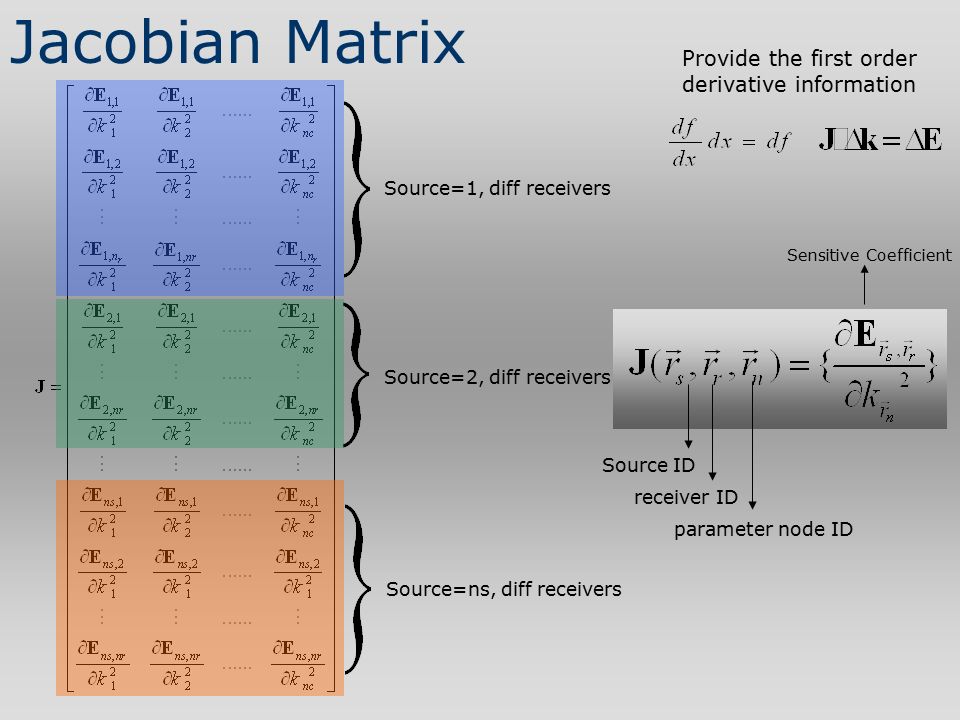

6. Jacobian Matrix Source=1, diff receivers Source=2, diff receivers Source=ns, diff receivers Source ID receiver ID parameter node ID Sensitive Coefficient Provide the first order derivative information

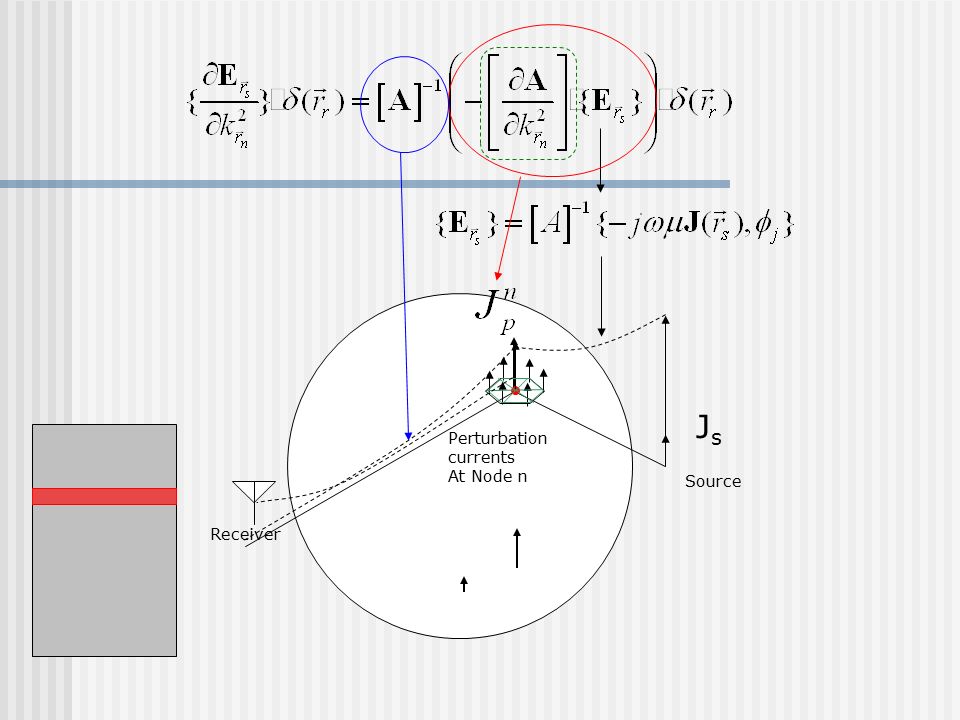

7. Receiver JsJs SourcePerturbation currents At Node n

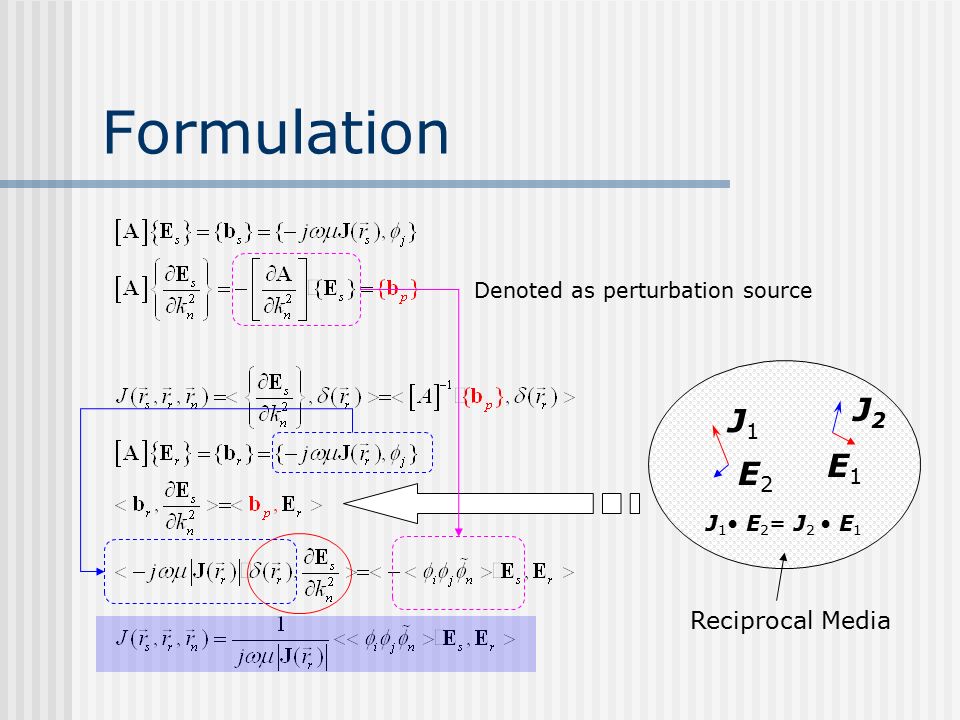

8. Formulation J 1 E 2 = J 2 E 1 J1J1 J2J2 E2E2 E1E1 Reciprocal Media Denoted as perturbation source

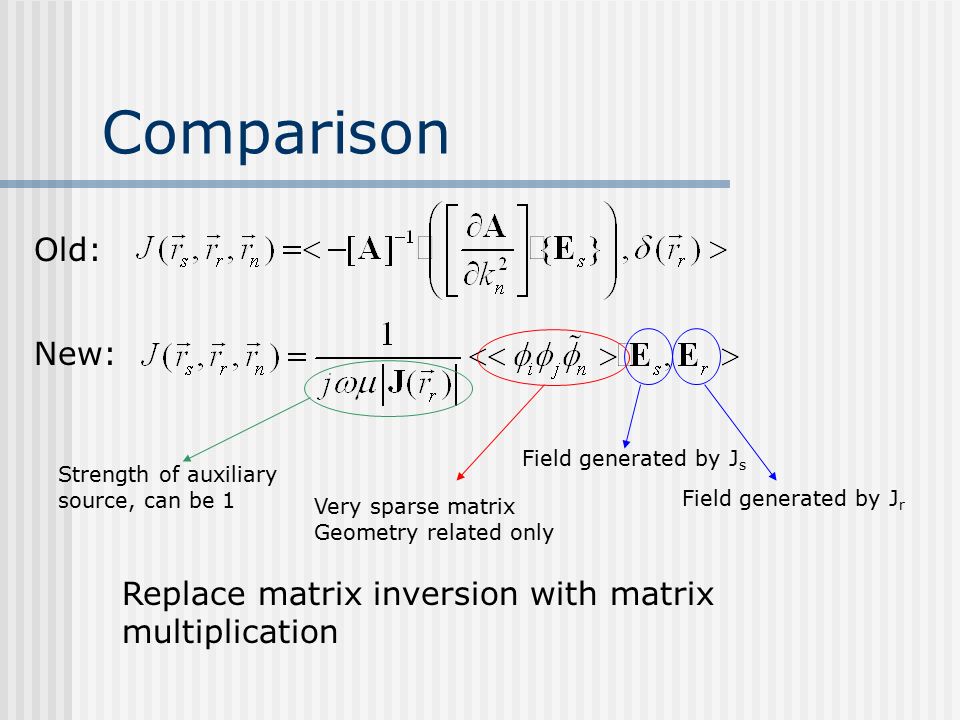

9. Comparison Replace matrix inversion with matrix multiplication Old: New: Field generated by J s Field generated by J r Very sparse matrix Geometry related only Strength of auxiliary source, can be 1

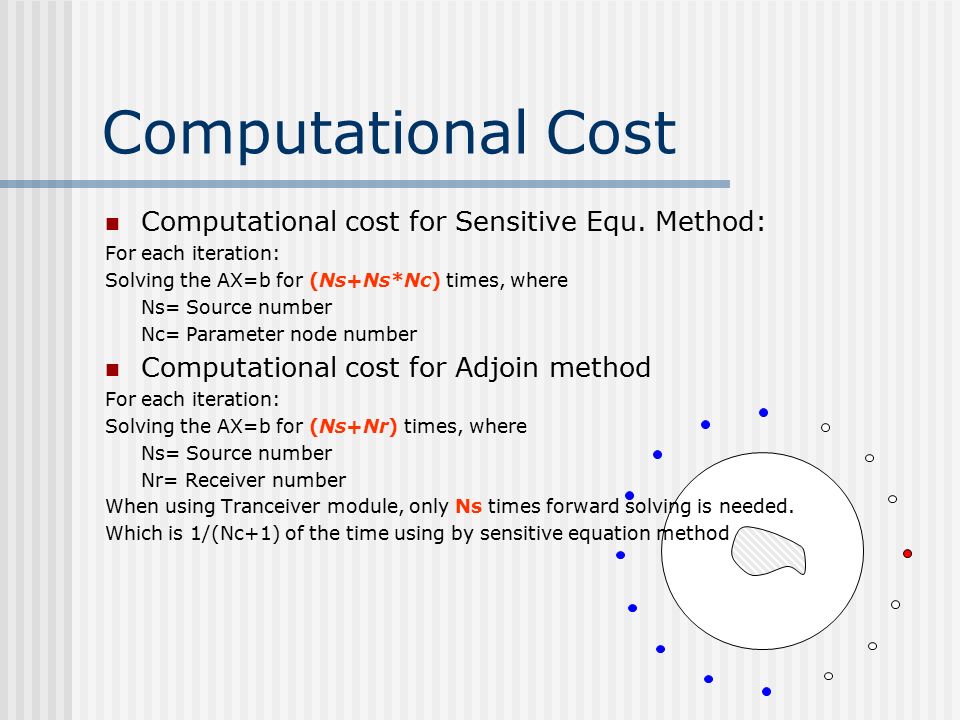

10. Computational Cost Computational cost for Sensitive Equ. Method: For each iteration: Solving the AX=b for (Ns+Ns*Nc) times, where Ns= Source number Nc= Parameter node number Computational cost for Adjoin method For each iteration: Solving the AX=b for (Ns+Nr) times, where Ns= Source number Nr= Receiver number When using Tranceiver module, only Ns times forward solving is needed. Which is 1/(Nc+1) of the time using by sensitive equation method

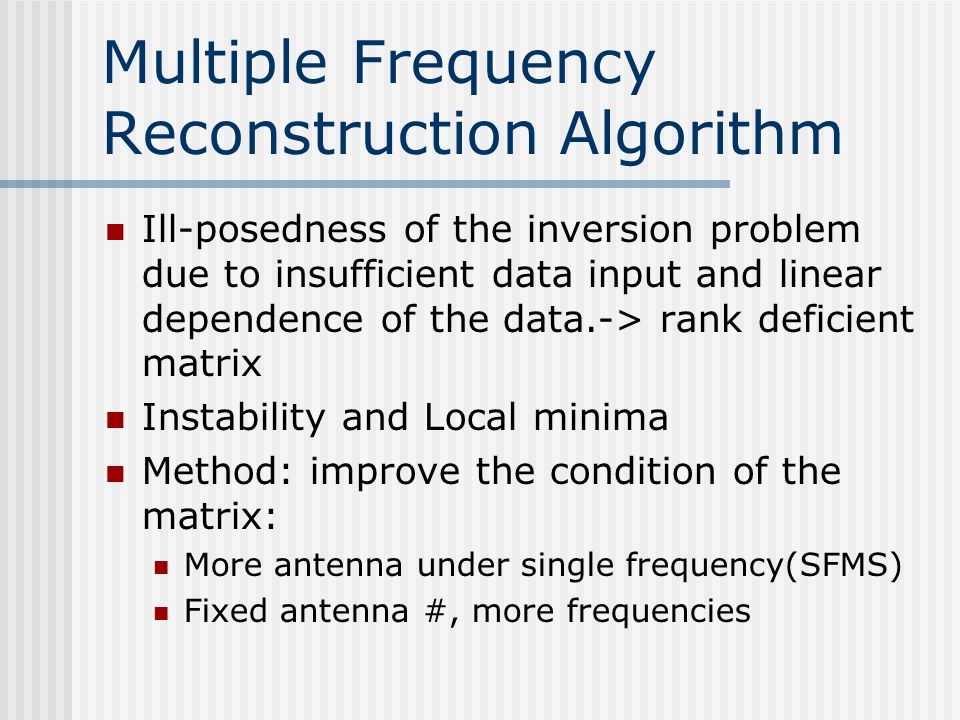

11. Multiple Frequency Reconstruction Algorithm Ill-posedness of the inversion problem due to insufficient data input and linear dependence of the data.-> rank deficient matrix Instability and Local minima Method: improve the condition of the matrix: More antenna under single frequency(SFMS) Fixed antenna #, more frequencies

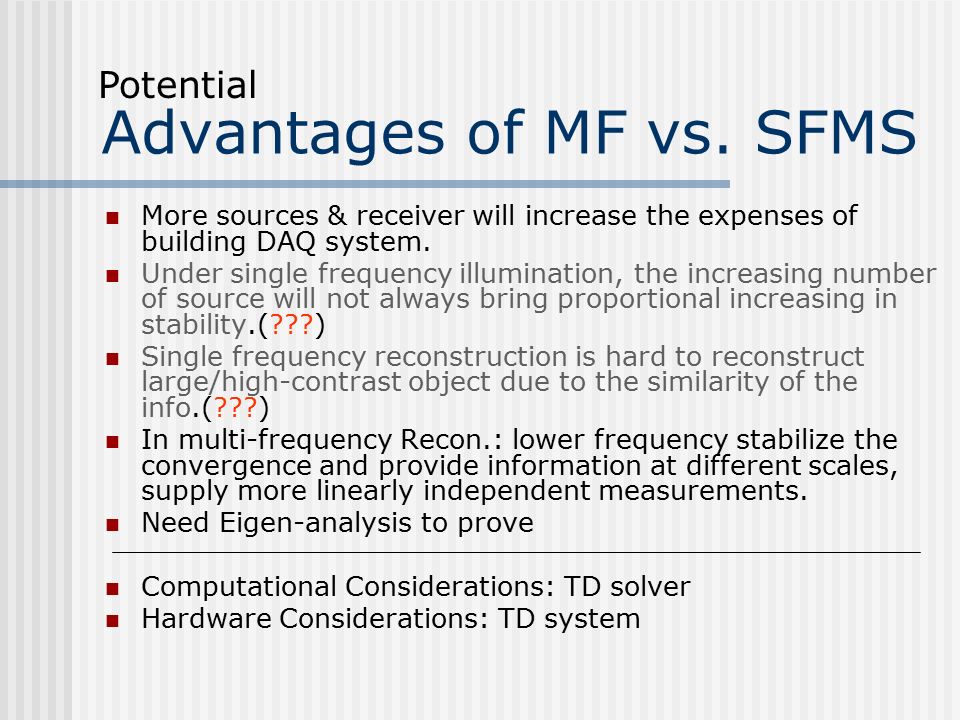

12. Advantages of MF vs. SFMS More sources & receiver will increase the expenses of building DAQ system. Under single frequency illumination, the increasing number of source will not always bring proportional increasing in stability.(???) Single frequency reconstruction is hard to reconstruct large/high-contrast object due to the similarity of the info.(???) In multi-frequency Recon.: lower frequency stabilize the convergence and provide information at different scales, supply more linearly independent measurements. Need Eigen-analysis to prove Computational Considerations: TD solver Hardware Considerations: TD system Potential

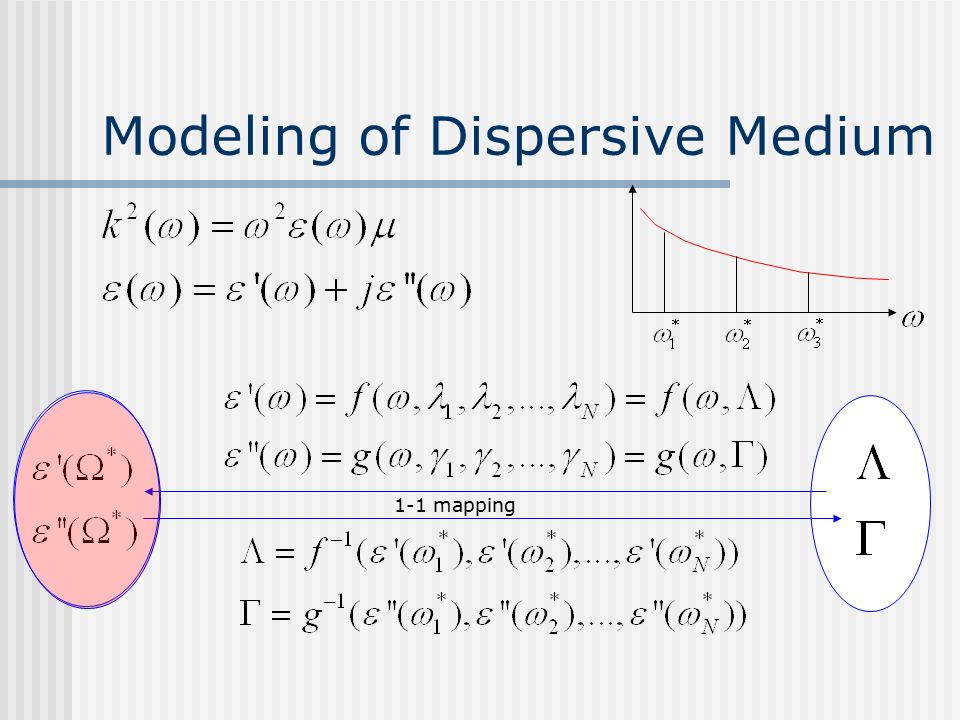

13. Modeling of Dispersive Medium 1-1 mapping

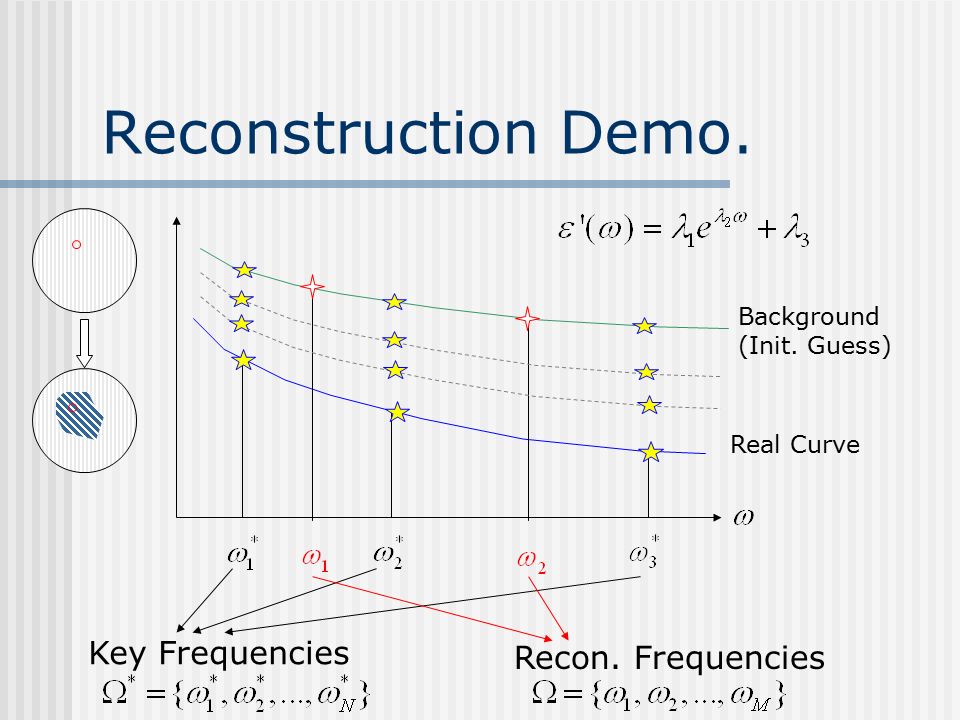

14. Reconstruction Demo. Key Frequencies Recon. Frequencies Background (Init. Guess) Real Curve

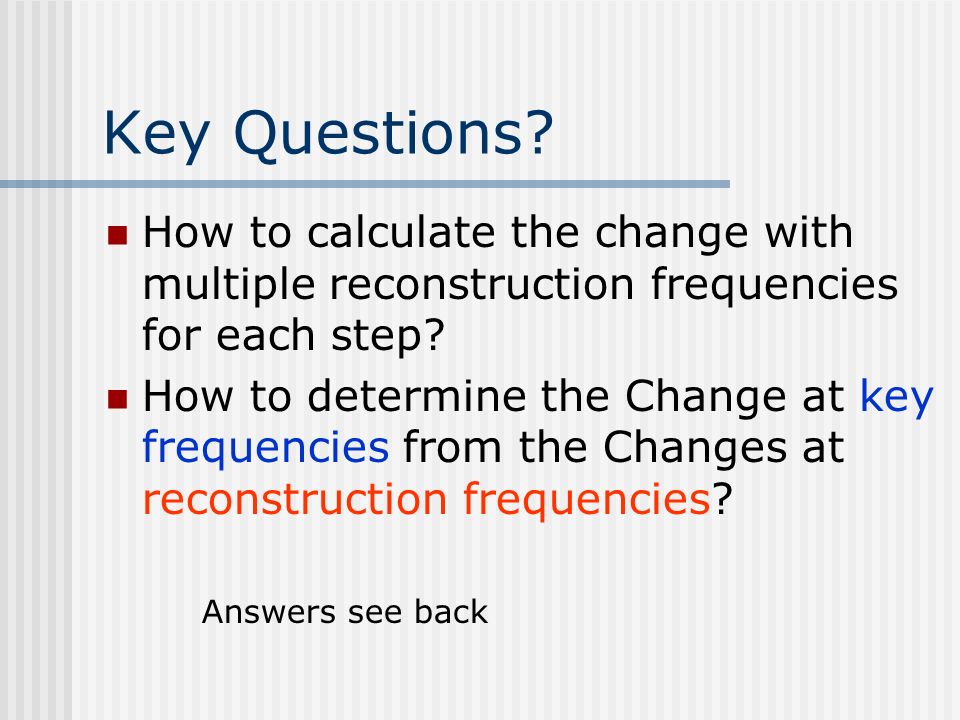

15. Key Questions? How to calculate the change with multiple reconstruction frequencies for each step? How to determine the Change at key frequencies from the Changes at reconstruction frequencies? Answers see back

16. Single Frequency Real Form Pre-scaled Real Form of Gauss-Newton Formula: Need to supply extra information to make unknowns same for both frequencies

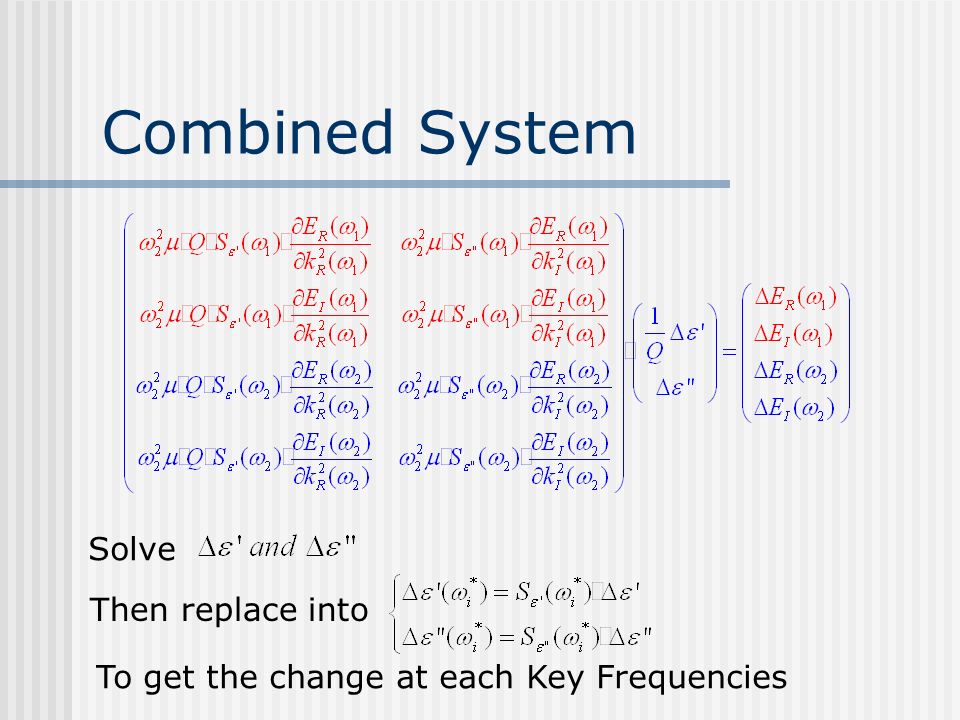

17. Combined System Solve Then replace into To get the change at each Key Frequencies

18. General Form for MFRA

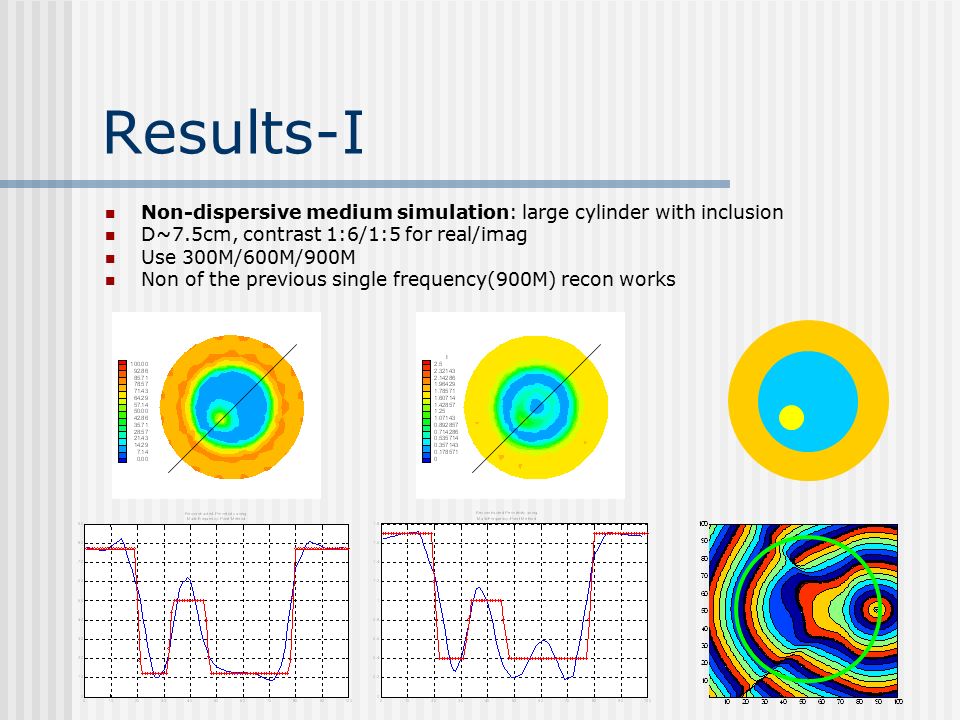

19. Results-I Non-dispersive medium simulation: large cylinder with inclusion D~7.5cm, contrast 1:6/1:5 for real/imag Use 300M/600M/900M Non of the previous single frequency(900M) recon works

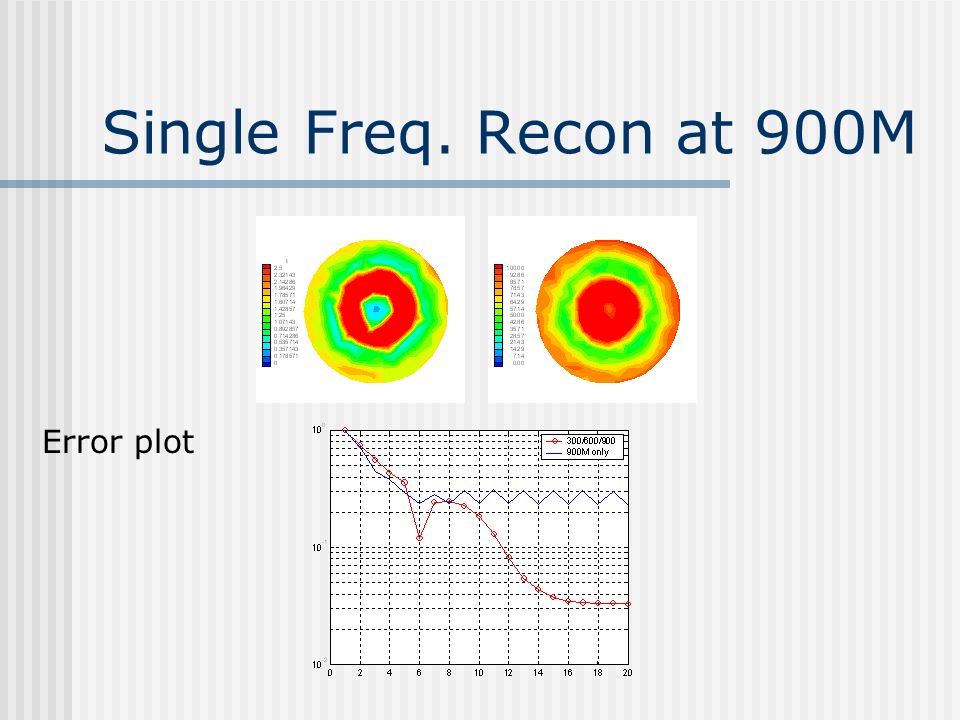

20. Single Freq. Recon at 900M Error plot

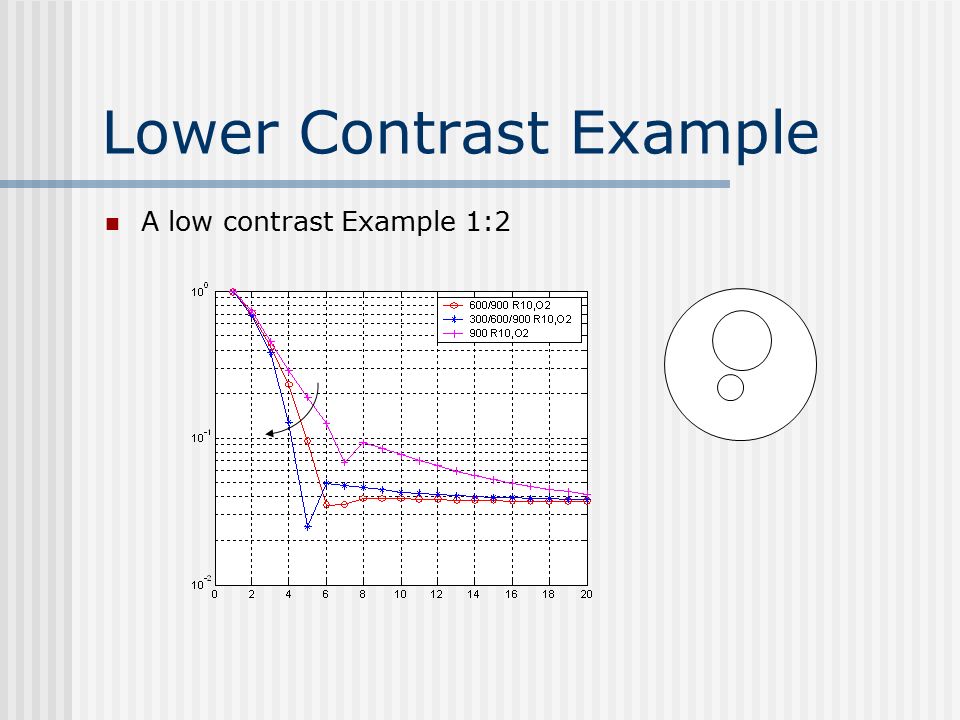

21. Lower Contrast Example A low contrast Example 1:2

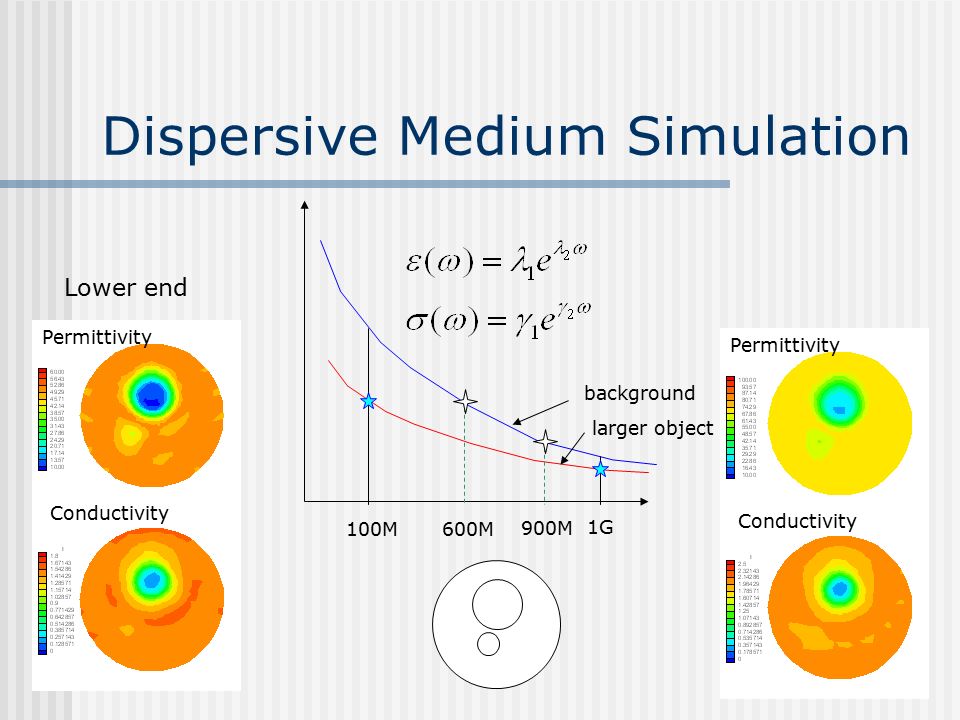

22. Dispersive Medium Simulation 100M 1G 600M 900M Lower end Permittivity Conductivity Permittivity Conductivity background larger object

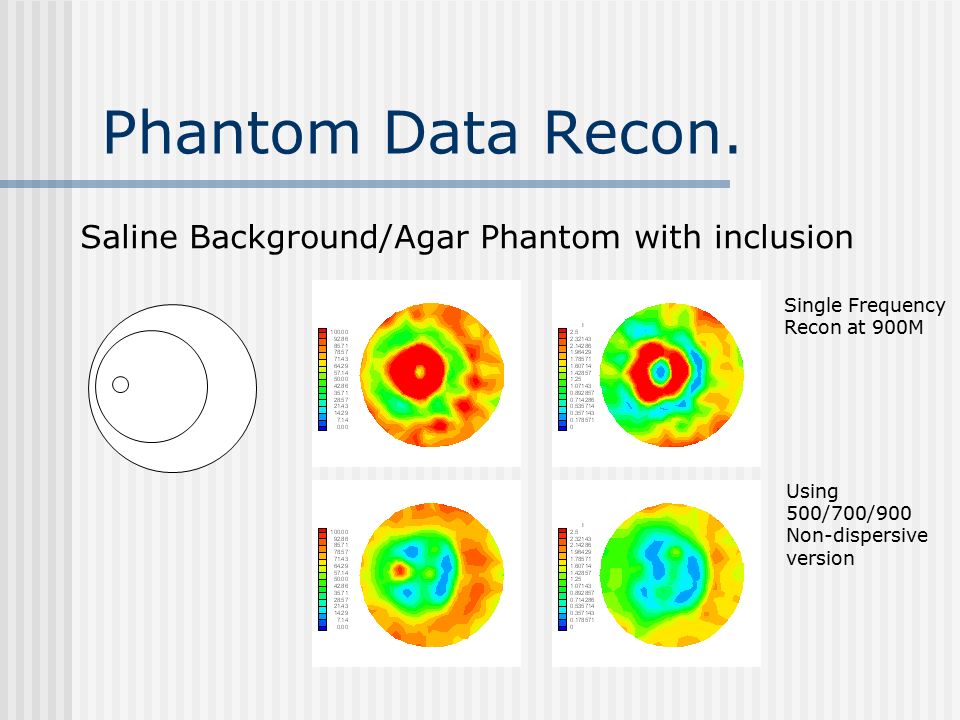

23. Phantom Data Recon. Saline Background/Agar Phantom with inclusion Single Frequency Recon at 900M Using 500/700/900 Non-dispersive version

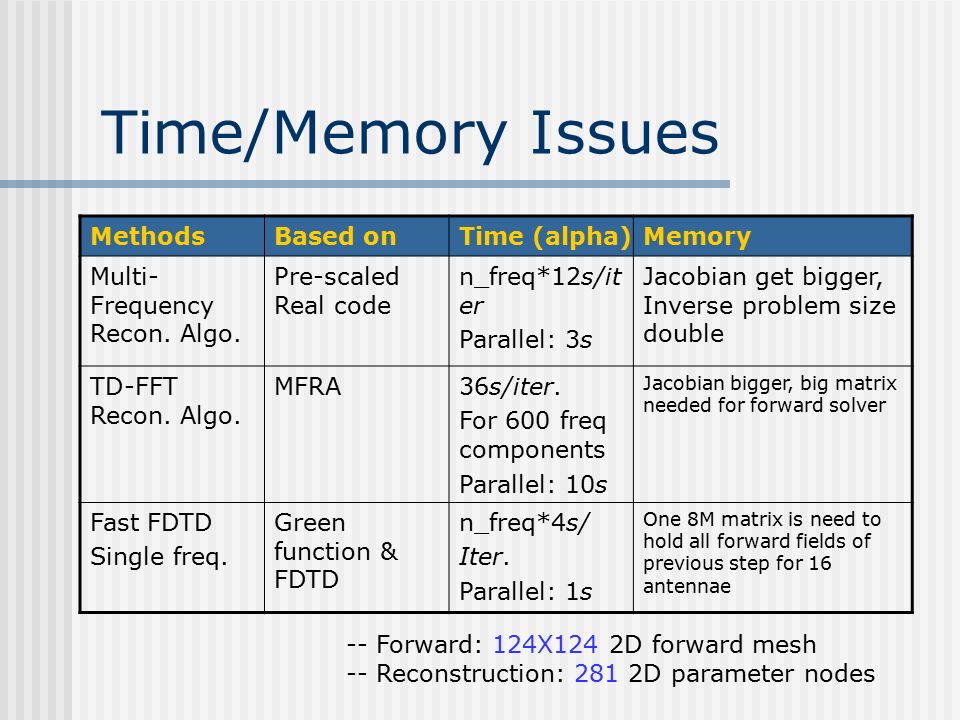

24. Time/Memory Issues MethodsBased onTime (alpha)Memory Multi- Frequency Recon. Algo. Pre-scaled Real code n_freq*12s/it er Parallel: 3s Jacobian get bigger, Inverse problem size double TD-FFT Recon. Algo. MFRA36s/iter. For 600 freq components Parallel: 10s Jacobian bigger, big matrix needed for forward solver Fast FDTD Single freq. Green function & FDTD n_freq*4s/ Iter. Parallel: 1s One 8M matrix is need to hold all forward fields of previous step for 16 antennae -- Forward: 124X124 2D forward mesh -- Reconstruction: 281 2D parameter nodes

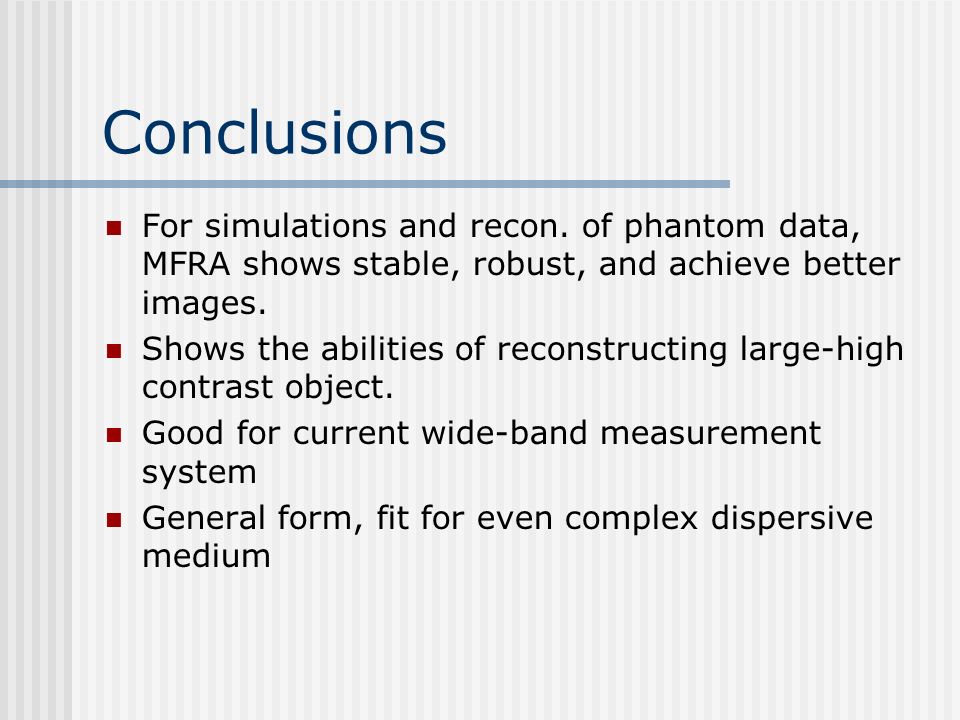

25. Conclusions For simulations and recon. of phantom data, MFRA shows stable, robust, and achieve better images. Shows the abilities of reconstructing large-high contrast object. Good for current wide-band measurement system General form, fit for even complex dispersive medium

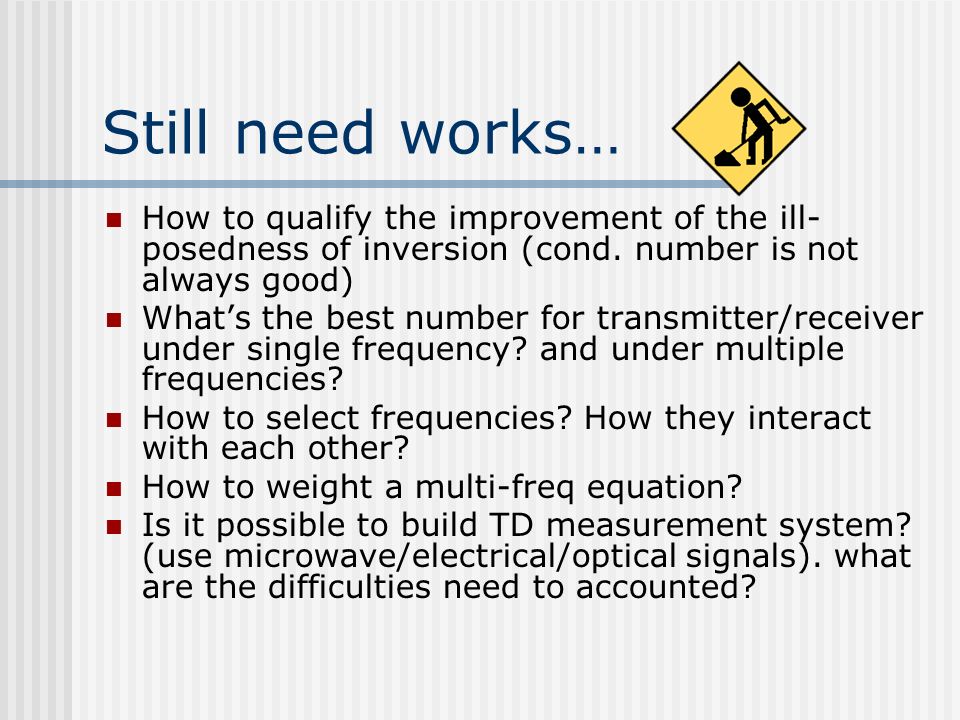

26. Still need works… How to qualify the improvement of the ill- posedness of inversion (cond. number is not always good) What’s the best number for transmitter/receiver under single frequency? and under multiple frequencies? How to select frequencies? How they interact with each other? How to weight a multi-freq equation? Is it possible to build TD measurement system? (use microwave/electrical/optical signals). what are the difficulties need to accounted?

27. Questions?
