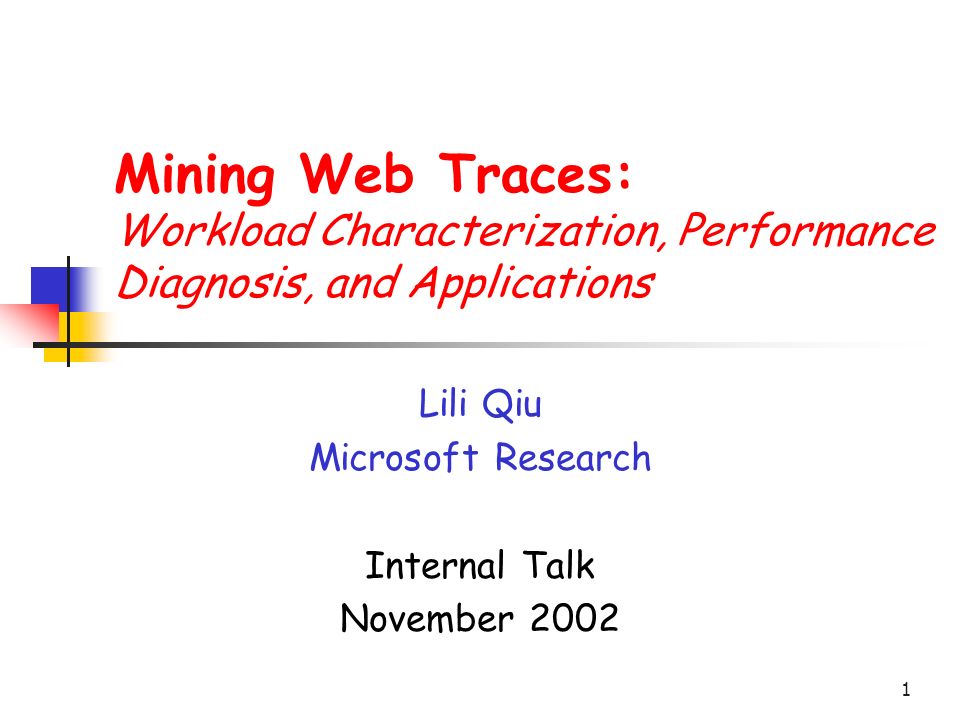

1. 1 Mining Web Traces: Workload Characterization, Performance Diagnosis, and Applications Lili Qiu Microsoft Research Internal Talk November 2002

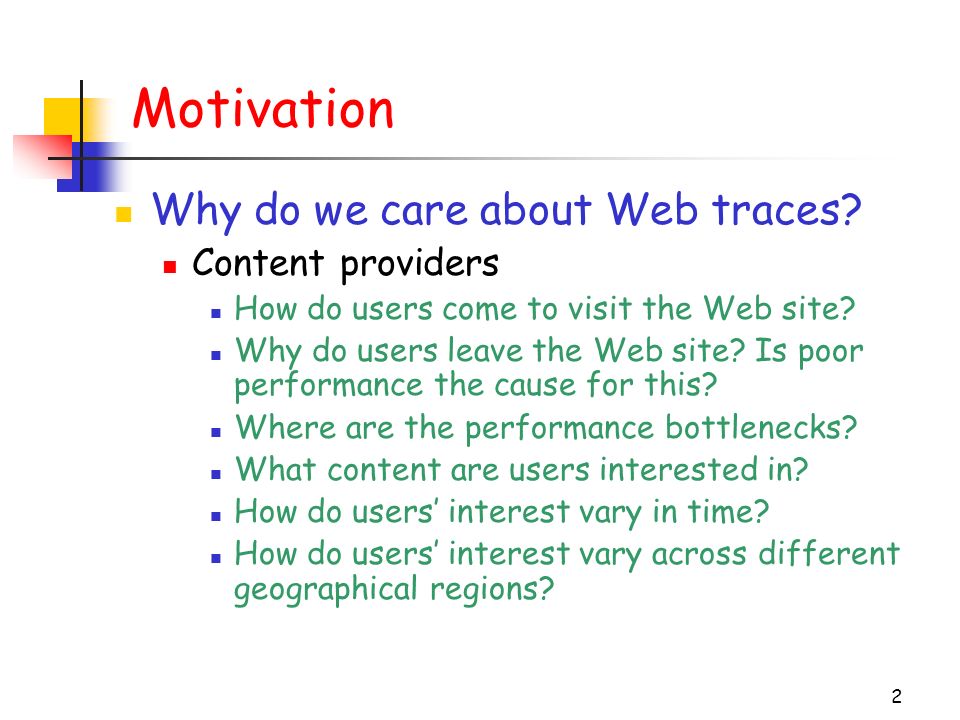

2. 2 Motivation Why do we care about Web traces? Content providers How do users come to visit the Web site? Why do users leave the Web site? Is poor performance the cause for this? Where are the performance bottlenecks? What content are users interested in? How do users’ interest vary in time? How do users’ interest vary across different geographical regions?

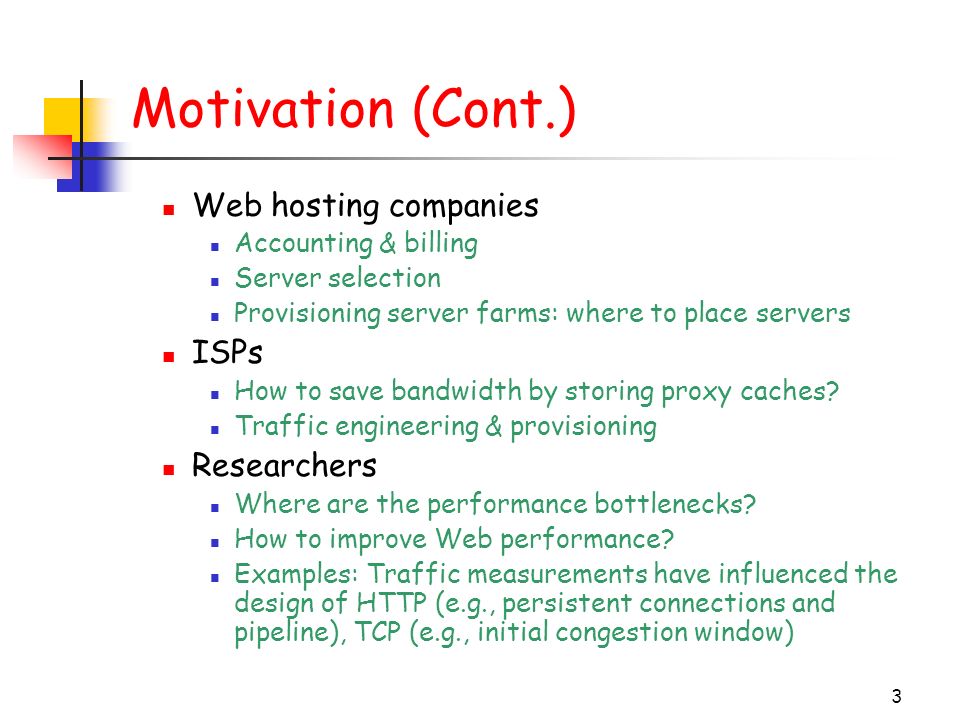

3. 3 Motivation (Cont.) Web hosting companies Accounting & billing Server selection Provisioning server farms: where to place servers ISPs How to save bandwidth by storing proxy caches? Traffic engineering & provisioning Researchers Where are the performance bottlenecks? How to improve Web performance? Examples: Traffic measurements have influenced the design of HTTP (e.g., persistent connections and pipeline), TCP (e.g., initial congestion window)

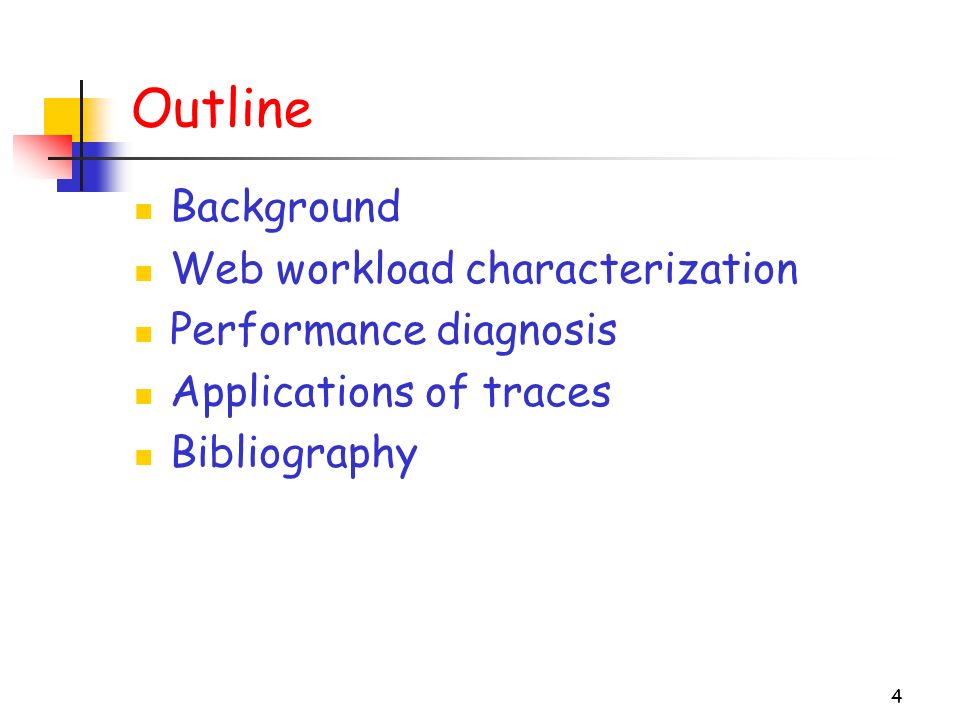

4. 4 Outline Background Web workload characterization Performance diagnosis Applications of traces Bibliography

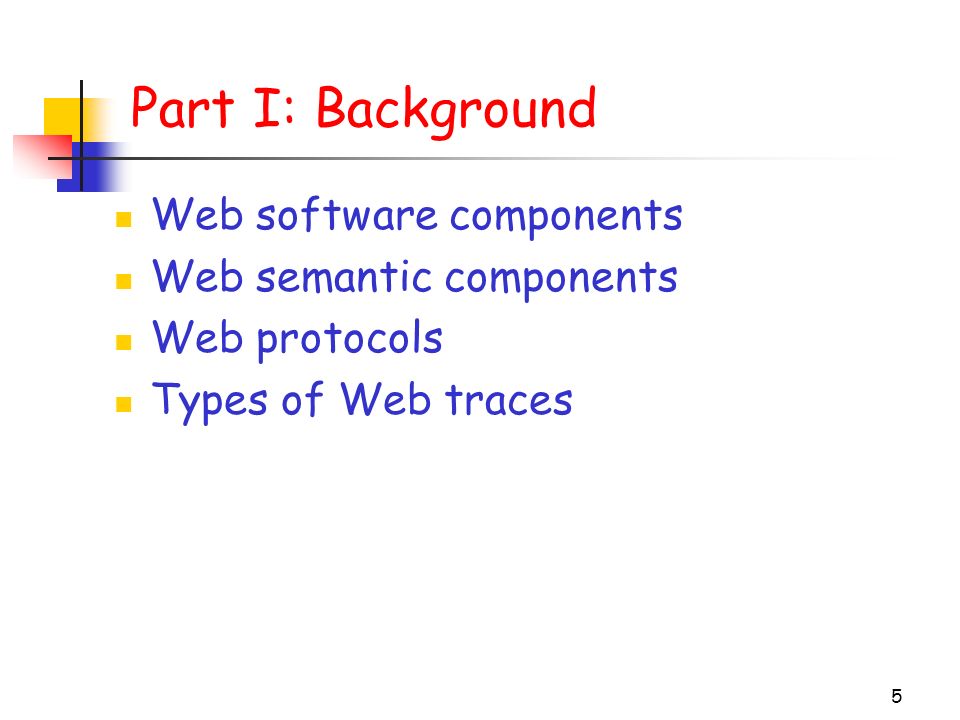

5. 5 Part I: Background Web software components Web semantic components Web protocols Types of Web traces

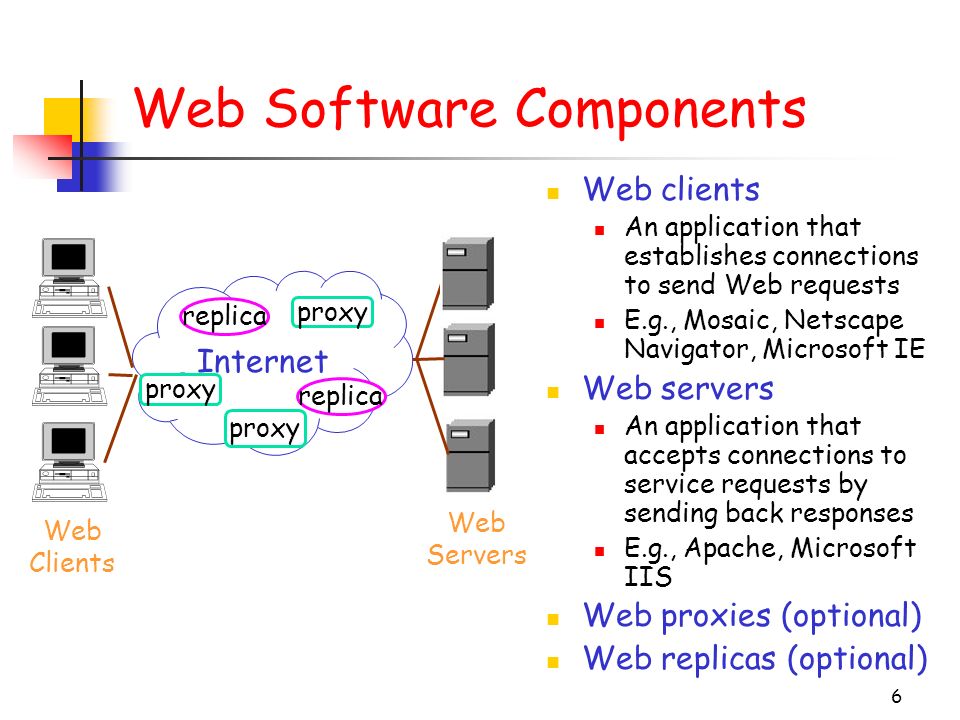

6. 6 Web Software Components Web clients An application that establishes connections to send Web requests E.g., Mosaic, Netscape Navigator, Microsoft IE Web servers An application that accepts connections to service requests by sending back responses E.g., Apache, Microsoft IIS Web proxies (optional) Web replicas (optional) Internet replica proxy replica proxy Web Clients Web Servers

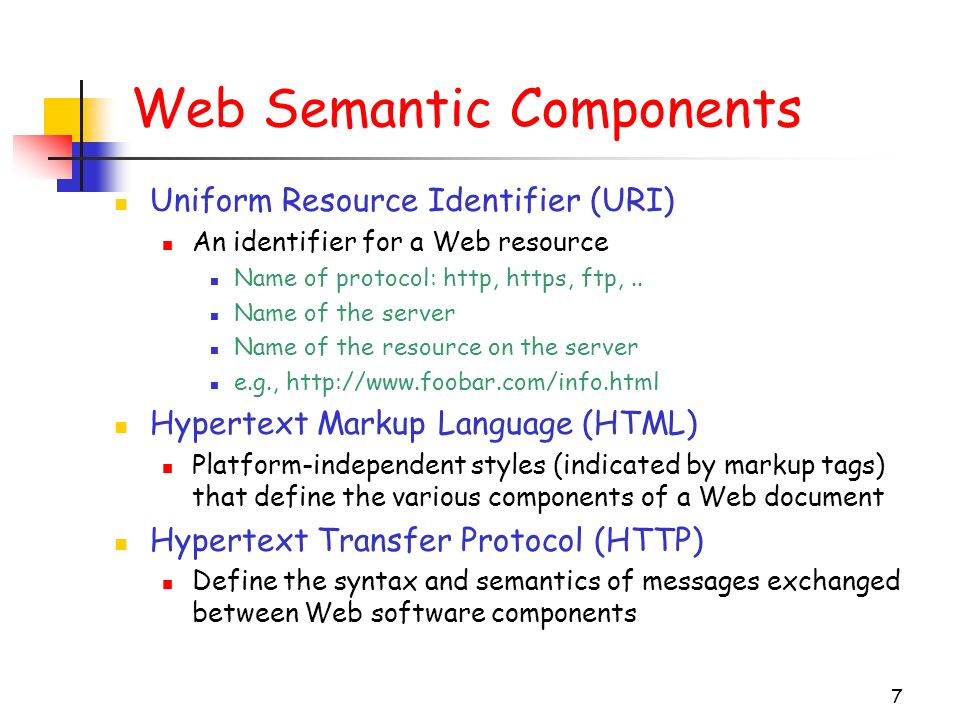

7. 7 Web Semantic Components Uniform Resource Identifier (URI) An identifier for a Web resource Name of protocol: http, https, ftp,.. Name of the server Name of the resource on the server e.g., http://www.foobar.com/info.html Hypertext Markup Language (HTML) Platform-independent styles (indicated by markup tags) that define the various components of a Web document Hypertext Transfer Protocol (HTTP) Define the syntax and semantics of messages exchanged between Web software components

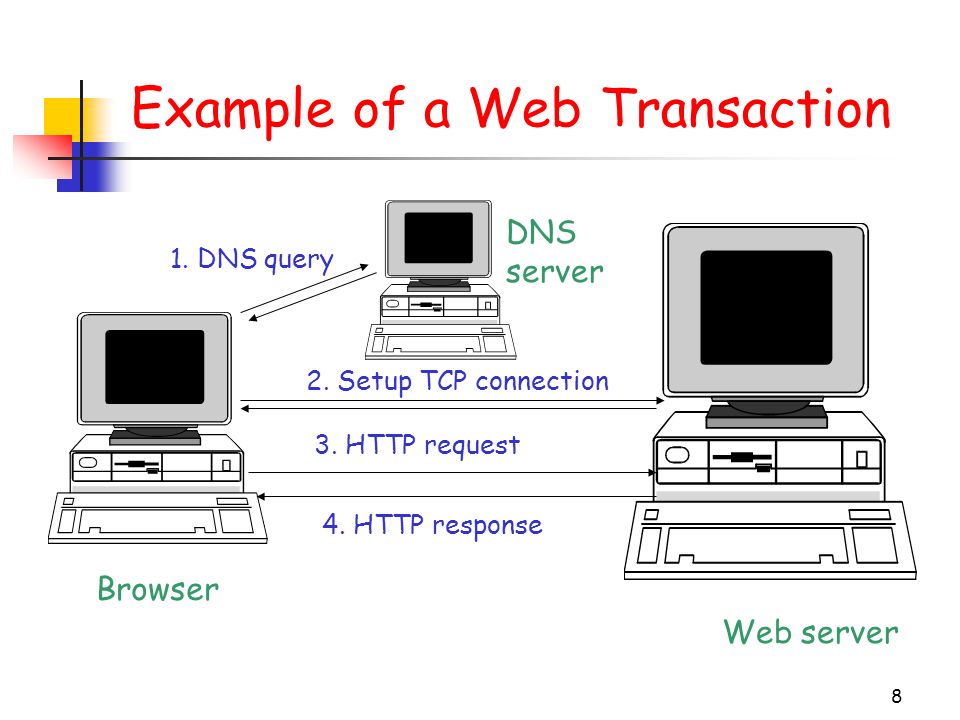

8. 8 Example of a Web Transaction Browser Web server DNS server 1. DNS query 2. Setup TCP connection 3. HTTP request 4. HTTP response

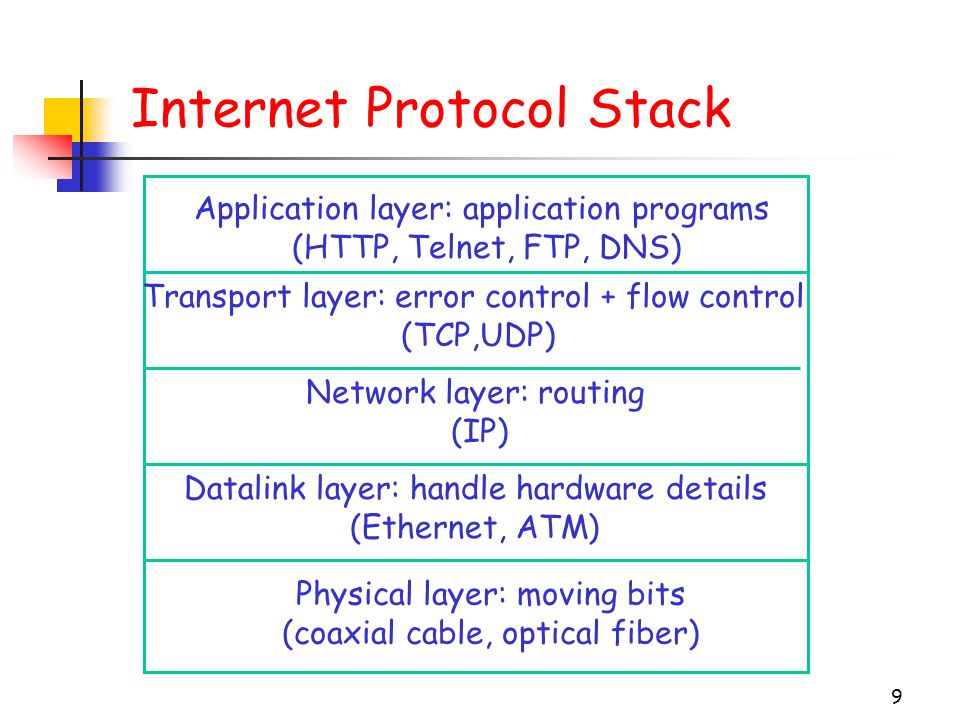

9. 9 Internet Protocol Stack Application layer: application programs (HTTP, Telnet, FTP, DNS) Transport layer: error control + flow control (TCP,UDP) Network layer: routing (IP) Datalink layer: handle hardware details (Ethernet, ATM) Physical layer: moving bits (coaxial cable, optical fiber)

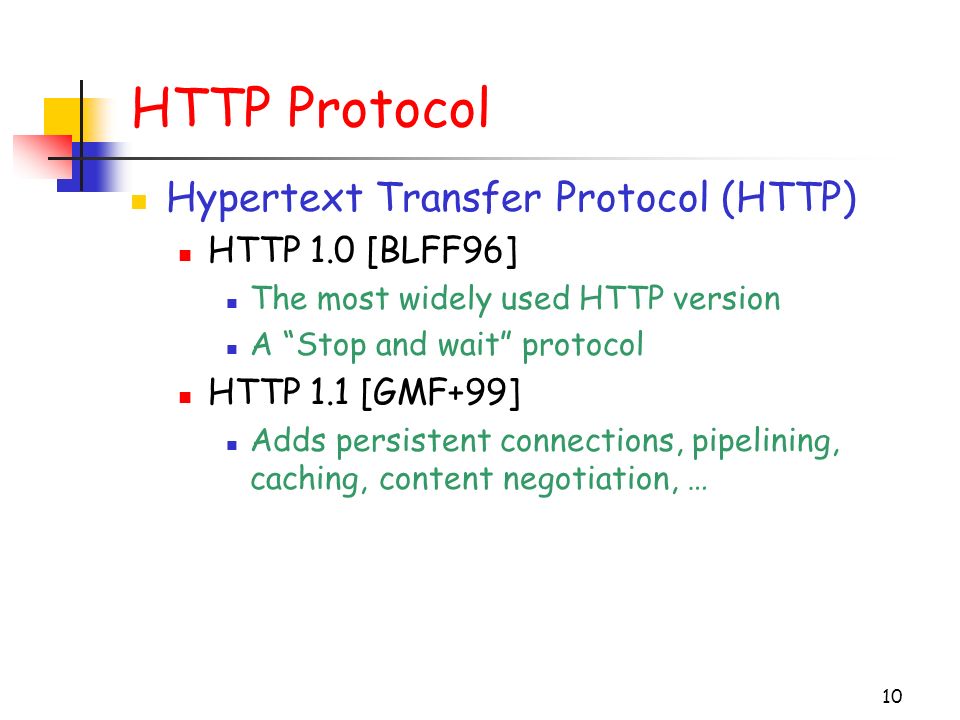

10. 10 HTTP Protocol Hypertext Transfer Protocol (HTTP) HTTP 1.0 [BLFF96] The most widely used HTTP version A “Stop and wait” protocol HTTP 1.1 [GMF+99] Adds persistent connections, pipelining, caching, content negotiation, …

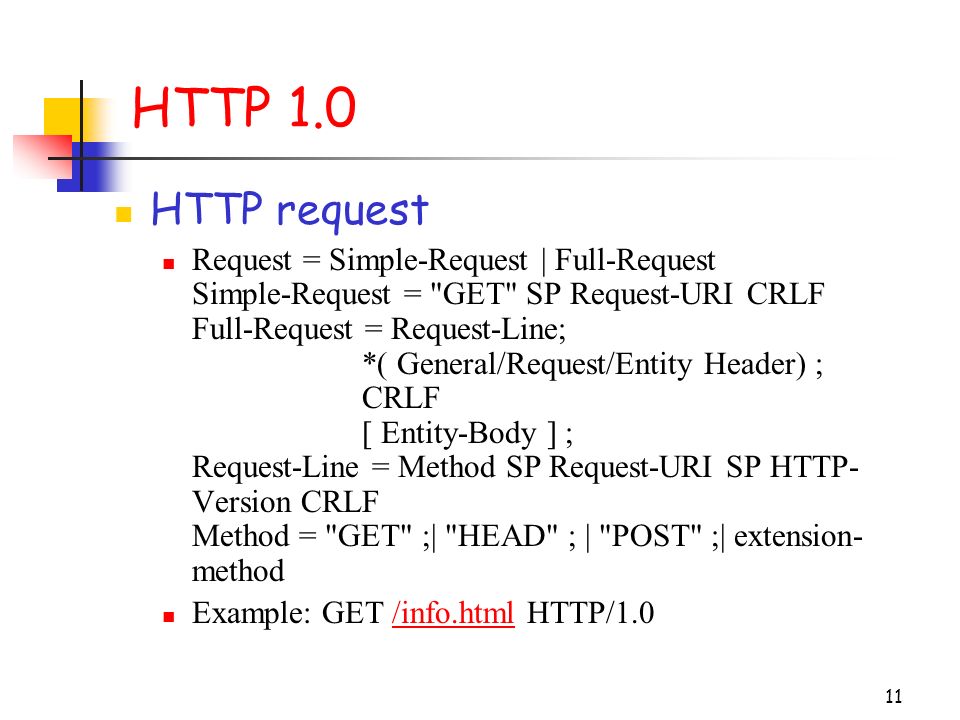

11. 11 HTTP 1.0 HTTP request Request = Simple-Request | Full-Request Simple-Request = "GET" SP Request-URI CRLF Full-Request = Request-Line; *( General/Request/Entity Header) ; CRLF [ Entity-Body ] ; Request-Line = Method SP Request-URI SP HTTP- Version CRLF Method = "GET" ;| "HEAD" ; | "POST" ;| extension- method Example: GET /info.html HTTP/1.0/info.html

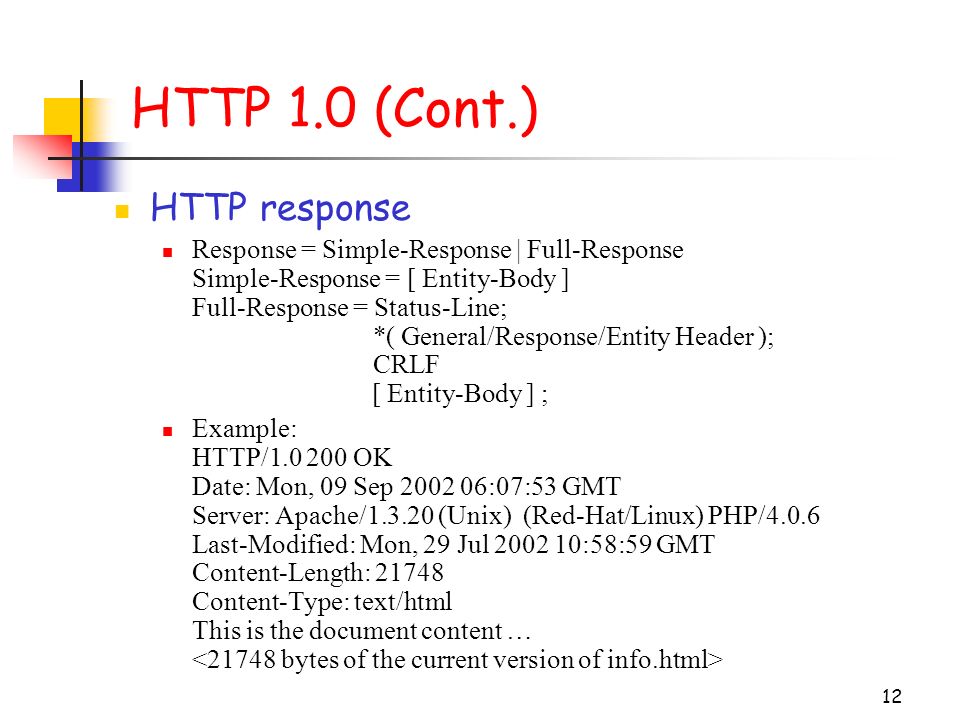

12. 12 HTTP 1.0 (Cont.) HTTP response Response = Simple-Response | Full-Response Simple-Response = [ Entity-Body ] Full-Response = Status-Line; *( General/Response/Entity Header ); CRLF [ Entity-Body ] ; Example: HTTP/1.0 200 OK Date: Mon, 09 Sep 2002 06:07:53 GMT Server: Apache/1.3.20 (Unix) (Red-Hat/Linux) PHP/4.0.6 Last-Modified: Mon, 29 Jul 2002 10:58:59 GMT Content-Length: 21748 Content-Type: text/html This is the document content …

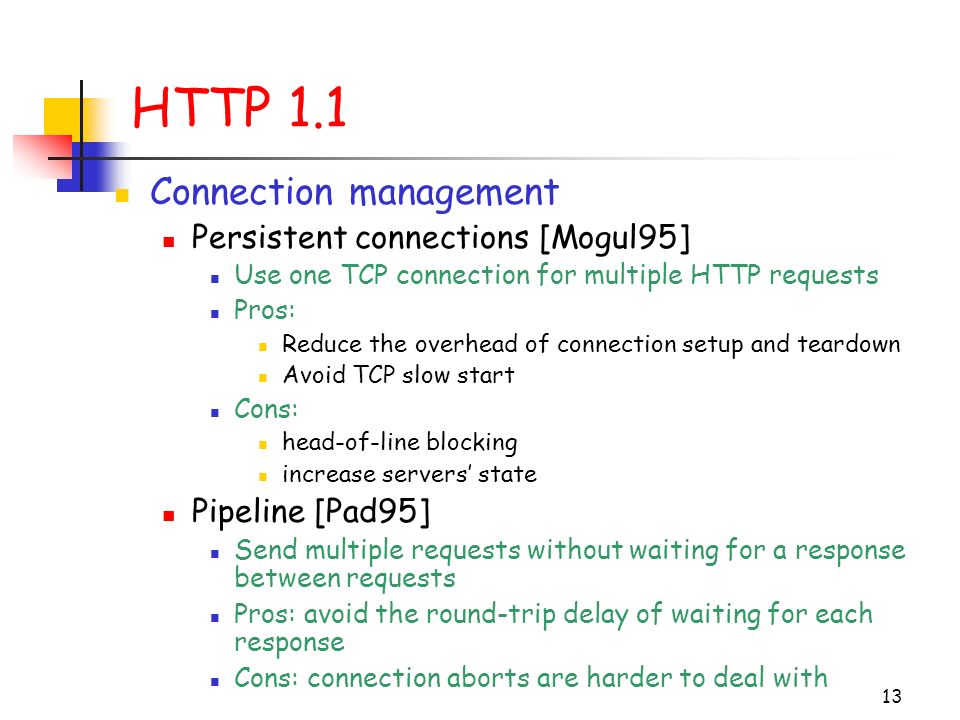

13. 13 HTTP 1.1 Connection management Persistent connections [Mogul95] Use one TCP connection for multiple HTTP requests Pros: Reduce the overhead of connection setup and teardown Avoid TCP slow start Cons: head-of-line blocking increase servers’ state Pipeline [Pad95] Send multiple requests without waiting for a response between requests Pros: avoid the round-trip delay of waiting for each response Cons: connection aborts are harder to deal with

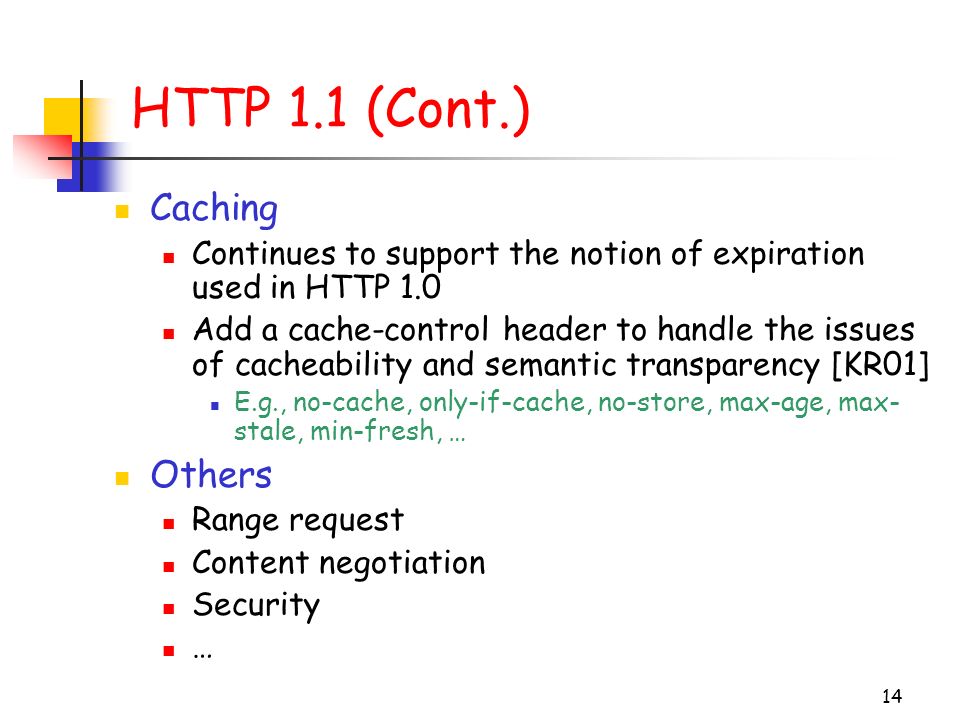

14. 14 HTTP 1.1 (Cont.) Caching Continues to support the notion of expiration used in HTTP 1.0 Add a cache-control header to handle the issues of cacheability and semantic transparency [KR01] E.g., no-cache, only-if-cache, no-store, max-age, max- stale, min-fresh, … Others Range request Content negotiation Security …

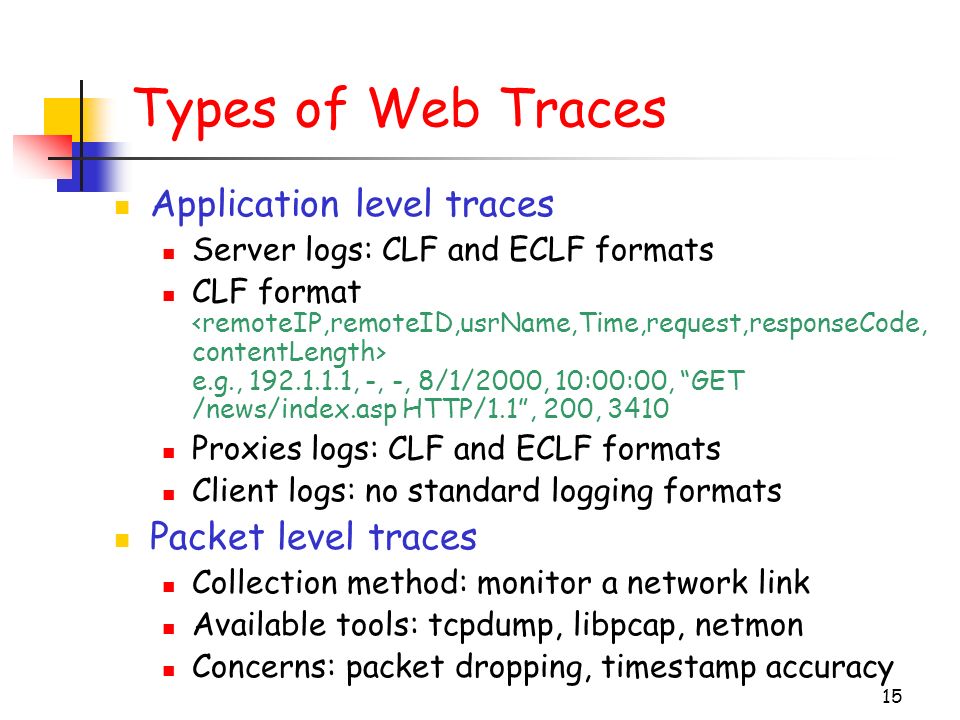

15. 15 Types of Web Traces Application level traces Server logs: CLF and ECLF formats CLF format e.g., 192.1.1.1, -, -, 8/1/2000, 10:00:00, “GET /news/index.asp HTTP/1.1”, 200, 3410 Proxies logs: CLF and ECLF formats Client logs: no standard logging formats Packet level traces Collection method: monitor a network link Available tools: tcpdump, libpcap, netmon Concerns: packet dropping, timestamp accuracy

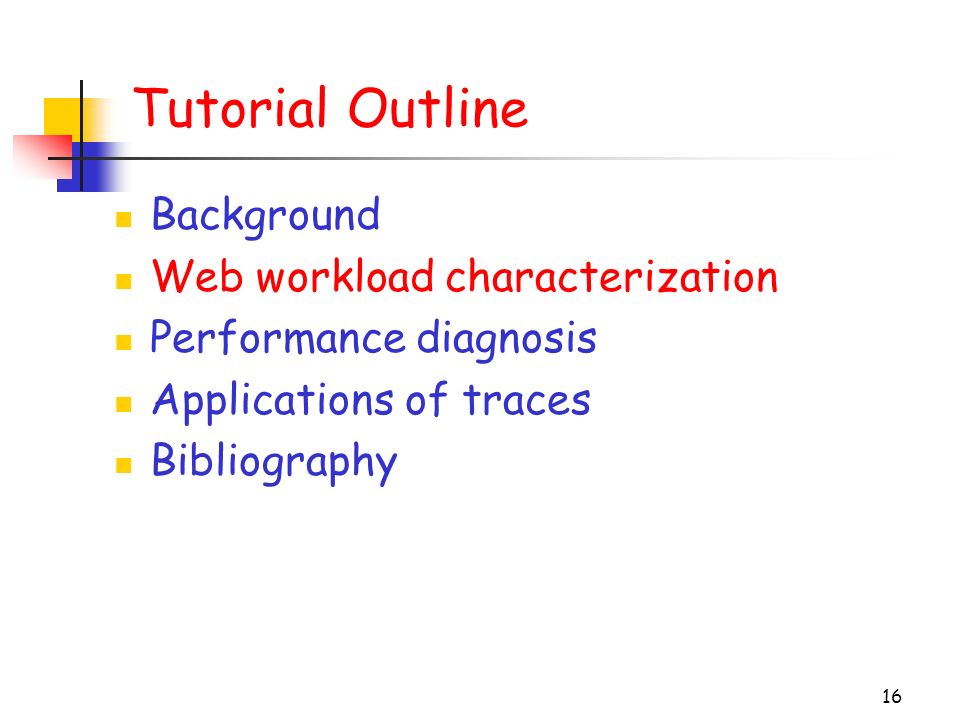

16. 16 Tutorial Outline Background Web workload characterization Performance diagnosis Applications of traces Bibliography

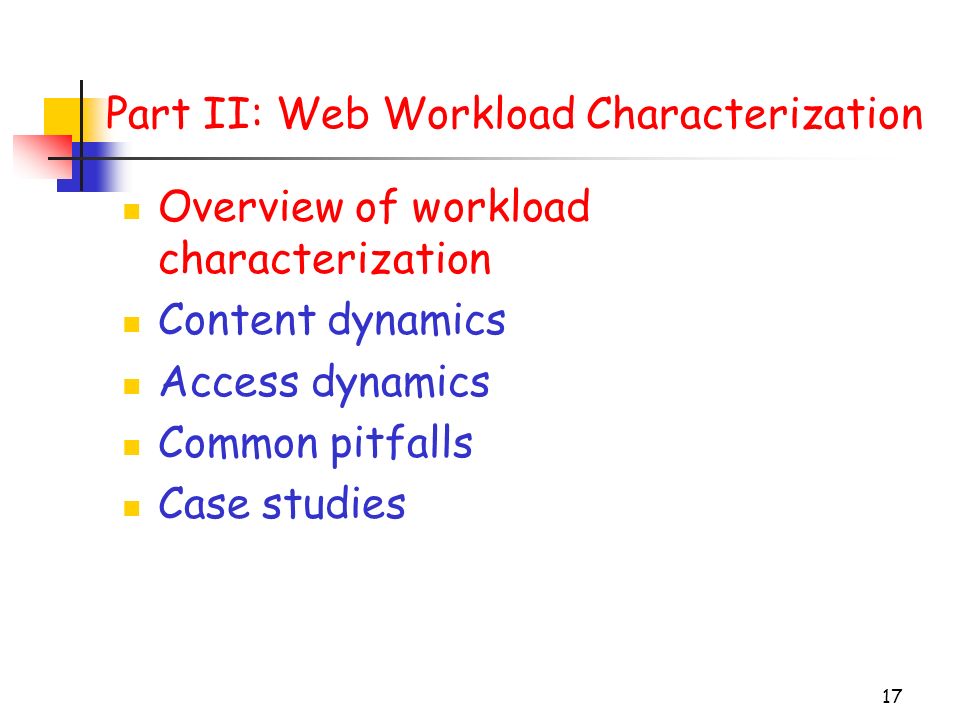

17. 17 Part II: Web Workload Characterization Overview of workload characterization Content dynamics Access dynamics Common pitfalls Case studies

18. 18 Overview of Workload Characterization Process of trace analyses Common analysis techniques Common analysis tools Challenges in workload characterization

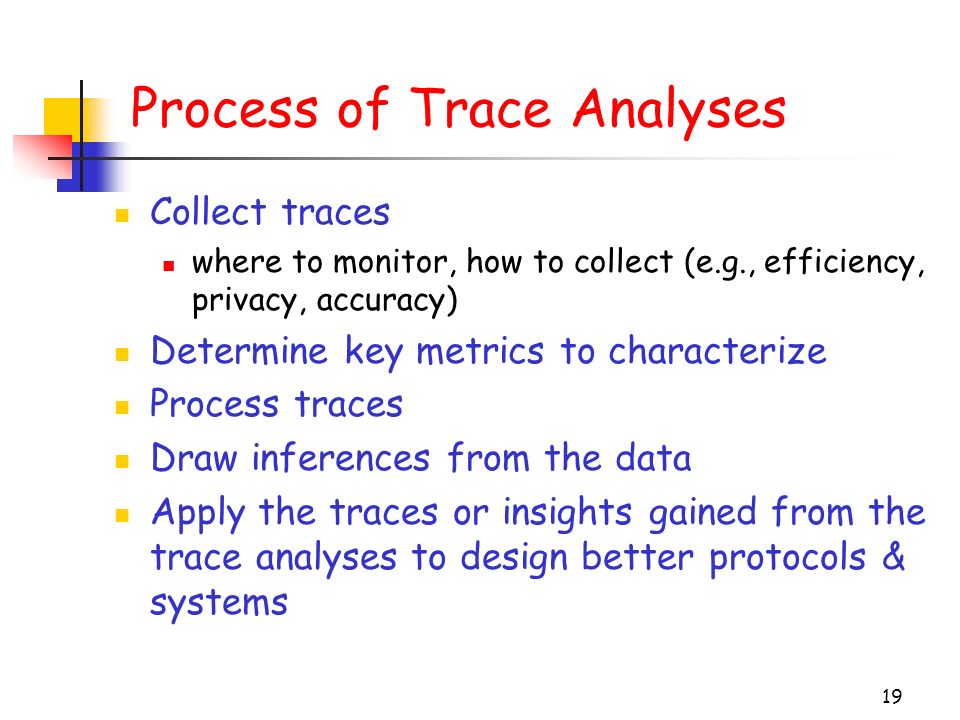

19. 19 Process of Trace Analyses Collect traces where to monitor, how to collect (e.g., efficiency, privacy, accuracy) Determine key metrics to characterize Process traces Draw inferences from the data Apply the traces or insights gained from the trace analyses to design better protocols & systems

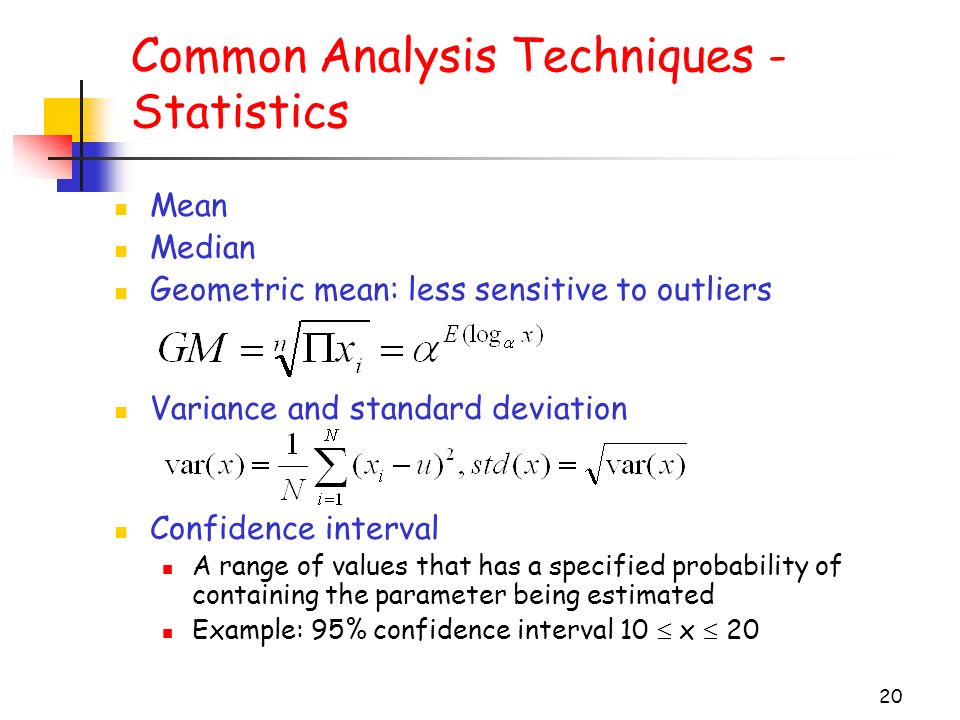

20. 20 Common Analysis Techniques - Statistics Mean Median Geometric mean: less sensitive to outliers Variance and standard deviation Confidence interval A range of values that has a specified probability of containing the parameter being estimated Example: 95% confidence interval 10  x  20

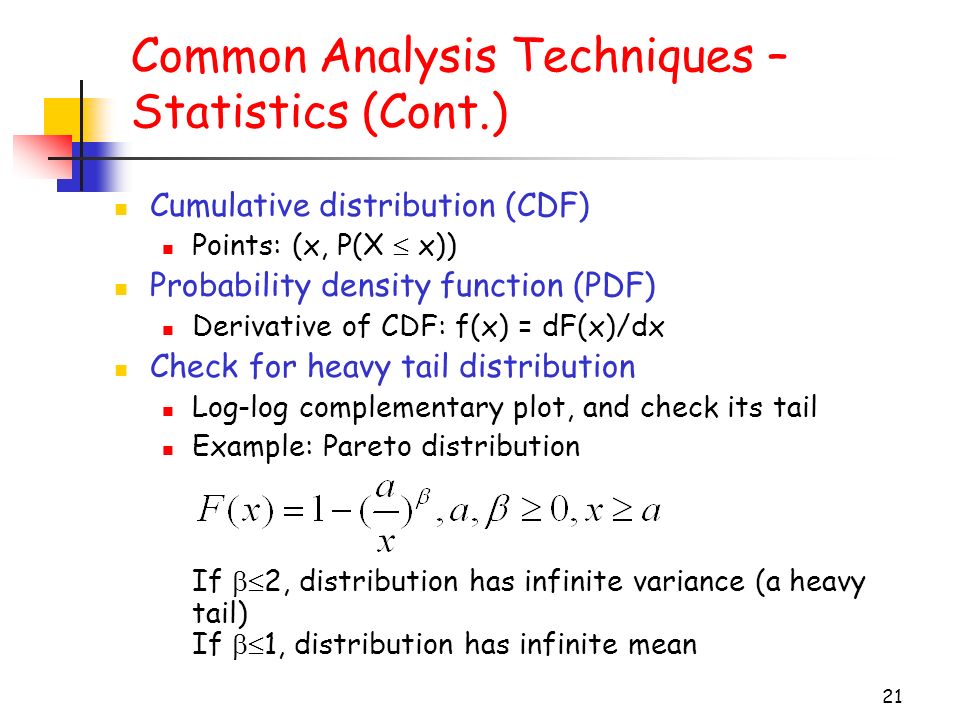

21. 21 Common Analysis Techniques – Statistics (Cont.) Cumulative distribution (CDF) Points: (x, P(X  x)) Probability density function (PDF) Derivative of CDF: f(x) = dF(x)/dx Check for heavy tail distribution Log-log complementary plot, and check its tail Example: Pareto distribution If  2, distribution has infinite variance (a heavy tail) If  1, distribution has infinite mean

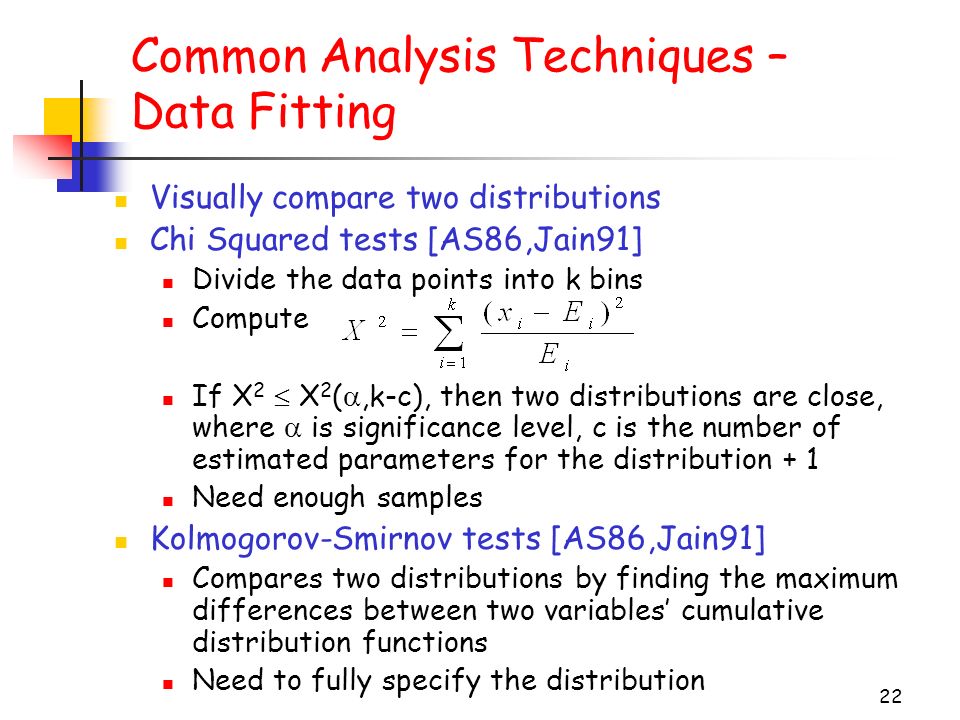

22. 22 Common Analysis Techniques – Data Fitting Visually compare two distributions Chi Squared tests [AS86,Jain91] Divide the data points into k bins Compute If X 2  X 2 ( ,k-c), then two distributions are close, where  is significance level, c is the number of estimated parameters for the distribution + 1 Need enough samples Kolmogorov-Smirnov tests [AS86,Jain91] Compares two distributions by finding the maximum differences between two variables’ cumulative distribution functions Need to fully specify the distribution

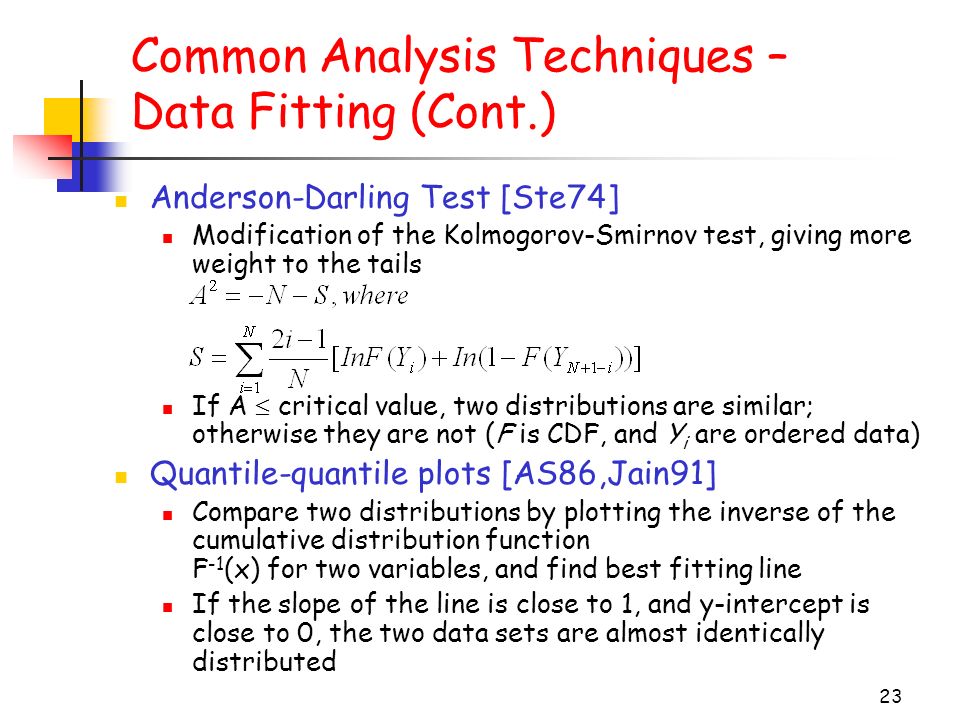

23. 23 Common Analysis Techniques – Data Fitting (Cont.) Anderson-Darling Test [Ste74] Modification of the Kolmogorov-Smirnov test, giving more weight to the tails If A  critical value, two distributions are similar; otherwise they are not (F is CDF, and Y i are ordered data) Quantile-quantile plots [AS86,Jain91] Compare two distributions by plotting the inverse of the cumulative distribution function F -1 (x) for two variables, and find best fitting line If the slope of the line is close to 1, and y-intercept is close to 0, the two data sets are almost identically distributed

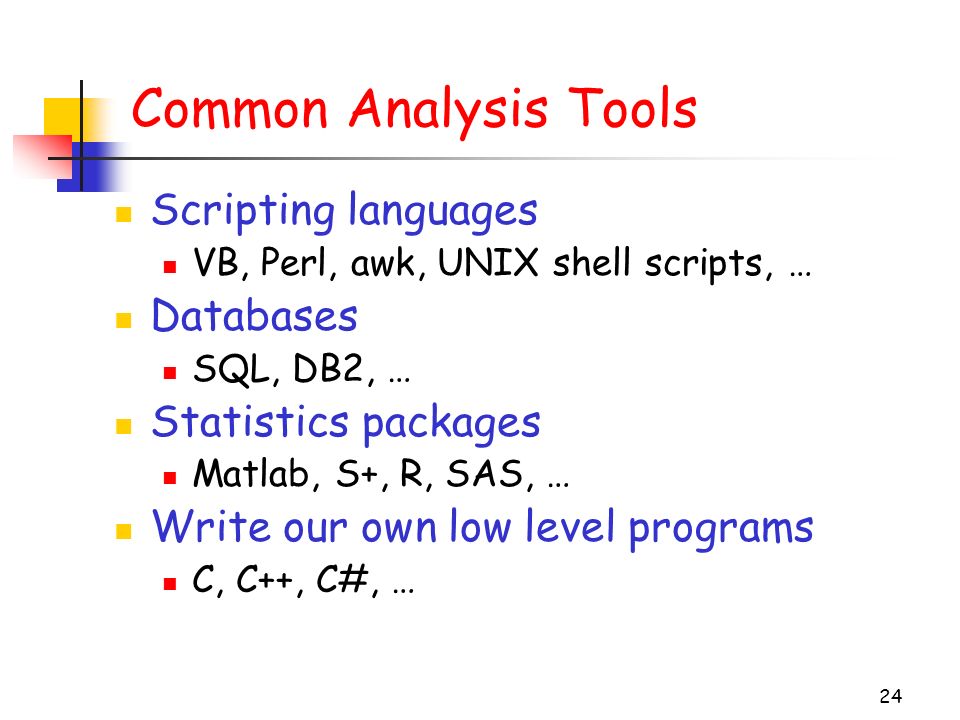

24. 24 Common Analysis Tools Scripting languages VB, Perl, awk, UNIX shell scripts, … Databases SQL, DB2, … Statistics packages Matlab, S+, R, SAS, … Write our own low level programs C, C++, C#, …

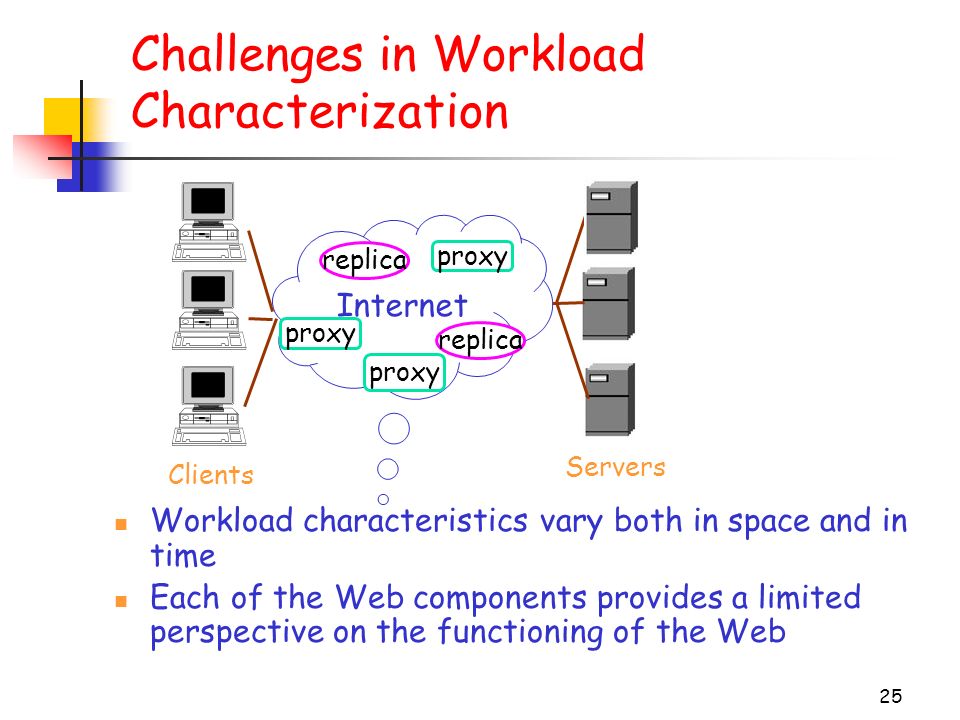

25. 25 Challenges in Workload Characterization Workload characteristics vary both in space and in time Each of the Web components provides a limited perspective on the functioning of the Web Internet replica proxy replica proxy Clients Servers

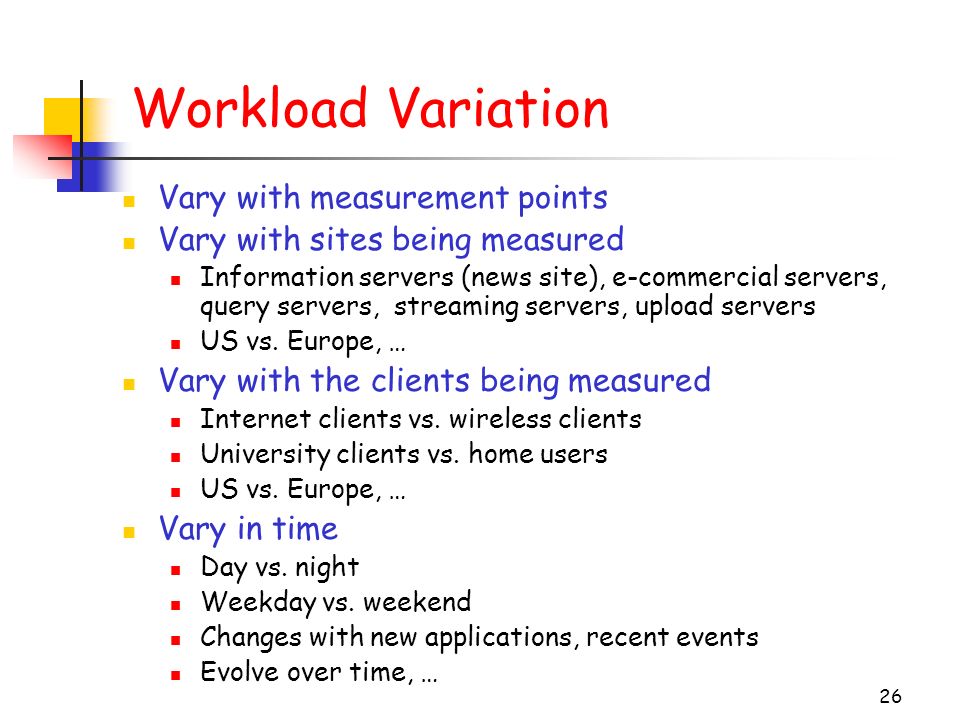

26. 26 Workload Variation Vary with measurement points Vary with sites being measured Information servers (news site), e-commercial servers, query servers, streaming servers, upload servers US vs. Europe, … Vary with the clients being measured Internet clients vs. wireless clients University clients vs. home users US vs. Europe, … Vary in time Day vs. night Weekday vs. weekend Changes with new applications, recent events Evolve over time, …

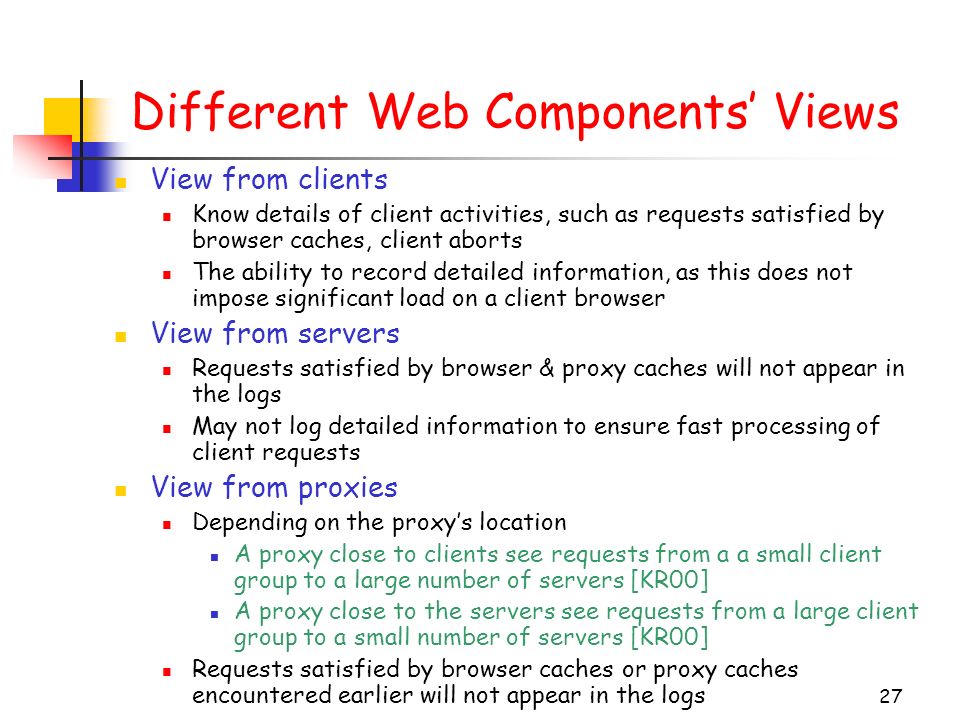

27. 27 Different Web Components’ Views View from clients Know details of client activities, such as requests satisfied by browser caches, client aborts The ability to record detailed information, as this does not impose significant load on a client browser View from servers Requests satisfied by browser & proxy caches will not appear in the logs May not log detailed information to ensure fast processing of client requests View from proxies Depending on the proxy’s location A proxy close to clients see requests from a a small client group to a large number of servers [KR00] A proxy close to the servers see requests from a large client group to a small number of servers [KR00] Requests satisfied by browser caches or proxy caches encountered earlier will not appear in the logs

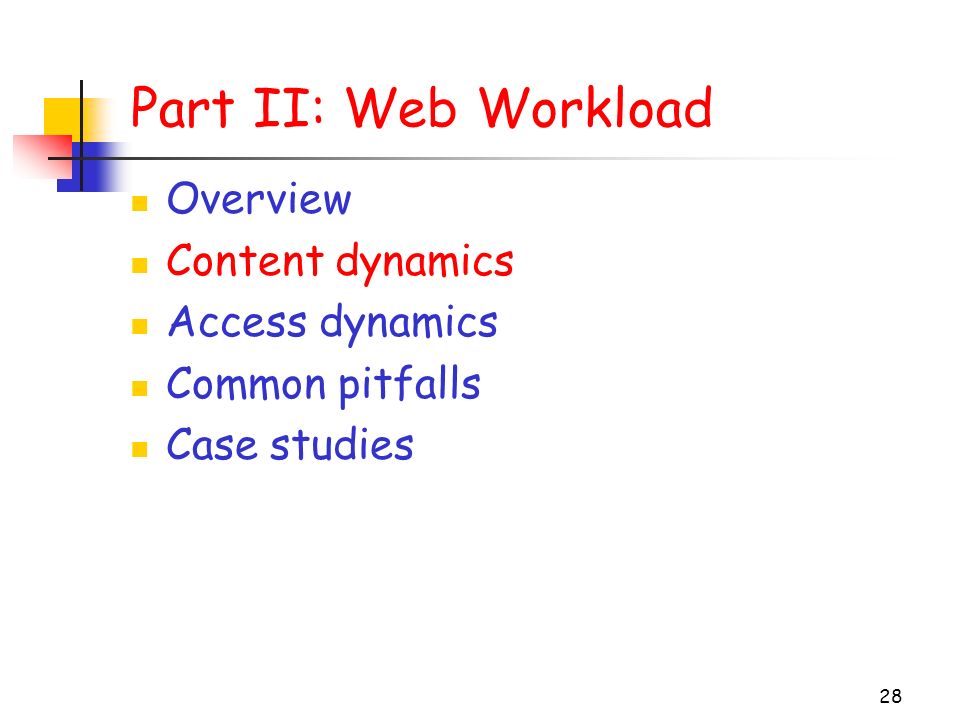

28. 28 Part II: Web Workload Overview Content dynamics Access dynamics Common pitfalls Case studies

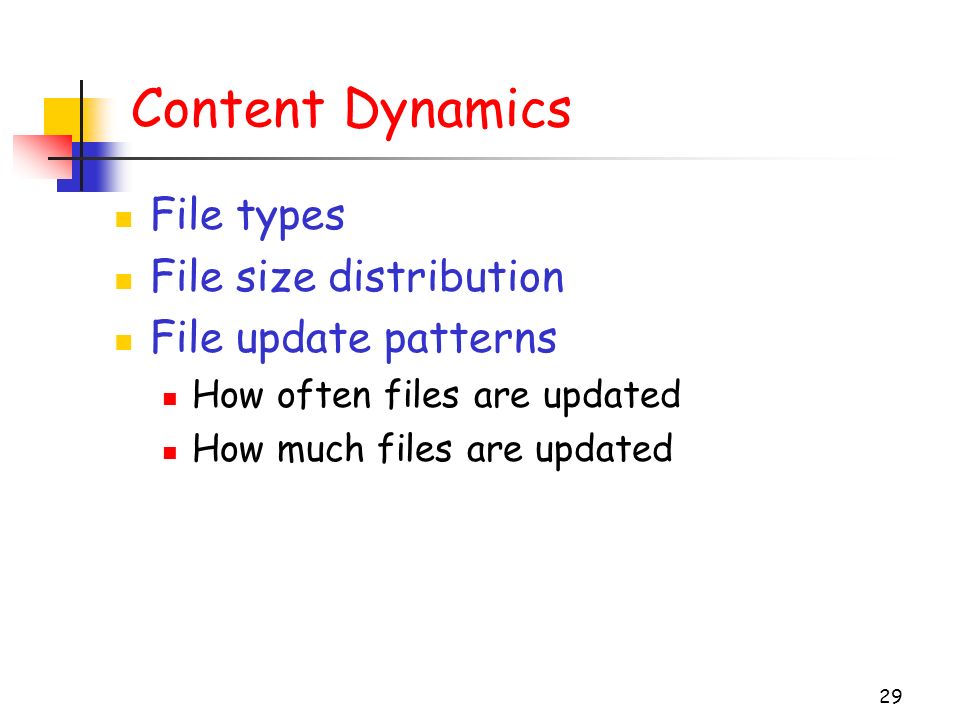

29. 29 Content Dynamics File types File size distribution File update patterns How often files are updated How much files are updated

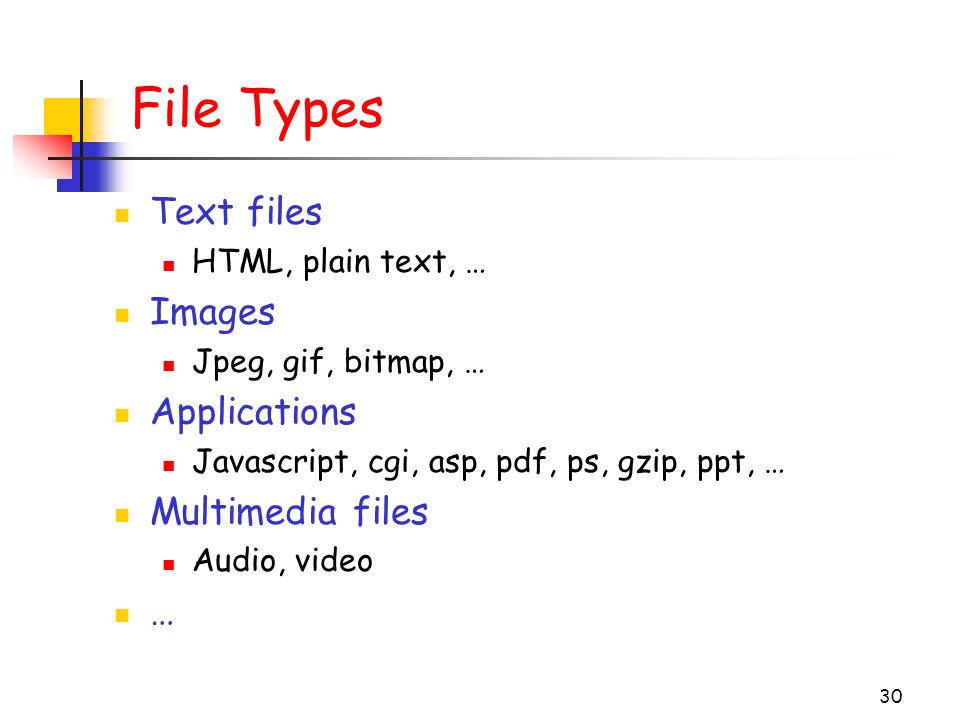

30. 30 File Types Text files HTML, plain text, … Images Jpeg, gif, bitmap, … Applications Javascript, cgi, asp, pdf, ps, gzip, ppt, … Multimedia files Audio, video …

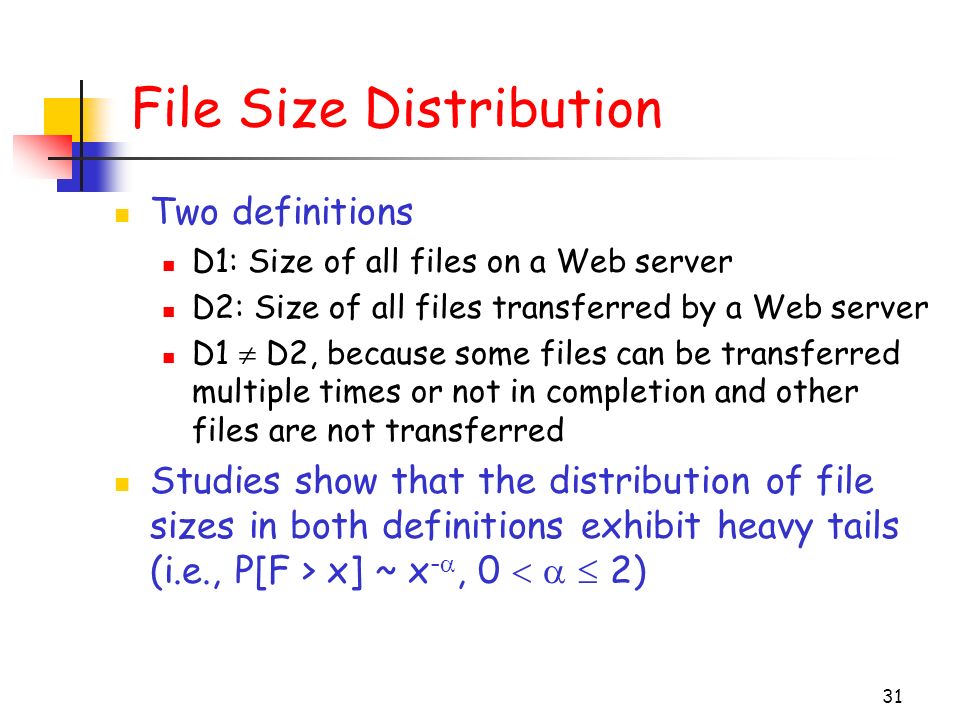

31. 31 File Size Distribution Two definitions D1: Size of all files on a Web server D2: Size of all files transferred by a Web server D1  D2, because some files can be transferred multiple times or not in completion and other files are not transferred Studies show that the distribution of file sizes in both definitions exhibit heavy tails (i.e., P[F > x] ~ x - , 0    2)

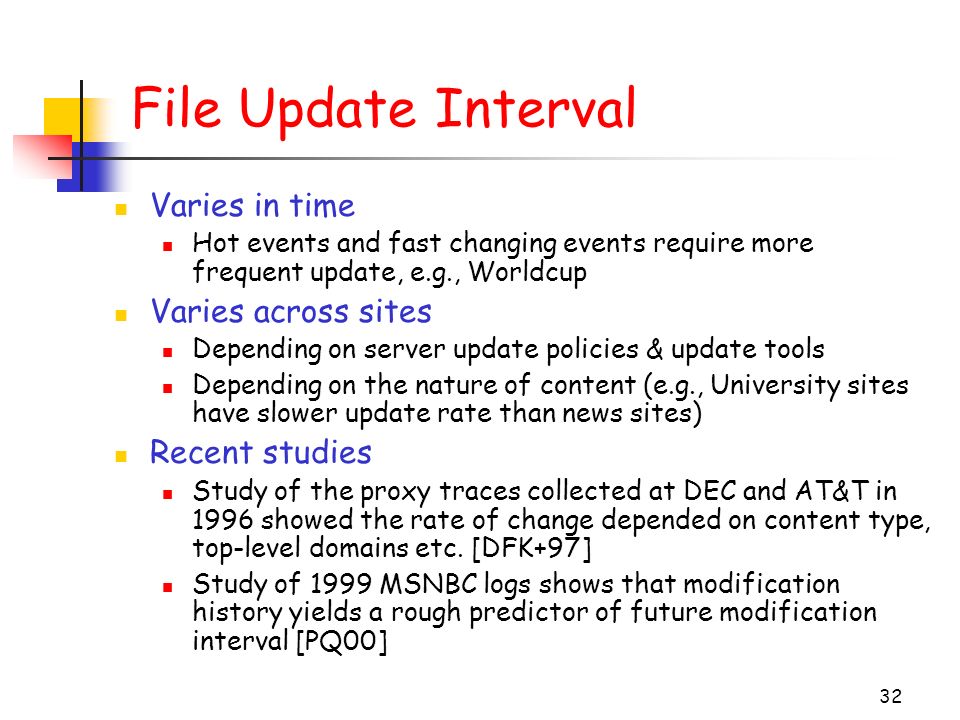

32. 32 File Update Interval Varies in time Hot events and fast changing events require more frequent update, e.g., Worldcup Varies across sites Depending on server update policies & update tools Depending on the nature of content (e.g., University sites have slower update rate than news sites) Recent studies Study of the proxy traces collected at DEC and AT&T in 1996 showed the rate of change depended on content type, top-level domains etc. [DFK+97] Study of 1999 MSNBC logs shows that modification history yields a rough predictor of future modification interval [PQ00]

33. 33 Extent of Change upon Modifications Varies in time Different events trigger different amount of updates Varies across sites Depending on servers’ update policies and update tools Depending on the nature of the content Recent studies Studies of 1996 DEC and AT&T proxy [MDF+97] and 1999 MSNBC log [PQ00] show that most file modifications are small  delta encoding can be very useful

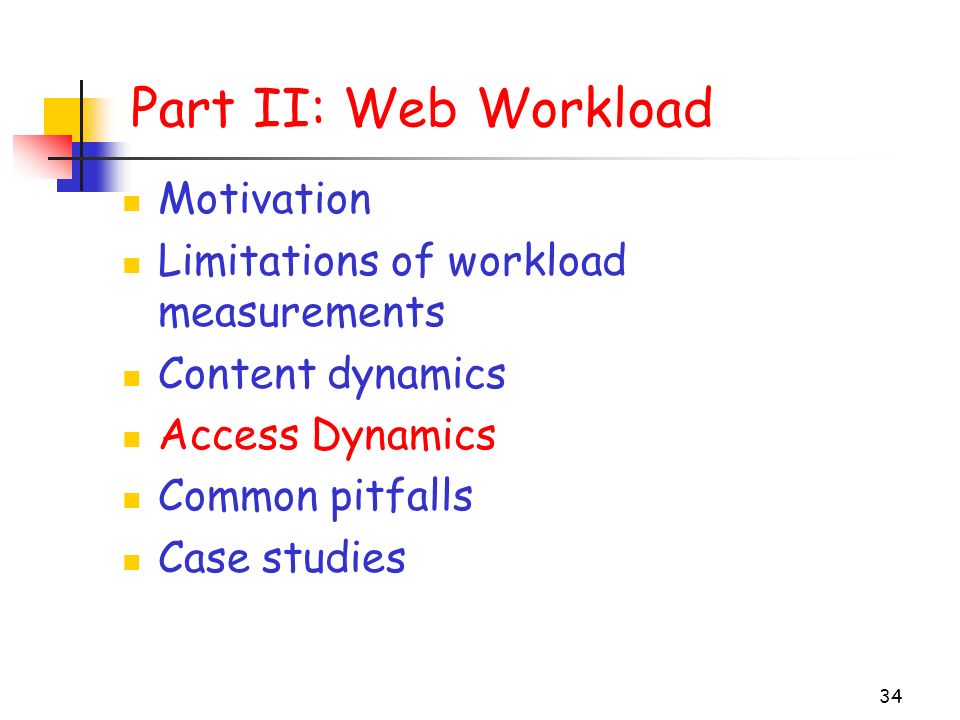

34. 34 Part II: Web Workload Motivation Limitations of workload measurements Content dynamics Access Dynamics Common pitfalls Case studies

35. 35 Access Dynamics File popularity distribution Temporal stability Spatial locality User request arrivals & durations

36. 36 Document Popularity Web requests follow Zipf-like distribution Request frequency  1/i , where i is a document’s ranking The value of  depends on the point of measurements Between 0.6 and 1 for client traces and proxy traces Close to or larger than 1 for server traces [ABC+96, PQ00] The value of  varies over time (e.g., larger  during hot events)

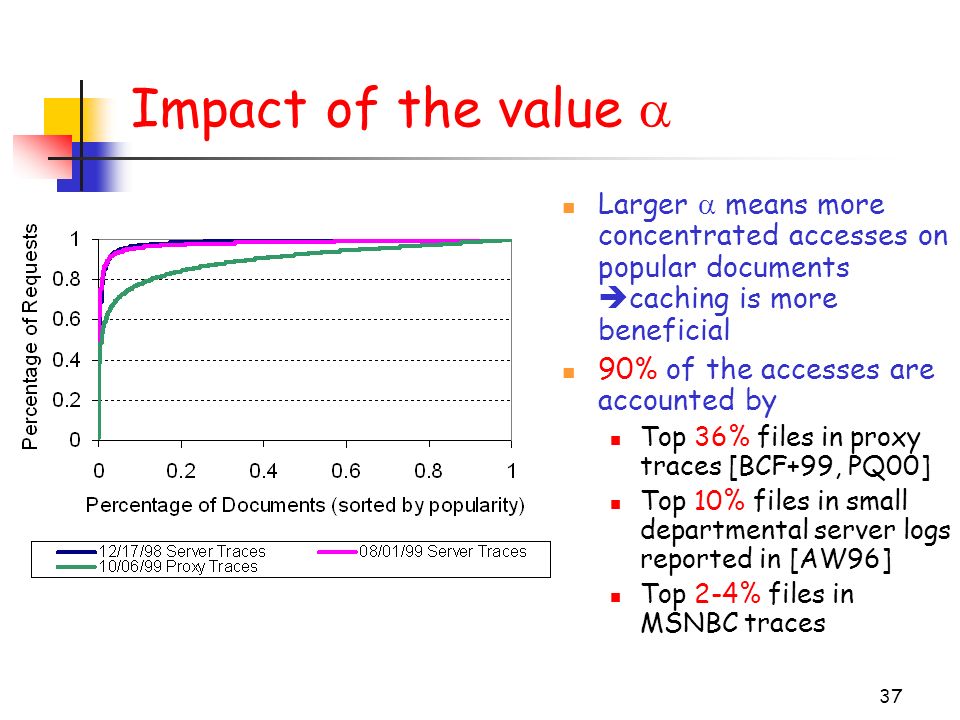

37. 37 Impact of the value  Larger  means more concentrated accesses on popular documents  caching is more beneficial 90% of the accesses are accounted by Top 36% files in proxy traces [BCF+99, PQ00] Top 10% files in small departmental server logs reported in [AW96] Top 2-4% files in MSNBC traces

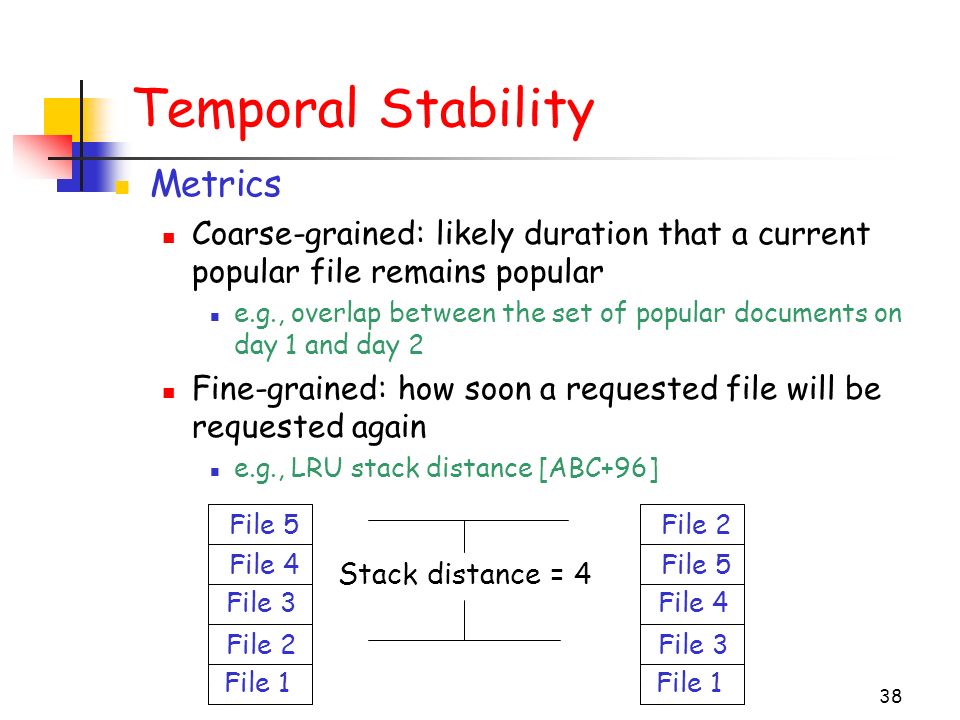

38. 38 Temporal Stability Metrics Coarse-grained: likely duration that a current popular file remains popular e.g., overlap between the set of popular documents on day 1 and day 2 Fine-grained: how soon a requested file will be requested again e.g., LRU stack distance [ABC+96] File 5 File 4 File 3 File 2 File 1 File 2 File 5 File 4 File 3 File 1 Stack distance = 4

39. 39 Spatial Locality Refers to if users in the same geographical location or at the same organization tend to request a similar set of content E.g., compare the degree of requests locally shared

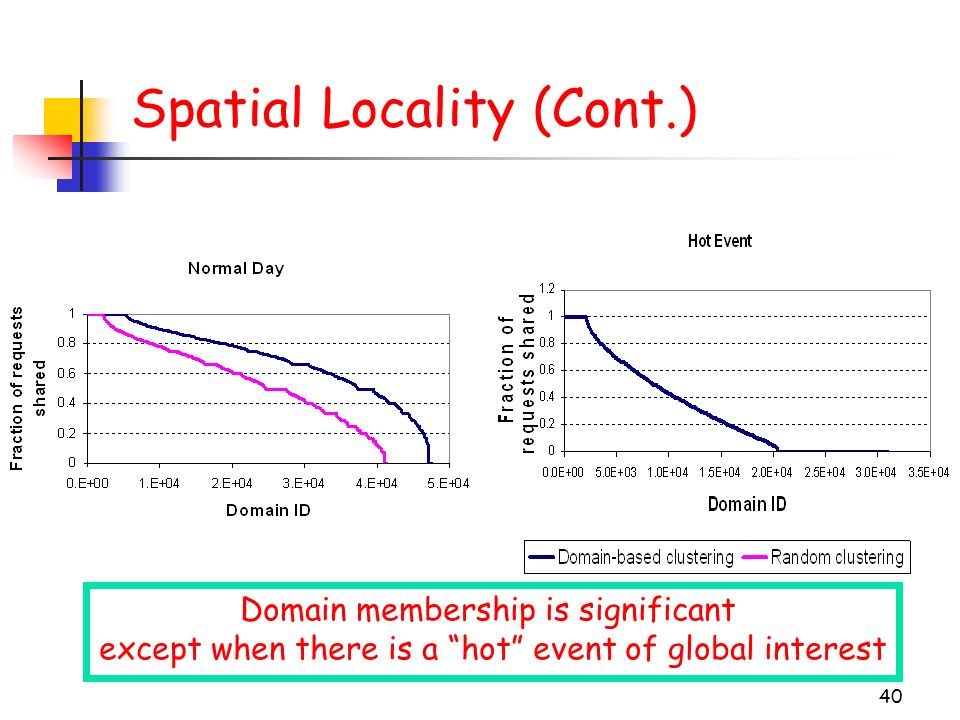

40. 40 Spatial Locality (Cont.) Domain membership is significant except when there is a “hot” event of global interest

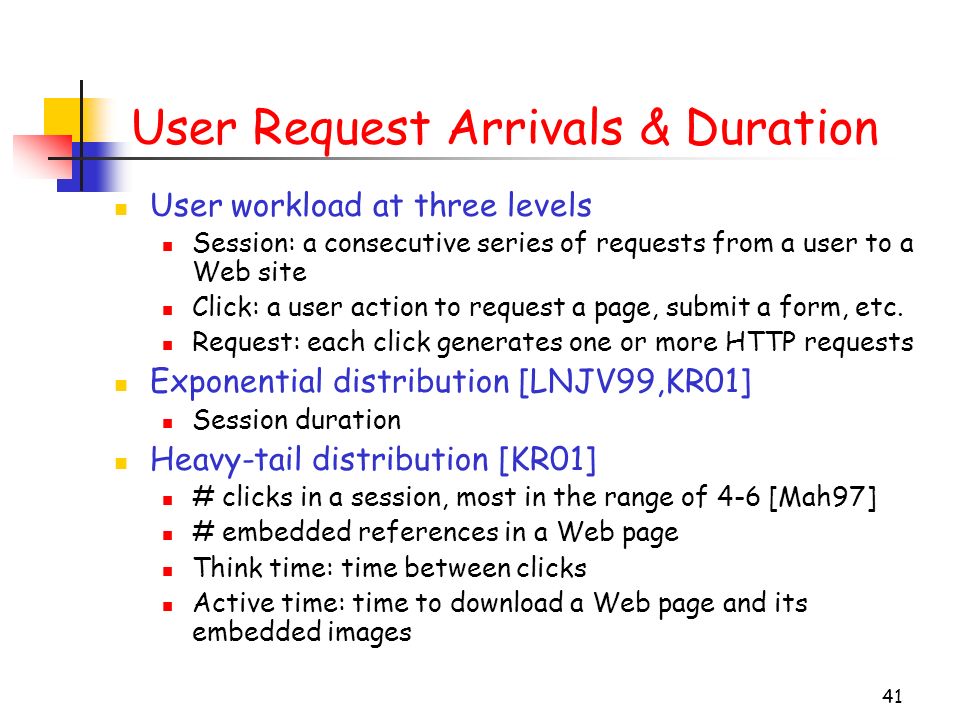

41. 41 User Request Arrivals & Duration User workload at three levels Session: a consecutive series of requests from a user to a Web site Click: a user action to request a page, submit a form, etc. Request: each click generates one or more HTTP requests Exponential distribution [LNJV99,KR01] Session duration Heavy-tail distribution [KR01] # clicks in a session, most in the range of 4-6 [Mah97] # embedded references in a Web page Think time: time between clicks Active time: time to download a Web page and its embedded images

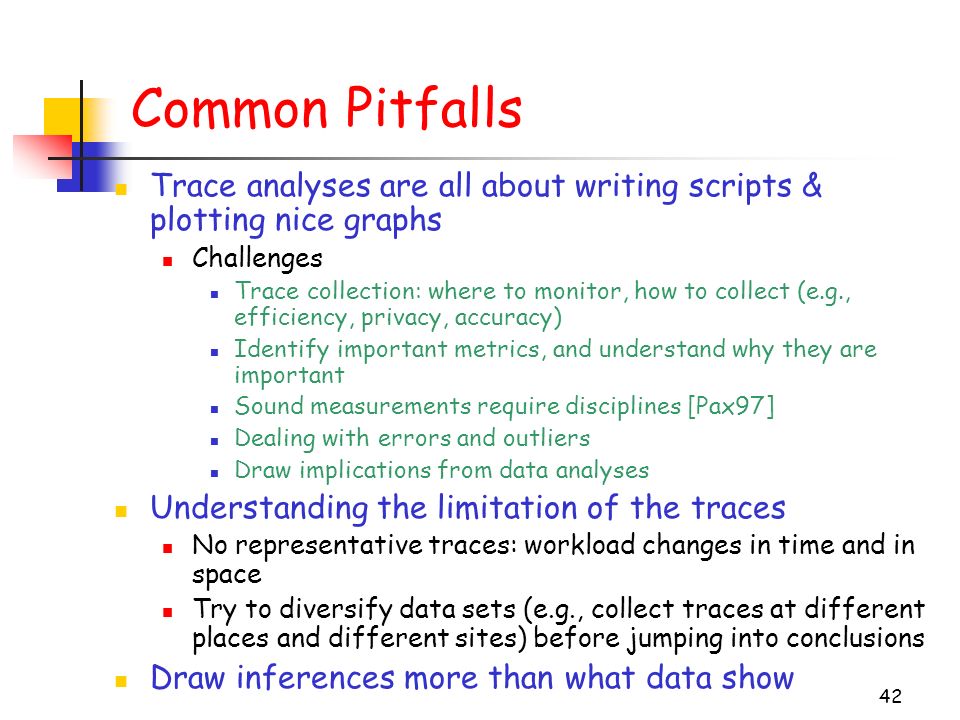

42. 42 Common Pitfalls Trace analyses are all about writing scripts & plotting nice graphs Challenges Trace collection: where to monitor, how to collect (e.g., efficiency, privacy, accuracy) Identify important metrics, and understand why they are important Sound measurements require disciplines [Pax97] Dealing with errors and outliers Draw implications from data analyses Understanding the limitation of the traces No representative traces: workload changes in time and in space Try to diversify data sets (e.g., collect traces at different places and different sites) before jumping into conclusions Draw inferences more than what data show

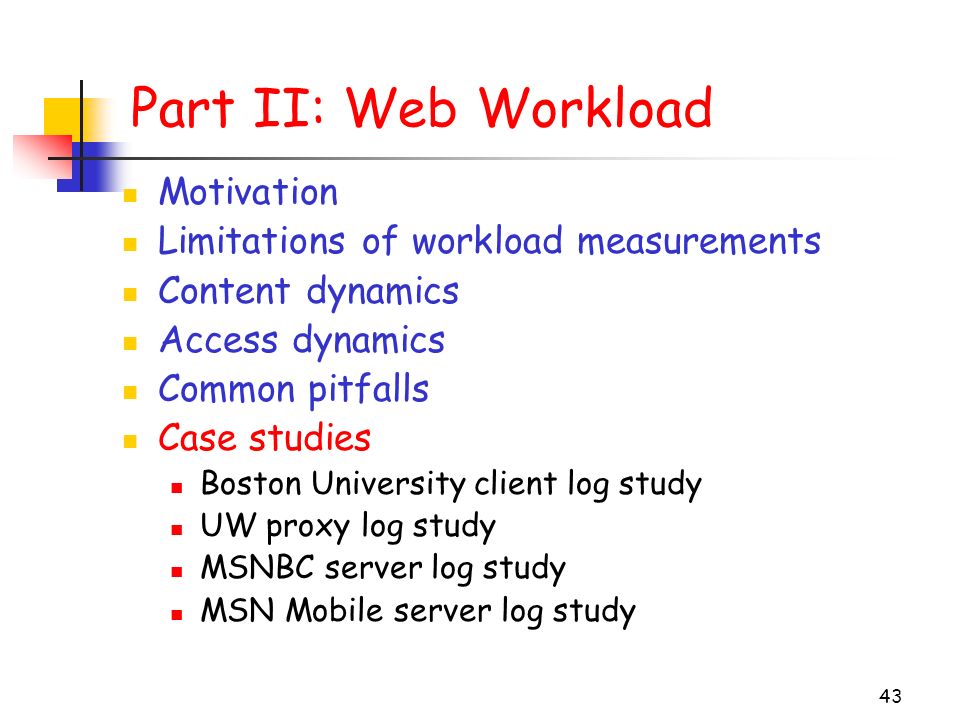

43. 43 Part II: Web Workload Motivation Limitations of workload measurements Content dynamics Access dynamics Common pitfalls Case studies Boston University client log study UW proxy log study MSNBC server log study MSN Mobile server log study

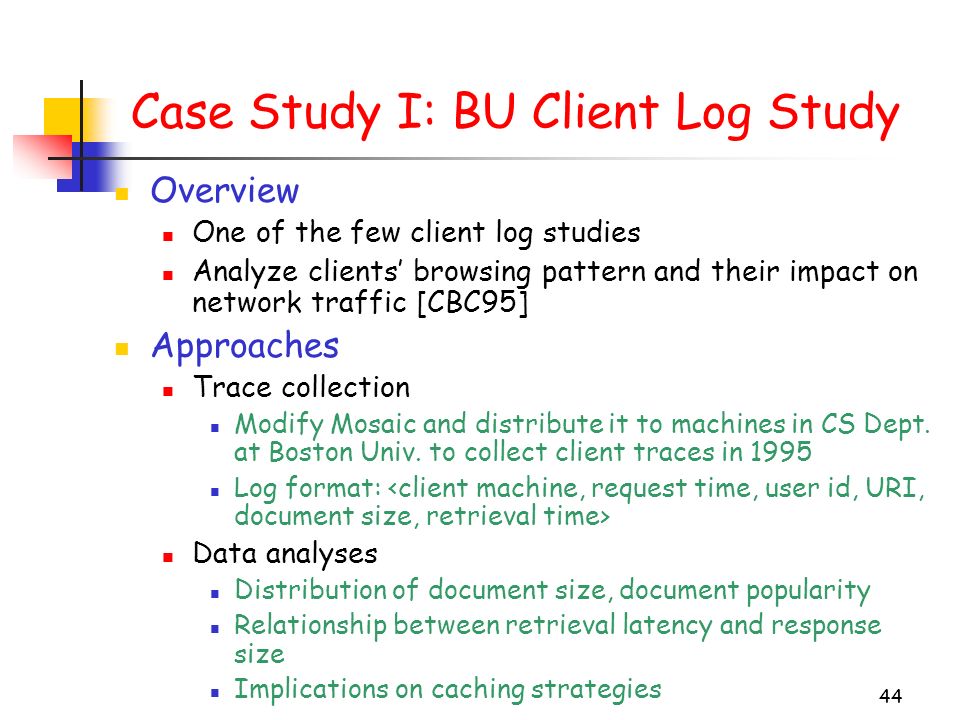

44. 44 Case Study I: BU Client Log Study Overview One of the few client log studies Analyze clients’ browsing pattern and their impact on network traffic [CBC95] Approaches Trace collection Modify Mosaic and distribute it to machines in CS Dept. at Boston Univ. to collect client traces in 1995 Log format: Data analyses Distribution of document size, document popularity Relationship between retrieval latency and response size Implications on caching strategies

45. 45 Major Findings Power law distributions Distribution of document sizes Distribution of user requests for documents # requests to documents as a function of their popularity Caching strategies should take into account of document size (i.e., give preference to smaller documents)

46. 46 Case Study II: UW Proxy Log Study Overview Proxy traces collected at the University of Washington Approaches [WVS+99a, WVS+99b] Trace collection: deploy a passive network sniffer between the Univ. of Washington and the rest of the Internet in May 1999 Set well-defined objectives Understand the extent of document sharing within an organization and across different organizations Understand the performance benefit of cooperative proxy caching

47. 47 Major Findings Members of an organization are more likely to request the same documents than a random set of clients Most popular documents are globally popular Cooperative caching is most beneficial for small organizations Cooperative caching among large organizations yield minor improvement if any

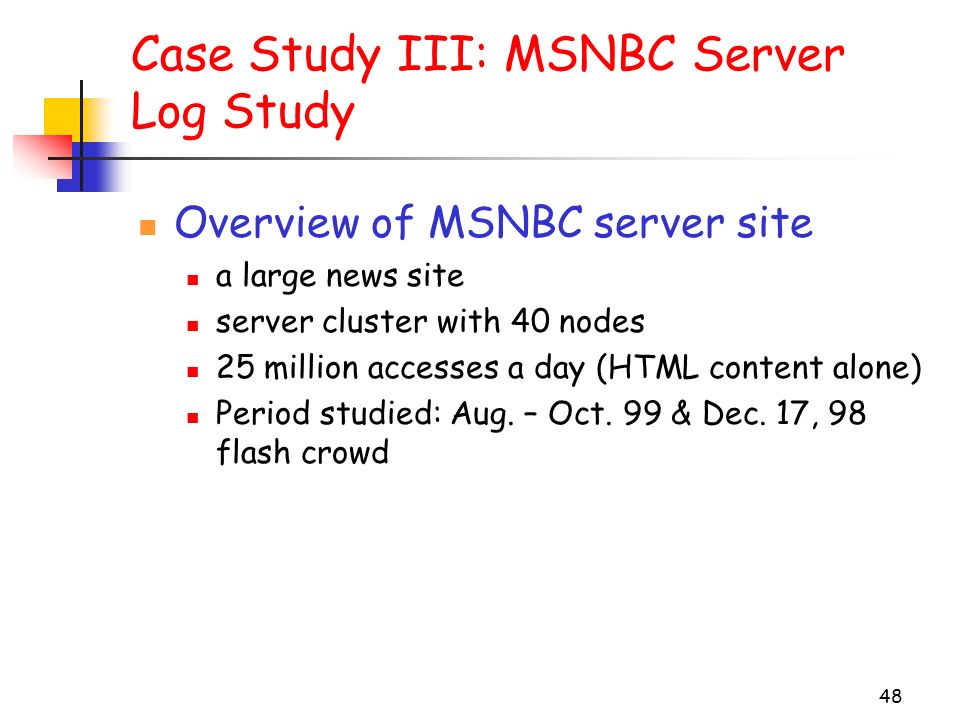

48. 48 Case Study III: MSNBC Server Log Study Overview of MSNBC server site a large news site server cluster with 40 nodes 25 million accesses a day (HTML content alone) Period studied: Aug. – Oct. 99 & Dec. 17, 98 flash crowd

49. 49 Approaches Trace collection HTTP access logs Content Replication System (CRS) logs HTML content logs Data analyses Content dynamics How often files are modified? How to predict modification interval? How much does a file change upon modification? Access dynamics Document popularity Temporal stability Spatial locality Correlation between document age and popularity

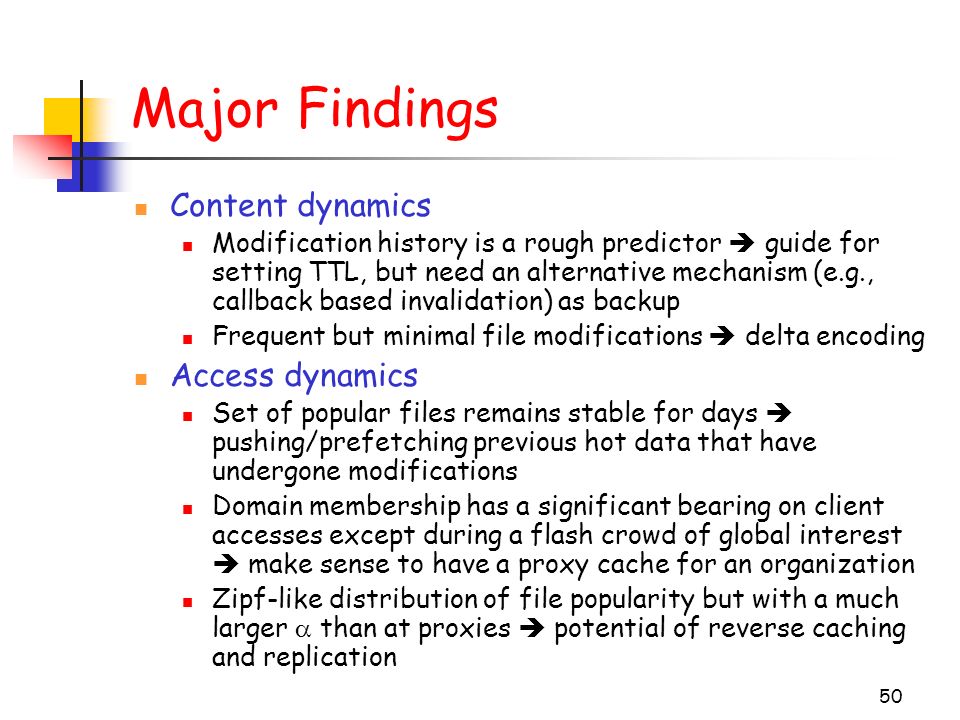

50. 50 Major Findings Content dynamics Modification history is a rough predictor  guide for setting TTL, but need an alternative mechanism (e.g., callback based invalidation) as backup Frequent but minimal file modifications  delta encoding Access dynamics Set of popular files remains stable for days  pushing/prefetching previous hot data that have undergone modifications Domain membership has a significant bearing on client accesses except during a flash crowd of global interest  make sense to have a proxy cache for an organization Zipf-like distribution of file popularity but with a much larger  than at proxies  potential of reverse caching and replication

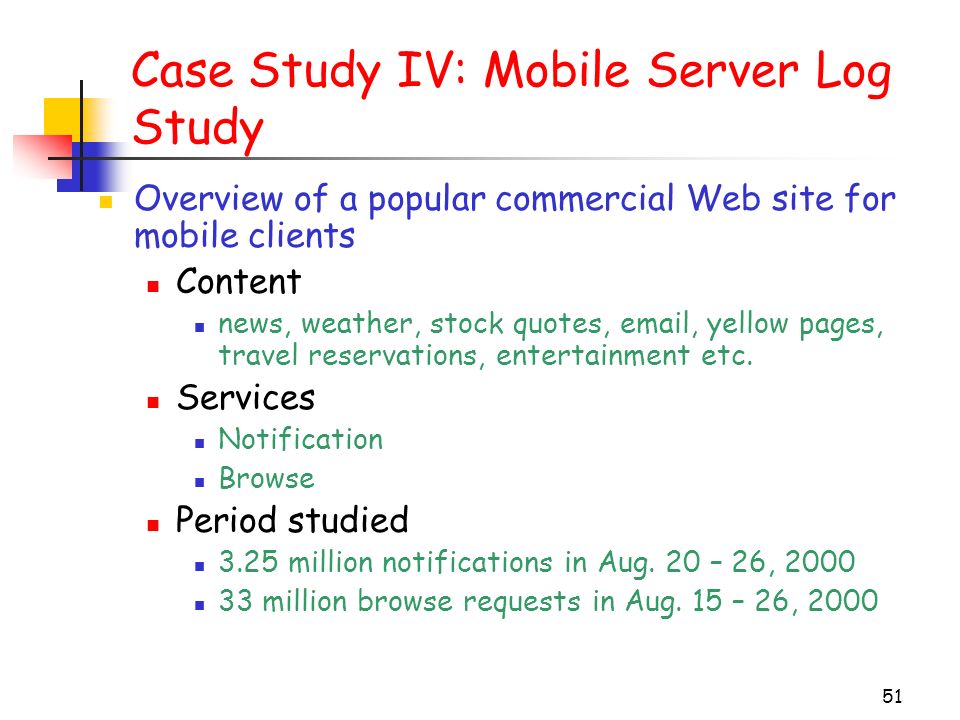

51. 51 Case Study IV: Mobile Server Log Study Overview of a popular commercial Web site for mobile clients Content news, weather, stock quotes, email, yellow pages, travel reservations, entertainment etc. Services Notification Browse Period studied 3.25 million notifications in Aug. 20 – 26, 2000 33 million browse requests in Aug. 15 – 26, 2000

52. 52 Approaches Analyze by user categories Cellular users Browse the Web in real time using cellular technologies Offline users Download content onto their PDAs for later (offline) browsing, e.g. AvantGo Desktop users Signup services and specify preferences Analyze by Web services Browse Notifications Use SQL database to manage data

53. 53 Major Findings Notification Services Popularity of notification messages follows a Zipf-like distribution, with top 1% notification objects responsible for 54-64% of total messages  multicast notifications Exhibits geographical locality  useful to provide localized notification services Browse Services 0.1% - 0.5% urls account for 90% requests  cache the results of popular queries The set of popular urls remain stable  cache a stable set of queries or optimize query based on a stable workload Correlation between the two services Correlation is limited  influence design of pricing plans

54. 54 Tutorial Outline Background Web Workload Performance Diagnosis Applications of traces

55. 55 Part III: Performance Diagnosis Overview of performance diagnosis Infer the causes of high end-to-end delay in Web transfers [BC00] Infer the causes of high end-to-end loss rate in Web transfers [CDH+99,DPP+01,NC01,PQ02, PQW02]

56. 56 Overview of Performance Diagnosis Goal: determine trouble spot locations Metrics of interest Delay Loss rate Raw bandwidth Available bandwidth Traffic rate Why interesting Resolve the trouble spots Server selection Placement of mirror servers Sprint AT&T Web Server UUNET MCI Qwest AOL Earthlink Why so slow?

57. 57 Finding the Sources of Delays Goal Why is my Web transfer slow? Is it because of the server or the network or the client? Sources of delay in Web transfer DNS lookup Server delays Client delays Network delays Propagation delays Queuing delays Delays introduced by packet losses (e.g., signaled by the fast retransmit mechanism or TCP timeouts)

58. 58 TCPEval Tool Inputs: “tcpdump” packet traces taken at the communicating Web server and client Generates a variety of statistics for file transactions File and packet transfer latencies Packet drop characteristics Packet and byte counts per unit time Generates both timeline and sequence plots for transactions Generates critical path profiles and statistics for transactions

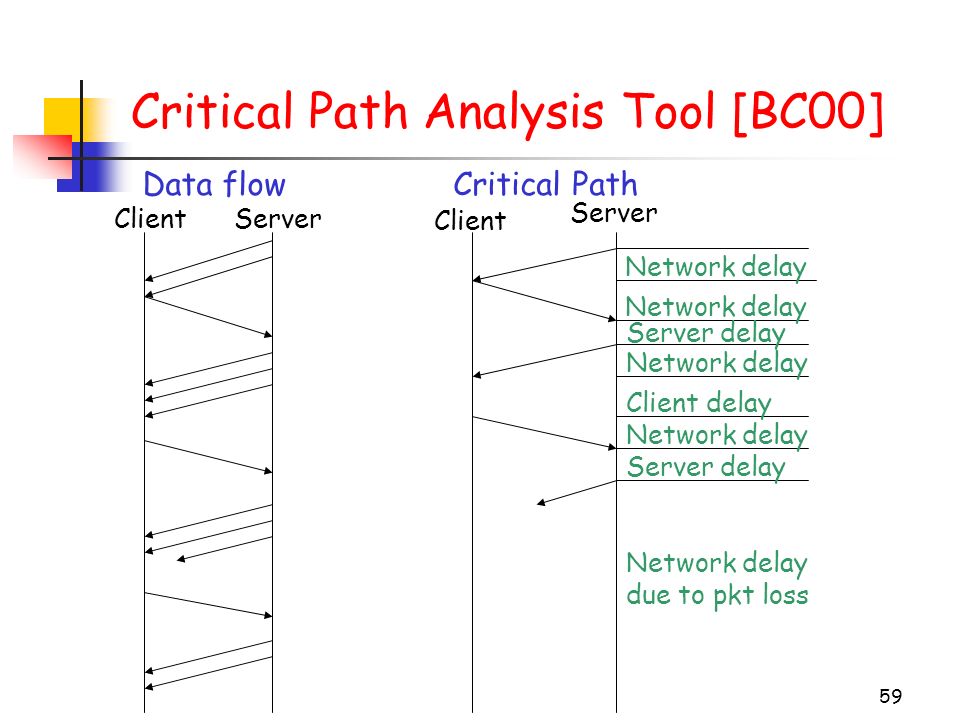

59. 59 Critical Path Analysis Tool [BC00] ClientServer Client Server Data flowCritical Path Network delay Server delay Network delay Client delay Network delay Server delay Network delay due to pkt loss

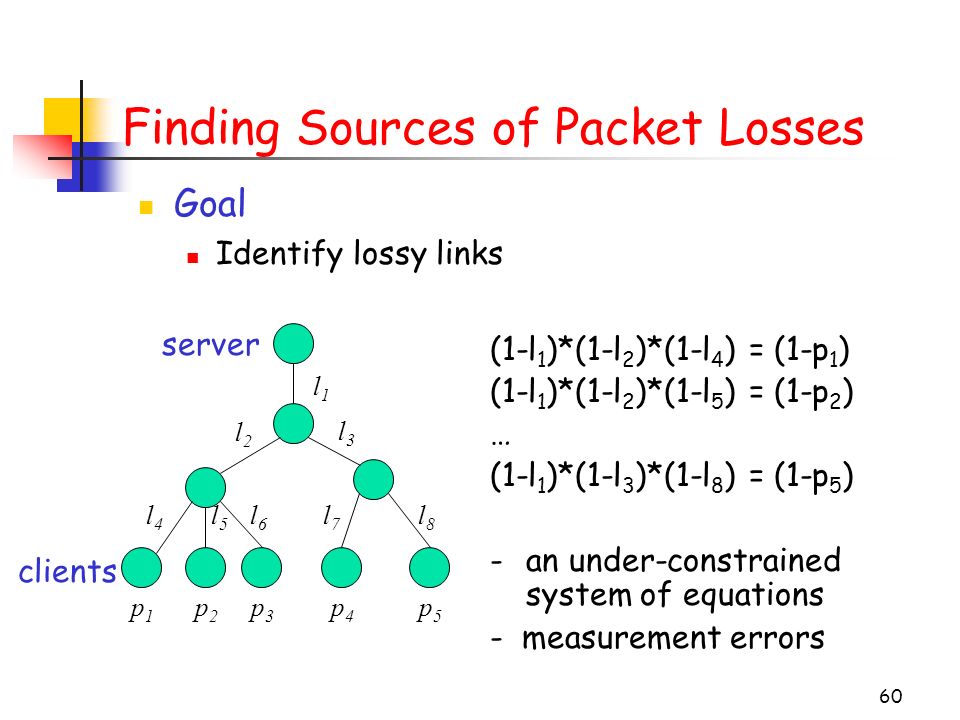

60. 60 Finding Sources of Packet Losses Goal Identify lossy links l1l1 l8l8 l7l7 l6l6 l2l2 l4l4 l5l5 l3l3 server clients p1p1 p2p2 p3p3 p4p4 p5p5 (1-l 1 )*(1-l 2 )*(1-l 4 ) = (1-p 1 ) (1-l 1 )*(1-l 2 )*(1-l 5 ) = (1-p 2 ) … (1-l 1 )*(1-l 3 )*(1-l 8 ) = (1-p 5 ) -an under-constrained system of equations - measurement errors

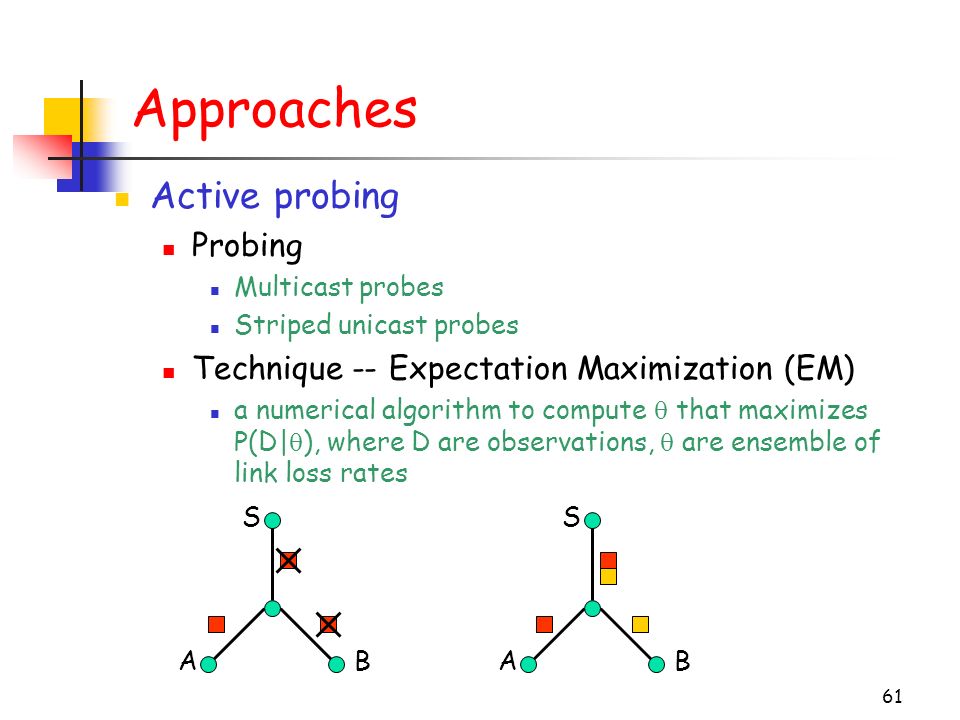

61. 61 Approaches Active probing Probing Multicast probes Striped unicast probes Technique -- Expectation Maximization (EM) a numerical algorithm to compute  that maximizes P(D|  ), where D are observations,  are ensemble of link loss rates S AB S AB

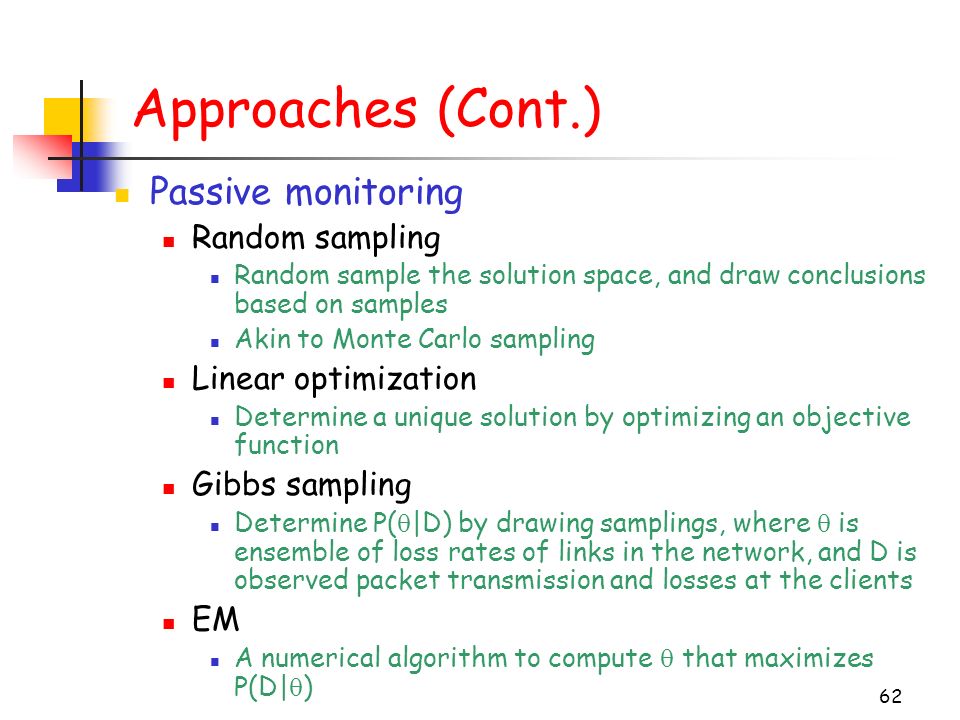

62. 62 Approaches (Cont.) Passive monitoring Random sampling Random sample the solution space, and draw conclusions based on samples Akin to Monte Carlo sampling Linear optimization Determine a unique solution by optimizing an objective function Gibbs sampling Determine P(  |D) by drawing samplings, where  is ensemble of loss rates of links in the network, and D is observed packet transmission and losses at the clients EM A numerical algorithm to compute  that maximizes P(D|  )

63. 63 Other Performance Studies using Web traces Characterize Internet performance (e.g., spatial & temporal locality) [BSS+97] Study the behavior of TCP during Web transfers [BPS+98] Reconstruct different client page accesses and measure performance characteristics for the accesses [FCT+02]

64. 64 Tutorial Outline Background Web Workload Performance Diagnosis Applications of traces Bibliography

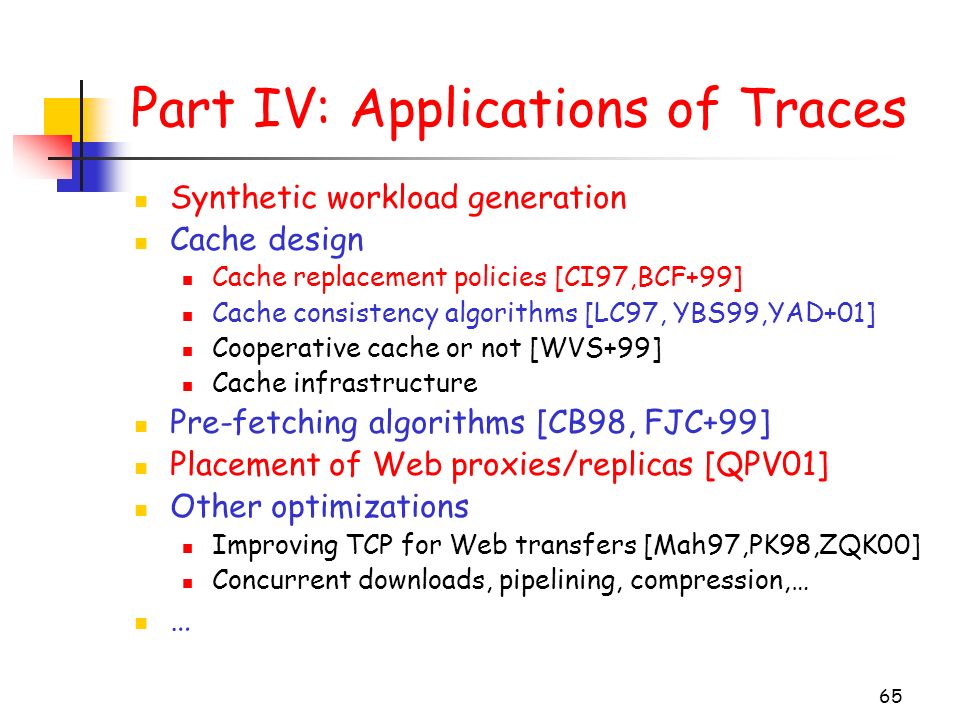

65. 65 Part IV: Applications of Traces Synthetic workload generation Cache design Cache replacement policies [CI97,BCF+99] Cache consistency algorithms [LC97, YBS99,YAD+01] Cooperative cache or not [WVS+99] Cache infrastructure Pre-fetching algorithms [CB98, FJC+99] Placement of Web proxies/replicas [QPV01] Other optimizations Improving TCP for Web transfers [Mah97,PK98,ZQK00] Concurrent downloads, pipelining, compression,… …

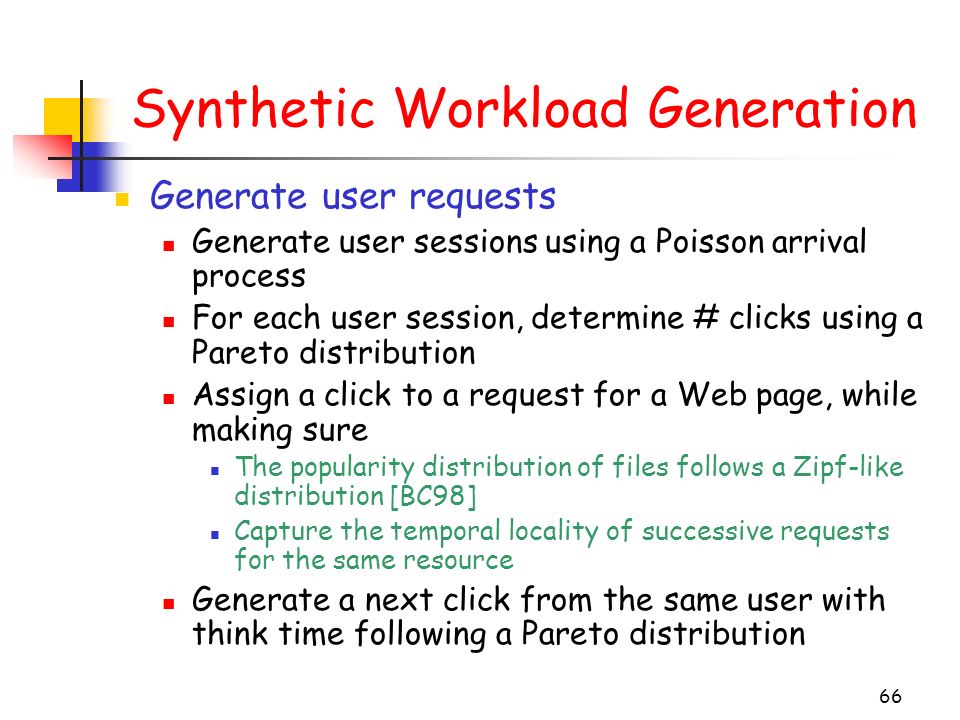

66. 66 Synthetic Workload Generation Generate user requests Generate user sessions using a Poisson arrival process For each user session, determine # clicks using a Pareto distribution Assign a click to a request for a Web page, while making sure The popularity distribution of files follows a Zipf-like distribution [BC98] Capture the temporal locality of successive requests for the same resource Generate a next click from the same user with think time following a Pareto distribution

67. 67 Synthetic Workload Generation (Cont.) Generate Web pages Determine the number of Web pages Generate the size of each Web pages using a log- normal distribution Associate a page with some number of embedded pages using an empirical distribution (heavy-tail) Generate file modification events Examples of generators Webbench [Wbe], WebStone[TS95], Surge [BC98], SPecweb99 [SP99], Web Polygraph [WP], …

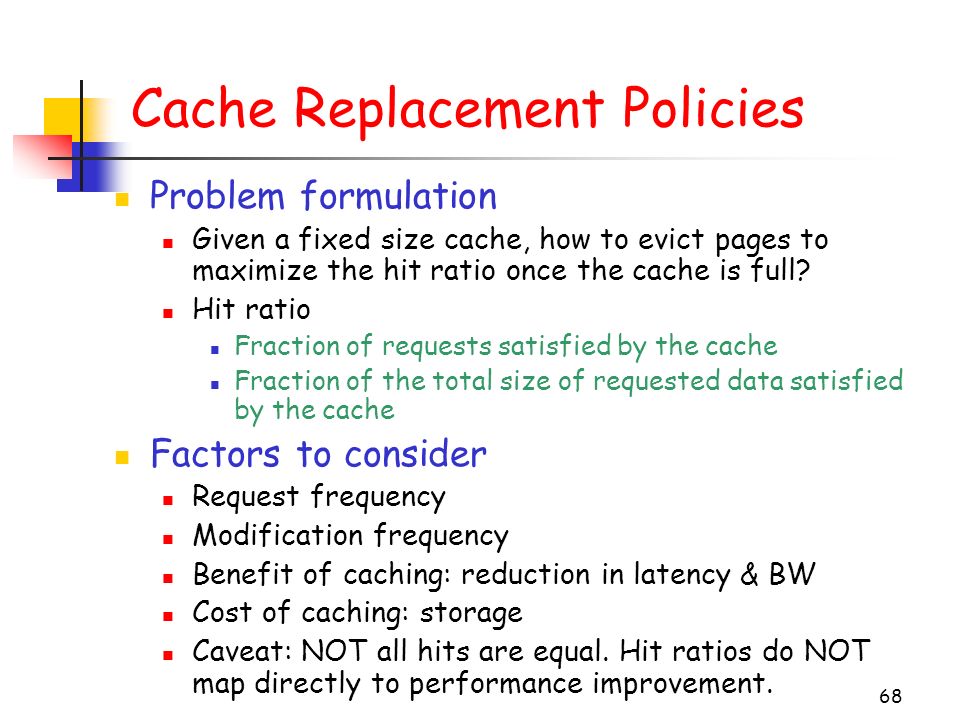

68. 68 Cache Replacement Policies Problem formulation Given a fixed size cache, how to evict pages to maximize the hit ratio once the cache is full? Hit ratio Fraction of requests satisfied by the cache Fraction of the total size of requested data satisfied by the cache Factors to consider Request frequency Modification frequency Benefit of caching: reduction in latency & BW Cost of caching: storage Caveat: NOT all hits are equal. Hit ratios do NOT map directly to performance improvement.

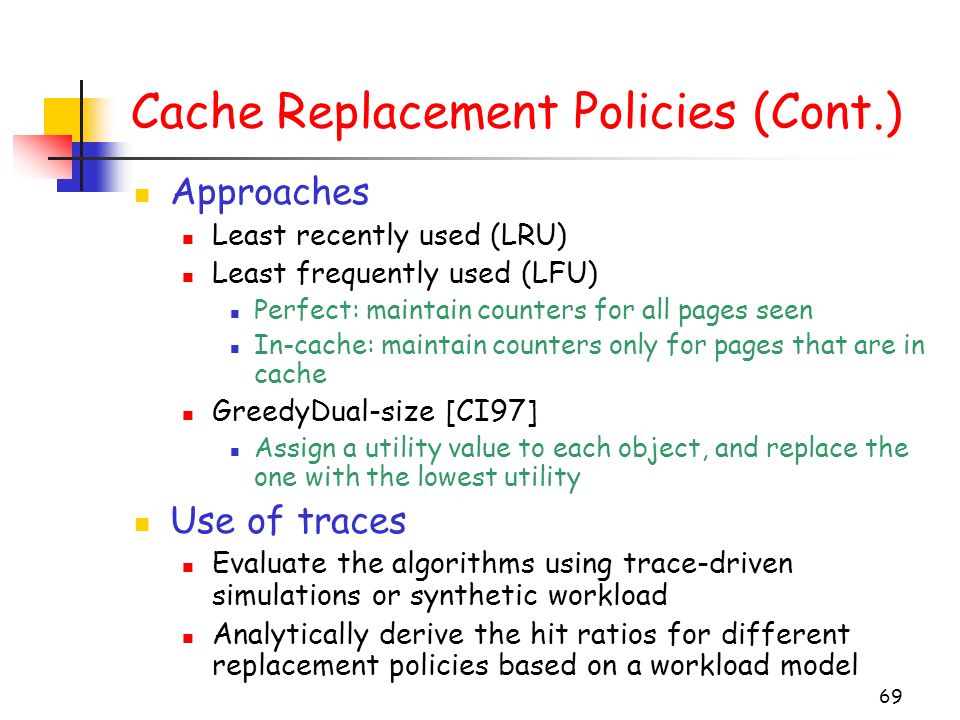

69. 69 Cache Replacement Policies (Cont.) Approaches Least recently used (LRU) Least frequently used (LFU) Perfect: maintain counters for all pages seen In-cache: maintain counters only for pages that are in cache GreedyDual-size [CI97] Assign a utility value to each object, and replace the one with the lowest utility Use of traces Evaluate the algorithms using trace-driven simulations or synthetic workload Analytically derive the hit ratios for different replacement policies based on a workload model

70. 70 Placement of Web Proxies/Replicas Problem formulation [JJK+01,QPV01] How to place a fixed number of proxies/replicas to minimize users’ request latency Factors to consider Spatial distribution of requests Temporal stability of requests Stability in popularity of objects Stability in spatial distribution of requests

71. 71 Placement of Web Proxies/Replicas (Cont.) Approaches Greedy placement Hot-spot placement Random placement Use of traces Trace-driven simulations High concentration of requests to a small number of objects  focus on replicating only popular objects Temporal stability in requests  no need to frequently change the locations of proxies/replicas

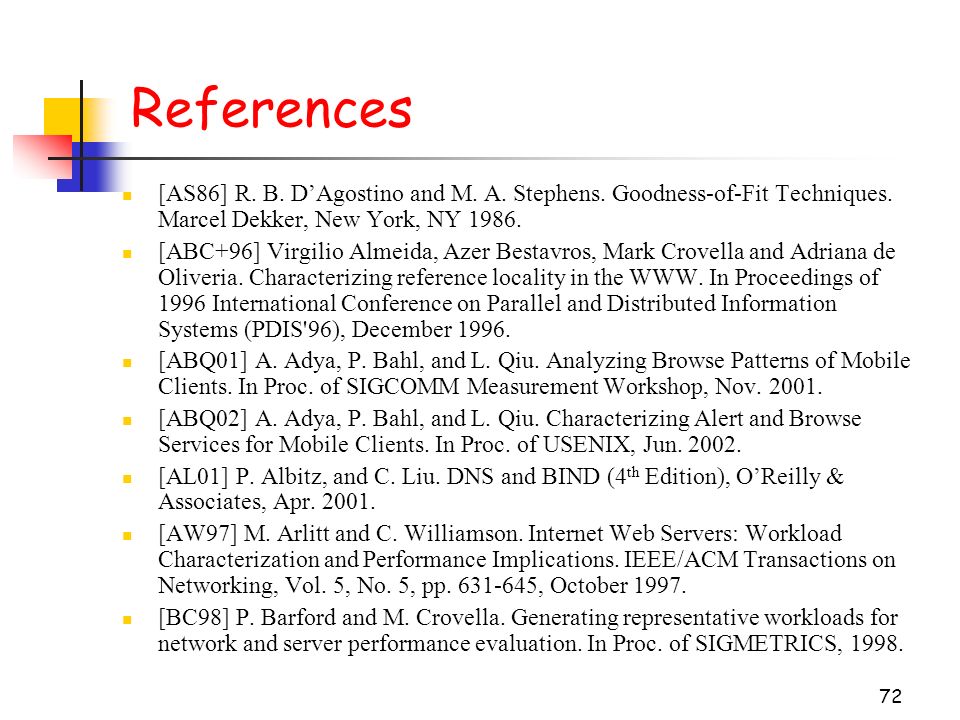

72. 72 References [AS86] R. B. D’Agostino and M. A. Stephens. Goodness-of-Fit Techniques. Marcel Dekker, New York, NY 1986. [ABC+96] Virgilio Almeida, Azer Bestavros, Mark Crovella and Adriana de Oliveria. Characterizing reference locality in the WWW. In Proceedings of 1996 International Conference on Parallel and Distributed Information Systems (PDIS'96), December 1996. [ABQ01] A. Adya, P. Bahl, and L. Qiu. Analyzing Browse Patterns of Mobile Clients. In Proc. of SIGCOMM Measurement Workshop, Nov. 2001. [ABQ02] A. Adya, P. Bahl, and L. Qiu. Characterizing Alert and Browse Services for Mobile Clients. In Proc. of USENIX, Jun. 2002. [AL01] P. Albitz, and C. Liu. DNS and BIND (4 th Edition), O’Reilly & Associates, Apr. 2001. [AW97] M. Arlitt and C. Williamson. Internet Web Servers: Workload Characterization and Performance Implications. IEEE/ACM Transactions on Networking, Vol. 5, No. 5, pp. 631-645, October 1997. [BC98] P. Barford and M. Crovella. Generating representative workloads for network and server performance evaluation. In Proc. of SIGMETRICS, 1998.

73. 73 References (Cont.) [BBC+98] P. Barford, A. Bestavros, M. Crovella, and A. Bradley. Changes in Web Client Access Patterns: Characteristics and Caching Implications, Special Issue on World Wide Web Characterization and Performance Evaluation; World Wide Web Journal, December 1998. [BCF+99] L. Breslau, P. Cao, L. Fan, G. Phillips, and S. Shenker. Web Caching and Zipf-like Distributions: Evidence and Implications. In Proc. of INFOCOM, Mar. 1999. [BC00] P. Barford and M. Crovella. Critical Path Analysis of TCP Transactions. In Proc. of ACM SIGCOMM, Aug. 2000. [BLFF96] T. Berners-Lee, R. Fielding, and H. Frystyk. Hypertext Transfer Protocol -- HTTP/1.0. RFC 1945, May 1996. [BPS+98] H. Balakrishnan, V. N. Padmanabhan, S. Seshan, M. Stemm and R. H. Katz. TCP Behavior of a Busy Internet Server: Analysis and Improvements. In Proc. IEEE Infocom, San Francisco, CA, USA, March 1998. [BSS+97] H. Balakrishnan, S. Seshan, M. Stemm, and R. H. Katz. Analyzing Stability in Wide-Area Network Performance. In Proc. of SIGMETRICS, Jun. 1997.

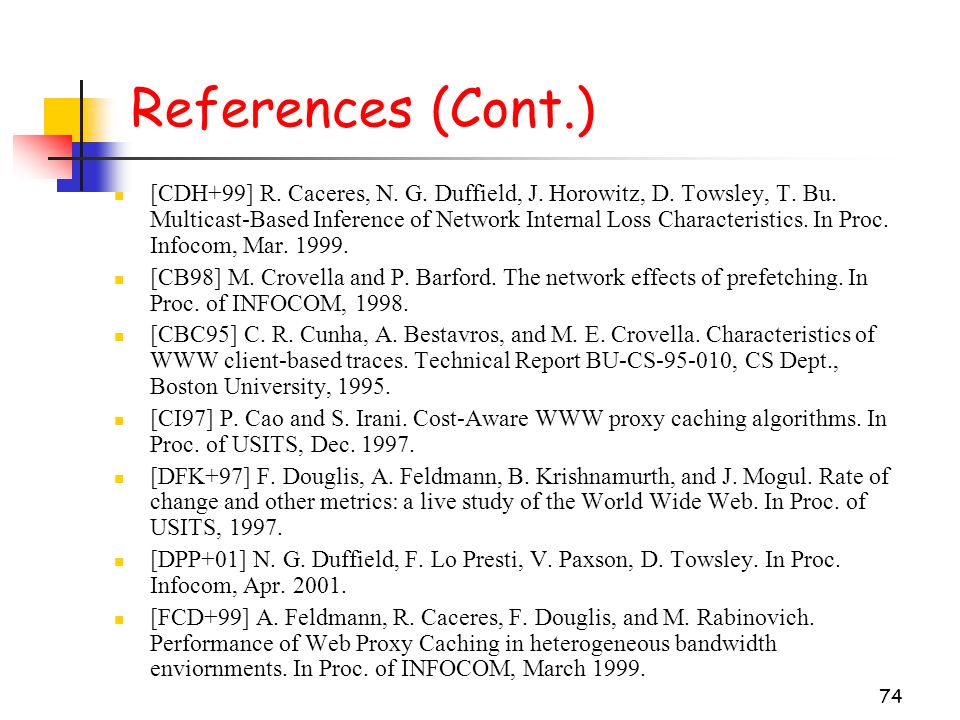

74. 74 References (Cont.) [CDH+99] R. Caceres, N. G. Duffield, J. Horowitz, D. Towsley, T. Bu. Multicast-Based Inference of Network Internal Loss Characteristics. In Proc. Infocom, Mar. 1999. [CB98] M. Crovella and P. Barford. The network effects of prefetching. In Proc. of INFOCOM, 1998. [CBC95] C. R. Cunha, A. Bestavros, and M. E. Crovella. Characteristics of WWW client-based traces. Technical Report BU-CS-95-010, CS Dept., Boston University, 1995. [CI97] P. Cao and S. Irani. Cost-Aware WWW proxy caching algorithms. In Proc. of USITS, Dec. 1997. [DFK+97] F. Douglis, A. Feldmann, B. Krishnamurth, and J. Mogul. Rate of change and other metrics: a live study of the World Wide Web. In Proc. of USITS, 1997. [DPP+01] N. G. Duffield, F. Lo Presti, V. Paxson, D. Towsley. In Proc. Infocom, Apr. 2001. [FCD+99] A. Feldmann, R. Caceres, F. Douglis, and M. Rabinovich. Performance of Web Proxy Caching in heterogeneous bandwidth enviornments. In Proc. of INFOCOM, March 1999.

75. 75 References (Cont.) [FJC+99] L. Fan, Q. Jacobson, P. Cao and W. Lin. Web Prefetching Between Low-Bandwidth Clients and Proxies: Potential and Performance. In Proc. of SIGMETRICS, 1999. [FCT+02] Y. Fu, L. Cherkassova, W. Tang, and A. Vahdat. EtE: Passive End-to- End Internet Service Performance Monitering. In Proc. of USENIX, Jun. 2002. [GMF+99] J. Gettys, J. Mogul, H. Frystyk, L. Masinter, P. Leach, T. Berners- Lee. Hypertext Transfer Protocol – HTTP 1.1. RFC 2616, Jun. 1999. [JK88] V. Jacobson, M. J. Karels. Congestion Avoidance and Control. In Proc. SIGCOMM, Aug. 1988. [JJK+01] S. Jamin, C. Jin, A. R. Kurc, D. Raz, and Y. Shavitt. Constrained Mirror Placement on the Internet. In Proc. of INFOCOM, Apr. 2001. [Jain91] R. Jain. The Art of Computer Systems Performance Analysis. John Wiley and Sons, 1991. [Kel02] T. Kelly. Thin-Client Web Access Patterns: Measurements from a Cache-Busting Proxy. Computer Communications, Vol. 25, No. 4 (March 2002), pages 357-366. [KR01] B. Krishnamurthy and J. Rexford. Web Protocols and Practice, HTTP/1.1, Networking Protocols, Caching, and Traffic Measurement. Addison- Wesley, May 2001.

76. 76 References (Cont.) [LC97] C. Liu and P. Cao. Maintaining Strong Cache Consistency in the World- Wide Web. In Proc. of ICDCS'97, pp. 12-21, May 1997. [LNJV99] Z. Liu, N. Niclausse, and C. Jalpa-Villaneuva. Web Traffic Modeling and Performance Comparison Between HTTP 1.0 and HTTP 1.1. In Erol Gelenbe, editor, System Performance Evaluation: Methodologies and Applications. CRC Press, Aug. 1999. [Mah97] Bruce Mah. An empirical model of HTTP network traffic. In Proc. of INFOCOM, April 1997. [Mogul95] Jeffrey C. Mogul. The Case for Persistent-Connection HTTP. In Proc. SIGCOMM '95, pages 299-313. Cambridge, MA, August, 1995. [MDF+97] J. C. Mogul, F. Douglis, A. Feldmann, and B. Krishnamurthy. Potential benefits of delta-encoding and data compression for HTTP, In Proc. of SIGCOMM, September 1997. [NC01] R. Nowak and M. Coates. Unicast Network Tomography using the EM algorithm. Submitted to IEEE Transactions on Information Theory, Dec. 2001 [Pad95] V. N. Padmanabhan. Improving World Wide Web Latency. Technical Report UCB/CSD-95-875, University of California, Berkeley, May 1995.

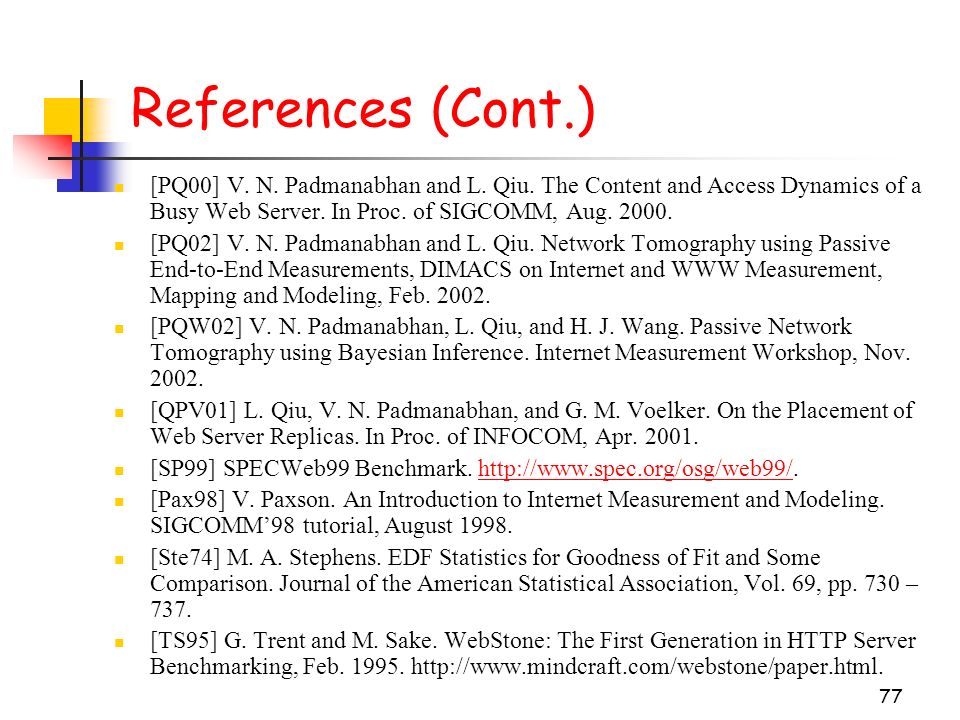

77. 77 References (Cont.) [PQ00] V. N. Padmanabhan and L. Qiu. The Content and Access Dynamics of a Busy Web Server. In Proc. of SIGCOMM, Aug. 2000. [PQ02] V. N. Padmanabhan and L. Qiu. Network Tomography using Passive End-to-End Measurements, DIMACS on Internet and WWW Measurement, Mapping and Modeling, Feb. 2002. [PQW02] V. N. Padmanabhan, L. Qiu, and H. J. Wang. Passive Network Tomography using Bayesian Inference. Internet Measurement Workshop, Nov. 2002. [QPV01] L. Qiu, V. N. Padmanabhan, and G. M. Voelker. On the Placement of Web Server Replicas. In Proc. of INFOCOM, Apr. 2001. [SP99] SPECWeb99 Benchmark. http://www.spec.org/osg/web99/.http://www.spec.org/osg/web99/ [Pax98] V. Paxson. An Introduction to Internet Measurement and Modeling. SIGCOMM’98 tutorial, August 1998. [Ste74] M. A. Stephens. EDF Statistics for Goodness of Fit and Some Comparison. Journal of the American Statistical Association, Vol. 69, pp. 730 – 737. [TS95] G. Trent and M. Sake. WebStone: The First Generation in HTTP Server Benchmarking, Feb. 1995. http://www.mindcraft.com/webstone/paper.html.

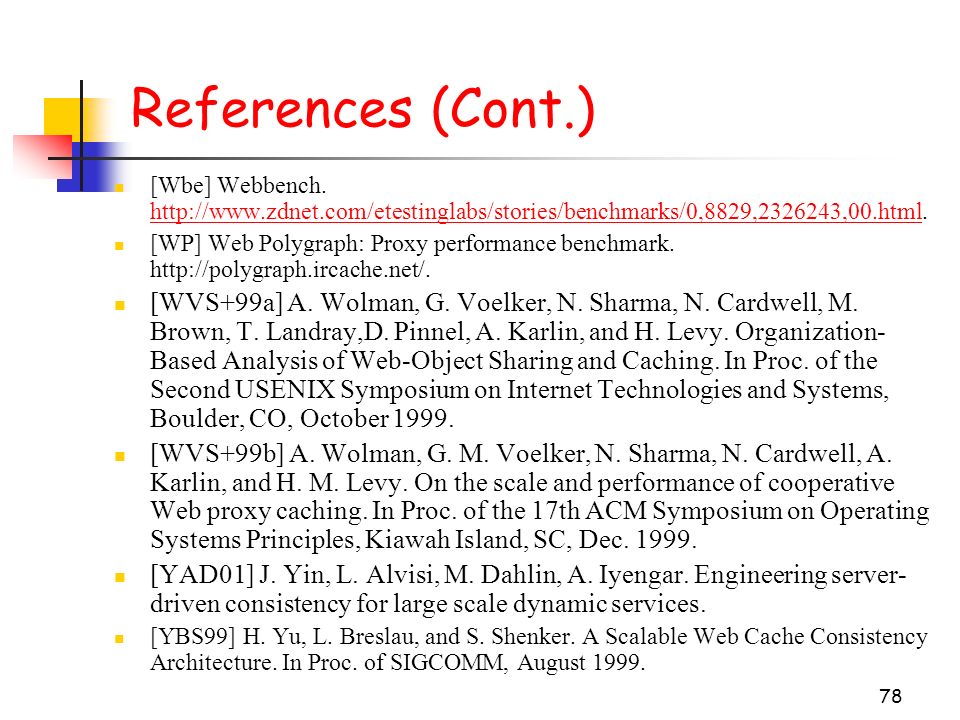

78. 78 References (Cont.) [Wbe] Webbench. http://www.zdnet.com/etestinglabs/stories/benchmarks/0,8829,2326243,00.html. http://www.zdnet.com/etestinglabs/stories/benchmarks/0,8829,2326243,00.html [WP] Web Polygraph: Proxy performance benchmark. http://polygraph.ircache.net/. [WVS+99a] A. Wolman, G. Voelker, N. Sharma, N. Cardwell, M. Brown, T. Landray,D. Pinnel, A. Karlin, and H. Levy. Organization- Based Analysis of Web-Object Sharing and Caching. In Proc. of the Second USENIX Symposium on Internet Technologies and Systems, Boulder, CO, October 1999. [WVS+99b] A. Wolman, G. M. Voelker, N. Sharma, N. Cardwell, A. Karlin, and H. M. Levy. On the scale and performance of cooperative Web proxy caching. In Proc. of the 17th ACM Symposium on Operating Systems Principles, Kiawah Island, SC, Dec. 1999. [YAD01] J. Yin, L. Alvisi, M. Dahlin, A. Iyengar. Engineering server- driven consistency for large scale dynamic services. [YBS99] H. Yu, L. Breslau, and S. Shenker. A Scalable Web Cache Consistency Architecture. In Proc. of SIGCOMM, August 1999.

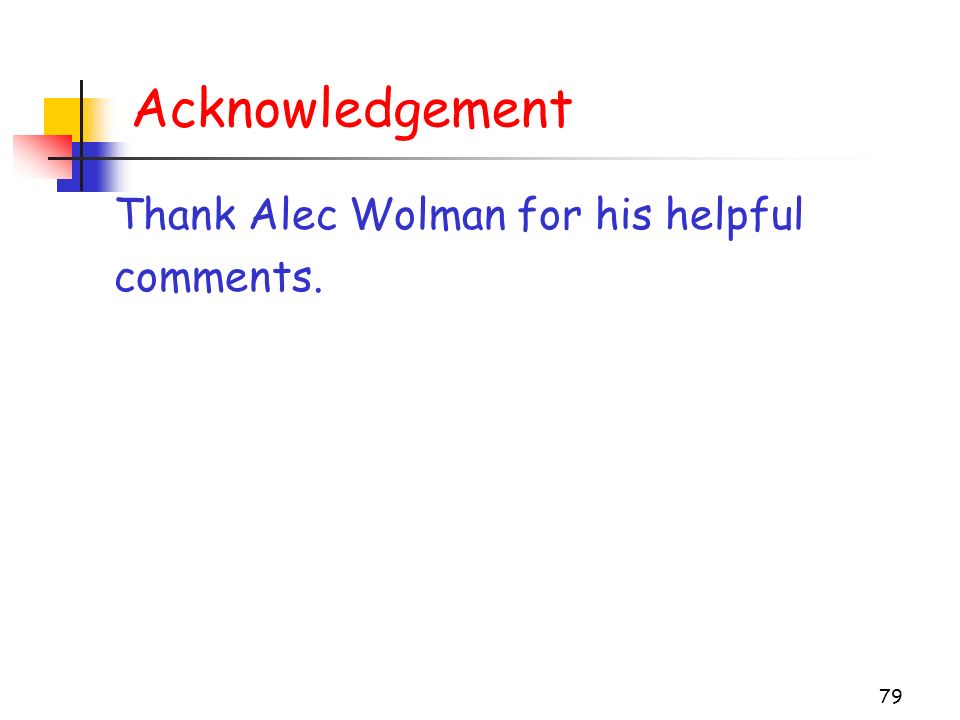

79. 79 Acknowledgement Thank Alec Wolman for his helpful comments.

80. 80 Thank you! http://www.research.microsoft.com/~liliq/talks/internal-web-perf.ppt

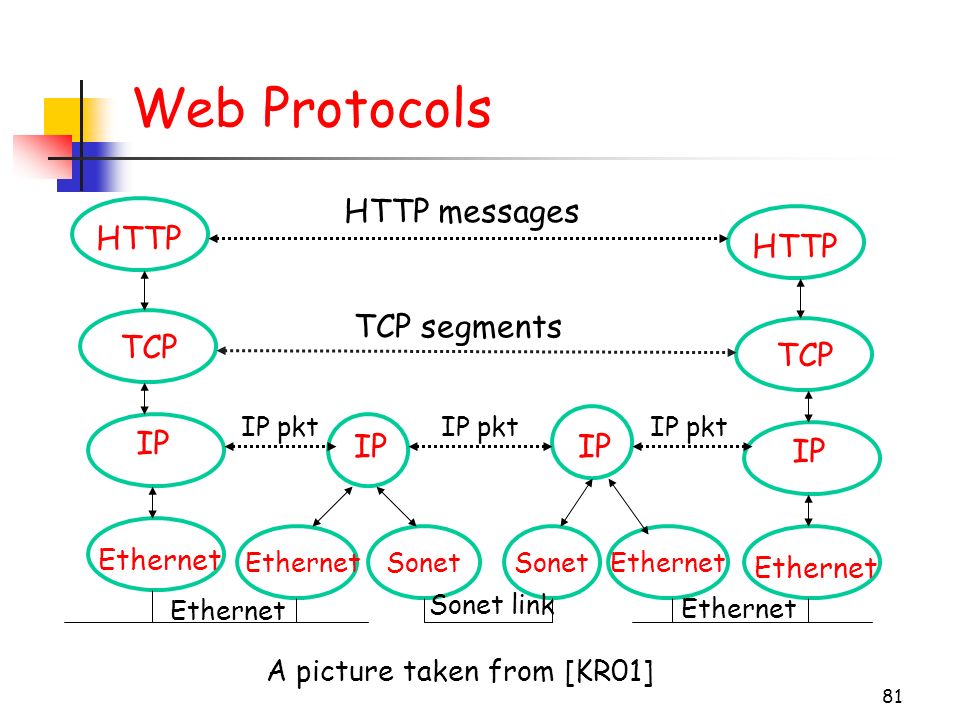

81. 81 Web Protocols HTTP TCP IP Ethernet HTTP TCP IP Ethernet HTTP messages TCP segments A picture taken from [KR01] IP IP pkt EthernetSonet Ethernet IP pkt Sonet link Ethernet

82. 82 #1: Random Sampling Randomly sample the solution space Repeat this several times Draw conclusions based on overall statistics How to do random sampling? determine loss rate bound for each link using best downstream client iterate over all links: pick loss rate at random within bounds update bounds for other links Problem: little tolerance for estimation error l1l1 l8l8 l7l7 l6l6 l2l2 l4l4 l5l5 l3l3 server clients p1p1 p2p2 p3p3 p4p4 p5p5

83. 83 #2: Linear Optimization 1) Convert the constraints into linear constraints using log transform L i = log(1/(1-l i )), P j = log(1/(1-p j )) (1-l 1 )*(1-l 2 )*(1-l 4 ) = (1-p 1 )  L 1 +L 2 +L 4 = P 1 2) Add slack variables to account for errors L 1 +L 2 +L 4 = P 1  L 1 +L 2 +L 4 + S 1 = P 1 minimize w  L i +  |S j | subject to L 1 +L 2 +L 4 + S 1 = P 1 L 1 +L 2 +L 5 + S 2 = P 2 … L 1 +L 3 +L 8 + S 5 = P 5 Goals Parsimonious explanation Robust to error in client loss rate estimate l1l1 l8l8 l7l7 l6l6 l2l2 l4l4 l5l5 l3l3 server clients p1p1 p2p2 p3p3 p4p4 p5p5

84. 84 # 3: Gibbs Sampling D observed packet transmission and loss at the clients  ensemble of loss rates of links in the network Goal determine the posterior distribution P(  |D) Approach Use Markov Chain Monte Carlo with Gibbs sampling to obtain samples from P(  |D) Draw conclusions based on the samples

85. 85 # 3: Gibbs Sampling (Cont.) Applying Gibbs sampling to network tomography 1) Initialize link loss rates arbitrarily 2) For j = 1 : warmup for each link i compute P(l i |D, {l i ’}) where l i is loss rate of link i, and {l i ’} =  k  I l k 3) For j = 1 : realSamples for each link i compute P(l i |D, {l i ’}) Use all the samples obtained at step 3 to approximate P(  |D)

86. 86 Simulation Experiments Advantage: no uncertainty about link loss rate! Methodology Topologies used: randomly-generated: 20 - 3000 nodes, max degree = 5-50 real topology obtained by tracing paths to microsoft.com clients randomly-generated packet loss events at each link A fraction f of the links are good, and the rest are “bad” LM1: good links: 0 – 1%, bad links: 5 – 10% LM2: good links: 0 – 1%, bad links: 1 – 100% Goodness metrics: Coverage: # correctly inferred lossy links False positive: # incorrectly inferred lossy links

87. 87 Random Topologies TechniquesCoverageFalse PositiveComputation RandomHigh Low LPModestLowMedium Gibbs samplingHighLowHigh

88. 88 Trace-driven Validation Validation approach Divide client traces into two: tomography and validation Tomography data set => loss inference Validation set => check if clients downstream of the inferred lossy links experience high loss Experimental setup Real topologies and loss traces collected from traceroute and tcpdump at microsoft.com during Dec. 20, 2000 and Jan. 11, 2002 Results False positive rate is between 5 – 30% Likely candidates for lossy links: links crossing an inter-AS boundary links having a large delay (e.g. transcontinental links) links that terminate at clients

89. 89 Tutorial Outline Background Web Workload Characterization Motivation Data Analyses and fittings Understanding the limitations Content dynamics Access dynamics Case Studies Synthetic workload generation Performance Diagnosis Infer causes of high end-to-end delay in Web transfers Infer causes of high end-to-end loss in Web transfers Applications of traces

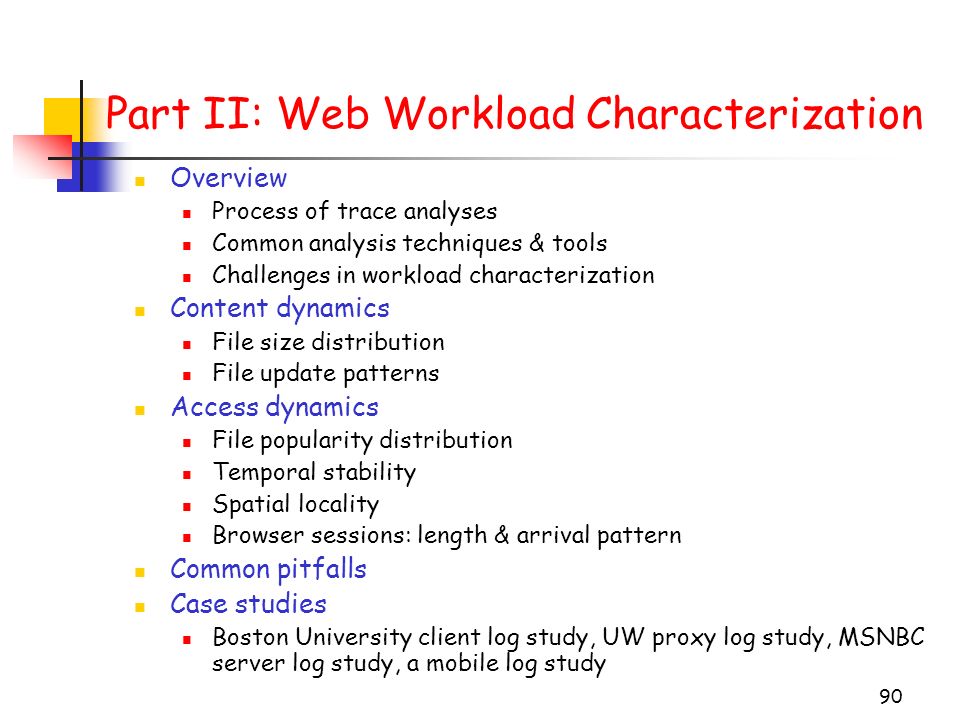

90. 90 Part II: Web Workload Characterization Overview Process of trace analyses Common analysis techniques & tools Challenges in workload characterization Content dynamics File size distribution File update patterns Access dynamics File popularity distribution Temporal stability Spatial locality Browser sessions: length & arrival pattern Common pitfalls Case studies Boston University client log study, UW proxy log study, MSNBC server log study, a mobile log study

91. 91 Cache Consistency Algorithms Problem formulation Factors to consider Approaches Use of traces

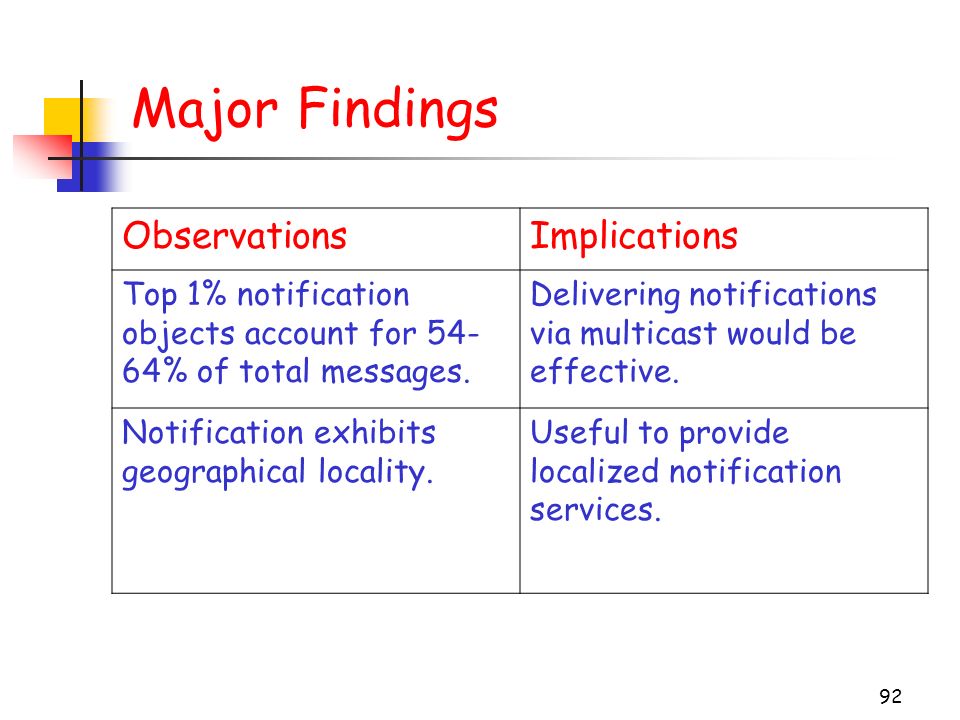

92. 92 Major Findings ObservationsImplications Top 1% notification objects account for 54- 64% of total messages. Delivering notifications via multicast would be effective. Notification exhibits geographical locality. Useful to provide localized notification services.

93. 93 Major Findings (Cont.) ObservationsImplications 0.1% - 0.5% full urls (i.e. 121-442) account for 90% requests. Caching the results of popular queries would be very effective. The set of popular urls remain stable. Cache a stable set of popular query results or optimize query performance based on a stable workload. Limited correlation between users’ browsing and notification pattern. Service providers cannot solely rely on users’ notification profile to predict how much & what they will browse.

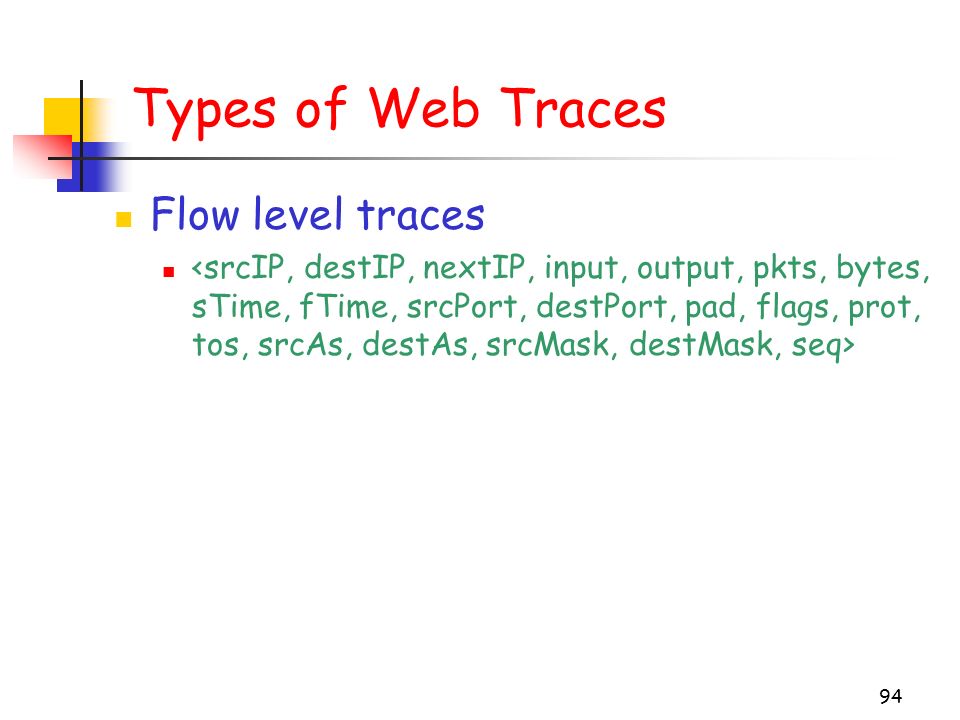

94. 94 Types of Web Traces Flow level traces

95. 95 Views from Clients Capture clients’ requests to all servers Pros Know details of client activities, such as requests satisfied by browser caches, client aborts The ability to record detailed information, as this does not impose significant load on a client browser Cons Need to modify browser software Hard to deploy for a large number of clients

96. 96 Views from Web Servers Capture most clients’ requests (excluding those satisfied by caches) to a single server Pros Relatively easy to deploy/change logging software Cons Requests satisfied by browser & proxy caches will not appear in the logs May not log detailed information to ensure fast processing of client requests

97. 97 Views from Web Proxies Depending on the proxy’s location A proxy close to clients see requests from a a small client group to a large number of servers [KR00] A proxy close to the servers see requests from a large client group to a small number of servers [KR00] Pros See requests from a diverse set of clients to a diverse set of servers, and determine the popularity ranking of different Web sites Useful for studying caching policies Ease of collection Cons Requests satisfied by browser caches will not appear in the logs May not log detailed information to ensure fast processing of requests

98. 98 Web Protocols (Cont.) DNS [AL01] An application layer protocol responsible for translating hostname to IP and vice versa (e.g., msn.com  207.68.172.246) TCP [JK88] A transport layer protocol that does error control and flow control Hypertext Transfer Protocol (HTTP) HTTP 1.0 [BLFF96] The most widely used HTTP version A “Stop and wait” protocol HTTP 1.1 [GMF+99] Adds persistent connections, pipelining, caching, content negotiation, …
