1

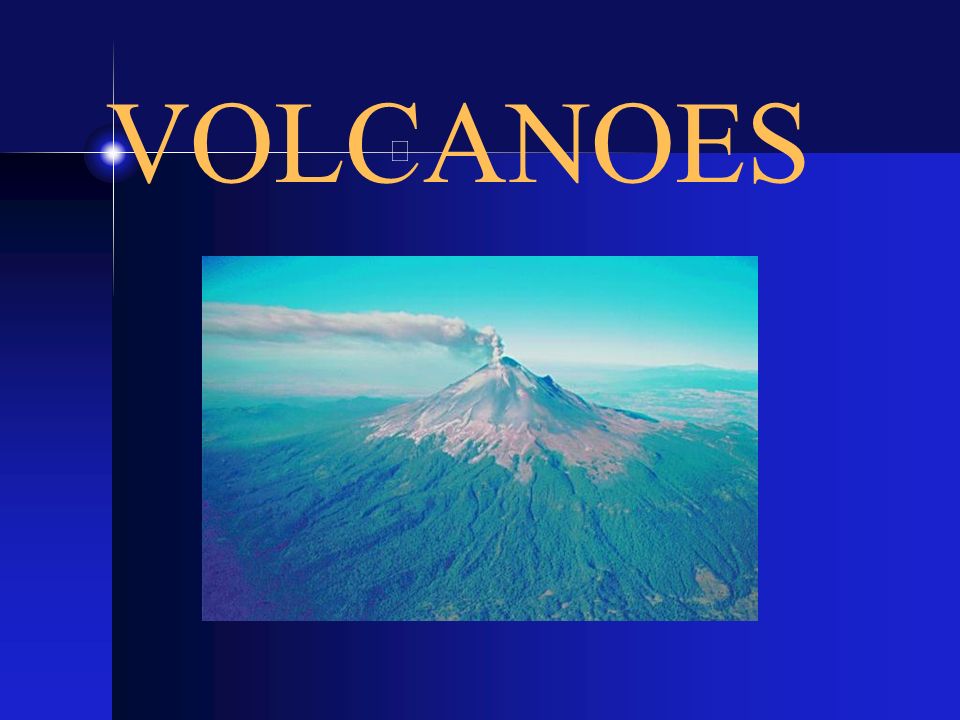

VOLCANOES
2
What is a Volcano? A volcano is a weak spot in the crust where Magma, comes to the surface. Volcanic activity is a constructive force that adds new rock to existing land.
3
Where do volcanoes form? Volcanoes occur mostly along PLATE BOUNDARIES! Ring of Fire Belt of volcanoes that surrounds the Pacific Ocean
4

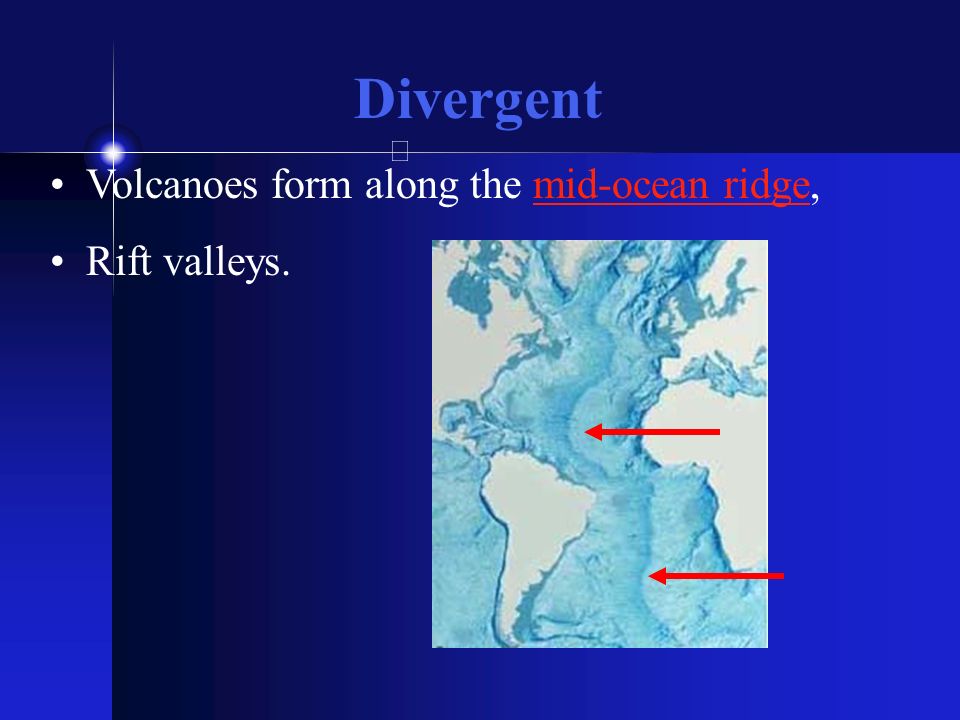

Volcanoes form along the mid-ocean ridge, Rift valleys. Divergent
5
Convergent Volcanoes are also found at convergent boundaries Ocean/Ocean collision Ocean/Continental collision
6
The island of Hawaii is made up of 5 huge volcanoes of which Mauna Loa is the worlds largest mountain by volume, Mauna Kea is the worlds highest mountain measured from base to top (half of it happens to be underwater) and Kilauea which is the worlds most active volcano. Hot Spots
7
PARTS OF A VOLCANO Magma Chamber Where magma collects beneath a volcano. PIPE A long tube in the ground that connects the magma chamber to the surface.
8

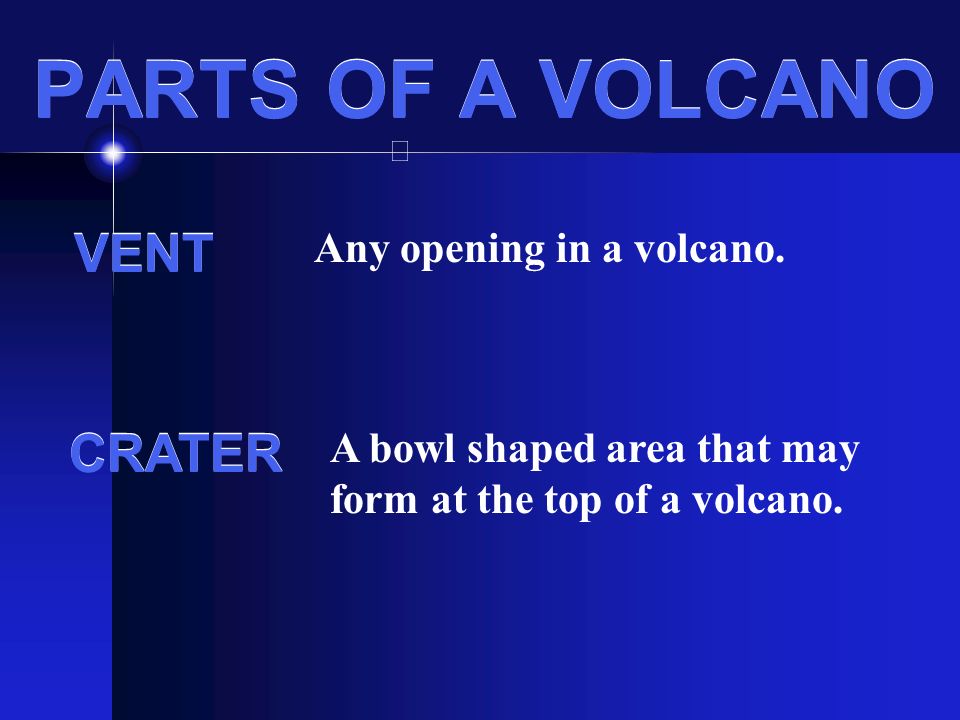

PARTS OF A VOLCANO VENT Any opening in a volcano. CRATER A bowl shaped area that may form at the top of a volcano.
9
PIPE
10
CRATER
11
What are the two types of eruptions? EXPLOSIVE – ash is released QUIET – mostly lava released
12
Explosive
13
Quiet
14
Describe the important factors that affect the force of a volcanic eruption? Dissolved Gases in magma Viscosity (thickness) of magma Temperature of magma Composition of magma (silica content)
15
Factors Affecting Eruptions 10.1 The Nature of Volcanic Eruptions Dissolved gases Mainly water vapor and carbon dioxide Gases expand near the surface Molten rock and gases escape through vents in the volcano
16
Factors Affecting Eruptions 10.1 The Nature of Volcanic Eruptions Viscosity Factors affecting viscosity - Temperature (hotter magmas are less viscous) - Composition (silica content) 1.High silica—high viscosity (rhyolitic lava) 2.Low silica—more fluid (basaltic lava)
17
What is a pyroclastic flow? Pyroclastic flow occurs during an explosive eruption. It is composed of ash, cinders, bombs and gases.
21
LANDFORMS CREATED FROM LAVA SHIELD VOLCANO CINDER CONE VOLCANO COMPOSITE VOLCANO
22
Profiles of Volcano Types
23
Shield Volcanoes Low and broad in shape Have quiet eruptions Produce lava flows Produce very little pyroclastic debris
24
Mauna Loa— located on the big island of Hawaii, is a shield volcano
25
Kilauea
26
Surtsey, Iceland
27
Cinder Cones Small volcano with single vent Produces only explosive eruptions. Has very steep slopes. They often look like an upside-down ice-cream cone.
28
Sunset Crater in Arizona One of the largest cinder cone volcanoes in the United States
30

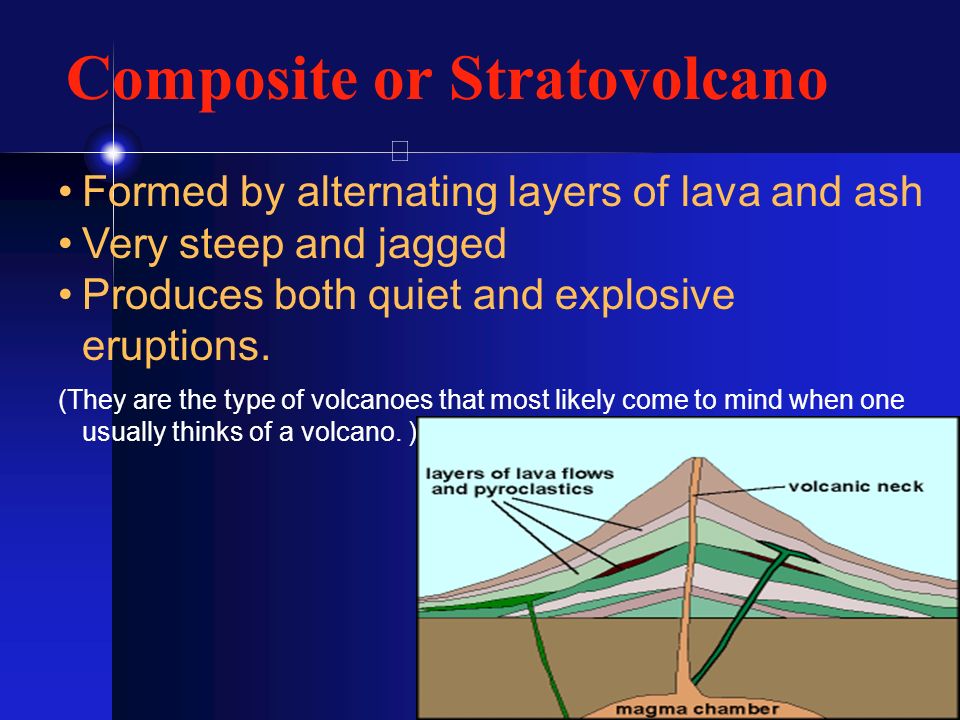

Formed by alternating layers of lava and ash Very steep and jagged Produces both quiet and explosive eruptions. (They are the type of volcanoes that most likely come to mind when one usually thinks of a volcano. ) Composite or Stratovolcano
31
Mt. Fuji, Japan
32
Mt. Rainer Mt. Adams
33
Mt. Rainer
34
Mt. St. Helens before the eruption in 1980.
35
Mount St. Helens: May 19,1982 Before: 9,677ft : After: 8,364 ft. March 2013
36
Mount Hood, Oregon: Elevation 11,239 ft.
37
Mt. Lassen, California
38
Mt. Shasta, California
39

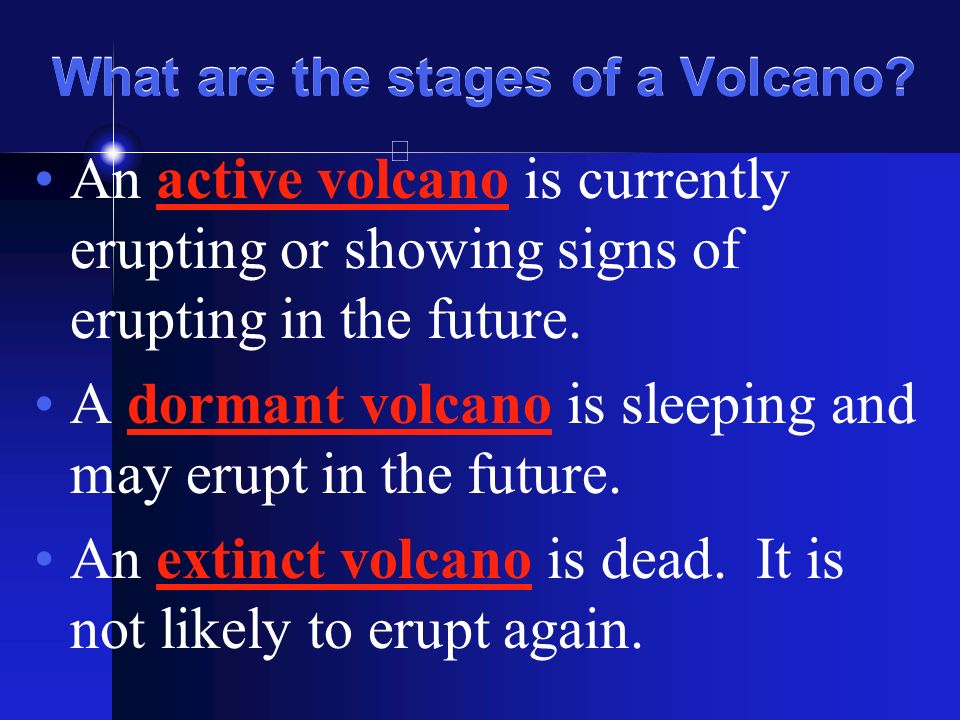

What are the stages of a Volcano? An active volcano is currently erupting or showing signs of erupting in the future. A dormant volcano is sleeping and may erupt in the future. An extinct volcano is dead. It is not likely to erupt again.
40
More LAVA Landforms
41
Calderas Large depressions in volcanoes formed by collapse Nearly circular Size exceeds 100 km in diameter
42

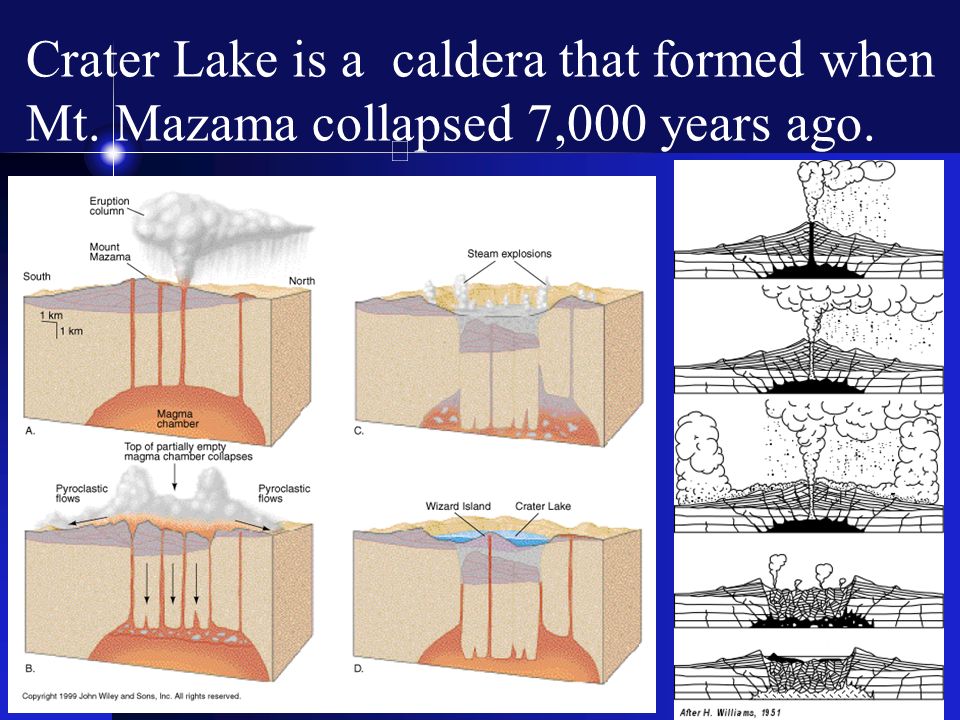

Crater Lake is a caldera that formed when Mt. Mazama collapsed 7,000 years ago.
43
Crater Lake, Oregon
44

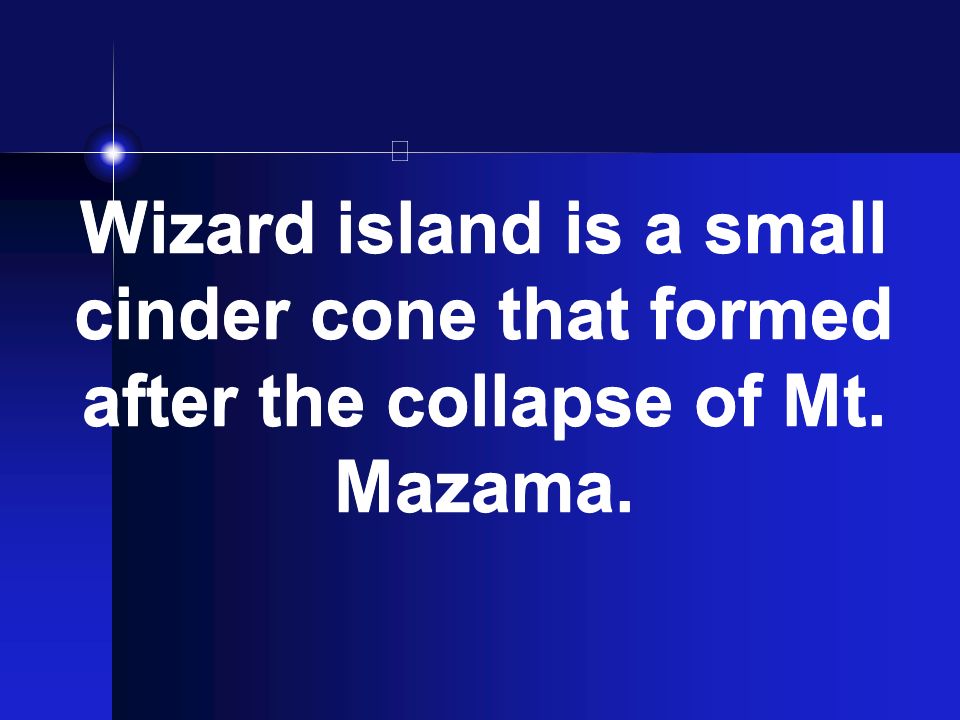

Wizard island is a small cinder cone that formed after the collapse of Mt. Mazama.
45
Wizard Island in Crater Lake
46
Lava Plateaus Fluid basaltic lava extruded from crustal fractures called fissures. Layers and layers of lava build up over millions of years
