1. Visuelle Kodierung Christian B. Mendl Unabhängige Nachwuchsgruppe „Visuelle Kodierung“ am Max-Planck-Institut für Neurobiologie unter Tim Gollisch Unabhängige Nachwuchsgruppe „Visuelle Kodierung“ am Max-Planck-Institut für Neurobiologie unter Tim Gollisch

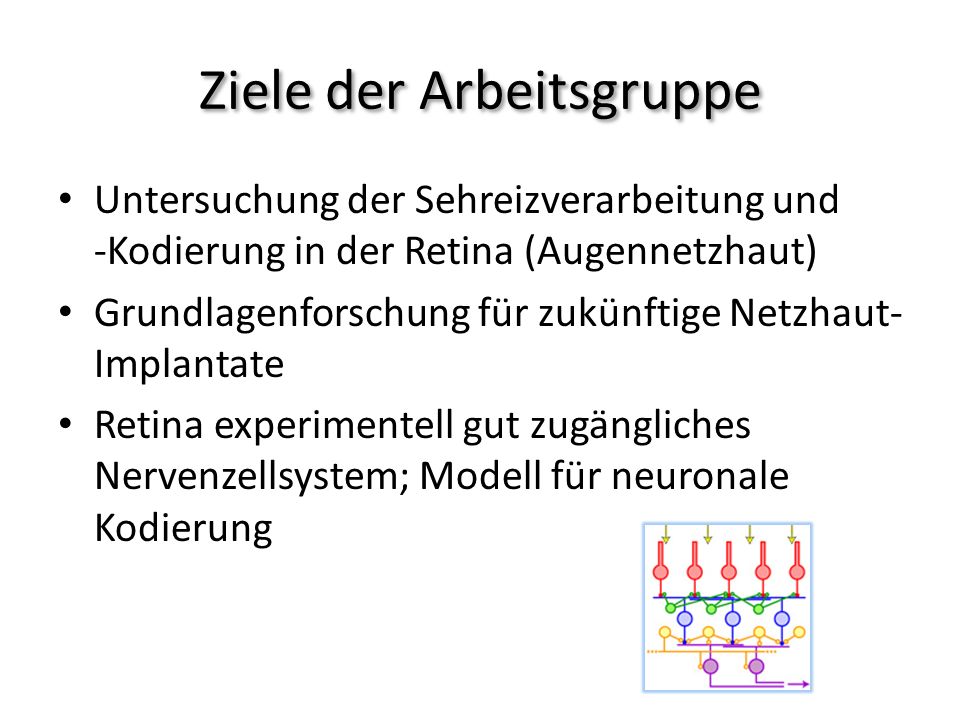

2. Ziele der Arbeitsgruppe Untersuchung der Sehreizverarbeitung und ‐Kodierung in der Retina (Augennetzhaut) Grundlagenforschung für zukünftige Netzhaut- Implantate Retina experimentell gut zugängliches Nervenzellsystem; Modell für neuronale Kodierung

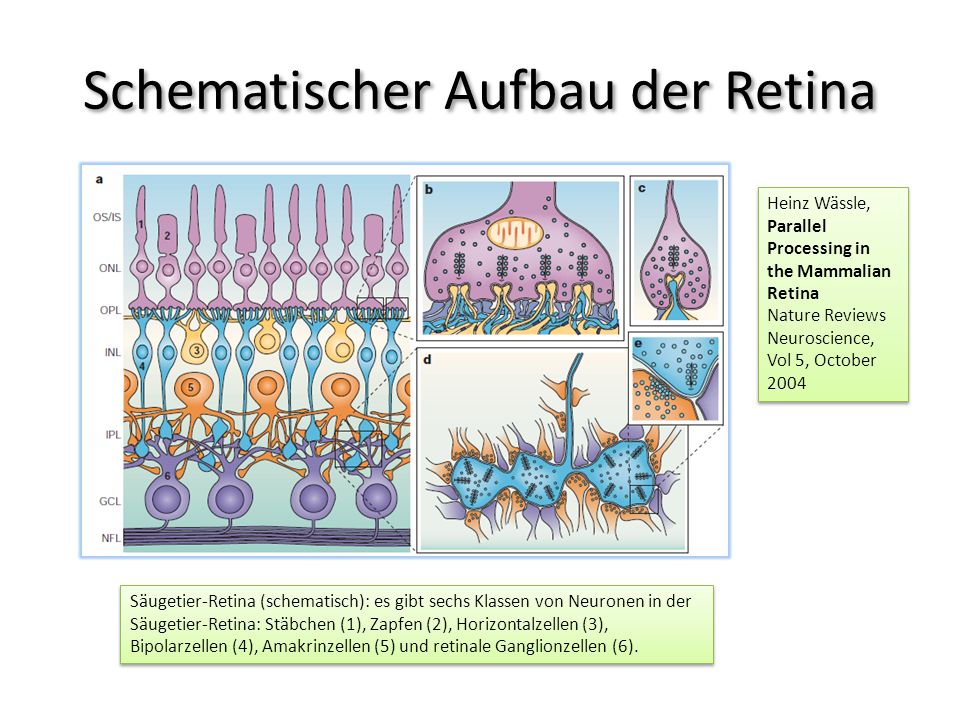

3. Schematischer Aufbau der Retina Säugetier-Retina (schematisch): es gibt sechs Klassen von Neuronen in der Säugetier-Retina: Stäbchen (1), Zapfen (2), Horizontalzellen (3), Bipolarzellen (4), Amakrinzellen (5) und retinale Ganglionzellen (6). Heinz Wässle, Parallel Processing in the Mammalian Retina Nature Reviews Neuroscience, Vol 5, October 2004 Heinz Wässle, Parallel Processing in the Mammalian Retina Nature Reviews Neuroscience, Vol 5, October 2004

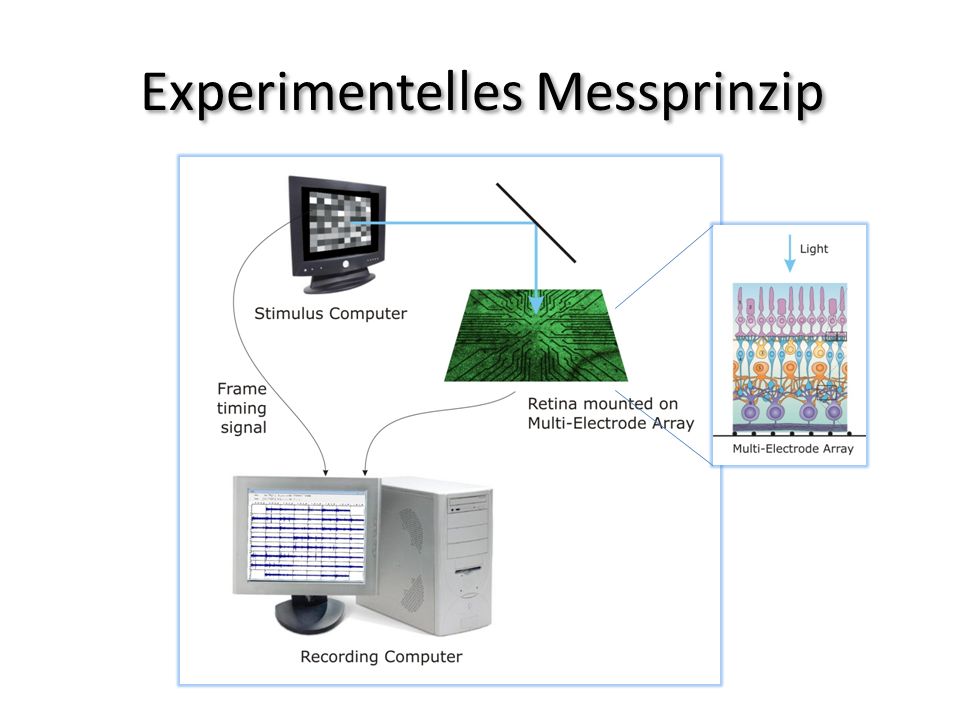

4. Experimentelles Messprinzip

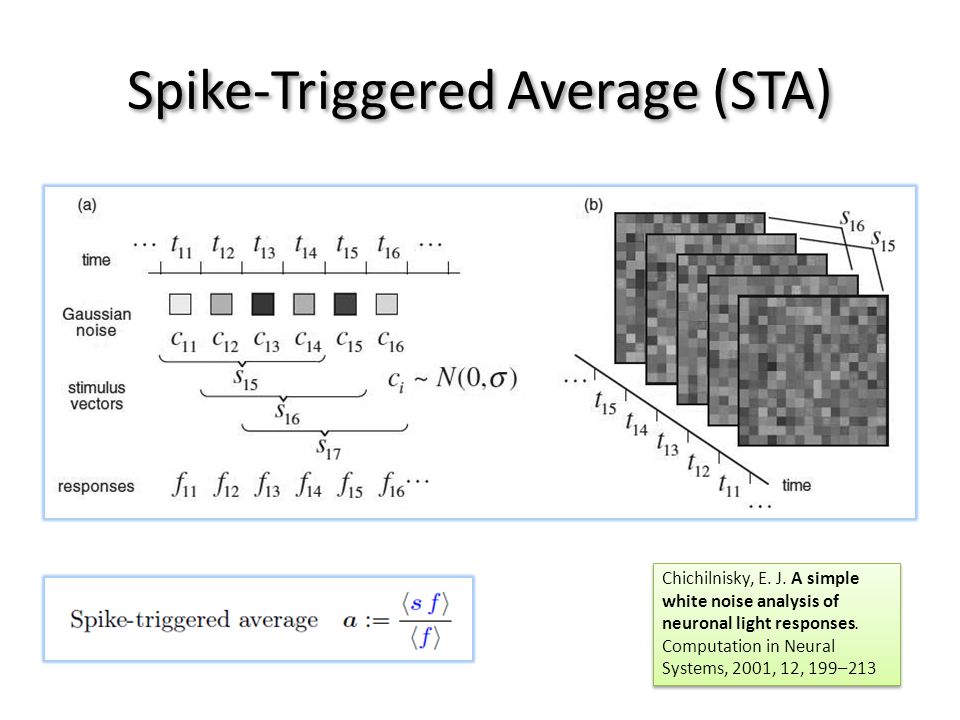

5. Spike-Triggered Average (STA) Chichilnisky, E. J. A simple white noise analysis of neuronal light responses. Computation in Neural Systems, 2001, 12, 199–213

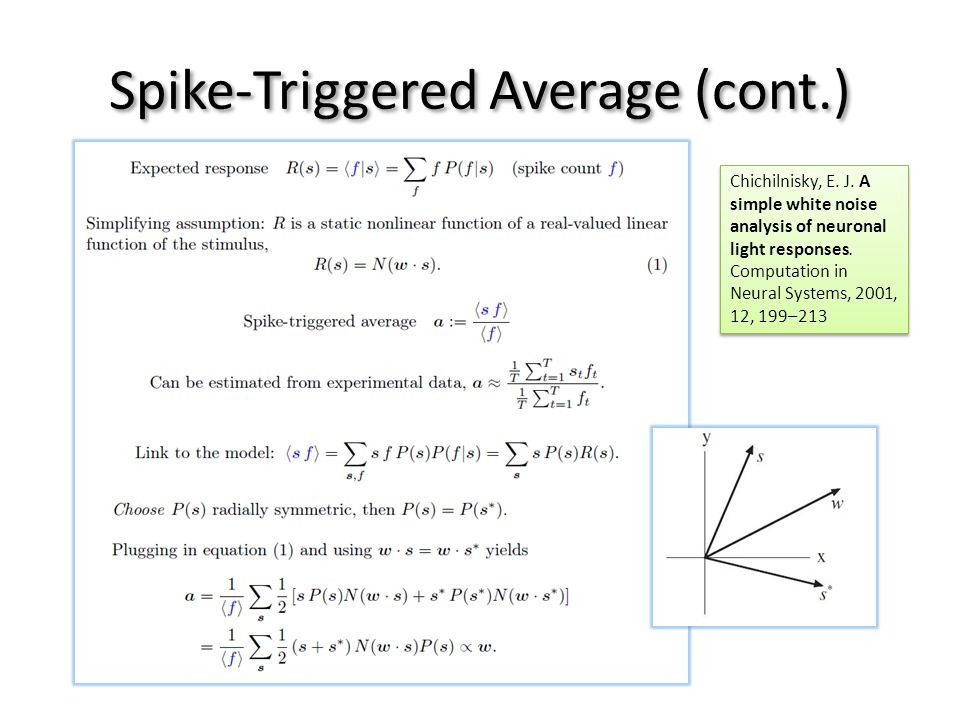

6. Spike-Triggered Average (cont.) Chichilnisky, E. J. A simple white noise analysis of neuronal light responses. Computation in Neural Systems, 2001, 12, 199–213

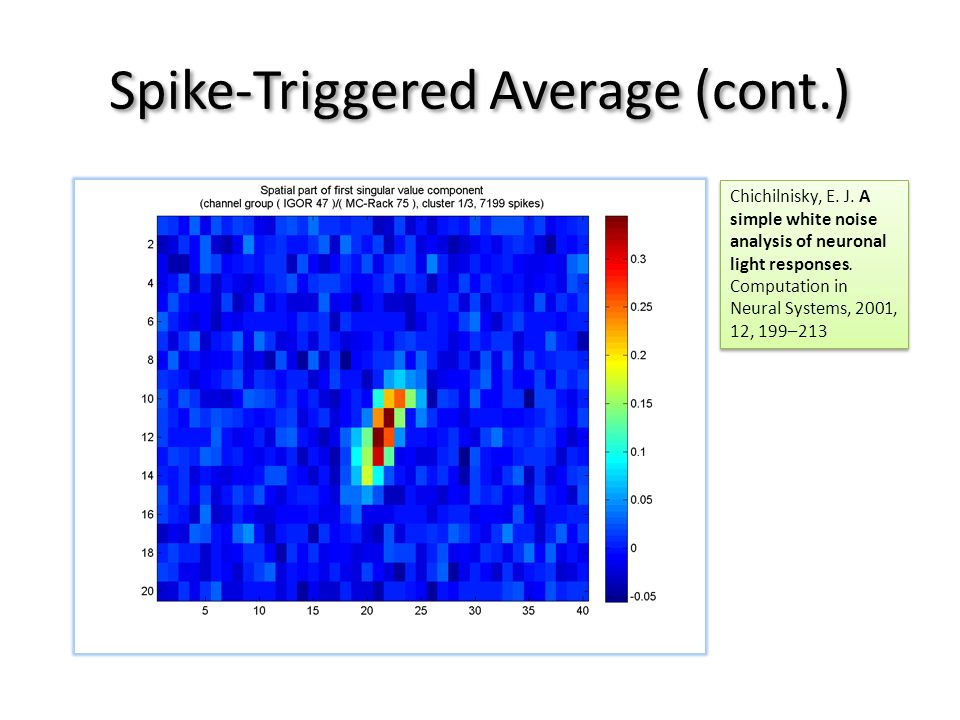

7. Spike-Triggered Average (cont.) Chichilnisky, E. J. A simple white noise analysis of neuronal light responses. Computation in Neural Systems, 2001, 12, 199–213

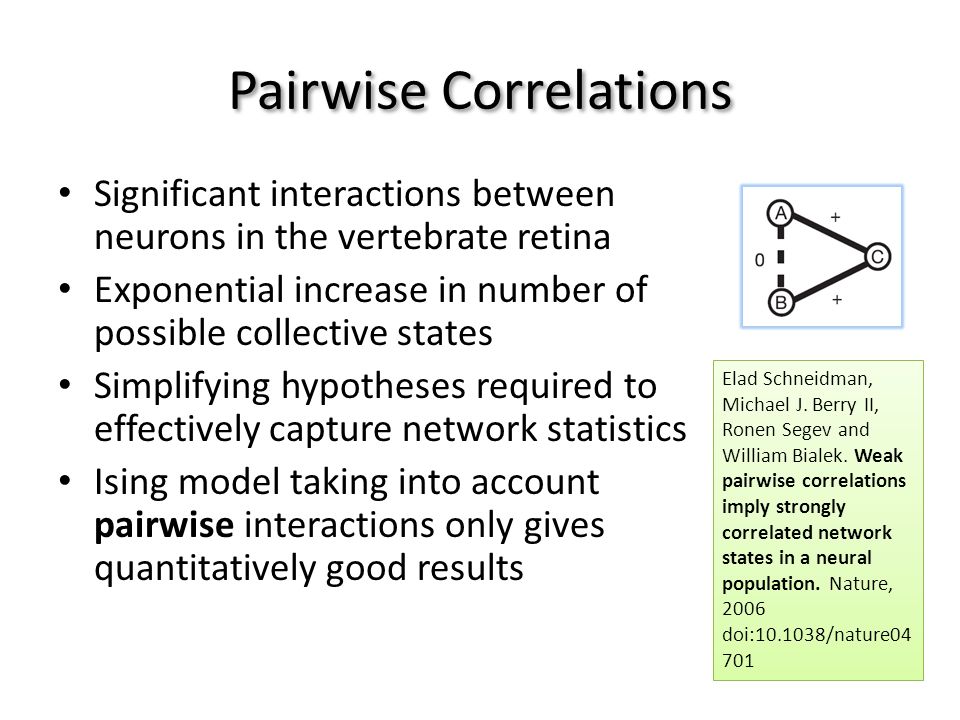

8. Pairwise Correlations Significant interactions between neurons in the vertebrate retina Exponential increase in number of possible collective states Simplifying hypotheses required to effectively capture network statistics Ising model taking into account pairwise interactions only gives quantitatively good results Elad Schneidman, Michael J. Berry II, Ronen Segev and William Bialek. Weak pairwise correlations imply strongly correlated network states in a neural population. Nature, 2006 doi:10.1038/nature04 701

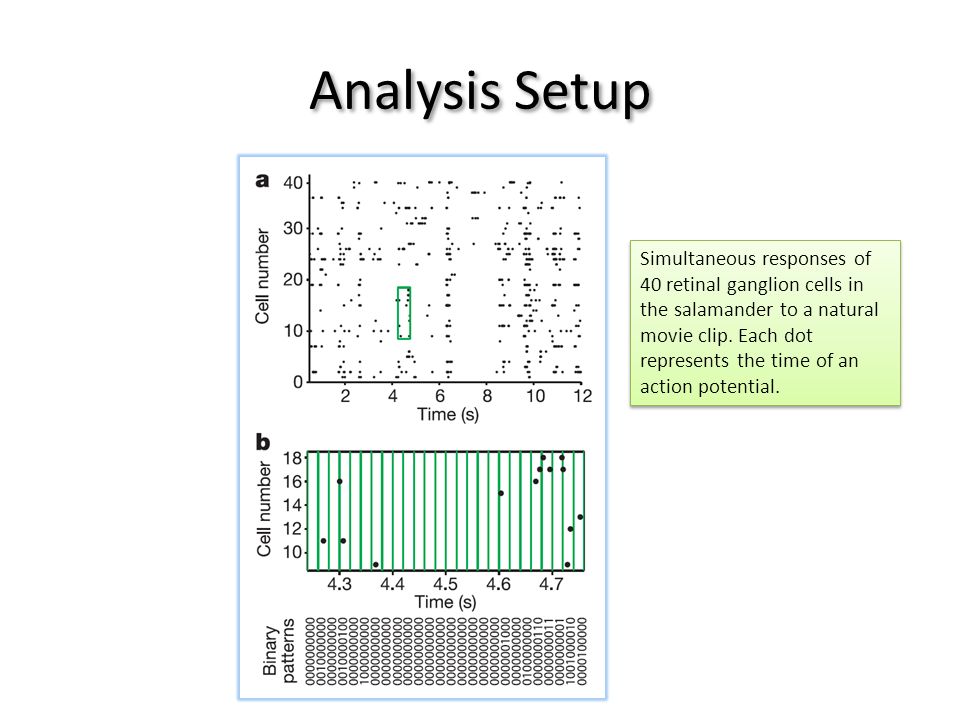

9. Analysis Setup Simultaneous responses of 40 retinal ganglion cells in the salamander to a natural movie clip. Each dot represents the time of an action potential. Simultaneous responses of 40 retinal ganglion cells in the salamander to a natural movie clip. Each dot represents the time of an action potential.

10. Failure of the Independent Approximation Distribution of synchronous events after shuffling each cell’s spike train to eliminate all correlations, compared to the Poisson distribution Occurrence rate predicted if all cells were independent Probability distribution of synchronous spiking events approximates an exponential

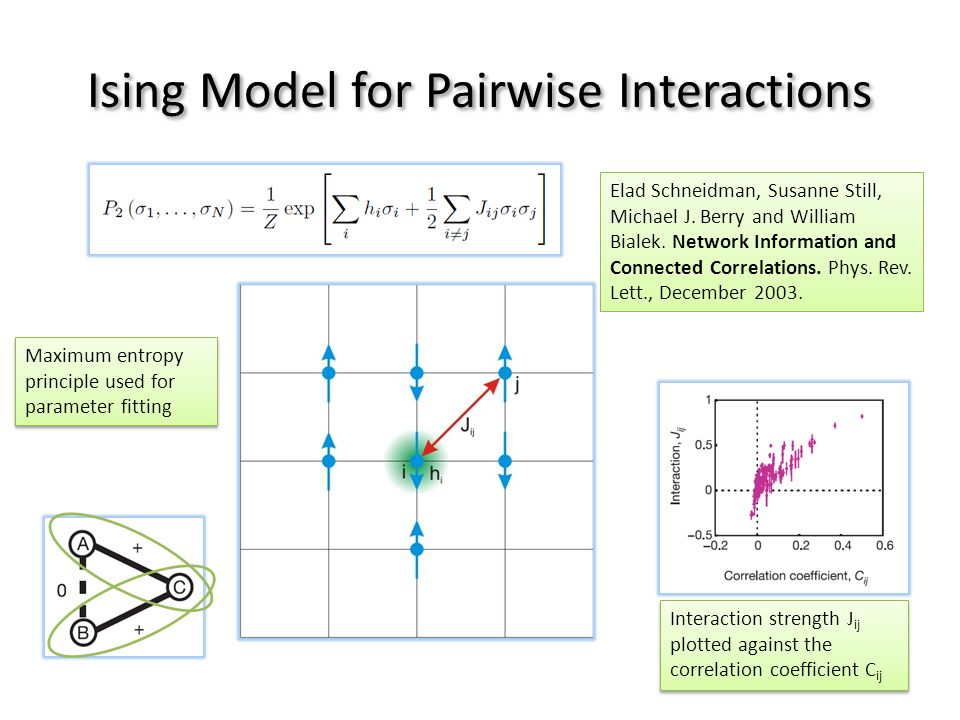

11. Ising Model for Pairwise Interactions Elad Schneidman, Susanne Still, Michael J. Berry and William Bialek. Network Information and Connected Correlations. Phys. Rev. Lett., December 2003. Interaction strength J ij plotted against the correlation coefficient C ij Maximum entropy principle used for parameter fitting

12. Pairwise Interactions Approximation is Quantitatively Sufficient Maximum entropy model taking into account all pairwise correlations Fraction of full network correlation (measured by the multi- information I N ) in 10-cell groups that is captured by the maximum entropy model of second order, I (2) /I N Independent model

13. Interactions and Local Fields in Networks of Different Size a)Density map of effective interaction fields experienced by a single cell versus its own bias or local field b)Mean interactions J ij and local fields h i describing groups of N cells c)Pairwise interaction in a network of 10 cells J ij (10) plotted against the interaction values of the same pair in a subnetwork containing only 5 cells J ij (5) a)Density map of effective interaction fields experienced by a single cell versus its own bias or local field b)Mean interactions J ij and local fields h i describing groups of N cells c)Pairwise interaction in a network of 10 cells J ij (10) plotted against the interaction values of the same pair in a subnetwork containing only 5 cells J ij (5)

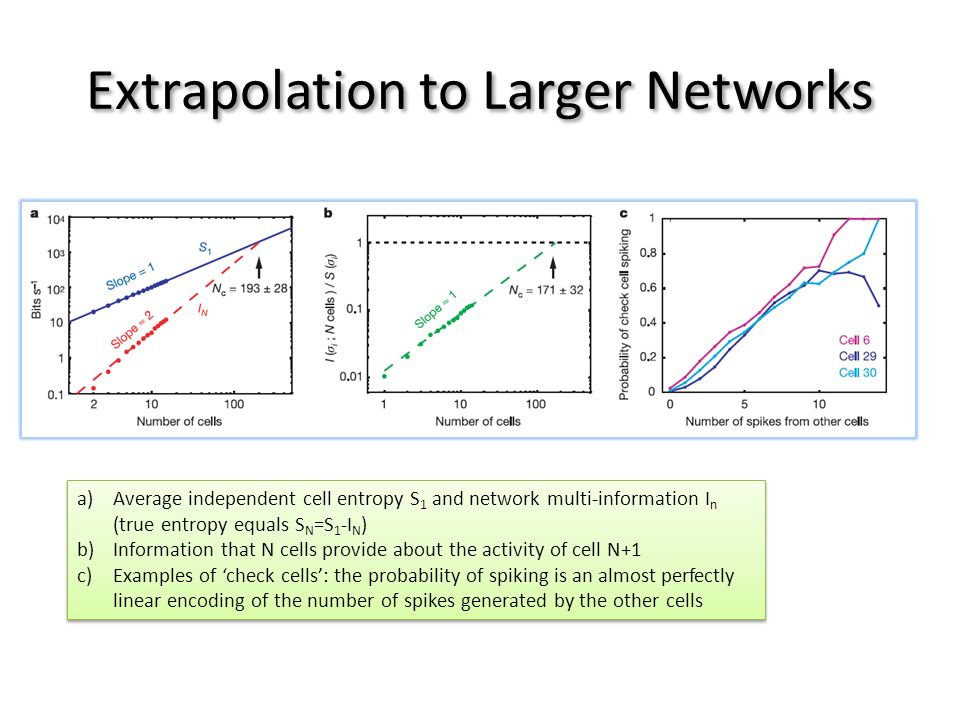

14. Extrapolation to Larger Networks a)Average independent cell entropy S 1 and network multi-information I n (true entropy equals S N =S 1 -I N ) b)Information that N cells provide about the activity of cell N+1 c)Examples of ‘check cells’: the probability of spiking is an almost perfectly linear encoding of the number of spikes generated by the other cells a)Average independent cell entropy S 1 and network multi-information I n (true entropy equals S N =S 1 -I N ) b)Information that N cells provide about the activity of cell N+1 c)Examples of ‘check cells’: the probability of spiking is an almost perfectly linear encoding of the number of spikes generated by the other cells

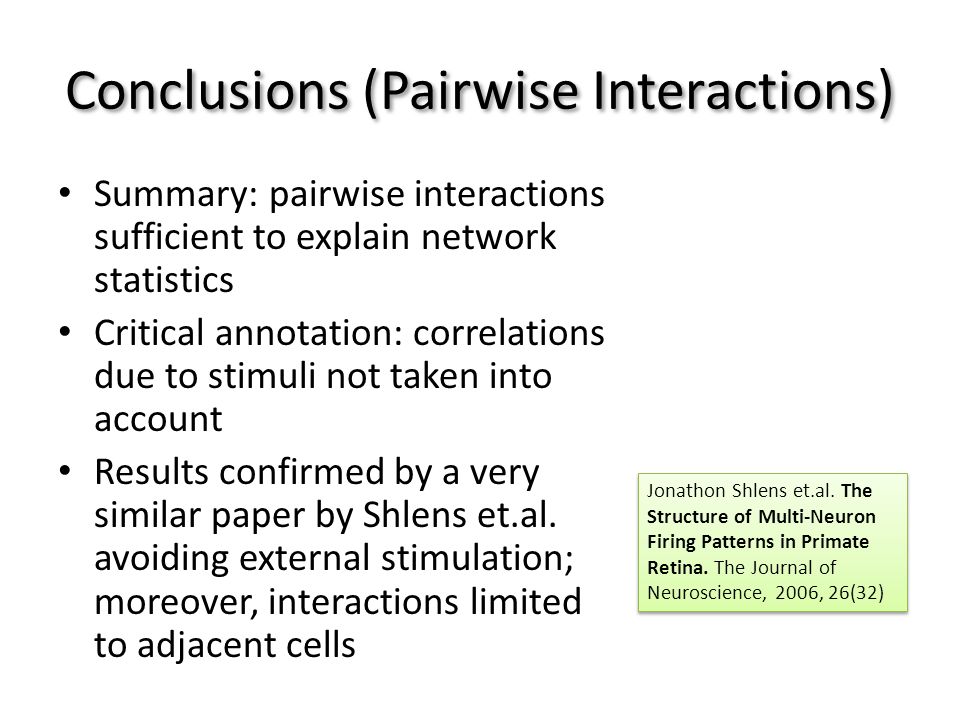

15. Conclusions (Pairwise Interactions) Summary: pairwise interactions sufficient to explain network statistics Critical annotation: correlations due to stimuli not taken into account Results confirmed by a very similar paper by Shlens et.al. avoiding external stimulation; moreover, interactions limited to adjacent cells Jonathon Shlens et.al. The Structure of Multi-Neuron Firing Patterns in Primate Retina. The Journal of Neuroscience, 2006, 26(32)
