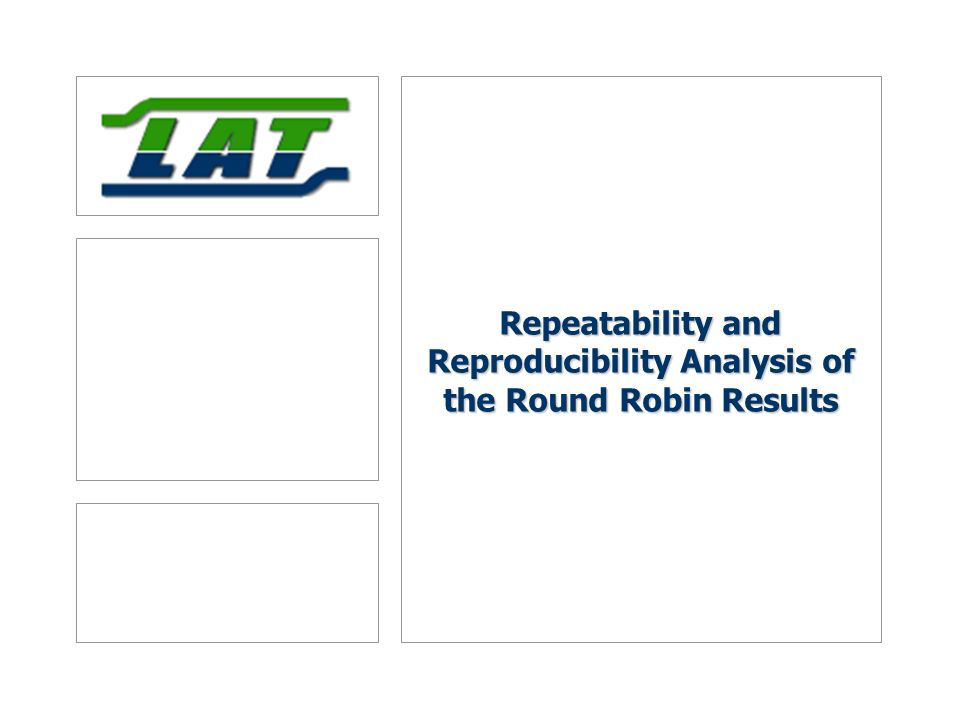

1 Repeatability and Reproducibility Analysis of the Round Robin Results

2 Round Robin Objectives  The familiarization of the participating laboratories within the project with the specific sampling system use (“particulates” system)  The examination of the consistency of the results obtained when applying this methodology in different physical environments

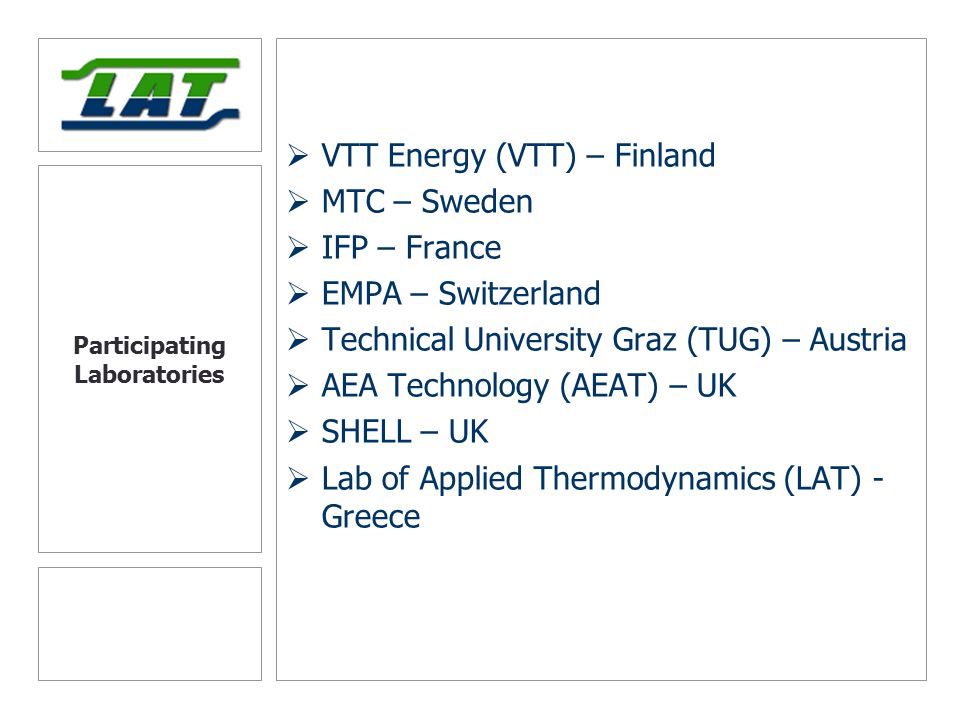

3 Participating Laboratories  VTT Energy (VTT) – Finland  MTC – Sweden  IFP – France  EMPA – Switzerland  Technical University Graz (TUG) – Austria  AEA Technology (AEAT) – UK  SHELL – UK  Lab of Applied Thermodynamics (LAT) - Greece

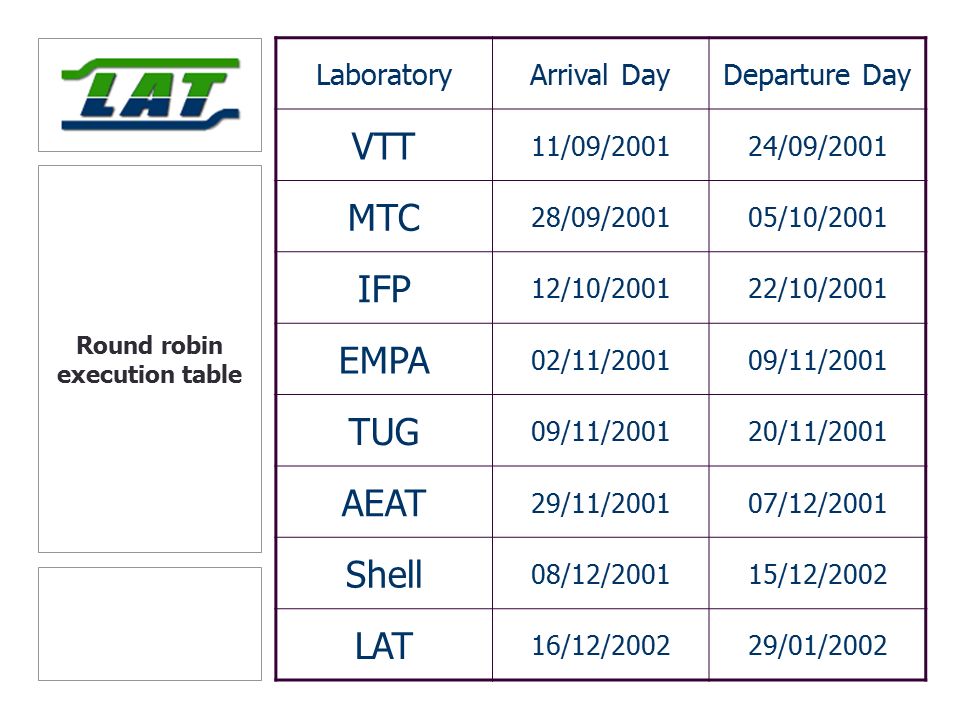

4 Round robin execution table LaboratoryArrival DayDeparture Day VTT 11/09/200124/09/2001 MTC 28/09/200105/10/2001 IFP 12/10/200122/10/2001 EMPA 02/11/200109/11/2001 TUG 09/11/200120/11/2001 AEAT 29/11/200107/12/2001 Shell 08/12/200115/12/2002 LAT 16/12/200229/01/2002

5 Test Vehicle  VW Golf TDI 1.9 l, M Y 1996 with the oxidation catalyst removed  Fuel: Fulfilling the specification EN590 (Year 2000 specs)  Lubricant: BP Vanellus C4 multi SAE 20W – 50 grade (pre aged for 874 km)

6 Instrumentation  Primary Porous Diluter  TYLAN MFC 2920 dilution air mass flow controller  Ageing Chamber  Thermodenuder  Dekati’s Electrical Low Pressure Impactor (ELPI) & ELPI Filter Stage  Vacuum Pump  2 Ejector dilutors  Dekati’s Diffusion Charger (DDC)  TSI’s 3022 Condensation Particle Counter (CPC)  Dekati’s Gravimetric Cascade Impactor (DGI)

7 Testing  Transient Cycles:  NEDC  Artemis Road  Steady State Modes:  50 km/h  120 km/h (road loads)

8 Properties measured in round robin  Particulates System  Mass emission rate (mg/km) [DGI]  Active surface (cm 2 /cm 3 ) [DDC]  Number Concentration (cm -3 ) [ELPI stages 1 to 8]  Number Concentration (cm -3 ) [ELPI end filter stage]  Mean aerodynamic diameter (nm)  Number concentration (cm -3 ) [CPC]  Total number concentration (cm -3 ) – mean & median mobility diameters [SMPS]  Regulated emissions:  NO x  CO 2  CO  HC  PM

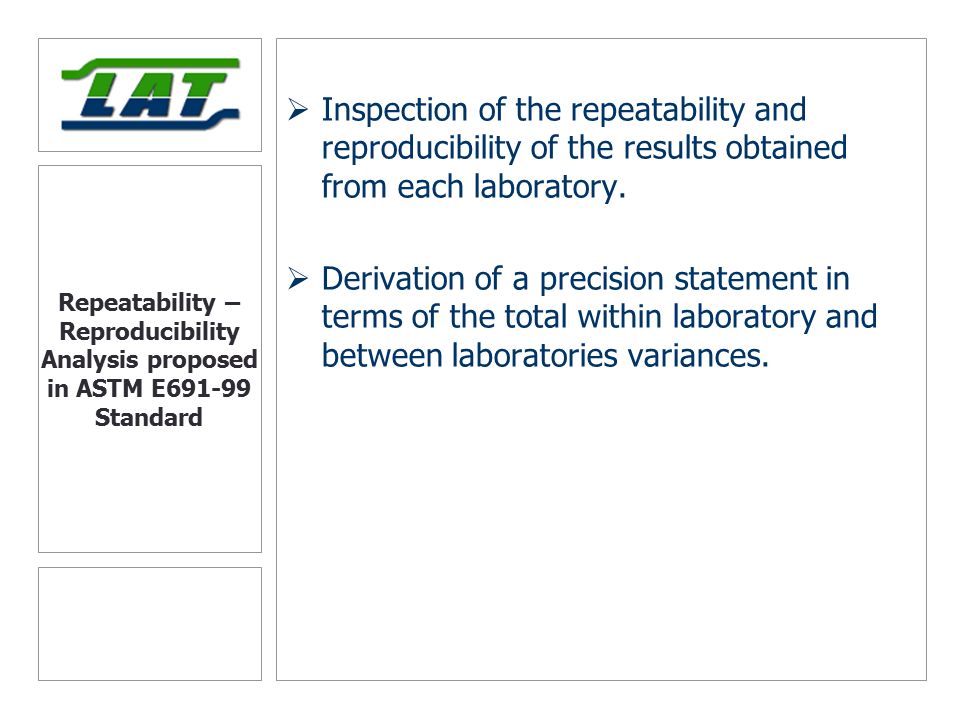

9 Repeatability – Reproducibility Analysis proposed in ASTM E691-99 Standard  Inspection of the repeatability and reproducibility of the results obtained from each laboratory.  Derivation of a precision statement in terms of the total within laboratory and between laboratories variances.

10 Factors affecting the outcome of a test method  The equipment used  The calibration of the equipment  The operators using the equipment  The environmental conditions

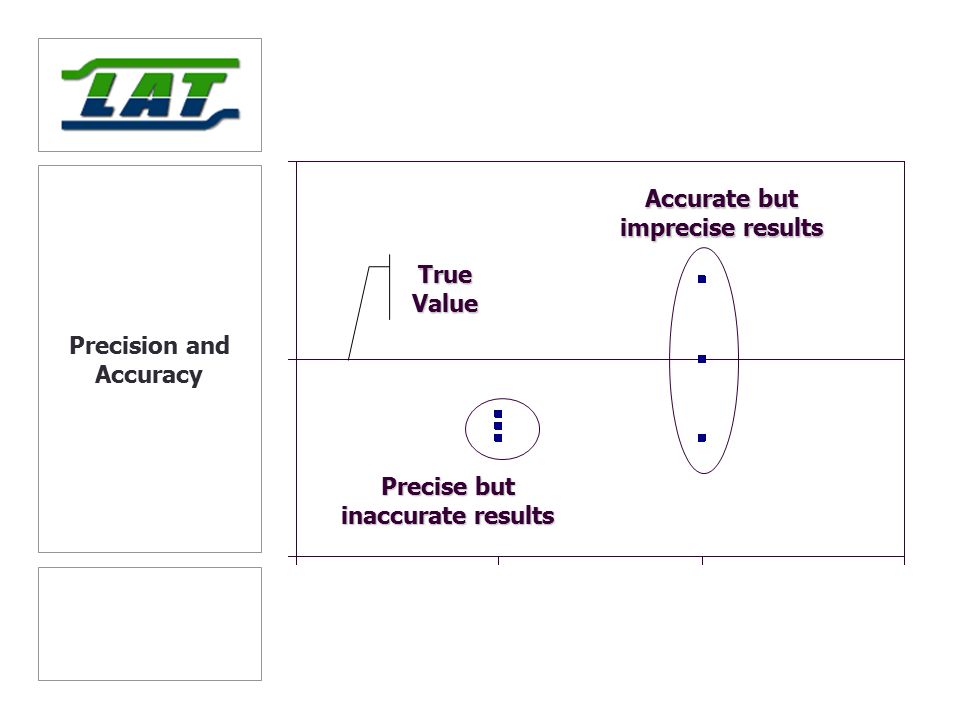

11 Precision and Accuracy Accurate but imprecise results True Value Precise but inaccurate results

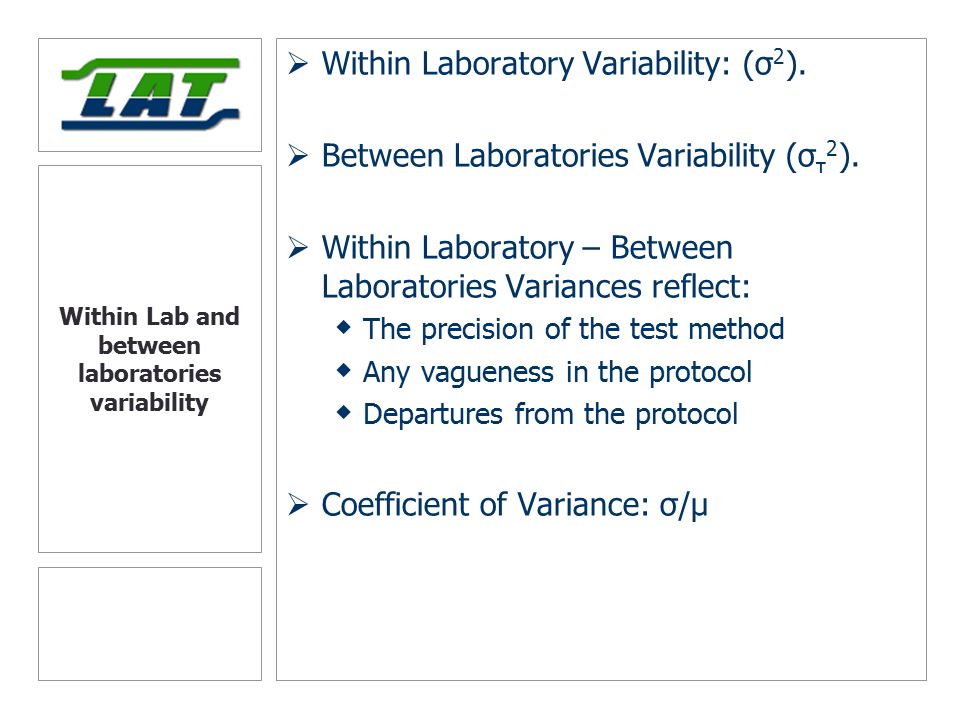

12 Within Lab and between laboratories variability  Within Laboratory Variability: (σ 2 ).  Between Laboratories Variability (σ τ 2 ).  Within Laboratory – Between Laboratories Variances reflect:  The precision of the test method  Any vagueness in the protocol  Departures from the protocol  Coefficient of Variance: σ/μ

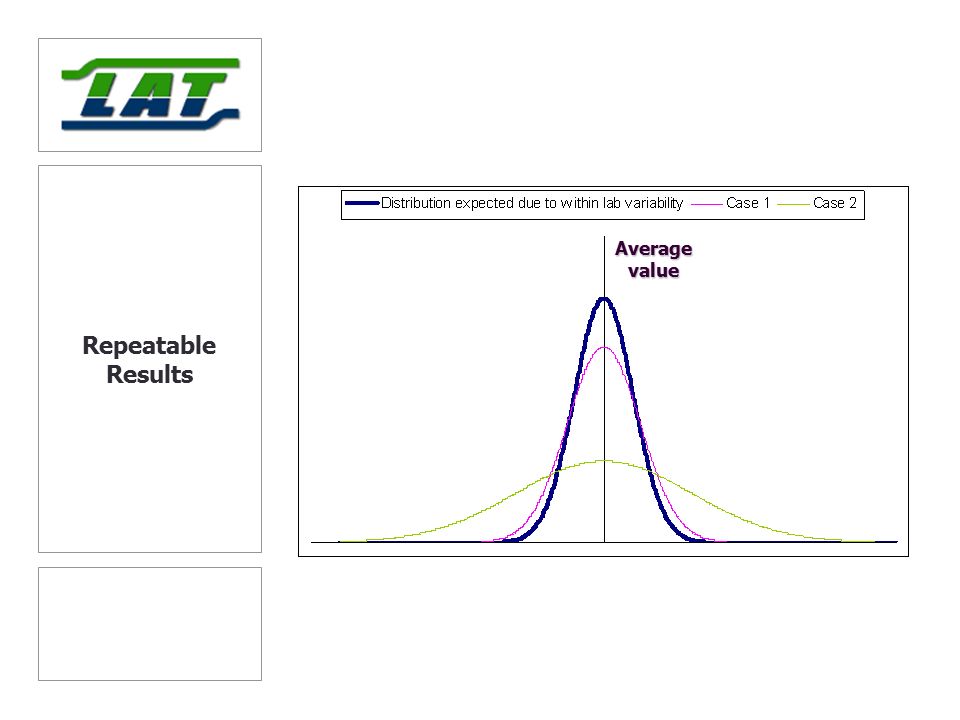

13 Repeatable Results Average value

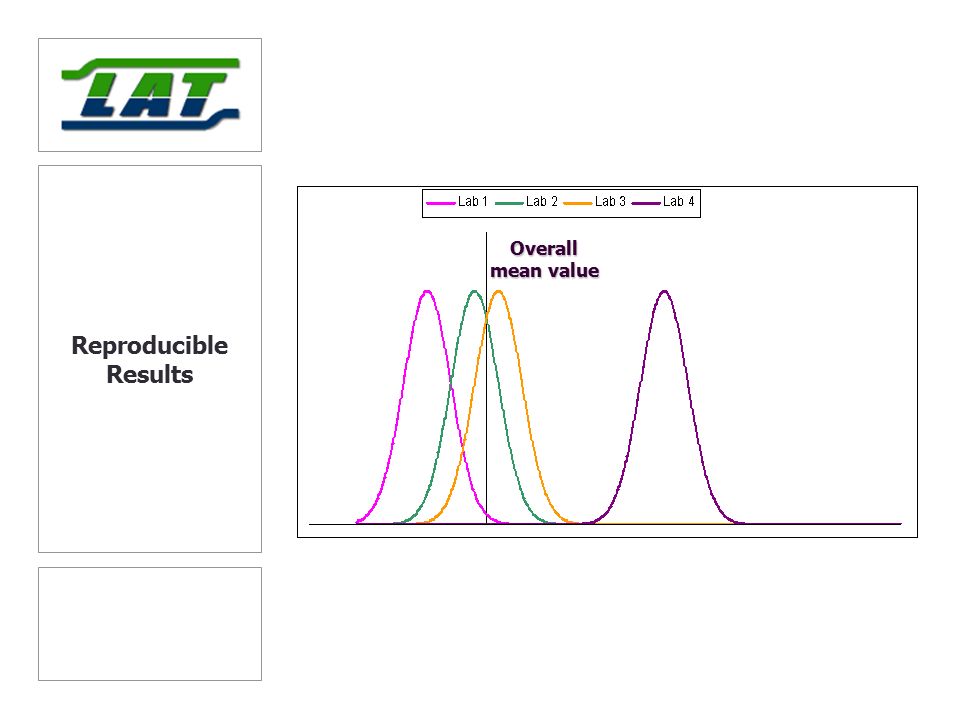

14 Reproducible Results Overall mean value

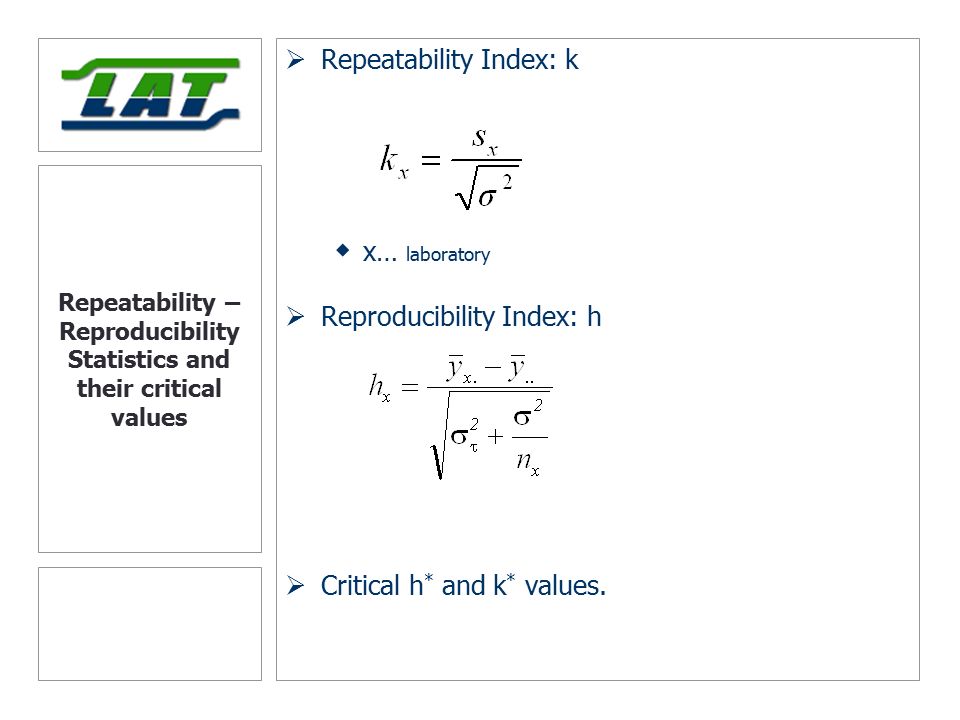

15 Repeatability – Reproducibility Statistics and their critical values  Repeatability Index: k  x… laboratory  Reproducibility Index: h  Critical h * and k * values.

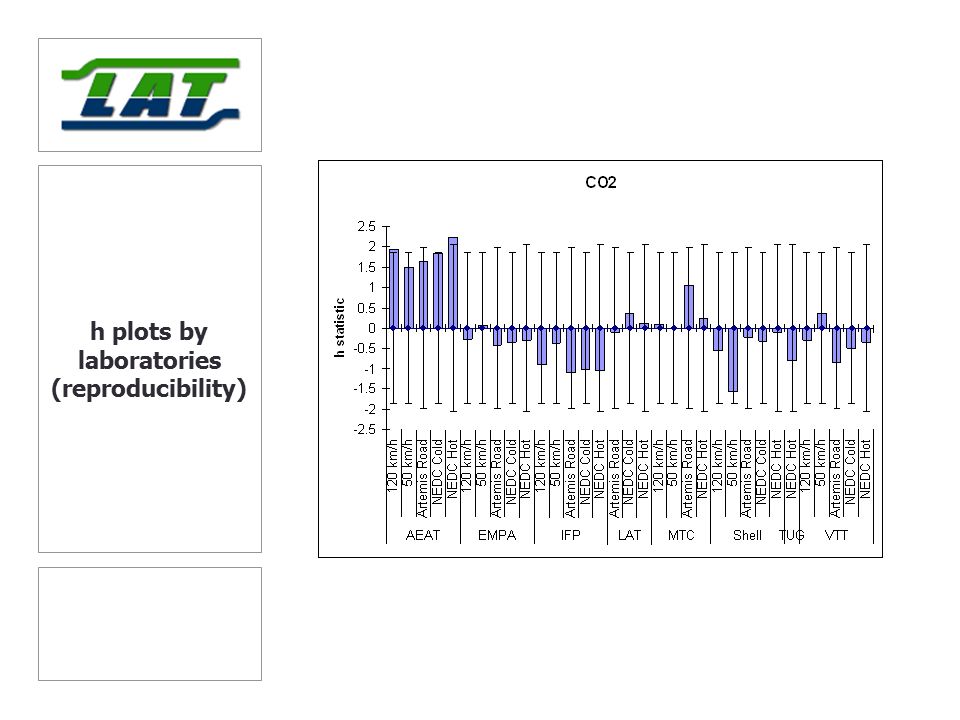

16 h plots by laboratories (reproducibility)

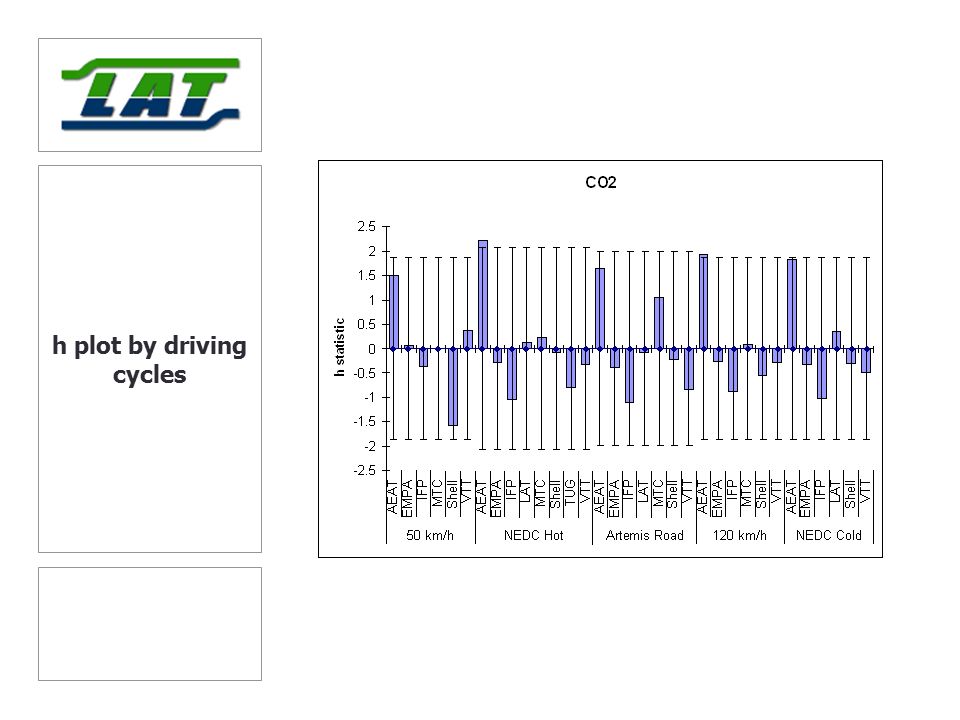

17 h plot by driving cycles

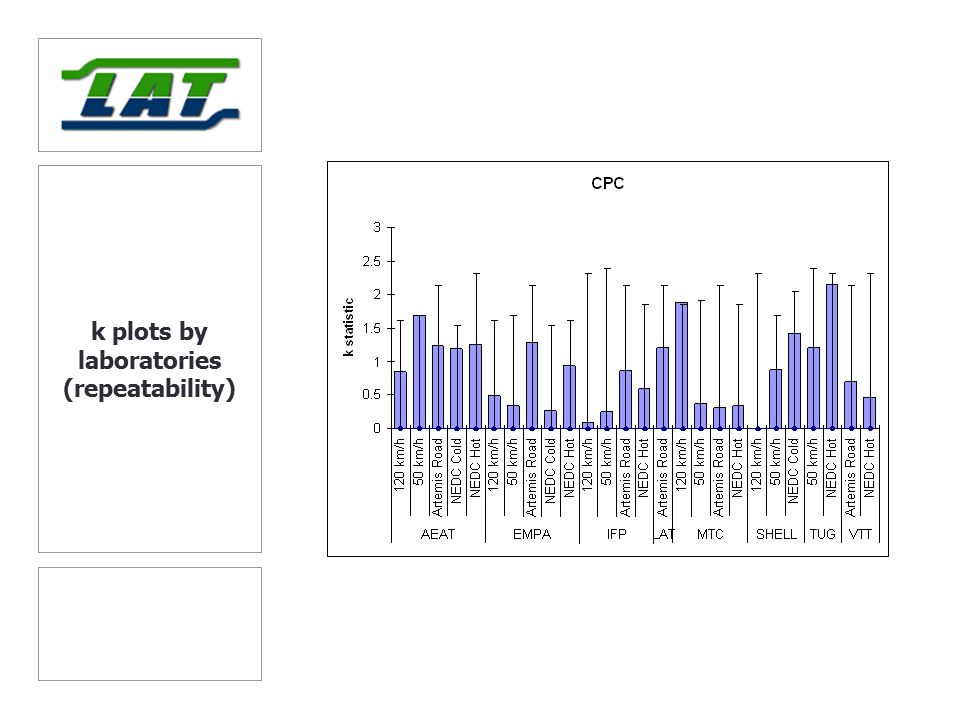

18 k plots by laboratories (repeatability)

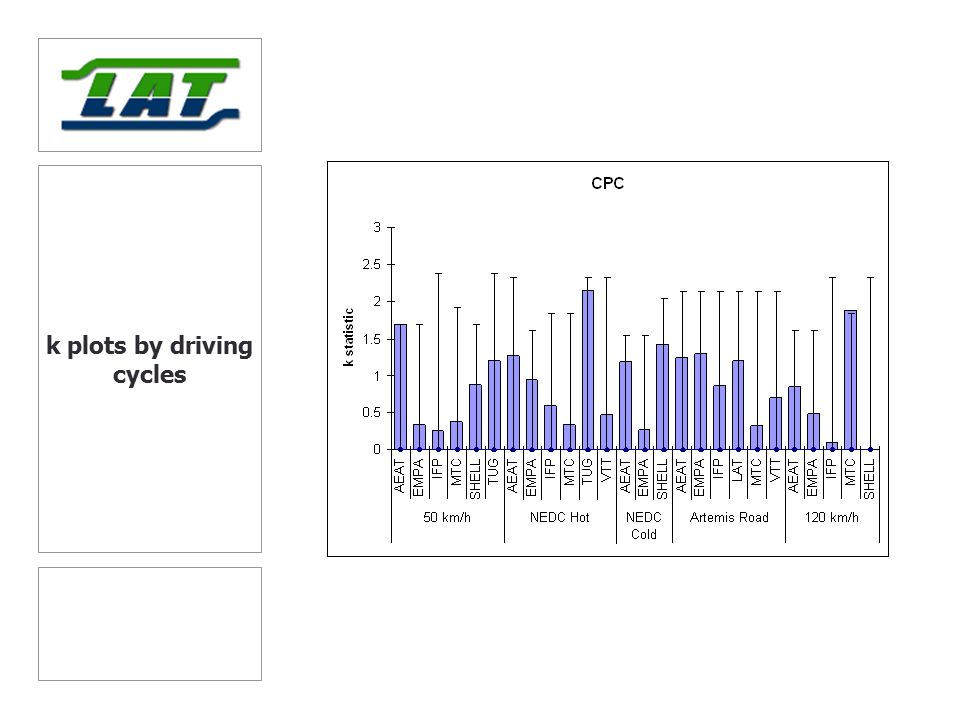

19 k plots by driving cycles

20 Repeatability problems in regulated emission results VTTIFPEMPA CO2 NEDC cold CO HC NEDC cold50 km/h Artemis & NEDC hot NOx NEDC coldArtemis PM Artemis & NEDC hot

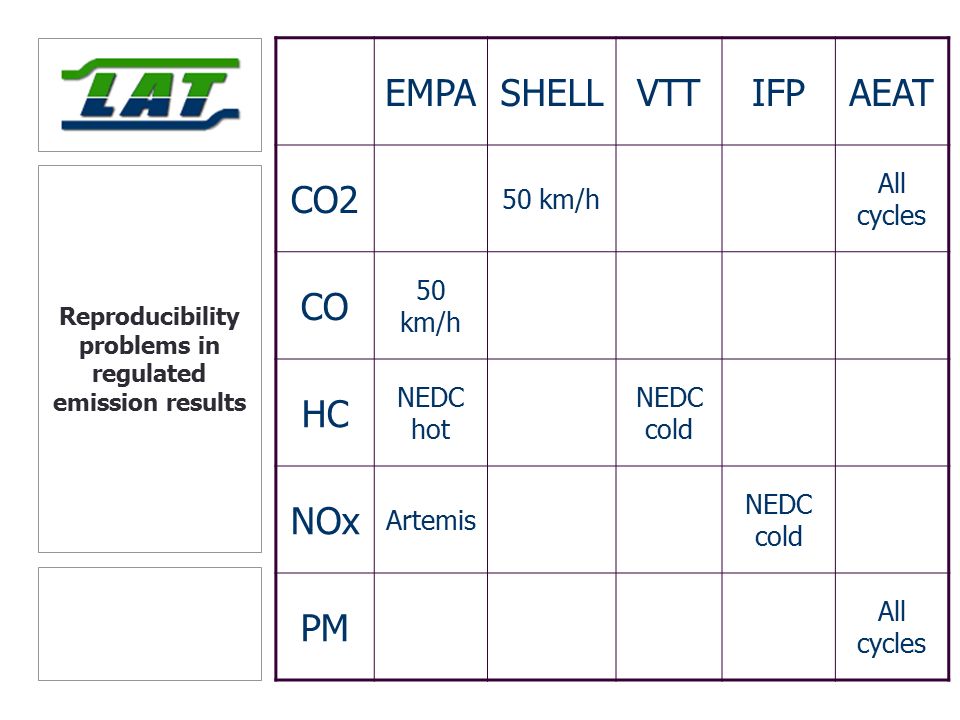

21 Reproducibility problems in regulated emission results EMPASHELLVTTIFPAEAT CO2 50 km/h All cycles CO 50 km/h HC NEDC hot NEDC cold NOx Artemis NEDC cold PM All cycles

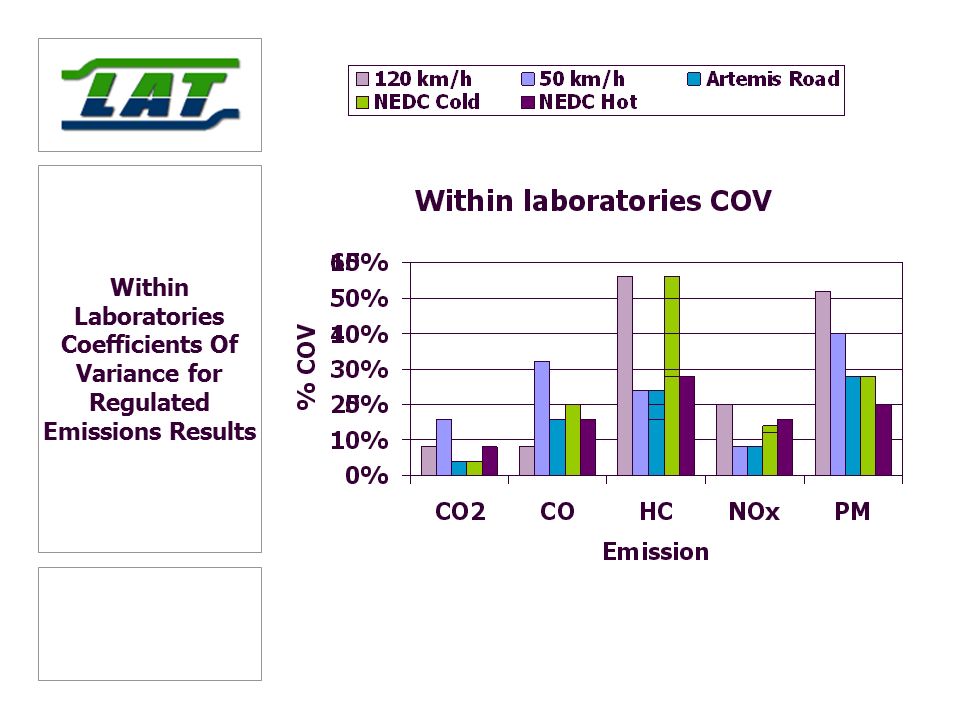

22 Within Laboratories Coefficients Of Variance for Regulated Emissions Results

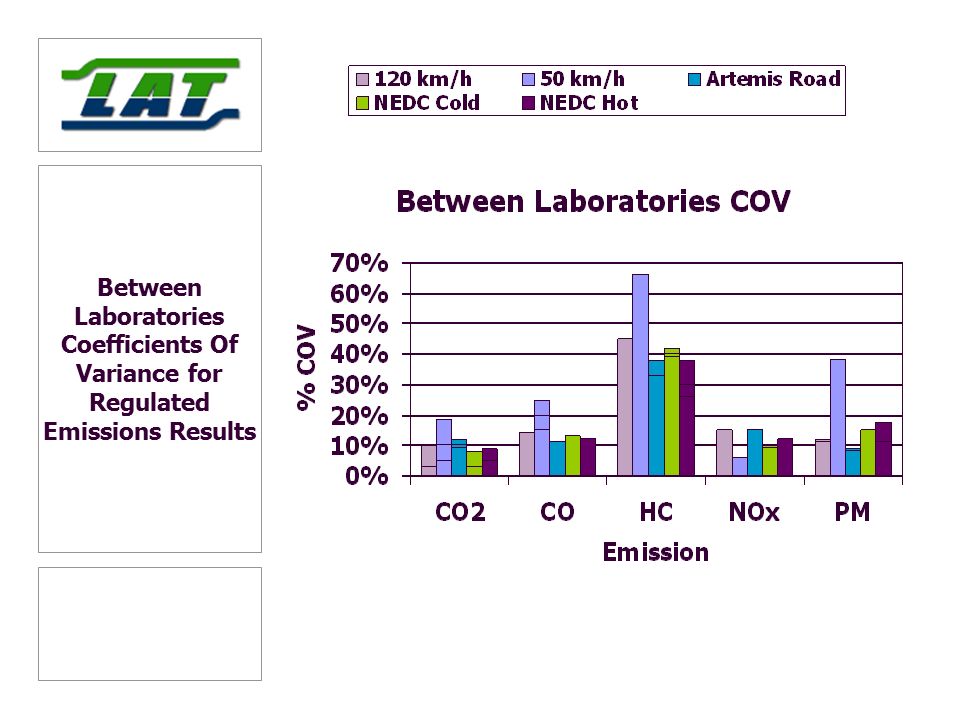

23 Between Laboratories Coefficients Of Variance for Regulated Emissions Results

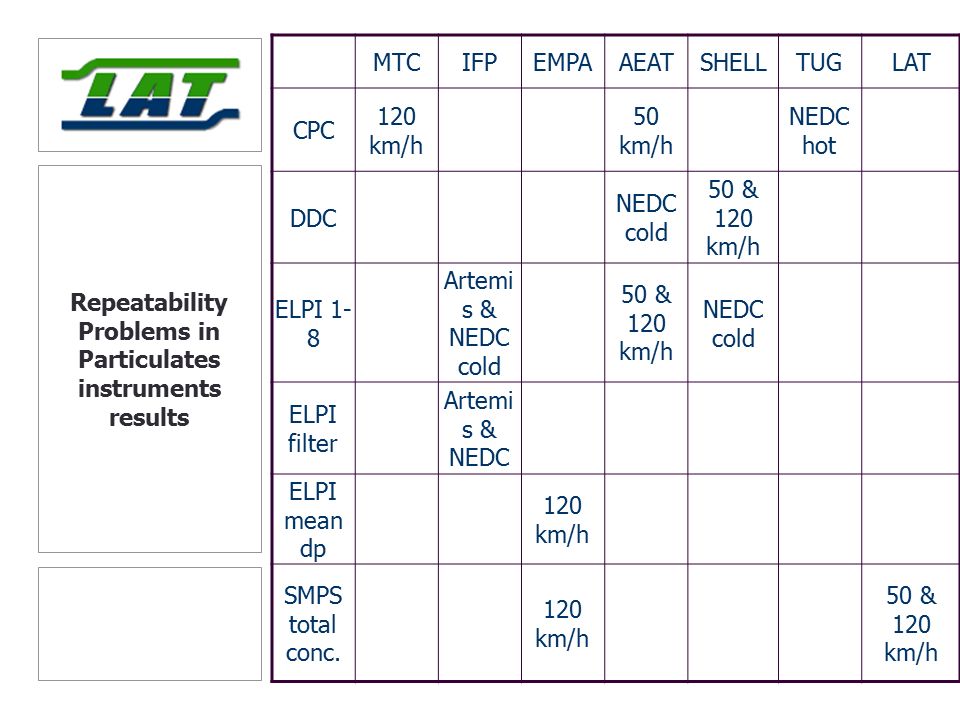

24 Repeatability Problems in Particulates instruments results MTCIFPEMPAAEATSHELLTUGLAT CPC 120 km/h 50 km/h NEDC hot DDC NEDC cold 50 & 120 km/h ELPI 1- 8 Artemi s & NEDC cold 50 & 120 km/h NEDC cold ELPI filter Artemi s & NEDC ELPI mean dp 120 km/h SMPS total conc. 120 km/h 50 & 120 km/h

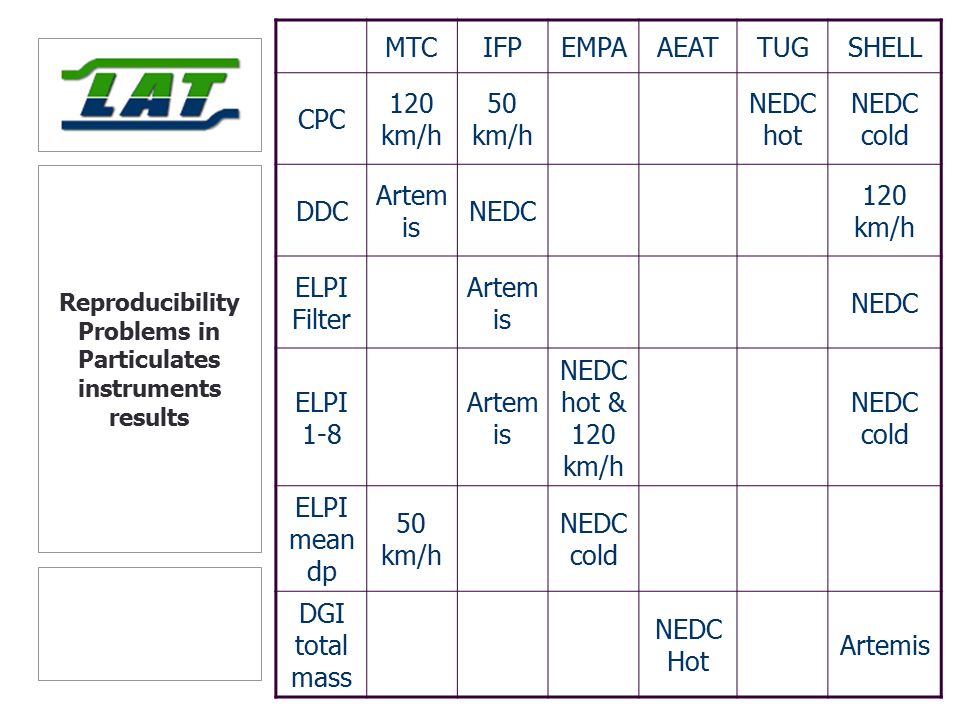

25 Reproducibility Problems in Particulates instruments results MTCIFPEMPAAEATTUGSHELL CPC 120 km/h 50 km/h NEDC hot NEDC cold DDC Artem is NEDC 120 km/h ELPI Filter Artem is NEDC ELPI 1-8 Artem is NEDC hot & 120 km/h NEDC cold ELPI mean dp 50 km/h NEDC cold DGI total mass NEDC Hot Artemis

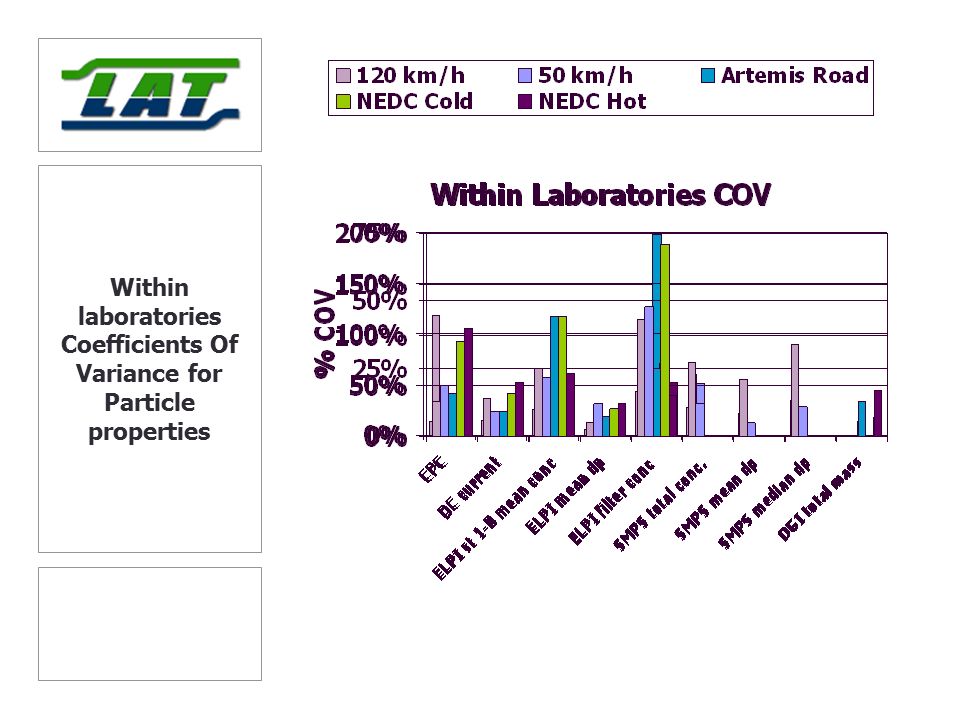

26 Within laboratories Coefficients Of Variance for Particle properties

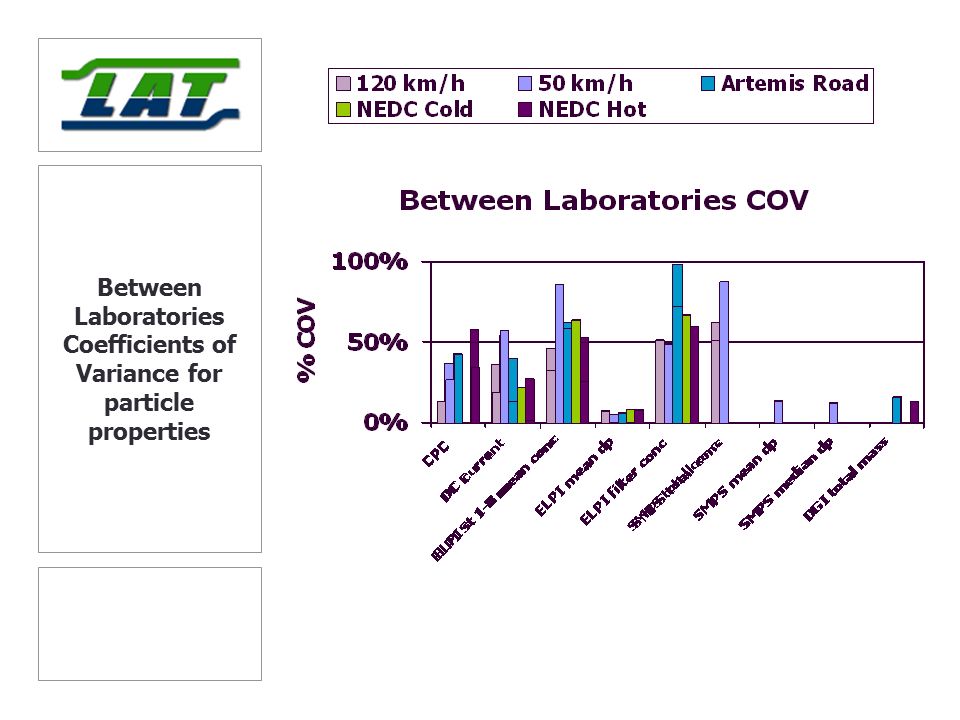

27 Between Laboratories Coefficients of Variance for particle properties

28 Comparison of the Within Laboratory Coefficients of Variance of the particulates instruments results with the regulated PM ones

29 Comparison of the Between Laboratory Coefficients of Variance of the particulates instruments results with the regulated PM ones

30 Conclusions - Recomendations  Great variability observed in ELPI results (possibly thermodenuder?).  DDC results were the most repeatable and reproducible.  Possible dilution ratio determination problems.  Indications that the method is robust.  Importance of conducting another round robin now that all laboratories are familiar with the protocol.
