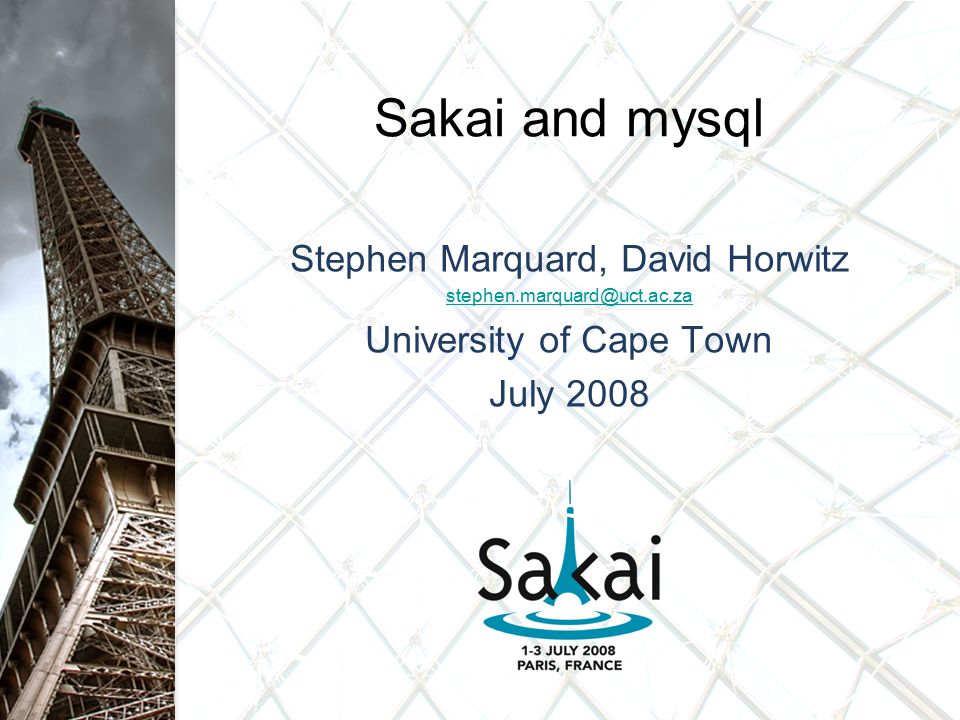

1. Sakai and mysql Stephen Marquard, David Horwitz stephen.marquard@uct.ac.za University of Cape Town July 2008

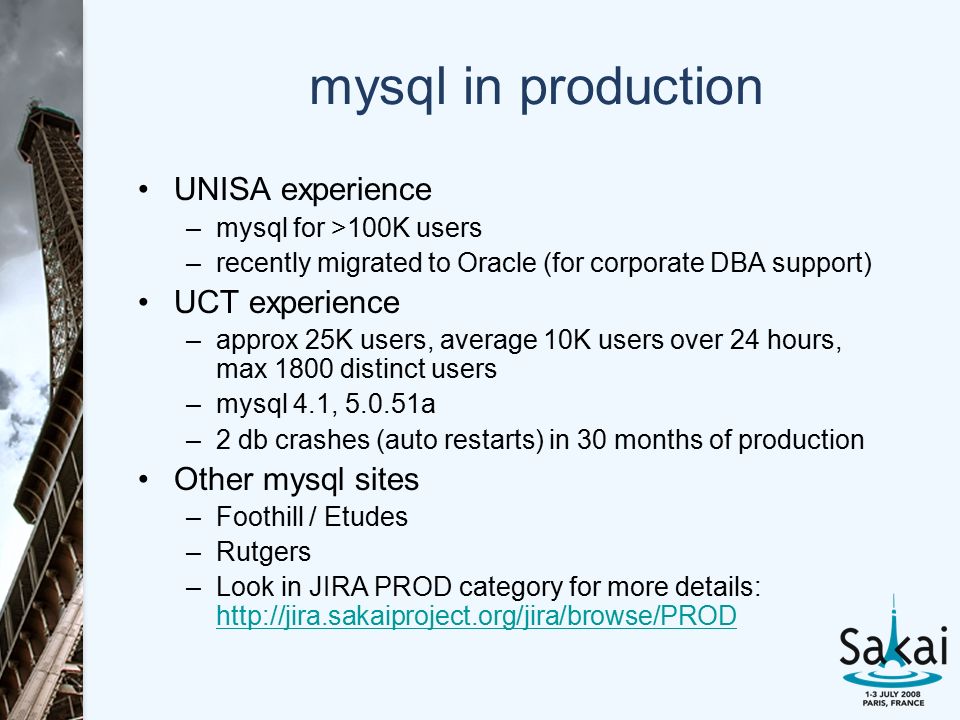

2. mysql in production UNISA experience –mysql for >100K users –recently migrated to Oracle (for corporate DBA support) UCT experience –approx 25K users, average 10K users over 24 hours, max 1800 distinct users –mysql 4.1, 5.0.51a –2 db crashes (auto restarts) in 30 months of production Other mysql sites –Foothill / Etudes –Rutgers –Look in JIRA PROD category for more details: http://jira.sakaiproject.org/jira/browse/PROD http://jira.sakaiproject.org/jira/browse/PROD

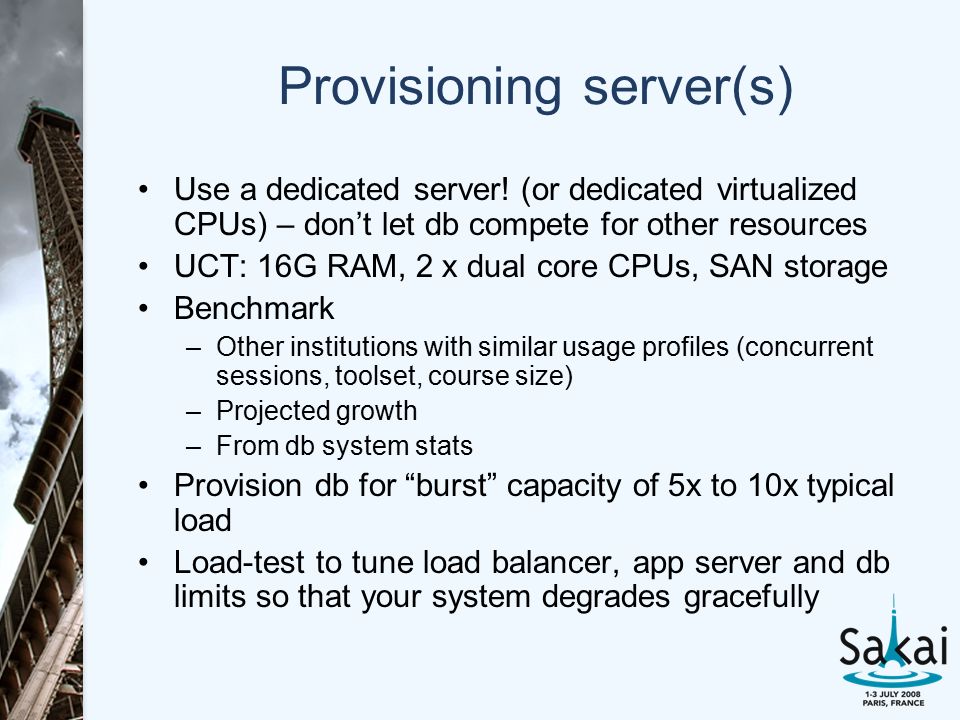

3. Provisioning server(s) Use a dedicated server! (or dedicated virtualized CPUs) – don’t let db compete for other resources UCT: 16G RAM, 2 x dual core CPUs, SAN storage Benchmark –Other institutions with similar usage profiles (concurrent sessions, toolset, course size) –Projected growth –From db system stats Provision db for “burst” capacity of 5x to 10x typical load Load-test to tune load balancer, app server and db limits so that your system degrades gracefully

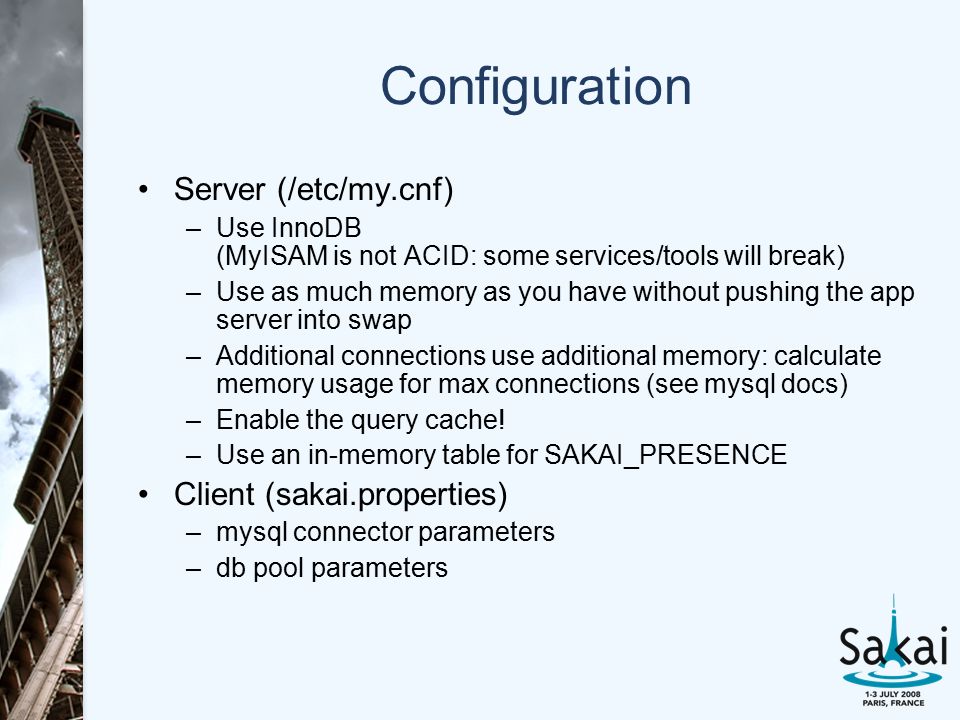

4. Configuration Server (/etc/my.cnf) –Use InnoDB (MyISAM is not ACID: some services/tools will break) –Use as much memory as you have without pushing the app server into swap –Additional connections use additional memory: calculate memory usage for max connections (see mysql docs) –Enable the query cache! –Use an in-memory table for SAKAI_PRESENCE Client (sakai.properties) –mysql connector parameters –db pool parameters

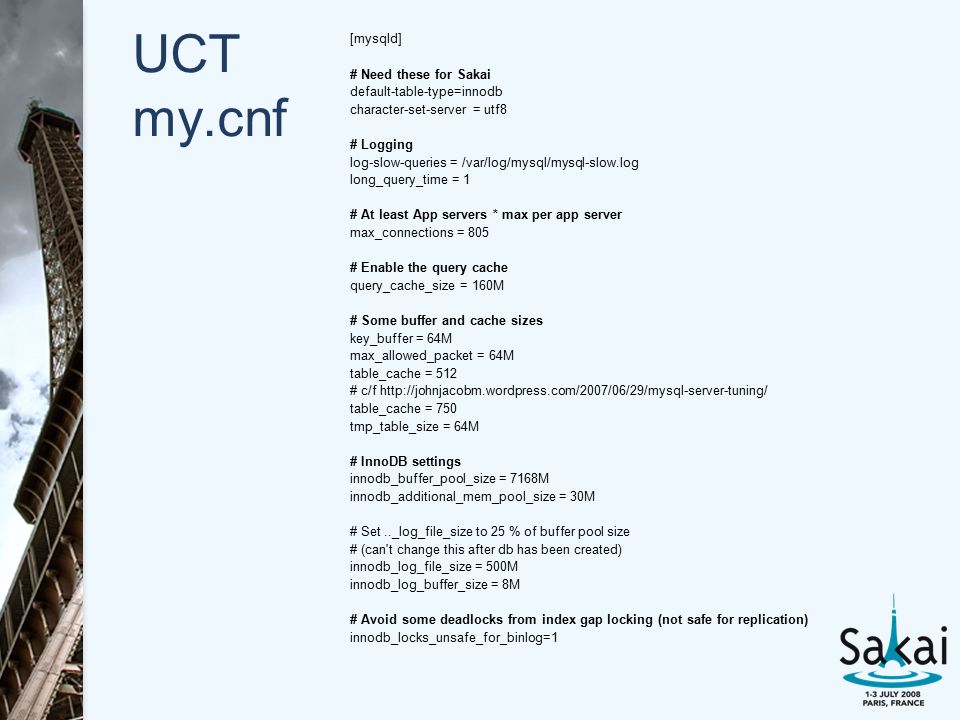

5. UCT my.cnf [mysqld] # Need these for Sakai default-table-type=innodb character-set-server = utf8 # Logging log-slow-queries = /var/log/mysql/mysql-slow.log long_query_time = 1 # At least App servers * max per app server max_connections = 805 # Enable the query cache query_cache_size = 160M # Some buffer and cache sizes key_buffer = 64M max_allowed_packet = 64M table_cache = 512 # c/f http://johnjacobm.wordpress.com/2007/06/29/mysql-server-tuning/ table_cache = 750 tmp_table_size = 64M # InnoDB settings innodb_buffer_pool_size = 7168M innodb_additional_mem_pool_size = 30M # Set.._log_file_size to 25 % of buffer pool size # (can't change this after db has been created) innodb_log_file_size = 500M innodb_log_buffer_size = 8M # Avoid some deadlocks from index gap locking (not safe for replication) innodb_locks_unsafe_for_binlog=1

6. UCT sakai.properties # Connector properties url@javax.sql.BaseDataSource=jdbc:mysql://srvslscle006.uct.ac.za:3306/vula? useUnicode=true&characterEncoding=UTF-8& useServerPrepStmts=false&cachePrepStmts=true& prepStmtCacheSize=4096&prepStmtCacheSqlLimit=4096& slowQueryThresholdMillis=750&logSlowQueries=true&maxQuerySizeToLog=128000 # increase number of connections in the connection pool maxActive@javax.sql.BaseDataSource=200 Also read the release notes and installation documents for your Sakai release Known issue with DBCP deadlocks (SAK-11852, SAK-11877, SAK-11005, https://issues.apache.org/jira/browse/DBCP-44) pending switch to c3po. Possible workaround by setting maxThreads (server/conf.xml) to < maxActive, though check your loadbalancer behaviour first.SAK-11877SAK-11005 https://issues.apache.org/jira/browse/DBCP-44

7. Backups What we do (every day @ 4am, takes 6-8min, 920M, does not lock db or tables): #! /bin/sh ## Daily backup of mysql database to a snapshot. BFOLDER=/data/mysql/backup DBNAME=vula ## Rename old dump file rm -f $BFOLDER/$DBNAME.sql.gz.OLD mv $BFOLDER/$DBNAME.sql.gz $BFOLDER/$DBNAME.sql.gz.OLD ## Backup mysql Vula database /bin/logger Starting mysql backup of database $DBNAME /usr/bin/mysqldump -u root --password=goaway --verbose --max-allowed-packet=64M --debug-info --quick --single-transaction $DBNAME 2> $BFOLDER/mysqldump.log | gzip > $BFOLDER/$DBNAME.sql.gz /bin/logger Finished mysql backup of database $DBNAME Or, replication to slave server, backup from slave Or third-party backup utilities Set things up so that you can restore a snapshot of your production db to a test server

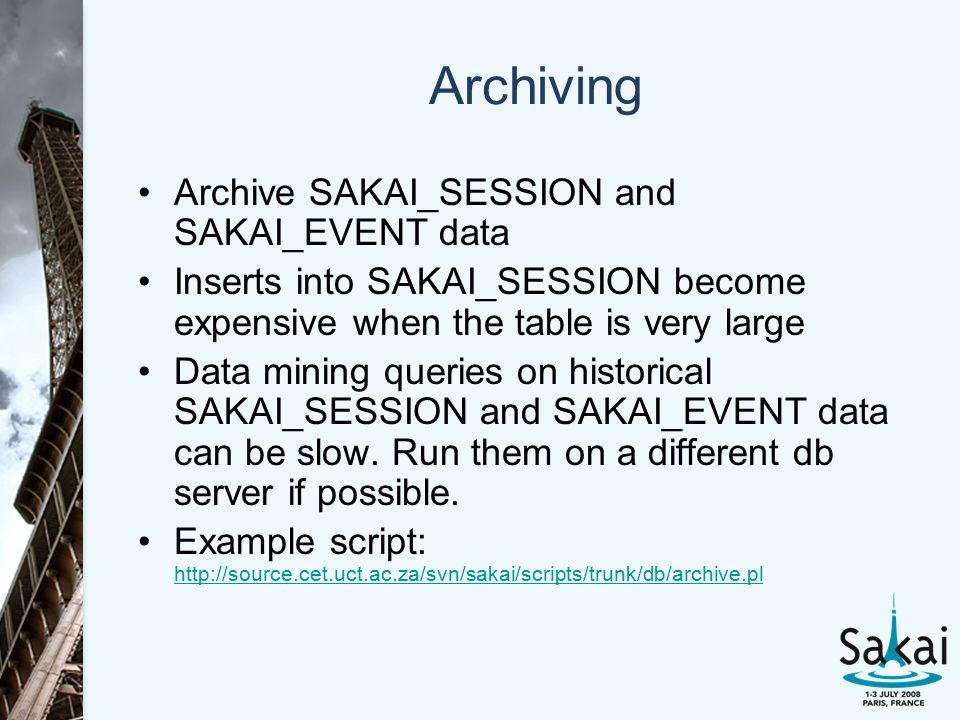

8. Archiving Archive SAKAI_SESSION and SAKAI_EVENT data Inserts into SAKAI_SESSION become expensive when the table is very large Data mining queries on historical SAKAI_SESSION and SAKAI_EVENT data can be slow. Run them on a different db server if possible. Example script: http://source.cet.uct.ac.za/svn/sakai/scripts/trunk/db/archive.pl http://source.cet.uct.ac.za/svn/sakai/scripts/trunk/db/archive.pl

9. Monitoring and analysis Server –Stats (graph metrics and throughput, e.g. in mrtg) –show table status (volumes of data, index sizes) –explain select … (use of indexes, query complexity) –profile build (step-by-step query execution reporting) –slow query logging (minimum precision 1s, not that helpful) –query logging Client –profiling through connection parameters: http://dev.mysql.com/doc/refman/5.0/en/connector-j- reference-configuration-properties.html

10. UCT mysql server metrics graphed with mrtg See them live at https://vula.uct.ac.za/web/dev/dashboard/ https://vula.uct.ac.za/web/dev/dashboard/

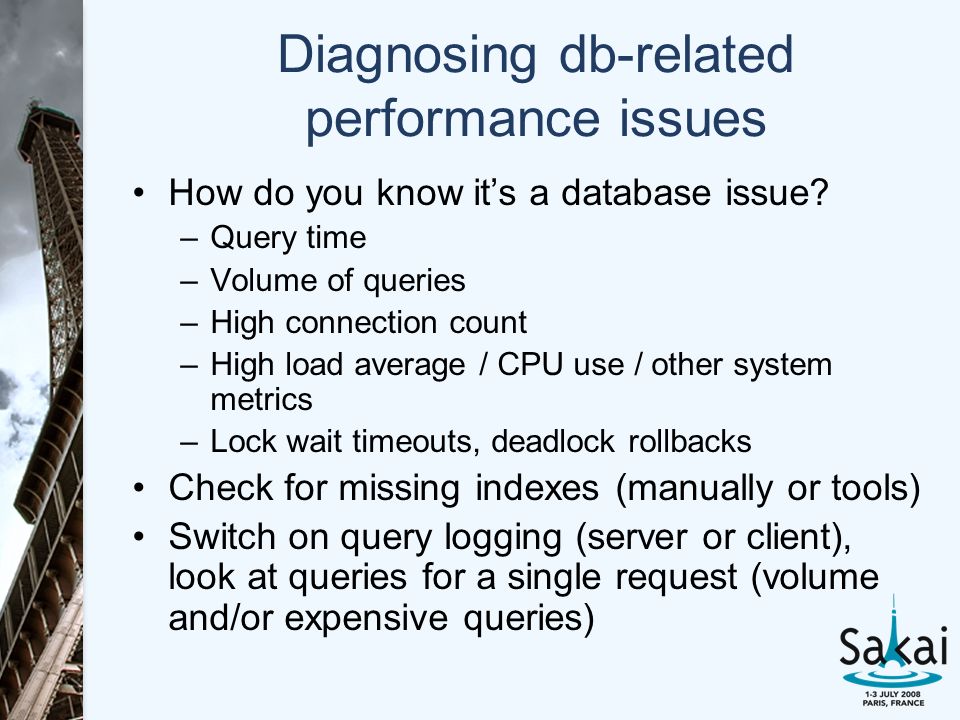

11. Diagnosing db-related performance issues How do you know it’s a database issue? –Query time –Volume of queries –High connection count –High load average / CPU use / other system metrics –Lock wait timeouts, deadlock rollbacks Check for missing indexes (manually or tools) Switch on query logging (server or client), look at queries for a single request (volume and/or expensive queries)

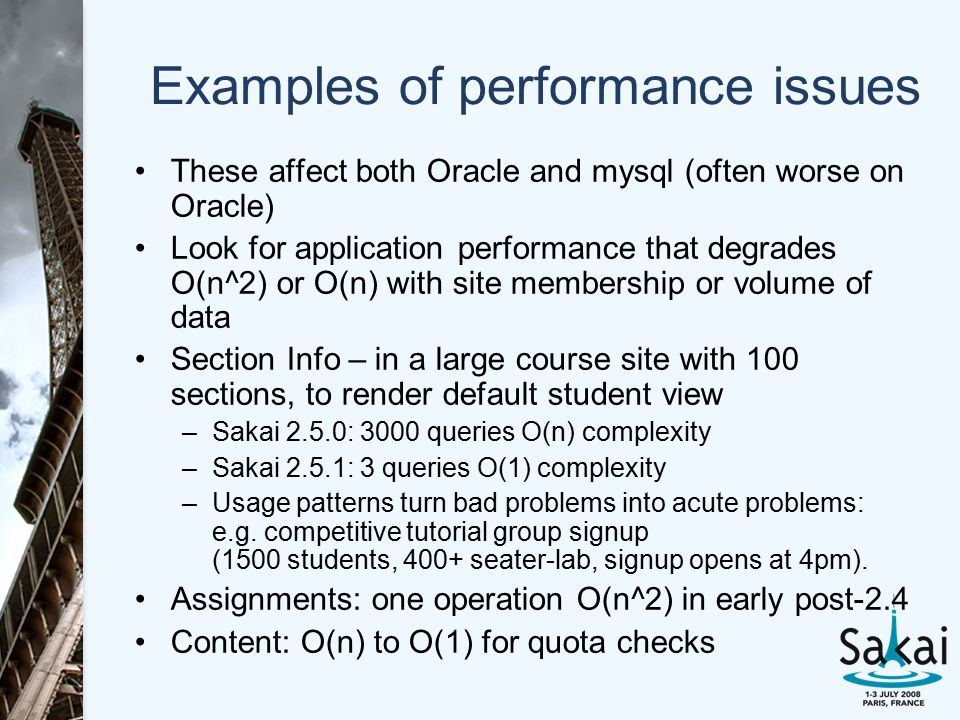

12. Examples of performance issues These affect both Oracle and mysql (often worse on Oracle) Look for application performance that degrades O(n^2) or O(n) with site membership or volume of data Section Info – in a large course site with 100 sections, to render default student view –Sakai 2.5.0: 3000 queries O(n) complexity –Sakai 2.5.1: 3 queries O(1) complexity –Usage patterns turn bad problems into acute problems: e.g. competitive tutorial group signup (1500 students, 400+ seater-lab, signup opens at 4pm). Assignments: one operation O(n^2) in early post-2.4 Content: O(n) to O(1) for quota checks

13. Factors contributing to poor performance ORM/Hibernate (too many queries for what you actually need) XML blobs in db (hard to filter, sort, search, migrate) Inadequate schema design Bad query design (for mysql), e.g. subselects Missing indexes Naïve use of service APIs (e.g. iterating through sets of items) Service APIs not meeting tool requirements API boundaries (avoiding cross-service table joins) Let the database do as much work as possible!

14. High Availability Talk to Ian Boston from CARET
