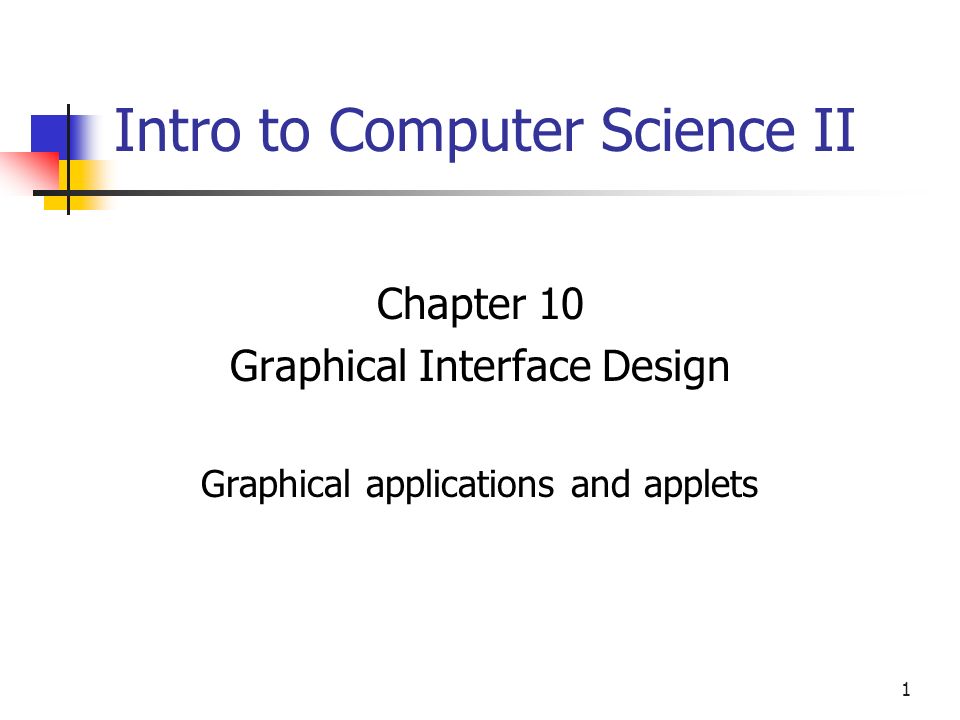

1. 1 Intro to Computer Science II Chapter 10 Graphical Interface Design Graphical applications and applets

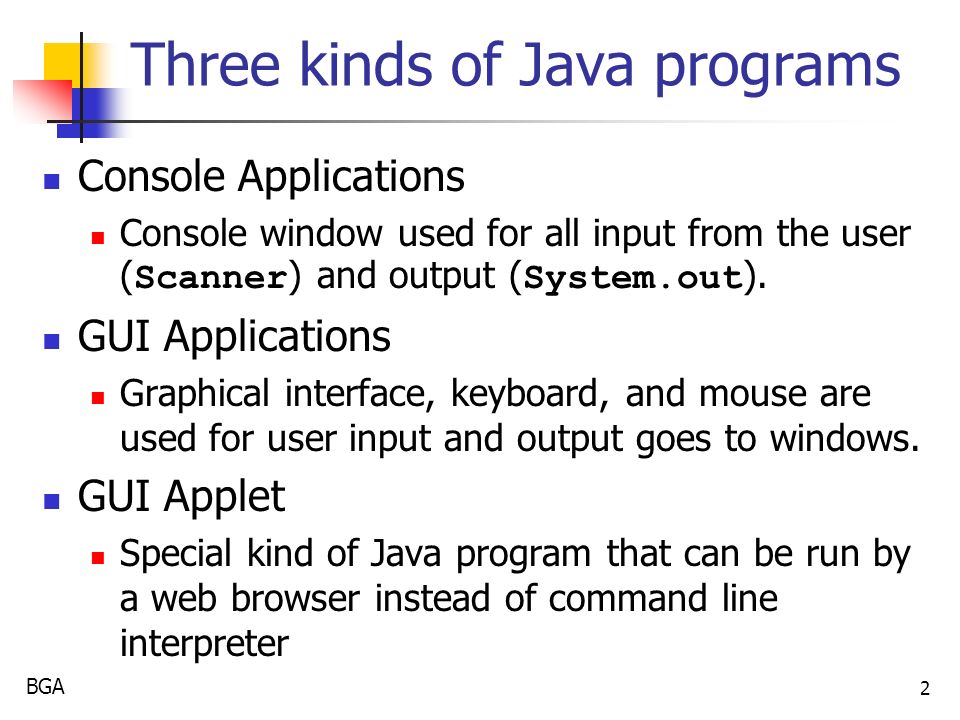

2. BGA 2 Three kinds of Java programs Console Applications Console window used for all input from the user ( Scanner ) and output ( System.out ). GUI Applications Graphical interface, keyboard, and mouse are used for user input and output goes to windows. GUI Applet Special kind of Java program that can be run by a web browser instead of command line interpreter

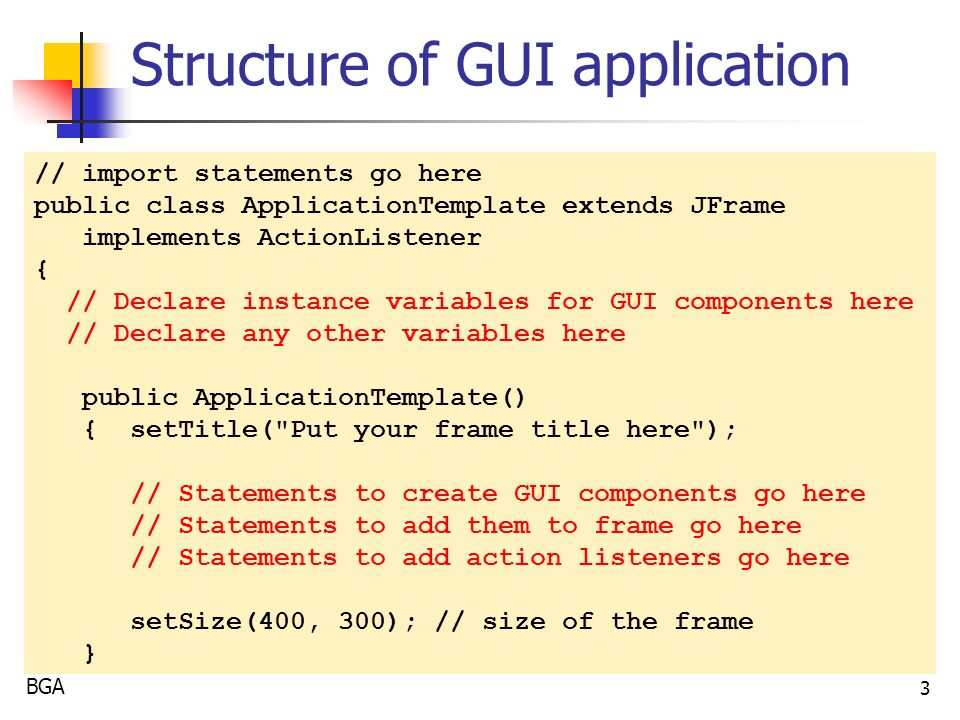

3. BGA 3 Structure of GUI application // import statements go here public class ApplicationTemplate extends JFrame implements ActionListener { // Declare instance variables for GUI components here // Declare any other variables here public ApplicationTemplate() { setTitle("Put your frame title here"); // Statements to create GUI components go here // Statements to add them to frame go here // Statements to add action listeners go here setSize(400, 300); // size of the frame }

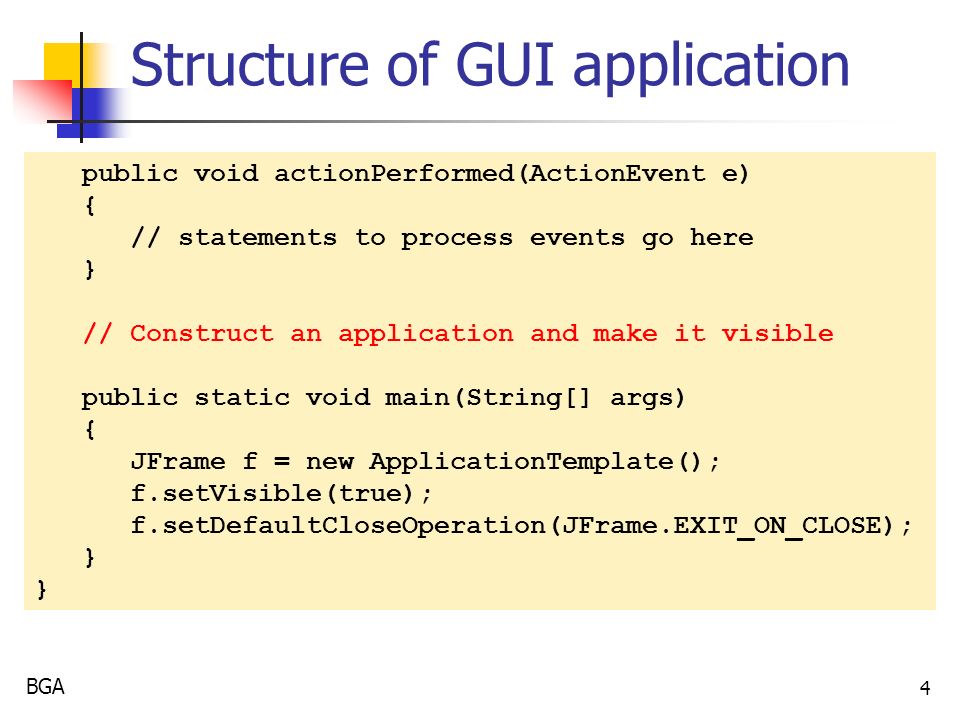

4. BGA 4 Structure of GUI application public void actionPerformed(ActionEvent e) { // statements to process events go here } // Construct an application and make it visible public static void main(String[] args) { JFrame f = new ApplicationTemplate(); f.setVisible(true); f.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE); }

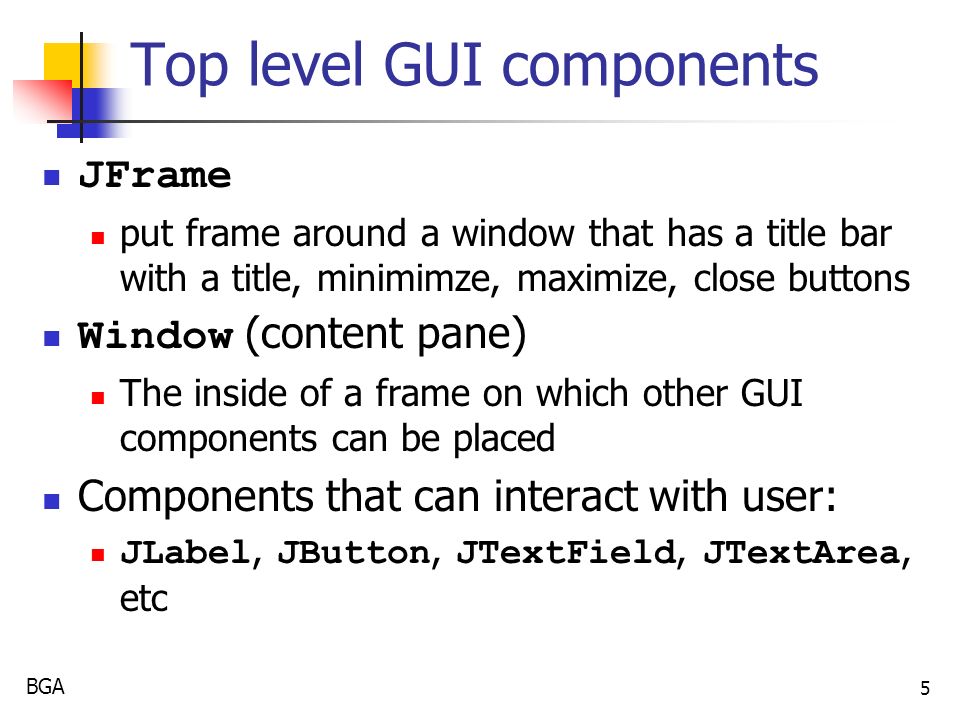

5. BGA 5 Top level GUI components JFrame put frame around a window that has a title bar with a title, minimimze, maximize, close buttons Window (content pane) The inside of a frame on which other GUI components can be placed Components that can interact with user: JLabel, JButton, JTextField, JTextArea, etc

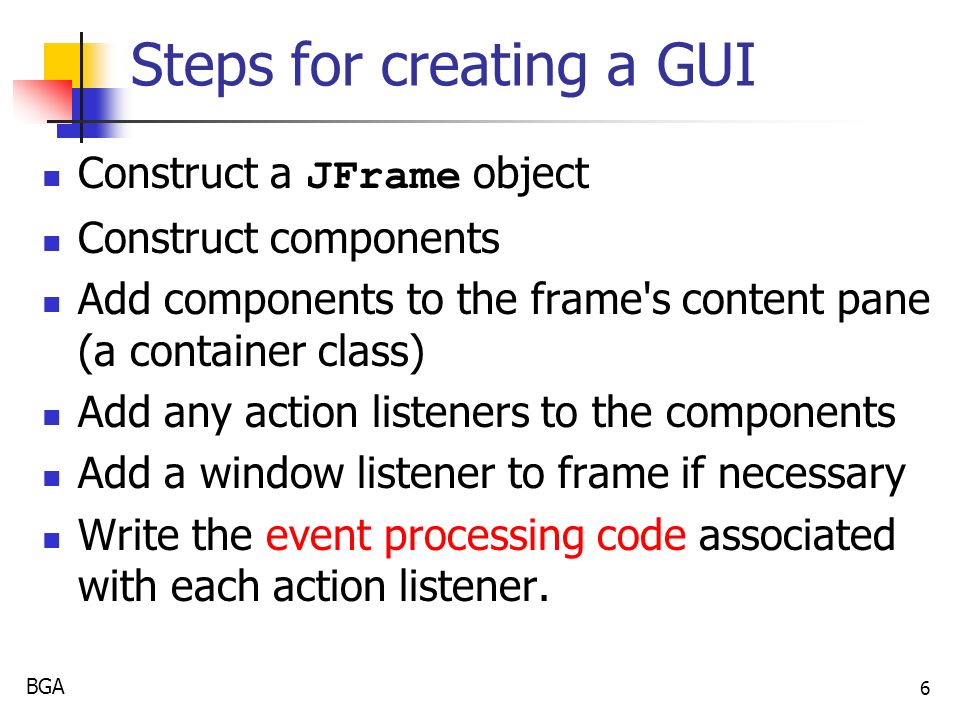

6. BGA 6 Steps for creating a GUI Construct a JFrame object Construct components Add components to the frame's content pane (a container class) Add any action listeners to the components Add a window listener to frame if necessary Write the event processing code associated with each action listener.

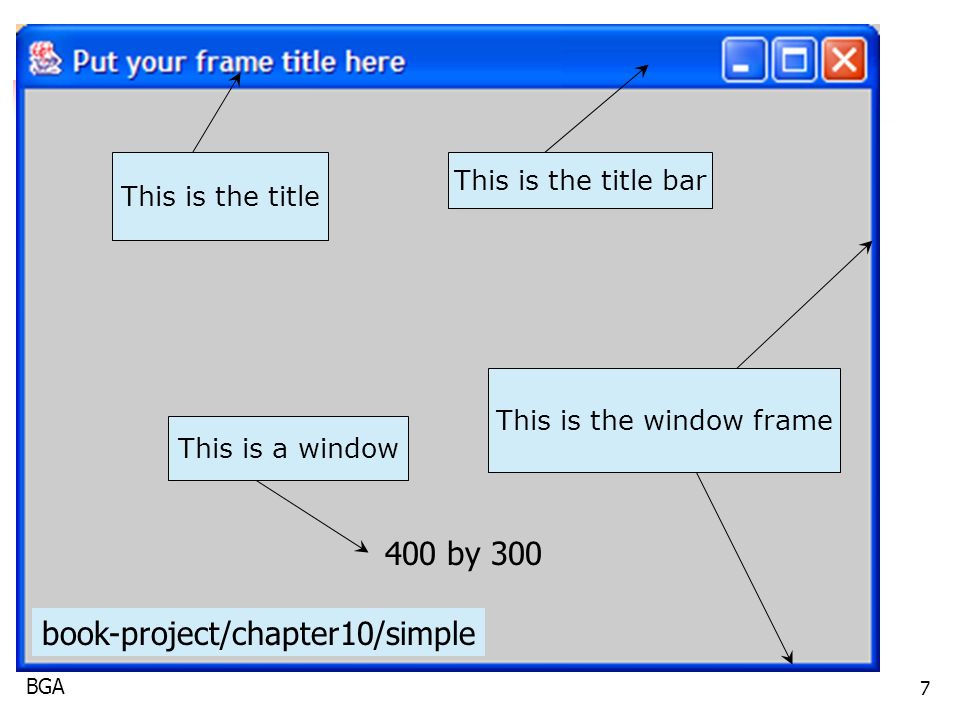

7. BGA 7 This is a window This is the window frame This is the title This is the title bar 400 by 300 book-project/chapter10/simple

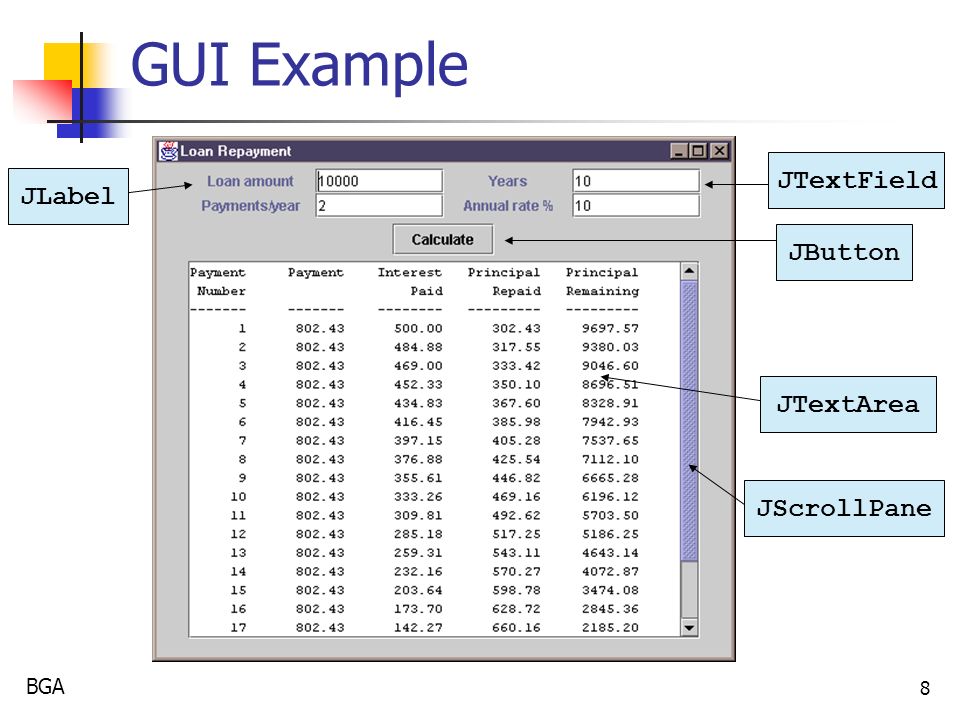

8. BGA 8 GUI Example JLabel JTextField JTextArea JButton JScrollPane

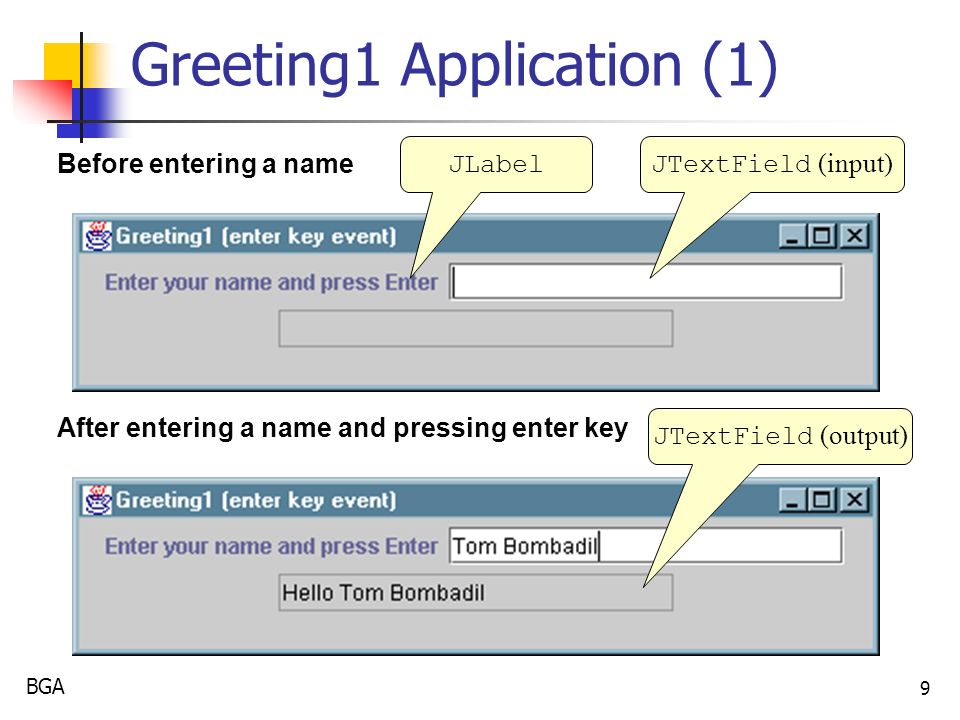

9. BGA 9 Greeting1 Application (1) Before entering a name After entering a name and pressing enter key JLabelJTextField (input) JTextField (output)

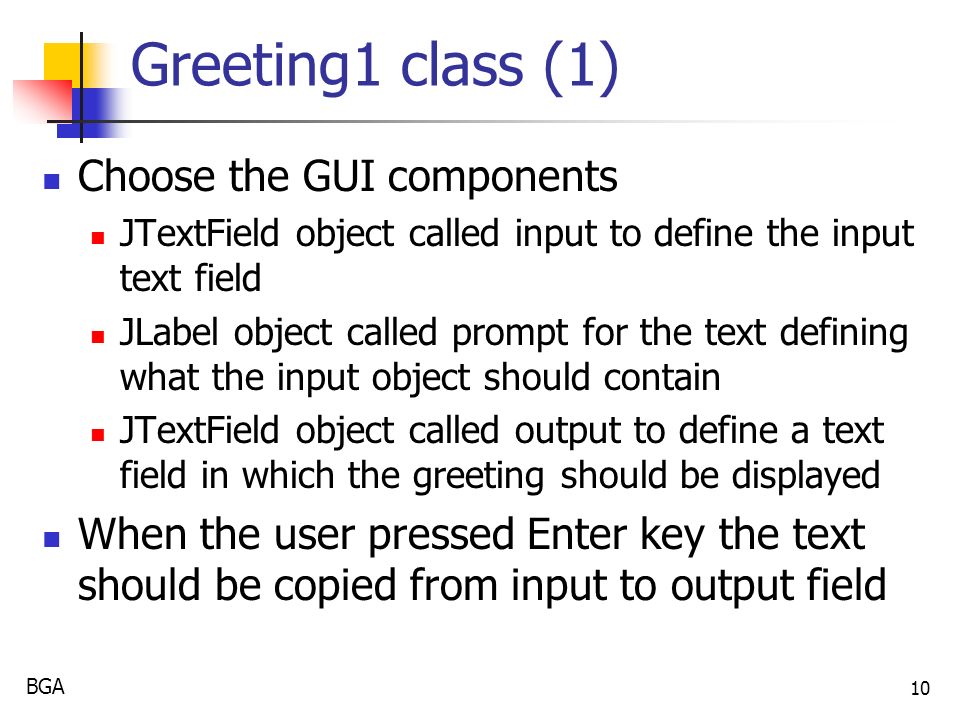

10. BGA 10 Greeting1 class (1) Choose the GUI components JTextField object called input to define the input text field JLabel object called prompt for the text defining what the input object should contain JTextField object called output to define a text field in which the greeting should be displayed When the user pressed Enter key the text should be copied from input to output field

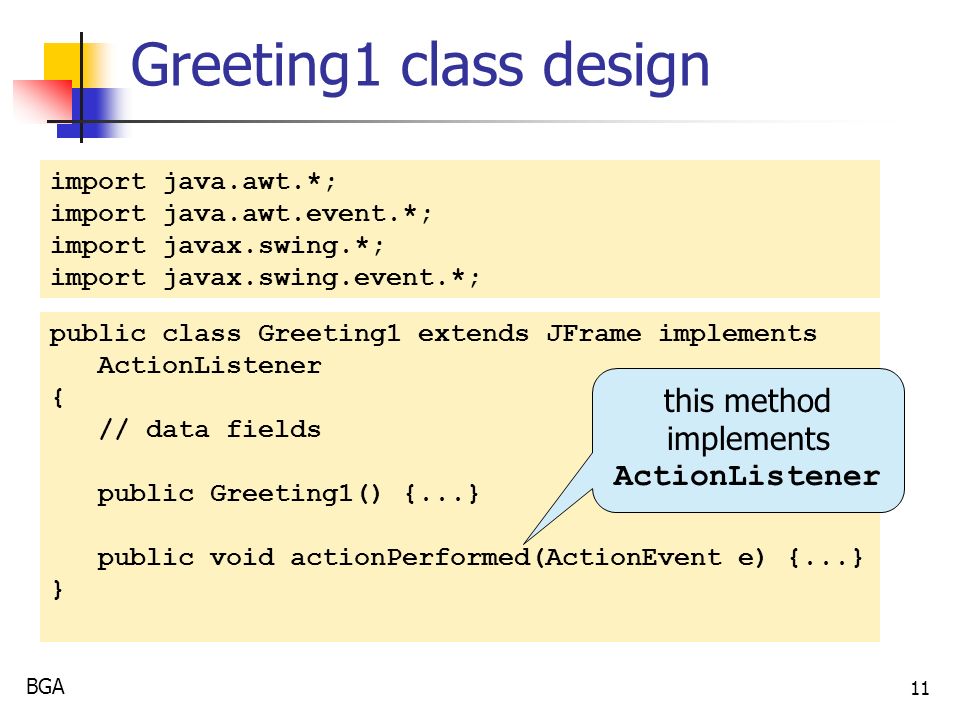

11. BGA 11 Greeting1 class design import java.awt.*; import java.awt.event.*; import javax.swing.*; import javax.swing.event.*; public class Greeting1 extends JFrame implements ActionListener { // data fields public Greeting1() {...} public void actionPerformed(ActionEvent e) {...} } this method implements ActionListener

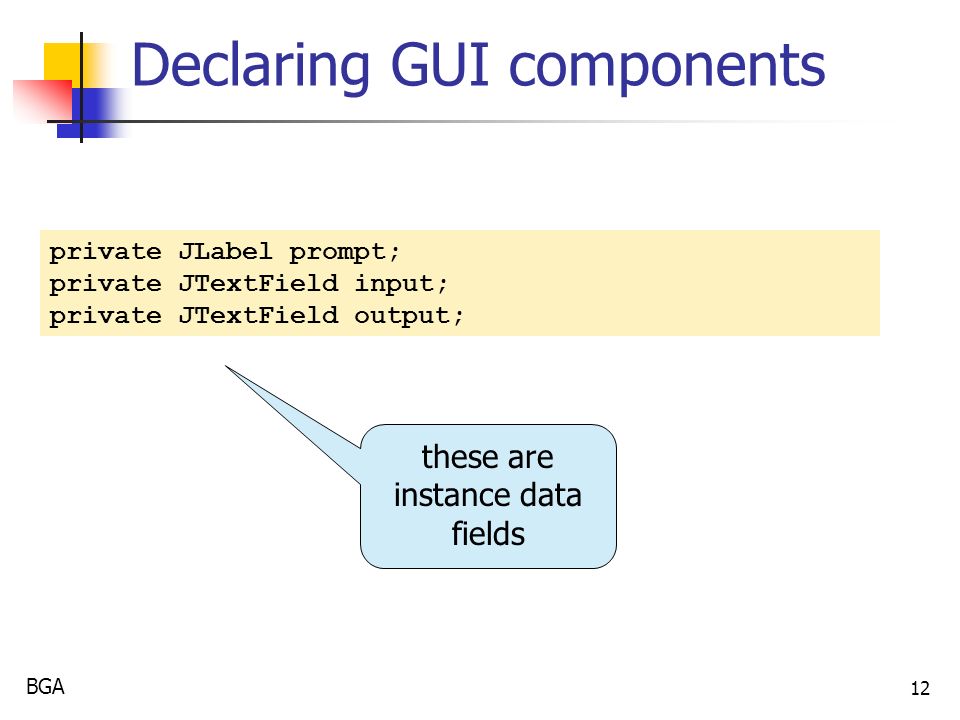

12. BGA 12 Declaring GUI components private JLabel prompt; private JTextField input; private JTextField output; these are instance data fields

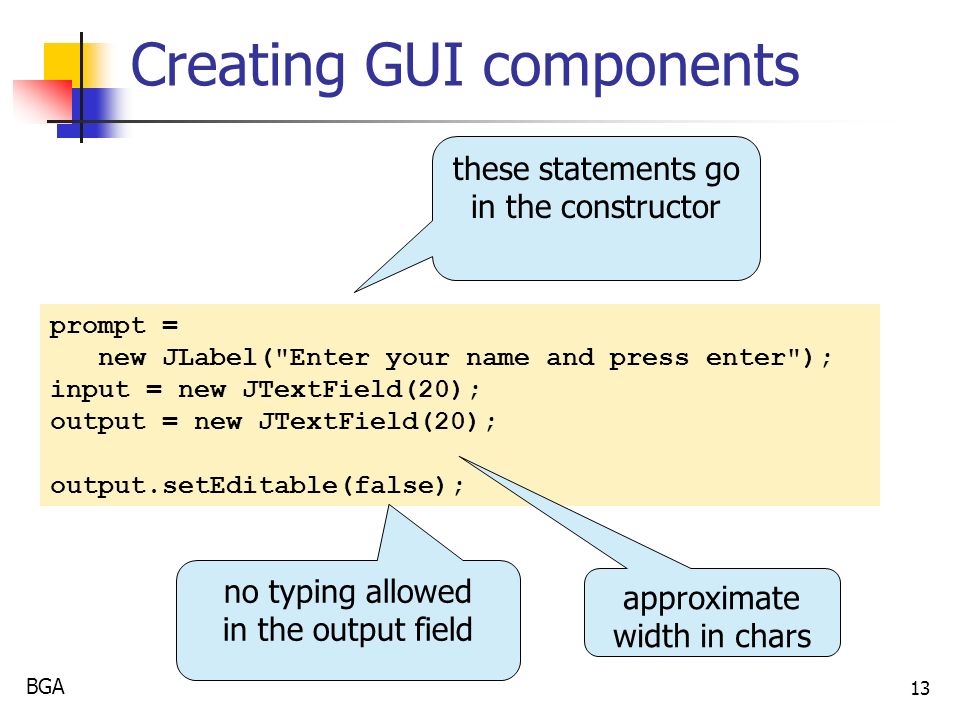

13. BGA 13 Creating GUI components prompt = new JLabel("Enter your name and press enter"); input = new JTextField(20); output = new JTextField(20); output.setEditable(false); these statements go in the constructor approximate width in chars no typing allowed in the output field

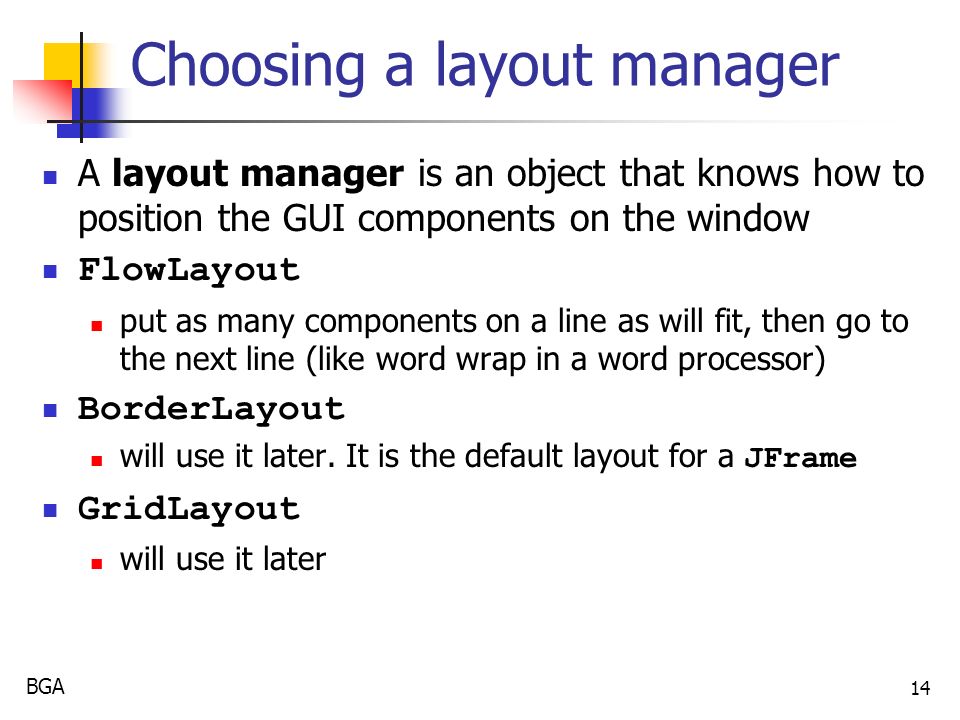

14. BGA 14 Choosing a layout manager A layout manager is an object that knows how to position the GUI components on the window FlowLayout put as many components on a line as will fit, then go to the next line (like word wrap in a word processor) BorderLayout will use it later. It is the default layout for a JFrame GridLayout will use it later

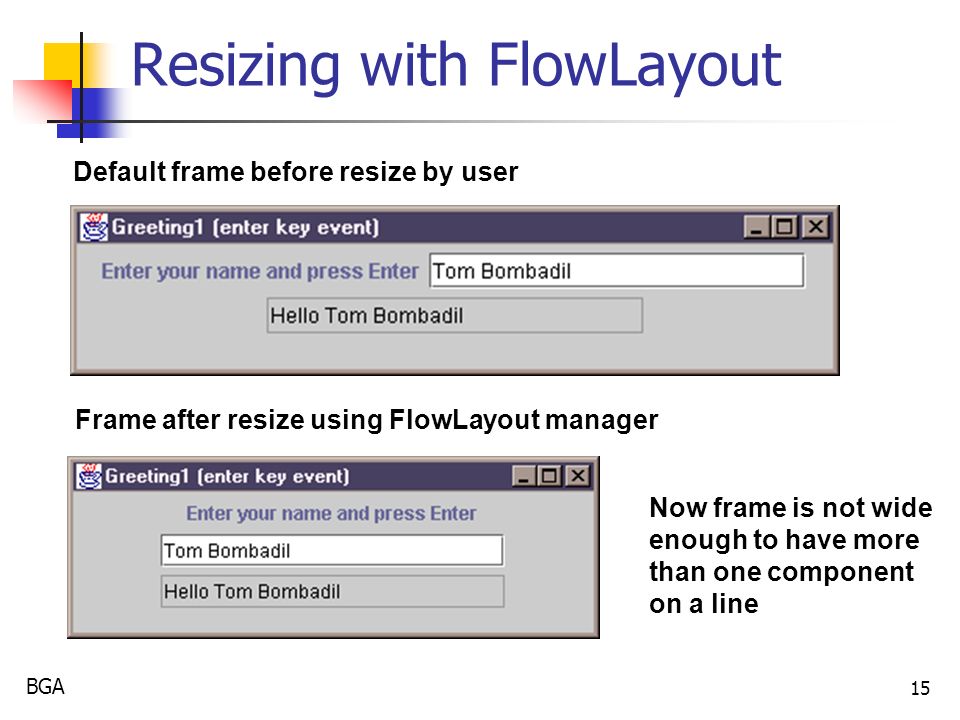

15. BGA 15 Resizing with FlowLayout Default frame before resize by user Frame after resize using FlowLayout manager Now frame is not wide enough to have more than one component on a line

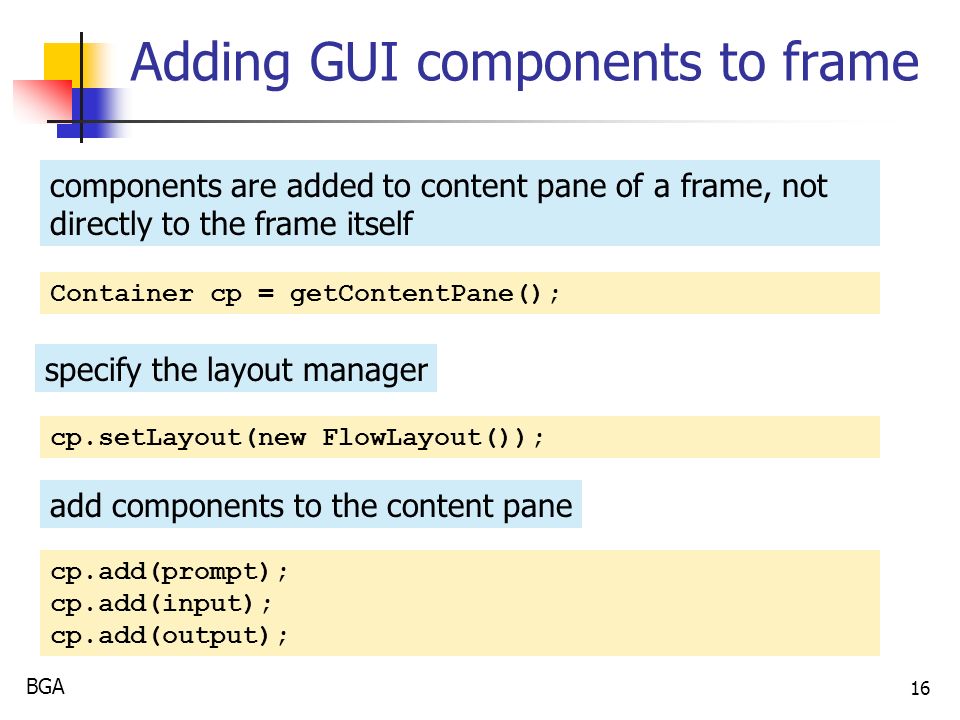

16. BGA 16 Adding GUI components to frame Container cp = getContentPane(); cp.setLayout(new FlowLayout()); cp.add(prompt); cp.add(input); cp.add(output); components are added to content pane of a frame, not directly to the frame itself specify the layout manager add components to the content pane

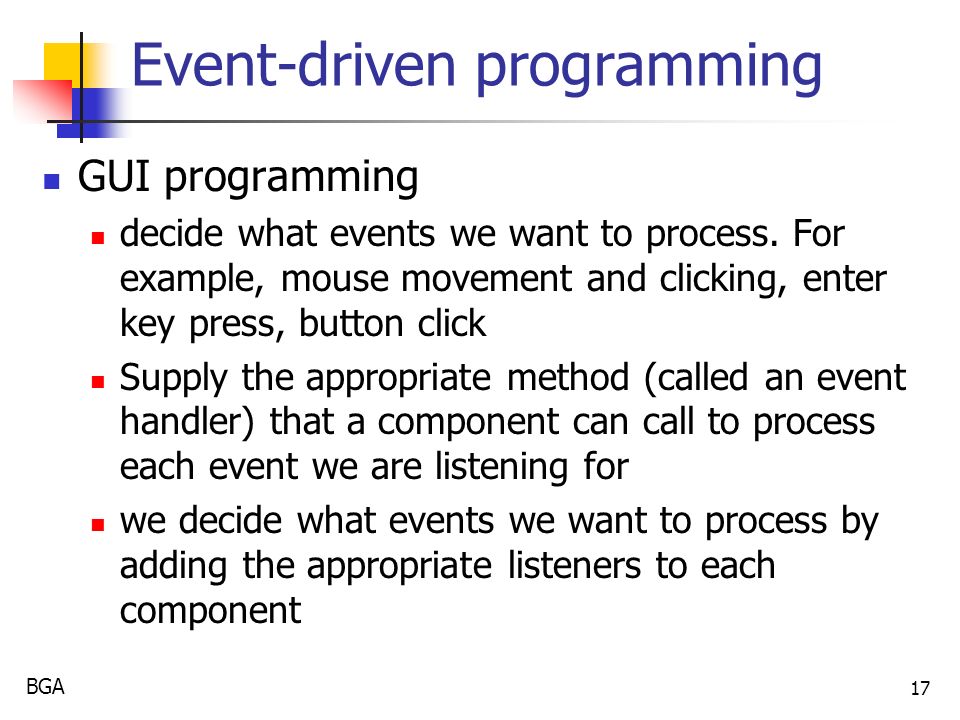

17. BGA 17 Event-driven programming GUI programming decide what events we want to process. For example, mouse movement and clicking, enter key press, button click Supply the appropriate method (called an event handler) that a component can call to process each event we are listening for we decide what events we want to process by adding the appropriate listeners to each component

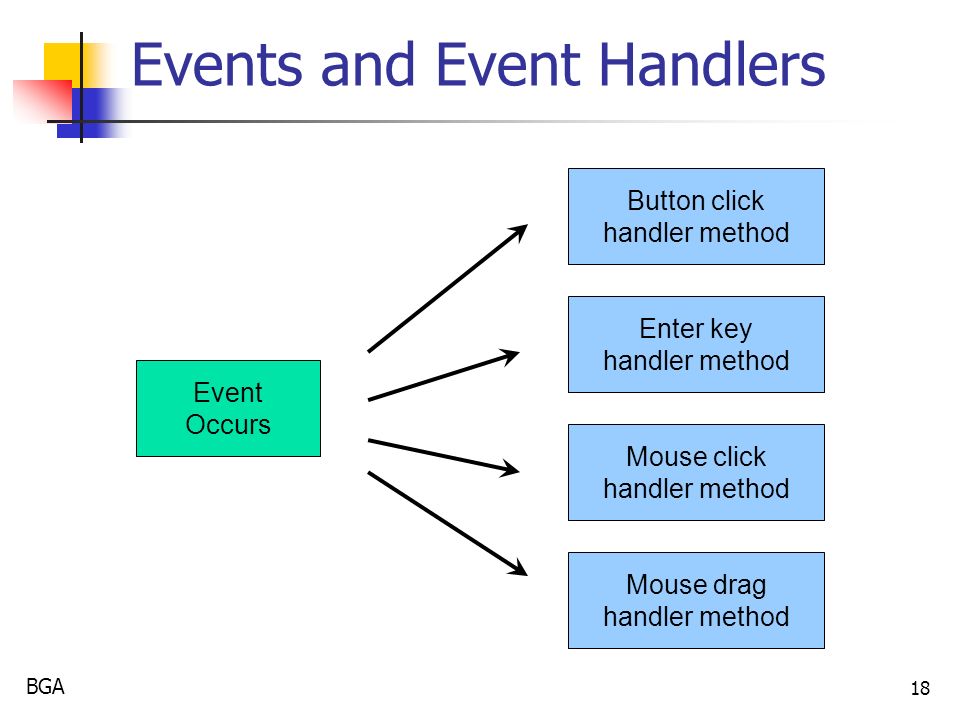

18. BGA 18 Events and Event Handlers Event Occurs Button click handler method Enter key handler method Mouse click handler method Mouse drag handler method

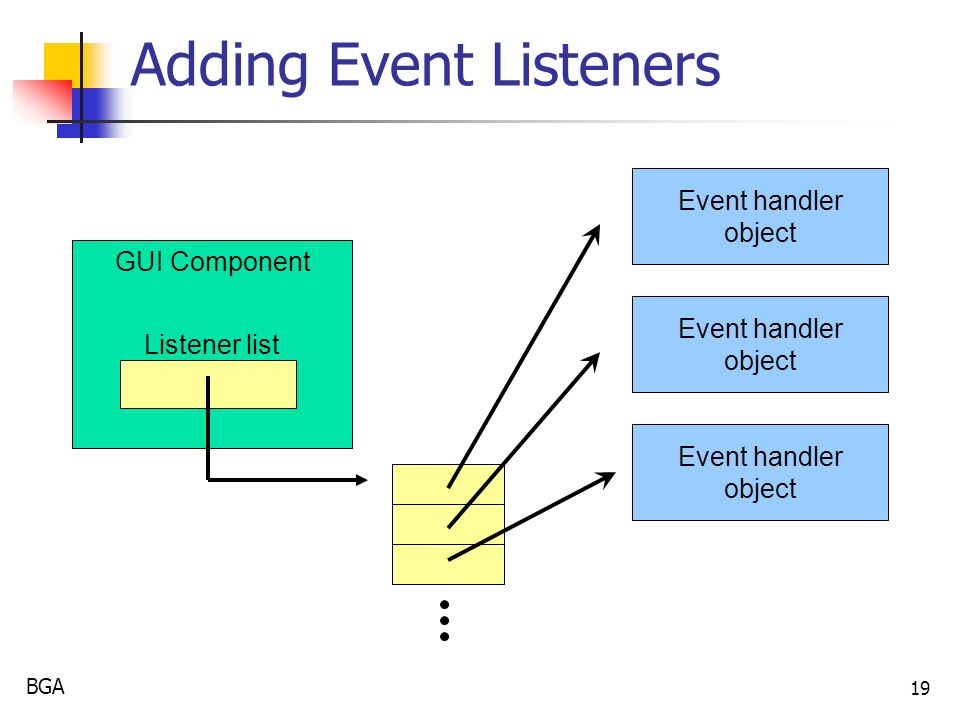

19. BGA 19 Adding Event Listeners Event handler object GUI Component Listener list

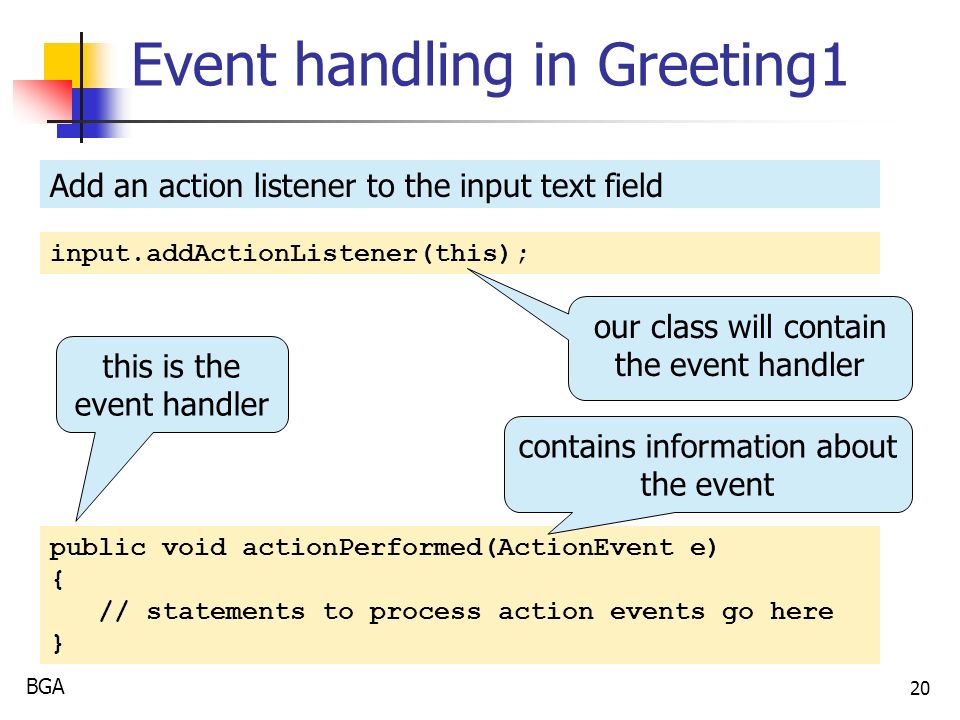

20. BGA 20 Event handling in Greeting1 input.addActionListener(this); Add an action listener to the input text field our class will contain the event handler public void actionPerformed(ActionEvent e) { // statements to process action events go here } this is the event handler contains information about the event

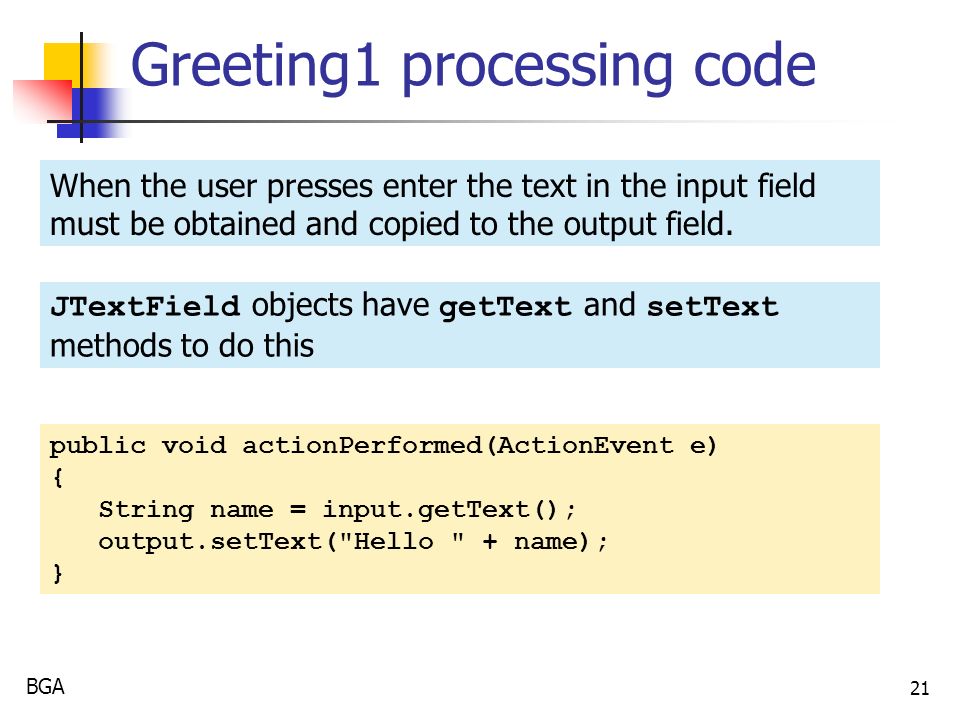

21. BGA 21 Greeting1 processing code public void actionPerformed(ActionEvent e) { String name = input.getText(); output.setText("Hello " + name); } When the user presses enter the text in the input field must be obtained and copied to the output field. JTextField objects have getText and setText methods to do this

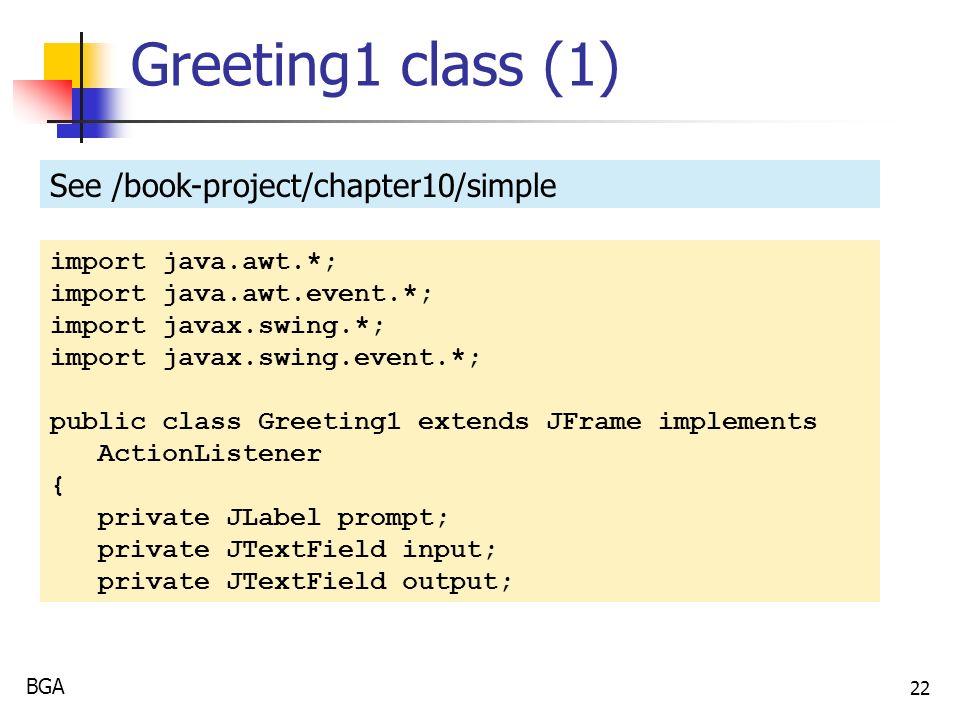

22. BGA 22 Greeting1 class (1) import java.awt.*; import java.awt.event.*; import javax.swing.*; import javax.swing.event.*; public class Greeting1 extends JFrame implements ActionListener { private JLabel prompt; private JTextField input; private JTextField output; See /book-project/chapter10/simple

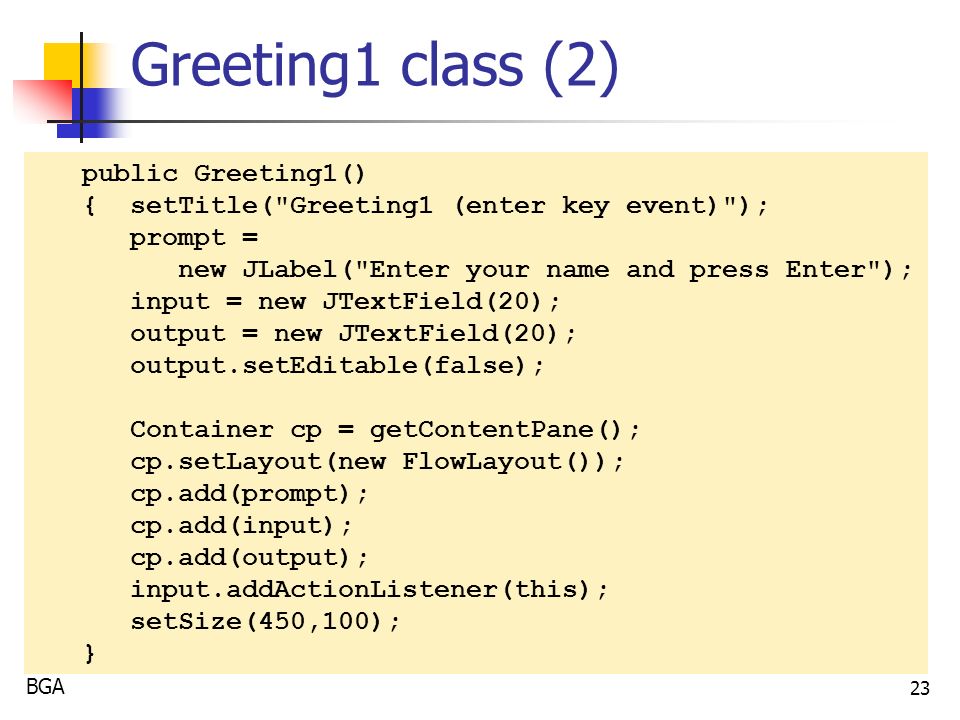

23. BGA 23 Greeting1 class (2) public Greeting1() { setTitle("Greeting1 (enter key event)"); prompt = new JLabel("Enter your name and press Enter"); input = new JTextField(20); output = new JTextField(20); output.setEditable(false); Container cp = getContentPane(); cp.setLayout(new FlowLayout()); cp.add(prompt); cp.add(input); cp.add(output); input.addActionListener(this); setSize(450,100); }

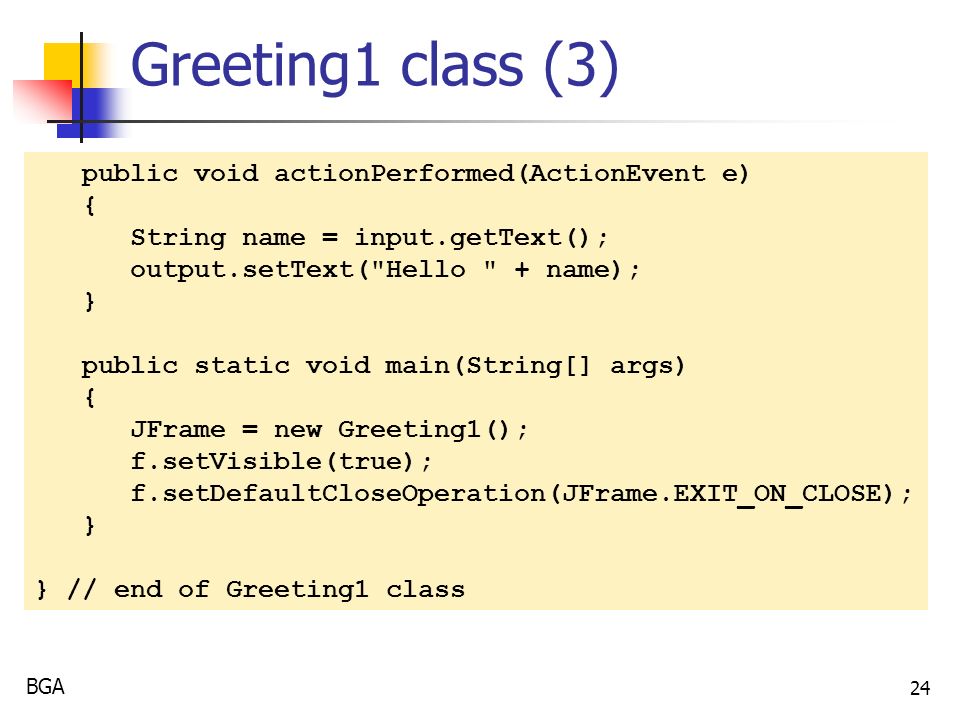

24. BGA 24 Greeting1 class (3) public void actionPerformed(ActionEvent e) { String name = input.getText(); output.setText("Hello " + name); } public static void main(String[] args) { JFrame = new Greeting1(); f.setVisible(true); f.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE); } } // end of Greeting1 class

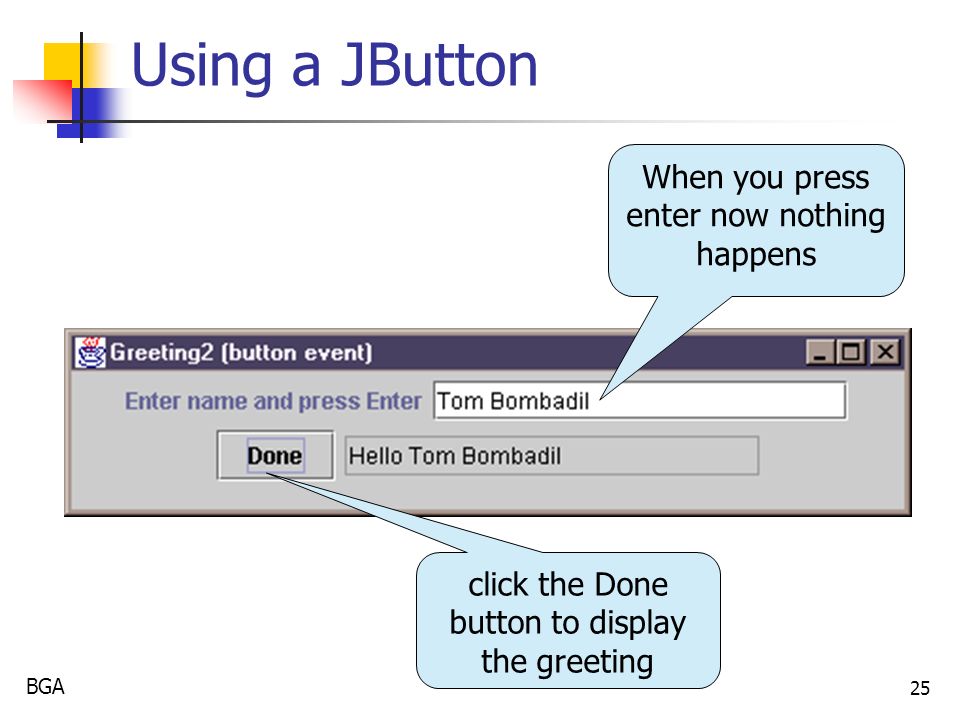

25. BGA 25 Using a JButton When you press enter now nothing happens click the Done button to display the greeting

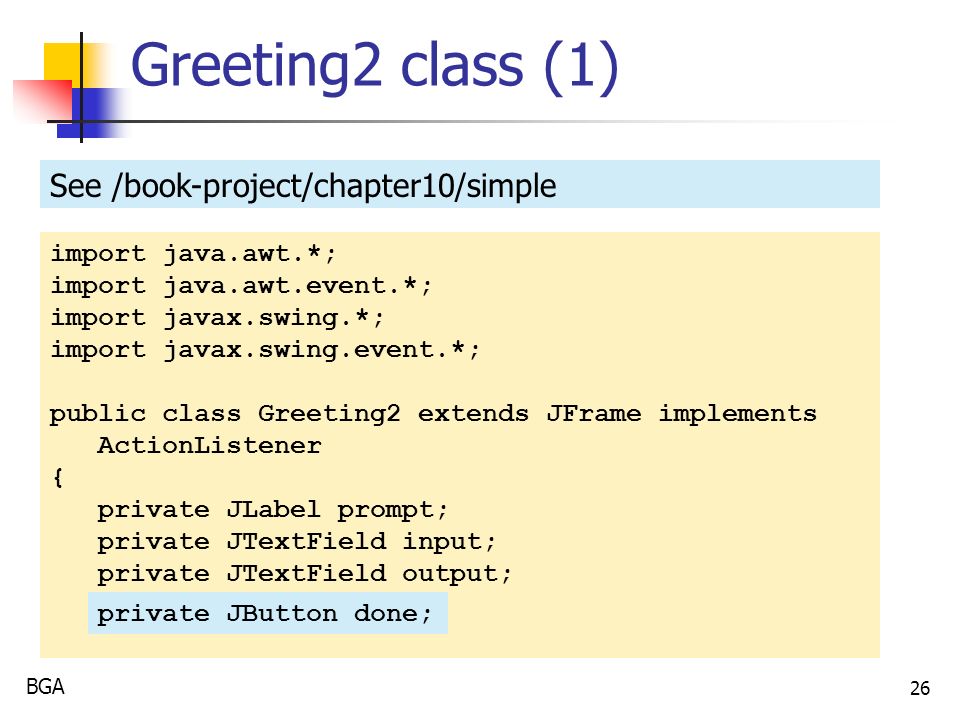

26. BGA 26 Greeting2 class (1) import java.awt.*; import java.awt.event.*; import javax.swing.*; import javax.swing.event.*; public class Greeting2 extends JFrame implements ActionListener { private JLabel prompt; private JTextField input; private JTextField output; private JButton done; See /book-project/chapter10/simple private JButton done;

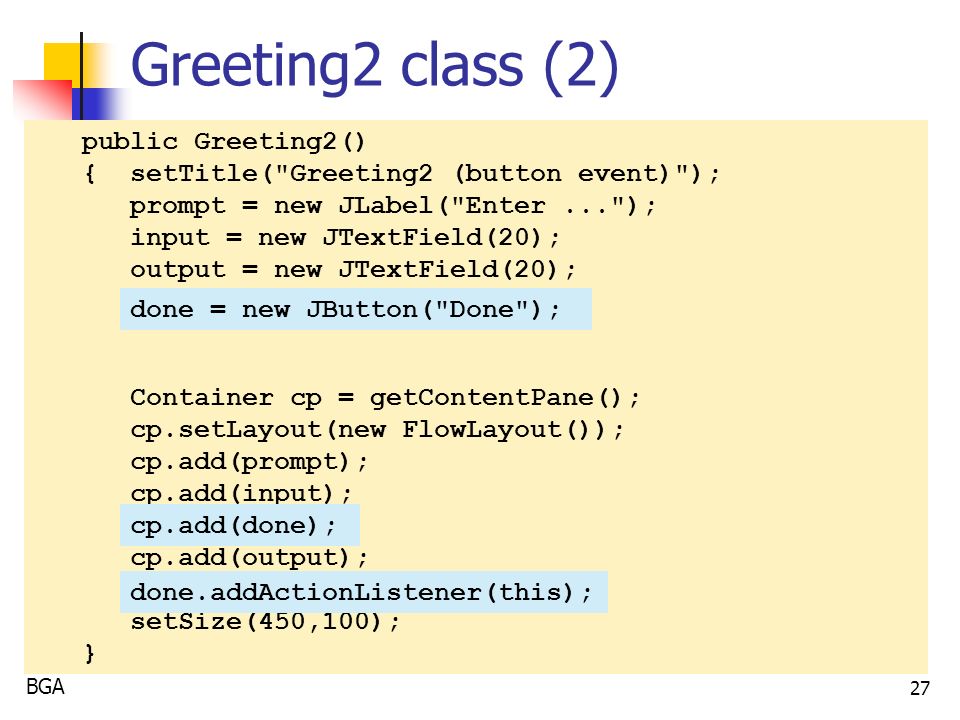

27. BGA 27 Greeting2 class (2) public Greeting2() { setTitle("Greeting2 (button event)"); prompt = new JLabel("Enter..."); input = new JTextField(20); output = new JTextField(20); output.setEditable(false); Container cp = getContentPane(); cp.setLayout(new FlowLayout()); cp.add(prompt); cp.add(input); cp.add(done); cp.add(output); done.addActionListener(this); setSize(450,100); } done = new JButton("Done"); cp.add(done); done.addActionListener(this);

28. BGA 28 Greeting2 class (3) public void actionPerformed(ActionEvent e) { String name = input.getText(); output.setText("Hello " + name); } public static void main(String[] args) { JFrame = new Greeting2(); f.setVisible(true); f.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE); } } // end of Greeting2 class

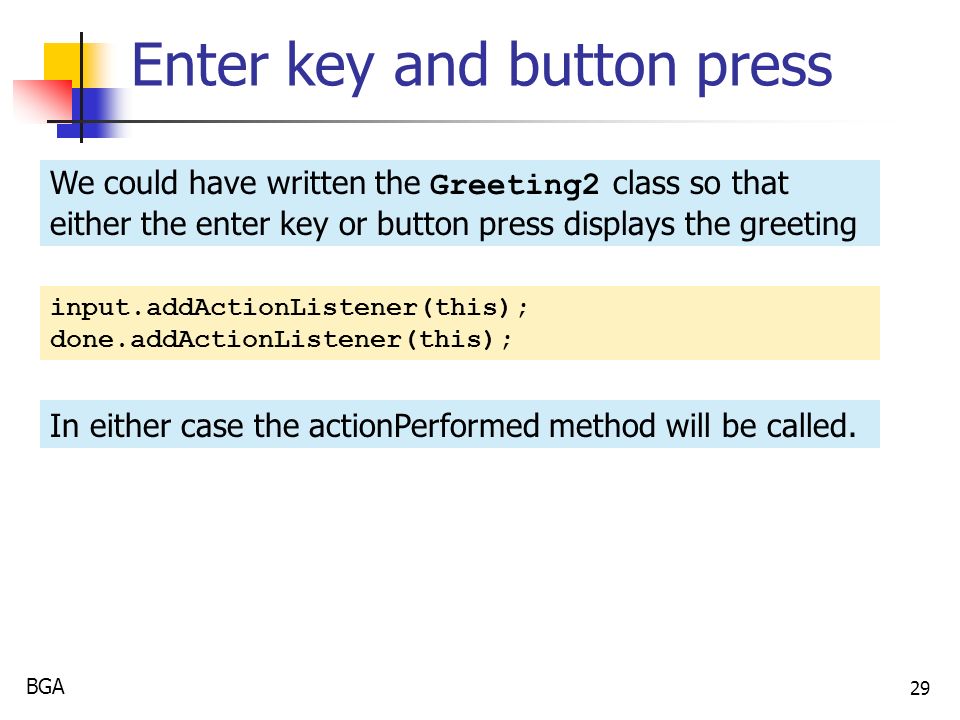

29. BGA 29 Enter key and button press We could have written the Greeting2 class so that either the enter key or button press displays the greeting input.addActionListener(this); done.addActionListener(this); In either case the actionPerformed method will be called.

30. BGA 30 Multiple types of events In previous example the two events (enter key press and button click) are both processed in the same way so we don't have to distnguish them In general each event type will be processed in a different way: using getSource() method of the ActionEvent object to determine which event occured using inner classes, one for each event type

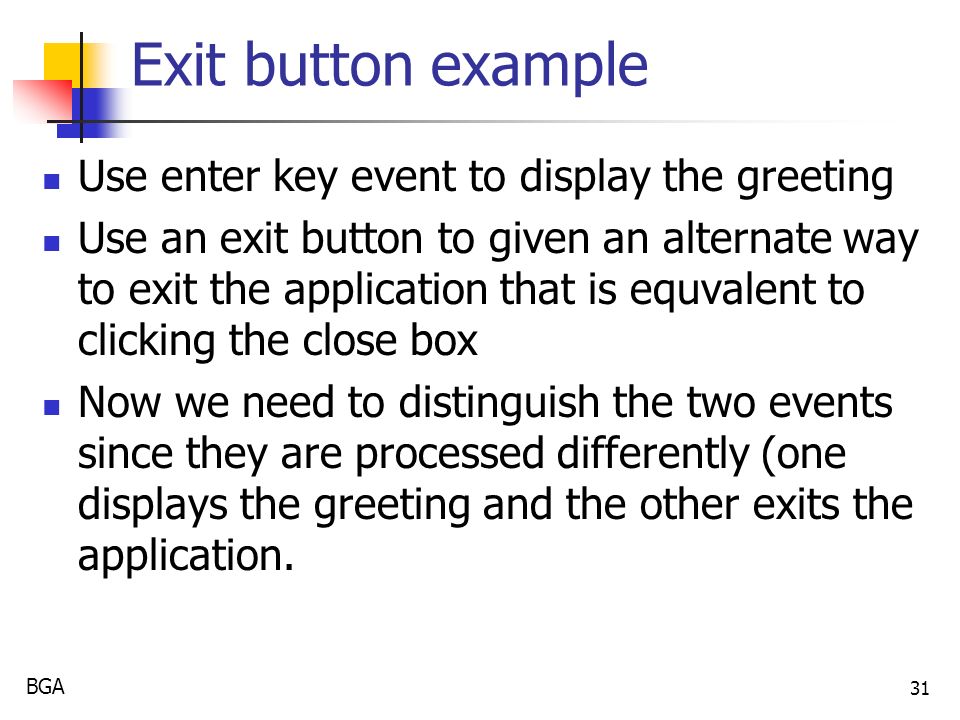

31. BGA 31 Exit button example Use enter key event to display the greeting Use an exit button to given an alternate way to exit the application that is equvalent to clicking the close box Now we need to distinguish the two events since they are processed differently (one displays the greeting and the other exits the application.

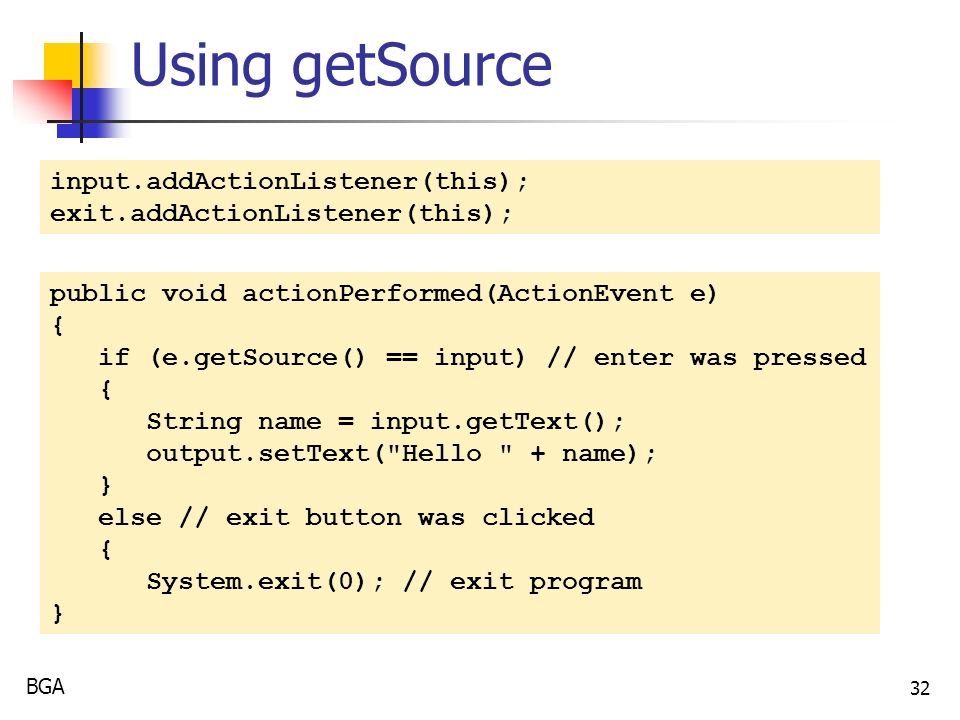

32. BGA 32 Using getSource input.addActionListener(this); exit.addActionListener(this); public void actionPerformed(ActionEvent e) { if (e.getSource() == input) // enter was pressed { String name = input.getText(); output.setText("Hello " + name); } else // exit button was clicked { System.exit(0); // exit program }

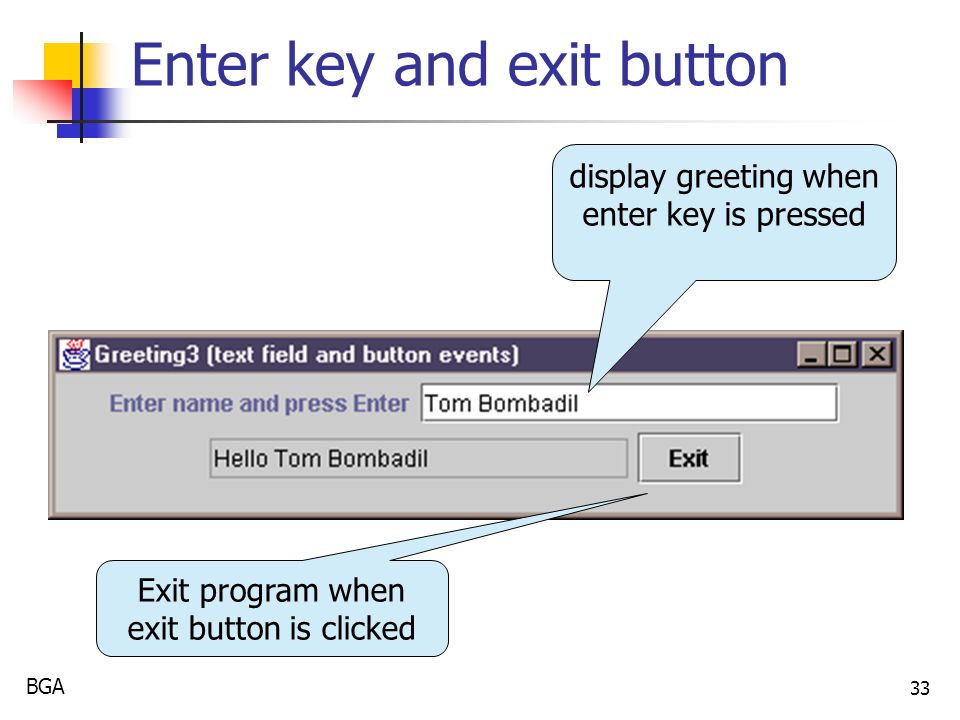

33. BGA 33 Enter key and exit button display greeting when enter key is pressed Exit program when exit button is clicked

34. BGA 34 Greeting3 class (1) import java.awt.*; import java.awt.event.*; import javax.swing.*; import javax.swing.event.*; public class Greeting3 extends JFrame implements ActionListener { private JLabel prompt; private JTextField input; private JTextField output; private JButton exit; See /book-project/chapter10/simple private JButton exit;

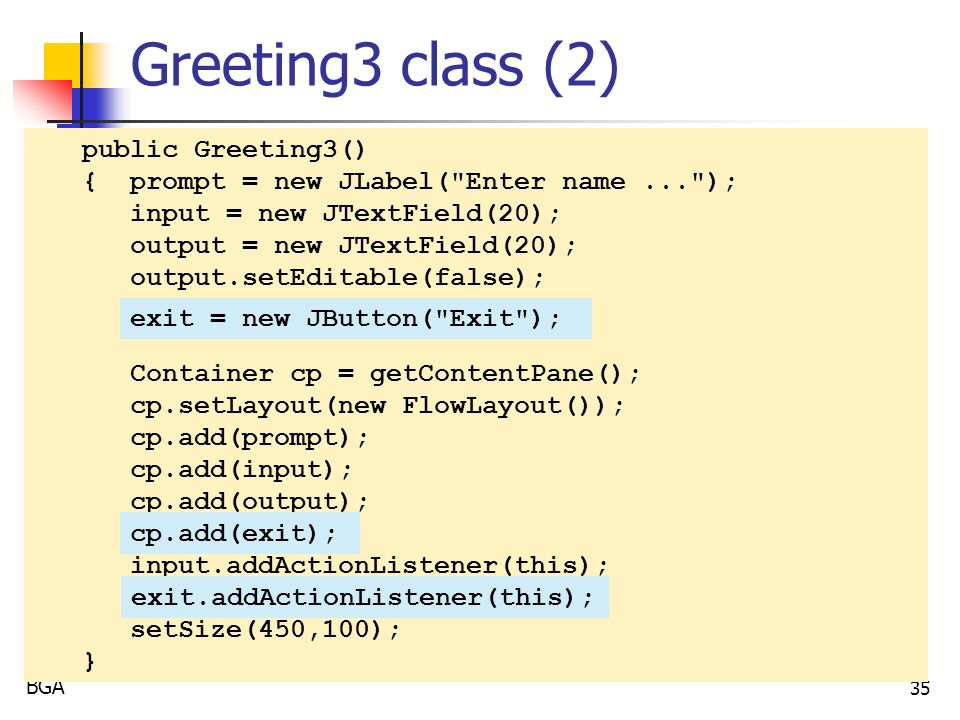

35. BGA 35 Greeting3 class (2) public Greeting3() { prompt = new JLabel("Enter name..."); input = new JTextField(20); output = new JTextField(20); output.setEditable(false); Container cp = getContentPane(); cp.setLayout(new FlowLayout()); cp.add(prompt); cp.add(input); cp.add(output); cp.add(exit); input.addActionListener(this); setSize(450,100); } exit = new JButton("Exit"); cp.add(exit); exit.addActionListener(this);

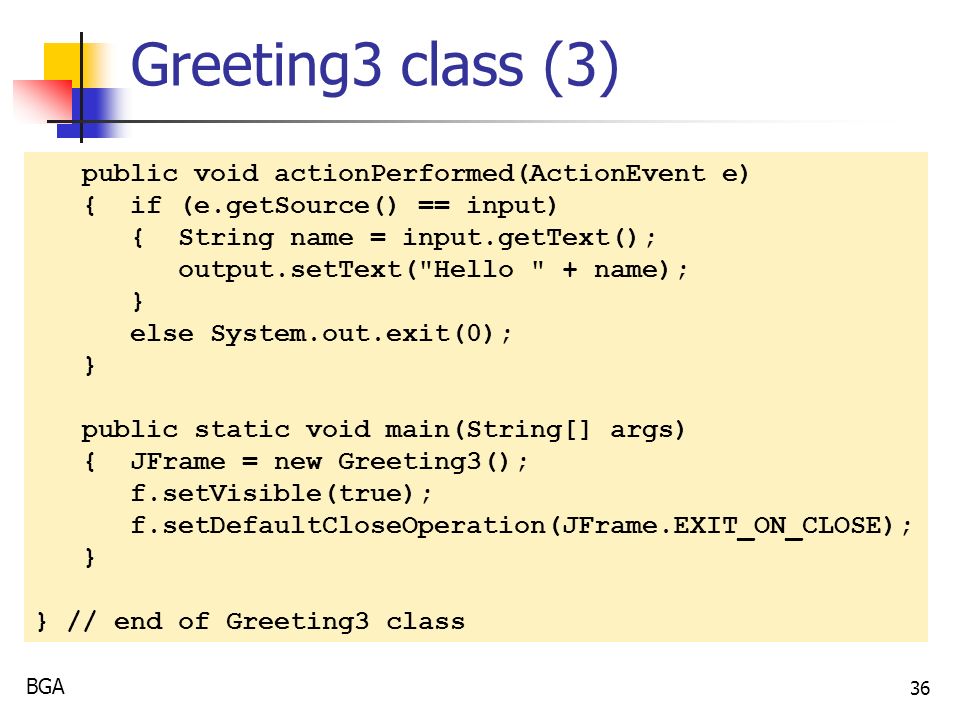

36. BGA 36 Greeting3 class (3) public void actionPerformed(ActionEvent e) { if (e.getSource() == input) { String name = input.getText(); output.setText("Hello " + name); } else System.out.exit(0); } public static void main(String[] args) { JFrame = new Greeting3(); f.setVisible(true); f.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE); } } // end of Greeting3 class

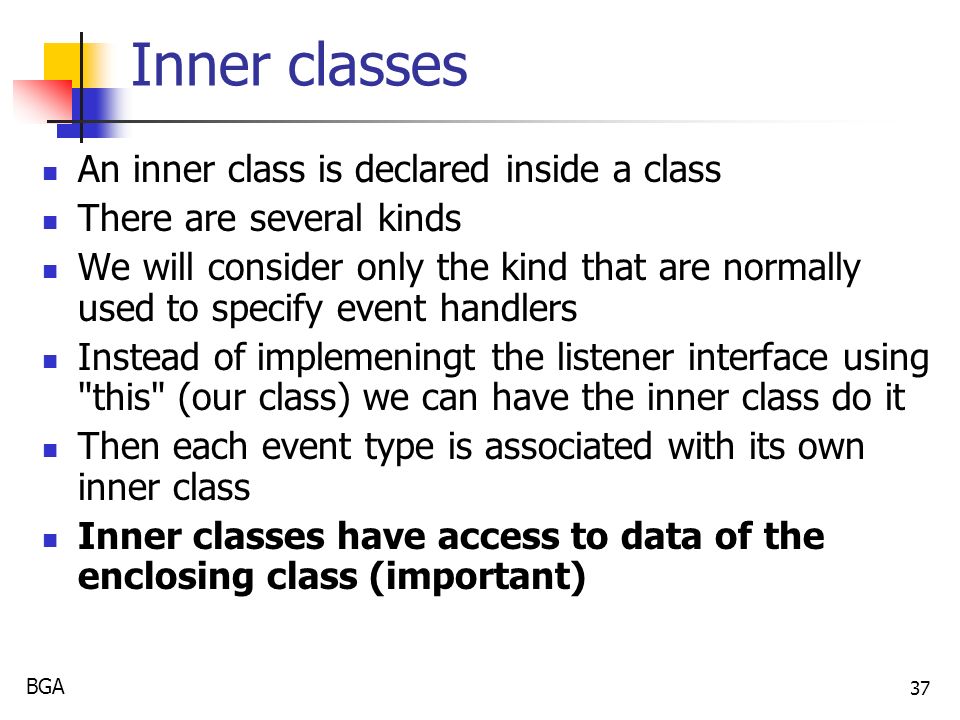

37. BGA 37 Inner classes An inner class is declared inside a class There are several kinds We will consider only the kind that are normally used to specify event handlers Instead of implemeningt the listener interface using "this" (our class) we can have the inner class do it Then each event type is associated with its own inner class Inner classes have access to data of the enclosing class (important)

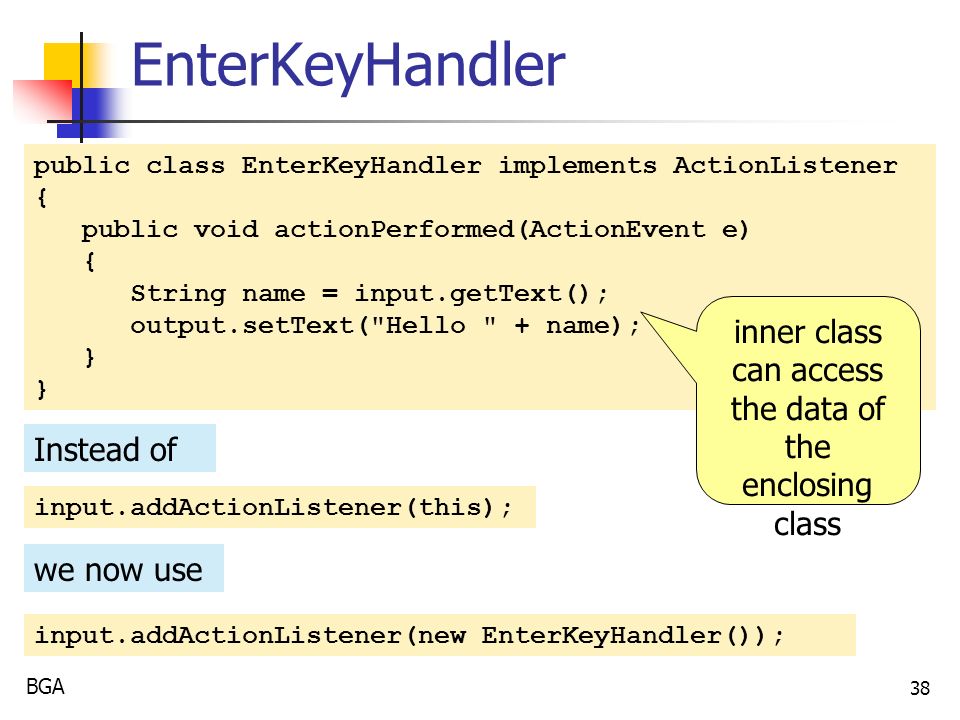

38. BGA 38 EnterKeyHandler public class EnterKeyHandler implements ActionListener { public void actionPerformed(ActionEvent e) { String name = input.getText(); output.setText("Hello " + name); } Instead of we now use input.addActionListener(this); input.addActionListener(new EnterKeyHandler()); inner class can access the data of the enclosing class

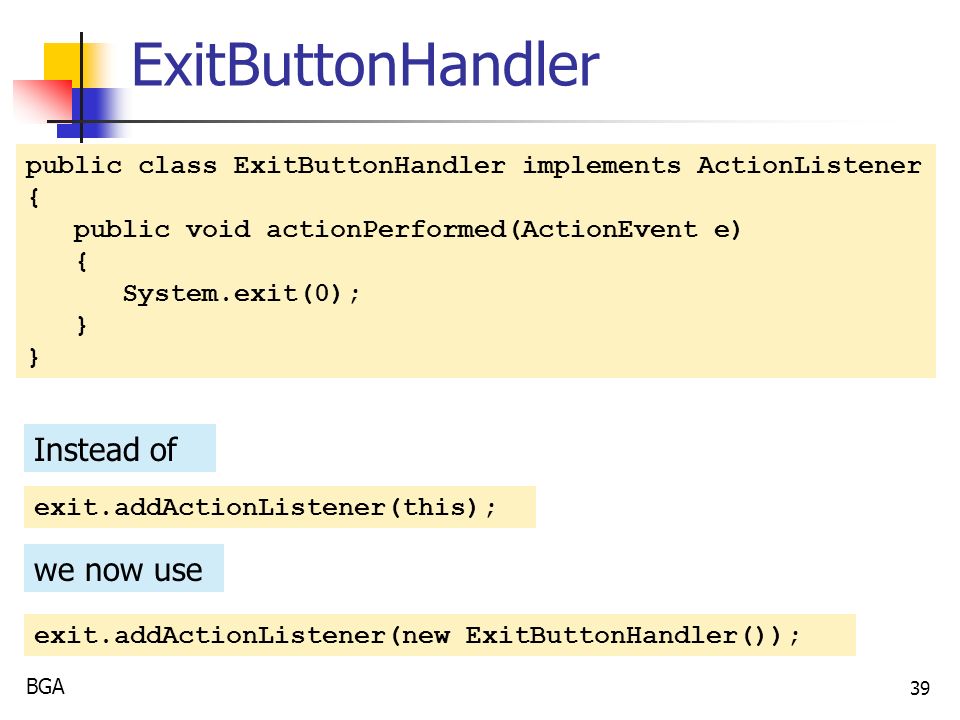

39. BGA 39 ExitButtonHandler public class ExitButtonHandler implements ActionListener { public void actionPerformed(ActionEvent e) { System.exit(0); } Instead of we now use exit.addActionListener(this); exit.addActionListener(new ExitButtonHandler());

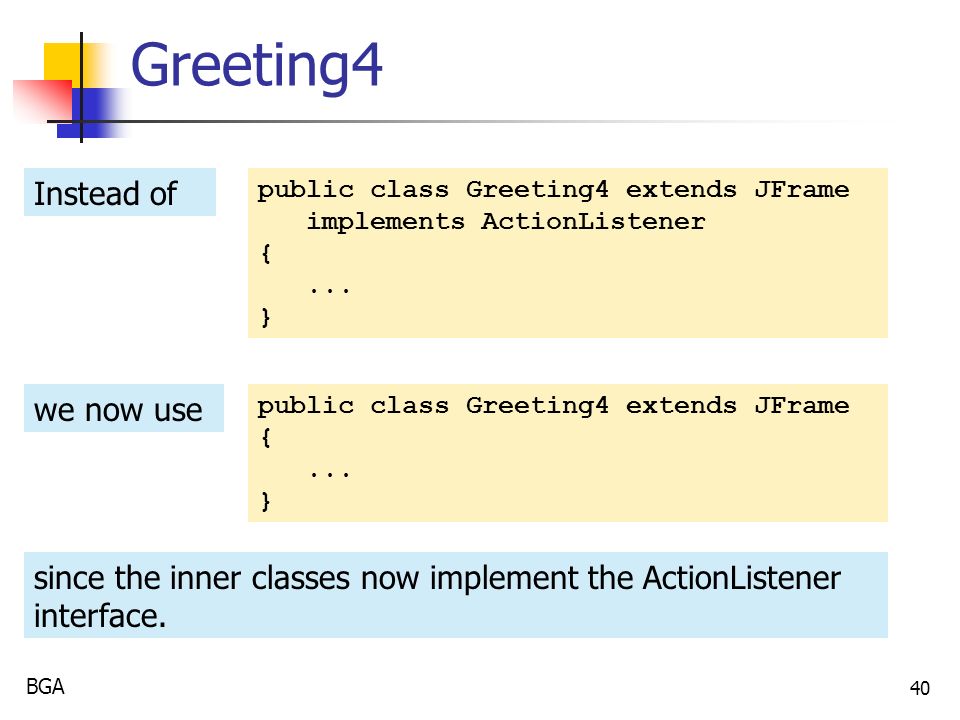

40. BGA 40 Greeting4 Instead of we now use public class Greeting4 extends JFrame implements ActionListener {... } public class Greeting4 extends JFrame {... } since the inner classes now implement the ActionListener interface.

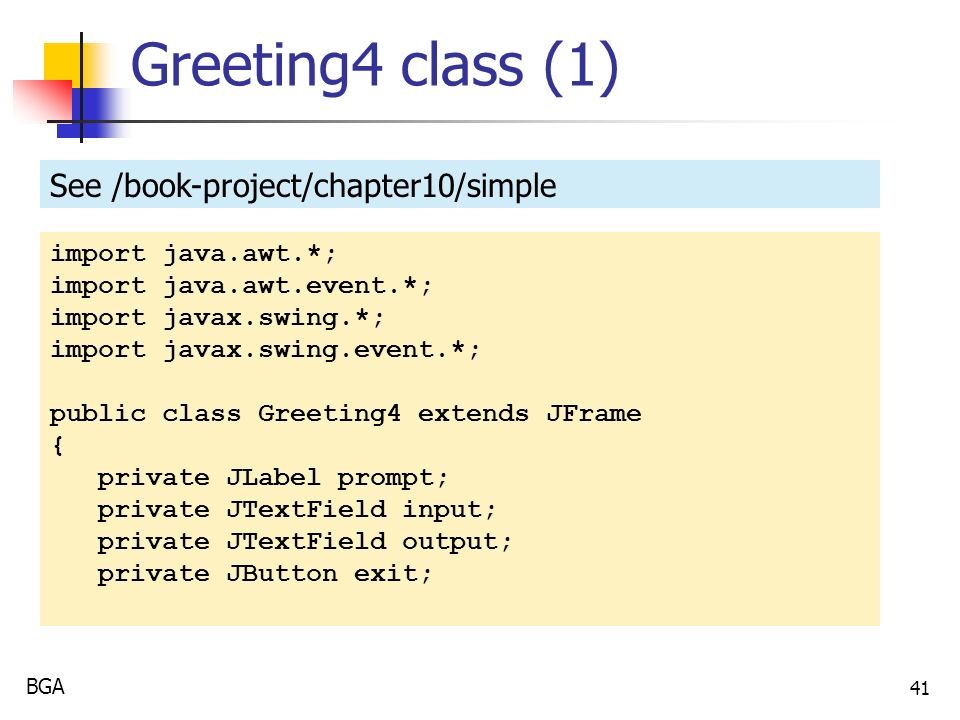

41. BGA 41 Greeting4 class (1) import java.awt.*; import java.awt.event.*; import javax.swing.*; import javax.swing.event.*; public class Greeting4 extends JFrame { private JLabel prompt; private JTextField input; private JTextField output; private JButton exit; See /book-project/chapter10/simple

42. BGA 42 Greeting4 class (2) public Greeting4() { prompt = new JLabel("Enter name..."); input = new JTextField(20); output = new JTextField(20); output.setEditable(false); exit = new JButton("Exit"); Container cp = getContentPane(); cp.setLayout(new FlowLayout()); cp.add(prompt); cp.add(input); cp.add(output); cp.add(exit); input.addActionListener(new EnterKeyHandler()); exit.addActionListener(new ExitButtonHander()); setSize(450,100); } input.addActionListener(new EnterKeyHandler()); exit.addActionListener(new ExitButtonHandler());

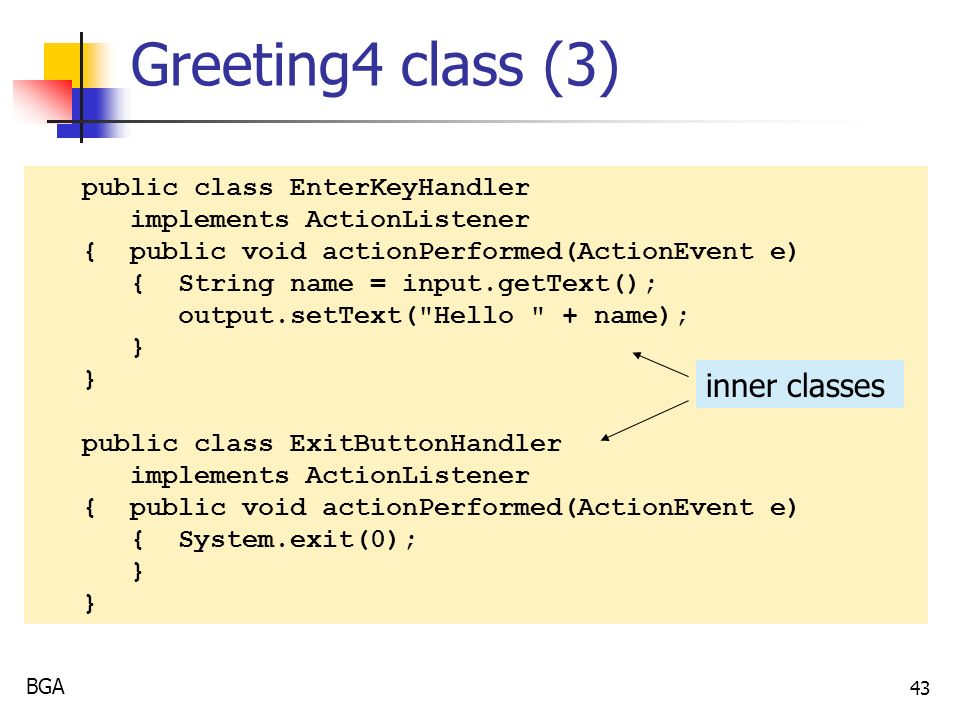

43. BGA 43 Greeting4 class (3) public class EnterKeyHandler implements ActionListener { public void actionPerformed(ActionEvent e) { String name = input.getText(); output.setText("Hello " + name); } public class ExitButtonHandler implements ActionListener { public void actionPerformed(ActionEvent e) { System.exit(0); } inner classes

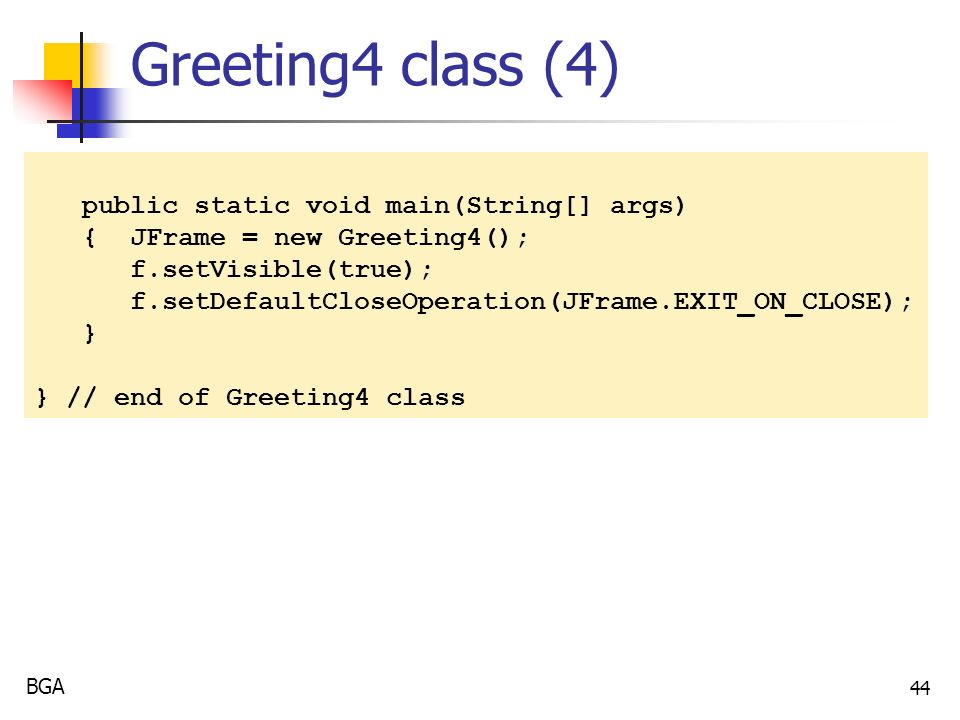

44. BGA 44 Greeting4 class (4) public static void main(String[] args) { JFrame = new Greeting4(); f.setVisible(true); f.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE); } } // end of Greeting4 class

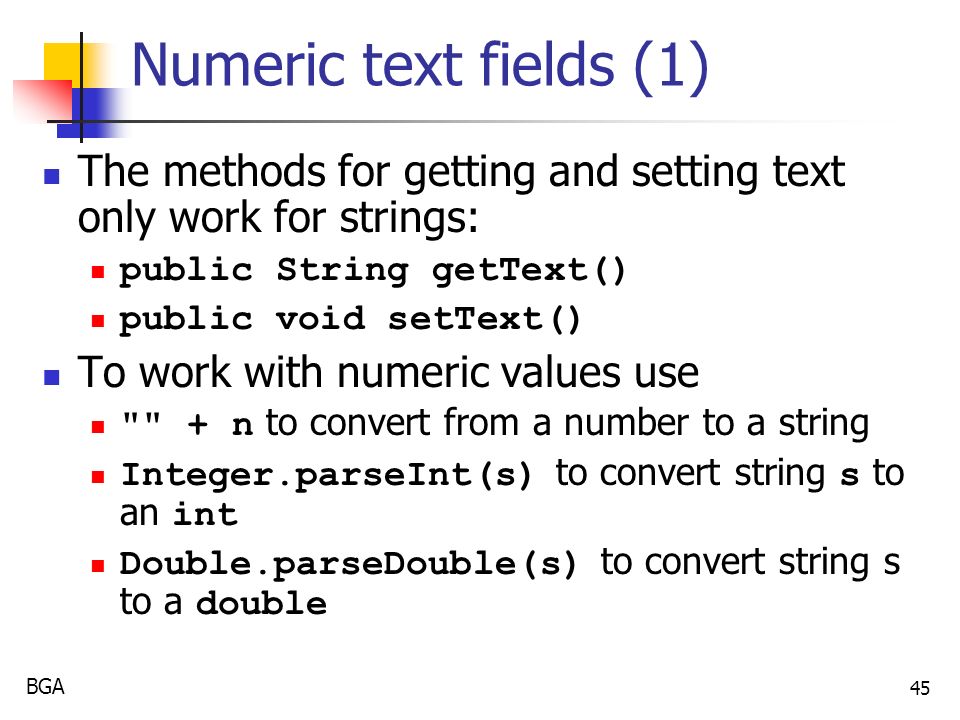

45. BGA 45 Numeric text fields (1) The methods for getting and setting text only work for strings: public String getText() public void setText() To work with numeric values use "" + n to convert from a number to a string Integer.parseInt(s) to convert string s to an int Double.parseDouble(s) to convert string s to a double

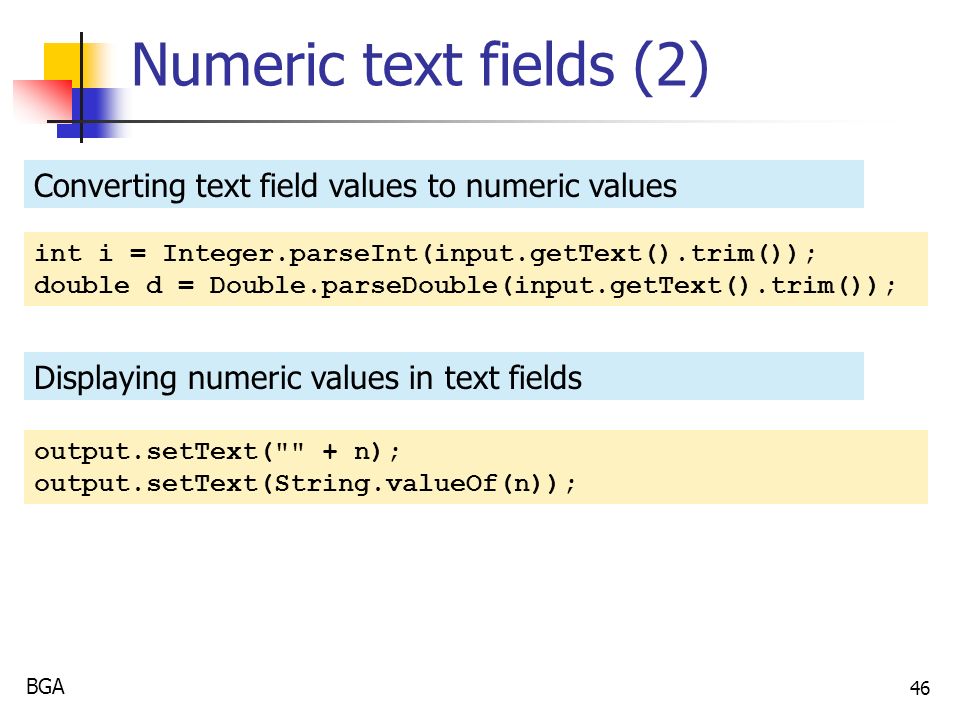

46. BGA 46 Numeric text fields (2) Converting text field values to numeric values int i = Integer.parseInt(input.getText().trim()); double d = Double.parseDouble(input.getText().trim()); Displaying numeric values in text fields output.setText("" + n); output.setText(String.valueOf(n));

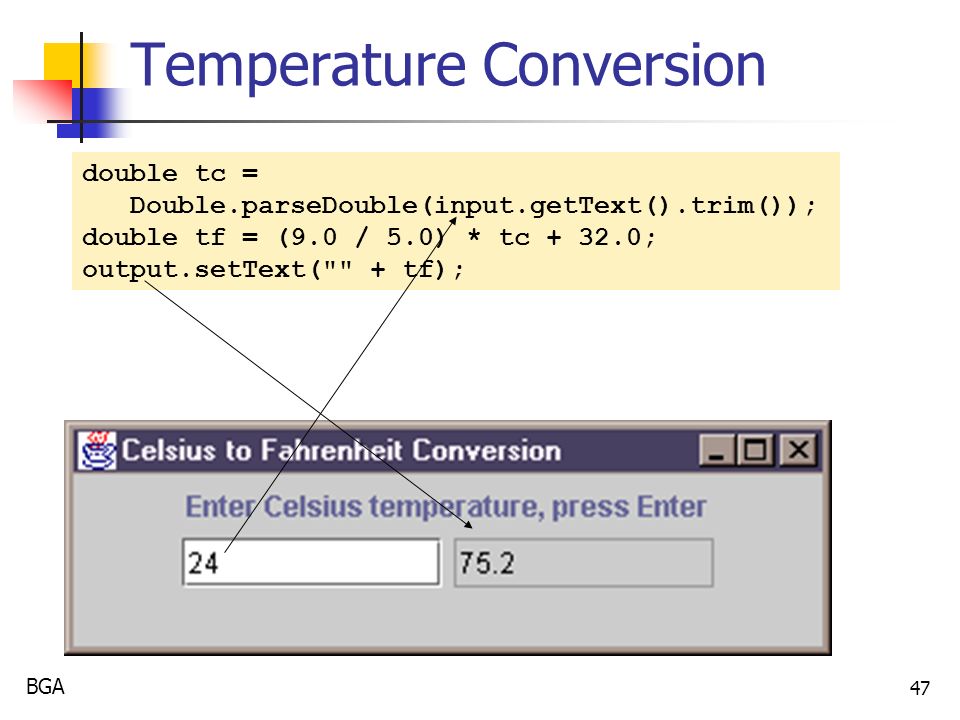

47. BGA 47 Temperature Conversion double tc = Double.parseDouble(input.getText().trim()); double tf = (9.0 / 5.0) * tc + 32.0; output.setText("" + tf);

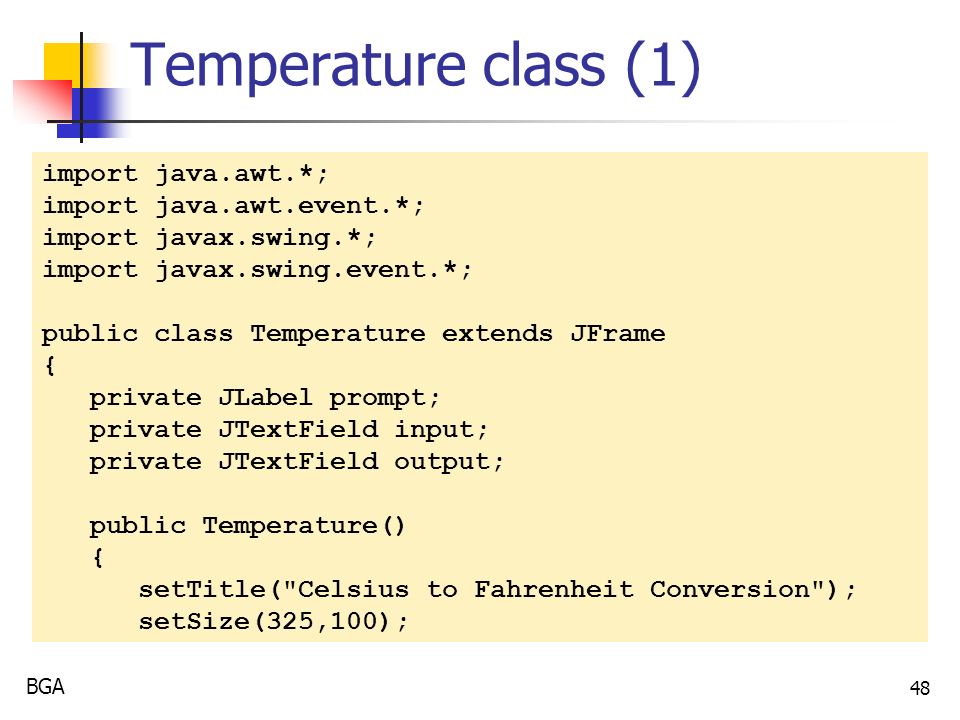

48. BGA 48 Temperature class (1) import java.awt.*; import java.awt.event.*; import javax.swing.*; import javax.swing.event.*; public class Temperature extends JFrame { private JLabel prompt; private JTextField input; private JTextField output; public Temperature() { setTitle("Celsius to Fahrenheit Conversion"); setSize(325,100);

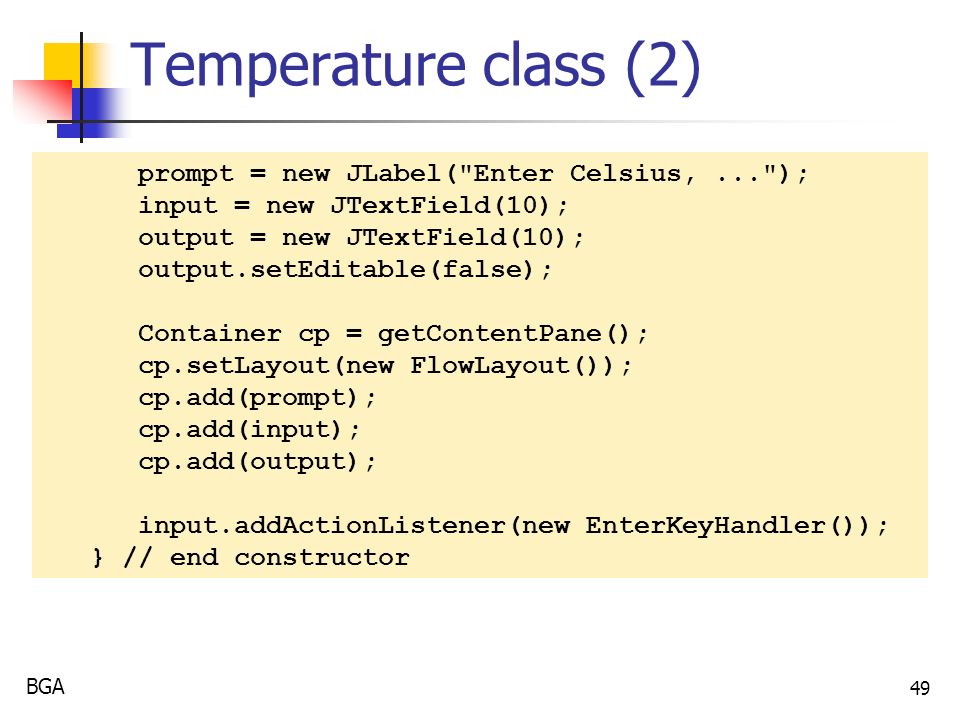

49. BGA 49 Temperature class (2) prompt = new JLabel("Enter Celsius,..."); input = new JTextField(10); output = new JTextField(10); output.setEditable(false); Container cp = getContentPane(); cp.setLayout(new FlowLayout()); cp.add(prompt); cp.add(input); cp.add(output); input.addActionListener(new EnterKeyHandler()); } // end constructor

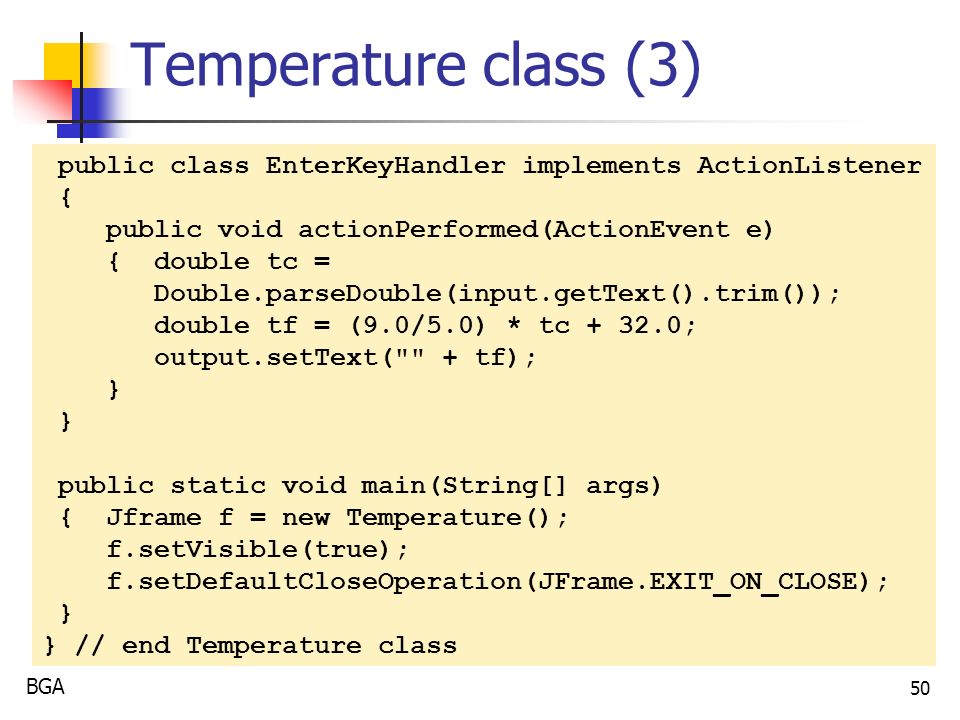

50. BGA 50 Temperature class (3) public class EnterKeyHandler implements ActionListener { public void actionPerformed(ActionEvent e) { double tc = Double.parseDouble(input.getText().trim()); double tf = (9.0/5.0) * tc + 32.0; output.setText("" + tf); } public static void main(String[] args) { Jframe f = new Temperature(); f.setVisible(true); f.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE); } } // end Temperature class

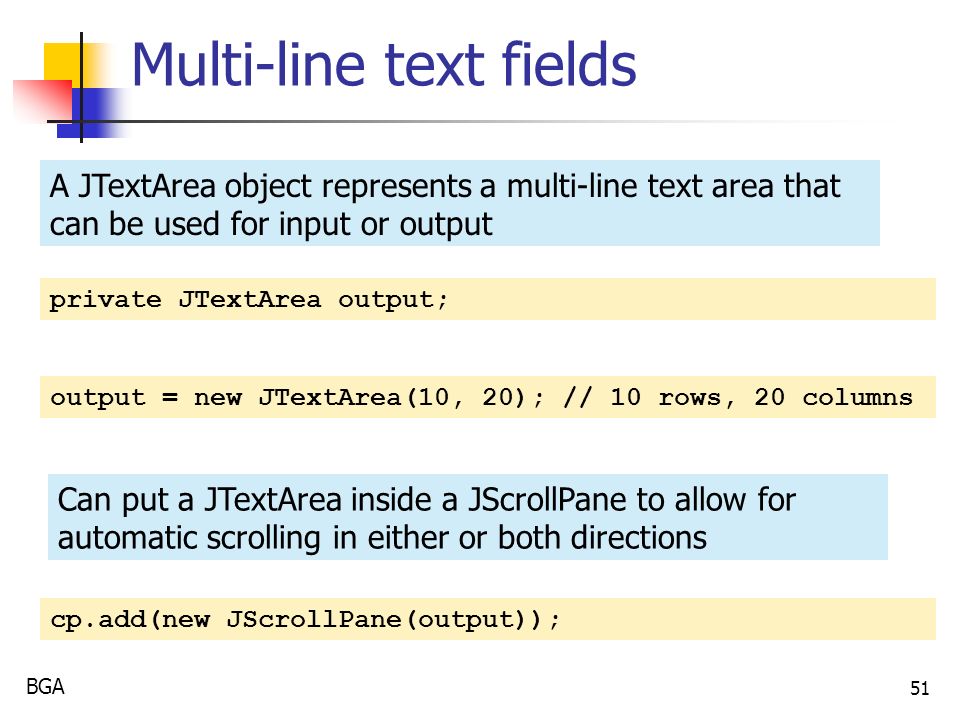

51. BGA 51 Multi-line text fields A JTextArea object represents a multi-line text area that can be used for input or output private JTextArea output; output = new JTextArea(10, 20); // 10 rows, 20 columns Can put a JTextArea inside a JScrollPane to allow for automatic scrolling in either or both directions cp.add(new JScrollPane(output));

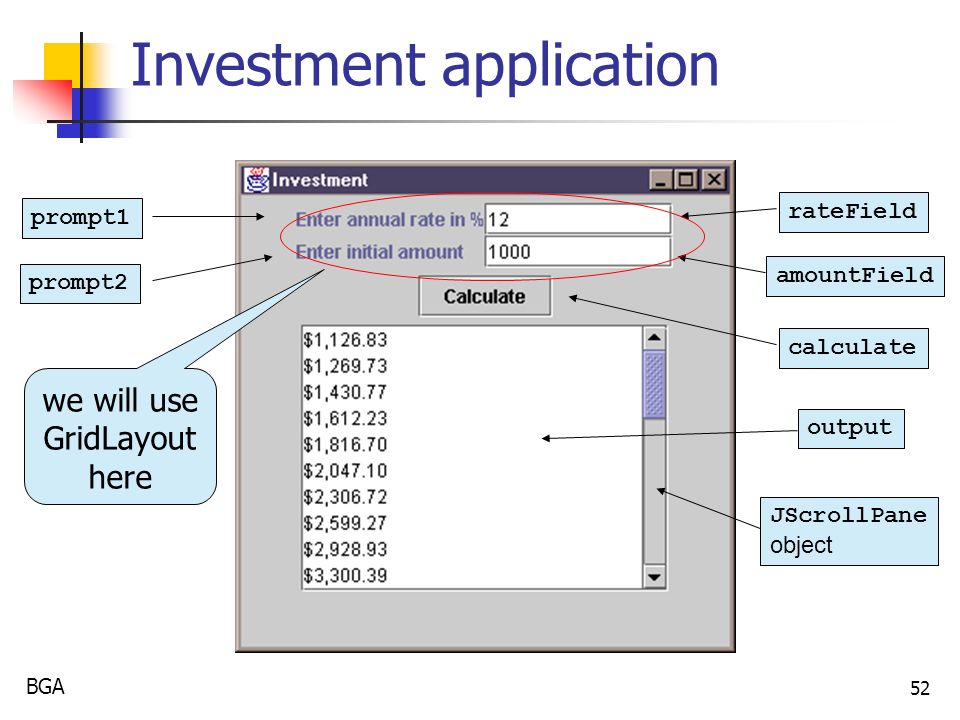

52. BGA 52 Investment application prompt1 prompt2 rateField amountField calculate output JScrollPane object we will use GridLayout here

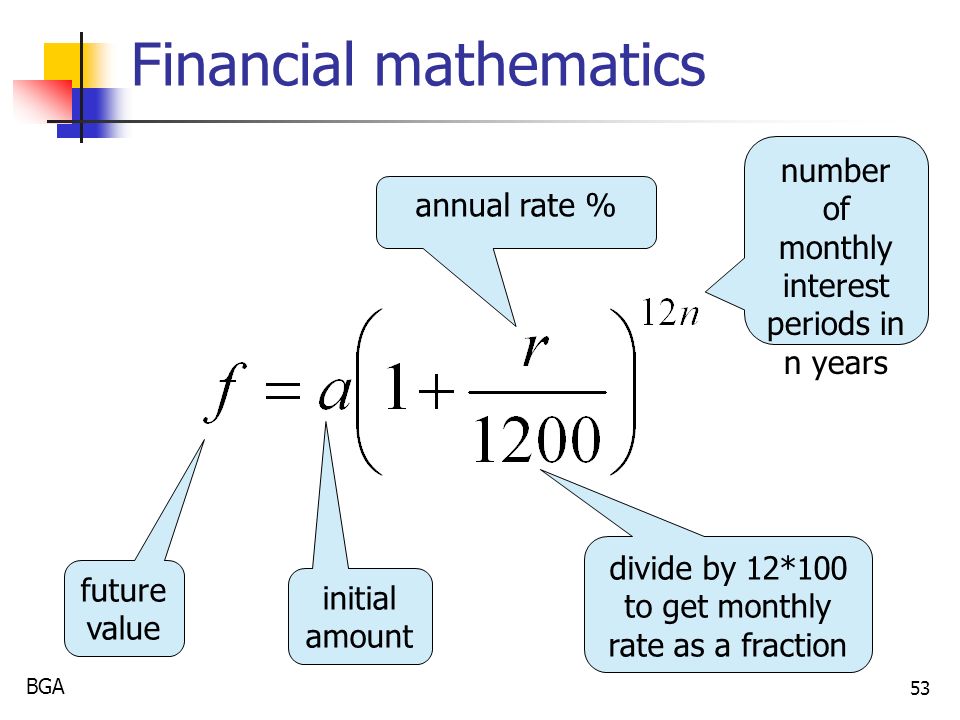

53. BGA 53 Financial mathematics future value initial amount annual rate % divide by 12*100 to get monthly rate as a fraction number of monthly interest periods in n years

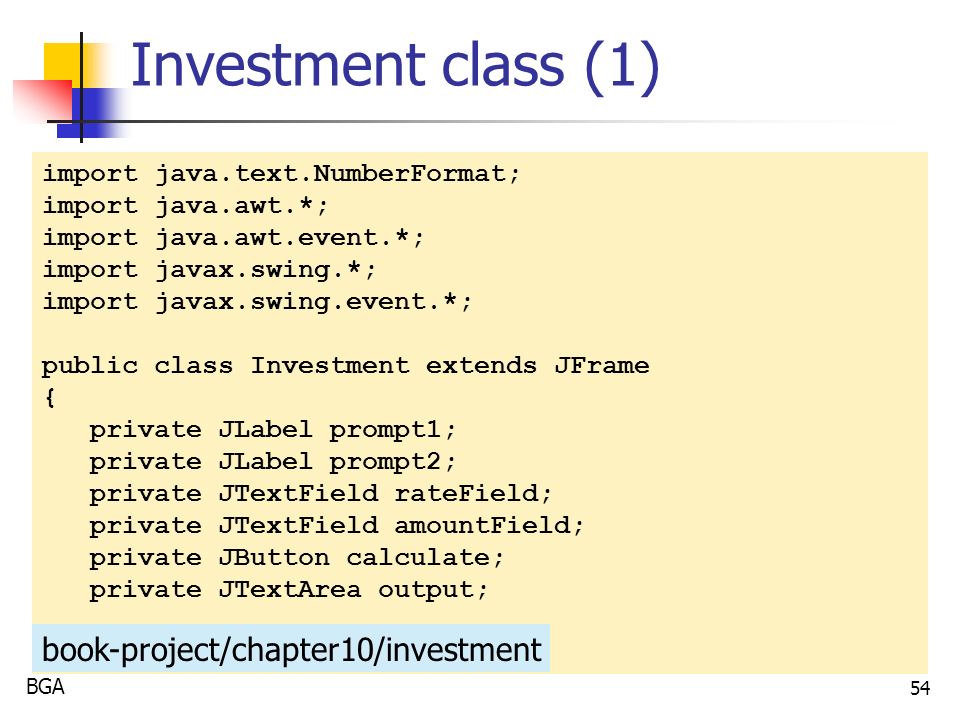

54. BGA 54 Investment class (1) import java.text.NumberFormat; import java.awt.*; import java.awt.event.*; import javax.swing.*; import javax.swing.event.*; public class Investment extends JFrame { private JLabel prompt1; private JLabel prompt2; private JTextField rateField; private JTextField amountField; private JButton calculate; private JTextArea output; book-project/chapter10/investment

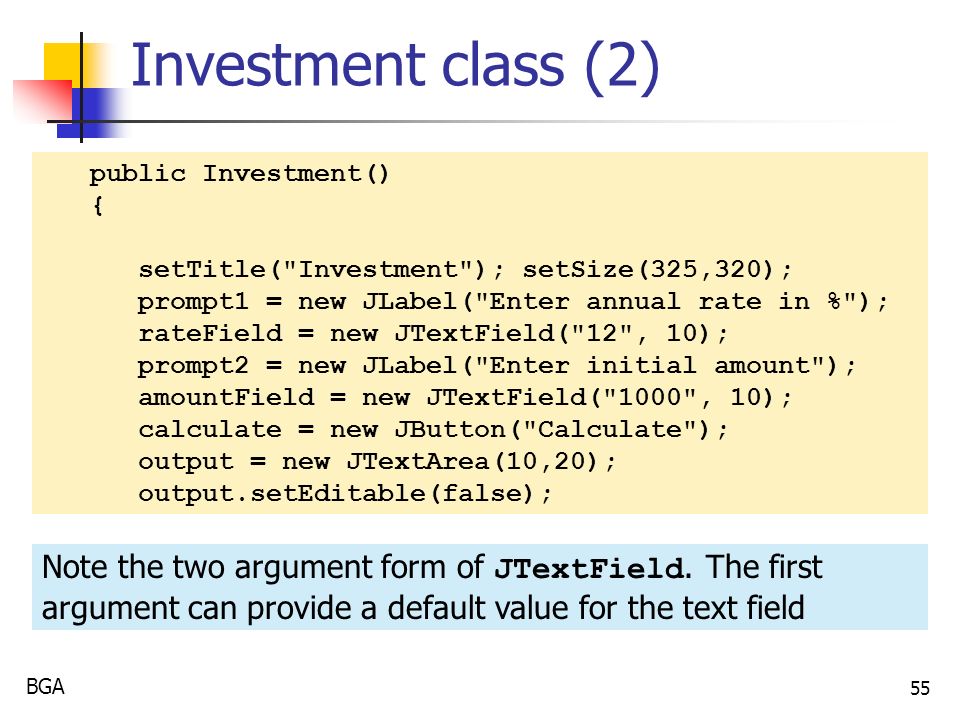

55. BGA 55 Investment class (2) public Investment() { setTitle("Investment"); setSize(325,320); prompt1 = new JLabel("Enter annual rate in %"); rateField = new JTextField("12", 10); prompt2 = new JLabel("Enter initial amount"); amountField = new JTextField("1000", 10); calculate = new JButton("Calculate"); output = new JTextArea(10,20); output.setEditable(false); Note the two argument form of JTextField. The first argument can provide a default value for the text field

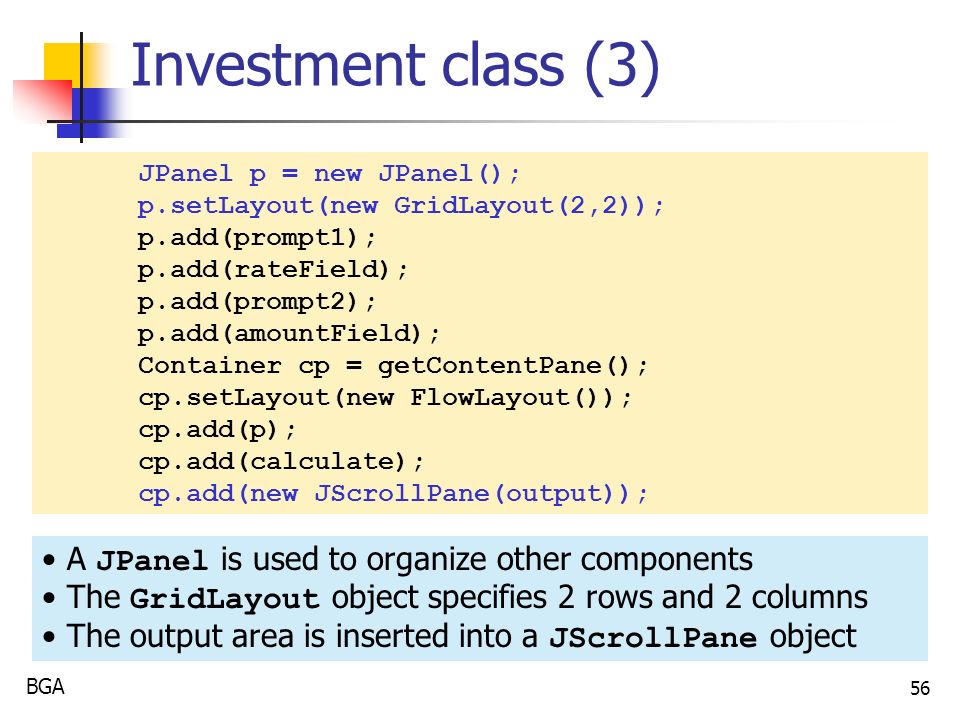

56. BGA 56 Investment class (3) JPanel p = new JPanel(); p.setLayout(new GridLayout(2,2)); p.add(prompt1); p.add(rateField); p.add(prompt2); p.add(amountField); Container cp = getContentPane(); cp.setLayout(new FlowLayout()); cp.add(p); cp.add(calculate); cp.add(new JScrollPane(output)); A JPanel is used to organize other components The GridLayout object specifies 2 rows and 2 columns The output area is inserted into a JScrollPane object

57. BGA 57 Investment class (4) calculate.addActionListener( new CalculateButtonHandler()); doIterations(); } // end of Investment constructor doIterations calculates and displays the current value of the investment at the end of each year for 30 years.

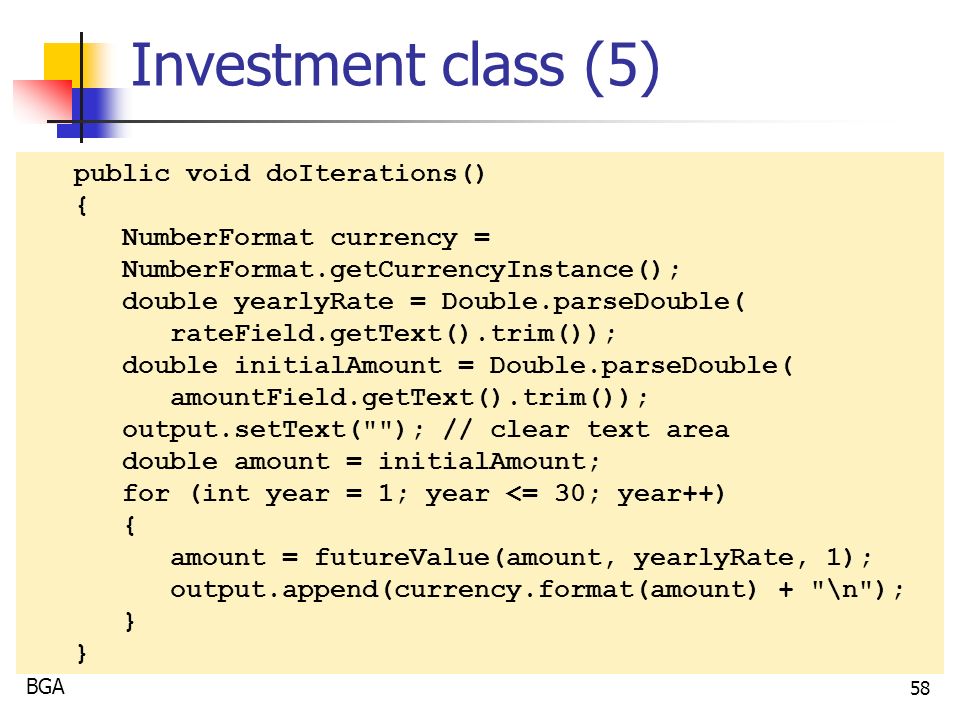

58. BGA 58 Investment class (5) public void doIterations() { NumberFormat currency = NumberFormat.getCurrencyInstance(); double yearlyRate = Double.parseDouble( rateField.getText().trim()); double initialAmount = Double.parseDouble( amountField.getText().trim()); output.setText(""); // clear text area double amount = initialAmount; for (int year = 1; year <= 30; year++) { amount = futureValue(amount, yearlyRate, 1); output.append(currency.format(amount) + "\n"); }

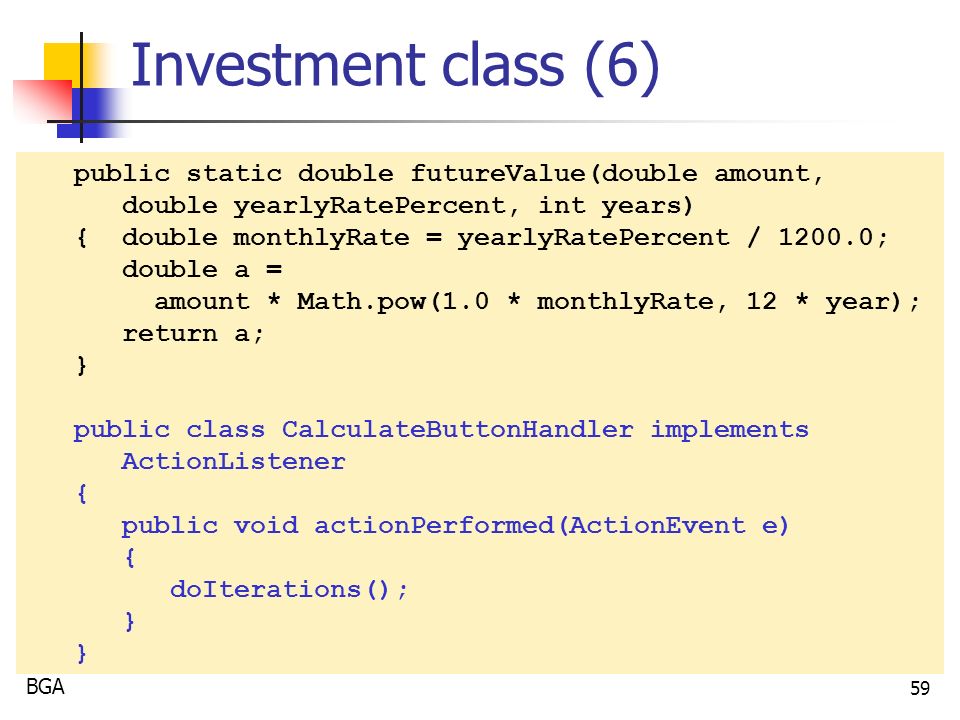

59. BGA 59 Investment class (6) public static double futureValue(double amount, double yearlyRatePercent, int years) { double monthlyRate = yearlyRatePercent / 1200.0; double a = amount * Math.pow(1.0 * monthlyRate, 12 * year); return a; } public class CalculateButtonHandler implements ActionListener { public void actionPerformed(ActionEvent e) { doIterations(); }

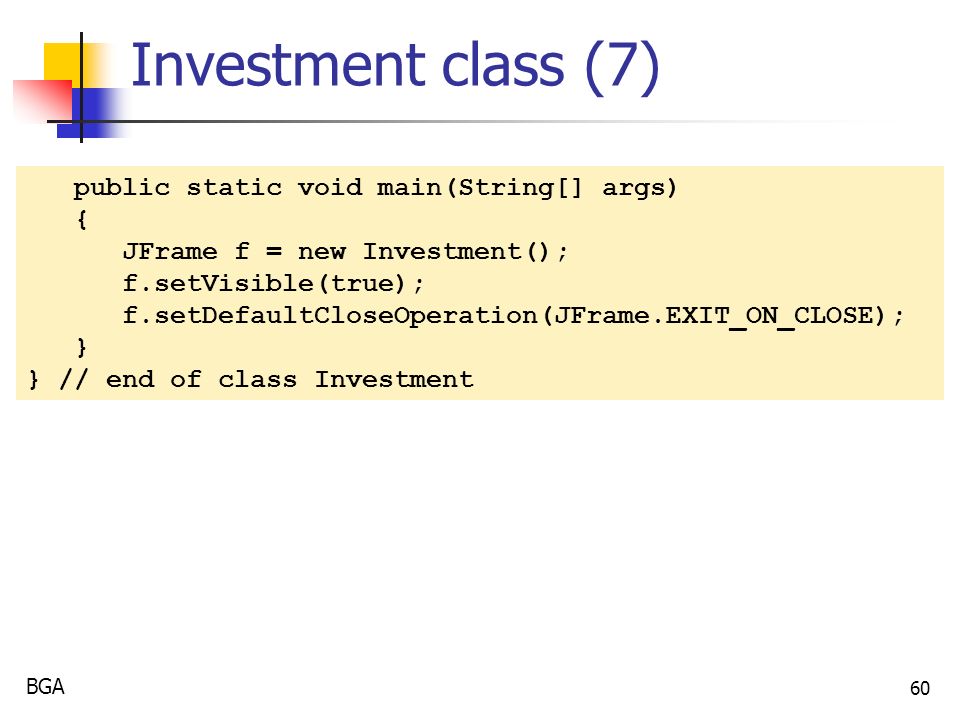

60. BGA 60 Investment class (7) public static void main(String[] args) { JFrame f = new Investment(); f.setVisible(true); f.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE); } } // end of class Investment

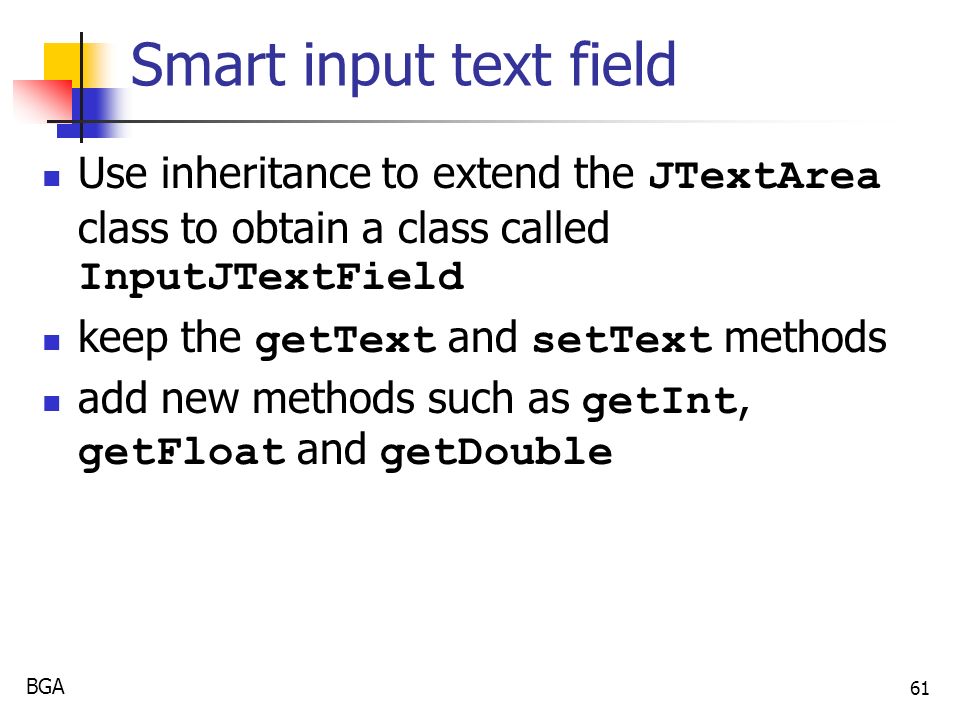

61. BGA 61 Smart input text field Use inheritance to extend the JTextArea class to obtain a class called InputJTextField keep the getText and setText methods add new methods such as getInt, getFloat and getDouble

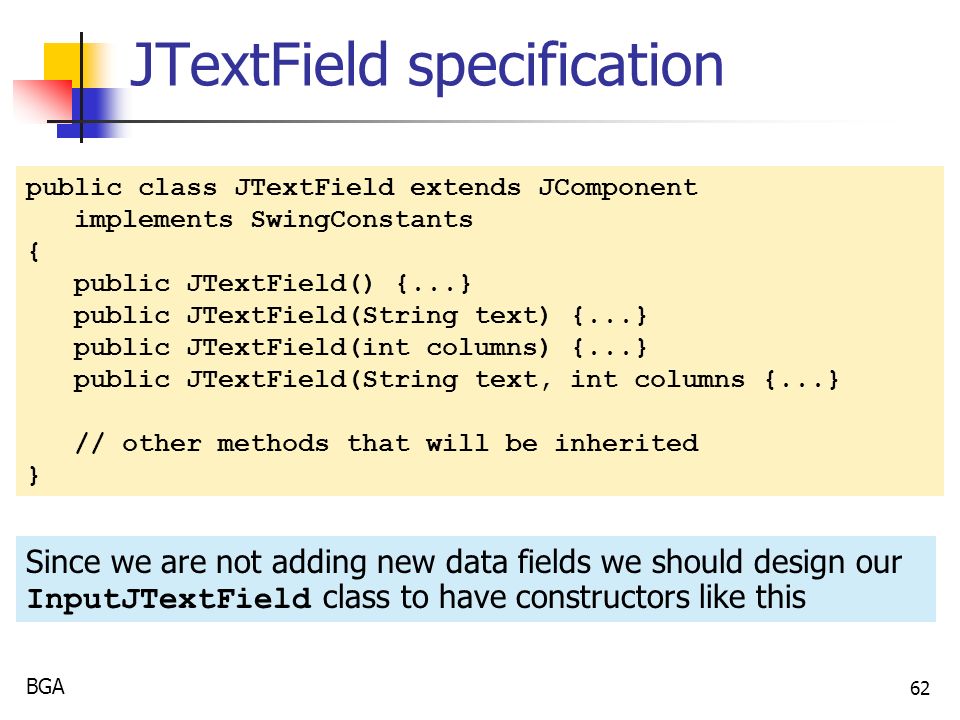

62. BGA 62 JTextField specification public class JTextField extends JComponent implements SwingConstants { public JTextField() {...} public JTextField(String text) {...} public JTextField(int columns) {...} public JTextField(String text, int columns {...} // other methods that will be inherited } Since we are not adding new data fields we should design our InputJTextField class to have constructors like this

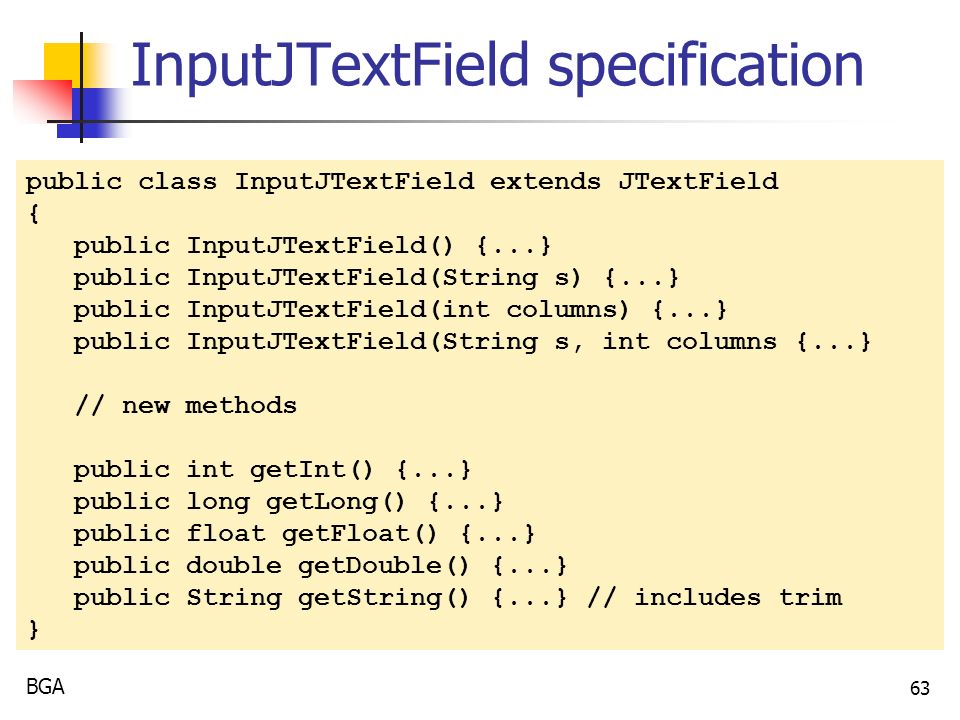

63. BGA 63 InputJTextField specification public class InputJTextField extends JTextField { public InputJTextField() {...} public InputJTextField(String s) {...} public InputJTextField(int columns) {...} public InputJTextField(String s, int columns {...} // new methods public int getInt() {...} public long getLong() {...} public float getFloat() {...} public double getDouble() {...} public String getString() {...} // includes trim }

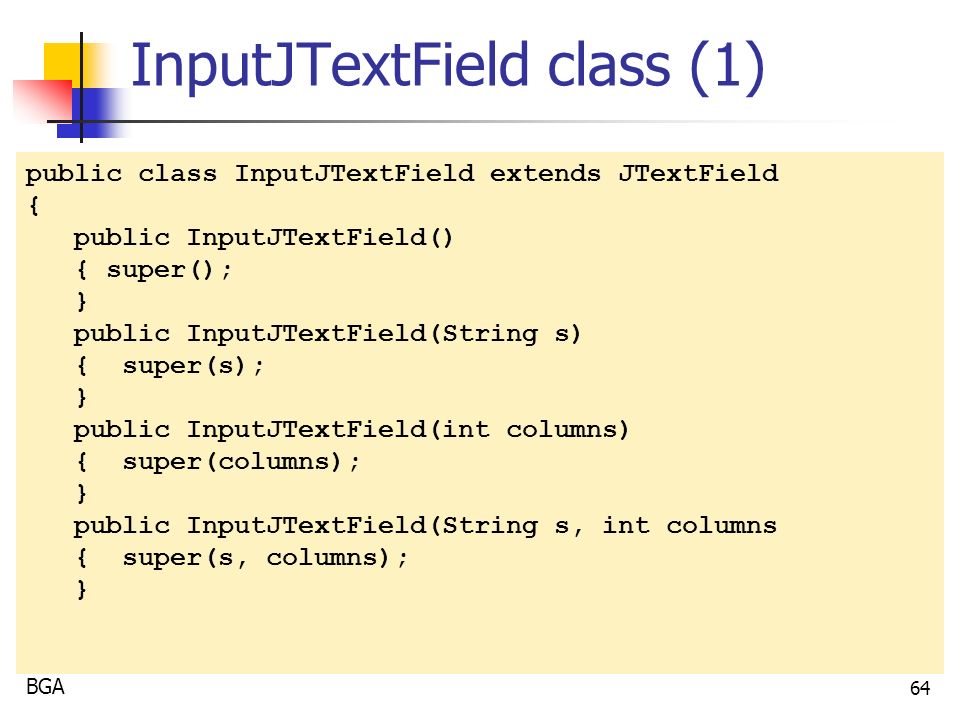

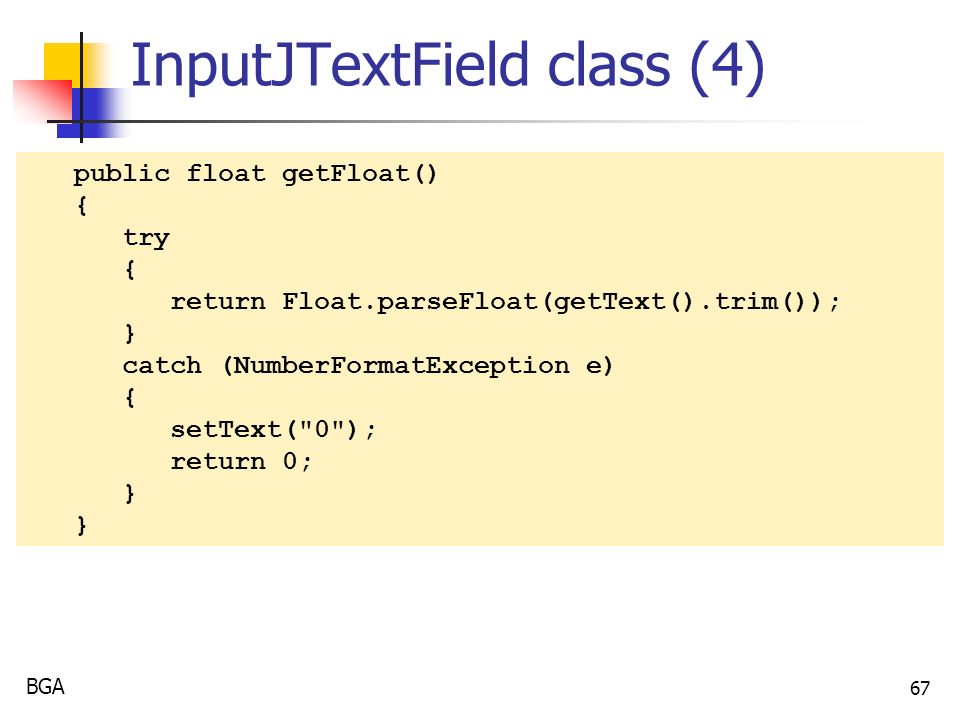

64. BGA 64 InputJTextField class (1) public class InputJTextField extends JTextField { public InputJTextField() { super(); } public InputJTextField(String s) { super(s); } public InputJTextField(int columns) { super(columns); } public InputJTextField(String s, int columns { super(s, columns); }

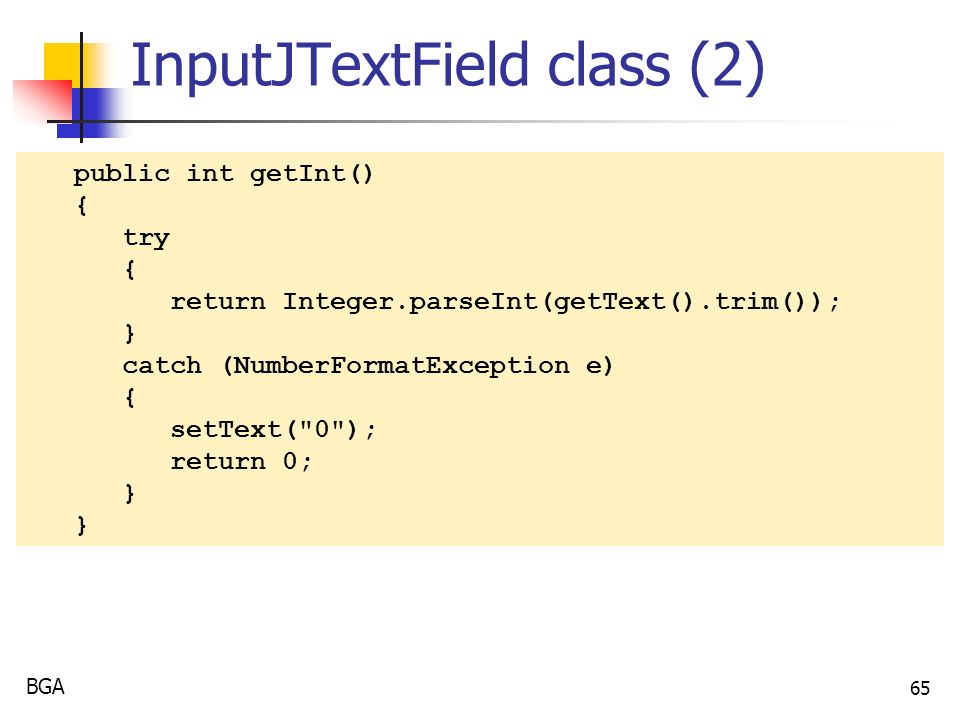

65. BGA 65 InputJTextField class (2) public int getInt() { try { return Integer.parseInt(getText().trim()); } catch (NumberFormatException e) { setText("0"); return 0; }

66. BGA 66 InputJTextField class (3) public long getLong() { try { return Long.parseLong(getText().trim()); } catch (NumberFormatException e) { setText("0"); return 0; }

67. BGA 67 InputJTextField class (4) public float getFloat() { try { return Float.parseFloat(getText().trim()); } catch (NumberFormatException e) { setText("0"); return 0; }

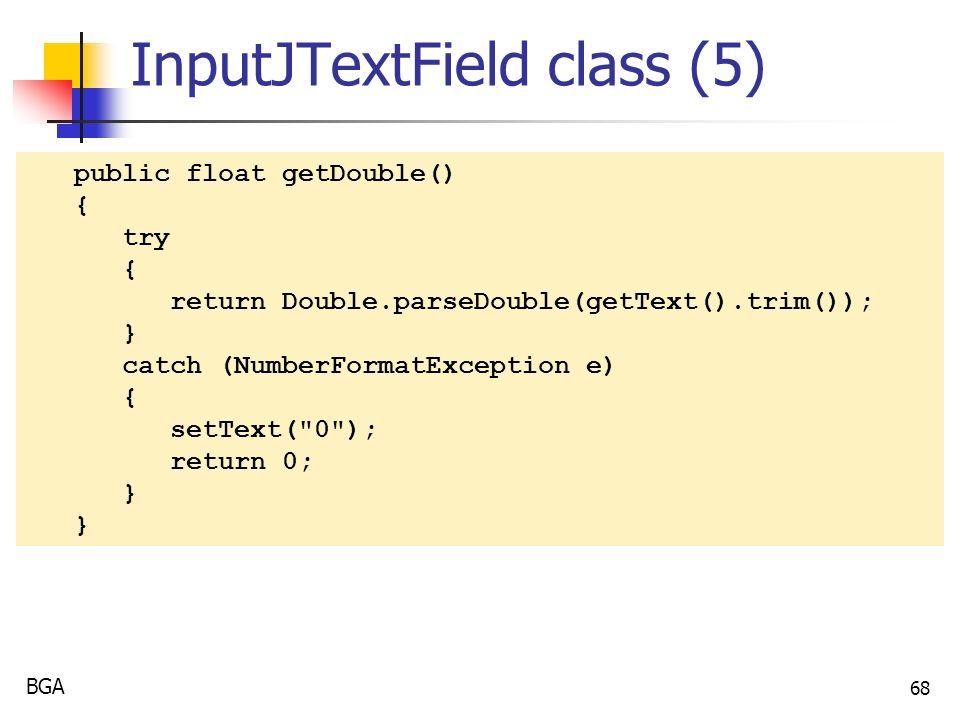

68. BGA 68 InputJTextField class (5) public float getDouble() { try { return Double.parseDouble(getText().trim()); } catch (NumberFormatException e) { setText("0"); return 0; }

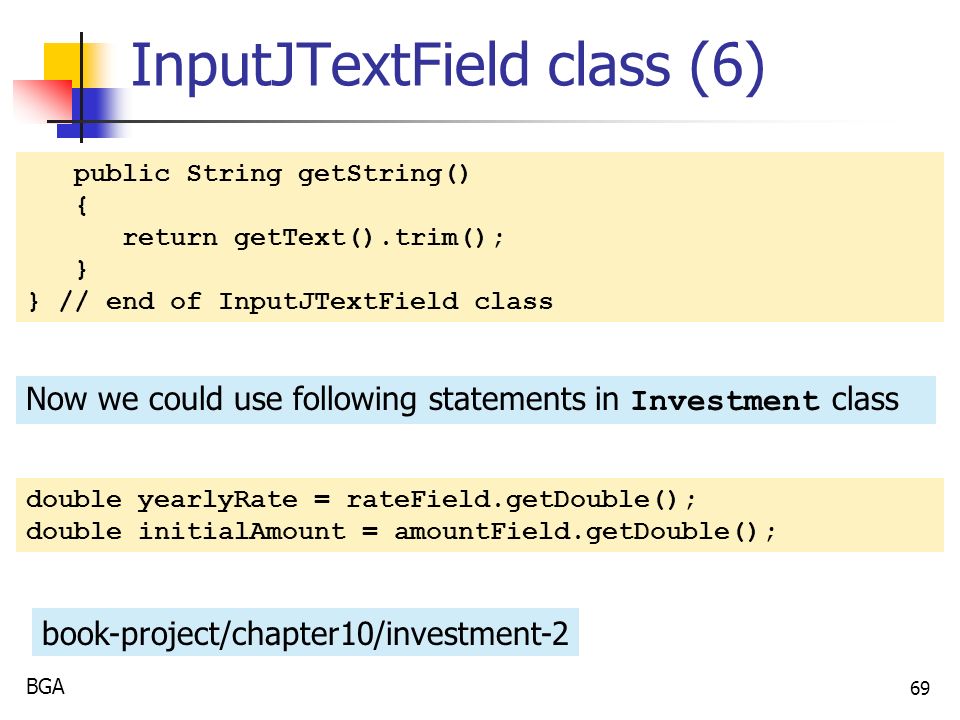

69. BGA 69 InputJTextField class (6) public String getString() { return getText().trim(); } } // end of InputJTextField class Now we could use following statements in Investment class double yearlyRate = rateField.getDouble(); double initialAmount = amountField.getDouble(); book-project/chapter10/investment-2

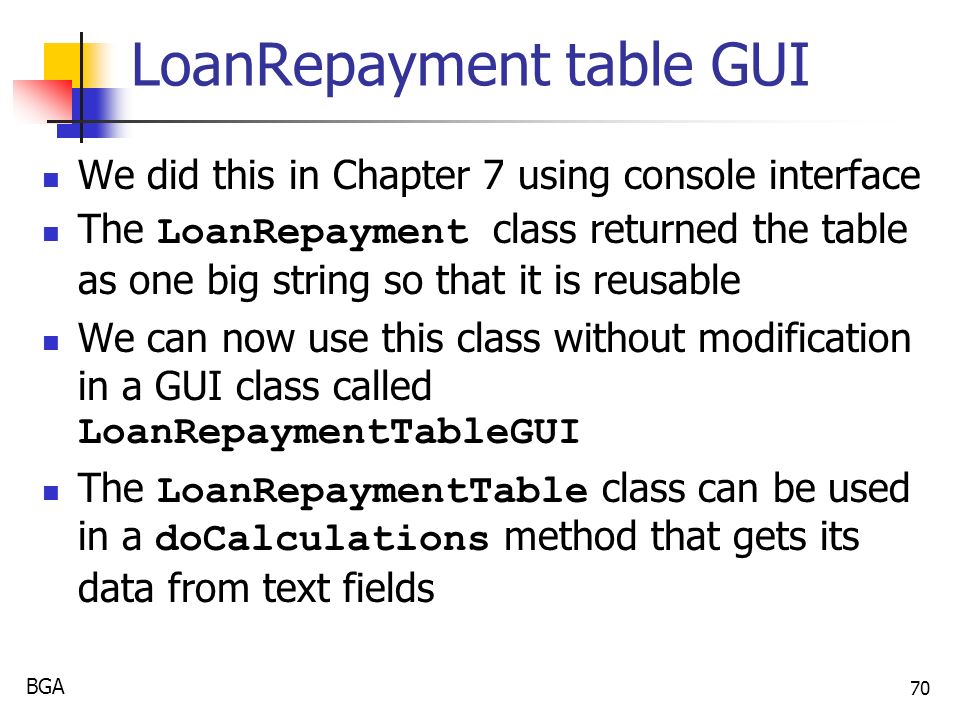

70. BGA 70 LoanRepayment table GUI We did this in Chapter 7 using console interface The LoanRepayment class returned the table as one big string so that it is reusable We can now use this class without modification in a GUI class called LoanRepaymentTableGUI The LoanRepaymentTable class can be used in a doCalculations method that gets its data from text fields

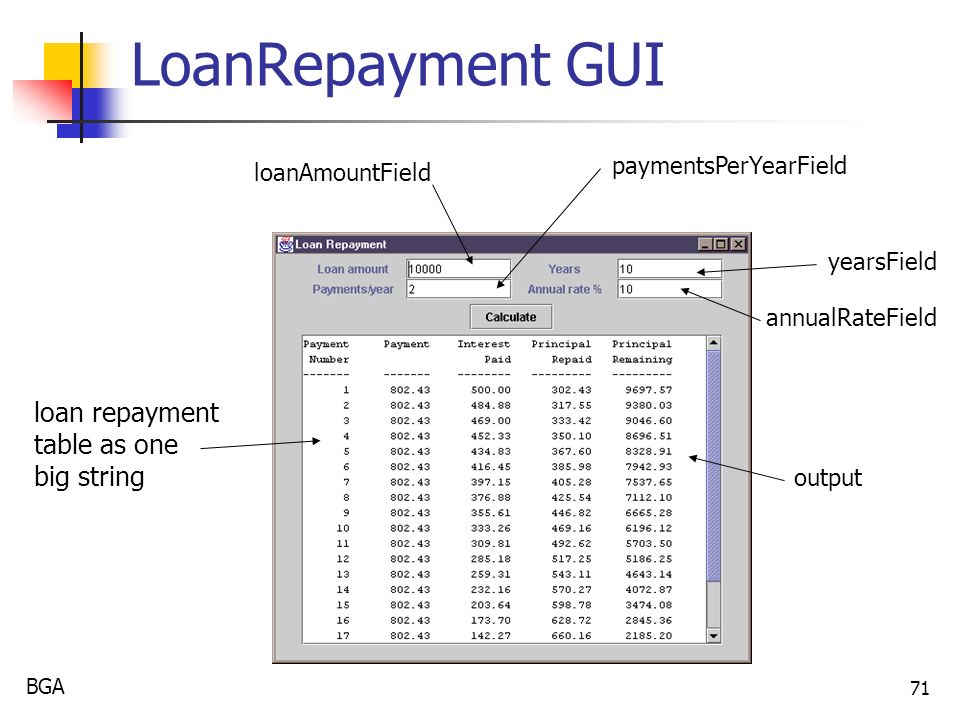

71. BGA 71 LoanRepayment GUI loanAmountField yearsField paymentsPerYearField annualRateField output loan repayment table as one big string

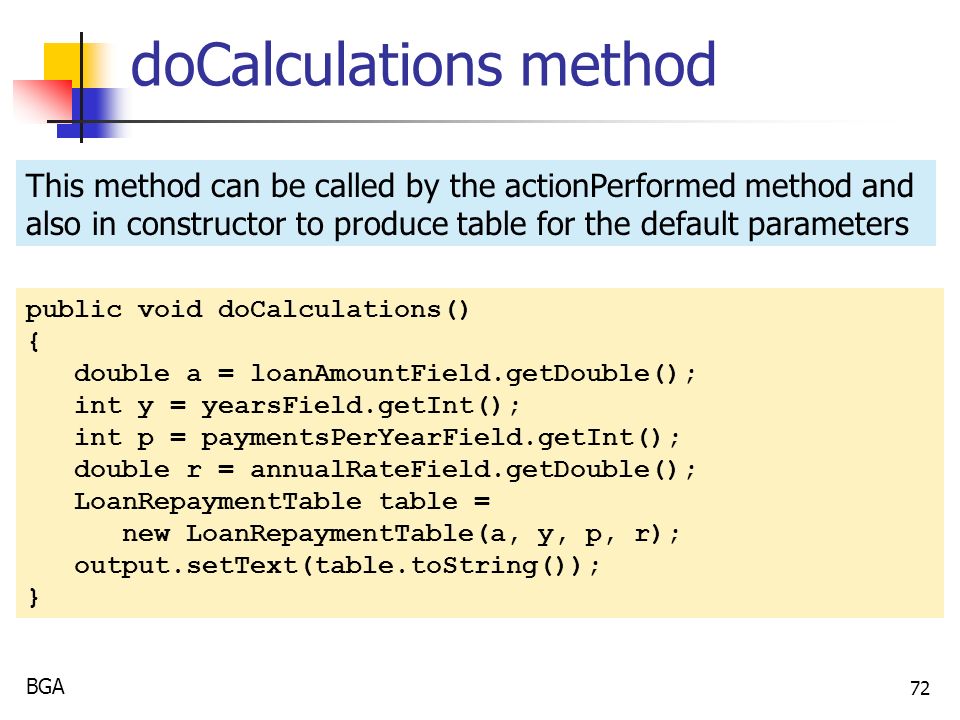

72. BGA 72 doCalculations method This method can be called by the actionPerformed method and also in constructor to produce table for the default parameters public void doCalculations() { double a = loanAmountField.getDouble(); int y = yearsField.getInt(); int p = paymentsPerYearField.getInt(); double r = annualRateField.getDouble(); LoanRepaymentTable table = new LoanRepaymentTable(a, y, p, r); output.setText(table.toString()); }

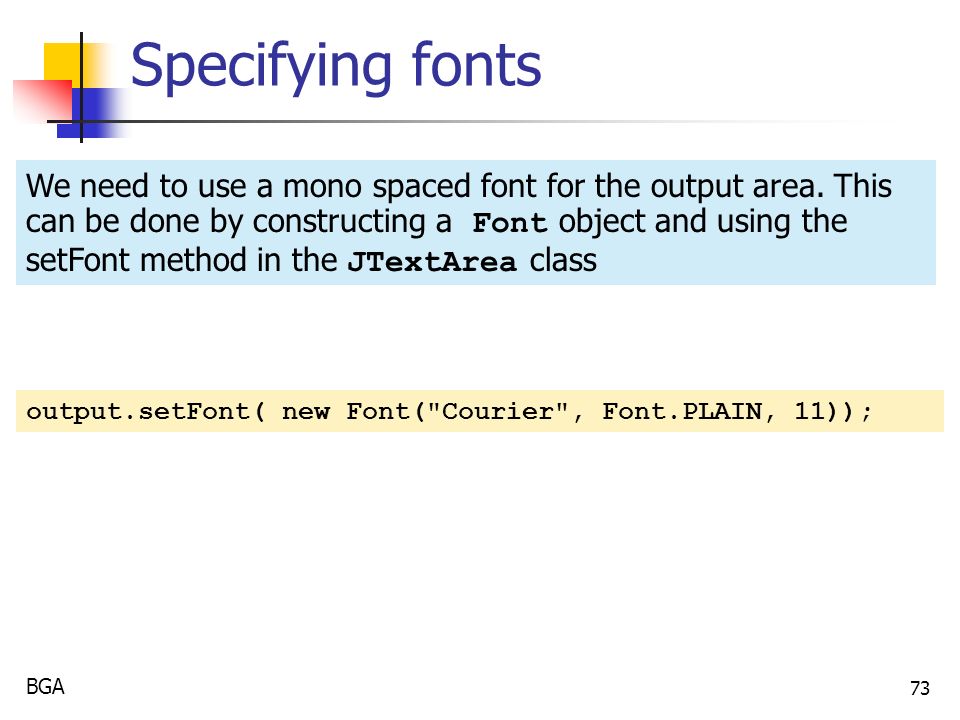

73. BGA 73 Specifying fonts We need to use a mono spaced font for the output area. This can be done by constructing a Font object and using the setFont method in the JTextArea class output.setFont( new Font("Courier", Font.PLAIN, 11));

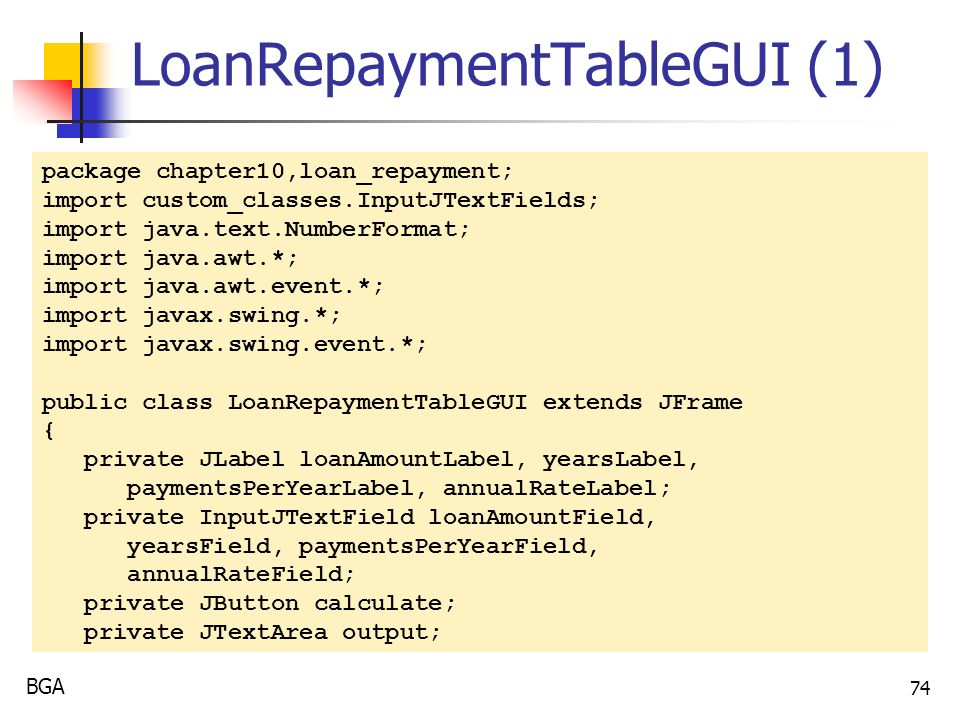

74. BGA 74 LoanRepaymentTableGUI (1) package chapter10,loan_repayment; import custom_classes.InputJTextFields; import java.text.NumberFormat; import java.awt.*; import java.awt.event.*; import javax.swing.*; import javax.swing.event.*; public class LoanRepaymentTableGUI extends JFrame { private JLabel loanAmountLabel, yearsLabel, paymentsPerYearLabel, annualRateLabel; private InputJTextField loanAmountField, yearsField, paymentsPerYearField, annualRateField; private JButton calculate; private JTextArea output;

75. BGA 75 LoanRepaymentTableGUI (2) public LoanRepaymetnTableGUI() { setTitle("Loan Repayment"); setSize(500,450); loanAmountLabel = new JLabel("Loan amount", JLabel.CENTER); loanAmountField = new InputJTextField("10000", 10); yearsLabel = new JLabel("Years", JLabel.CENTER); yearsField = new InputJTextField("10", 5); paymentsPerYearLabel = new JLabel("Payments/year", JLabel.CENTER); paymentsPerYearField = new InputJTextField( "2", 5);

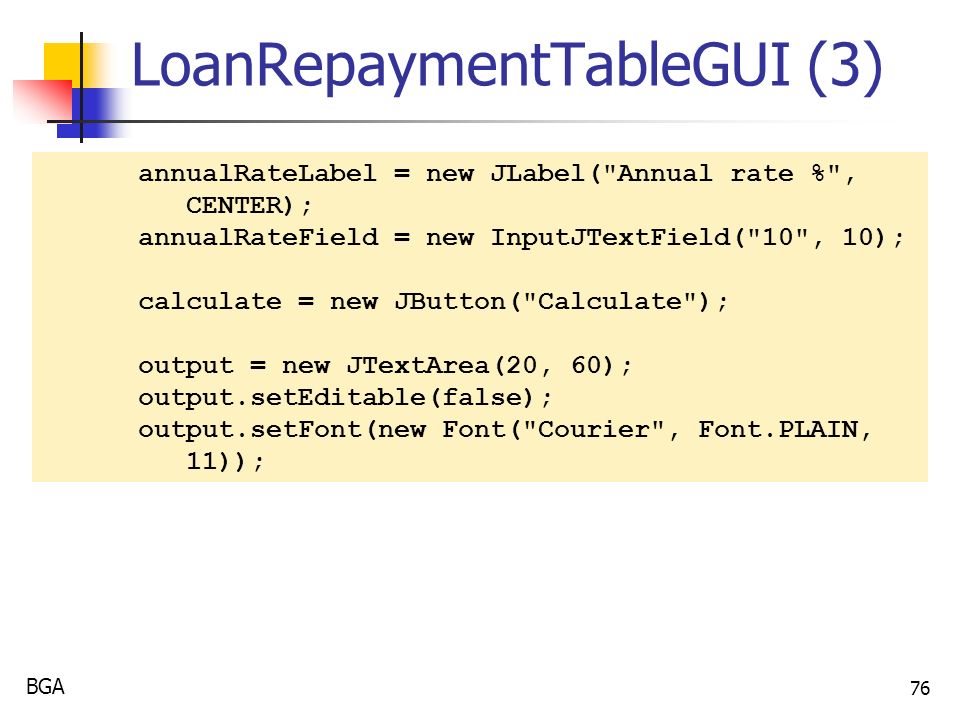

76. BGA 76 LoanRepaymentTableGUI (3) annualRateLabel = new JLabel("Annual rate %", CENTER); annualRateField = new InputJTextField("10", 10); calculate = new JButton("Calculate"); output = new JTextArea(20, 60); output.setEditable(false); output.setFont(new Font("Courier", Font.PLAIN, 11));

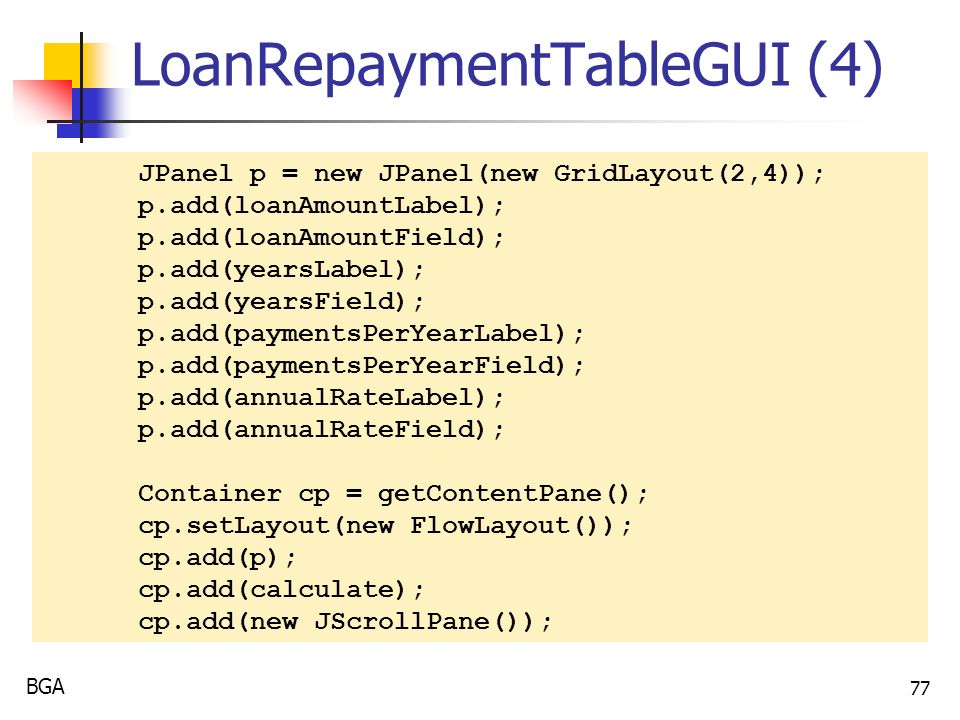

77. BGA 77 LoanRepaymentTableGUI (4) JPanel p = new JPanel(new GridLayout(2,4)); p.add(loanAmountLabel); p.add(loanAmountField); p.add(yearsLabel); p.add(yearsField); p.add(paymentsPerYearLabel); p.add(paymentsPerYearField); p.add(annualRateLabel); p.add(annualRateField); Container cp = getContentPane(); cp.setLayout(new FlowLayout()); cp.add(p); cp.add(calculate); cp.add(new JScrollPane());

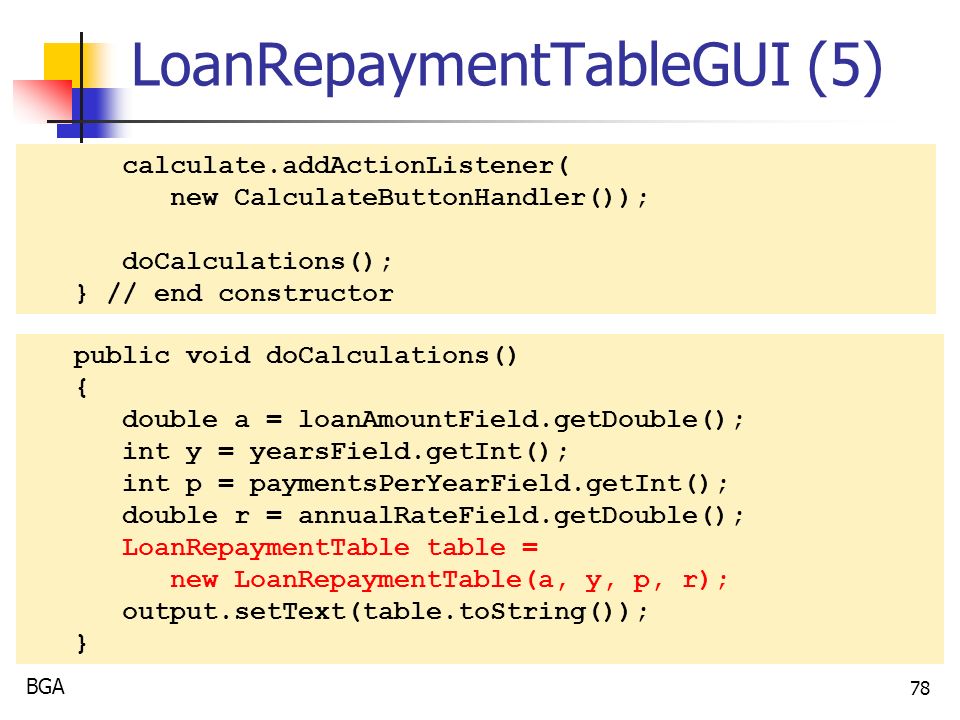

78. BGA 78 LoanRepaymentTableGUI (5) calculate.addActionListener( new CalculateButtonHandler()); doCalculations(); } // end constructor public void doCalculations() { double a = loanAmountField.getDouble(); int y = yearsField.getInt(); int p = paymentsPerYearField.getInt(); double r = annualRateField.getDouble(); LoanRepaymentTable table = new LoanRepaymentTable(a, y, p, r); output.setText(table.toString()); }

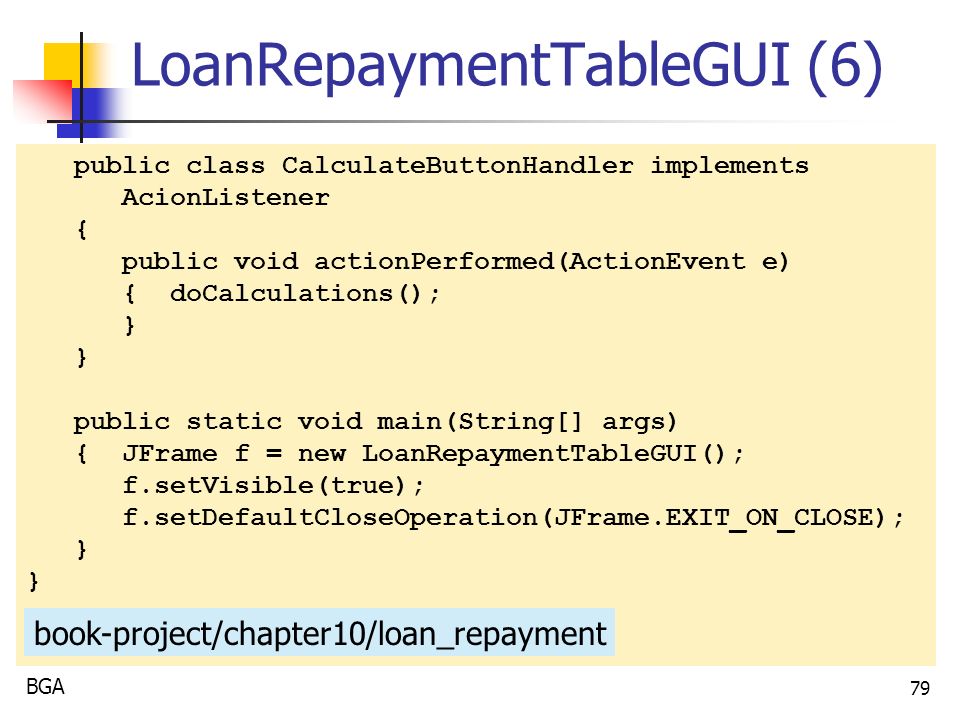

79. BGA 79 LoanRepaymentTableGUI (6) public class CalculateButtonHandler implements AcionListener { public void actionPerformed(ActionEvent e) { doCalculations(); } public static void main(String[] args) { JFrame f = new LoanRepaymentTableGUI(); f.setVisible(true); f.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE); } book-project/chapter10/loan_repayment

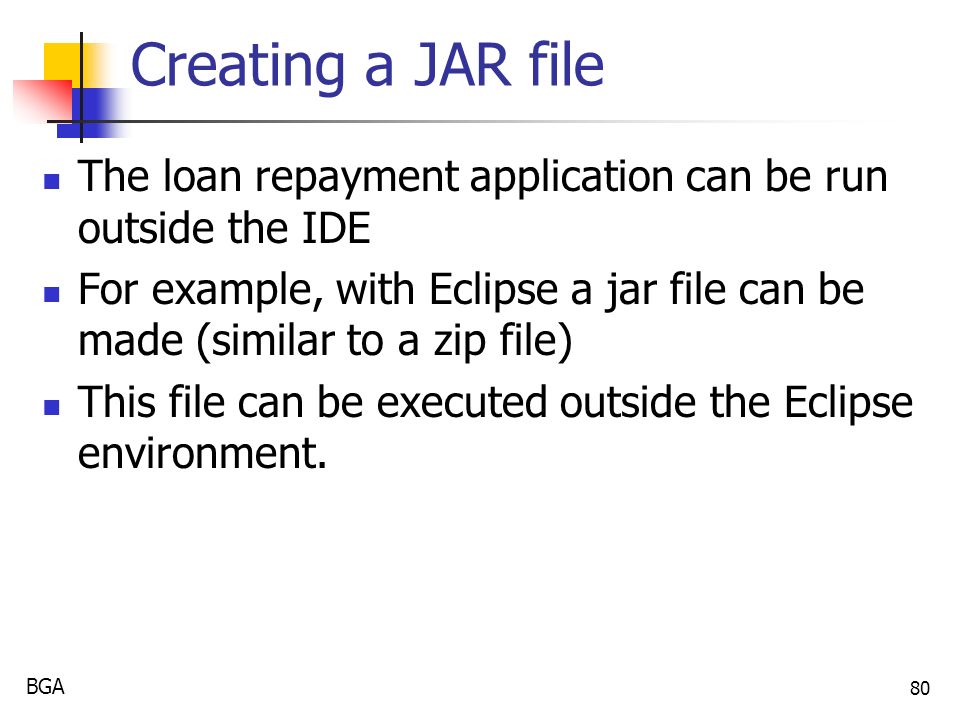

80. BGA 80 Creating a JAR file The loan repayment application can be run outside the IDE For example, with Eclipse a jar file can be made (similar to a zip file) This file can be executed outside the Eclipse environment.

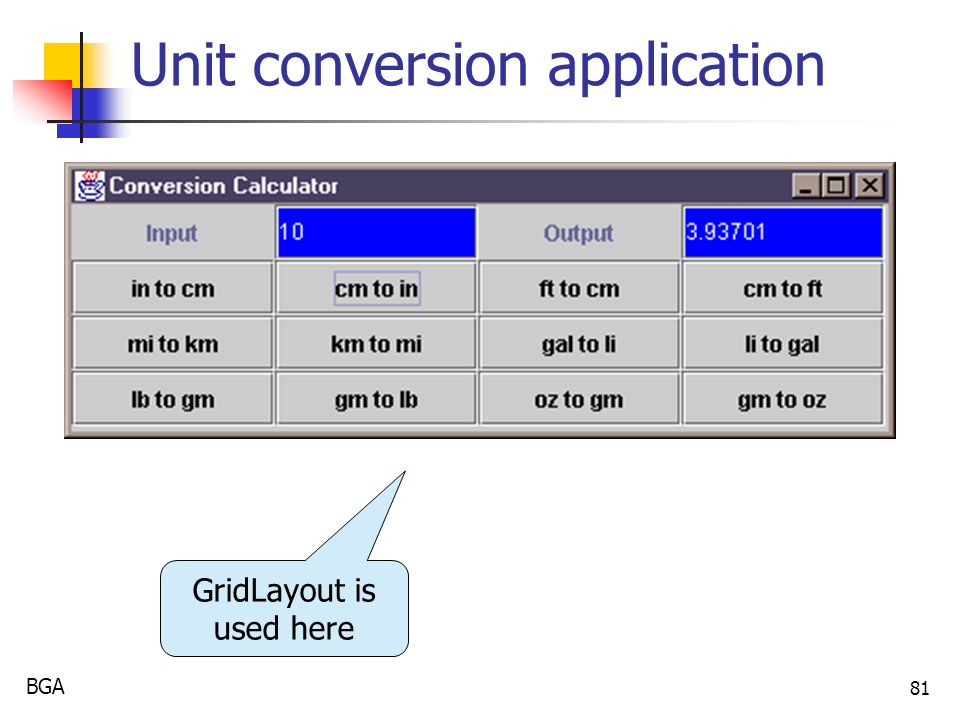

81. BGA 81 Unit conversion application GridLayout is used here

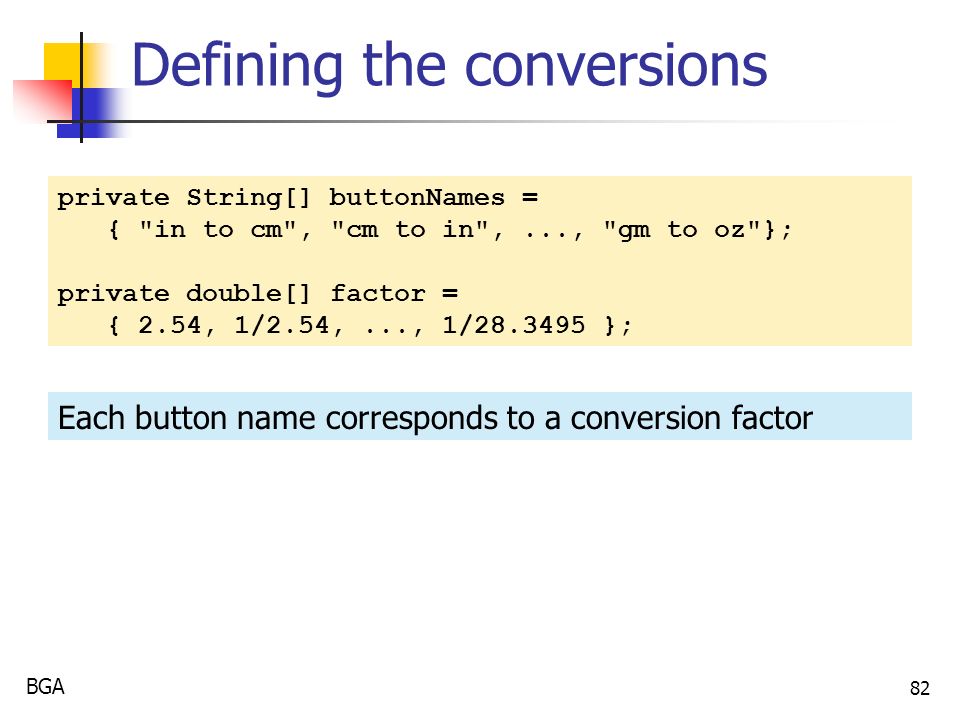

82. BGA 82 Defining the conversions private String[] buttonNames = { "in to cm", "cm to in",..., "gm to oz"}; private double[] factor = { 2.54, 1/2.54,..., 1/28.3495 }; Each button name corresponds to a conversion factor

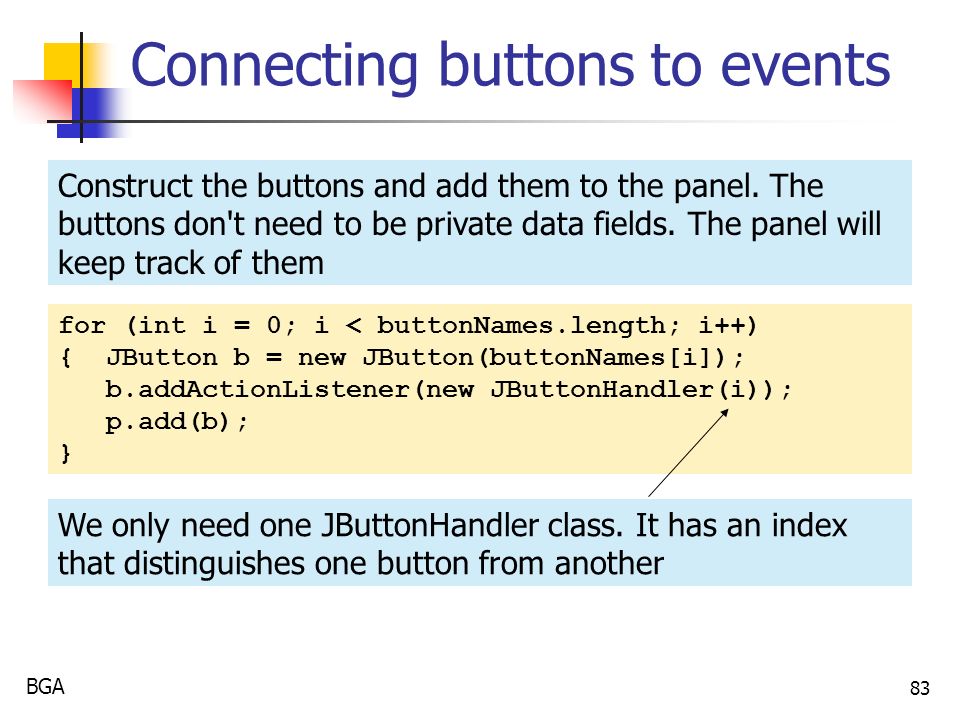

83. BGA 83 Connecting buttons to events for (int i = 0; i < buttonNames.length; i++) { JButton b = new JButton(buttonNames[i]); b.addActionListener(new JButtonHandler(i)); p.add(b); } Construct the buttons and add them to the panel. The buttons don't need to be private data fields. The panel will keep track of them We only need one JButtonHandler class. It has an index that distinguishes one button from another

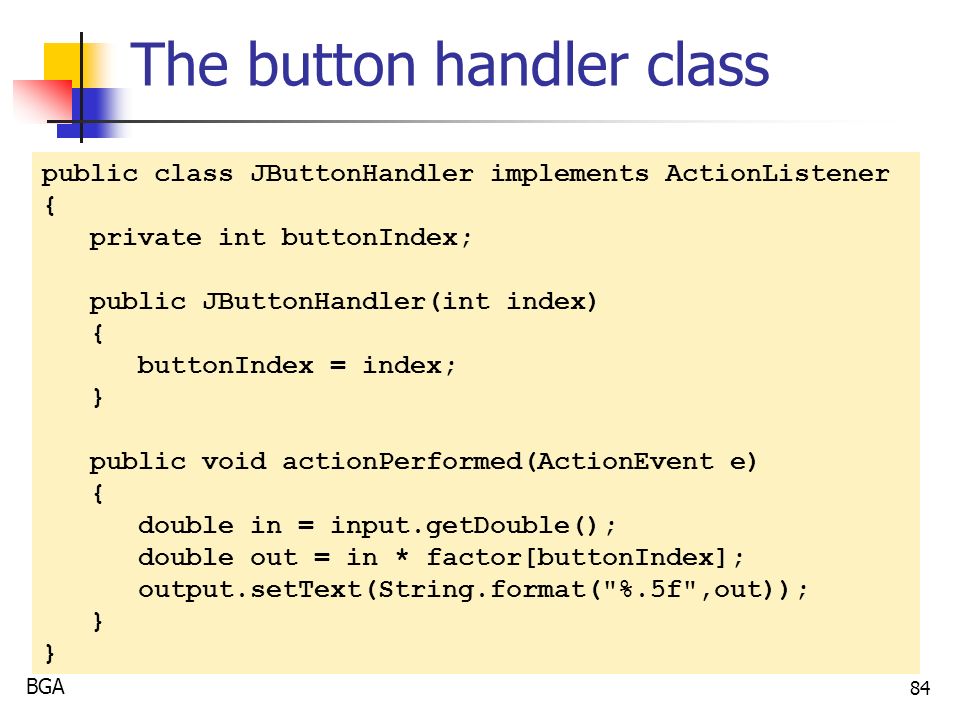

84. BGA 84 The button handler class public class JButtonHandler implements ActionListener { private int buttonIndex; public JButtonHandler(int index) { buttonIndex = index; } public void actionPerformed(ActionEvent e) { double in = input.getDouble(); double out = in * factor[buttonIndex]; output.setText(String.format("%.5f",out)); }

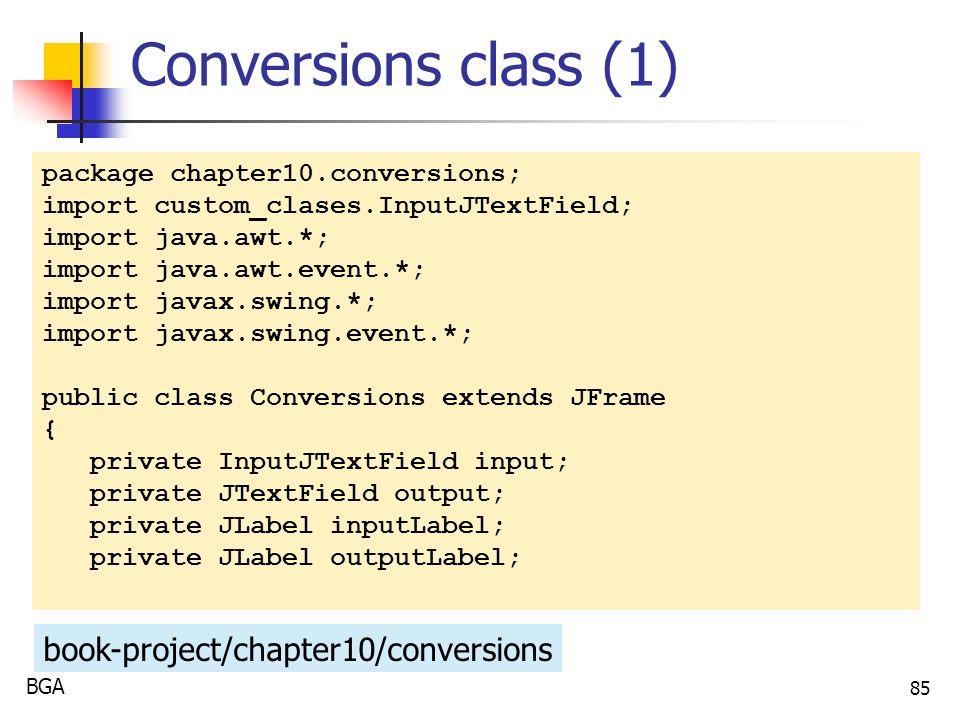

85. BGA 85 Conversions class (1) package chapter10.conversions; import custom_clases.InputJTextField; import java.awt.*; import java.awt.event.*; import javax.swing.*; import javax.swing.event.*; public class Conversions extends JFrame { private InputJTextField input; private JTextField output; private JLabel inputLabel; private JLabel outputLabel; book-project/chapter10/conversions

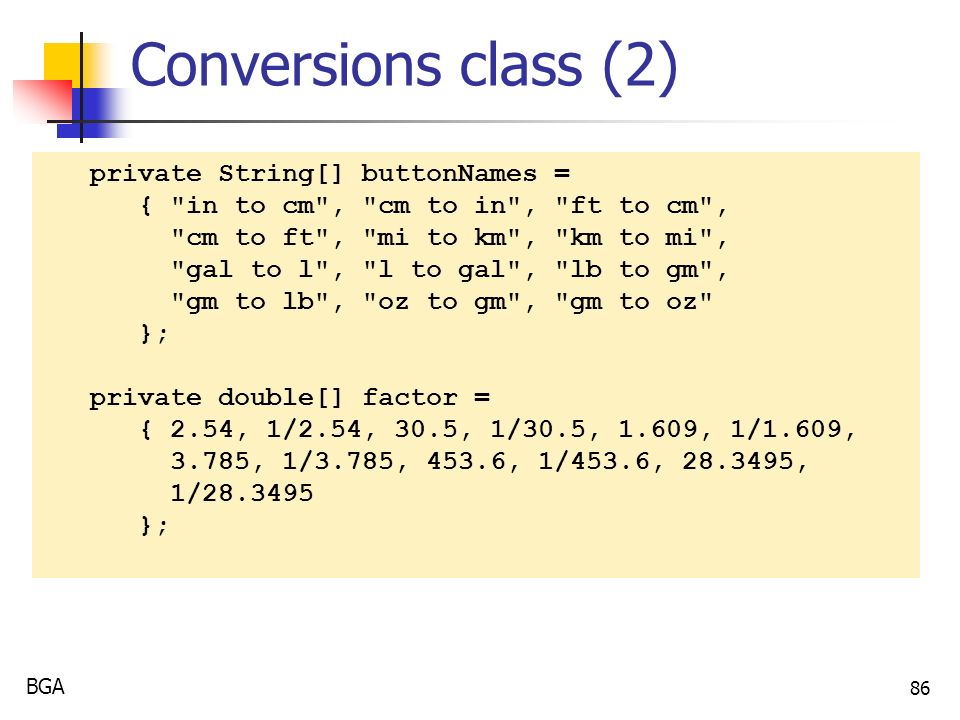

86. BGA 86 Conversions class (2) private String[] buttonNames = { "in to cm", "cm to in", "ft to cm", "cm to ft", "mi to km", "km to mi", "gal to l", "l to gal", "lb to gm", "gm to lb", "oz to gm", "gm to oz" }; private double[] factor = { 2.54, 1/2.54, 30.5, 1/30.5, 1.609, 1/1.609, 3.785, 1/3.785, 453.6, 1/453.6, 28.3495, 1/28.3495 };

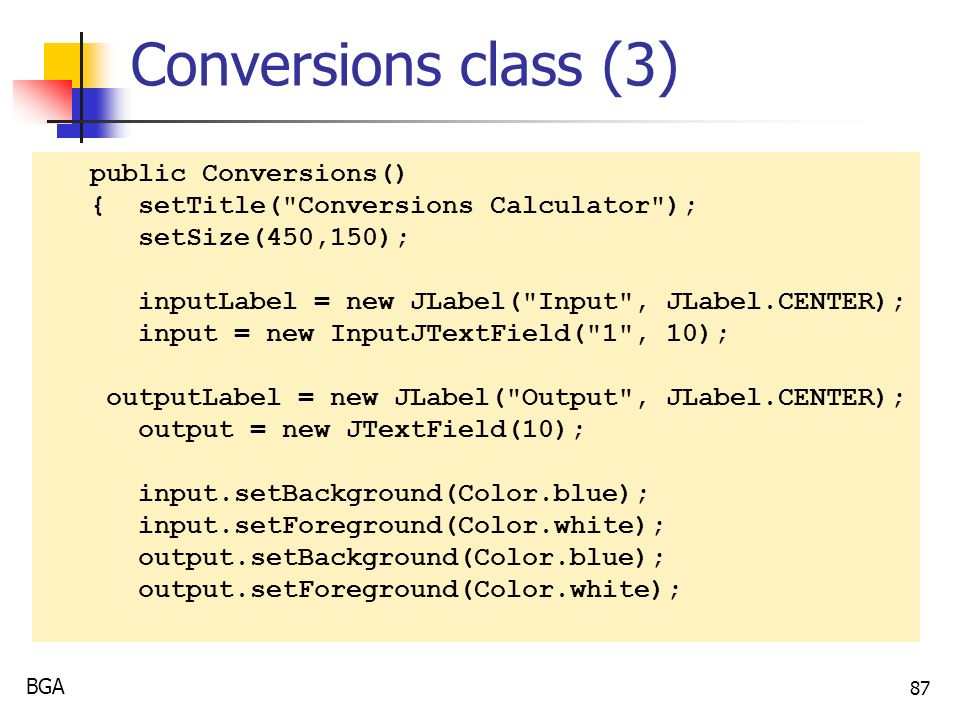

87. BGA 87 Conversions class (3) public Conversions() { setTitle("Conversions Calculator"); setSize(450,150); inputLabel = new JLabel("Input", JLabel.CENTER); input = new InputJTextField("1", 10); outputLabel = new JLabel("Output", JLabel.CENTER); output = new JTextField(10); input.setBackground(Color.blue); input.setForeground(Color.white); output.setBackground(Color.blue); output.setForeground(Color.white);

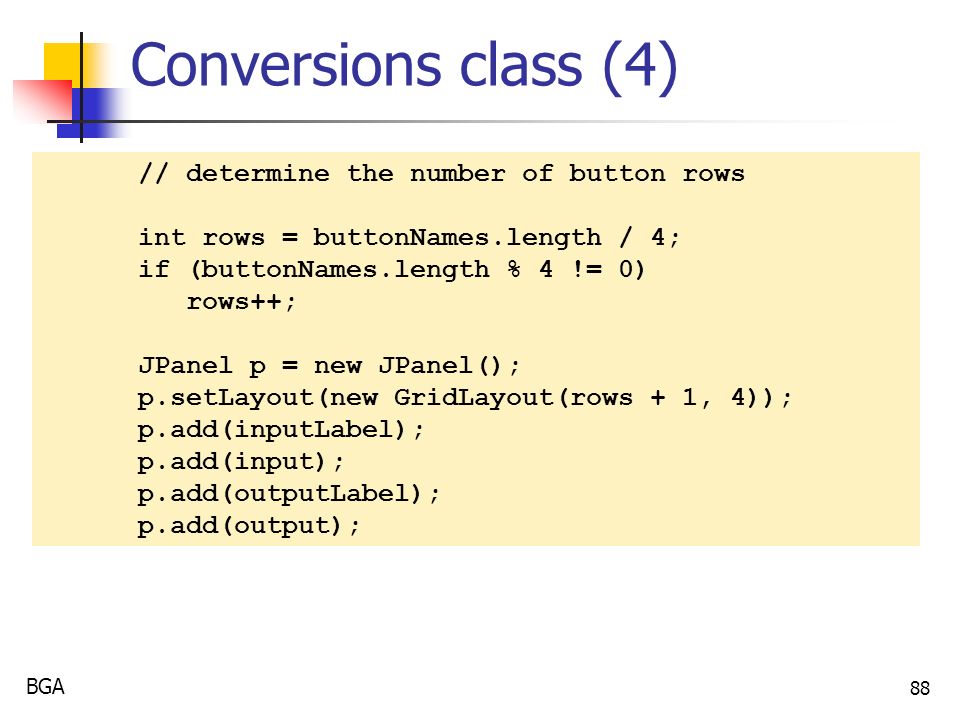

88. BGA 88 Conversions class (4) // determine the number of button rows int rows = buttonNames.length / 4; if (buttonNames.length % 4 != 0) rows++; JPanel p = new JPanel(); p.setLayout(new GridLayout(rows + 1, 4)); p.add(inputLabel); p.add(input); p.add(outputLabel); p.add(output);

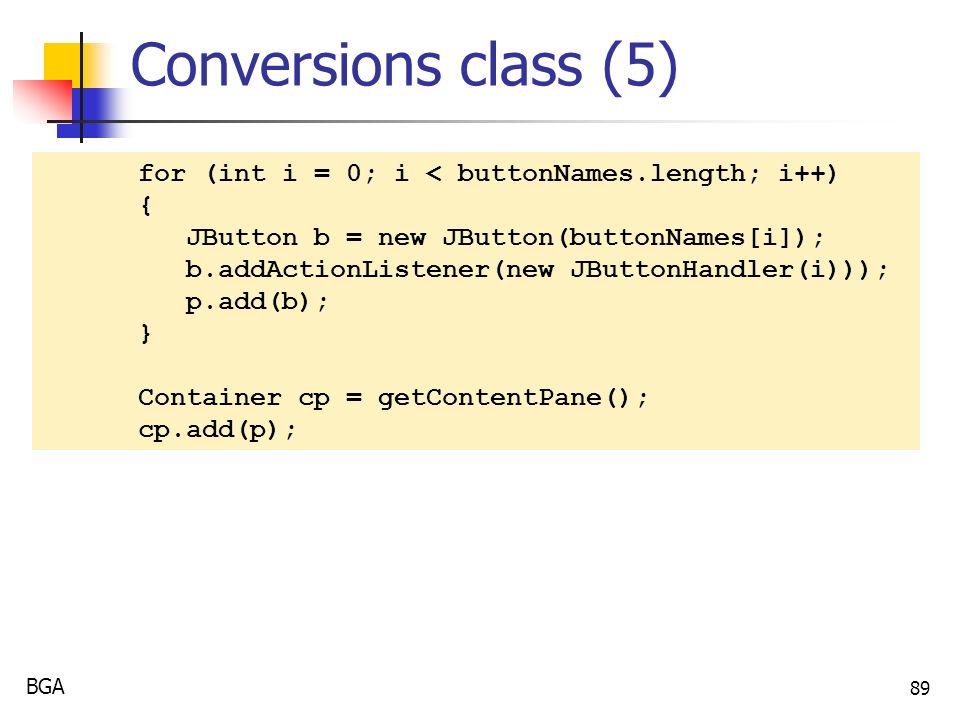

89. BGA 89 Conversions class (5) for (int i = 0; i < buttonNames.length; i++) { JButton b = new JButton(buttonNames[i]); b.addActionListener(new JButtonHandler(i))); p.add(b); } Container cp = getContentPane(); cp.add(p);

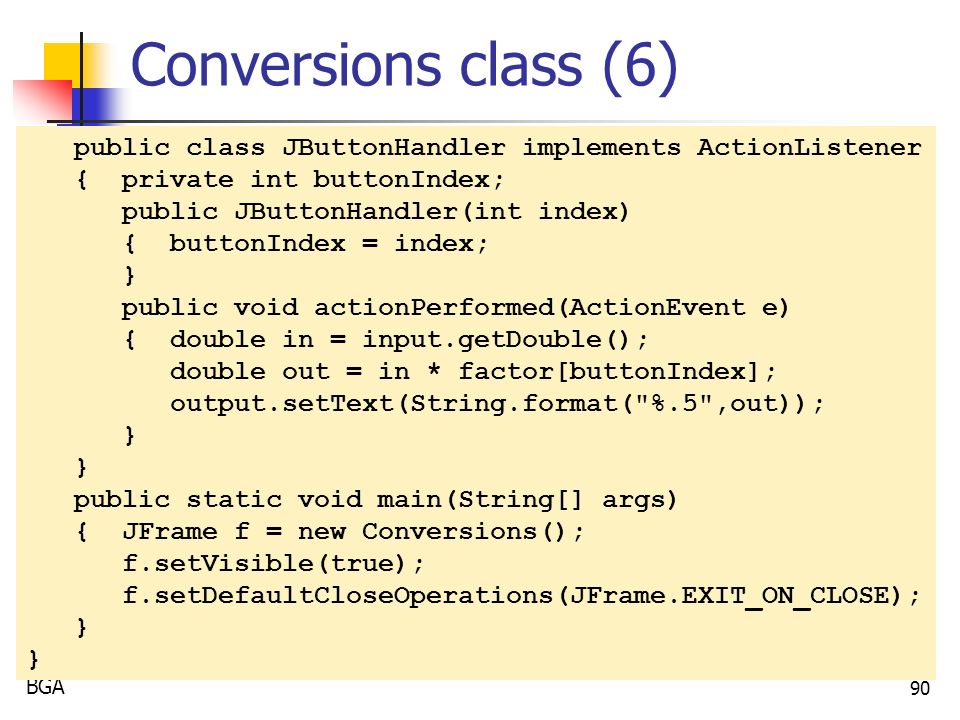

90. BGA 90 Conversions class (6) public class JButtonHandler implements ActionListener { private int buttonIndex; public JButtonHandler(int index) { buttonIndex = index; } public void actionPerformed(ActionEvent e) { double in = input.getDouble(); double out = in * factor[buttonIndex]; output.setText(String.format("%.5",out)); } public static void main(String[] args) { JFrame f = new Conversions(); f.setVisible(true); f.setDefaultCloseOperations(JFrame.EXIT_ON_CLOSE); }

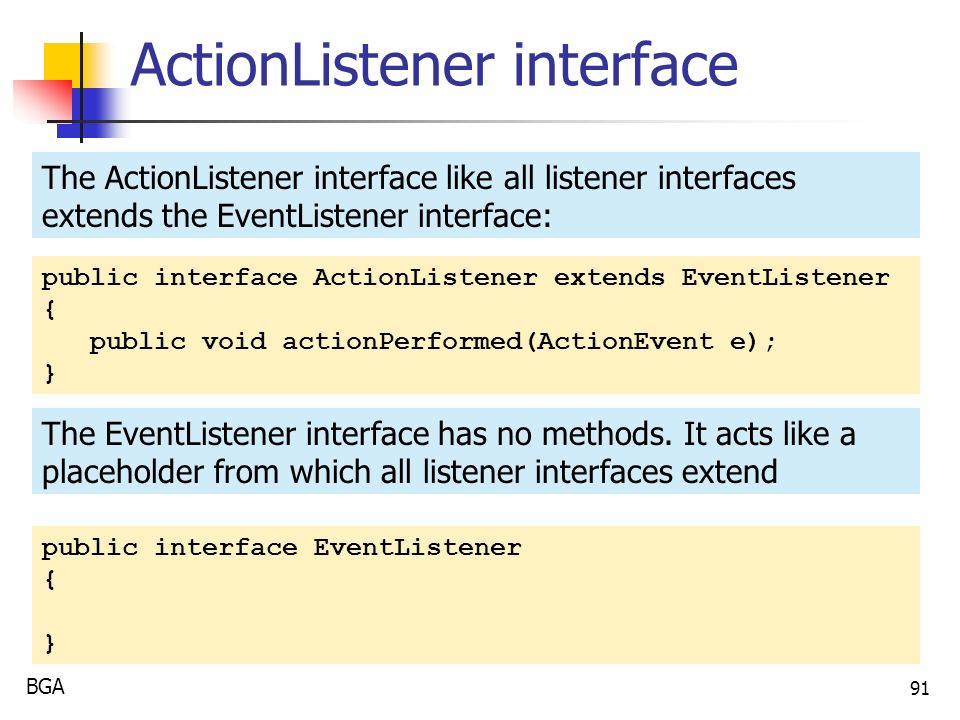

91. BGA 91 ActionListener interface public interface ActionListener extends EventListener { public void actionPerformed(ActionEvent e); } The ActionListener interface like all listener interfaces extends the EventListener interface: The EventListener interface has no methods. It acts like a placeholder from which all listener interfaces extend public interface EventListener { }

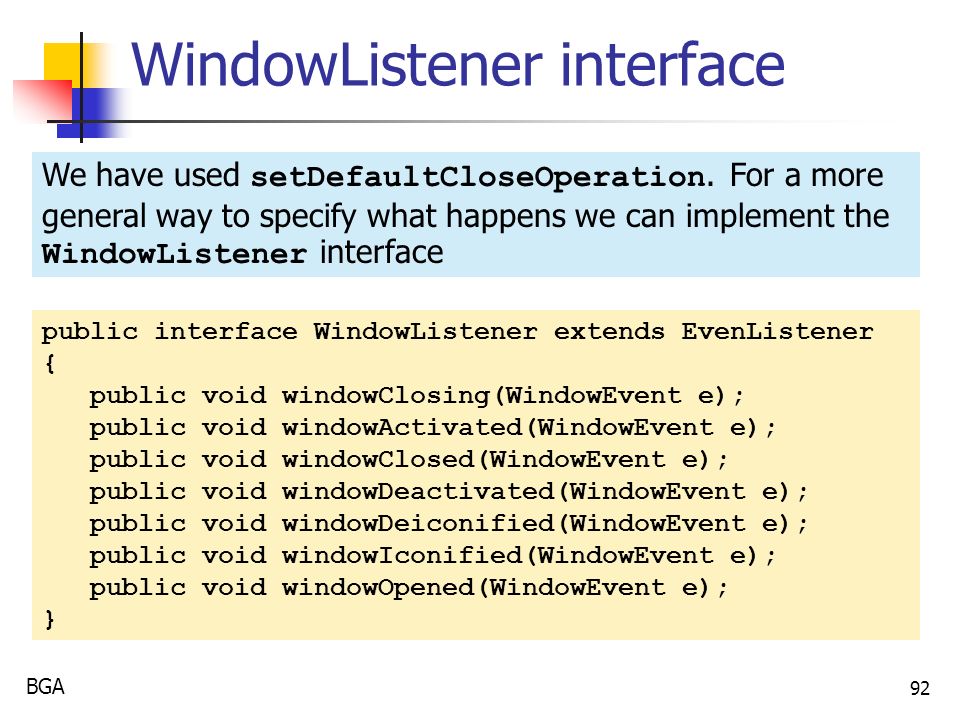

92. BGA 92 WindowListener interface We have used setDefaultCloseOperation. For a more general way to specify what happens we can implement the WindowListener interface public interface WindowListener extends EvenListener { public void windowClosing(WindowEvent e); public void windowActivated(WindowEvent e); public void windowClosed(WindowEvent e); public void windowDeactivated(WindowEvent e); public void windowDeiconified(WindowEvent e); public void windowIconified(WindowEvent e); public void windowOpened(WindowEvent e); }

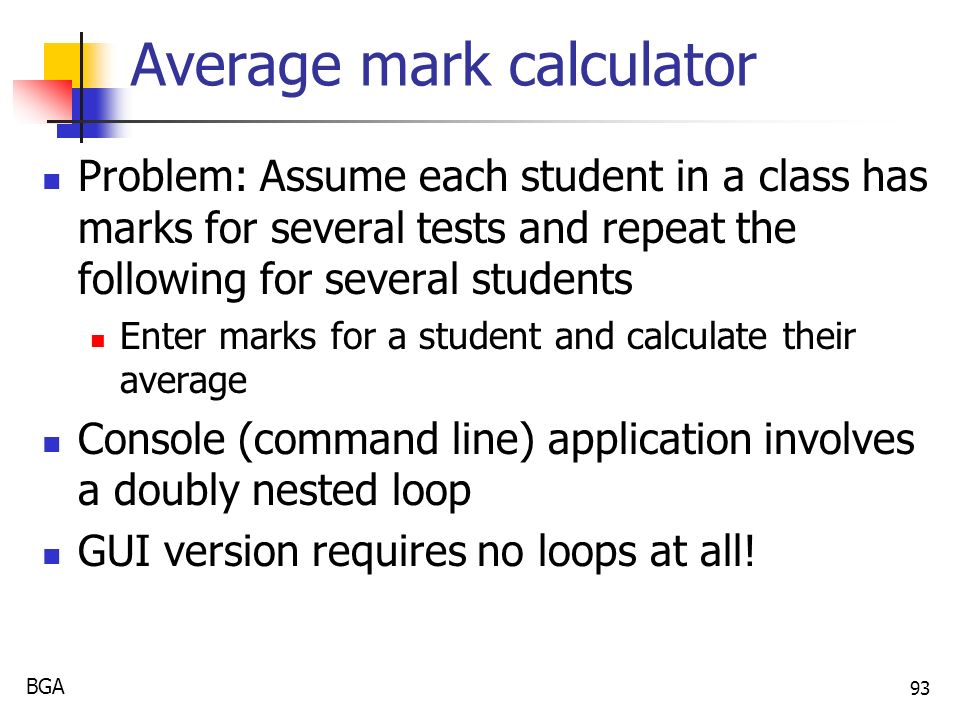

93. BGA 93 Average mark calculator Problem: Assume each student in a class has marks for several tests and repeat the following for several students Enter marks for a student and calculate their average Console (command line) application involves a doubly nested loop GUI version requires no loops at all!

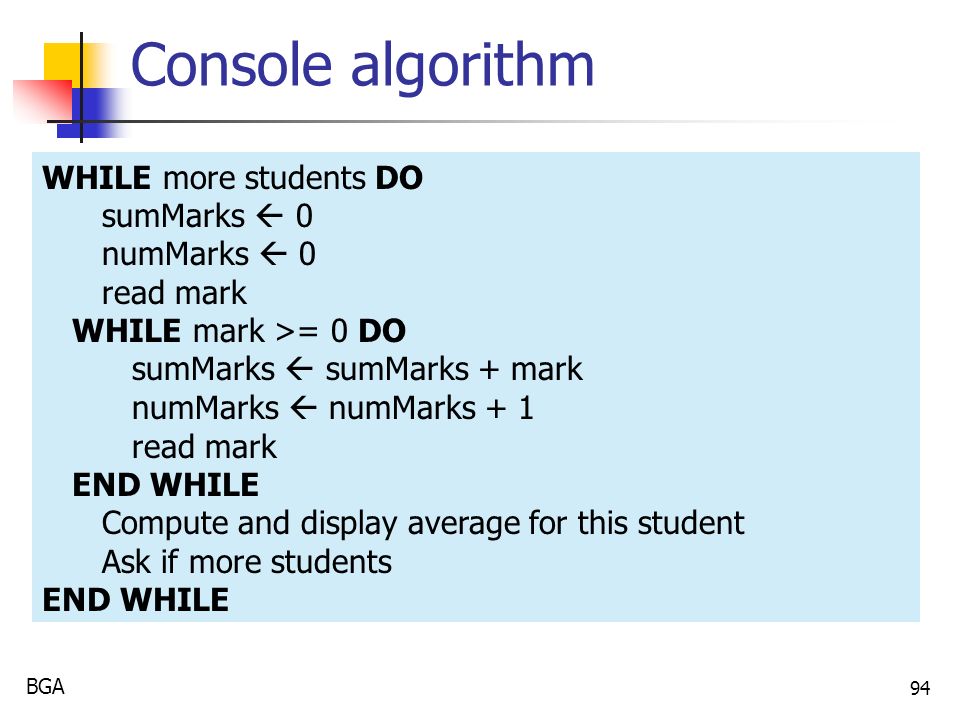

94. BGA 94 Console algorithm WHILE more students DO sumMarks  0 numMarks  0 read mark WHILE mark >= 0 DO sumMarks  sumMarks + mark numMarks  numMarks + 1 read mark END WHILE Compute and display average for this student Ask if more students END WHILE

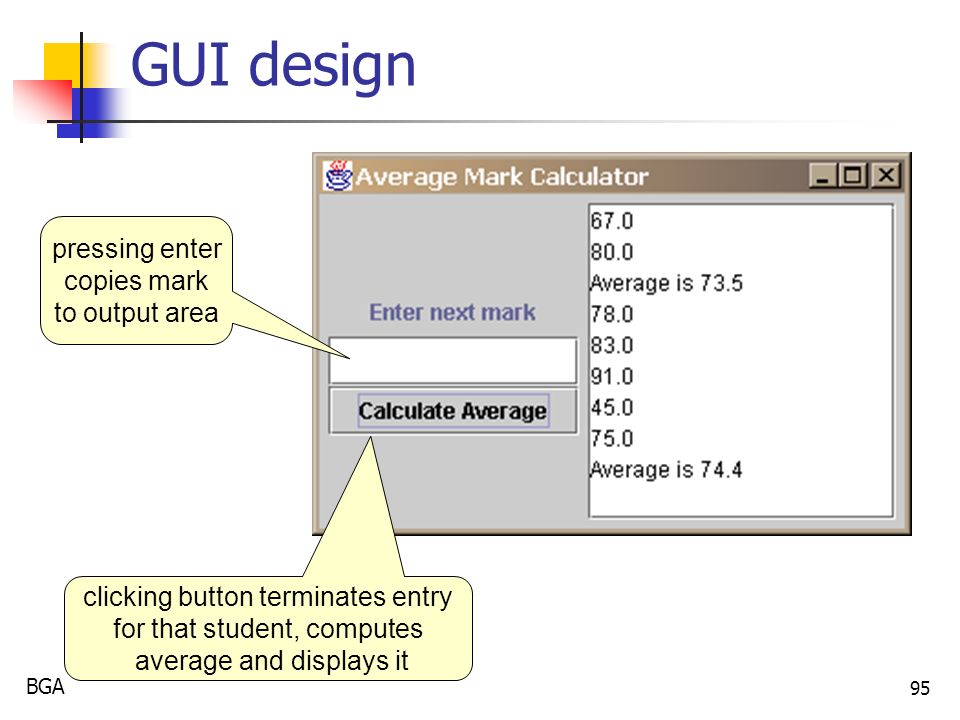

95. BGA 95 GUI design pressing enter copies mark to output area clicking button terminates entry for that student, computes average and displays it

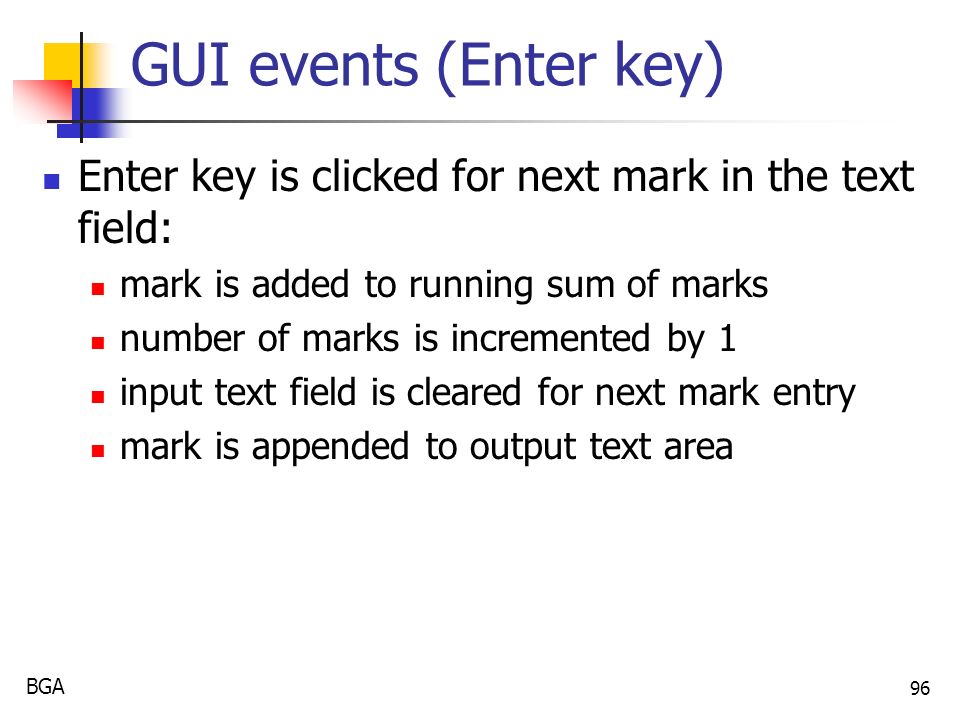

96. BGA 96 GUI events (Enter key) Enter key is clicked for next mark in the text field: mark is added to running sum of marks number of marks is incremented by 1 input text field is cleared for next mark entry mark is appended to output text area

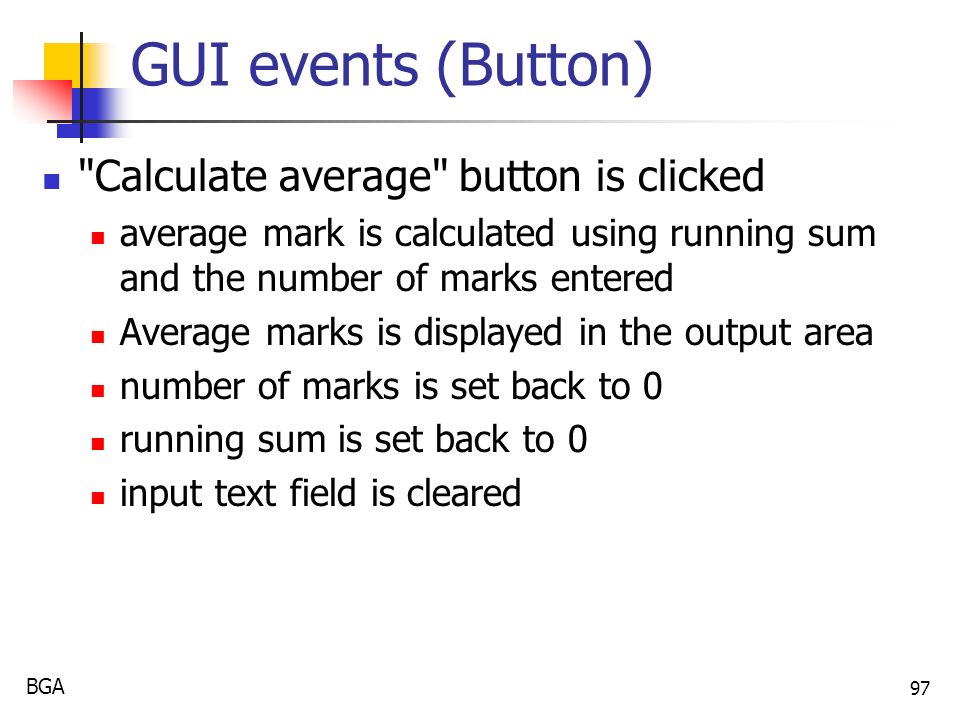

97. BGA 97 GUI events (Button) "Calculate average" button is clicked average mark is calculated using running sum and the number of marks entered Average marks is displayed in the output area number of marks is set back to 0 running sum is set back to 0 input text field is cleared

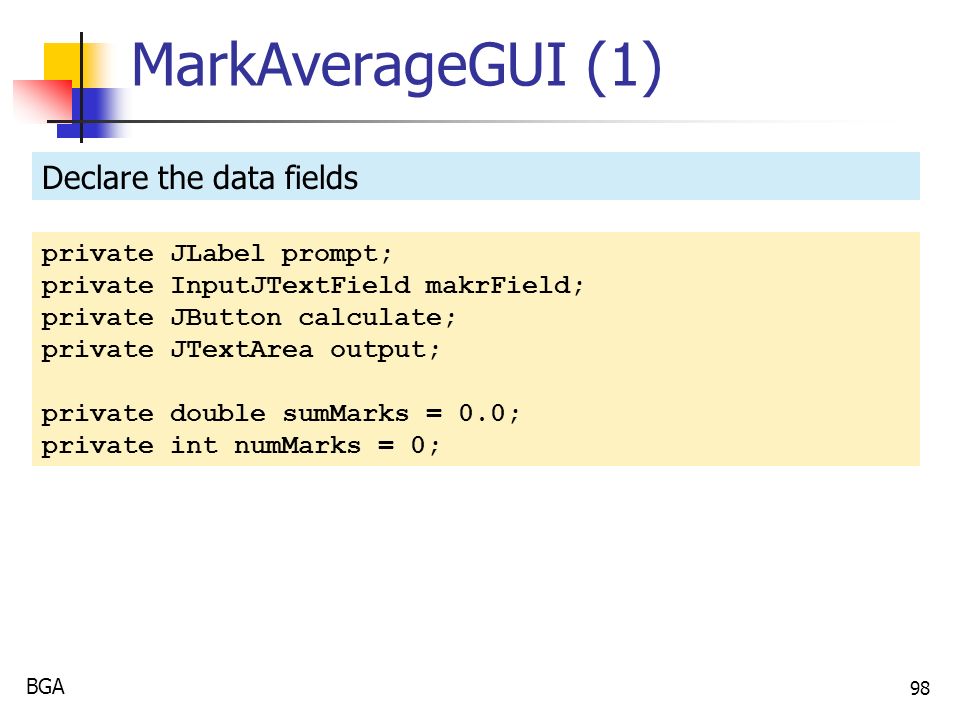

98. BGA 98 MarkAverageGUI (1) Declare the data fields private JLabel prompt; private InputJTextField makrField; private JButton calculate; private JTextArea output; private double sumMarks = 0.0; private int numMarks = 0;

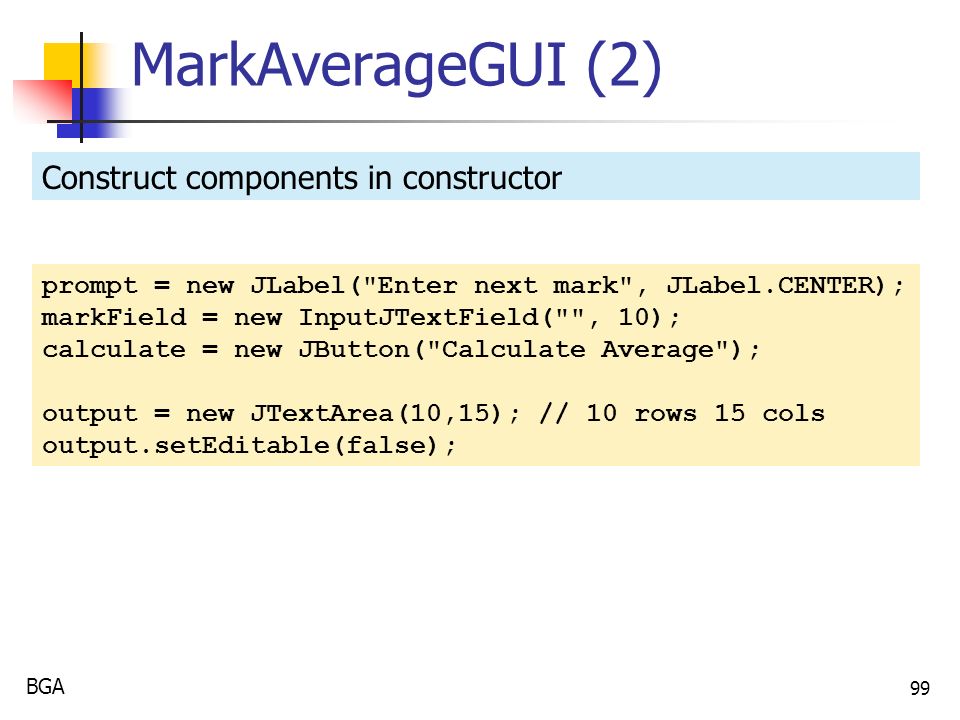

99. BGA 99 MarkAverageGUI (2) Construct components in constructor prompt = new JLabel("Enter next mark", JLabel.CENTER); markField = new InputJTextField("", 10); calculate = new JButton("Calculate Average"); output = new JTextArea(10,15); // 10 rows 15 cols output.setEditable(false);

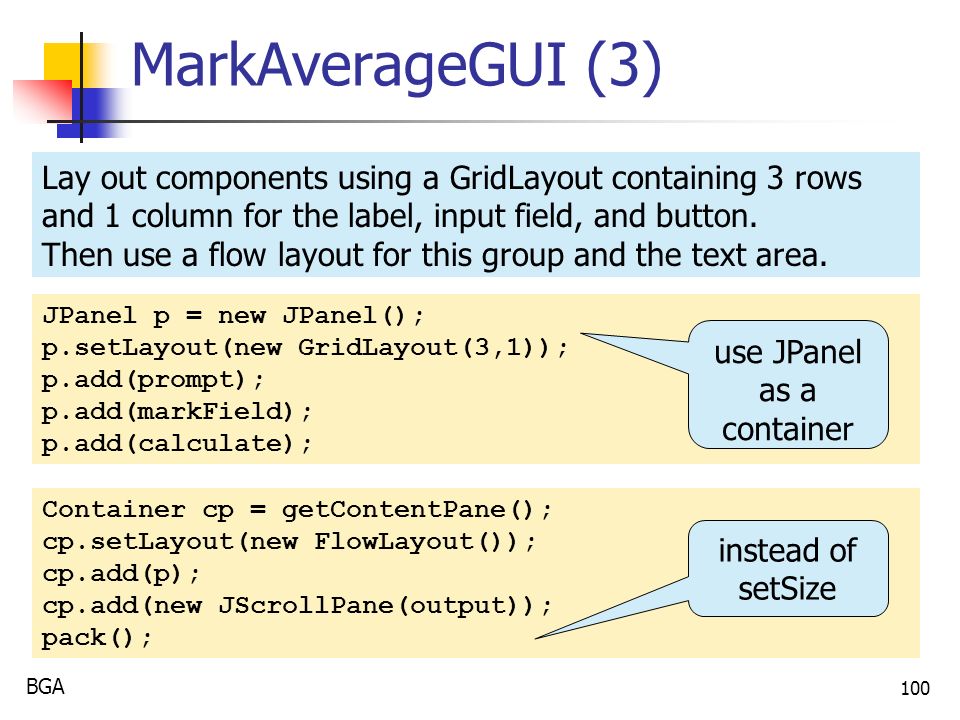

100. BGA 100 MarkAverageGUI (3) Lay out components using a GridLayout containing 3 rows and 1 column for the label, input field, and button. Then use a flow layout for this group and the text area. JPanel p = new JPanel(); p.setLayout(new GridLayout(3,1)); p.add(prompt); p.add(markField); p.add(calculate); Container cp = getContentPane(); cp.setLayout(new FlowLayout()); cp.add(p); cp.add(new JScrollPane(output)); pack(); use JPanel as a container instead of setSize

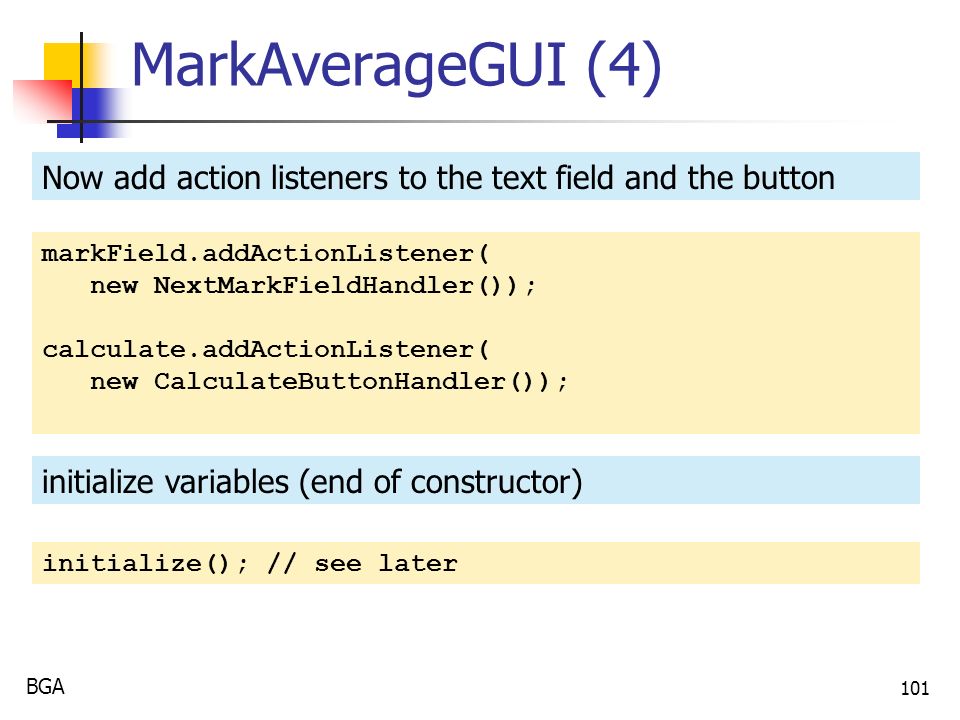

101. BGA 101 MarkAverageGUI (4) Now add action listeners to the text field and the button markField.addActionListener( new NextMarkFieldHandler()); calculate.addActionListener( new CalculateButtonHandler()); initialize variables (end of constructor) initialize(); // see later

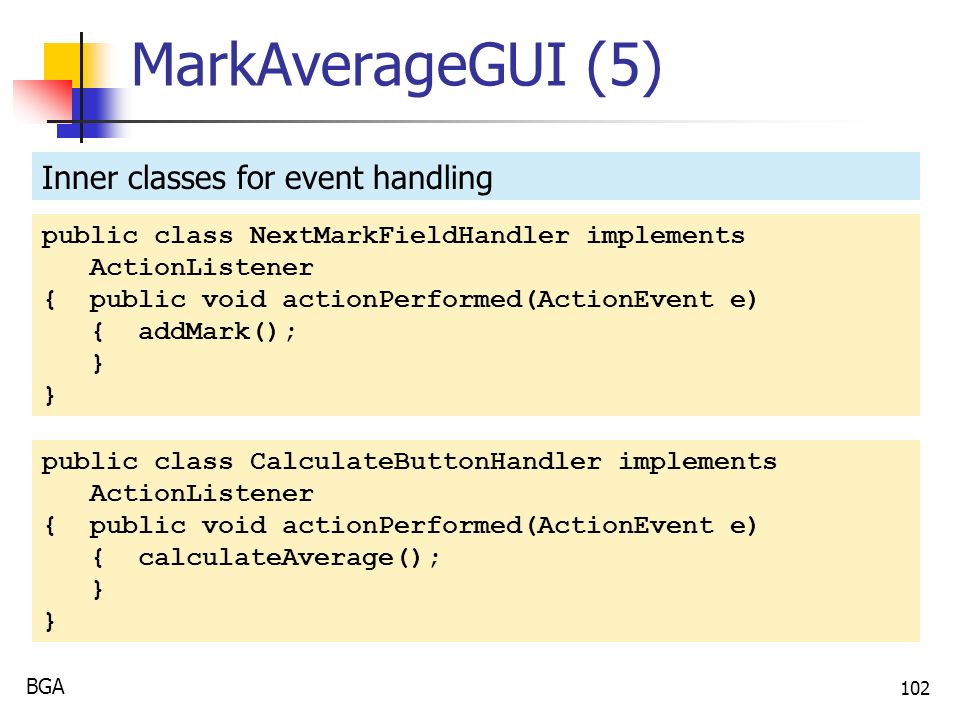

102. BGA 102 MarkAverageGUI (5) Inner classes for event handling public class NextMarkFieldHandler implements ActionListener { public void actionPerformed(ActionEvent e) { addMark(); } public class CalculateButtonHandler implements ActionListener { public void actionPerformed(ActionEvent e) { calculateAverage(); }

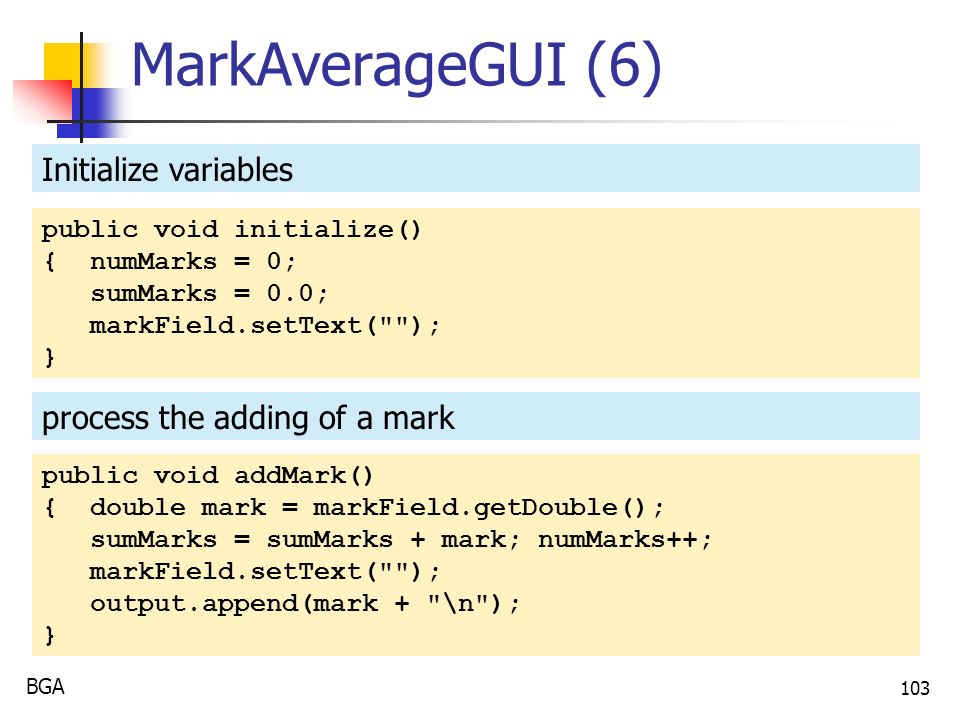

103. BGA 103 MarkAverageGUI (6) Initialize variables public void initialize() { numMarks = 0; sumMarks = 0.0; markField.setText(""); } process the adding of a mark public void addMark() { double mark = markField.getDouble(); sumMarks = sumMarks + mark; numMarks++; markField.setText(""); output.append(mark + "\n"); }

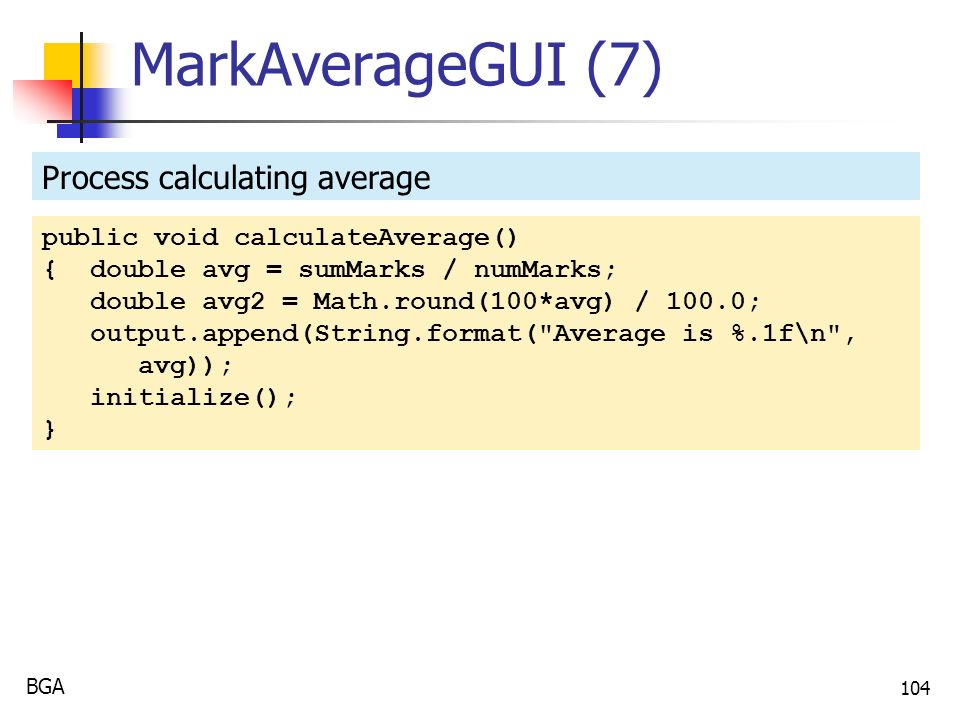

104. BGA 104 MarkAverageGUI (7) Process calculating average public void calculateAverage() { double avg = sumMarks / numMarks; double avg2 = Math.round(100*avg) / 100.0; output.append(String.format("Average is %.1f\n", avg)); initialize(); }

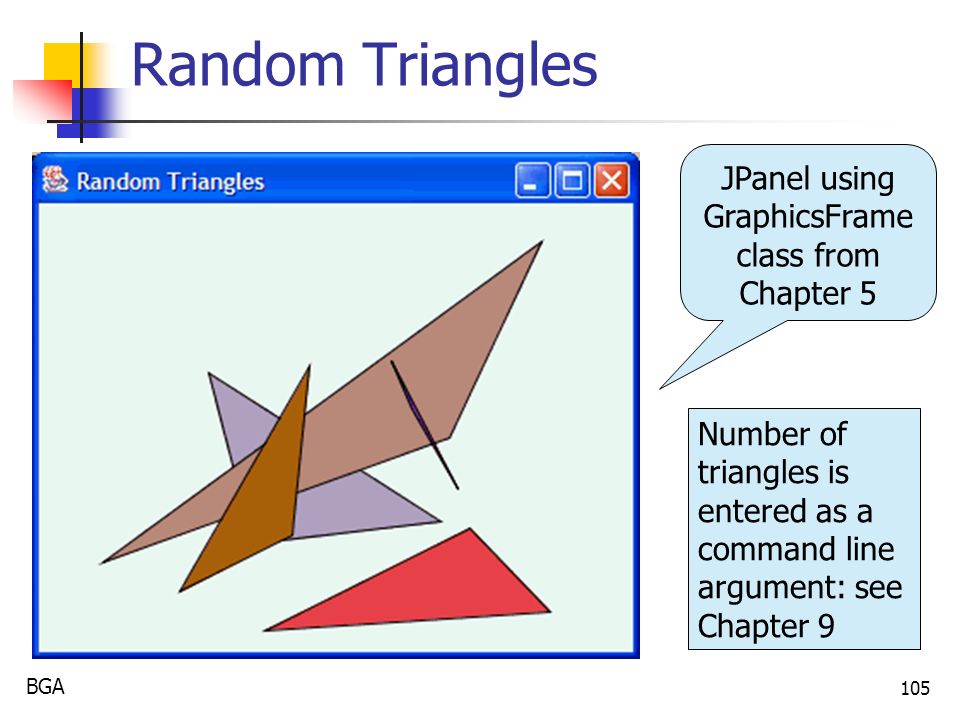

105. BGA 105 Random Triangles JPanel using GraphicsFrame class from Chapter 5 Number of triangles is entered as a command line argument: see Chapter 9

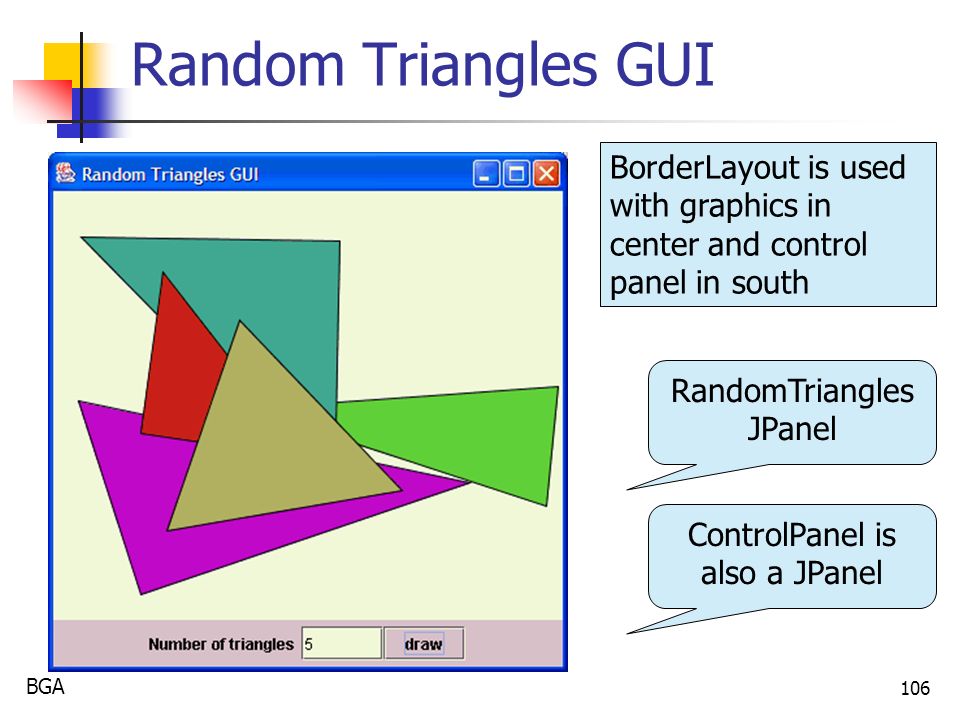

106. BGA 106 Random Triangles GUI RandomTriangles JPanel ControlPanel is also a JPanel BorderLayout is used with graphics in center and control panel in south

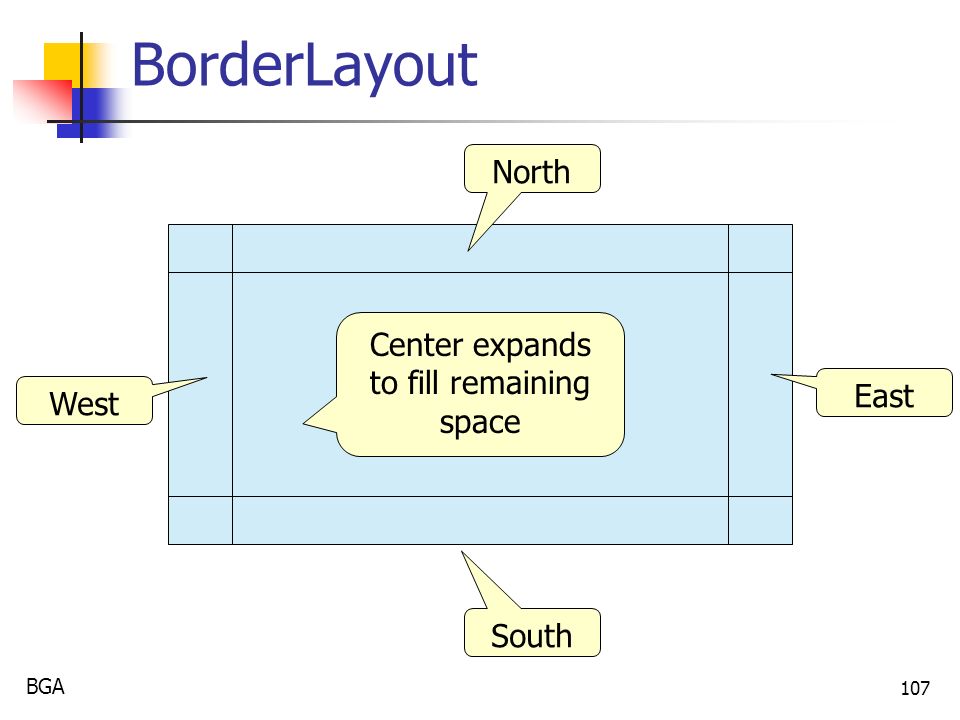

107. BGA 107 BorderLayout South East West North Center expands to fill remaining space

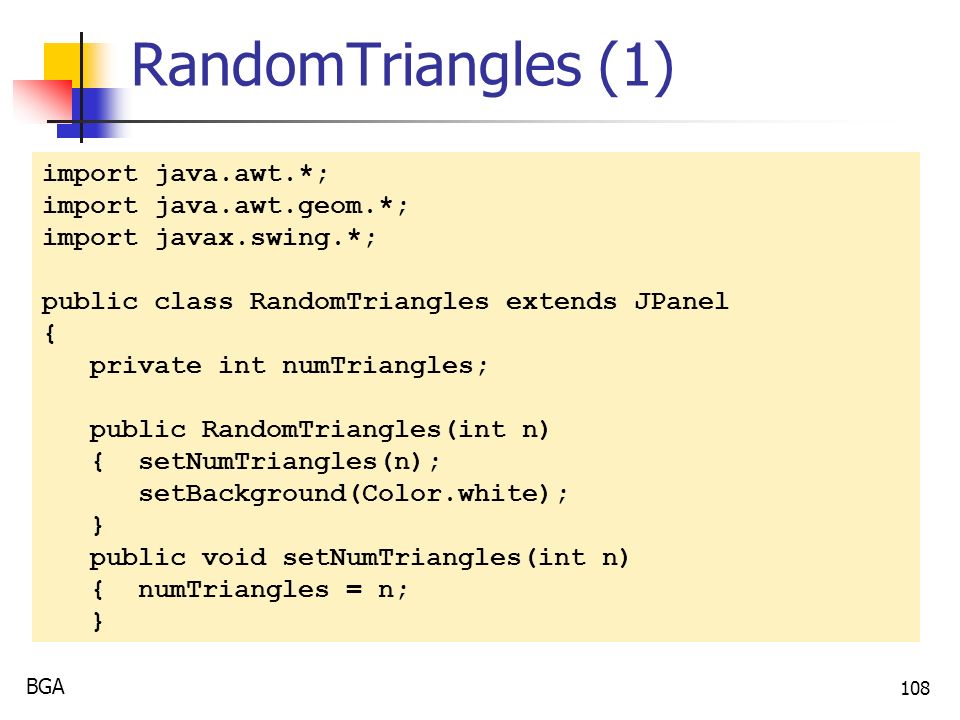

108. BGA 108 RandomTriangles (1) import java.awt.*; import java.awt.geom.*; import javax.swing.*; public class RandomTriangles extends JPanel { private int numTriangles; public RandomTriangles(int n) { setNumTriangles(n); setBackground(Color.white); } public void setNumTriangles(int n) { numTriangles = n; }

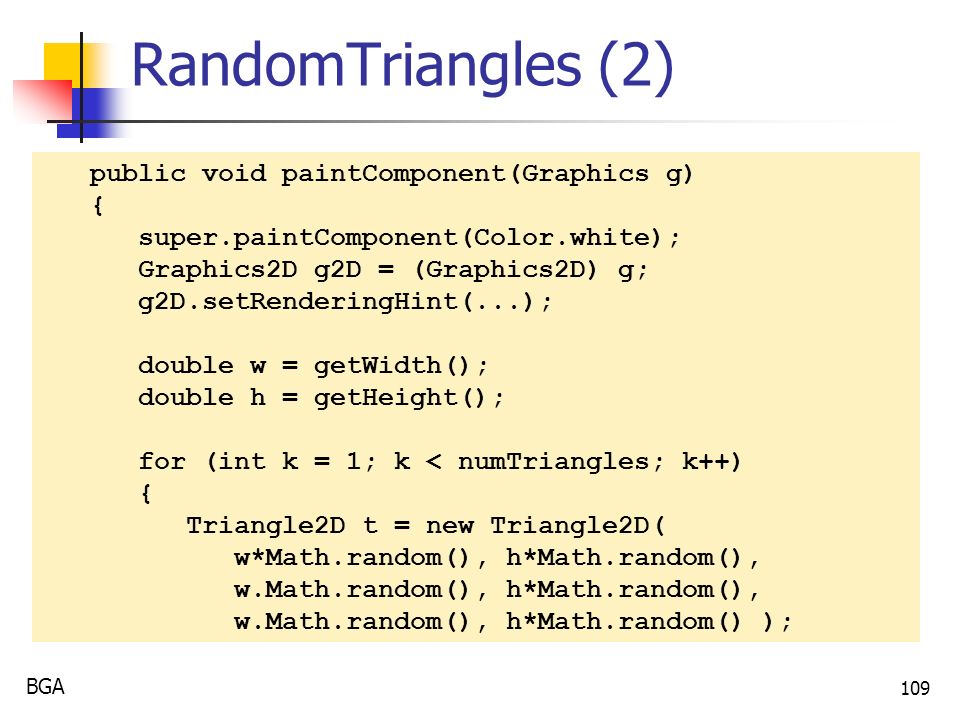

109. BGA 109 RandomTriangles (2) public void paintComponent(Graphics g) { super.paintComponent(Color.white); Graphics2D g2D = (Graphics2D) g; g2D.setRenderingHint(...); double w = getWidth(); double h = getHeight(); for (int k = 1; k < numTriangles; k++) { Triangle2D t = new Triangle2D( w*Math.random(), h*Math.random(), w.Math.random(), h*Math.random(), w.Math.random(), h*Math.random() );

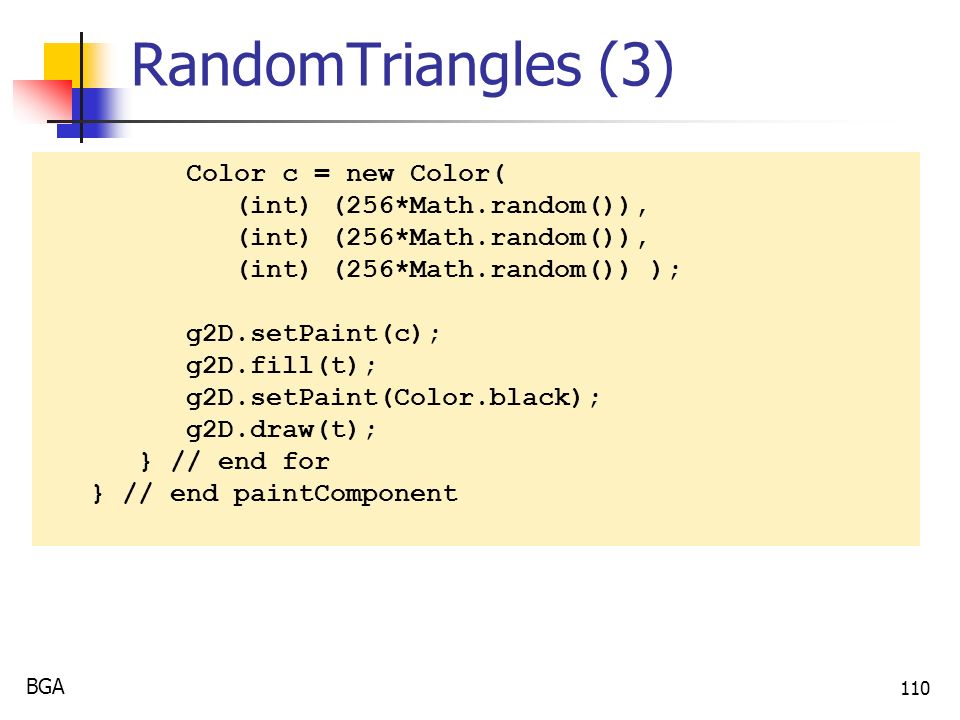

110. BGA 110 RandomTriangles (3) Color c = new Color( (int) (256*Math.random()), (int) (256*Math.random()) ); g2D.setPaint(c); g2D.fill(t); g2D.setPaint(Color.black); g2D.draw(t); } // end for } // end paintComponent

111. BGA 111 RandomTriangles (4) // For running in BlueJ. Use setNumTriangles // to change the number of triangles public void draw() { new GraphicsFrame("RandomTriangles", this(numTriangles), 301, 201); } // outside BlueJ public static void main(String[] args) { int n; if (args.length == 1) n = Integer.parseInt(args[0]); else n = 10; RandomTriangles tri = new RandomTriangles(n); tri.draw(); }

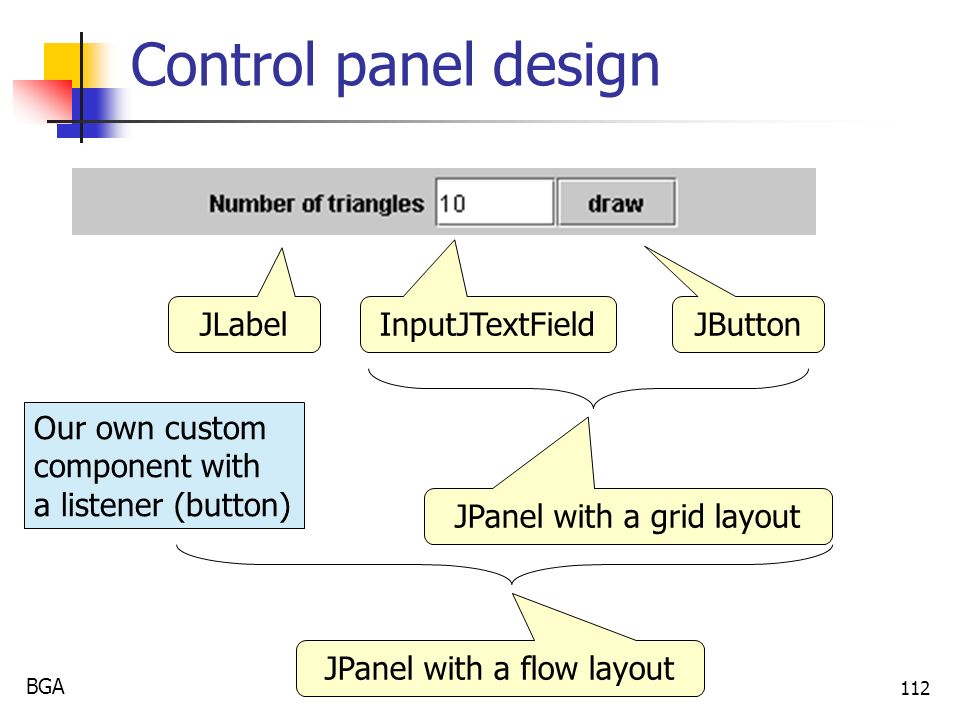

112. BGA 112 Control panel design JButton InputJTextField JLabel JPanel with a grid layout JPanel with a flow layout Our own custom component with a listener (button)

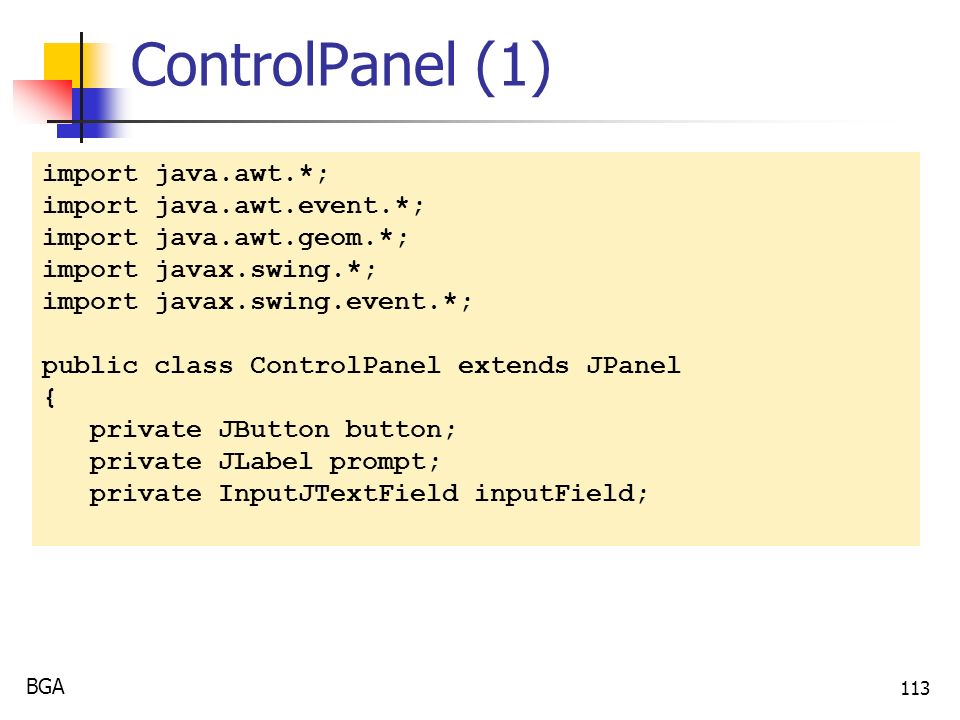

113. BGA 113 ControlPanel (1) import java.awt.*; import java.awt.event.*; import java.awt.geom.*; import javax.swing.*; import javax.swing.event.*; public class ControlPanel extends JPanel { private JButton button; private JLabel prompt; private InputJTextField inputField;

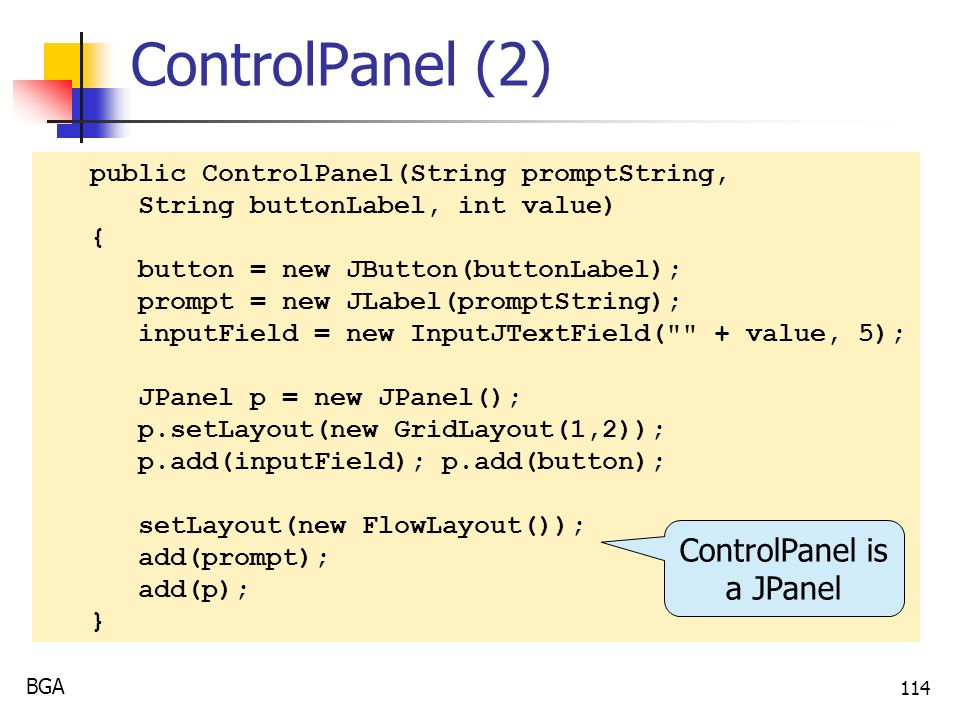

114. BGA 114 ControlPanel (2) public ControlPanel(String promptString, String buttonLabel, int value) { button = new JButton(buttonLabel); prompt = new JLabel(promptString); inputField = new InputJTextField("" + value, 5); JPanel p = new JPanel(); p.setLayout(new GridLayout(1,2)); p.add(inputField); p.add(button); setLayout(new FlowLayout()); add(prompt); add(p); } ControlPanel is a JPanel

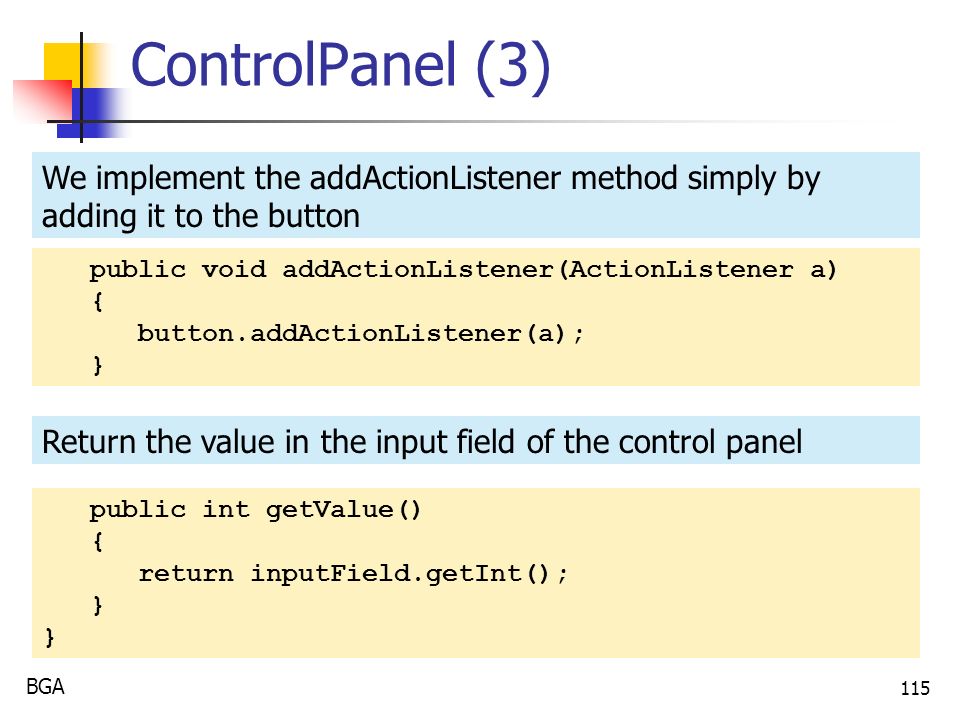

115. BGA 115 ControlPanel (3) public void addActionListener(ActionListener a) { button.addActionListener(a); } We implement the addActionListener method simply by adding it to the button Return the value in the input field of the control panel public int getValue() { return inputField.getInt(); }

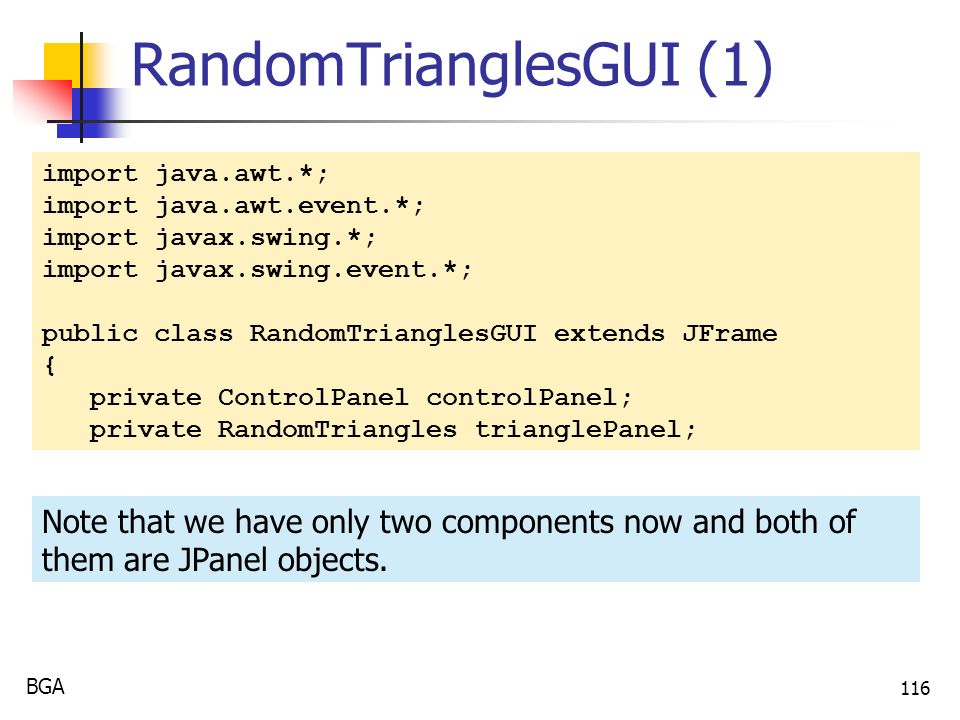

116. BGA 116 RandomTrianglesGUI (1) import java.awt.*; import java.awt.event.*; import javax.swing.*; import javax.swing.event.*; public class RandomTrianglesGUI extends JFrame { private ControlPanel controlPanel; private RandomTriangles trianglePanel; Note that we have only two components now and both of them are JPanel objects.

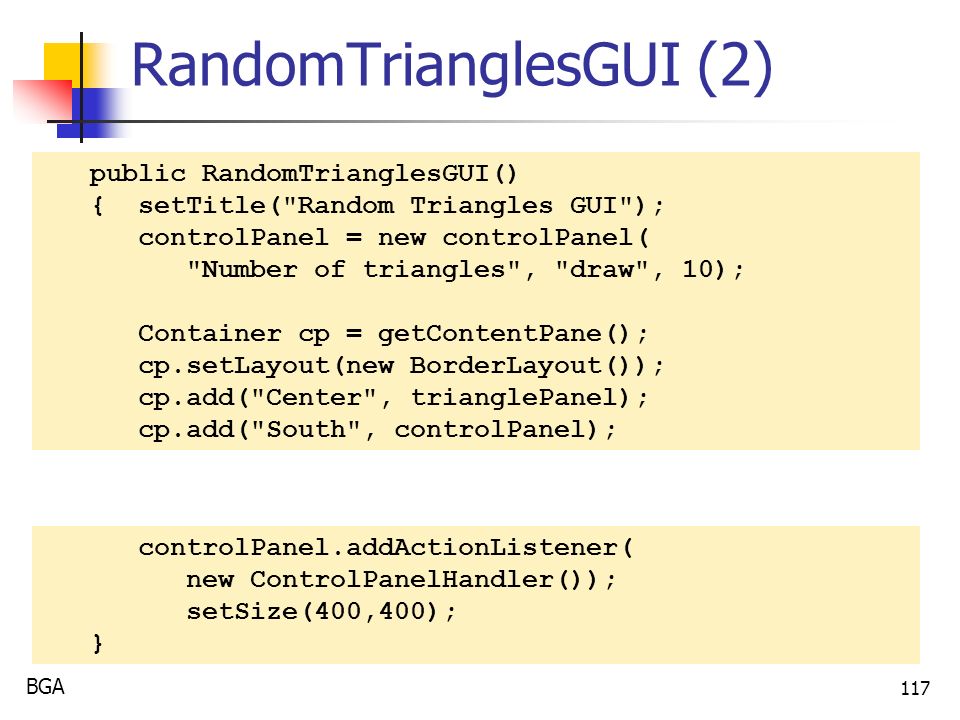

117. BGA 117 RandomTrianglesGUI (2) public RandomTrianglesGUI() { setTitle("Random Triangles GUI"); controlPanel = new controlPanel( "Number of triangles", "draw", 10); Container cp = getContentPane(); cp.setLayout(new BorderLayout()); cp.add("Center", trianglePanel); cp.add("South", controlPanel); controlPanel.addActionListener( new ControlPanelHandler()); setSize(400,400); }

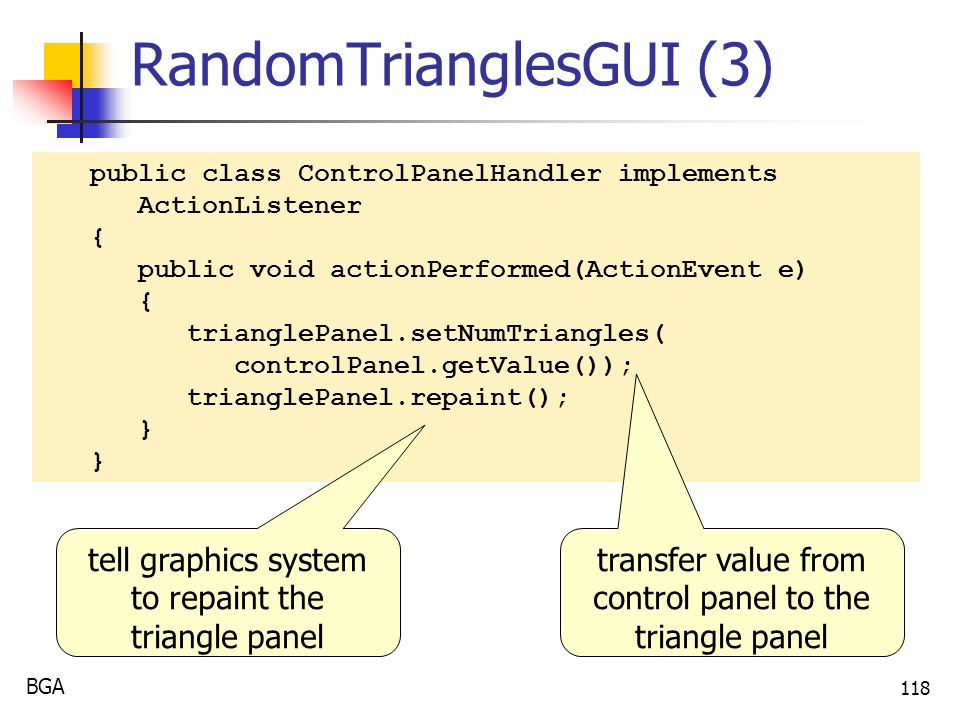

118. BGA 118 RandomTrianglesGUI (3) public class ControlPanelHandler implements ActionListener { public void actionPerformed(ActionEvent e) { trianglePanel.setNumTriangles( controlPanel.getValue()); trianglePanel.repaint(); } transfer value from control panel to the triangle panel tell graphics system to repaint the triangle panel

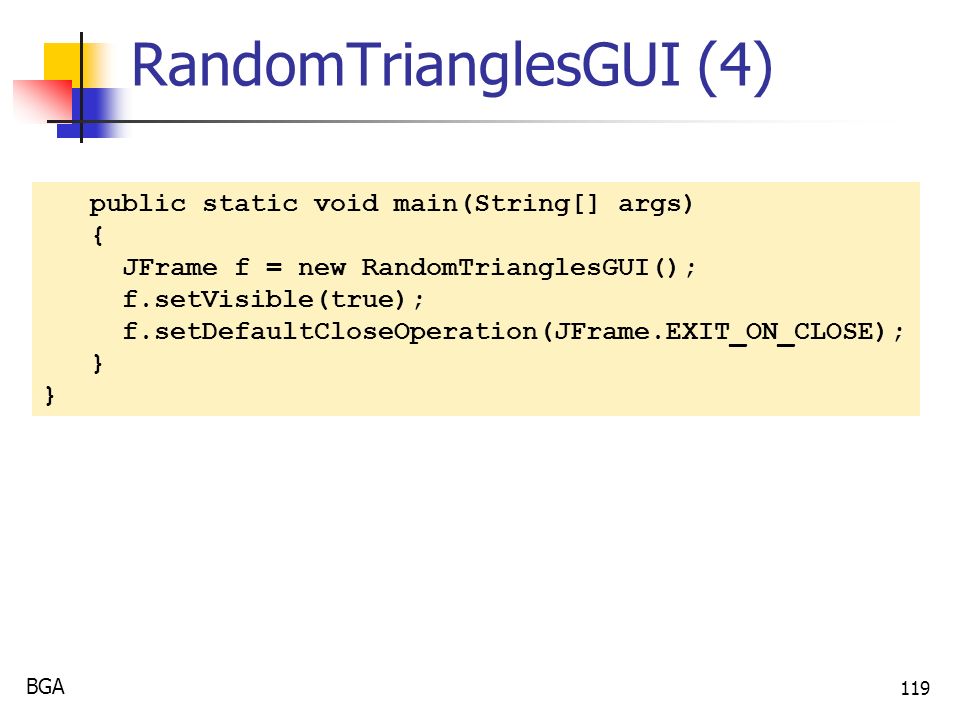

119. BGA 119 RandomTrianglesGUI (4) public static void main(String[] args) { JFrame f = new RandomTrianglesGUI(); f.setVisible(true); f.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE); }

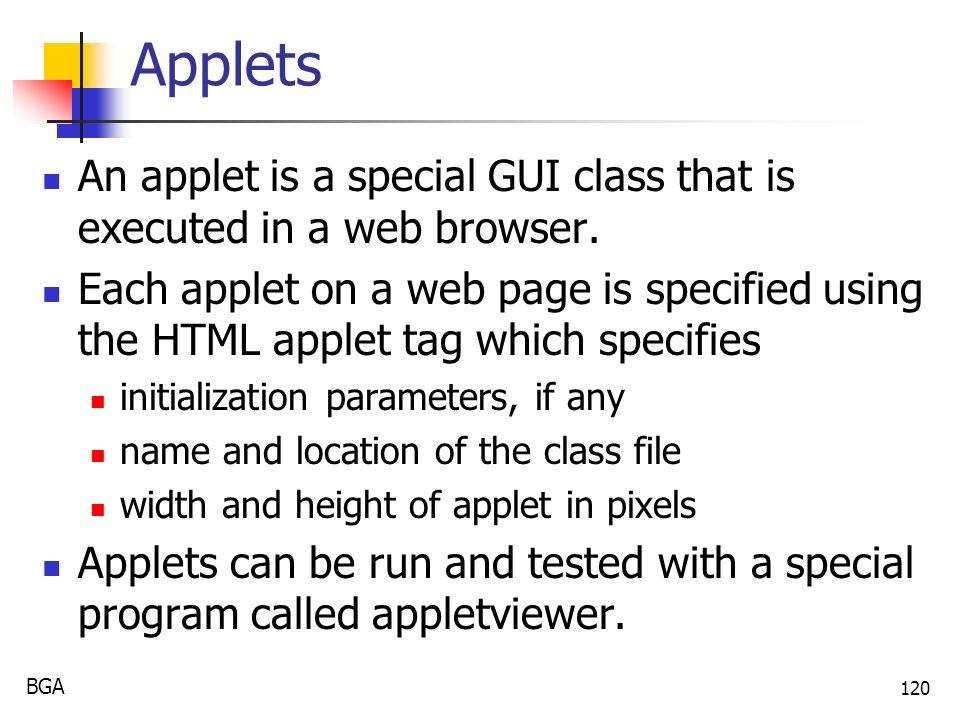

120. BGA 120 Applets An applet is a special GUI class that is executed in a web browser. Each applet on a web page is specified using the HTML applet tag which specifies initialization parameters, if any name and location of the class file width and height of applet in pixels Applets can be run and tested with a special program called appletviewer.

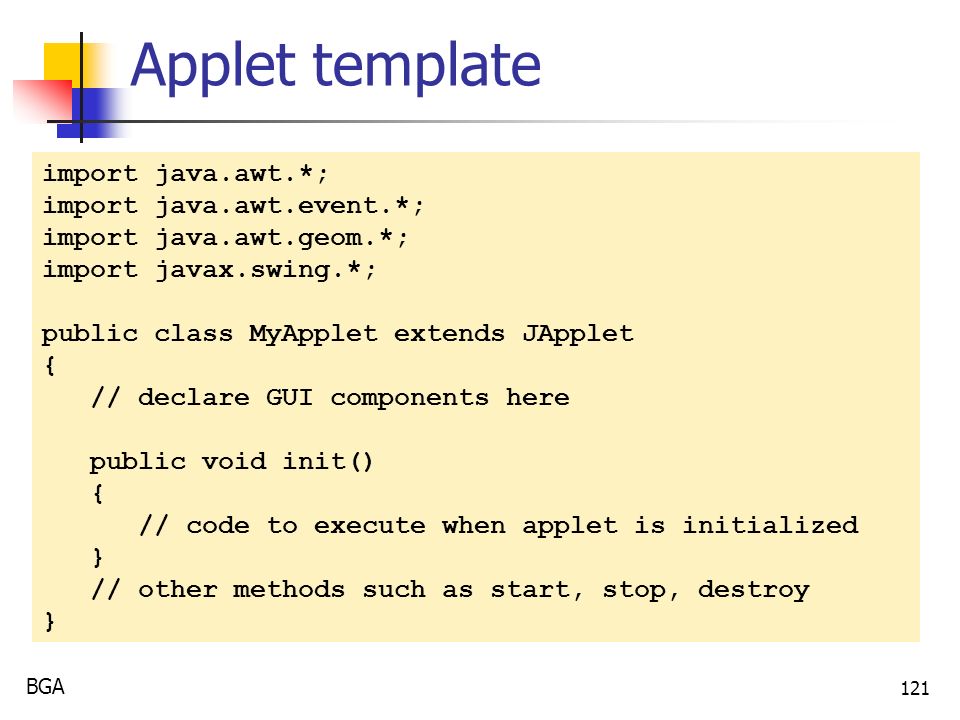

121. BGA 121 Applet template import java.awt.*; import java.awt.event.*; import java.awt.geom.*; import javax.swing.*; public class MyApplet extends JApplet { // declare GUI components here public void init() { // code to execute when applet is initialized } // other methods such as start, stop, destroy }

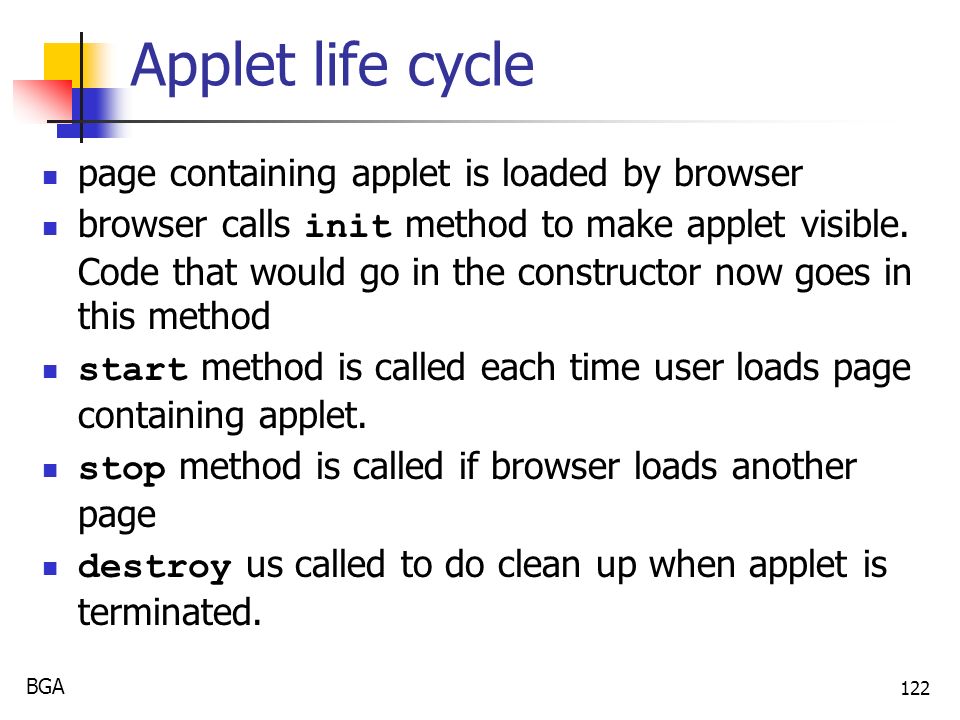

122. BGA 122 Applet life cycle page containing applet is loaded by browser browser calls init method to make applet visible. Code that would go in the constructor now goes in this method start method is called each time user loads page containing applet. stop method is called if browser loads another page destroy us called to do clean up when applet is terminated.

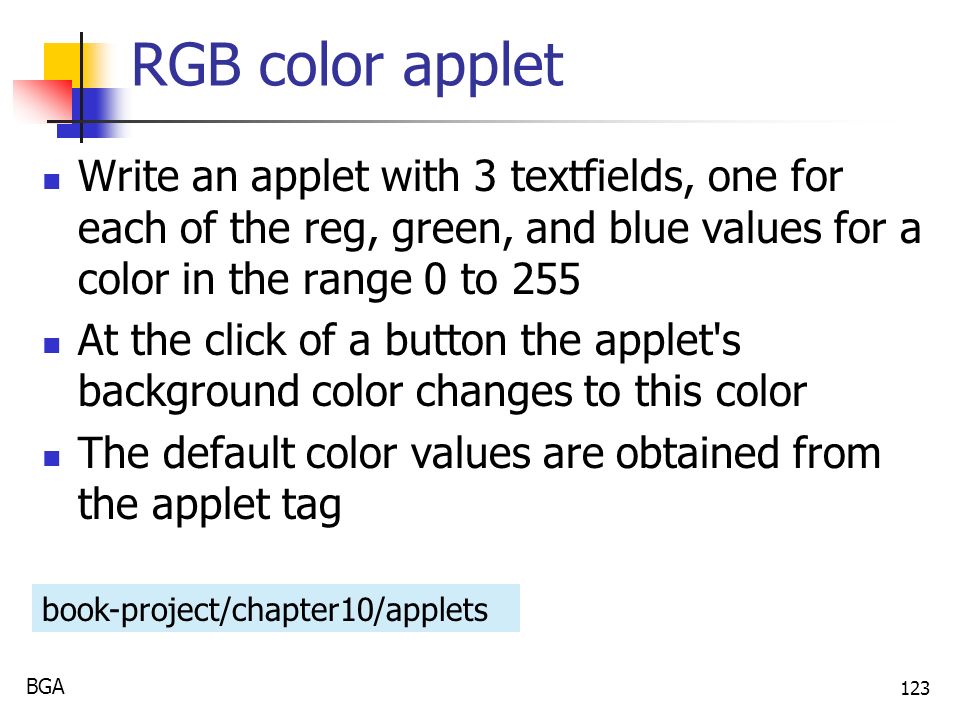

123. BGA 123 RGB color applet Write an applet with 3 textfields, one for each of the reg, green, and blue values for a color in the range 0 to 255 At the click of a button the applet's background color changes to this color The default color values are obtained from the applet tag book-project/chapter10/applets

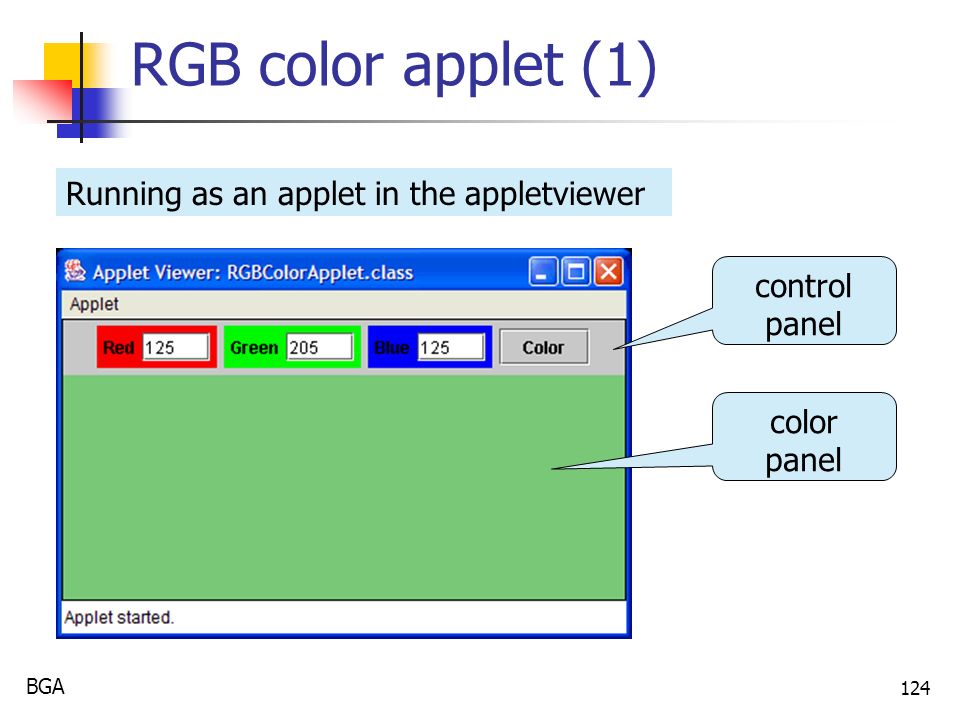

124. BGA 124 RGB color applet (1) Running as an applet in the appletviewer control panel color panel

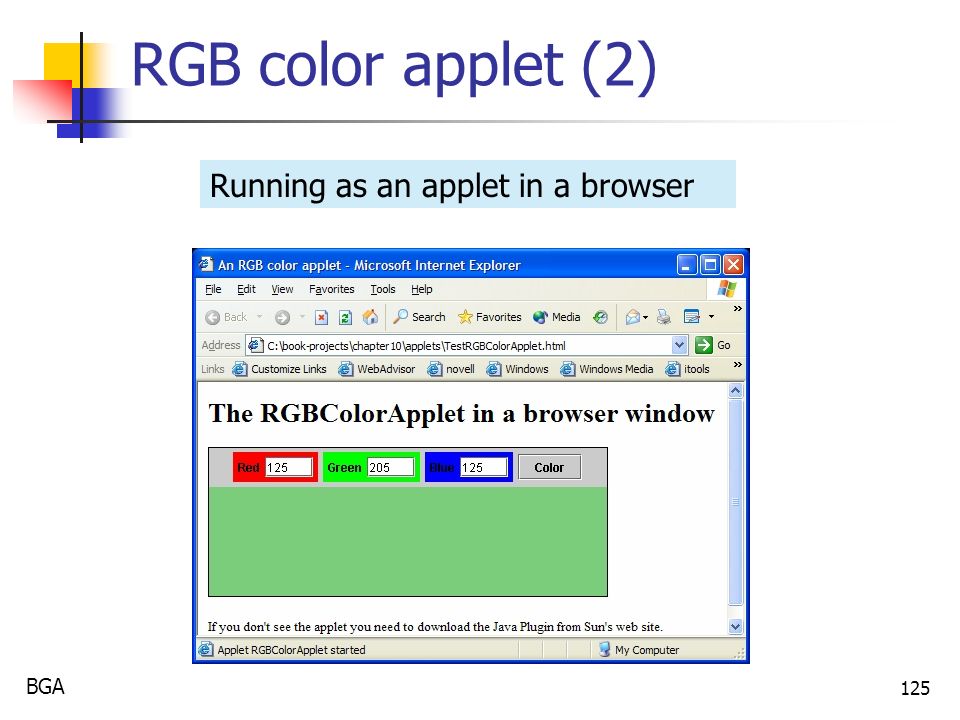

125. BGA 125 RGB color applet (2) Running as an applet in a browser

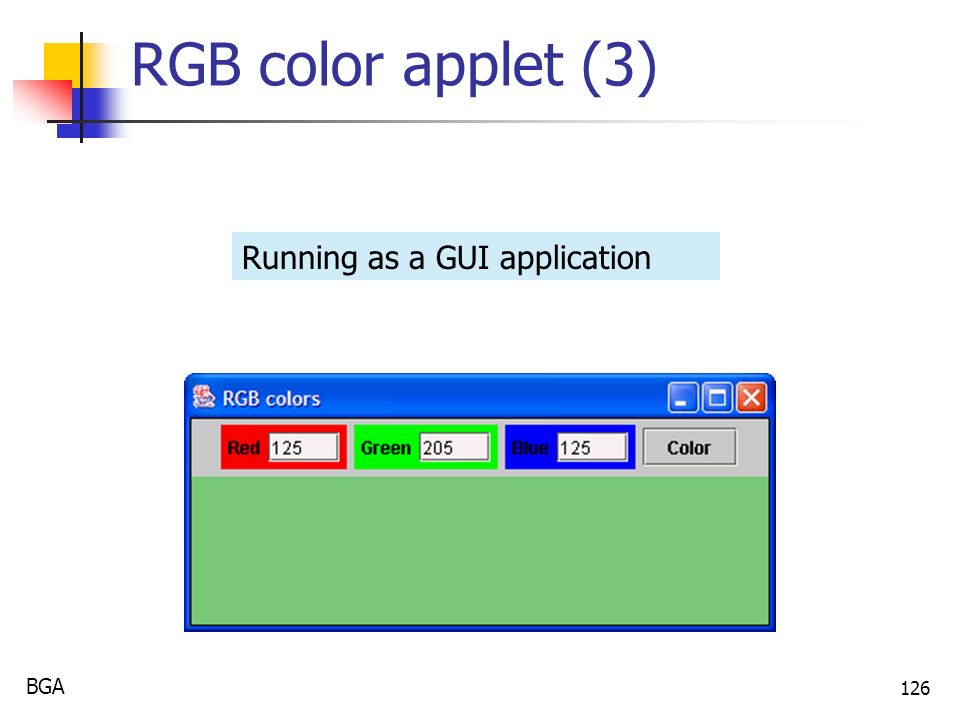

126. BGA 126 RGB color applet (3) Running as a GUI application

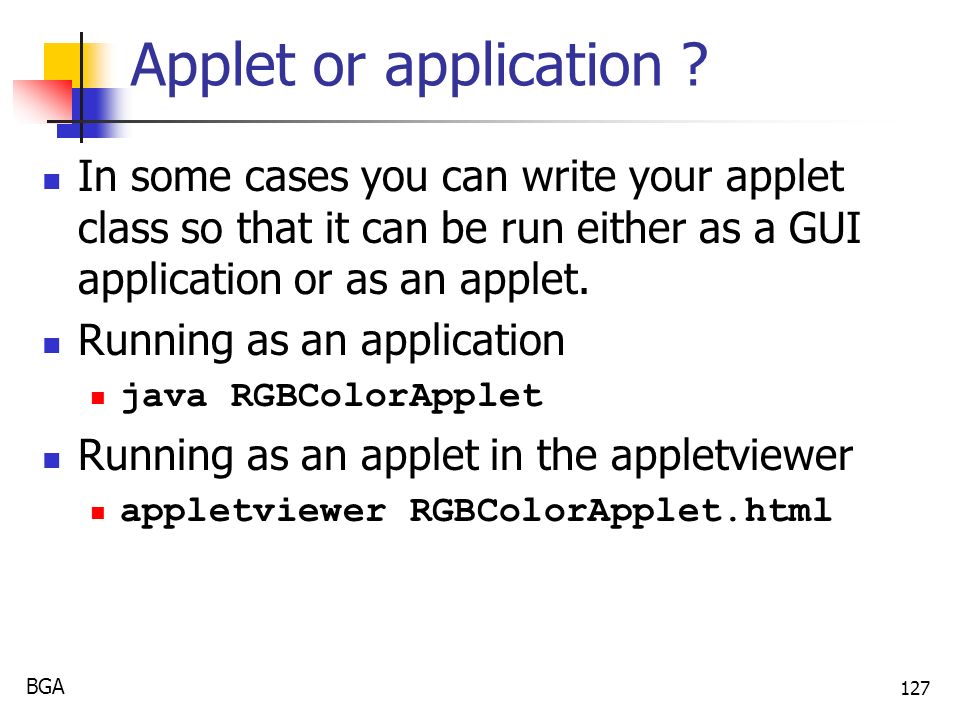

127. BGA 127 Applet or application ? In some cases you can write your applet class so that it can be run either as a GUI application or as an applet. Running as an application java RGBColorApplet Running as an applet in the appletviewer appletviewer RGBColorApplet.html

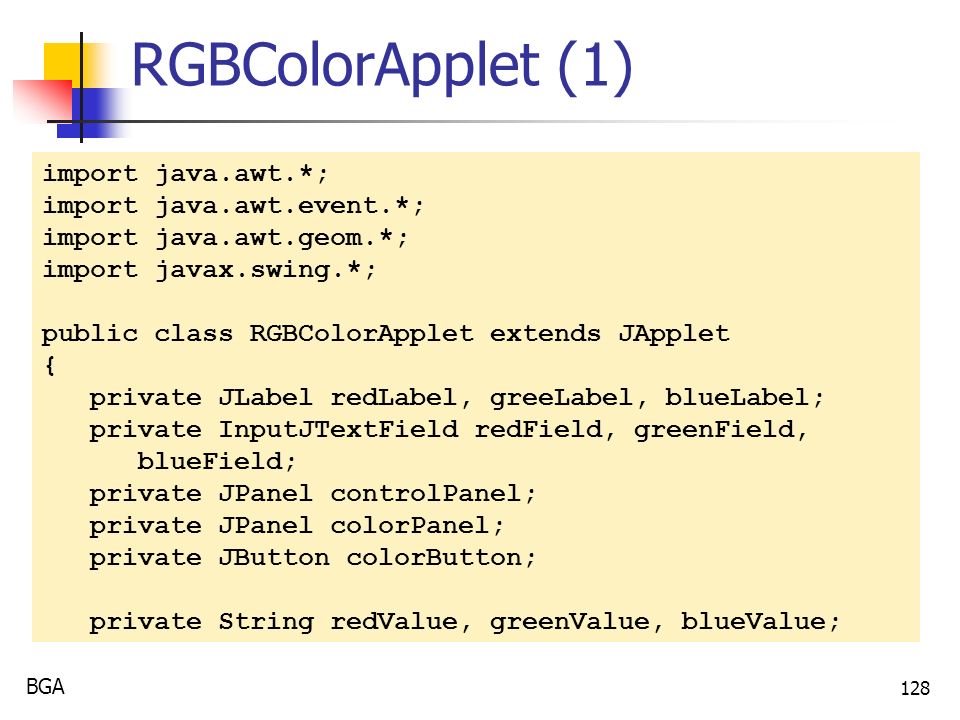

128. BGA 128 RGBColorApplet (1) import java.awt.*; import java.awt.event.*; import java.awt.geom.*; import javax.swing.*; public class RGBColorApplet extends JApplet { private JLabel redLabel, greeLabel, blueLabel; private InputJTextField redField, greenField, blueField; private JPanel controlPanel; private JPanel colorPanel; private JButton colorButton; private String redValue, greenValue, blueValue;

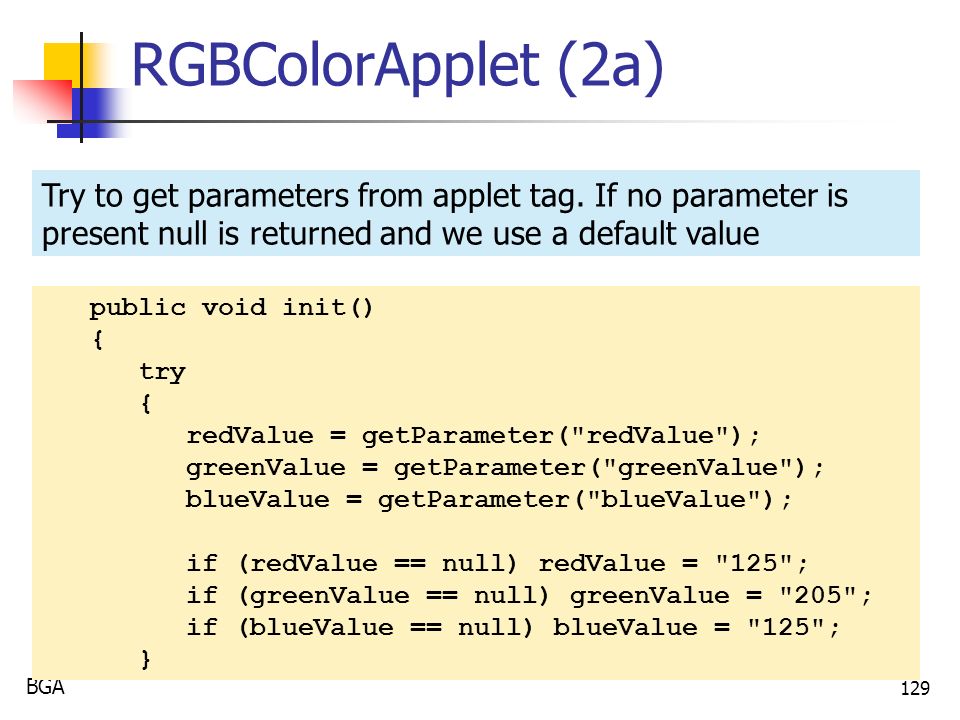

129. BGA 129 RGBColorApplet (2a) public void init() { try { redValue = getParameter("redValue"); greenValue = getParameter("greenValue"); blueValue = getParameter("blueValue"); if (redValue == null) redValue = "125"; if (greenValue == null) greenValue = "205"; if (blueValue == null) blueValue = "125"; } Try to get parameters from applet tag. If no parameter is present null is returned and we use a default value

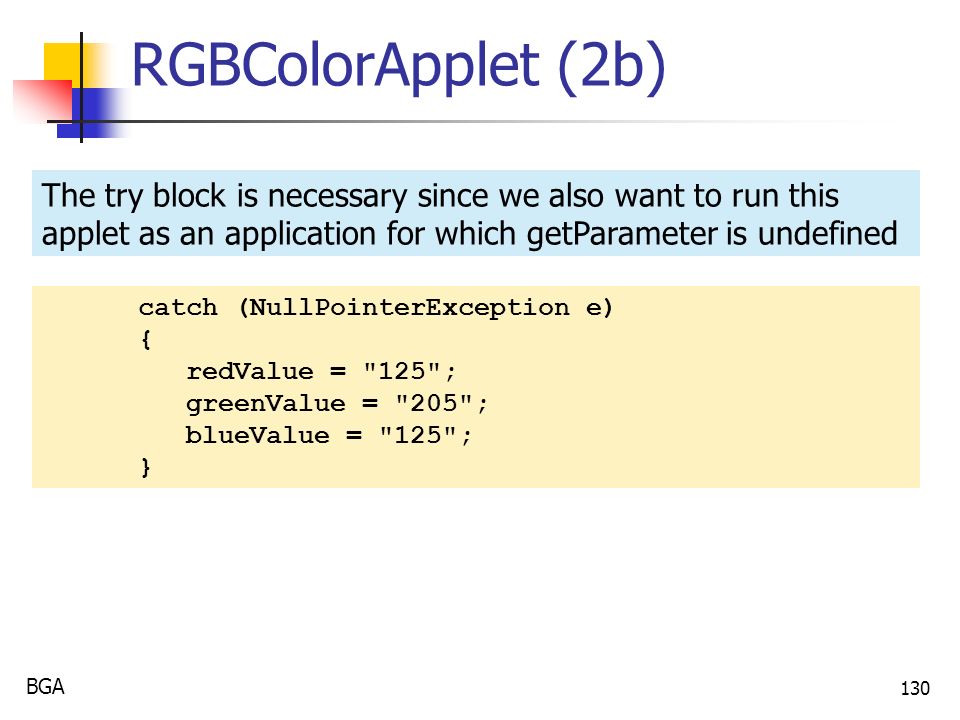

130. BGA 130 RGBColorApplet (2b) catch (NullPointerException e) { redValue = "125"; greenValue = "205"; blueValue = "125"; } The try block is necessary since we also want to run this applet as an application for which getParameter is undefined

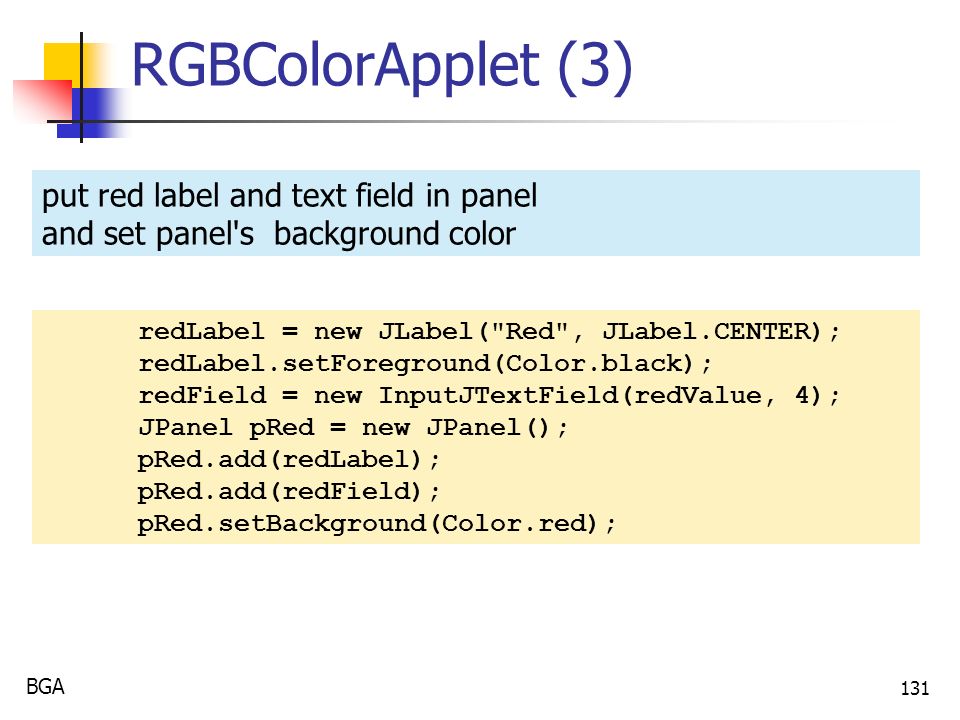

131. BGA 131 RGBColorApplet (3) redLabel = new JLabel("Red", JLabel.CENTER); redLabel.setForeground(Color.black); redField = new InputJTextField(redValue, 4); JPanel pRed = new JPanel(); pRed.add(redLabel); pRed.add(redField); pRed.setBackground(Color.red); put red label and text field in panel and set panel's background color

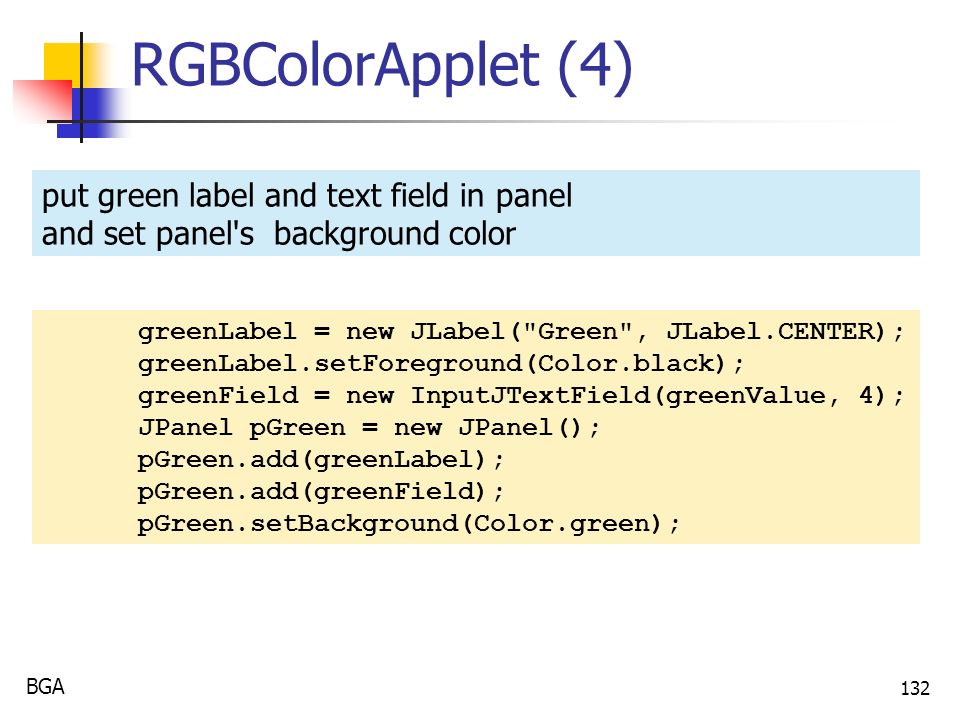

132. BGA 132 RGBColorApplet (4) greenLabel = new JLabel("Green", JLabel.CENTER); greenLabel.setForeground(Color.black); greenField = new InputJTextField(greenValue, 4); JPanel pGreen = new JPanel(); pGreen.add(greenLabel); pGreen.add(greenField); pGreen.setBackground(Color.green); put green label and text field in panel and set panel's background color

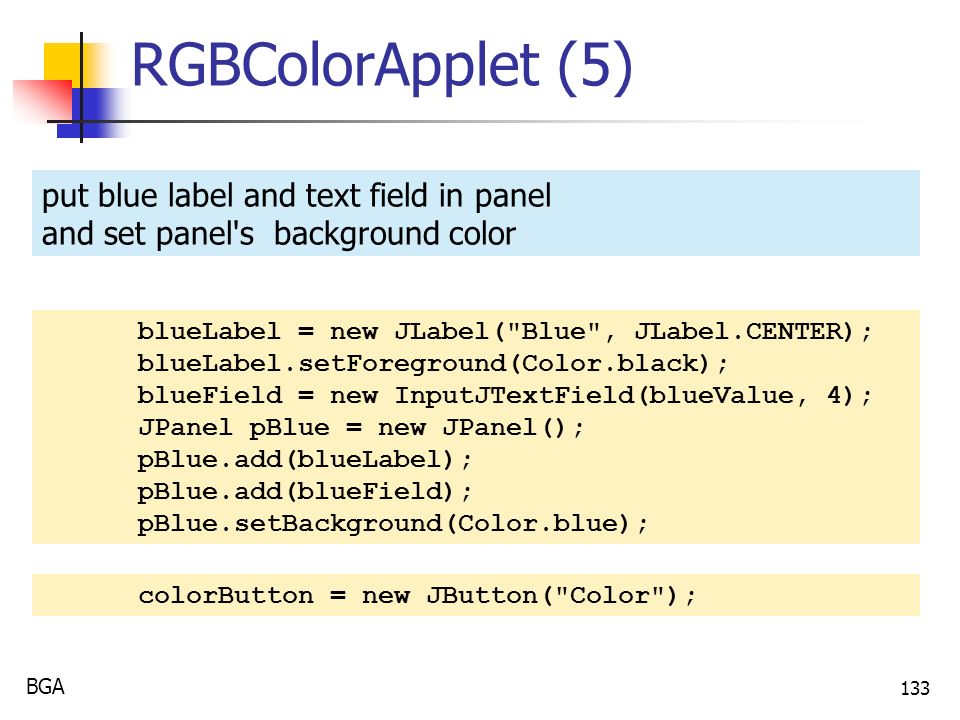

133. BGA 133 RGBColorApplet (5) blueLabel = new JLabel("Blue", JLabel.CENTER); blueLabel.setForeground(Color.black); blueField = new InputJTextField(blueValue, 4); JPanel pBlue = new JPanel(); pBlue.add(blueLabel); pBlue.add(blueField); pBlue.setBackground(Color.blue); put blue label and text field in panel and set panel's background color colorButton = new JButton("Color");

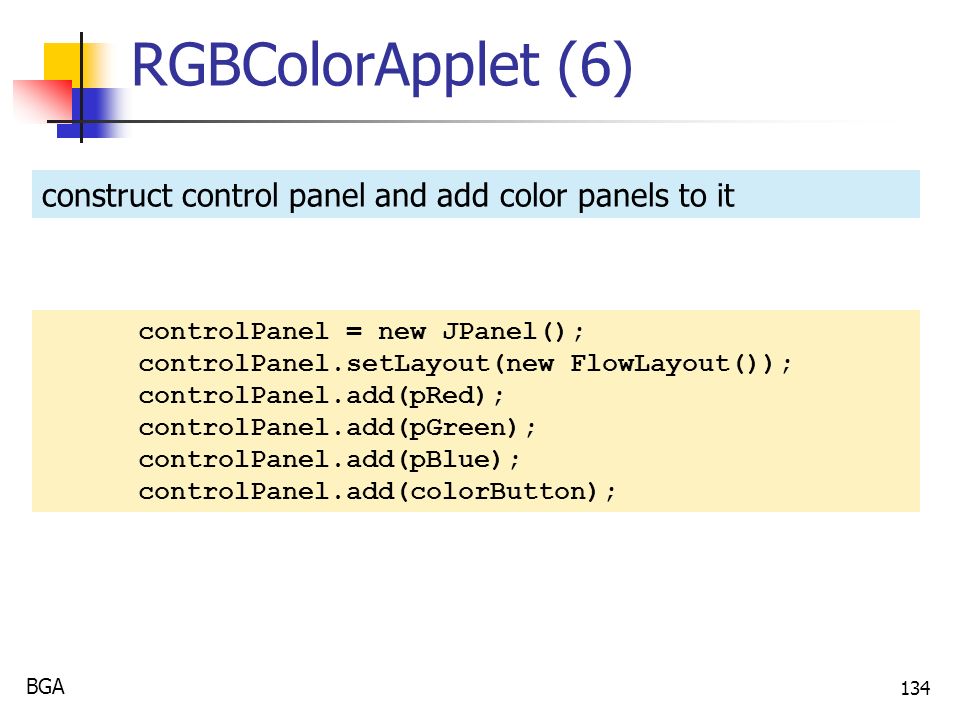

134. BGA 134 RGBColorApplet (6) controlPanel = new JPanel(); controlPanel.setLayout(new FlowLayout()); controlPanel.add(pRed); controlPanel.add(pGreen); controlPanel.add(pBlue); controlPanel.add(colorButton); construct control panel and add color panels to it

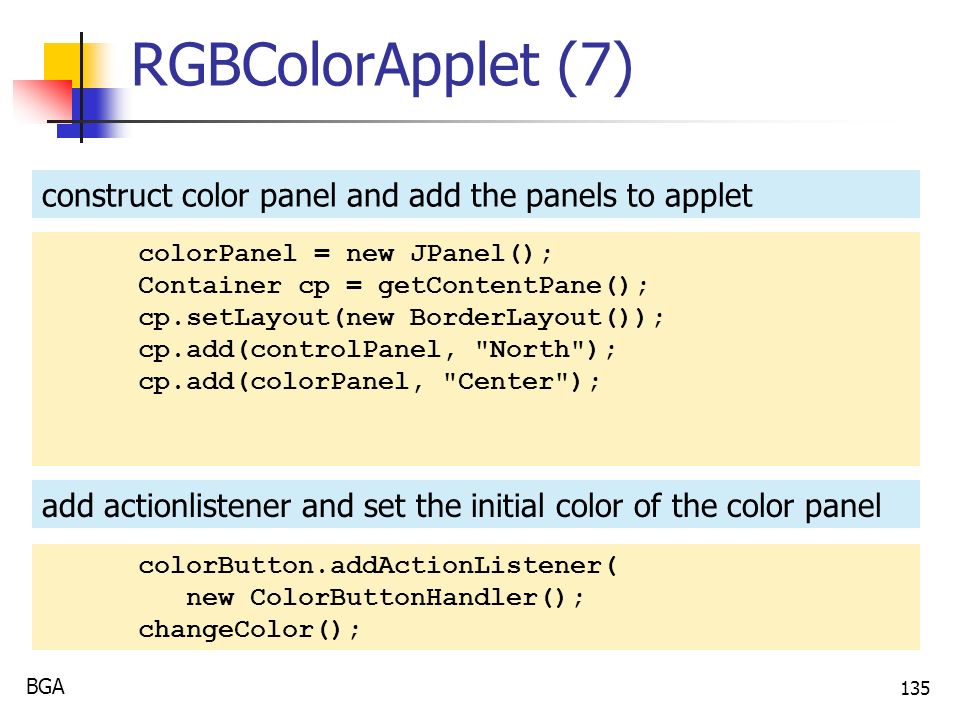

135. BGA 135 RGBColorApplet (7) colorPanel = new JPanel(); Container cp = getContentPane(); cp.setLayout(new BorderLayout()); cp.add(controlPanel, "North"); cp.add(colorPanel, "Center"); construct color panel and add the panels to applet add actionlistener and set the initial color of the color panel colorButton.addActionListener( new ColorButtonHandler(); changeColor();

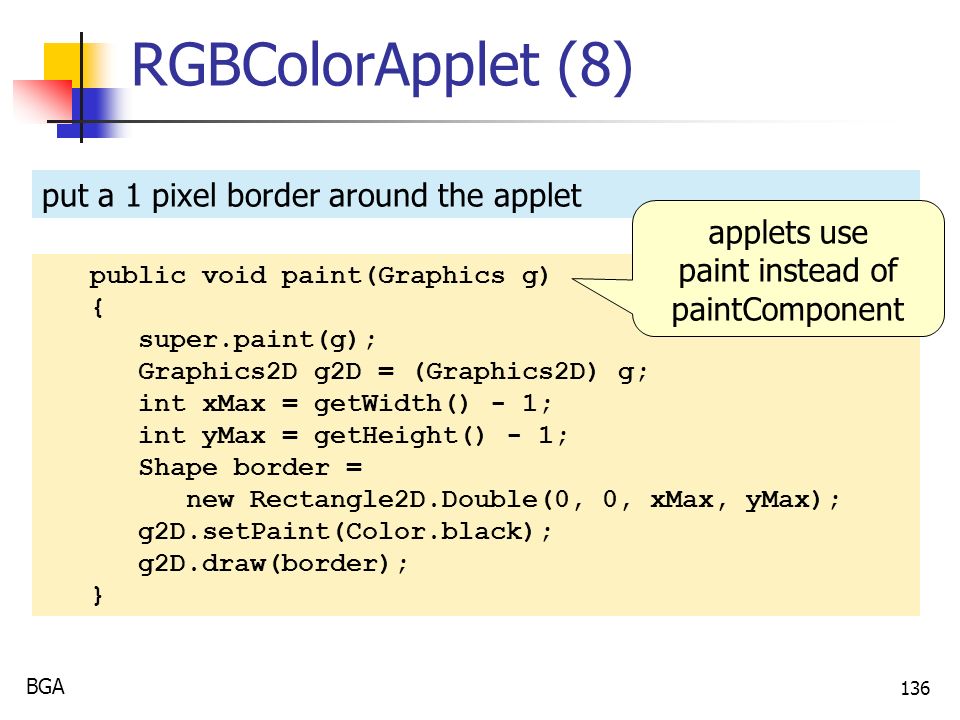

136. BGA 136 RGBColorApplet (8) public void paint(Graphics g) { super.paint(g); Graphics2D g2D = (Graphics2D) g; int xMax = getWidth() - 1; int yMax = getHeight() - 1; Shape border = new Rectangle2D.Double(0, 0, xMax, yMax); g2D.setPaint(Color.black); g2D.draw(border); } put a 1 pixel border around the applet applets use paint instead of paintComponent

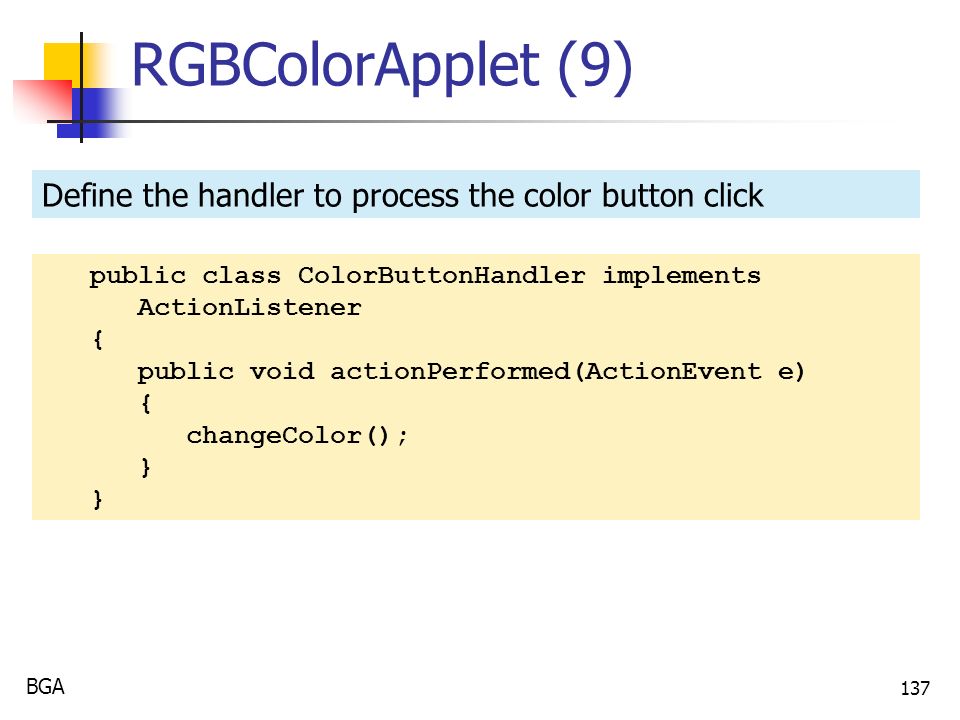

137. BGA 137 RGBColorApplet (9) public class ColorButtonHandler implements ActionListener { public void actionPerformed(ActionEvent e) { changeColor(); } Define the handler to process the color button click

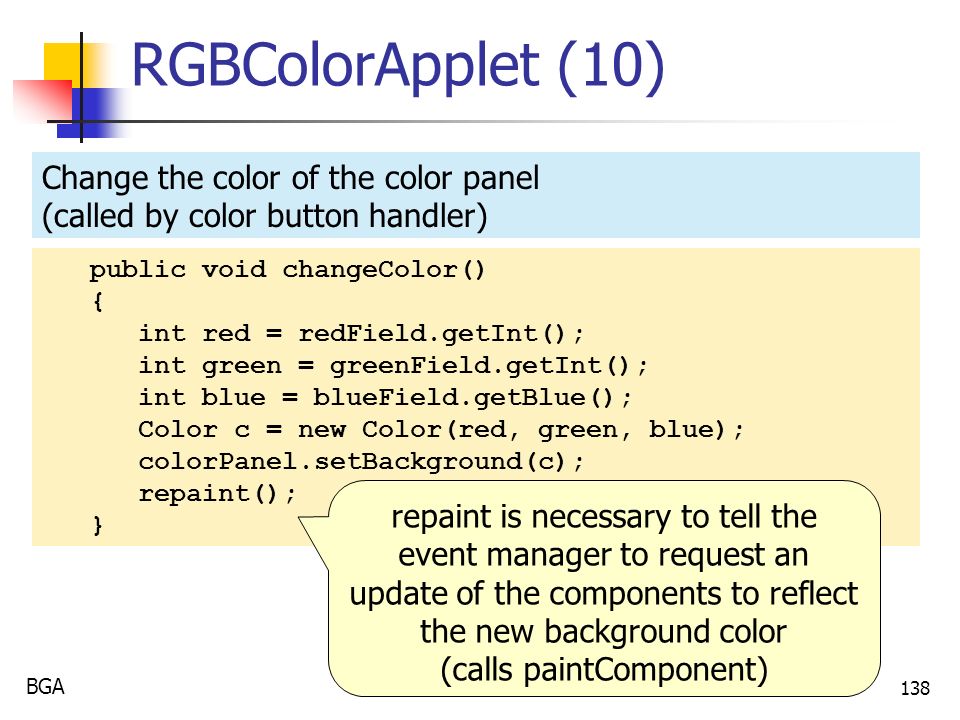

138. BGA 138 RGBColorApplet (10) public void changeColor() { int red = redField.getInt(); int green = greenField.getInt(); int blue = blueField.getBlue(); Color c = new Color(red, green, blue); colorPanel.setBackground(c); repaint(); } Change the color of the color panel (called by color button handler) repaint is necessary to tell the event manager to request an update of the components to reflect the new background color (calls paintComponent)

139. BGA 139 RGBColorApplet (11) public static void main(String[] args) { RGBColorApplet a = new RGBColorApplet(); a.setSize(400,150); a.init(); JFrame f = new JFrame(); Container cp = f.getContentPane(); cp.add(a); f.setTitle("RGB colors"); f.setSize(400,175); f.setVisible(true); f.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE); } }// end of RGBColorApplet To run as an application

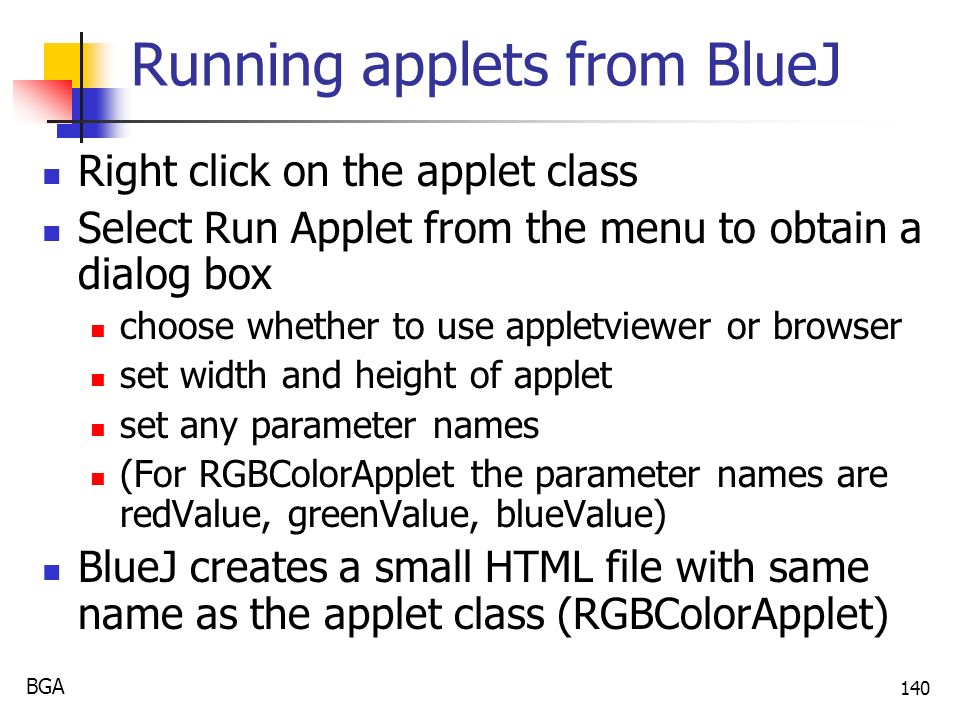

140. BGA 140 Running applets from BlueJ Right click on the applet class Select Run Applet from the menu to obtain a dialog box choose whether to use appletviewer or browser set width and height of applet set any parameter names (For RGBColorApplet the parameter names are redValue, greenValue, blueValue) BlueJ creates a small HTML file with same name as the applet class (RGBColorApplet)

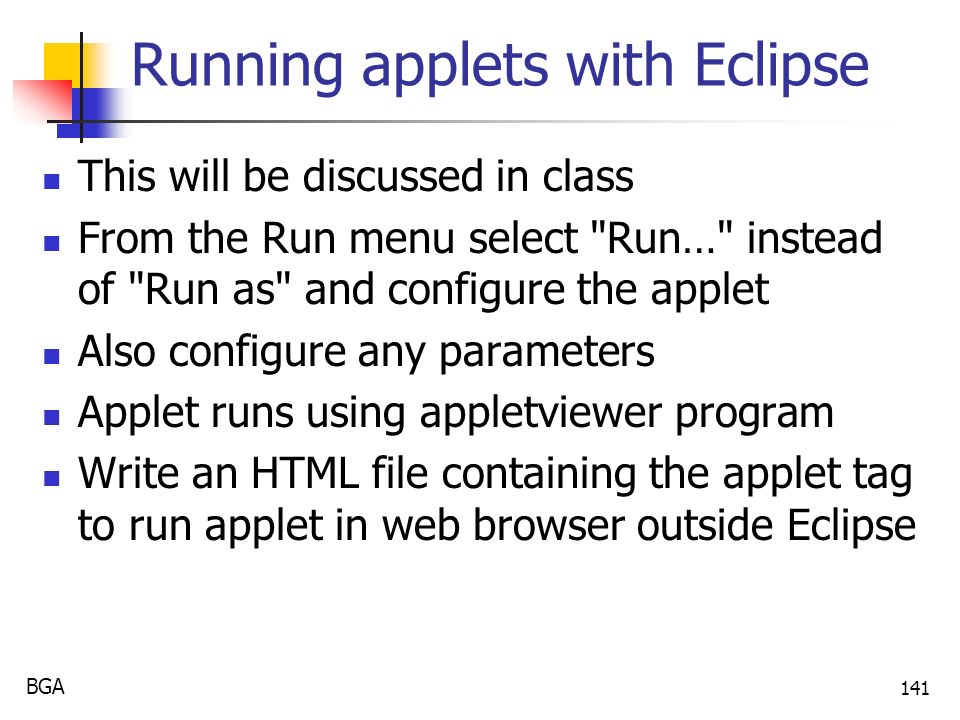

141. BGA 141 Running applets with Eclipse This will be discussed in class From the Run menu select "Run…" instead of "Run as" and configure the applet Also configure any parameters Applet runs using appletviewer program Write an HTML file containing the applet tag to run applet in web browser outside Eclipse

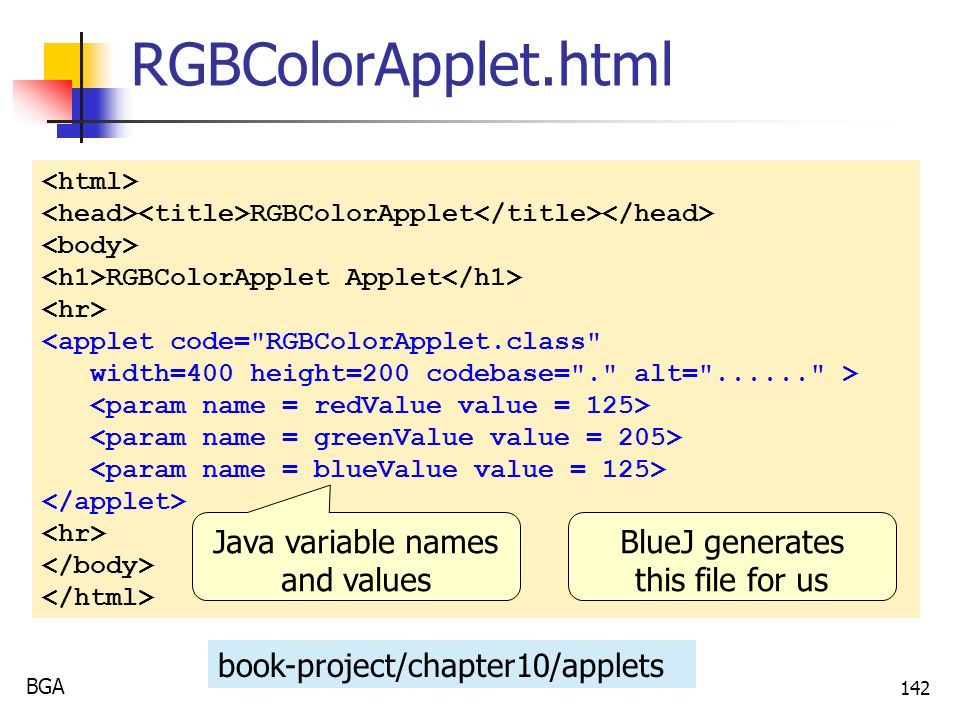

142. BGA 142 RGBColorApplet.html RGBColorApplet RGBColorApplet Applet <applet code="RGBColorApplet.class" width=400 height=200 codebase="." alt="......" > BlueJ generates this file for us Java variable names and values book-project/chapter10/applets

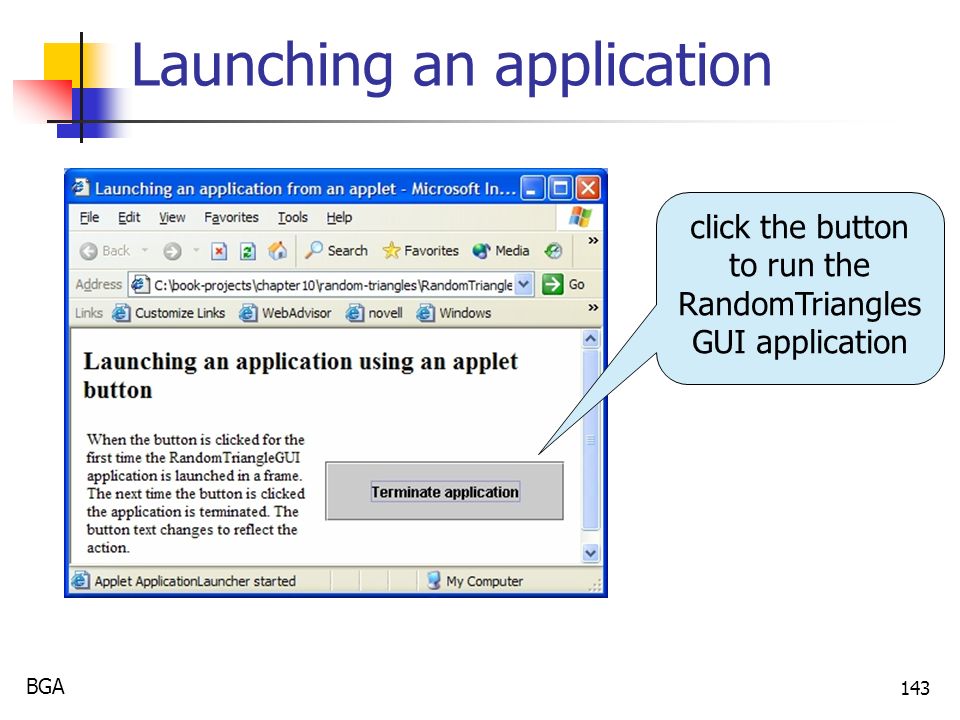

143. BGA 143 Launching an application click the button to run the RandomTriangles GUI application

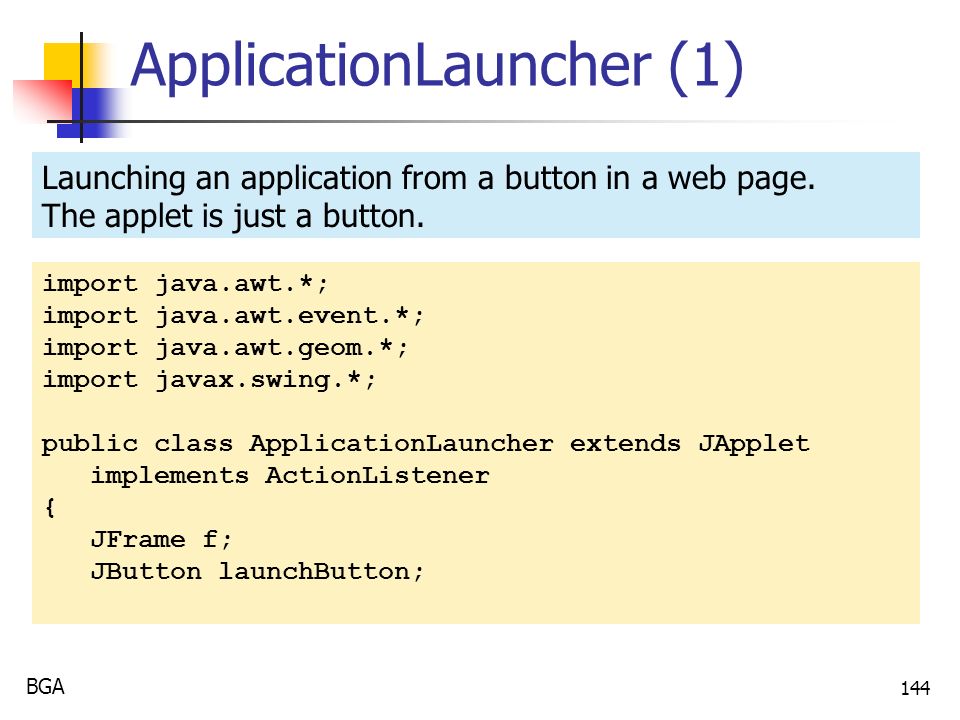

144. BGA 144 ApplicationLauncher (1) import java.awt.*; import java.awt.event.*; import java.awt.geom.*; import javax.swing.*; public class ApplicationLauncher extends JApplet implements ActionListener { JFrame f; JButton launchButton; Launching an application from a button in a web page. The applet is just a button.

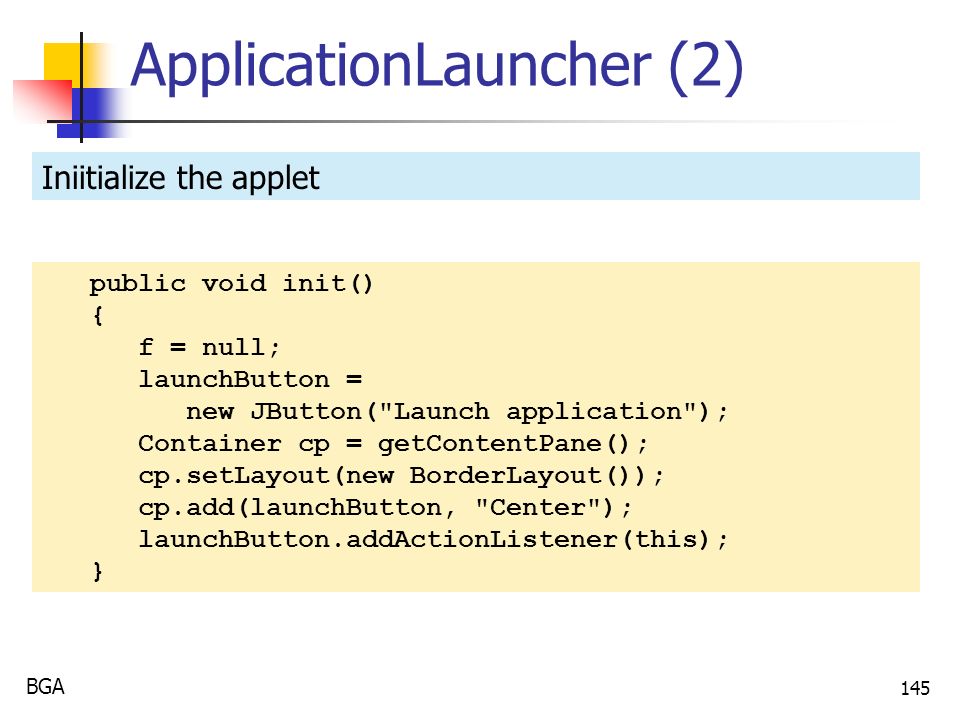

145. BGA 145 ApplicationLauncher (2) public void init() { f = null; launchButton = new JButton("Launch application"); Container cp = getContentPane(); cp.setLayout(new BorderLayout()); cp.add(launchButton, "Center"); launchButton.addActionListener(this); } Iniitialize the applet

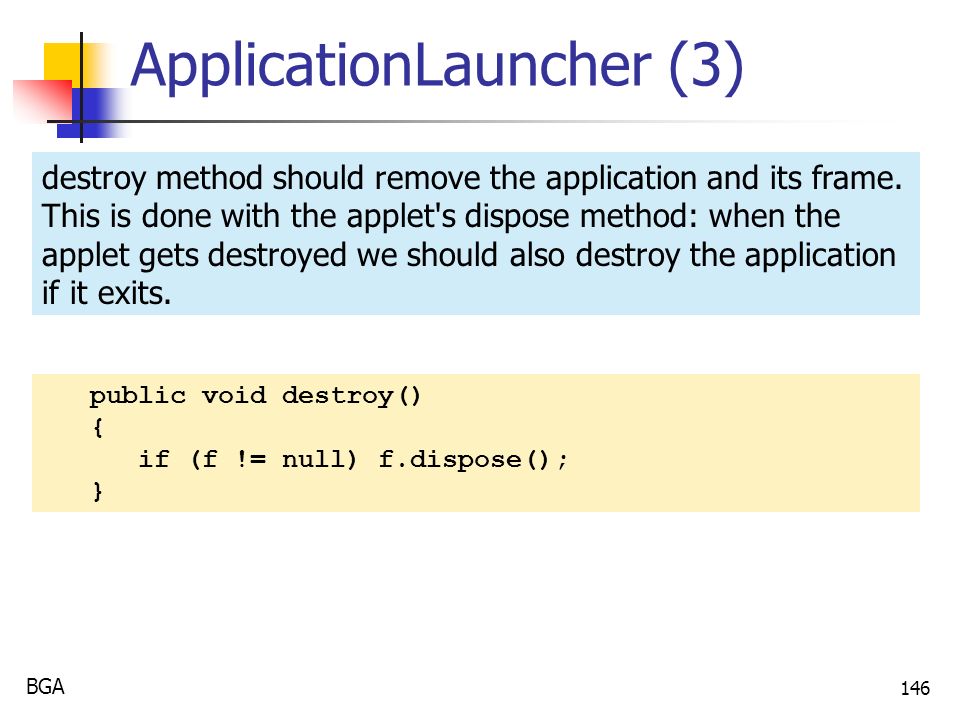

146. BGA 146 ApplicationLauncher (3) public void destroy() { if (f != null) f.dispose(); } destroy method should remove the application and its frame. This is done with the applet's dispose method: when the applet gets destroyed we should also destroy the application if it exits.

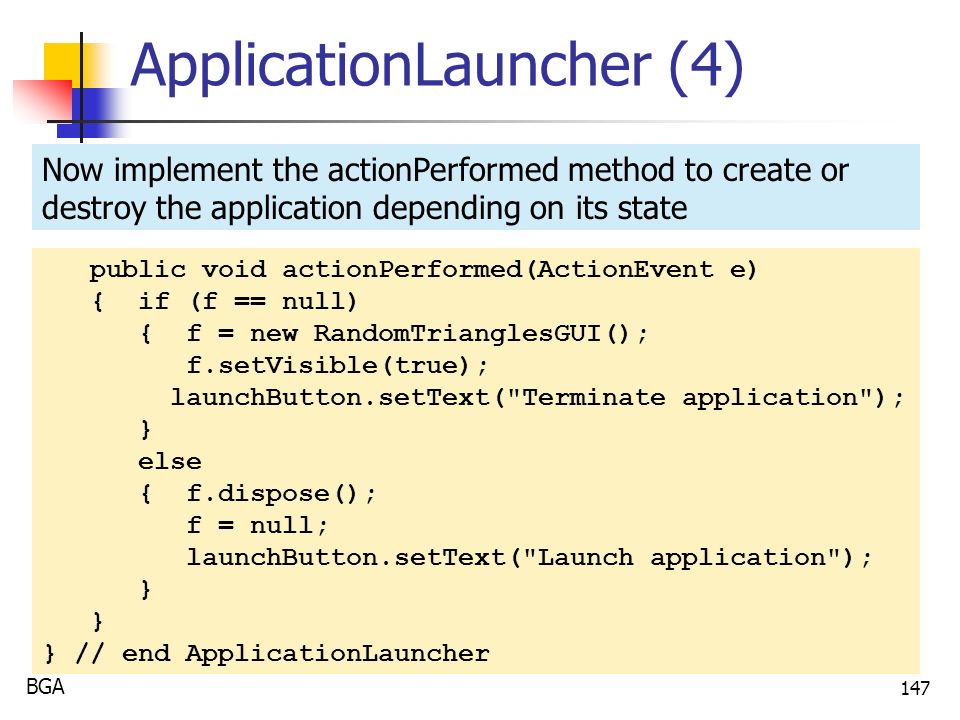

147. BGA 147 ApplicationLauncher (4) public void actionPerformed(ActionEvent e) { if (f == null) { f = new RandomTrianglesGUI(); f.setVisible(true); launchButton.setText("Terminate application"); } else { f.dispose(); f = null; launchButton.setText("Launch application"); } } // end ApplicationLauncher Now implement the actionPerformed method to create or destroy the application depending on its state
