1. An Information Flow Inlining Compiler for a Core of JavaScript José Fragoso Santos Tamara Rezk Equipe Project INDES

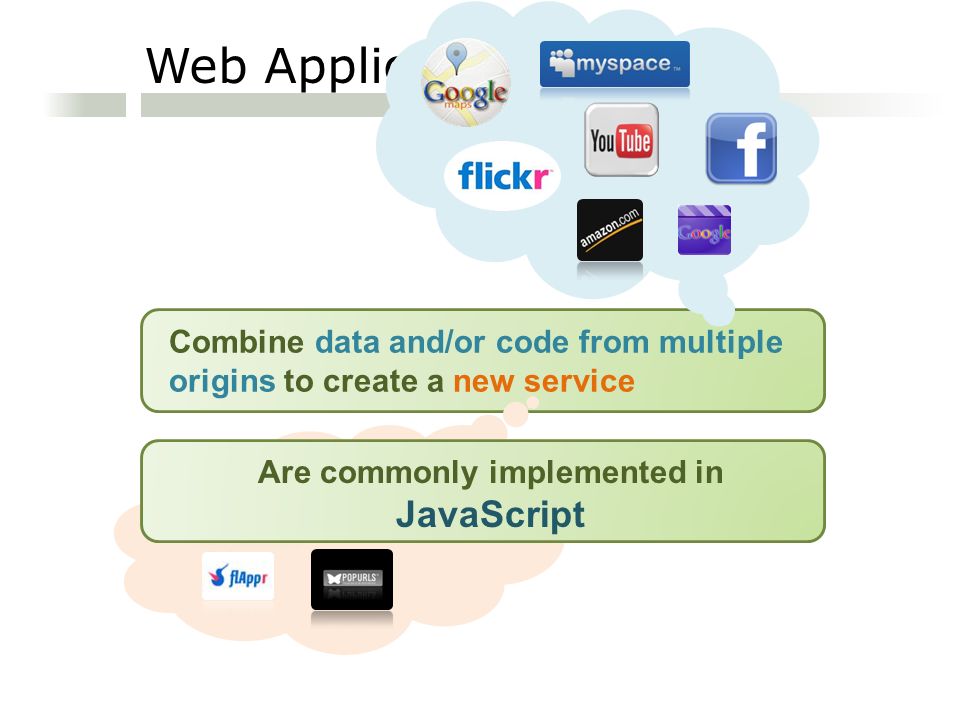

2. Combine data and/or code from multiple origins to create a new service Web Applications Are commonly implemented in JavaScript

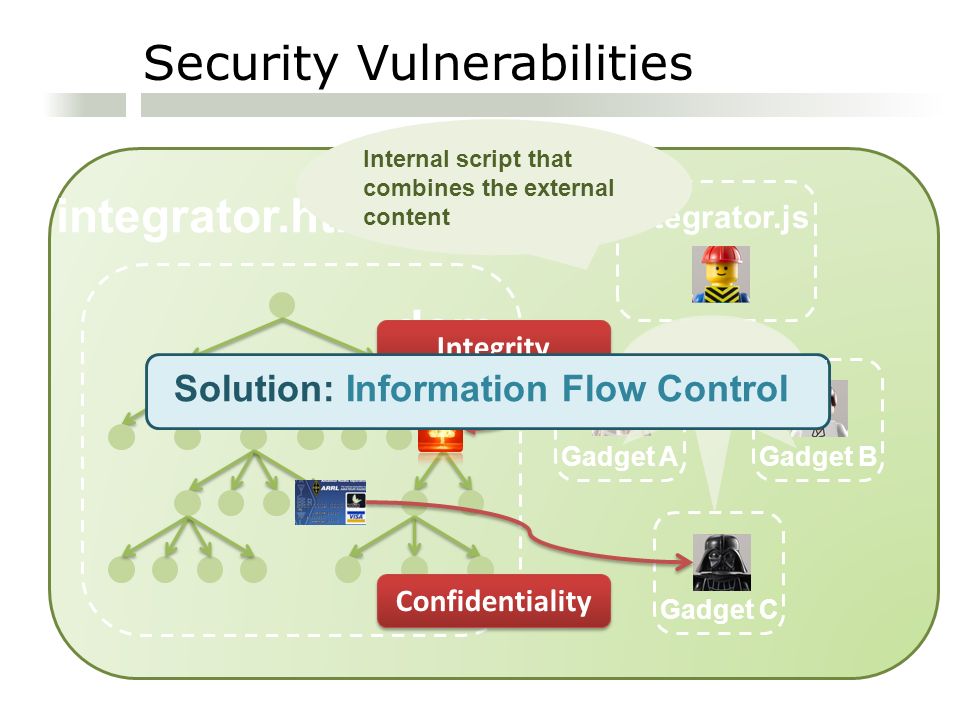

3. Security Vulnerabilities dom Integrator.js Gadget AGadget BGadget C Confidentiality Integrity integrator.html External Code Internal script that combines the external content Solution: Information Flow Control

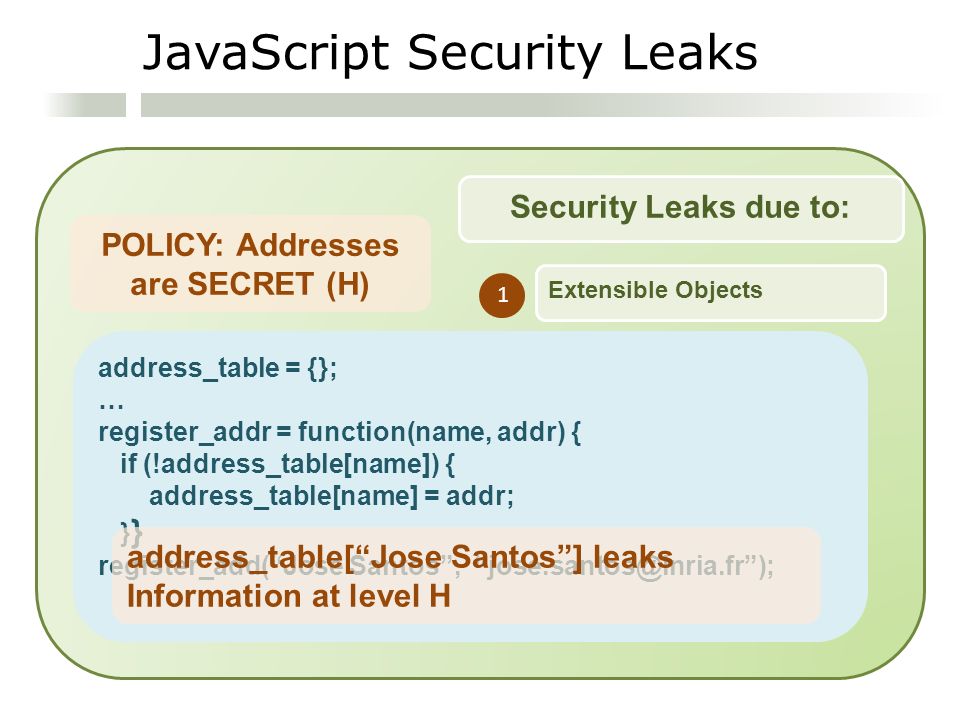

4. JavaScript Security Leaks Security Leaks due to: 1 Extensible Objects address_table = {}; … register_addr = function(name, addr) { if (!address_table[name]) { address_table[name] = addr; } } register_add(“Jose Santos”, “jose.santos@inria.fr”); POLICY: Addresses are SECRET (H) address_table[“Jose Santos”] leaks Information at level H

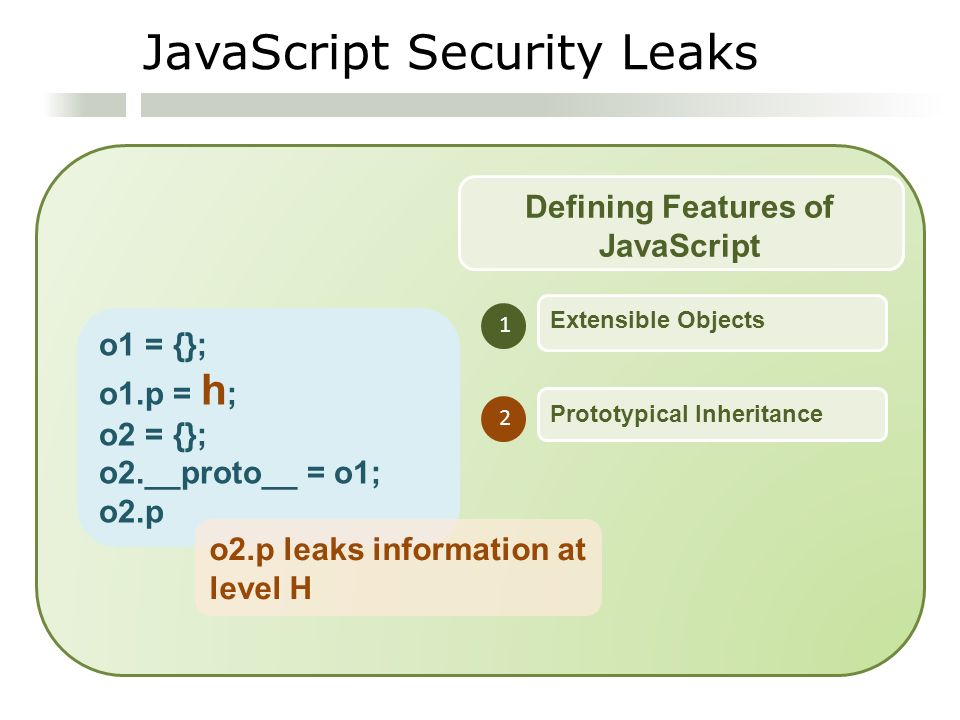

5. JavaScript Security Leaks Defining Features of JavaScript 1 Extensible Objects 2 Prototypical Inheritance o1 = {}; o1.p = h ; o2 = {}; o2.__proto__ = o1; o2.p o2.p leaks information at level H

6. JavaScript Security Leaks Defining Features of JavaScript 1 Extensible Objects 2 Prototypical Inheritance 3 Constructs for Checking the Existence of Properties o1 = {}; if (h()) { o1.p = 1 } o1.p o1.p leaks information at level H

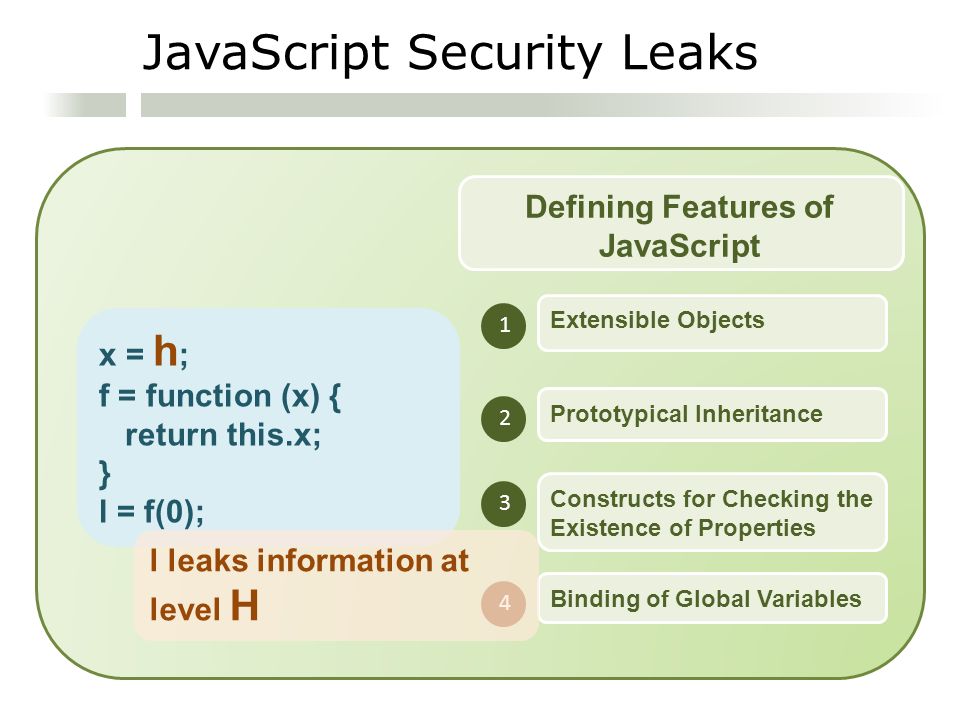

7. JavaScript Security Leaks Defining Features of JavaScript 1 Extensible Objects 2 Prototypical Inheritance 3 Constructs for Checking the Existence of Properties 4 Binding of Global Variables x = h ; f = function (x) { return this.x; } l = f(0); l leaks information at level H

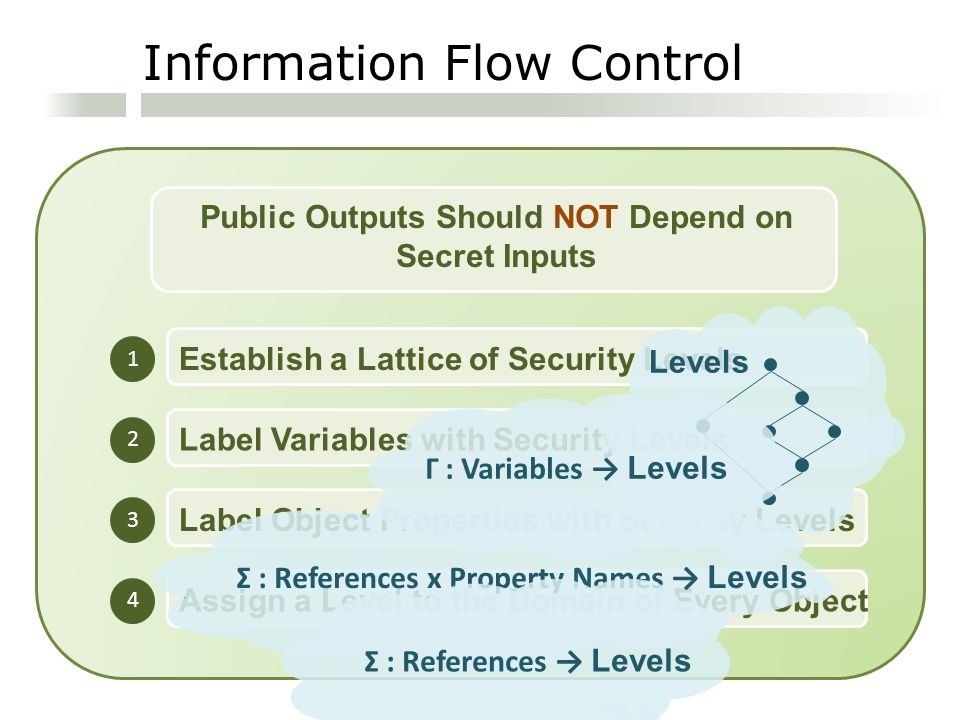

8. Information Flow Control Public Outputs Should NOT Depend on Secret Inputs 1 Establish a Lattice of Security Levels 2 Label Variables with Security Levels 3 Label Object Properties with Security Levels 4 Assign a Level to the Domain of Every Object Levels Γ : Variables → Levels Σ : References x Property Names → Levels Σ : References → Levels

9. Attacker Model What can an attacker see? 1 Values of variables labeled with L 2 Values of properties labeled with L 3 The domains of the objects labeled with L

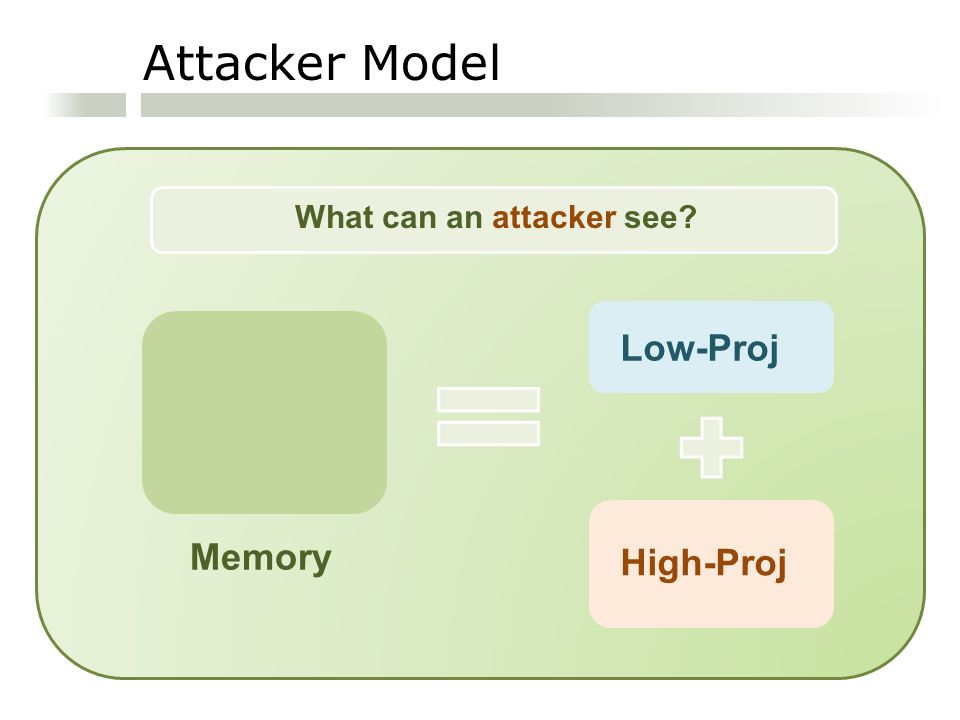

10. Attacker Model What can an attacker see? Memory Low-Proj High-Proj

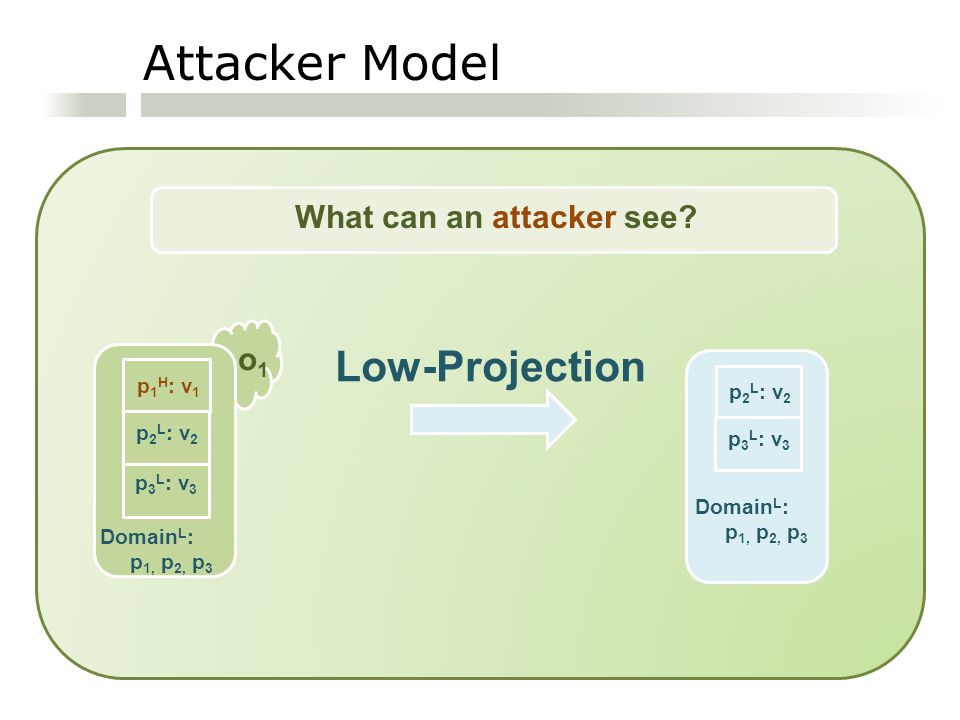

11. Attacker Model What can an attacker see? o1o1 p 1 H : v 1 p 2 L : v 2 p 3 L : v 3 Low-Projection Domain L : p 1, p 2, p 3 p 2 L : v 2 p 3 L : v 3 Domain L : p 1, p 2, p 3

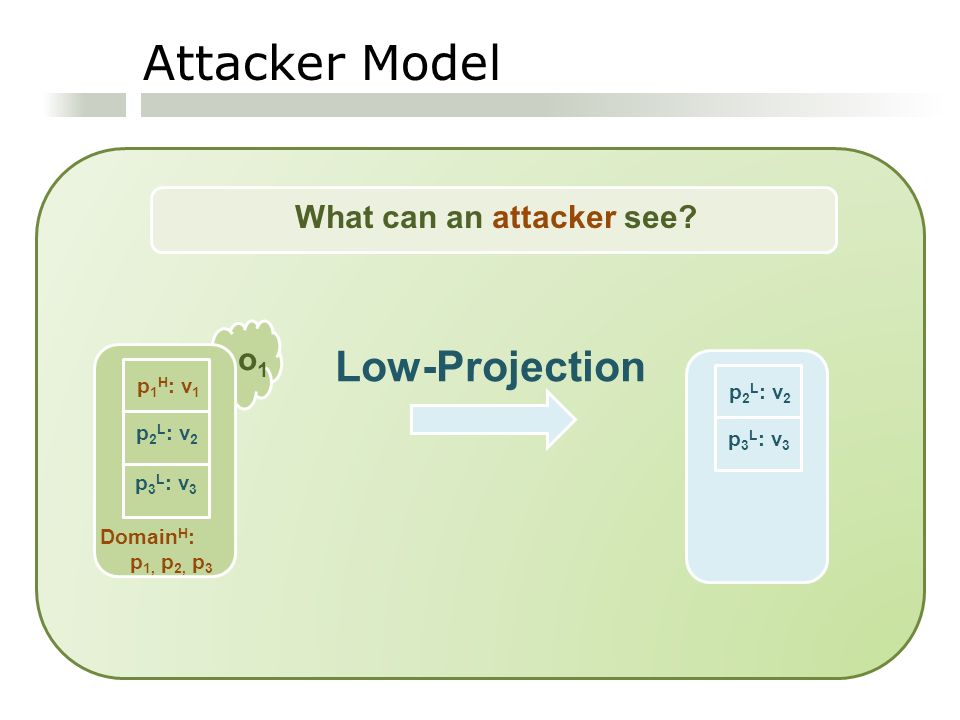

12. Attacker Model What can an attacker see? o1o1 p 1 H : v 1 p 2 L : v 2 p 3 L : v 3 Low-Projection p 2 L : v 2 p 3 L : v 3 Domain H : p 1, p 2, p 3

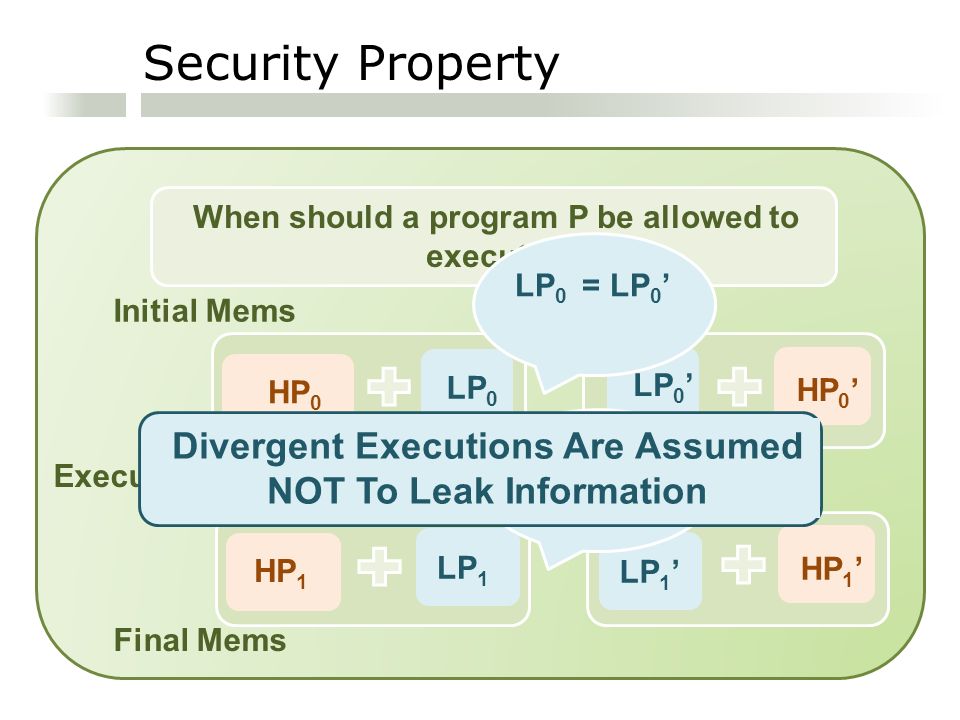

13. Security Property When should a program P be allowed to execute? HP 0 LP 0 HP 0 ’ LP 0 ’ LP 0 = LP 0 ’ HP 1 LP 1 HP 1 ’ LP 1 ’ Initial Mems Final Mems Execution of P: LP 1 = LP 1 ’ Divergent Executions Are Assumed NOT To Leak Information

14. Security By Compilation Rewrite a program P as P’ so that: 1 P’ only executes if the execution of P is SECURE 2 The semantics of P’ is contained in the semantics of P

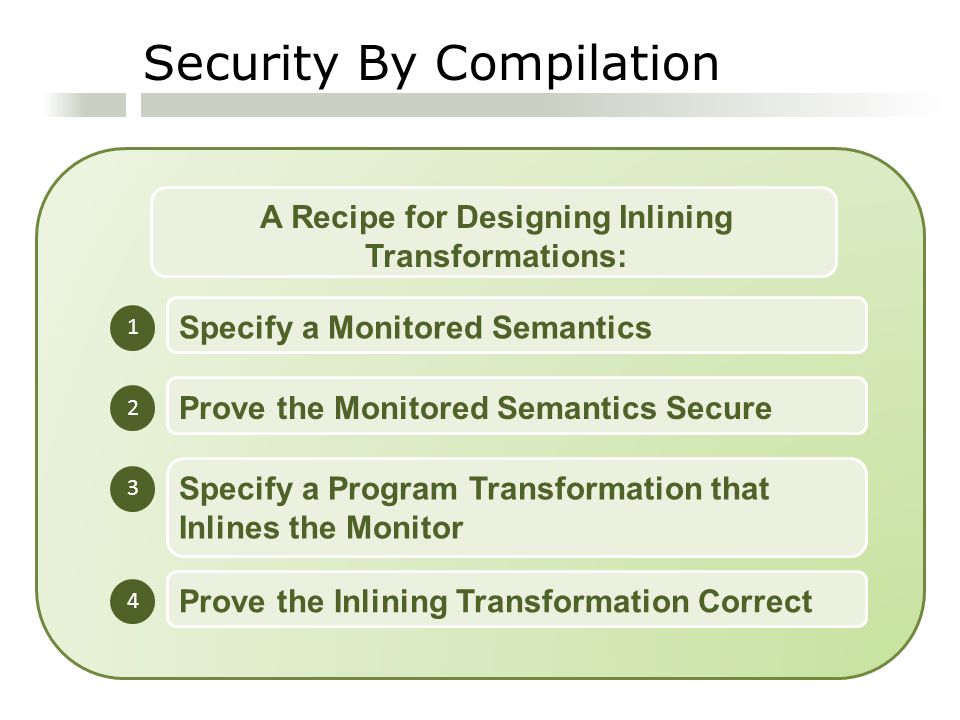

15. Security By Compilation A Recipe for Designing Inlining Transformations: 1 Specify a Monitored Semantics 2 Prove the Monitored Semantics Secure 3 Specify a Program Transformation that Inlines the Monitor 4 Prove the Inlining Transformation Correct

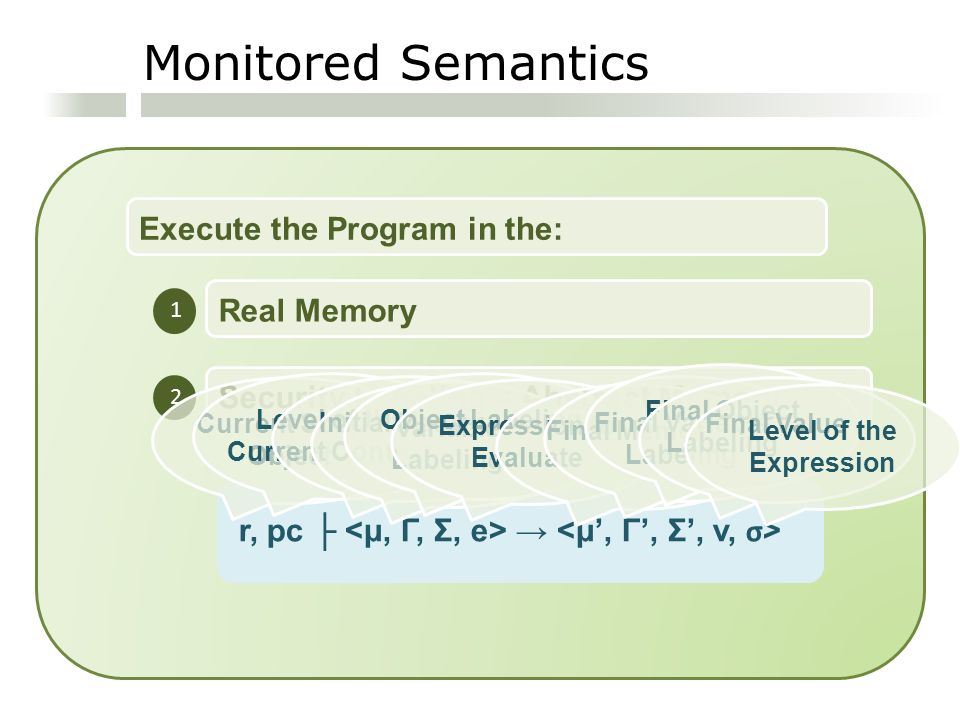

16. Monitored Semantics Execute the Program in the: 1 Real Memory 2 Security Labeling = Abstract Memory r, pc ├ → Current Scope Object Level of the Current Context Initial MemoryVariable Labeling Object LabelingExpression to Evaluate Final MemoryFinal Variable Labeling Final Object Labeling Final ValueLevel of the Expression

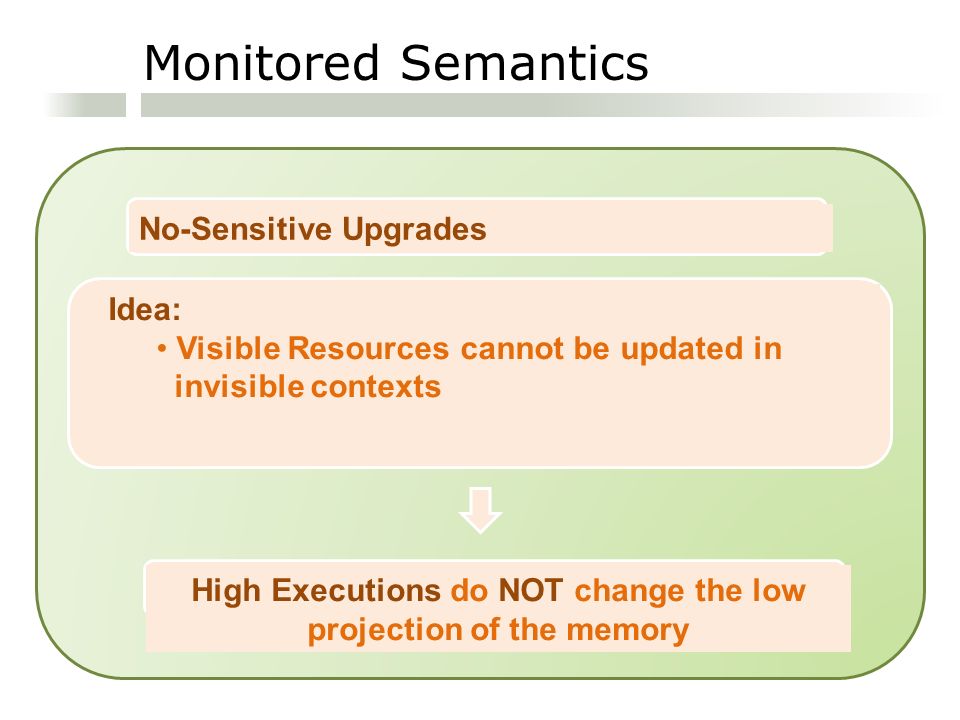

17. Monitored Semantics No-Sensitive Upgrades Idea: Visible Resources cannot be updated in invisible contexts High Executions do NOT change the low projection of the memory

18. Monitored Semantics No-Sensitive Upgrades o1 = {}; o1.p = l; if (h()) { o1.p = 0 } Low-Projections p L : l o1 dom L : {p} h() Є {false, 0, null, undefined} o1 dom L : {p} h() Є {false, 0, null, undefined}

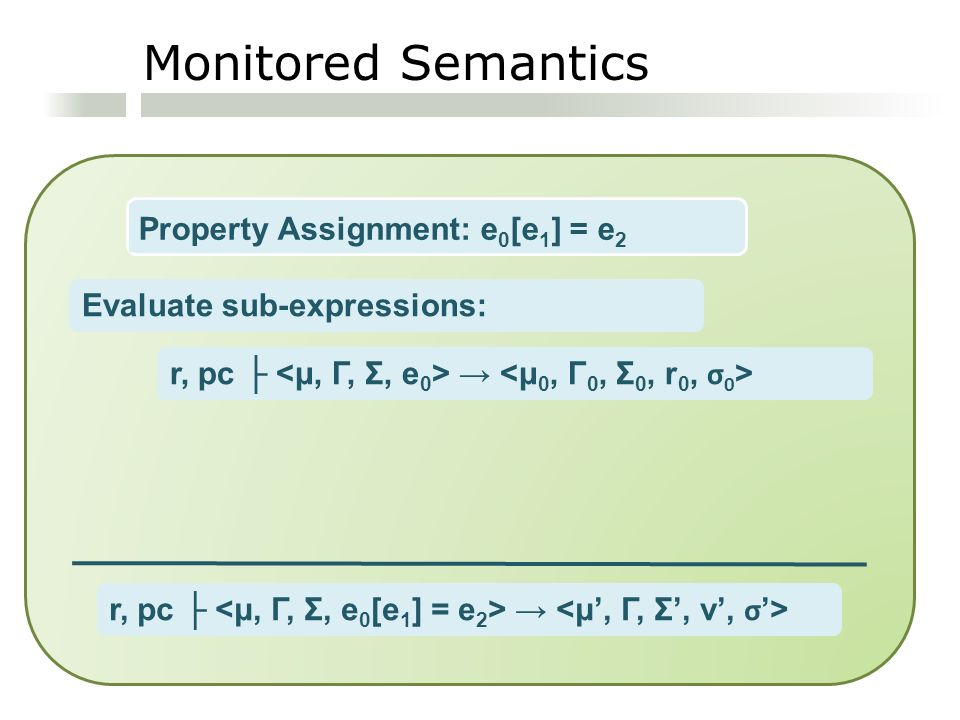

19. Monitored Semantics Property Assignment: e 0 [e 1 ] = e 2 r, pc ├ → Evaluate sub-expressions:

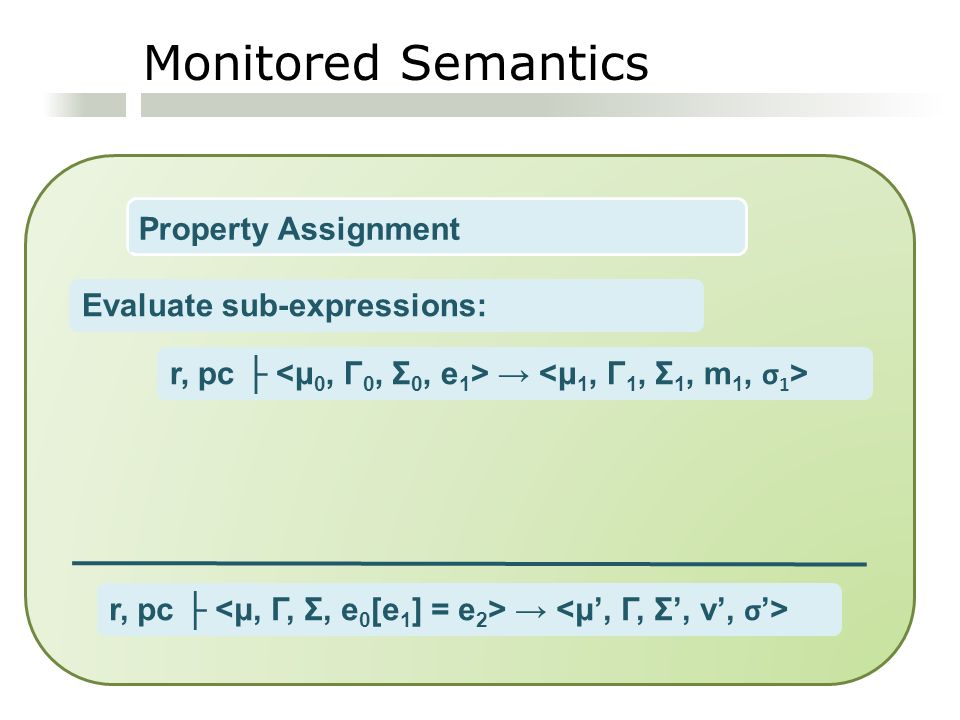

20. Monitored Semantics Property Assignment r, pc ├ → Evaluate sub-expressions:

21. Monitored Semantics Property Assignment r, pc ├ → Evaluate sub-expressions:

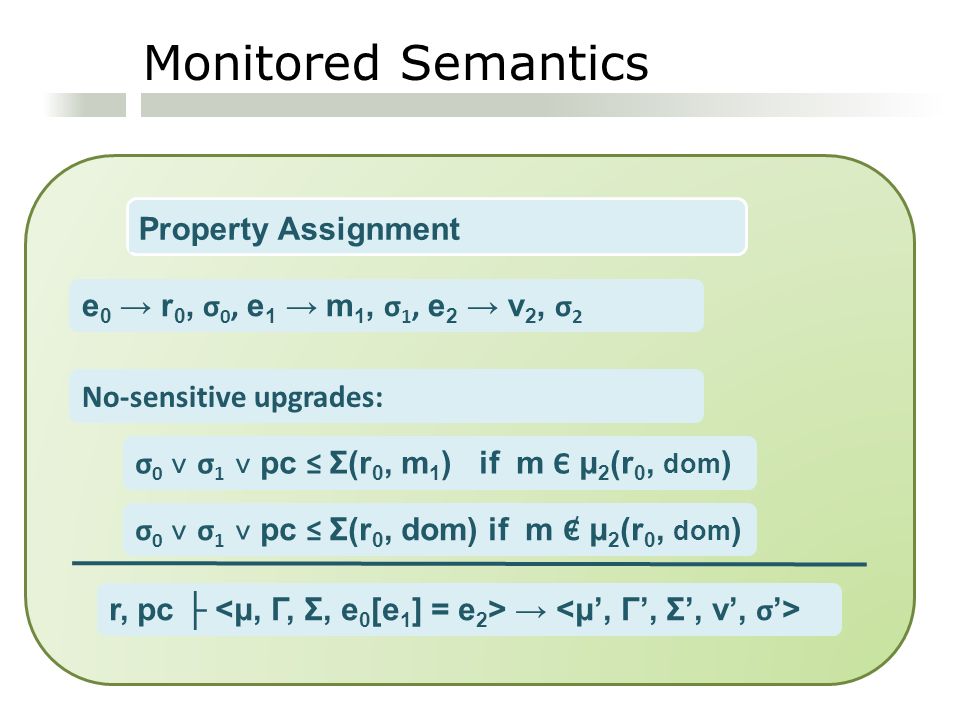

22. Monitored Semantics Property Assignment r, pc ├ → e 0 → r 0, σ 0, e 1 → m 1, σ 1, e 2 → v 2, σ 2 No-sensitive upgrades: σ 0 ˅ σ 1 ˅ pc ≤ Σ(r 0, m 1 ) if m Є μ 2 (r 0, dom ) σ 0 ˅ σ 1 ˅ pc ≤ Σ(r 0, dom) if m Є μ 2 (r 0, dom )

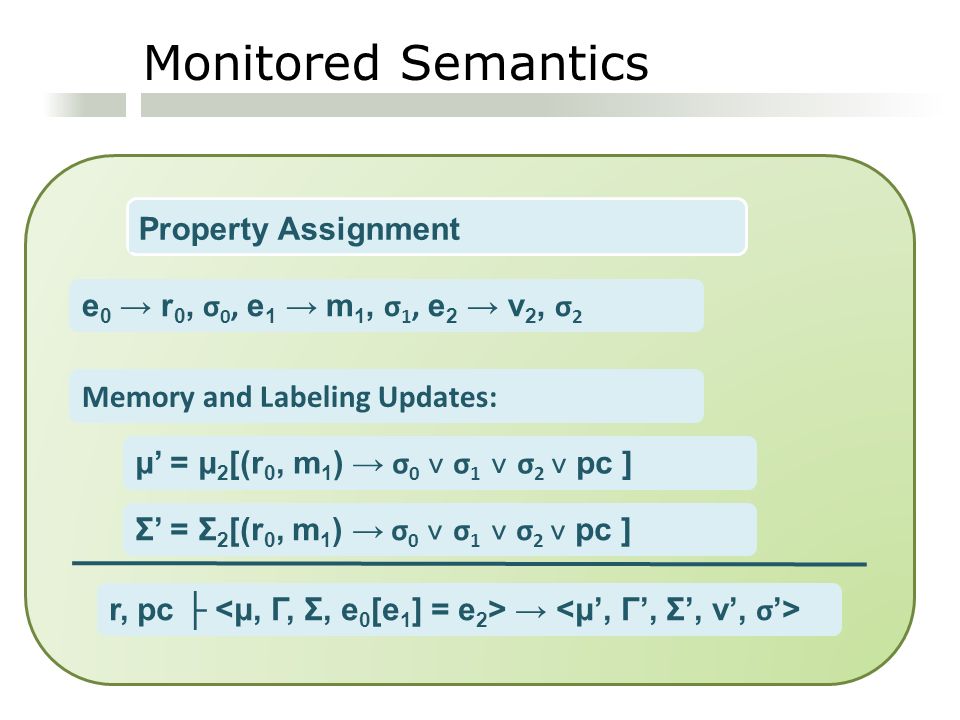

23. Monitored Semantics Property Assignment r, pc ├ → e 0 → r 0, σ 0, e 1 → m 1, σ 1, e 2 → v 2, σ 2 Memory and Labeling Updates: μ’ = μ 2 [(r 0, m 1 ) → σ 0 ˅ σ 1 ˅ σ 2 ˅ pc ] Σ’ = Σ 2 [(r 0, m 1 ) → σ 0 ˅ σ 1 ˅ σ 2 ˅ pc ]

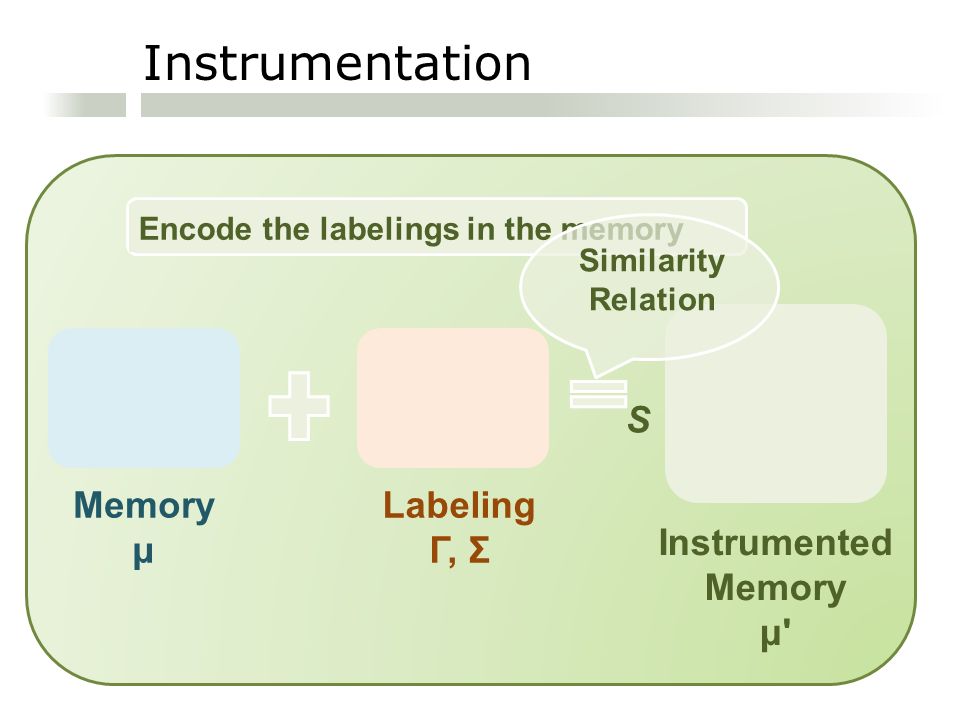

24. Instrumentation Encode the labelings in the memory Memory μ Labeling Γ, Σ Instrumented Memory μ' S Similarity Relation

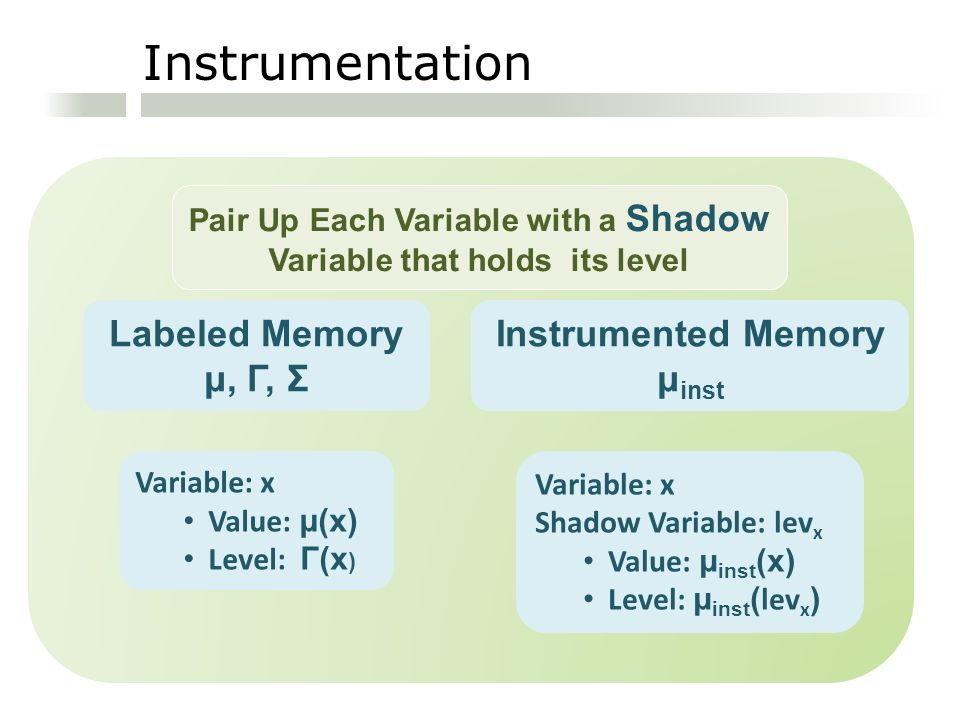

25. Instrumentation Pair Up Each Variable with a Shadow Variable that holds its level Variable: x Value: μ(x) Level: Γ(x ) Labeled Memory μ, Γ, Σ Instrumented Memory μ inst Variable: x Shadow Variable: lev x Value: μ inst (x) Level: μ inst ( lev x )

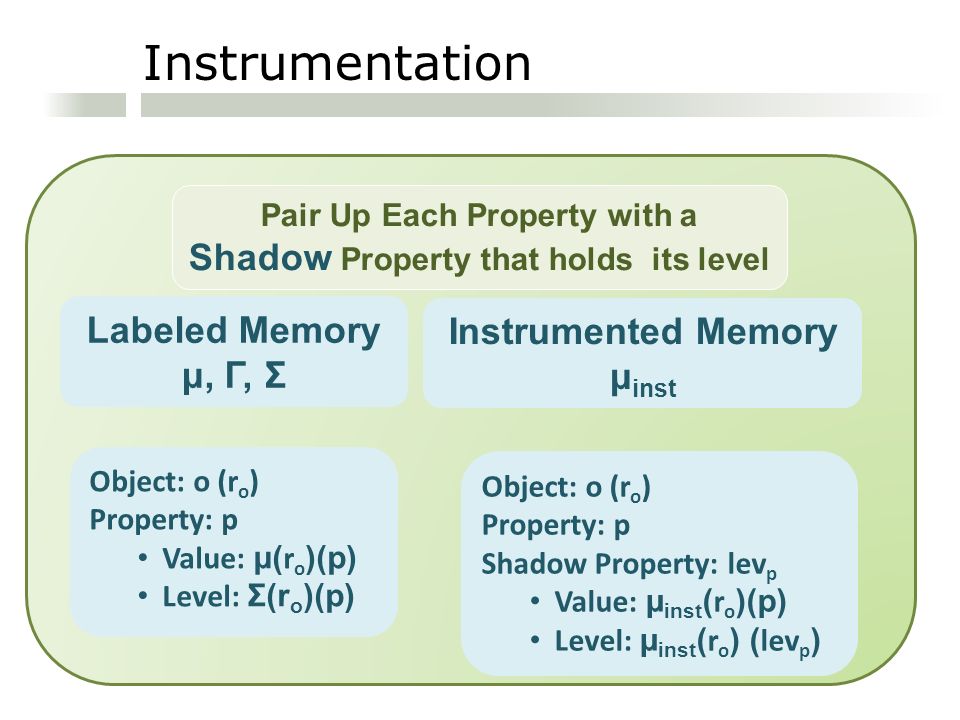

26. Instrumentation Object: o (r o ) Property: p Value: μ( r o )(p) Level: Σ(r o )(p) Labeled Memory μ, Γ, Σ Instrumented Memory μ inst Object: o (r o ) Property: p Shadow Property: lev p Value: μ inst ( r o )(p) Level: μ inst ( r o ) ( lev p ) Pair Up Each Property with a Shadow Property that holds its level

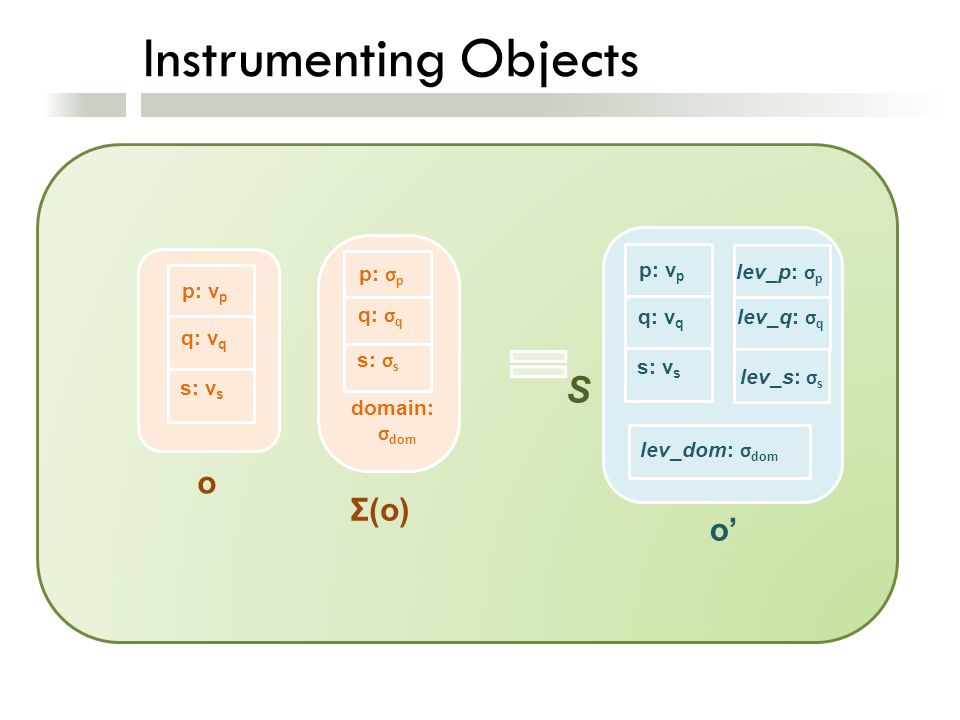

27. Instrumenting Objects p: v p q: v q s: v s o Σ(o) p: σ p q: σ q s: σ s domain: σ dom S p: v p q: v q s: v s lev_p: σ p lev_q: σ q lev_dom: σ dom o’ lev_s: σ s

28. Instrumentation Encode the labelings in the memory μΓ, Σ μiμi S μ'μ' Γ’, Σ’ μi'μi' Monitored Execution of P Execution of P’ S Comp(P) = P’

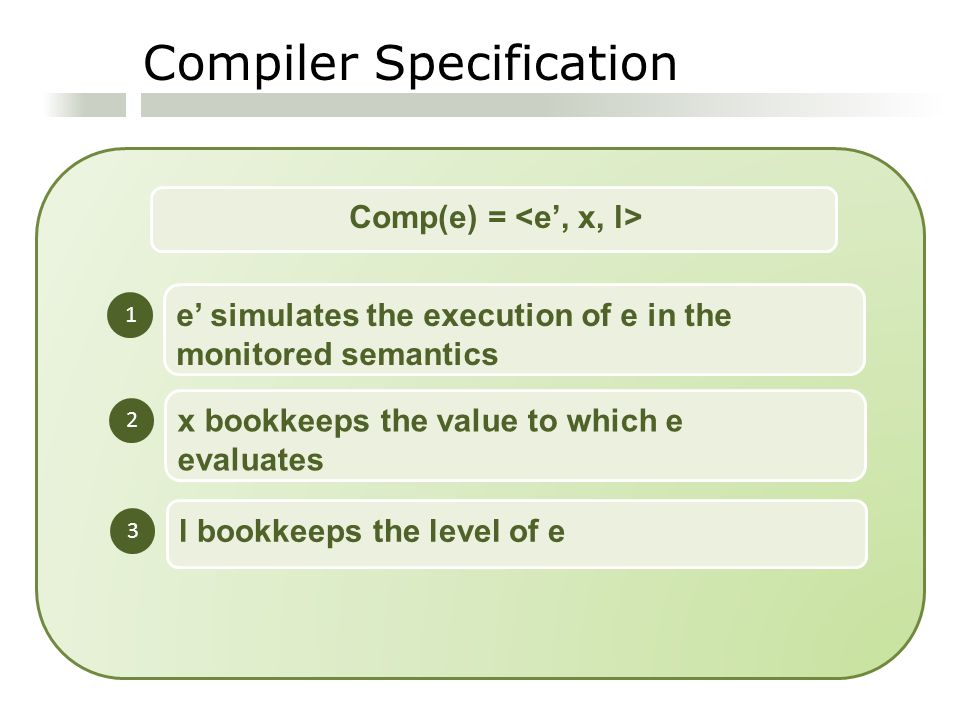

29. Compiler Specification Comp(e) = 1 e’ simulates the execution of e in the monitored semantics 2 x bookkeeps the value to which e evaluates 3 l bookkeeps the level of e

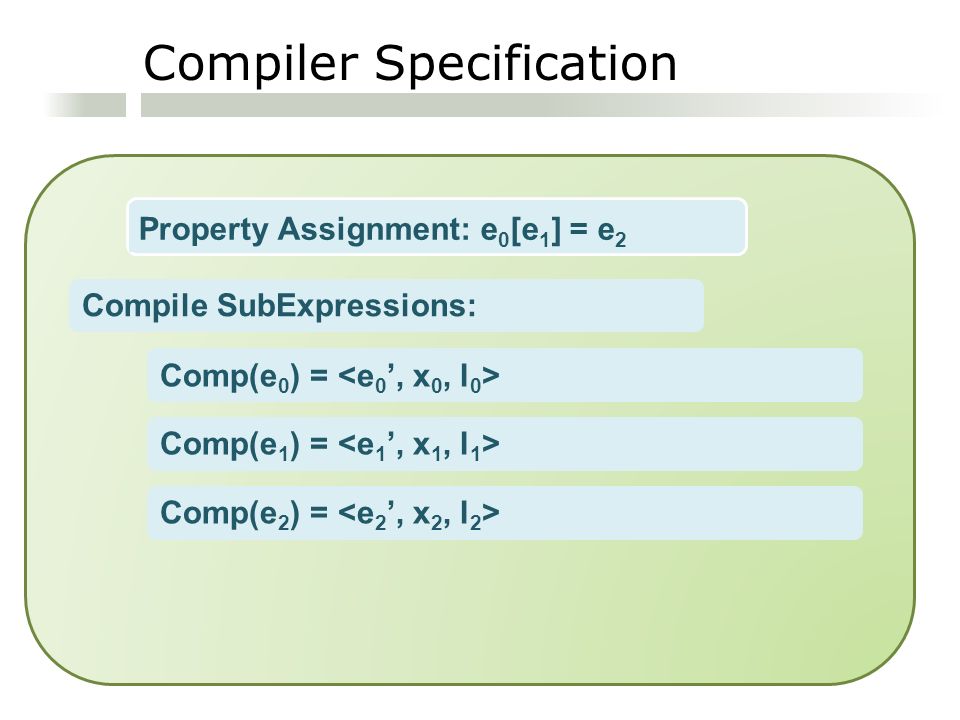

30. Compiler Specification Property Assignment: e 0 [e 1 ] = e 2 Comp(e 0 ) = Compile SubExpressions: Comp(e 1 ) = Comp(e 2 ) =

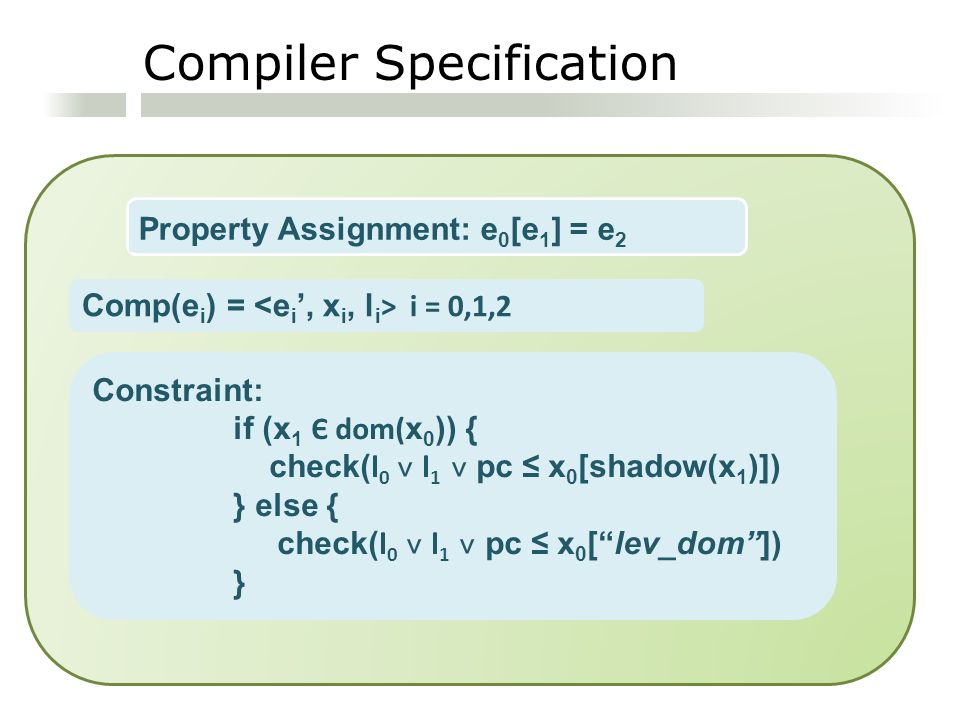

31. Compiler Specification Property Assignment: e 0 [e 1 ] = e 2 Comp(e i ) = i = 0,1,2 Constraint: if (x 1 Є dom( x 0 )) { check( l 0 ˅ l 1 ˅ pc ≤ x 0 [shadow(x 1 )]) } else { check( l 0 ˅ l 1 ˅ pc ≤ x 0 [“lev_dom”]) }

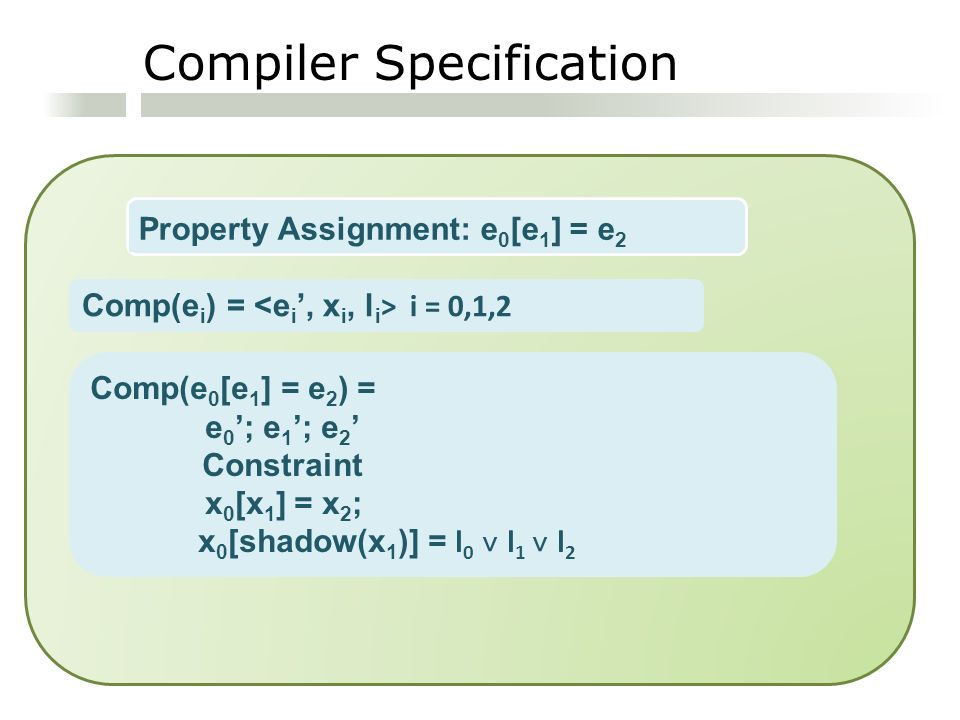

32. Compiler Specification Property Assignment: e 0 [e 1 ] = e 2 Comp(e i ) = i = 0,1,2 Comp(e 0 [e 1 ] = e 2 ) = e 0 ’; e 1 ’; e 2 ’ Constraint x 0 [x 1 ] = x 2 ; x 0 [shadow(x 1 )] = l 0 ˅ l 1 ˅ l 2

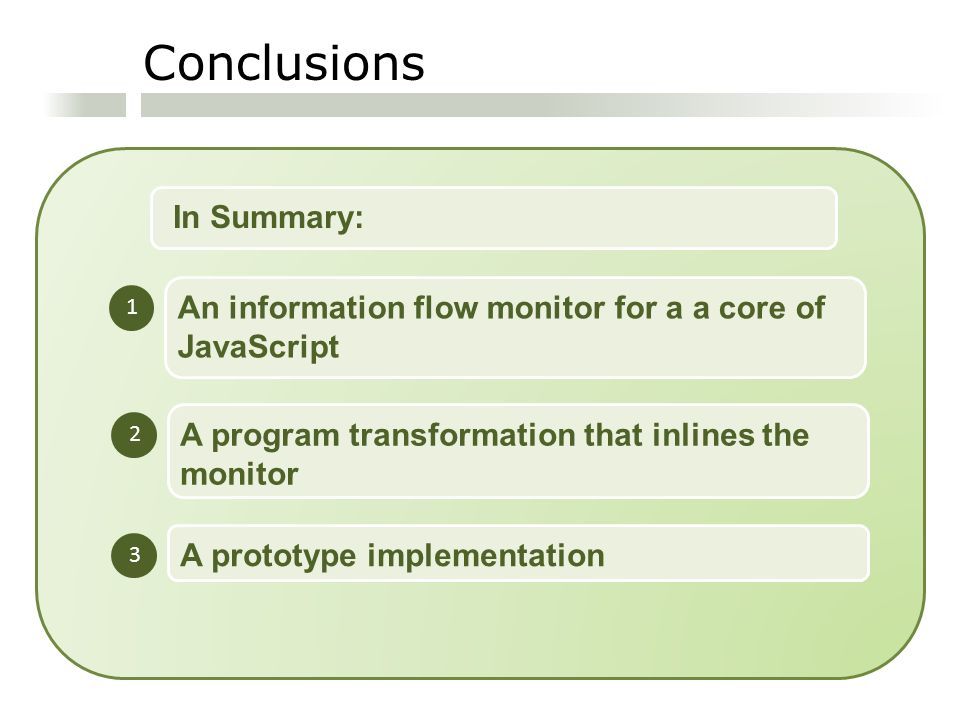

33. Conclusions In Summary: 1 An information flow monitor for a a core of JavaScript 2 A program transformation that inlines the monitor 3 A prototype implementation

34. Thank you!
