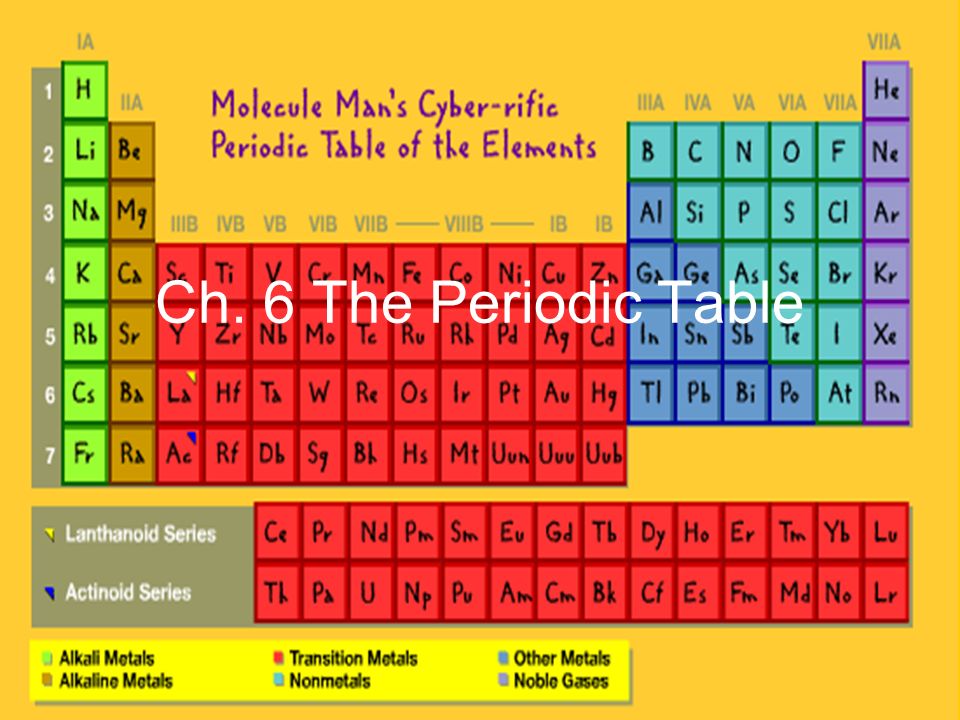

Ch. 6 The Periodic Table

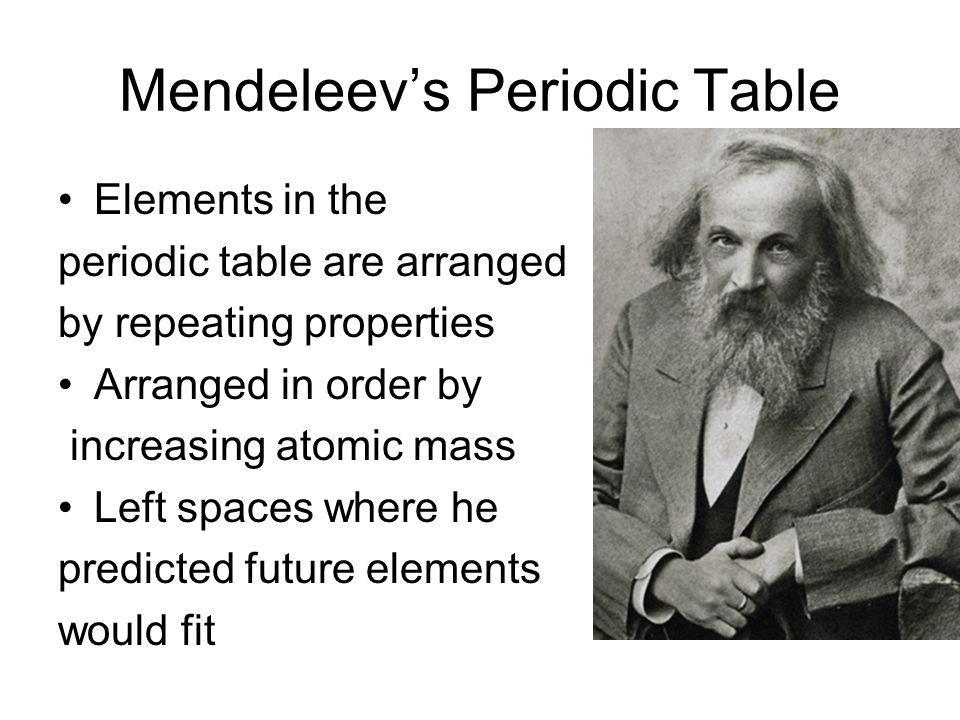

Mendeleev’s Periodic Table Elements in the periodic table are arranged by repeating properties Arranged in order by increasing atomic mass Left spaces where he predicted future elements would fit

Mendeleev’s Periodic Table

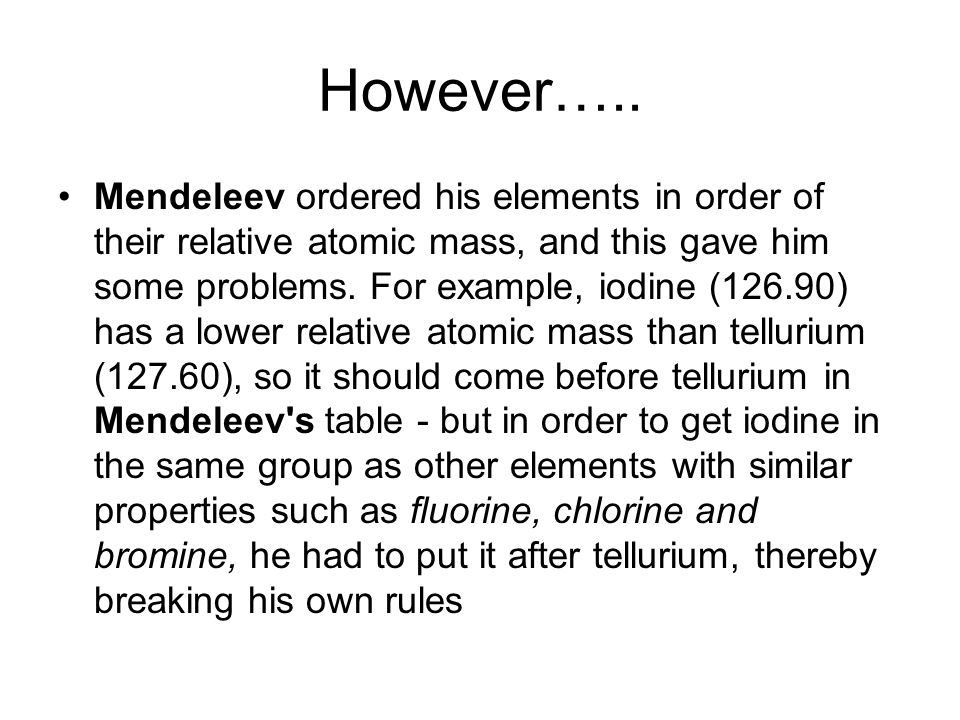

However….. Mendeleev ordered his elements in order of their relative atomic mass, and this gave him some problems. For example, iodine (126.90) has a lower relative atomic mass than tellurium (127.60), so it should come before tellurium in Mendeleev's table - but in order to get iodine in the same group as other elements with similar properties such as fluorine, chlorine and bromine, he had to put it after tellurium, thereby breaking his own rules

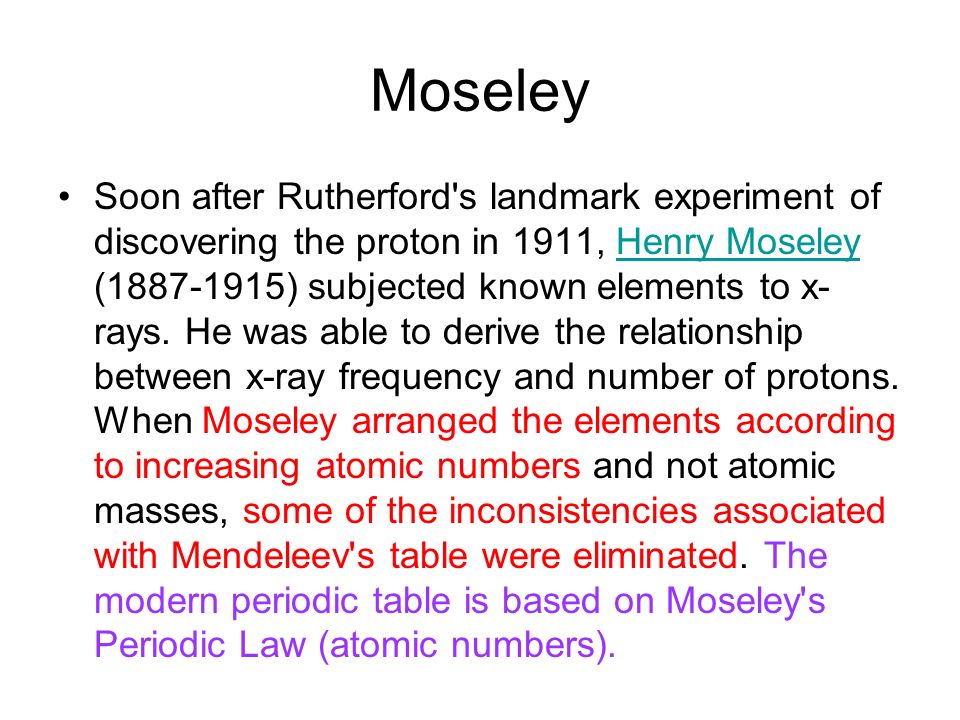

Moseley Soon after Rutherford's landmark experiment of discovering the proton in 1911, Henry Moseley (1887-1915) subjected known elements to x- rays. He was able to derive the relationship between x-ray frequency and number of protons. When Moseley arranged the elements according to increasing atomic numbers and not atomic masses, some of the inconsistencies associated with Mendeleev's table were eliminated. The modern periodic table is based on Moseley's Periodic Law (atomic numbers).Henry Moseley

At age 28, Moseley was killed in action during World War I and as a direct result Britain adopted the policy of exempting scientists from fighting in wars.

Periodic Law In the modern periodic table, elements are arranged in order by increasing Atomic Number 7 horizontal rows called periods Each period corresponds to a principle energy level Elements within a group (column) have similar properties

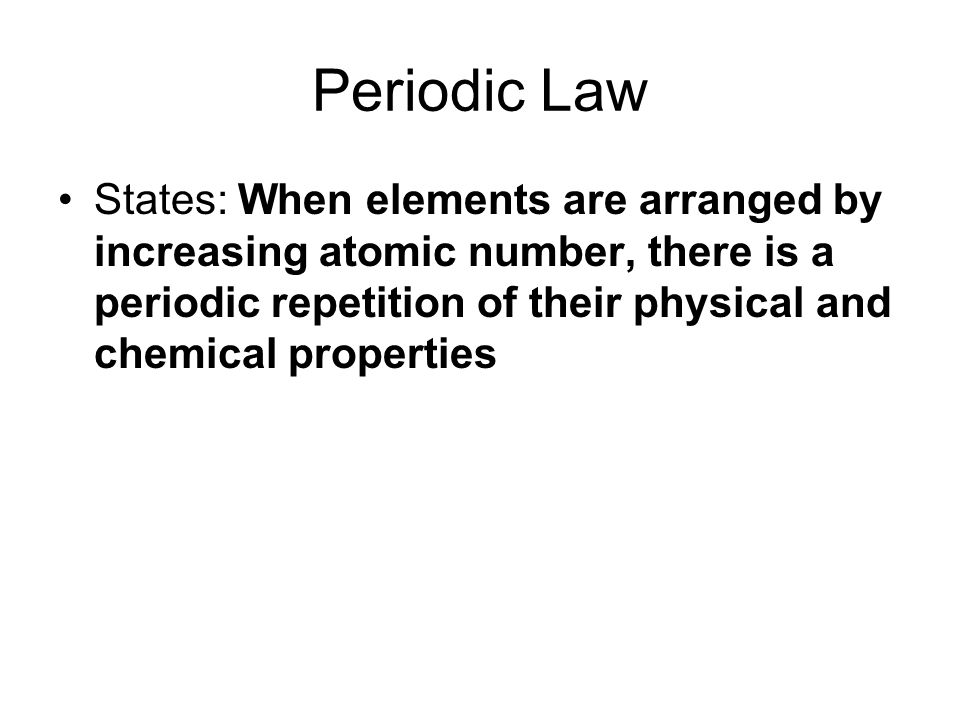

Periodic Law States: When elements are arranged by increasing atomic number, there is a periodic repetition of their physical and chemical properties

Metals, Nonmetals, Metalloids

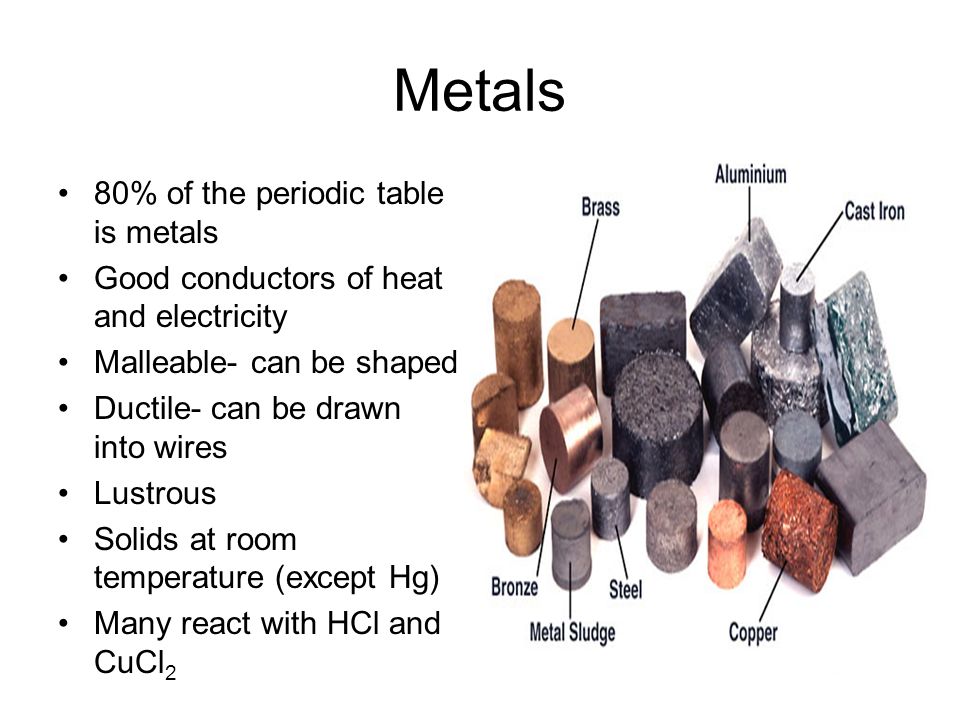

Metals 80% of the periodic table is metals Good conductors of heat and electricity Malleable- can be shaped Ductile- can be drawn into wires Lustrous Solids at room temperature (except Hg) Many react with HCl and CuCl 2

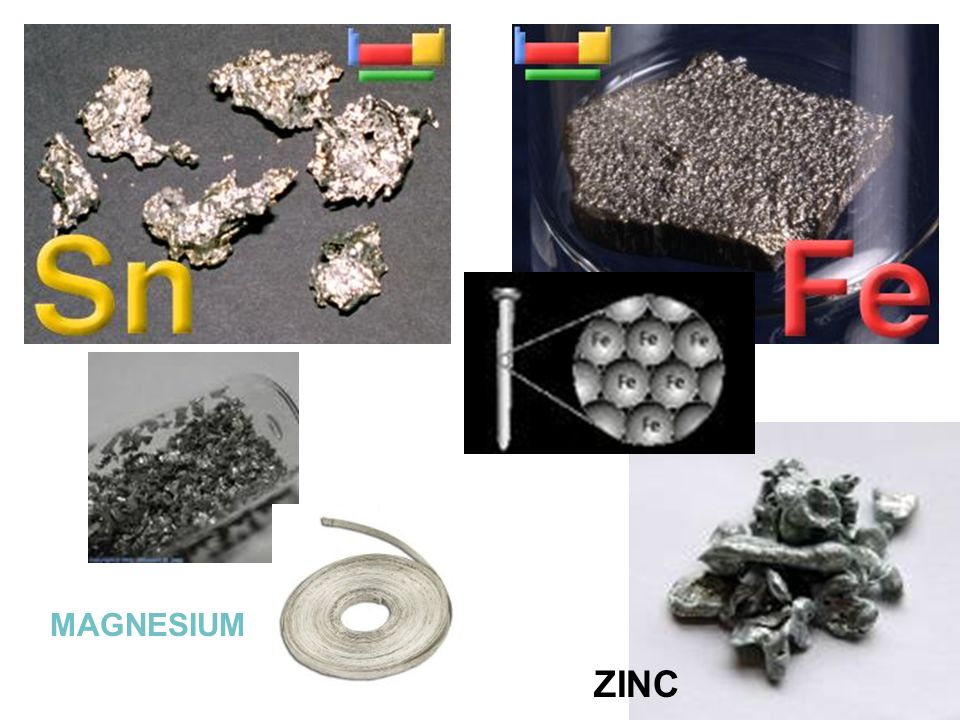

ZINC MAGNESIUM

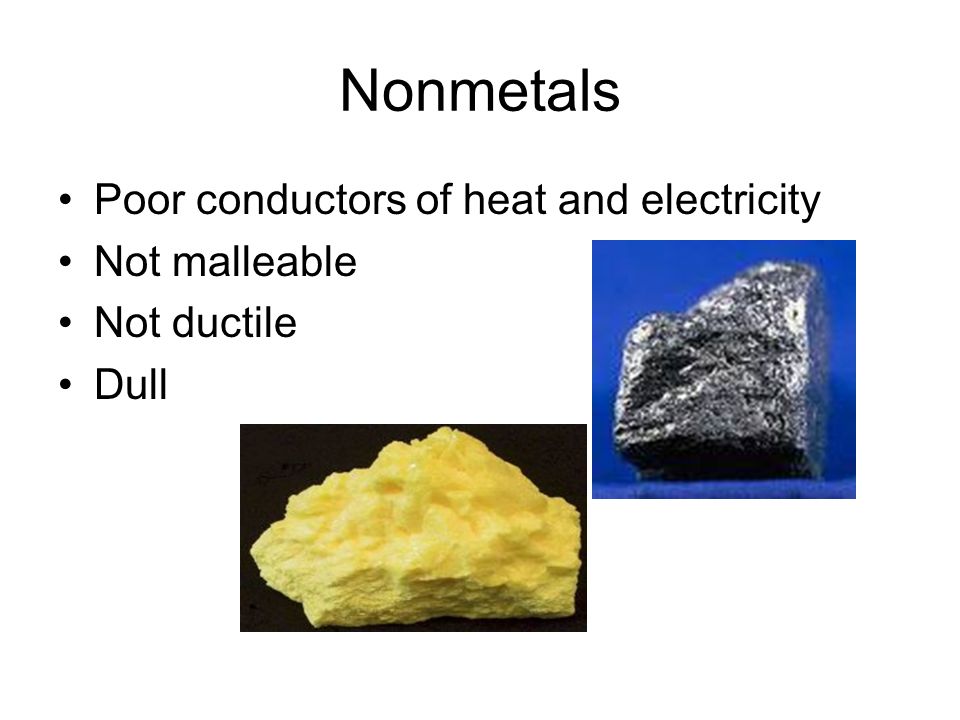

Nonmetals Poor conductors of heat and electricity Not malleable Not ductile Dull

Metalloids Generally has some properties of a metal, some of a nonmetal

Alkali Metals Lithium (Li) 1s 2 2s 1 Sodium (Na) 1s 2 2s 2 2p 6 3s 1 Potassium (K) 1s 2 2s 2 2p 6 3s 2 3p 6 4s 1

Alkaline Earth Metals Beryllium (Be)1s 2 2s 2 Magnesium (Mg) 1s 2 2s 2 2p 6 3s 2 Calcium (Ca) 1s 2 2s 2 2p 6 3s 2 3p 6 4s 2

Halogens Fluorine (F) 1s 2 2s 2 2p 5 Chlorine (Cl) 1s 2 2s 2 2p 6 3s 2 3p 5 Bromine (Br) 1s 2 2s 2 2p 6 3s 2 3p 6 4s 2 3d 10 4p 5

Noble Gasses Neon (N) 1s 2 2s 2 2p 6 Argon (Ar) 1s 2 2s 2 2p 6 3s 2 3p 6 Krypton (Kr) 1s 2 2s 2 2p 6 3s 2 3p 6 4s 2 3d 10 4p 6

Trends in Atomic Size Atomic radius is ½ the distance between the nuclei of 2 like atoms As you move DOWN a group, atomic size increases As you move LEFT to RIGHT across a period size decreases

Why? As you move across the period you gain electrons but you also gain protons. More + protons hold their electrons tighter As you move down the group you gain more electrons which are in electron orbitals further away from the nucleus. The nucleus has less influence the further out you move.

Trends in Ionization Energy Ionization Energy is the energy required to remove 1 electron from a gaseous atom As you move DOWN a group ionization energy DECREASES As you move LEFT to RIGHT across a period ionization energy INCREASES

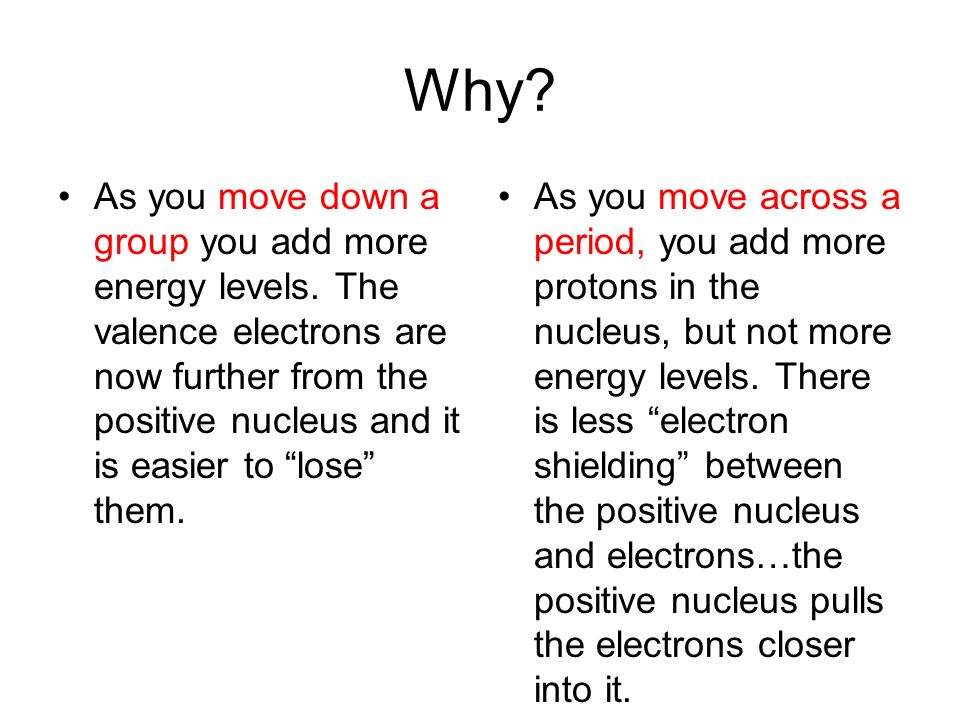

Why? As you move down a group you add more energy levels. The valence electrons are now further from the positive nucleus and it is easier to “lose” them. As you move across a period, you add more protons in the nucleus, but not more energy levels. There is less “electron shielding” between the positive nucleus and electrons…the positive nucleus pulls the electrons closer into it.

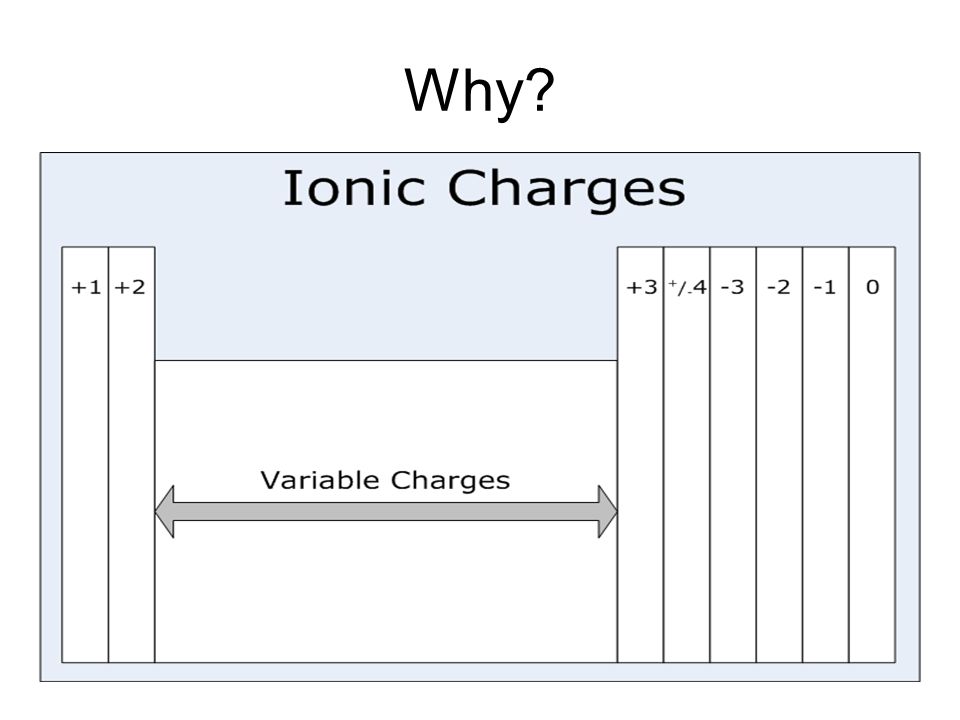

Why?

Trends in Electronegativity Electronegativity is the tendency of an atom to attract electrons in a compound As you move DOWN a group Electronegativity DECREASES As you move LEFT TO RIGHT across a period Electronegativity INCREASES

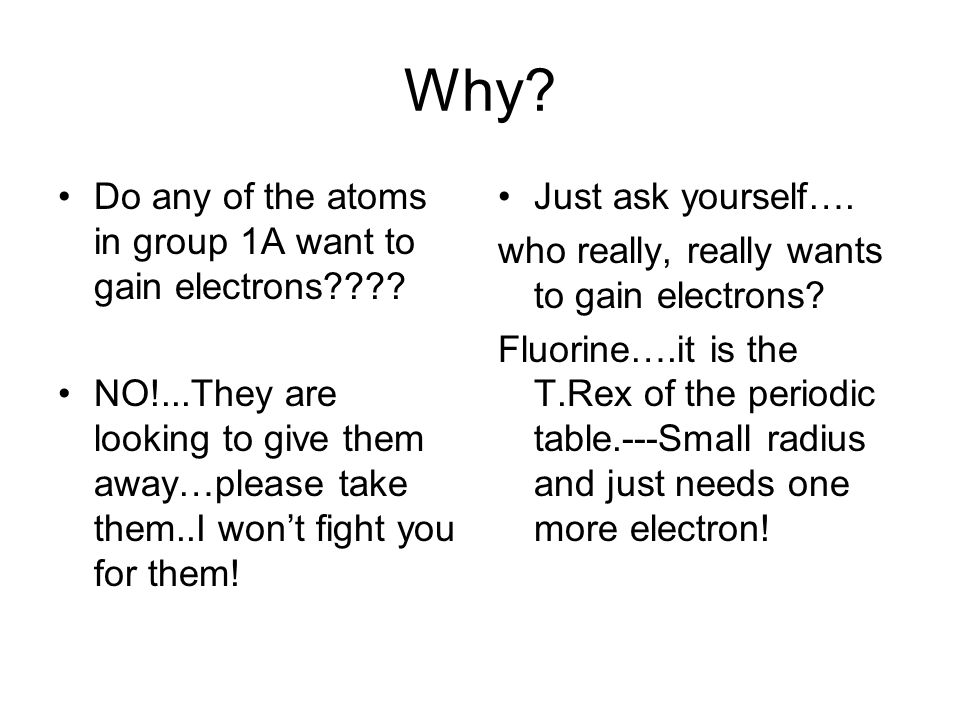

Why? Do any of the atoms in group 1A want to gain electrons???? NO!...They are looking to give them away…please take them..I won’t fight you for them! Just ask yourself…. who really, really wants to gain electrons? Fluorine….it is the T.Rex of the periodic table.---Small radius and just needs one more electron!

Fluorine

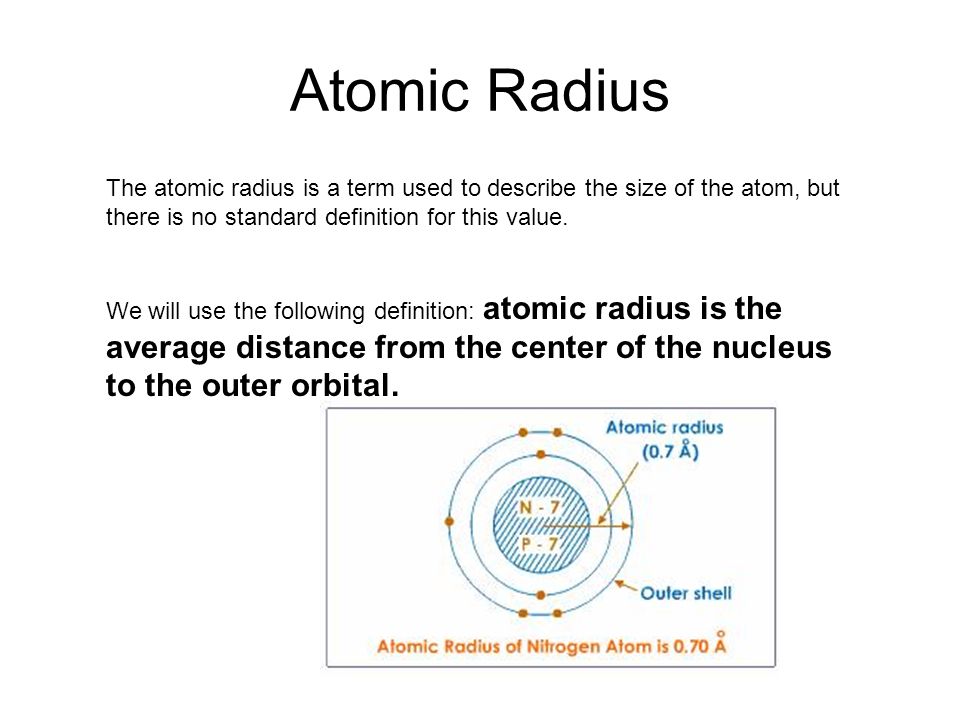

Atomic Radius The atomic radius is a term used to describe the size of the atom, but there is no standard definition for this value. We will use the following definition: atomic radius is the average distance from the center of the nucleus to the outer orbital.

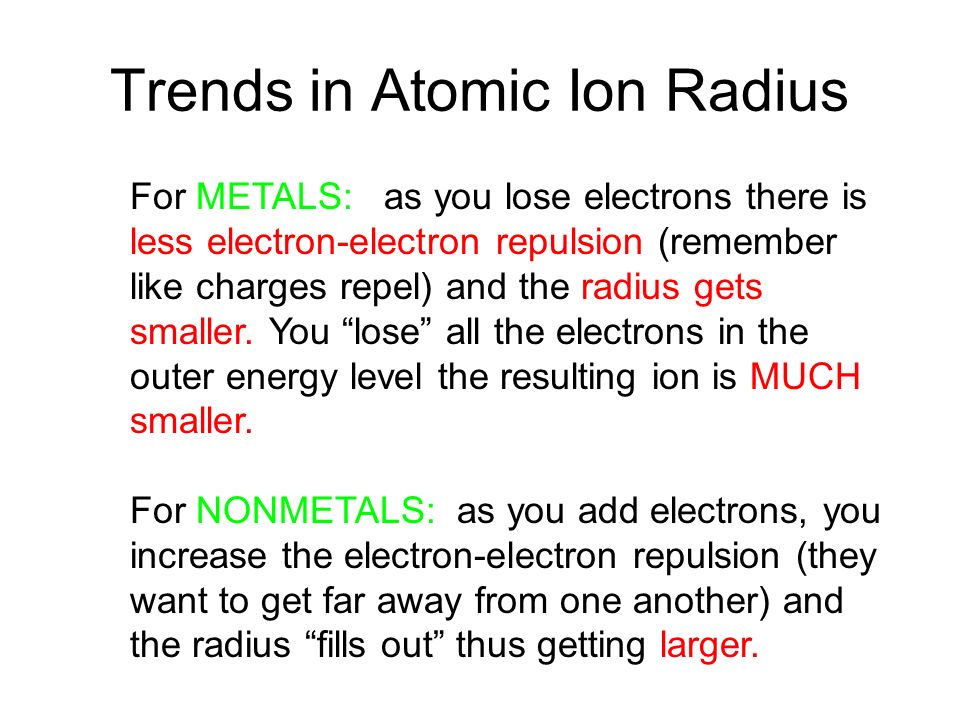

Trends in Atomic Ion Radius For METALS: as you lose electrons there is less electron-electron repulsion (remember like charges repel) and the radius gets smaller. You “lose” all the electrons in the outer energy level the resulting ion is MUCH smaller. For NONMETALS: as you add electrons, you increase the electron-electron repulsion (they want to get far away from one another) and the radius “fills out” thus getting larger.

Summary of Periodic Trends
