1. 1 Grammar-Driven Generation of Domain-Specific Language Testing Tools Using Aspects Ph.D. Defense Hui Wu wuh@cis.uab.edu http://www.cis.uab.edu/wuh 10/29/2007 Advisor: Dr. Jeff Gray Thesis Committee: Dr. Barrett Bryant Dr. Brian Toone Dr. Chengcui Zhang Dr. Marjan Mernik Dr. Mikhail Auguston

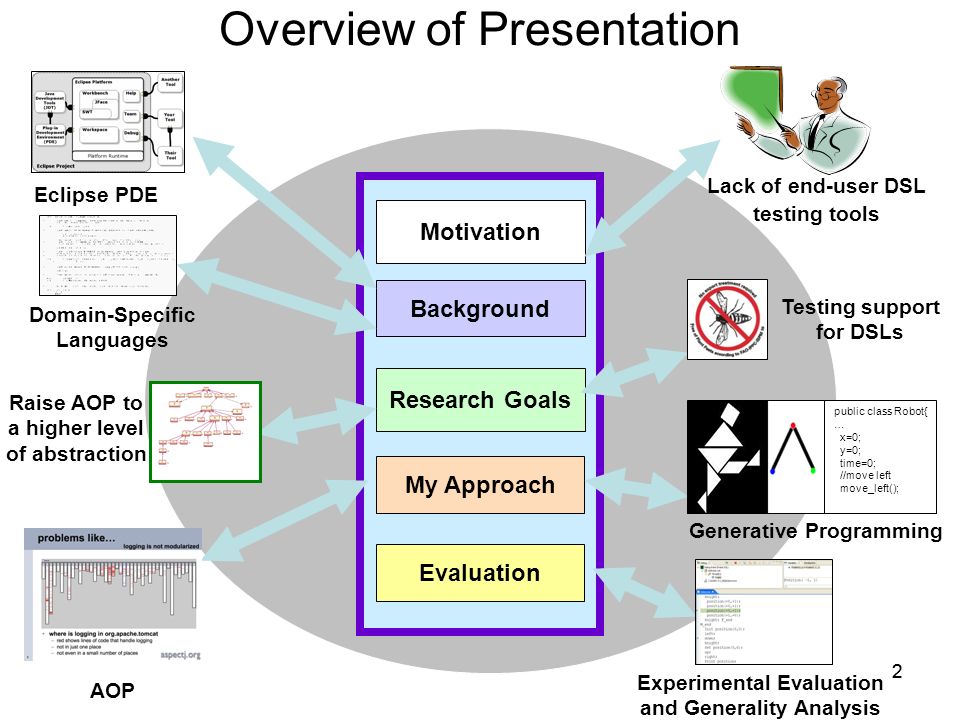

2. 22 Overview of Presentation Motivation Background Domain-Specific Languages My Approach Lack of end-user DSL testing tools Research Goals Testing support for DSLs Evaluation Raise AOP to a higher level of abstraction public class Robot{ … x=0; y=0; time=0; //move left move_left(); Eclipse PDE Generative Programming AOP Experimental Evaluation and Generality Analysis

3. 33 Categories of DSL End-Users Admin Assistants Business Person Auto Factory Worker Scientist Spreadsheet Business Query Systems Modeling Language DSL for Physics

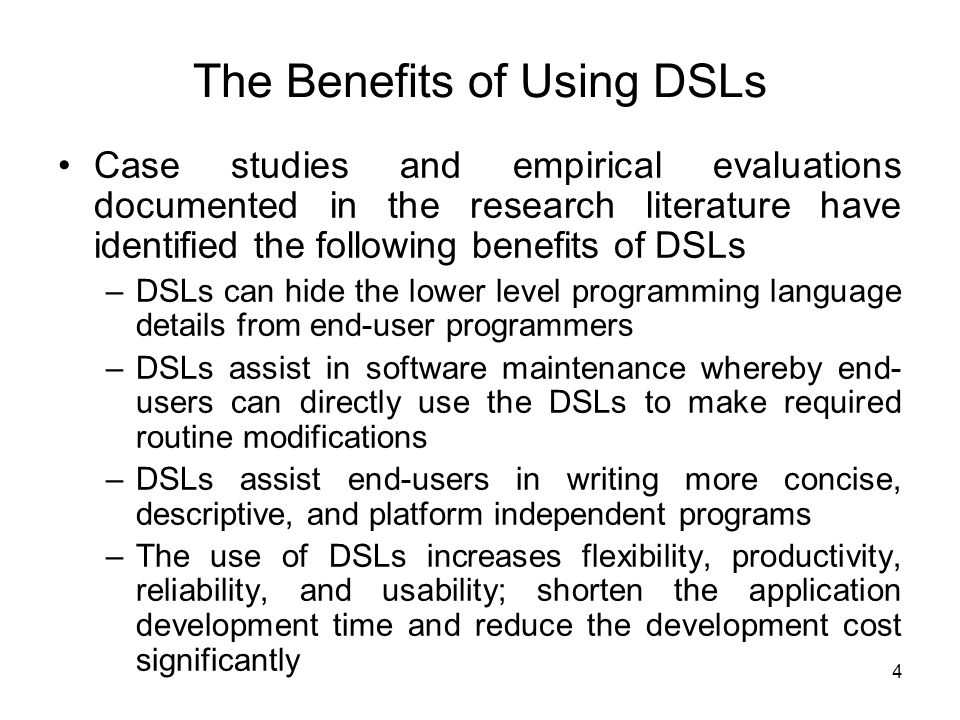

4. 4 The Benefits of Using DSLs Case studies and empirical evaluations documented in the research literature have identified the following benefits of DSLs –DSLs can hide the lower level programming language details from end-user programmers –DSLs assist in software maintenance whereby end- users can directly use the DSLs to make required routine modifications –DSLs assist end-users in writing more concise, descriptive, and platform independent programs –The use of DSLs increases flexibility, productivity, reliability, and usability; shorten the application development time and reduce the development cost significantly

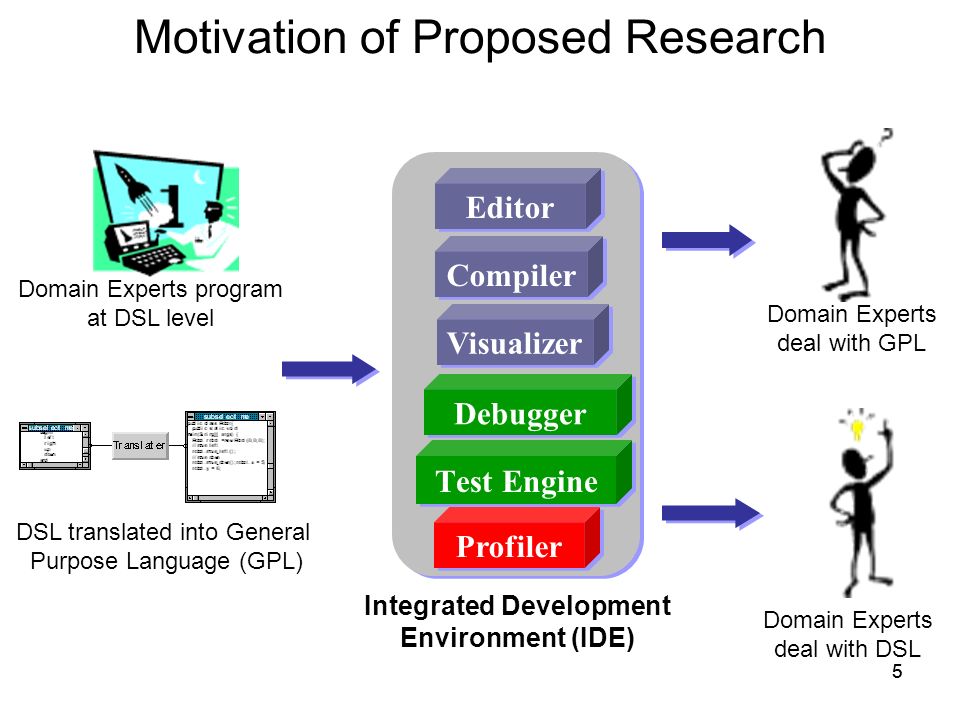

5. 55 Motivation of Proposed Research Domain Experts program at DSL level DSL translated into General Purpose Language (GPL) Domain Experts deal with DSL Integrated Development Environment (IDE) Editor Compiler Visualizer Debugger Domain Experts deal with GPL Test Engine Profiler

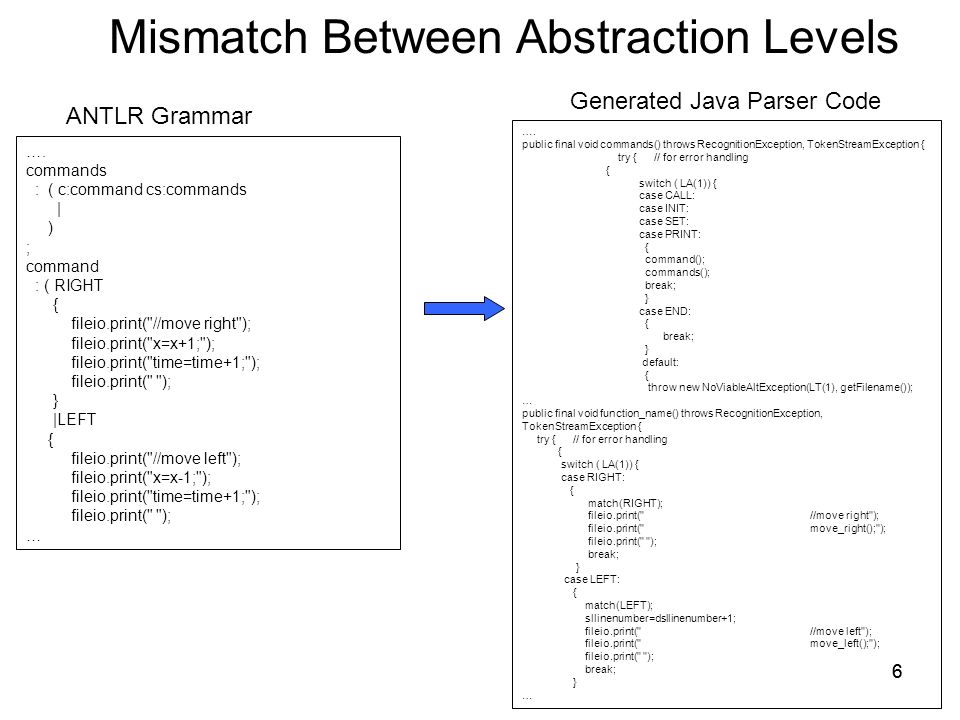

6. 66 Mismatch Between Abstraction Levels …. commands : ( c:command cs:commands | ) ; command : ( RIGHT { fileio.print("//move right"); fileio.print("x=x+1;"); fileio.print("time=time+1;"); fileio.print(" "); } |LEFT { fileio.print("//move left"); fileio.print("x=x-1;"); fileio.print("time=time+1;"); fileio.print(" "); … …. public final void commands() throws RecognitionException, TokenStreamException { try { // for error handling { switch ( LA(1)) { case CALL: case INIT: case SET: case PRINT: { command(); commands(); break; } case END: { break; } default: { throw new NoViableAltException(LT(1), getFilename()); … public final void function_name() throws RecognitionException, TokenStreamException { try { // for error handling { switch ( LA(1)) { case RIGHT: { match(RIGHT); fileio.print("//move right"); fileio.print("move_right();"); fileio.print(" "); break; } case LEFT: { match(LEFT); sllinenumber=dsllinenumber+1; fileio.print("//move left"); fileio.print("move_left();"); fileio.print(" "); break; } … ANTLR Grammar Generated Java Parser Code

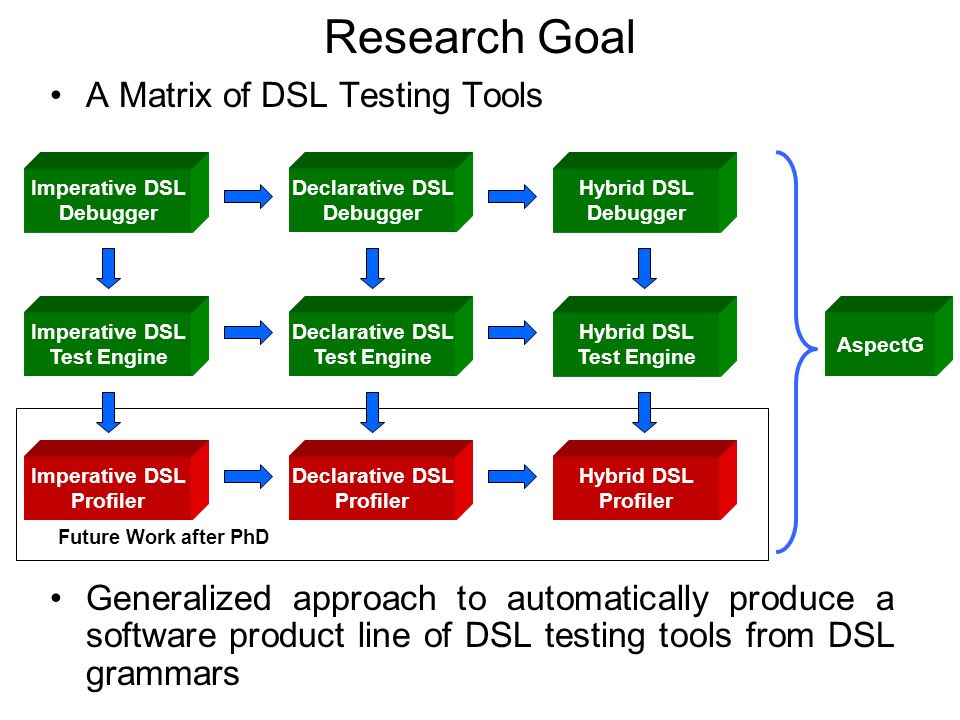

7. Research Goal A Matrix of DSL Testing Tools Generalized approach to automatically produce a software product line of DSL testing tools from DSL grammars Imperative DSL Debugger AspectG Imperative DSL Test Engine Imperative DSL Profiler Declarative DSL Debugger Declarative DSL Test Engine Declarative DSL Profiler Hybrid DSL Debugger Hybrid DSL Test Engine Hybrid DSL Profiler Future Work after PhD

8. 8 Outline Background DSL Debugging Framework (DDF) DSL Unit Testing Framework (DUTF) AspectG Future Work and Conclusion

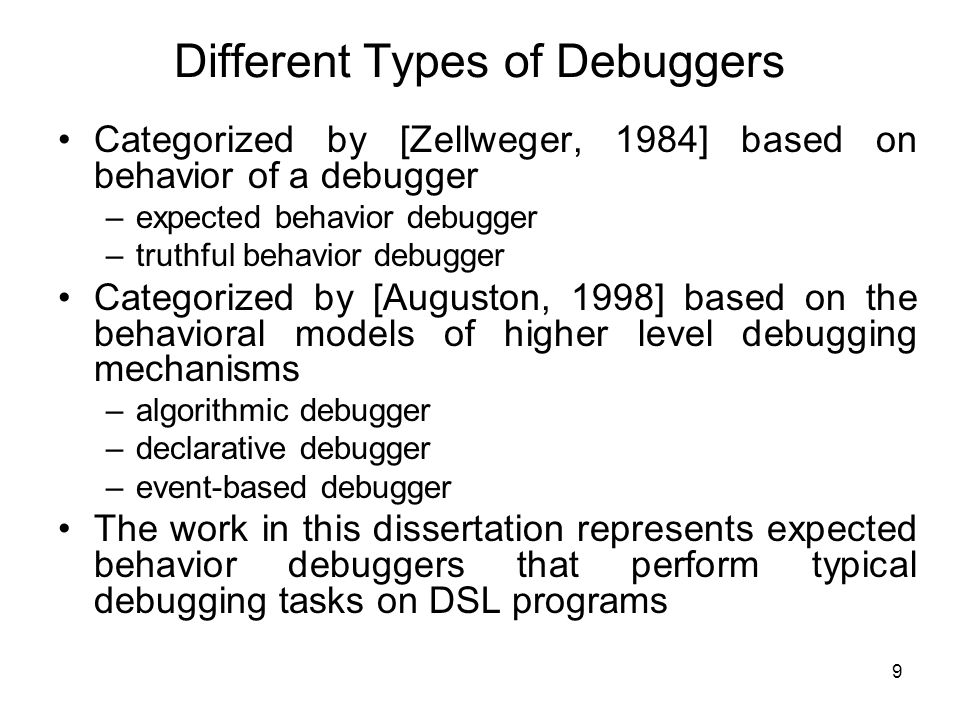

9. 9 Different Types of Debuggers Categorized by [Zellweger, 1984] based on behavior of a debugger –expected behavior debugger –truthful behavior debugger Categorized by [Auguston, 1998] based on the behavioral models of higher level debugging mechanisms –algorithmic debugger –declarative debugger –event-based debugger The work in this dissertation represents expected behavior debuggers that perform typical debugging tasks on DSL programs

10. 10 Categories of Domain-Specific Languages Imperative DSL –Robot DSL Declarative DSL –Feature Description Language (FDL) –Backus–Naur Form (BNF) language syntax specification Hybrid DSL –Swing User-interface Language (SWUL) –Hybrid Robot DSL

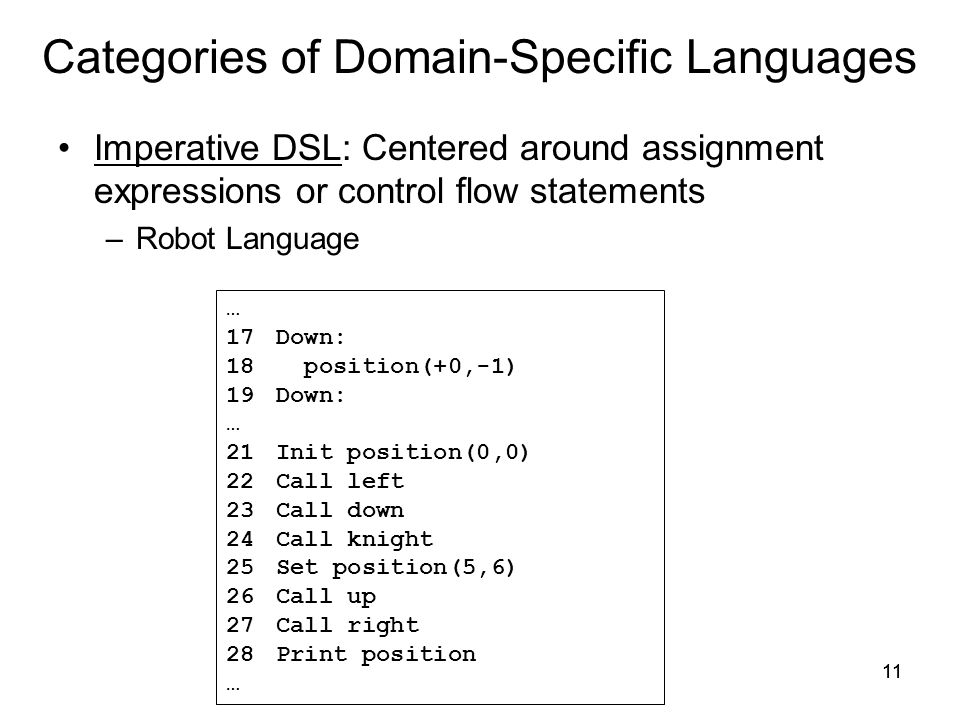

11. 11 Categories of Domain-Specific Languages Imperative DSL: Centered around assignment expressions or control flow statements –Robot Language … 17 Down: 18 position(+0,-1) 19 Down: … 21 Init position(0,0) 22 Call left 23 Call down 24 Call knight 25 Set position(5,6) 26 Call up 27 Call right 28 Print position …

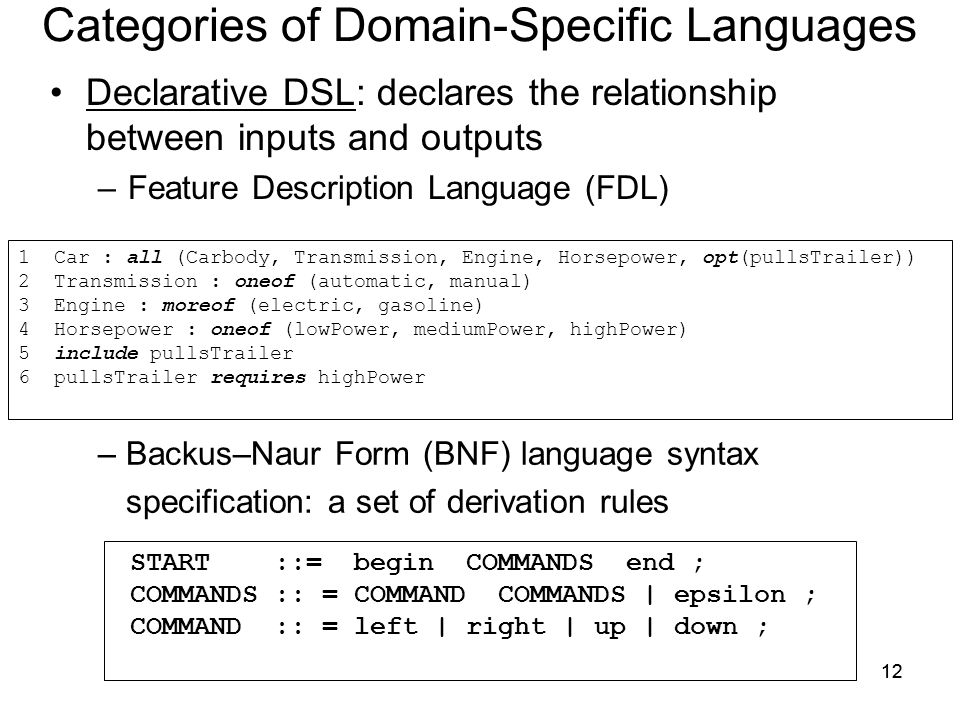

12. 12 Declarative DSL: declares the relationship between inputs and outputs –Feature Description Language (FDL) 1 Car : all (Carbody, Transmission, Engine, Horsepower, opt(pullsTrailer)) 2 Transmission : oneof (automatic, manual) 3 Engine : moreof (electric, gasoline) 4 Horsepower : oneof (lowPower, mediumPower, highPower) 5 include pullsTrailer 6 pullsTrailer requires highPower Categories of Domain-Specific Languages – Backus–Naur Form (BNF) language syntax specification: a set of derivation rules START ::= begin COMMANDS end ; COMMANDS :: = COMMAND COMMANDS | epsilon ; COMMAND :: = left | right | up | down ;

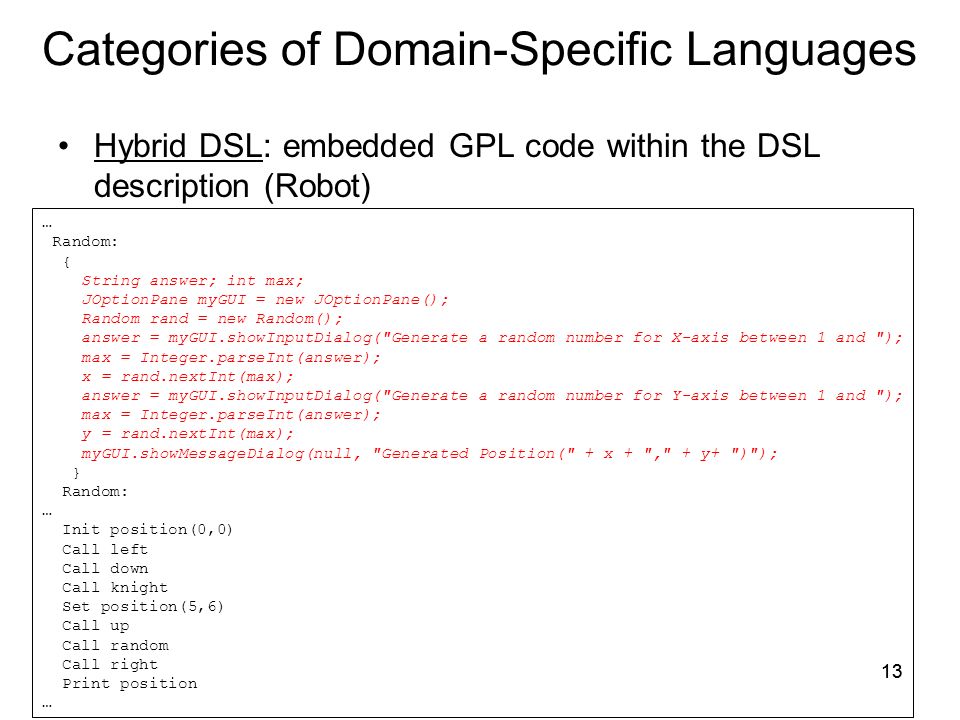

13. 13 Hybrid DSL: embedded GPL code within the DSL description (Robot) … Random: { String answer; int max; JOptionPane myGUI = new JOptionPane(); Random rand = new Random(); answer = myGUI.showInputDialog("Generate a random number for X-axis between 1 and "); max = Integer.parseInt(answer); x = rand.nextInt(max); answer = myGUI.showInputDialog("Generate a random number for Y-axis between 1 and "); max = Integer.parseInt(answer); y = rand.nextInt(max); myGUI.showMessageDialog(null, "Generated Position(" + x + "," + y+ ")"); } Random: … Init position(0,0) Call left Call down Call knight Set position(5,6) Call up Call random Call right Print position … Categories of Domain-Specific Languages

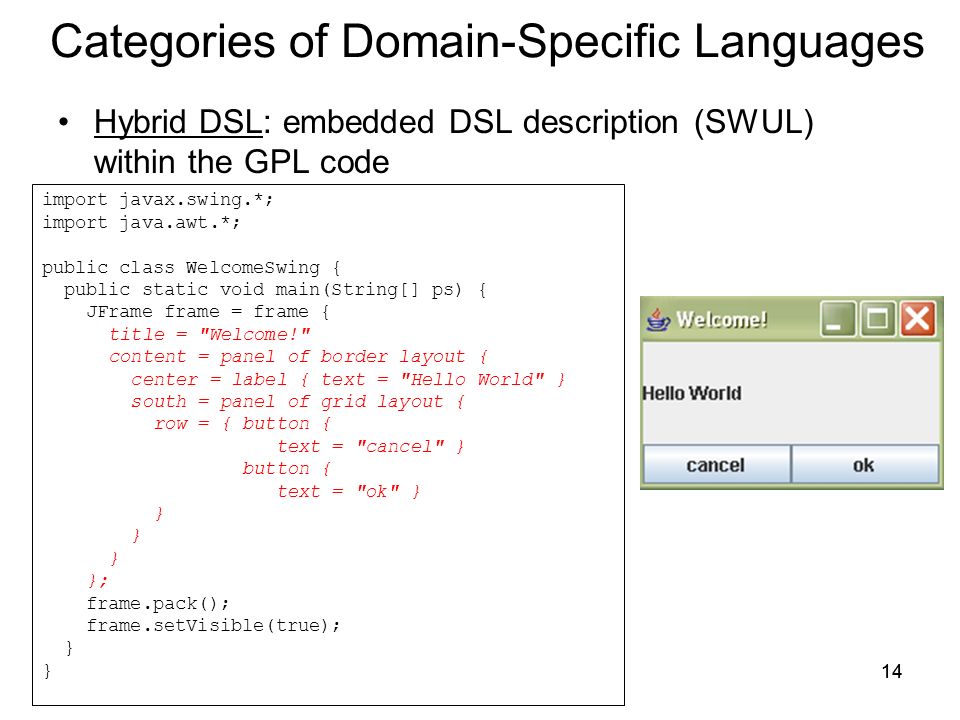

14. 14 Hybrid DSL: embedded DSL description (SWUL) within the GPL code import javax.swing.*; import java.awt.*; public class WelcomeSwing { public static void main(String[] ps) { JFrame frame = frame { title = "Welcome!" content = panel of border layout { center = label { text = "Hello World" } south = panel of grid layout { row = { button { text = "cancel" } button { text = "ok" } } }; frame.pack(); frame.setVisible(true); } Categories of Domain-Specific Languages

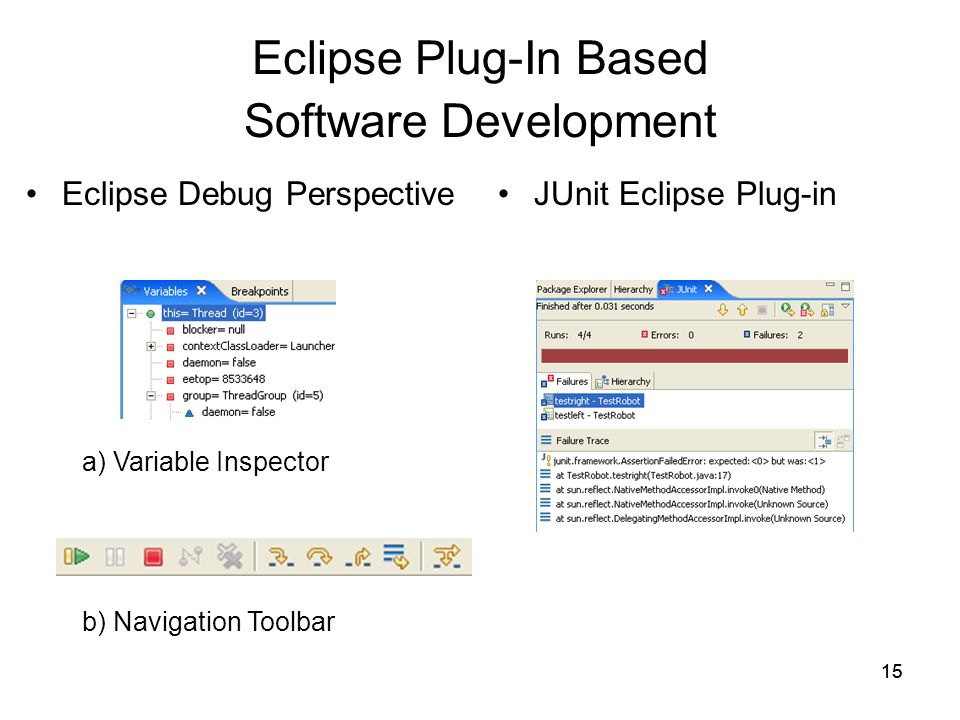

15. 15 Eclipse Plug-In Based Software Development Eclipse Debug PerspectiveJUnit Eclipse Plug-in a) Variable Inspector b) Navigation Toolbar

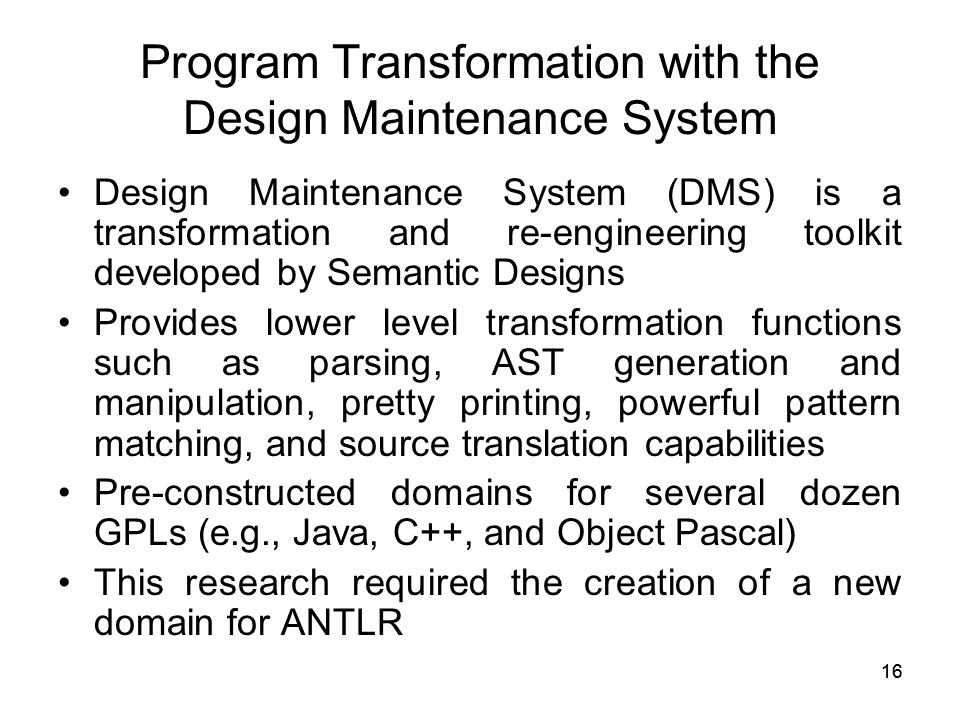

16. 16 Program Transformation with the Design Maintenance System Design Maintenance System (DMS) is a transformation and re-engineering toolkit developed by Semantic Designs Provides lower level transformation functions such as parsing, AST generation and manipulation, pretty printing, powerful pattern matching, and source translation capabilities Pre-constructed domains for several dozen GPLs (e.g., Java, C++, and Object Pascal) This research required the creation of a new domain for ANTLR

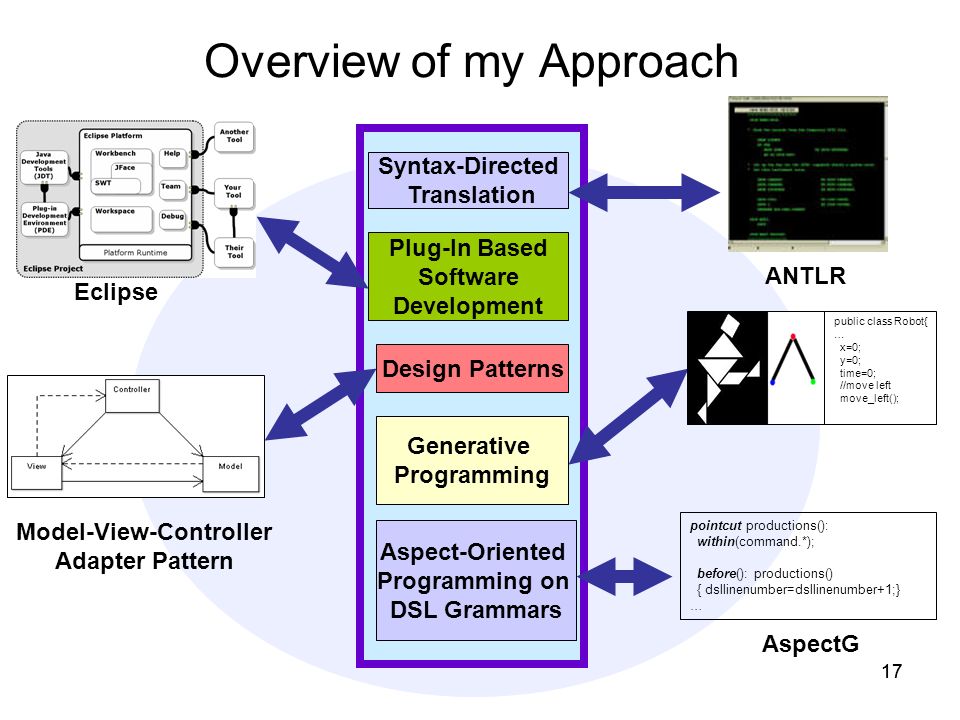

17. 17 Plug-In Based Software Development Syntax-Directed Translation Aspect-Oriented Programming on DSL Grammars Overview of my Approach Design Patterns Generative Programming Eclipse Model-View-Controller Adapter Pattern AspectG ANTLR pointcut productions(): within(command.*); before(): productions() { dsllinenumber=dsllinenumber+1;} … public class Robot{ … x=0; y=0; time=0; //move left move_left();

18. 18 Outline Background DSL Debugging Framework (DDF) DSL Unit Testing Framework (DUTF) AspectG Future Work and Conclusion

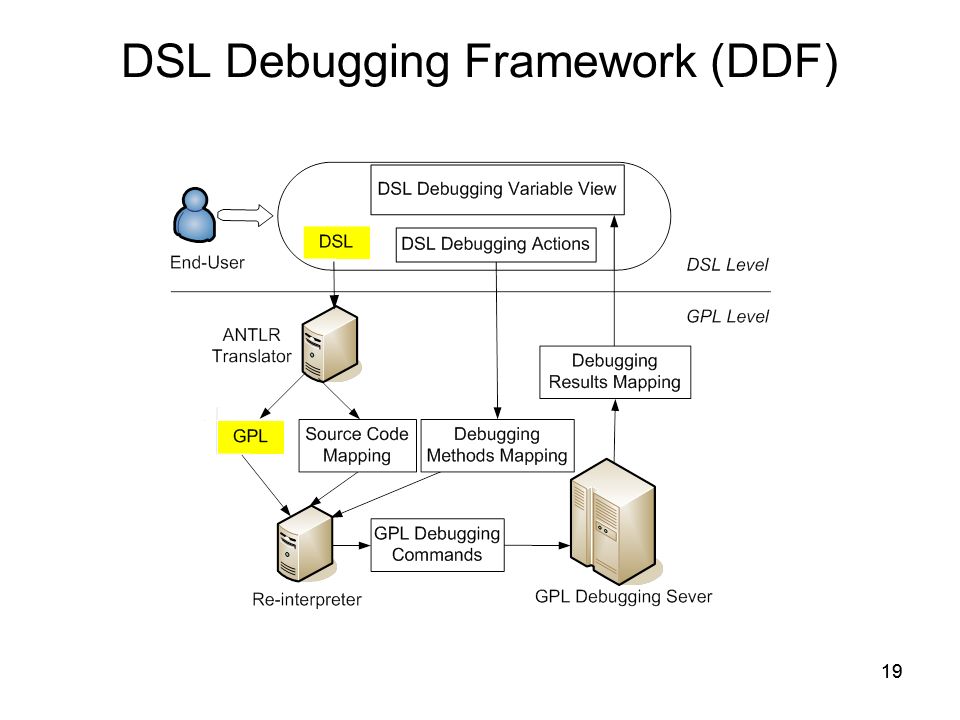

19. 19 DSL Debugging Framework (DDF)

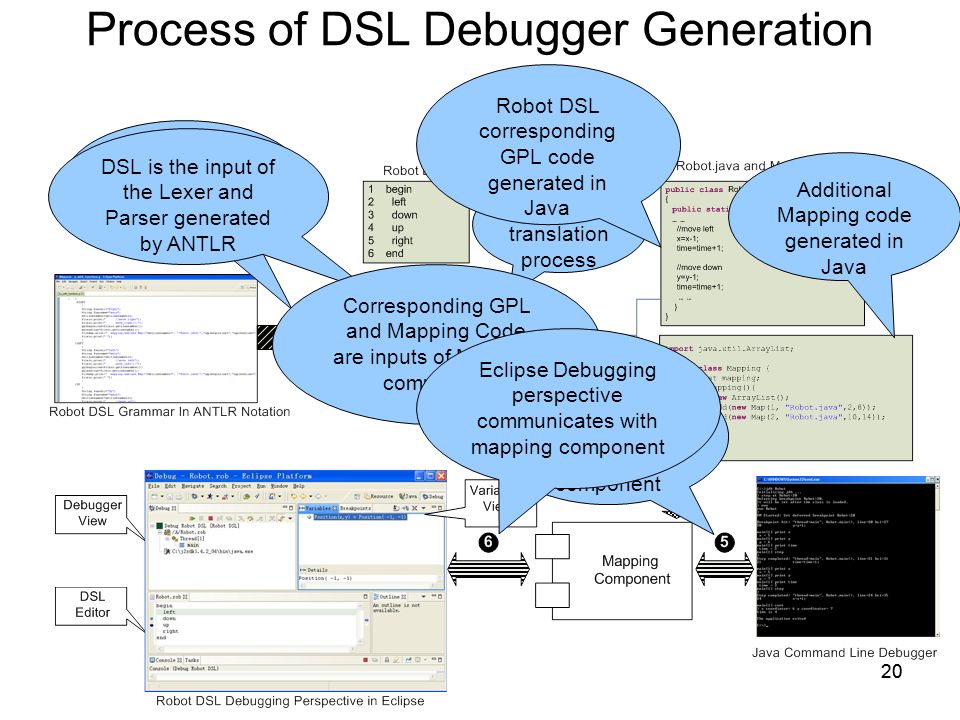

20. 20 Process of DSL Debugger Generation DSL grammar is defined using ANTLR Notation DSL is the input of the Lexer and Parser generated by ANTLR DSL translation process Robot DSL corresponding GPL code generated in Java Additional Mapping code generated in Java Corresponding GPL and Mapping Code are inputs of Mapping component jdb communicates with mapping component Eclipse Debugging perspective communicates with mapping component

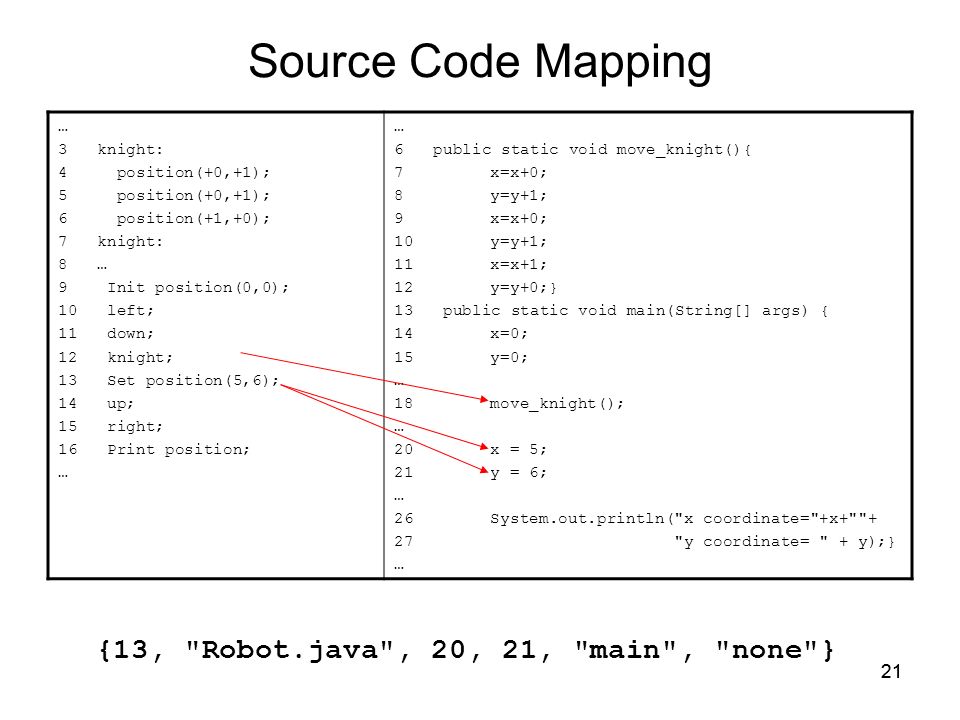

21. 21 Source Code Mapping … 3 knight: 4 position(+0,+1); 5 position(+0,+1); 6 position(+1,+0); 7 knight: 8 … 9 Init position(0,0); 10 left; 11 down; 12 knight; 13 Set position(5,6); 14 up; 15 right; 16 Print position; … 6 public static void move_knight(){ 7x=x+0; 8y=y+1; 9x=x+0; 10y=y+1; 11x=x+1; 12y=y+0;} 13 public static void main(String[] args) { 14x=0; 15y=0; … 18move_knight(); … 20x = 5; 21y = 6; … 26System.out.println("x coordinate="+x+""+ 27 "y coordinate= " + y);} … {13, "Robot.java", 20, 21, "main", "none"}

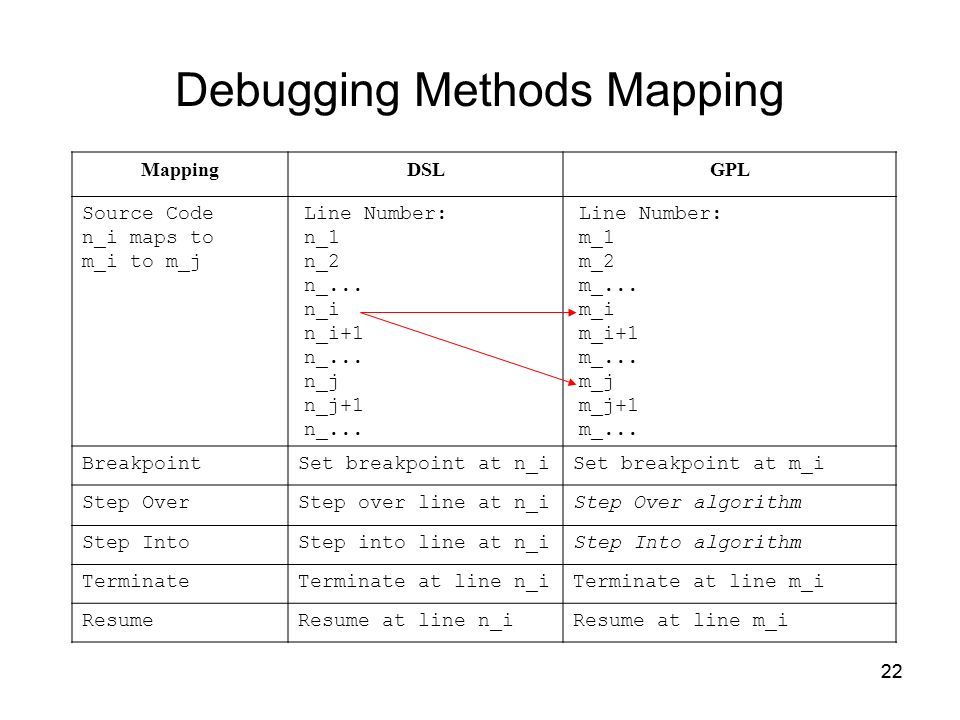

22. 22 Debugging Methods Mapping MappingDSLGPL Source Code n_i maps to m_i to m_j Line Number: n_1 n_2 n_... n_i n_i+1 n_... n_j n_j+1 n_... Line Number: m_1 m_2 m_... m_i m_i+1 m_... m_j m_j+1 m_... BreakpointSet breakpoint at n_iSet breakpoint at m_i Step OverStep over line at n_iStep Over algorithm Step IntoStep into line at n_iStep Into algorithm TerminateTerminate at line n_iTerminate at line m_i ResumeResume at line n_iResume at line m_i

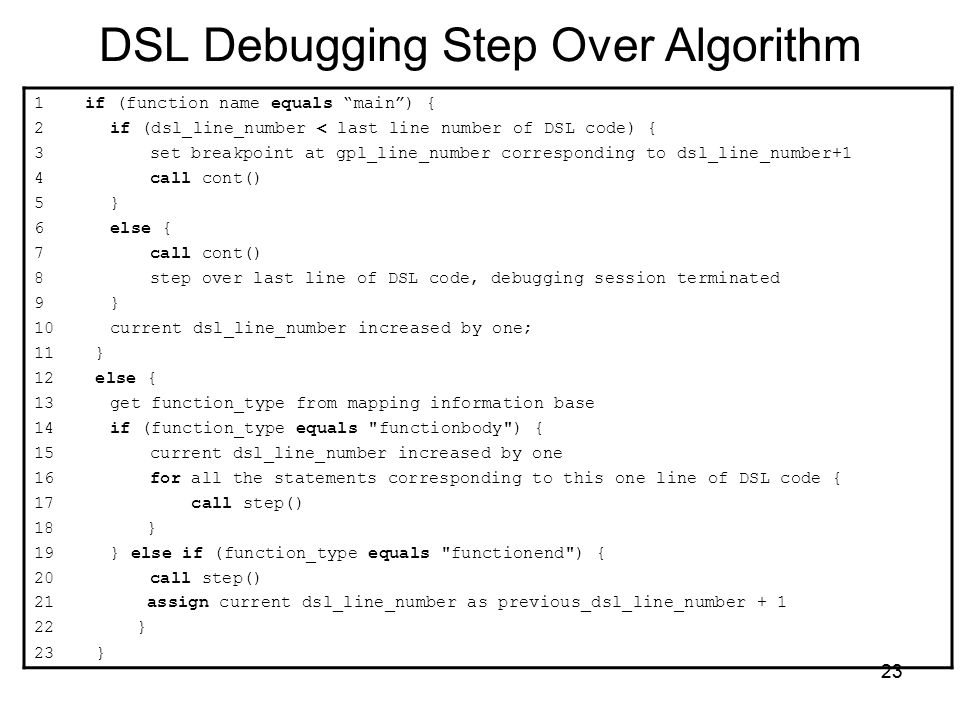

23. 23 DSL Debugging Step Over Algorithm 1 if (function name equals “main”) { 2 if (dsl_line_number < last line number of DSL code) { 3 set breakpoint at gpl_line_number corresponding to dsl_line_number+1 4 call cont() 5 } 6 else { 7 call cont() 8 step over last line of DSL code, debugging session terminated 9 } 10 current dsl_line_number increased by one; 11 } 12 else { 13 get function_type from mapping information base 14 if (function_type equals "functionbody") { 15 current dsl_line_number increased by one 16 for all the statements corresponding to this one line of DSL code { 17 call step() 18 } 19 } else if (function_type equals "functionend") { 20 call step() 21 assign current dsl_line_number as previous_dsl_line_number + 1 22 } 23 }

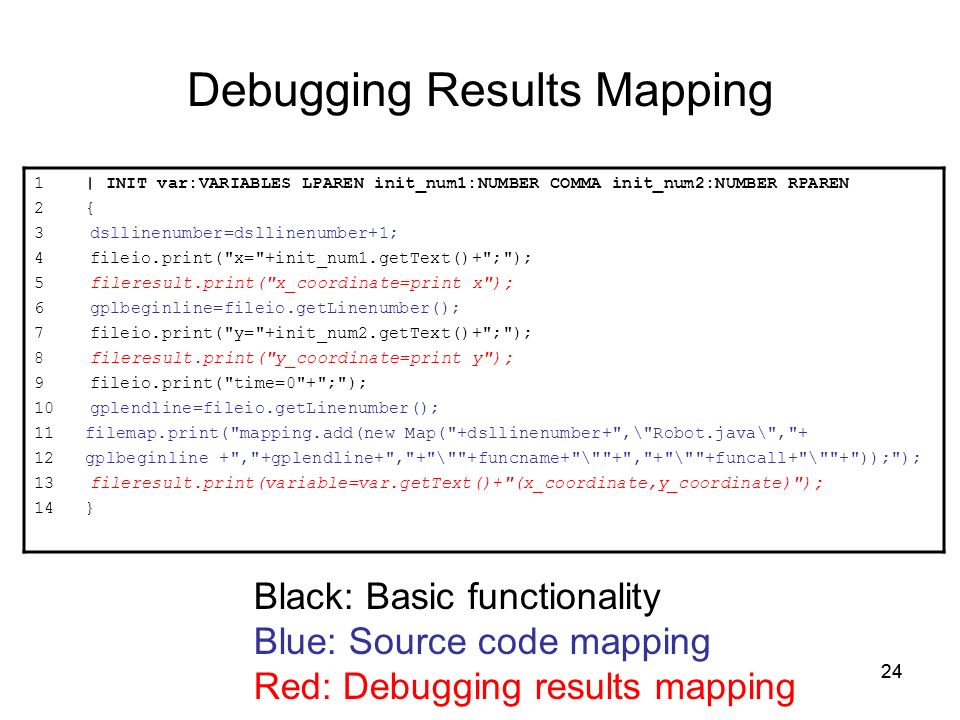

24. 24 Debugging Results Mapping 1 | INIT var:VARIABLES LPAREN init_num1:NUMBER COMMA init_num2:NUMBER RPAREN 2 { 3dsllinenumber=dsllinenumber+1; 4fileio.print("x="+init_num1.getText()+";"); 5fileresult.print("x_coordinate=print x"); 6gplbeginline=fileio.getLinenumber(); 7fileio.print("y="+init_num2.getText()+";"); 8fileresult.print("y_coordinate=print y"); 9fileio.print("time=0"+";"); 10gplendline=fileio.getLinenumber(); 11 filemap.print("mapping.add(new Map("+dsllinenumber+",\"Robot.java\","+ 12 gplbeginline +","+gplendline+","+"\""+funcname+"\""+","+"\""+funcall+"\""+"));"); 13fileresult.print(variable=var.getText()+"(x_coordinate,y_coordinate)"); 14 } Black: Basic functionality Blue: Source code mapping Red: Debugging results mapping

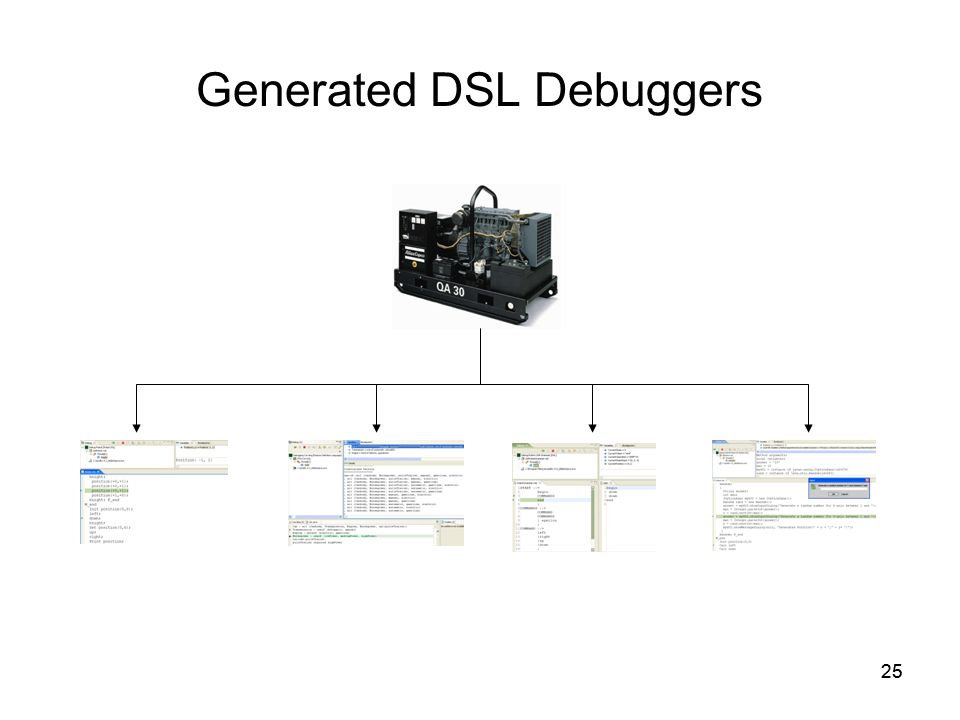

25. 25 Generated DSL Debuggers

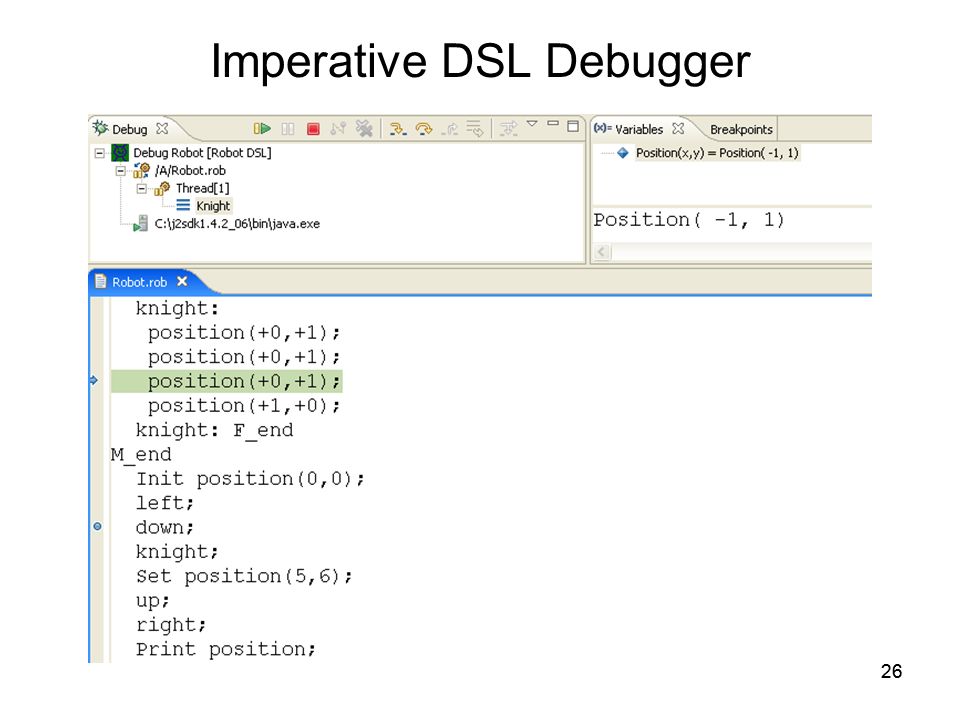

26. 26 Imperative DSL Debugger

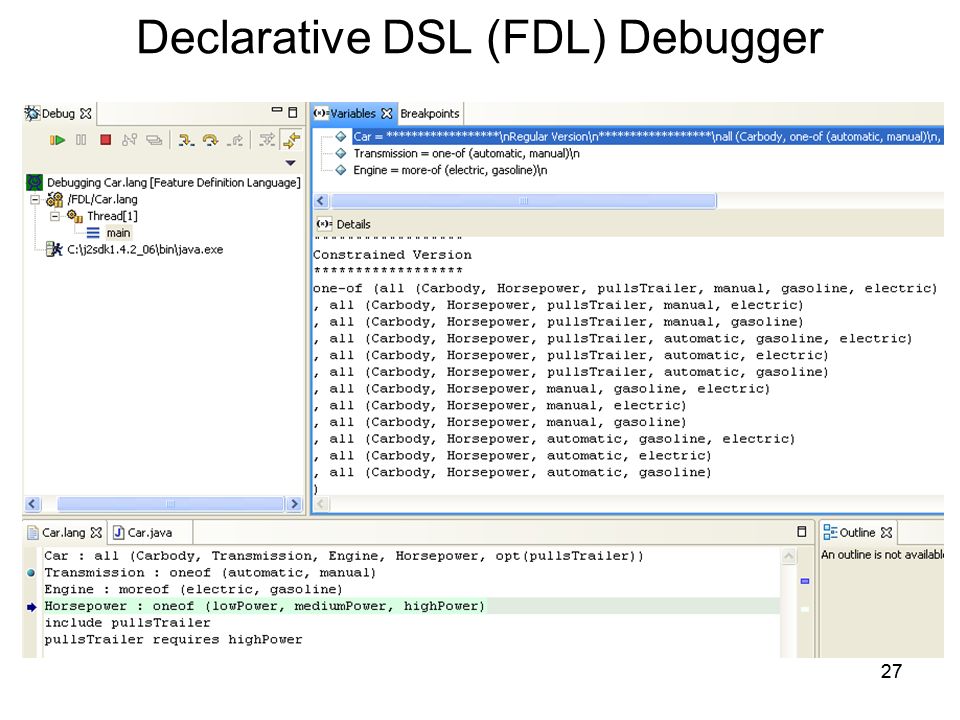

27. 27 Declarative DSL (FDL) Debugger

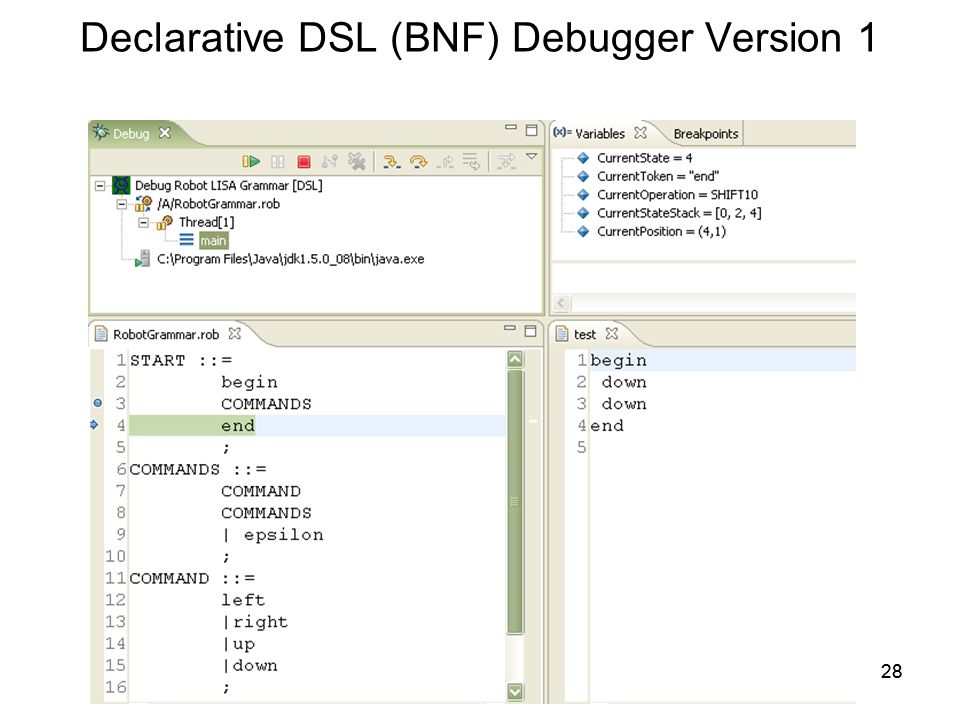

28. 28 Declarative DSL (BNF) Debugger Version 1

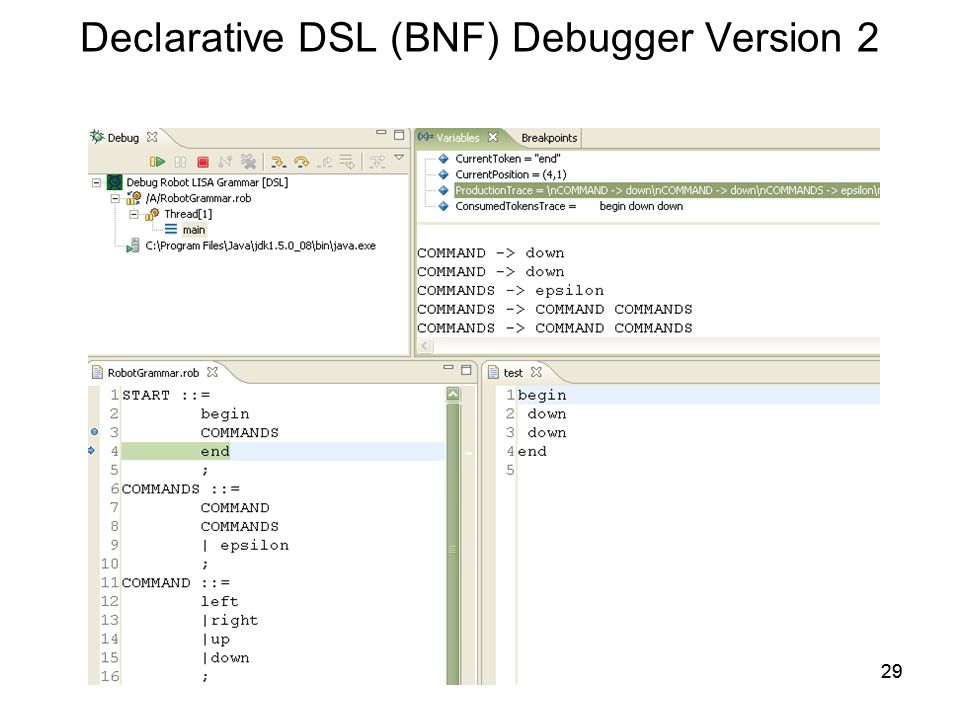

29. 29 Declarative DSL (BNF) Debugger Version 2

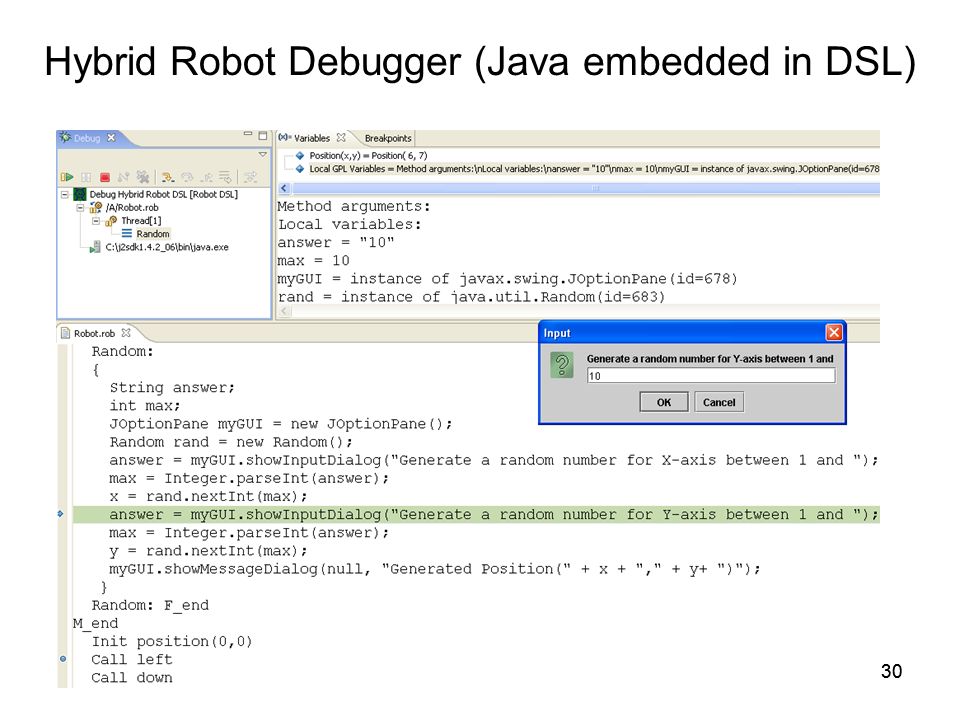

30. 30 Hybrid Robot Debugger (Java embedded in DSL)

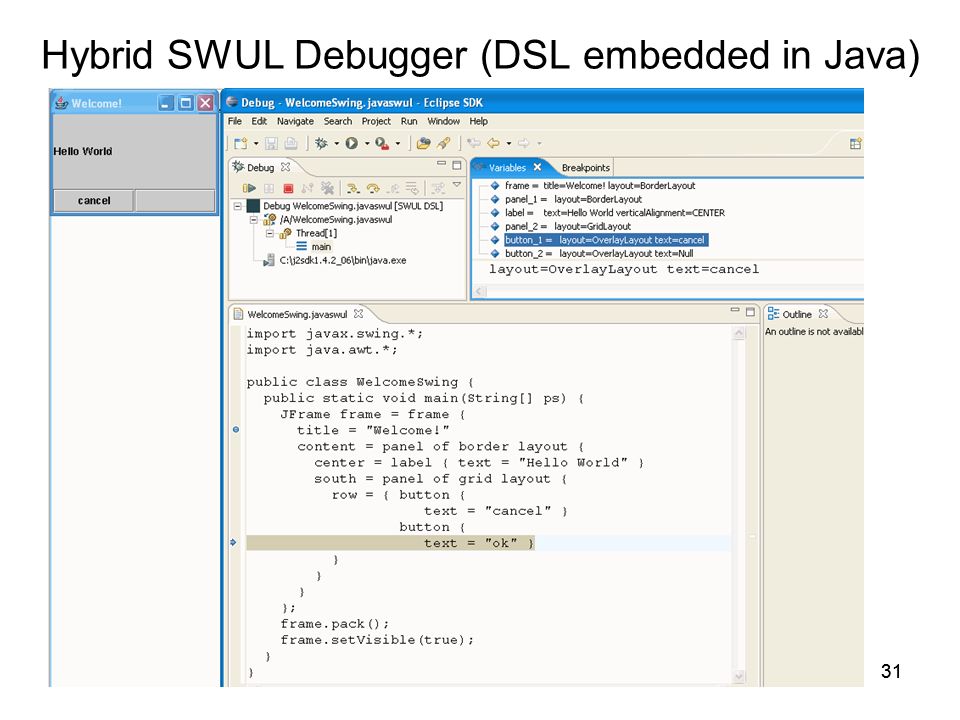

31. 31 Hybrid SWUL Debugger (DSL embedded in Java)

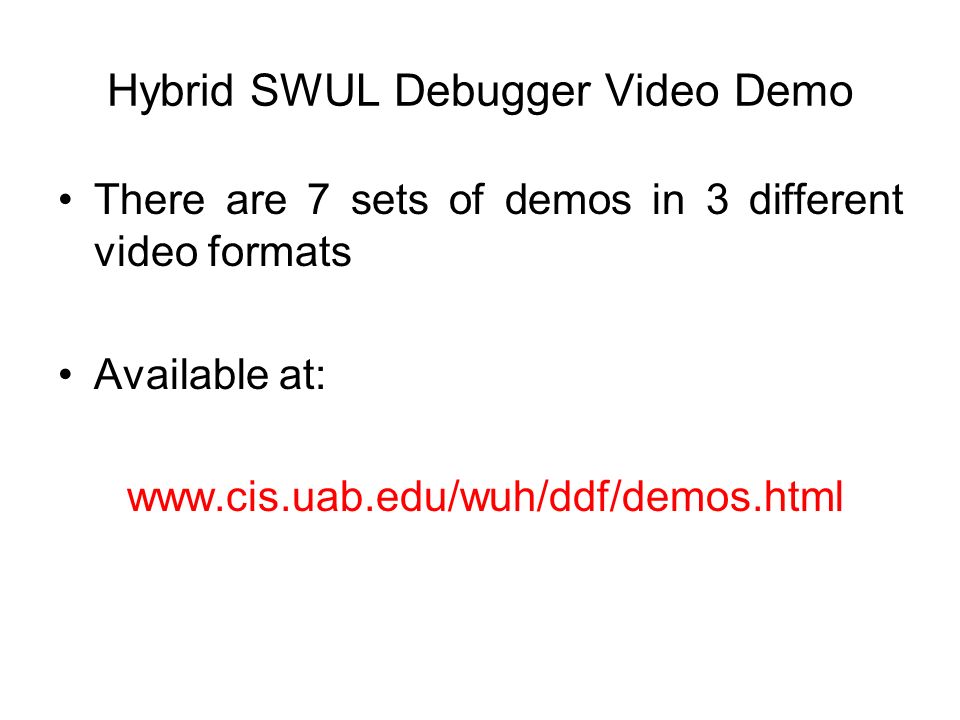

32. Hybrid SWUL Debugger Video Demo There are 7 sets of demos in 3 different video formats Available at: www.cis.uab.edu/wuh/ddf/demos.html

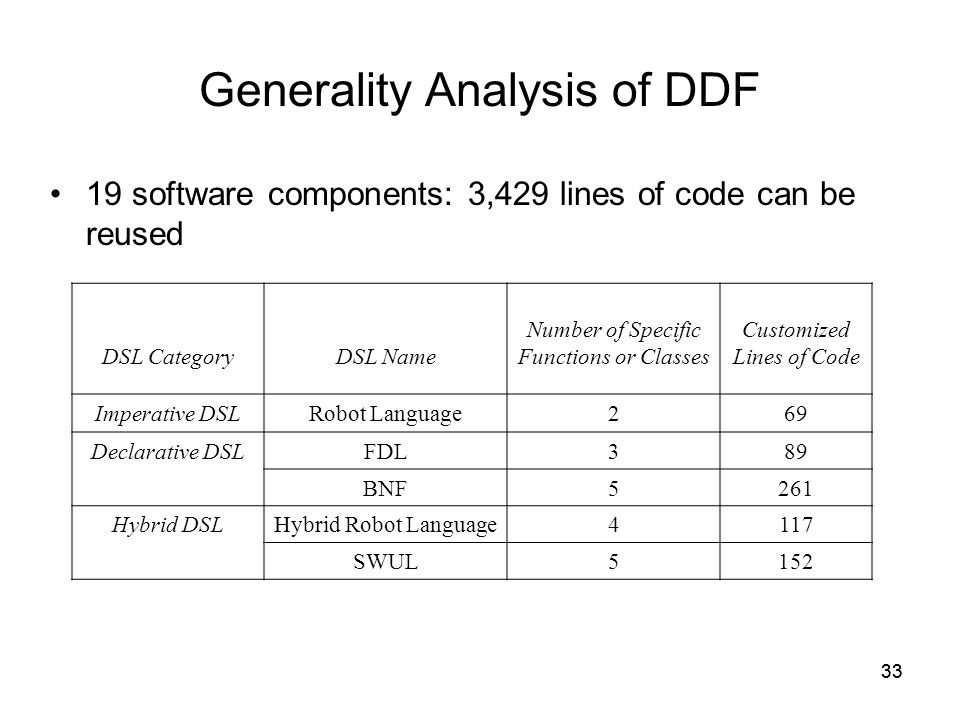

33. 33 Generality Analysis of DDF 19 software components: 3,429 lines of code can be reused DSL CategoryDSL Name Number of Specific Functions or Classes Customized Lines of Code Imperative DSLRobot Language269 Declarative DSLFDL389 BNF5261 Hybrid DSLHybrid Robot Language4117 SWUL5152

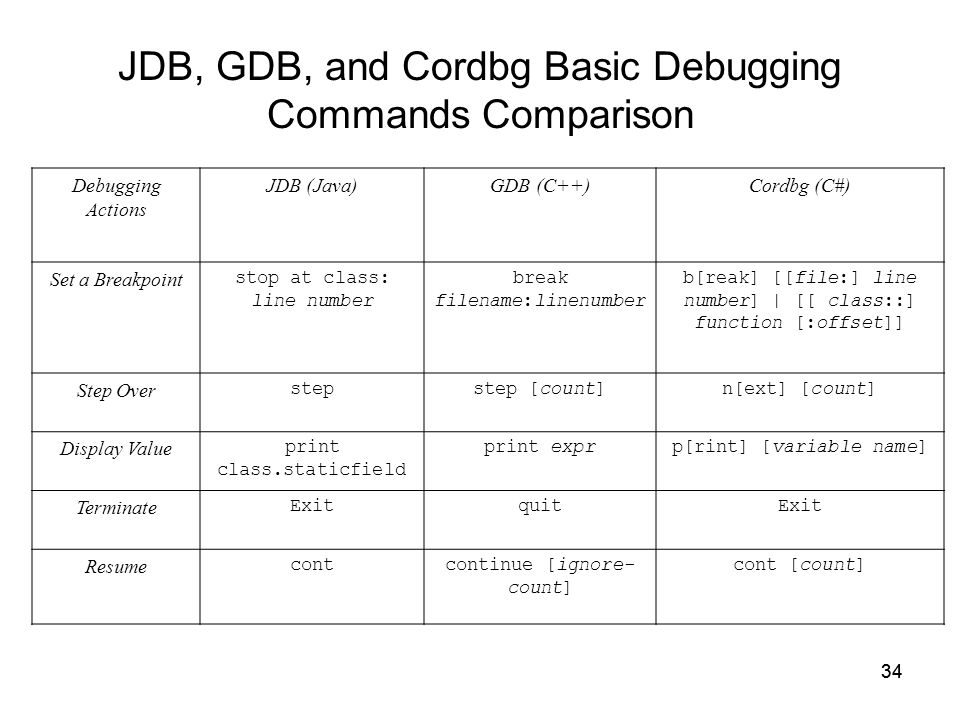

34. 34 JDB, GDB, and Cordbg Basic Debugging Commands Comparison Debugging Actions JDB (Java)GDB (C++)Cordbg (C#) Set a Breakpoint stop at class: line number break filename:linenumber b[reak] [[file:] line number] | [[ class::] function [:offset]] Step Over stepstep [count]n[ext] [count] Display Value print class.staticfield print exprp[rint] [variable name] Terminate ExitquitExit Resume contcontinue [ignore- count] cont [count]

35. 35 Related Work in the Area of Domain-Specific Language Debuggers Khepera –Support optimization code debugger; store transformation information in a database –Execution time and cost are high JSR-045 –Establishes standardized debugging tools for correlating Java bytecode to the source code of languages other than Java –Does not have a debugging result mapping process ANTLR Studio –An example of a hybrid debugger –Based on the JSR-045 mapping mechanism –Display only Java variable values TIDE –Although uses gdb, TIDE requires the end-user to understand a precise language specification in ASF+SDF –Knowledge of the rewrite rules in the built-in library is required to construct a debugger for a new language

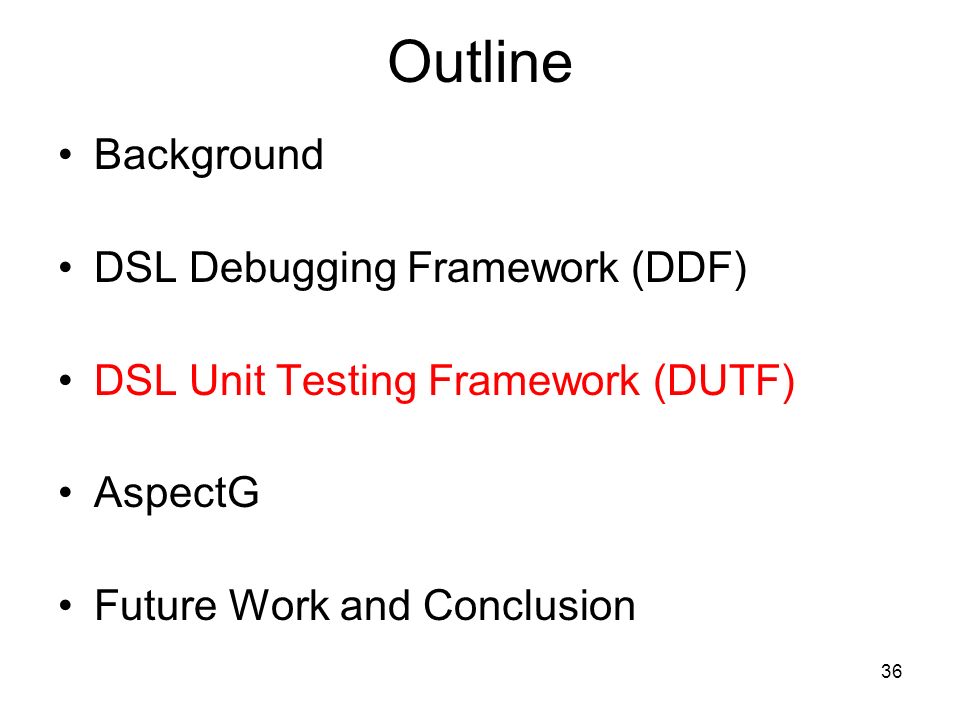

36. 36 Outline Background DSL Debugging Framework (DDF) DSL Unit Testing Framework (DUTF) AspectG Future Work and Conclusion

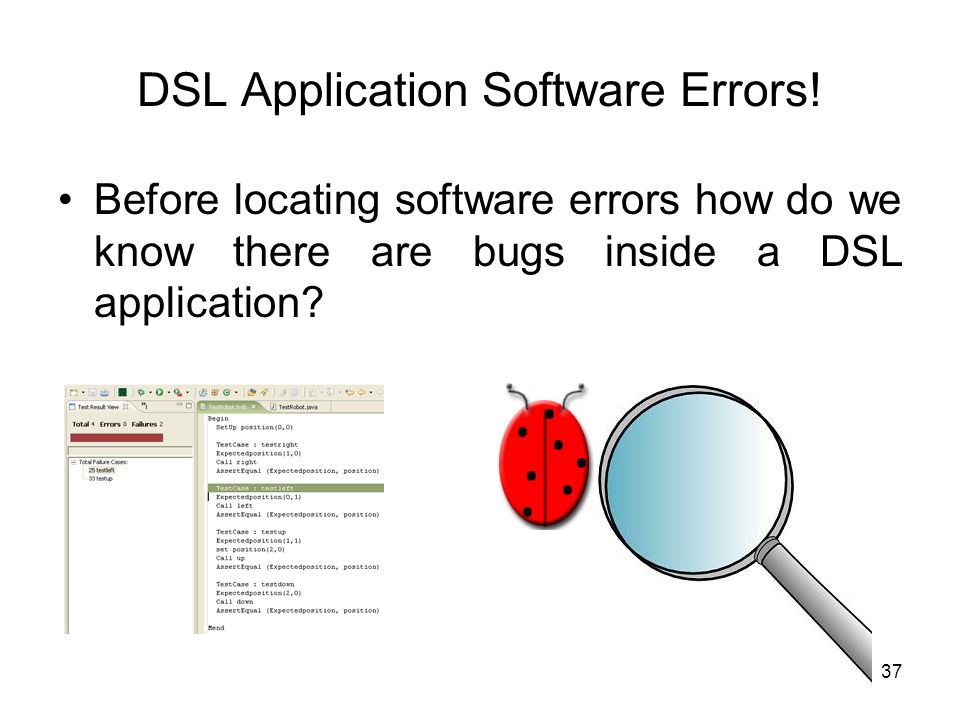

37. 37 DSL Application Software Errors! Before locating software errors how do we know there are bugs inside a DSL application?

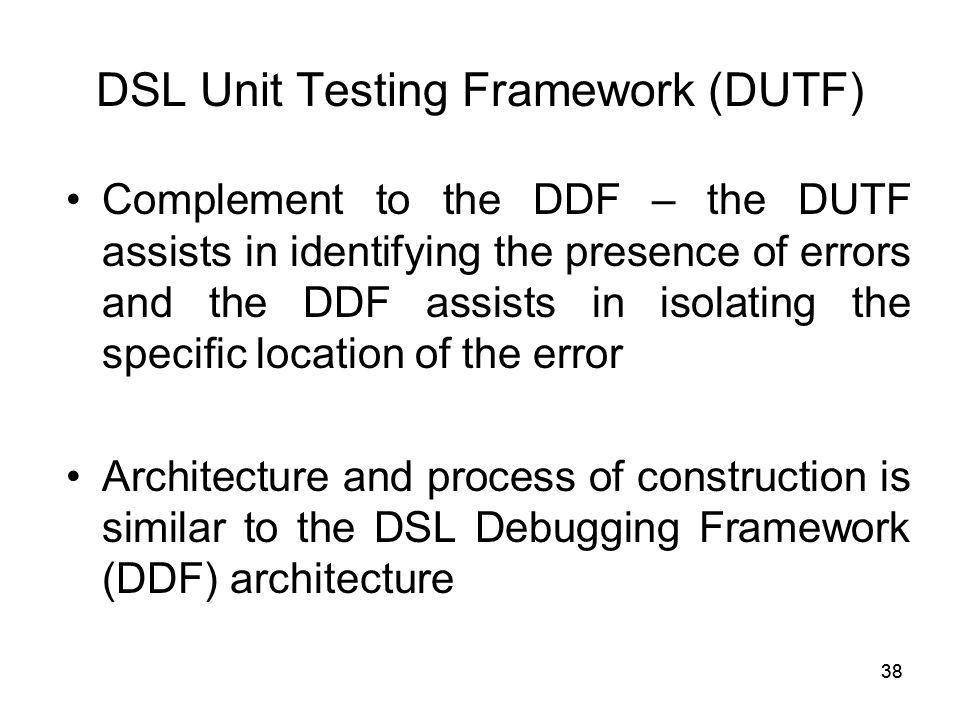

38. 38 DSL Unit Testing Framework (DUTF) Complement to the DDF – the DUTF assists in identifying the presence of errors and the DDF assists in isolating the specific location of the error Architecture and process of construction is similar to the DSL Debugging Framework (DDF) architecture

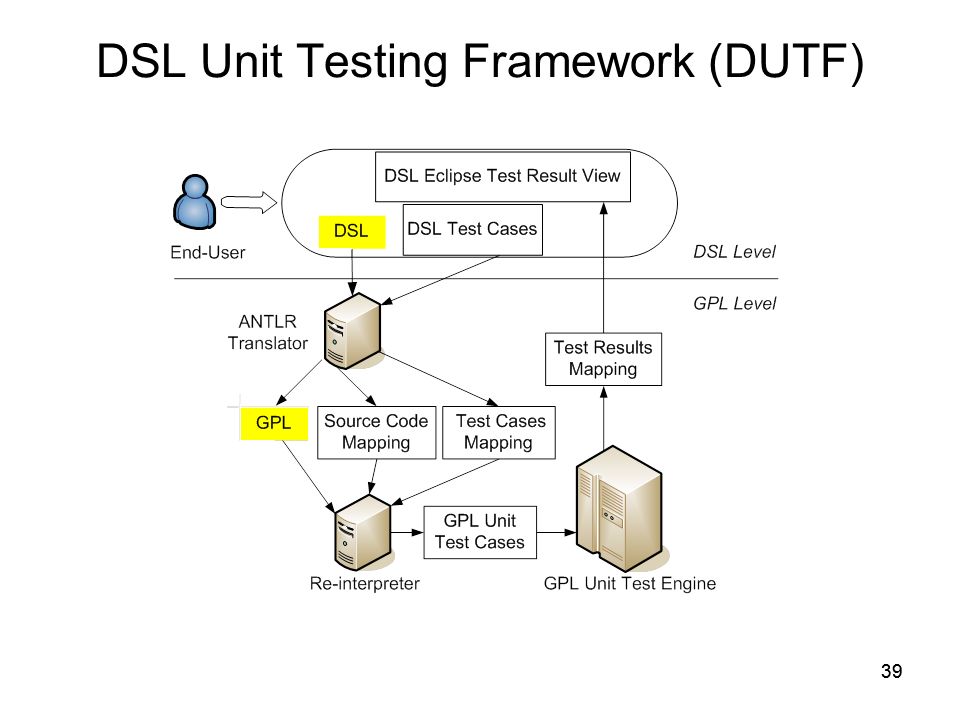

39. 39 DSL Unit Testing Framework (DUTF)

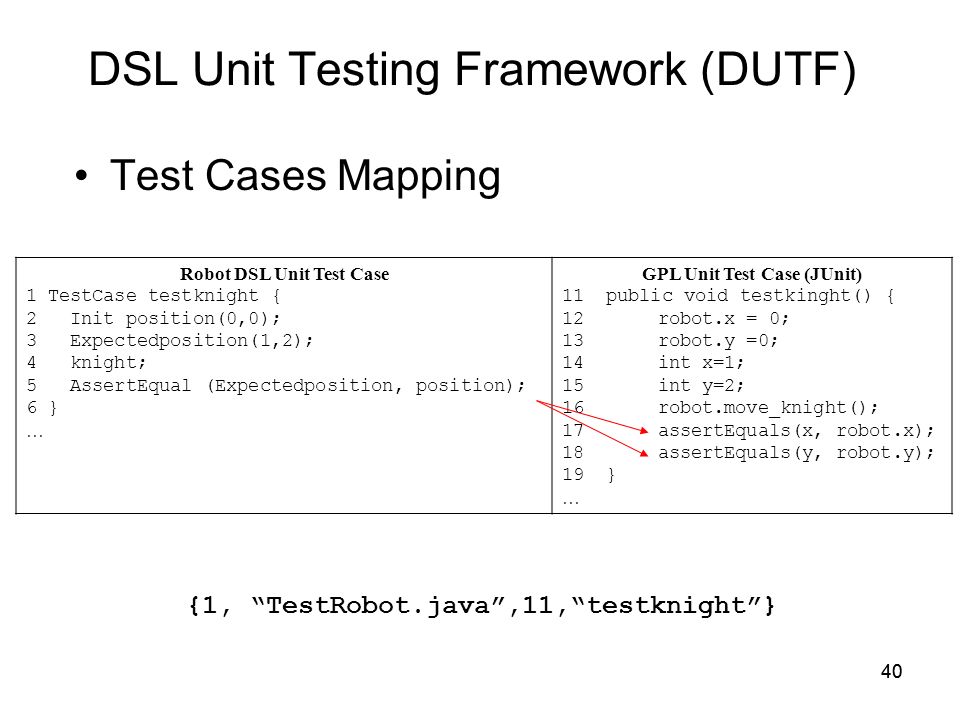

40. 40 DSL Unit Testing Framework (DUTF) Test Cases Mapping Robot DSL Unit Test Case 1 TestCase testknight { 2 Init position(0,0); 3 Expectedposition(1,2); 4 knight; 5 AssertEqual (Expectedposition, position); 6 } … GPL Unit Test Case (JUnit) 11 public void testkinght() { 12robot.x = 0; 13robot.y =0; 14int x=1; 15int y=2; 16robot.move_knight(); 17assertEquals(x, robot.x); 18assertEquals(y, robot.y); 19 } … {1, “TestRobot.java”,11,“testknight”}

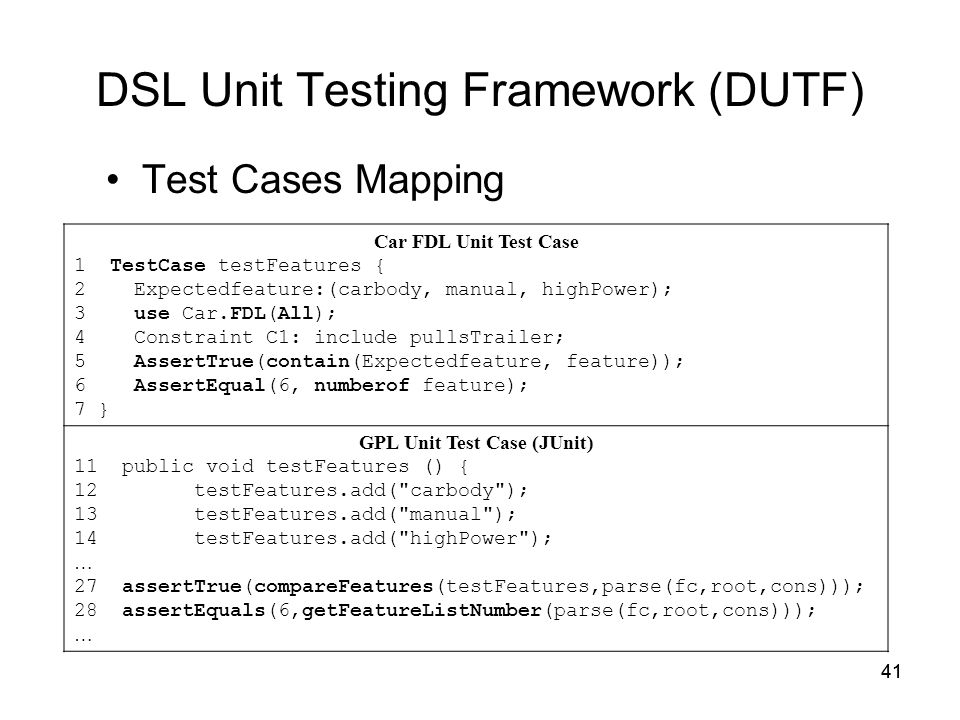

41. 41 DSL Unit Testing Framework (DUTF) Test Cases Mapping Car FDL Unit Test Case 1 TestCase testFeatures { 2 Expectedfeature:(carbody, manual, highPower); 3 use Car.FDL(All); 4 Constraint C1: include pullsTrailer; 5 AssertTrue(contain(Expectedfeature, feature)); 6 AssertEqual(6, numberof feature); 7 } GPL Unit Test Case (JUnit) 11 public void testFeatures () { 12 testFeatures.add("carbody"); 13 testFeatures.add("manual"); 14 testFeatures.add("highPower"); … 27 assertTrue(compareFeatures(testFeatures,parse(fc,root,cons))); 28 assertEquals(6,getFeatureListNumber(parse(fc,root,cons))); …

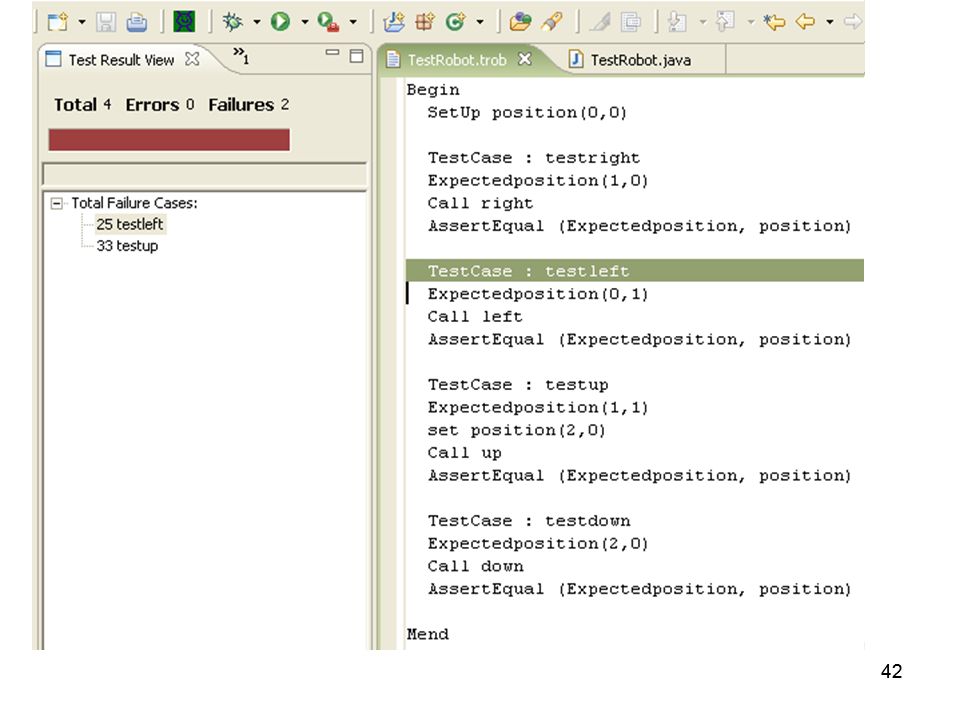

42. 42 DSL Unit Testing Framework (DUTF) Robot Language Unit Test Engine

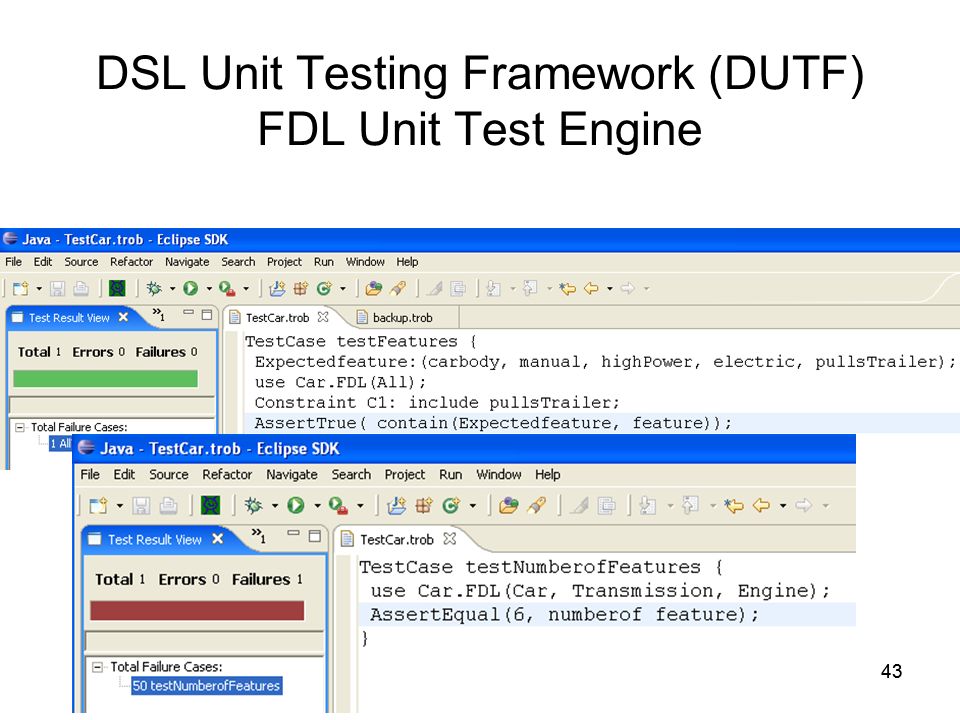

43. 43 DSL Unit Testing Framework (DUTF) FDL Unit Test Engine

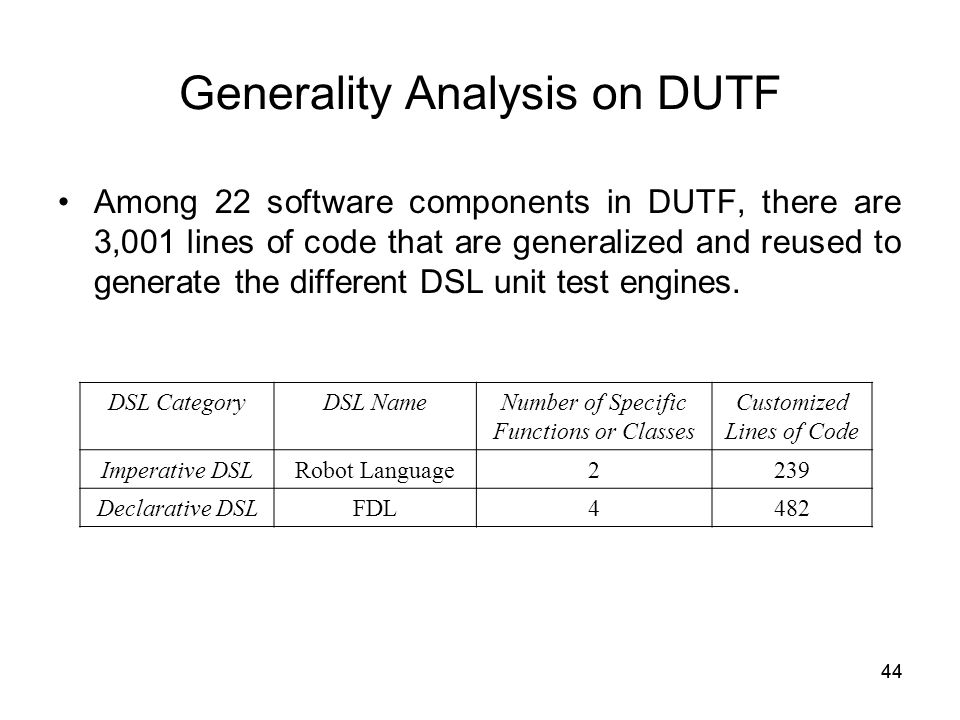

44. 44 Generality Analysis on DUTF Among 22 software components in DUTF, there are 3,001 lines of code that are generalized and reused to generate the different DSL unit test engines. DSL CategoryDSL NameNumber of Specific Functions or Classes Customized Lines of Code Imperative DSLRobot Language2239 Declarative DSLFDL4482

45. 45 JUnit and NUnit Basic Unit Test Actions Comparison Unit Test ActionsJUnit (Java)NUnit (.Net languages) Equality Assertion assertEquals (expected, actual) Assert.AreEqual (expected, actual); Condition Test assertTrue(actual)Assert.IsTrue(actual) assertFalse(actual)Assert.IsFalse(actual) assertNull(actual)Assert.IsNull(actual) Utility Method fail()Assert.Fail() Identity Assert assertSame (expected, actual) Assert.AreSame (expected, actual)

46. 46 Related Works in the Area of Domain-Specific Language Tools ASF+SDF –Generate program analysis and transformation tools, and produce software renovation tools –The unit testing tool support has not been reported JST –Complicated mechanism (e.g., Language extension) –Does not focus on language tools generation LISA –Can generate editor, parser, and visualizer for new languages –Debugger, test engine, and profiler are not the target language tools, LISA can be used as the front-end of our framework SmartTools –Base on Java and XML technologies –Debugger, test engine, and profiler are not target language tools Other Related Testing Tools –Parameterized unit testing –Testing grammar-driven functionality –Generating unit tests using symbolic execution –Generating test inputs of AspectJ programs

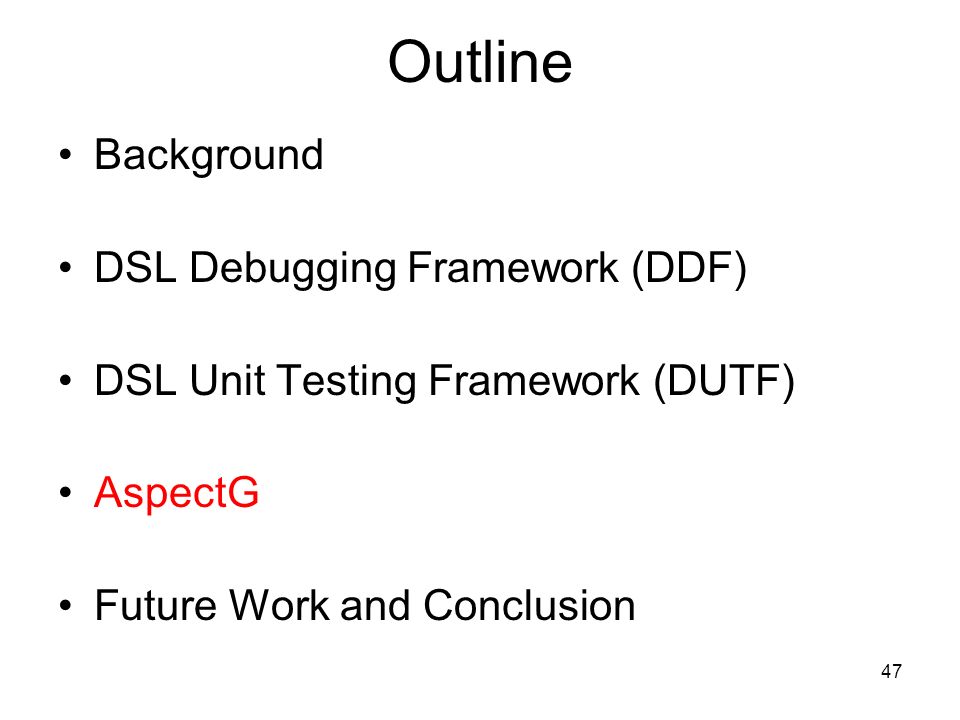

47. 47 Outline Background DSL Debugging Framework (DDF) DSL Unit Testing Framework (DUTF) AspectG Future Work and Conclusion

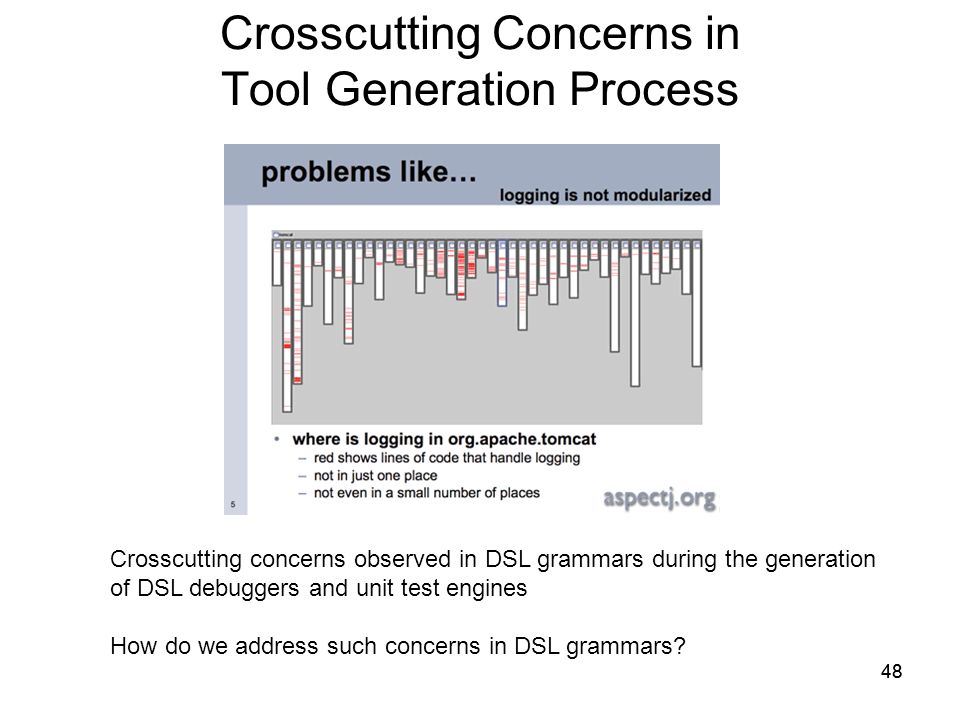

48. 48 Crosscutting Concerns in Tool Generation Process 48 Crosscutting concerns observed in DSL grammars during the generation of DSL debuggers and unit test engines How do we address such concerns in DSL grammars?

49. 49 AspectG Crosscutting concerns emerge in different software artifacts (e.g., model, grammar, and source code) AspectG: A domain-specific aspect language for language grammars written in ANTLR

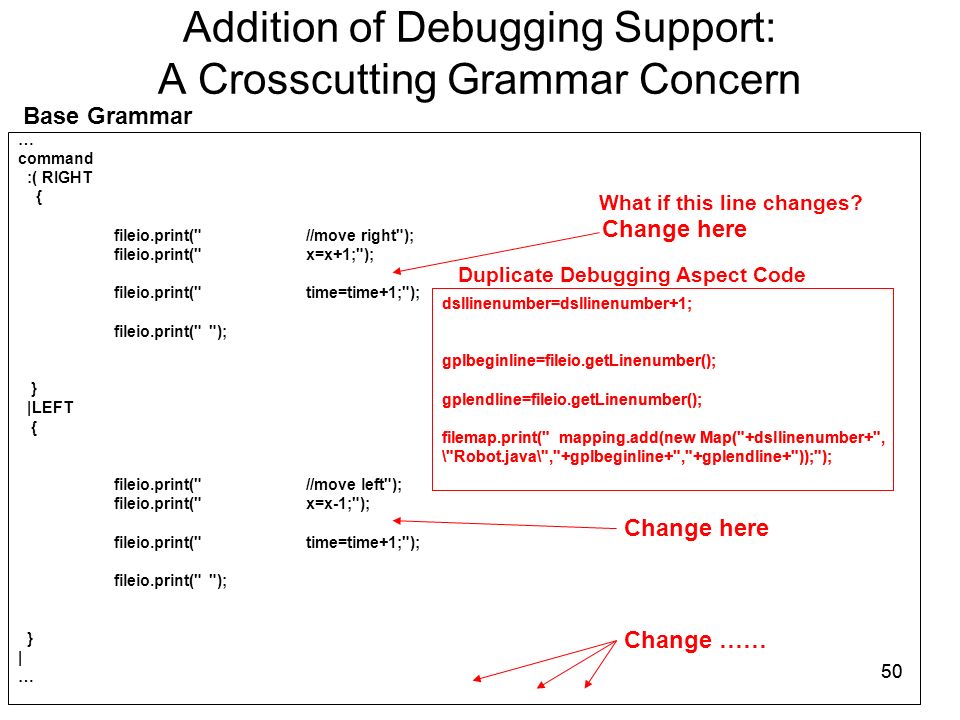

50. 50 dsllinenumber=dsllinenumber+1; gplbeginline=fileio.getLinenumber(); gplendline=fileio.getLinenumber(); filemap.print(" mapping.add(new Map("+dsllinenumber+", \"Robot.java\","+gplbeginline+","+gplendline+"));"); Addition of Debugging Support: A Crosscutting Grammar Concern dsllinenumber=dsllinenumber+1; gplbeginline=fileio.getLinenumber(); gplendline=fileio.getLinenumber(); filemap.print(" mapping.add(new Map("+dsllinenumber+", \"Robot.java\","+gplbeginline+","+gplendline+"));"); … command :( RIGHT { fileio.print("//move right"); fileio.print("x=x+1;"); fileio.print("time=time+1;"); fileio.print(" "); } |LEFT { fileio.print("//move left"); fileio.print("x=x-1;"); fileio.print("time=time+1;"); fileio.print(" "); } | … Base Grammar Duplicate Debugging Aspect Code What if this line changes? Change here Change ……

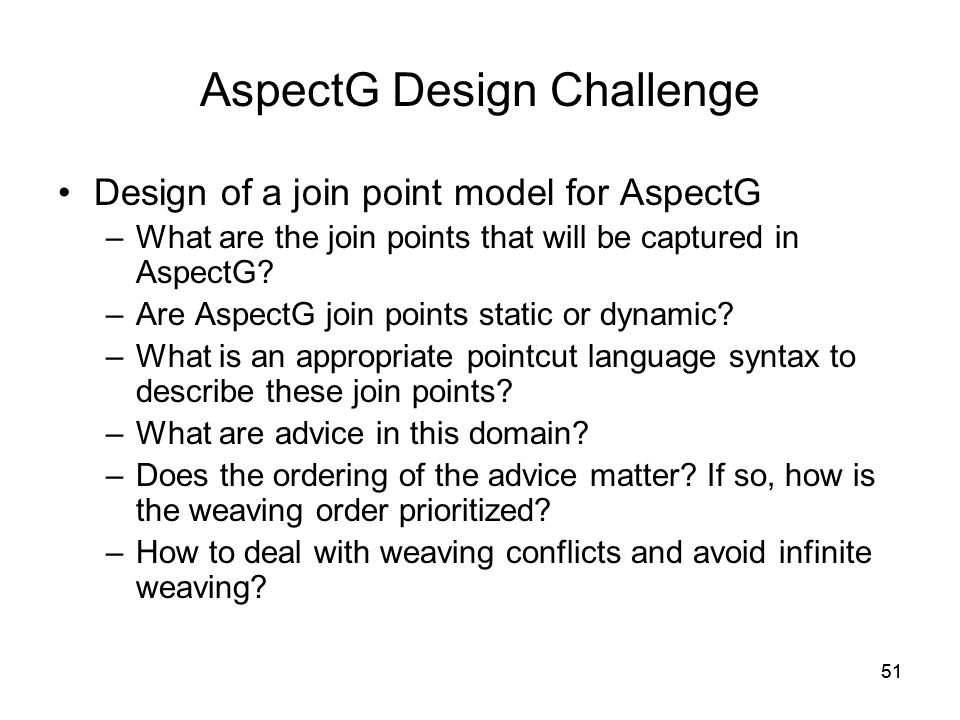

51. 51 AspectG Design Challenge Design of a join point model for AspectG –What are the join points that will be captured in AspectG? –Are AspectG join points static or dynamic? –What is an appropriate pointcut language syntax to describe these join points? –What are advice in this domain? –Does the ordering of the advice matter? If so, how is the weaving order prioritized? –How to deal with weaving conflicts and avoid infinite weaving?

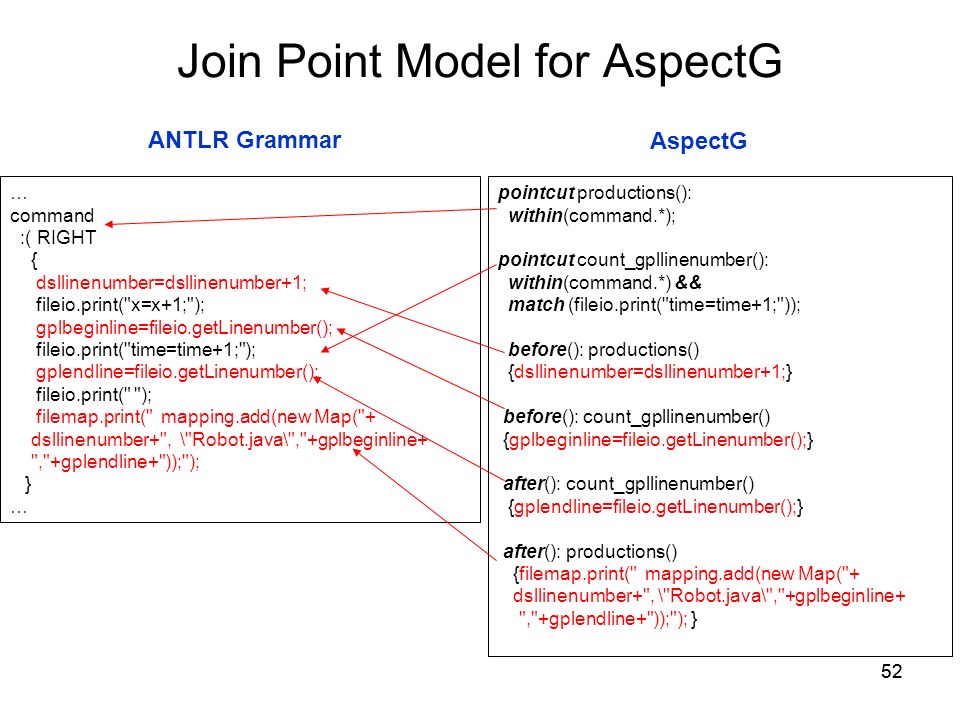

52. 52 pointcut productions(): within(command.*); pointcut count_gpllinenumber(): within(command.*) && match (fileio.print("time=time+1;")); before(): productions() {dsllinenumber=dsllinenumber+1;} before(): count_gpllinenumber() {gplbeginline=fileio.getLinenumber();} after(): count_gpllinenumber() {gplendline=fileio.getLinenumber();} after(): productions() {filemap.print(" mapping.add(new Map("+ dsllinenumber+", \"Robot.java\","+gplbeginline+ ","+gplendline+"));"); } … command :( RIGHT { dsllinenumber=dsllinenumber+1; fileio.print("x=x+1;"); gplbeginline=fileio.getLinenumber(); fileio.print("time=time+1;"); gplendline=fileio.getLinenumber(); fileio.print(" "); filemap.print(" mapping.add(new Map("+ dsllinenumber+", \"Robot.java\","+gplbeginline+ ","+gplendline+"));"); } … Join Point Model for AspectG ANTLR Grammar AspectG

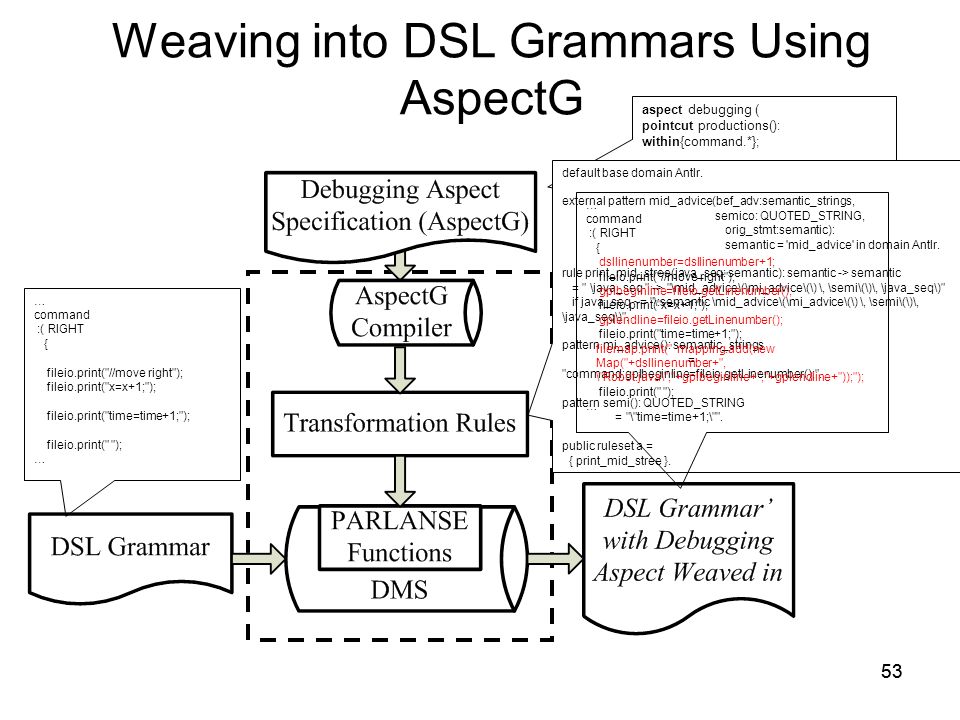

53. 53 Weaving into DSL Grammars Using AspectG aspect debugging ( pointcut productions(): within{command.*}; pointcut count_gpllinenumber(): within {command.*} && match {fileio.print("time=time+1;")}; begin(): productions() { dsllinenumber=dsllinenumber+1;} after(): count_gpllinenumber() {gplbeginline=fileio.getLinenumber(); gplendline=fileio.getLinenumber();} ) default base domain Antlr. external pattern mid_advice(bef_adv:semantic_strings, semico: QUOTED_STRING, orig_stmt:semantic): semantic = 'mid_advice' in domain Antlr. rule print_mid_stree(java_seq: semantic): semantic -> semantic = " \java_seq " -> "\mid_advice\(\mi_advice\(\) \, \semi\(\)\, \java_seq\)" if java_seq ~= "\:semantic \mid_advice\(\mi_advice\(\) \, \semi\(\)\, \java_seq\)". pattern mi_advice(): semantic_strings = "command;gplbeginline=fileio.getLinenumber();". pattern semi(): QUOTED_STRING = "\"time=time+1;\"". public ruleset a = { print_mid_stree }. … command :( RIGHT { fileio.print("//move right"); fileio.print("x=x+1;"); fileio.print("time=time+1;"); fileio.print(" "); … command :( RIGHT { dsllinenumber=dsllinenumber+1; fileio.print("//move right"); gplbeginline=fileio.getLinenumber(); fileio.print("x=x+1;"); gplendline=fileio.getLinenumber(); fileio.print("time=time+1;"); filemap.print(" mapping.add(new Map("+dsllinenumber+", \"Robot.java\","+gplbeginline+","+gplendline+"));"); fileio.print(" "); …

54. 54 Steps to Weave Debugging Aspects into an ANTLR Grammar 1.Specify ANTLR grammar specification 2.Specify Java semantic actions using DMS regular expression 3.Generate ANTLR Parser 4.Generate abstract syntax tree with ANTLR_ACTION nodes 5.Search ANTLR_ACTION nodes from the generated AST 6.Retrieve ANTLR_ACTION nodes and store them in a hash map 7.Retrieve associated string expression from each ANTLR_ACTION node 8.Modify the regular Java parser by changing the starting production 9.Parse the associated string expressions as regular Java statement lists 10.Transform the statement lists using the ASTInterface API 11.Regenerate the ANTLR_ACTION nodes with debugging aspects weaved in 12.Output the complete ANTLR AST (with modified action nodes)

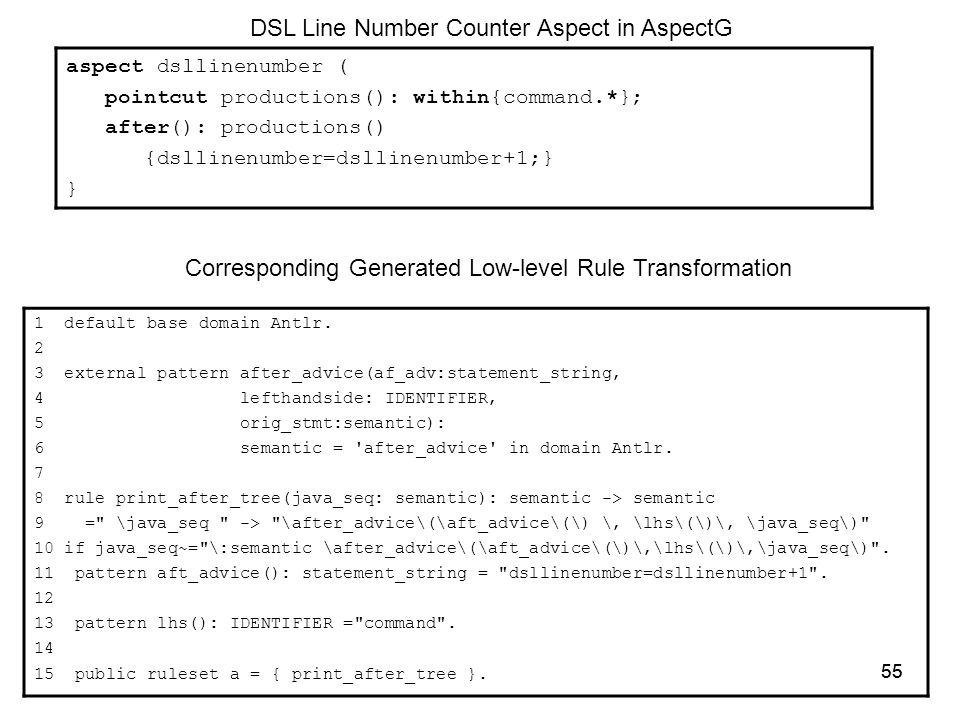

55. 55 aspect dsllinenumber ( pointcut productions(): within{command.*}; after(): productions() {dsllinenumber=dsllinenumber+1;} } 1 default base domain Antlr. 2 3 external pattern after_advice(af_adv:statement_string, 4 lefthandside: IDENTIFIER, 5 orig_stmt:semantic): 6 semantic = 'after_advice' in domain Antlr. 7 8 rule print_after_tree(java_seq: semantic): semantic -> semantic 9 =" \java_seq " -> "\after_advice\(\aft_advice\(\) \, \lhs\(\)\, \java_seq\)" 10 if java_seq~="\:semantic \after_advice\(\aft_advice\(\)\,\lhs\(\)\,\java_seq\)". 11 pattern aft_advice(): statement_string = "dsllinenumber=dsllinenumber+1". 12 13 pattern lhs(): IDENTIFIER ="command". 14 15 public ruleset a = { print_after_tree }. DSL Line Number Counter Aspect in AspectG Corresponding Generated Low-level Rule Transformation

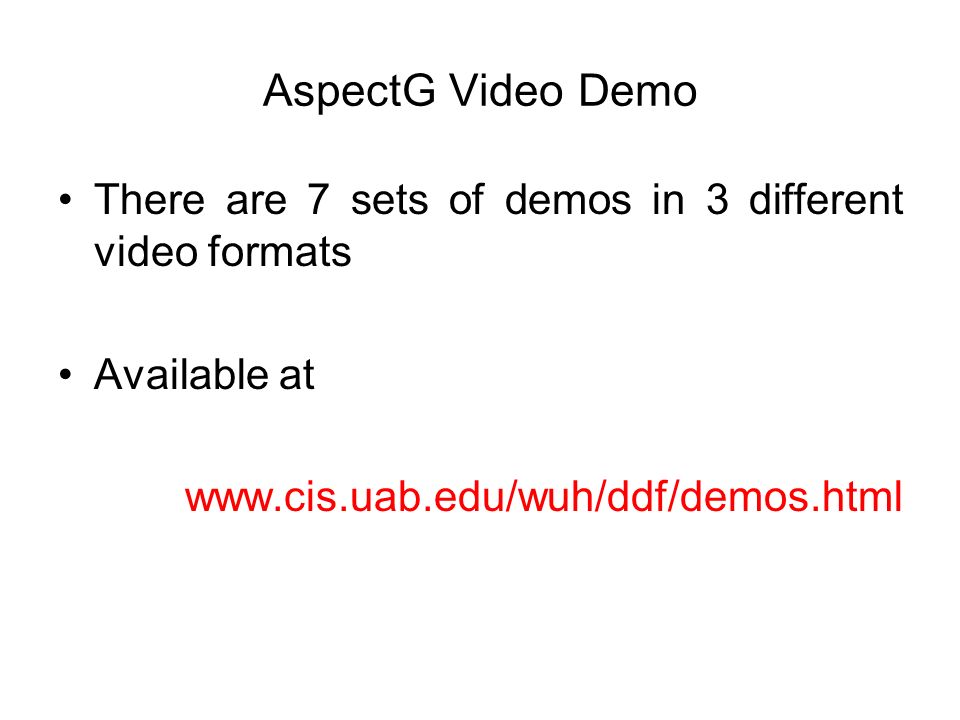

56. AspectG Video Demo There are 7 sets of demos in 3 different video formats Available at www.cis.uab.edu/wuh/ddf/demos.html

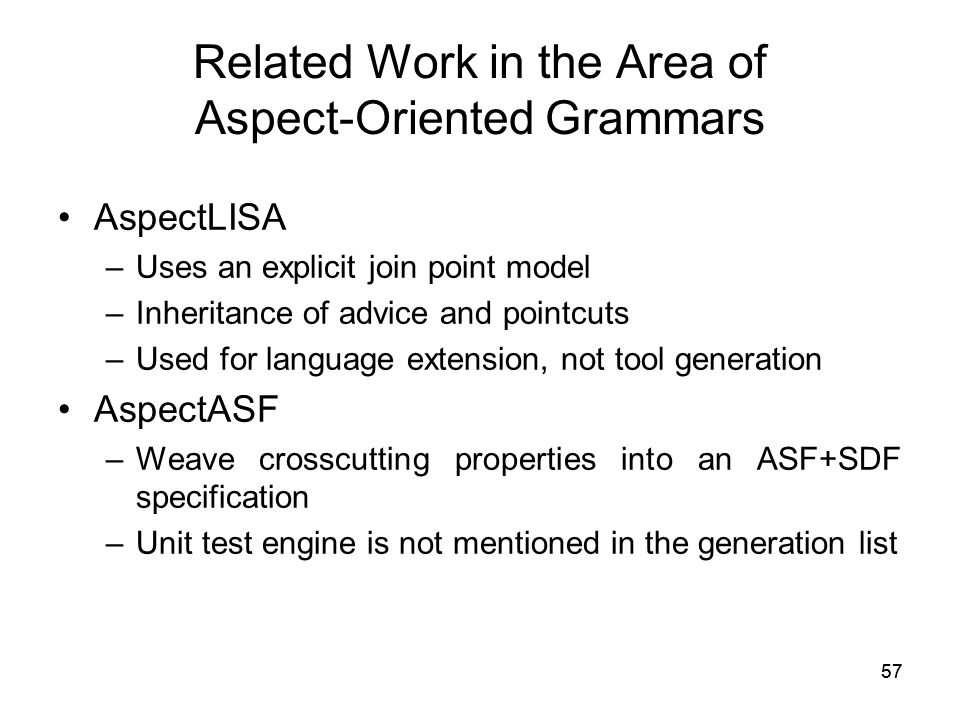

57. 57 Related Work in the Area of Aspect-Oriented Grammars AspectLISA –Uses an explicit join point model –Inheritance of advice and pointcuts –Used for language extension, not tool generation AspectASF –Weave crosscutting properties into an ASF+SDF specification –Unit test engine is not mentioned in the generation list

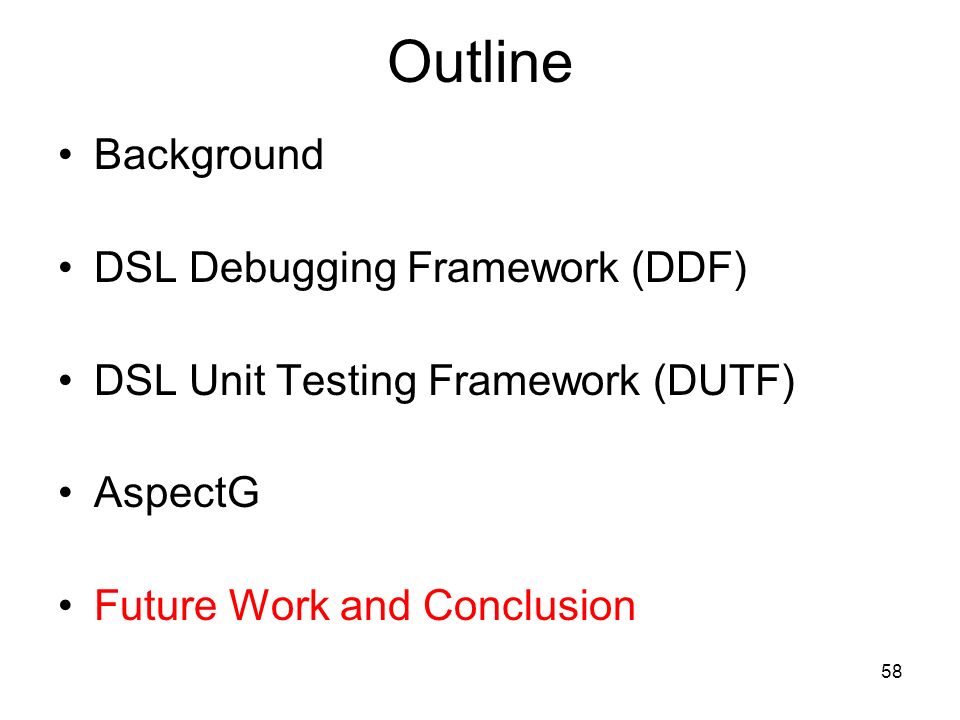

58. 58 Outline Background DSL Debugging Framework (DDF) DSL Unit Testing Framework (DUTF) AspectG Future Work and Conclusion

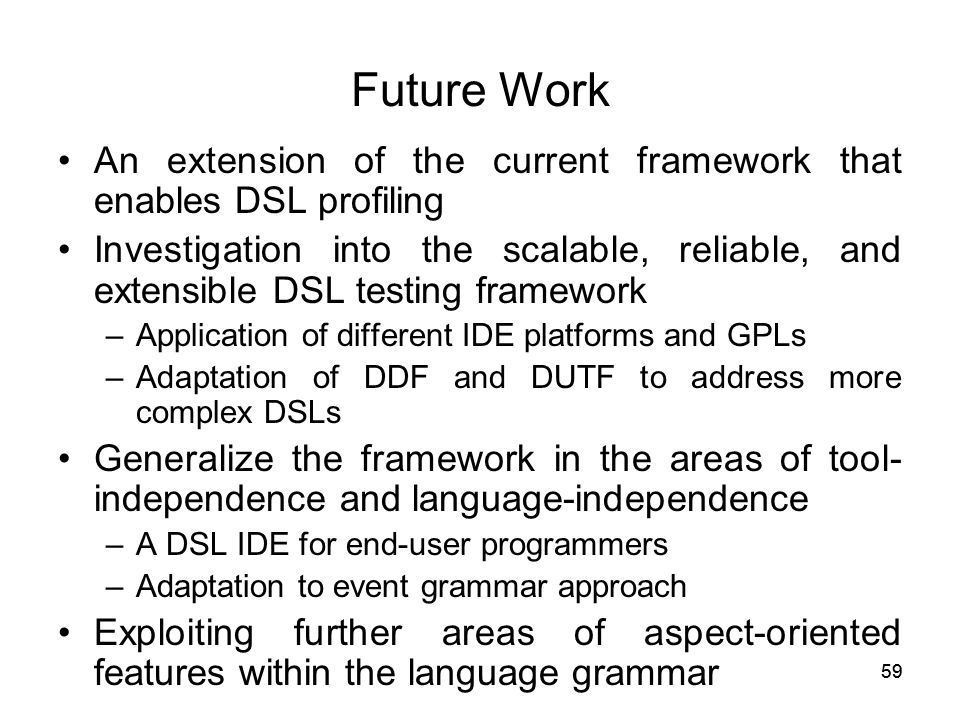

59. 59 Future Work An extension of the current framework that enables DSL profiling Investigation into the scalable, reliable, and extensible DSL testing framework –Application of different IDE platforms and GPLs –Adaptation of DDF and DUTF to address more complex DSLs Generalize the framework in the areas of tool- independence and language-independence –A DSL IDE for end-user programmers –Adaptation to event grammar approach Exploiting further areas of aspect-oriented features within the language grammar

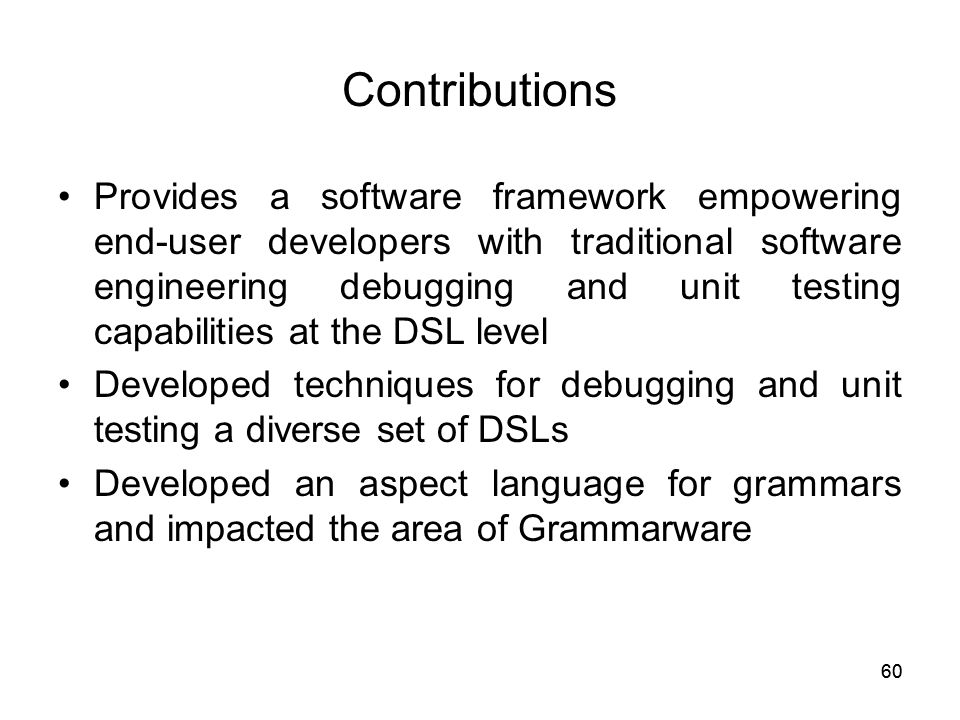

60. 60 Contributions Provides a software framework empowering end-user developers with traditional software engineering debugging and unit testing capabilities at the DSL level Developed techniques for debugging and unit testing a diverse set of DSLs Developed an aspect language for grammars and impacted the area of Grammarware

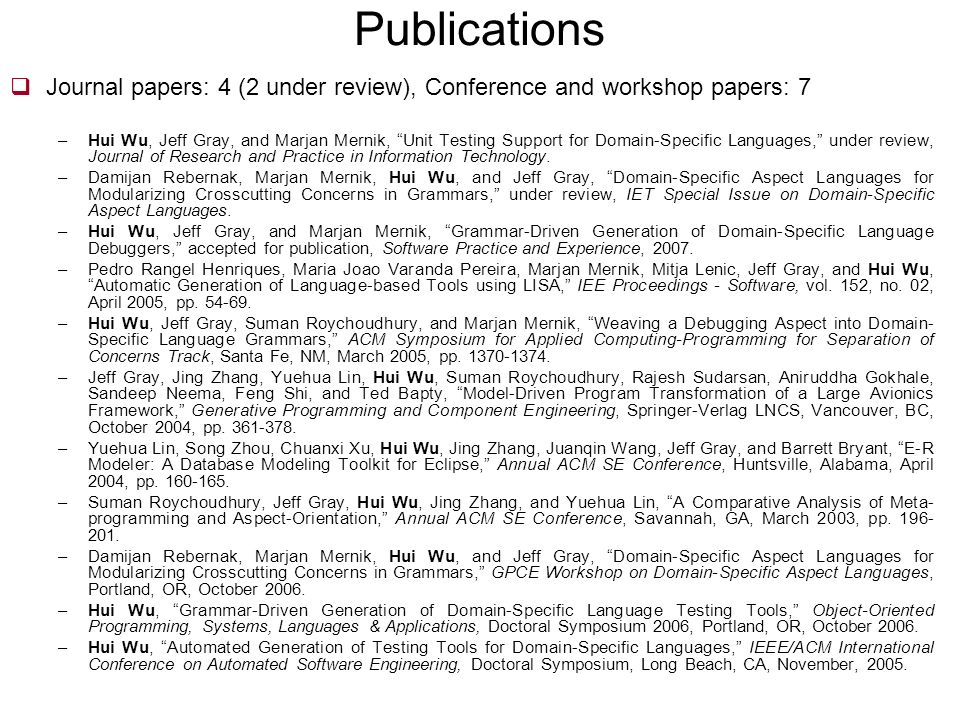

61. Publications  Journal papers: 4 (2 under review), Conference and workshop papers: 7 –Hui Wu, Jeff Gray, and Marjan Mernik, “Unit Testing Support for Domain-Specific Languages,” under review, Journal of Research and Practice in Information Technology. –Damijan Rebernak, Marjan Mernik, Hui Wu, and Jeff Gray, “Domain-Specific Aspect Languages for Modularizing Crosscutting Concerns in Grammars,” under review, IET Special Issue on Domain-Specific Aspect Languages. –Hui Wu, Jeff Gray, and Marjan Mernik, “Grammar-Driven Generation of Domain-Specific Language Debuggers,” accepted for publication, Software Practice and Experience, 2007. –Pedro Rangel Henriques, Maria Joao Varanda Pereira, Marjan Mernik, Mitja Lenic, Jeff Gray, and Hui Wu, “Automatic Generation of Language-based Tools using LISA,” IEE Proceedings - Software, vol. 152, no. 02, April 2005, pp. 54-69. –Hui Wu, Jeff Gray, Suman Roychoudhury, and Marjan Mernik, “Weaving a Debugging Aspect into Domain- Specific Language Grammars,” ACM Symposium for Applied Computing-Programming for Separation of Concerns Track, Santa Fe, NM, March 2005, pp. 1370-1374. –Jeff Gray, Jing Zhang, Yuehua Lin, Hui Wu, Suman Roychoudhury, Rajesh Sudarsan, Aniruddha Gokhale, Sandeep Neema, Feng Shi, and Ted Bapty, “Model-Driven Program Transformation of a Large Avionics Framework,” Generative Programming and Component Engineering, Springer-Verlag LNCS, Vancouver, BC, October 2004, pp. 361-378. –Yuehua Lin, Song Zhou, Chuanxi Xu, Hui Wu, Jing Zhang, Juanqin Wang, Jeff Gray, and Barrett Bryant, “E-R Modeler: A Database Modeling Toolkit for Eclipse,” Annual ACM SE Conference, Huntsville, Alabama, April 2004, pp. 160-165. –Suman Roychoudhury, Jeff Gray, Hui Wu, Jing Zhang, and Yuehua Lin, “A Comparative Analysis of Meta- programming and Aspect-Orientation,” Annual ACM SE Conference, Savannah, GA, March 2003, pp. 196- 201. –Damijan Rebernak, Marjan Mernik, Hui Wu, and Jeff Gray, “Domain-Specific Aspect Languages for Modularizing Crosscutting Concerns in Grammars,” GPCE Workshop on Domain-Specific Aspect Languages, Portland, OR, October 2006. –Hui Wu, “Grammar-Driven Generation of Domain-Specific Language Testing Tools,” Object-Oriented Programming, Systems, Languages & Applications, Doctoral Symposium 2006, Portland, OR, October 2006. –Hui Wu, “Automated Generation of Testing Tools for Domain-Specific Languages,” IEEE/ACM International Conference on Automated Software Engineering, Doctoral Symposium, Long Beach, CA, November, 2005.

62. 62 Questions? Video demonstrations and papers available at: http://www.cis.uab.edu/wuh/ddf Acknowledgement: The work presented in this dissertation was supported in part by the IBM Innovation Grant.

63. 63 Backup Slides

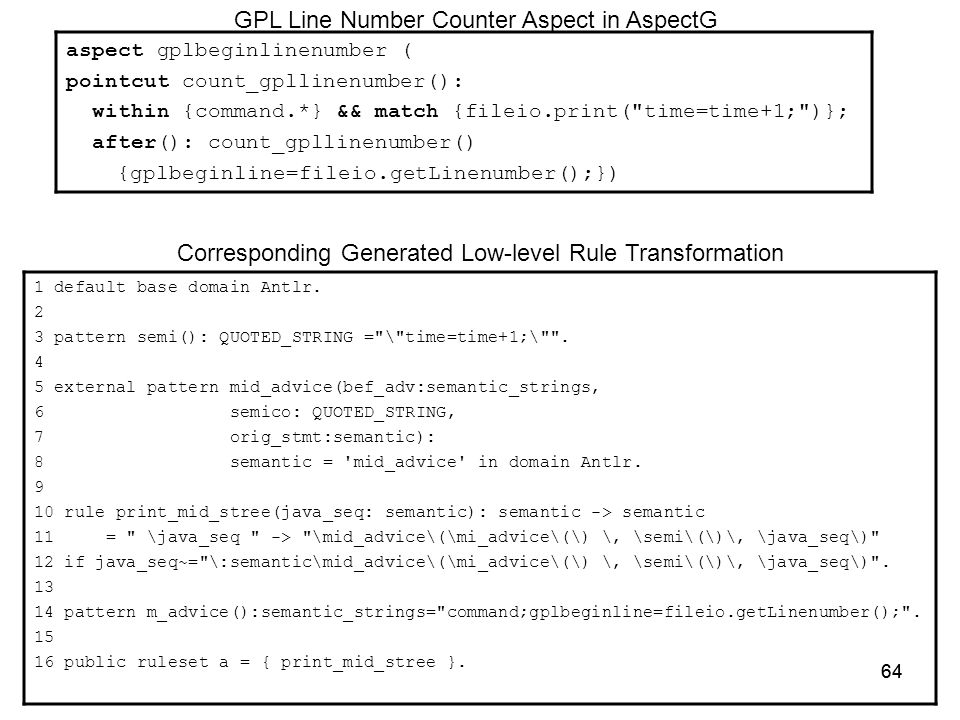

64. 64 aspect gplbeginlinenumber ( pointcut count_gpllinenumber(): within {command.*} && match {fileio.print("time=time+1;")}; after(): count_gpllinenumber() {gplbeginline=fileio.getLinenumber();}) 1 default base domain Antlr. 2 3 pattern semi(): QUOTED_STRING ="\"time=time+1;\"". 4 5 external pattern mid_advice(bef_adv:semantic_strings, 6 semico: QUOTED_STRING, 7 orig_stmt:semantic): 8 semantic = 'mid_advice' in domain Antlr. 9 10 rule print_mid_stree(java_seq: semantic): semantic -> semantic 11 = " \java_seq " -> "\mid_advice\(\mi_advice\(\) \, \semi\(\)\, \java_seq\)" 12 if java_seq~="\:semantic\mid_advice\(\mi_advice\(\) \, \semi\(\)\, \java_seq\)". 13 14 pattern m_advice():semantic_strings="command;gplbeginline=fileio.getLinenumber();". 15 16 public ruleset a = { print_mid_stree }. GPL Line Number Counter Aspect in AspectG Corresponding Generated Low-level Rule Transformation
