 # Geometry Notes Lesson 5.1B Pythagorean Theorem T.2.G.4 Apply the Pythagorean Theorem and its converse in solving practical problems.

## Presentation on theme: "Geometry Notes Lesson 5.1B Pythagorean Theorem T.2.G.4 Apply the Pythagorean Theorem and its converse in solving practical problems."— Presentation transcript:

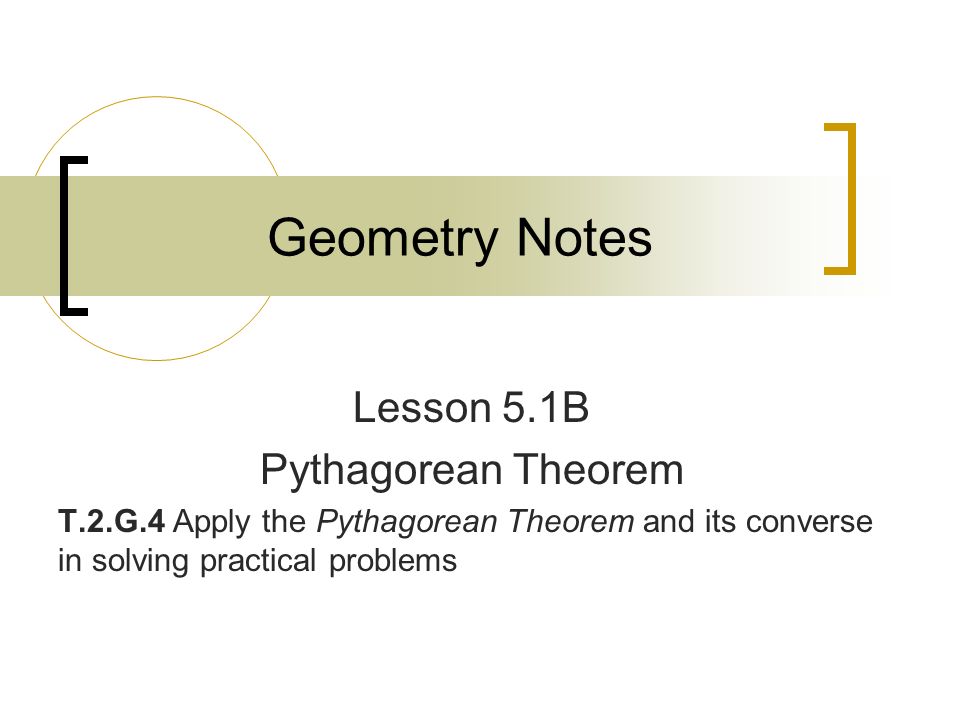

Geometry Notes Lesson 5.1B Pythagorean Theorem T.2.G.4 Apply the Pythagorean Theorem and its converse in solving practical problems

Pythagorean Theorem In a right triangle, the sum of the squares of the legs is equal to the square of the hypotenuse. a (leg) b (leg) c (hypotenuse)

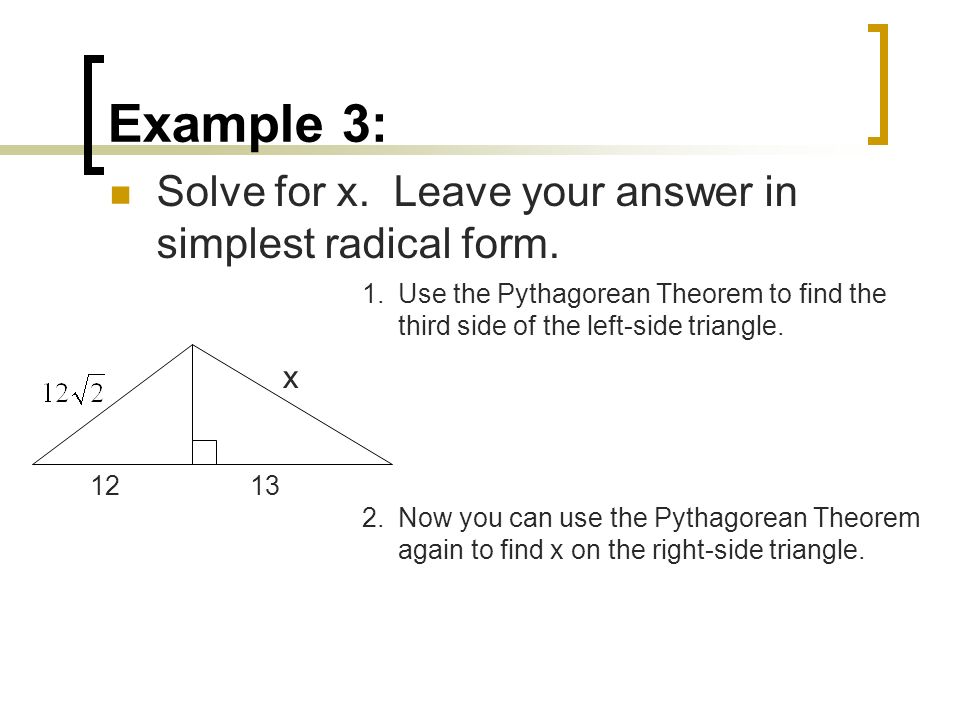

Example 3: Solve for x. Leave your answer in simplest radical form. x 1213 1.Use the Pythagorean Theorem to find the third side of the left-side triangle. 2.Now you can use the Pythagorean Theorem again to find x on the right-side triangle.

Converse of the Pythagorean Theorem If the square of one side of a triangle is equal to the sum of the squares of the other two sides, then the triangle is a right triangle.

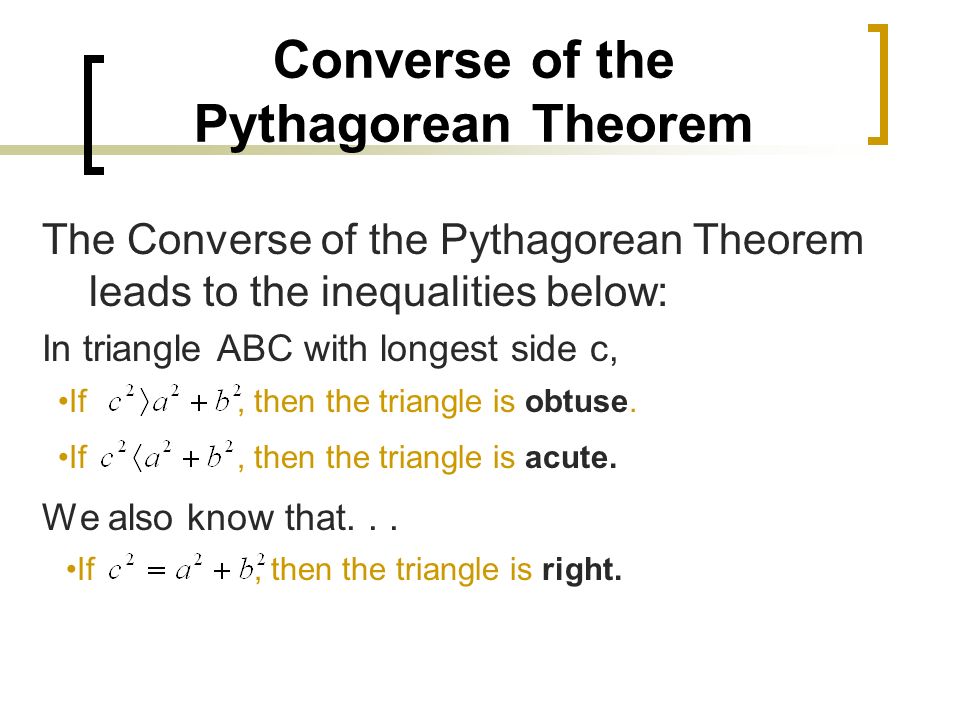

Converse of the Pythagorean Theorem The Converse of the Pythagorean Theorem leads to the inequalities below: In triangle ABC with longest side c, We also know that... If, then the triangle is obtuse. If, then the triangle is acute. If, then the triangle is right.

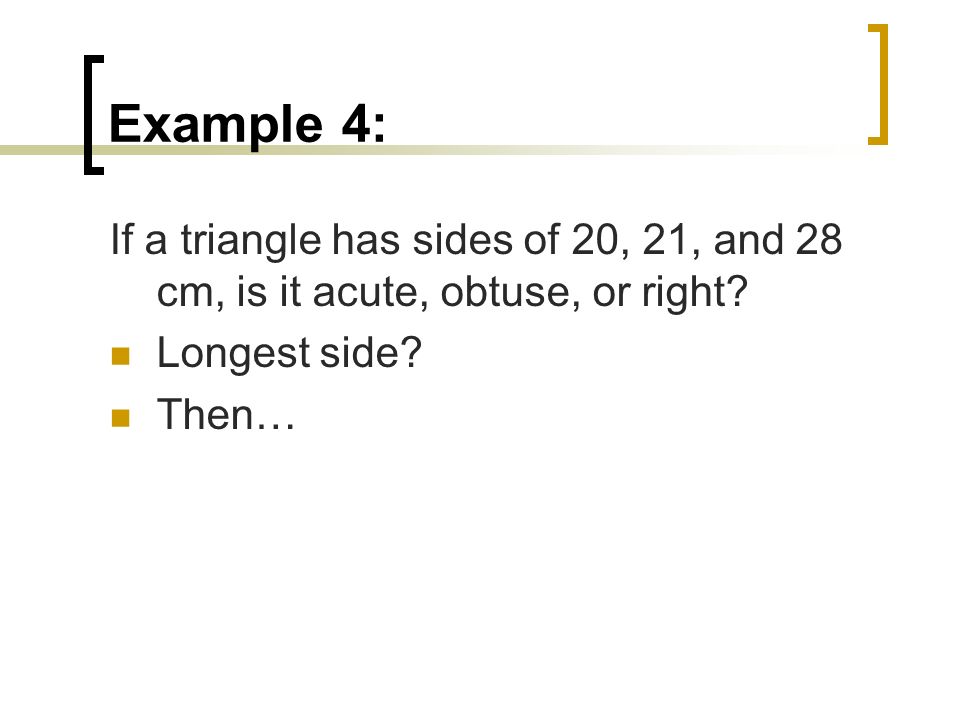

Example 4: If a triangle has sides of 20, 21, and 28 cm, is it acute, obtuse, or right? Longest side? Then…

Problem Solving with the Pythagorean Theorem A 15 foot ladder is leaning against a building. The base of the ladder is 5 feet from the building. To the nearest foot, how high up the building does the ladder reach? 1. Draw a picture and label the sides of the right triangle. 2. Use the Pythagorean Theorem to find the missing side.

Download ppt "Geometry Notes Lesson 5.1B Pythagorean Theorem T.2.G.4 Apply the Pythagorean Theorem and its converse in solving practical problems."
