2.8 – Circles. TermPictureFormula Circumference r = radius d = diameter.

Similar presentations


Presentation on theme: "2.8 – Circles. TermPictureFormula Circumference r = radius d = diameter."— Presentation transcript:

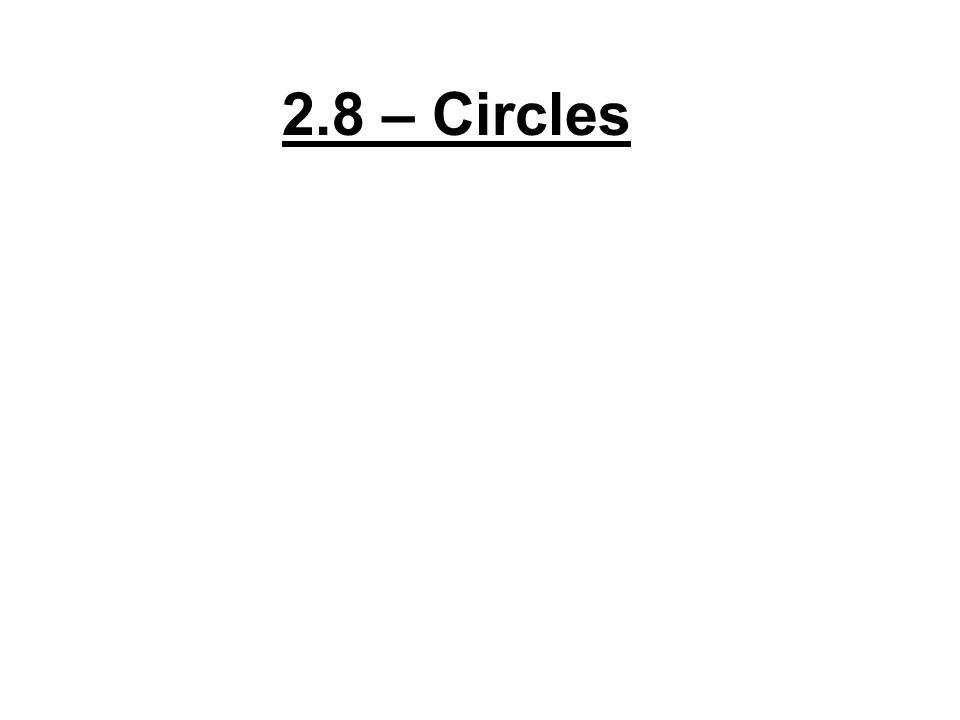

1 2.8 – Circles

2 TermPictureFormula Circumference r = radius d = diameter

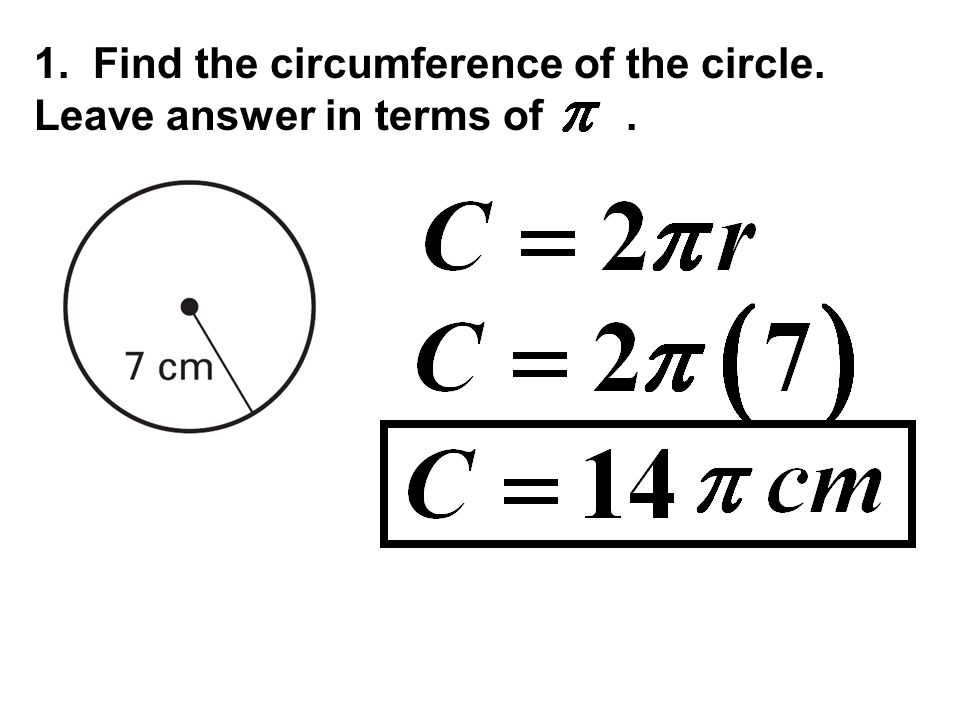

3 1. Find the circumference of the circle. Leave answer in terms of.

4 12 in

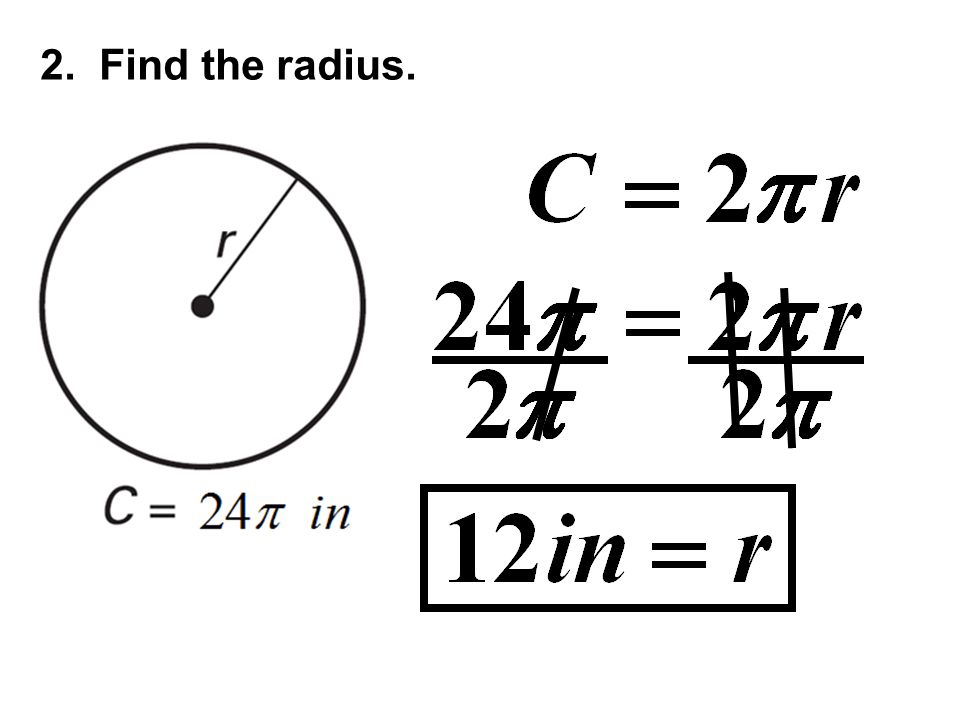

5 2. Find the radius.

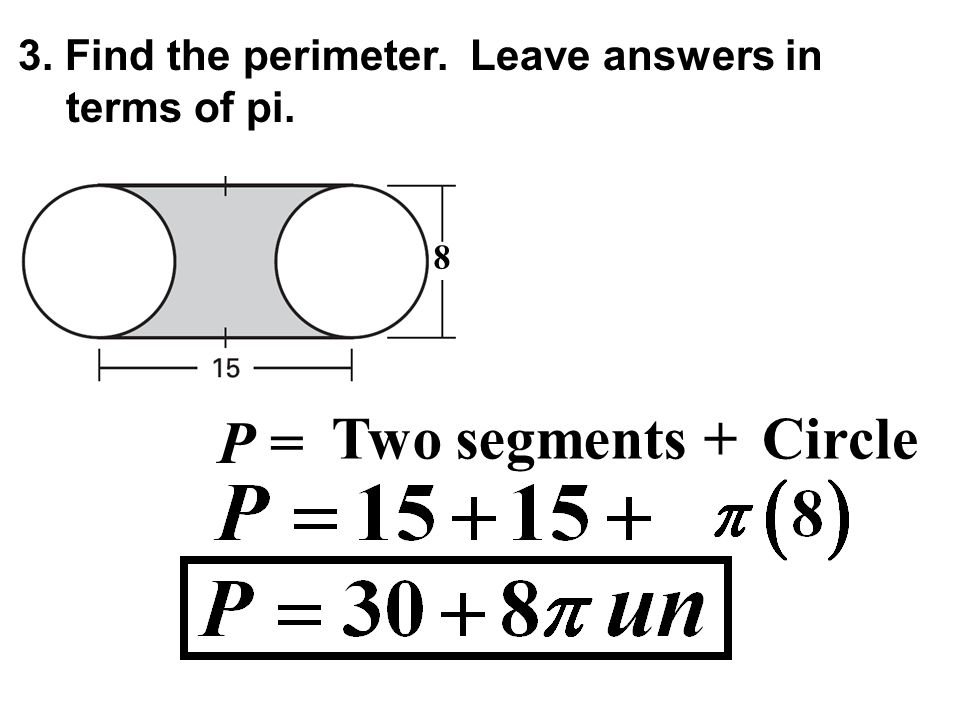

6 3. Find the perimeter. Leave answers in terms of pi. 8 P = CircleTwo segments +

7 4. A bike wheel has a diameter of 16 inches. If the wheel revolves 7 times, how far does the bike move? 16in x 7 times

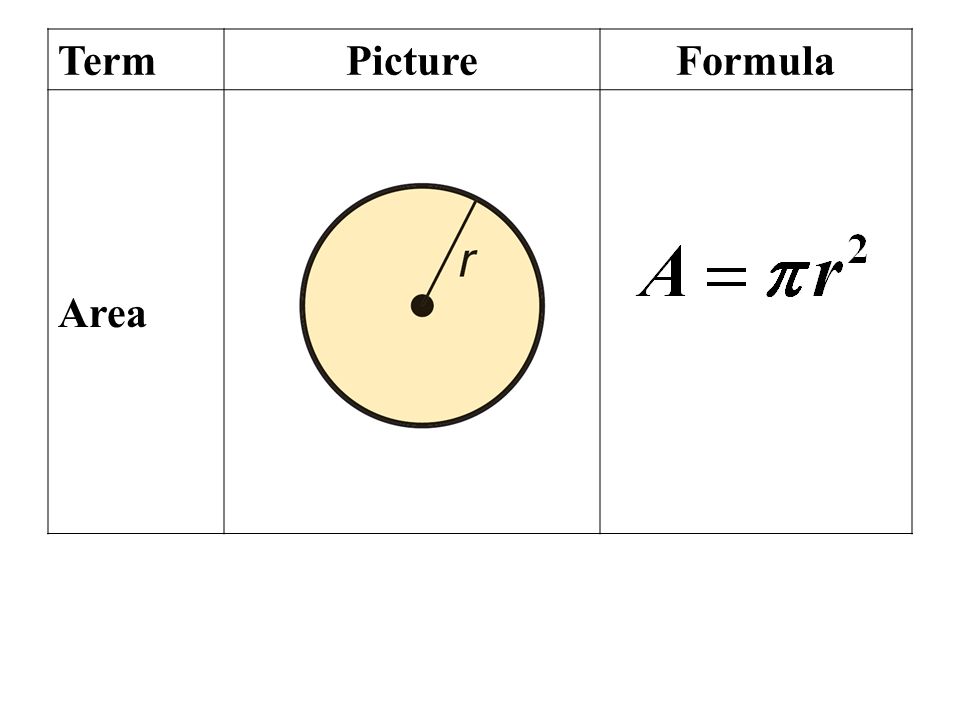

8 TermPictureFormula Area

9 4. Find the area of the circle.

10 5. Find the area of the circle. 77

11 6. Find the area of the shaded figure.

12 8

13

14 8. You want to design a new backyard for your family. The design is a rectangle with a semicircle on one end. a. Find the area of the backyard. Show all work.

15

16 b. The backyard needs to be covered with grass. If the grass costs $3 per square foot, how much will it cost? x $3
