Presentation on theme: "KinectFusion : Real-Time Dense Surface Mapping and Tracking IEEE International Symposium on Mixed and Augmented Reality 2011 Science and Technology Proceedings."— Presentation transcript:
KinectFusion : Real-Time Dense Surface Mapping and Tracking IEEE International Symposium on Mixed and Augmented Reality 2011 Science and Technology Proceedings (Best paper reward)

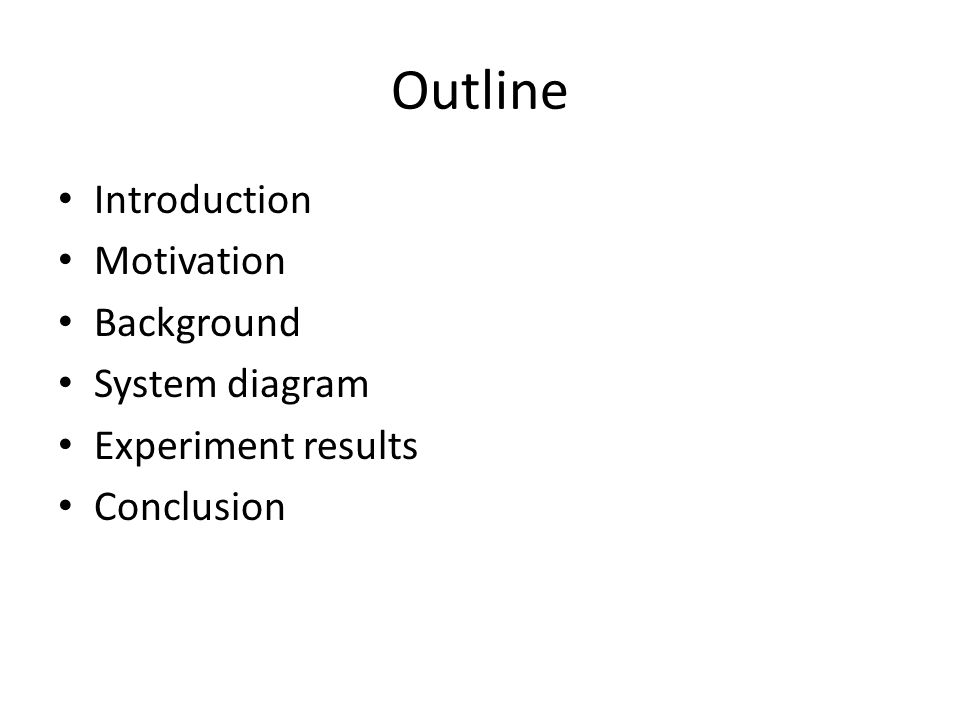

Outline Introduction Motivation Background System diagram Experiment results Conclusion

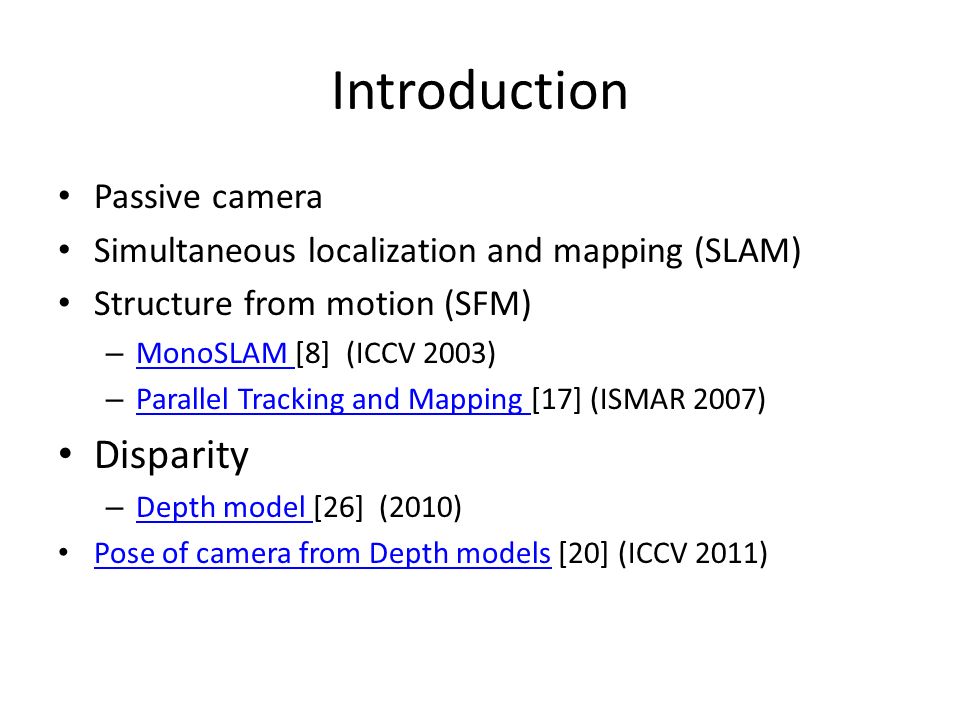

Introduction Passive camera Simultaneous localization and mapping (SLAM) Structure from motion (SFM) – MonoSLAM (ICCV 2003) MonoSLAM – Parallel Tracking and Mapping  (ISMAR 2007) Parallel Tracking and Mapping Disparity – Depth model  (2010) Depth model Pose of camera from Depth models  (ICCV 2011) Pose of camera from Depth models

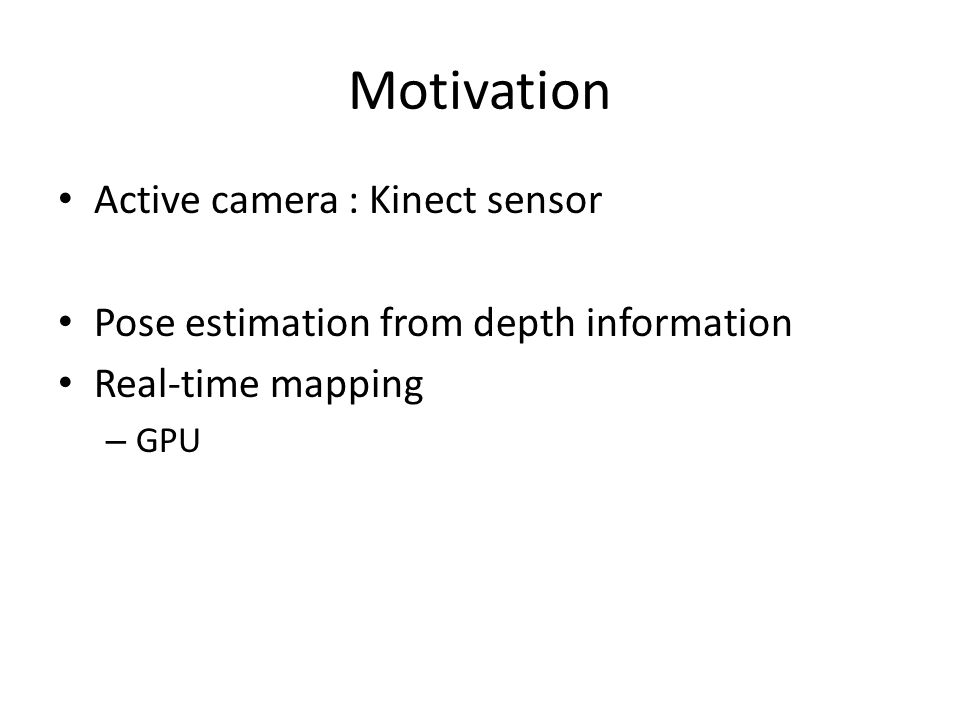

Motivation Active camera : Kinect sensor Pose estimation from depth information Real-time mapping – GPU
Background- Camera sensor Kinect Sensor – Infra-red light Input Information – RGB image(1) – Raw depth data – Calibrated depth image(2) (1)(2)
Background – Pose estimation Depth maps from two views Iterative closest points (ICP)  Point-plane metric  ICP

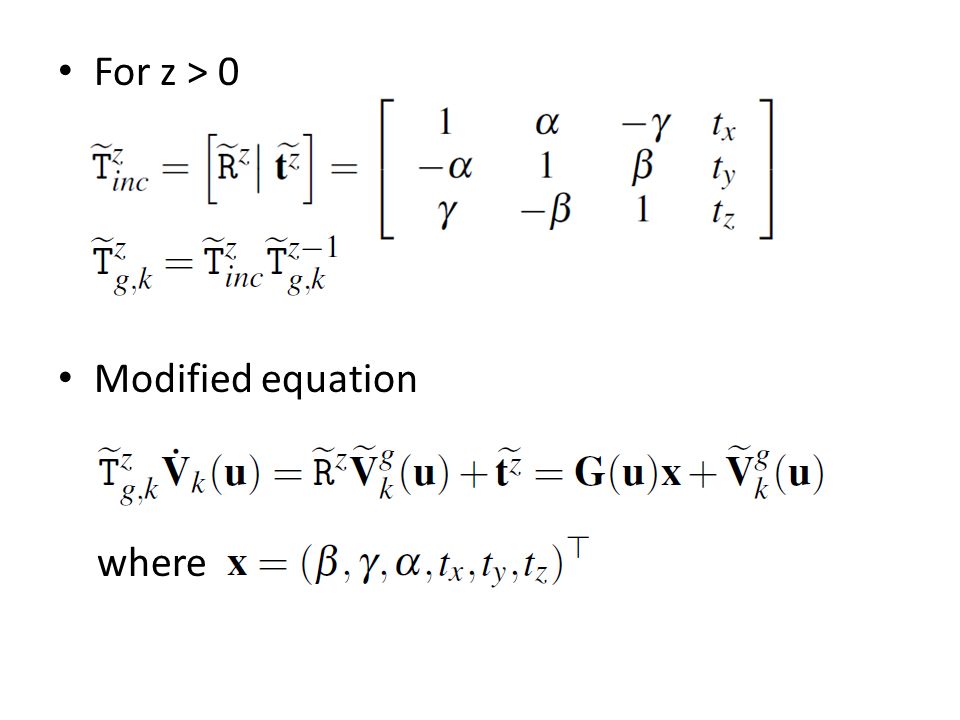

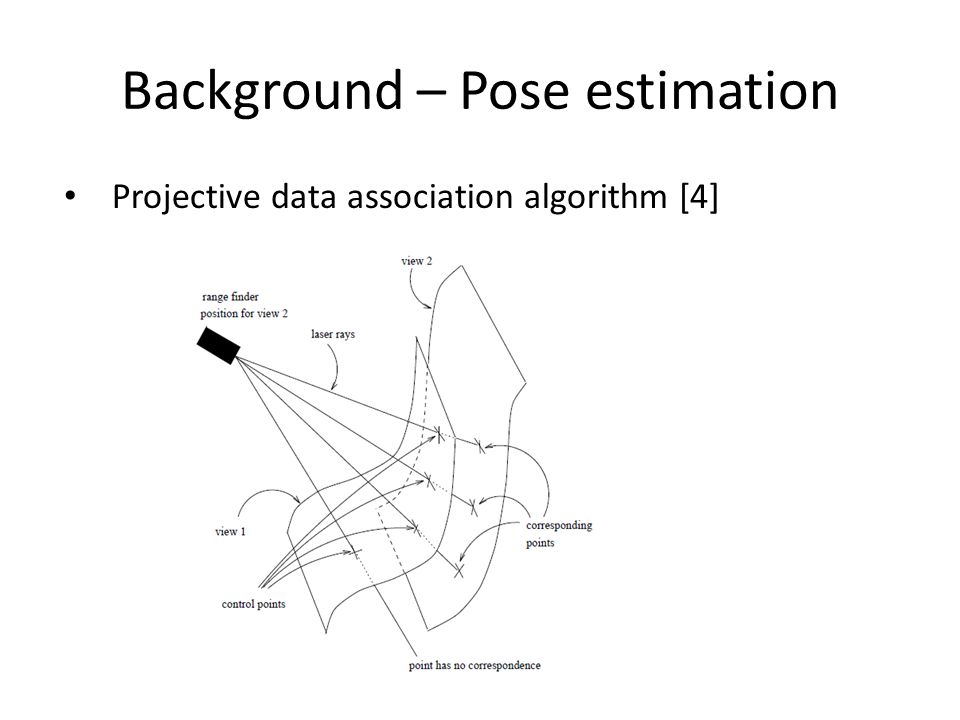

Background – Pose estimation Projective data association algorithm

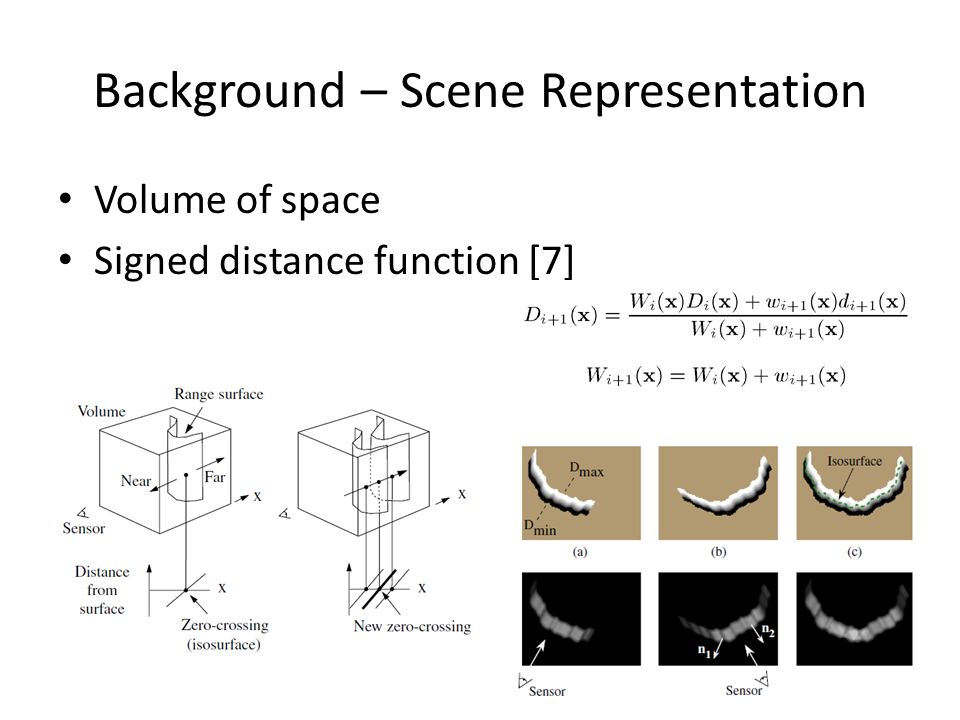

Background – Scene Representation Volume of space Signed distance function

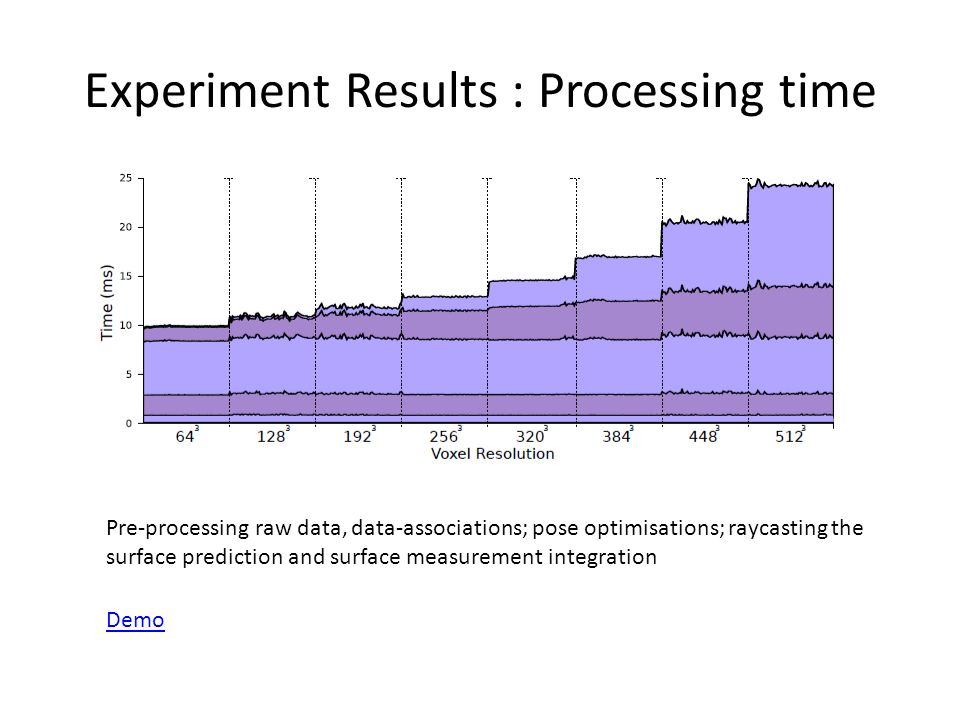

Experiment Results : Processing time Pre-processing raw data, data-associations; pose optimisations; raycasting the surface prediction and surface measurement integration Demo
Conclusion Robust tracking of camera pose by all aligning all depth points Parallel algorithms for both tracking and mapping
Reference  A. J. Davison. Real-time simultaneous localization and mapping with a single camera. In Proceedings of the International Conference on Computer Vision (ICCV), 2003.  G. Klein and D. W. Murray. Parallel tracking and mapping for small AR workspaces. In Proceedings of the International Symposium on Mixed and Augmented Reality (ISMAR), 2007.  J. Stuehmer, S. Gumhold, and D. Cremers. Real-time dense geometry from a handheld camera. In Proceedings of the DAGM Symposium on Pattern Recognition, 2010.

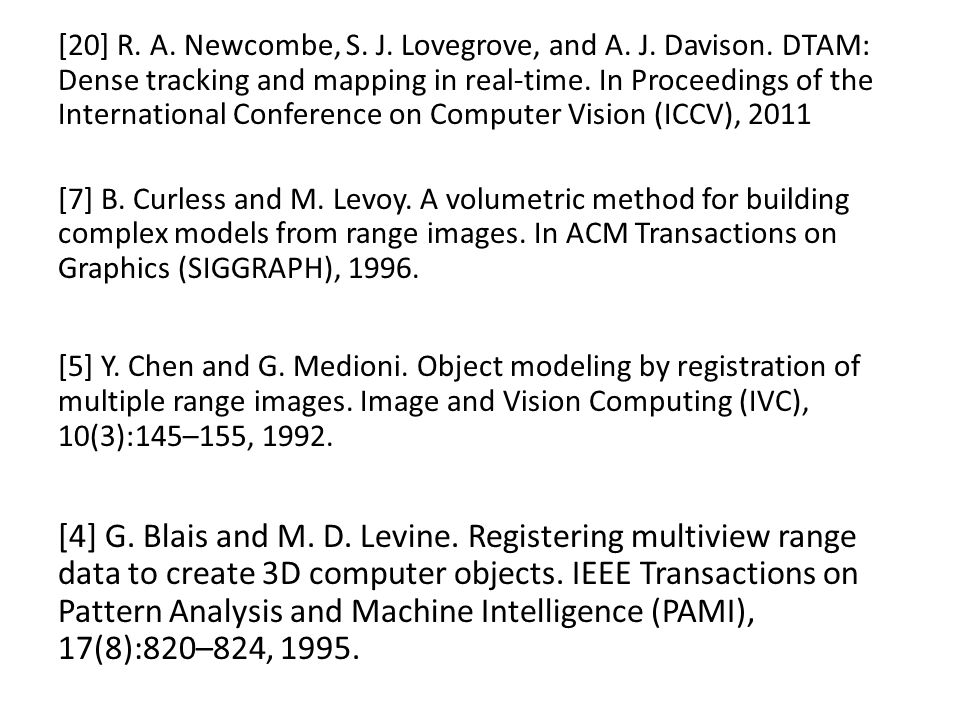

 R. A. Newcombe, S. J. Lovegrove, and A. J. Davison. DTAM: Dense tracking and mapping in real-time. In Proceedings of the International Conference on Computer Vision (ICCV), 2011  B. Curless and M. Levoy. A volumetric method for building complex models from range images. In ACM Transactions on Graphics (SIGGRAPH), 1996.  Y. Chen and G. Medioni. Object modeling by registration of multiple range images. Image and Vision Computing (IVC), 10(3):145–155, 1992.  G. Blais and M. D. Levine. Registering multiview range data to create 3D computer objects. IEEE Transactions on Pattern Analysis and Machine Intelligence (PAMI), 17(8):820–824, 1995.
