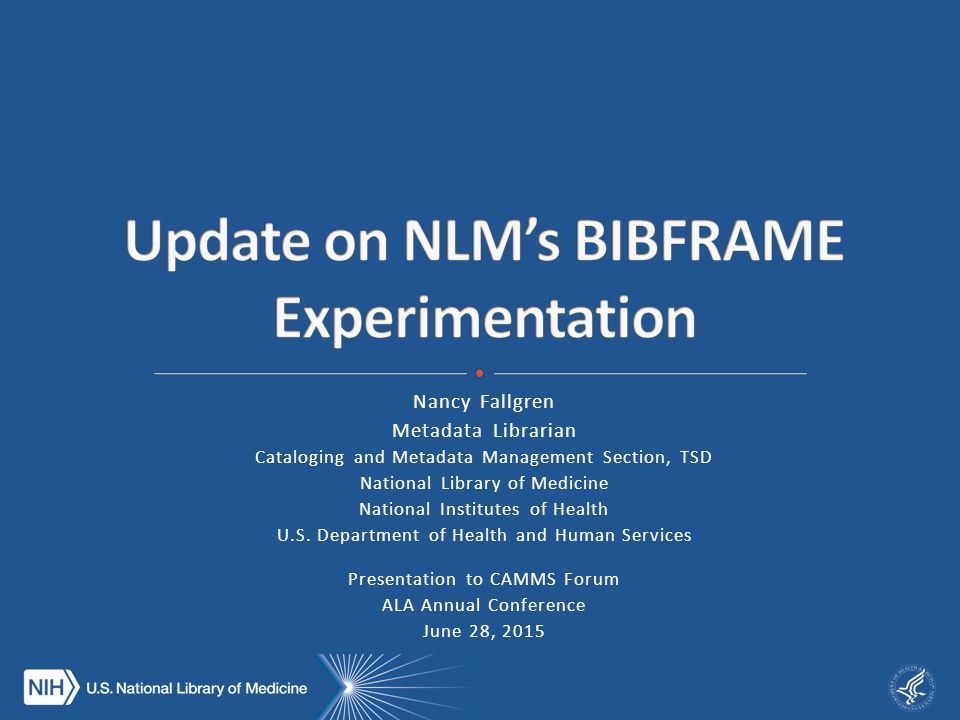

1. Nancy Fallgren Metadata Librarian Cataloging and Metadata Management Section, TSD National Library of Medicine National Institutes of Health U.S. Department of Health and Human Services Presentation to CAMMS Forum ALA Annual Conference June 28, 2015

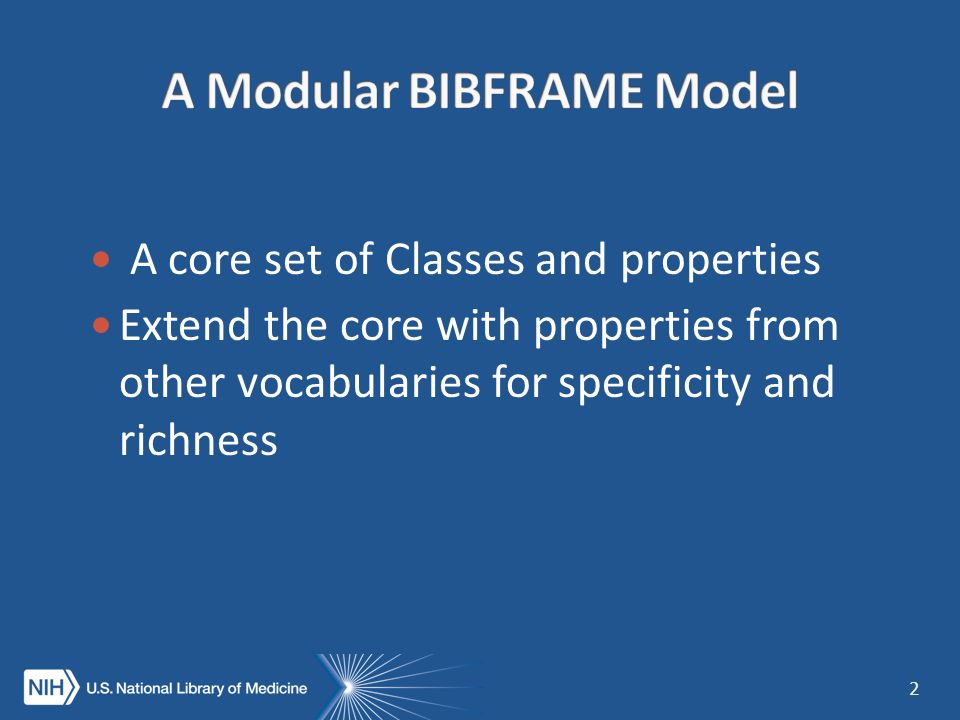

2. A core set of Classes and properties Extend the core with properties from other vocabularies for specificity and richness 2

3. 3

4. BF Lite http://bibfra.me 4

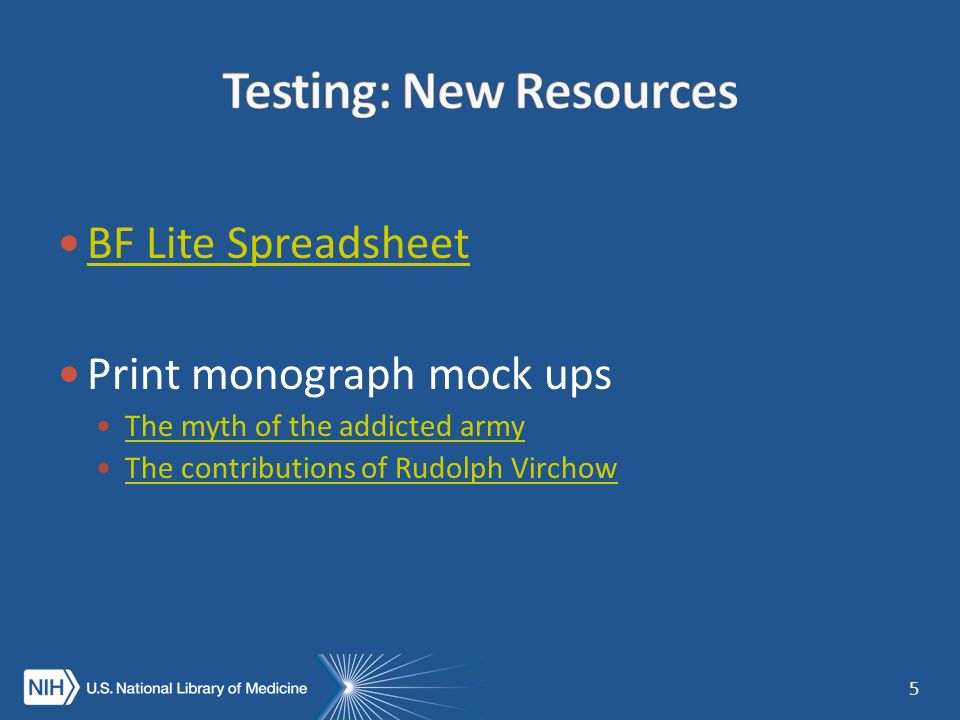

5. BF Lite Spreadsheet Print monograph mock ups The myth of the addicted army The contributions of Rudolph Virchow 5

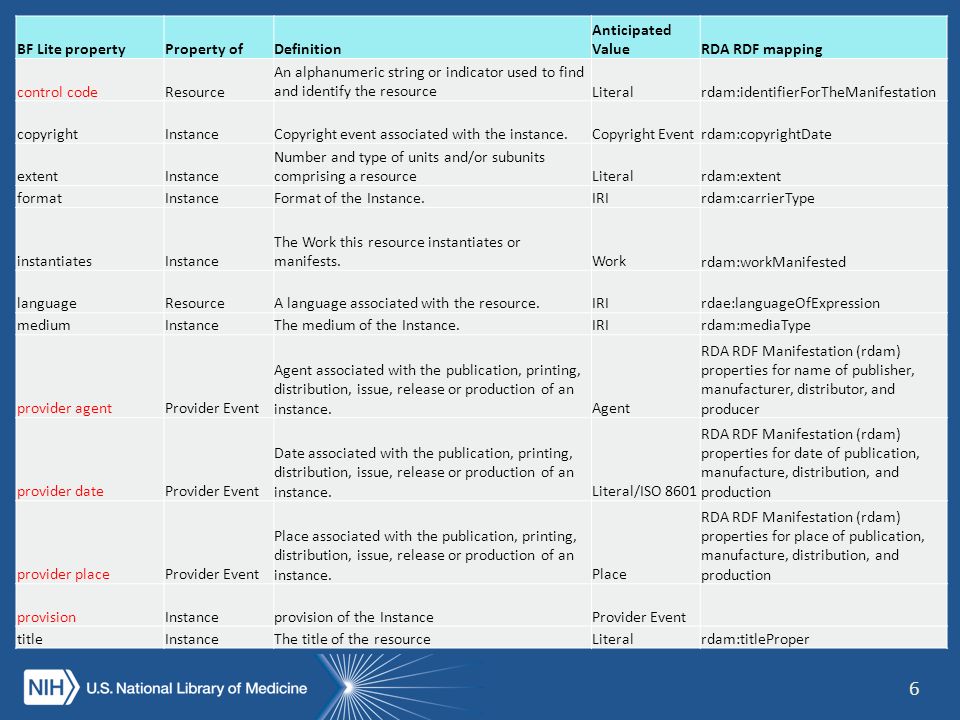

6. 6 BF Lite propertyProperty ofDefinition Anticipated ValueRDA RDF mapping control codeResource An alphanumeric string or indicator used to find and identify the resourceLiteralrdam:identifierForTheManifestation copyrightInstanceCopyright event associated with the instance.Copyright Eventrdam:copyrightDate extentInstance Number and type of units and/or subunits comprising a resourceLiteralrdam:extent formatInstanceFormat of the Instance.IRIrdam:carrierType instantiatesInstance The Work this resource instantiates or manifests.Workrdam:workManifested languageResourceA language associated with the resource.IRIrdae:languageOfExpression mediumInstanceThe medium of the Instance.IRIrdam:mediaType provider agentProvider Event Agent associated with the publication, printing, distribution, issue, release or production of an instance.Agent RDA RDF Manifestation (rdam) properties for name of publisher, manufacturer, distributor, and producer provider dateProvider Event Date associated with the publication, printing, distribution, issue, release or production of an instance.Literal/ISO 8601 RDA RDF Manifestation (rdam) properties for date of publication, manufacture, distribution, and production provider placeProvider Event Place associated with the publication, printing, distribution, issue, release or production of an instance.Place RDA RDF Manifestation (rdam) properties for place of publication, manufacture, distribution, and production provisionInstanceprovision of the InstanceProvider Event titleInstanceThe title of the resourceLiteralrdam:titleProper

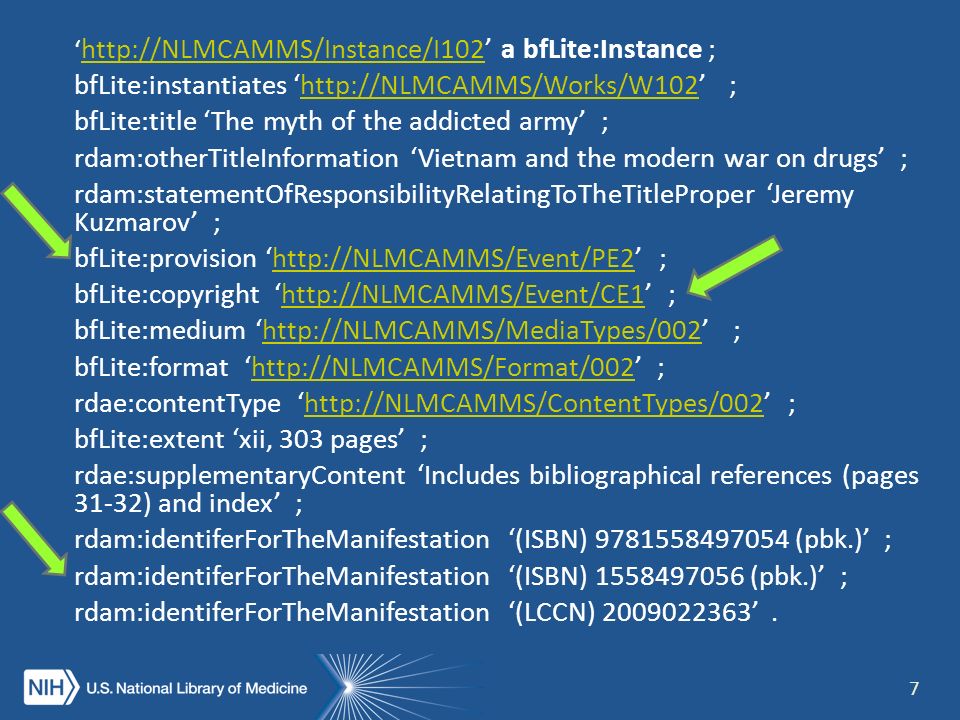

7. 7 ‘ http://NLMCAMMS/Instance/I102’ a bfLite:Instance ; http://NLMCAMMS/Instance/I102 bfLite:instantiates ‘http://NLMCAMMS/Works/W102’ ;http://NLMCAMMS/Works/W102 bfLite:title ‘The myth of the addicted army’ ; rdam:otherTitleInformation ‘Vietnam and the modern war on drugs’ ; rdam:statementOfResponsibilityRelatingToTheTitleProper ‘Jeremy Kuzmarov’ ; bfLite:provision ‘http://NLMCAMMS/Event/PE2’ ;http://NLMCAMMS/Event/PE2 bfLite:copyright ‘http://NLMCAMMS/Event/CE1’ ;http://NLMCAMMS/Event/CE1 bfLite:medium ‘http://NLMCAMMS/MediaTypes/002’ ;http://NLMCAMMS/MediaTypes/002 bfLite:format ‘http://NLMCAMMS/Format/002’ ;http://NLMCAMMS/Format/002 rdae:contentType ‘http://NLMCAMMS/ContentTypes/002’ ;http://NLMCAMMS/ContentTypes/002 bfLite:extent ‘xii, 303 pages’ ; rdae:supplementaryContent ‘Includes bibliographical references (pages 31-32) and index’ ; rdam:identiferForTheManifestation ‘(ISBN) 9781558497054 (pbk.)’ ; rdam:identiferForTheManifestation ‘(ISBN) 1558497056 (pbk.)’ ; rdam:identiferForTheManifestation ‘(LCCN) 2009022363’.

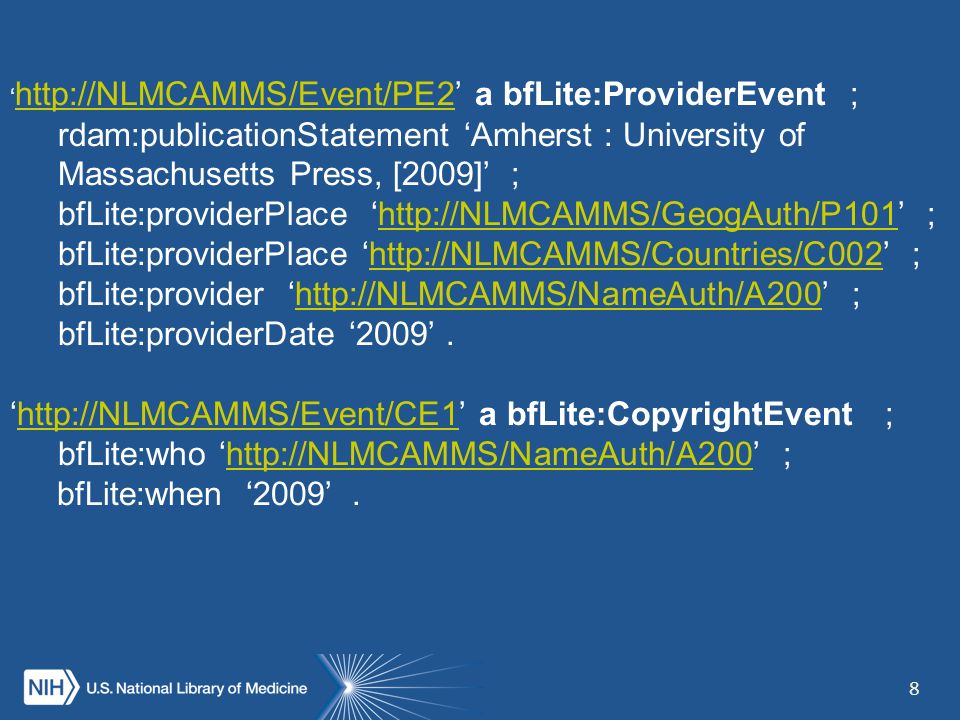

8. 8 ‘ http://NLMCAMMS/Event/PE2’ a bfLite:ProviderEvent ; http://NLMCAMMS/Event/PE2 rdam:publicationStatement ‘Amherst : University of Massachusetts Press, [2009]’ ; bfLite:providerPlace ‘http://NLMCAMMS/GeogAuth/P101’ ;http://NLMCAMMS/GeogAuth/P101 bfLite:providerPlace ‘http://NLMCAMMS/Countries/C002’ ;http://NLMCAMMS/Countries/C002 bfLite:provider ‘http://NLMCAMMS/NameAuth/A200’ ;http://NLMCAMMS/NameAuth/A200 bfLite:providerDate ‘2009’. ‘http://NLMCAMMS/Event/CE1’ a bfLite:CopyrightEvent ;http://NLMCAMMS/Event/CE1 bfLite:who ‘http://NLMCAMMS/NameAuth/A200’ ;http://NLMCAMMS/NameAuth/A200 bfLite:when ‘2009’.

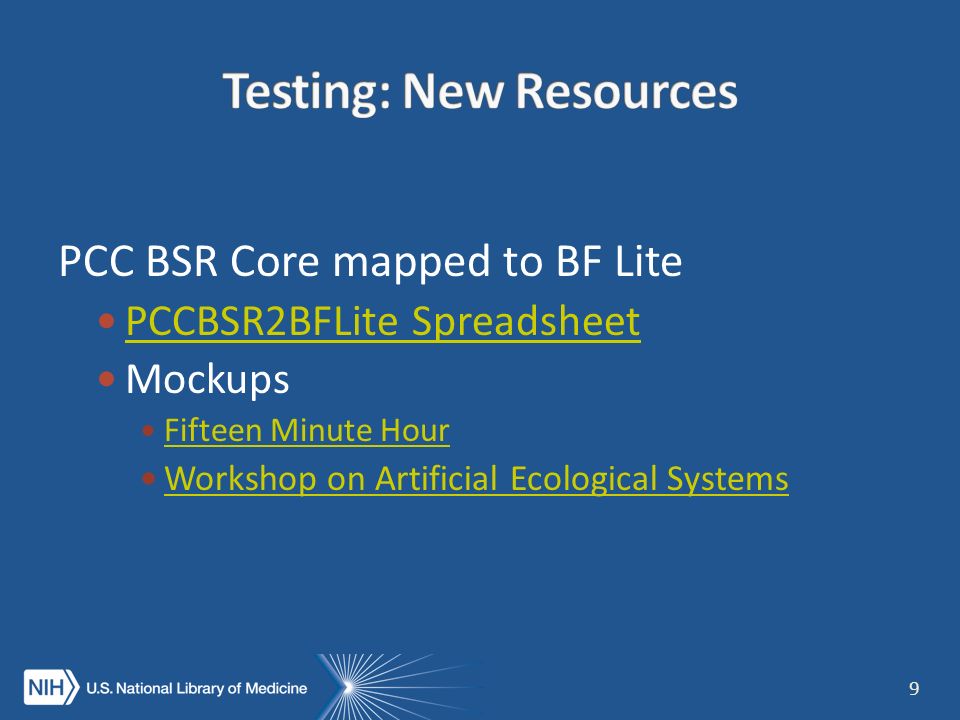

9. PCC BSR Core mapped to BF Lite PCCBSR2BFLite Spreadsheet Mockups Fifteen Minute Hour Workshop on Artificial Ecological Systems 9

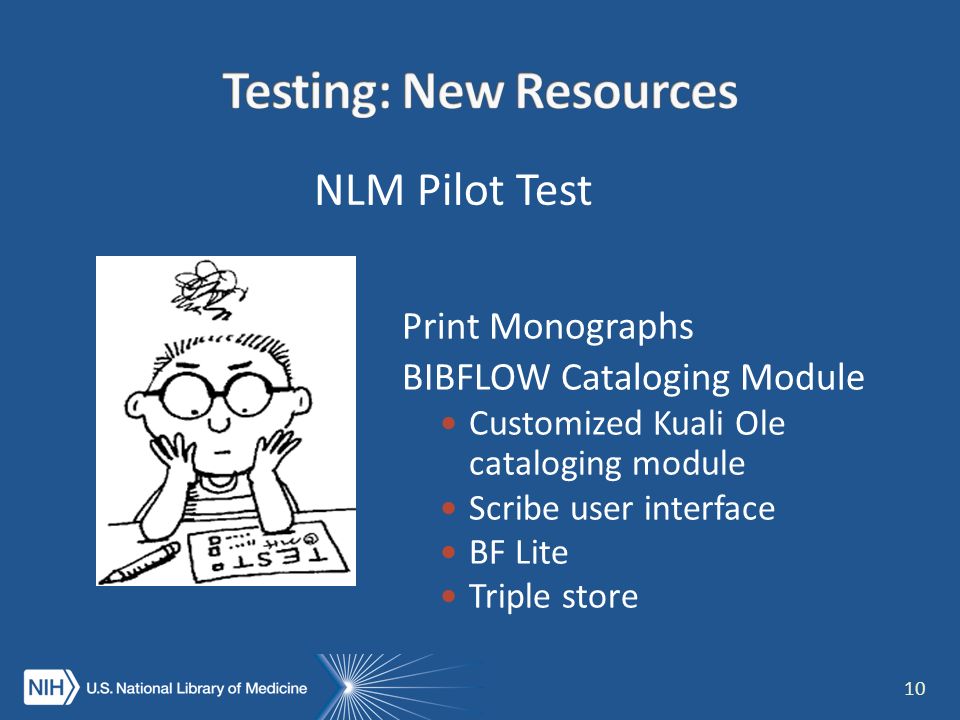

10. Print Monographs BIBFLOW Cataloging Module Customized Kuali Ole cataloging module Scribe user interface BF Lite Triple store 10 NLM Pilot Test

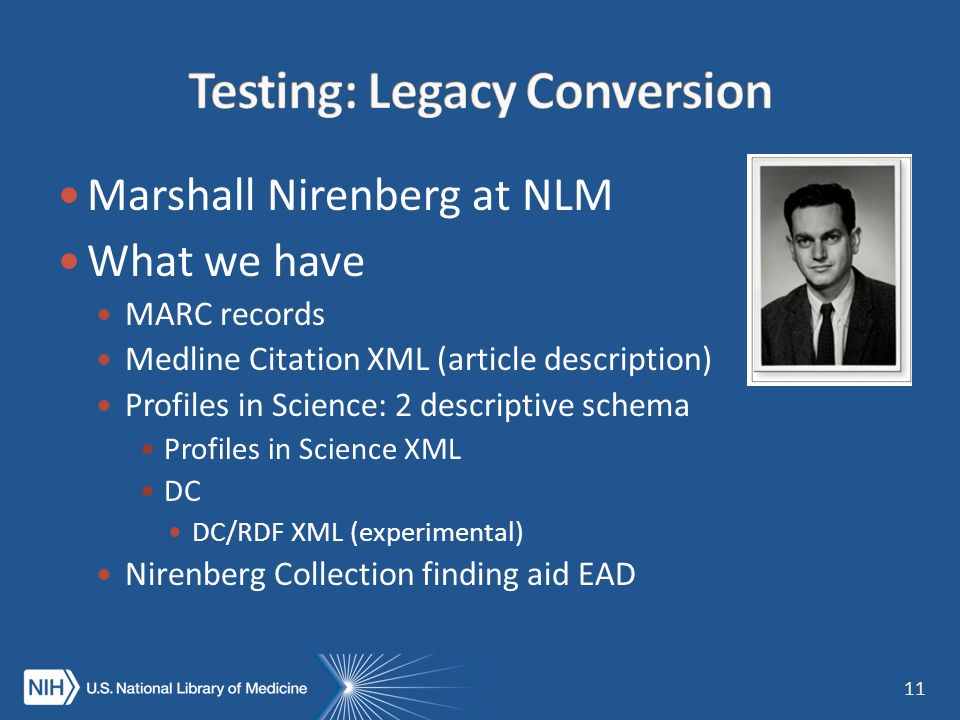

11. Marshall Nirenberg at NLM What we have MARC records Medline Citation XML (article description) Profiles in Science: 2 descriptive schema Profiles in Science XML DC DC/RDF XML (experimental) Nirenberg Collection finding aid EAD 11

12. 12 Article Medline ID Format Language Title Author list Journal volume, issue, pages Abstract MeSH Chemical references Journal ISSN Title Abbrev. title(s) Country of publication Digital copy PubMed ID

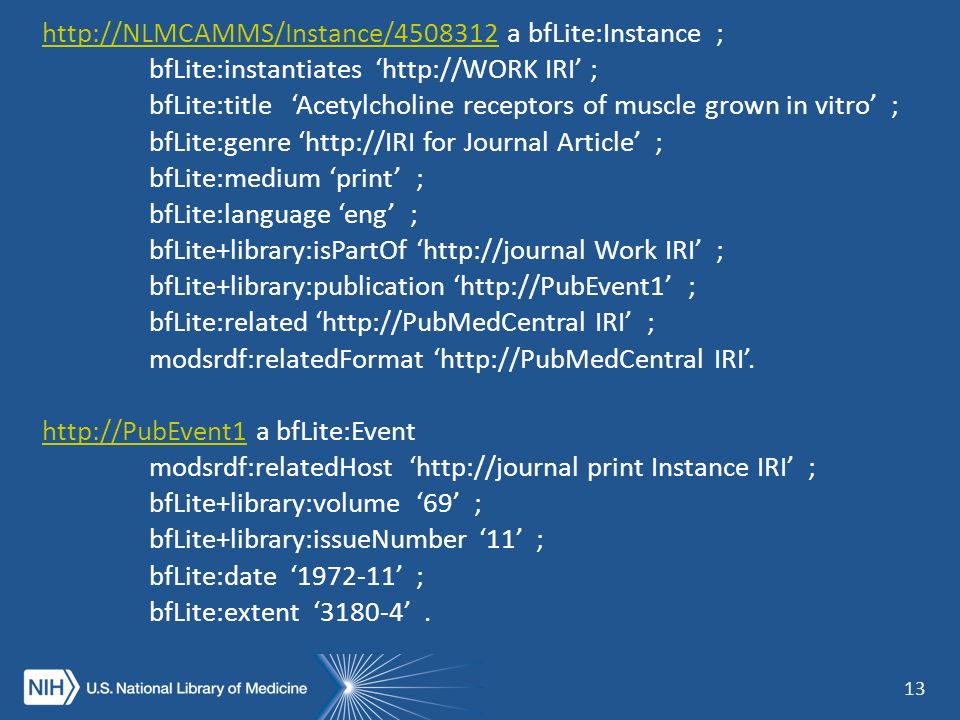

13. 13 http://NLMCAMMS/Instance/4508312http://NLMCAMMS/Instance/4508312 a bfLite:Instance ; bfLite:instantiates ‘http://WORK IRI’ ; bfLite:title ‘Acetylcholine receptors of muscle grown in vitro’ ; bfLite:genre ‘http://IRI for Journal Article’ ; bfLite:medium ‘print’ ; bfLite:language ‘eng’ ; bfLite+library:isPartOf ‘http://journal Work IRI’ ; bfLite+library:publication ‘http://PubEvent1’ ; bfLite:related ‘http://PubMedCentral IRI’ ; modsrdf:relatedFormat ‘http://PubMedCentral IRI’. http://PubEvent1http://PubEvent1 a bfLite:Event modsrdf:relatedHost ‘http://journal print Instance IRI’ ; bfLite+library:volume ‘69’ ; bfLite+library:issueNumber ‘11’ ; bfLite:date ‘1972-11’ ; bfLite:extent ‘3180-4’.

14. People id.loc.gov, ISNI, ORCID, et al. VIAF Places Getty, id.loc.gov, MeSH, et al. Subjects LCSH, MeSH, et al. 14

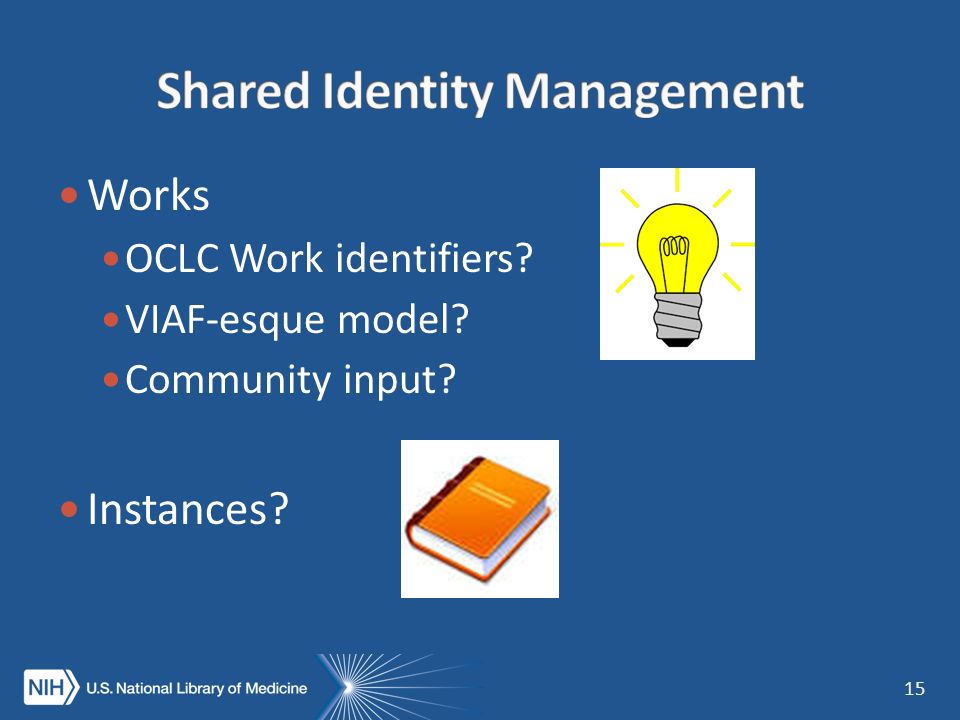

15. Works OCLC Work identifiers? VIAF-esque model? Community input? Instances? 15

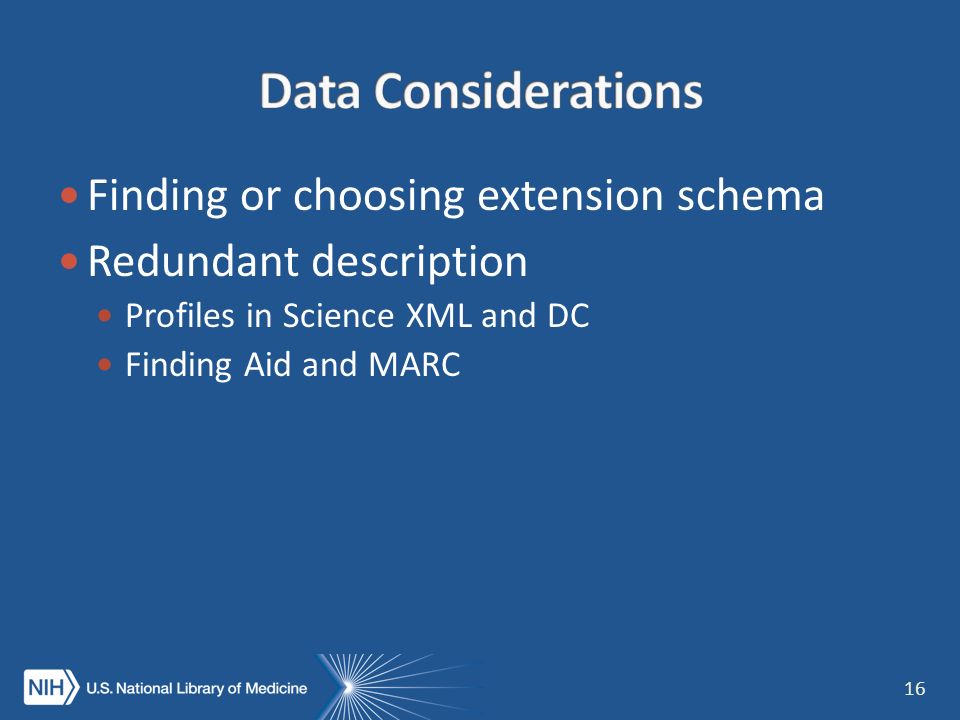

16. Finding or choosing extension schema Redundant description Profiles in Science XML and DC Finding Aid and MARC 16

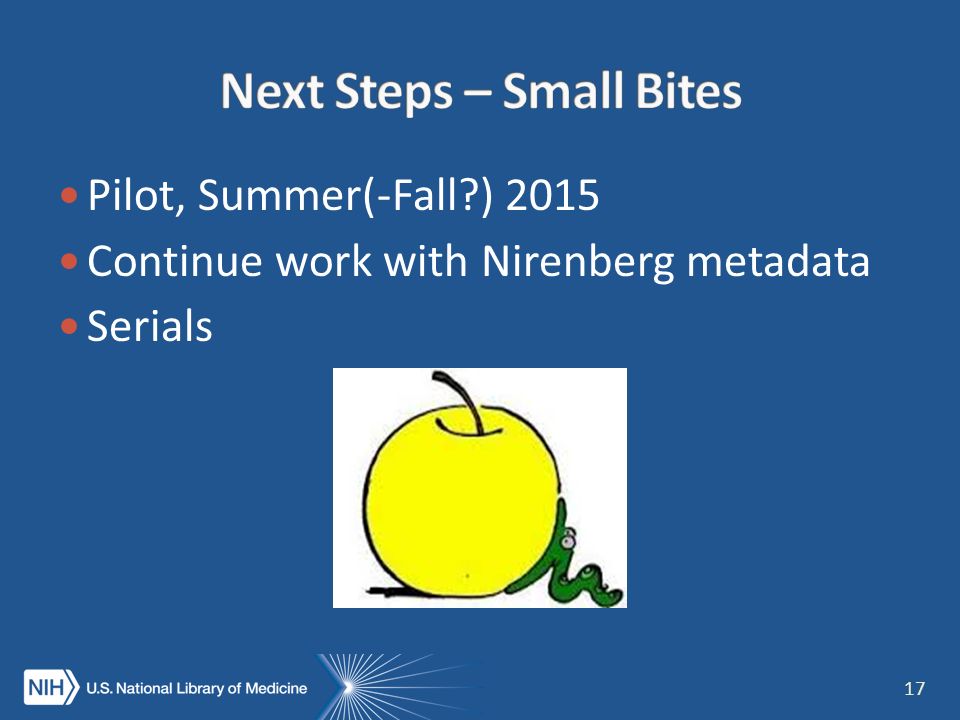

17. Pilot, Summer(-Fall?) 2015 Continue work with Nirenberg metadata Serials 17

18. BIBFRAME-NLM GitHub Repository https://github.com/fallgrennj/BIBFRAME-NLM BF Lite http://bibfra.me BF Lite core spreadsheet https://docs.google.com/spreadsheets/d/1QM8X4qHd-D6ogftRHywBwIvKGyMa_5Kp3YgNEsv7KpU/edit?usp=sharing Mockup: The contributions of Rudolph Virchow https://docs.google.com/document/d/1WNcOy56l6f1vswWCa4PTBvkjoSDo2T2U3cj69moYwX8/edit?usp=sharing Mockup: The myth of the addicted army https://docs.google.com/document/d/10jhz0P2bN_d_WZPmKDwhvQSDKrVvU99RWGiinKP6NUc/edit?usp=sharing Spreadsheet: Comparison Chart of BSR Core to BF Lite https://docs.google.com/spreadsheets/d/1i91zJqd8Y6IGTiMoKi2KgkD_7x9ZfstCZvLXvGUEph0/edit?usp=sharing Mockup: Fifteen Minute Hour https://docs.google.com/document/d/1N9Xrjc52_Z2VlHVuutvERUl7NW9PzwvV3iRAyjnoQj0/edit?usp=sharing Mockup: Workshop on Artificial Ecological Systems https://docs.google.com/document/d/1ObWV5W0r3VisGpPArBNzMSPnIC5hxyur5IBeXYHVDp8/edit?usp=sharing 18

19. fallgrennj@mail.nlm.nih.gov 19
