Presentation on theme: "Mineral Groups in the Earth’s Crust Reference: Pages 44 - 55 Minerals that form the rocks within Earth’s crust belong to Seven (7) main mineral groups:"— Presentation transcript:
Mineral Groups in the Earth’s Crust Reference: Pages 44 - 55 Minerals that form the rocks within Earth’s crust belong to Seven (7) main mineral groups: 1) Silicates 2) Carbonates 3) Sulfates 4) Oxides 5) Halides 6) Sulfides 7) Native

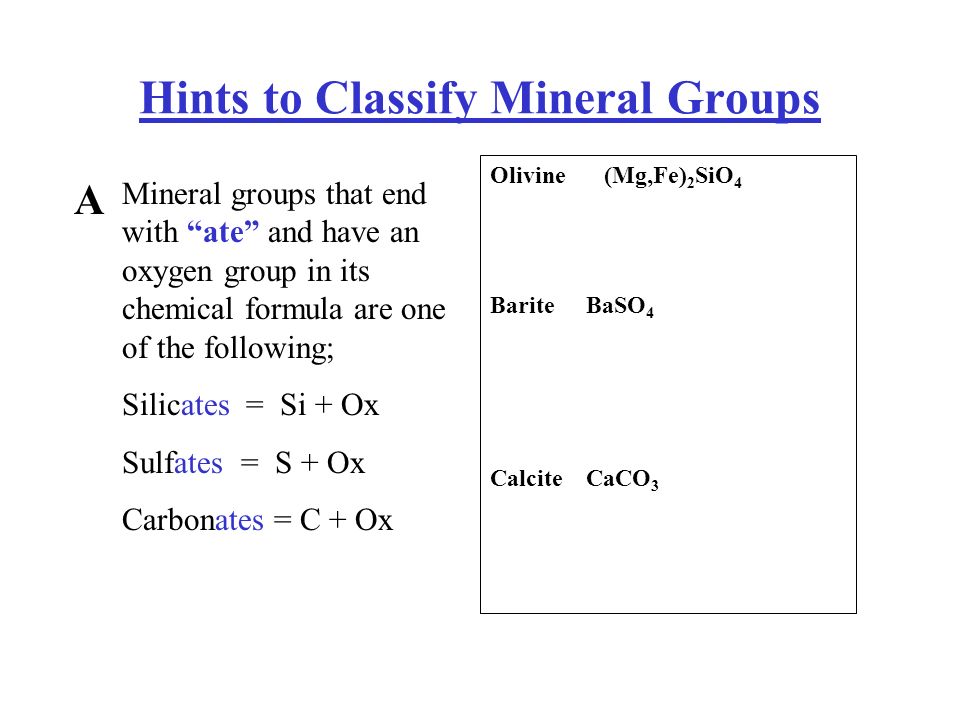

Hints to Classify Mineral Groups Olivine (Mg,Fe) 2 SiO 4 BariteBaSO 4 CalciteCaCO 3 Mineral groups that end with “ate” and have an oxygen group in its chemical formula are one of the following; Silicates = Si + Ox Sulfates = S + Ox Carbonates = C + Ox A
Hints to Classify Mineral Groups Hematite Fe 2 O 3 PyriteFeS 2 Fluorite CaF 2 Mineral groups that end with “ide” and have a metal (eg. Na, K) in its chemical formula are one of the following; Oxidides = Metal + O Sulfides = Metal + S Halides = Metal + Cl, Br, F B

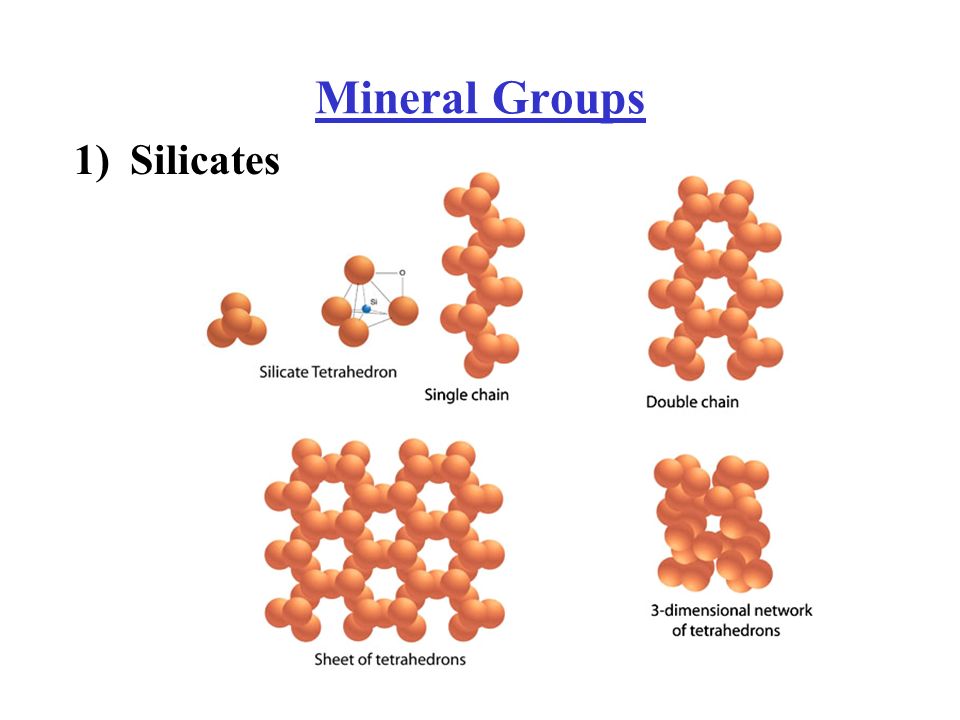

Mineral Groups Silicates1) Silicon and oxygen are the most common elements in earth’s crust. A mineral group that has silicon and oxygen as part of their atomic structure. The most dominant mineral class is the silicates. Comprise more than 96% of the crust. All silicate minerals have the same building block: Silicon-Oxygen Tetrahedron - consisting of four oxygen ions (negative) surrounding one small silicon ion (positive), forming a tetrahedron, a pyramid shape with 4 identical faces.

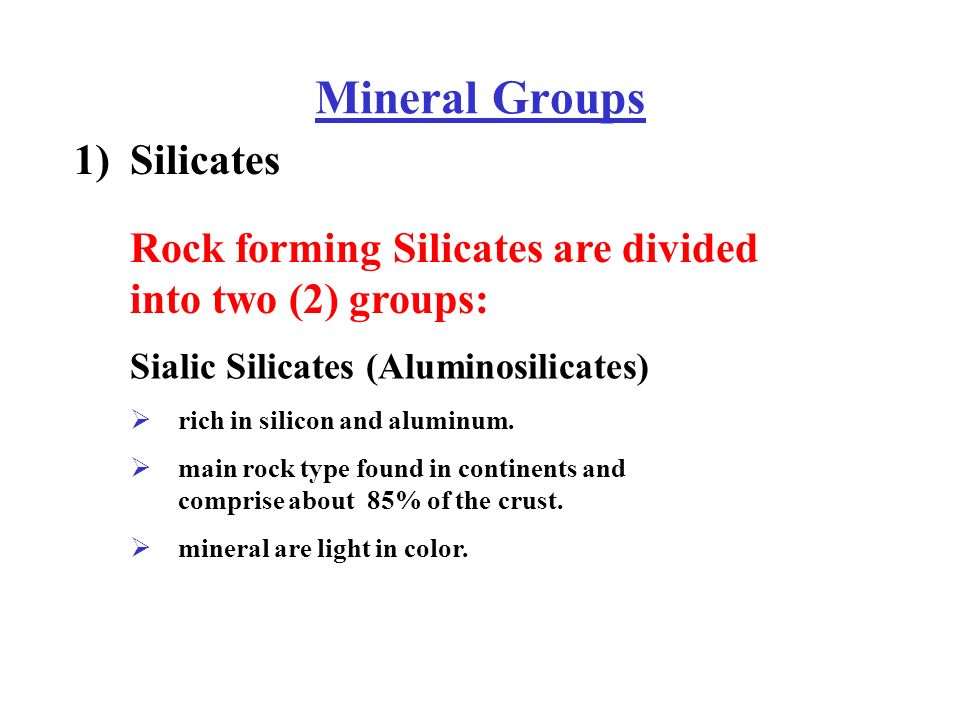

Mineral Groups Silicates1) Rock forming Silicates are divided into two (2) groups: Sialic Silicates (Aluminosilicates) rich in silicon and aluminum. main rock type found in continents and comprise about 85% of the crust. mineral are light in color.
Mineral Groups Silicates1) Rock forming Silicates are divided into two (2) groups: Simatic Silicates (Ferromagnesium) rich in silicon and magnesium (Iron). main rock type found in the ocean floor and comprise less than 15% of the crust. mineral are dark in color.

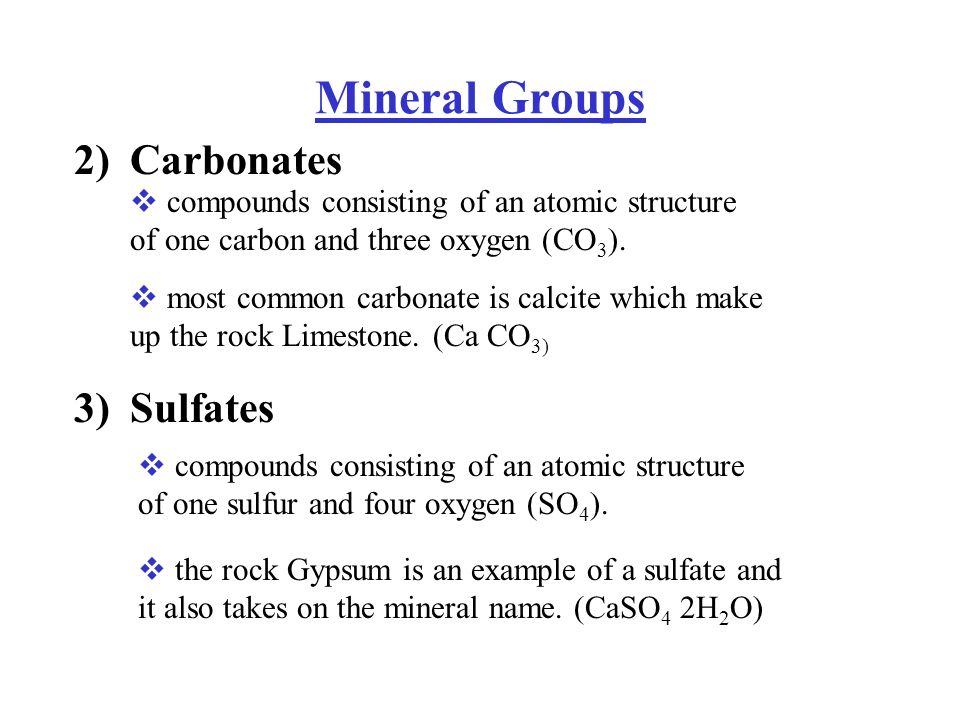

Mineral Groups Carbonates2) compounds consisting of an atomic structure of one carbon and three oxygen (CO 3 ). most common carbonate is calcite which make up the rock Limestone. (Ca CO 3) Sulfates3) compounds consisting of an atomic structure of one sulfur and four oxygen (SO 4 ). the rock Gypsum is an example of a sulfate and it also takes on the mineral name. (CaSO 4 2H 2 O)
Mineral Groups Oxides4) compounds consisting of an atomic structure of oxygen combined with one or more metals. most common oxides are those of iron (Fe 2 O 3 ) and aluminum (Al 2 O 3 ), referred to as Ore - Minerals. Halides5) compounds consisting of an atomic structure of chlorine or fluorine with sodium, potassium, or calcium. Halite (NaCl) is the most common halide. Often referred to as table salt.
Mineral Groups Sulfides6) compounds consisting of an atomic structure of one or more metals combined with sulfur. common ore mineral. Examples: Pyrite (FeS 2 ), Galena (PbS), Sphalerite (ZnS). Native Minerals7) elements that occur uncombined in nature. commonly called native elements. Examples: Gold (Au), Silver (Ag), Copper (Cu), & Sulfur (S)

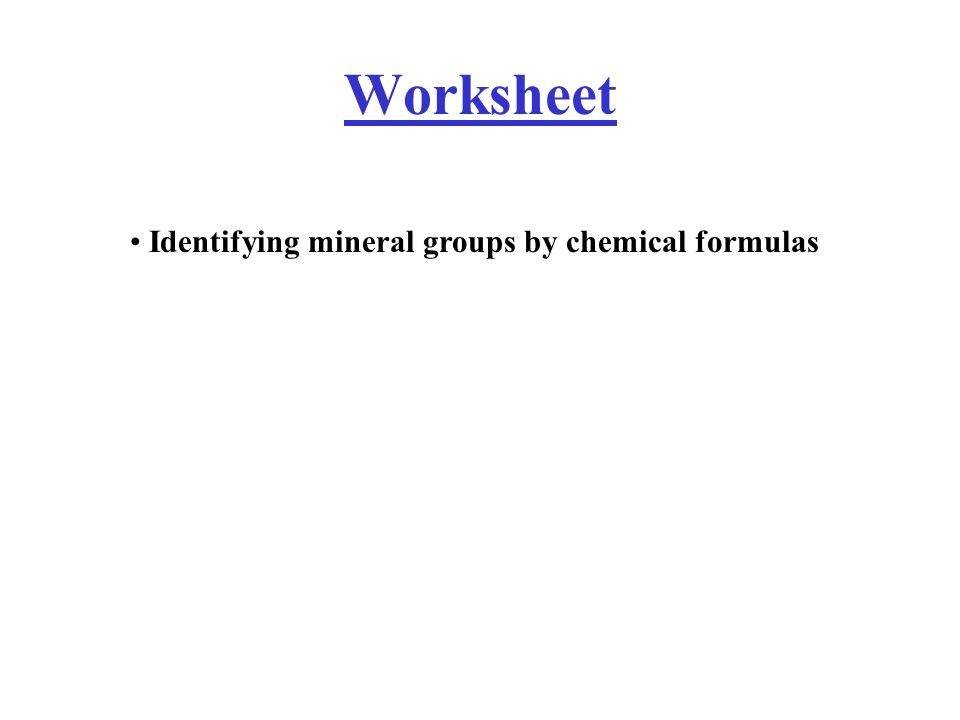

Worksheet Identifying mineral groups by chemical formulas

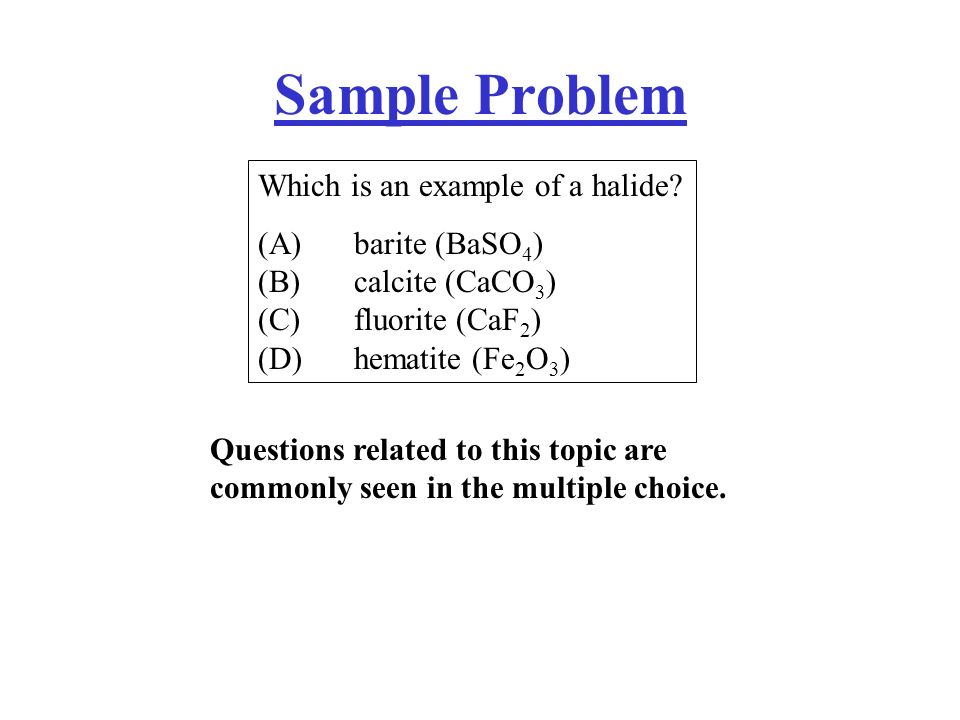

Sample Problem Which is an example of a halide? (A)barite (BaSO 4 ) (B)calcite (CaCO 3 ) (C)fluorite (CaF 2 ) (D)hematite (Fe 2 O 3 ) Questions related to this topic are commonly seen in the multiple choice.
