1. George Swallow

2. Current Status: Two formats Global-ID as per RFC5003 ITU Carrier Code Issue: Should these be combinable with all other identifiers that need global uniqueness Or should some limits exist on mixing and matching ITU and IP style IDs? Needs to be sorted for ACH-TLV draft Balance of presentation using SP-ID as placeholder without specifying which one(s)

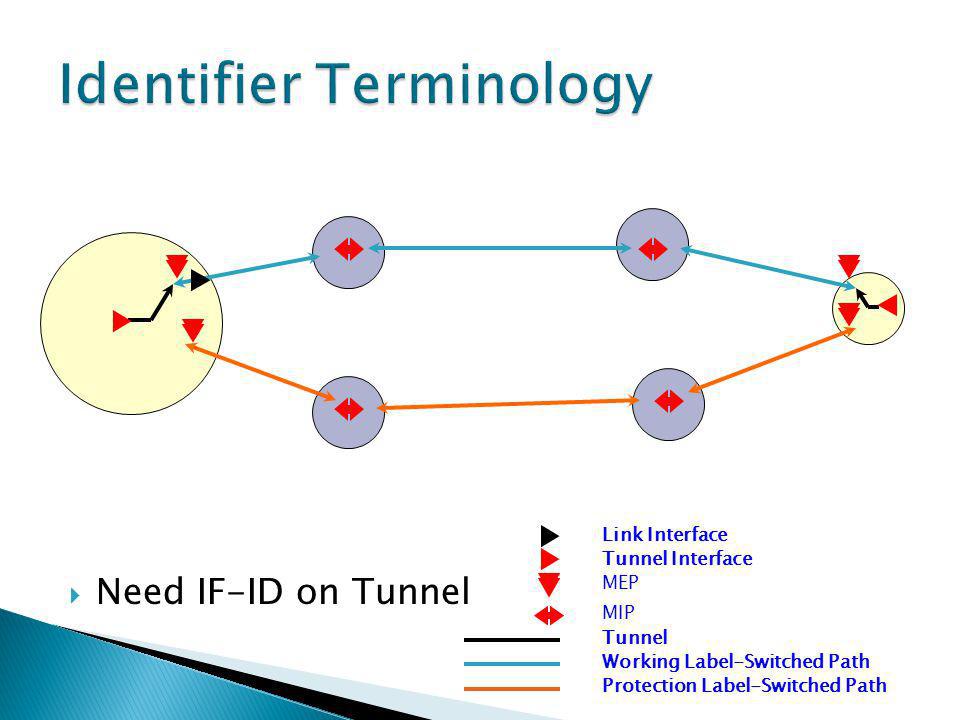

3. Need IF-ID on Tunnel Tunnel Working Label-Switched Path Protection Label-Switched Path MEP MIP Link Interface Tunnel Interface

4. Node IDs 32-bit ID assigned by operator Need not be an IP Address, but Can be auto-generated from an IPv4 address Interface IDs Logical Interface Handle 32-bit ID that is assigned from a space local to a particular node IF-ID ::= Node-id::LIH Only needed on tunnels and links

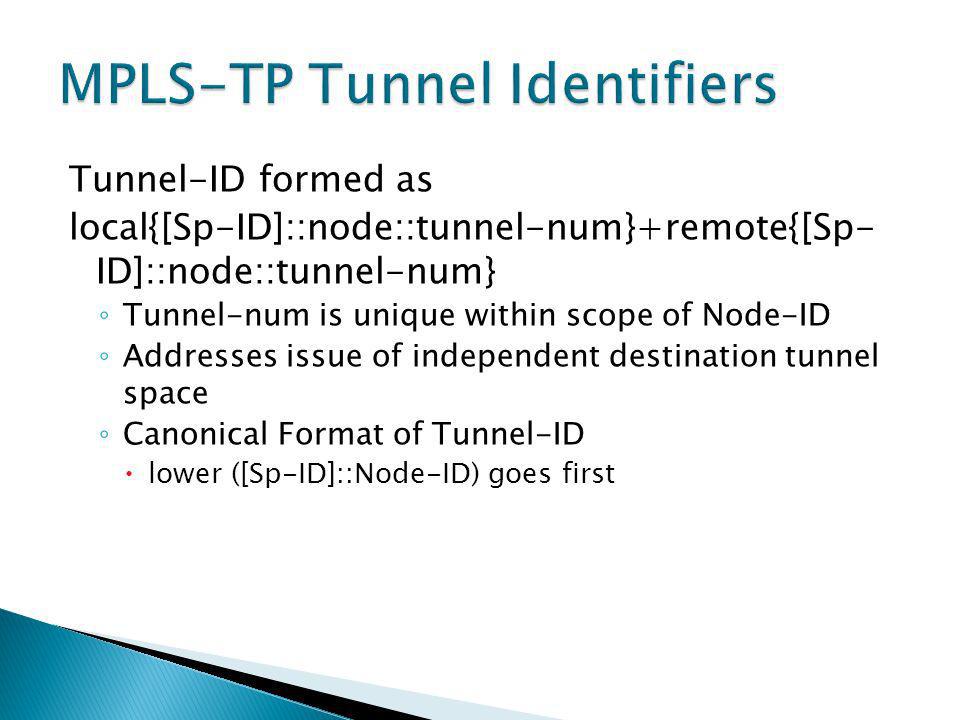

5. Tunnel-ID formed as local{[Sp-ID]::node::tunnel-num}+remote{[Sp- ID]::node::tunnel-num} Tunnel-num is unique within scope of Node-ID Addresses issue of independent destination tunnel space Canonical Format of Tunnel-ID lower ([Sp-ID]::Node-ID) goes first

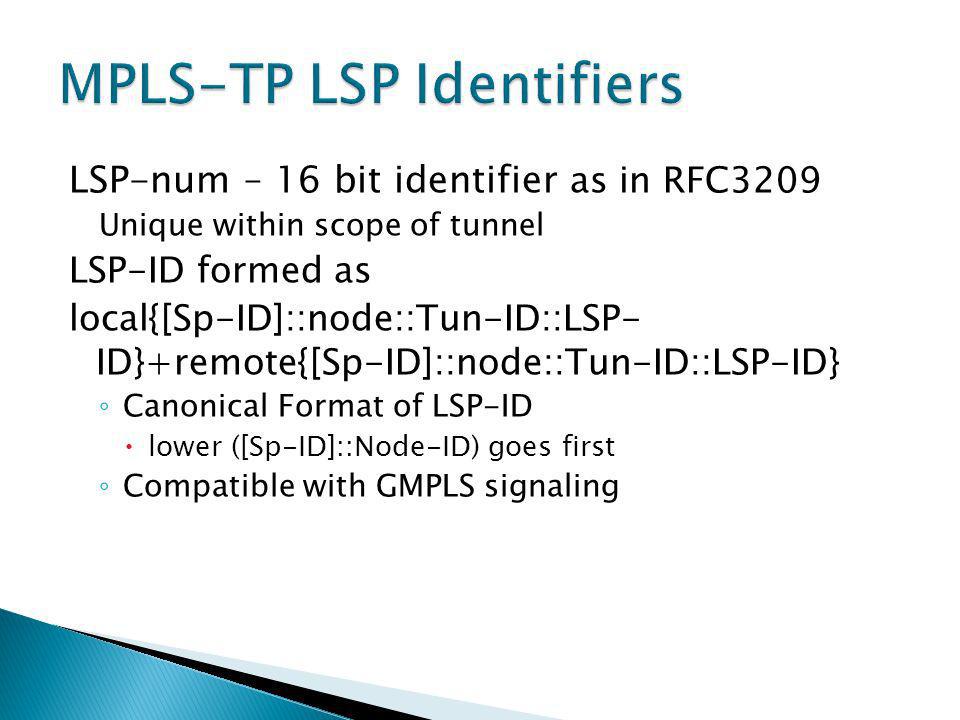

6. LSP-num – 16 bit identifier as in RFC3209 Unique within scope of tunnel LSP-ID formed as local{[Sp-ID]::node::Tun-ID::LSP- ID}+remote{[Sp-ID]::node::Tun-ID::LSP-ID} Canonical Format of LSP-ID lower ([Sp-ID]::Node-ID) goes first Compatible with GMPLS signaling

7. MEP – Maintenance Endpoint Management function associated with an Tunnel, LSP, or PW endpoint MEG - Maintenance entity group A set of peer MEPs ME - Maintenance entity A relationship between two MEPs within a MEG A MEP belongs to one and only one MEG A MEP may belong to multiple MEs This is normal for P2MP objects

8. Tunnel Working (Label-Switched) Path Protection (Label-Switched) Path MEP MEG ME Working Path being rerouted

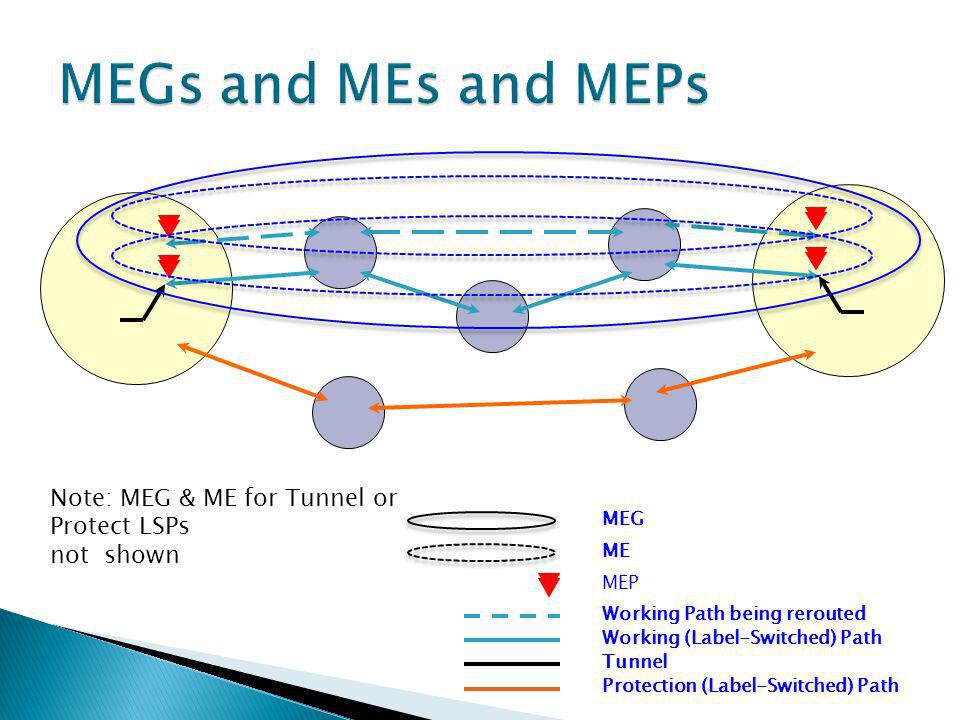

9. Tunnel Working (Label-Switched) Path Protection (Label-Switched) Path MEP MEG ME Working Path being rerouted Note: MEG & ME for Tunnel or Protect LSPs not shown

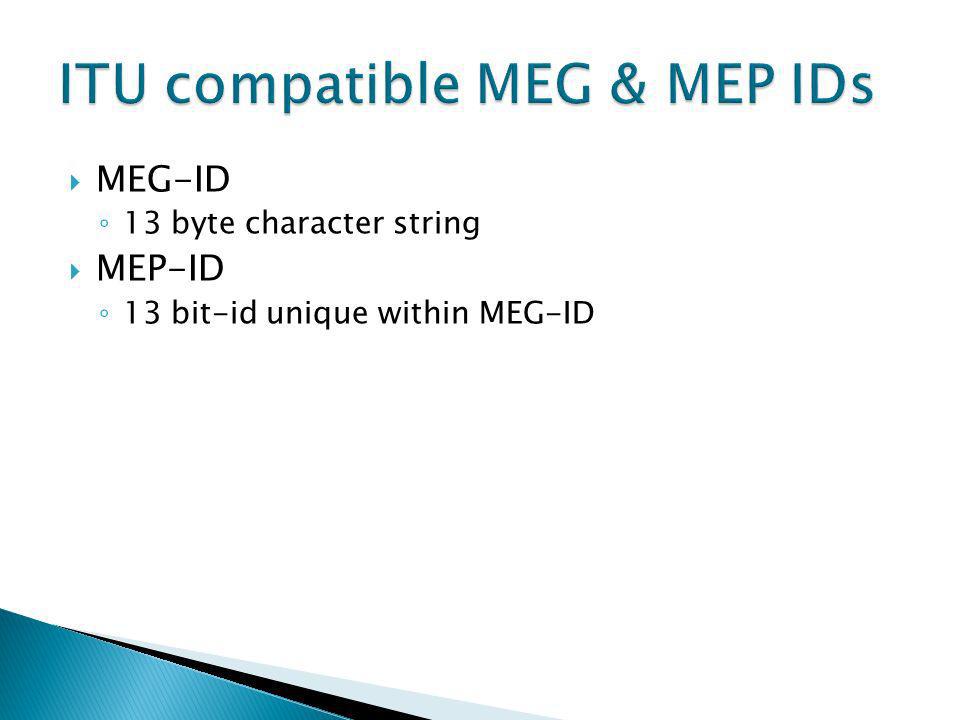

10. MEG-ID 13 byte character string MEP-ID 13 bit-id unique within MEG-ID

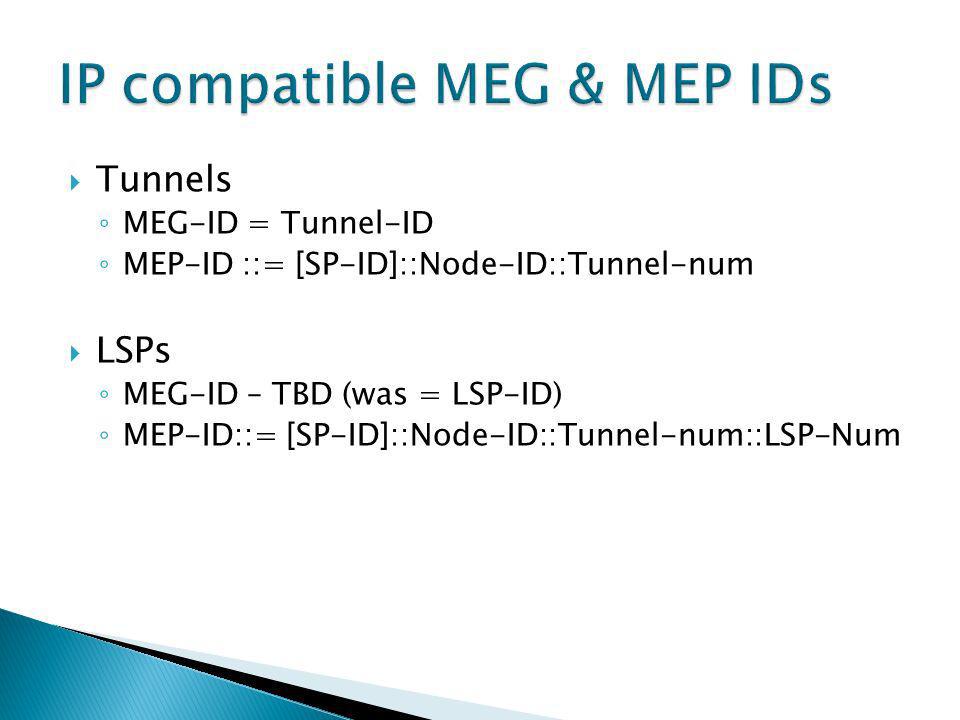

11. Tunnels MEG-ID = Tunnel-ID MEP-ID ::= [SP-ID]::Node-ID::Tunnel-num LSPs MEG-ID – TBD (was = LSP-ID) MEP-ID::= [SP-ID]::Node-ID::Tunnel-num::LSP-Num

12. Update draft according to this presentation + notes from MEAD team meeting Working group draft (not necessarily in this order)
