1 http://www.cs.utsa.edu Achieving Non-Inclusive Cache Performance with Inclusive Caches Temporal Locality Aware (TLA) Cache Management Policies Aamer Jaleel, Eric Borch, Malini Bhandaru, Simon Steely Jr., Joel Emer In International Symposium on Microarchitecture (MICRO), December 2010 Presented by: Yingying Tian

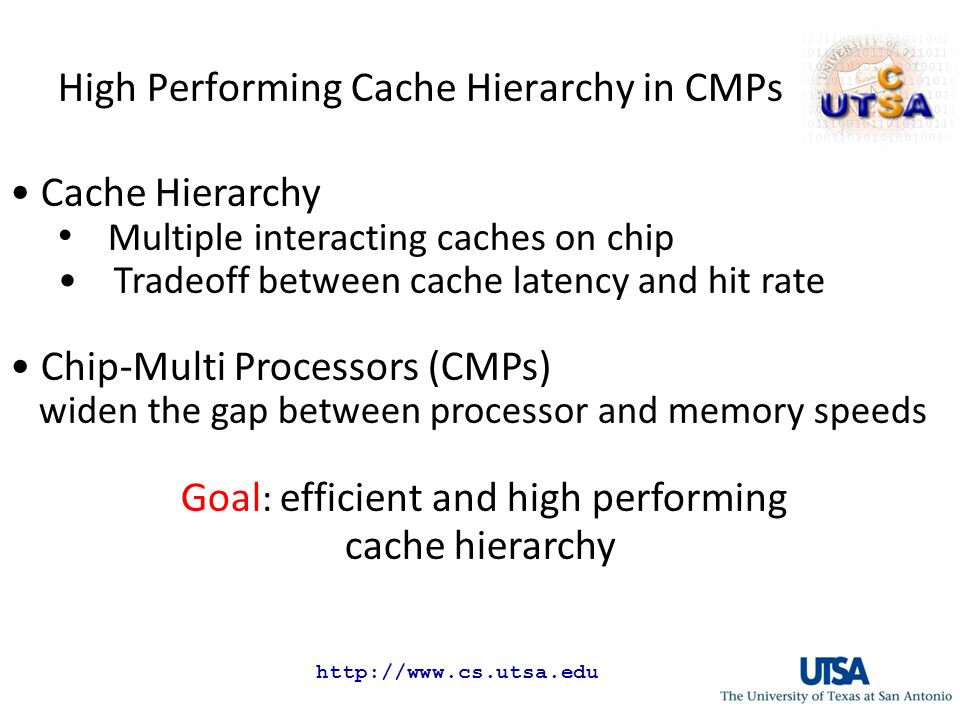

2 http://www.cs.utsa.edu High Performing Cache Hierarchy in CMPs Cache Hierarchy Multiple interacting caches on chip Tradeoff between cache latency and hit rate Chip-Multi Processors (CMPs) widen the gap between processor and memory speeds Goal : efficient and high performing cache hierarchy

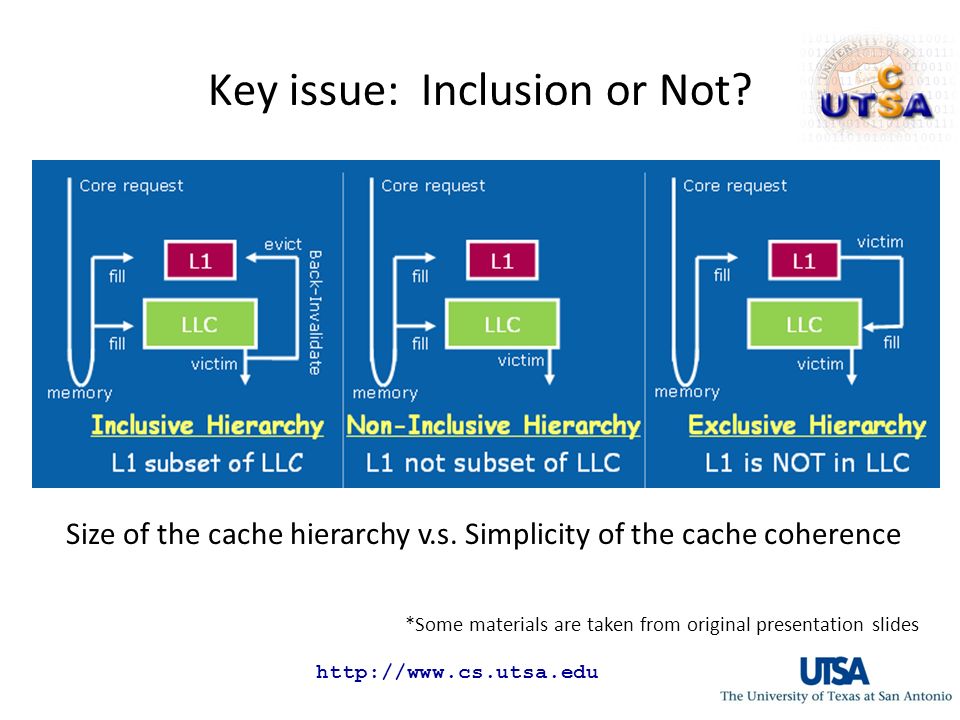

3 http://www.cs.utsa.edu Key issue: Inclusion or Not? *Some materials are taken from original presentation slides Size of the cache hierarchy v.s. Simplicity of the cache coherence

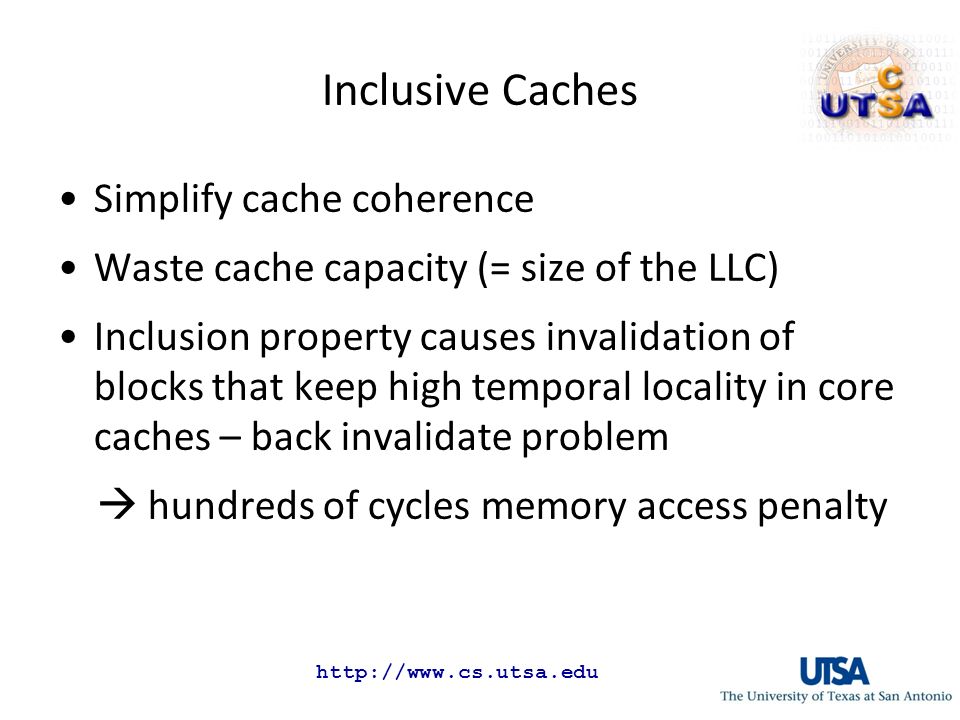

4 http://www.cs.utsa.edu Simplify cache coherence Waste cache capacity (= size of the LLC) Inclusion property causes invalidation of blocks that keep high temporal locality in core caches – back invalidate problem  hundreds of cycles memory access penalty Inclusive Caches

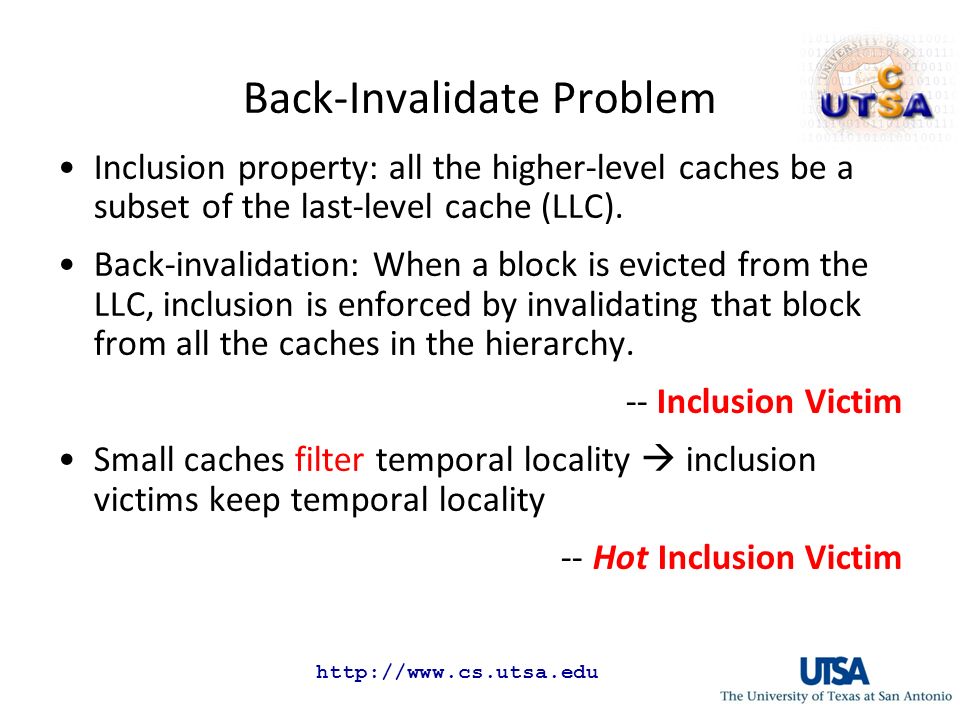

5 http://www.cs.utsa.edu Back-Invalidate Problem Inclusion property: all the higher-level caches be a subset of the last-level cache (LLC). Back-invalidation: When a block is evicted from the LLC, inclusion is enforced by invalidating that block from all the caches in the hierarchy. -- Inclusion Victim Small caches filter temporal locality  inclusion victims keep temporal locality -- Hot Inclusion Victim

6 http://www.cs.utsa.edu Consider following access pattern in a 2-level inclusive cache hierarchy: … a, b, a, c, a, d, a, e, a, f… Back-Invalidate Problem (Cont.) 6 a a ba ba ba ab cba ca cba ac dcba da dcba ad MRULRU Reference ‘e’ misses and evicts ‘a’ from hierarchy Next Reference to ‘a’ misses. While ‘a’ keeps high temporal locality in L1. L1: L2: edcb ed

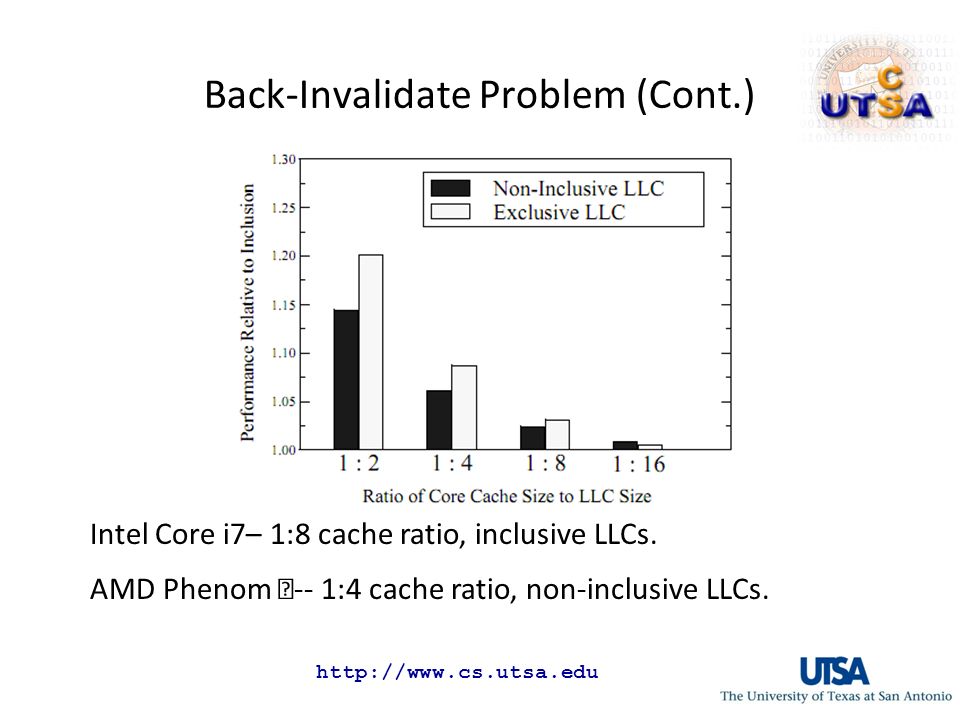

7 http://www.cs.utsa.edu Back-Invalidate Problem (Cont.) Intel Core i7– 1:8 cache ratio, inclusive LLCs. AMD Phenom Ⅱ -- 1:4 cache ratio, non-inclusive LLCs.

8 http://www.cs.utsa.edu Goal: to implement efficient and high performing cache hierarchy by eliminating hot inclusion victims to improve inclusive cache performance Temporal Locality Aware Cache Management Polices

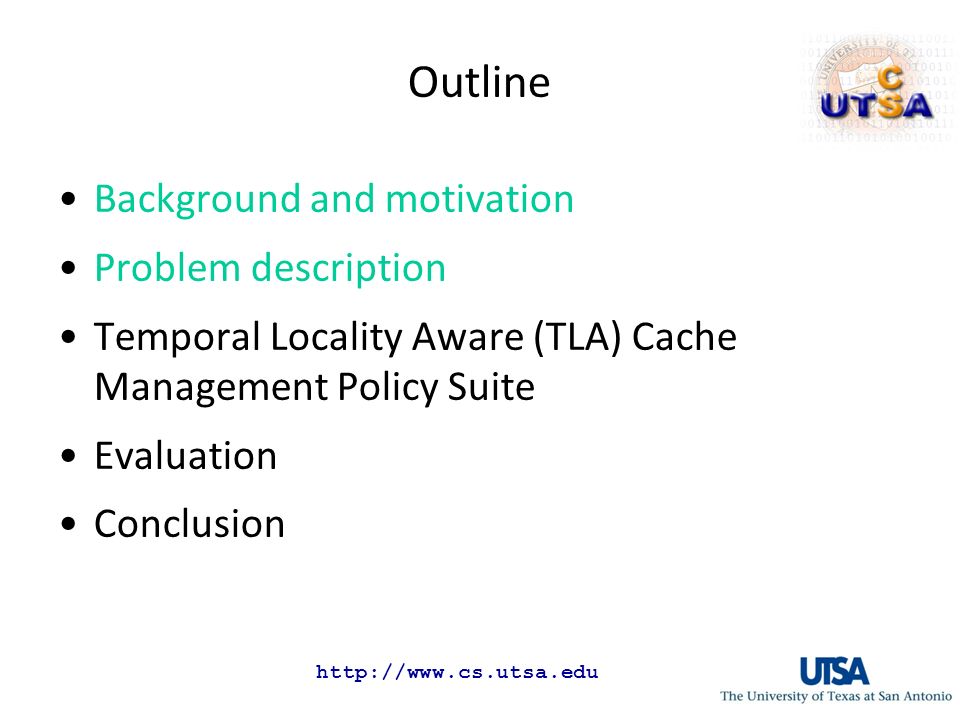

9 http://www.cs.utsa.edu Outline Background and motivation Problem description Temporal Locality Aware (TLA) Cache Management Policy Suite Evaluation Conclusion

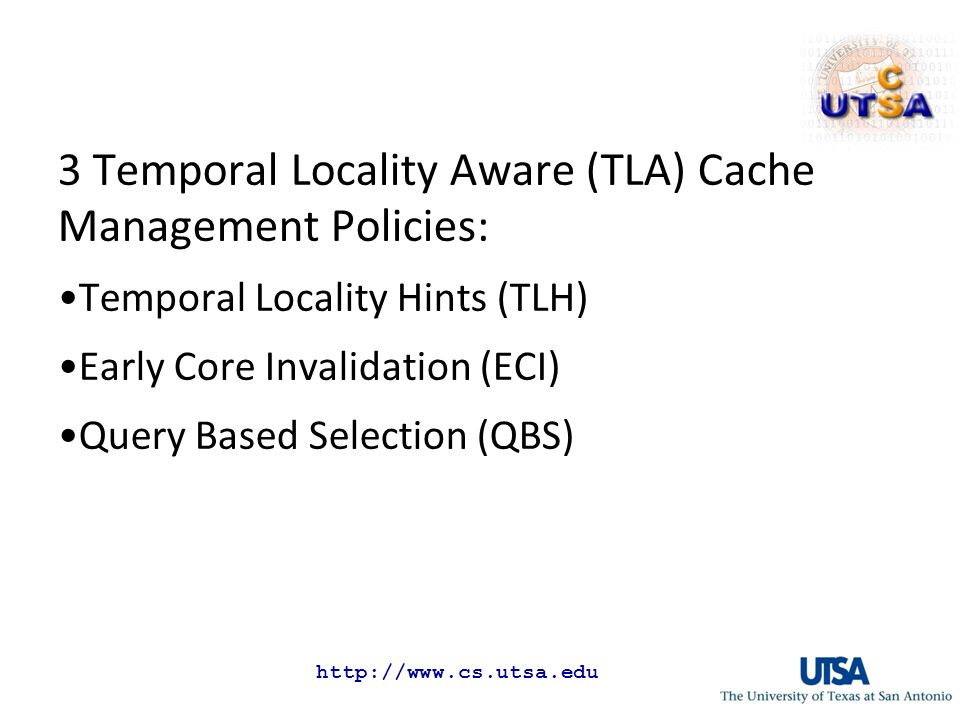

10 http://www.cs.utsa.edu 3 Temporal Locality Aware (TLA) Cache Management Policies: Temporal Locality Hints (TLH) Early Core Invalidation (ECI) Query Based Selection (QBS)

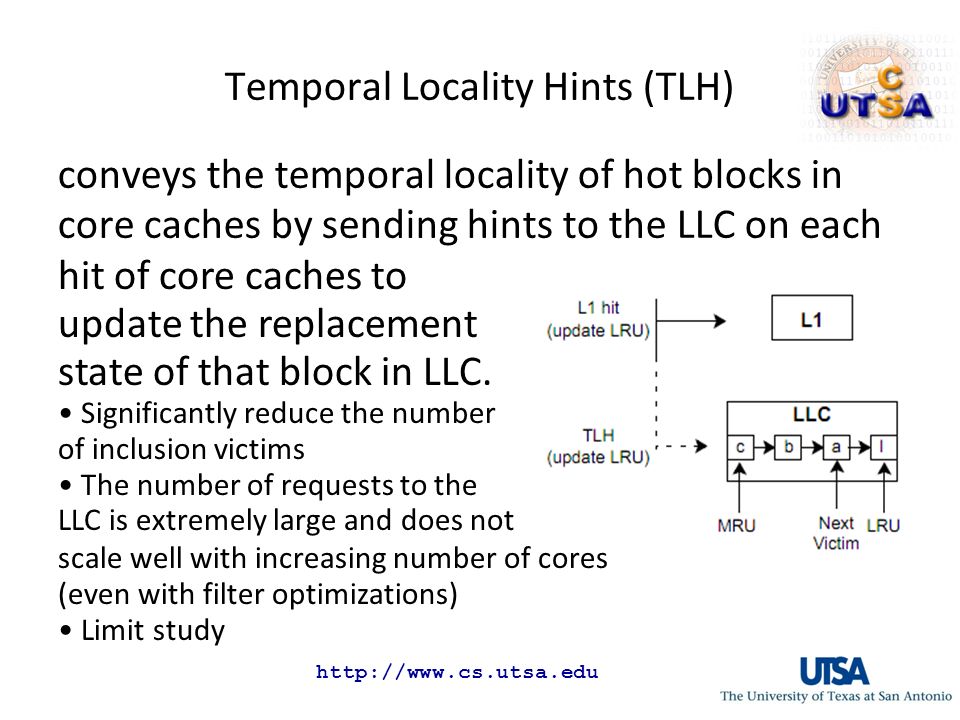

11 http://www.cs.utsa.edu Temporal Locality Hints (TLH) conveys the temporal locality of hot blocks in core caches by sending hints to the LLC on each hit of core caches to update the replacement state of that block in LLC. Significantly reduce the number of inclusion victims The number of requests to the LLC is extremely large and does not scale well with increasing number of cores (even with filter optimizations) Limit study

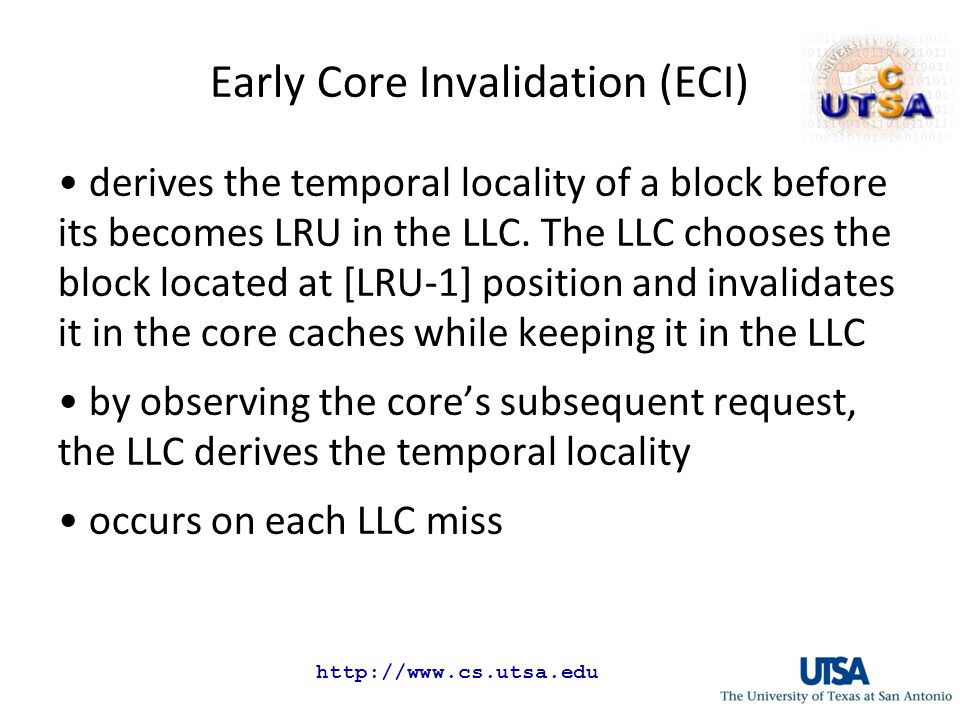

12 http://www.cs.utsa.edu Early Core Invalidation (ECI) derives the temporal locality of a block before its becomes LRU in the LLC. The LLC chooses the block located at [LRU-1] position and invalidates it in the core caches while keeping it in the LLC by observing the core’s subsequent request, the LLC derives the temporal locality occurs on each LLC miss

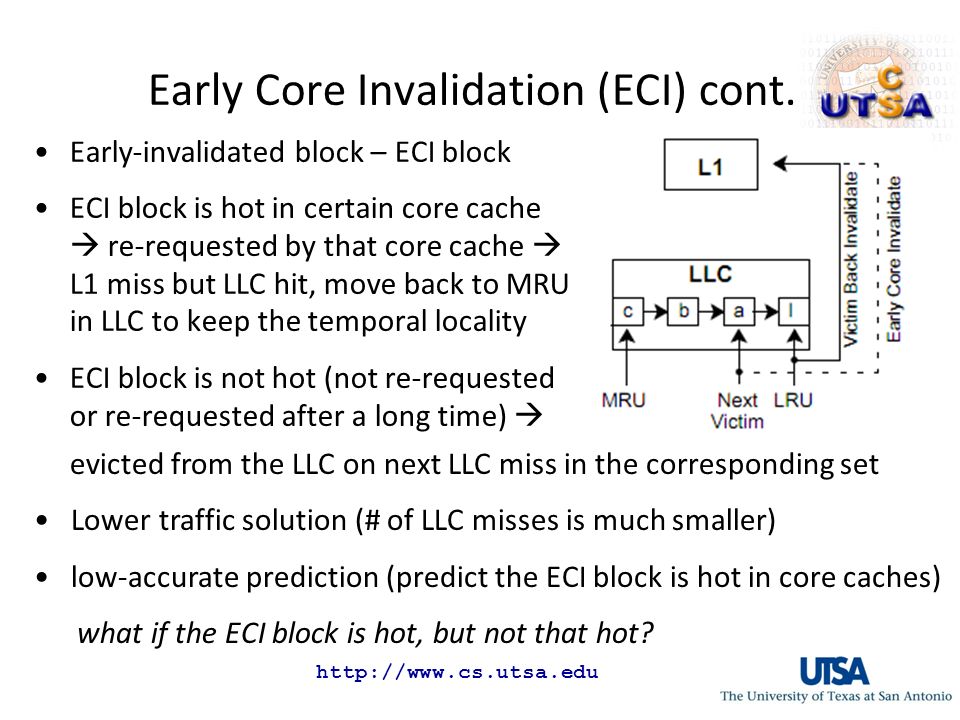

13 http://www.cs.utsa.edu Early Core Invalidation (ECI) cont. Early-invalidated block – ECI block ECI block is hot in certain core cache  re-requested by that core cache  L1 miss but LLC hit, move back to MRU in LLC to keep the temporal locality ECI block is not hot (not re-requested or re-requested after a long time)  evicted from the LLC on next LLC miss in the corresponding set Lower traffic solution (# of LLC misses is much smaller) low-accurate prediction (predict the ECI block is hot in core caches) what if the ECI block is hot, but not that hot?

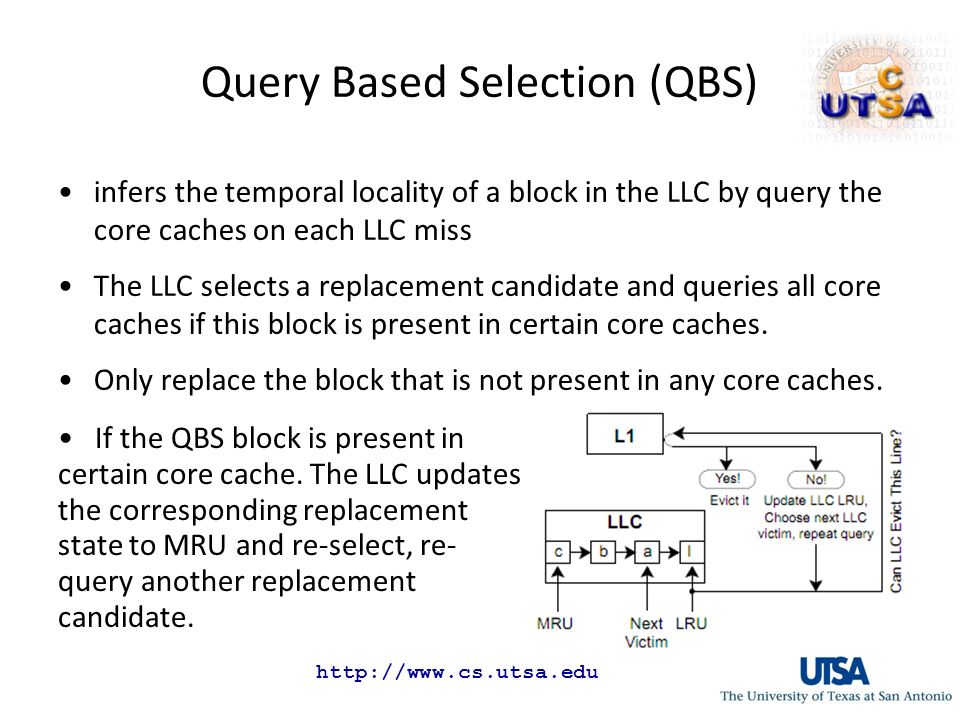

14 http://www.cs.utsa.edu Query Based Selection (QBS) infers the temporal locality of a block in the LLC by query the core caches on each LLC miss The LLC selects a replacement candidate and queries all core caches if this block is present in certain core caches. Only replace the block that is not present in any core caches. If the QBS block is present in certain core cache. The LLC updates the corresponding replacement state to MRU and re-select, re- query another replacement candidate.

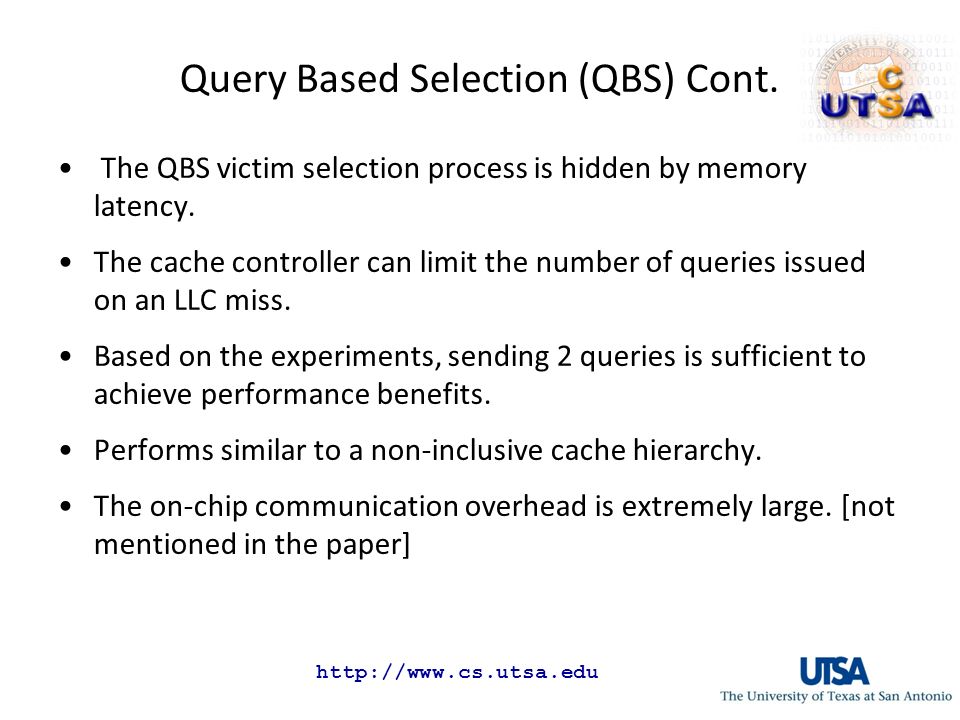

15 http://www.cs.utsa.edu The QBS victim selection process is hidden by memory latency. The cache controller can limit the number of queries issued on an LLC miss. Based on the experiments, sending 2 queries is sufficient to achieve performance benefits. Performs similar to a non-inclusive cache hierarchy. The on-chip communication overhead is extremely large. [not mentioned in the paper] Query Based Selection (QBS) Cont.

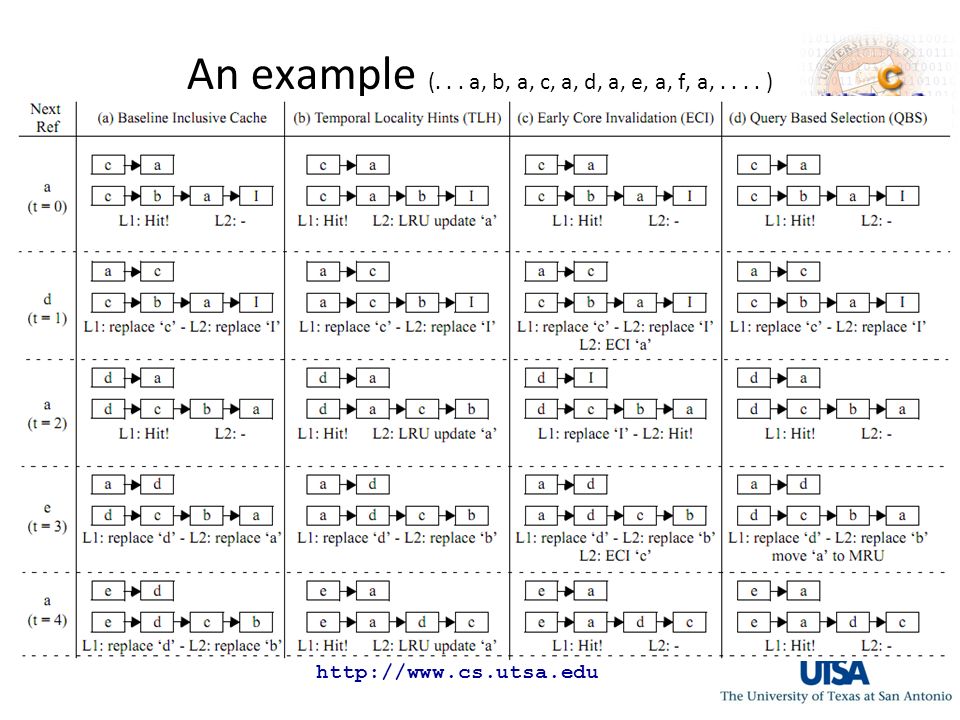

16 http://www.cs.utsa.edu An example (... a, b, a, c, a, d, a, e, a, f, a,.... )

17 http://www.cs.utsa.edu Experimental Methodology CMP$im: x86 simulator Baseline: 2-core CMP, 3 level inclusive cache hierarchy L1 I/D: 4-way, 32KB, 64B block size, 1 cycle access latency L2: 8-way, 256KB, 64B block size, 10 cycles access latency, non-inclusive L3 (LLC): Shared, 16-way, 2MB, 24 cycles access latency, enforce inclusion Main memory: 150 cycles access latency Benchmarks: 15 benchmarks selected from SPEC CPU 2006 benchmark suite based on program behaviors (core cache fitting, LLC fitting, LLC thrashing, 5 benchmarks of each) Total workloads: 105 2-core workloads. (15 choose 2)

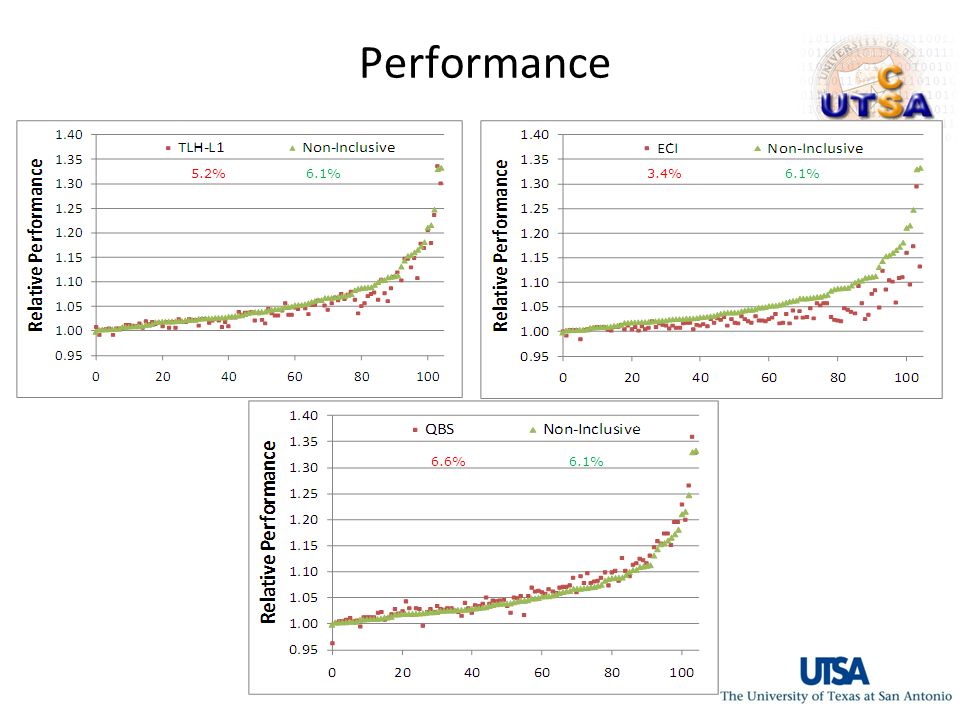

18 http://www.cs.utsa.edu Performance 5.2% 6.1% 3.4% 6.1% 6.6% 6.1%

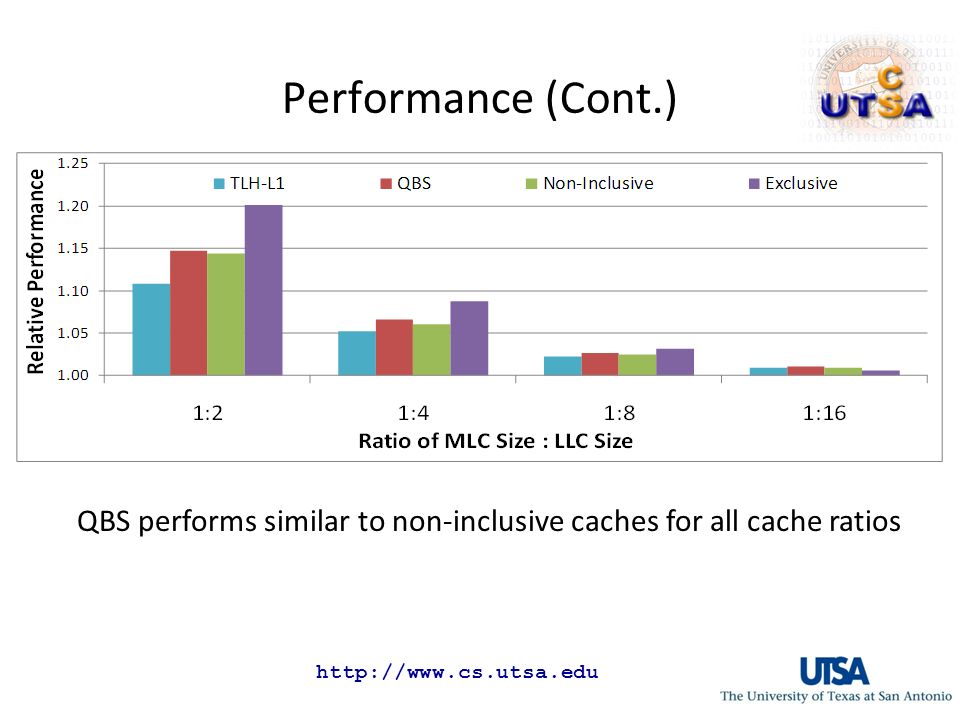

19 http://www.cs.utsa.edu Performance (Cont.) QBS performs similar to non-inclusive caches for all cache ratios

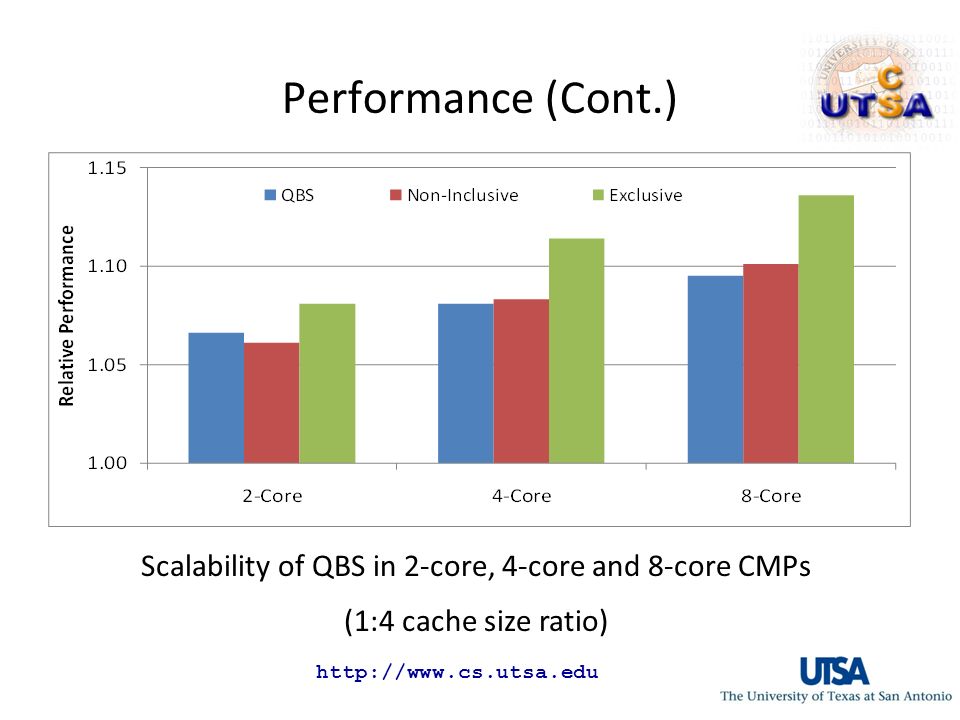

20 http://www.cs.utsa.edu Performance (Cont.) Scalability of QBS in 2-core, 4-core and 8-core CMPs (1:4 cache size ratio)

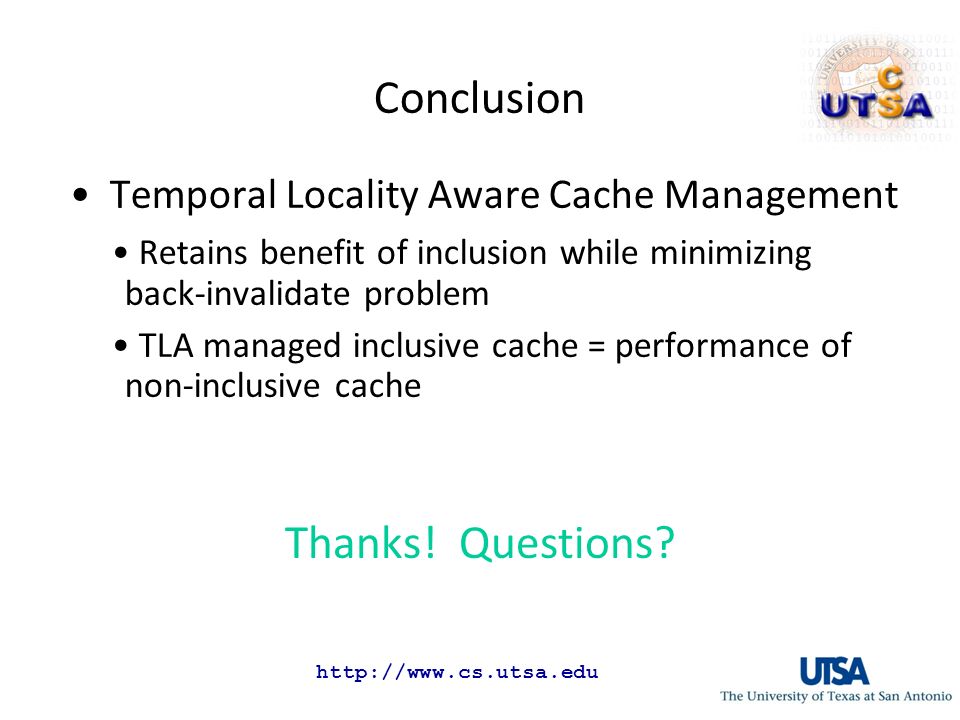

21 http://www.cs.utsa.edu Conclusion Temporal Locality Aware Cache Management Retains benefit of inclusion while minimizing back-invalidate problem TLA managed inclusive cache = performance of non-inclusive cache Thanks! Questions?
