1. Photon Mapping (PM), Progressive PM, Stochastic PPM Jiří Vorba

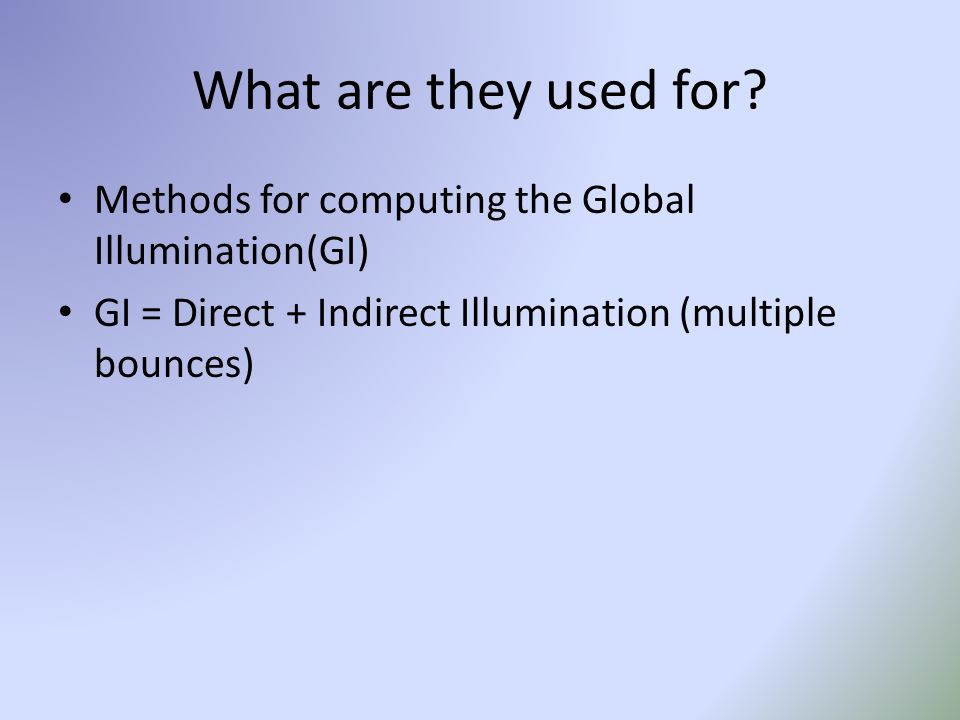

2. What are they used for? Methods for computing the Global Illumination(GI) GI = Direct + Indirect Illumination (multiple bounces)

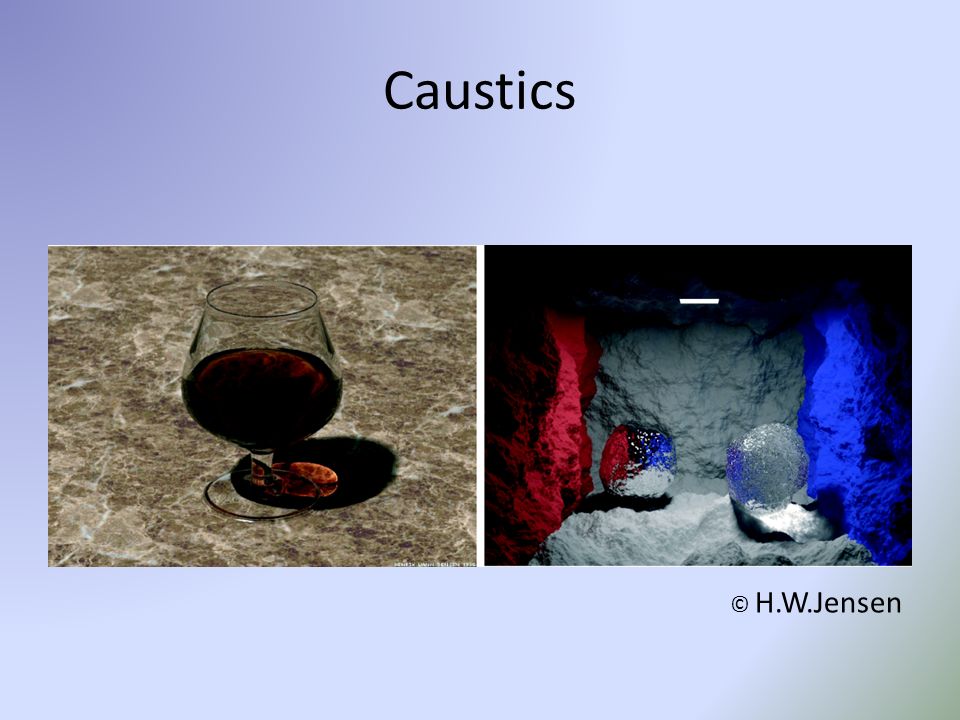

3. Caustics © H.W.Jensen

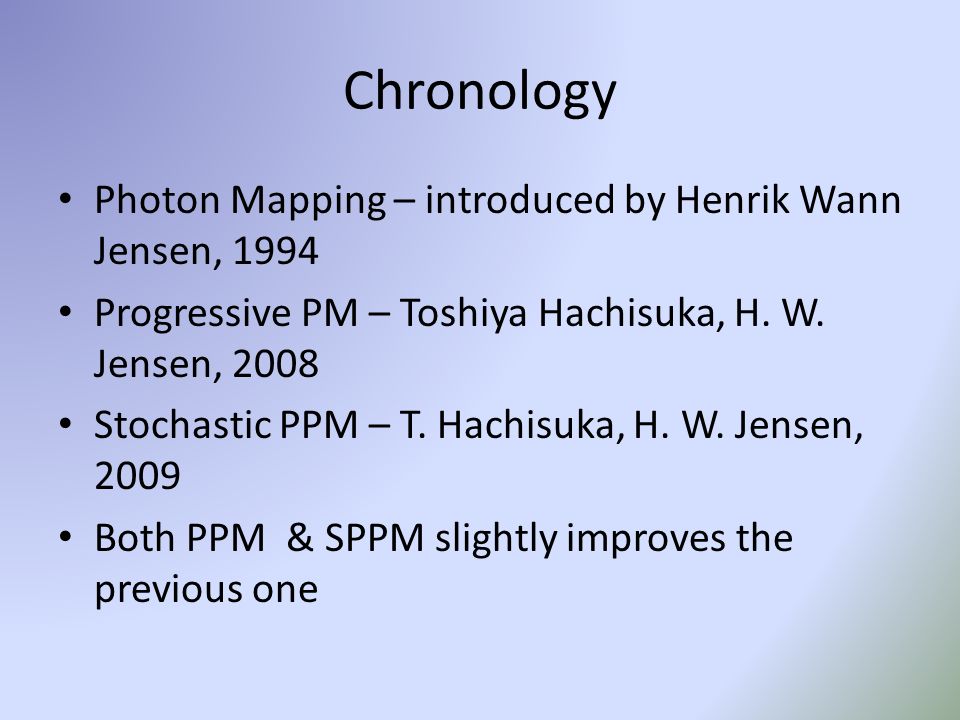

4. Chronology Photon Mapping – introduced by Henrik Wann Jensen, 1994 Progressive PM – Toshiya Hachisuka, H. W. Jensen, 2008 Stochastic PPM – T. Hachisuka, H. W. Jensen, 2009 Both PPM & SPPM slightly improves the previous one

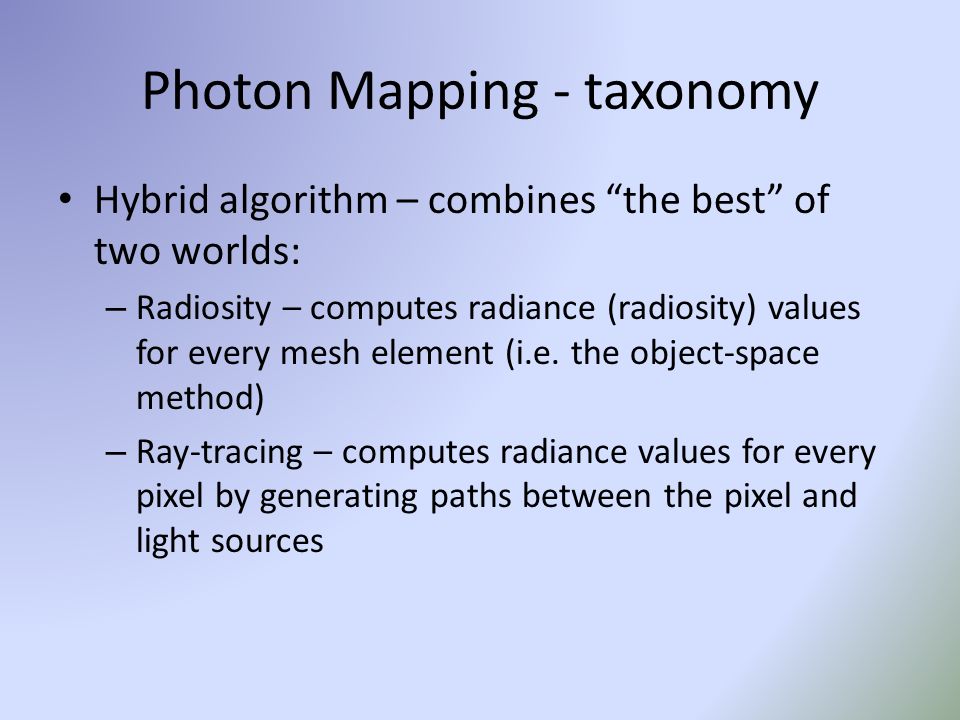

5. Photon Mapping - taxonomy Hybrid algorithm – combines “the best” of two worlds: – Radiosity – computes radiance (radiosity) values for every mesh element (i.e. the object-space method) – Ray-tracing – computes radiance values for every pixel by generating paths between the pixel and light sources

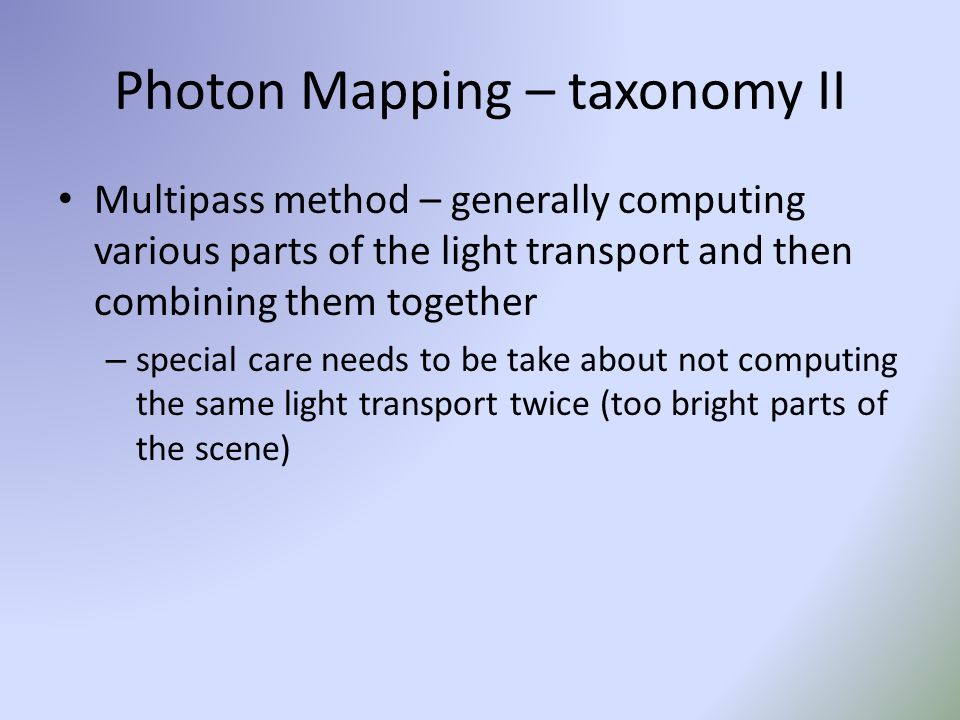

6. Photon Mapping – taxonomy II Multipass method – generally computing various parts of the light transport and then combining them together – special care needs to be take about not computing the same light transport twice (too bright parts of the scene)

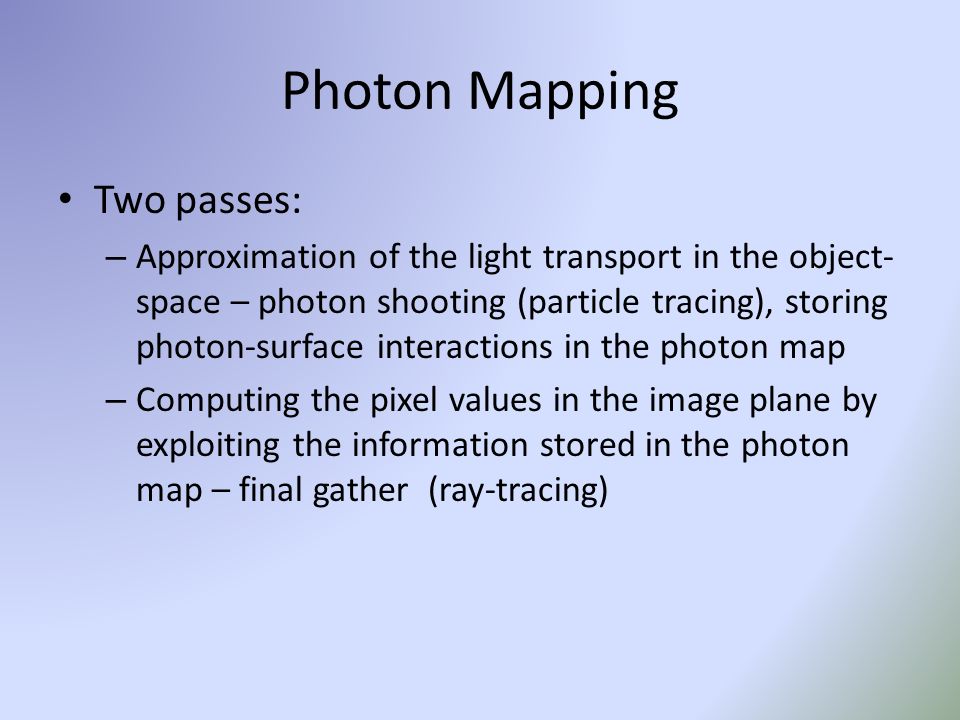

7. Photon Mapping Two passes: – Approximation of the light transport in the object- space – photon shooting (particle tracing), storing photon-surface interactions in the photon map – Computing the pixel values in the image plane by exploiting the information stored in the photon map – final gather (ray-tracing)

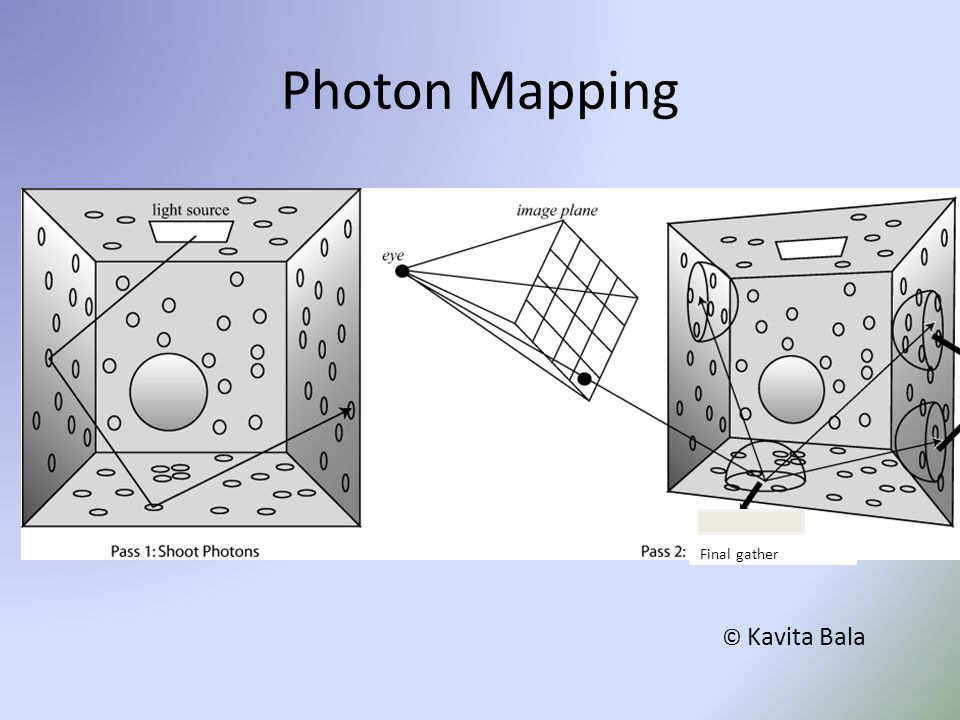

8. Photon Mapping Final gather © Kavita Bala

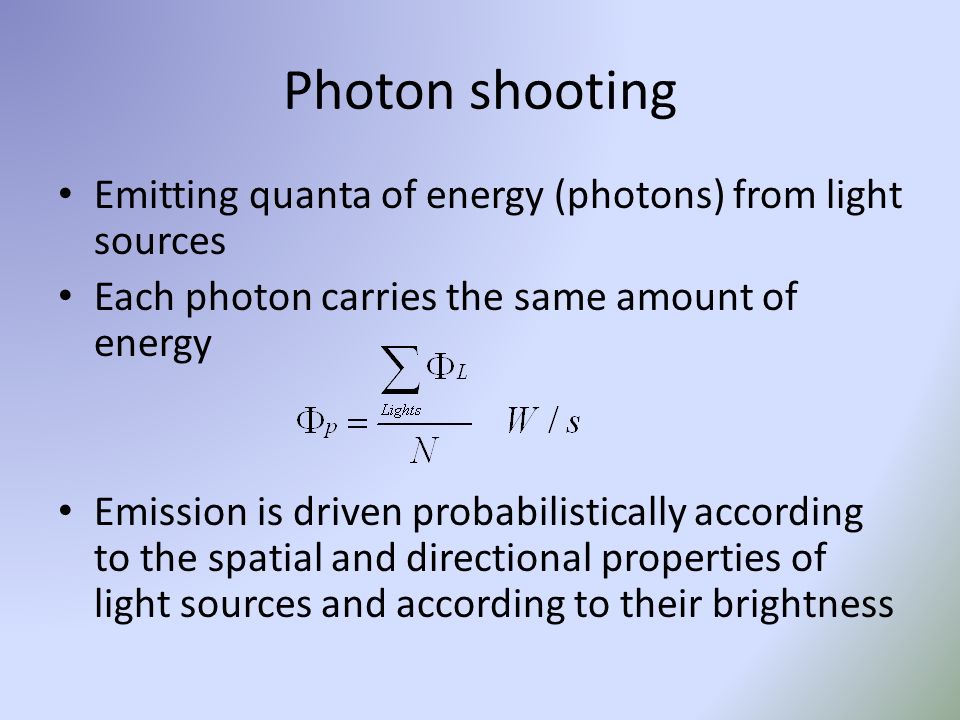

9. Photon shooting Emitting quanta of energy (photons) from light sources Each photon carries the same amount of energy Emission is driven probabilistically according to the spatial and directional properties of light sources and according to their brightness

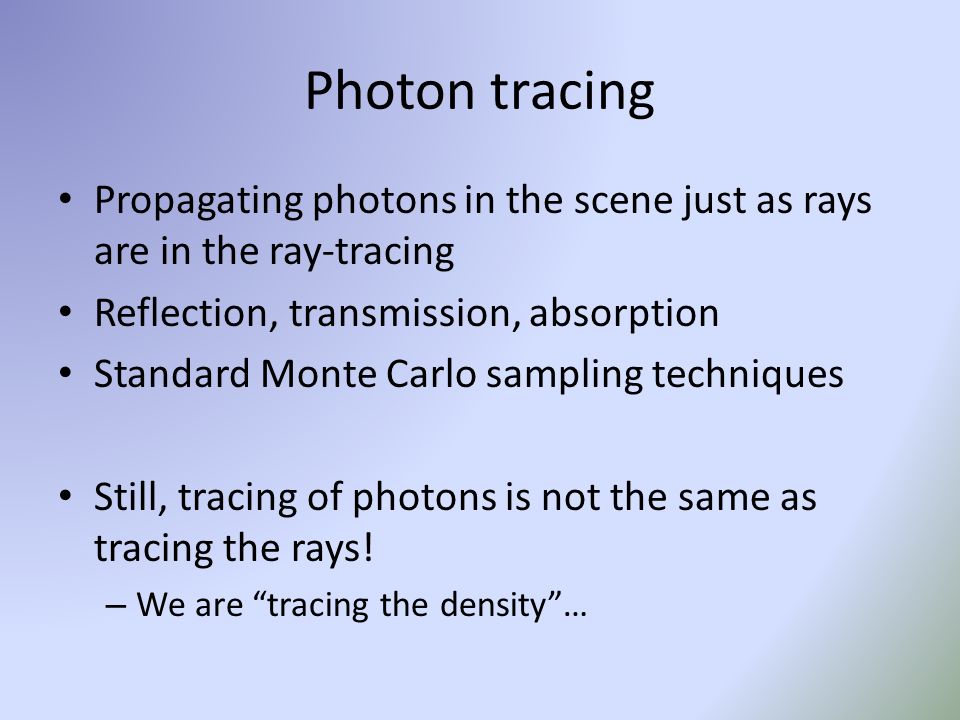

10. Photon tracing Propagating photons in the scene just as rays are in the ray-tracing Reflection, transmission, absorption Standard Monte Carlo sampling techniques Still, tracing of photons is not the same as tracing the rays! – We are “tracing the density”…

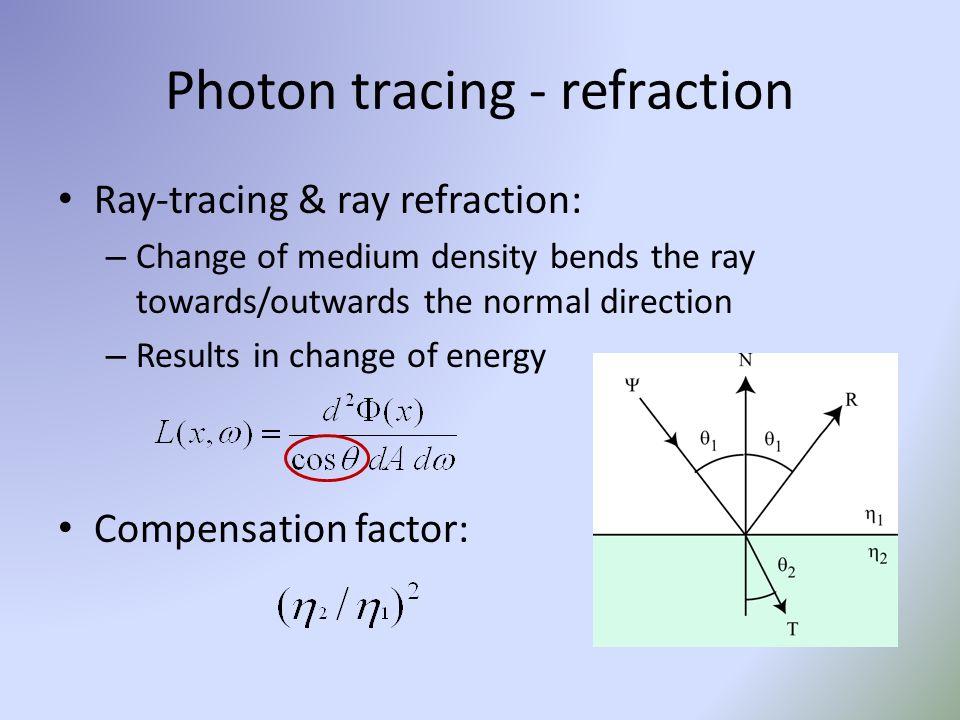

11. Photon tracing - refraction Ray-tracing & ray refraction: – Change of medium density bends the ray towards/outwards the normal direction – Results in change of energy Compensation factor:

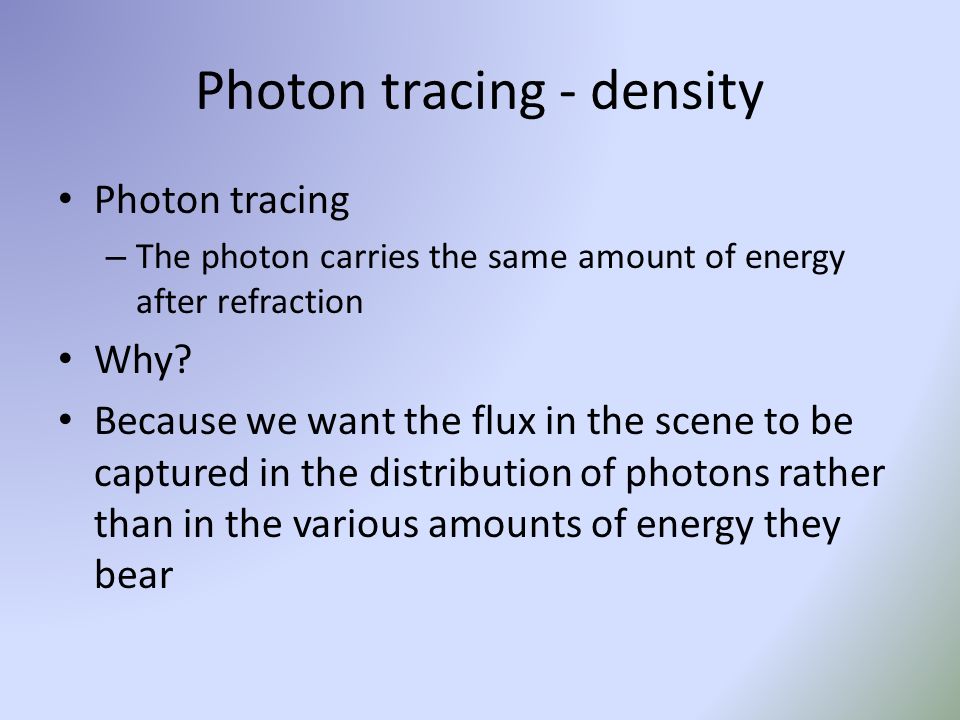

12. Photon tracing - density Photon tracing – The photon carries the same amount of energy after refraction Why? Because we want the flux in the scene to be captured in the distribution of photons rather than in the various amounts of energy they bear

13. Photons approximates the radiosity © Philippe Bekaert

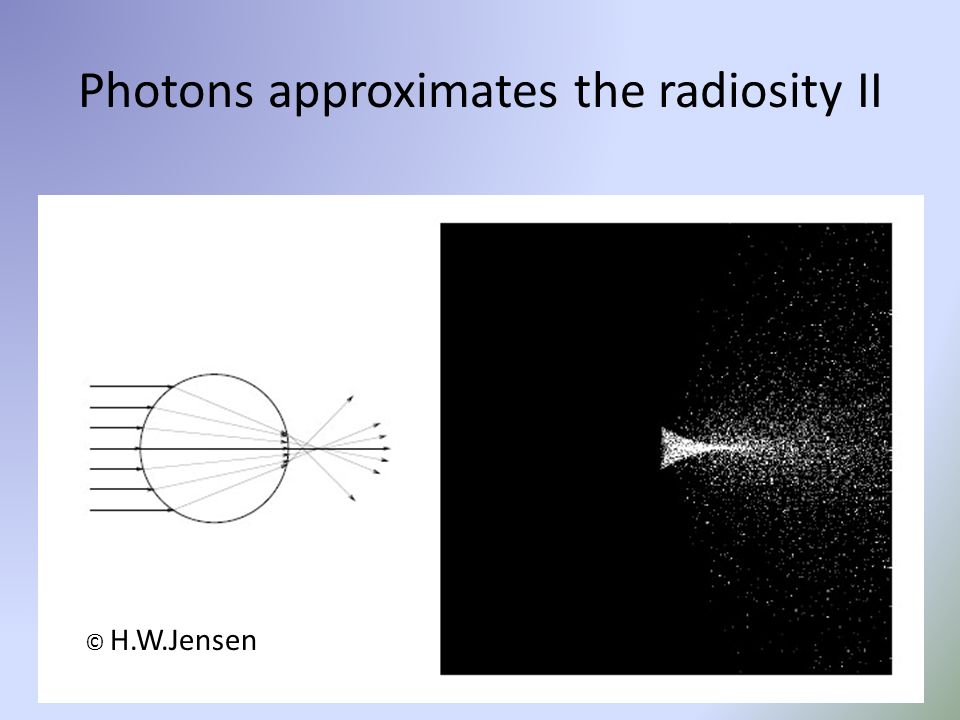

14. Photons approximates the radiosity II © H.W.Jensen

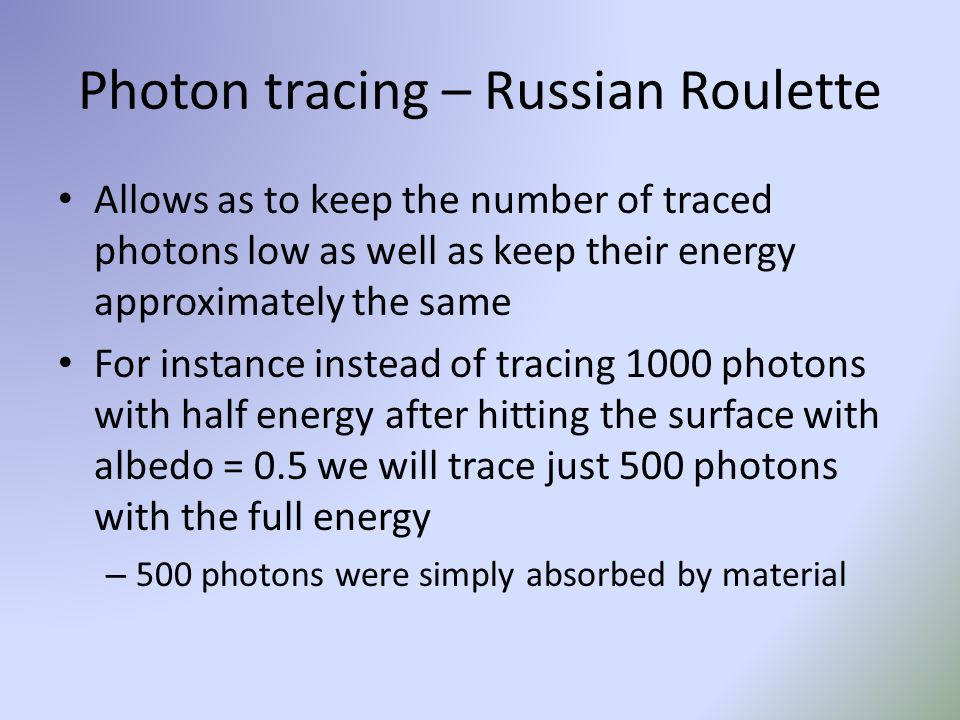

15. Photon tracing – Russian Roulette Allows as to keep the number of traced photons low as well as keep their energy approximately the same For instance instead of tracing 1000 photons with half energy after hitting the surface with albedo = 0.5 we will trace just 500 photons with the full energy – 500 photons were simply absorbed by material

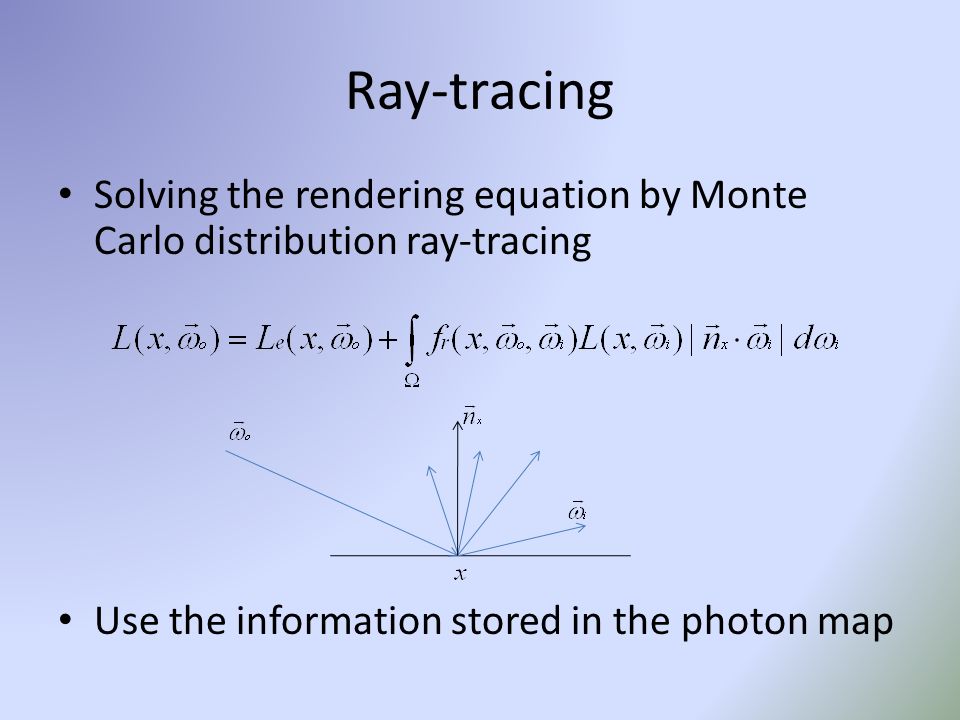

16. Ray-tracing Solving the rendering equation by Monte Carlo distribution ray-tracing Use the information stored in the photon map

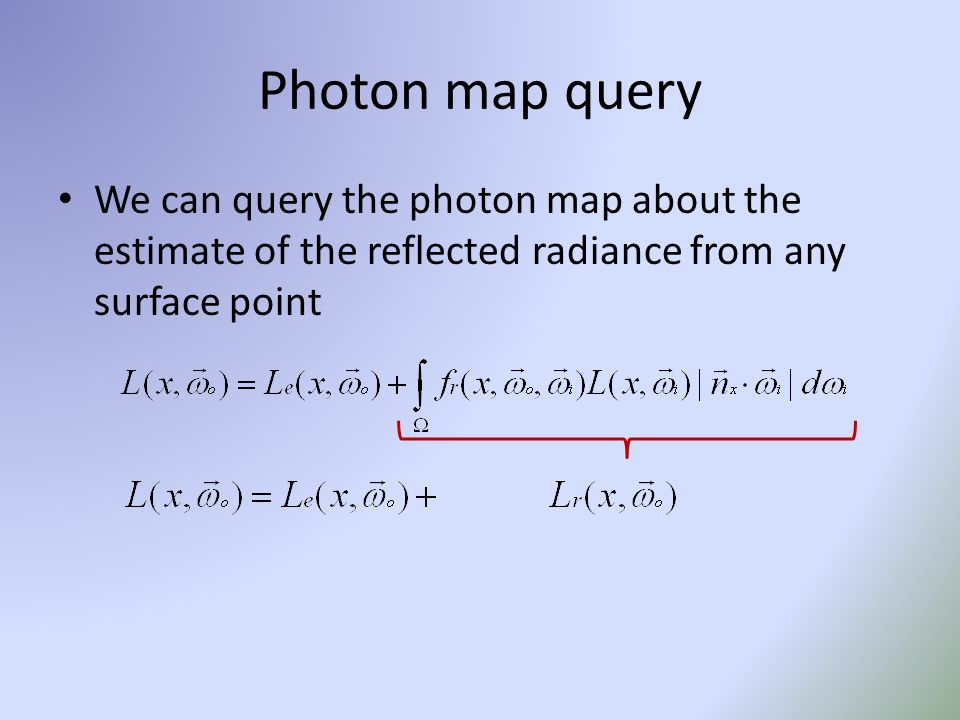

17. Photon map query We can query the photon map about the estimate of the reflected radiance from any surface point

18. Relationship between radiance and flux Reflected radiance equation Radiance estimate – derivation I

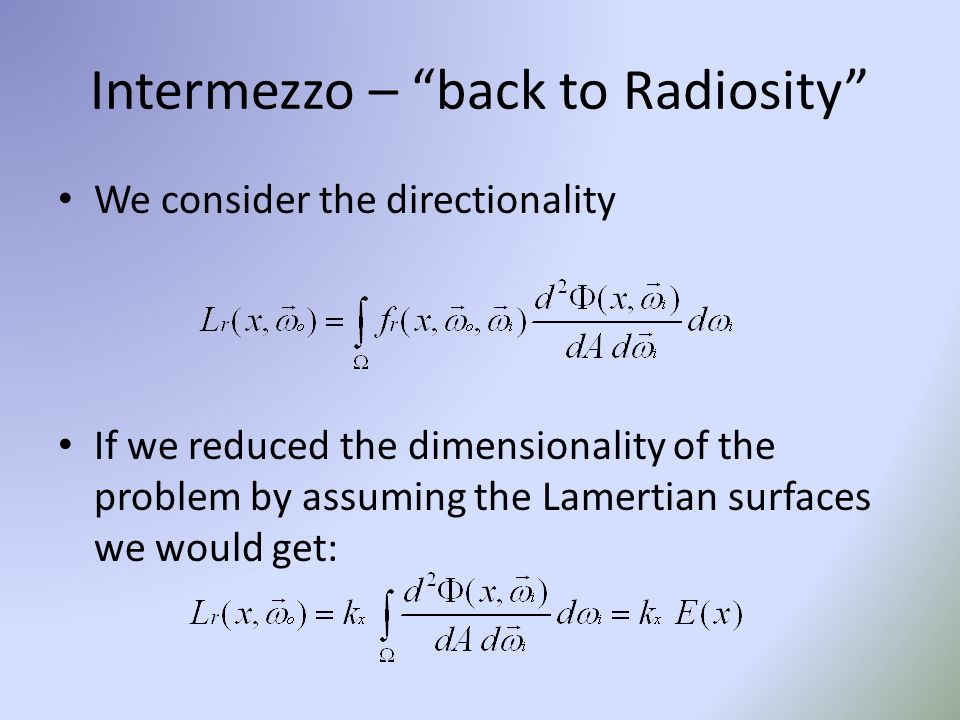

19. We consider the directionality If we reduced the dimensionality of the problem by assuming the Lamertian surfaces we would get: Intermezzo – “back to Radiosity”

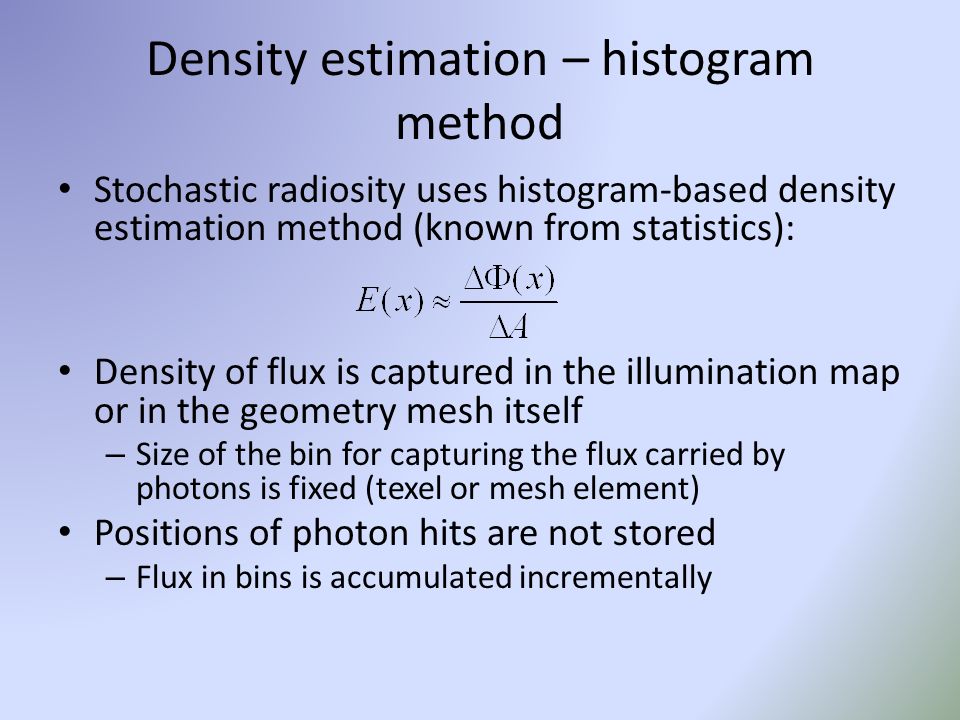

20. Stochastic radiosity uses histogram-based density estimation method (known from statistics): Density of flux is captured in the illumination map or in the geometry mesh itself – Size of the bin for capturing the flux carried by photons is fixed (texel or mesh element) Positions of photon hits are not stored – Flux in bins is accumulated incrementally Density estimation – histogram method

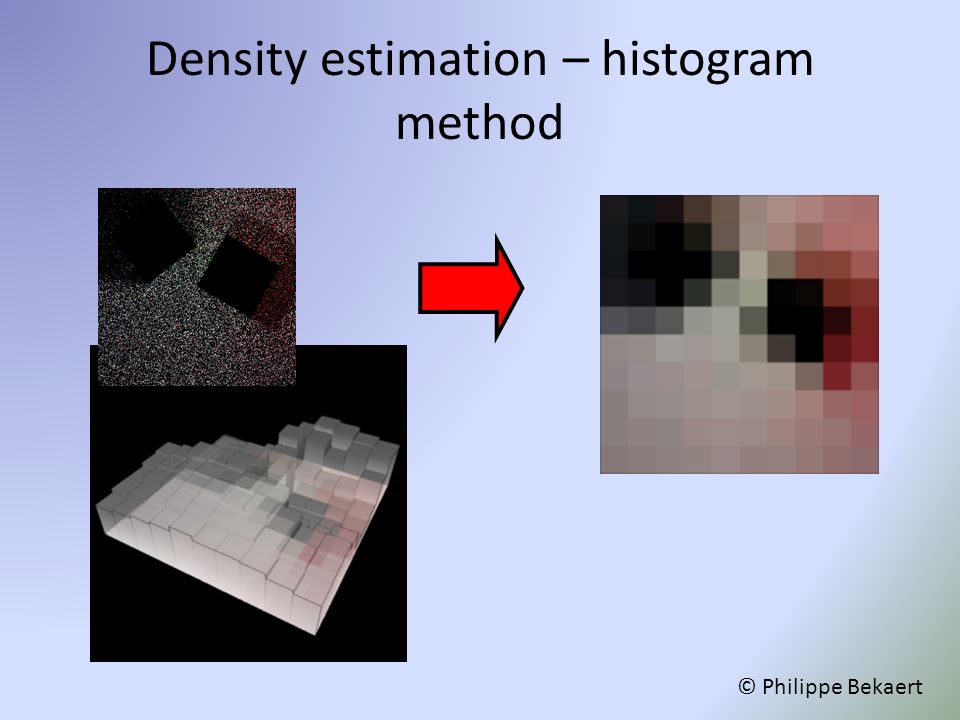

21. © Philippe Bekaert

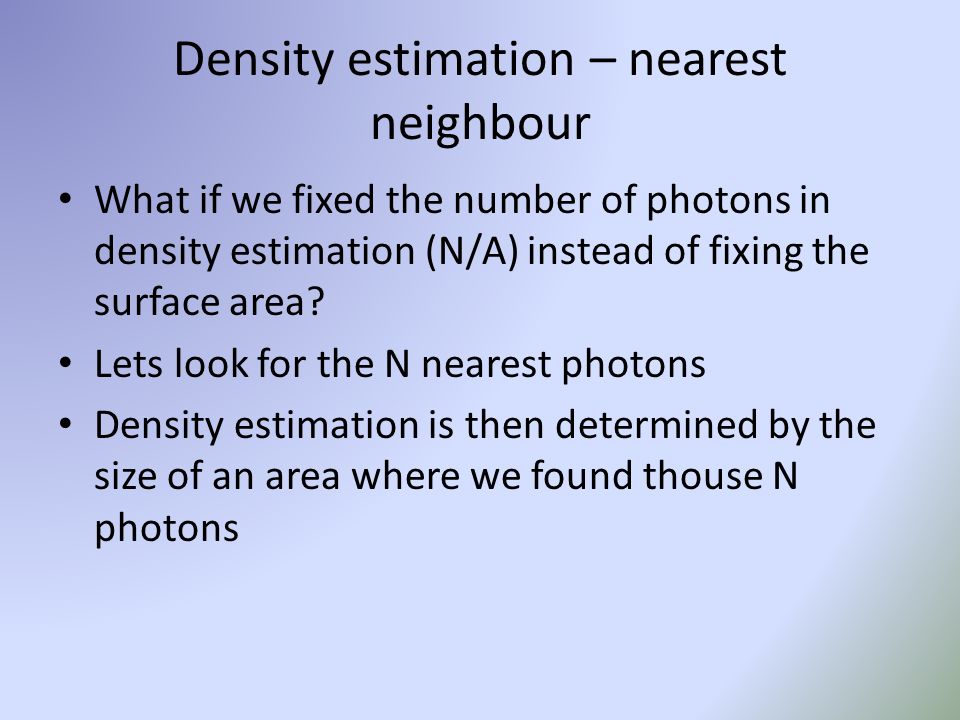

22. What if we fixed the number of photons in density estimation (N/A) instead of fixing the surface area? Lets look for the N nearest photons Density estimation is then determined by the size of an area where we found thouse N photons Density estimation – nearest neighbour

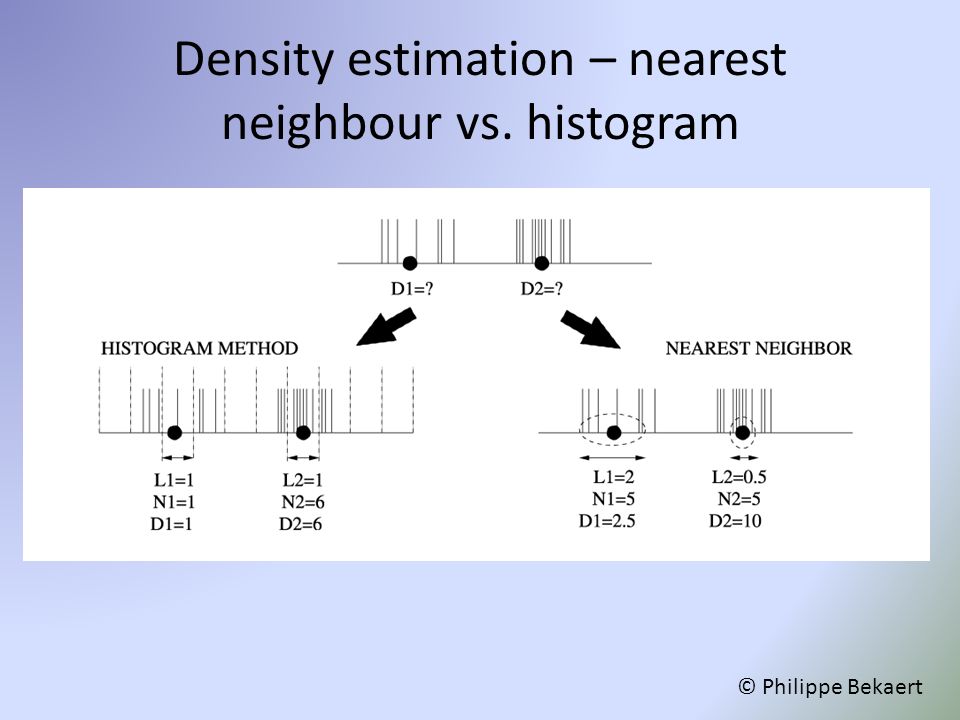

23. Density estimation – nearest neighbour vs. histogram © Philippe Bekaert

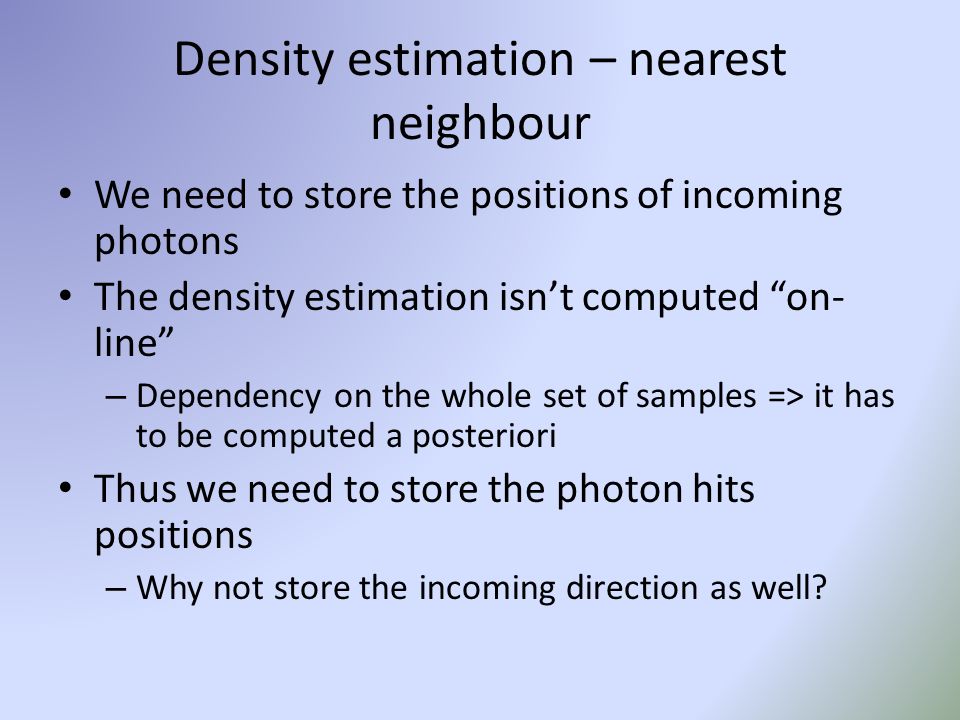

24. We need to store the positions of incoming photons The density estimation isn’t computed “on- line” – Dependency on the whole set of samples => it has to be computed a posteriori Thus we need to store the photon hits positions – Why not store the incoming direction as well? Density estimation – nearest neighbour

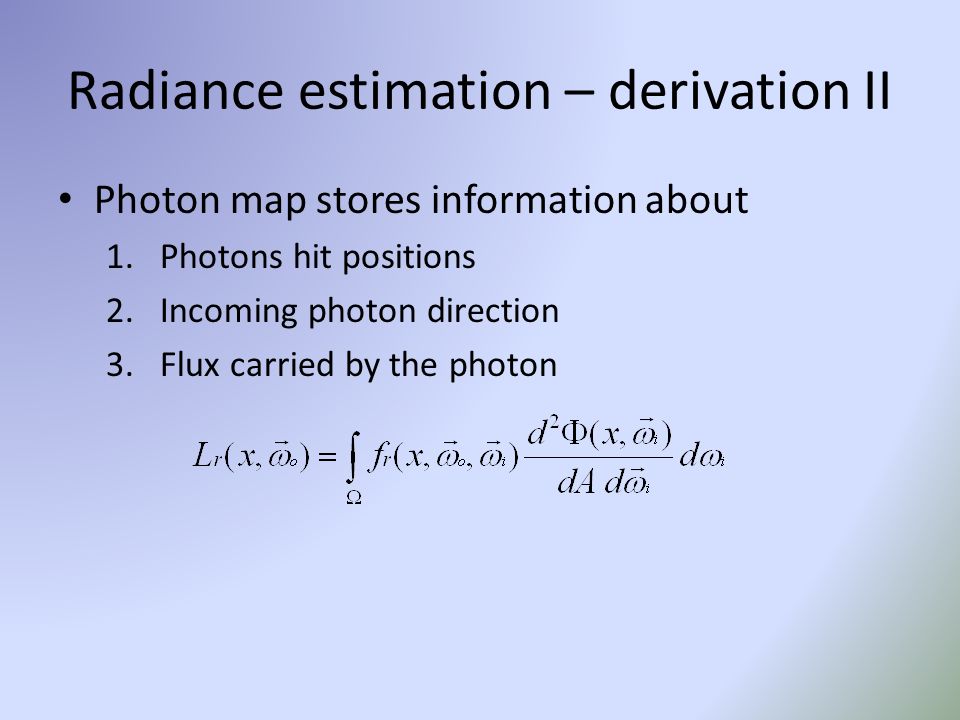

25. Photon map stores information about 1.Photons hit positions 2.Incoming photon direction 3.Flux carried by the photon Radiance estimation – derivation II

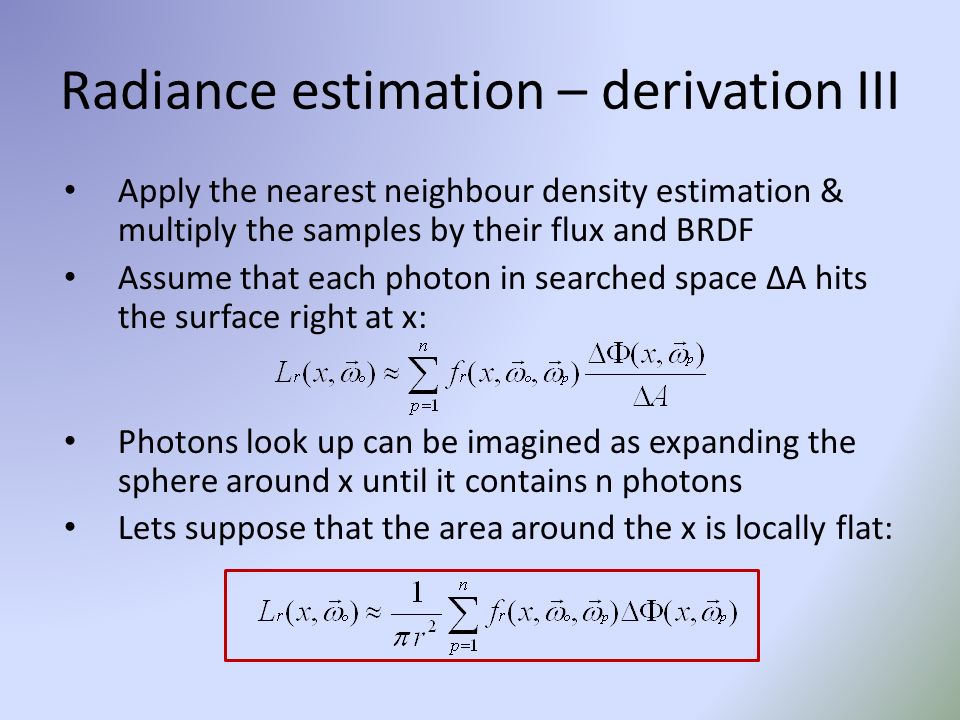

26. Apply the nearest neighbour density estimation & multiply the samples by their flux and BRDF Assume that each photon in searched space ΔA hits the surface right at x: Photons look up can be imagined as expanding the sphere around x until it contains n photons Lets suppose that the area around the x is locally flat: Radiance estimation – derivation III

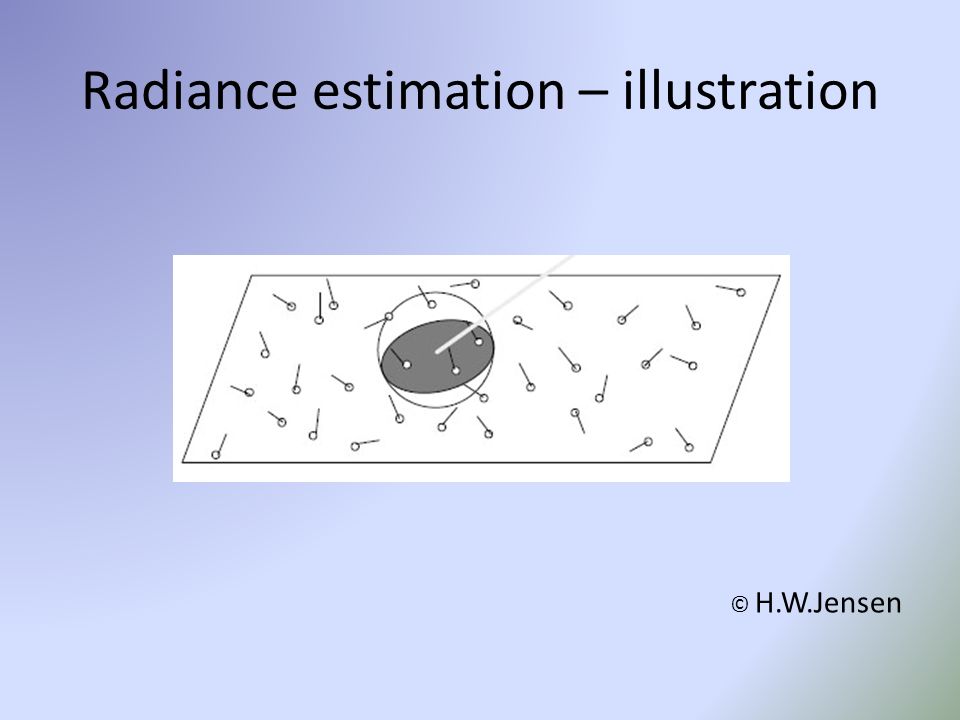

27. Radiance estimation – illustration © H.W.Jensen

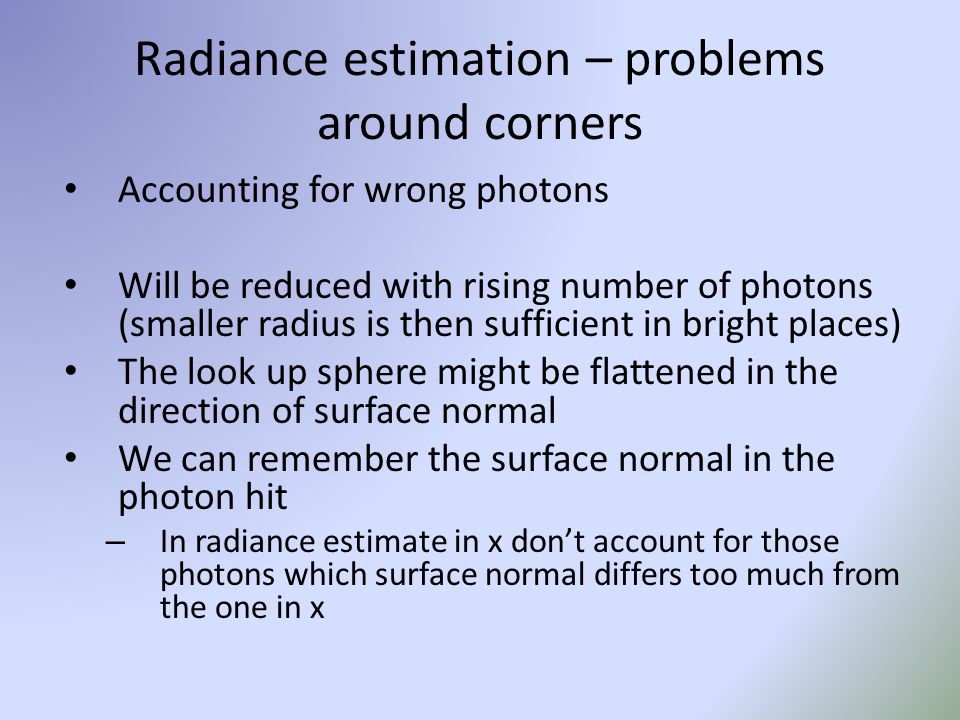

28. Radiance estimation – problems around corners Accounting for wrong photons Will be reduced with rising number of photons (smaller radius is then sufficient in bright places) The look up sphere might be flattened in the direction of surface normal We can remember the surface normal in the photon hit – In radiance estimate in x don’t account for those photons which surface normal differs too much from the one in x

29. Radiance estimation – problems around corners © H.W.Jensen

30. Radiance estimation – problems close to the walls obrazek Disk or sphere projection to locally flat surface may yield the wrong area estimate Solutions: – Computing the convex hull of accounted photons – Or better: use the kernel-density estimation technique instead of nearest-neighbour (simply just filtering the radiance estimate by weighting the samples) © H.W.Jensen

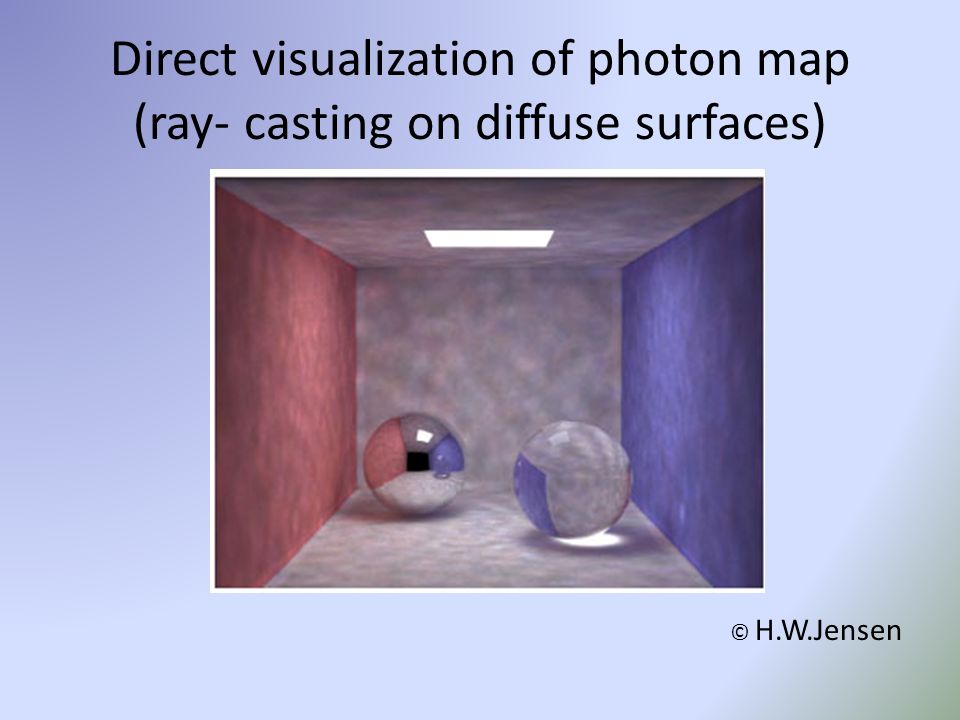

31. Direct visualization of photon map (ray- casting on diffuse surfaces) © H.W.Jensen

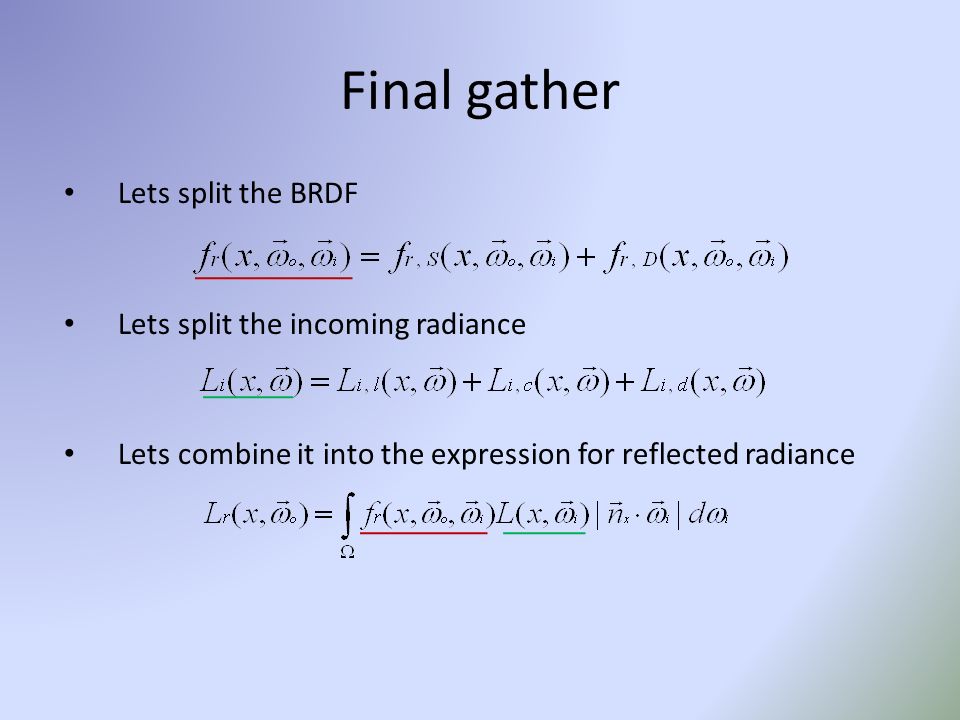

32. Final gather Lets split the BRDF Lets split the incoming radiance Lets combine it into the expression for reflected radiance

33. Reflected radiance equation

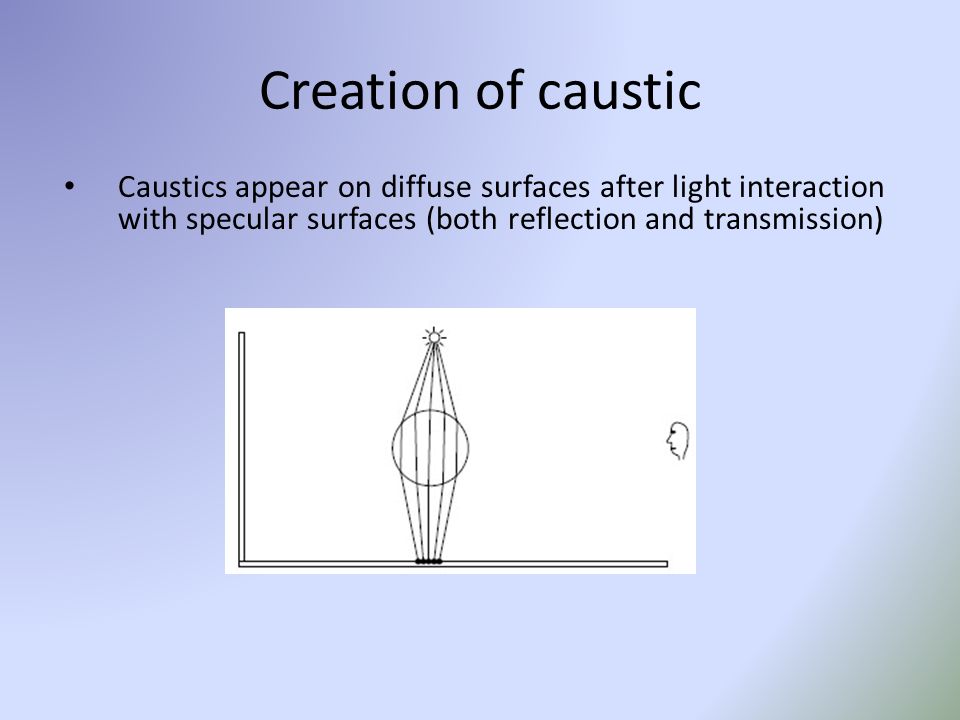

34. Creation of caustic Caustics appear on diffuse surfaces after light interaction with specular surfaces (both reflection and transmission)

35. More photon maps Create the special photon map for caustic photons – Trace them separately (store the photon on the first non- specular surface -> S + D paths) – Cast photons only against specular surfaces – light source projection maps Create the special photon map for indirect illumination Create the special photon map for participating media effects (behind the scope of the talk)

36. Final gather II Direct illumination term – Solving directly by casting shadow rays (sampling the light sources) Specular and glossy term – Standard MC ray-tracing with importance sampling in favour of BRDF narrow peak – Could take too much time if we waited until enough photons hit the BRDF narrow peak Caustics – Direct query into the caustic photon map

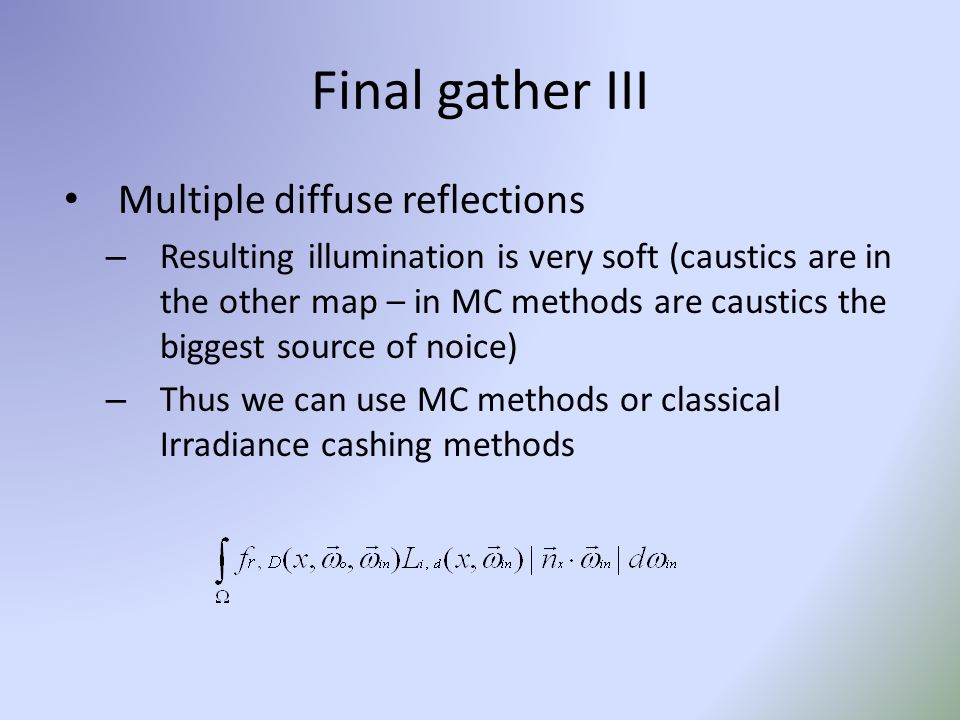

37. Final gather III Multiple diffuse reflections – Resulting illumination is very soft (caustics are in the other map – in MC methods are caustics the biggest source of noice) – Thus we can use MC methods or classical Irradiance cashing methods

38. Different components of rendered solution

39. In what are the photon maps especially good at? Generating caustics Fast convergence of SDS paths – Here the classical MC algorithms fails (path tracing, bidirectional path tracing, metropolis light transport) © Hachisuka et al.

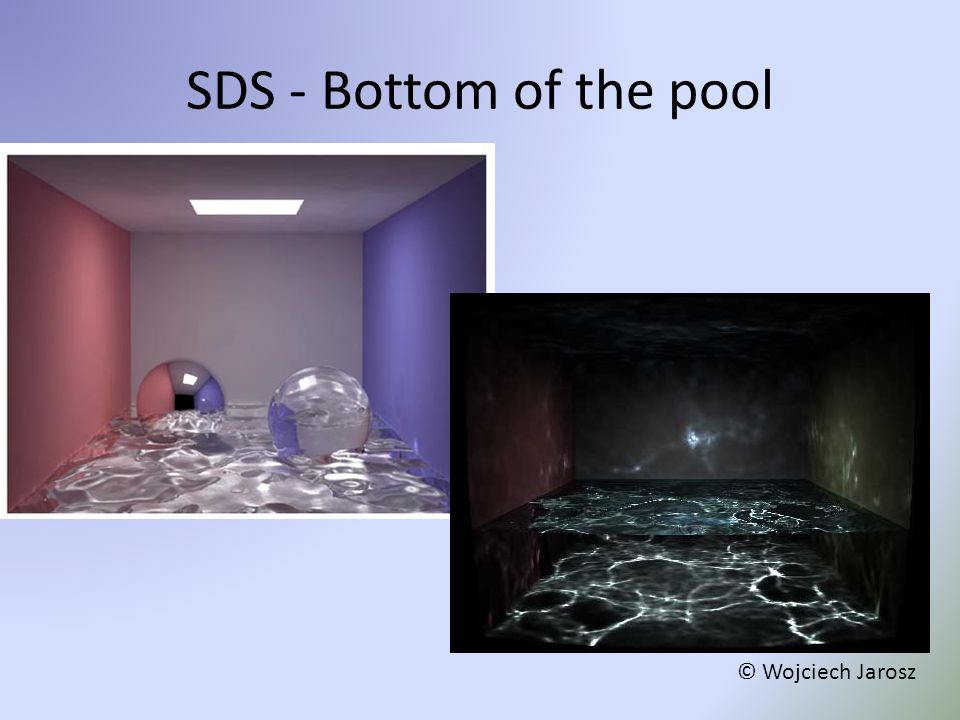

40. SDS - Bottom of the pool © Wojciech Jarosz

41. Main disadvantages of PM Biased – Still, consistent Cannot get arbitrarily precise results – We are strictly limited by the physical memory boundary – Thus not suitable in the areas of predictive rendering

42. Progressive PM Jiří Vorba

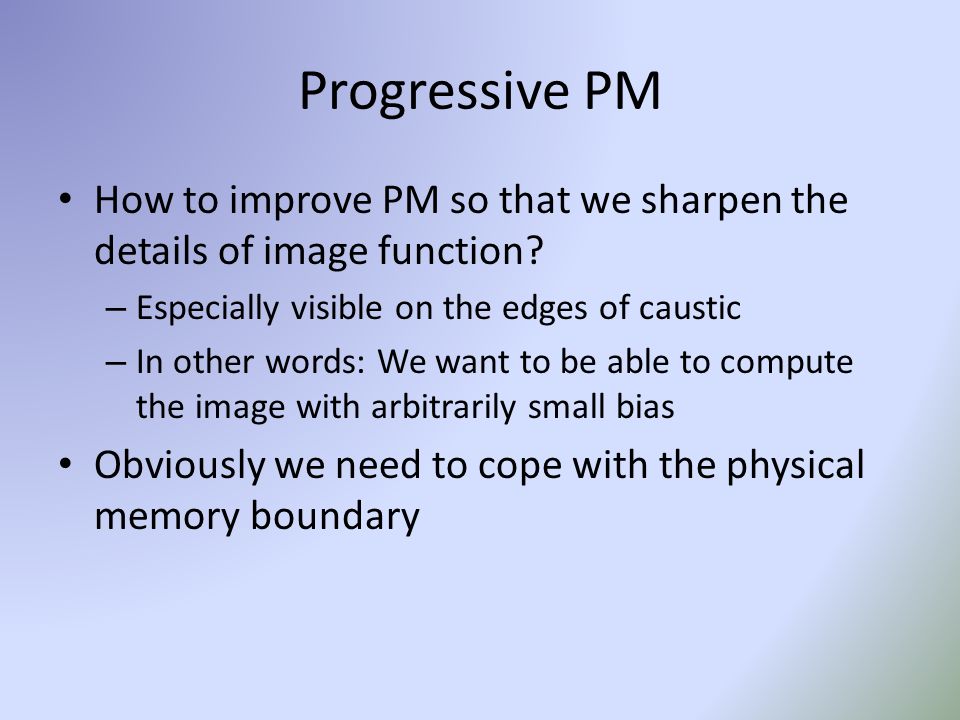

43. Progressive PM How to improve PM so that we sharpen the details of image function? – Especially visible on the edges of caustic – In other words: We want to be able to compute the image with arbitrarily small bias Obviously we need to cope with the physical memory boundary

44. First idea Use the memory more times than one and combine the results from N photon maps Averaging radiance estimates – In the point x where we want to query PM we have N radiance estimates – For averaging we need to use histogram-density estimate method = fixing the radius; (remember histogram vs. nearest neighbour) It is not consistent – Getting smoother results but still blurry

45. Question How to combine illumination approximation from more photon maps so that we get in the final solution the results which are not present in any single photon map we have? – i.e. to have the consistent radiance estimate combination

46. Second idea Says: “The algorithm of PM is consistent.” So what?! Did it help us? We’ve already heard that… It gives us a clue how to do it – We have to progressively decrease the radius while merging the results from multiple photon maps – More work has to be done to achieve the goal…

47. Rough schema of an algorithm © Hachisuka et al. Ray tracing pass finds the hit points (HPs) In the HPs we combine the radiance estimates from every single photon tracing pass

48. Radius reduction Main idea: – We suppose that the density d(x)=n/(πr 2 ) around x is invariant – Thus radius can be reduced if we reduce the number of photons in the estimate On the other hand to satisfy the condition of consistency we need have gain of photons in the estimate Solution: – Lets keep just fraction of new photons after each iteration

49. Radius reduction - derivation Use parameter α in range (0,1) to control the fraction of new photons new density – N(x) photons after i iterations – M(x) in (i+1)-th iteration New total number of photons when keeping the density the same, just reducing radius Put it all together

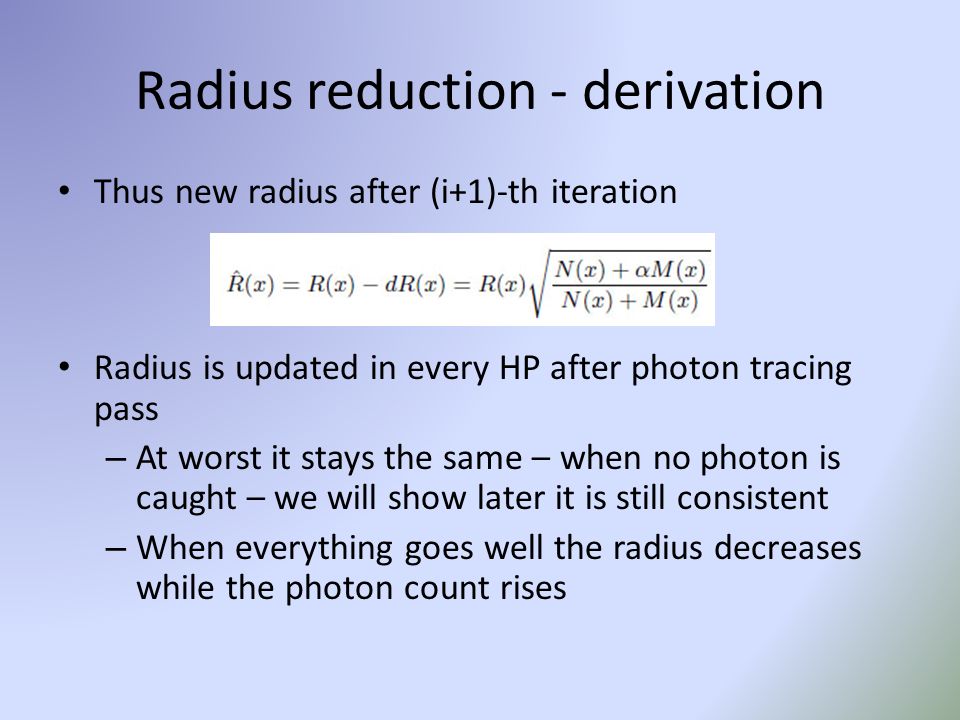

50. Radius reduction - derivation Thus new radius after (i+1)-th iteration Radius is updated in every HP after photon tracing pass – At worst it stays the same – when no photon is caught – we will show later it is still consistent – When everything goes well the radius decreases while the photon count rises

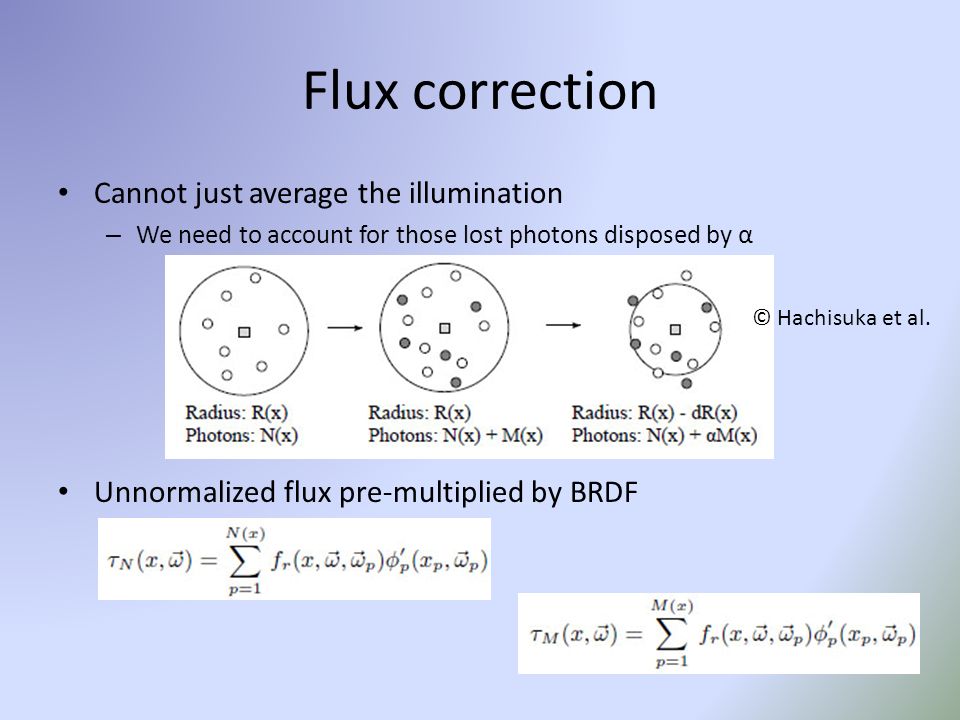

51. Flux correction Cannot just average the illumination – We need to account for those lost photons disposed by α Unnormalized flux pre-multiplied by BRDF © Hachisuka et al.

52. Flux correction We could keep the list of photons in every HP and subtract flux of those which fall out – Slow, memory demanding Better: assume both photon density and therefore the illumination are the same. Then radiance doesn’t change Results in:

53. Resulting radiance estimate Normalization by total number of emitted photons Consistency is kept even in those places not receiving any photons (division by N)

54. Algorithm review Hp structure: 1.Ray-tracing pass – Trace ray across specular bounces until first non-specular surface is hit – Remember hp, its corresponding pixel, intersection details, weight 2.Photon tracing passes – Shoot photons into the new map – In each hp query the photon map – Update hp’s statistics – Possibly write the image for preview

55. Main disadvantages of PPM Biased – Still, consistent – In theory we can get arbitrarily precise solution (no memory restrictions) Bad behaviour on glossy reflections – Could be solved by casting more samples => more hps => memory restrictions

56. Examples of glossy reflections with PPM

57. Stochastic PPM Jiří Vorba

58. Distribution ray-tracing effects What does it actually mean to compute glossy reflections, depth of field, motion blur, anti-aliasing etc.? – Integration over some (additional) domain Glossy reflection (usual hemisphere integration) Anti-aliasing and motion blur together – Pixel value I j, importance function W j of pixel j, time range T, all surface points in the scene A including the image plane

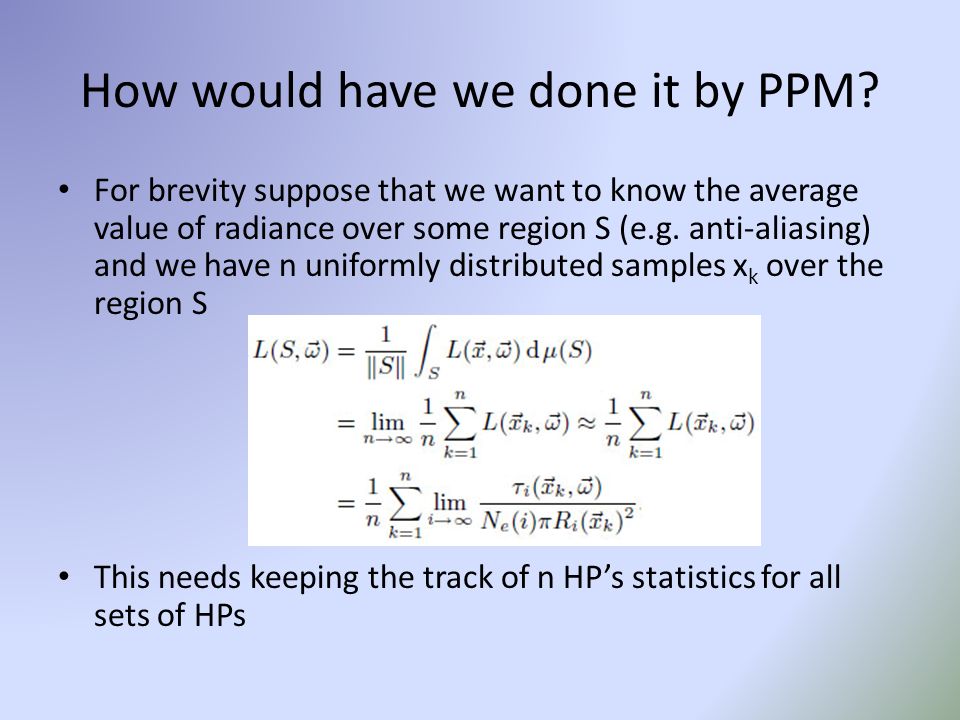

59. How would have we done it by PPM? For brevity suppose that we want to know the average value of radiance over some region S (e.g. anti-aliasing) and we have n uniformly distributed samples x k over the region S This needs keeping the track of n HP’s statistics for all sets of HPs

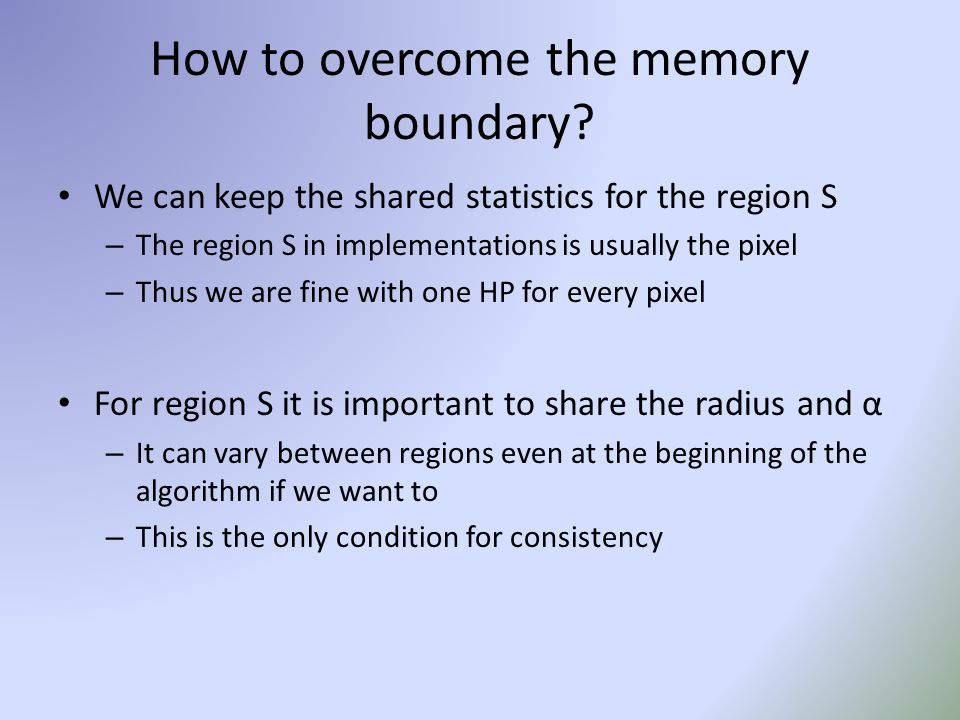

60. How to overcome the memory boundary? We can keep the shared statistics for the region S – The region S in implementations is usually the pixel – Thus we are fine with one HP for every pixel For region S it is important to share the radius and α – It can vary between regions even at the beginning of the algorithm if we want to – This is the only condition for consistency

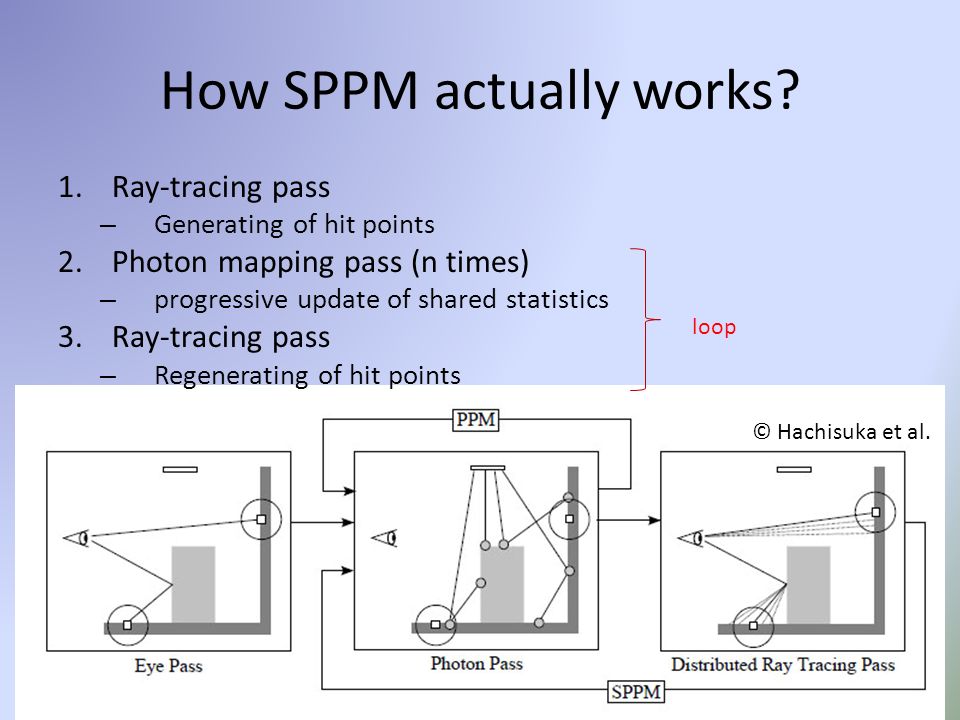

61. How SPPM actually works? 1.Ray-tracing pass – Generating of hit points 2.Photon mapping pass (n times) – progressive update of shared statistics 3.Ray-tracing pass – Regenerating of hit points loop © Hachisuka et al.

62. PPM vs. SPPM © Hachisuka et al.

63. Optimal light paths connection Jiří Vorba

64. Which disadvantages of PM was not mentioned? Final gather is just a heuristic! In general it doesn’t work well for every scene It is not problem in PPM – It lacks the final gather… – Well, on the other hand it looses robustness due to glossy scenes SPPM more robust in comparison with PPM – But due to “partial” final gather for glossy reflections the problem is the same as with PM

65. Examples © Jaroslav Křivánek

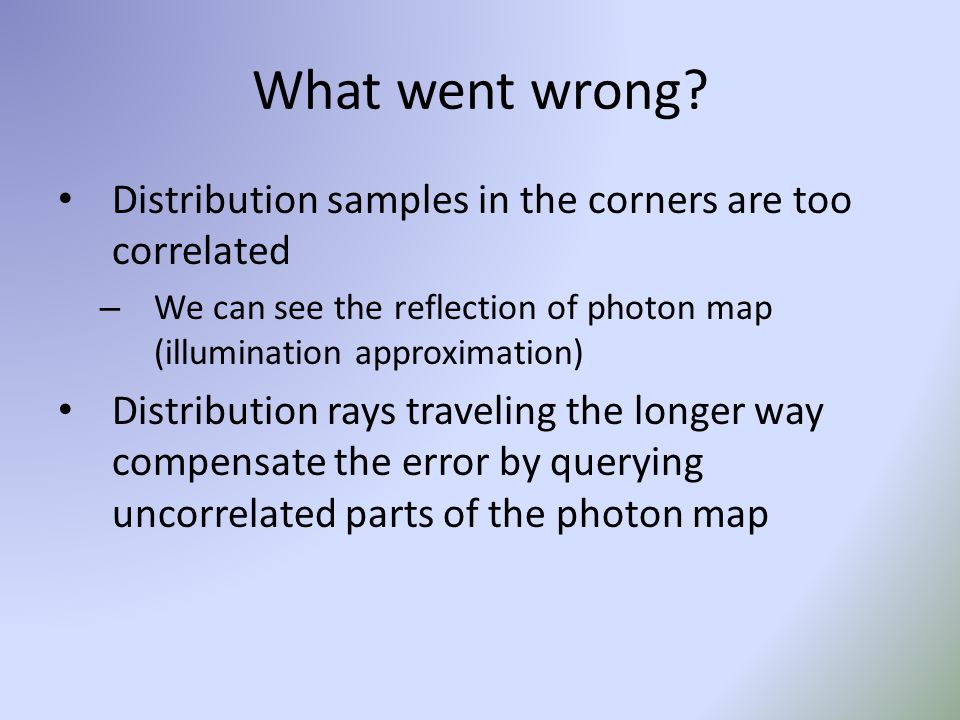

66. What went wrong? Distribution samples in the corners are too correlated – We can see the reflection of photon map (illumination approximation) Distribution rays traveling the longer way compensate the error by querying uncorrelated parts of the photon map

67. Examples II – znova s mensim poctem fotonu (neni videt problem)

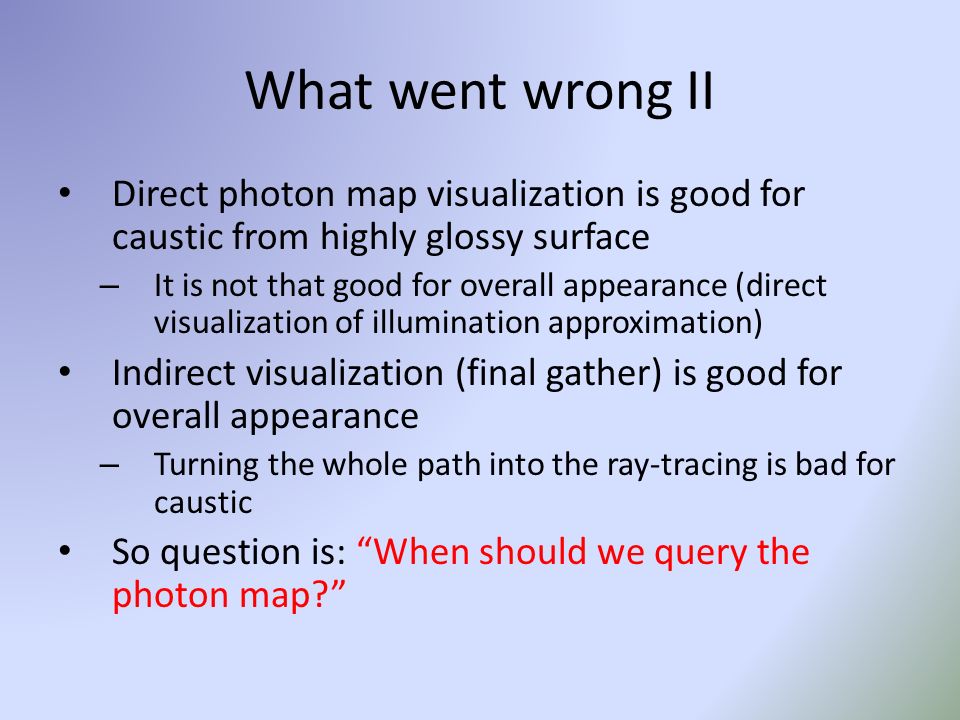

68. What went wrong II Direct photon map visualization is good for caustic from highly glossy surface – It is not that good for overall appearance (direct visualization of illumination approximation) Indirect visualization (final gather) is good for overall appearance – Turning the whole path into the ray-tracing is bad for caustic So question is: “When should we query the photon map?”

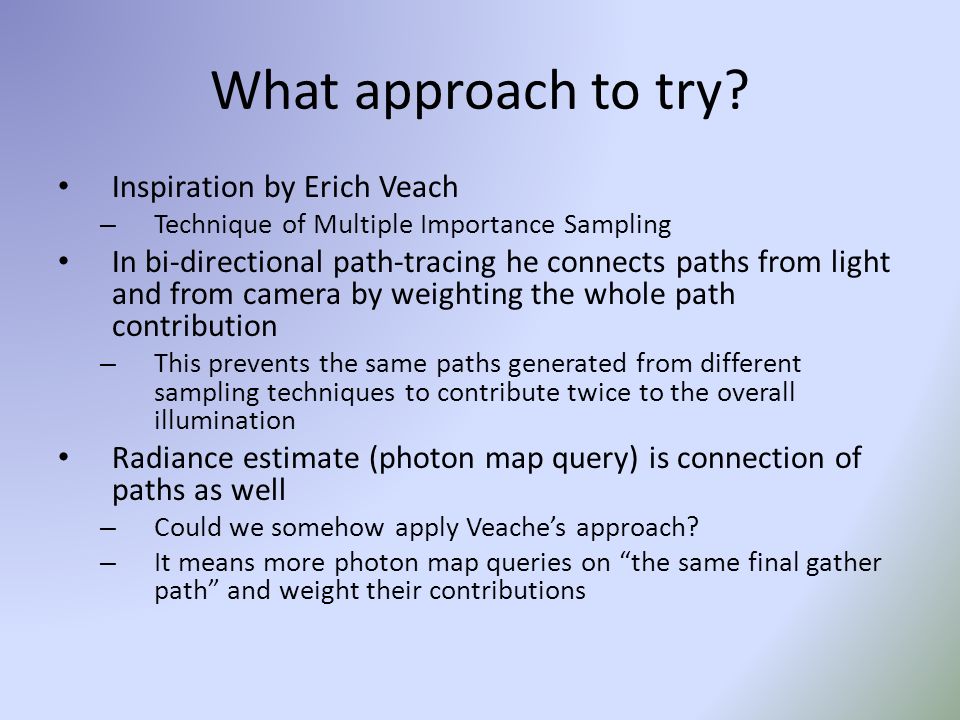

69. What approach to try? Inspiration by Erich Veach – Technique of Multiple Importance Sampling In bi-directional path-tracing he connects paths from light and from camera by weighting the whole path contribution – This prevents the same paths generated from different sampling techniques to contribute twice to the overall illumination Radiance estimate (photon map query) is connection of paths as well – Could we somehow apply Veache’s approach? – It means more photon map queries on “the same final gather path” and weight their contributions
