1. www.synerzip.com Lifecycle of a User Story Webinar Series 2015 1 © Three Beacons LLC, 2015 Lifecycle of a User Story Mike Hall Three Beacons mike@threebeacons.com 214.783.3936

2. www.synerzip.com Lifecycle of a User Story Webinar Series 2015 2 © Three Beacons LLC, 2015 Lifecycles Conception BirthGrowthMaturityEnd of Life

3. www.synerzip.com Lifecycle of a User Story Webinar Series 2015 3 © Three Beacons LLC, 2015 Conception

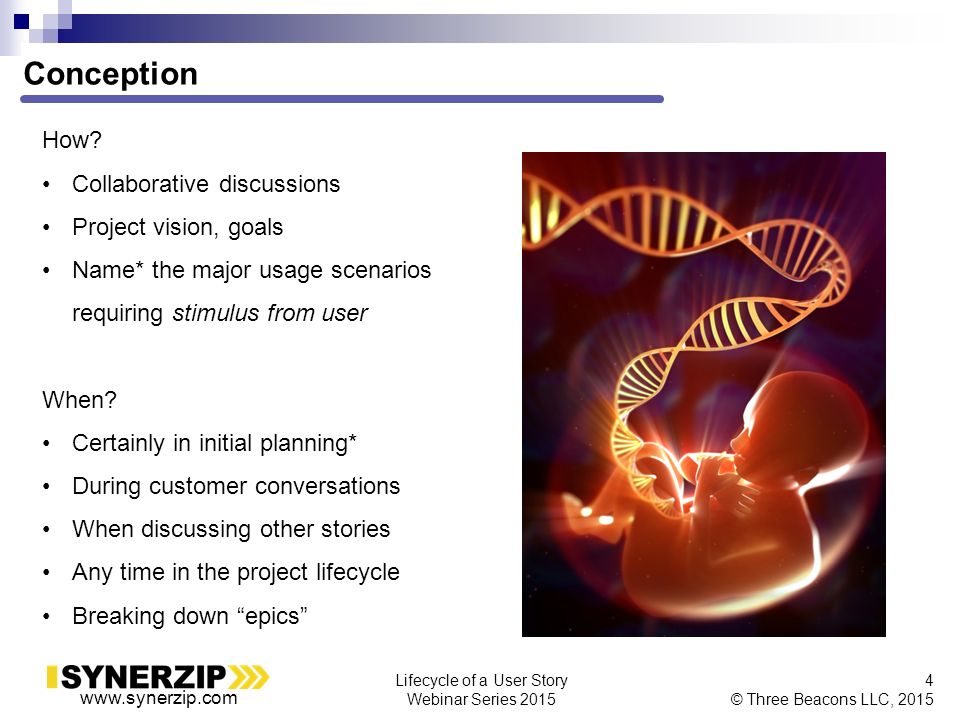

4. www.synerzip.com Lifecycle of a User Story Webinar Series 2015 4 © Three Beacons LLC, 2015 Conception How? Collaborative discussions Project vision, goals Name* the major usage scenarios requiring stimulus from user When? Certainly in initial planning* During customer conversations When discussing other stories Any time in the project lifecycle Breaking down “epics”

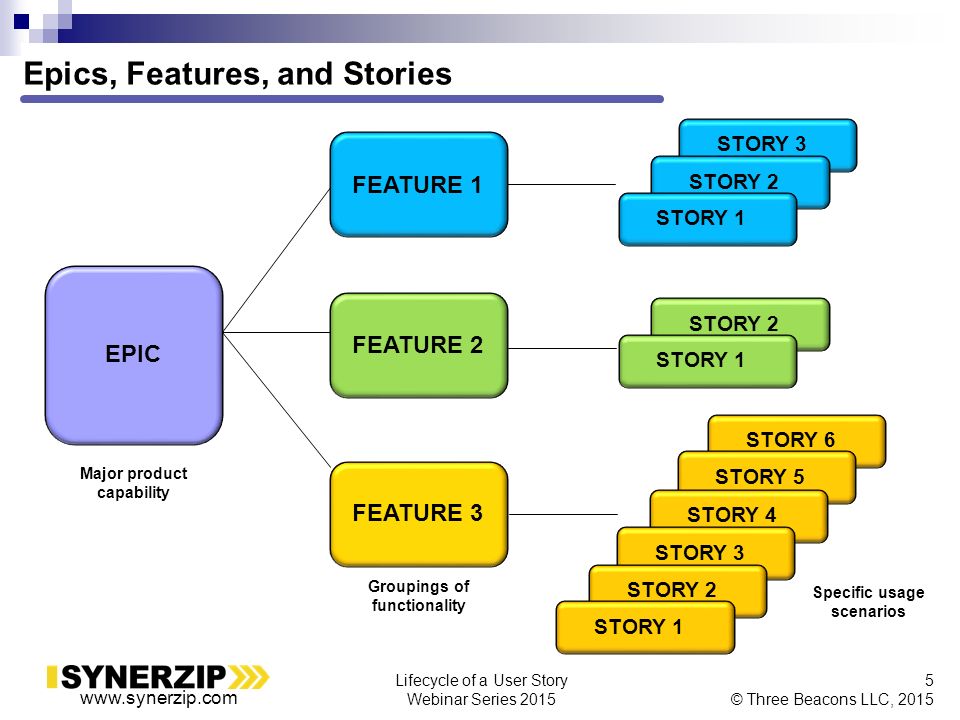

5. www.synerzip.com Lifecycle of a User Story Webinar Series 2015 5 © Three Beacons LLC, 2015 Epics, Features, and Stories EPIC Major product capability FEATURE 1 FEATURE 2 FEATURE 3 Groupings of functionality STORY 3 STORY 2 STORY 1 STORY 2 STORY 1 STORY 6 STORY 5 STORY 4 STORY 3 STORY 2 STORY 1 Specific usage scenarios

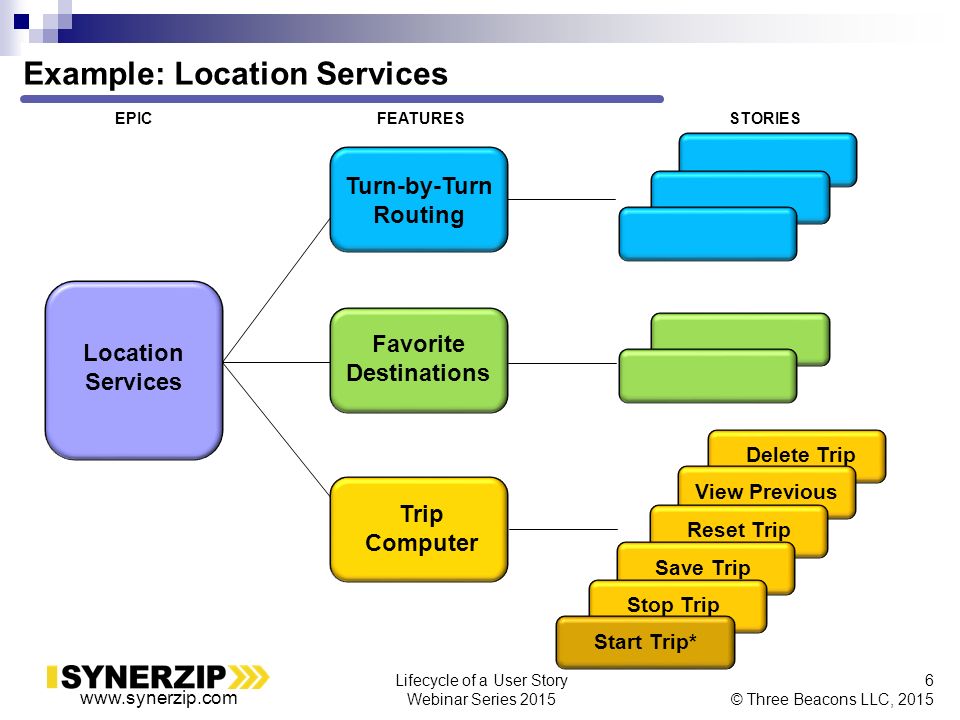

6. www.synerzip.com Lifecycle of a User Story Webinar Series 2015 6 © Three Beacons LLC, 2015 Example: Location Services EPIC Location Services Turn-by-Turn Routing Favorite Destinations FEATURES Trip Computer Delete Trip View Previous Reset Trip Save Trip Stop Trip Start Trip* STORIES

7. www.synerzip.com Lifecycle of a User Story Webinar Series 2015 7 © Three Beacons LLC, 2015 Birth

8. www.synerzip.com Lifecycle of a User Story Webinar Series 2015 8 © Three Beacons LLC, 2015 Birth When written Note card, document, tool Reminders Purposely high-level Captures “essence” of requirement 3 parts -Name -Description -Acceptance criteria Highest priority stories – quick kickoff

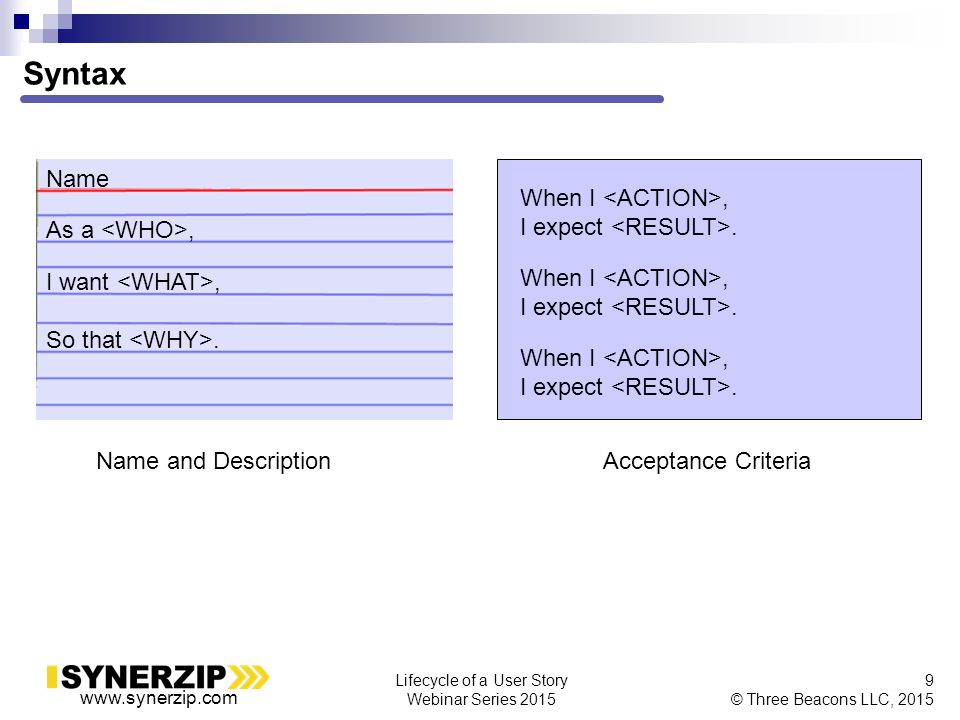

9. www.synerzip.com Lifecycle of a User Story Webinar Series 2015 9 © Three Beacons LLC, 2015 Syntax Name As a, I want, So that. Name and Description Acceptance Criteria When I, I expect. When I, I expect. When I, I expect.

10. www.synerzip.com Lifecycle of a User Story Webinar Series 2015 10 © Three Beacons LLC, 2015 Example: Start Trip user story Start Trip As a Driver, I want to start my trip, So that I can begin tracking my time and distance. When I select the Start Trip button, I expect to see a new Trip Computer screen. When I view the Trip Computer screen, I expect to see the Distance field changing as I drive. I also expect to see the Drive Time field changing in 1-second increments. When I view the Trip Computer screen, I expect to see my average speed. Etc.

11. www.synerzip.com Lifecycle of a User Story Webinar Series 2015 11 © Three Beacons LLC, 2015 Growth

12. www.synerzip.com Lifecycle of a User Story Webinar Series 2015 12 © Three Beacons LLC, 2015 Growth “They grow up so fast!” Some user stories follow a steady growth pattern Some are asked to “grow up quickly” Some are fine never growing up

13. www.synerzip.com Lifecycle of a User Story Webinar Series 2015 13 © Three Beacons LLC, 2015 Product Backlog Scrum artifact: All project related work items Includes user story names Growth factors: Priority order 1..n Reprioritized throughout project Refined, broken down Estimated Clarified thru conversations

14. www.synerzip.com Lifecycle of a User Story Webinar Series 2015 14 © Three Beacons LLC, 2015 The Three Amigos DEVELOPERSTESTERSPO/BA Collaborative discussions of the user story with developers, testers, and PO/BA. “Discover” the details of the requirement

15. www.synerzip.com Lifecycle of a User Story Webinar Series 2015 15 © Three Beacons LLC, 2015 Clarifying Conversations Growth factors: Collaborative discussions help to clarify and “firm up” the requirements Spur the growth of the highest priority stories* Decisions – immediate and actions for others Acceptance criteria – form of TDD Adjust the user story based on consensus Tacit knowledge within team grows XP “whole team” concept

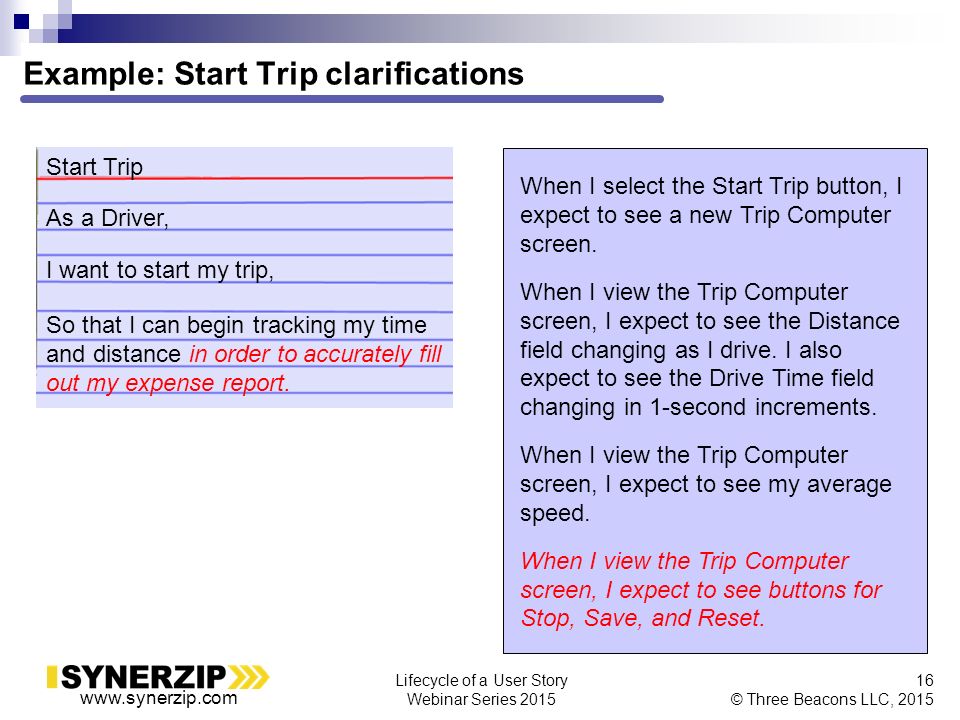

16. www.synerzip.com Lifecycle of a User Story Webinar Series 2015 16 © Three Beacons LLC, 2015 Example: Start Trip clarifications Start Trip As a Driver, I want to start my trip, So that I can begin tracking my time and distance in order to accurately fill out my expense report. When I select the Start Trip button, I expect to see a new Trip Computer screen. When I view the Trip Computer screen, I expect to see the Distance field changing as I drive. I also expect to see the Drive Time field changing in 1-second increments. When I view the Trip Computer screen, I expect to see my average speed. When I view the Trip Computer screen, I expect to see buttons for Stop, Save, and Reset.

17. www.synerzip.com Lifecycle of a User Story Webinar Series 2015 17 © Three Beacons LLC, 2015 Estimate Growth factors: Better understand the size of effort of the user story Can indicate if the story needs to be broken down further Useful during sprint planning Useful during release planning Useful for prioritization

18. www.synerzip.com Lifecycle of a User Story Webinar Series 2015 18 © Three Beacons LLC, 2015 Research Spike Growth factors: Learning activity to reduce risk Research, prototypes, design, etc. Time-constrained and exploratory Knowledge share of findings Can result in new user stories Can result in changes to existing stories “Growth spurt”

19. www.synerzip.com Lifecycle of a User Story Webinar Series 2015 19 © Three Beacons LLC, 2015 Sprint Backlog Growth factors: Migration from product backlog into sprint backlog - ready for implementation! Decomposed into Tasks Task estimates Focus on “how” Clarity on “what” and “how” Stor y

20. www.synerzip.com Lifecycle of a User Story Webinar Series 2015 20 © Three Beacons LLC, 2015 Example: Start Trip tasks Design screen layout Design trip DB record Save starting GPS position Calculate distance Set trip timer Set drive time timer Etc.

21. www.synerzip.com Lifecycle of a User Story Webinar Series 2015 21 © Three Beacons LLC, 2015 Maturity

22. www.synerzip.com Lifecycle of a User Story Webinar Series 2015 22 © Three Beacons LLC, 2015 Maturity Stories “mature” as they are implemented Tasks are implemented New tasks are added Unnecessary tasks are removed Task estimates adjusted Integration is required! High levels of collaboration User story is “fine tuned” and matured Done?

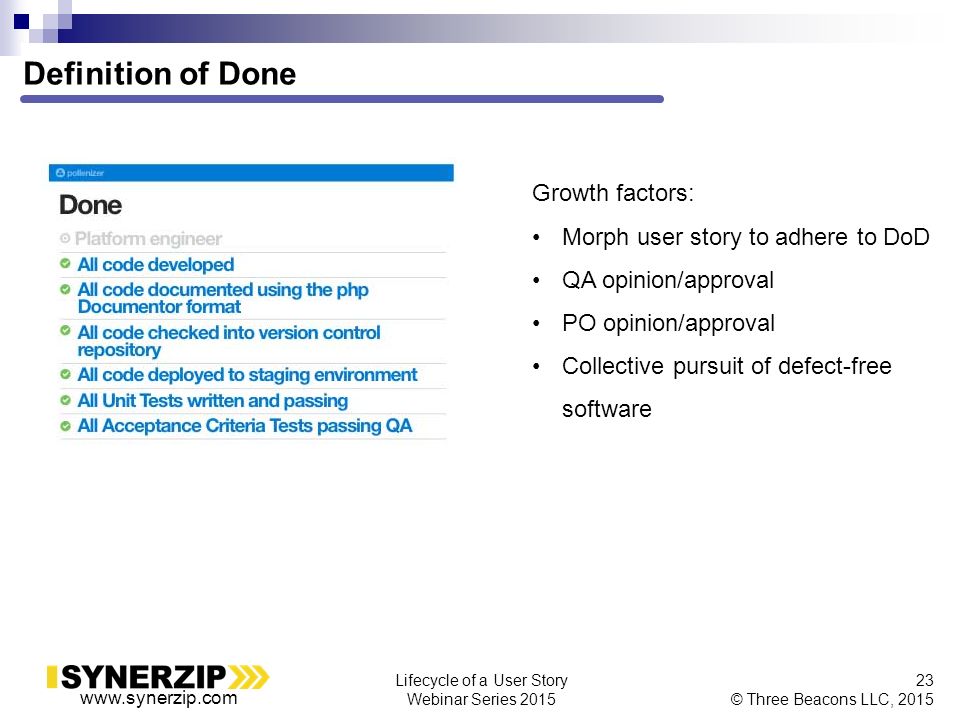

23. www.synerzip.com Lifecycle of a User Story Webinar Series 2015 23 © Three Beacons LLC, 2015 Definition of Done Growth factors: Morph user story to adhere to DoD QA opinion/approval PO opinion/approval Collective pursuit of defect-free software

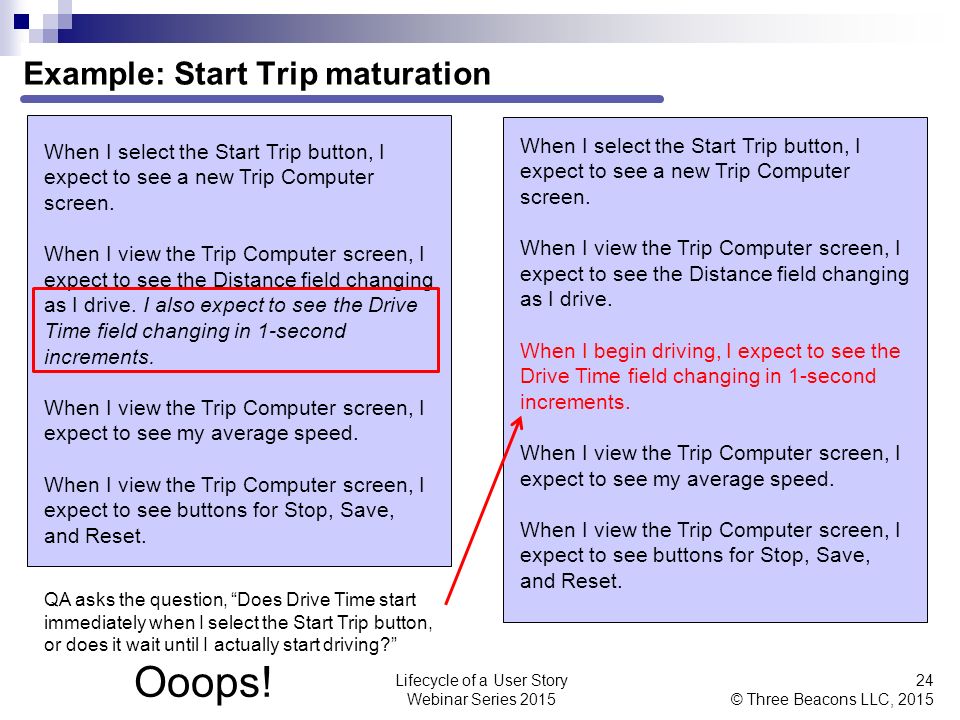

24. www.synerzip.com Lifecycle of a User Story Webinar Series 2015 24 © Three Beacons LLC, 2015 Example: Start Trip maturation When I select the Start Trip button, I expect to see a new Trip Computer screen. When I view the Trip Computer screen, I expect to see the Distance field changing as I drive. When I begin driving, I expect to see the Drive Time field changing in 1-second increments. When I view the Trip Computer screen, I expect to see my average speed. When I view the Trip Computer screen, I expect to see buttons for Stop, Save, and Reset. QA asks the question, “Does Drive Time start immediately when I select the Start Trip button, or does it wait until I actually start driving?” Ooops! When I select the Start Trip button, I expect to see a new Trip Computer screen. When I view the Trip Computer screen, I expect to see the Distance field changing as I drive. I also expect to see the Drive Time field changing in 1-second increments. When I view the Trip Computer screen, I expect to see my average speed. When I view the Trip Computer screen, I expect to see buttons for Stop, Save, and Reset.

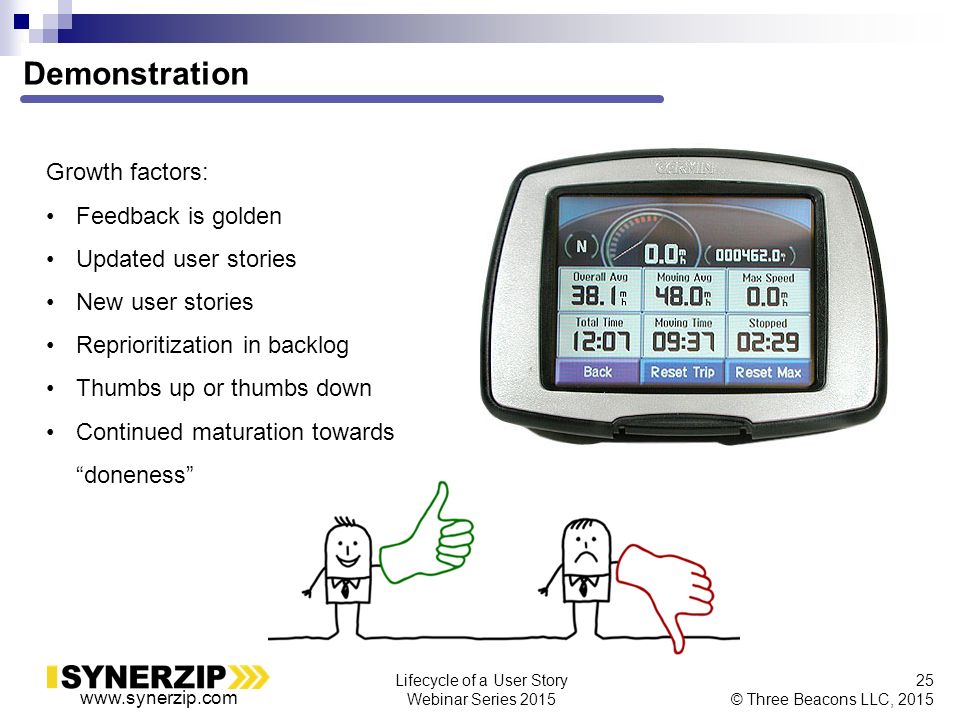

25. www.synerzip.com Lifecycle of a User Story Webinar Series 2015 25 © Three Beacons LLC, 2015 Demonstration Growth factors: Feedback is golden Updated user stories New user stories Reprioritization in backlog Thumbs up or thumbs down Continued maturation towards “doneness”

26. www.synerzip.com Lifecycle of a User Story Webinar Series 2015 26 © Three Beacons LLC, 2015 Deployment Growth factors: End user feedback Field reports/bugs Satisfaction surveys User story updates Possible re-deploy Continued maturation

27. www.synerzip.com Lifecycle of a User Story Webinar Series 2015 27 © Three Beacons LLC, 2015 End of Life

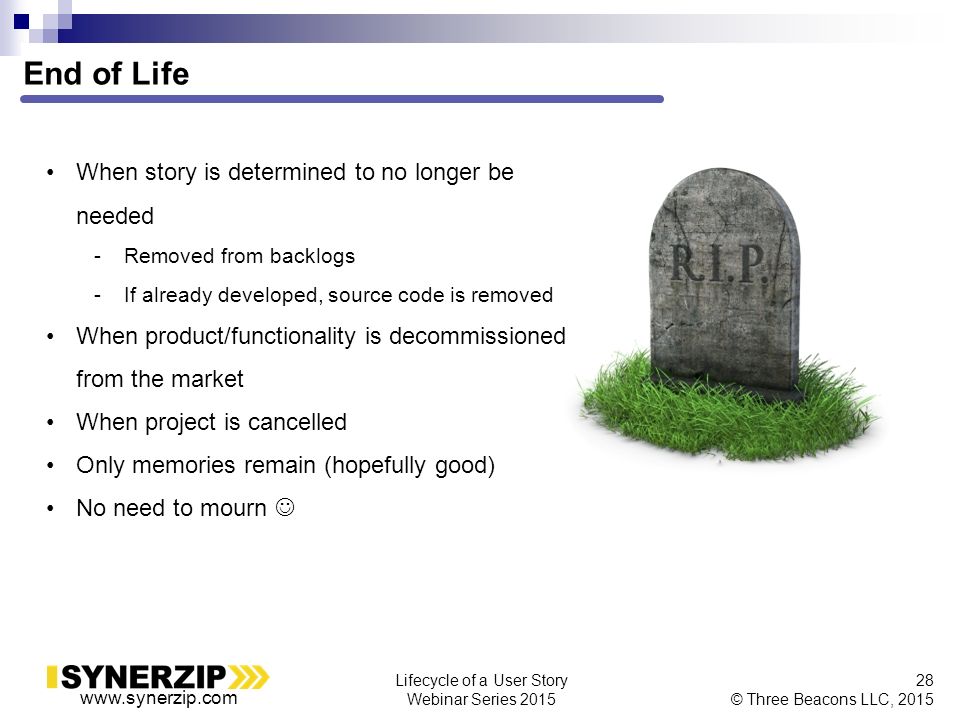

28. www.synerzip.com Lifecycle of a User Story Webinar Series 2015 28 © Three Beacons LLC, 2015 End of Life When story is determined to no longer be needed -Removed from backlogs -If already developed, source code is removed When product/functionality is decommissioned from the market When project is cancelled Only memories remain (hopefully good) No need to mourn

29. www.synerzip.com Lifecycle of a User Story Webinar Series 2015 29 © Three Beacons LLC, 2015 Conclusion

30. www.synerzip.com Lifecycle of a User Story Webinar Series 2015 30 © Three Beacons LLC, 2015 Conclusion User stories follow a lifecycle analogous to human life, from conception, to birth, to growth, to maturity, and finally to end-of-life. Thinking of user stories throughout these lifecycle phases can help you achieve a more in-depth understanding of the technique.

31. www.synerzip.com Lifecycle of a User Story Webinar Series 2015 31 © Three Beacons LLC, 2015 Three Beacons Agile Training Scrum team training Intro to Agile User Stories Extreme Programming Agile Consulting Onsite Skype-based

32. www.synerzip.com Lifecycle of a User Story Webinar Series 2015 32 © Three Beacons LLC, 2015 THE END Mike Hall Three Beacons mike@threebeacons.com 214.783.3936
