1 El Niño/Southern Oscillation Major climatic perturbation on the planet Coupled atmosphere ocean process Key is the western tropical Pacific – Ascending branch of the Walker circulation – Potential energy for Kelvin wave pulse www.pmel.noaa.gov/tao/elnino/nino-home.html

2 The Southern Oscillation Discovered in 1928 by Sir Gilbert Walker Links  ’ s in global climate indices Proposes a zonal circulation cell over the equatorial Pacific

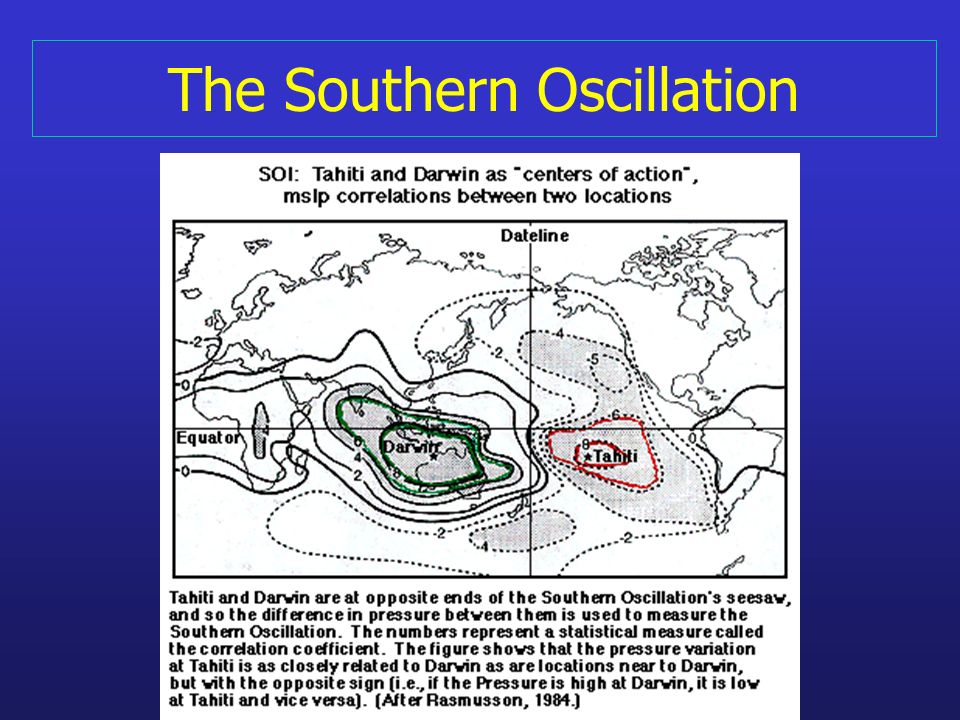

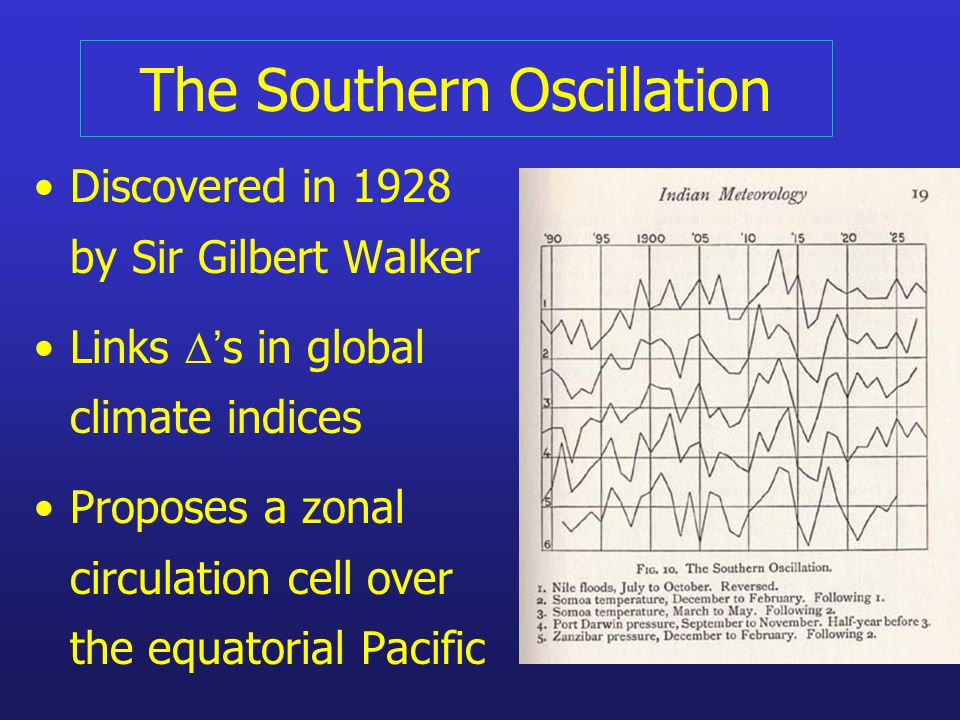

3 The Southern Oscillation

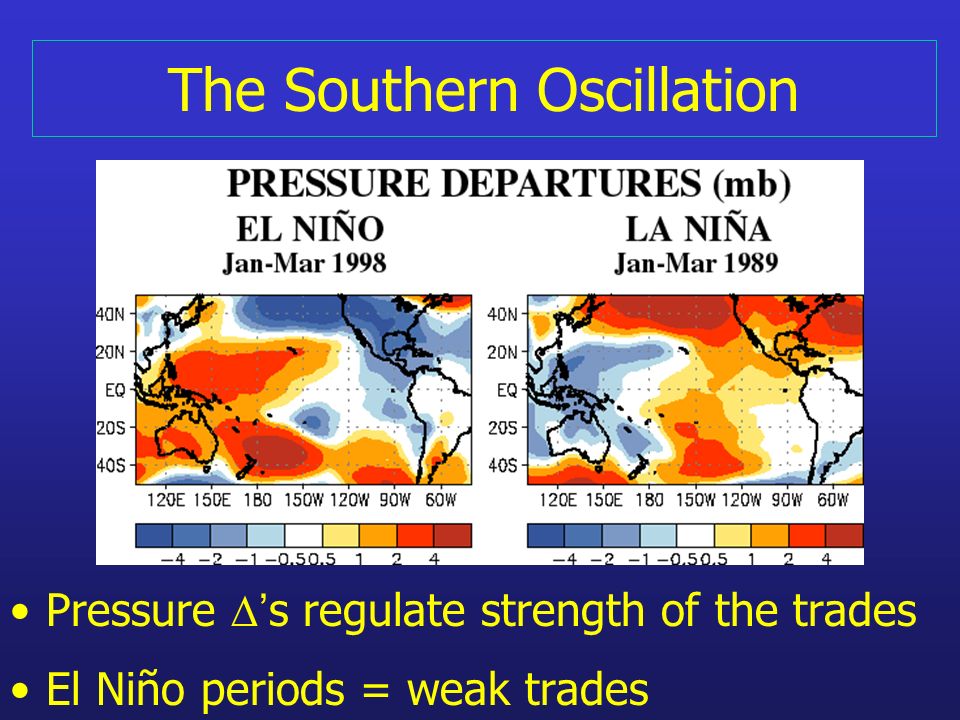

4 Pressure  ’ s regulate strength of the trades El Niño periods = weak trades

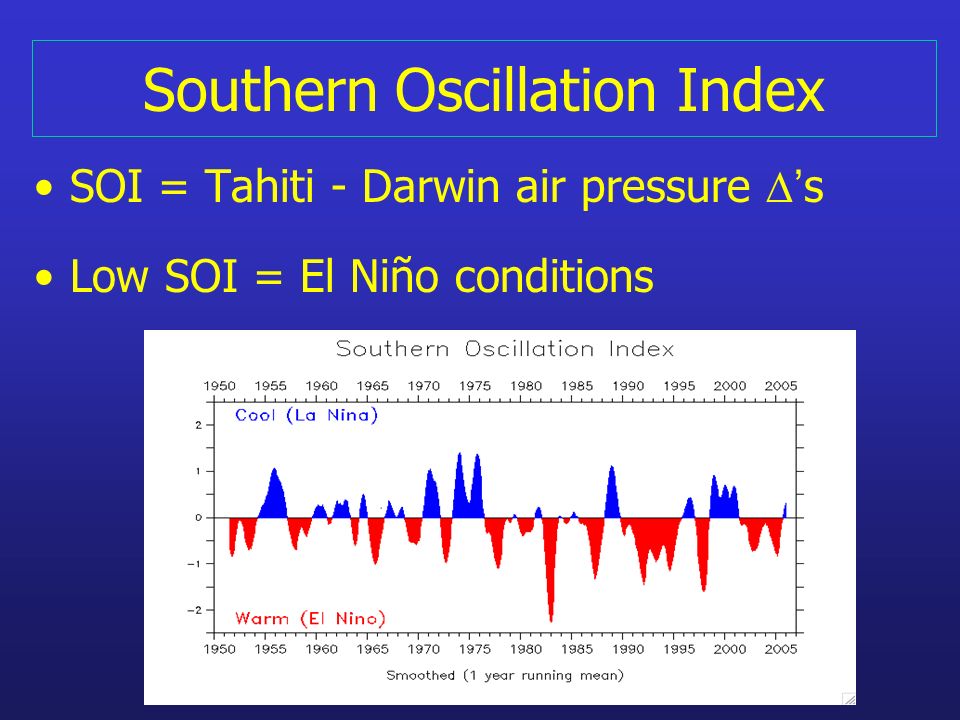

5 Southern Oscillation Index SOI = Tahiti - Darwin air pressure  ’ s Low SOI = El Niño conditions

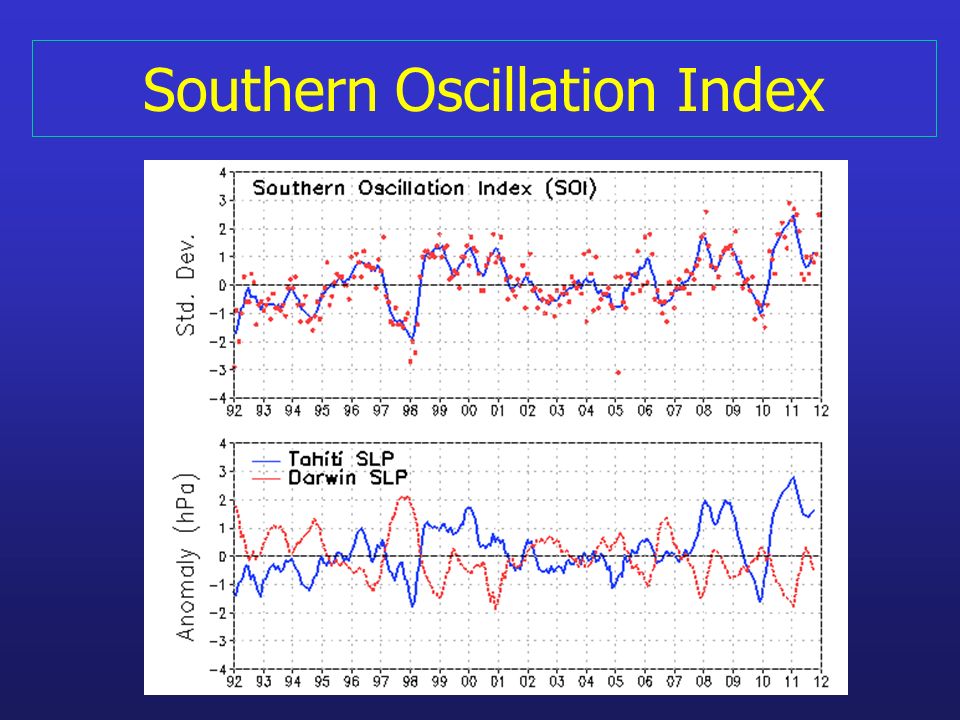

6 Southern Oscillation Index

7 Southern Oscillation

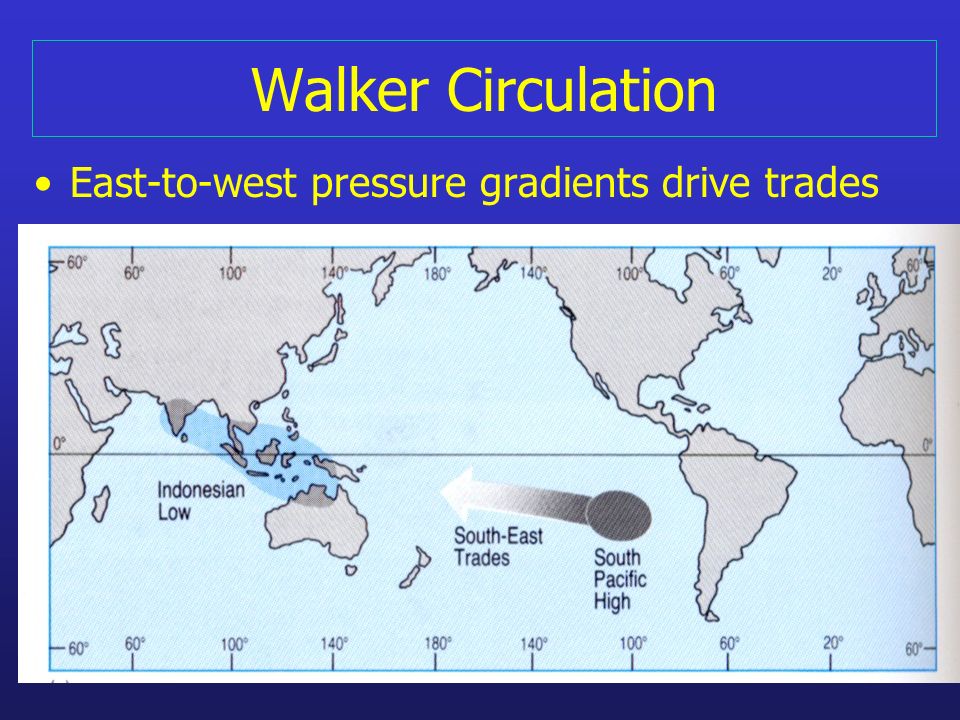

8 Walker Circulation East-to-west pressure gradients drive trades

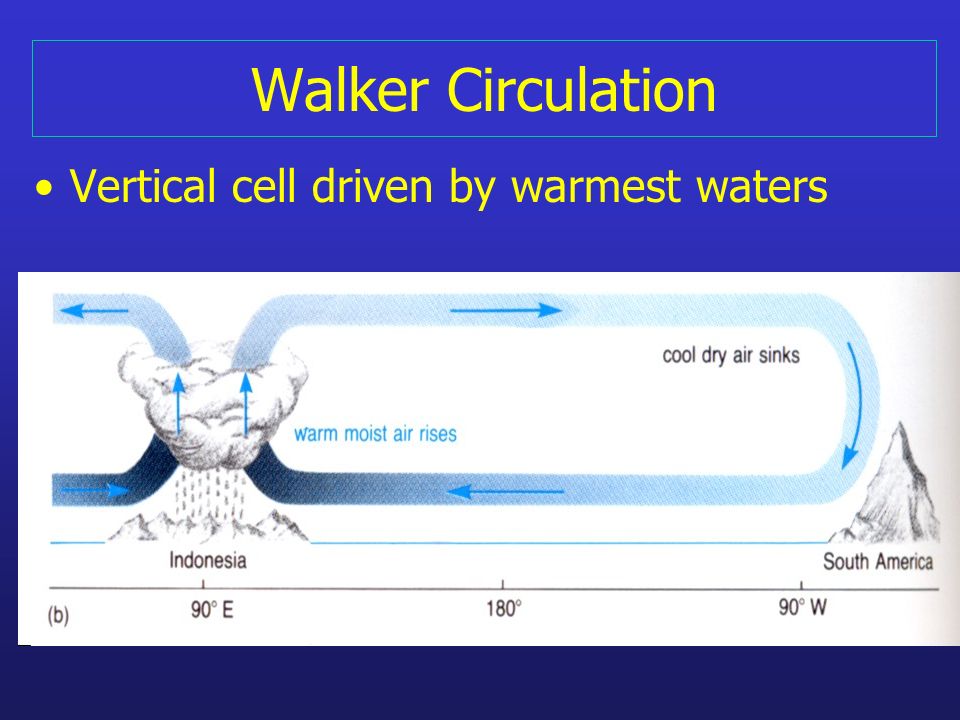

9 Walker Circulation Vertical cell driven by warmest waters

10 Western Pacific Warm Pool

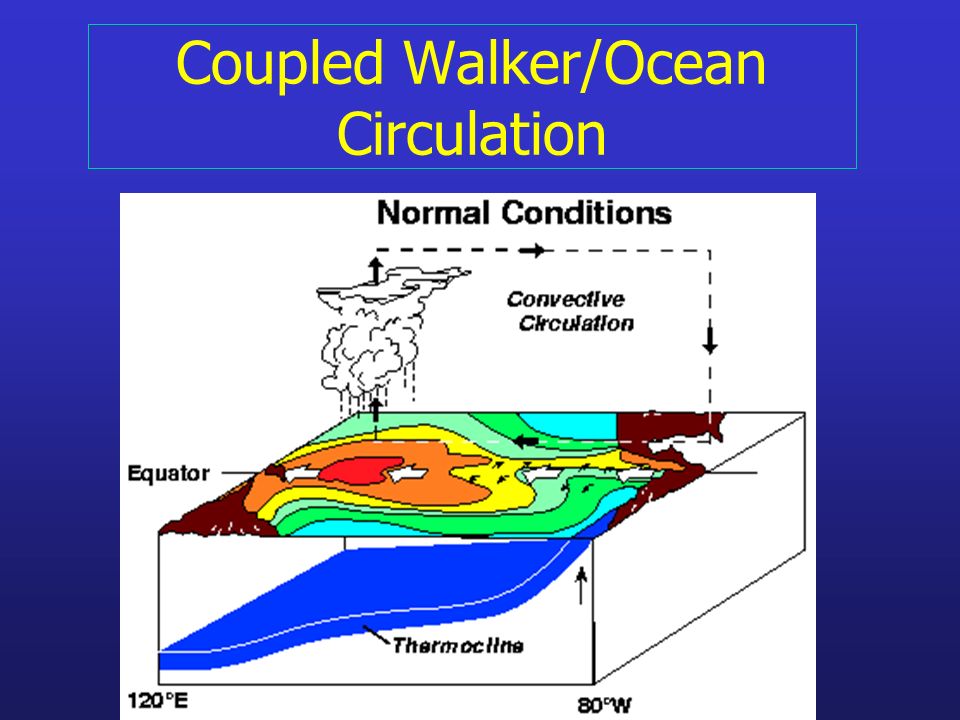

11 Coupled Walker/Ocean Circulation

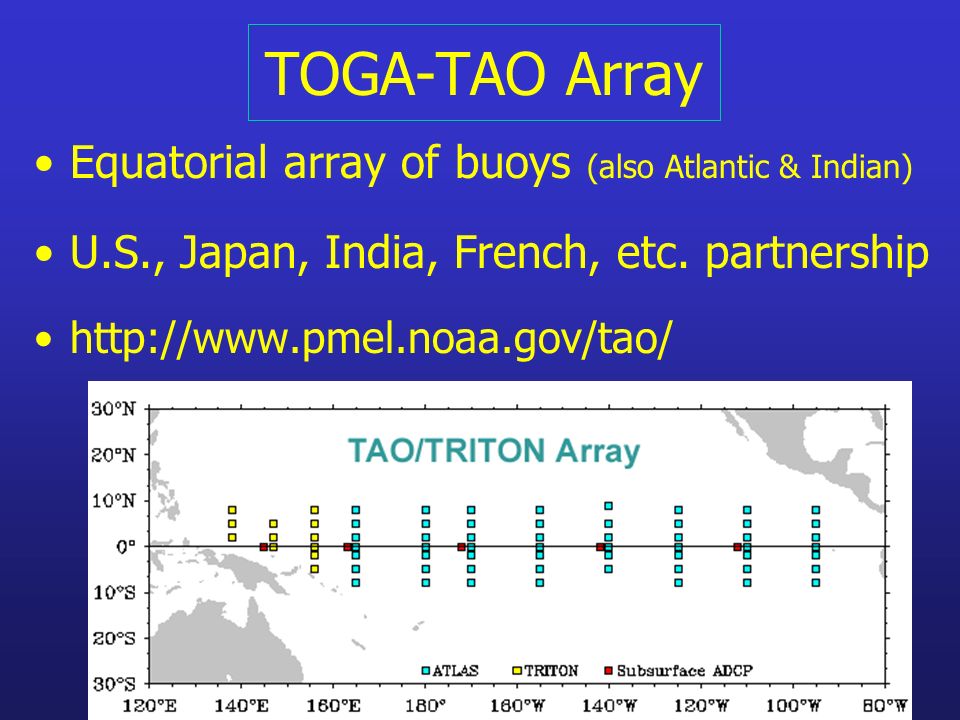

12 TOGA-TAO Array Equatorial array of buoys (also Atlantic & Indian) U.S., Japan, India, French, etc. partnership http://www.pmel.noaa.gov/tao/

13 Moorings Measure met & ocean properties Thermocline focus Real-time data transmission Used in weather & climate forecasts

14 TAO Moorings

15

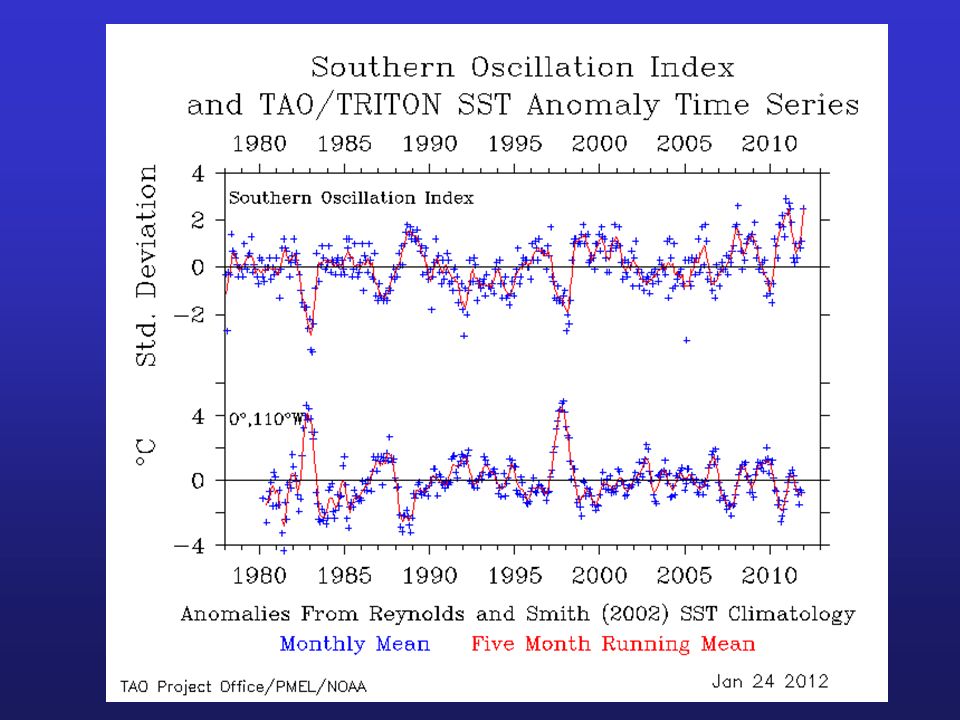

16 Southern Oscillation

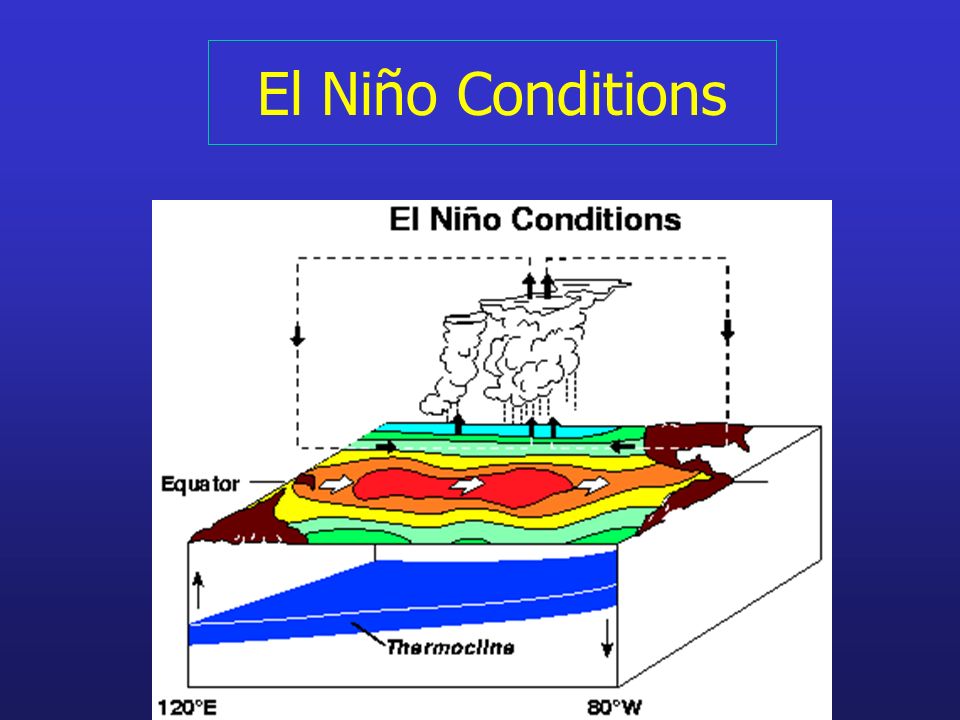

17 El Niño Conditions

18 El Niño Events Relaxation of trades causes warm pool to slosh across Pacific basin

19 El Niño Conditions

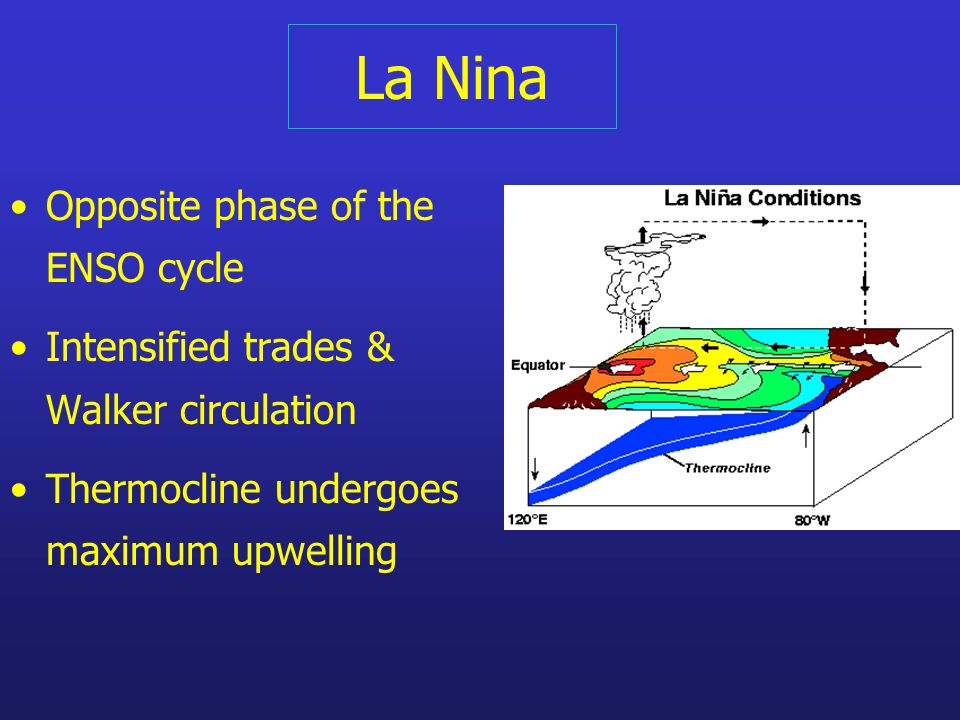

20 La Nina Opposite phase of the ENSO cycle Intensified trades & Walker circulation Thermocline undergoes maximum upwelling

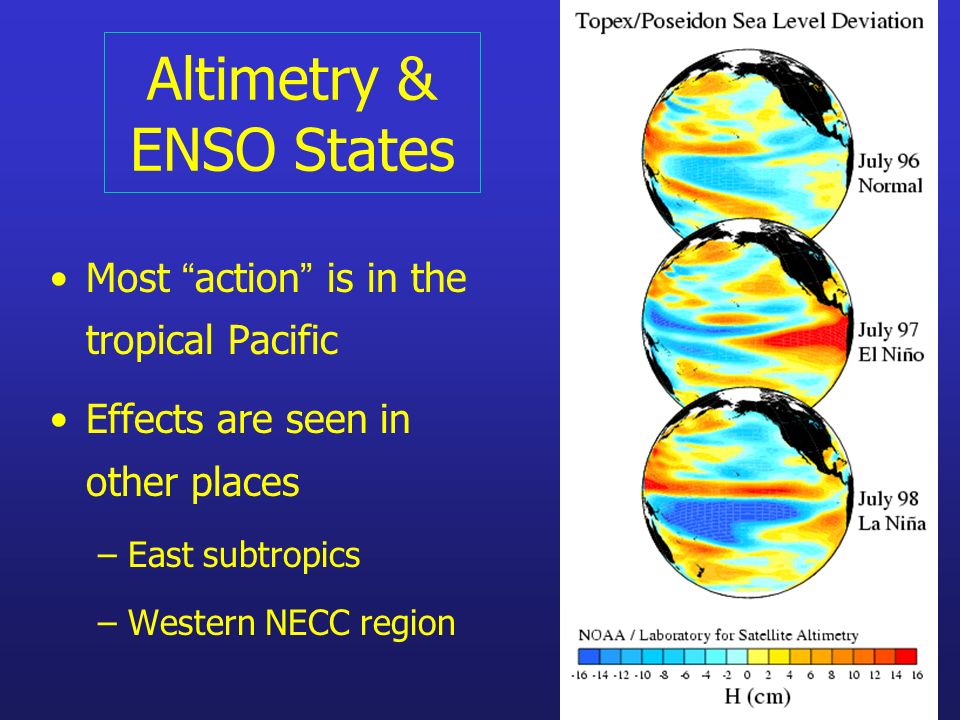

21 Altimetry & ENSO States Most “ action ” is in the tropical Pacific Effects are seen in other places – East subtropics – Western NECC region

22 Equatorial Kelvin Waves Satellite altimetry from TOPEX/Poseidon Scenes are 10 days apart

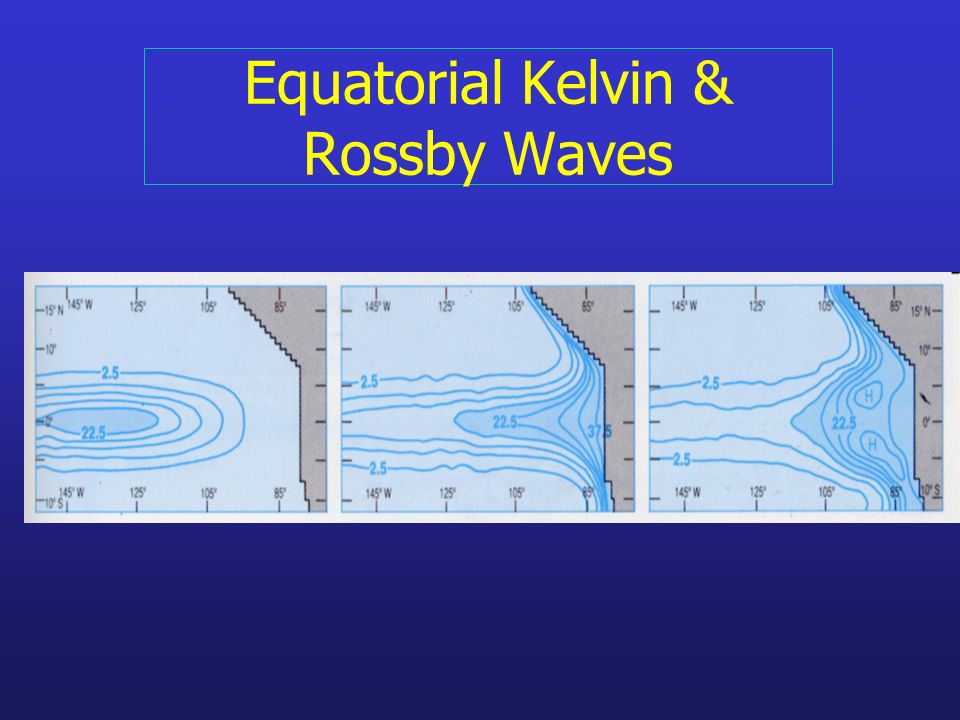

23 Equatorial Kelvin & Rossby Waves

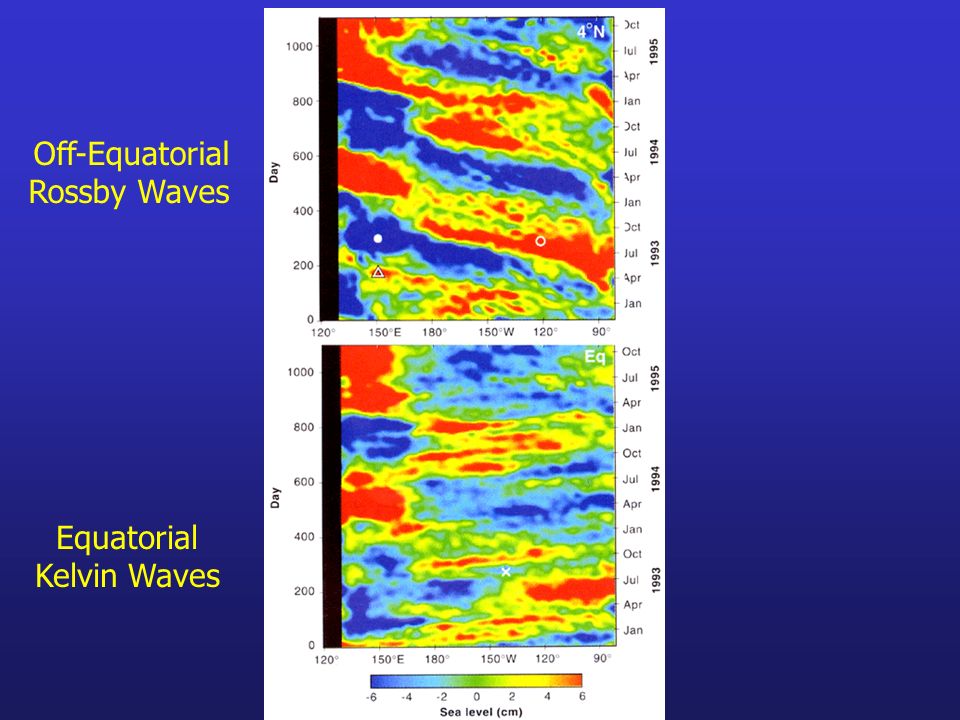

24 Off-Equatorial Rossby Waves Equatorial Kelvin Waves

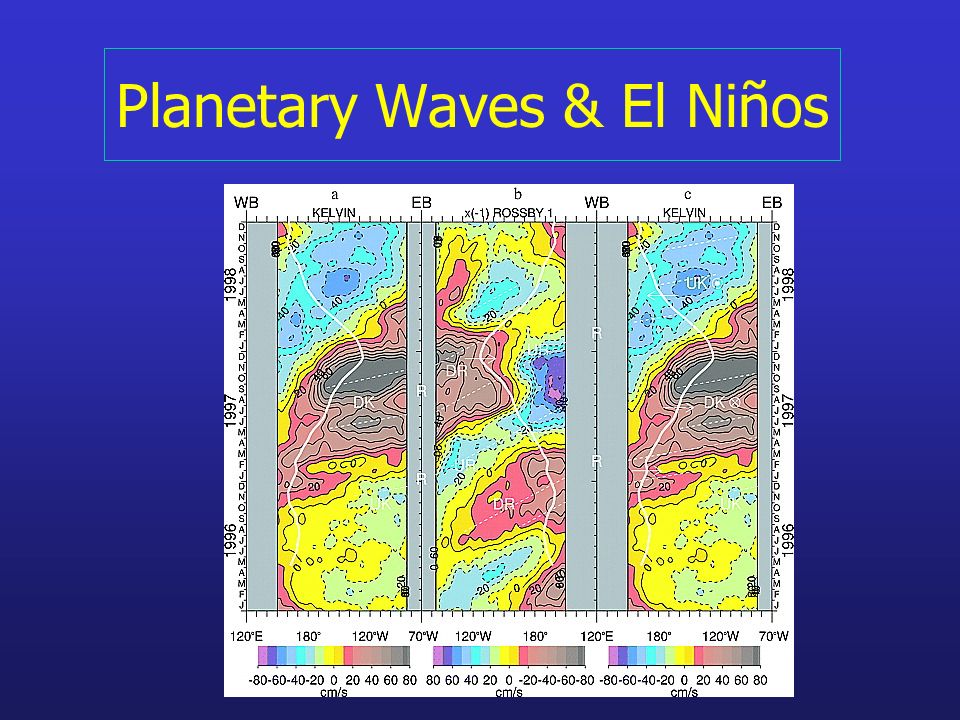

25 Planetary Waves & El Niños

26 Effects of an El Niño Region of ascending air has moved to center of equatorial Pacific Climate system shifts over 10,000 km to east Affects the entire planet

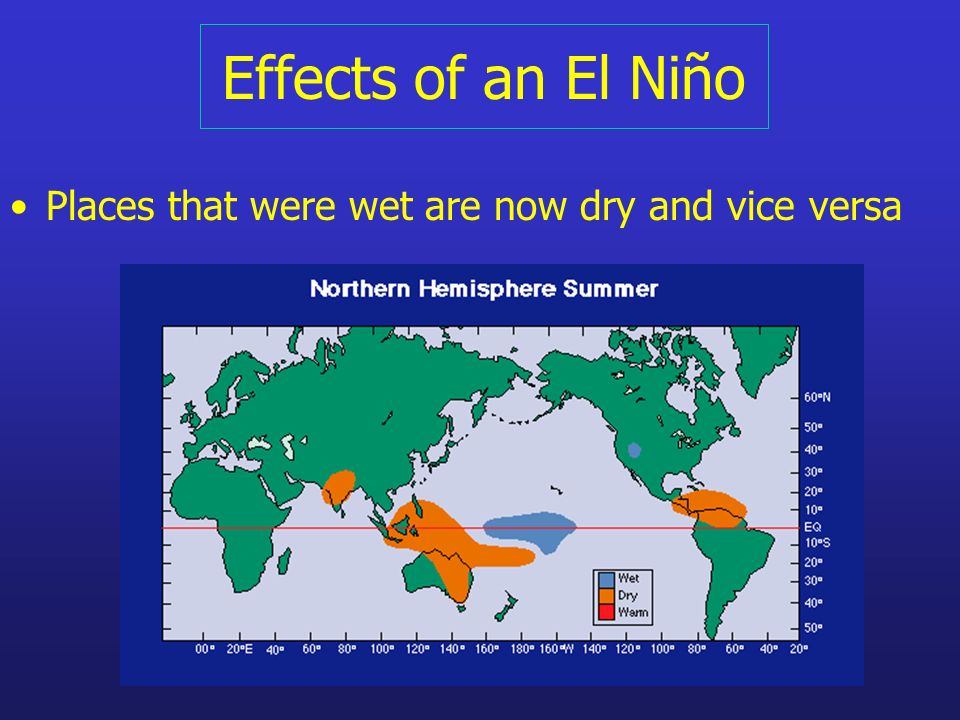

27 Effects of an El Niño Places that were wet are now dry and vice versa

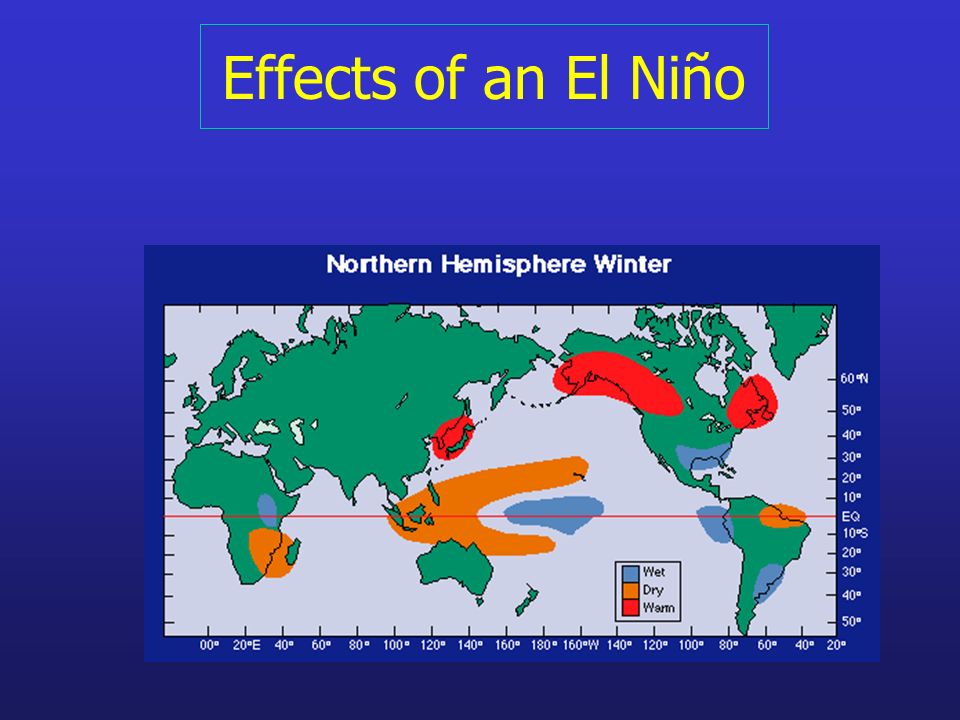

28 Effects of an El Niño

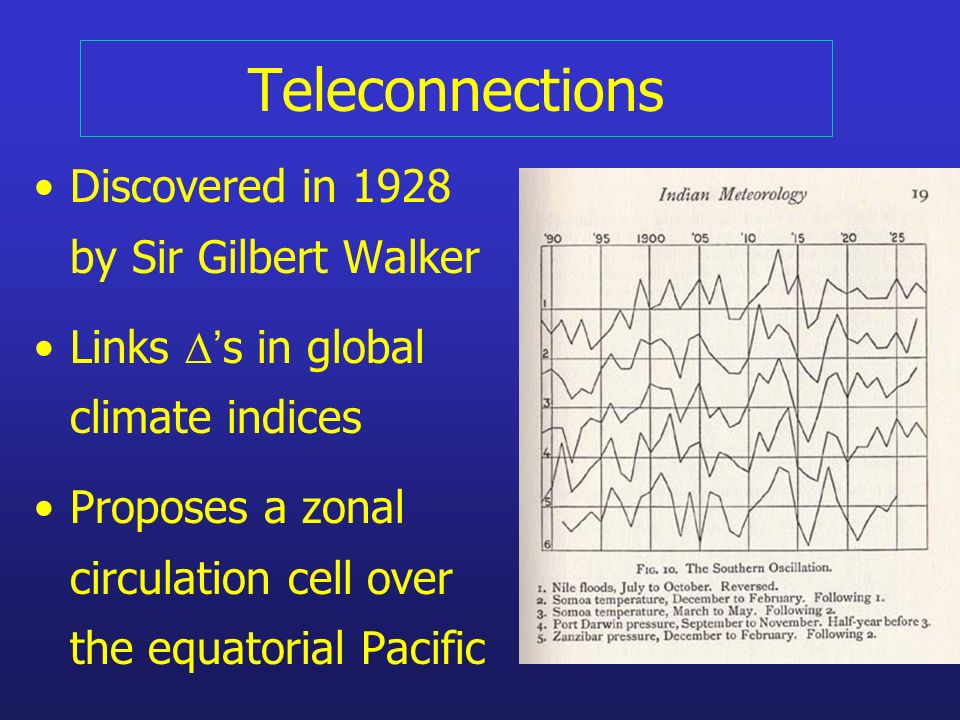

29 Teleconnections Discovered in 1928 by Sir Gilbert Walker Links  ’ s in global climate indices Proposes a zonal circulation cell over the equatorial Pacific

30 El Niño & Hurricane Damage

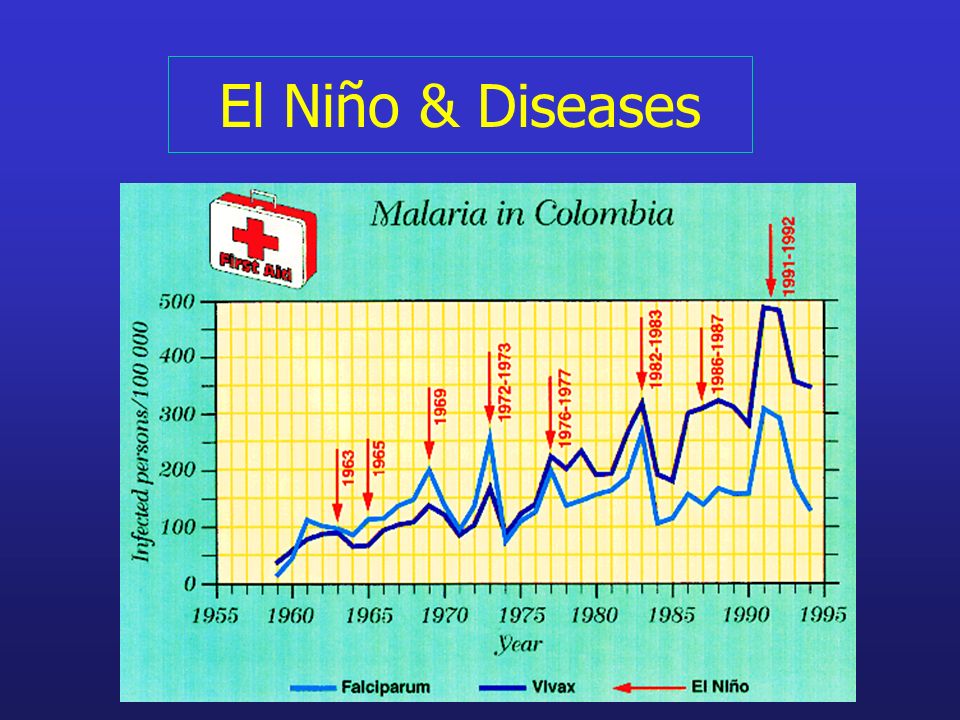

31 El Niño & Diseases

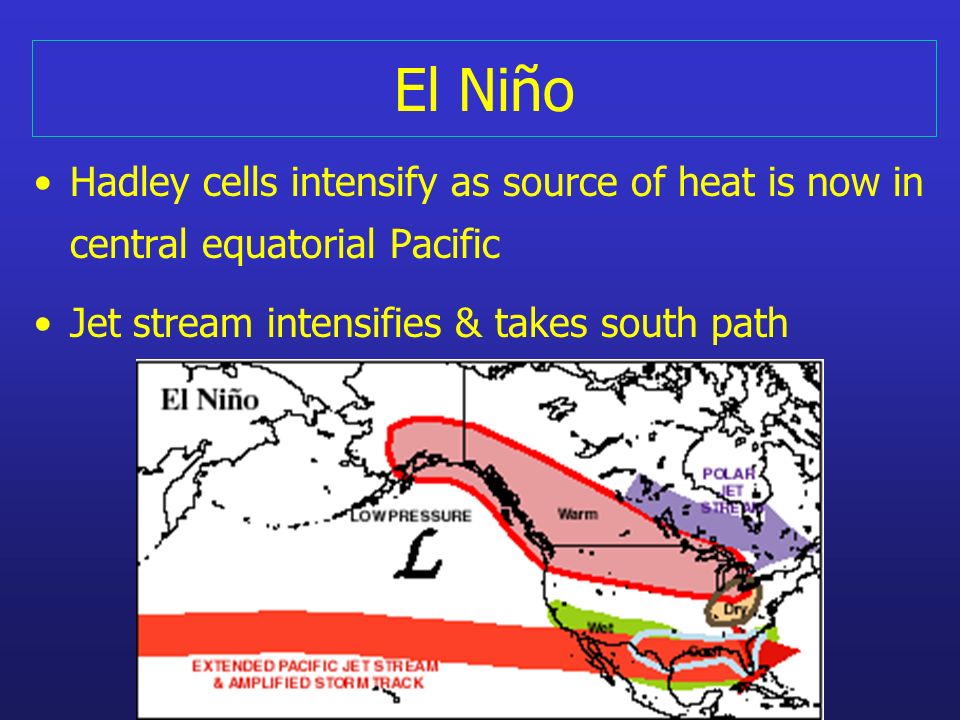

32 El Niño Hadley cells intensify as source of heat is now in central equatorial Pacific Jet stream intensifies & takes south path

33

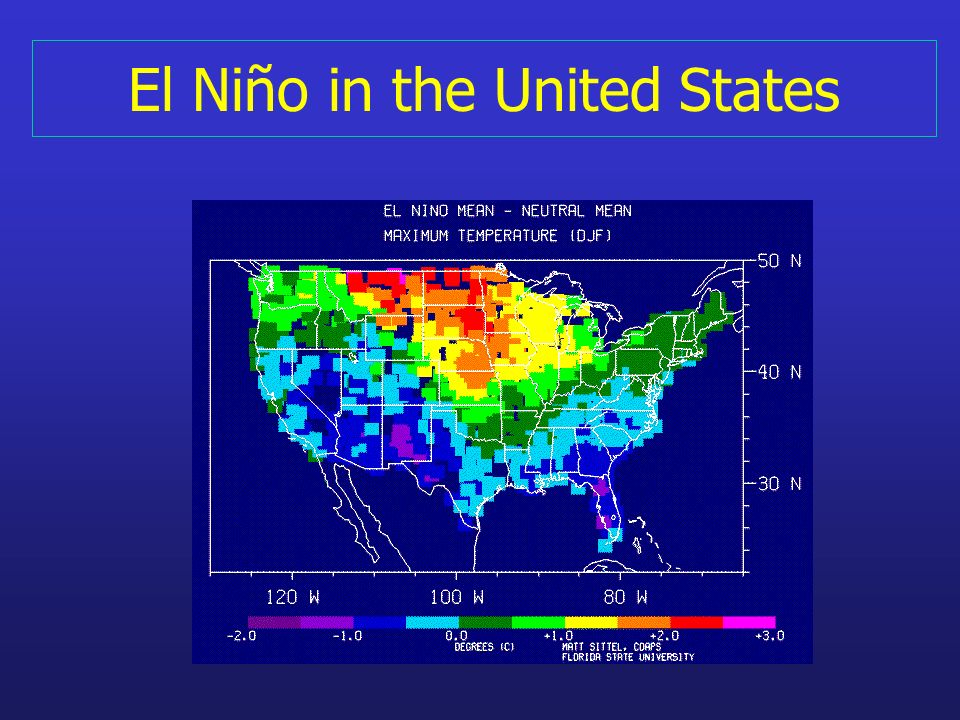

34 El Niño in the United States

35

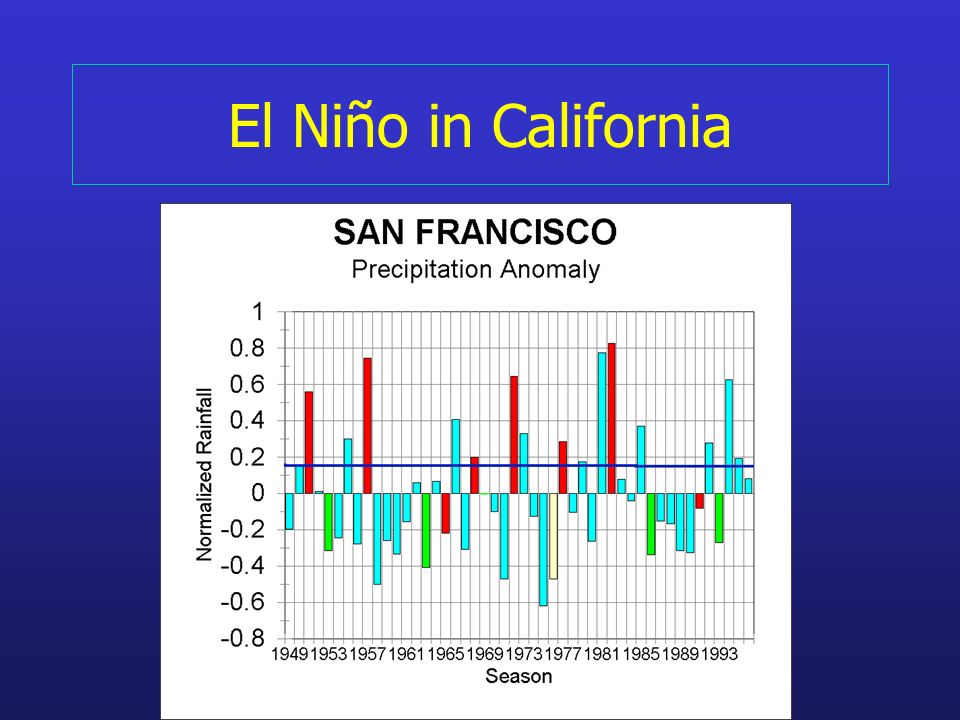

36 El Niño in California

37

38

39 97/98 El Niño At its peak, the 97/98 El Niño was biggest of all time

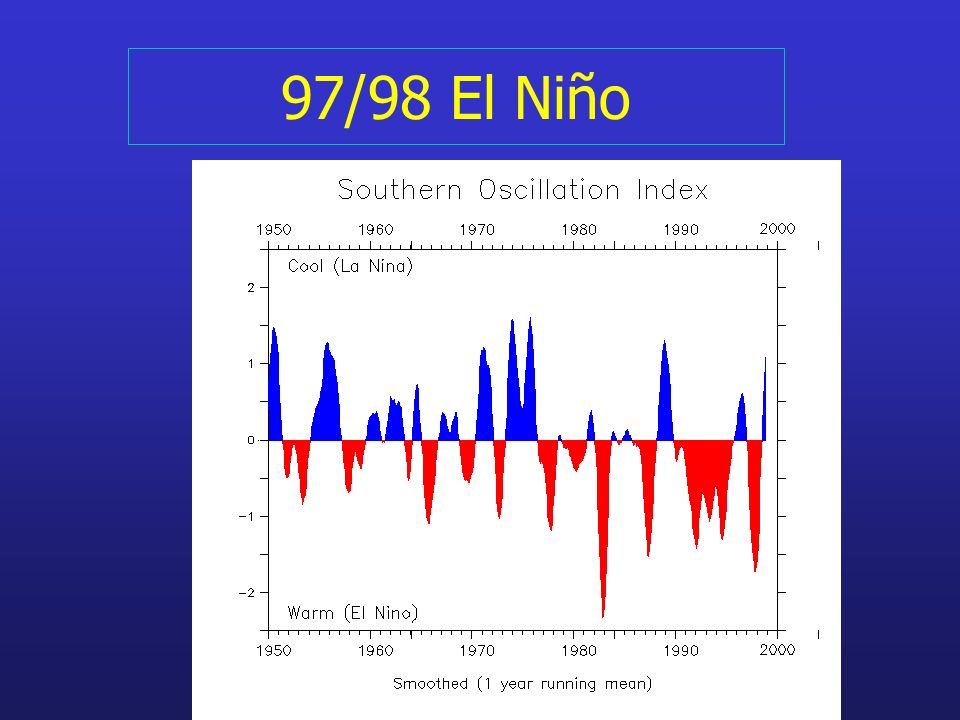

40 97/98 El Niño

41

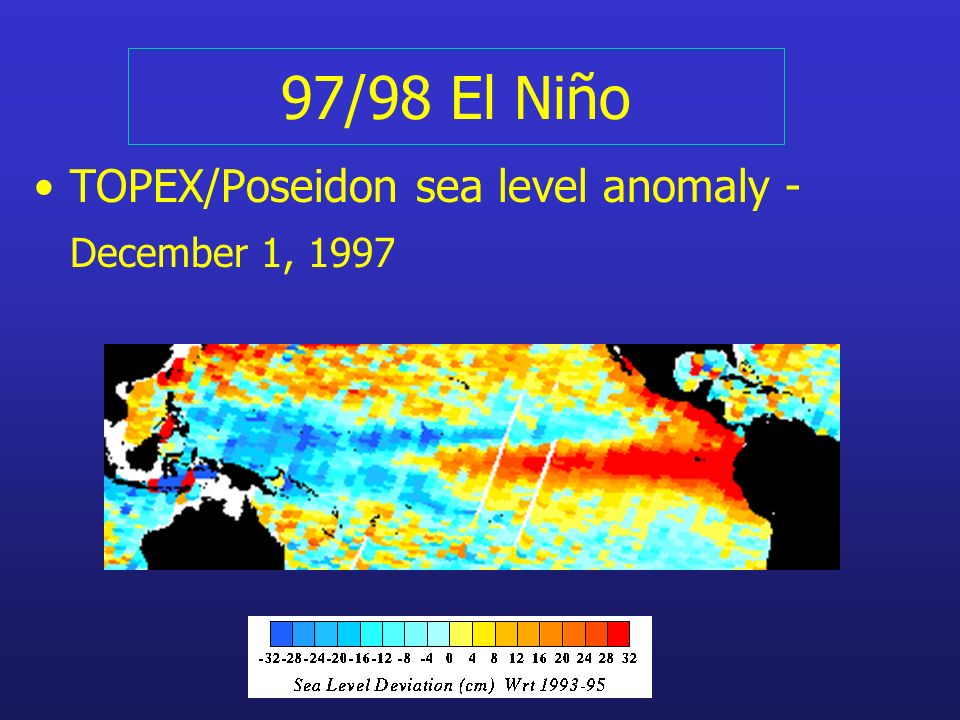

42 TOPEX/Poseidon sea level anomaly - December 1, 1997

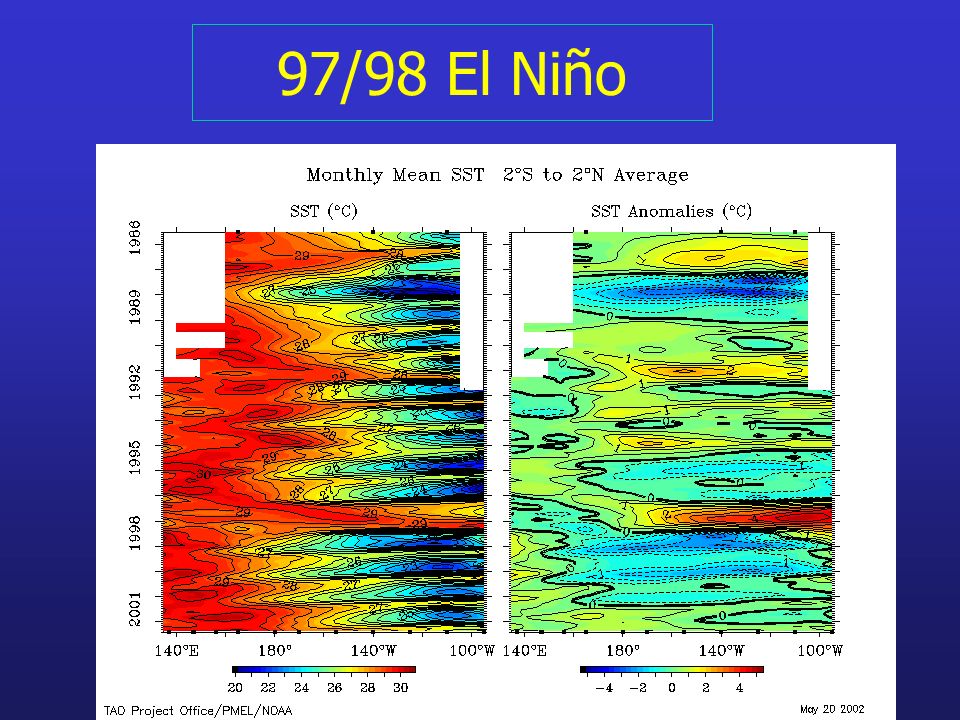

43 97/98 El Niño

44 OLR = outgoing longwave energy (high OLR = no clouds) 97/98 El Niño

45

46 Present Conditions

47 EL NIÑO/SOUTHERN OSCILLATION (ENSO) DIAGNOSTIC DISCUSSION 5 January 2012 Synopsis: La Niña is expected to continue into the Northern spring 2012.

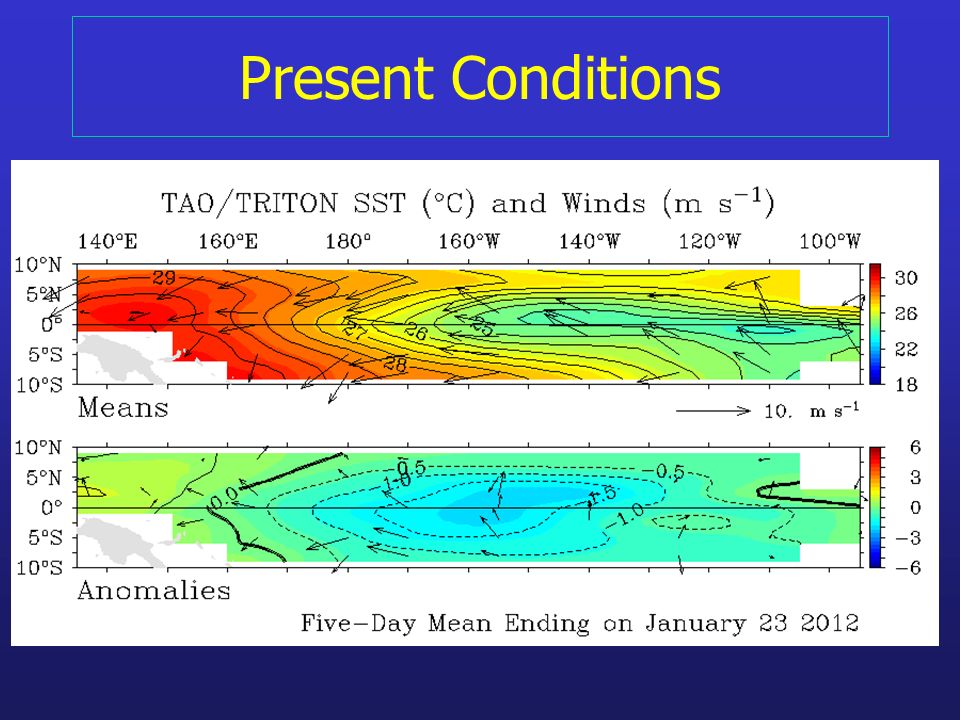

48 Present Conditions

49

50 Nino Regions

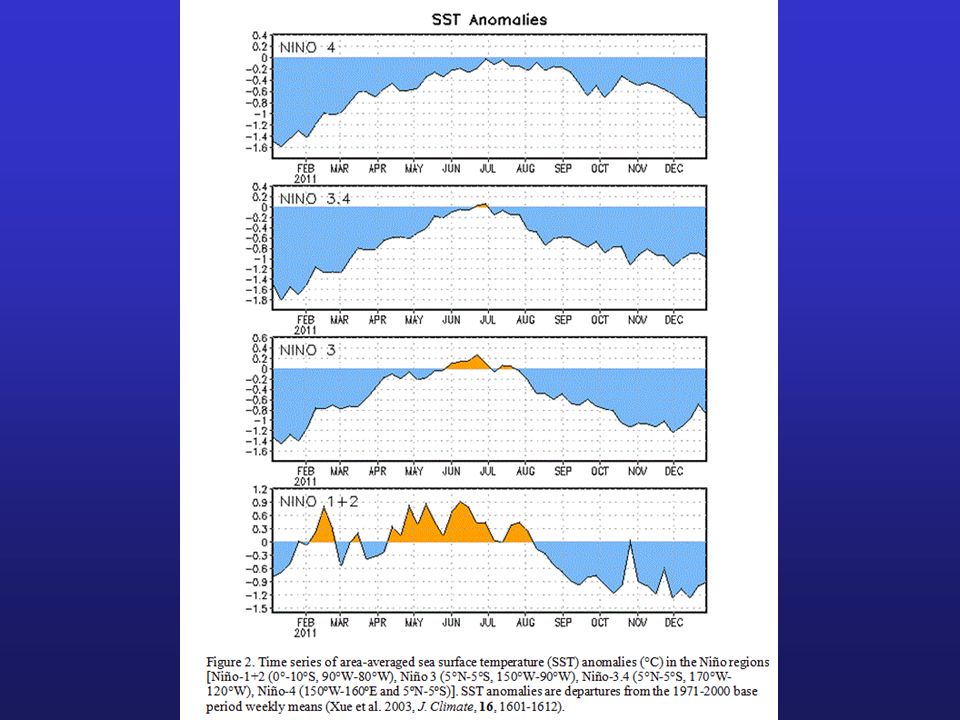

51

52

53

54

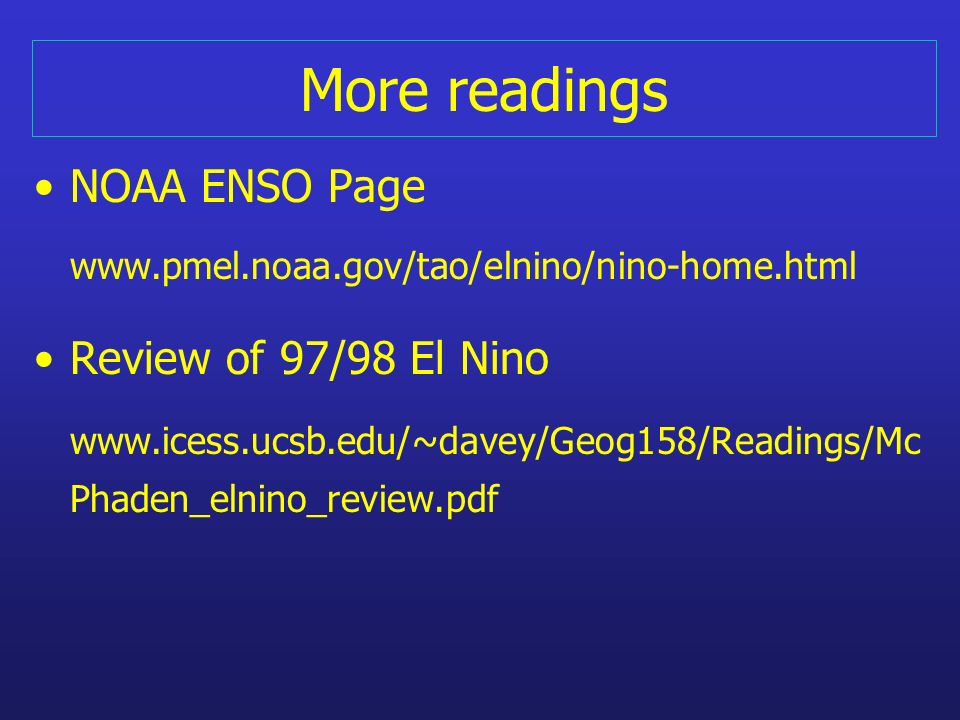

55 More readings NOAA ENSO Page www.pmel.noaa.gov/tao/elnino/nino-home.html Review of 97/98 El Nino www.icess.ucsb.edu/~davey/Geog158/Readings/Mc Phaden_elnino_review.pdf
