1. SpW-10X Router ASIC Testing and Performance Steve Parkes, Chris McClements, Space Technology Centre, University of Dundee Gerald Kempf, Christian Gleiss, Austrian Aerospace Stephan Fischer, EADS Astrium GmbH Pierre Fabry, ESA 1

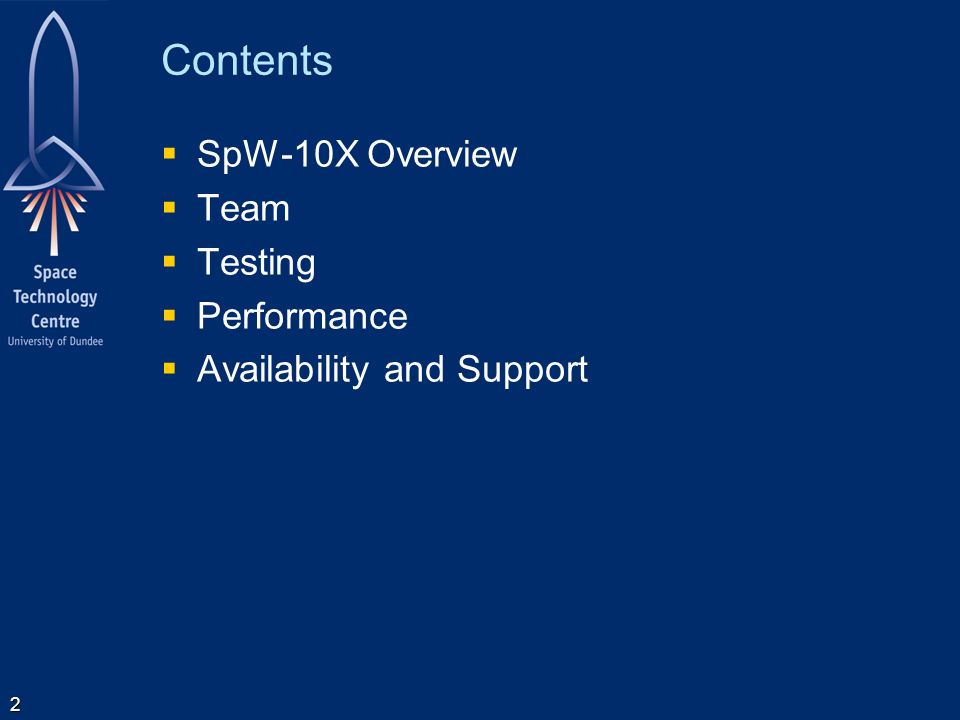

2. Contents  SpW-10X Overview  Team  Testing  Performance  Availability and Support 2

3. 3 SpW-10X SpW-10X Overview Routing Switch SpW Port 1 SpW Port 2 SpW Port 3 SpW Port 4 SpW Port 5 SpW Port 6 SpW Port 7 SpW Port 8 Time-Code Interface Configuration Port 0 Routing Table Parallel Port 9 Parallel Port 10

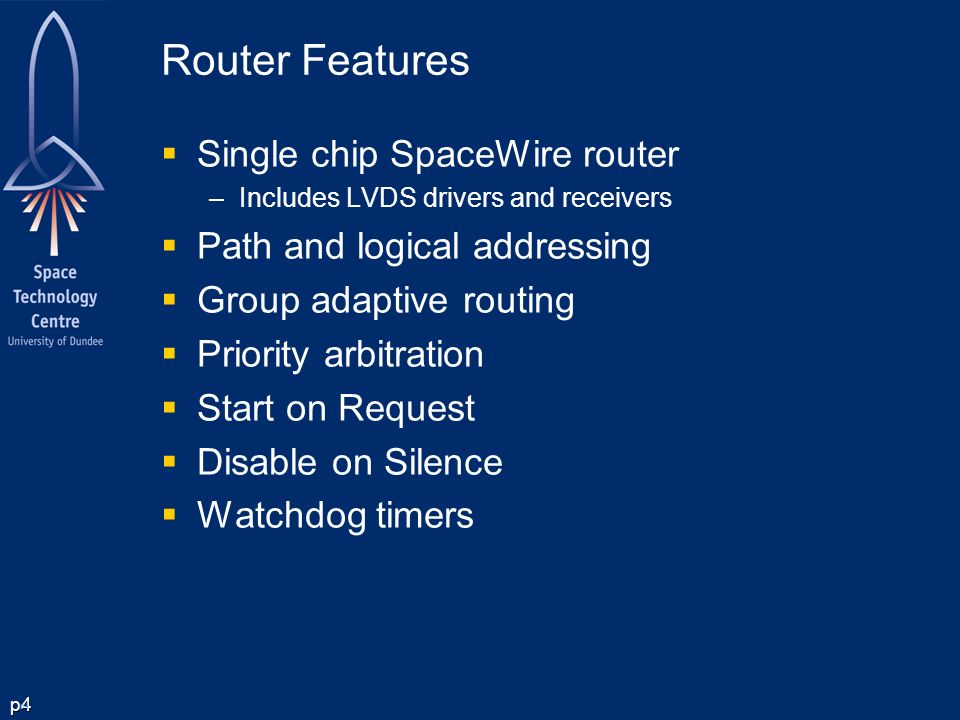

4. Router Features  Single chip SpaceWire router –Includes LVDS drivers and receivers  Path and logical addressing  Group adaptive routing  Priority arbitration  Start on Request  Disable on Silence  Watchdog timers p4

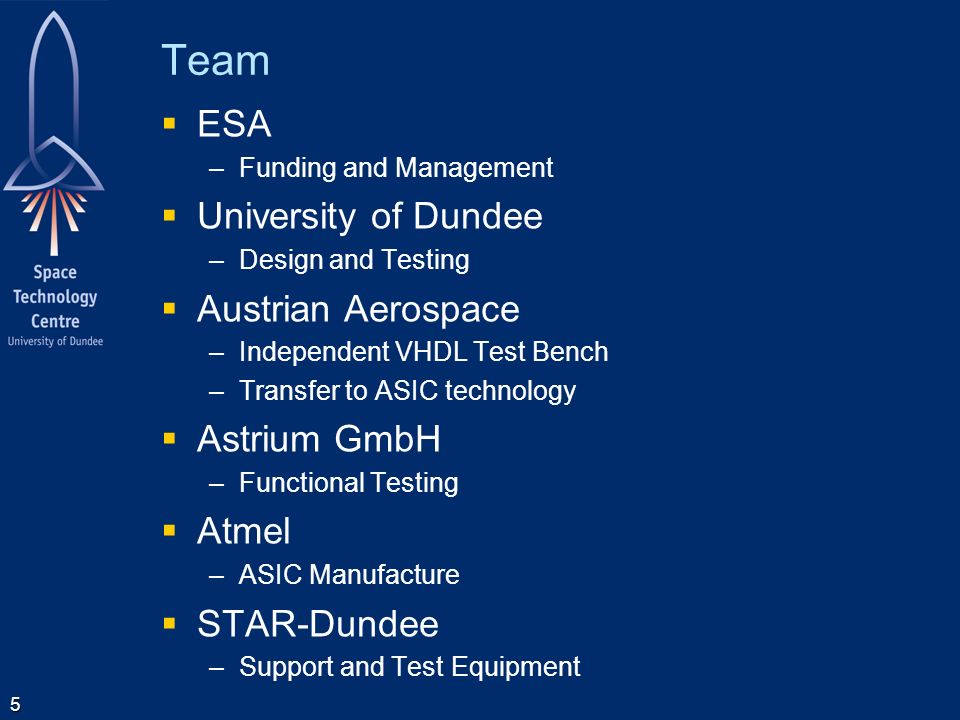

5. 5 Team  ESA –Funding and Management  University of Dundee –Design and Testing  Austrian Aerospace –Independent VHDL Test Bench –Transfer to ASIC technology  Astrium GmbH –Functional Testing  Atmel –ASIC Manufacture  STAR-Dundee –Support and Test Equipment

6. Pre ASIC Implementation Testing  VHDL test bench for initial testing by UoD  Router IP in STAR-Dundee devices –Widely used by many organisations.  Independent test bench by AAE –Extensive tests –Identified several issues with the initial VHDL code.  SpW-10X implemented in Xilinx FPGA –Design kept as close as possible to final ASIC design. –SpW-10X FPGA extensively tested by Astrium GmbH.  SpW-10X FPGA mezzanine board  SpW-10X ASIC mezzanine board  Testing with SpaceWire Conformance Tester 6

7. Post ASIC Implementation Testing  Functional validation by EADS Astrium,  Performance testing by University of Dundee,  Characterisation by Austrian Aerospace. 7

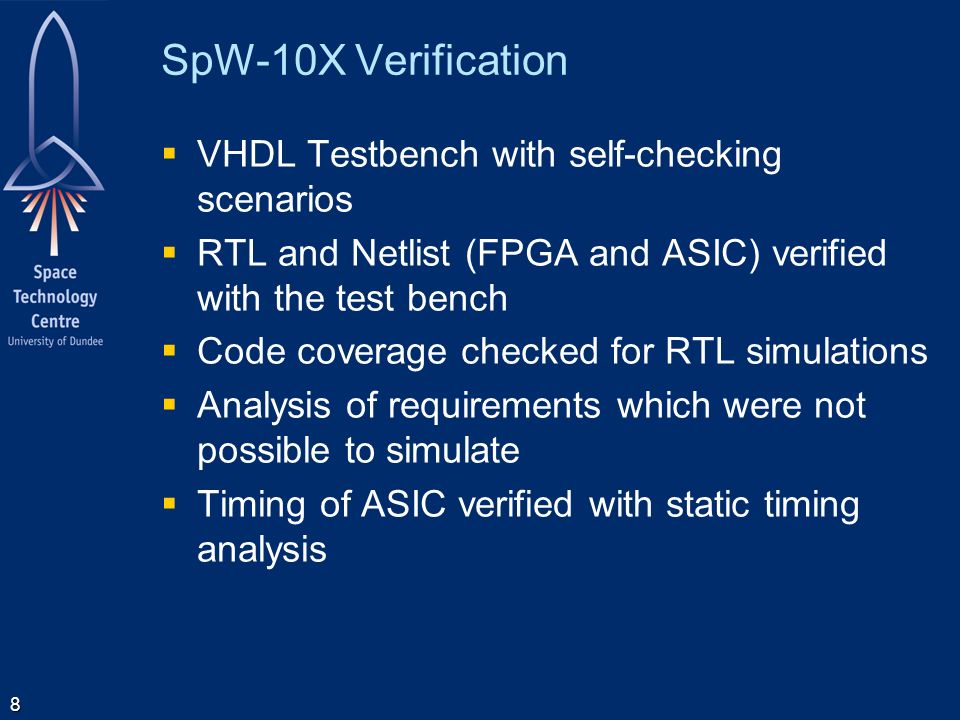

8. SpW-10X Verification  VHDL Testbench with self-checking scenarios  RTL and Netlist (FPGA and ASIC) verified with the test bench  Code coverage checked for RTL simulations  Analysis of requirements which were not possible to simulate  Timing of ASIC verified with static timing analysis 8

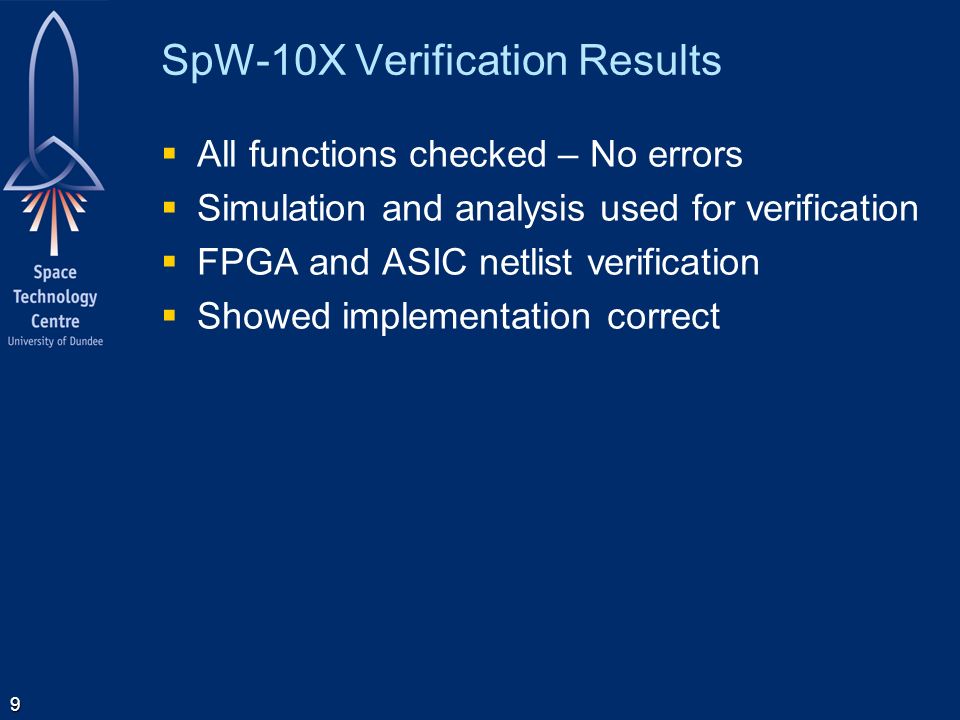

9. SpW-10X Verification Results  All functions checked – No errors  Simulation and analysis used for verification  FPGA and ASIC netlist verification  Showed implementation correct 9

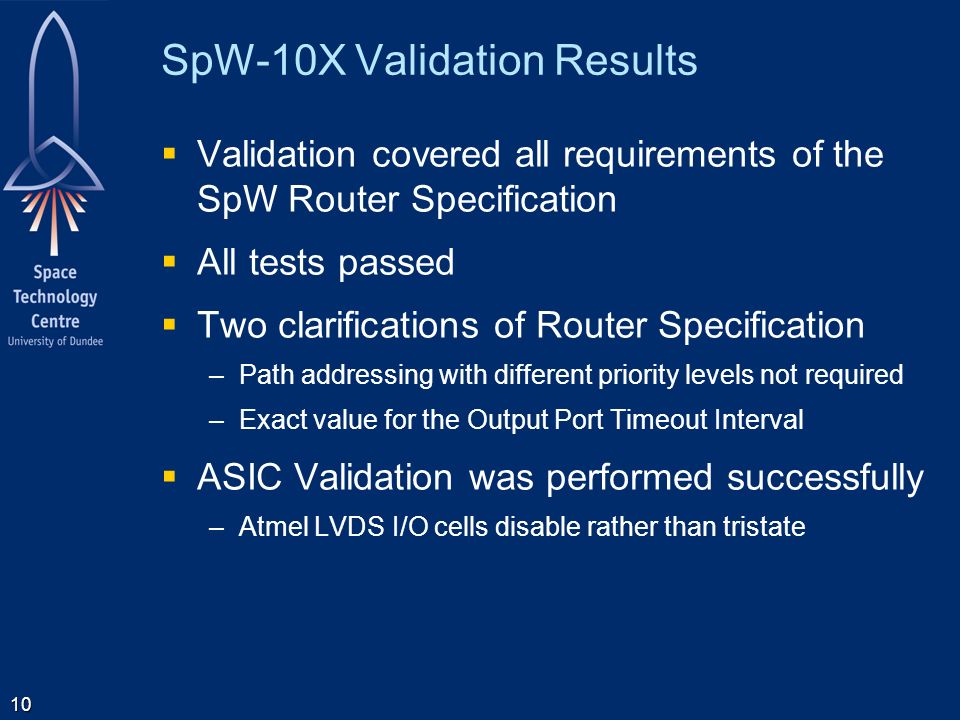

10. SpW-10X Validation Results  Validation covered all requirements of the SpW Router Specification  All tests passed  Two clarifications of Router Specification –Path addressing with different priority levels not required –Exact value for the Output Port Timeout Interval  ASIC Validation was performed successfully –Atmel LVDS I/O cells disable rather than tristate 10

11. SpW-10X Network Testing  Extensive testing of the SpW-10X ASIC  In various network configurations  No anomalies found in ASIC device 11

12. SpW-10X FPGA Testing 12

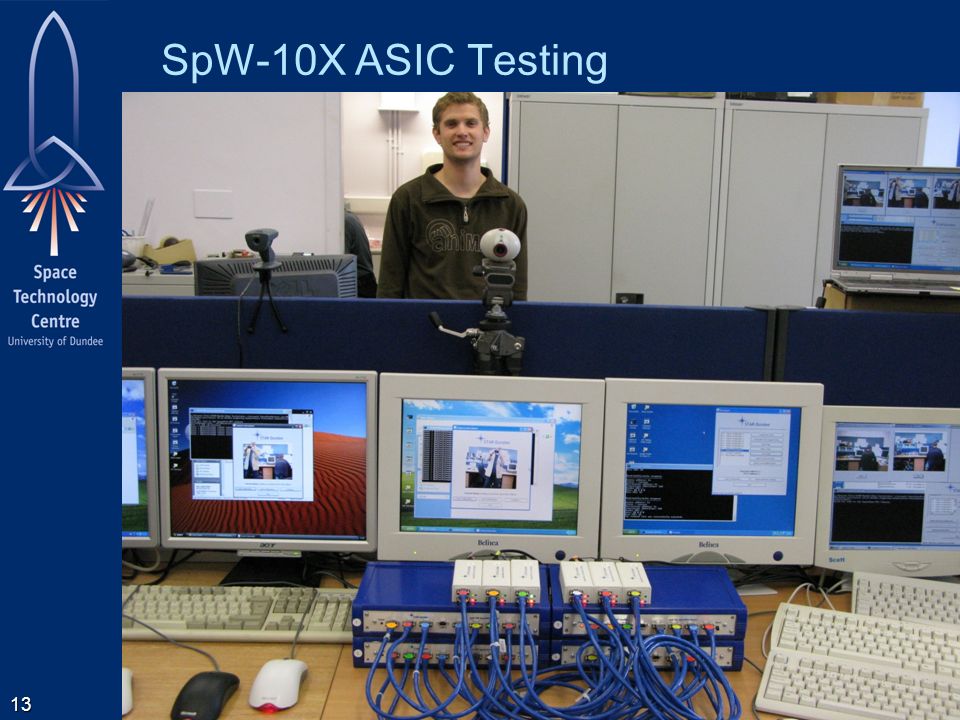

13. SpW-10X ASIC Testing 13

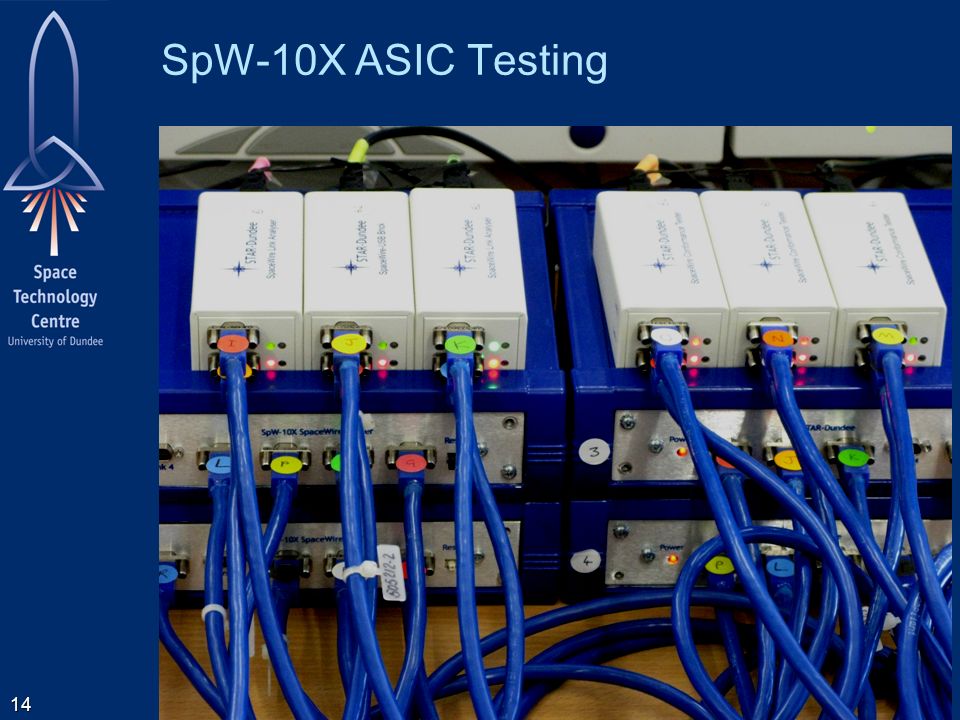

14. SpW-10X ASIC Testing 14

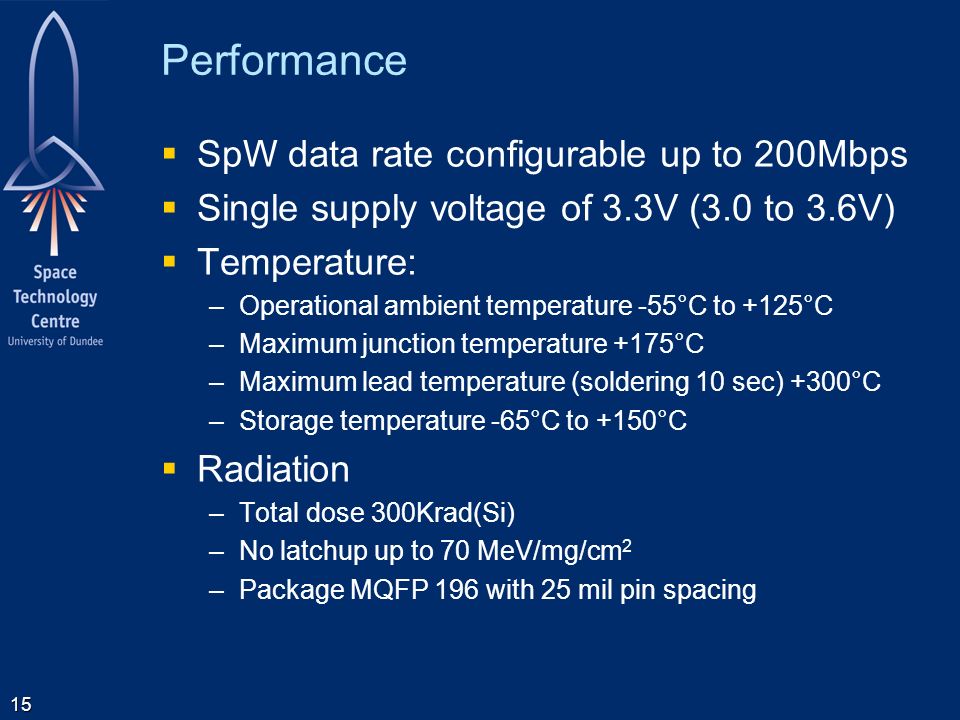

15. Performance  SpW data rate configurable up to 200Mbps  Single supply voltage of 3.3V (3.0 to 3.6V)  Temperature: –Operational ambient temperature -55°C to +125°C –Maximum junction temperature +175°C –Maximum lead temperature (soldering 10 sec) +300°C –Storage temperature -65°C to +150°C  Radiation –Total dose 300Krad(Si) –No latchup up to 70 MeV/mg/cm 2 –Package MQFP 196 with 25 mil pin spacing 15

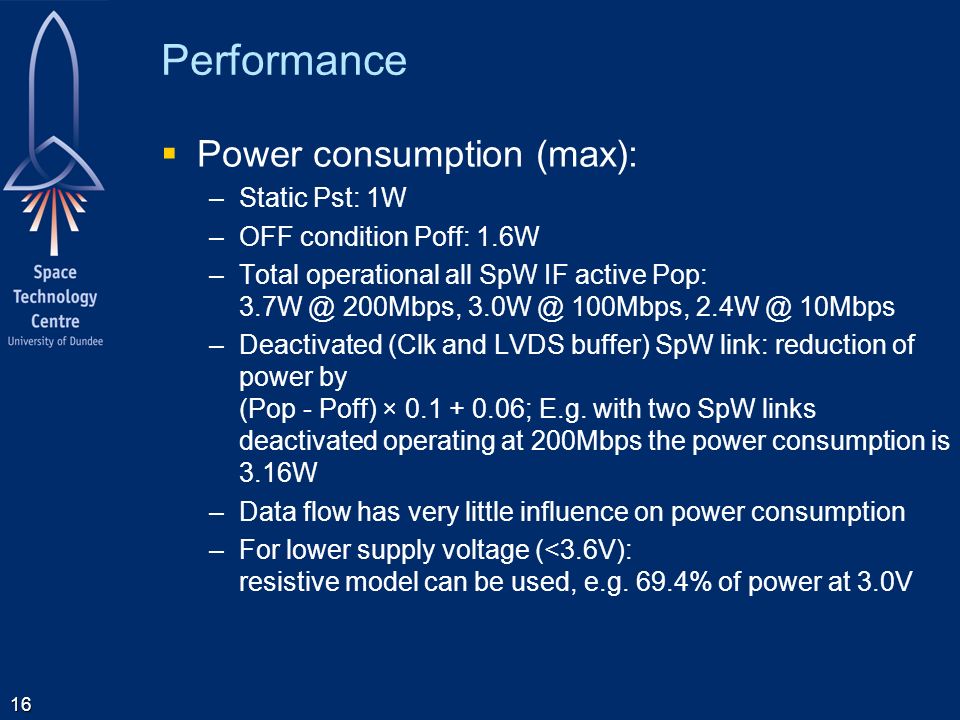

16. Performance  Power consumption (max): –Static Pst: 1W –OFF condition Poff: 1.6W –Total operational all SpW IF active Pop: 3.7W @ 200Mbps, 3.0W @ 100Mbps, 2.4W @ 10Mbps –Deactivated (Clk and LVDS buffer) SpW link: reduction of power by (Pop - Poff) × 0.1 + 0.06; E.g. with two SpW links deactivated operating at 200Mbps the power consumption is 3.16W –Data flow has very little influence on power consumption –For lower supply voltage (<3.6V): resistive model can be used, e.g. 69.4% of power at 3.0V 16

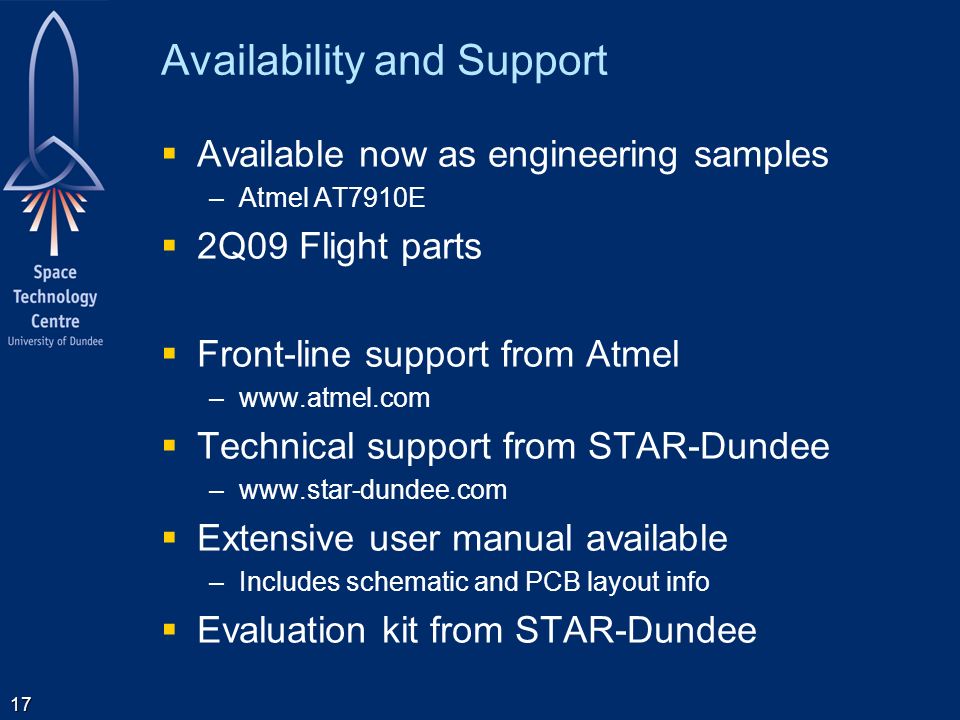

17. Availability and Support  Available now as engineering samples –Atmel AT7910E  2Q09 Flight parts  Front-line support from Atmel –www.atmel.com  Technical support from STAR-Dundee –www.star-dundee.com  Extensive user manual available –Includes schematic and PCB layout info  Evaluation kit from STAR-Dundee 17

18. SpW-10X Evaluation Kit 18

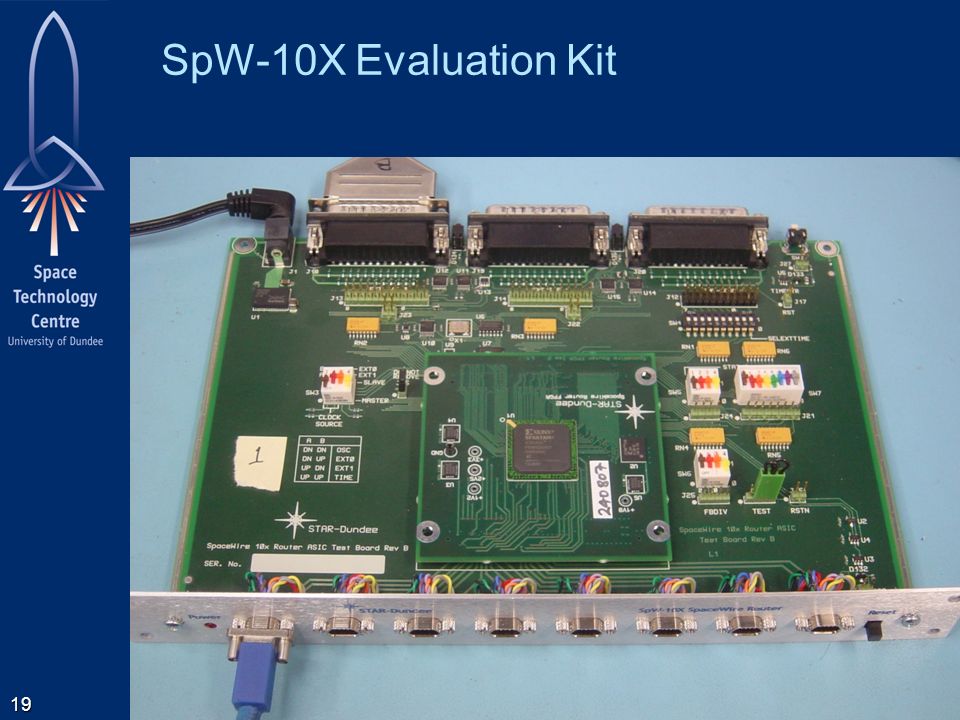

19. SpW-10X Evaluation Kit 19

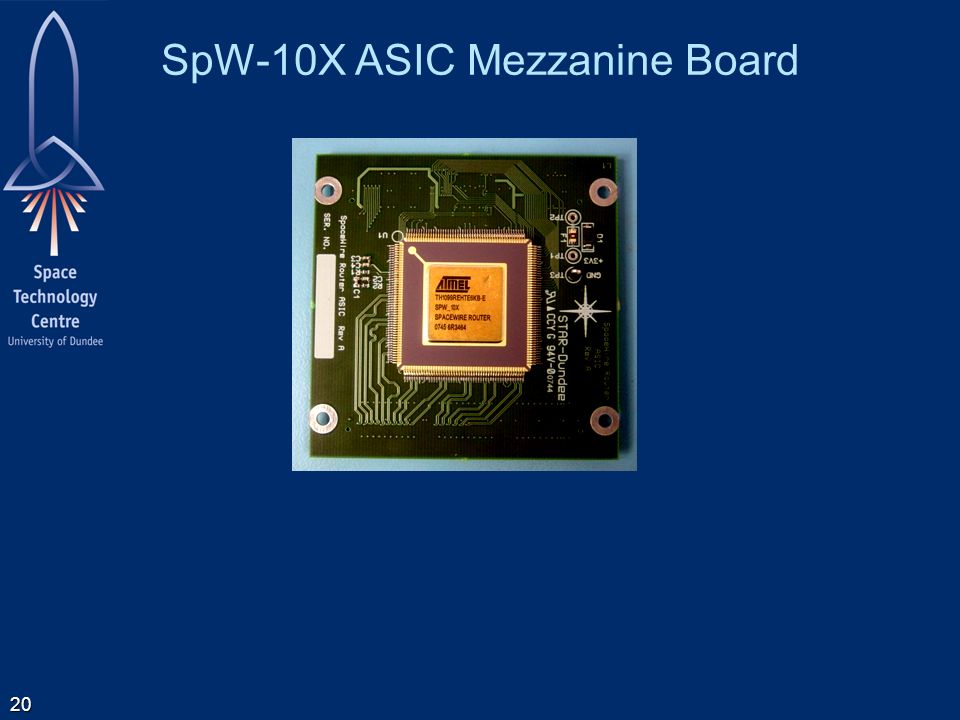

20. SpW-10X ASIC Mezzanine Board 20
