Discrete Mathematics Algorithms

Introduction  An algorithm is a finite set of instructions with the following characteristics:  Precision: steps are precisely stated  Uniqueness: Results of each step of execution are uniquely defined. They depend only on inputs and results of preceding steps  Finiteness: the algorithm stops after a finite (maybe large) number of steps for any input in the set.

More characteristics of algorithms  Input: the algorithm receives input from a specified set  Output: The algorithm produces output. From each set of input, a set of output is produced. Outputs are solution to problem.  Generality: the algorithm applies to various sets of inputs  Effectiveness : It must be possible to perform each step of an algo exactly and in a finite amount of time.

Example: a simple algorithm Algorithm to find the largest of three numbers a, b, c: Assignment operator s := k means “copy the value of k into s”  1. x:= a  2. If b > x then x:= b  3. If c > x then x:= c A trace is a check of the algorithm for specific values of a, b and c

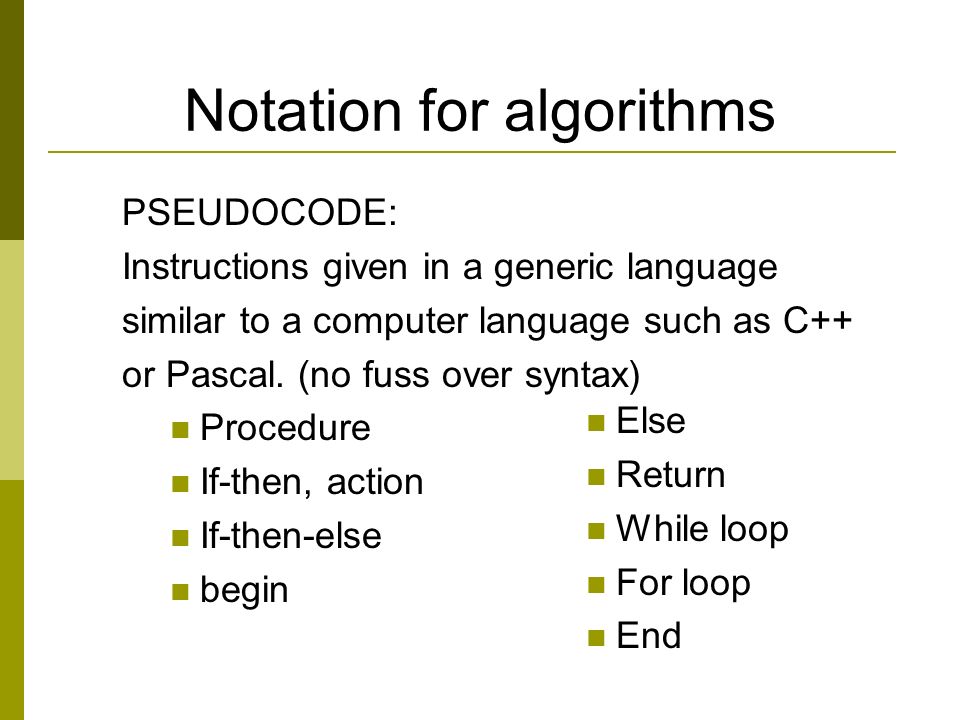

Notation for algorithms PSEUDOCODE: Instructions given in a generic language similar to a computer language such as C++ or Pascal. (no fuss over syntax) Procedure If-then, action If-then-else begin Else Return While loop For loop End

Problem Solving  Searching  Sorting

Tracing Output A=1 B=1 Repeat until B  10 B=2A-2 A=A+3

Example Function F(X) F(3)? If X > 0 then R=X 2 + 1 Else If X < 3 R=2X+6 Else R=X+7 Return (R)

Example A=1 B=0 While (A  10) X=X+1 A=A+1

Example (Sorting) Let assume there are two integer numbers: 3,1 Aim: Sort these numbers based on ascending order Location =3, Location=1 If Location is greater than Location then Begin temp=Location Location=Location Location=temp End

 Linear Search Begin i = 1 While ((i A[i])) i = i + 1 if i <= n then location = i else location = - 1; (where x is the item we are searching for; A is the array of where the item should be searched and location is a variable that will hold the position of where the item is, if it is found and -1 is the item is not found) Example (Searching)

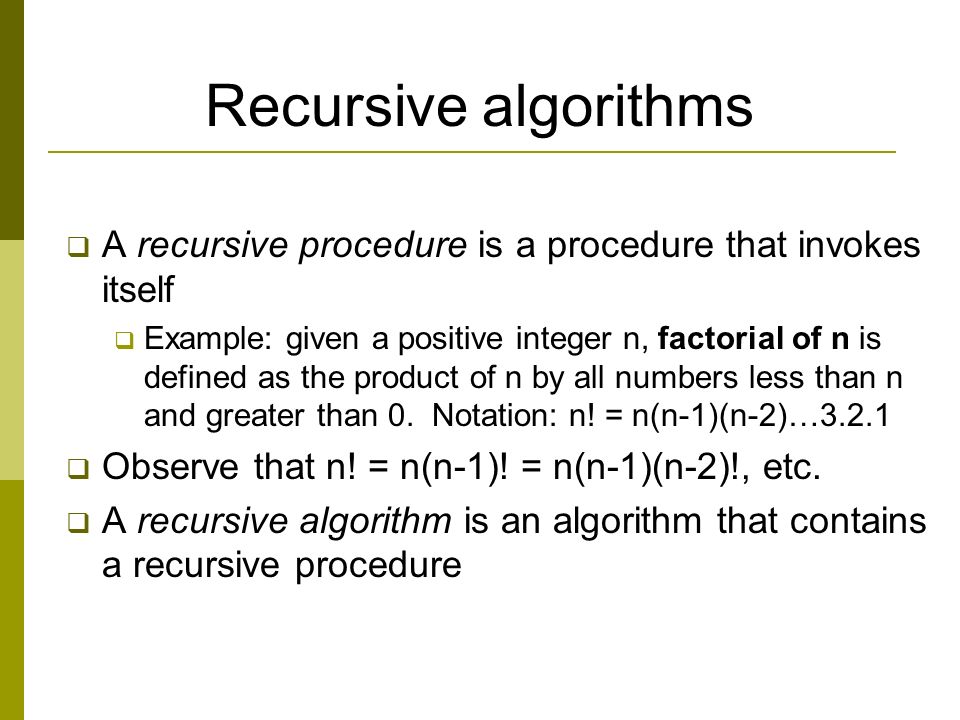

Recursive algorithms  A recursive procedure is a procedure that invokes itself  Example: given a positive integer n, factorial of n is defined as the product of n by all numbers less than n and greater than 0. Notation: n! = n(n-1)(n-2)…3.2.1  Observe that n! = n(n-1)! = n(n-1)(n-2)!, etc.  A recursive algorithm is an algorithm that contains a recursive procedure

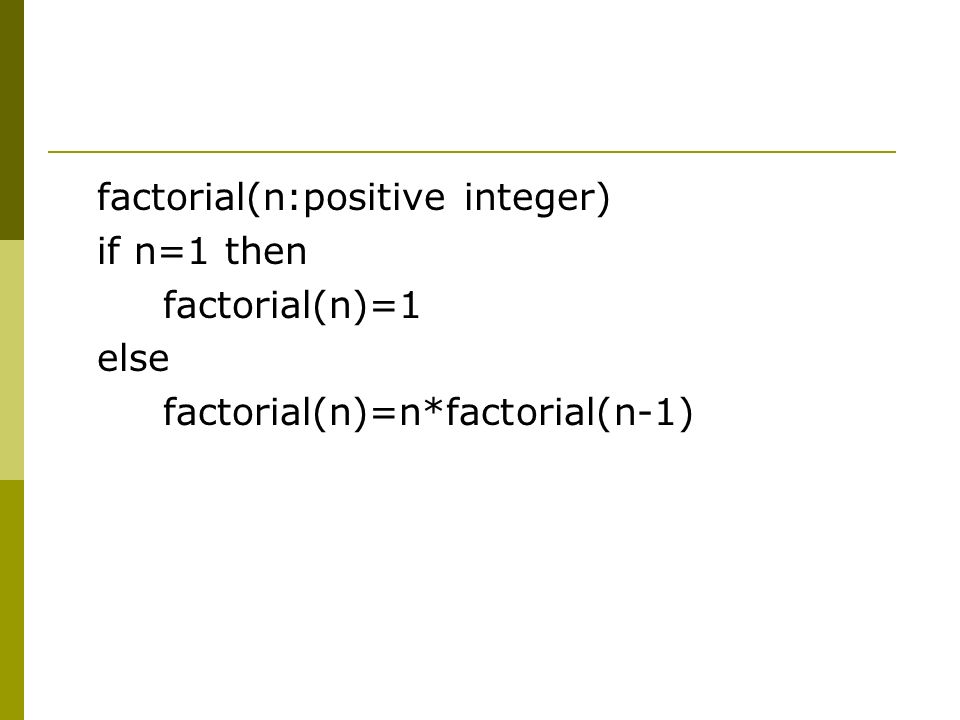

factorial(n:positive integer) if n=1 then factorial(n)=1 else factorial(n)=n*factorial(n-1)

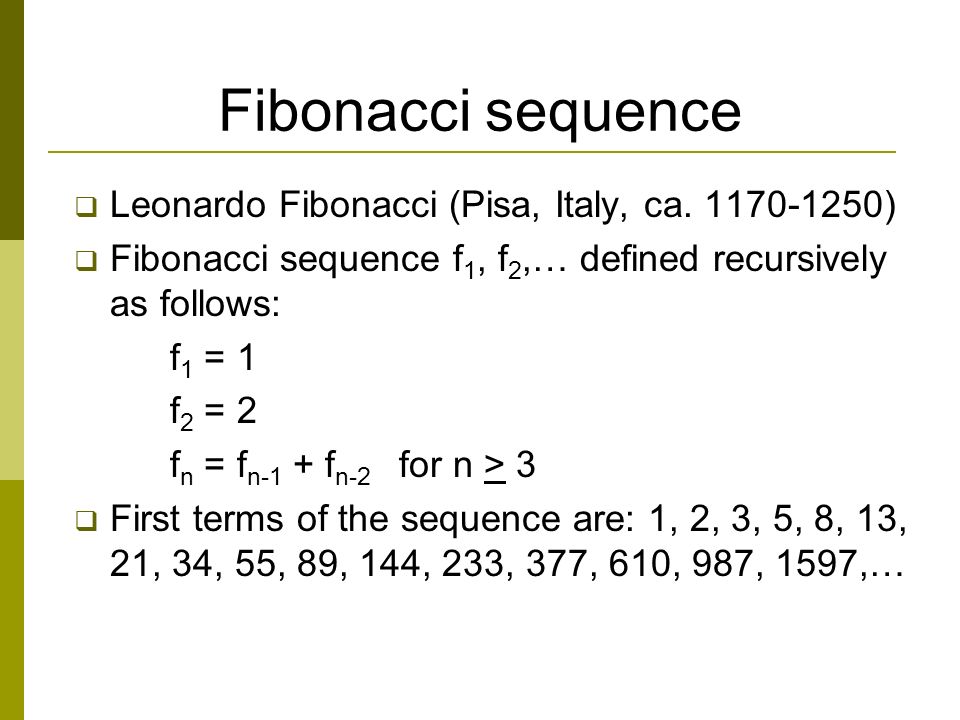

Fibonacci sequence  Leonardo Fibonacci (Pisa, Italy, ca. 1170-1250)  Fibonacci sequence f 1, f 2,… defined recursively as follows: f 1 = 1 f 2 = 2 f n = f n-1 + f n-2 for n > 3  First terms of the sequence are: 1, 2, 3, 5, 8, 13, 21, 34, 55, 89, 144, 233, 377, 610, 987, 1597,…

Complexity of algorithms  Analysis : refers to the process of deriving estimates for the time and space needed to execute the algorithm.  Complexity: the amount of time and/or space needed to execute the algorithm.  Complexity depends on many factors: data representation type, kind of computer, computer language used, etc.

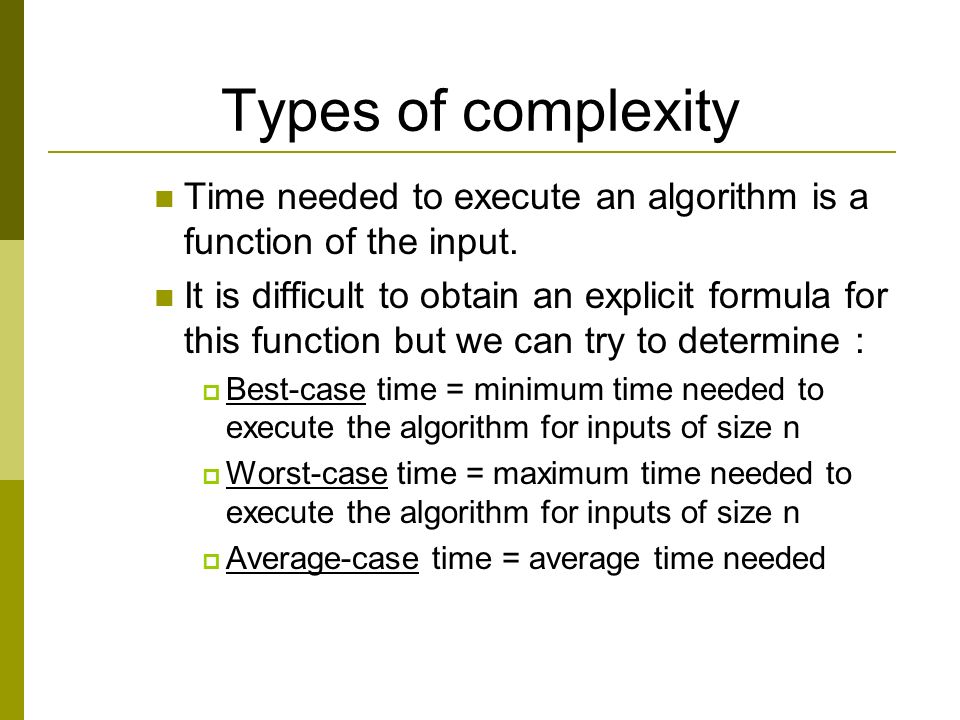

Types of complexity Time needed to execute an algorithm is a function of the input. It is difficult to obtain an explicit formula for this function but we can try to determine :  Best-case time = minimum time needed to execute the algorithm for inputs of size n  Worst-case time = maximum time needed to execute the algorithm for inputs of size n  Average-case time = average time needed

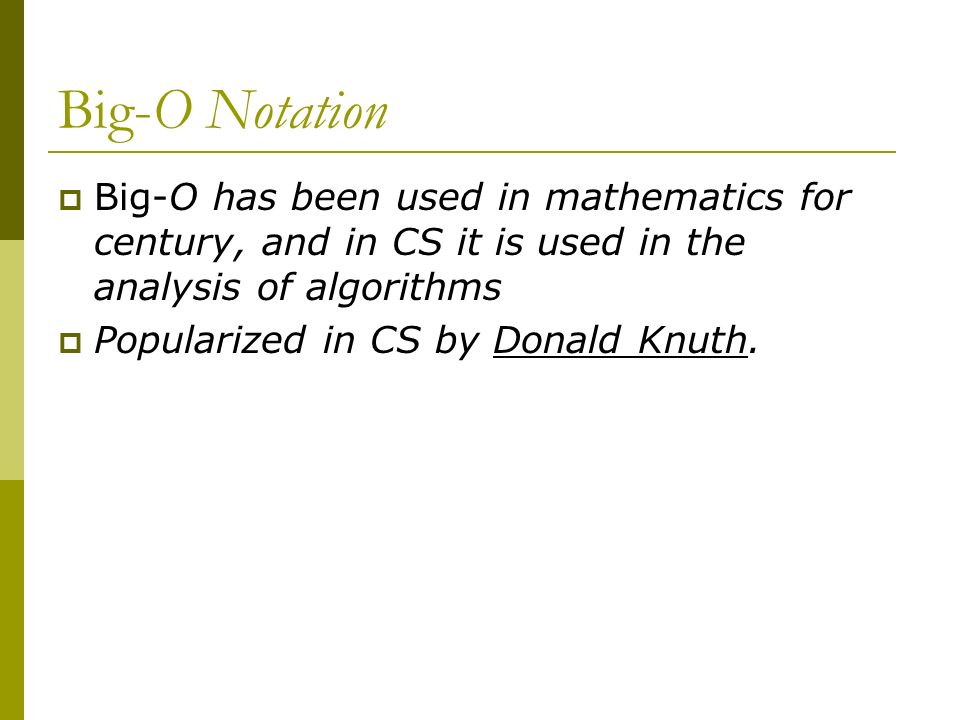

Big-O Notation  Big-O has been used in mathematics for century, and in CS it is used in the analysis of algorithms  Popularized in CS by Donald Knuth.

Notational Issues Big-O notation is a way of comparing functions. Notation unconventional: EG: 3x 3 + 5x 2 – 9 = O (x 3 ) Doesn’t mean “3x 3 + 5x 2 – 9 equals the function O (x 3 )” Which actually means “3x 3 +5x 2 –9 is dominated by x 3 ” Read as: “3x 3 +5x 2 –9 is big-Oh of x 3 ”

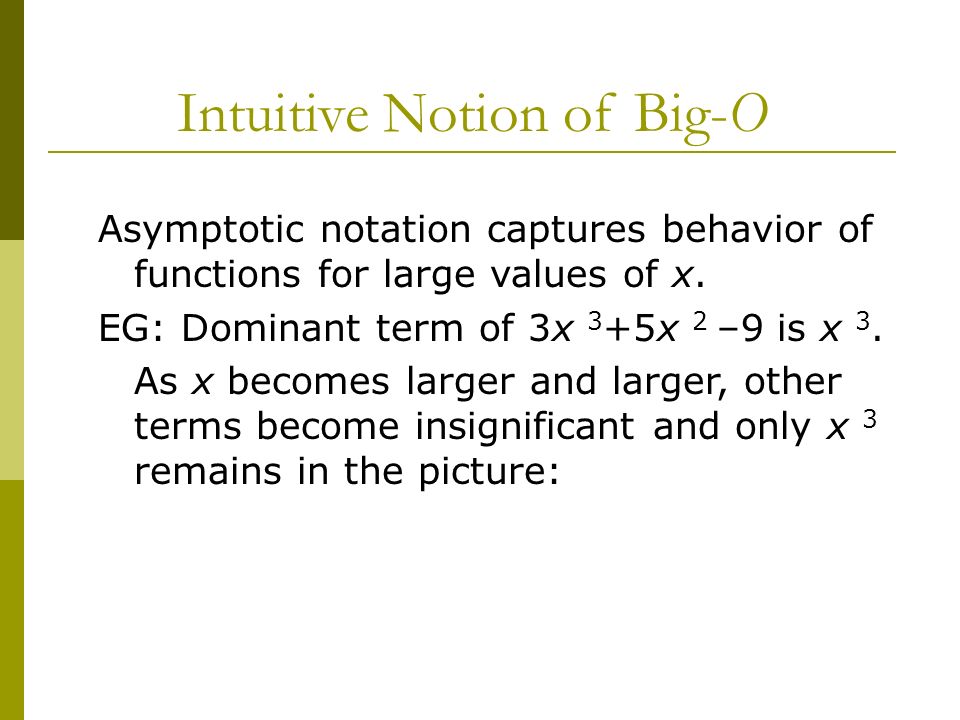

Intuitive Notion of Big-O Asymptotic notation captures behavior of functions for large values of x. EG: Dominant term of 3x 3 +5x 2 –9 is x 3. As x becomes larger and larger, other terms become insignificant and only x 3 remains in the picture:

Intuitive Notion of Big-O domain – [0,2] y = 3x 3 +5x 2 –9 y = x 3 y = x y = x 2

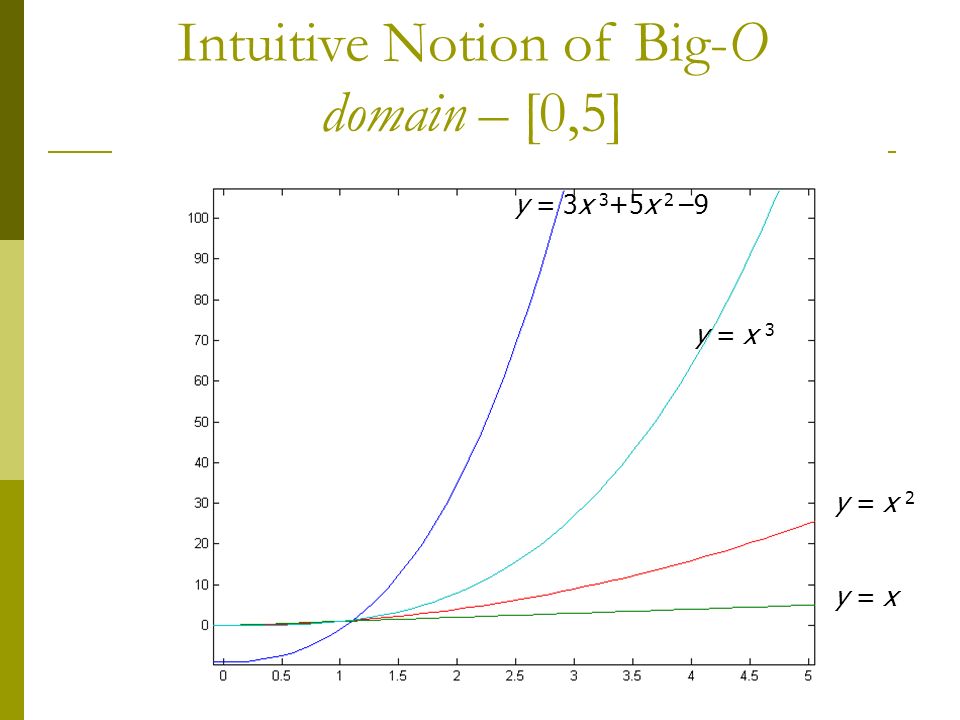

Intuitive Notion of Big-O domain – [0,5] y = 3x 3 +5x 2 –9 y = x 3 y = x y = x 2

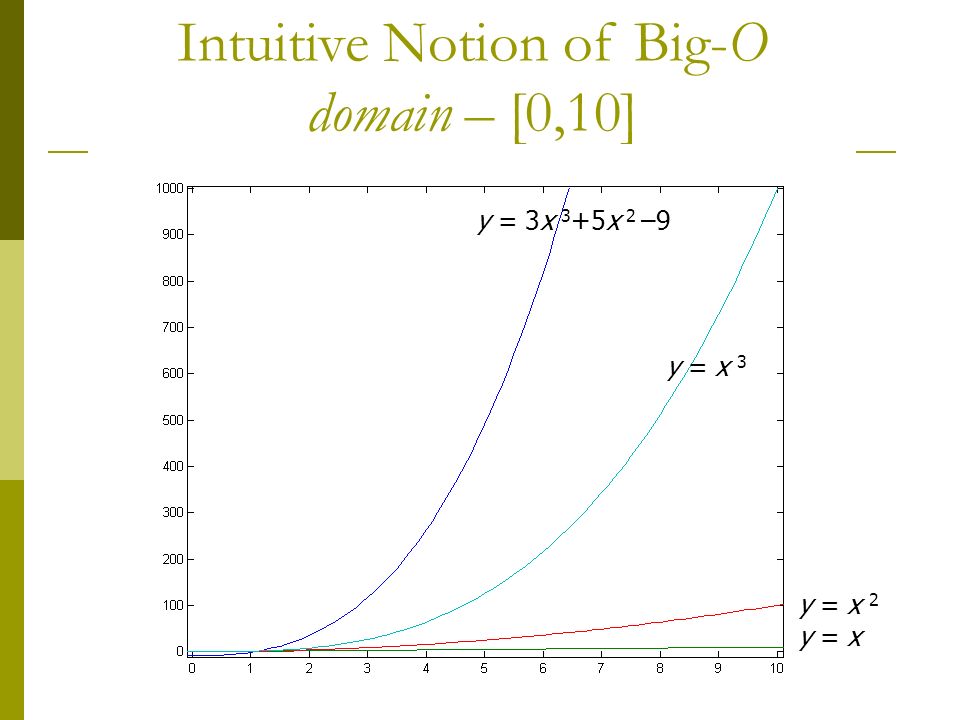

Intuitive Notion of Big-O domain – [0,10] y = 3x 3 +5x 2 –9 y = x 3 y = x y = x 2

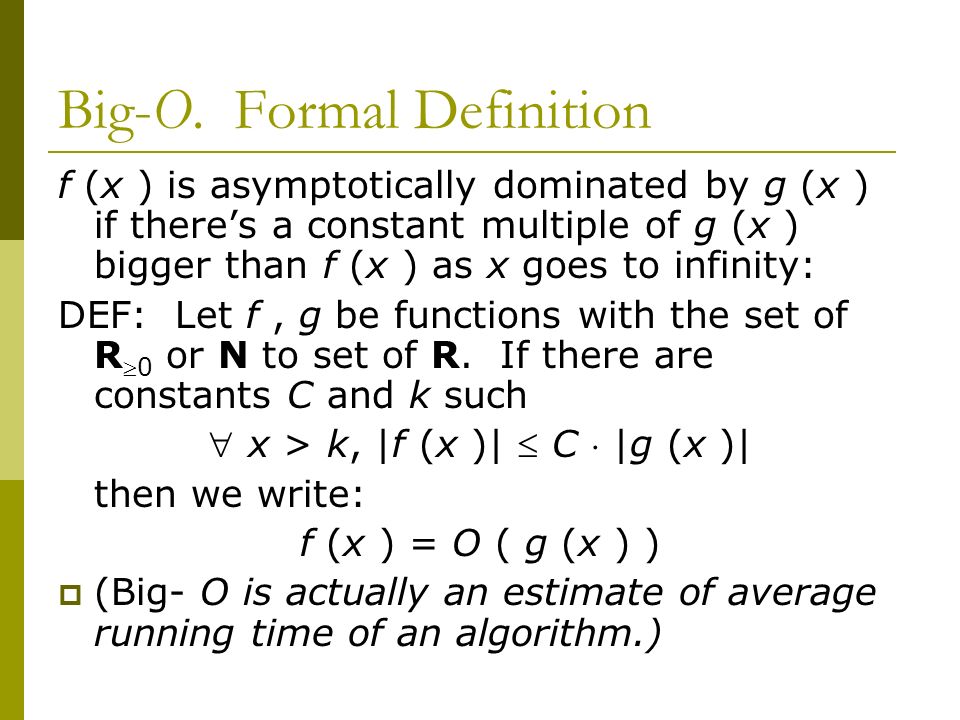

Big-O. Formal Definition f (x ) is asymptotically dominated by g (x ) if there’s a constant multiple of g (x ) bigger than f (x ) as x goes to infinity: DEF: Let f, g be functions with the set of R 0 or N to set of R. If there are constants C and k such  x > k, |f (x )|  C  |g (x )| then we write: f (x ) = O ( g (x ) )  (Big- O is actually an estimate of average running time of an algorithm.)

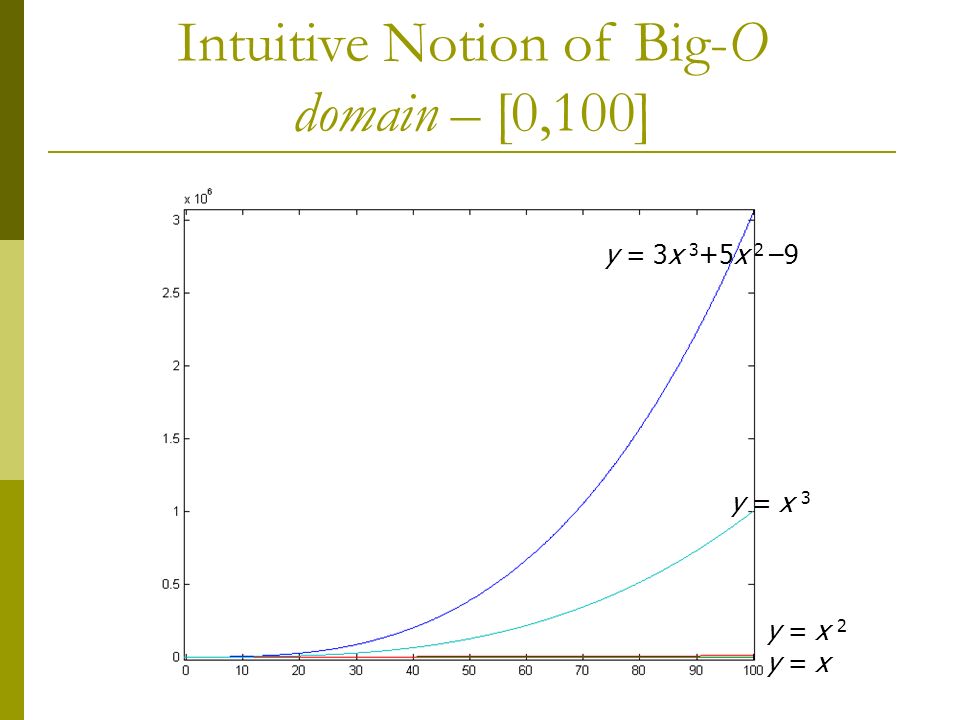

Intuitive Notion of Big-O domain – [0,100] y = 3x 3 +5x 2 –9 y = x 3 y = x y = x 2

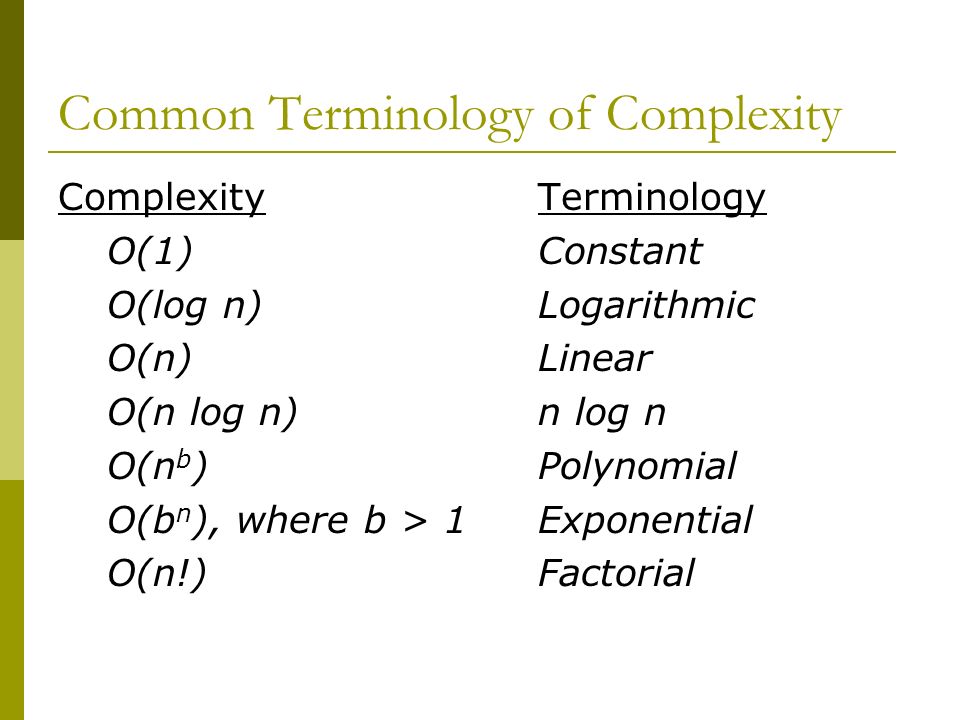

Common Terminology of Complexity ComplexityTerminology O(1)Constant O(log n)Logarithmic O(n)Linear O(n log n)n log n O(n b )Polynomial O(b n ), where b > 1Exponential O(n!)Factorial

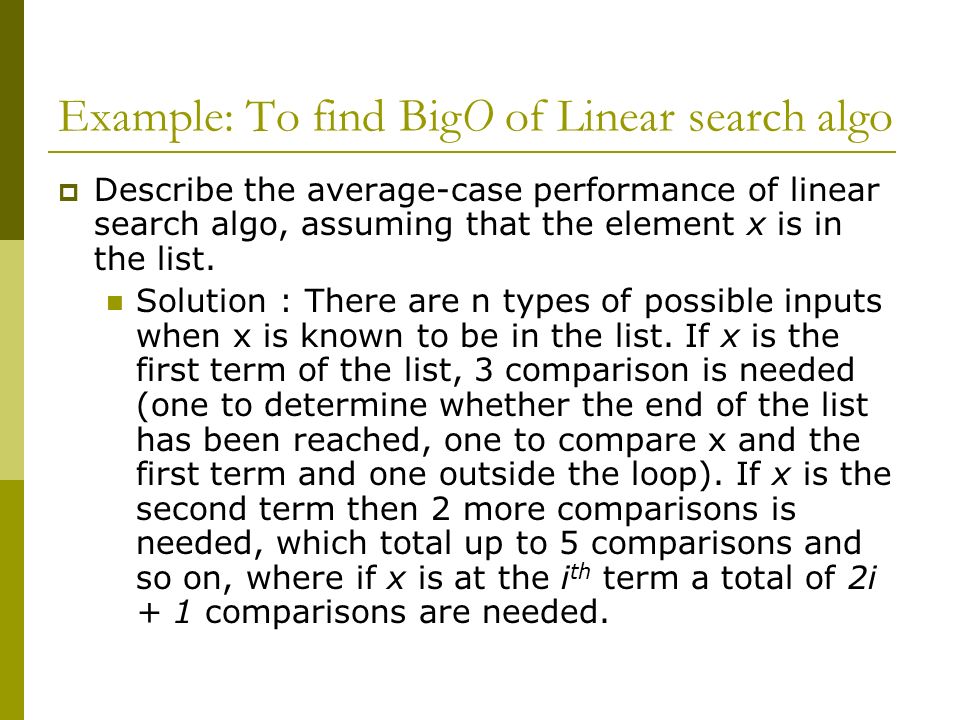

Example: To find BigO of Linear search algo  Describe the average-case performance of linear search algo, assuming that the element x is in the list. Solution : There are n types of possible inputs when x is known to be in the list. If x is the first term of the list, 3 comparison is needed (one to determine whether the end of the list has been reached, one to compare x and the first term and one outside the loop). If x is the second term then 2 more comparisons is needed, which total up to 5 comparisons and so on, where if x is at the i th term a total of 2i + 1 comparisons are needed.

 Hence the average number of camparisons used : 3+5+7+…+ (2n + 1) = 2(1+2+3+..+n)+ n n n 1+2+3+…+ n = n(n+1) 2 therefore : 2[n(n+1) /2] + 1 = n + 2 n which is O(n).
