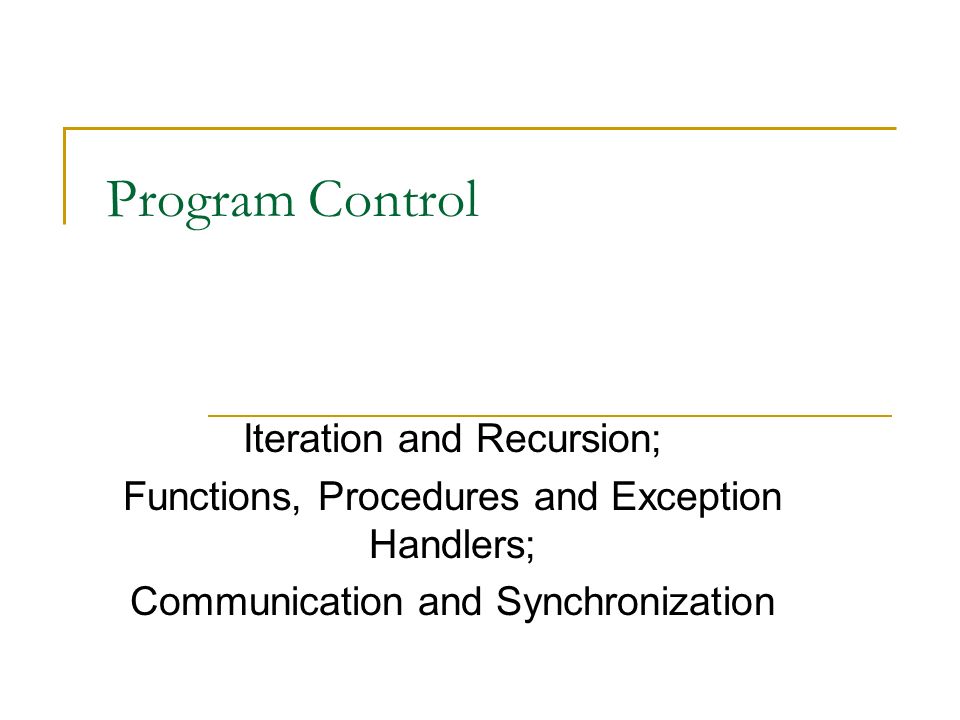

1. Program Control Iteration and Recursion; Functions, Procedures and Exception Handlers; Communication and Synchronization

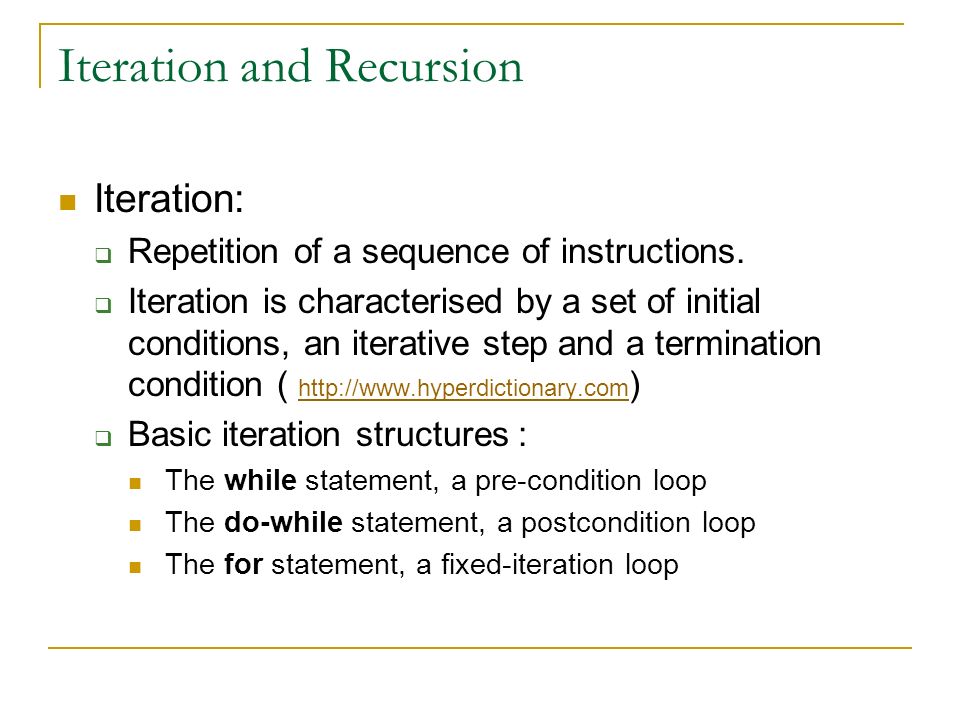

2. Iteration and Recursion Iteration:  Repetition of a sequence of instructions.  Iteration is characterised by a set of initial conditions, an iterative step and a termination condition ( http://www.hyperdictionary.com ) http://www.hyperdictionary.com  Basic iteration structures : The while statement, a pre-condition loop The do-while statement, a postcondition loop The for statement, a fixed-iteration loop

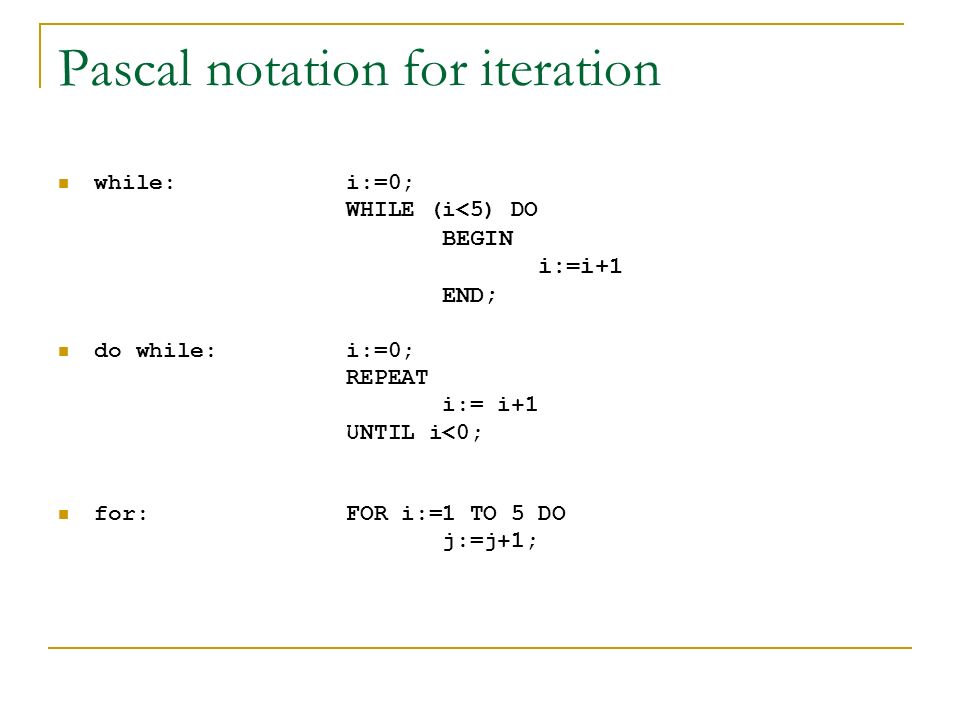

3. Pascal notation for iteration while:i:=0; WHILE (i<5) DO BEGIN i:=i+1 END; do while:i:=0; REPEAT i:= i+1 UNTIL i<0; for:FOR i:=1 TO 5 DO j:=j+1;

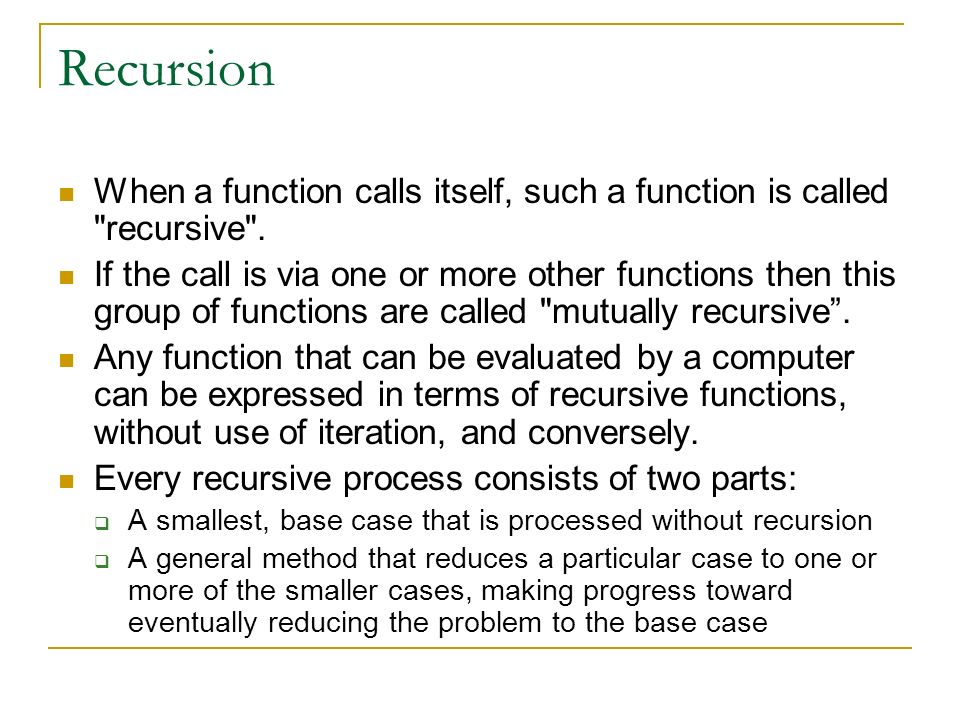

4. Recursion When a function calls itself, such a function is called "recursive". If the call is via one or more other functions then this group of functions are called "mutually recursive”. Any function that can be evaluated by a computer can be expressed in terms of recursive functions, without use of iteration, and conversely. Every recursive process consists of two parts:  A smallest, base case that is processed without recursion  A general method that reduces a particular case to one or more of the smaller cases, making progress toward eventually reducing the problem to the base case

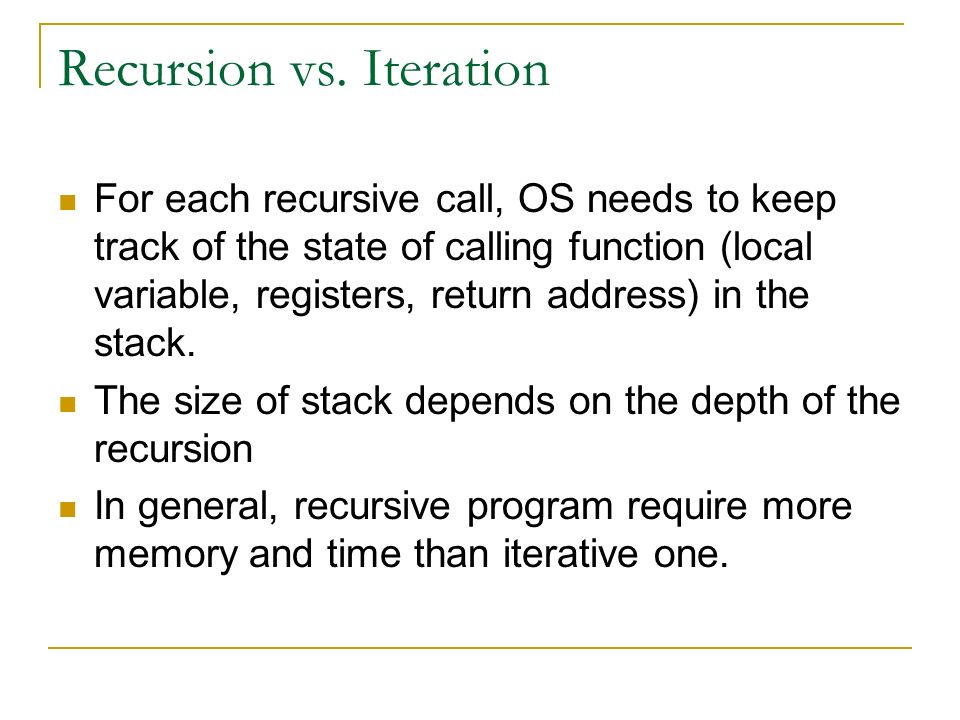

5. Recursion vs. Iteration For each recursive call, OS needs to keep track of the state of calling function (local variable, registers, return address) in the stack. The size of stack depends on the depth of the recursion In general, recursive program require more memory and time than iterative one.

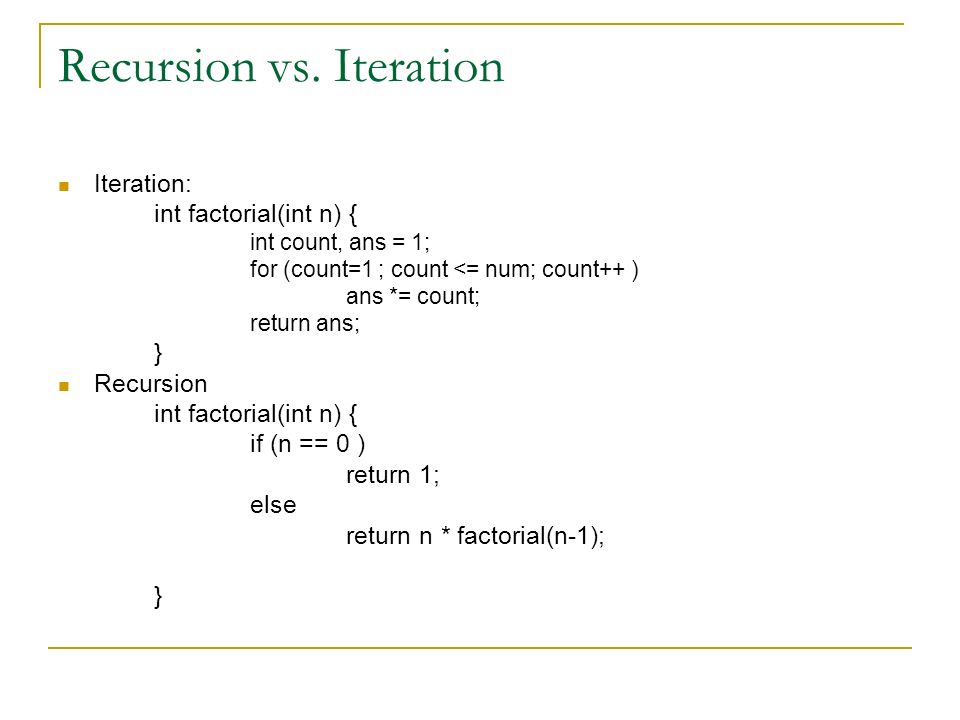

6. Recursion vs. Iteration Iteration: int factorial(int n) { int count, ans = 1; for (count=1 ; count <= num; count++ ) ans *= count; return ans; } Recursion int factorial(int n) { if (n == 0 ) return 1; else return n * factorial(n-1); }

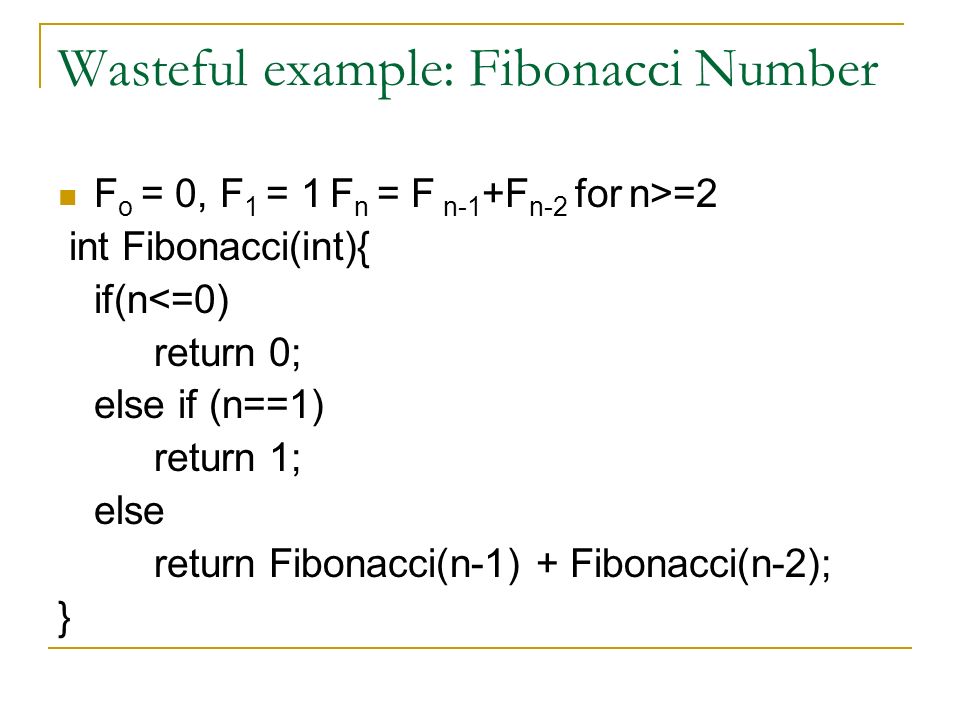

7. Wasteful example: Fibonacci Number F o = 0, F 1 = 1 F n = F n-1 +F n-2 for n>=2 int Fibonacci(int){ if(n<=0) return 0; else if (n==1) return 1; else return Fibonacci(n-1) + Fibonacci(n-2); }

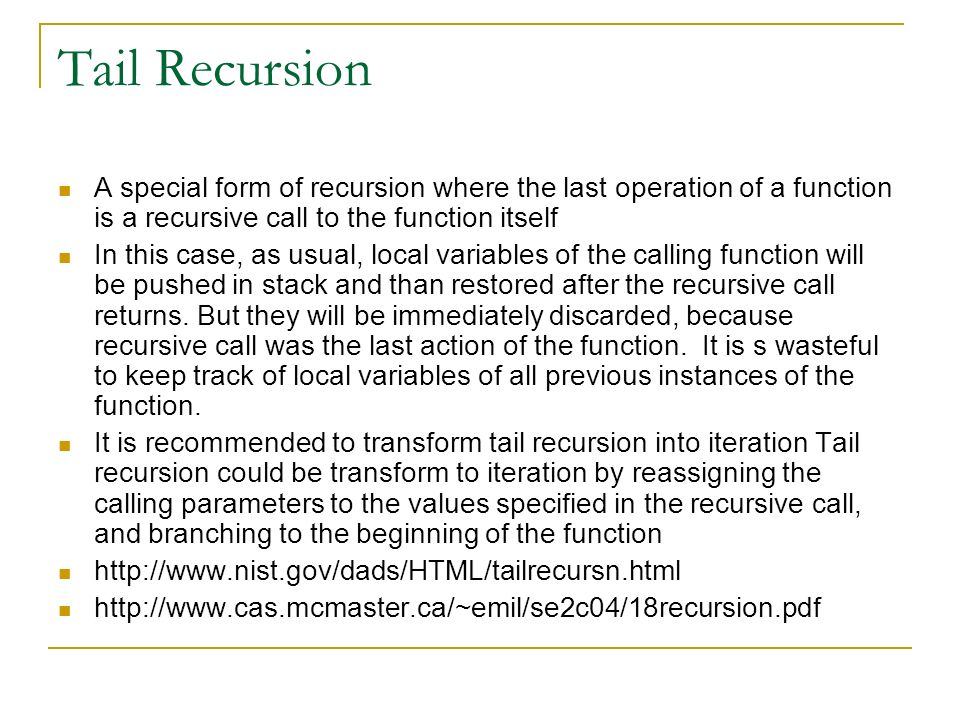

8. Tail Recursion A special form of recursion where the last operation of a function is a recursive call to the function itself In this case, as usual, local variables of the calling function will be pushed in stack and than restored after the recursive call returns. But they will be immediately discarded, because recursive call was the last action of the function. It is s wasteful to keep track of local variables of all previous instances of the function. It is recommended to transform tail recursion into iteration Tail recursion could be transform to iteration by reassigning the calling parameters to the values specified in the recursive call, and branching to the beginning of the function http://www.nist.gov/dads/HTML/tailrecursn.html http://www.cas.mcmaster.ca/~emil/se2c04/18recursion.pdf

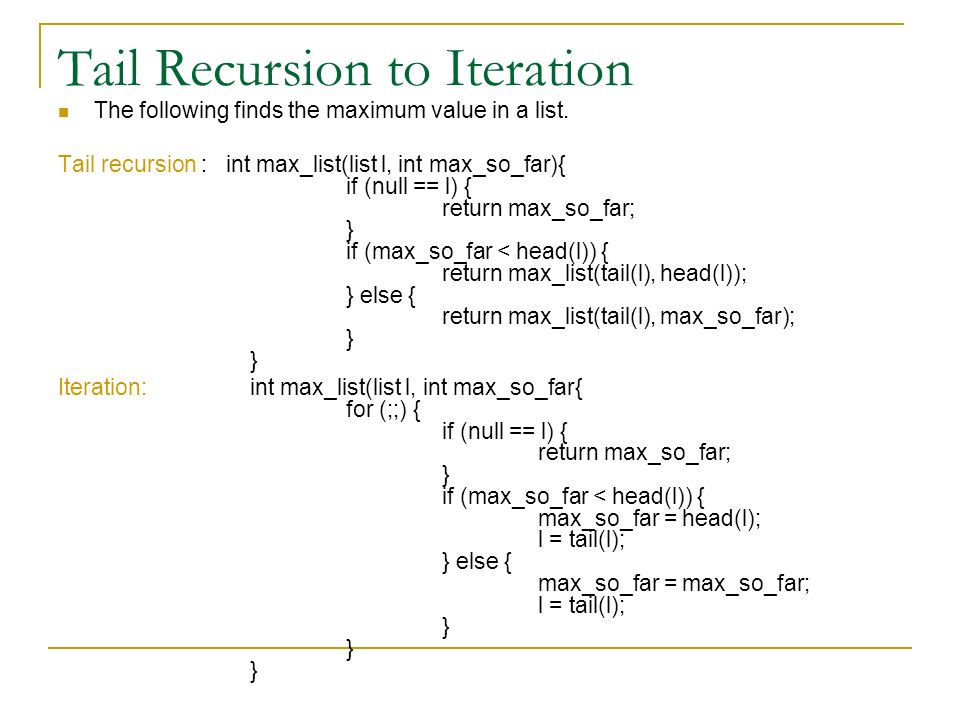

9. Tail Recursion to Iteration The following finds the maximum value in a list. Tail recursion : int max_list(list l, int max_so_far){ if (null == l) { return max_so_far; } if (max_so_far < head(l)) { return max_list(tail(l), head(l)); } else { return max_list(tail(l), max_so_far); } } Iteration:int max_list(list l, int max_so_far{ for (;;) { if (null == l) { return max_so_far; } if (max_so_far < head(l)) { max_so_far = head(l); l = tail(l); } else { max_so_far = max_so_far; l = tail(l); } } }

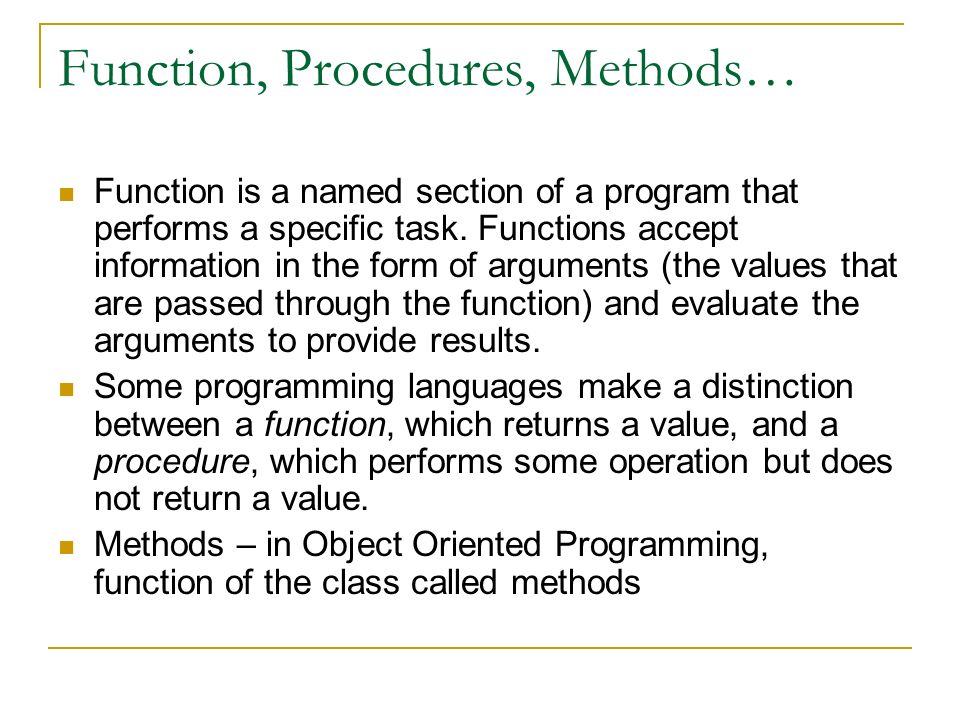

10. Function, Procedures, Methods… Function is a named section of a program that performs a specific task. Functions accept information in the form of arguments (the values that are passed through the function) and evaluate the arguments to provide results. Some programming languages make a distinction between a function, which returns a value, and a procedure, which performs some operation but does not return a value. Methods – in Object Oriented Programming, function of the class called methods

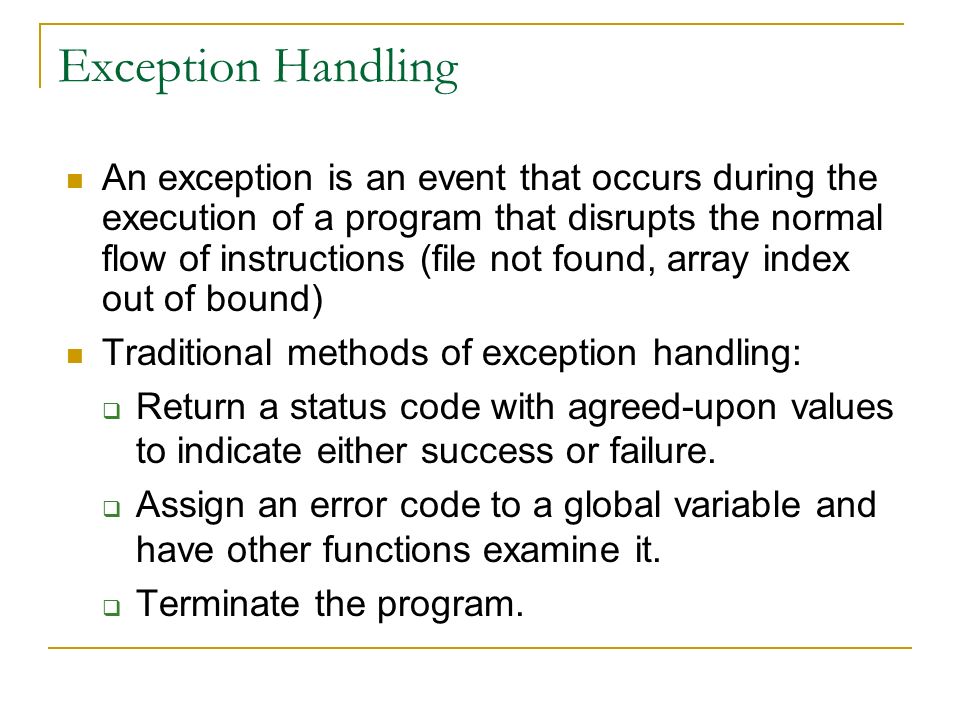

11. Exception Handling An exception is an event that occurs during the execution of a program that disrupts the normal flow of instructions (file not found, array index out of bound) Traditional methods of exception handling:  Return a status code with agreed-upon values to indicate either success or failure.  Assign an error code to a global variable and have other functions examine it.  Terminate the program.

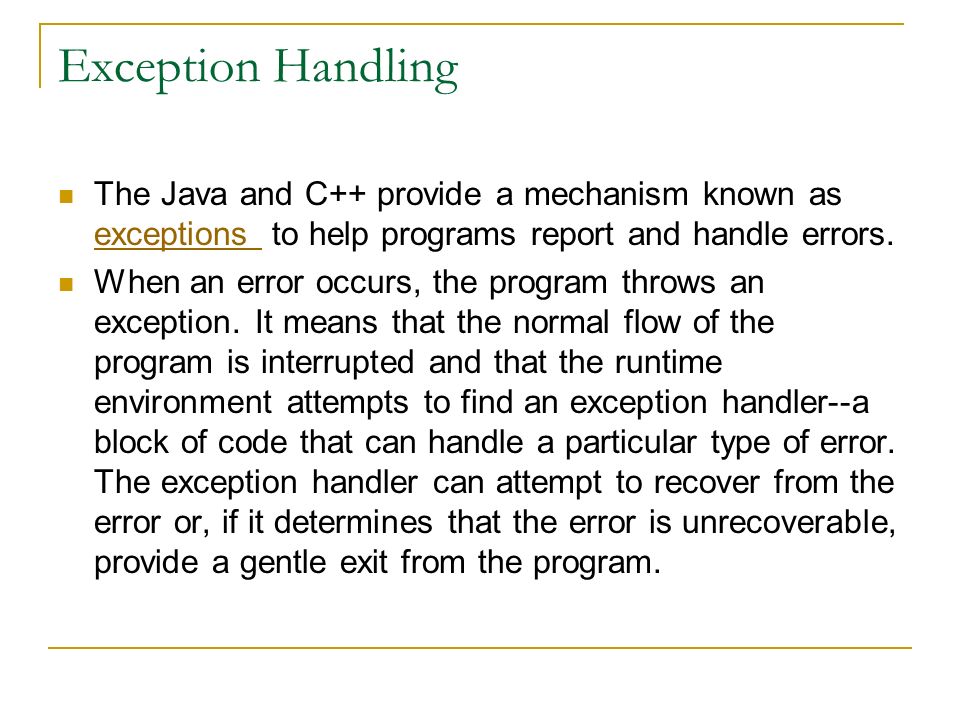

12. Exception Handling The Java and C++ provide a mechanism known as exceptions to help programs report and handle errors. exceptions When an error occurs, the program throws an exception. It means that the normal flow of the program is interrupted and that the runtime environment attempts to find an exception handler--a block of code that can handle a particular type of error. The exception handler can attempt to recover from the error or, if it determines that the error is unrecoverable, provide a gentle exit from the program.

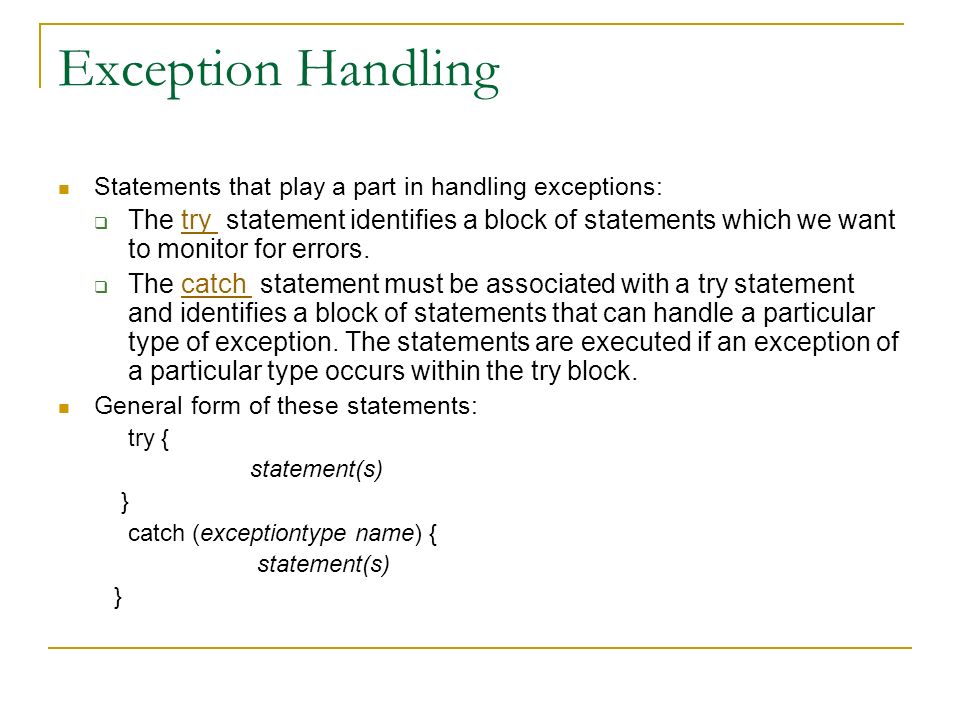

13. Exception Handling Statements that play a part in handling exceptions:  The try statement identifies a block of statements which we want to monitor for errors.try  The catch statement must be associated with a try statement and identifies a block of statements that can handle a particular type of exception. The statements are executed if an exception of a particular type occurs within the try block.catch General form of these statements: try { statement(s) } catch (exceptiontype name) { statement(s) }

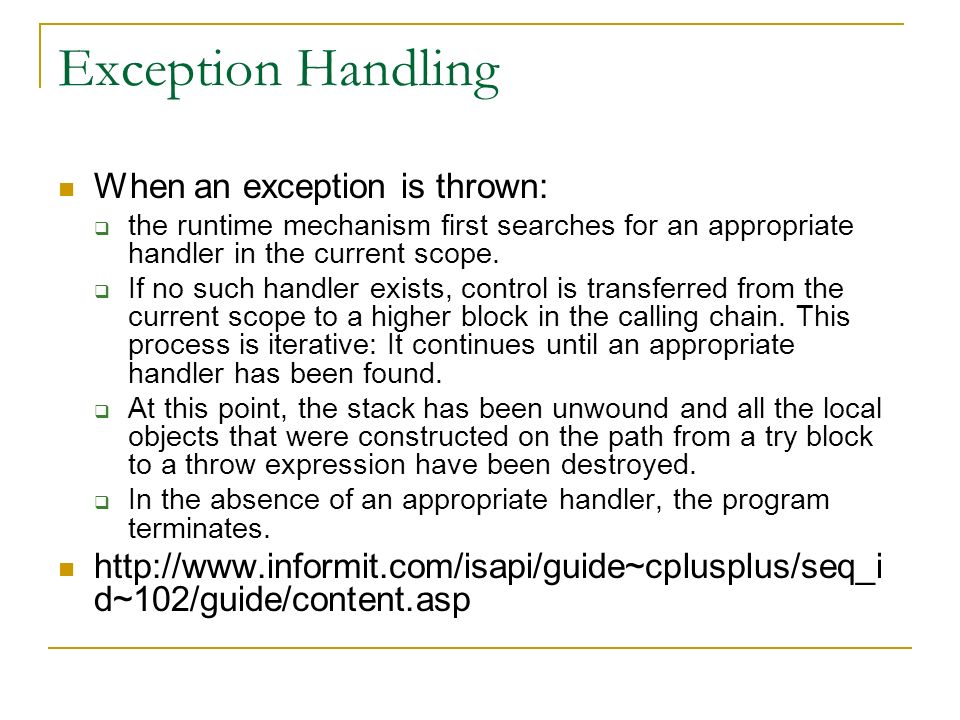

14. Exception Handling When an exception is thrown:  the runtime mechanism first searches for an appropriate handler in the current scope.  If no such handler exists, control is transferred from the current scope to a higher block in the calling chain. This process is iterative: It continues until an appropriate handler has been found.  At this point, the stack has been unwound and all the local objects that were constructed on the path from a try block to a throw expression have been destroyed.  In the absence of an appropriate handler, the program terminates. http://www.informit.com/isapi/guide~cplusplus/seq_i d~102/guide/content.asp

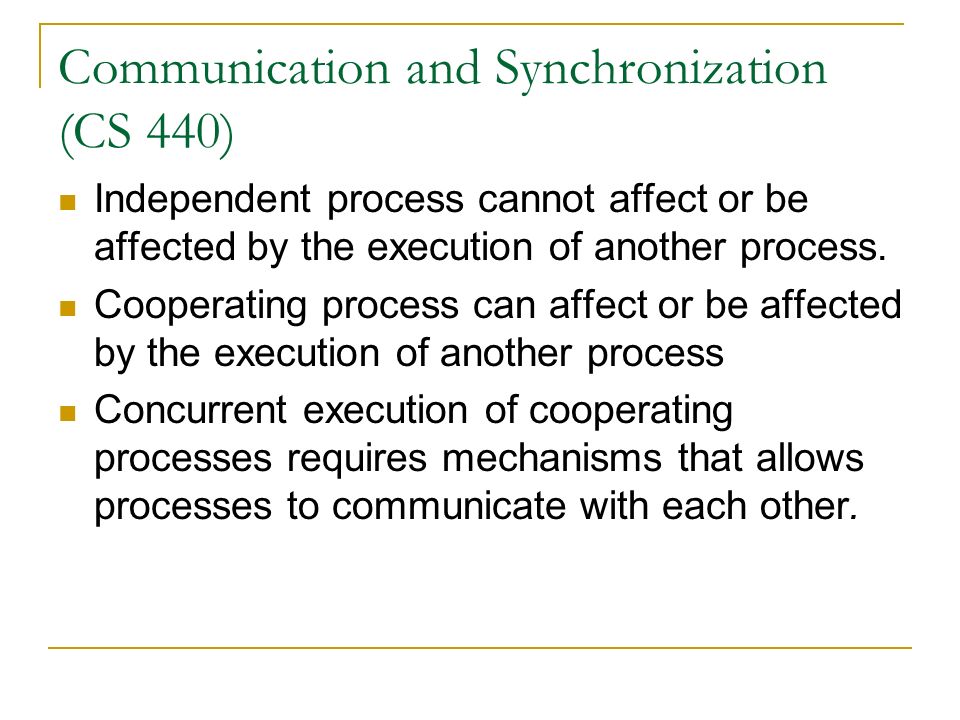

15. Communication and Synchronization (CS 440) Independent process cannot affect or be affected by the execution of another process. Cooperating process can affect or be affected by the execution of another process Concurrent execution of cooperating processes requires mechanisms that allows processes to communicate with each other.

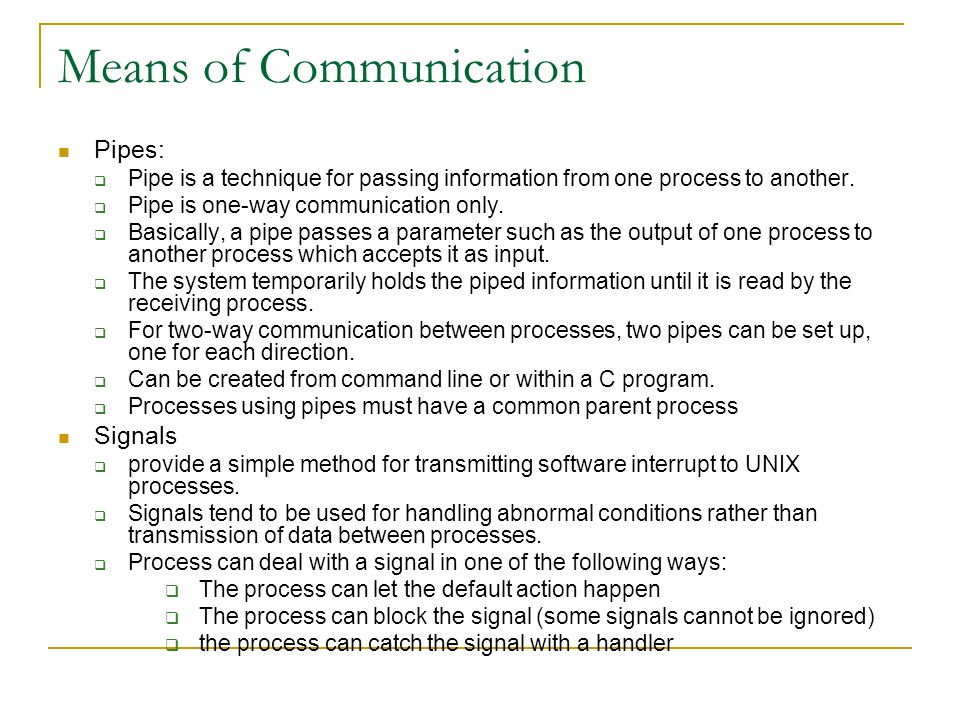

16. Means of Communication Pipes:  Pipe is a technique for passing information from one process to another.  Pipe is one-way communication only.  Basically, a pipe passes a parameter such as the output of one process to another process which accepts it as input.  The system temporarily holds the piped information until it is read by the receiving process.  For two-way communication between processes, two pipes can be set up, one for each direction.  Can be created from command line or within a C program.  Processes using pipes must have a common parent process Signals  provide a simple method for transmitting software interrupt to UNIX processes.  Signals tend to be used for handling abnormal conditions rather than transmission of data between processes.  Process can deal with a signal in one of the following ways:  The process can let the default action happen  The process can block the signal (some signals cannot be ignored)  the process can catch the signal with a handler

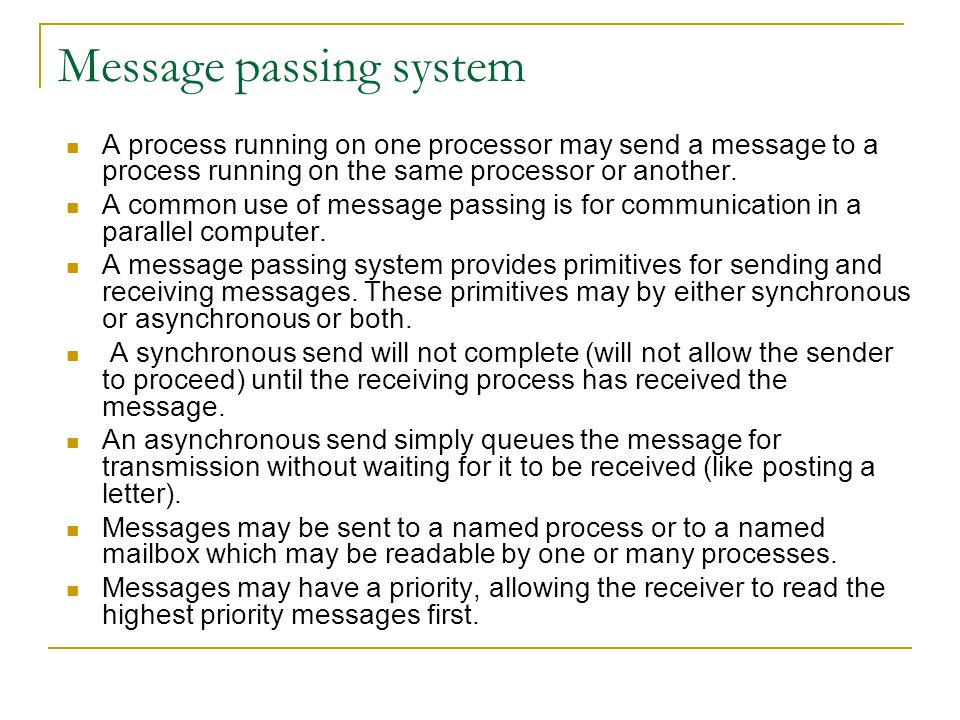

17. Message passing system A process running on one processor may send a message to a process running on the same processor or another. A common use of message passing is for communication in a parallel computer. A message passing system provides primitives for sending and receiving messages. These primitives may by either synchronous or asynchronous or both. A synchronous send will not complete (will not allow the sender to proceed) until the receiving process has received the message. An asynchronous send simply queues the message for transmission without waiting for it to be received (like posting a letter). Messages may be sent to a named process or to a named mailbox which may be readable by one or many processes. Messages may have a priority, allowing the receiver to read the highest priority messages first.

18. Means of Communication Sockets  The Unix mechansim for creating a virtual connection between processes.  Usually used in client-server communication  They can be of two types, stream (bi-directional) or datagram (fixed length destination-addressed messages).  The socket library function socket() creates a communications end-point or socket and returns a file descriptor with which to access that socket.  The socket has associated with it a socket address, consisting of a port number and the local host's network address. http://www.faqs.org/rfcs/rfc147.htmlhttp://www.faqs.org/rfcs/rfc147.html - description of sockets Shared memory  Memory which can be access by more than one process in a multitasking operating system with memory protection.  Created by system call

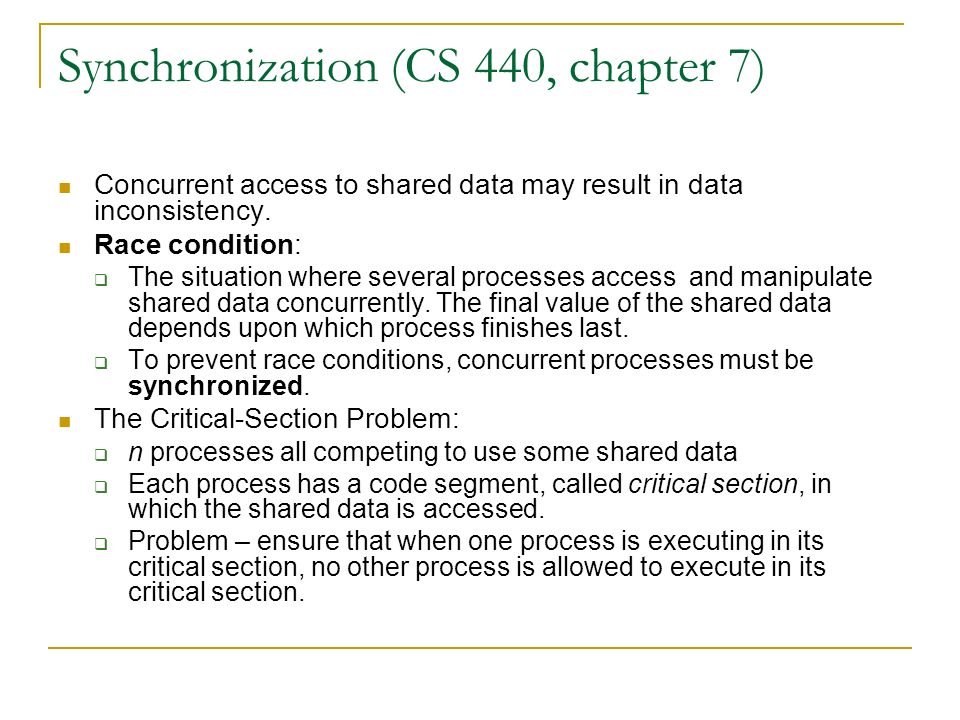

19. Synchronization (CS 440, chapter 7) Concurrent access to shared data may result in data inconsistency. Race condition:  The situation where several processes access and manipulate shared data concurrently. The final value of the shared data depends upon which process finishes last.  To prevent race conditions, concurrent processes must be synchronized. The Critical-Section Problem:  n processes all competing to use some shared data  Each process has a code segment, called critical section, in which the shared data is accessed.  Problem – ensure that when one process is executing in its critical section, no other process is allowed to execute in its critical section.

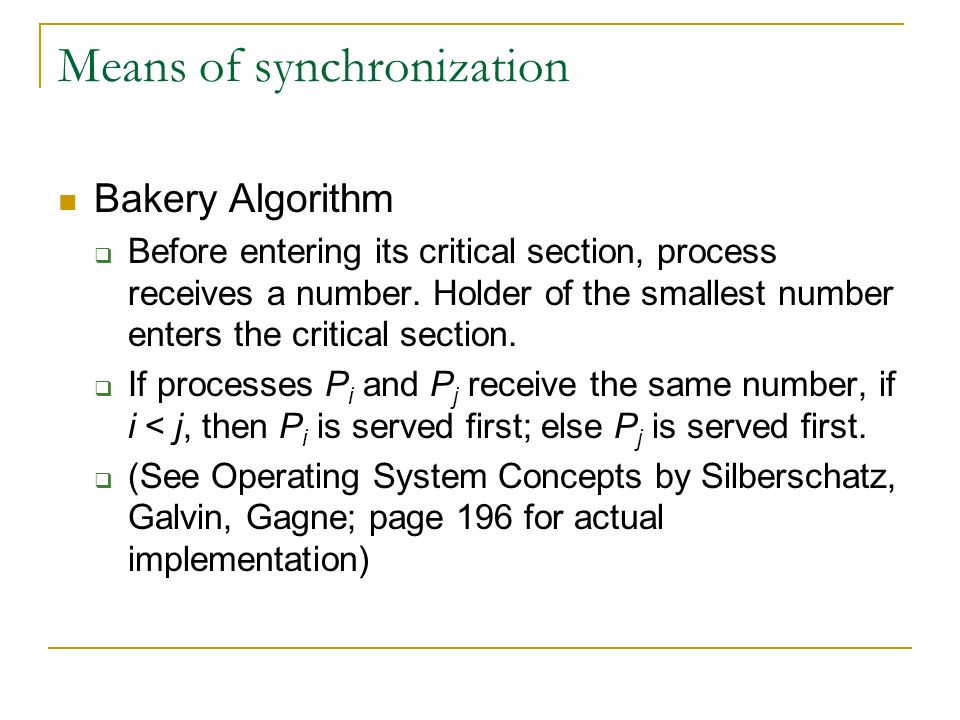

20. Means of synchronization Bakery Algorithm  Before entering its critical section, process receives a number. Holder of the smallest number enters the critical section.  If processes P i and P j receive the same number, if i < j, then P i is served first; else P j is served first.  (See Operating System Concepts by Silberschatz, Galvin, Gagne; page 196 for actual implementation)

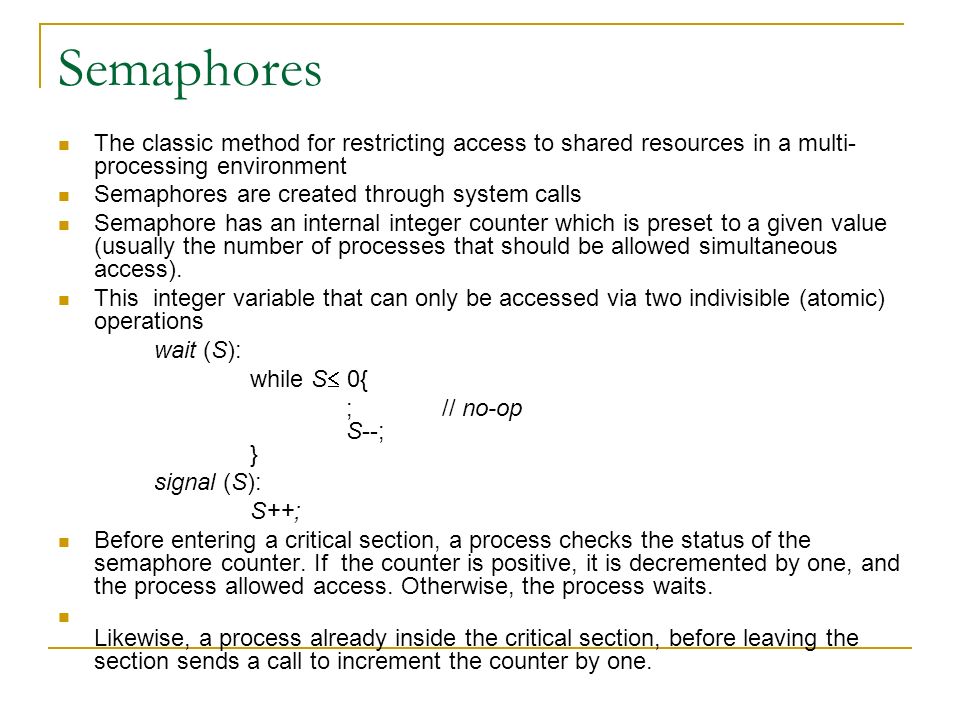

21. Semaphores The classic method for restricting access to shared resources in a multi- processing environment Semaphores are created through system calls Semaphore has an internal integer counter which is preset to a given value (usually the number of processes that should be allowed simultaneous access). This integer variable that can only be accessed via two indivisible (atomic) operations wait (S): while S  0{ ;// no-op S--; } signal (S): S++; Before entering a critical section, a process checks the status of the semaphore counter. If the counter is positive, it is decremented by one, and the process allowed access. Otherwise, the process waits. Likewise, a process already inside the critical section, before leaving the section sends a call to increment the counter by one.

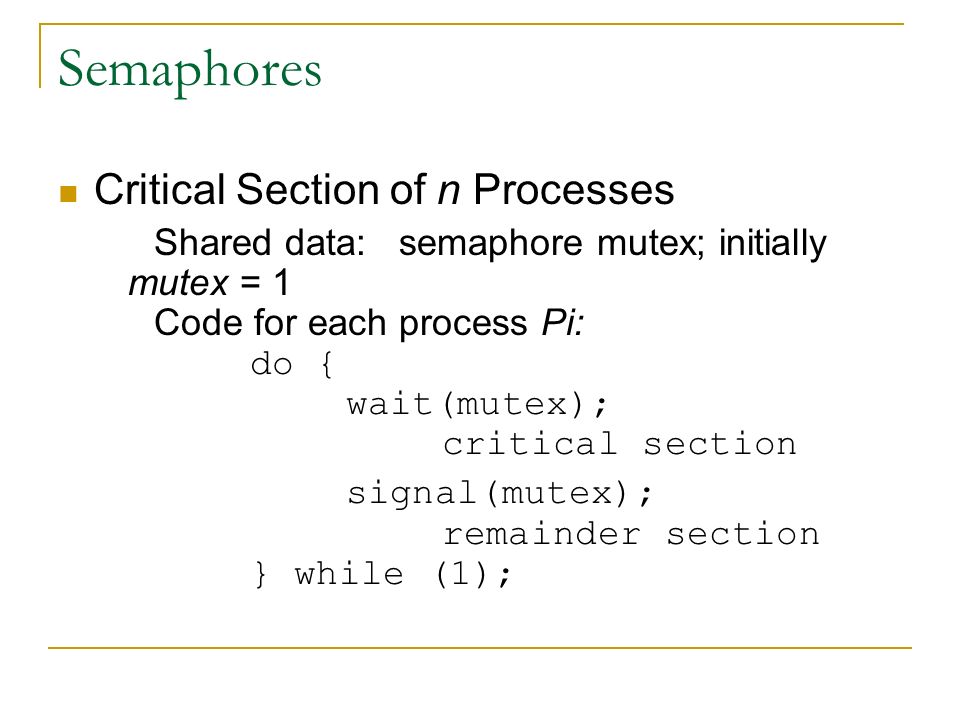

22. Semaphores Critical Section of n Processes Shared data: semaphore mutex; initially mutex = 1 Code for each process Pi: do { wait(mutex); critical section signal(mutex); remainder section } while (1);

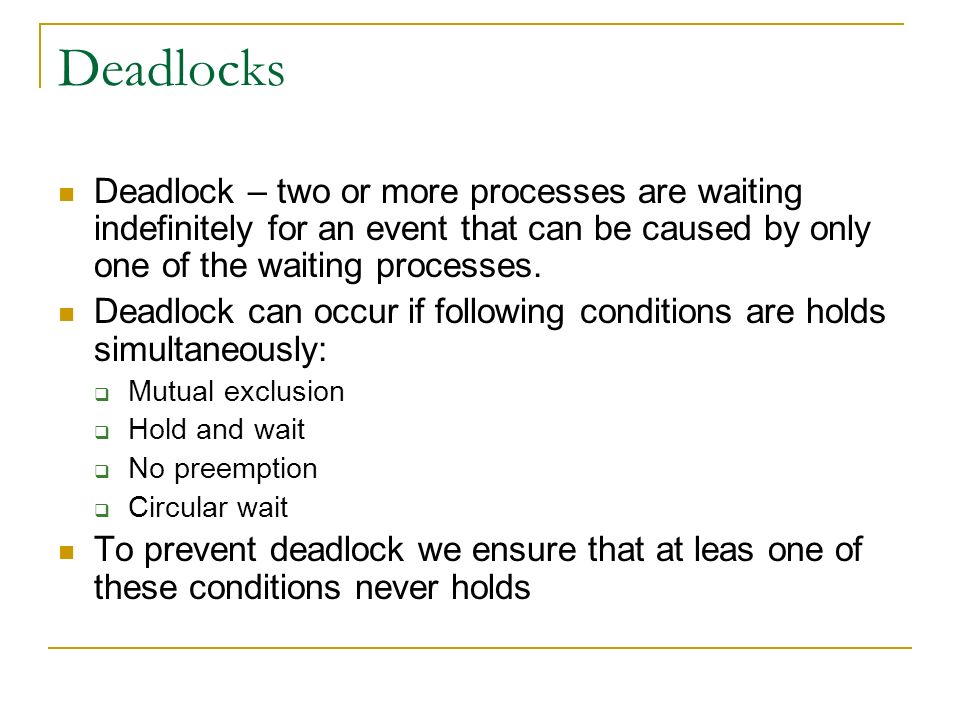

23. Deadlocks Deadlock – two or more processes are waiting indefinitely for an event that can be caused by only one of the waiting processes. Deadlock can occur if following conditions are holds simultaneously:  Mutual exclusion  Hold and wait  No preemption  Circular wait To prevent deadlock we ensure that at leas one of these conditions never holds

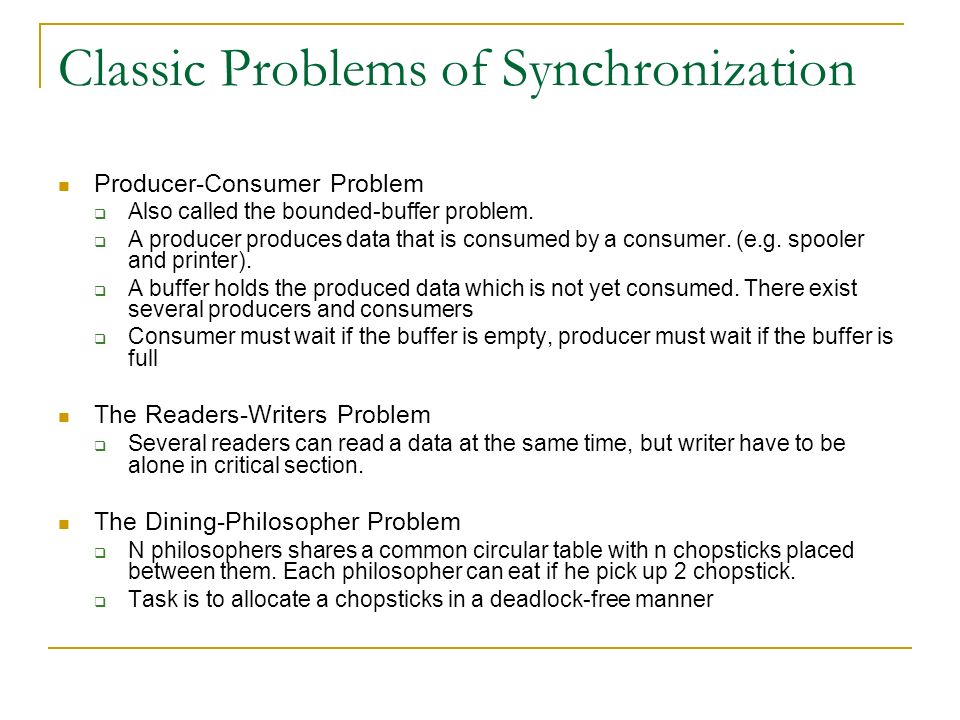

24. Classic Problems of Synchronization Producer-Consumer Problem  Also called the bounded-buffer problem.  A producer produces data that is consumed by a consumer. (e.g. spooler and printer).  A buffer holds the produced data which is not yet consumed. There exist several producers and consumers  Consumer must wait if the buffer is empty, producer must wait if the buffer is full The Readers-Writers Problem  Several readers can read a data at the same time, but writer have to be alone in critical section. The Dining-Philosopher Problem  N philosophers shares a common circular table with n chopsticks placed between them. Each philosopher can eat if he pick up 2 chopstick.  Task is to allocate a chopsticks in a deadlock-free manner
