1. 20081118 Fox OOS meeting 1 Ontologies and Semantic Applications in Earth Sciences Peter Fox (TWC/RPI; formerly HAO/NCAR) Thanks to many. Projects funded by NSF/OCI and NASA/ACCESS/ESTO

2. 2 Background Scientists should be able to access a global, distributed knowledge base of scientific data that: appears to be integrated appears to be locally available But… data is obtained by multiple means (models and instruments), using various protocols, in differing vocabularies, using (sometimes unstated) assumptions, with inconsistent (or non-existent) meta-data. It may be inconsistent, incomplete, evolving, and distributed And… there exist(ed) significant levels of semantic heterogeneity, large-scale data, complex data types, legacy systems, inflexible and unsustainable implementation technology

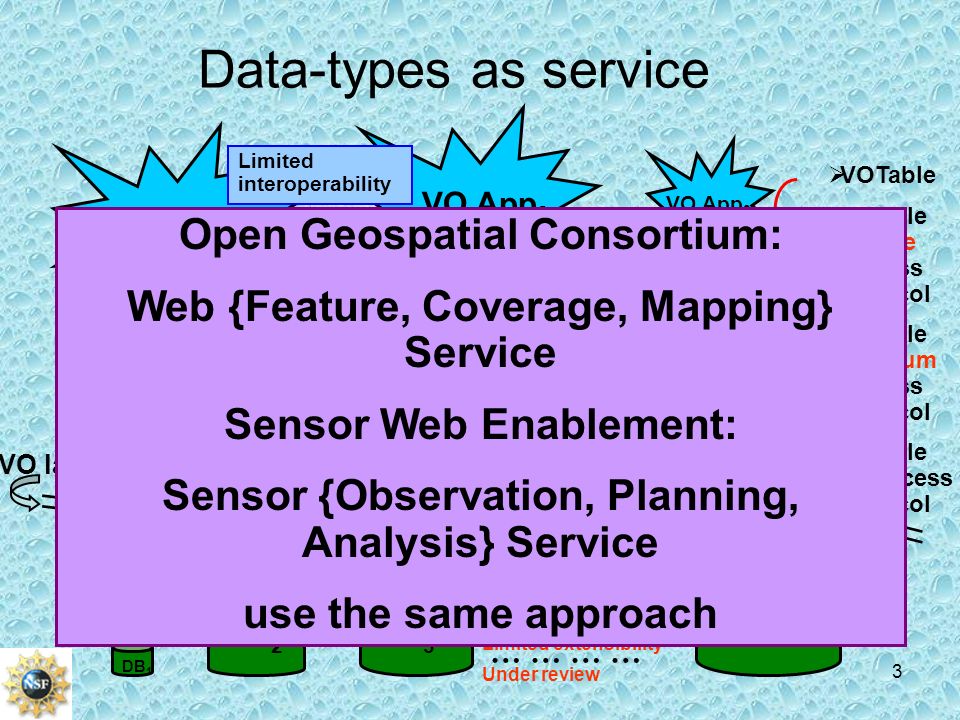

3. 3 Data-types as service … … VO App 1 VO App 2 VO App 3 DB 2 DB 3 DB n DB 1  VOTable  Simple Image Access Protocol  Simple Spectrum Access Protocol  Simple Time Access Protocol VO layer Limited interoperability Lightweight semantics Limited meaning, hard coded Limited extensibility Under review Open Geospatial Consortium: Web {Feature, Coverage, Mapping} Service Sensor Web Enablement: Sensor {Observation, Planning, Analysis} Service use the same approach

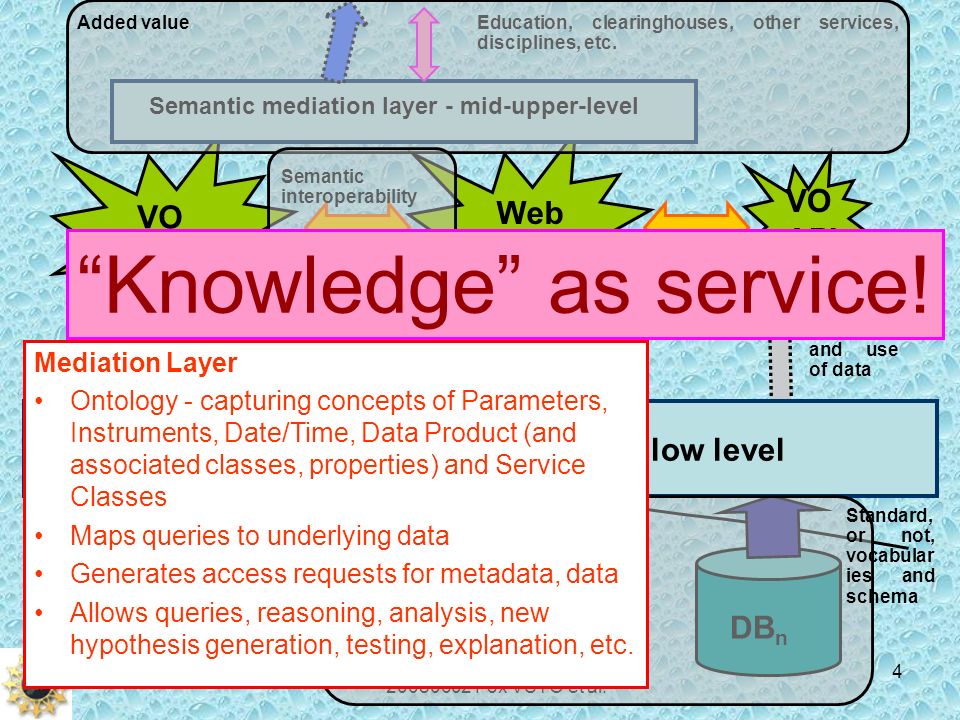

4. 20080602 Fox VSTO et al. 4 … … VO Portal Web Serv. VO API DB 2 DB 3 DB n DB 1 Semantic mediation layer - VSTO - low level Semantic mediation layer - mid-upper-level Education, clearinghouses, other services, disciplines, etc. Metadata, schema, data Query, access and use of data Semantic query, hypothesis and inference Semantic interoperability Added value Mediation Layer Ontology - capturing concepts of Parameters, Instruments, Date/Time, Data Product (and associated classes, properties) and Service Classes Maps queries to underlying data Generates access requests for metadata, data Allows queries, reasoning, analysis, new hypothesis generation, testing, explanation, etc. Standard, or not, vocabular ies and schema “Knowledge” as service!

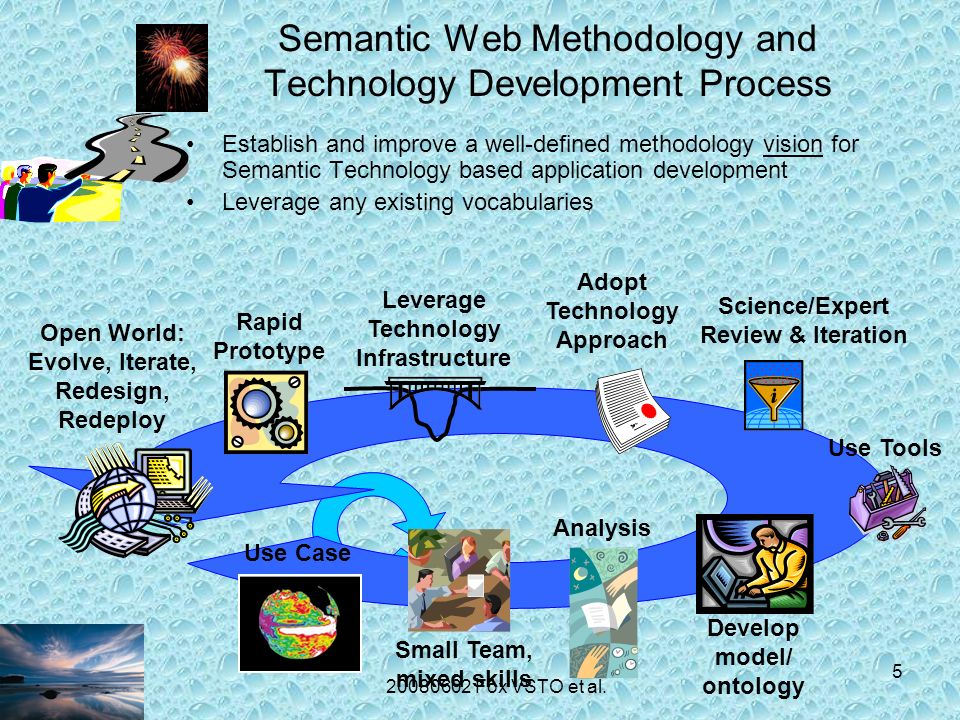

5. 20080602 Fox VSTO et al. 5 Semantic Web Methodology and Technology Development Process Establish and improve a well-defined methodology vision for Semantic Technology based application development Leverage any existing vocabularies Use Case Small Team, mixed skills Analysis Adopt Technology Approach Leverage Technology Infrastructure Rapid Prototype Open World: Evolve, Iterate, Redesign, Redeploy Use Tools Science/Expert Review & Iteration Develop model/ ontology

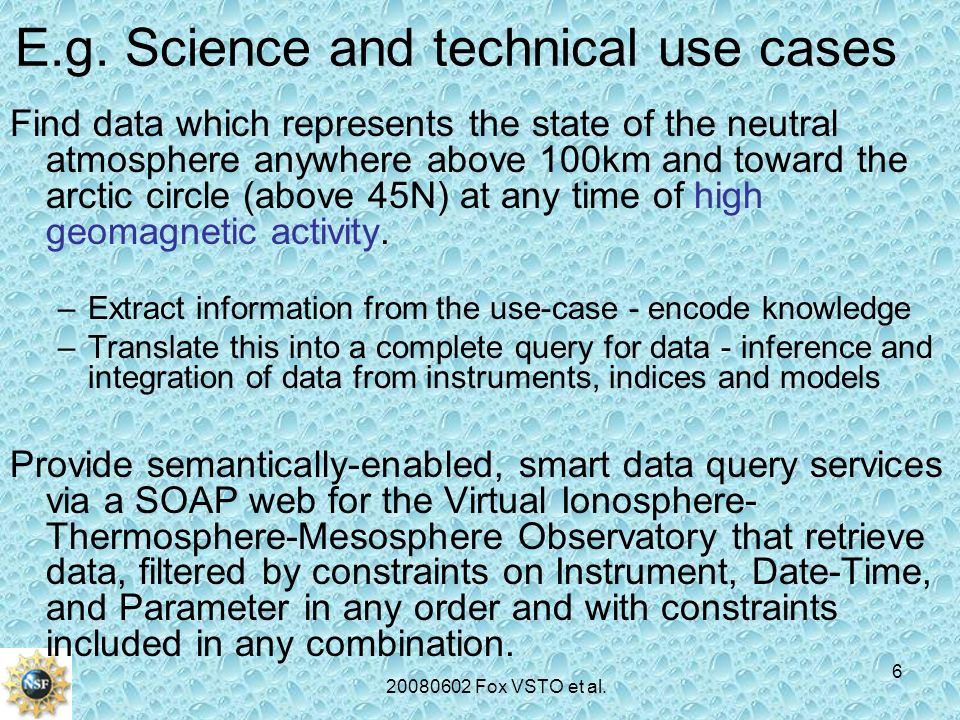

6. 20080602 Fox VSTO et al. 6 E.g. Science and technical use cases Find data which represents the state of the neutral atmosphere anywhere above 100km and toward the arctic circle (above 45N) at any time of high geomagnetic activity. –Extract information from the use-case - encode knowledge –Translate this into a complete query for data - inference and integration of data from instruments, indices and models Provide semantically-enabled, smart data query services via a SOAP web for the Virtual Ionosphere- Thermosphere-Mesosphere Observatory that retrieve data, filtered by constraints on Instrument, Date-Time, and Parameter in any order and with constraints included in any combination.

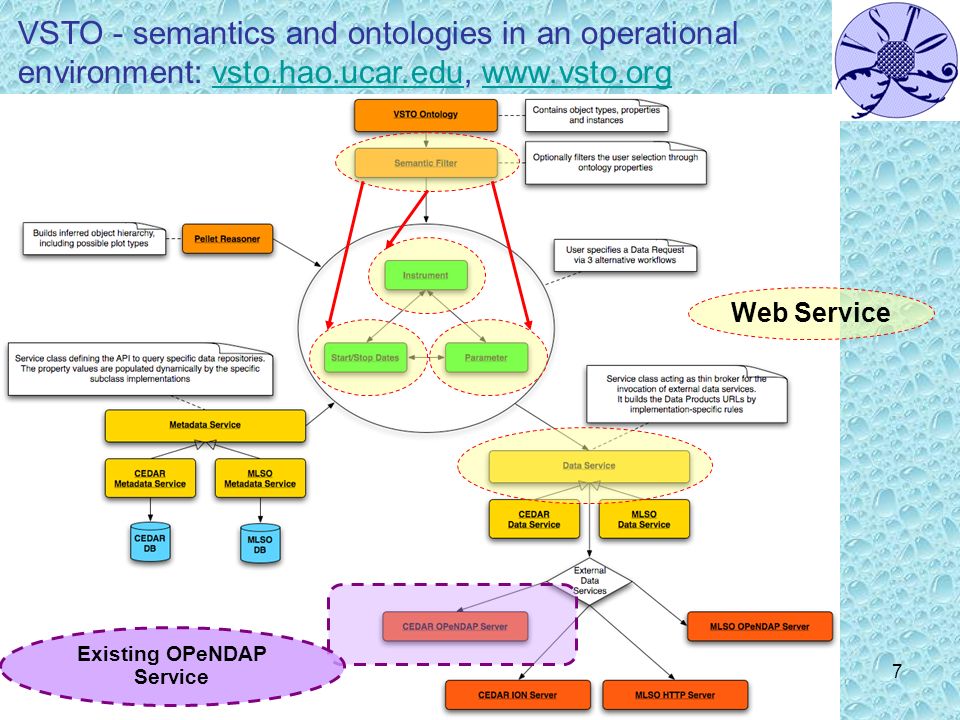

7. 20080602 Fox VSTO et al. 7 VSTO - semantics and ontologies in an operational environment: vsto.hao.ucar.edu, www.vsto.orgvsto.hao.ucar.eduwww.vsto.org Web Service Existing OPeNDAP Service

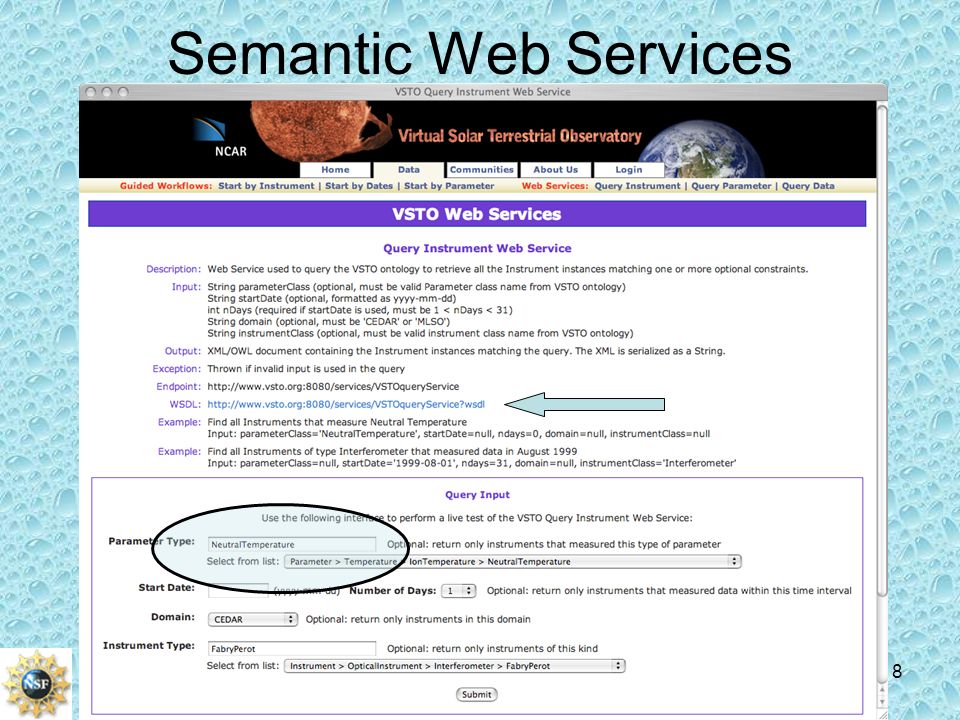

8. 20080602 Fox VSTO et al. 8 Semantic Web Services

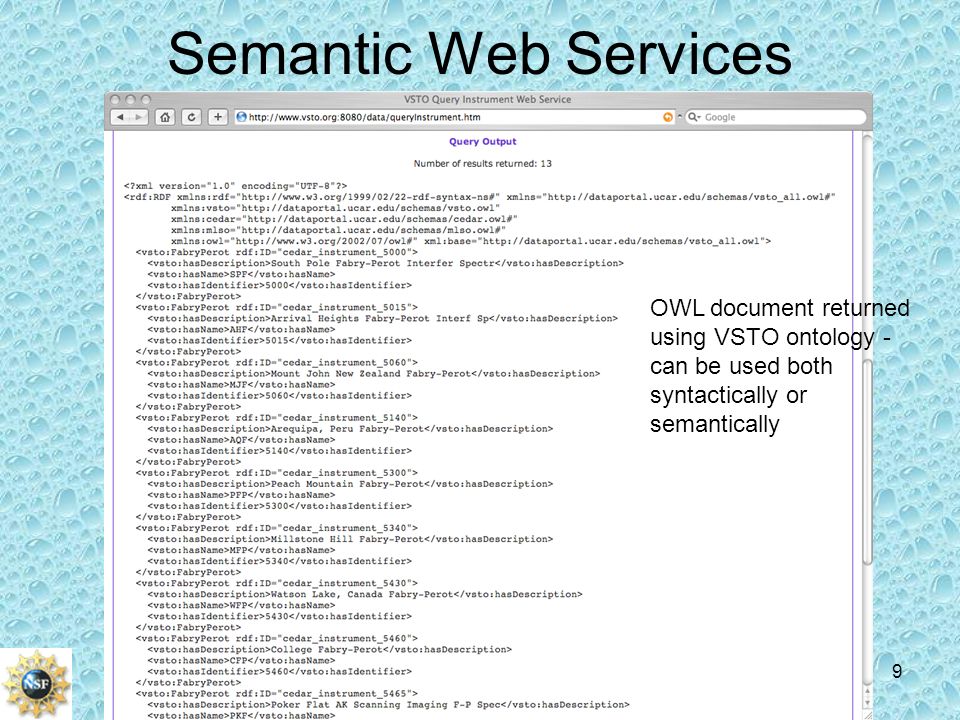

9. 20080602 Fox VSTO et al. 9 Semantic Web Services OWL document returned using VSTO ontology - can be used both syntactically or semantically

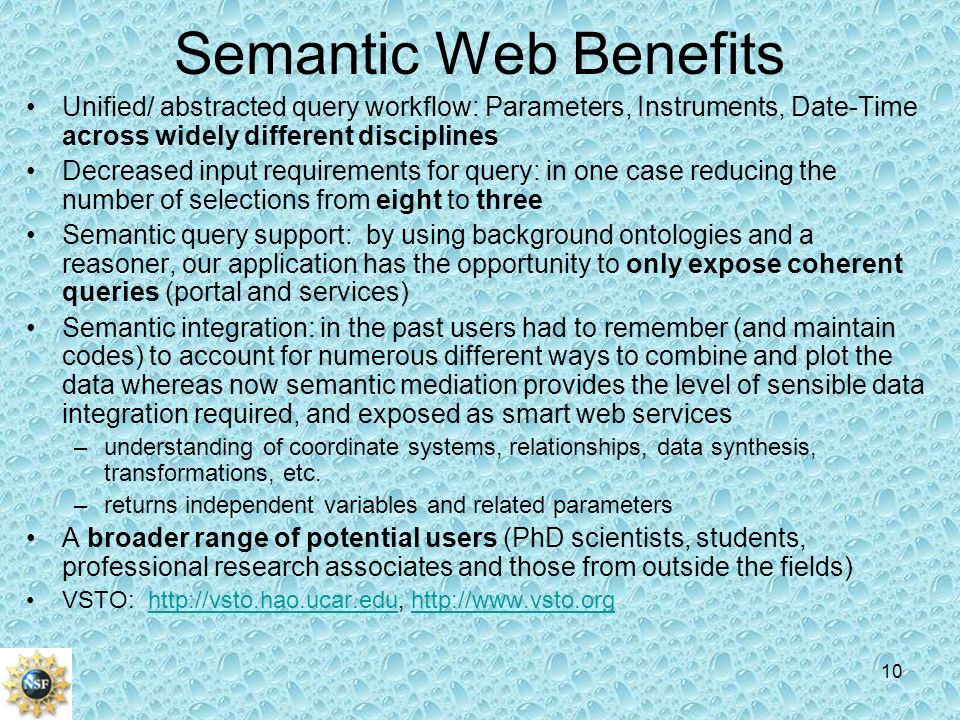

10. 10 Semantic Web Benefits Unified/ abstracted query workflow: Parameters, Instruments, Date-Time across widely different disciplines Decreased input requirements for query: in one case reducing the number of selections from eight to three Semantic query support: by using background ontologies and a reasoner, our application has the opportunity to only expose coherent queries (portal and services) Semantic integration: in the past users had to remember (and maintain codes) to account for numerous different ways to combine and plot the data whereas now semantic mediation provides the level of sensible data integration required, and exposed as smart web services –understanding of coordinate systems, relationships, data synthesis, transformations, etc. –returns independent variables and related parameters A broader range of potential users (PhD scientists, students, professional research associates and those from outside the fields) VSTO: http://vsto.hao.ucar.edu, http://www.vsto.orghttp://vsto.hao.ucar.eduhttp://www.vsto.org

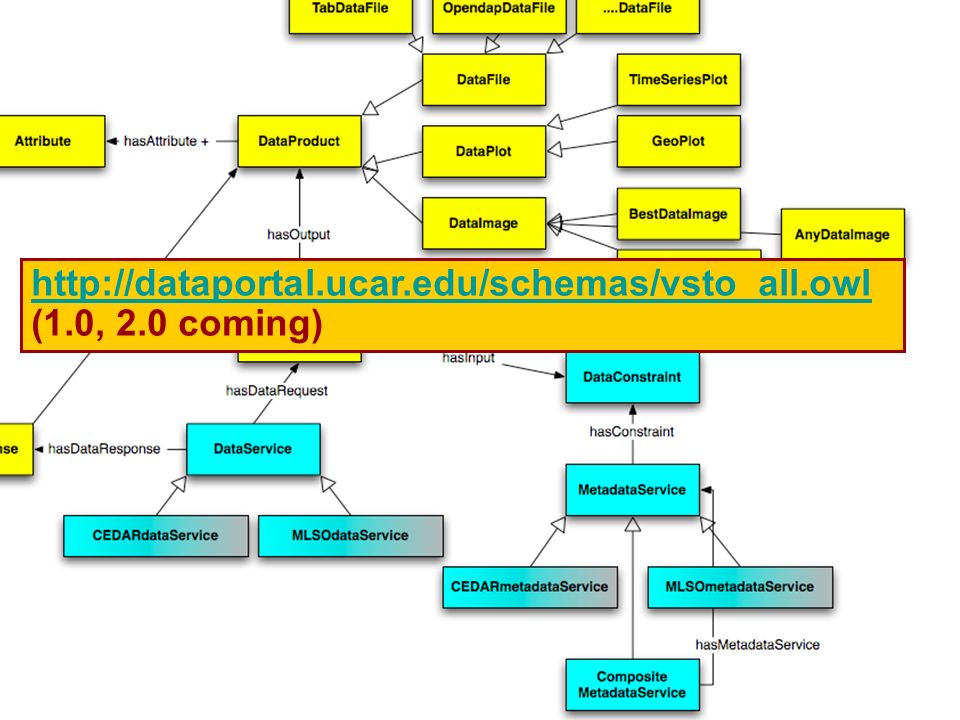

11. Fox RPI: Semantic Data Frameworks May 14, 2008 11 http://dataportal.ucar.edu/schemas/vsto_all.owl http://dataportal.ucar.edu/schemas/vsto_all.owl (1.0, 2.0 coming)

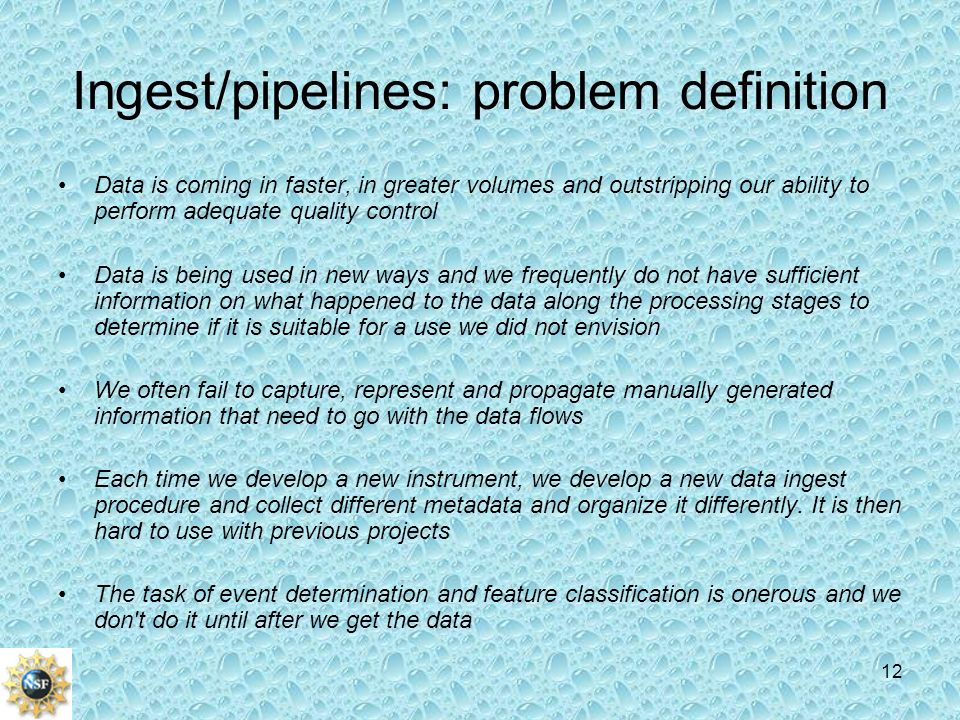

12. 12 Ingest/pipelines: problem definition Data is coming in faster, in greater volumes and outstripping our ability to perform adequate quality control Data is being used in new ways and we frequently do not have sufficient information on what happened to the data along the processing stages to determine if it is suitable for a use we did not envision We often fail to capture, represent and propagate manually generated information that need to go with the data flows Each time we develop a new instrument, we develop a new data ingest procedure and collect different metadata and organize it differently. It is then hard to use with previous projects The task of event determination and feature classification is onerous and we don't do it until after we get the data

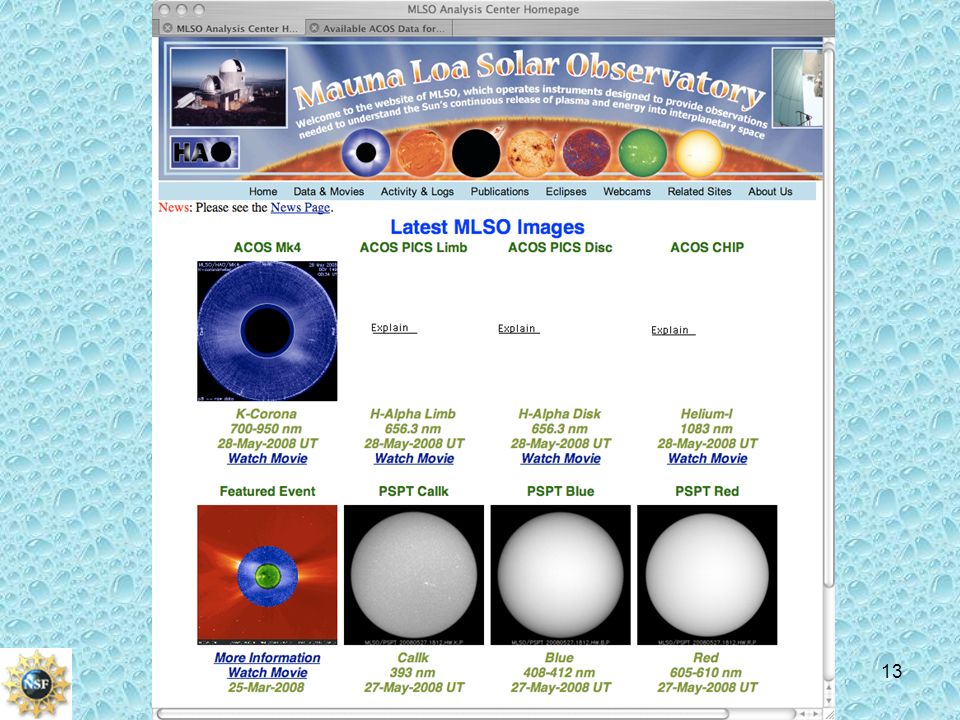

13. 20080602 Fox VSTO et al. 13

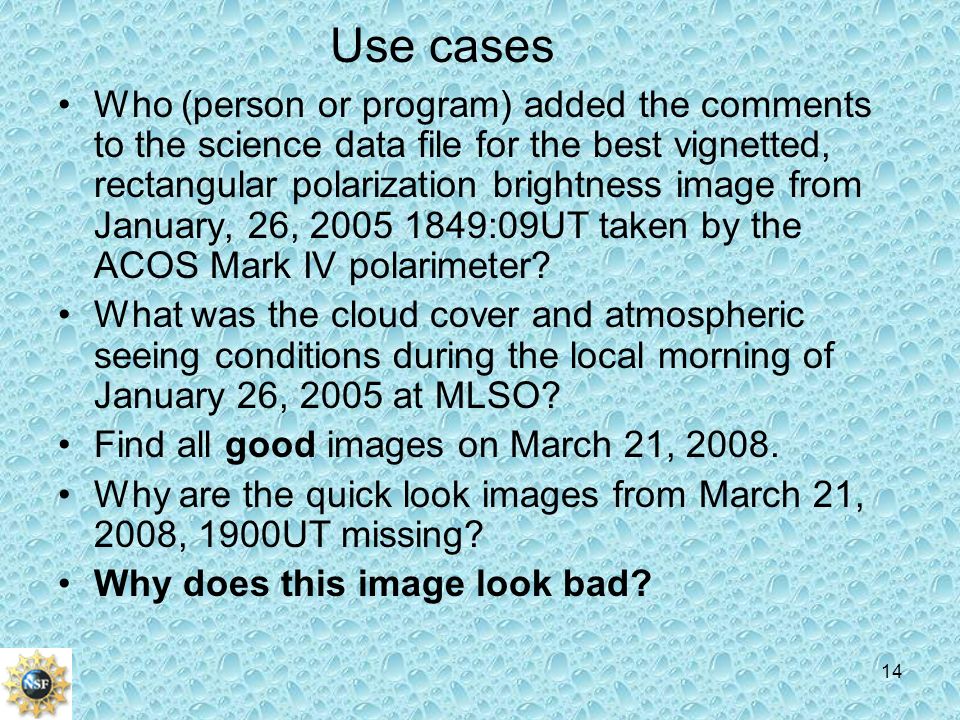

14. 14 Who (person or program) added the comments to the science data file for the best vignetted, rectangular polarization brightness image from January, 26, 2005 1849:09UT taken by the ACOS Mark IV polarimeter? What was the cloud cover and atmospheric seeing conditions during the local morning of January 26, 2005 at MLSO? Find all good images on March 21, 2008. Why are the quick look images from March 21, 2008, 1900UT missing? Why does this image look bad? Use cases

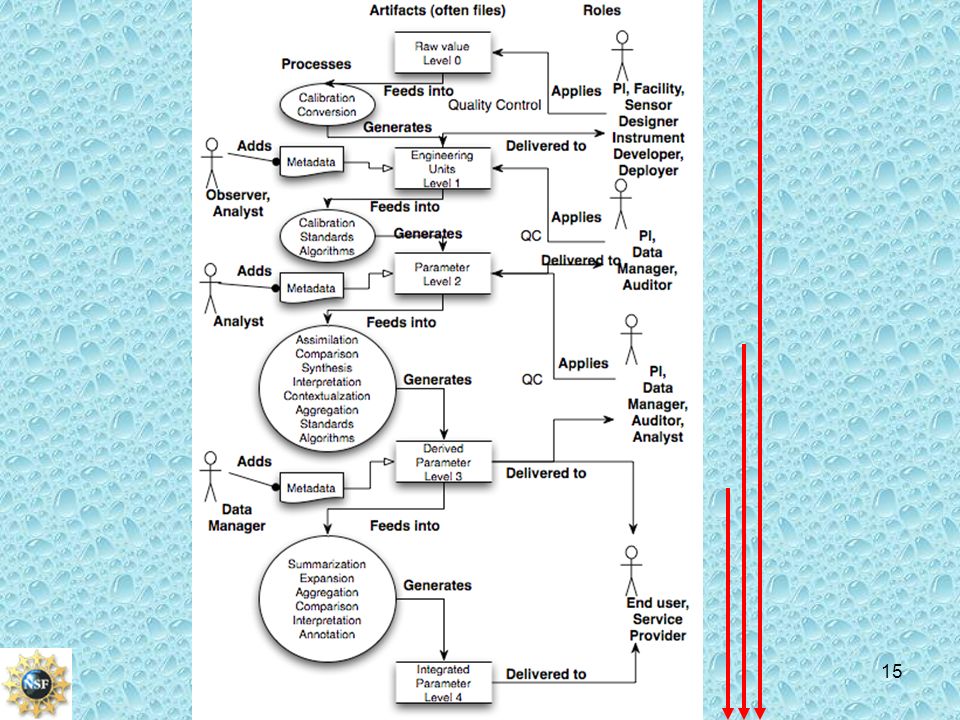

15. 20080602 Fox VSTO et al. 15

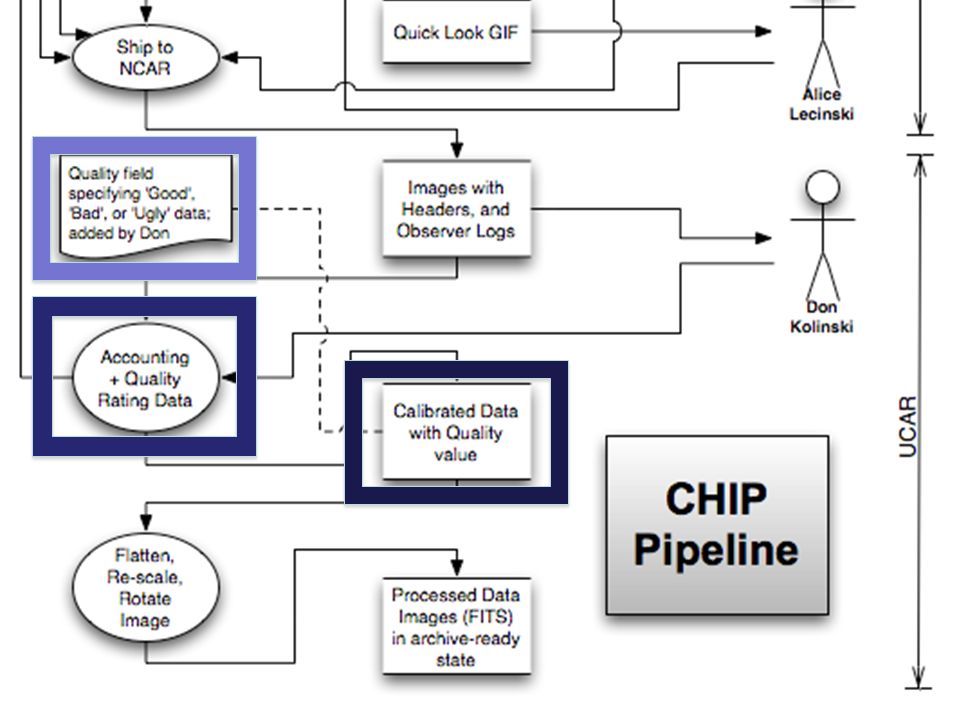

16. 20080602 Fox VSTO et al. 16

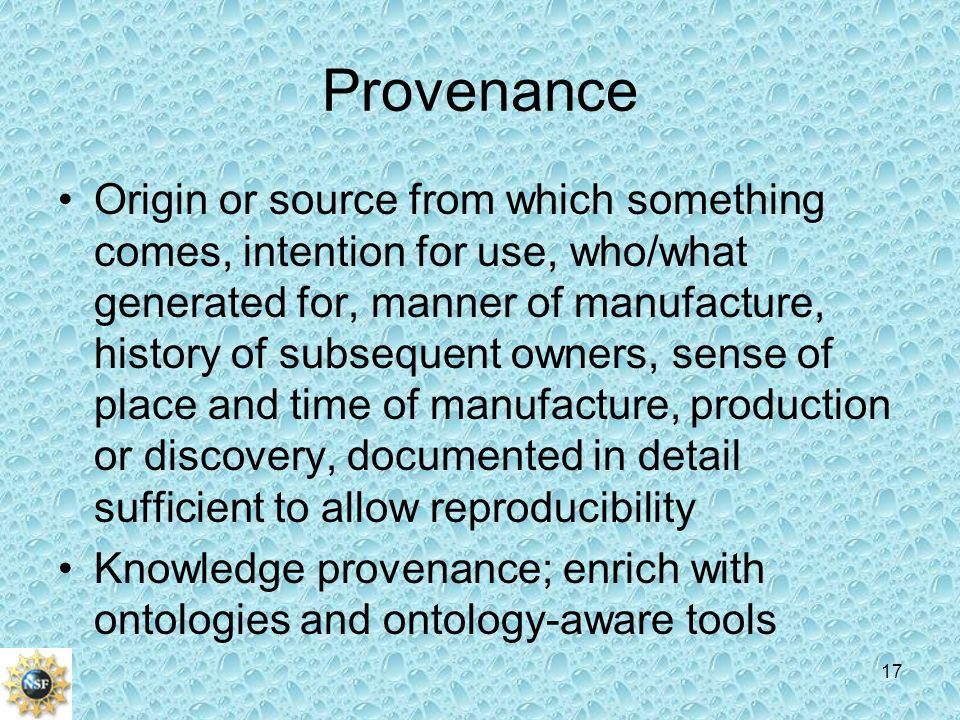

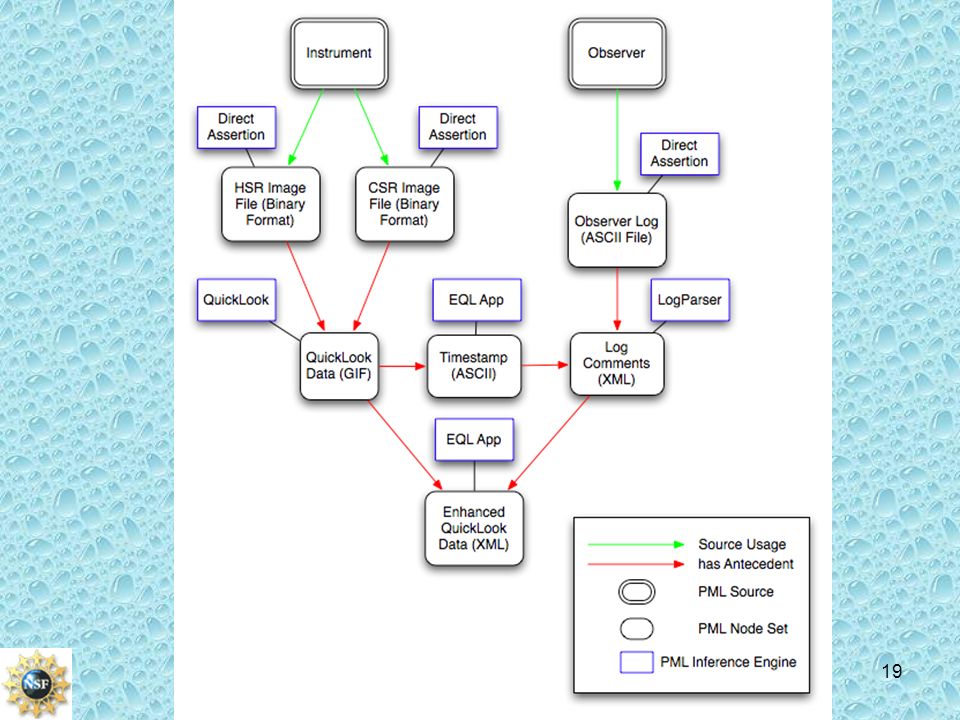

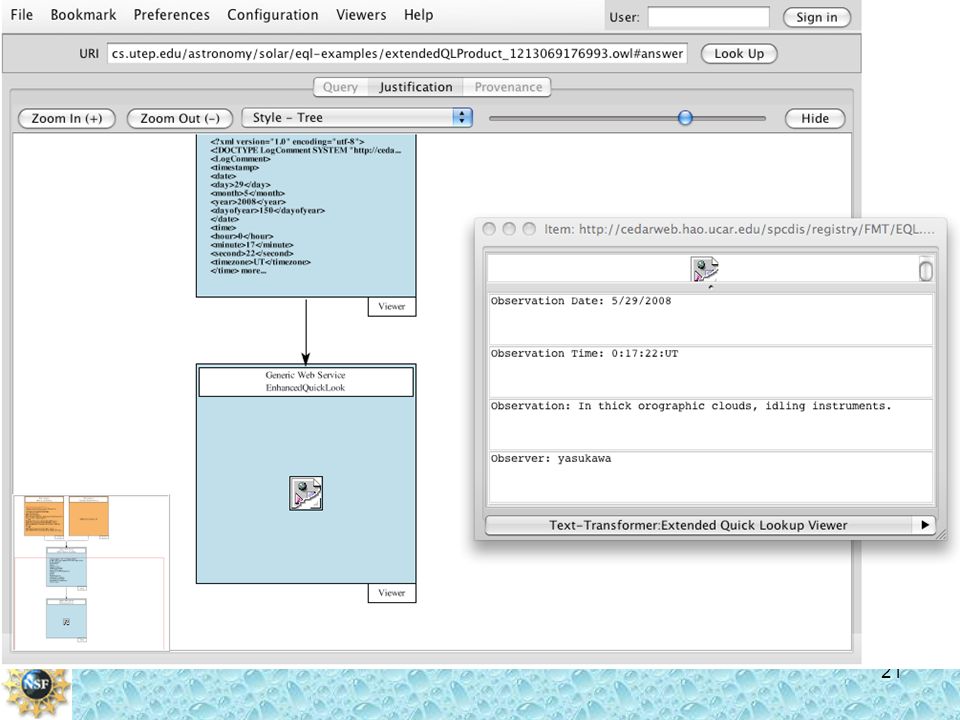

17. 17 Provenance Origin or source from which something comes, intention for use, who/what generated for, manner of manufacture, history of subsequent owners, sense of place and time of manufacture, production or discovery, documented in detail sufficient to allow reproducibility Knowledge provenance; enrich with ontologies and ontology-aware tools

18. 18

19. 20080602 Fox VSTO et al. 19

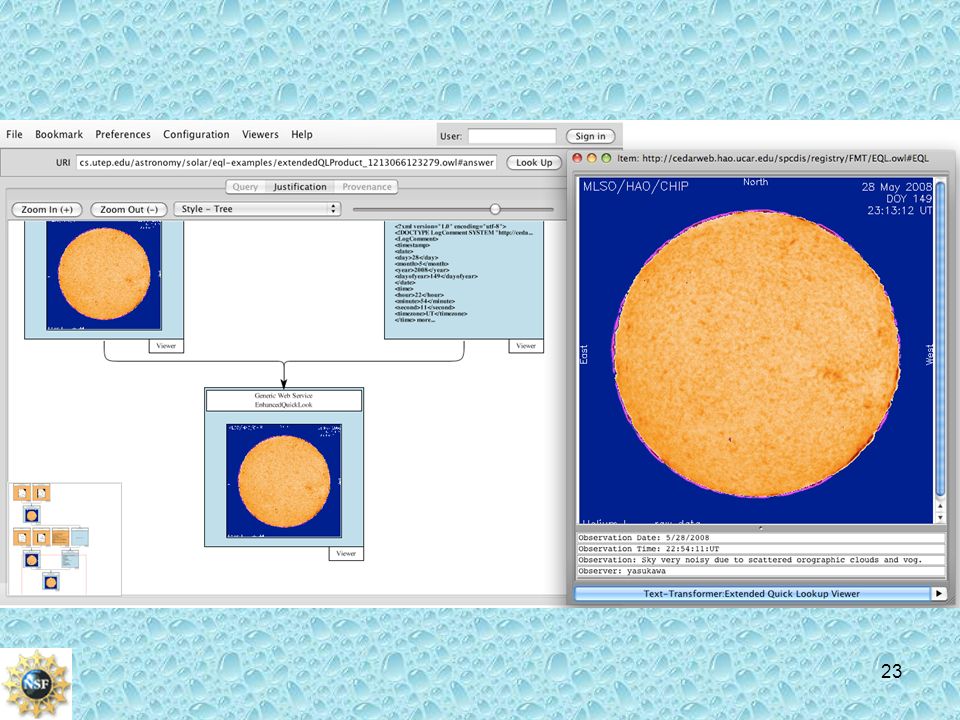

20. 20080602 Fox VSTO et al. 20 Quick look browse

21. 21

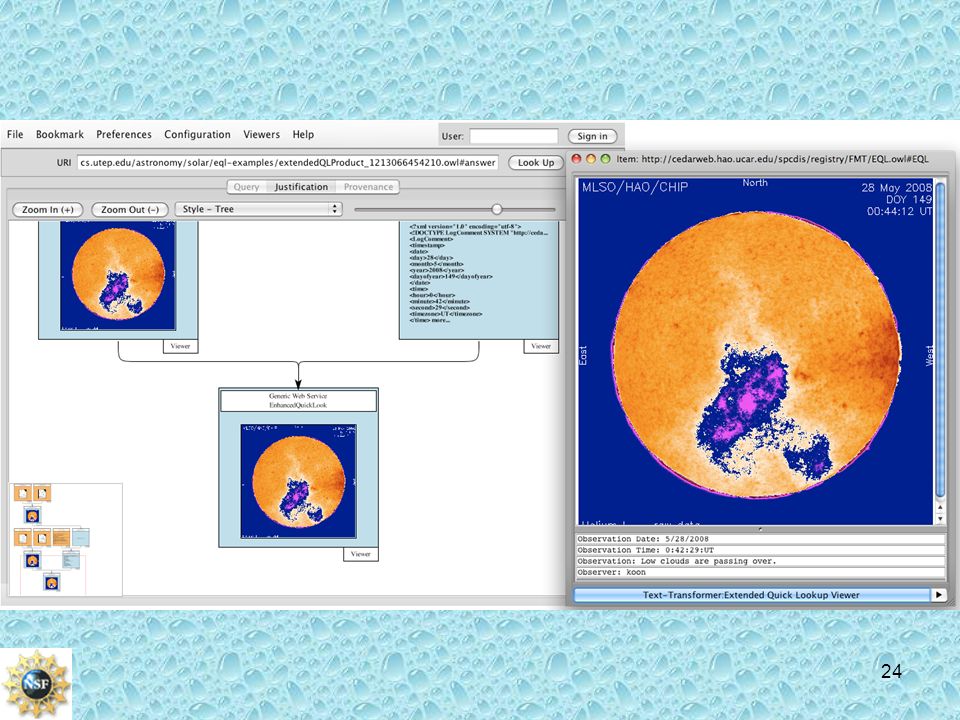

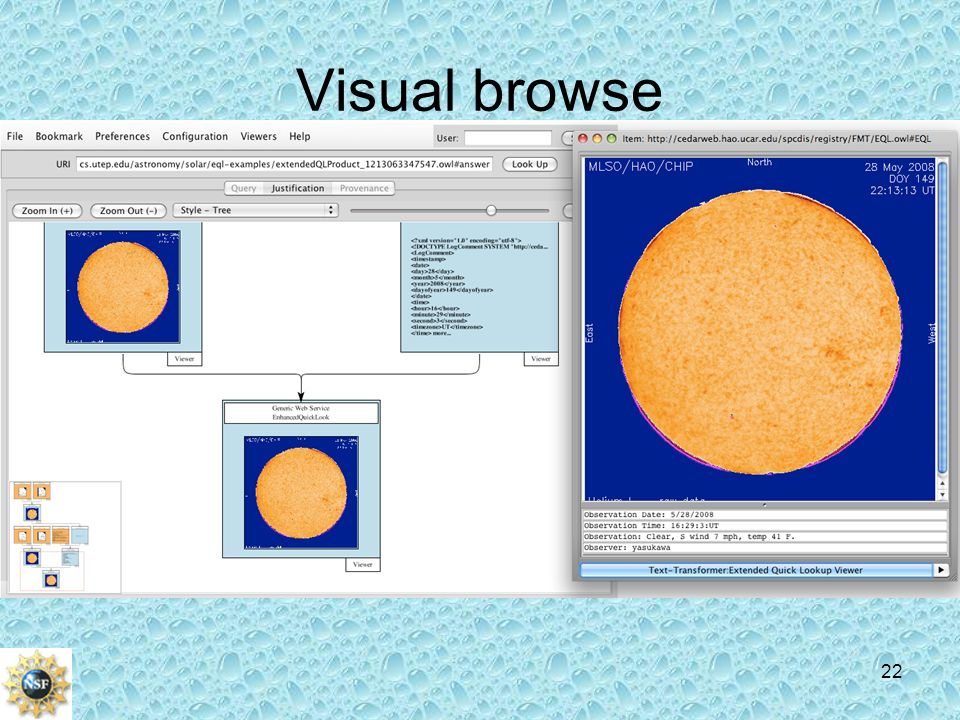

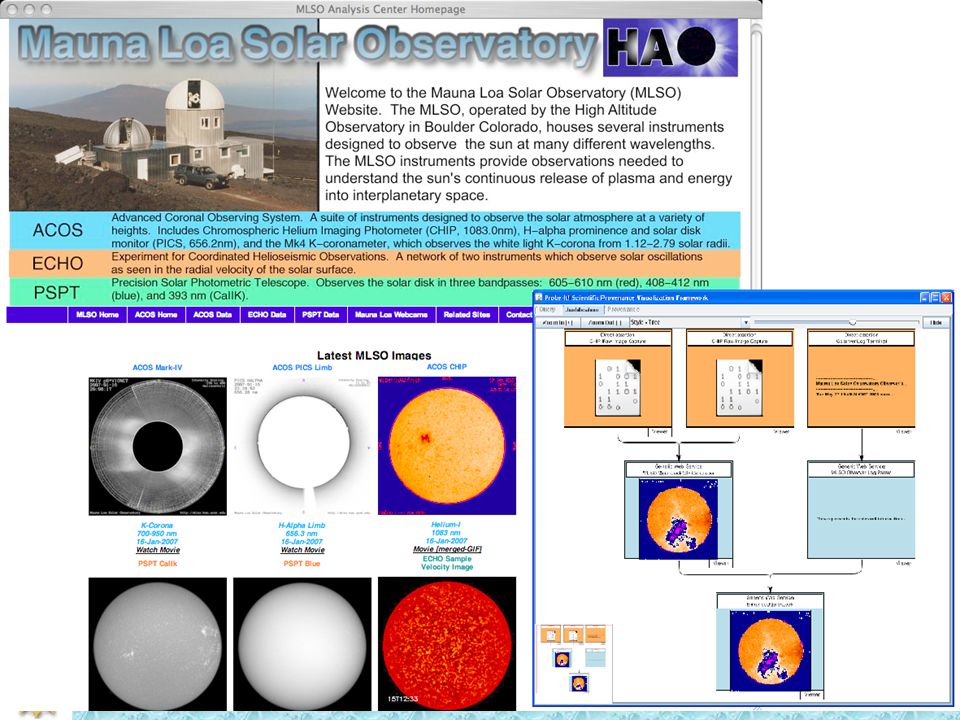

22. 22 Visual browse

23. 23

24. 24

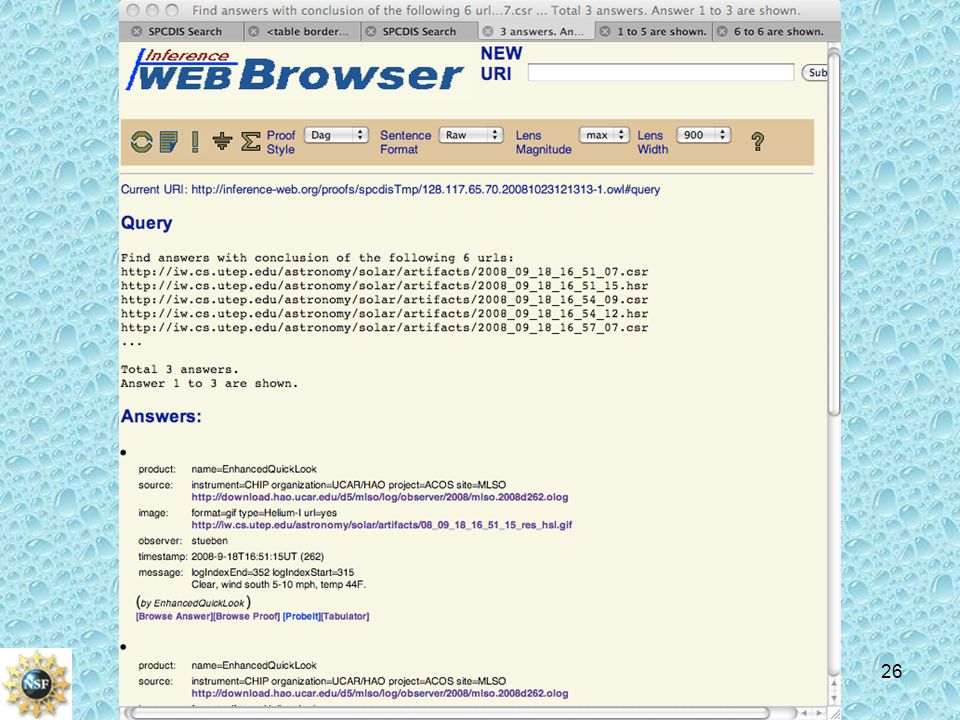

25. Search and structured query 25 Search Structured Query

26. 20080602 Fox VSTO et al. 26 Search

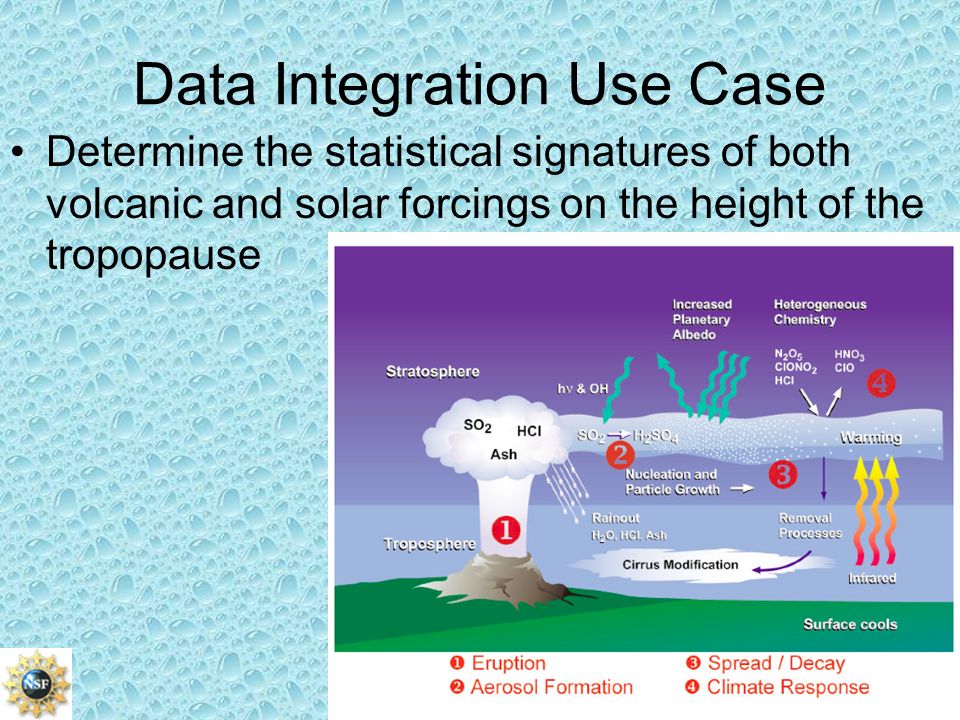

27. 27 Data Integration Use Case Determine the statistical signatures of both volcanic and solar forcings on the height of the tropopause

28. 28 Detection and attribution relations…

29. 20080602 Fox VSTO et al. 29

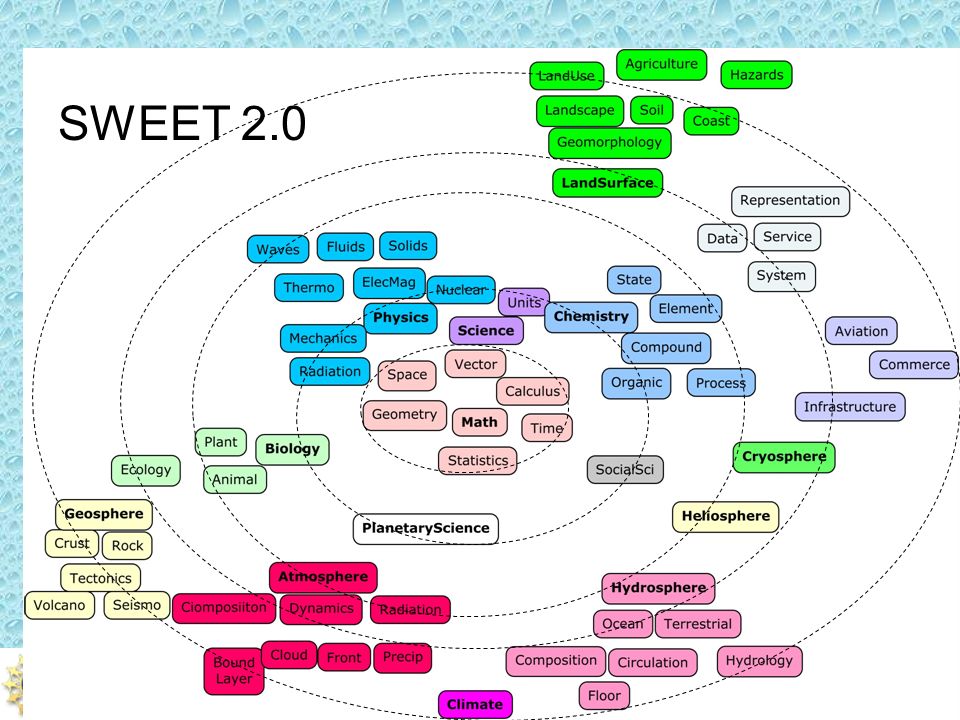

30. SWEET 2.0

31. 31 Semantic framework indicating how volcano and atmospheric parameters and databases can immediately be plugged in to the semantic data framework to enable data integration.

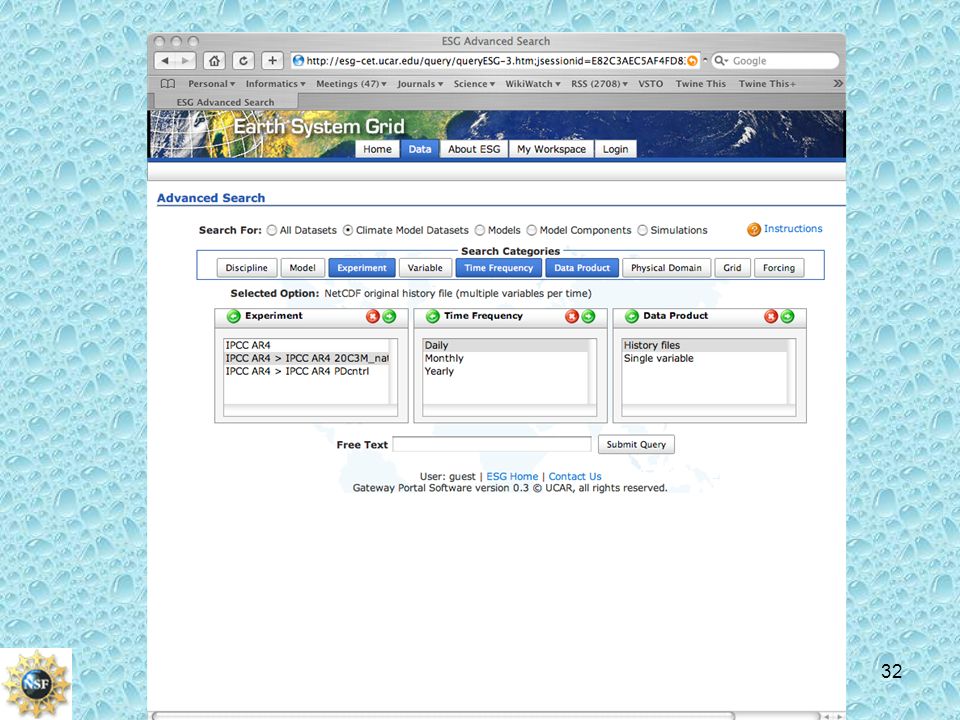

32. Faceted Search 20080602 Fox VSTO et al. 32

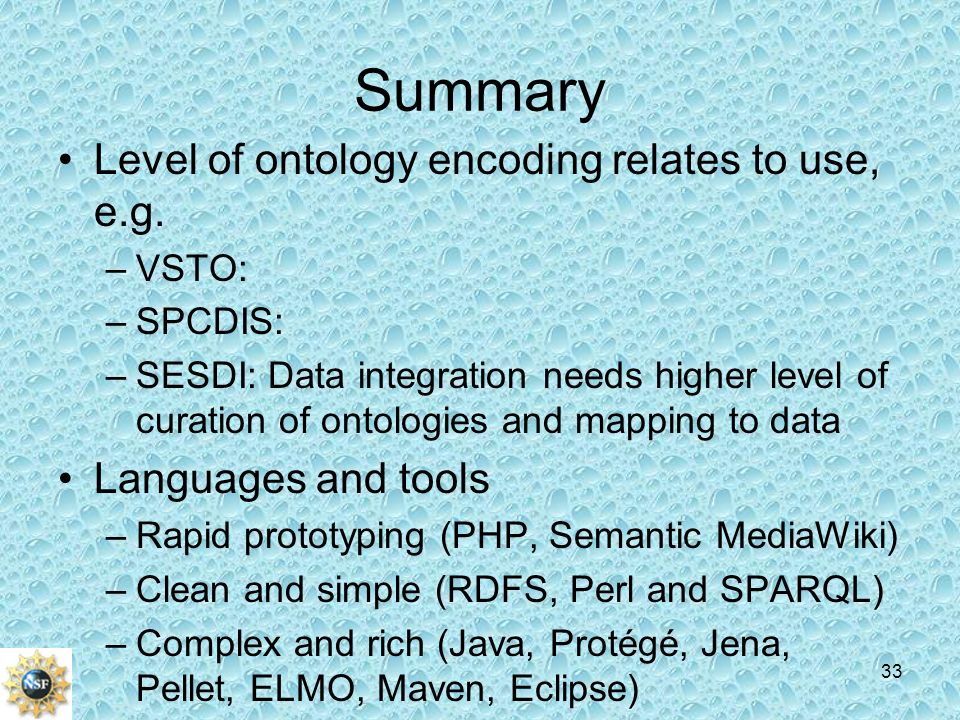

33. Summary Level of ontology encoding relates to use, e.g. –VSTO: –SPCDIS: –SESDI: Data integration needs higher level of curation of ontologies and mapping to data Languages and tools –Rapid prototyping (PHP, Semantic MediaWiki) –Clean and simple (RDFS, Perl and SPARQL) –Complex and rich (Java, Protégé, Jena, Pellet, ELMO, Maven, Eclipse) 33

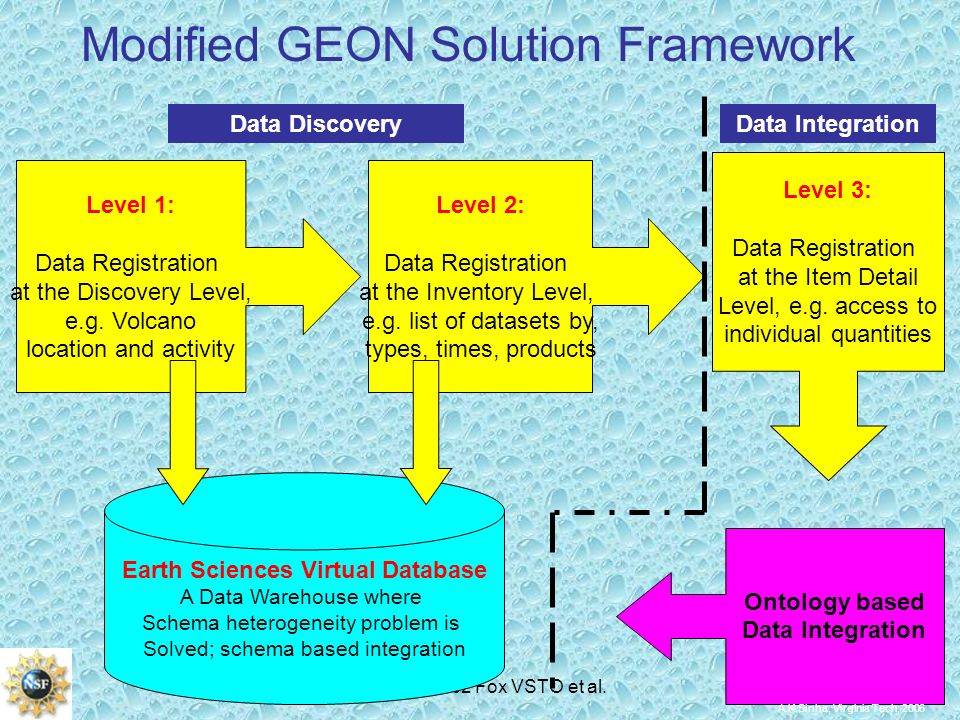

34. 20080602 Fox VSTO et al. 34 Modified GEON Solution Framework Level 1: Data Registration at the Discovery Level, e.g. Volcano location and activity Level 2: Data Registration at the Inventory Level, e.g. list of datasets by, types, times, products Level 3: Data Registration at the Item Detail Level, e.g. access to individual quantities Ontology based Data Integration Earth Sciences Virtual Database A Data Warehouse where Schema heterogeneity problem is Solved; schema based integration Data DiscoveryData Integration A.K.Sinha, Virginia Tech, 2006

35. Spare material 20080602 Fox VSTO et al. 35

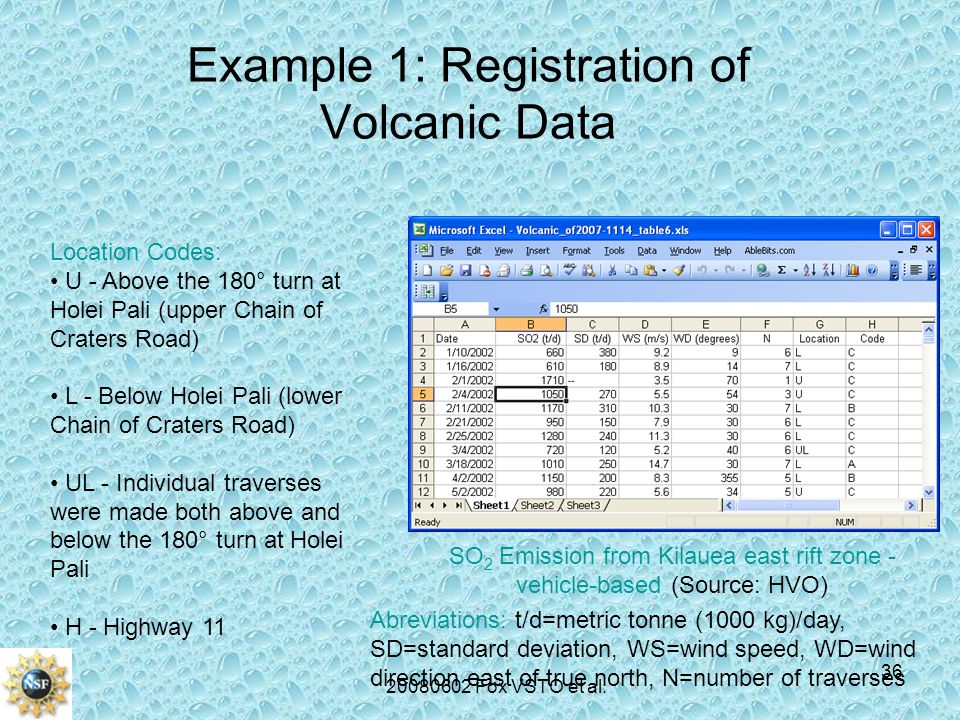

36. 20080602 Fox VSTO et al. 36 Example 1: Registration of Volcanic Data SO 2 Emission from Kilauea east rift zone - vehicle-based (Source: HVO) Abreviations: t/d=metric tonne (1000 kg)/day, SD=standard deviation, WS=wind speed, WD=wind direction east of true north, N=number of traverses Location Codes: U - Above the 180° turn at Holei Pali (upper Chain of Craters Road) L - Below Holei Pali (lower Chain of Craters Road) UL - Individual traverses were made both above and below the 180° turn at Holei Pali H - Highway 11

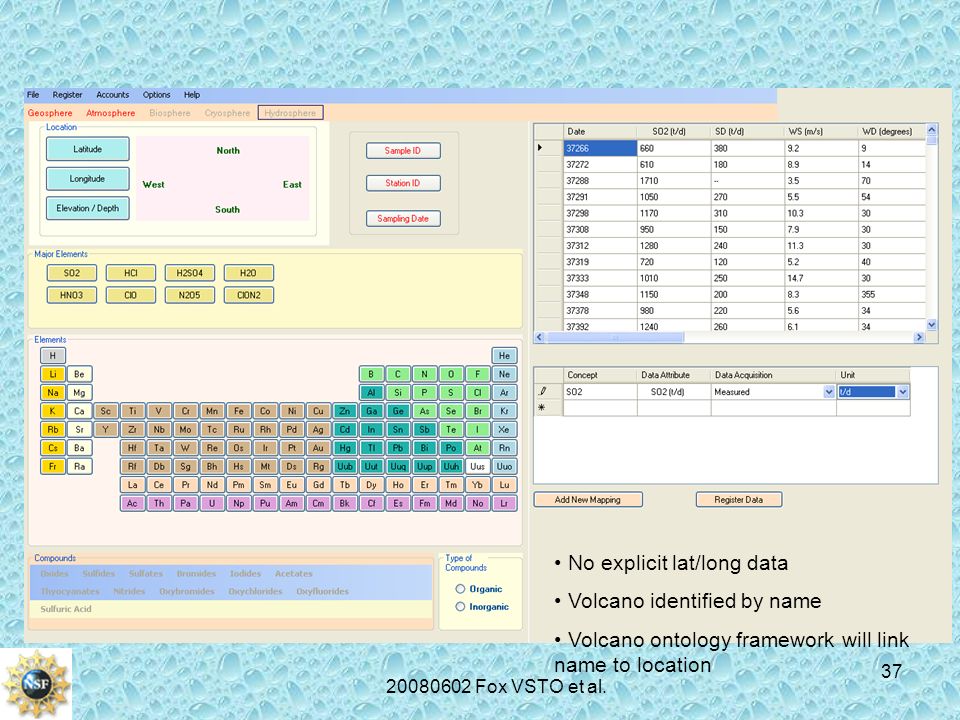

37. 20080602 Fox VSTO et al. 37 Registering Volcanic Data (2) No explicit lat/long data Volcano identified by name Volcano ontology framework will link name to location

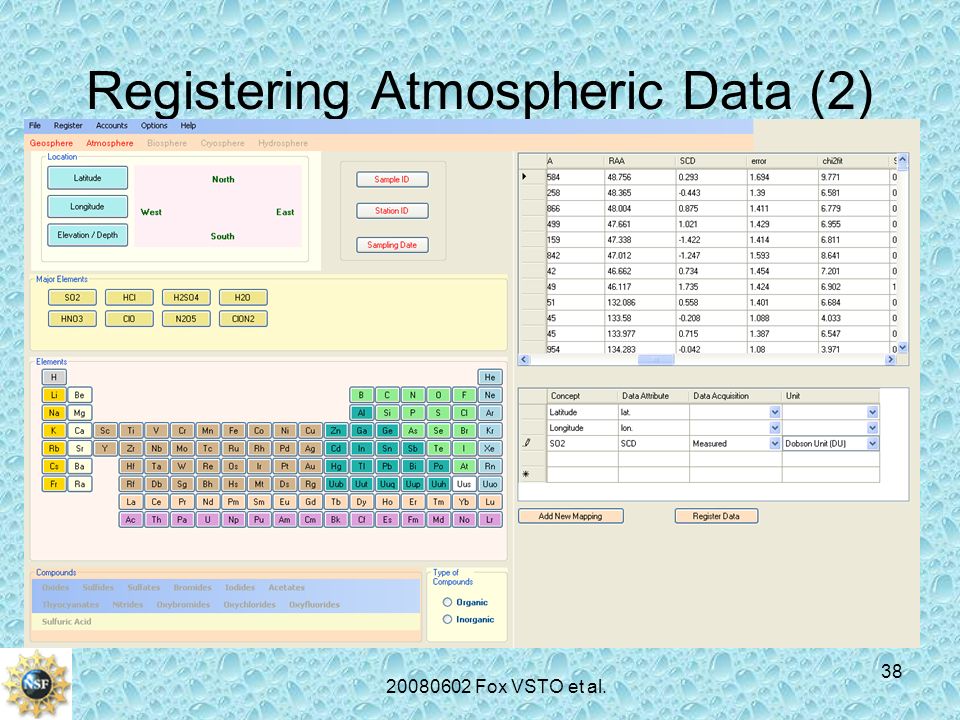

38. 20080602 Fox VSTO et al. 38 Registering Atmospheric Data (2)

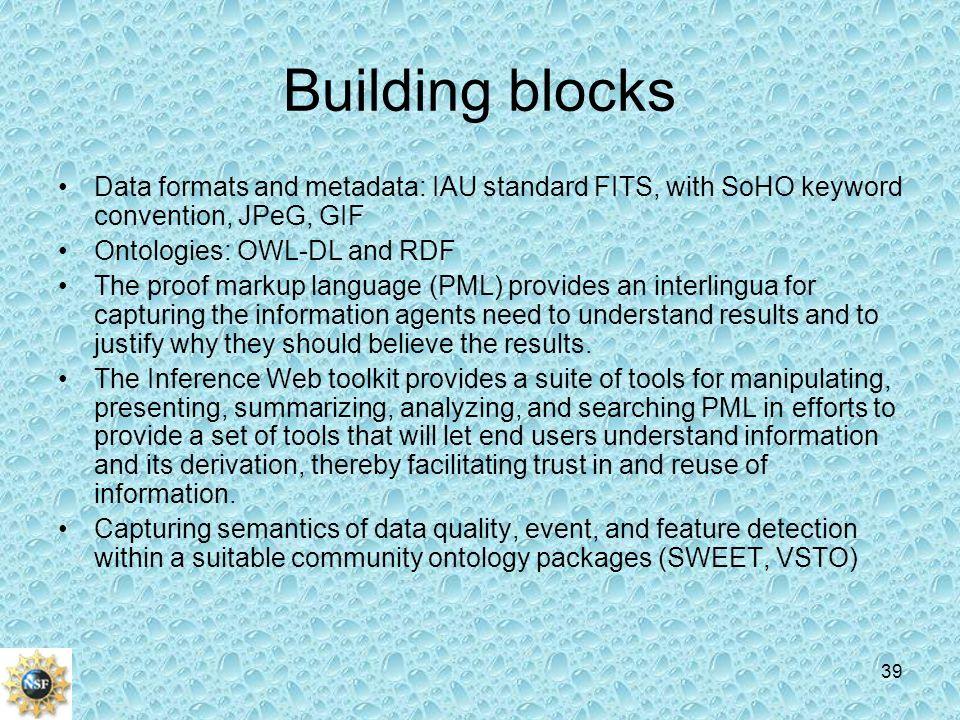

39. 39 Building blocks Data formats and metadata: IAU standard FITS, with SoHO keyword convention, JPeG, GIF Ontologies: OWL-DL and RDF The proof markup language (PML) provides an interlingua for capturing the information agents need to understand results and to justify why they should believe the results. The Inference Web toolkit provides a suite of tools for manipulating, presenting, summarizing, analyzing, and searching PML in efforts to provide a set of tools that will let end users understand information and its derivation, thereby facilitating trust in and reuse of information. Capturing semantics of data quality, event, and feature detection within a suitable community ontology packages (SWEET, VSTO)
