1. Cell Structure and Function

2. 7.1 Life is Cellular
Objective
Explain what the cell theory is.

3. Robert Hooke 1665

4. ANTON VAN LEEUWENHOEK – made his own lenses made first compound microscope drew pictures that we can still identify today.

5. Schleiden –concluded all plants are made of cells
Schwann – concluded all living things are made up of cells

6. Lynn Margulls Proposes the idea that certain organelles, tiny structures within some cells, were once free- living cells themselves.

7. CELL THEORY 1. ALL LIVING THINGS ARE COMPOSED OF CELLS 2
CELL THEORY           1. ALL LIVING THINGS ARE COMPOSED OF CELLS   2. CELLS ARE THE BASIC UNIT OF STRUCTURE AND FUNCTION IN LIVING THINGS   3.ALL CELLS ARE PRODUCED FROM OTHER CELLS

9. How do microscopes work?
Exploring the Cell
How do microscopes work?

10. How do microscopes work?
Exploring the Cell
How do microscopes work?
Most microscopes use lenses to magnify the image of an object by focusing light or electrons.

11. Light Microscopes and Cell Stains
A typical light microscope allows light to pass through a specimen and uses two lenses to form an image.
The first set of lenses, located just above the specimen, produces an enlarged image of the specimen.
The second set of lenses magnifies this image still further.

12. Because light waves are diffracted, or scattered, as they pass through matter, light microscopes can produce clear images of objects only to a magnification of about 1000 times.

13. Light Microscopes and Cell Stains
Another problem with light microscopy is that most living cells are nearly transparent, making it difficult to see the structures within them.

14. Using chemical stains or dyes can usually solve this problem
Using chemical stains or dyes can usually solve this problem. Some of these stains are so specific that they reveal only compounds or structures within the cell.

15. Light Microscopes and Cell Stains
Some dyes give off light of a particular color when viewed under specific wavelengths of light, a property called fluorescence.

16. Fluorescent dyes can be attached to specific molecules and can then be made visible using a special fluorescence microscope.
Fluorescence microscopy makes it possible to see and identify the locations of these molecules, and even to watch them move about in a living cell.

17. Electron Microscopes

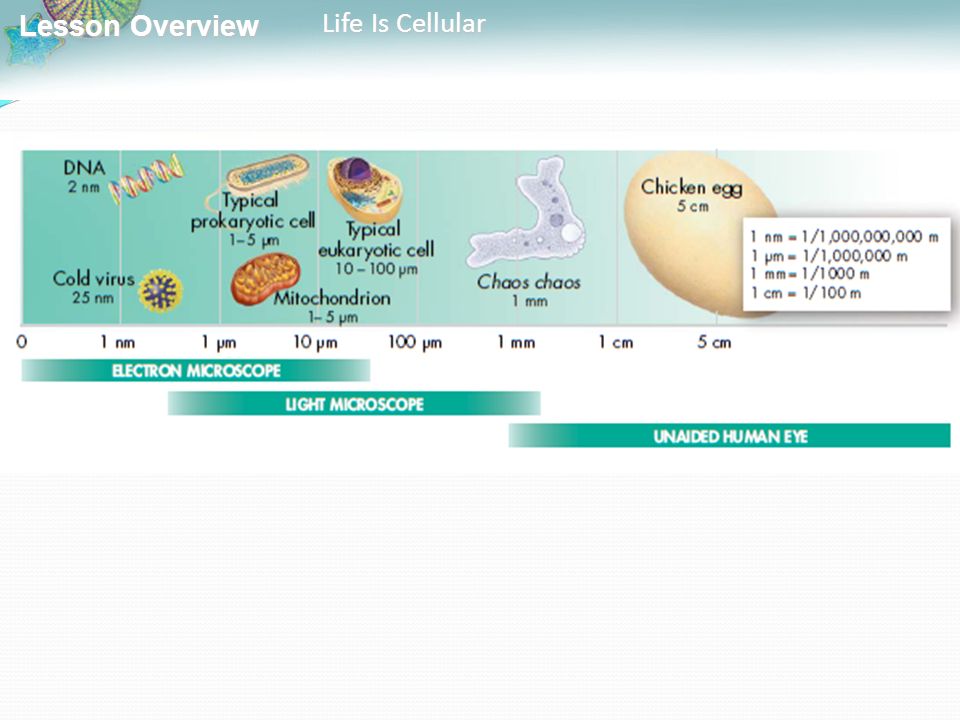

Light microscopes can be used to see cells and cell structures as small as 1 millionth of a meter. To study something smaller than that, scientists need to use electron microscopes.
Electron microscopes use beams of electrons, not light, that are focused by magnetic fields.
Electron microscopes offer much higher resolution than light microscopes.
There are two major types of electron microscopes: transmission and scanning.

18. Electron Microscopes
Transmission electron microscopes make it possible to explore cell structures and large protein molecules.
Because beams of electrons can only pass through thin samples, cells and tissues must be cut first into ultra thin slices before they can be examined under a transmission electron microscope.
Transmission electron microscopes produce flat, two-dimensional images.

19. In scanning electron microscopes, a pencil-like beam of electrons is scanned over the surface of a specimen.
Because the image is of the surface, specimens viewed under a scanning electron microscope do not have to be cut into thin slices to be seen.
Scanning electron microscopes produce three-dimensional images of the specimen’s surface.

20. Electron Microscopes
Because electrons are easily scattered by molecules in the air, samples examined in both types of electron microscopes must be placed in a vacuum in order to be studied.
Researchers chemically preserve their samples first and then carefully remove all of the water before placing them in the microscope.
This means that electron microscopy can be used to examine only nonliving cells and tissues.

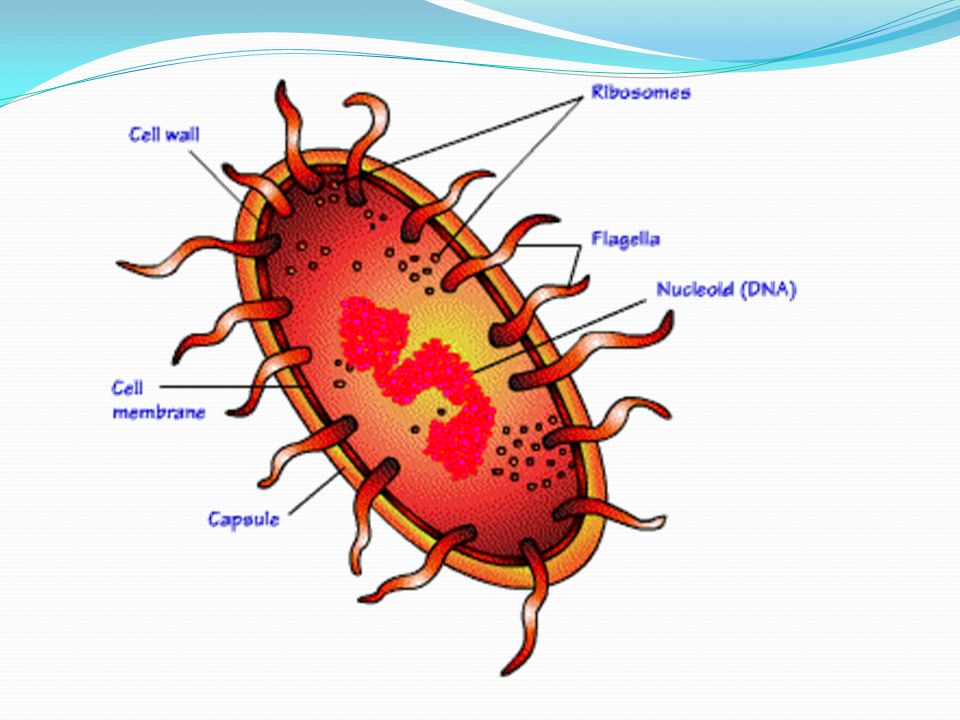

22. Prokaryote Cells that do not contain nuclei.
Cells that have genetic material that is not contained in a nucleus.

24. Examples of prokaryotes

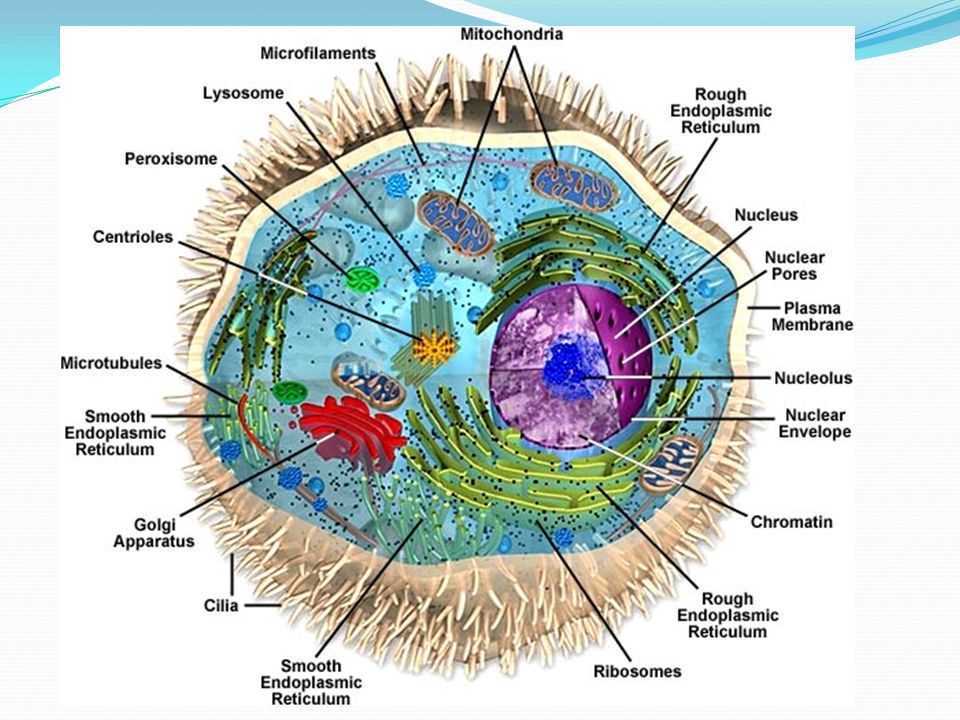

25. Eukaryotes Cells that contain nuclei.
Contains a nucleus in which their genetic material is separated from the rest of the cell.

27. Examples of Eukaryotes

29. Gather your thoughts
What is the main difference between prokaryotic cells and eukaryotic cells?
Do bacterial cells conatin a nucleus?
What else do eukaryotic cells contain that prokaryotic cells don´t?

30. Construct a Chart Trait Prokaryotes Eukaryotes Nucleus Organelles
Cell Membranes
Organisms
code: cbd-3072

31. 7-2 Eukaryotic Cell Structure
Objectives:
Describe the function of the cell nucleus.
Describe the function of the major cell organelles.
Identify the main roles of the cytoskeleton.

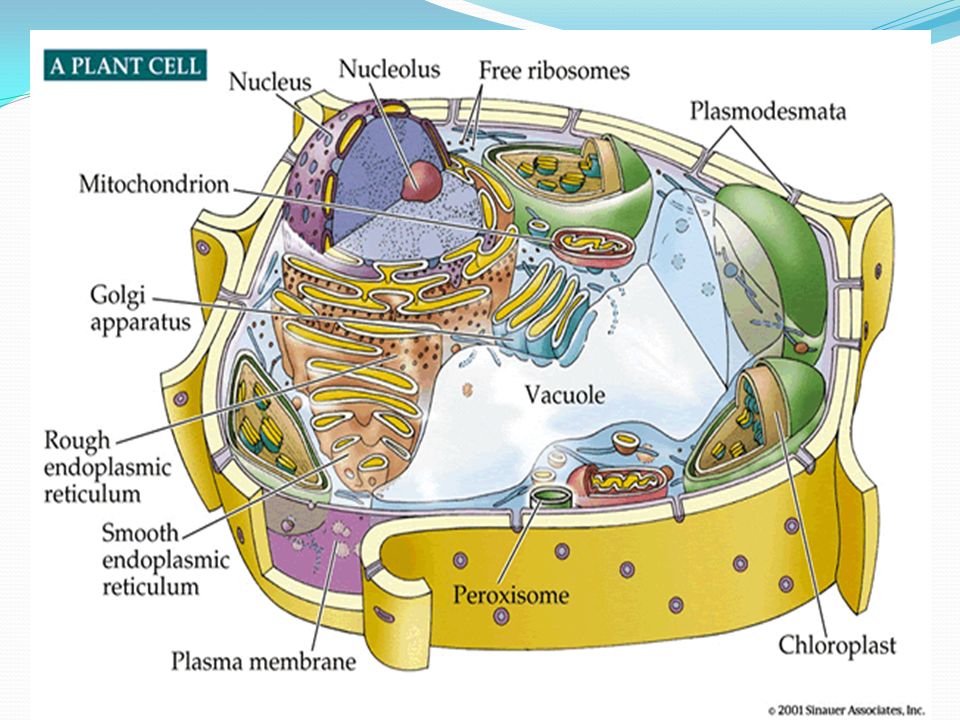

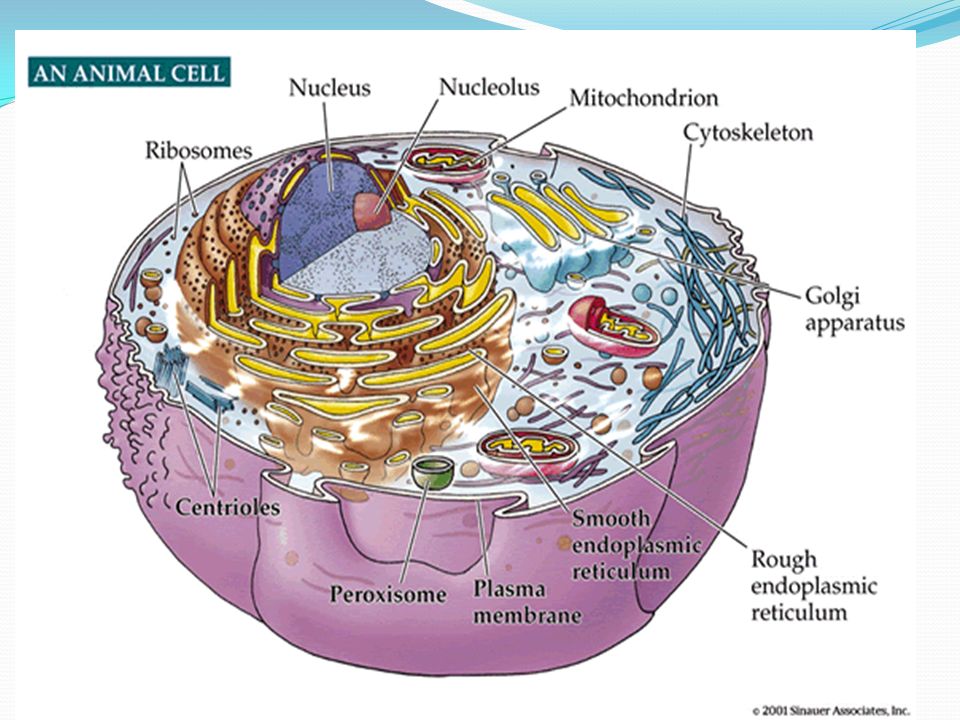

32. Organelles – Structures that act as specialized organs
Organelles – Structures that act as specialized organs. Also called “little organs”.
Cytoplasm – The portion of the cell outside the nucleus.

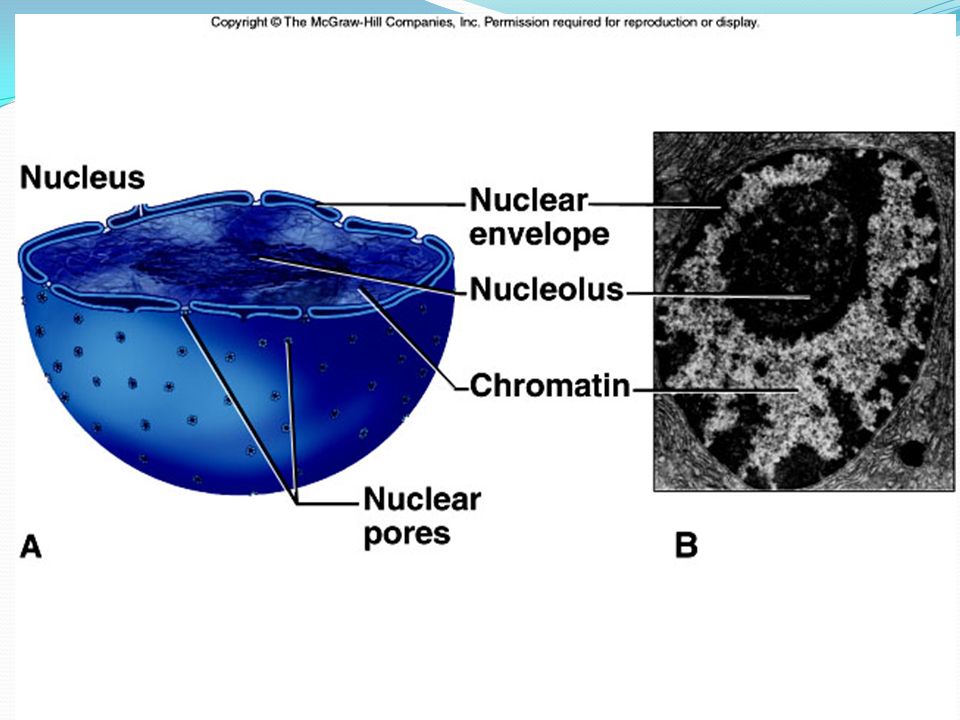

35. Nucleus
Contains nearly all the cell`s DNA and with it the coded instructions for making proteins and other important molecules.

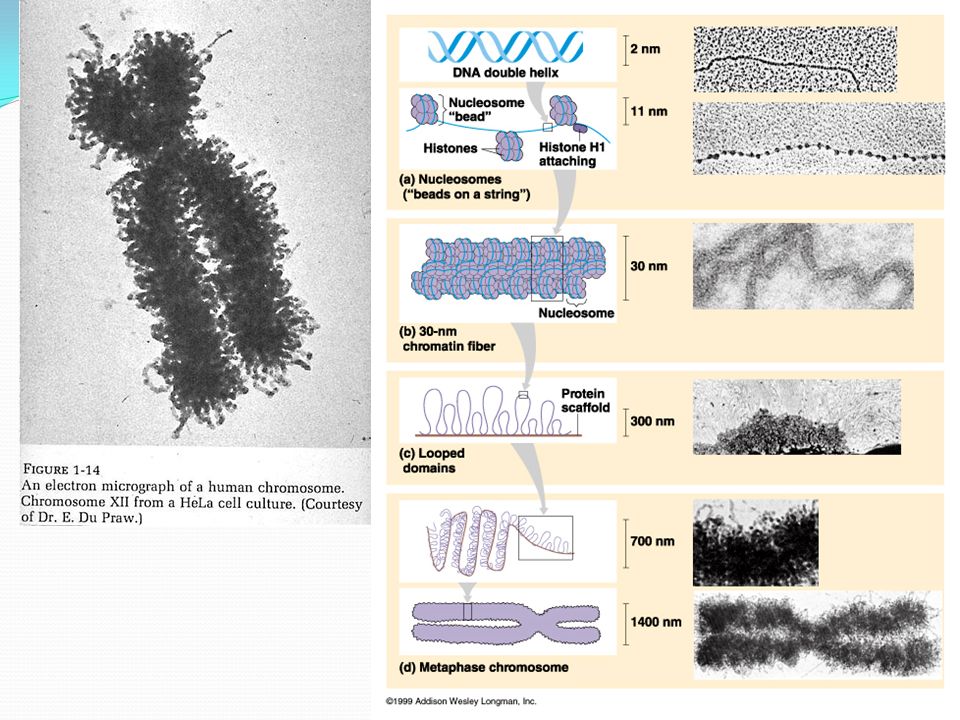

Nucleus
Chromatin
DNA bound to protein.

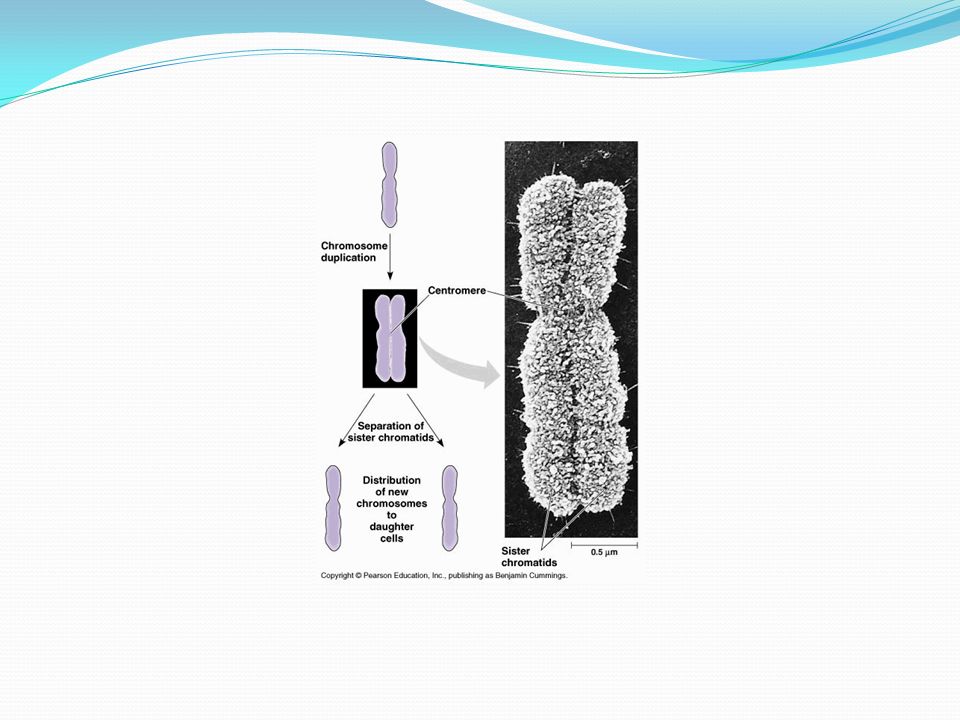

Chromosomes
Structures contain the genetic information.
Nucleolus
Where the assembly of ribosomes begin.

36. Nucleus
Nuclear Envelope – It surrounds the nucleus and is composed of two membranes.
It is dotted with nuclear pores, which allows material to move into and out of the nucleus:
Messages
Instructions
Blueprints moving in and out.

40. Gather your thoughts What is the nucleulus?
Where is the DNA that a nucleus contains?
Why is DNA important?

41. Organelles That Store, Clean Up, and Support
What are the functions of vacuoles, lysosomes, and the cytoskeleton?

42. Organelles That Store, Clean Up, and Support
What are the functions of vacuoles, lysosomes, and the cytoskeleton?
Vacuoles store materials like water, salts, proteins, and carbohydrates.
Lysosomes break down lipids, carbohydrates, and proteins into small
molecules that can be used by the rest of the cell. They are also involved in breaking down organelles that have outlived their usefulness.
The cytoskeleton helps the cell maintain its shape and is also involved in movement.

43. Vacuoles and Vesicles
Many cells contain large, saclike, membrane-enclosed structures called vacuoles that store materials such as water, salts, proteins, and carbohydrates.

44. Vacuoles and Vesicles
In many plant cells, there is a single, large central vacuole filled with liquid. The pressure of the central vacuole in these cells increases their rigidity, making it possible for plants to support heavy structures such as leaves and flowers.

45. Vacuoles and Vesicles
Vacuoles are also found in some unicellular organisms and in some animals.

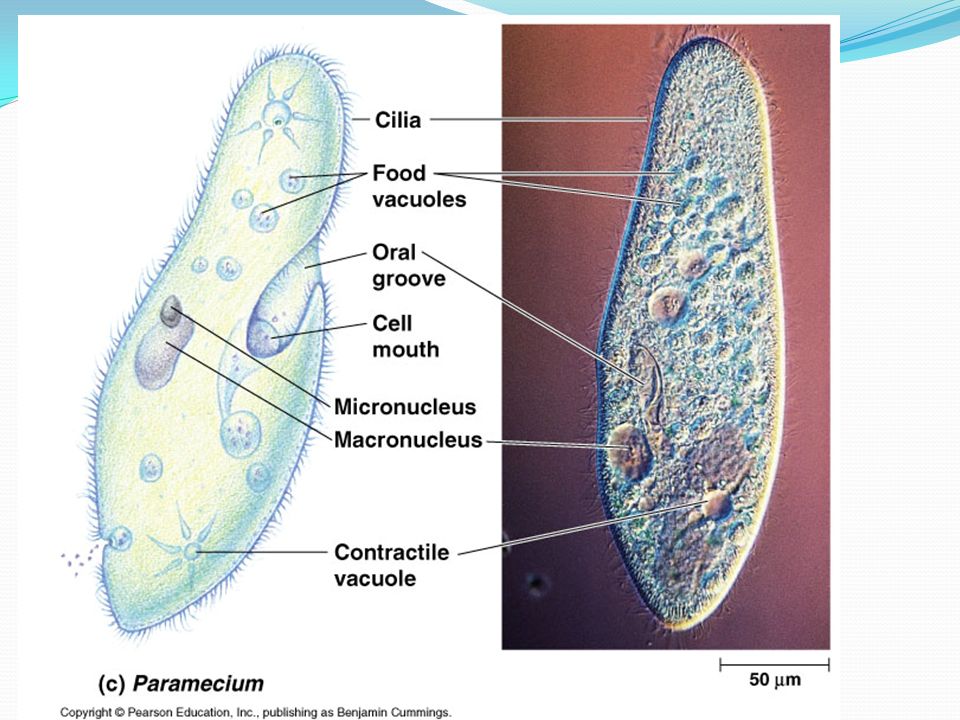

The paramecium contains an organelle called a contractile vacuole. By contracting rhythmically, this specialized vacuole pumps excess water out of the cell.

46. Vacuoles and Vesicles
Nearly all eukaryotic cells contain smaller membrane-enclosed structures called vesicles. Vesicles are used to store and move materials between cell organelles, as well as to and from the cell surface.

47. Lysosomes
Lysosomes are small organelles filled with enzymes that function as the cell’s cleanup crew. Lysosomes perform the vital function of removing “junk” that might otherwise accumulate and clutter up the cell.

48. Lysosomes
One function of lysosomes is the breakdown of lipids, carbohydrates, and proteins into small molecules that can be used by the rest of the cell.

49. Lysosomes
Lysosomes are also involved in breaking down organelles that have outlived their usefulness.
Biologists once thought that lysosomes were only found in animal cells, but it is now clear that lysosomes are also found in a few specialized types of plant cells as well.

50. The Cytoskeleton
Eukaryotic cells are given their shape and internal organization by a network of protein filaments known as the cytoskeleton.
Certain parts of the cytoskeleton also help to transport materials between different parts of the cell, much like conveyer belts that carry materials from one part of a factory to another.
Microfilaments and microtubules are two of the principal protein filaments that make up the cytoskeleton.

51. Microfilaments
Microfilaments are threadlike structures made up of a protein called actin.
They form extensive networks in some cells and produce a tough, flexible framework that supports the cell.
Microfilaments also help cells move.
Microfilament assembly and disassembly is responsible for the cytoplasmic movements that allow cells, such as amoebas, to crawl along surfaces.

52. Microtubules
Microtubules are hollow structures made up of proteins known as tubulins.
They play critical roles in maintaining cell shape.
Microtubules are also important in cell division, where they form a structure known as the mitotic spindle, which helps to separate chromosomes.

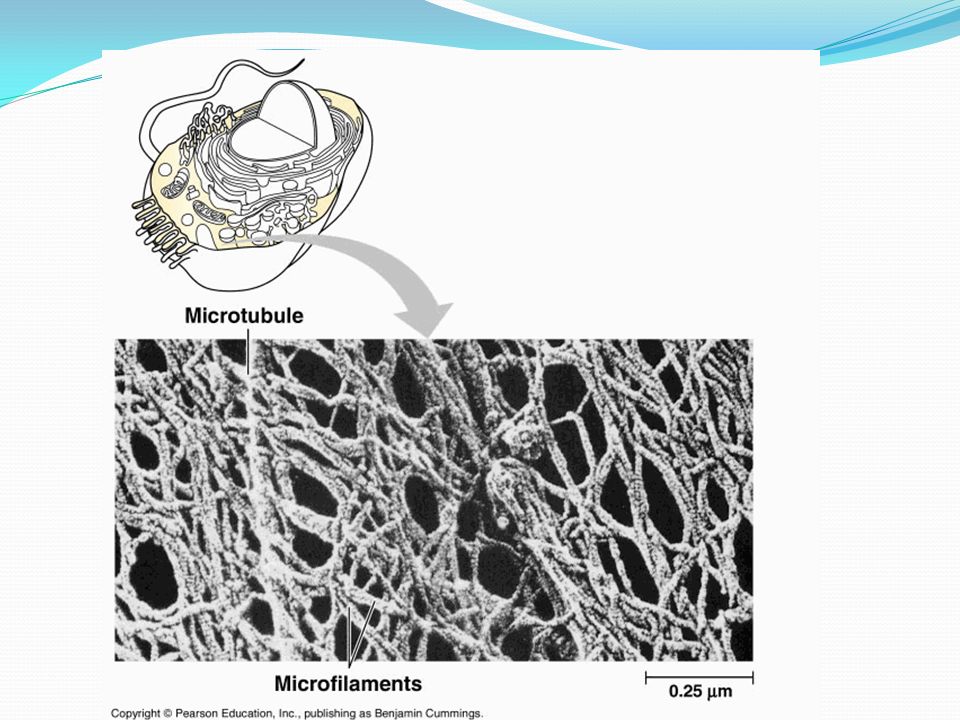

53. Cytoskeleton
A network of protein filaments that help the cell to mantain its shape. The cytoskeleton is also involves in movement.

54. Microtubules
In animal cells, structures known as centrioles are also formed from tubulins.
Centrioles are located near the nucleus and help to organize cell division.
Centrioles are not found in plant cells.

55. Microtubules
Microtubules help to build projections from the cell surface, which are known as cilia and flagella, that enable cells to swim rapidly through liquids.
Microtubules are arranged in a “9 + 2” pattern.
Small cross-bridges between the microtubules in these organelles use chemical energy to pull on, or slide along, the microtubules, allowing cells to produce controlled movements.

56. Centrioles
Important in cell division, which helps to separate chromosomes.
They are in the nucleus and help organize cell division.
They are not found in plant cells.

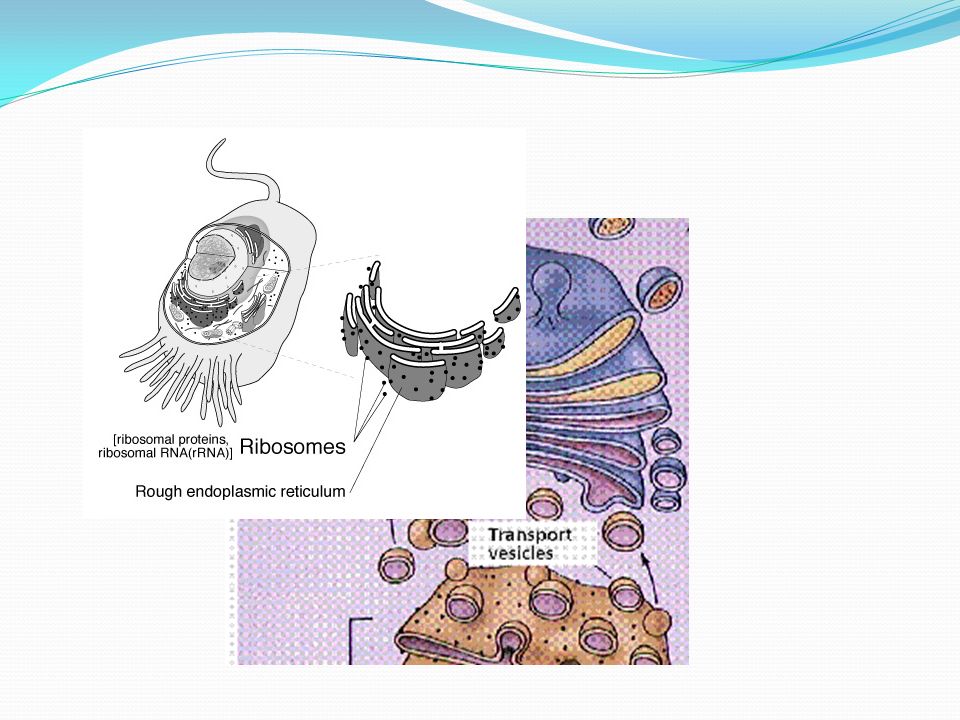

57. Ribosomes
Are small particles of RNA and proteins found throughout the cytoplasm.
Proteins are assembled on ribosomes.
They produce proteins by following coded instructions that come from the nucleus.

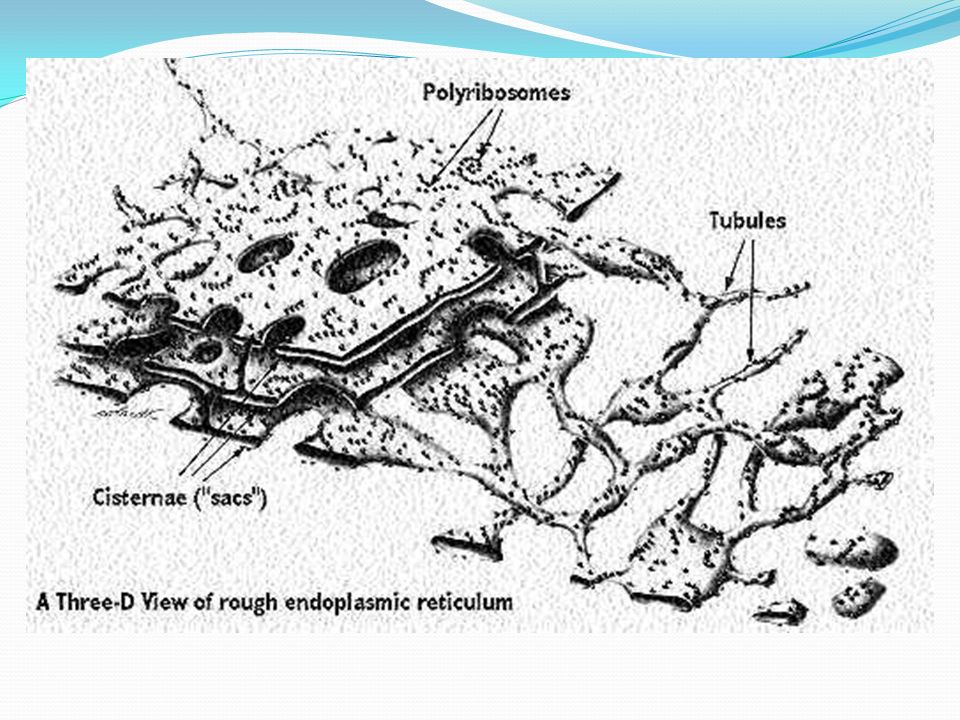

60. Endoplasmic Reticulum
Ths site where lipid components of the cell membrane are assembled, along with proteins and other materials that are exported from the cell.
Endoplasmic
Reticulum
Rough
It is called rough ER because of the ribosomes found in the surface. Newly made proteins have leave thses ribosomes and are inserted into the rough ER.
Smoth
Has no ribosomes and makes lipids and help in detoxification.

62. Gather your thoughts What are ribosomes composed of?
What do ribosomes produce?
What happens to these proteins after they´re produced by ribosomes?
If this were an illustration of smooth ER, how would it be different?
What is the function of smooth ER?

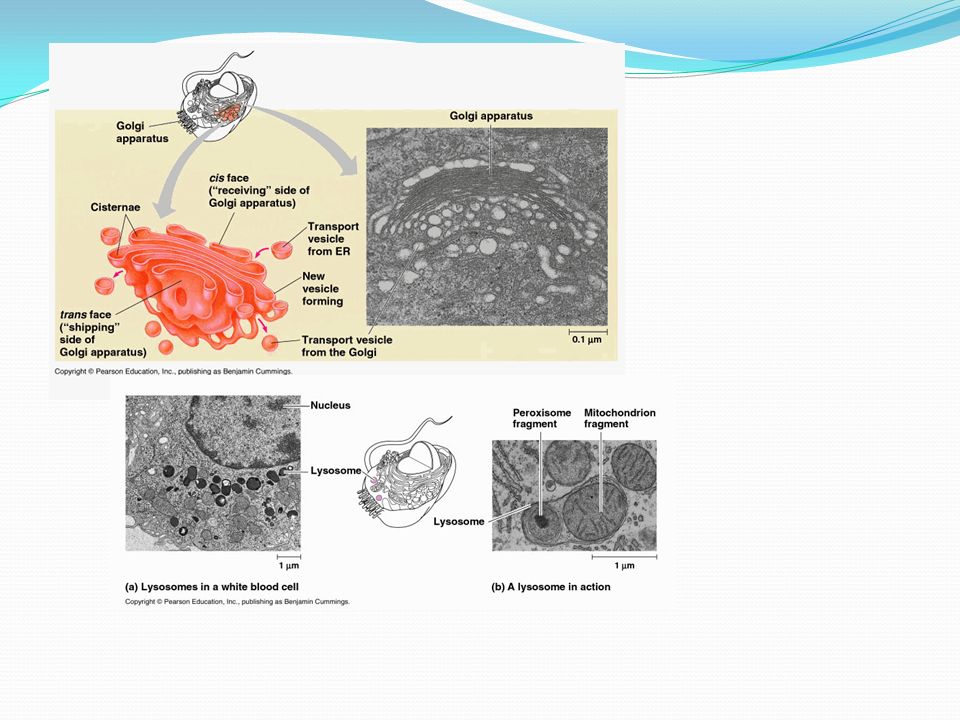

63. Golgi Apparatus
To modify, sort, and package proteins and other materials from the endoplasmic reticulum for storage in the cell or secretion outside the cell.

64. ER- Golgi conection

65. Organelles That Capture and Release Energy
What are the functions of chloroplasts and mitochondria?

66. Organelles That Capture and Release Energy
What are the functions of chloroplasts and mitochondria?
Chloroplasts capture the energy from sunlight and convert it into food that contains chemical energy in a process called photosynthesis.
Mitochondria convert the chemical energy stored in food into compounds that are more convenient for the cells to use.

67. Organelles That Capture and Release Energy
All living things require a source of energy. Most cells are powered by food molecules that are built using energy from the sun.
Chloroplasts and mitochondria are both involved in energy conversion processes within the cell.

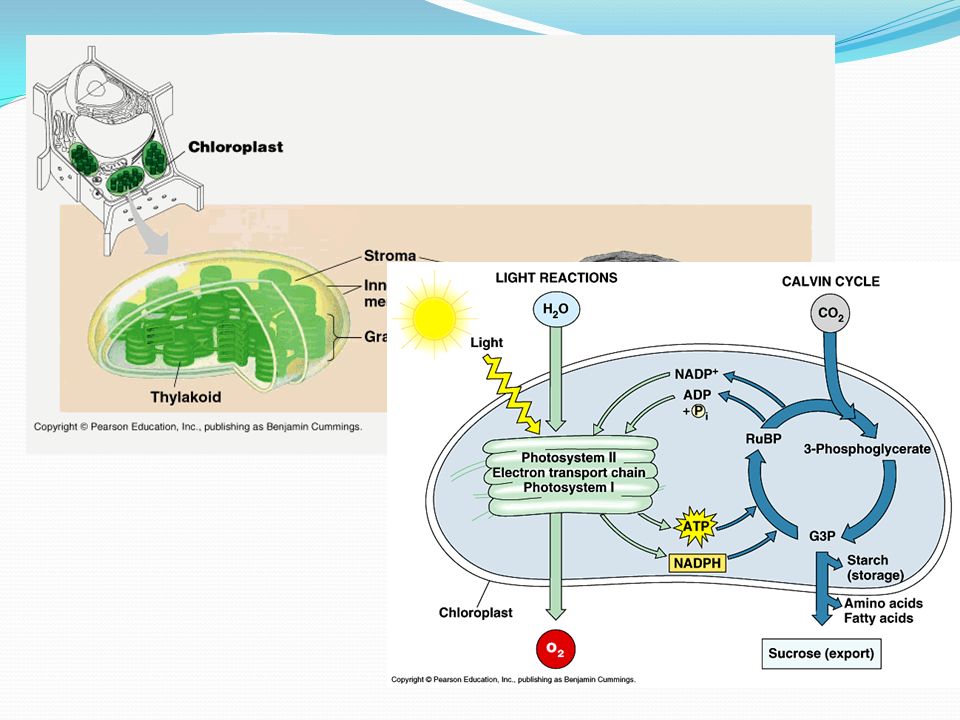

68. Chloroplasts Plants and some other organisms contain chloroplasts.
Chloroplasts are the biological equivalents of solar power plants. They capture the energy from sunlight and convert it into food that contains chemical energy in a process called photosynthesis.

69. Chloroplasts
Two membranes surround chloroplasts.
Inside the organelle are large stacks of other membranes, which contain the green pigment chlorophyll.

70. Mitochondria
Nearly all eukaryotic cells, including plants, contain mitochondria.
Mitochondria are the power plants of the cell. They convert the chemical energy stored in food into compounds that are more convenient for the cell to use.

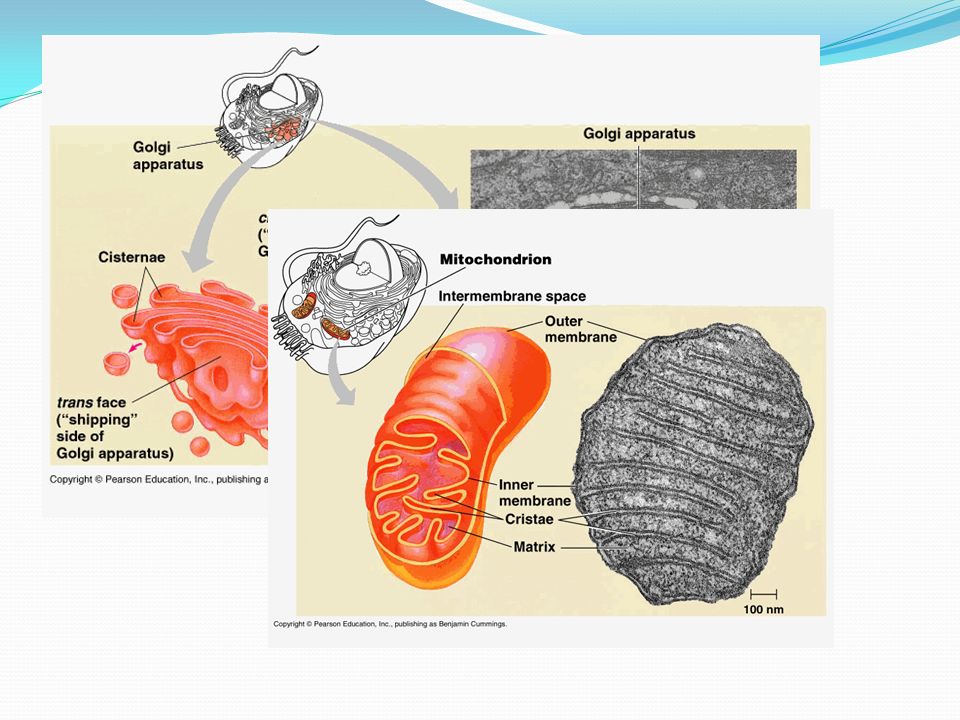

71. Mitochondria
Two membranes—an outer membrane and an inner membrane—enclose mitochondria. The inner membrane is folded up inside the organelle.

72. Mitochondria
Organelles that convert the chemical energy stored in food into compounds that are more convenient for the cell to use.

73. Chloroplasts
Organelles that capture the energy from sunlight and convert it into chemical energy in a process called photosynthesis.

74. Organelle DNA
Chloroplasts and mitochondria contain their own genetic information in the form of small DNA molecules.
Lynn Maegulis, suggested that mitochondrias and chloroplasts are descendant of ancient prokaryotes.

75. Cell Walls
The main function of the cell wall is to provide support and protection for the cell.
Prokaryotes, plants, algae, fungi, and many prokaryotes have cell walls. Animal cells do not have cell walls.
Cell walls lie outside the cell membrane and most are porous enough to allow water, oxygen, carbon dioxide, and certain other substances to pass through easily.

76. Cell Membranes
All cells contain a cell membrane that regulates what enters and leaves the cell and also protects and supports the cell.

77. Cell Membranes
The composition of nearly all cell membranes is a double-layered sheet called a lipid bilayer, which gives cell membranes a flexible structure and forms a strong barrier between the cell and its surroundings.

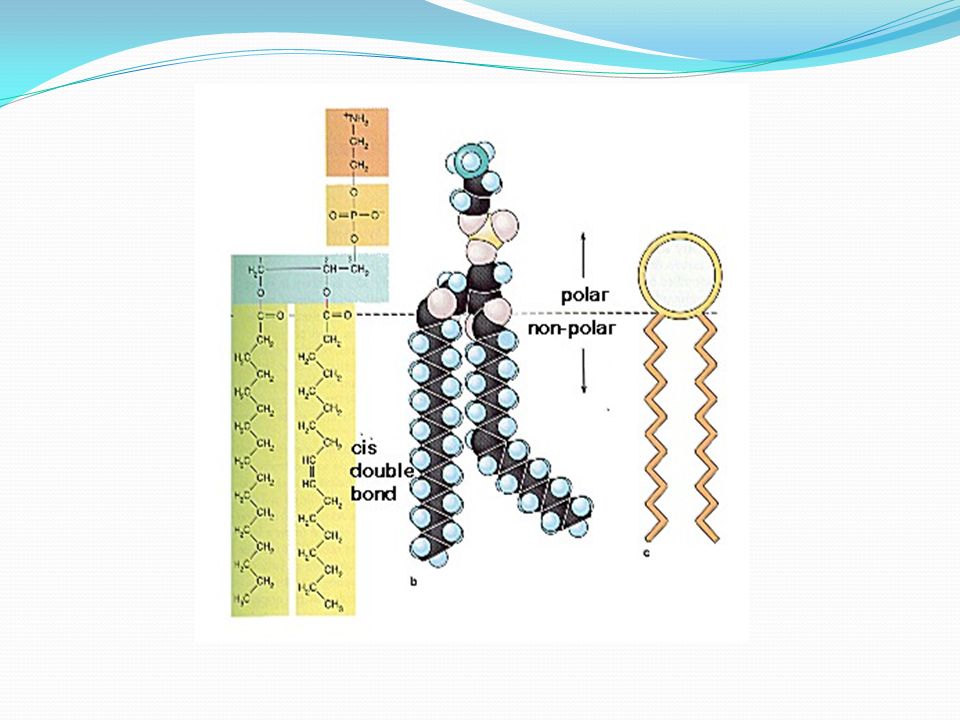

78. The Properties of Lipids
Many lipids have oily fatty acid chains attached to chemical groups that interact strongly with water.
The fatty acid portions of such a lipid are hydrophobic, or “water-hating,” while the opposite end of the molecule is hydrophilic, or “water-loving.”

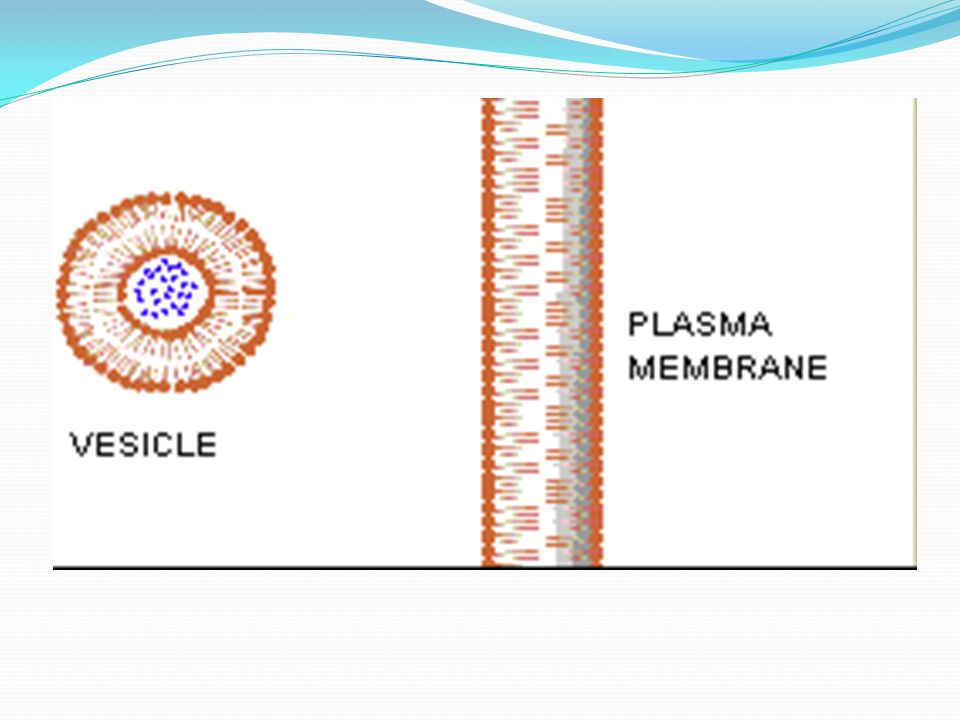

79. The Properties of Lipids
When such lipids are mixed with water, their hydrophobic fatty acid “tails” cluster together while their hydrophilic “heads” are attracted to water. A lipid bilayer is the result.

80. The Properties of Lipids
The head groups of lipids in a bilayer are exposed to water, while the fatty acid tails form an oily layer inside the membrane from which water is excluded.

81. The Fluid Mosaic Model
Most cell membranes contain protein molecules that are embedded in the lipid bilayer. Carbohydrate molecules are attached to many of these proteins.

82. The Fluid Mosaic Model
Because the proteins embedded in the lipid bilayer can move around and “float” among the lipids, and because so many different kinds of molecules make up the cell membrane, scientists describe the cell membrane as a “fluid mosaic.”

83. The Fluid Mosaic Model

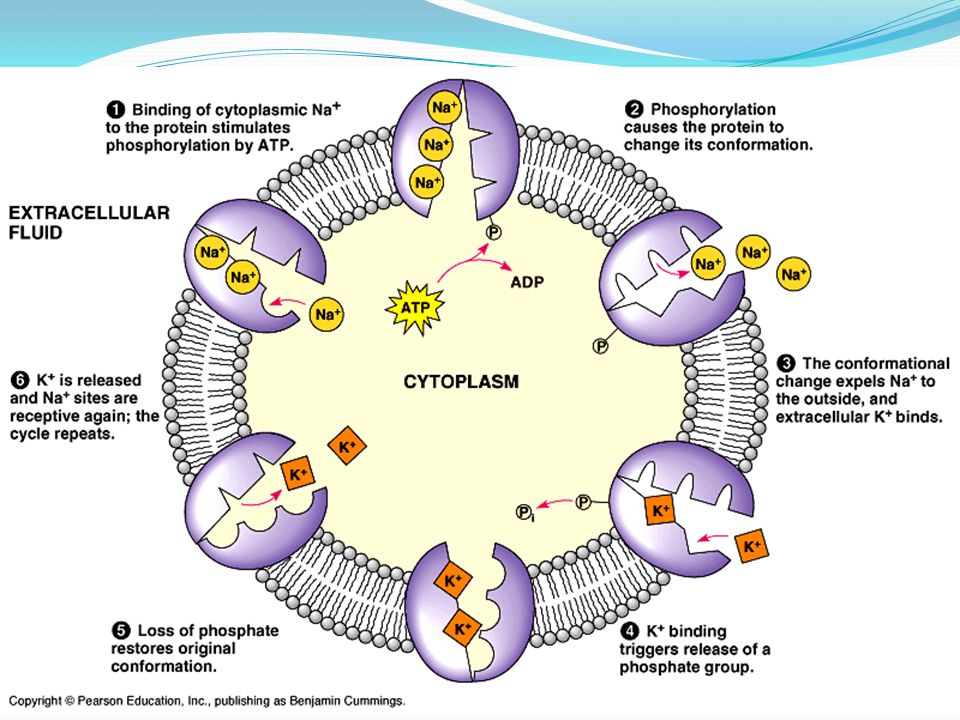

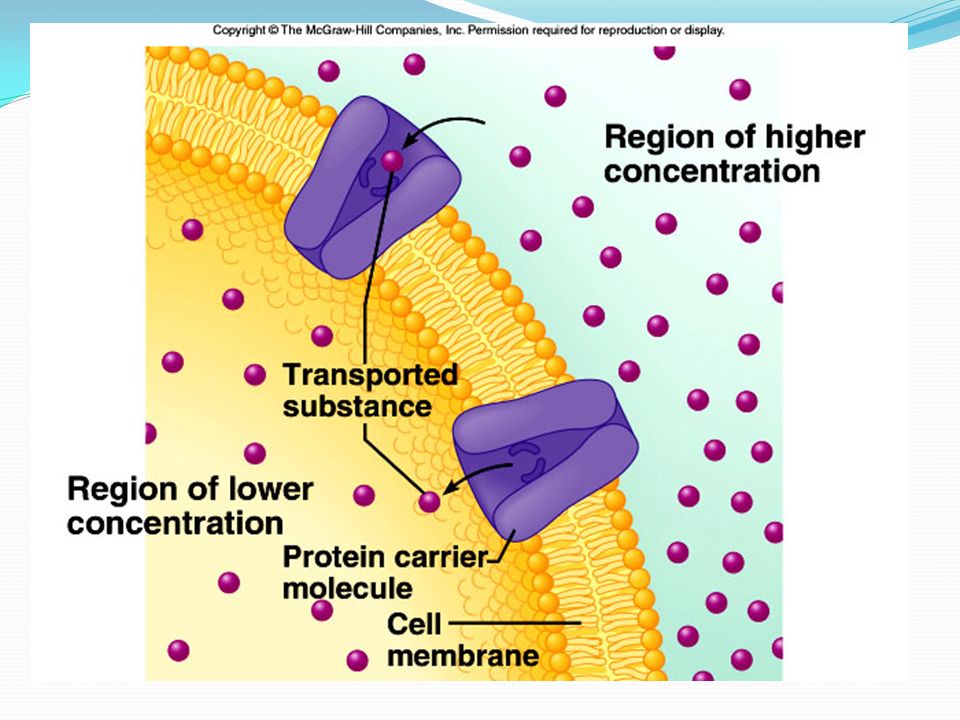

Some of the proteins form channels and pumps that help to move material across the cell membrane.
Many of the carbohydrate molecules act like chemical identification cards, allowing individual cells to identify one another.

84. The Fluid Mosaic Model
Although many substances can cross biological membranes, some are too large or too strongly charged to cross the lipid bilayer.
If a substance is able to cross a membrane, the membrane is said to be permeable to it.
A membrane is impermeable to substances that cannot pass across it.
Most biological membranes are selectively permeable, meaning that some substances can pass across them and others cannot. Selectively permeable membranes are also called semipermeable membranes.

85. 7-3 Cell Boundaries

86. Cell Membrane
The cell membrane regulates what enters and leaves the cell and also provides protection and support.
The composition of nearly all cell membranes is a double- layered sheet calles a lipid bilayer.

88. The cell membrane regulates what enters and leaves the cell and also provides protection and suport.
Lipid Bilayer- A membrane with a doble- layer

89. Cell Walls
The main function of the cell wall is to provide support and protection of the cell.

90. Cytoplasm – Contains a solution of many different substances in water.
Solution- A mixture of two or more substances.
Solute – Substances dissolved in the solution.

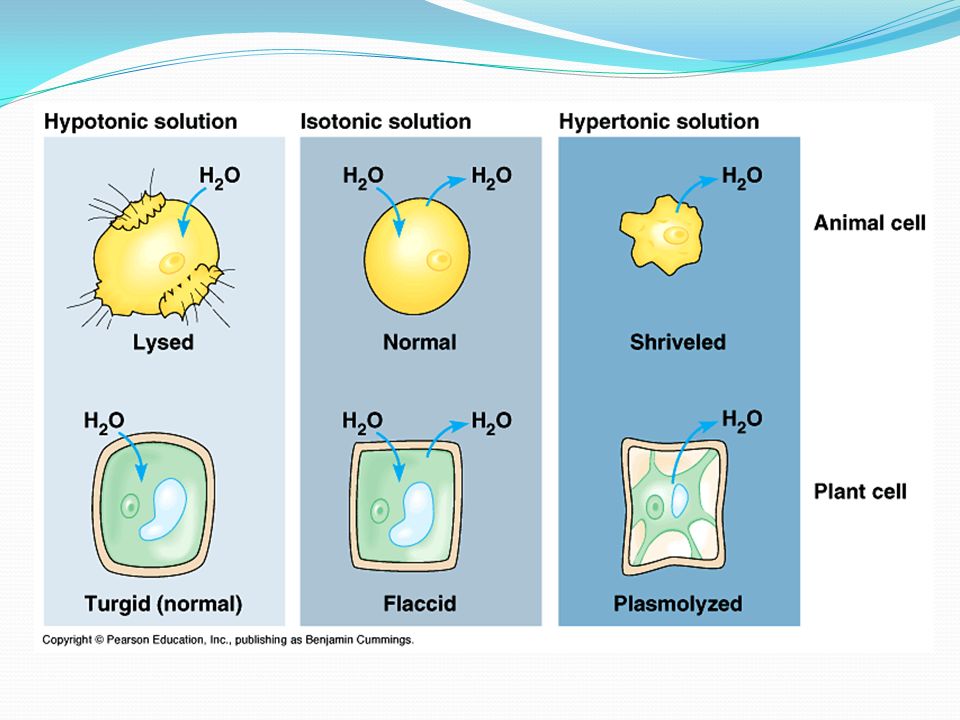

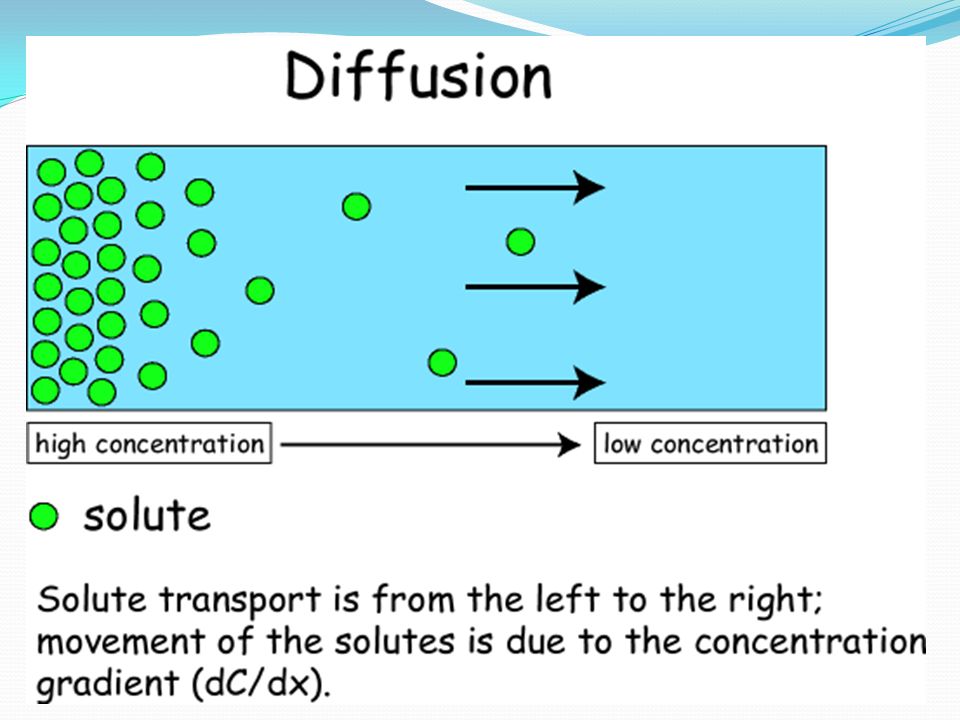

91. What solution has the most concentration?
Concentration – A solution is the mass of solute in a given volume of solution. Mass/ Volume
12 Grams of salt
3 Lt. Water
12 Grams of Salt
6 Lt. of Water
What solution has the most concentration?

92. Concentration
12 g./ 3 L. or 4 g/L
12 g./6L or 2g/L
The first solution is twice as concentrated as the second solution.

93. More concentration
If you dissolved 12 grams of salt in 3 liters of water, what is the concentration for salt in the solution?

94. Suppose you added 12 more grams of salt to the solution
Suppose you added 12 more grams of salt to the solution. What would be the resulting concentration?

95. What if you then added another 3 liters of water to that solution concentration?

96. Which solution of the ones discussed would be called the most concentrated?

97. Diffusion
Particles move constantly. The particles tend to move from an area where they are more concentrated to an area where they are less concentrated.

100. Equilibrium- when the concentration of the solute is the same throughout a system.
Diffusion depends upon random particle movemnts, substances diffuse across membranes without requiring the cell to use energy.

101. Osmosis
Is the diffusion of water through a selectively permeable membrane.

102. Permeable
Some substances can pass across then and others cannot.

103. Isotonic- The concentration of solutes is the same inside and outside
Isotonic- The concentration of solutes is the same inside and outside. “Same Strength”
Hypertonic – Solution has a higher solute concentration than the cell. “Above Strength”
Hypotonic – Solution has a lower solute concentration than the cell. “Below Strength”

104. Watch this for a better explanation on hypertonic and hypotonic

105. Gather your thoughts
In the beaker on the left, which solution is hypertonic and which is hypotonic? Pg. 185
In this model, to which material is the membrane permeable, water or sugar?

107. Visual Activity
Code: cbp-3075

108. Osmotic pressure
For organisms to survive, they must have a way to balance the intake ans loss of water.
Cells in large organisms are not in danger of bursting.
Plant cells and bacteria are surrounded by tough cel walls. The cell walls prevent the cells from expanding even under tremendous osmotic pressure.

109. Facilitated Diffusion
Cell membranes have protein channels that make it easy for certain molecules to cross the membrane.
Cell membrane protein facilitate the diffusion of glucose, or other substances across the membrane.
The net movement of molecules across a cell membrane will occur only if there is a higher concentration of the particular molecules on one side than on the other side.
No energy is required.

111. Active Transport
Sometimes it must move materials in the opposite direction, against concentracion difference.
It requires energy.
It can be by transport proteins or “pumps” that are found in the membrane.
Larger molecules can be processes by endocytosis and exocytosis.

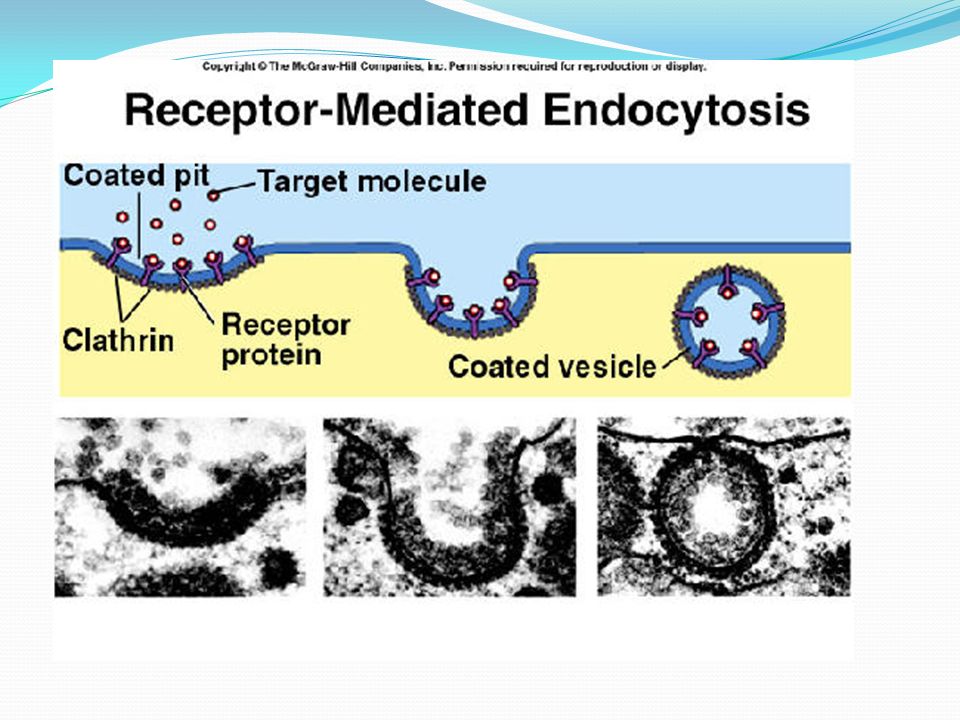

113. Endocytosis
The process of taking material into the cell by means of infolding of the cell membrane. The poket that results breaks loose from the outer portion of the cell membrane and forms a vauole

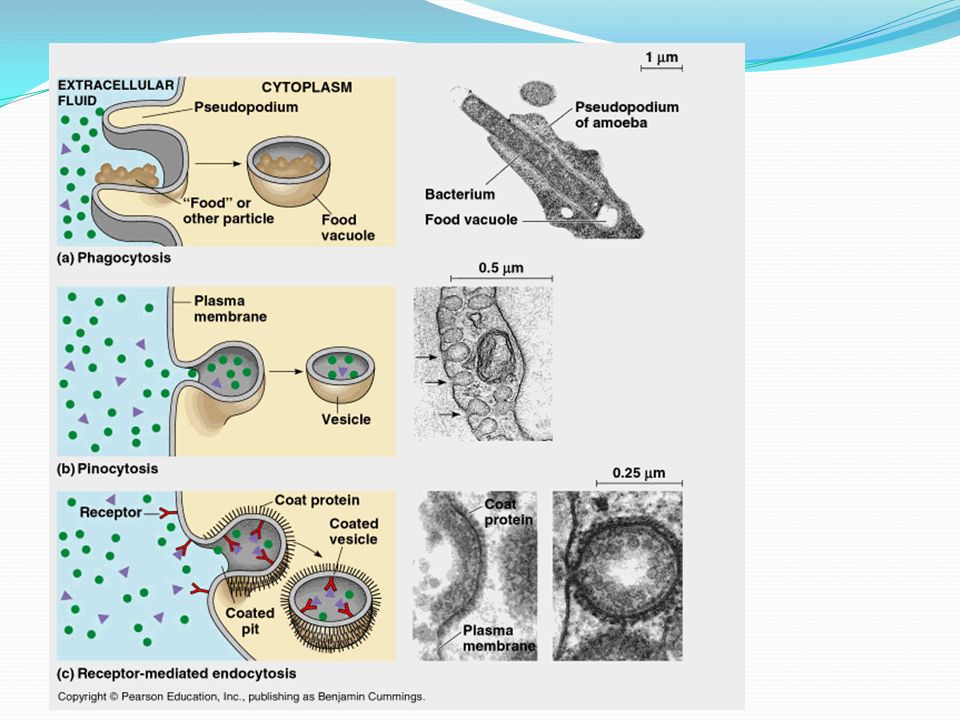

115. Phagocytosis
The cell engulfs particle and package it within a food vacuole.

116. Pinocytosis
Cells take up liquid form the surrounding enviroment by introducing valuoles of water.

117. The release of large amounts of material from the cell
The release of large amounts of material from the cell. The membrane of the vacuole surrounding the material fuses with the cell membrane forcing the contents out of the cell.

119. (Particles, food vacuole) Pinocitosis (Liquid vacuoles)
Active Transport
Endocytosis
Phagocytosis
(Particles, food vacuole)
Pinocitosis
(Liquid vacuoles)
Exocytosiscytosis
(Release large amount of material
Molecular Transport
Proteins in the membrane change in shape to make them come trough. Energy is required.

120. Quick Lab How can you model permeability in cells?
Materials: graduated cylinder, plastic sandwich bag, starch, twist tie, 500 ml beaker, iodine solution
Procedure:
1- Pour about 50 ml of water into a plastic sandwich bag. Add 10 ml of starch. Secure the bag with a twist tie, and shake it gently to mix in the starch.

121. 2- Put on your goggles, plastic gloves and apron.
3- Pour 250 ml of water into a 500 mL beaker.
4- Place the sandwich bag of water and starch into the beaker of water and iodine.
5- After 20 minutes, look at the sandwich bag in the beaker. Observe and record any changes that occurred.
