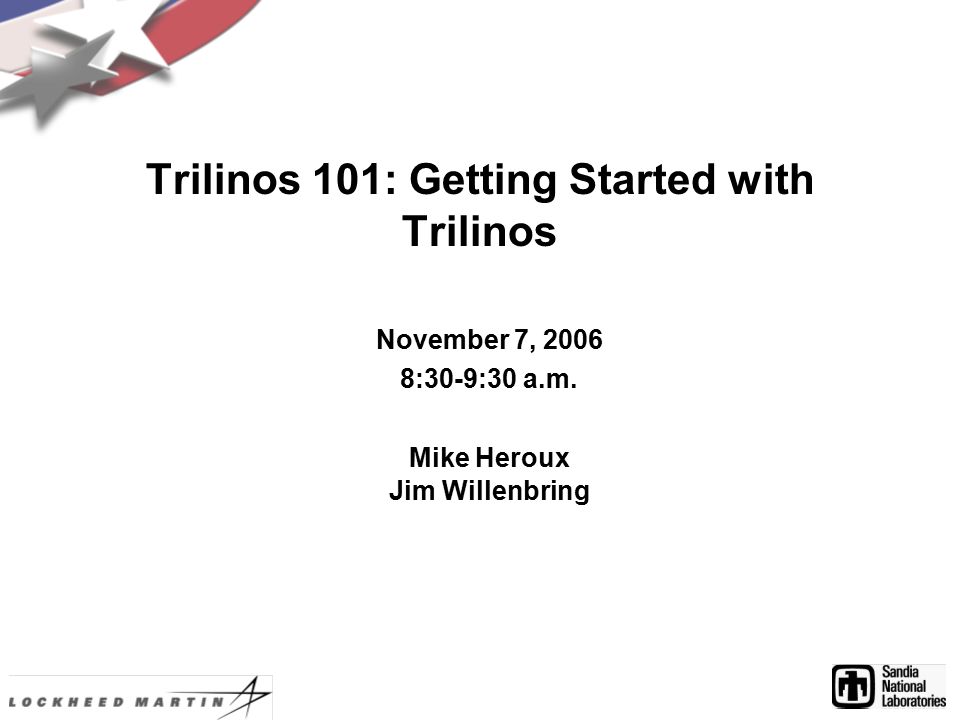

1. Trilinos 101: Getting Started with Trilinos November 7, 2006 8:30-9:30 a.m. Mike Heroux Jim Willenbring

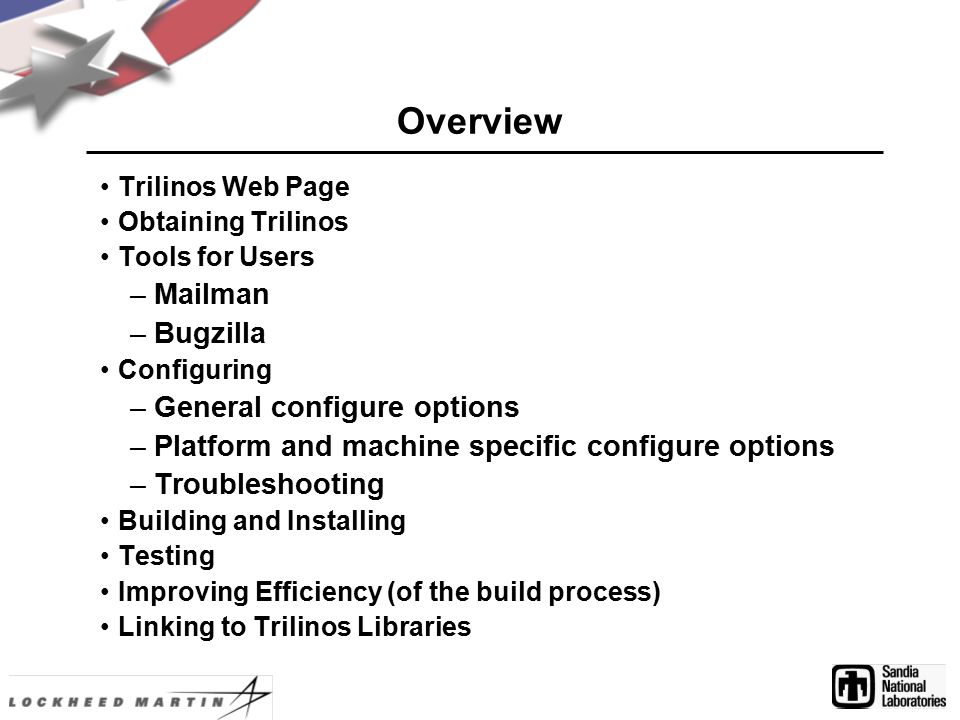

2. Overview Trilinos Web Page Obtaining Trilinos Tools for Users –Mailman –Bugzilla Configuring –General configure options –Platform and machine specific configure options –Troubleshooting Building and Installing Testing Improving Efficiency (of the build process) Linking to Trilinos Libraries

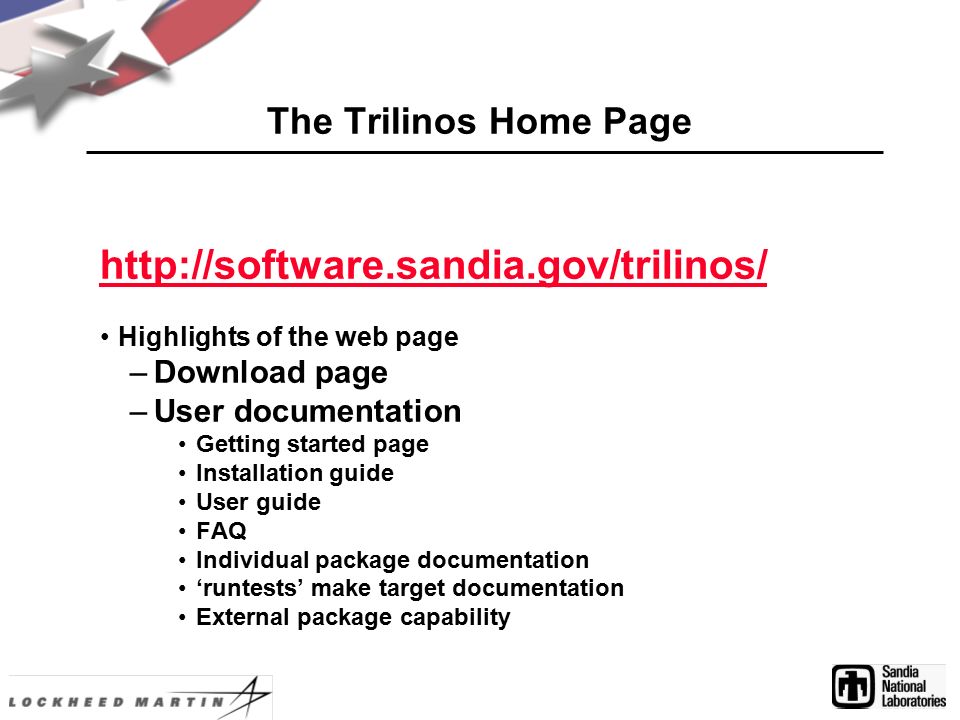

3. The Trilinos Home Page http://software.sandia.gov/trilinos/ Highlights of the web page –Download page –User documentation Getting started page Installation guide User guide FAQ Individual package documentation ‘runtests’ make target documentation External package capability

4. Instructions for obtaining Trilinos are available in –the Trilinos User Guide http://software.sandia.gov/trilinos/publications.html –the Installation Guide http://software.sandia.gov/trilinos/installation_manual.html Download from the website http://software.sandia.gov/trilinos/downloads.html Obtain a copy from the CVS repository Not available for all users Obtaining Trilinos

5. Tools for Users Mailman –Users are encouraged to sign up for Users lists for Trilinos and individual packages of interest Announce lists for Trilinos and individual packages of interest –See http://software.sandia.gov/mailman/listinfo for the complete list of mail listshttp://software.sandia.gov/mailman/listinfo For general questions trilinos-help@software.sandia.gov

6. Tools for Users (cont.) Bugzilla http://software.sandia.gov/bugzilla/ –Issue tracking tool –An account is required to file a “bug” –Can be used to report bugs or request new features –Please provide as much detail as possible (For example: Platform, OS, compiler versions, configure options, version of Trilinos, etc.)

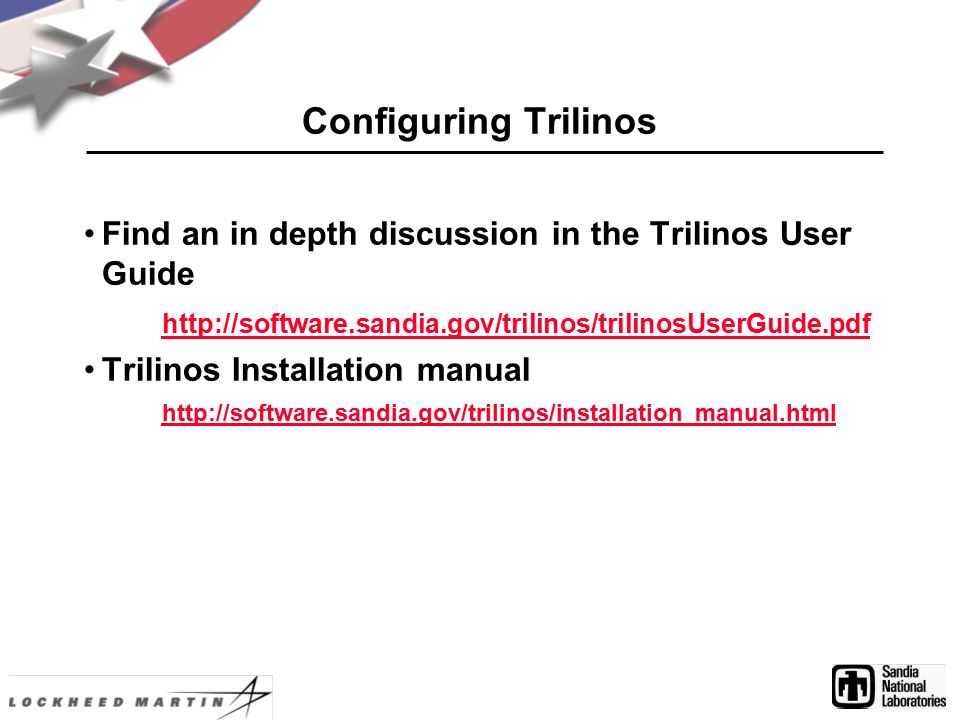

7. Configuring Trilinos Find an in depth discussion in the Trilinos User Guide http://software.sandia.gov/trilinos/trilinosUserGuide.pdf Trilinos Installation manual http://software.sandia.gov/trilinos/installation_manual.html

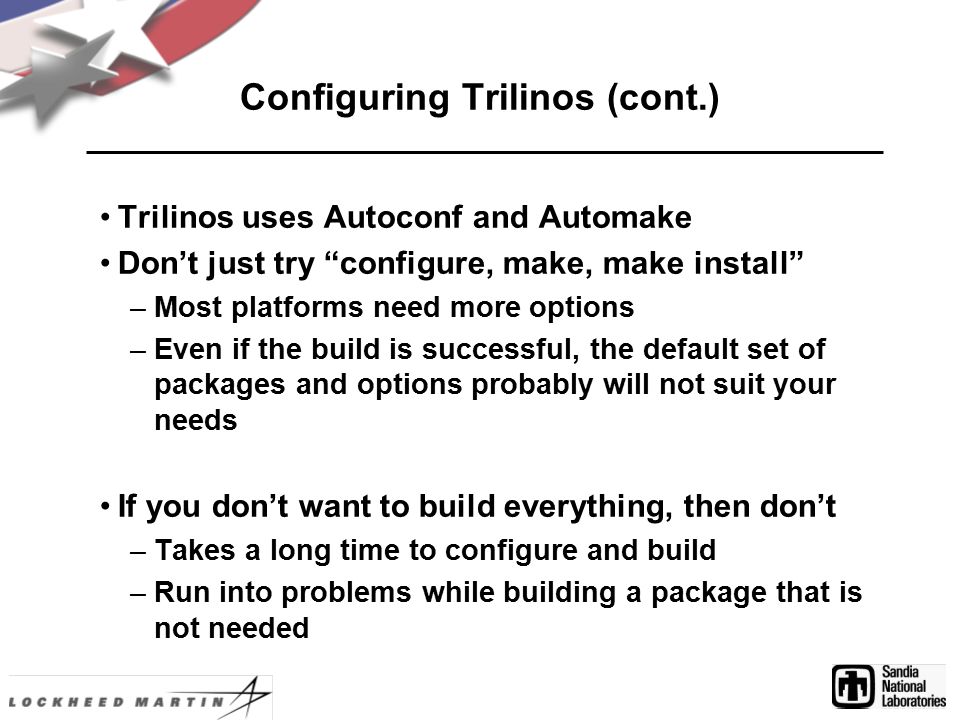

8. Configuring Trilinos (cont.) Trilinos uses Autoconf and Automake Don’t just try “configure, make, make install” –Most platforms need more options –Even if the build is successful, the default set of packages and options probably will not suit your needs If you don’t want to build everything, then don’t –Takes a long time to configure and build –Run into problems while building a package that is not needed

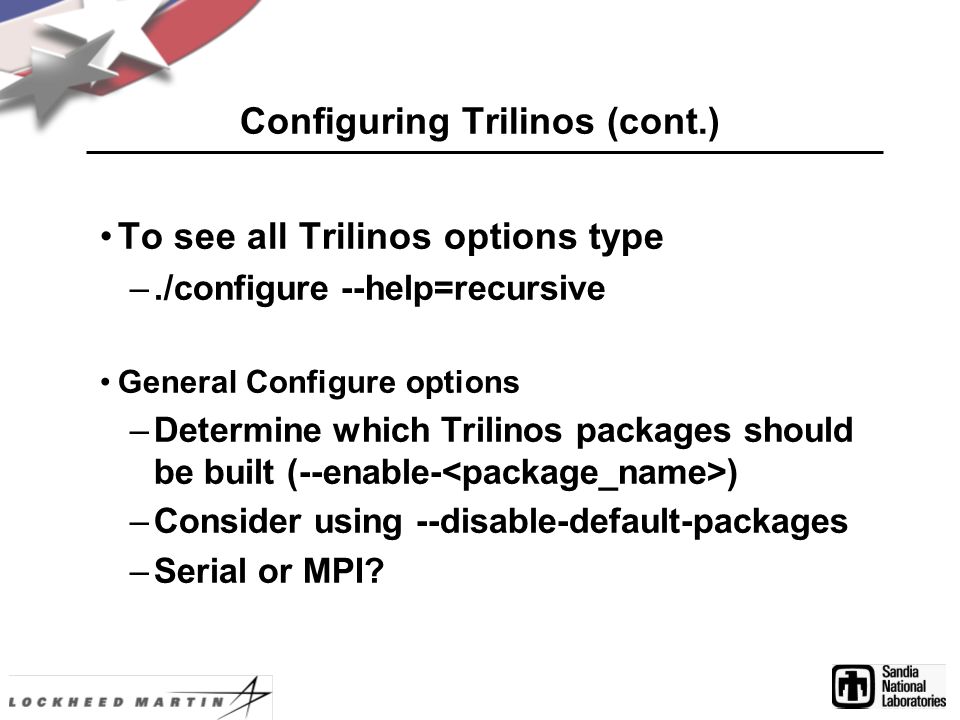

9. Configuring Trilinos (cont.) To see all Trilinos options type –./configure --help=recursive General Configure options –Determine which Trilinos packages should be built (--enable- ) –Consider using --disable-default-packages –Serial or MPI?

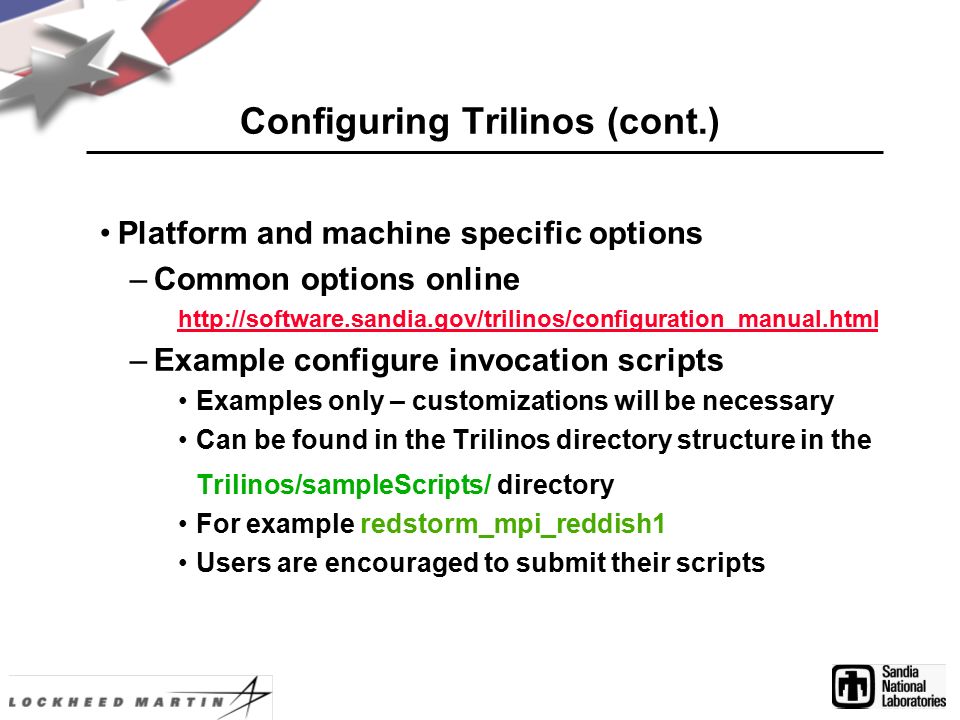

10. Configuring Trilinos (cont.) Platform and machine specific options –Common options online http://software.sandia.gov/trilinos/configuration_manual.html –Example configure invocation scripts Examples only – customizations will be necessary Can be found in the Trilinos directory structure in the Trilinos/sampleScripts/ directory For example redstorm_mpi_reddish1 Users are encouraged to submit their scripts

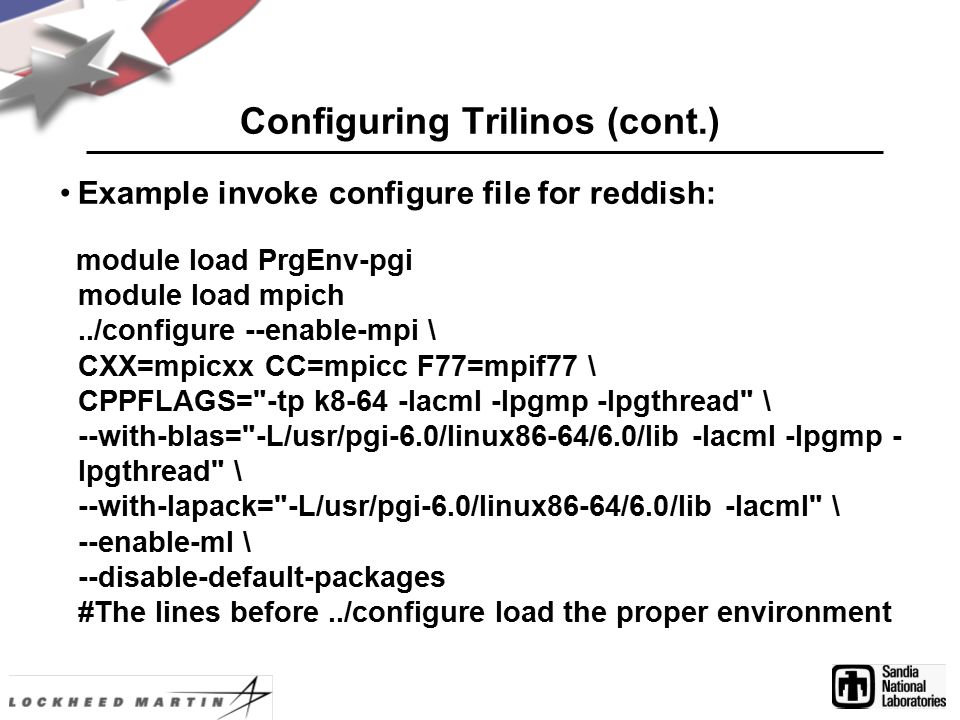

11. Configuring Trilinos (cont.) Example invoke configure file for reddish: module load PrgEnv-pgi module load mpich../configure --enable-mpi \ CXX=mpicxx CC=mpicc F77=mpif77 \ CPPFLAGS="-tp k8-64 -lacml -lpgmp -lpgthread" \ --with-blas="-L/usr/pgi-6.0/linux86-64/6.0/lib -lacml -lpgmp - lpgthread" \ --with-lapack="-L/usr/pgi-6.0/linux86-64/6.0/lib -lacml" \ --enable-ml \ --disable-default-packages #The lines before../configure load the proper environment

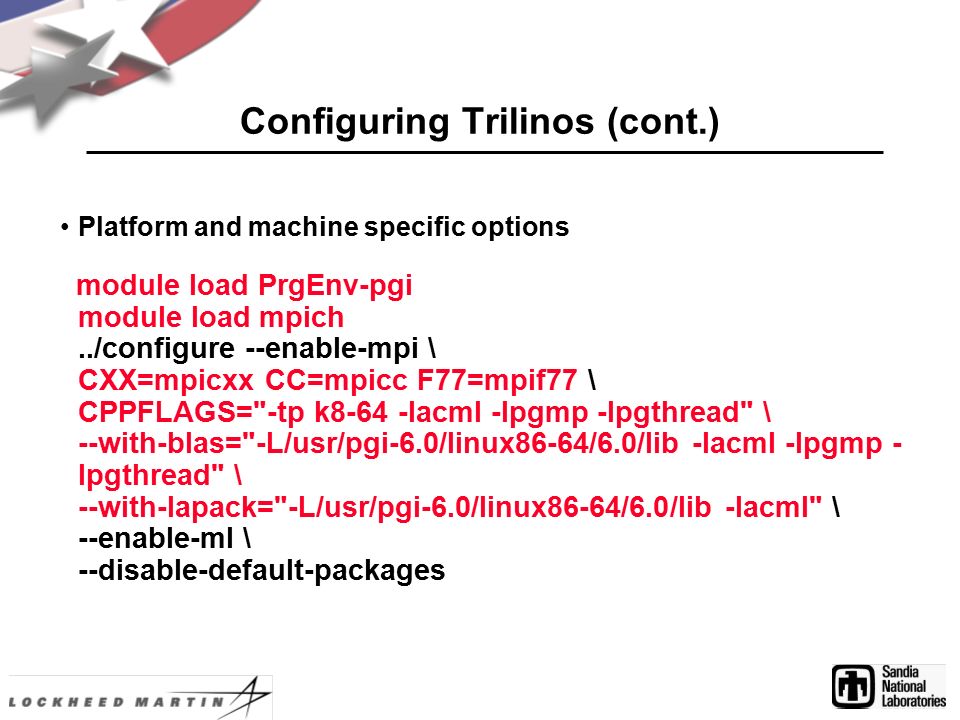

12. Configuring Trilinos (cont.) Platform and machine specific options module load PrgEnv-pgi module load mpich../configure --enable-mpi \ CXX=mpicxx CC=mpicc F77=mpif77 \ CPPFLAGS="-tp k8-64 -lacml -lpgmp -lpgthread" \ --with-blas="-L/usr/pgi-6.0/linux86-64/6.0/lib -lacml -lpgmp - lpgthread" \ --with-lapack="-L/usr/pgi-6.0/linux86-64/6.0/lib -lacml" \ --enable-ml \ --disable-default-packages

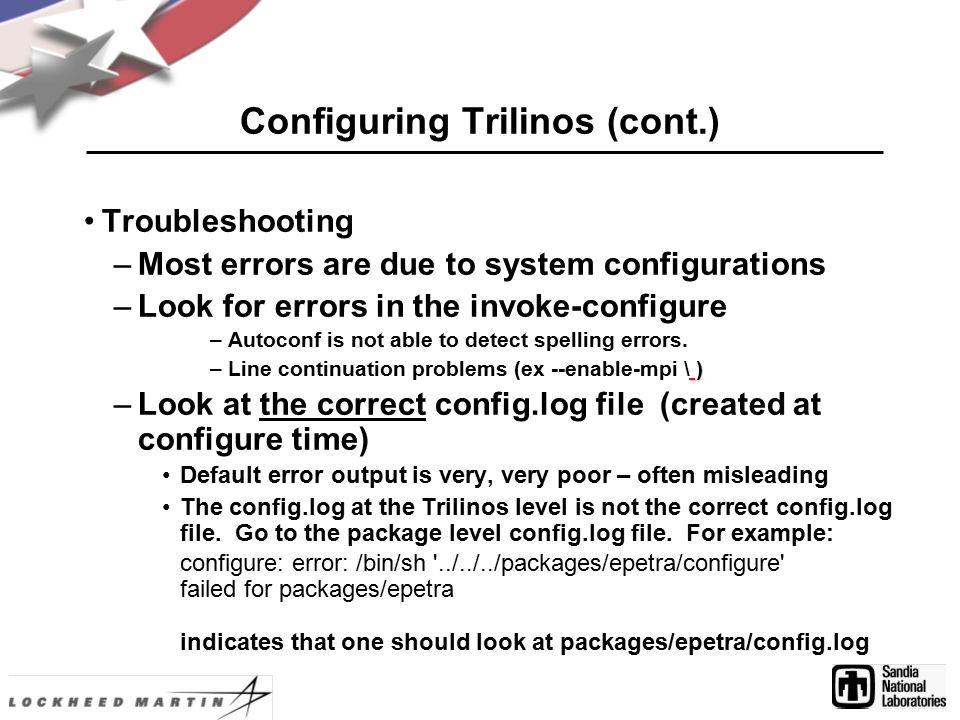

13. Configuring Trilinos (cont.) Troubleshooting –Most errors are due to system configurations –Look for errors in the invoke-configure –Autoconf is not able to detect spelling errors. ) –Line continuation problems (ex --enable-mpi \ ) –Look at the correct config.log file (created at configure time) Default error output is very, very poor – often misleading The config.log at the Trilinos level is not the correct config.log file. Go to the package level config.log file. For example: configure: error: /bin/sh '../../../packages/epetra/configure' failed for packages/epetra indicates that one should look at packages/epetra/config.log

14. Troubleshooting using config.log The config.log file is very long –To find what you need, search for the string “Cache” ## ------------------------ ## ## Cache variables. ## ## ----------------------- ## –The error that caused the configure failure can be found above this point, but typically not directly above

15. Working Through a config.log File Here is a common configure error –error: Cannot find lapack library, specify a path using --with-ldflags=-I (ex. --with-dlflags=- I/usr/path/lib) or a specific library using --with- lapack=DIR/LIB (ex. --with- lapack=/usr/path/lib/libcxml.a) Look for last successful configure check –In this case it would be a BLAS check –Directly beneath that check will be the failed check –Could be Missing library (undefined symbol) Incorrect path ??

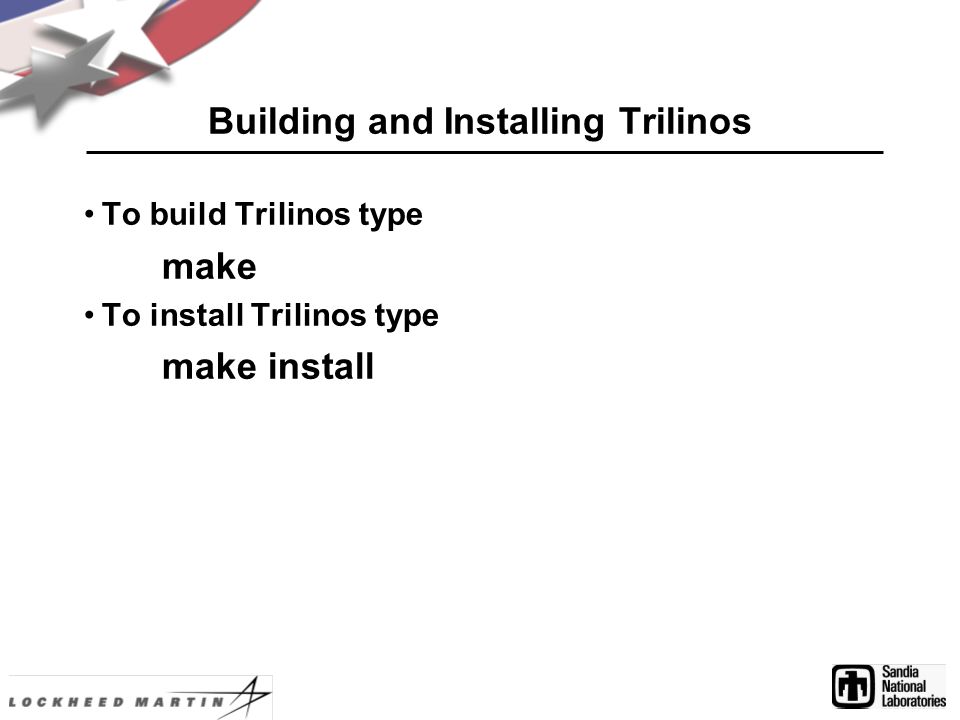

16. Building and Installing Trilinos To build Trilinos type make To install Trilinos type make install

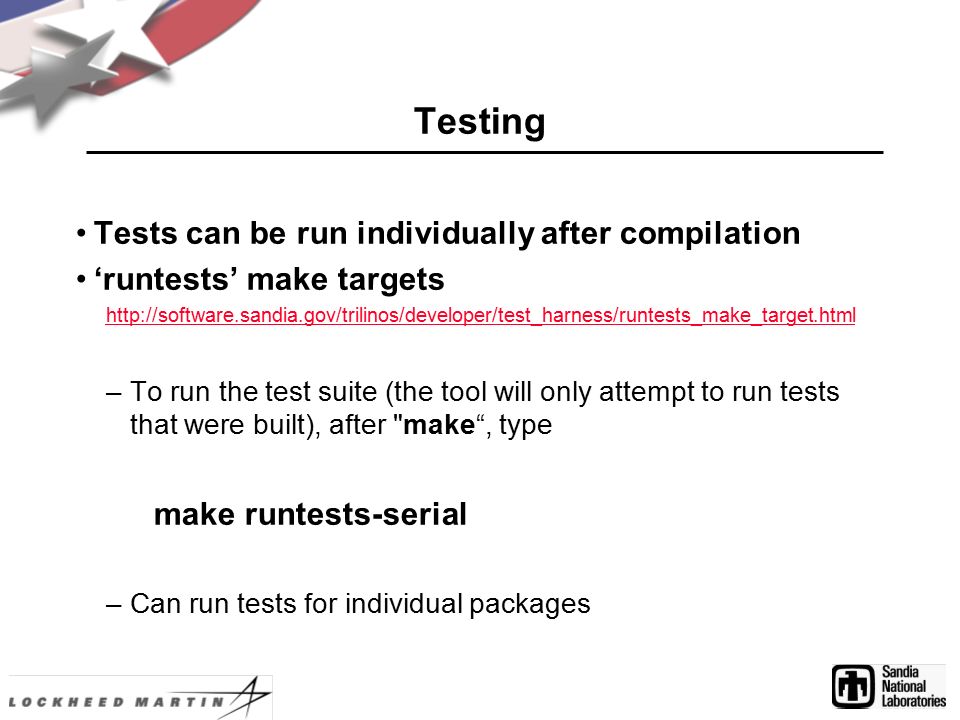

17. Testing Tests can be run individually after compilation ‘runtests’ make targets http://software.sandia.gov/trilinos/developer/test_harness/runtests_make_target.html –To run the test suite (the tool will only attempt to run tests that were built), after "make“, type make runtests-serial –Can run tests for individual packages

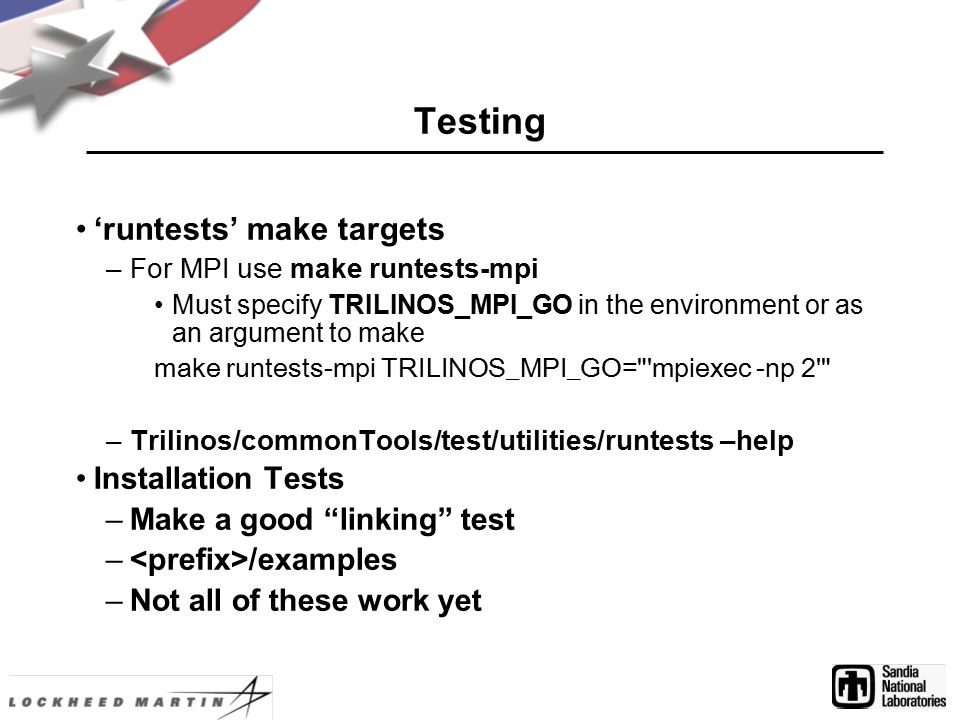

18. Testing ‘runtests’ make targets –For MPI use make runtests-mpi Must specify TRILINOS_MPI_GO in the environment or as an argument to make make runtests-mpi TRILINOS_MPI_GO="'mpiexec -np 2'" –Trilinos/commonTools/test/utilities/runtests –help Installation Tests –Make a good “linking” test – /examples –Not all of these work yet

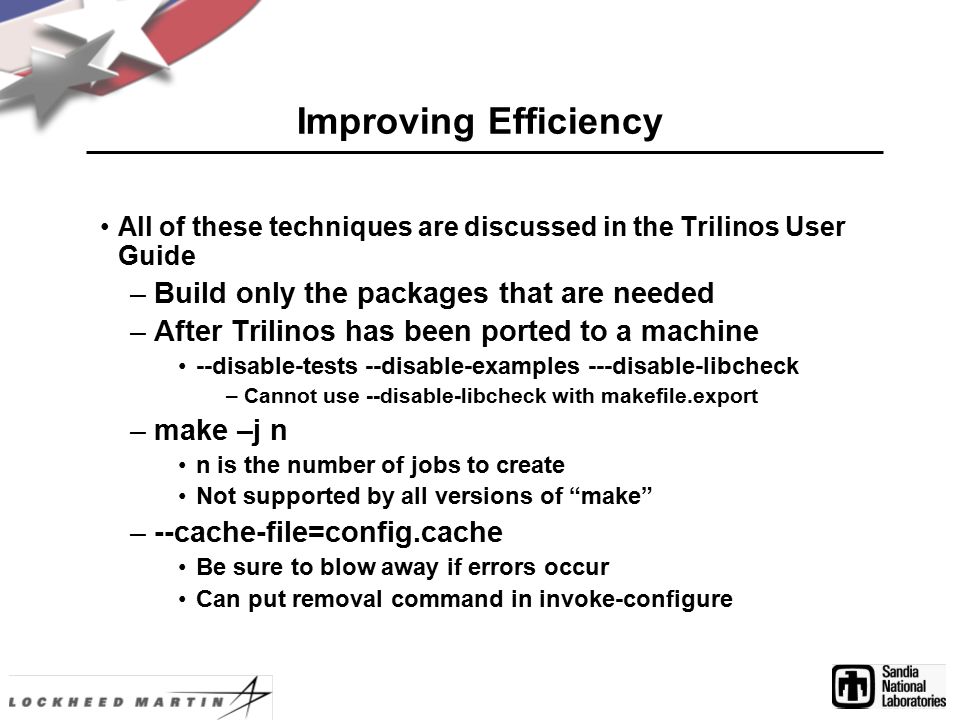

19. Improving Efficiency All of these techniques are discussed in the Trilinos User Guide –Build only the packages that are needed –After Trilinos has been ported to a machine --disable-tests --disable-examples ---disable-libcheck –Cannot use --disable-libcheck with makefile.export –make –j n n is the number of jobs to create Not supported by all versions of “make” –--cache-file=config.cache Be sure to blow away if errors occur Can put removal command in invoke-configure

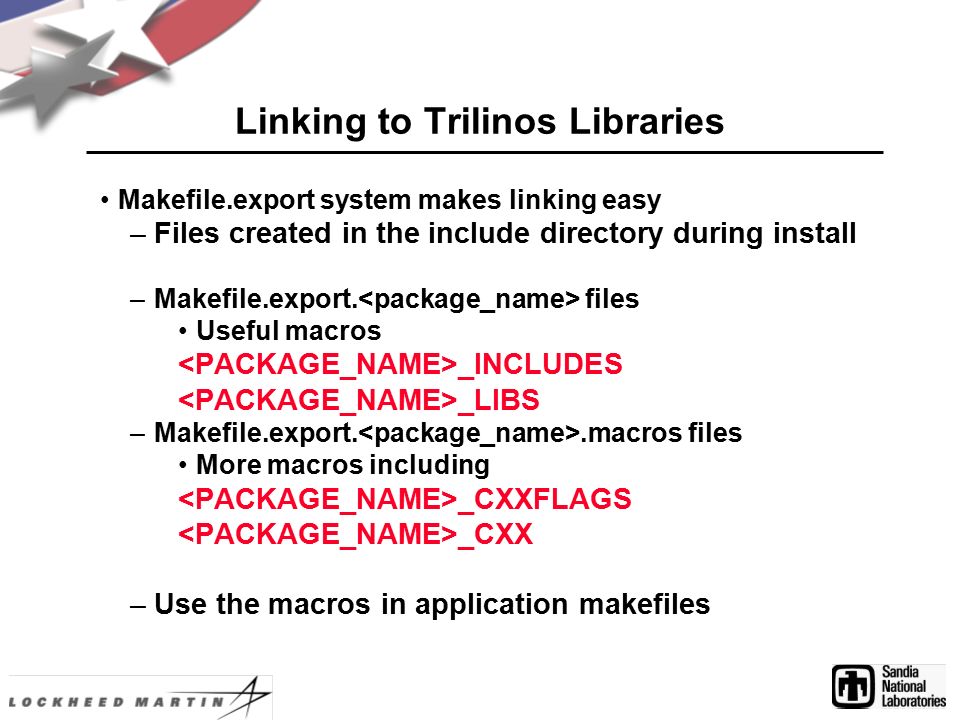

20. Linking to Trilinos Libraries Makefile.export system makes linking easy –Files created in the include directory during install –Makefile.export. files Useful macros _INCLUDES _LIBS –Makefile.export..macros files More macros including _CXXFLAGS _CXX –Use the macros in application makefiles

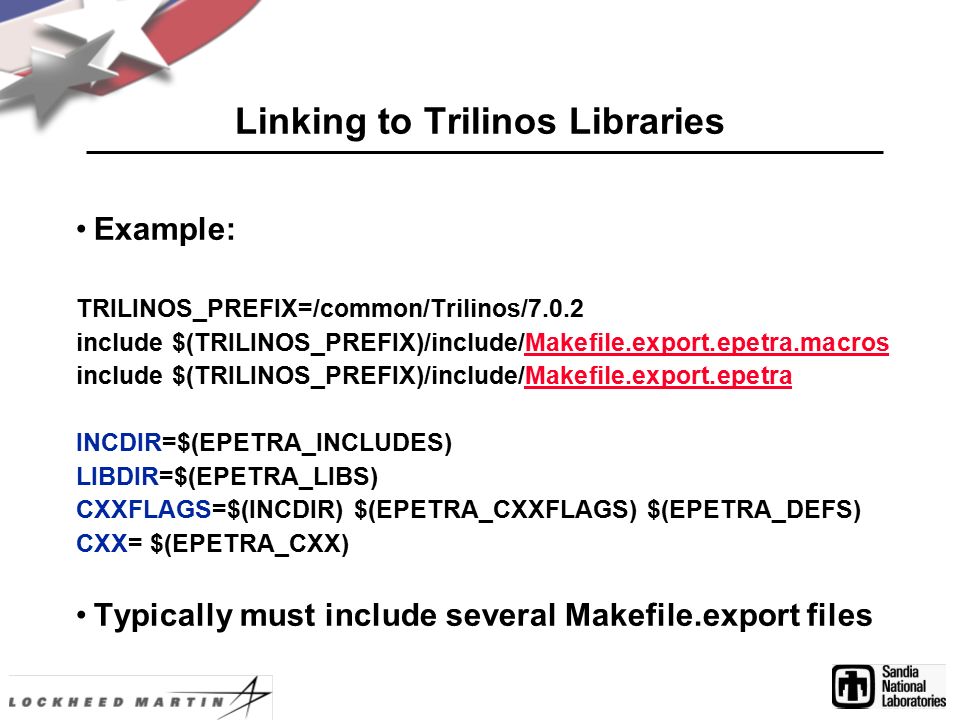

21. Linking to Trilinos Libraries Example: TRILINOS_PREFIX=/common/Trilinos/7.0.2 include $(TRILINOS_PREFIX)/include/Makefile.export.epetra.macrosMakefile.export.epetra.macros include $(TRILINOS_PREFIX)/include/Makefile.export.epetraMakefile.export.epetra INCDIR=$(EPETRA_INCLUDES) LIBDIR=$(EPETRA_LIBS) CXXFLAGS=$(INCDIR) $(EPETRA_CXXFLAGS) $(EPETRA_DEFS) CXX= $(EPETRA_CXX) Typically must include several Makefile.export files

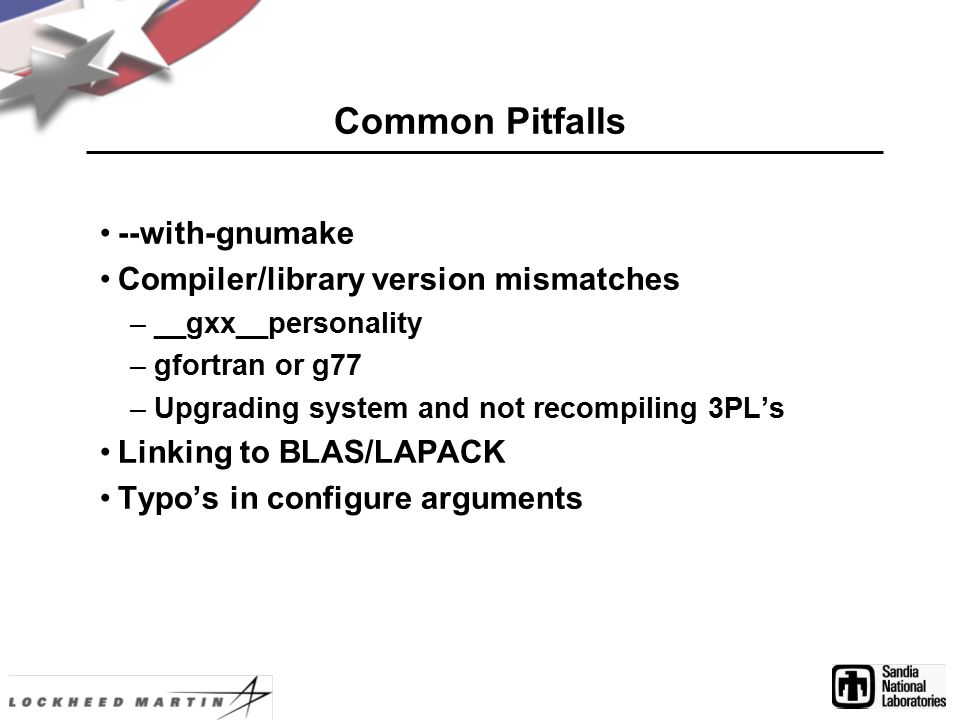

22. Common Pitfalls --with-gnumake Compiler/library version mismatches –__gxx__personality –gfortran or g77 –Upgrading system and not recompiling 3PL’s Linking to BLAS/LAPACK Typo’s in configure arguments

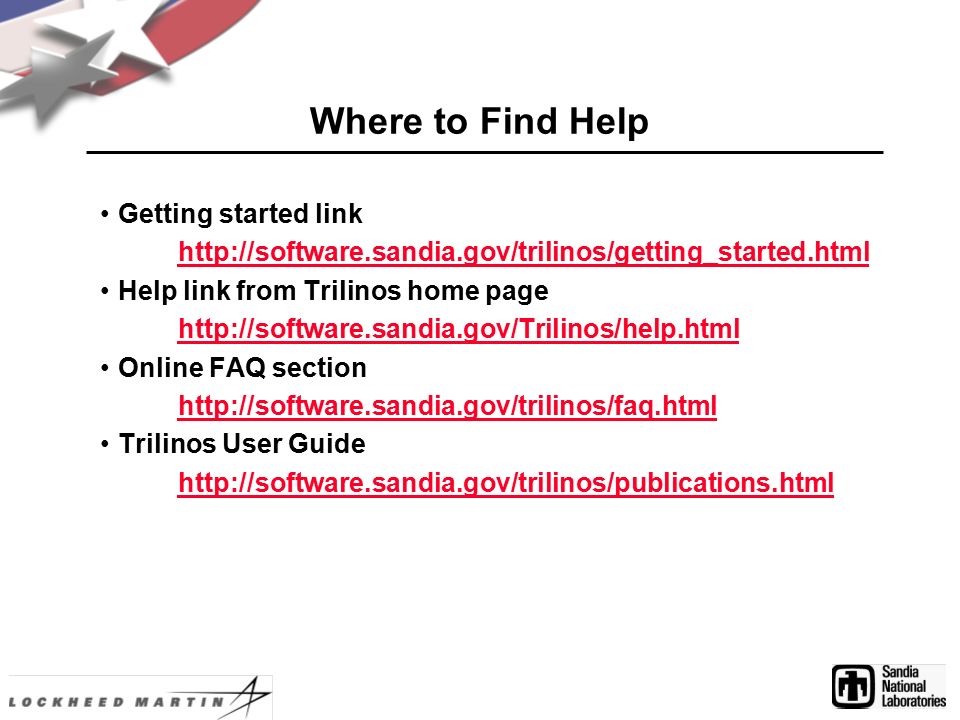

23. Where to Find Help Getting started link http://software.sandia.gov/trilinos/getting_started.html Help link from Trilinos home page http://software.sandia.gov/Trilinos/help.html Online FAQ section http://software.sandia.gov/trilinos/faq.html Trilinos User Guide http://software.sandia.gov/trilinos/publications.html

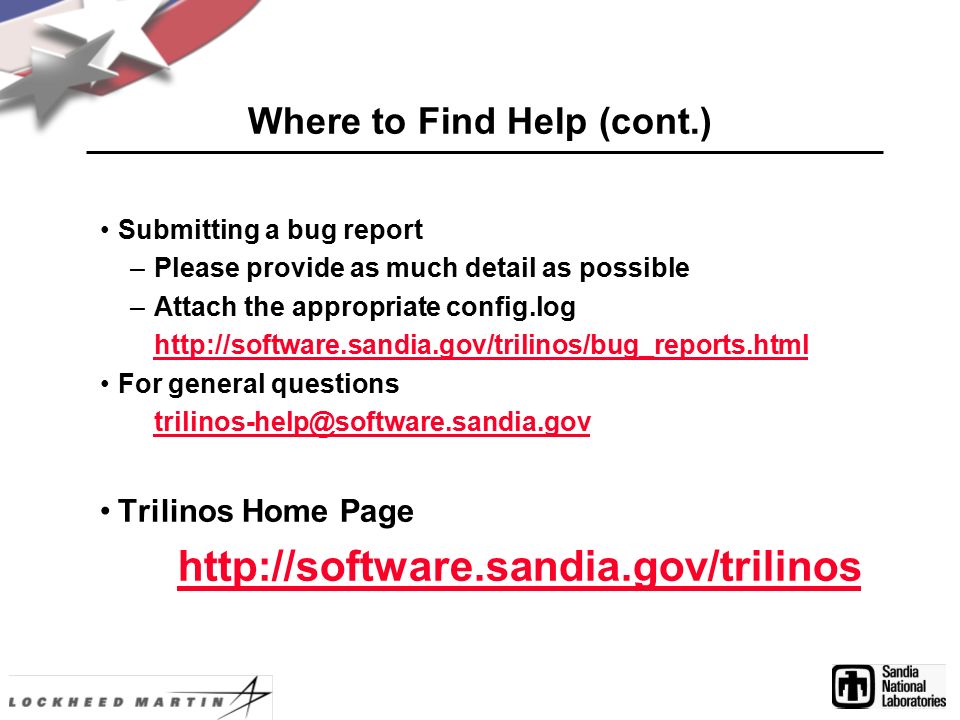

24. Where to Find Help (cont.) Submitting a bug report –Please provide as much detail as possible –Attach the appropriate config.log http://software.sandia.gov/trilinos/bug_reports.html For general questions trilinos-help@software.sandia.gov Trilinos Home Page http://software.sandia.gov/trilinos

25. Discussion Questions, comments?
