1. REST

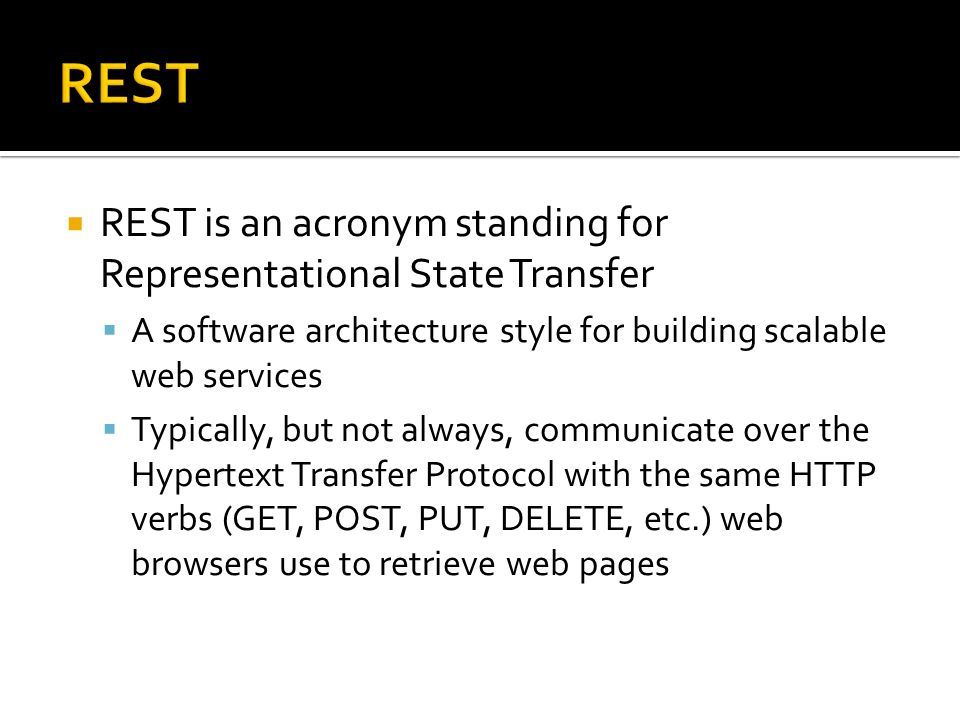

2.  REST is an acronym standing for Representational State Transfer  A software architecture style for building scalable web services  Typically, but not always, communicate over the Hypertext Transfer Protocol with the same HTTP verbs (GET, POST, PUT, DELETE, etc.) web browsers use to retrieve web pages

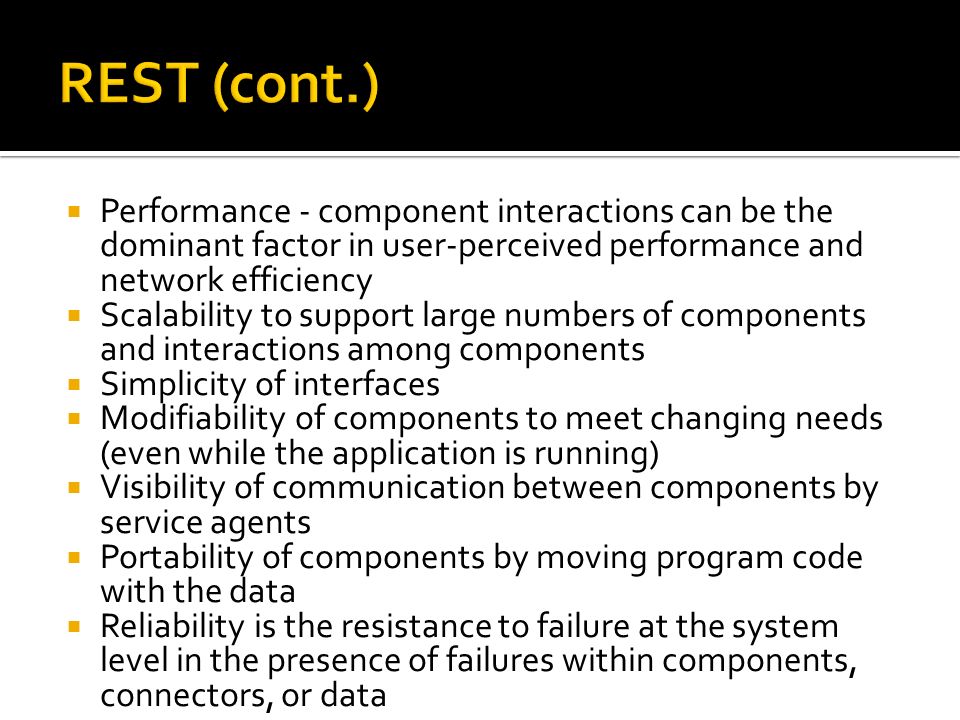

3.  Performance - component interactions can be the dominant factor in user-perceived performance and network efficiency  Scalability to support large numbers of components and interactions among components  Simplicity of interfaces  Modifiability of components to meet changing needs (even while the application is running)  Visibility of communication between components by service agents  Portability of components by moving program code with the data  Reliability is the resistance to failure at the system level in the presence of failures within components, connectors, or data

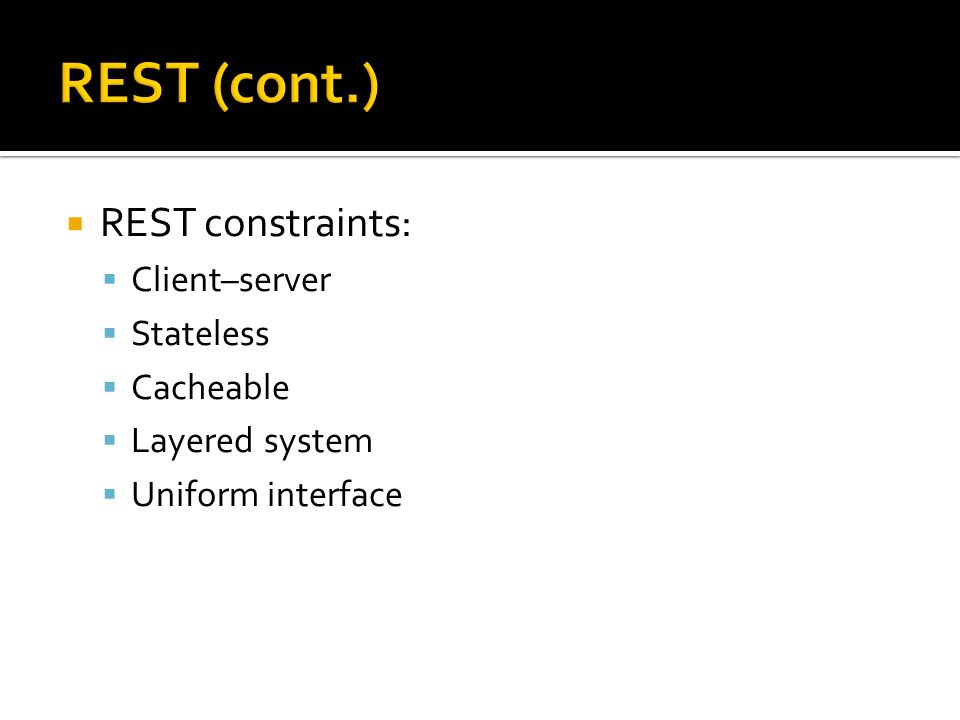

4.  REST constraints:  Client–server  Stateless  Cacheable  Layered system  Uniform interface

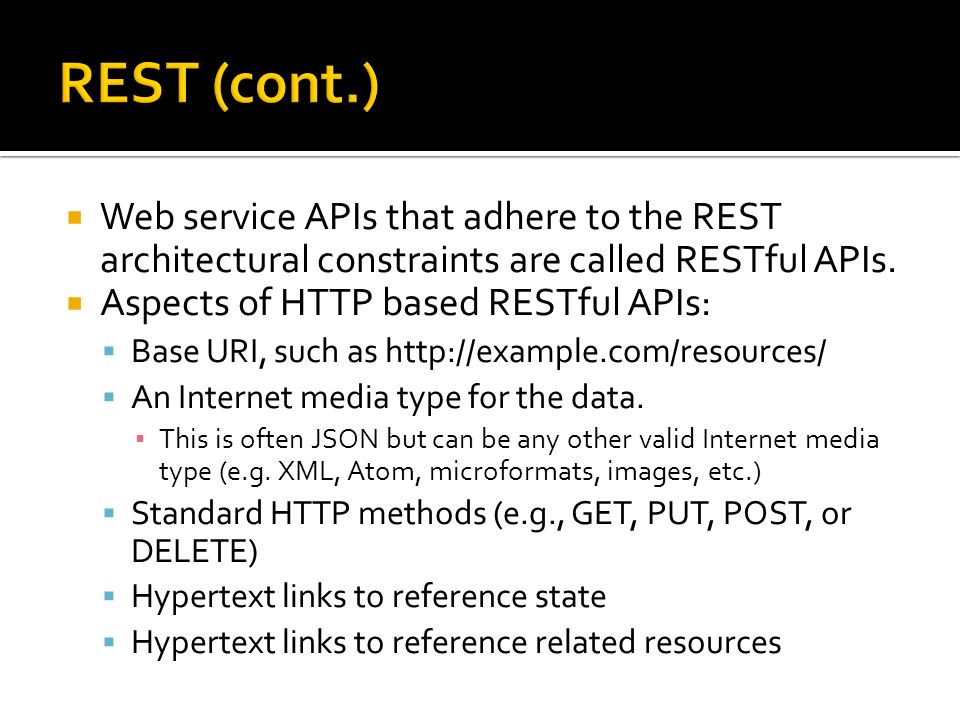

5.  Web service APIs that adhere to the REST architectural constraints are called RESTful APIs.  Aspects of HTTP based RESTful APIs:  Base URI, such as http://example.com/resources/  An Internet media type for the data. ▪ This is often JSON but can be any other valid Internet media type (e.g. XML, Atom, microformats, images, etc.)  Standard HTTP methods (e.g., GET, PUT, POST, or DELETE)  Hypertext links to reference state  Hypertext links to reference related resources

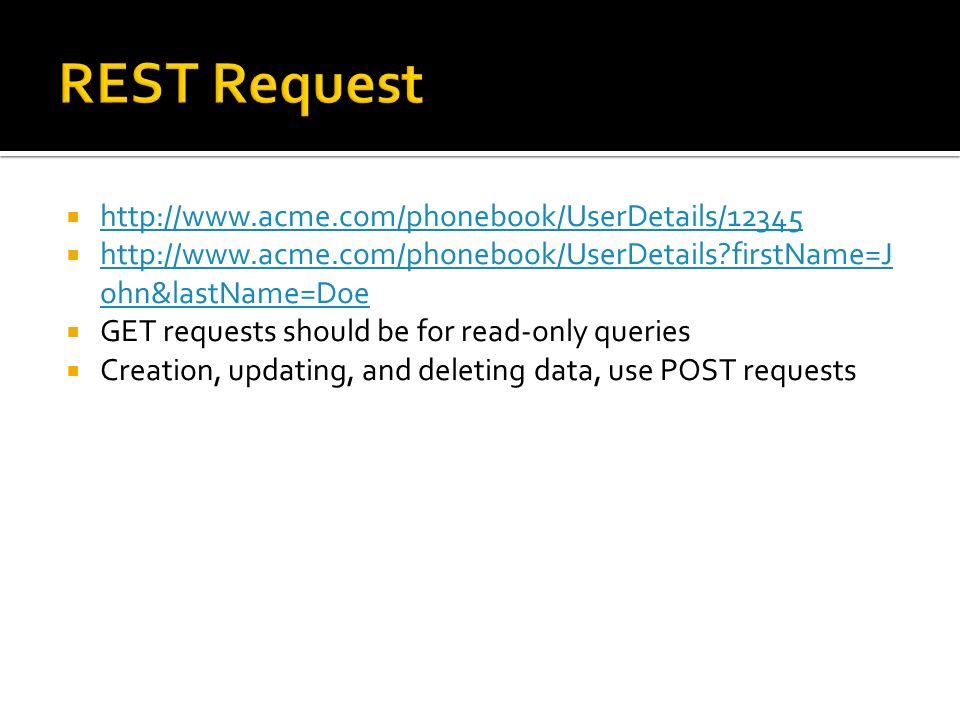

6.  http://www.acme.com/phonebook/UserDetails/12345 http://www.acme.com/phonebook/UserDetails/12345  http://www.acme.com/phonebook/UserDetails?firstName=J ohn&lastName=Doe http://www.acme.com/phonebook/UserDetails?firstName=J ohn&lastName=Doe  GET requests should be for read-only queries  Creation, updating, and deleting data, use POST requests

7.  The Google Glass API, known as "Mirror API", is a pure REST API  Twitter has a REST API  https://dev.twitter.com/docs/api https://dev.twitter.com/docs/api  Flickr  http://www.flickr.com/services/api/ http://www.flickr.com/services/api/  Amazon.com offer several REST services, e.g., for their S3 storage solution,  Tesla Model S uses an (undocumented) REST API between the car systems and its Android/iOS apps.

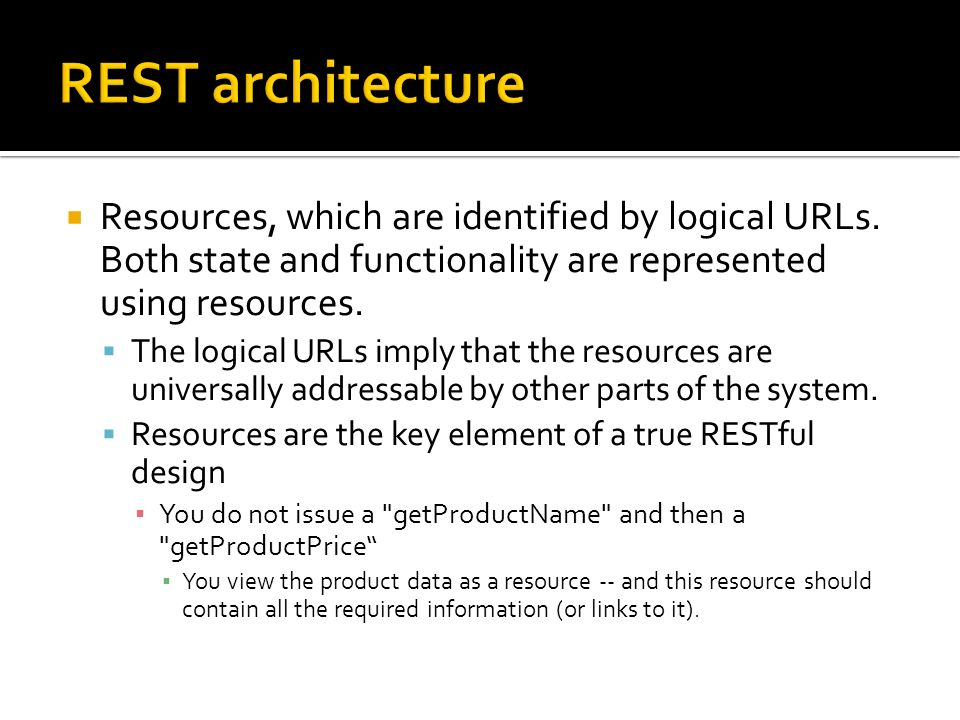

8.  Resources, which are identified by logical URLs. Both state and functionality are represented using resources.  The logical URLs imply that the resources are universally addressable by other parts of the system.  Resources are the key element of a true RESTful design ▪ You do not issue a "getProductName" and then a "getProductPrice“ ▪ You view the product data as a resource -- and this resource should contain all the required information (or links to it).

9.  There is no connection state; interaction is stateless (although the servers and resources can of course be stateful).  Each new request should carry all the information required to complete it, and must not rely on previous interactions with the same client.  Resources should be cachable whenever possible (with an expiration date/time).  The protocol must allow the server to explicitly specify which resources may be cached, and for how long. ▪ Since HTTP is universally used as the REST protocol, the HTTP cache-control headers are used for this purpose.

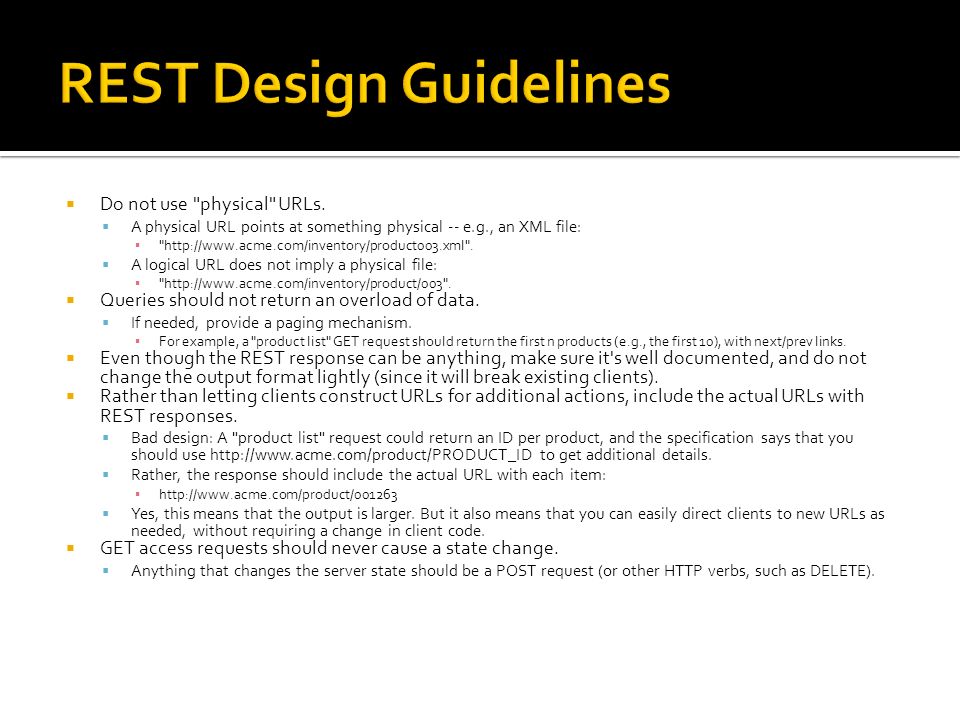

10.  Do not use "physical" URLs.  A physical URL points at something physical -- e.g., an XML file: ▪ "http://www.acme.com/inventory/product003.xml".  A logical URL does not imply a physical file: ▪ "http://www.acme.com/inventory/product/003".  Queries should not return an overload of data.  If needed, provide a paging mechanism. ▪ For example, a "product list" GET request should return the first n products (e.g., the first 10), with next/prev links.  Even though the REST response can be anything, make sure it's well documented, and do not change the output format lightly (since it will break existing clients).  Rather than letting clients construct URLs for additional actions, include the actual URLs with REST responses.  Bad design: A "product list" request could return an ID per product, and the specification says that you should use http://www.acme.com/product/PRODUCT_ID to get additional details.  Rather, the response should include the actual URL with each item: ▪ http://www.acme.com/product/001263  Yes, this means that the output is larger. But it also means that you can easily direct clients to new URLs as needed, without requiring a change in client code.  GET access requests should never cause a state change.  Anything that changes the server state should be a POST request (or other HTTP verbs, such as DELETE).

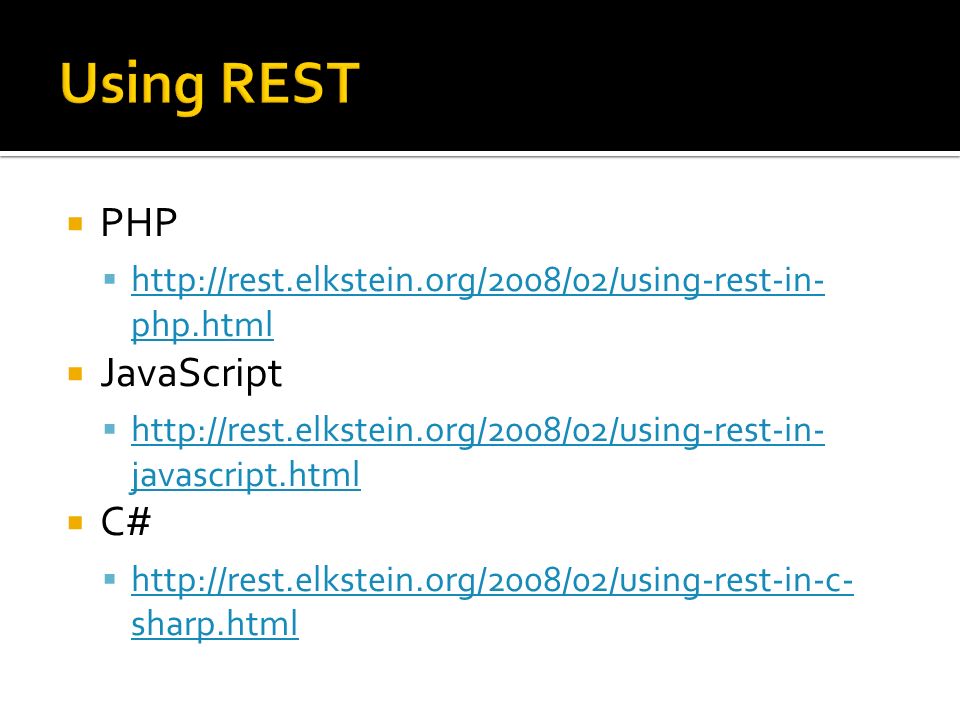

11.  PHP  http://rest.elkstein.org/2008/02/using-rest-in- php.html http://rest.elkstein.org/2008/02/using-rest-in- php.html  JavaScript  http://rest.elkstein.org/2008/02/using-rest-in- javascript.html http://rest.elkstein.org/2008/02/using-rest-in- javascript.html  C#  http://rest.elkstein.org/2008/02/using-rest-in-c- sharp.html http://rest.elkstein.org/2008/02/using-rest-in-c- sharp.html

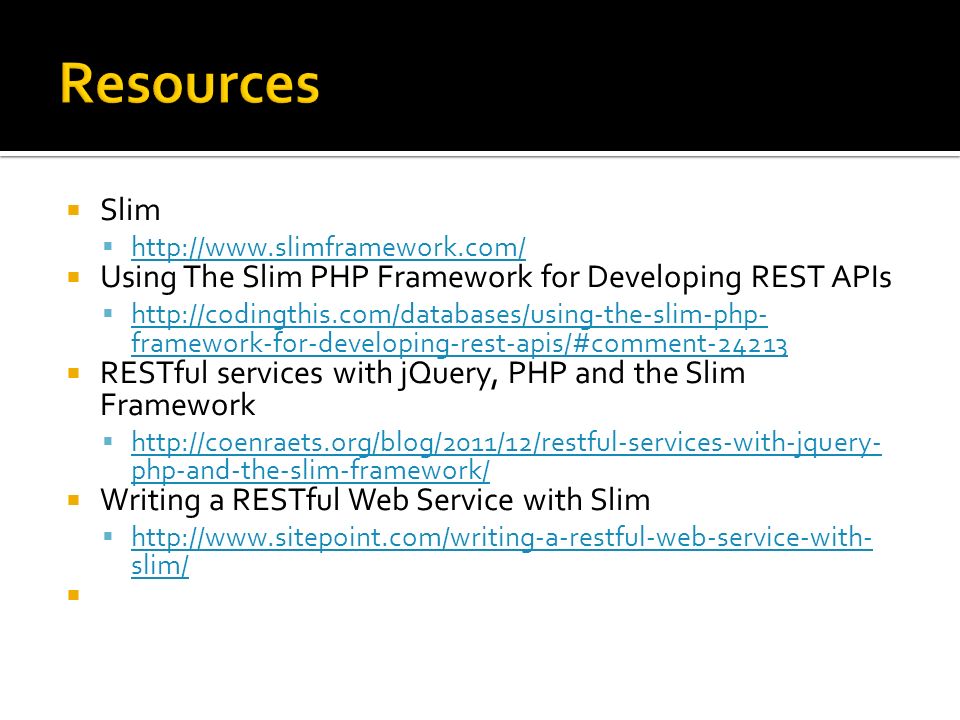

12.  Slim  http://www.slimframework.com/ http://www.slimframework.com/  Using The Slim PHP Framework for Developing REST APIs  http://codingthis.com/databases/using-the-slim-php- framework-for-developing-rest-apis/#comment-24213 http://codingthis.com/databases/using-the-slim-php- framework-for-developing-rest-apis/#comment-24213  RESTful services with jQuery, PHP and the Slim Framework  http://coenraets.org/blog/2011/12/restful-services-with-jquery- php-and-the-slim-framework/ http://coenraets.org/blog/2011/12/restful-services-with-jquery- php-and-the-slim-framework/  Writing a RESTful Web Service with Slim  http://www.sitepoint.com/writing-a-restful-web-service-with- slim/ http://www.sitepoint.com/writing-a-restful-web-service-with- slim/ 

13.  Video  REST+JSON API Design - Best Practices for Developers ▪ https://www.youtube.com/watch?v=hdSrT4yjS1g https://www.youtube.com/watch?v=hdSrT4yjS1g  How to create REST API for Android app using PHP, Slim and MySQL  http://www.androidhive.info/2014/01/how-to-create- rest-api-for-android-app-using-php-slim-and-mysql- day-12-2/ http://www.androidhive.info/2014/01/how-to-create- rest-api-for-android-app-using-php-slim-and-mysql- day-12-2/  http://www.androidhive.info/2014/01/how-to-create- rest-api-for-android-app-using-php-slim-and-mysql- day-23/ http://www.androidhive.info/2014/01/how-to-create- rest-api-for-android-app-using-php-slim-and-mysql- day-23/

14.  List of 40 tutorials on how to create an API  http://blog.mashape.com/list-of-40-tutorials-on- how-to-create-an-api/ http://blog.mashape.com/list-of-40-tutorials-on- how-to-create-an-api/  Building Web Services the REST Way  http://www.xfront.com/REST-Web-Services.html http://www.xfront.com/REST-Web-Services.html
