1. Continental Drift

2. What is continental drift?

3. 1912 Alfred Wegener Hypothesized that- the continents are moving = Continental drift all continents once formed a supercontinent = Pangaea 

4. Many pieces of evidence suggest that Pangaea existed…

5. How do South America and Africa fit together? (Evidence #1) S. America’s east coast fits like a puzzle piece with Africa’s west coast

6. How do South America and Africa fit together? Evidence #1 South America’s east coast fits like a puzzle piece with Africa’s west coast.

7. Look at the two images. What do you notice about the mountains in North America and Europe?

8. Look at the bottom picture. What do you notice about the mountains in North America and Europe? The Appalachian Mtns. (USA) and the mountains in Europe once formed a single mountain range. (Evidence #2) The type of rocks in different continents are similar

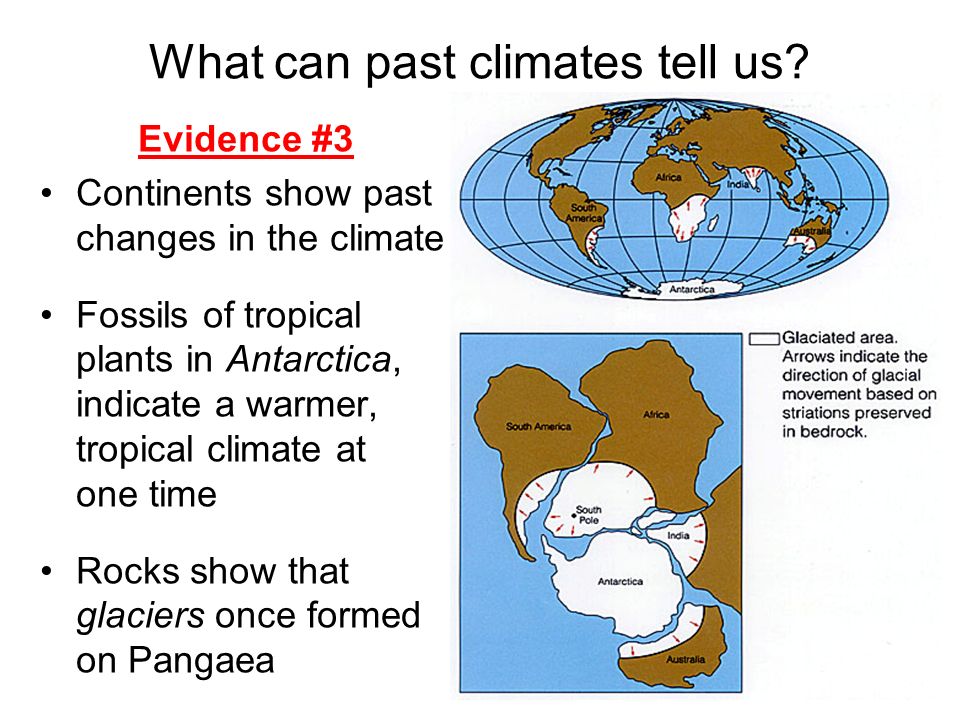

9. What can past climates tell us? Evidence #3 Continents show past changes in the climate Fossils of tropical plants in Antarctica, indicate a warmer, tropical climate at one time Rocks show that glaciers once formed on Pangaea

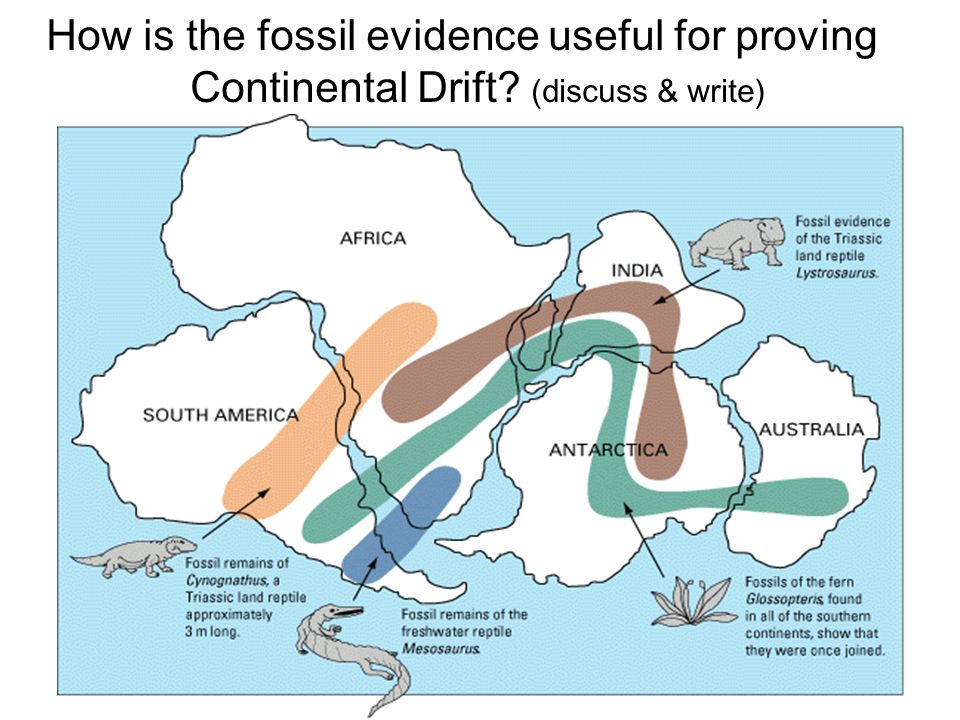

10. Evidence #4 Africa, South America, and Australia all have similar fossils of the fern, Glossopteris. (lighter colored area below)

11. How is the fossil evidence useful for proving Continental Drift? (discuss & write)

12. How do we know that continents are pushed apart?

13. How do we know that continents are pushed apart? Evidence #5 Seafloor spreading at mid-ocean ridges ( 1962 H. Hess ) Rocks made in the Atlantic Ocean are younger (or newer) than the continents Here’s how we know this- Crust furthest from the ridge has older sea-fossils Patterns in iron crystals (paleomagnetism) indicate that ocean crust began forming less than 160 million years ago

14. How many tectonic plates are there? Scientists have identified 7 major plates and 14 smaller ones

15. How many tectonic plates are there? Scientists have identified 7 major plates and many smaller ones Smithsonian

16. Where are volcanoes found? Write down one thing that you notice about where volcanoes occur

17. Where are volcanoes found? Write down one thing that you notice about where volcanoes occur Evidence #6: Volcanoes and earthquakes near plates

18. When did Pangaea break apart? …During the Mesozoic Era, about 200 m.y.a.

19. Summary of evidence: #1 Continental coastlines fit together (Wegener) #2 The type of rocks in different continents are similar (Wegener) #3 Past changes in the climate can be explained by Continental Drift (Wegener) #4 The same plant & animal fossils are found on different continents (Wegener) #5 Seafloor spreading explains plate movement #6 Volcanoes & earthquakes indicate plate movement

20. Handout- Continental Drift Sequence A. Color each continent the same color in each picture of the sequence. B. Identify each continent and label them. C. On the back, describe what happens with the continents as time passes. D. Draw a prediction of where they will be in the future. Continents North America Eurasia South America Antarctica Africa India Australia

21. resources http://www.plainedgeschools.org/swells/pl ate_tectonics.htmhttp://www.plainedgeschools.org/swells/pl ate_tectonics.htm http://slohs.slcusd.org/pages/teachers/rha mley/Biology/Continental%20Drift/Tectonic s.htmlhttp://slohs.slcusd.org/pages/teachers/rha mley/Biology/Continental%20Drift/Tectonic s.html http://geology.rutgers.edu/103web/Pangea breakup/breakupframe.html

22. What is continental drift? 1912 Alfred Wegener Evidence shows that- the continents are moving = Continental drift all continents once formed a supercontinent = Pangaea
