1. Power Quality Control Ing. Jan Šefránek Energetický regulační úřad [Energy Regulatory Office / Czech Republic] Jan.Sefranek@eru.cz Špindlerův Mlýn, 17. – 18. 4. 2013

2. Power supply quality 2 The quality of power supply and services has been defined by the Regulation of ERÚ No. 540/2005 Sb., on power supply quality and related services in power industry, as amended, which stipulates: Required power supply quality and additional services related to regulatory activities in power industry (standards), Amount of compensation for non-observance of prescribed standards, Terms for determination of financial compensation, Procedures for proving the compliance of power quality and services [with standards] Claiming of compensation: Compensation for non-observance of standards should be claimed by customer within 60 calendar days: for non-observance of the guaranteed standard of distribution at that DSO to which respective customer is connected, for non-observance of the guaranteed standard of supply at that supplier which supplies power to customer in accordance with respective contract.

3. Power supply quality 3 Standards define the level of quality which must be attained in each individual case. Standards can be divided into two main groups: a) Standards for power transmission or distribution The first part contains the information related to the continuity of power supply in grids, i.e. the data influenced by fault events or planned events in operated distribution grids. The second part contains standards related to the commercial quality which characterises the ability of power distributor or producer to respond to applicable requirements of end customers; such quality is not directly related to the physical operation of systems. b) Standards for power supply

4. Evaluation of continuity level 4 The Regulation of ERÚ as mentioned above represents also the basis for monitoring and evaluation of Power Transmission / Distribution System Continuity Level. Power transmission indices: Average power transmission interruption duration – in the evaluated year), Energy Not Supplied (ENS). Power distribution indices: System Average Interruption Frequency Index (SAIFI = Average number of interruptions that a customer would experience - in the evaluated period), System Average Interruption Duration Index (SAIDI = Average outage duration for each customer served - in the evaluated period), Customer Average Interruption Duration Index (CAIDI = Sum of all customer interruption durations divided by Total number of customer interruptions - in the evaluated period) CAIDI = SAIDI / SAIFI

5. Evaluation of power transmission continuity 5 Indices of continuity in 2012: Development of indices: Number of power transmission interruptions in 2012 [-] 1 Total power transmission interruption duration in 2012 [min]4 Average power transmission interruption duration in 2012 [min]4 Energy Not Supplied in 2012 [MWh]4,5 Energy Not Supplied (MWh)Average power transmission interruption duration (min)

6. Evaluation of power distribution continuity 6 It is hardly possible to compare DSOs in a simple way; it is always important to take their profiles in consideration. Profiles of DSOs in the Czech Republic : Company profiles Voltage levels Number of customers [-] Length of cable lines [km] Length of overhead lines [km] Number of transformers [-] ČEZ Distribuce LV3 519 28150 67747 96243 332 HV14 3939 77740 131293 VHV296139 707231 E.ON Distribuce LV1 480 81022 90216 83818 301 HV8 3393 53318 630109 VHV4162 3916 PREdistribuce LV747 5667 756804 008 HV1 9423 746117288 VHV5581440 Total Czech Republic LV5 747 65781 33564 88065 641 HV24 67417 05658 878690 VHV3427712 242237

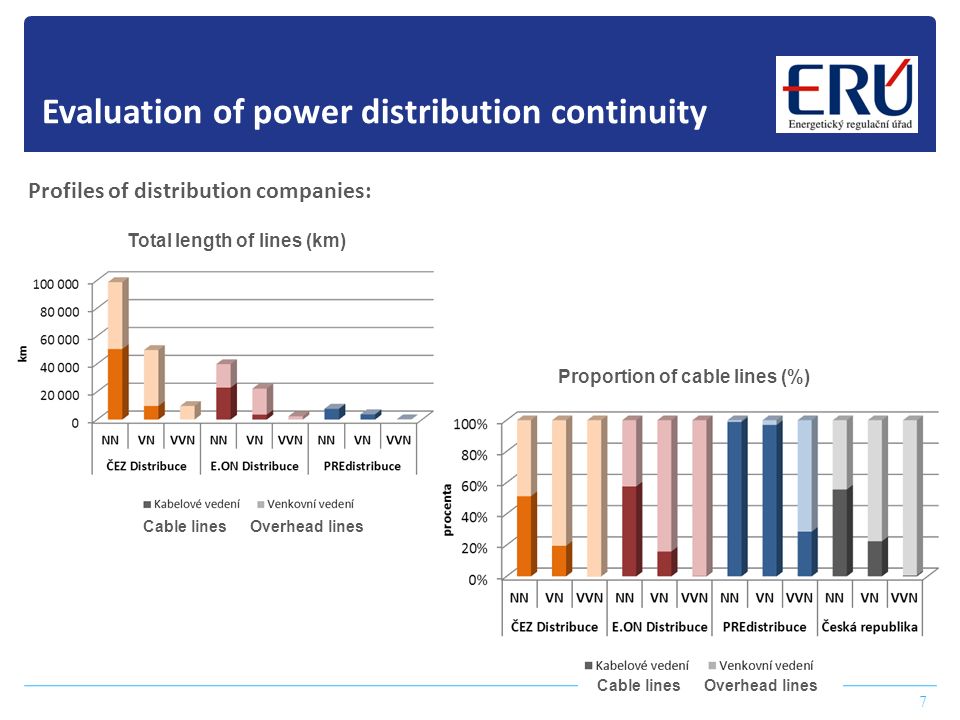

7. Evaluation of power distribution continuity 7 Profiles of distribution companies: Total length of lines (km) Cable lines Overhead lines Proportion of cable lines (%)

8. 8 Indices of continuity in 2011: System indices which include all sorts of interruption according to Appendix No. 4 to the Regulation No. 540/2005 Sb. Development of indices of continuity: Evaluation of power distribution continuity Index*ČEZ DistribuceE.ON DistribucePREdistribuceČeská republika SAIFI [interruptions/yr]2,882,000,652,36 SAIDI [min/yr]296,70314,4046,79268,82 CAIDI [min]103,15157,2672,13113,87

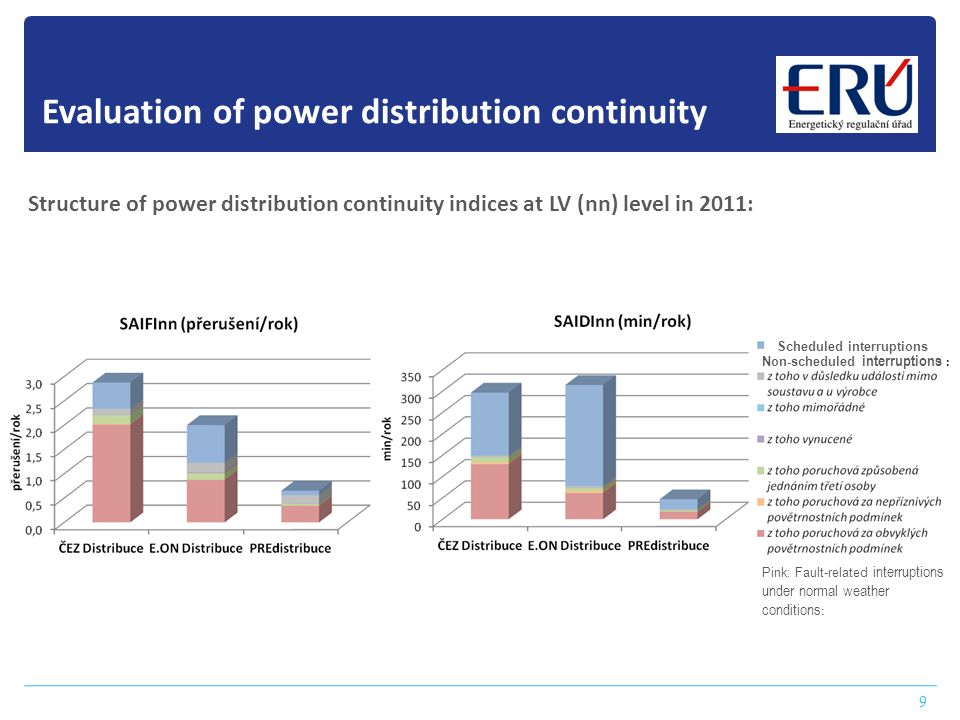

9. 9 Structure of power distribution continuity indices at LV (nn) level in 2011: Evaluation of power distribution continuity Non-scheduled interruptions : Scheduled interruptions Pink: Fault-related interruptions under normal weather conditions :

10. 10 Comparison of power quality level in EU Comparison of power supply quality is quite difficult and often misleading. It is always necessary to take in consideration specific aspects in respective countries, such as the character of grids, mode of grid operation (proportion of cable lines, length of cable outlets, age of grids, etc.), geographic and natural conditions and also historical experience with quality monitoring and purpose of power quality control in respective countries. Power supply continuity can be evaluated using indices which may not be identical in respective countries. The most often used indices, also in the Czech Republic, are SAIFI and SAIDI which are related to the number of customers affected by long-term power distribution interruptions. However, even the methods for calculation of indices are not unified and this aspect should be taken in consideration when comparing actual values – it is important which categories of interruption are involved in relevant indices (see e.g. the differences in Austria, Germany, etc.).

11. 11 Comparison of power quality level in EU Dominant impact on continuity indices has the proportion of cable lines, namely at the HV level. Proportion of cable lines at the LV (NN) and HV (VN) levels

12. 12 Comparison of power quality level in EU Index SAIFI – non-scheduled interruptions without extraordinary events

13. 13 Comparison of power quality level in EU Index SAIDI – non-scheduled interruptions without extraordinary events.

14. 14 Comparison of power quality level in EU Index SAIFI – scheduled interruptions

15. 15 Comparison of power quality level in EU Index SAIDI – scheduled interruptions

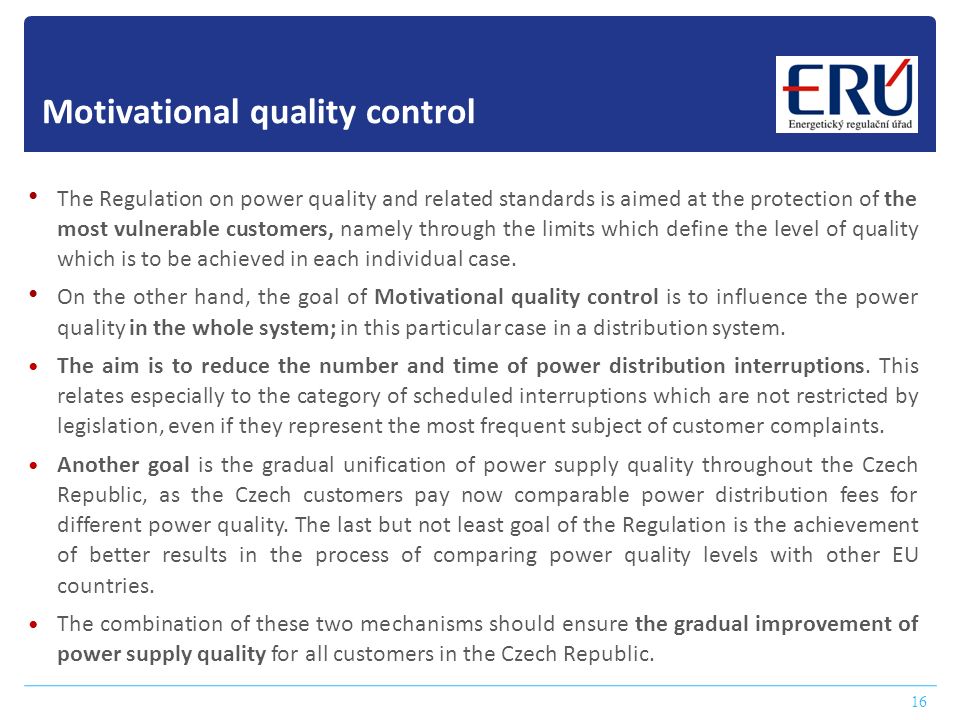

16. 16 Motivational quality control The Regulation on power quality and related standards is aimed at the protection of the most vulnerable customers, namely through the limits which define the level of quality which is to be achieved in each individual case. On the other hand, the goal of Motivational quality control is to influence the power quality in the whole system; in this particular case in a distribution system. The aim is to reduce the number and time of power distribution interruptions. This relates especially to the category of scheduled interruptions which are not restricted by legislation, even if they represent the most frequent subject of customer complaints. Another goal is the gradual unification of power supply quality throughout the Czech Republic, as the Czech customers pay now comparable power distribution fees for different power quality. The last but not least goal of the Regulation is the achievement of better results in the process of comparing power quality levels with other EU countries. The combination of these two mechanisms should ensure the gradual improvement of power supply quality for all customers in the Czech Republic.

17. 17 Motivational quality control In 2012, ERÚ as the Regulator determined the quality indices and respective parameters (the values of such indices) for 2013 for the area of power distribution. This results from the Report of ERÚ on the methodology of regulation for the Third regulation period which introduces the concept of Motivational quality control with its main goal which is to set the required level of quality for provided services in relation to their prices. Any bonus or penalty shall be related to the amount of profit determined by ERÚ for respective period (year) of regulation. Required values of indices SAIFI and SAIDI for 2013 have been determined on the basis of available data from previous periods, such values include further reduction by approx. 5 % (depending on respective company and indices). Such Indices are specifically whole-system continuity indices as defined by the Regulation No. 540/2005 Sb., without taking in consideration those events which happened without any influence of respective Distribution System Operator.

18. 18 Motivational quality control Detailed definitions of respective indices:

19. 19 Motivational quality control Diagram of motivational quality control: Standard value of quality index Neutral zone Higher qualityLower quality Penalty Achieved level of quality index CK – gradient of line

20. Performance/Quality index rating for 2013 20 Setting of required values of indices SAIFI and SAIDI for 2013: The values of parameters for the regulation period [year] 2013 have been set on the basis of detailed evaluation of available data of ERÚ according to the capabilities of individual Distribution System Operators. This relates in particular to the whole-system continuity indices SAIFI and SAIDI as defined by the Regulation No. 540/2005 Sb., without taking in consideration those events which happened without any influence of respective Distribution System Operator. The events which will not be included in the required values of indices for 2013 are in particular the following interruptions:  faulty interruptions caused by any fault with the origin in the equipment or operation of any transmission or distribution system operator under unfavourable weather conditions (16),  faulty interruptions caused by any interference or action of a third person (12),  forced interruptions (15),  extraordinary interruptions (14),  interruptions caused by events from outside (out of TS or DS) or events in power generation units (13).

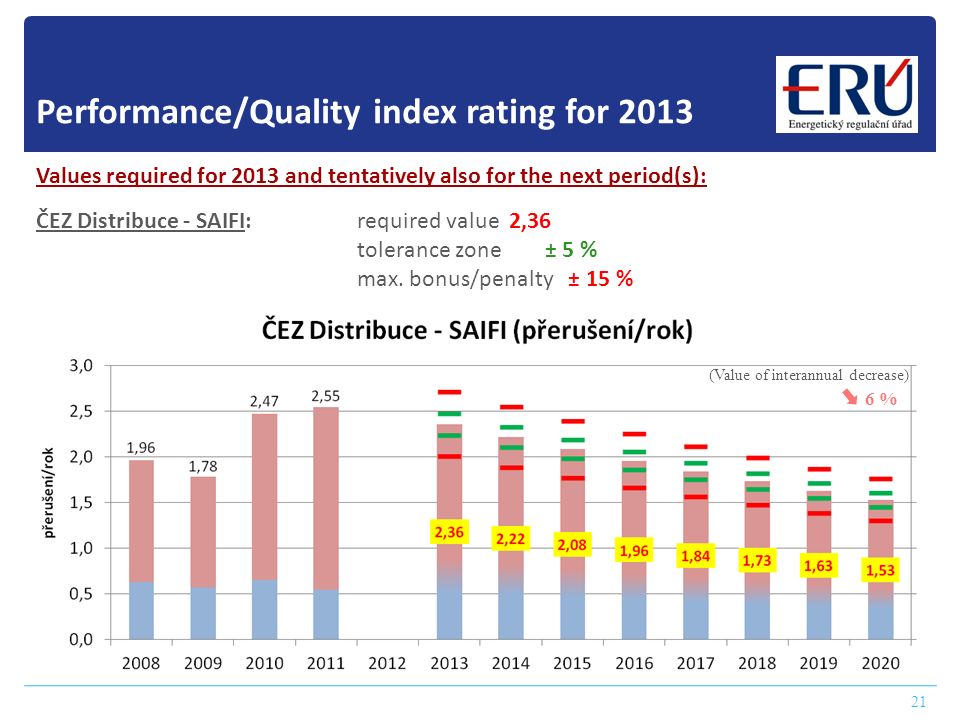

21. Performance/Quality index rating for 2013 21 Values required for 2013 and tentatively also for the next period(s): ČEZ Distribuce - SAIFI: required value 2,36 tolerance zone ± 5 % max. bonus/penalty ± 15 % 6 % (Value of interannual decrease)

22. Performance/Quality index rating for 2013 22 ČEZ Distribuce - SAIDI: required value 262,70 tolerance zone ± 5 % max. bonus/penalty ± 15 % 5 % (Value of interannual decrease)

23. Performance/Quality index rating for 2013 23 E.ON Distribuce - SAIFI: required value 1,57 tolerance zone ± 5 % max. bonus/penalty ± 15 % 4 % (Value of interannual decrease)

24. Performance/Quality index rating for 2013 24 E.ON Distribuce - SAIDI: required value 275,36 tolerance zone ± 5 % max. bonus/penalty ± 15 % 6 % (Value of interannual decrease)

25. Performance/Quality index rating for 2013 25 PREdistribuce - SAIFI: required value 0,44 tolerance zone ± 5 % max. bonus/penalty ± 15 % 5 % (Value of interannual decrease)

26. Performance/Quality index rating for 2013 26 PREdistribuce - SAIDI: required value 37,37 tolerance zone ± 5 % max. bonus/penalty ± 15 % 5 % (Value of interannual decrease)

27. Performance/Quality index rating for the period until 2020 27 A principal and necessary step for the functioning of Motivational quality control in practice is the definition of required goals of the Regulator (ERÚ), i.e. the determination of attainable level of power supply quality in a short-term horizon. It is essential for this step to elaborate a study which would determine the relation between potential measures for [desirable] decrease of values of respective indices (SAIFI, SAIDI) and expenses of individual Distribution System Operators. Based on conclusions of such study, it would be possible to revise the set of required tentative parameters (values) of indices SAIFI and SAIDI in the period until 2020. To get a longer time series of such parameters, it would be possible to use the averaging of values of such indices within e.g. three-year cycles to eliminate their possible oscillation in individual years.  A working group of representatives of ERÚ and DSOs was created in 2012 to deal with these issues.
