1 Why Upgrade to OmniMark V7 from V5: Enterprise Content Processing Copyright © 2003, Stilo Corporation

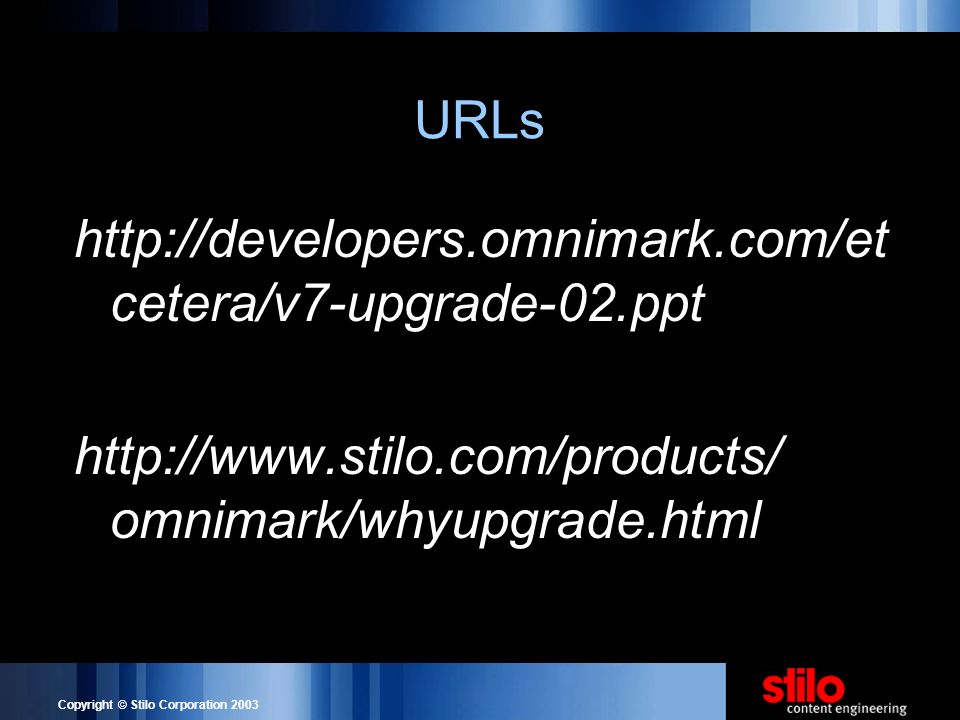

2 2 Copyright © Stilo Corporation 2003 URLs http://developers.omnimark.com/et cetera/v7-upgrade-02.ppt http://www.stilo.com/products/ omnimark/whyupgrade.html

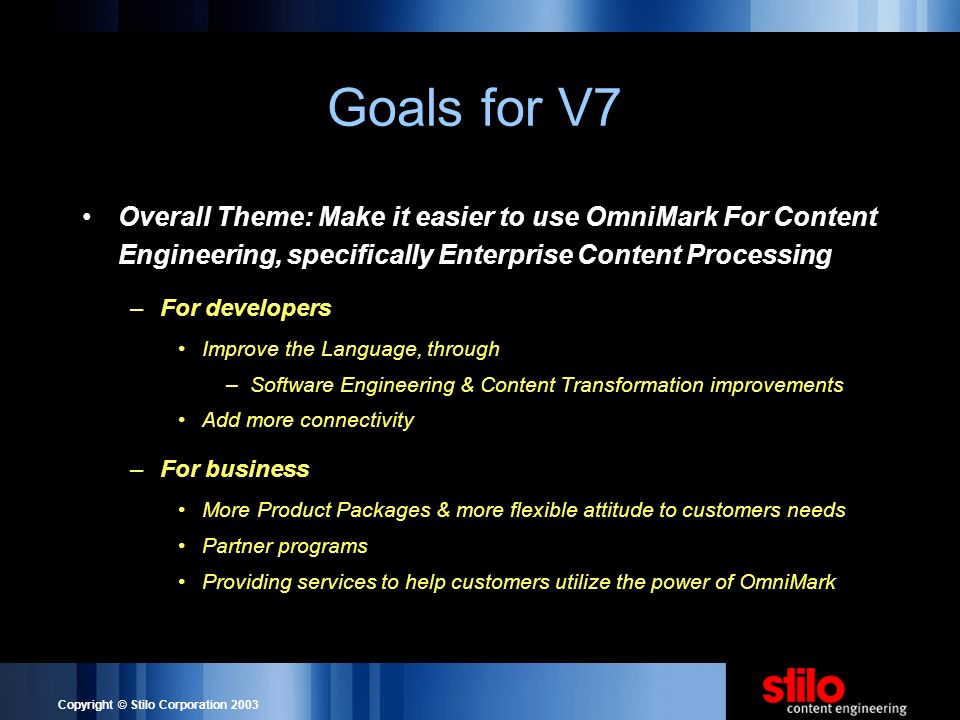

3 3 Copyright © Stilo Corporation 2003 Goals for V7 Overall Theme: Make it easier to use OmniMark For Content Engineering, specifically Enterprise Content Processing –For developers Improve the Language, through –Software Engineering & Content Transformation improvements Add more connectivity –For business More Product Packages & more flexible attitude to customers needs Partner programs Providing services to help customers utilize the power of OmniMark

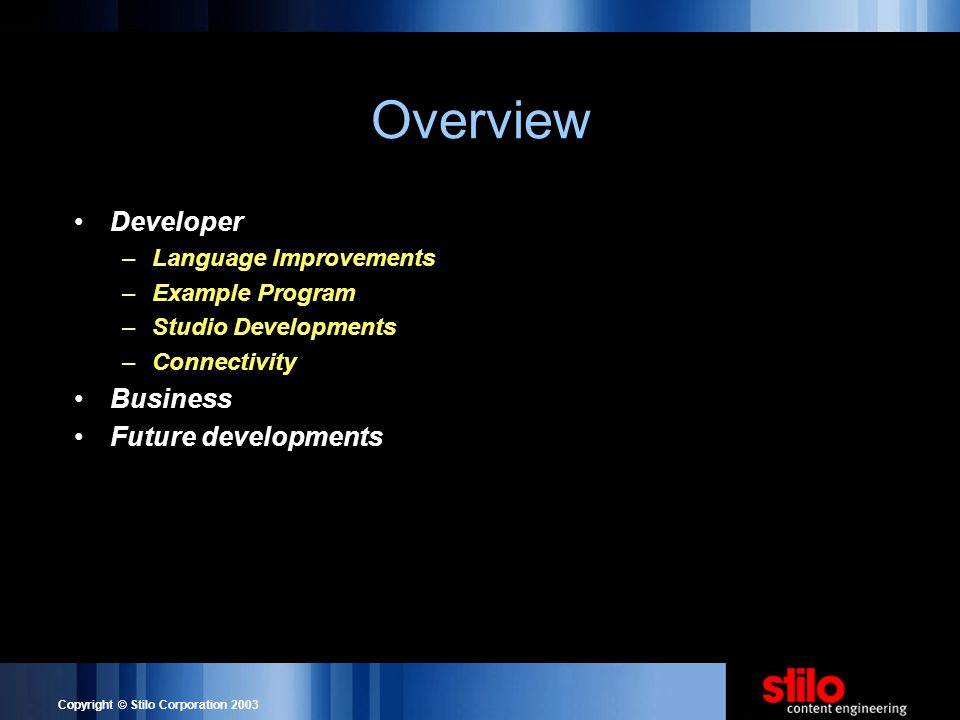

4 4 Copyright © Stilo Corporation 2003 Overview Developer –Language Improvements –Example Program –Studio Developments –Connectivity Business Future developments

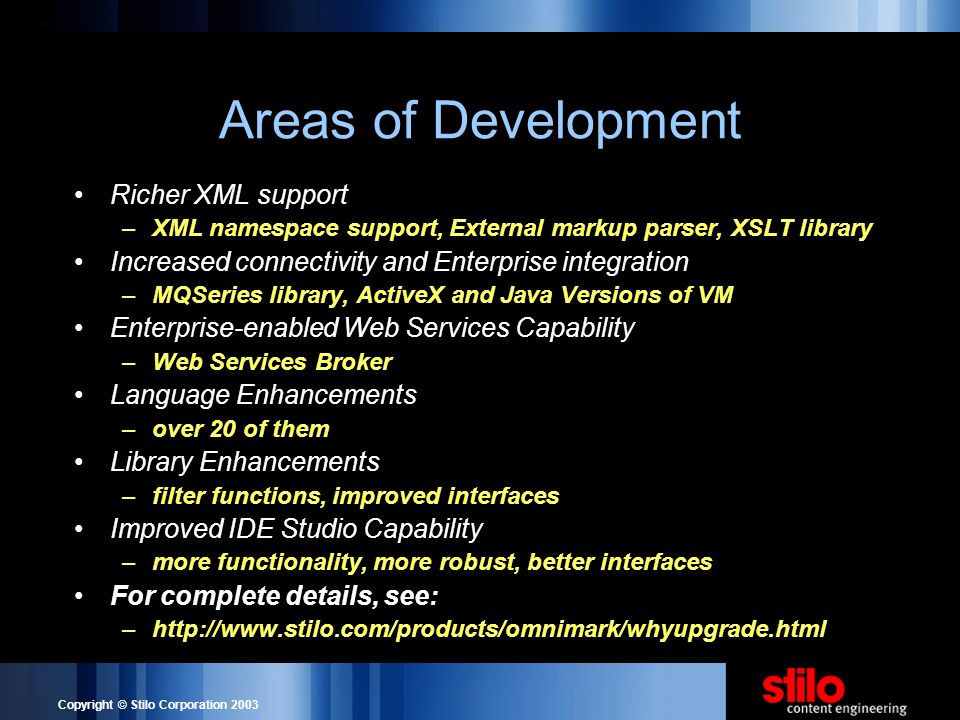

5 5 Copyright © Stilo Corporation 2003 Areas of Development Richer XML support –XML namespace support, External markup parser, XSLT library Increased connectivity and Enterprise integration –MQSeries library, ActiveX and Java Versions of VM Enterprise-enabled Web Services Capability –Web Services Broker Language Enhancements –over 20 of them Library Enhancements –filter functions, improved interfaces Improved IDE Studio Capability –more functionality, more robust, better interfaces For complete details, see: –http://www.stilo.com/products/omnimark/whyupgrade.html

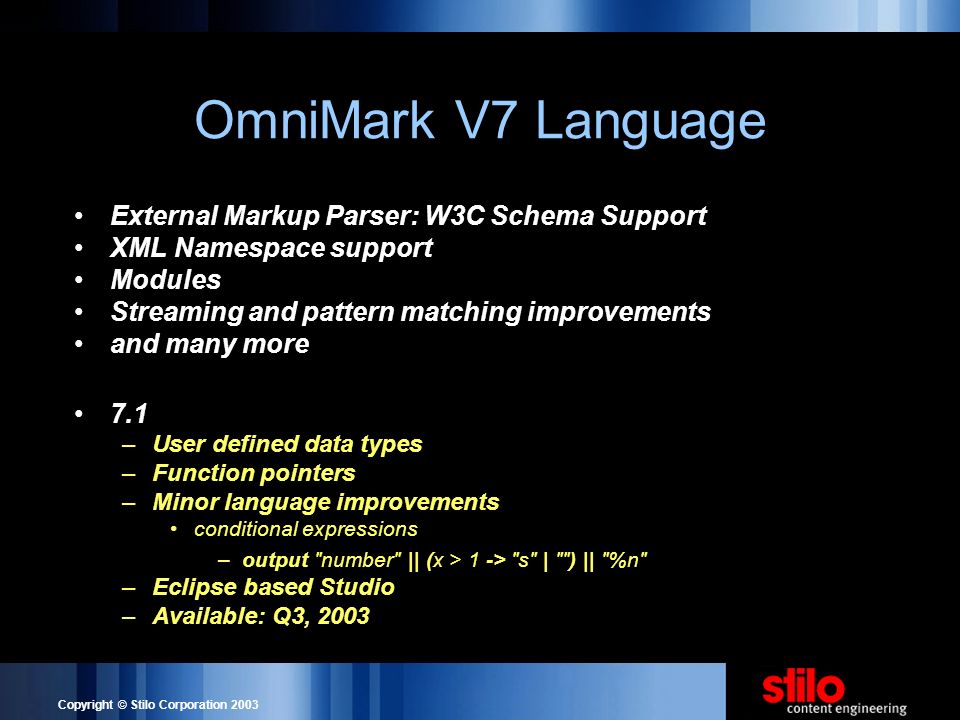

6 6 Copyright © Stilo Corporation 2003 OmniMark V7 Language External Markup Parser: W3C Schema Support XML Namespace support Modules Streaming and pattern matching improvements and many more 7.1 –User defined data types –Function pointers –Minor language improvements conditional expressions –output "number" || (x > 1 -> "s" | "") || "%n" –Eclipse based Studio –Available: Q3, 2003

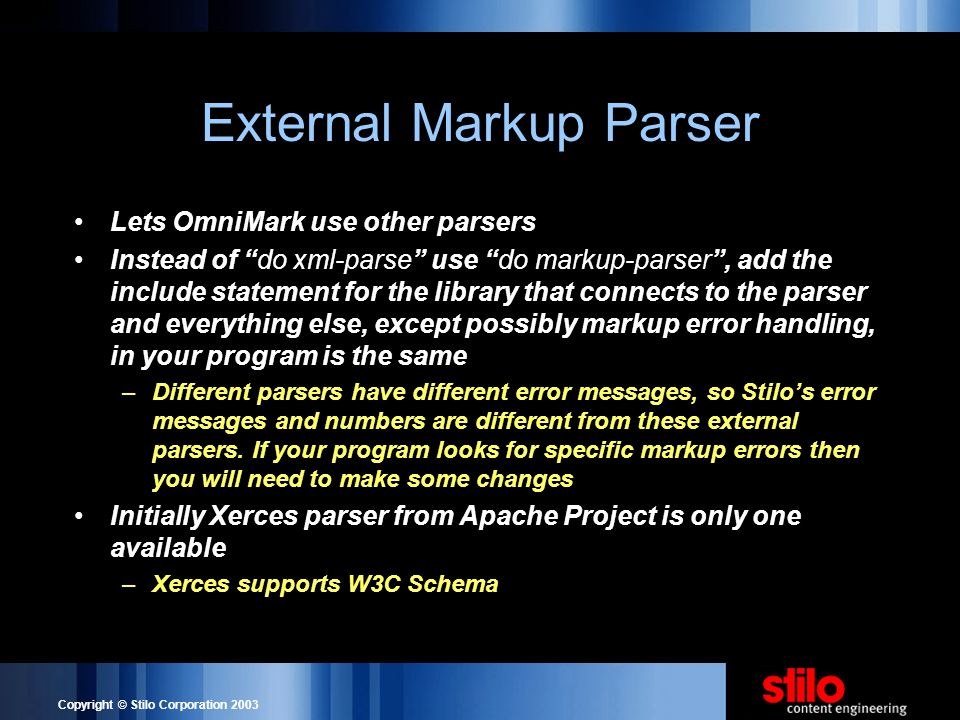

7 7 Copyright © Stilo Corporation 2003 External Markup Parser Lets OmniMark use other parsers Instead of “do xml-parse” use “do markup-parser”, add the include statement for the library that connects to the parser and everything else, except possibly markup error handling, in your program is the same –Different parsers have different error messages, so Stilo’s error messages and numbers are different from these external parsers. If your program looks for specific markup errors then you will need to make some changes Initially Xerces parser from Apache Project is only one available –Xerces supports W3C Schema

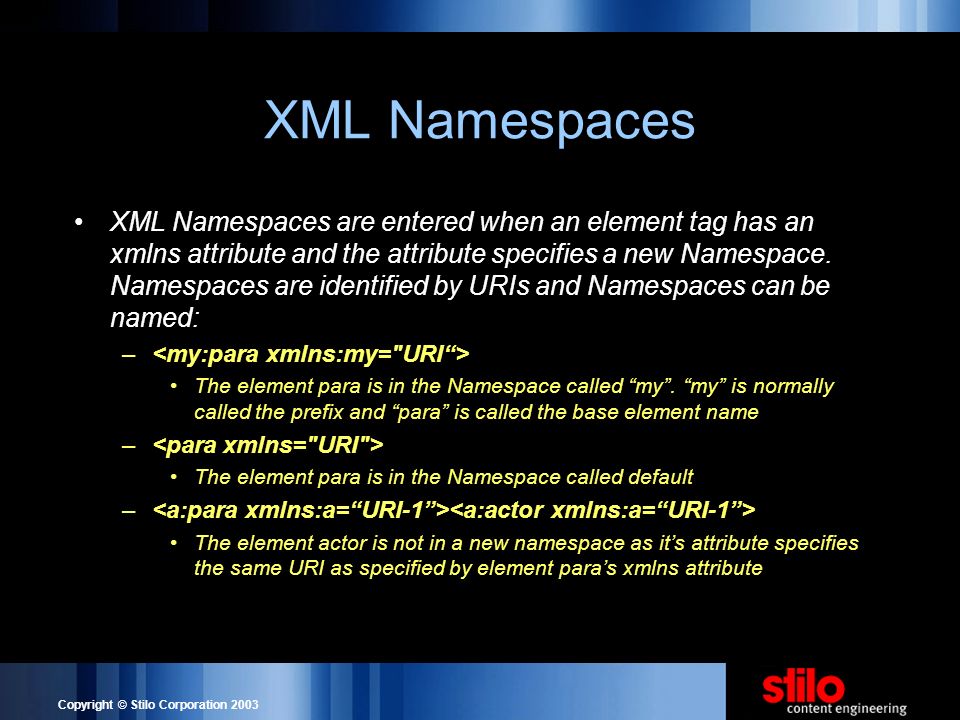

8 8 Copyright © Stilo Corporation 2003 XML Namespaces XML Namespaces are entered when an element tag has an xmlns attribute and the attribute specifies a new Namespace. Namespaces are identified by URIs and Namespaces can be named: – The element para is in the Namespace called “my”. “my” is normally called the prefix and “para” is called the base element name – The element para is in the Namespace called default – The element actor is not in a new namespace as it’s attribute specifies the same URI as specified by element para’s xmlns attribute

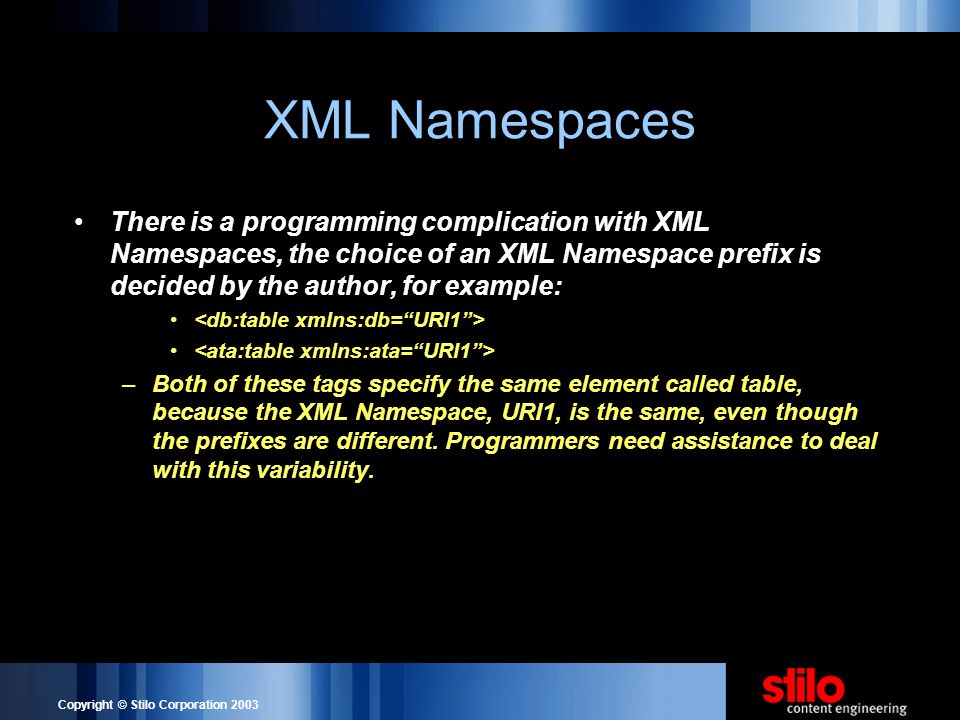

9 9 Copyright © Stilo Corporation 2003 XML Namespaces There is a programming complication with XML Namespaces, the choice of an XML Namespace prefix is decided by the author, for example: –Both of these tags specify the same element called table, because the XML Namespace, URI1, is the same, even though the prefixes are different. Programmers need assistance to deal with this variability.

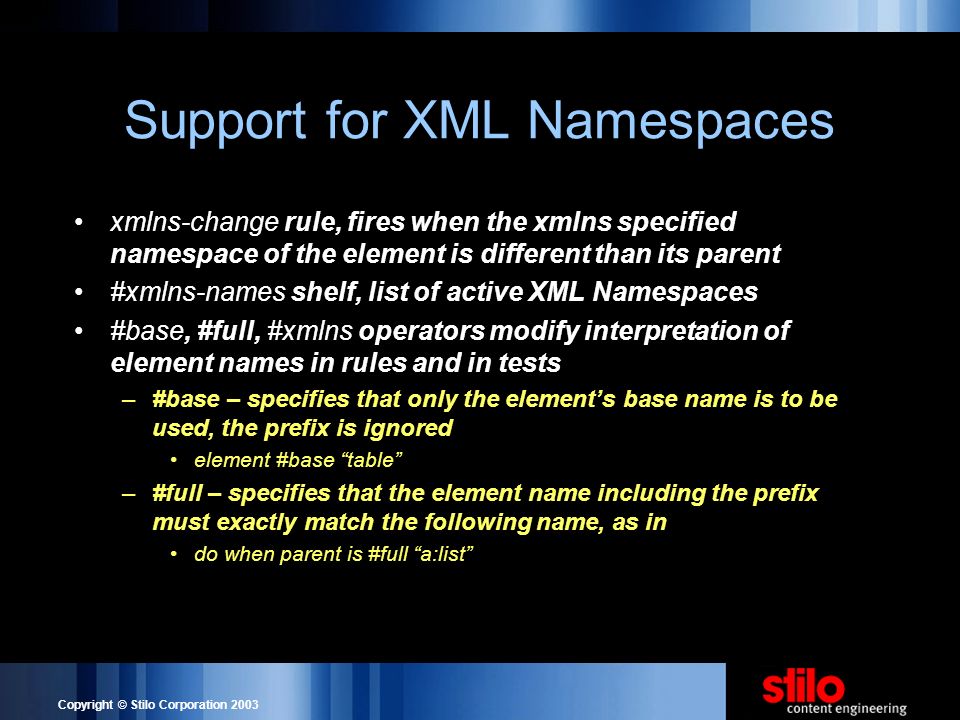

10 10 Copyright © Stilo Corporation 2003 Support for XML Namespaces xmlns-change rule, fires when the xmlns specified namespace of the element is different than its parent #xmlns-names shelf, list of active XML Namespaces #base, #full, #xmlns operators modify interpretation of element names in rules and in tests –#base – specifies that only the element’s base name is to be used, the prefix is ignored element #base “table” –#full – specifies that the element name including the prefix must exactly match the following name, as in do when parent is #full “a:list”

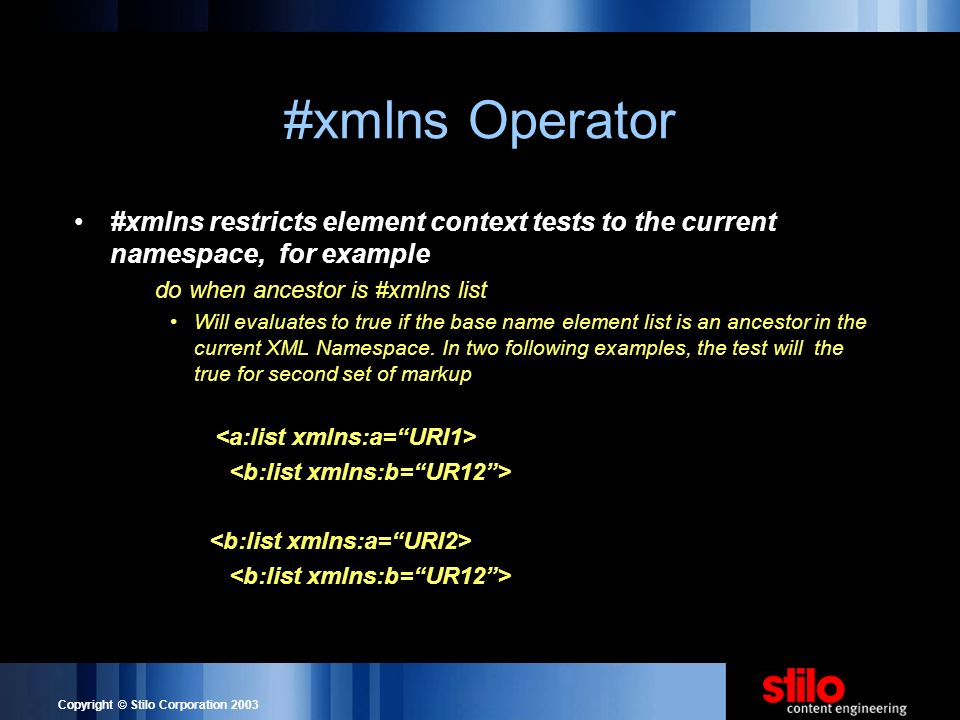

11 11 Copyright © Stilo Corporation 2003 #xmlns Operator #xmlns restricts element context tests to the current namespace, for example do when ancestor is #xmlns list Will evaluates to true if the base name element list is an ancestor in the current XML Namespace. In two following examples, the test will the true for second set of markup

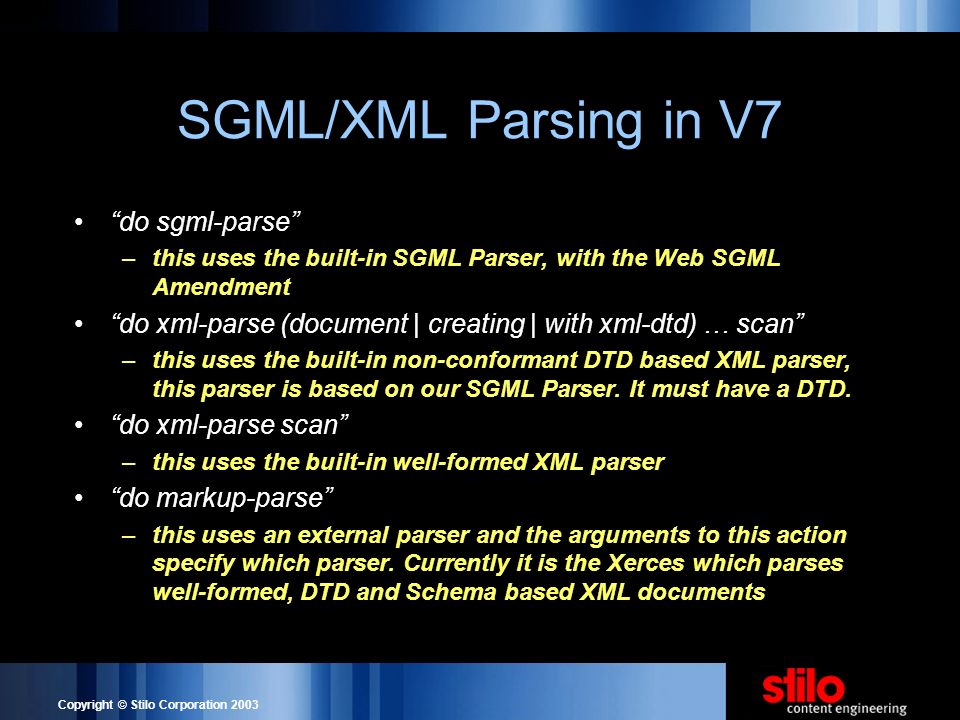

12 12 Copyright © Stilo Corporation 2003 SGML/XML Parsing in V7 “do sgml-parse” –this uses the built-in SGML Parser, with the Web SGML Amendment “do xml-parse (document | creating | with xml-dtd) … scan” –this uses the built-in non-conformant DTD based XML parser, this parser is based on our SGML Parser. It must have a DTD. “do xml-parse scan” –this uses the built-in well-formed XML parser “do markup-parse” –this uses an external parser and the arguments to this action specify which parser. Currently it is the Xerces which parses well-formed, DTD and Schema based XML documents

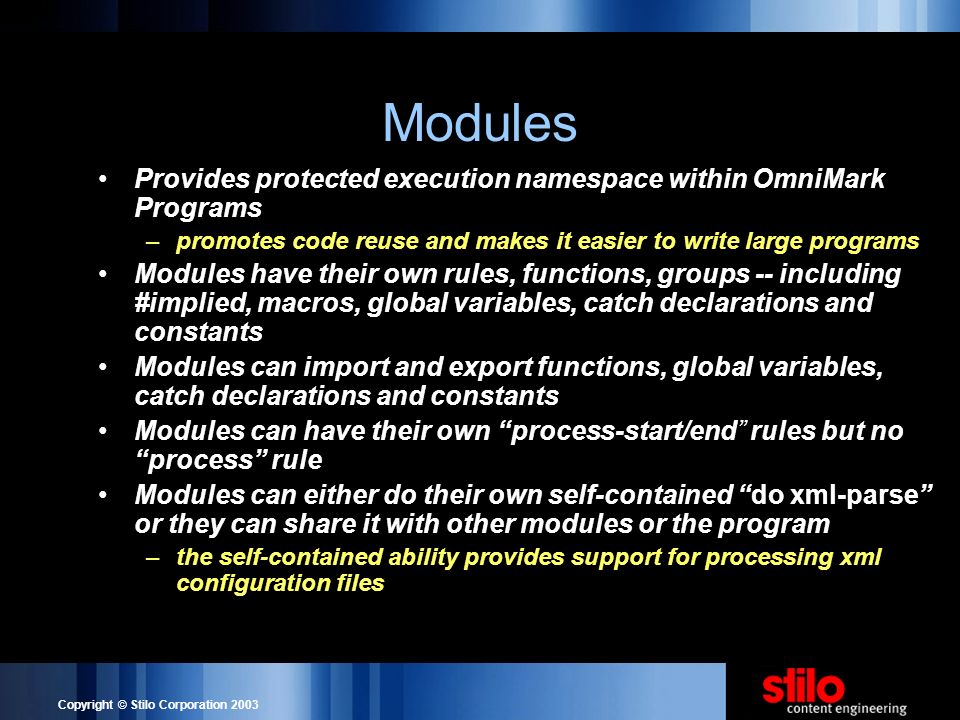

13 13 Copyright © Stilo Corporation 2003 Modules Provides protected execution namespace within OmniMark Programs –promotes code reuse and makes it easier to write large programs Modules have their own rules, functions, groups -- including #implied, macros, global variables, catch declarations and constants Modules can import and export functions, global variables, catch declarations and constants Modules can have their own “process-start/end” rules but no “process” rule Modules can either do their own self-contained “do xml-parse” or they can share it with other modules or the program –the self-contained ability provides support for processing xml configuration files

14 Example: Updating A Database Demonstrating the power of modules and the handling of XML Namespaces with the well-formed XML parser and the Xerces Parser

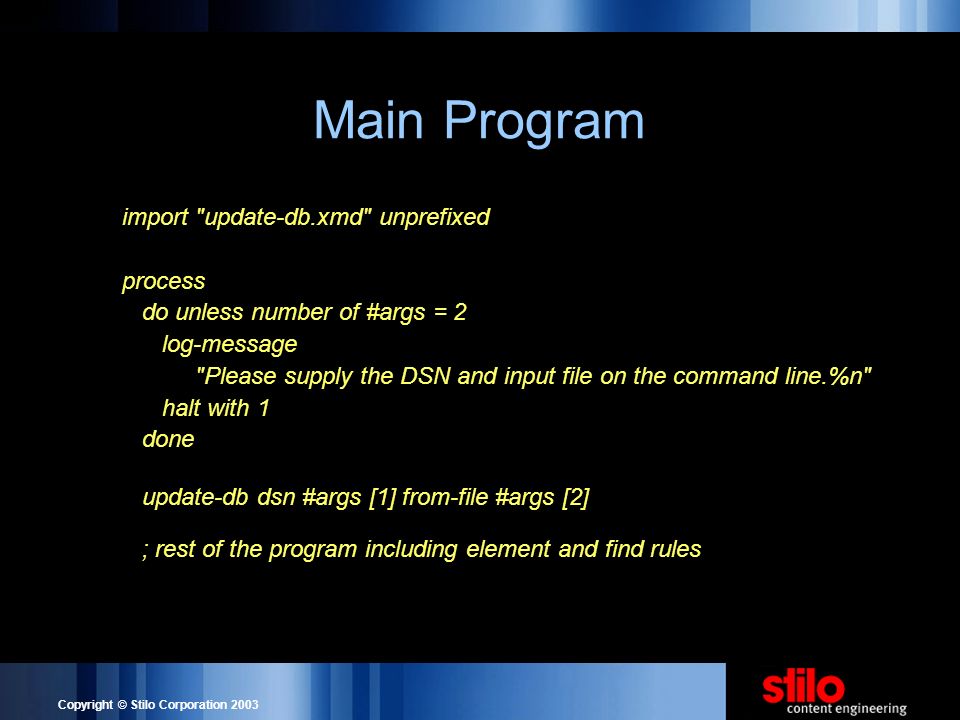

15 15 Copyright © Stilo Corporation 2003 Main Program import "update-db.xmd" unprefixed process do unless number of #args = 2 log-message "Please supply the DSN and input file on the command line.%n" halt with 1 done update-db dsn #args [1] from-file #args [2] ; rest of the program including element and find rules

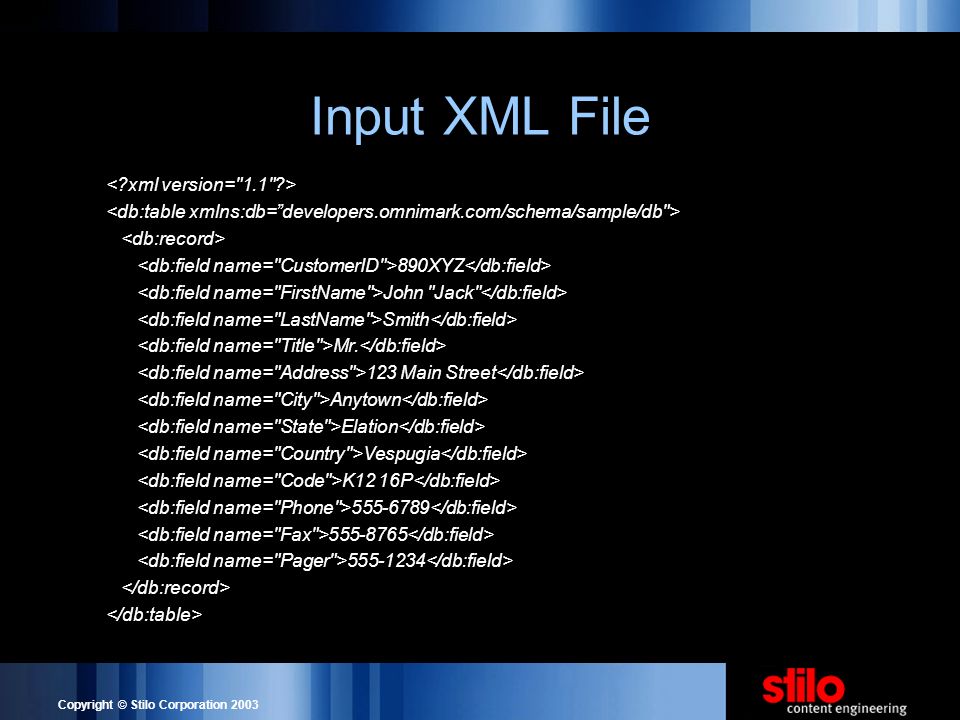

16 16 Copyright © Stilo Corporation 2003 Input XML File 890XYZ John "Jack" Smith Mr. 123 Main Street Anytown Elation Vespugia K12 16P 555-6789 555-8765 555-1234

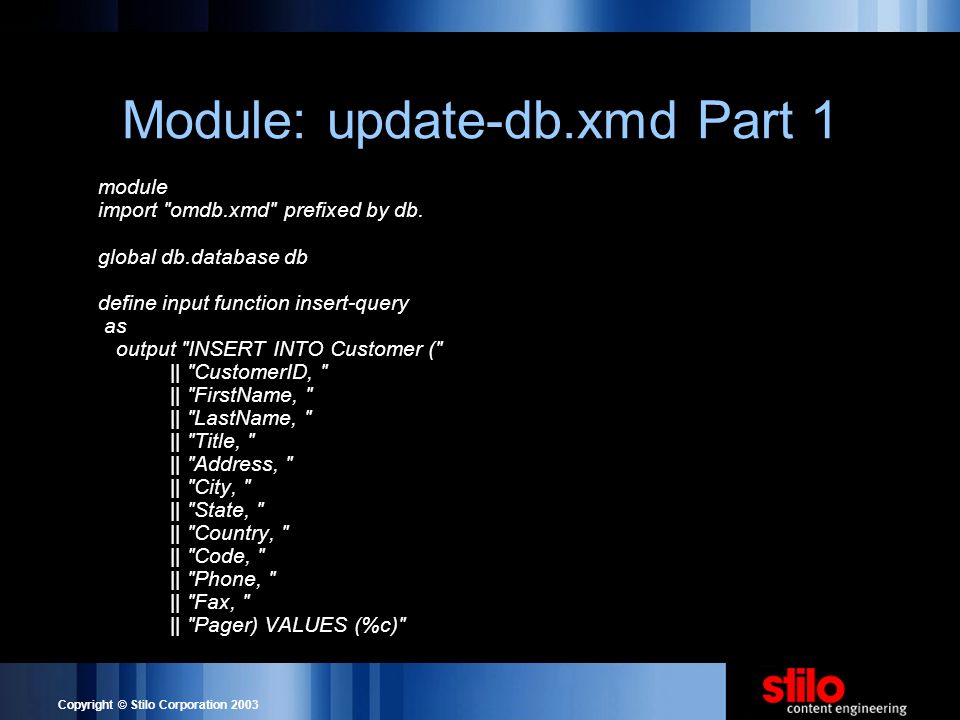

17 17 Copyright © Stilo Corporation 2003 Module: update-db.xmd Part 1 module import "omdb.xmd" prefixed by db. global db.database db define input function insert-query as output "INSERT INTO Customer (" || "CustomerID, " || "FirstName, " || "LastName, " || "Title, " || "Address, " || "City, " || "State, " || "Country, " || "Code, " || "Phone, " || "Fax, " || "Pager) VALUES (%c)"

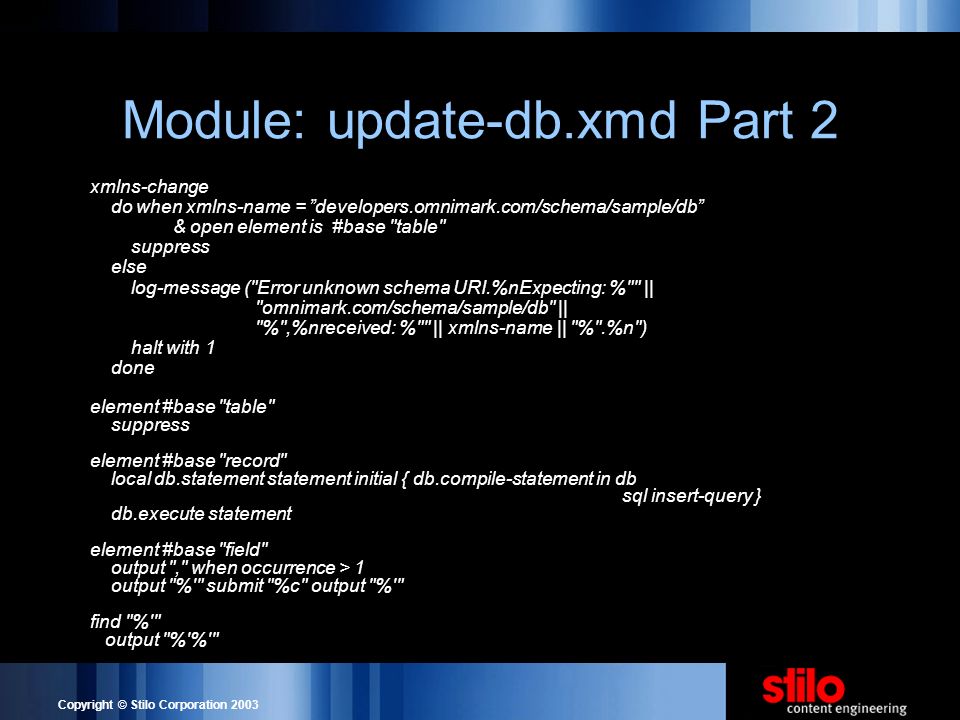

18 18 Copyright © Stilo Corporation 2003 Module: update-db.xmd Part 2 xmlns-change do when xmlns-name = ”developers.omnimark.com/schema/sample/db” & open element is #base "table" suppress else log-message ("Error unknown schema URI.%nExpecting: %"" || "omnimark.com/schema/sample/db" || "%",%nreceived: %"" || xmlns-name || "%".%n") halt with 1 done element #base "table" suppress element #base "record" local db.statement statement initial { db.compile-statement in db sql insert-query } db.execute statement element #base "field" output "," when occurrence > 1 output "%'" submit "%c" output "%'" find "%'" output "%'%'"

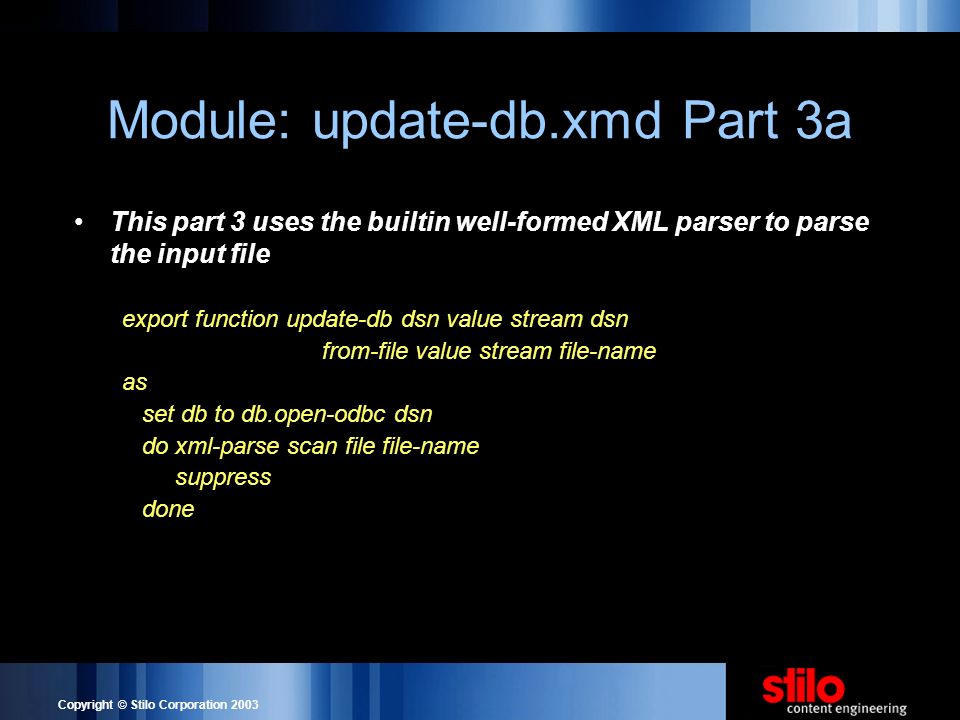

19 19 Copyright © Stilo Corporation 2003 Module: update-db.xmd Part 3a This part 3 uses the builtin well-formed XML parser to parse the input file export function update-db dsn value stream dsn from-file value stream file-name as set db to db.open-odbc dsn do xml-parse scan file file-name suppress done

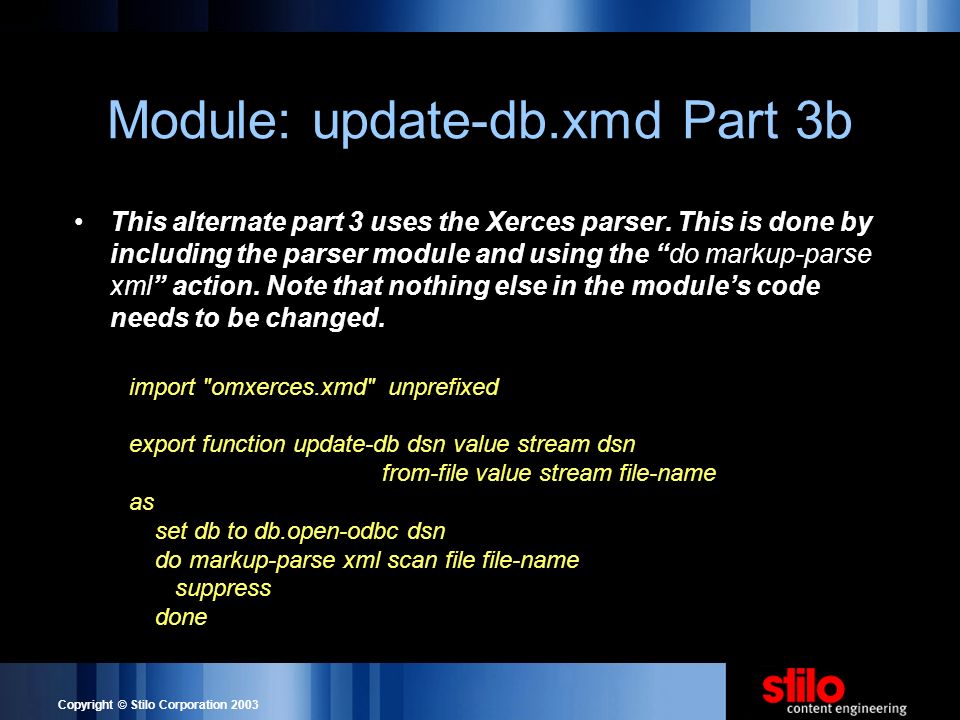

20 20 Copyright © Stilo Corporation 2003 Module: update-db.xmd Part 3b This alternate part 3 uses the Xerces parser. This is done by including the parser module and using the “do markup-parse xml” action. Note that nothing else in the module’s code needs to be changed. import "omxerces.xmd" unprefixed export function update-db dsn value stream dsn from-file value stream file-name as set db to db.open-odbc dsn do markup-parse xml scan file file-name suppress done

21 OmniMark Studio For Eclipse

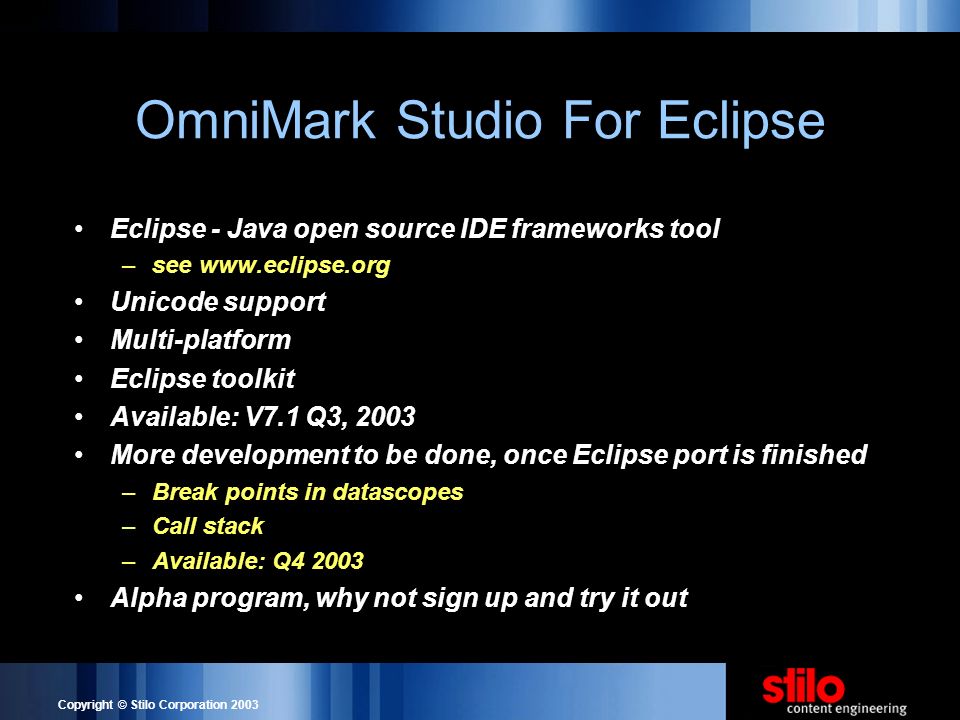

22 22 Copyright © Stilo Corporation 2003 OmniMark Studio For Eclipse Eclipse - Java open source IDE frameworks tool –see www.eclipse.org Unicode support Multi-platform Eclipse toolkit Available: V7.1 Q3, 2003 More development to be done, once Eclipse port is finished –Break points in datascopes –Call stack –Available: Q4 2003 Alpha program, why not sign up and try it out

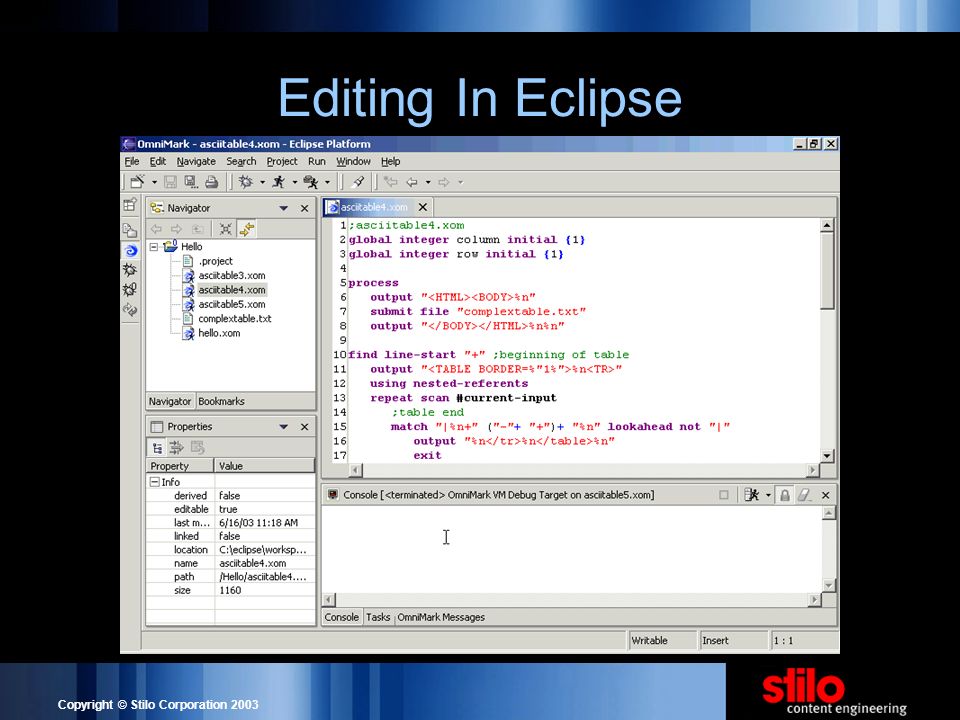

23 23 Copyright © Stilo Corporation 2003 Editing In Eclipse

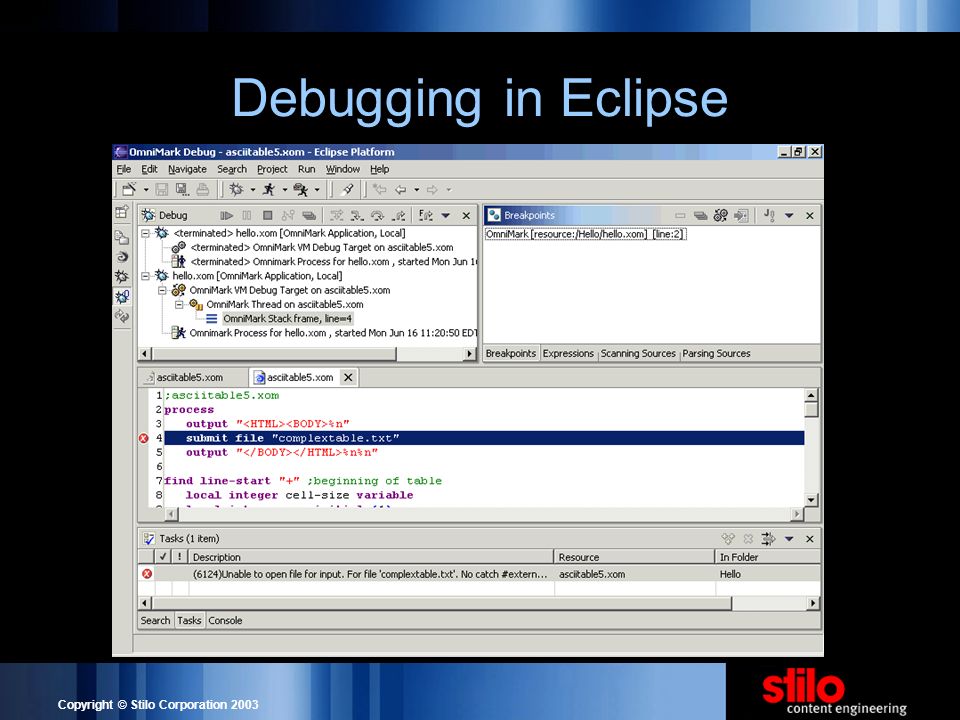

24 24 Copyright © Stilo Corporation 2003 Debugging in Eclipse

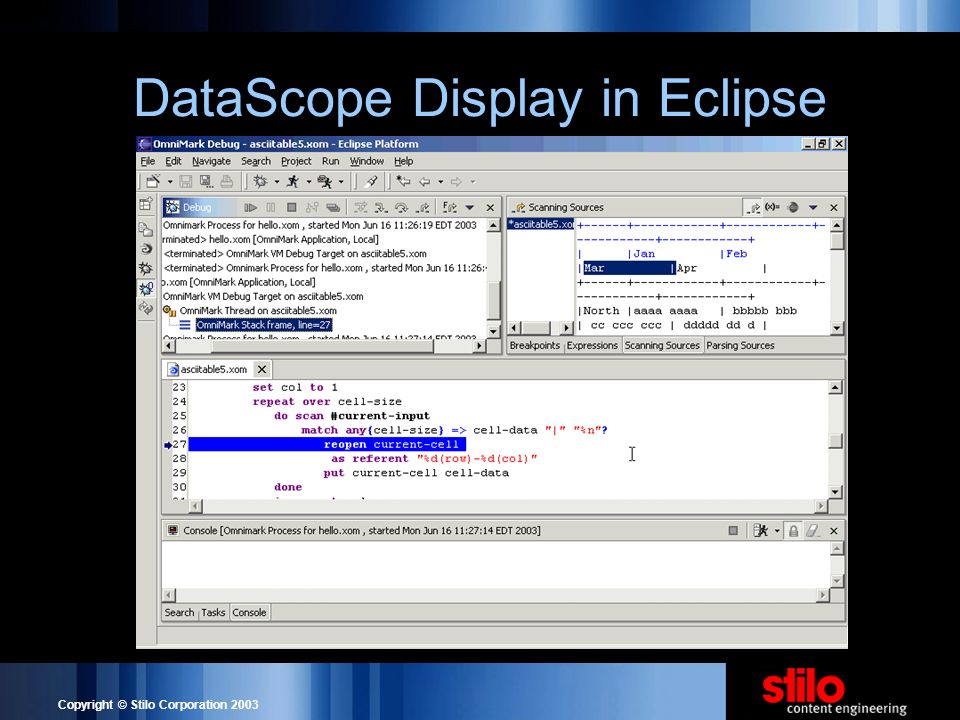

25 25 Copyright © Stilo Corporation 2003 DataScope Display in Eclipse

26 Connectivity

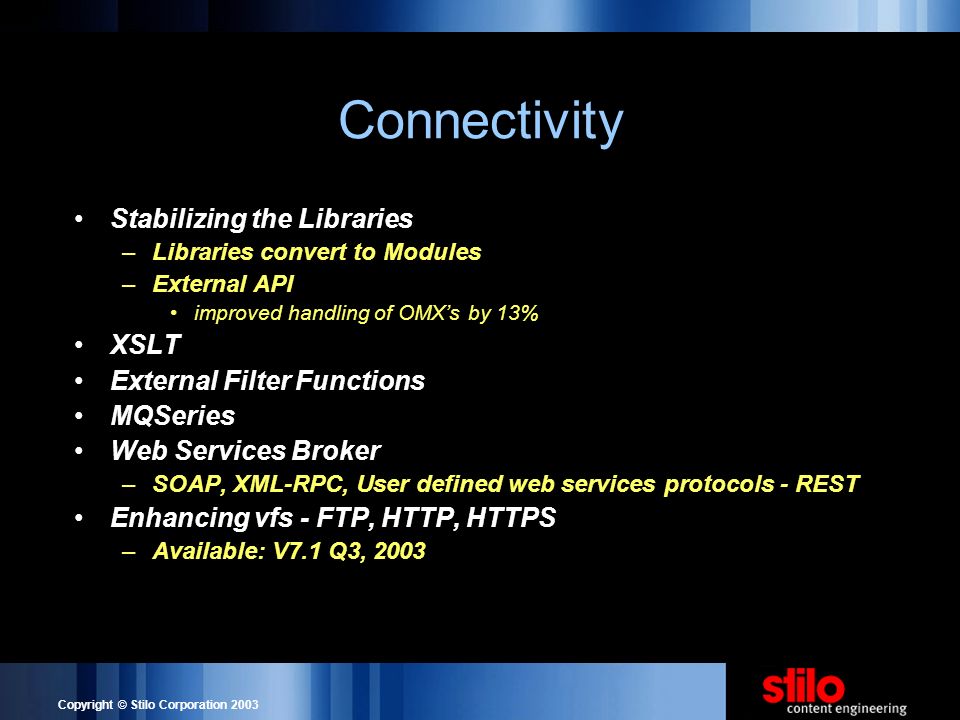

27 27 Copyright © Stilo Corporation 2003 Connectivity Stabilizing the Libraries –Libraries convert to Modules –External API improved handling of OMX’s by 13% XSLT External Filter Functions MQSeries Web Services Broker –SOAP, XML-RPC, User defined web services protocols - REST Enhancing vfs - FTP, HTTP, HTTPS –Available: V7.1 Q3, 2003

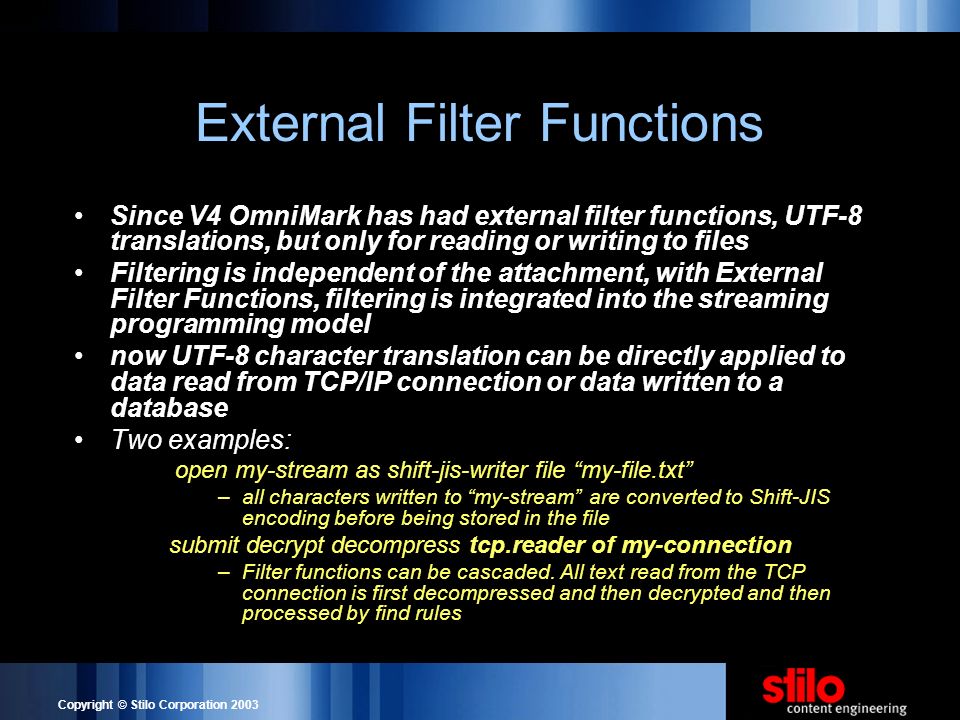

28 28 Copyright © Stilo Corporation 2003 External Filter Functions Since V4 OmniMark has had external filter functions, UTF-8 translations, but only for reading or writing to files Filtering is independent of the attachment, with External Filter Functions, filtering is integrated into the streaming programming model now UTF-8 character translation can be directly applied to data read from TCP/IP connection or data written to a database Two examples: open my-stream as shift-jis-writer file “my-file.txt” –all characters written to “my-stream” are converted to Shift-JIS encoding before being stored in the file submit decrypt decompress tcp.reader of my-connection –Filter functions can be cascaded. All text read from the TCP connection is first decompressed and then decrypted and then processed by find rules

29 Web Services Broker

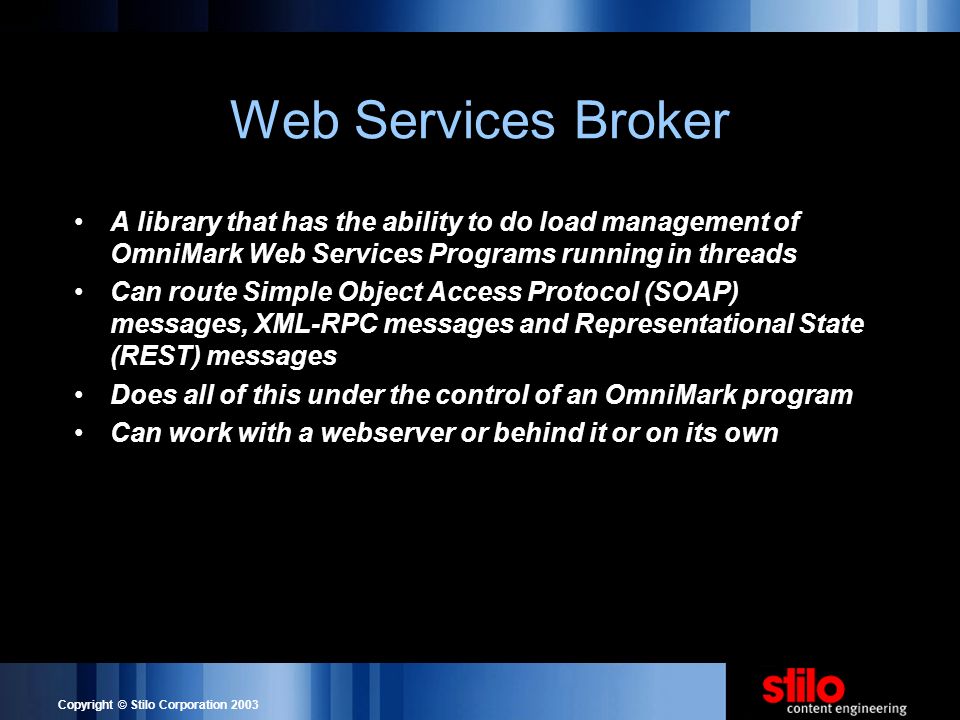

30 30 Copyright © Stilo Corporation 2003 Web Services Broker A library that has the ability to do load management of OmniMark Web Services Programs running in threads Can route Simple Object Access Protocol (SOAP) messages, XML-RPC messages and Representational State (REST) messages Does all of this under the control of an OmniMark program Can work with a webserver or behind it or on its own

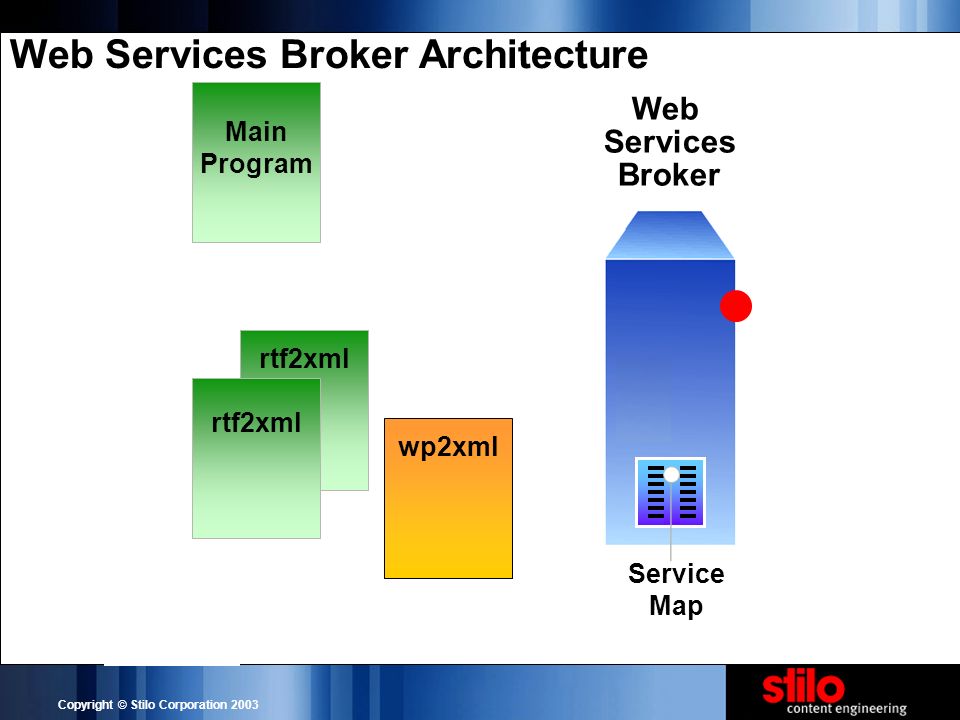

31 31 Copyright © Stilo Corporation 2003 Main Program Web Services Broker Service Map Configuration rtf2xml Unknown Request New Configuration wp2xml Web Services Broker Architecture

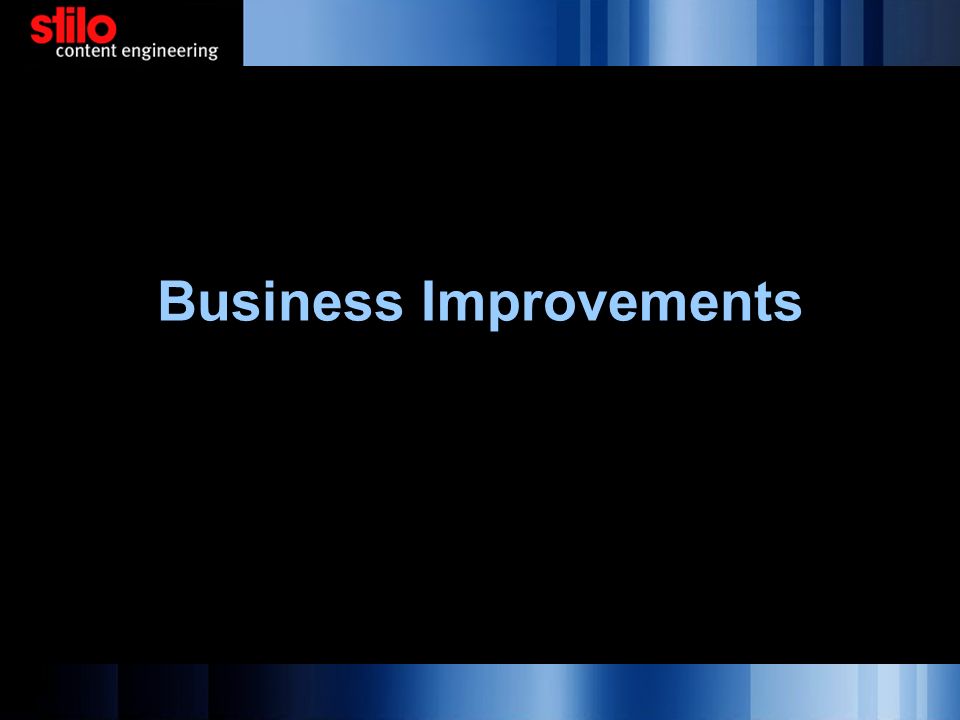

32 Business Improvements

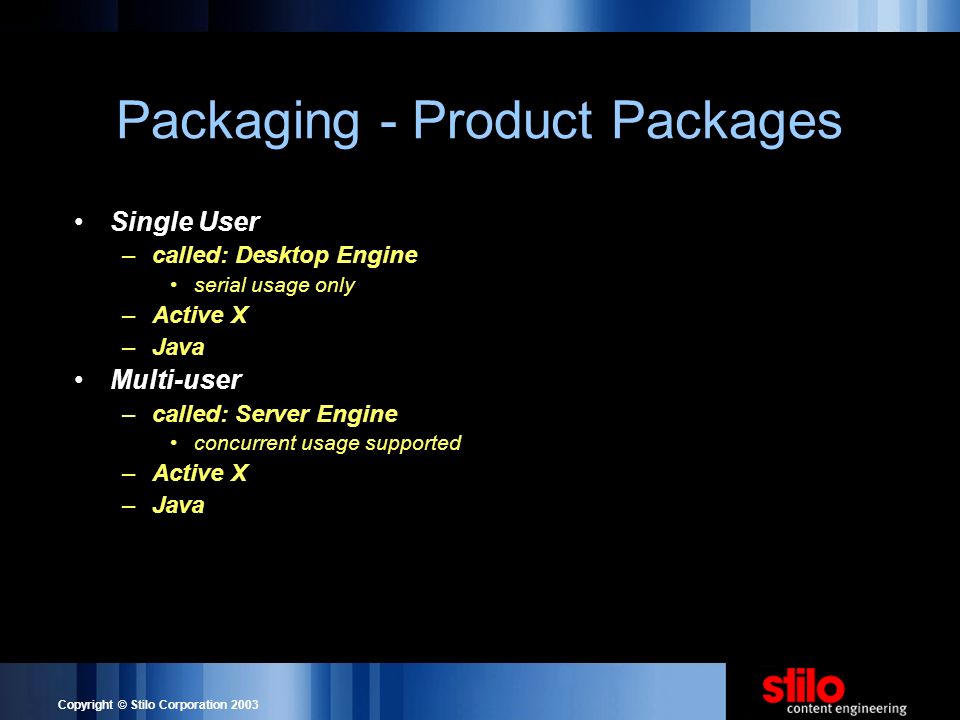

33 33 Copyright © Stilo Corporation 2003 Packaging - Product Packages Single User –called: Desktop Engine serial usage only –Active X –Java Multi-user –called: Server Engine concurrent usage supported –Active X –Java

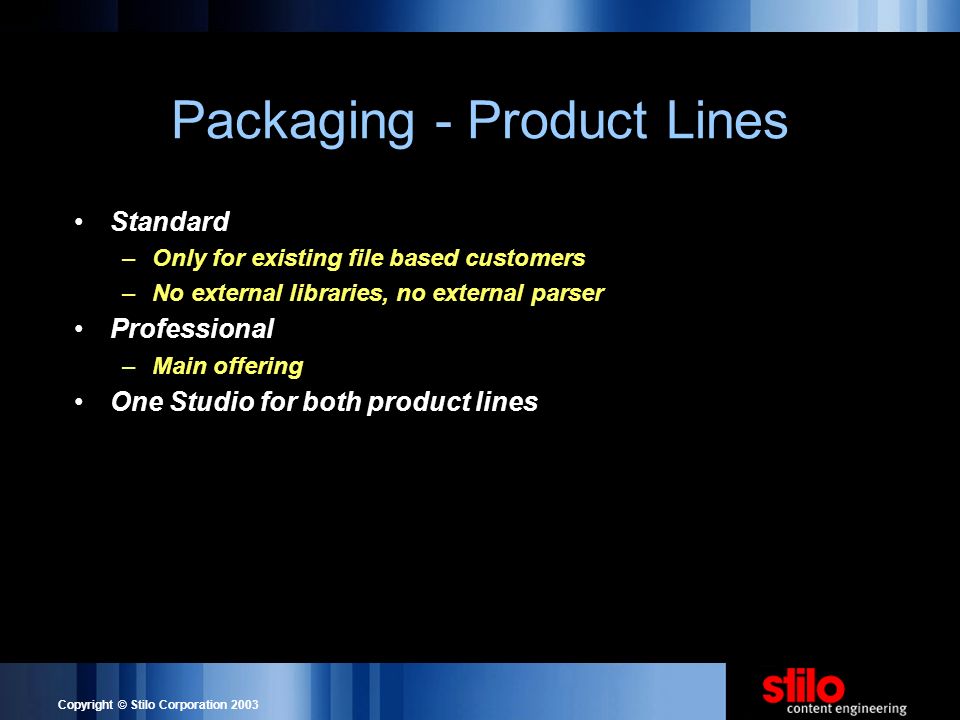

34 34 Copyright © Stilo Corporation 2003 Packaging - Product Lines Standard –Only for existing file based customers –No external libraries, no external parser Professional –Main offering One Studio for both product lines

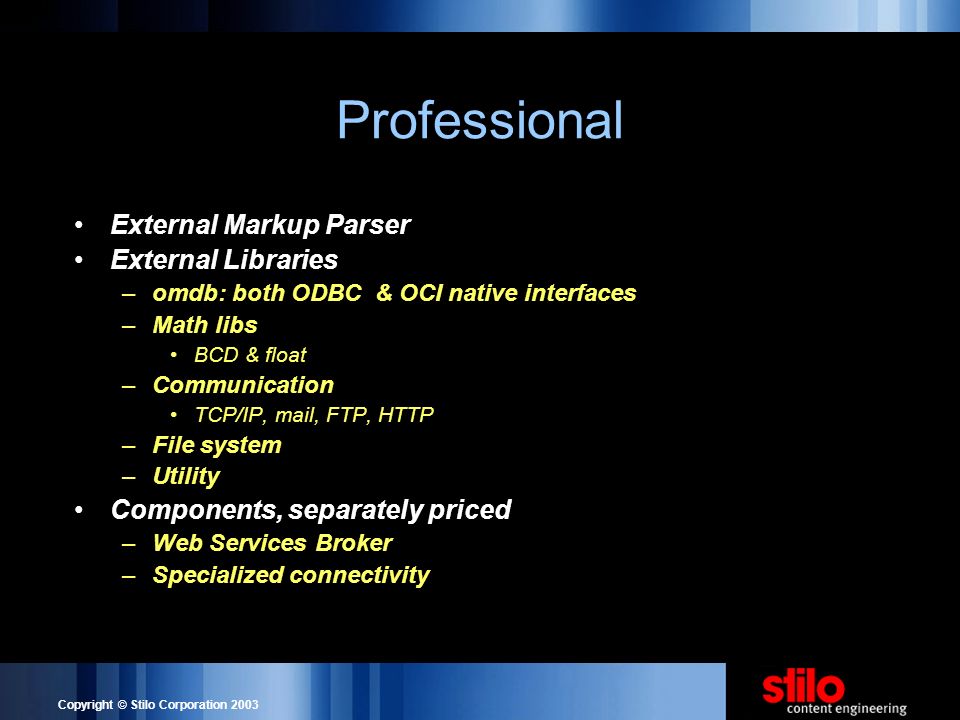

35 35 Copyright © Stilo Corporation 2003 Professional External Markup Parser External Libraries –omdb: both ODBC & OCI native interfaces –Math libs BCD & float –Communication TCP/IP, mail, FTP, HTTP –File system –Utility Components, separately priced –Web Services Broker –Specialized connectivity

36 Possible Future Developments

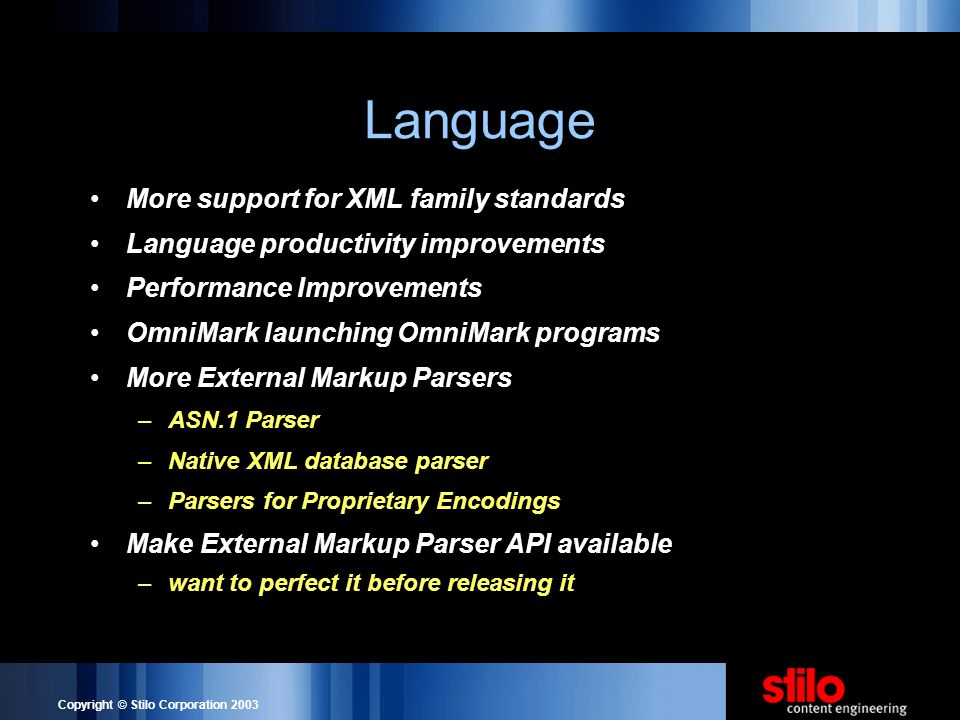

37 37 Copyright © Stilo Corporation 2003 Language More support for XML family standards Language productivity improvements Performance Improvements OmniMark launching OmniMark programs More External Markup Parsers –ASN.1 Parser –Native XML database parser –Parsers for Proprietary Encodings Make External Markup Parser API available –want to perfect it before releasing it

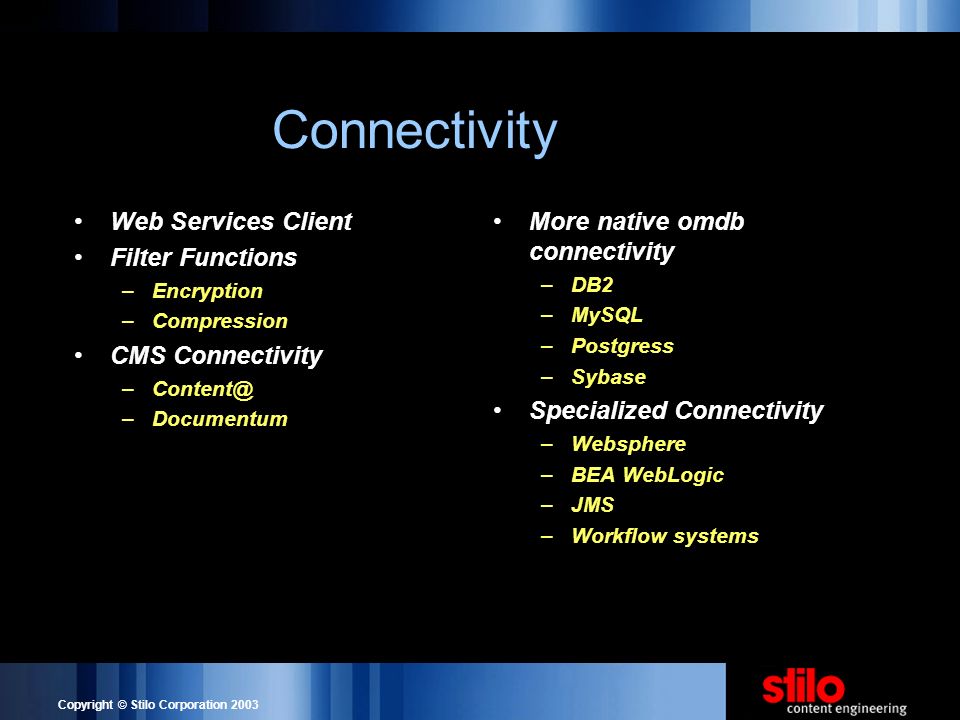

38 38 Copyright © Stilo Corporation 2003 Connectivity Web Services Client Filter Functions –Encryption –Compression CMS Connectivity –Content@ –Documentum More native omdb connectivity –DB2 –MySQL –Postgress –Sybase Specialized Connectivity –Websphere –BEA WebLogic –JMS –Workflow systems

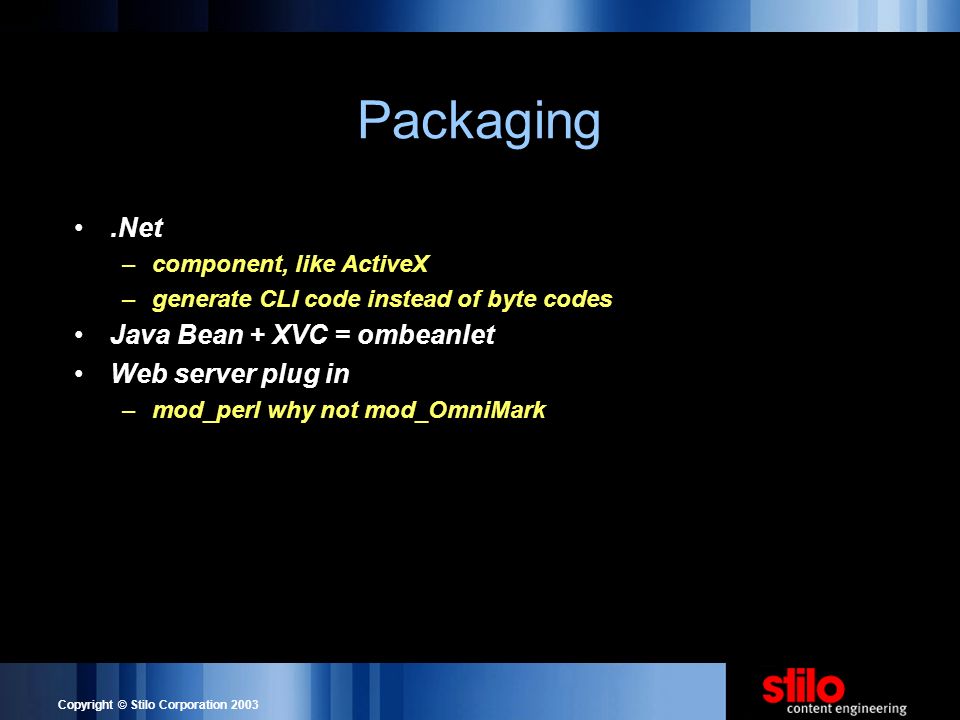

39 39 Copyright © Stilo Corporation 2003 Packaging.Net –component, like ActiveX –generate CLI code instead of byte codes Java Bean + XVC = ombeanlet Web server plug in –mod_perl why not mod_OmniMark

40 Q & A

41 The End
