1. 校園網絡的保安與管理 School network – security and management Prof. P.C. Wong 黃寶財教授 The Chinese University of Hong Kong Tel: 2892-1722, Fax: 2892-1733 Email: pcwong@hkedcity.net

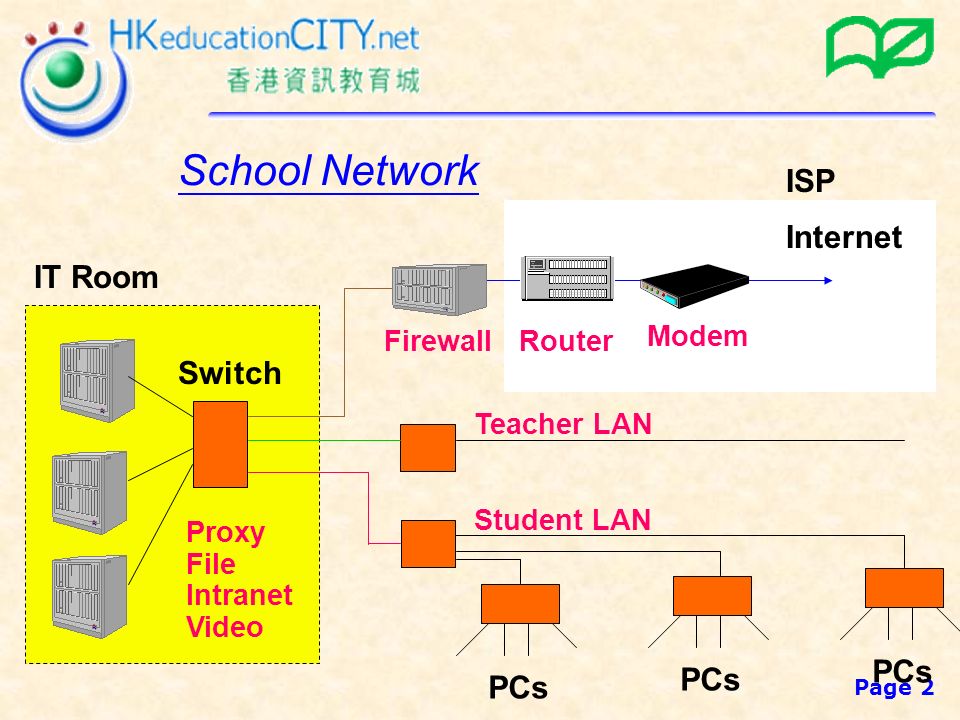

2. Page 2 IT Room PCs School Network Modem RouterFirewall Internet ISP Teacher LAN Student LAN Proxy File Intranet Video Switch

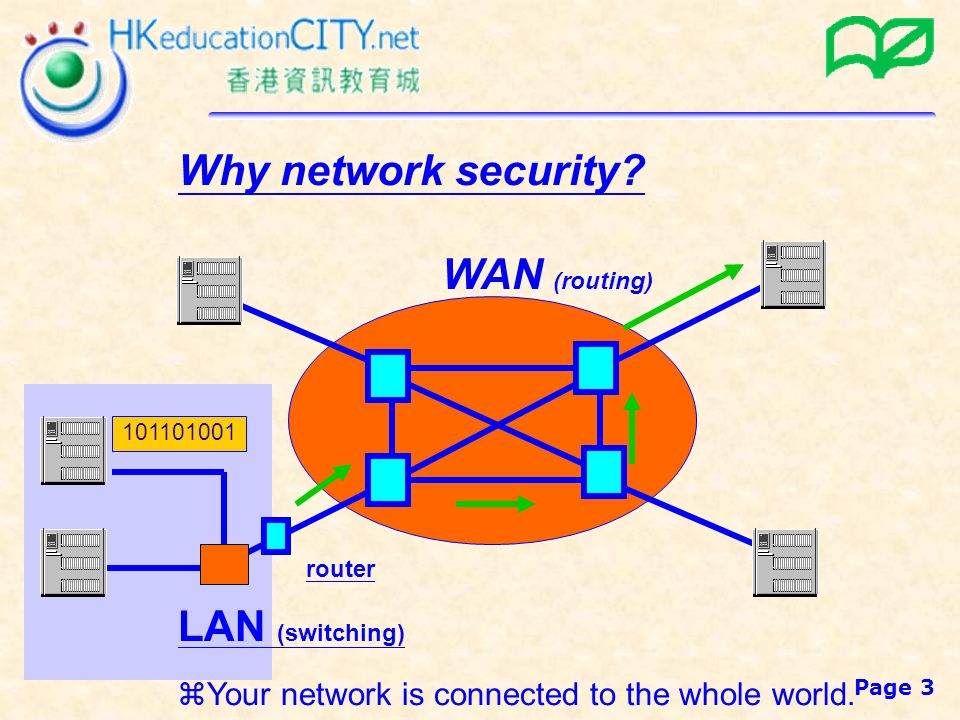

3. Page 3 Why network security? WAN (routing) LAN (switching) 101101001 zYour network is connected to the whole world. router

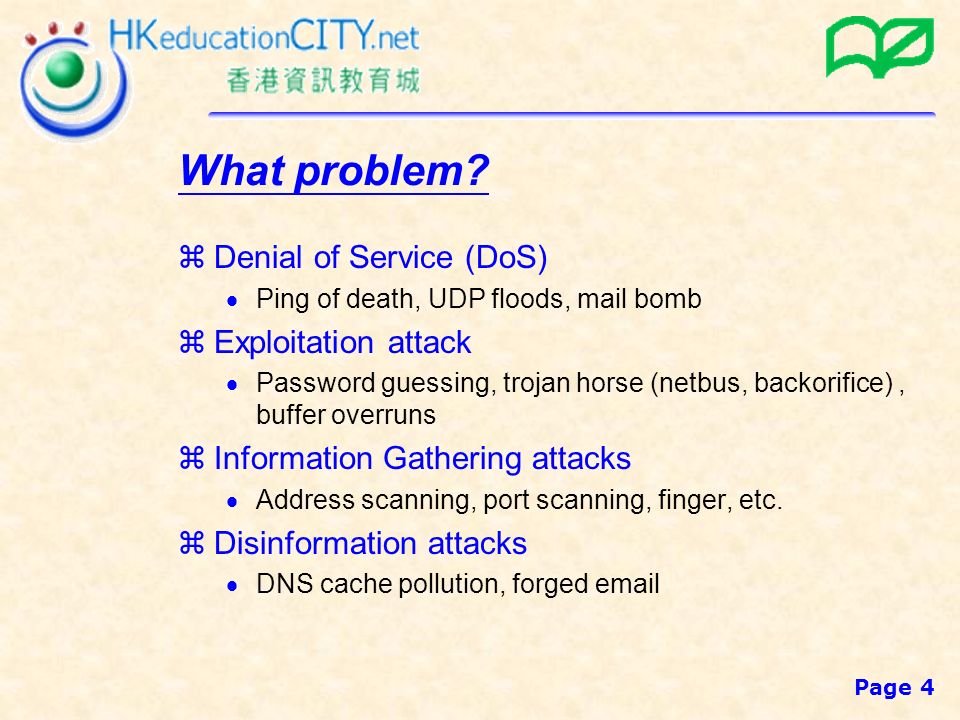

4. Page 4 What problem? zDenial of Service (DoS)  Ping of death, UDP floods, mail bomb zExploitation attack  Password guessing, trojan horse (netbus, backorifice), buffer overruns zInformation Gathering attacks  Address scanning, port scanning, finger, etc. zDisinformation attacks  DNS cache pollution, forged email

5. Page 5 Routing Router Net 1 Net 2 202.45.191.1 137.189.96.210 Sophisticated forwarding Routing Table 1 2 1 A B C A C B

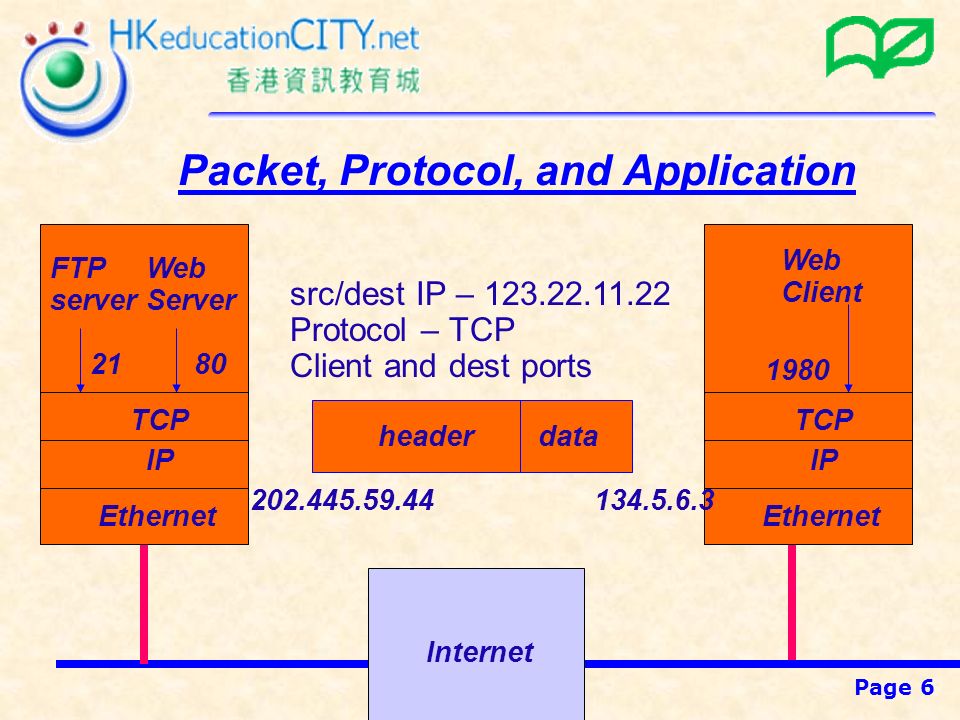

6. Page 6 Packet, Protocol, and Application IP TCP Web Server IP TCP Web Client 80 FTP server 21 Ethernet Internet Ethernet 1980 src/dest IP – 123.22.11.22 Protocol – TCP Client and dest ports dataheader 202.445.59.44134.5.6.3

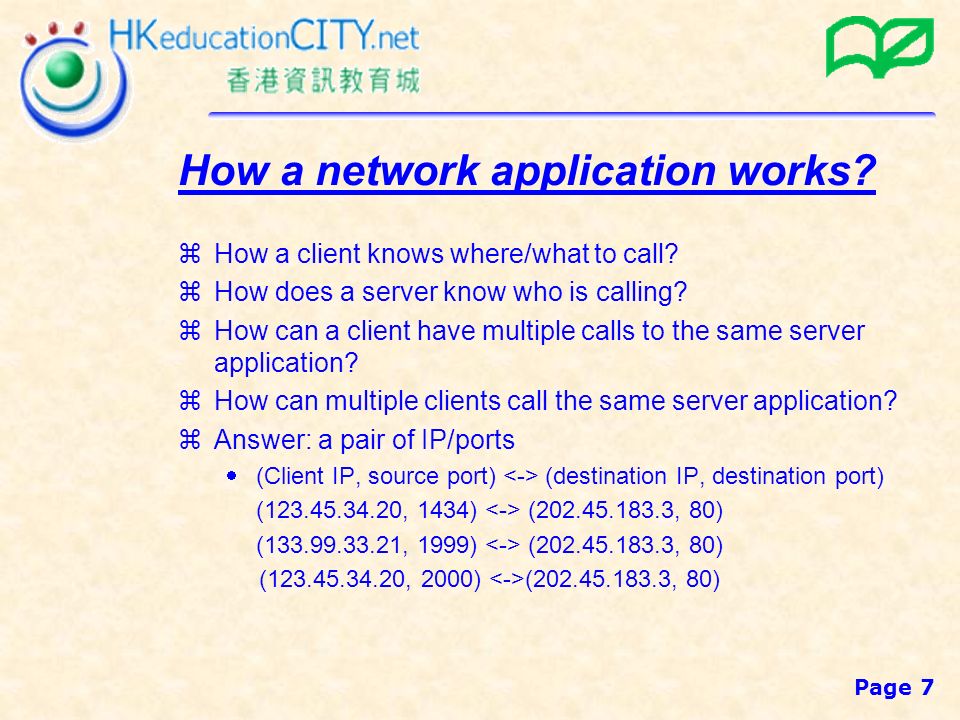

7. Page 7 How a network application works? zHow a client knows where/what to call? zHow does a server know who is calling? zHow can a client have multiple calls to the same server application? zHow can multiple clients call the same server application? zAnswer: a pair of IP/ports  (Client IP, source port) (destination IP, destination port) (123.45.34.20, 1434) (202.45.183.3, 80) (133.99.33.21, 1999) (202.45.183.3, 80) (123.45.34.20, 2000) (202.45.183.3, 80)

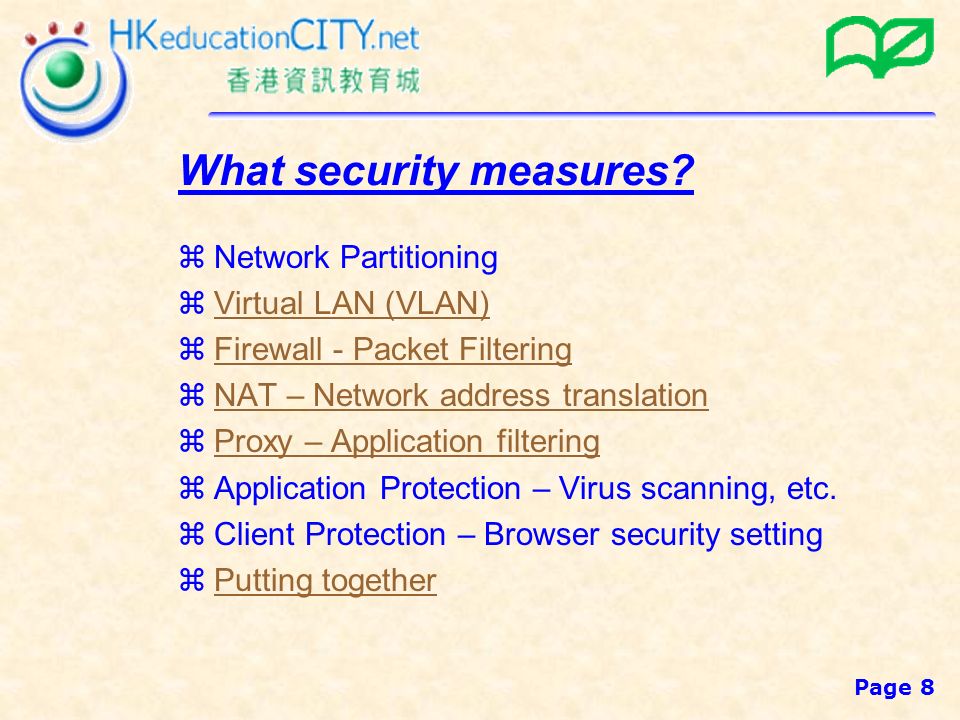

8. Page 8 What security measures? zNetwork Partitioning zVirtual LAN (VLAN)Virtual LAN (VLAN) zFirewall - Packet FilteringFirewall - Packet Filtering zNAT – Network address translationNAT – Network address translation zProxy – Application filteringProxy – Application filtering zApplication Protection – Virus scanning, etc. zClient Protection – Browser security setting zPutting togetherPutting together

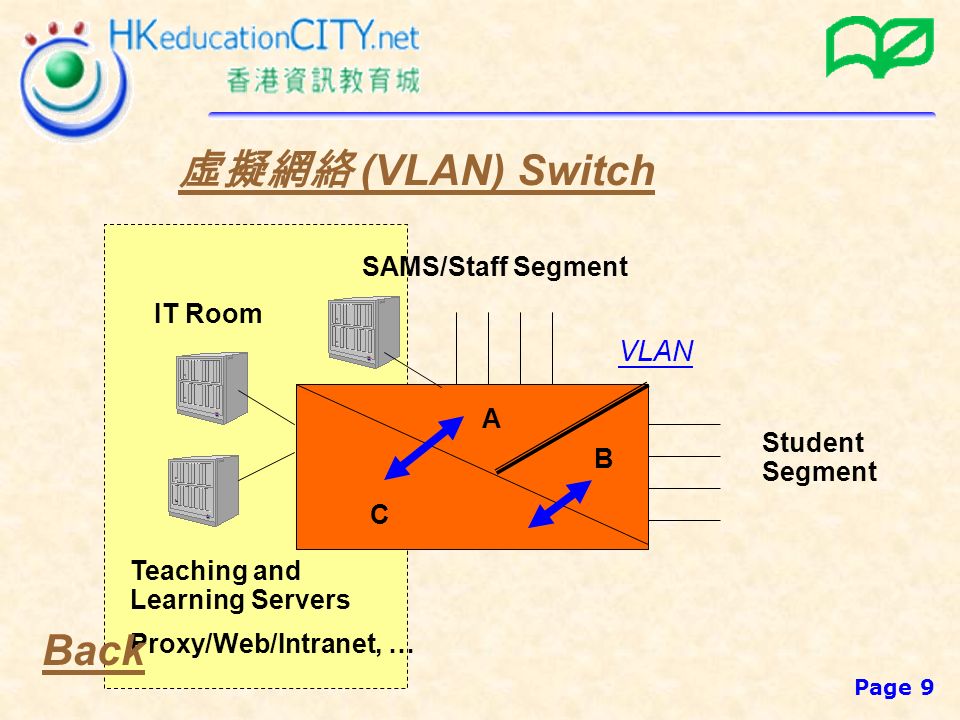

9. Page 9 虛擬網絡 (VLAN) Switch IT Room SAMS/Staff Segment Student Segment Teaching and Learning Servers Proxy/Web/Intranet, … VLAN A B C Back

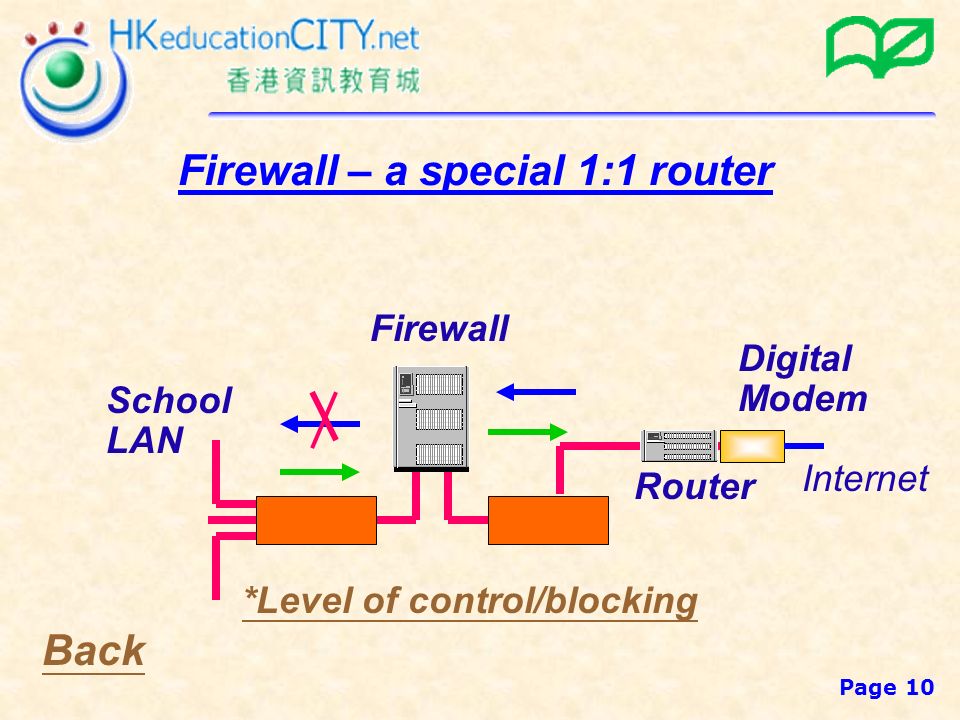

10. Page 10 Firewall – a special 1:1 router Internet Digital Modem Router Firewall School LAN *Level of control/blocking Back

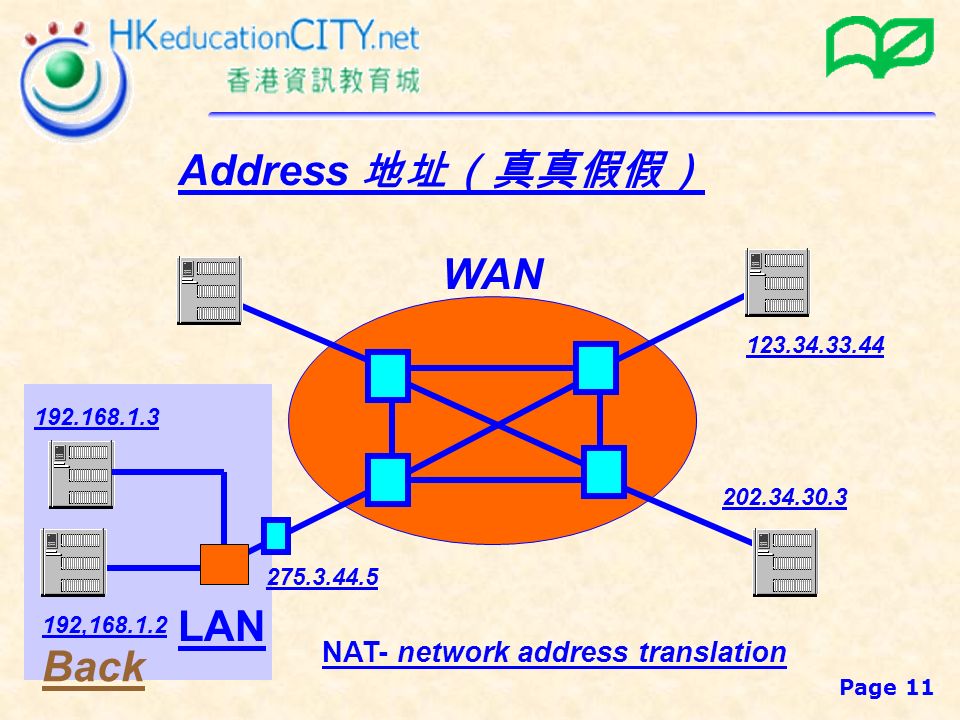

11. Page 11 Address 地址（真真假假） WAN LAN 192.168.1.3 123.34.33.44 202.34.30.3 275.3.44.5 192,168.1.2 NAT- network address translation Back

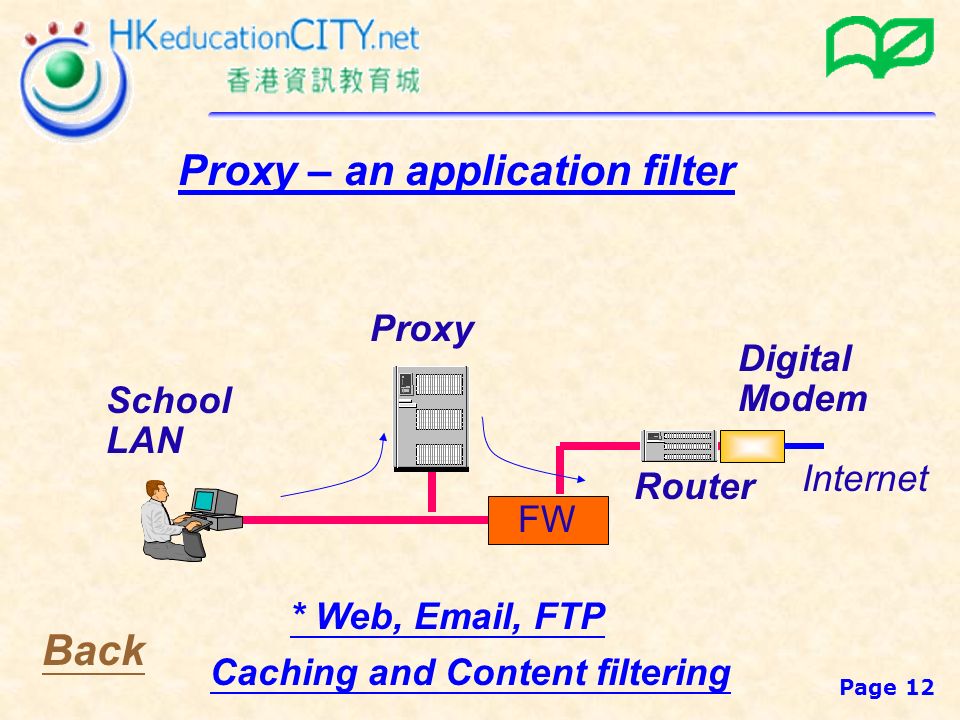

12. Page 12 Proxy – an application filter FW Internet Digital Modem Router Proxy School LAN * Web, Email, FTP Caching and Content filtering Back

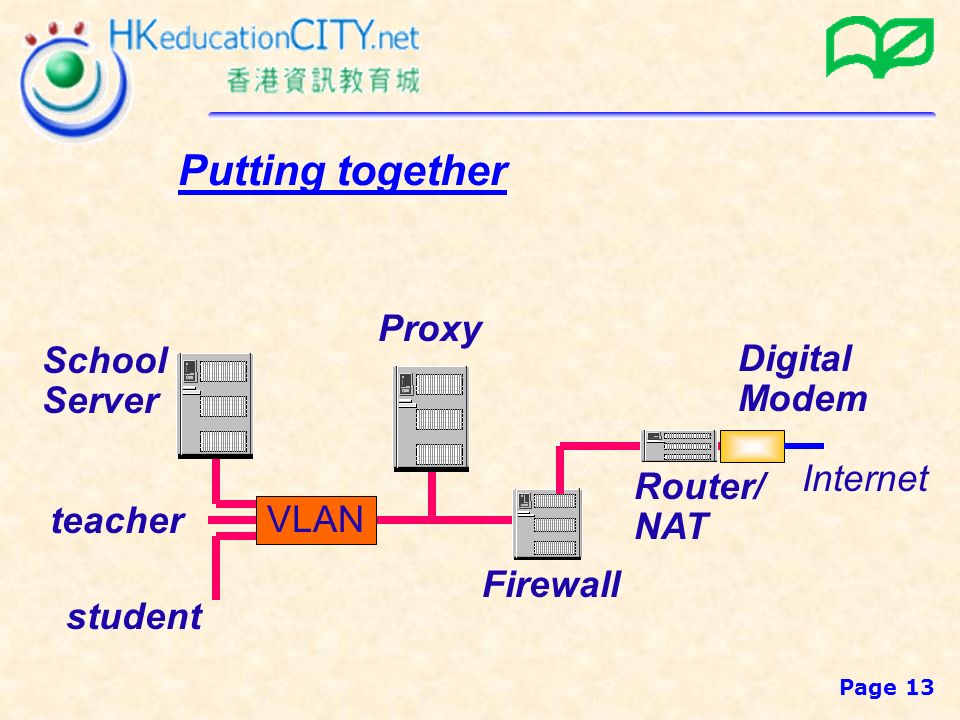

13. Page 13 Putting together Internet Digital Modem Router/ NAT Firewall VLAN School Server Proxy student teacher

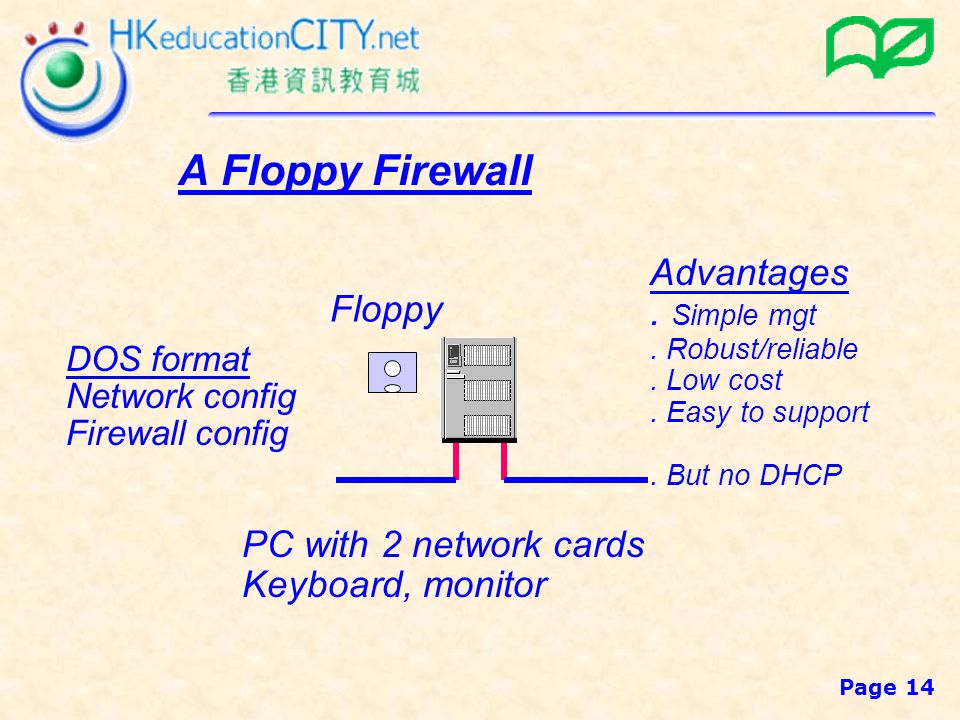

14. Page 14 A Floppy Firewall PC with 2 network cards Keyboard, monitor Floppy Advantages. Simple mgt. Robust/reliable. Low cost. Easy to support. But no DHCP DOS format Network config Firewall config
