1. The Ergonomic Implications of Gesturing Examining Single and Mixed Use with Appropriate Placement Lindsey Muse B.A., S. Camille Peres Ph.D., Adrian Garcia University of Houston-Clear Lake

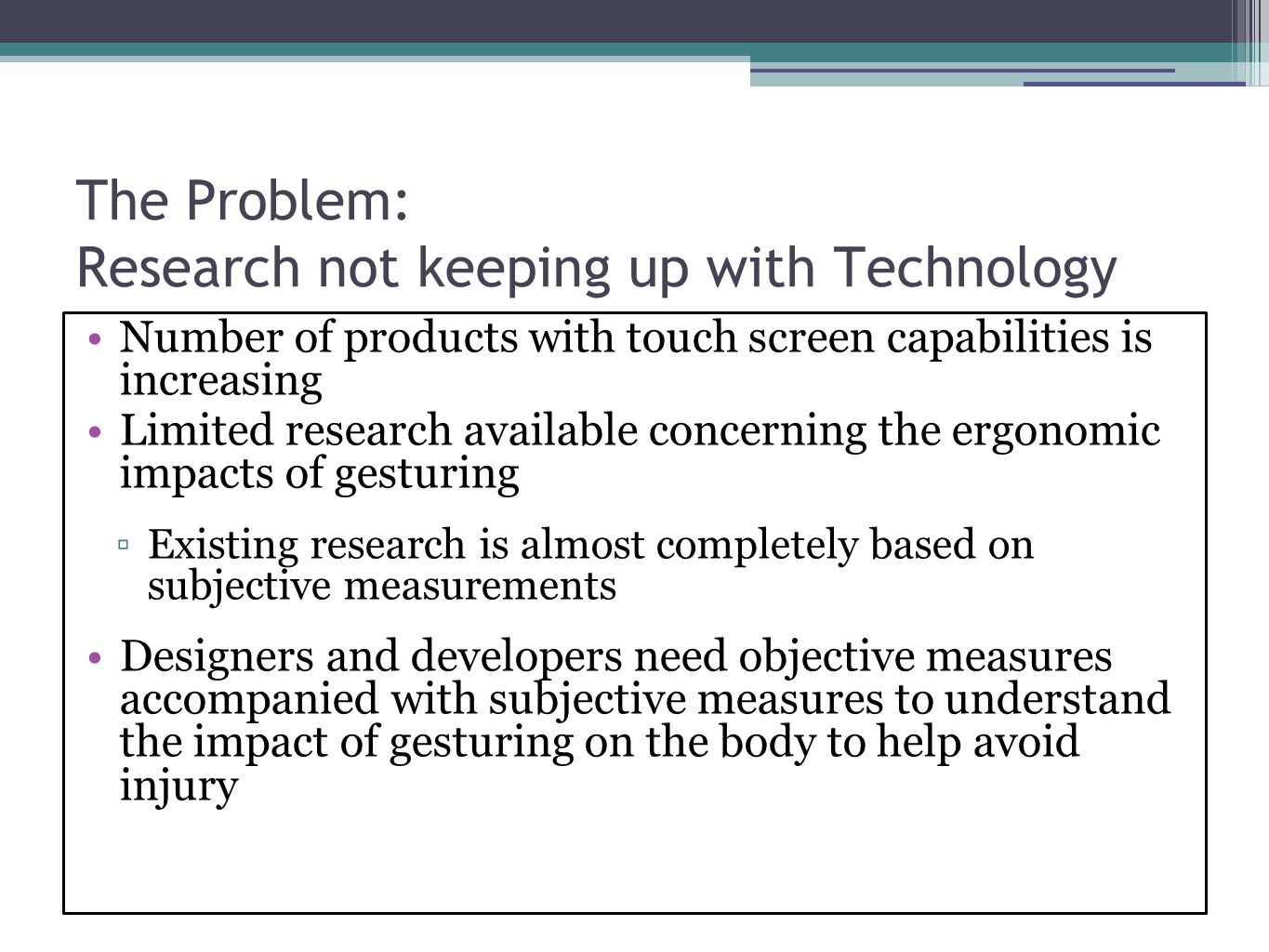

2. The Problem: Research not keeping up with Technology Number of products with touch screen capabilities is increasing Limited research available concerning the ergonomic impacts of gesturing ▫Existing research is almost completely based on subjective measurements Designers and developers need objective measures accompanied with subjective measures to understand the impact of gesturing on the body to help avoid injury

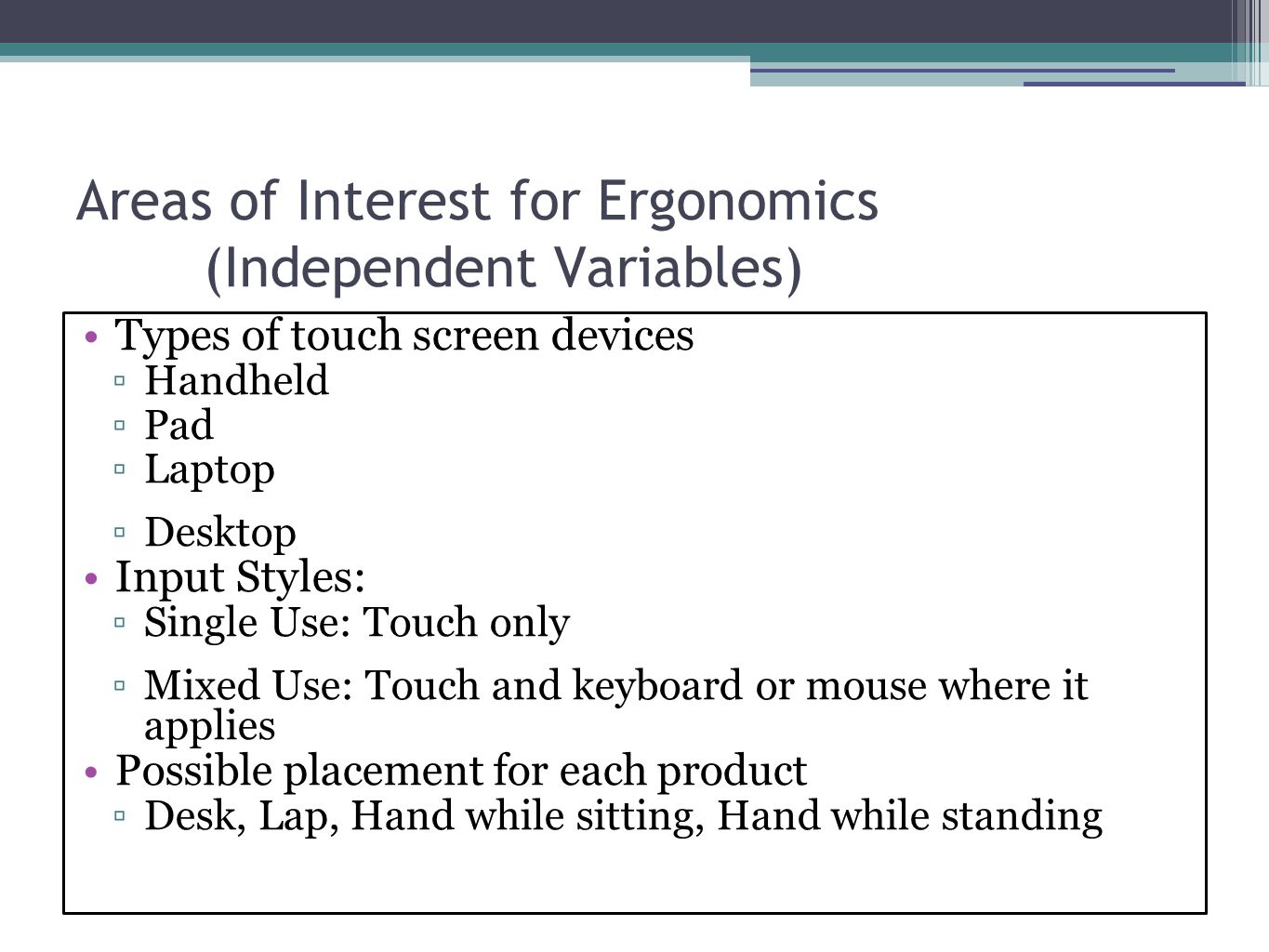

3. Areas of Interest for Ergonomics (Independent Variables) Types of touch screen devices ▫Handheld ▫Pad ▫Laptop ▫Desktop Input Styles: ▫Single Use: Touch only ▫Mixed Use: Touch and keyboard or mouse where it applies Possible placement for each product ▫Desk, Lap, Hand while sitting, Hand while standing

4. Conditions

5. Participants 100 participants from within and outside of the University of Houston-Clear Lake ▫Outside the university  $1oo each for participation ▫Within the university  One hour of participation credit for every hour in the study Participants will be selected so they have some experience with at least one of the gesture input devices

6. Objective Measures Surface EMG (SEMG) ▫12 electrodes placed on the upper body to measure muscle activity during testing  Bilateral - flexor, extensor, trapezius, deltoid, thenar and hypothenar  Mean and Standard deviation of RMS of SEMG

7. Subjective Measures Modified Body Discomfort Diagram ▫17 body parts and muscle groups for participants to rate (primarily looking at the upper body) Open-ended questions ▫Participants’ computer usage ▫Their comfort or discomfort after each session

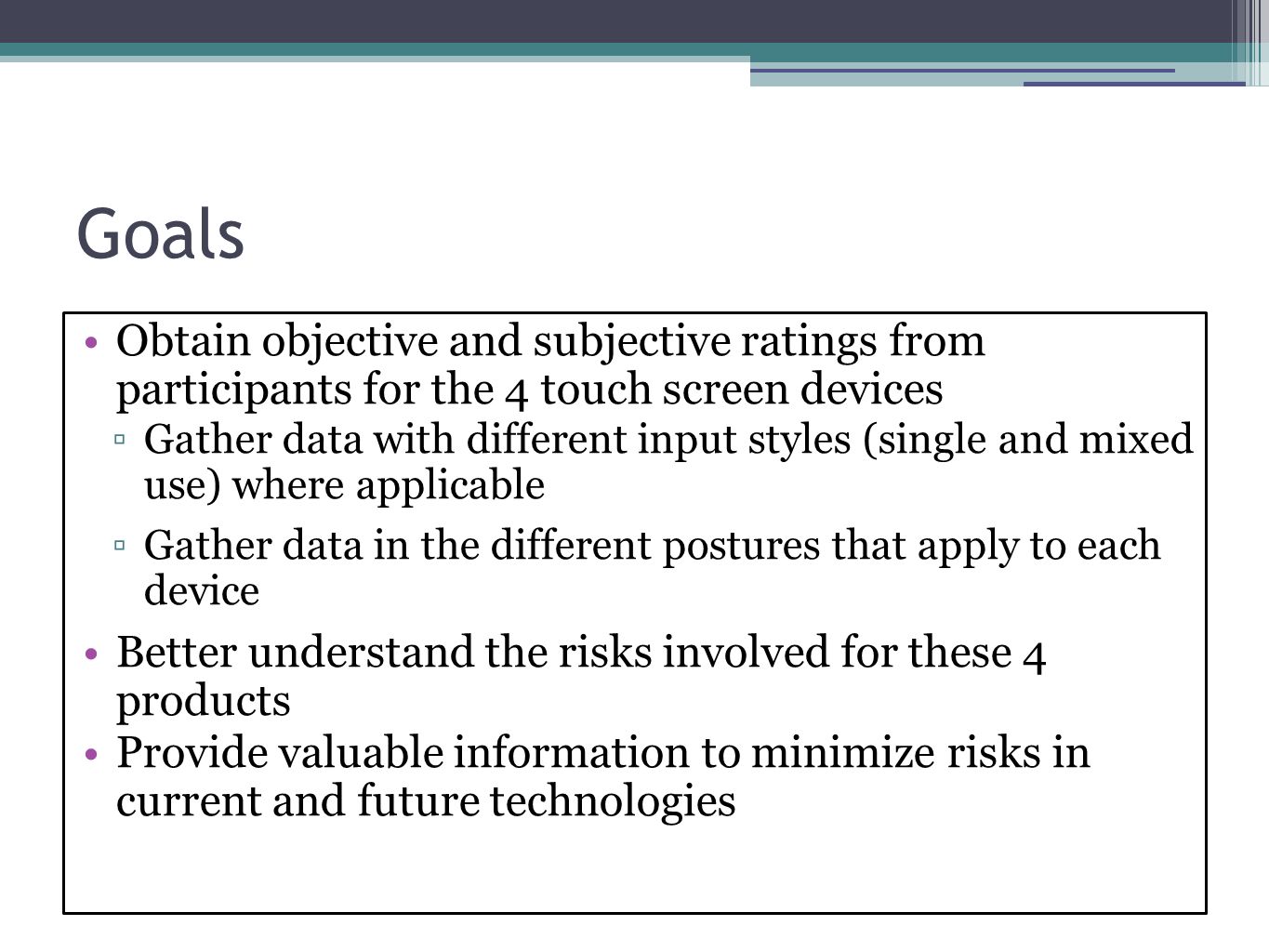

8. Goals Obtain objective and subjective ratings from participants for the 4 touch screen devices ▫Gather data with different input styles (single and mixed use) where applicable ▫Gather data in the different postures that apply to each device Better understand the risks involved for these 4 products Provide valuable information to minimize risks in current and future technologies

9. Appendix:Timeline

10. Appendix:Budget

11. Appendix:Data Analysis Primarily exploratory and descriptive analyses: ▫ANOVA’s calculated for each dependent measure on each device (and by environment where appropriate)  subjective: BDD  objective: S-EMG ▫Summary of comments on open ended questions

12. Analyses-Subjective BDD: difference in ratings by device, posture, muscle, session free choice input device, posture free response most uncomfortable task, how uncomfortable were they with the posture did counterbalance seem to matter with any of these?

13. Analyses-Objective SEMG: Mean EMG: by device, task, muscle, posture SD EMG: by device, task, muscle, posture Motion Capture 3 angles: shoulder abduction (?), elbow extension, torso lean (?) per device and posture (two prescribed postures): Typical worst posture how long until participants assume that posture how long they maintain the posture per device - free choice: Typical worst posture how long until participants assume that posture how long they maintain the posture
