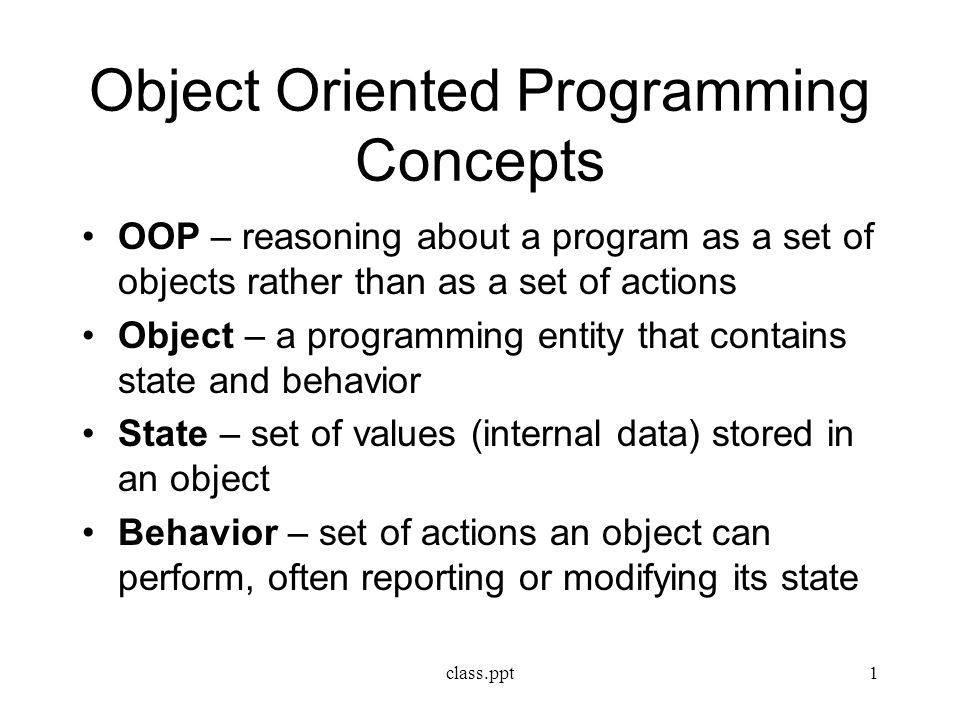

1 Object Oriented Programming Concepts OOP – reasoning about a program as a set of objects rather than as a set of actions Object – a programming entity that contains state and behavior State – set of values (internal data) stored in an object Behavior – set of actions an object can perform, often reporting or modifying its state class.ppt1

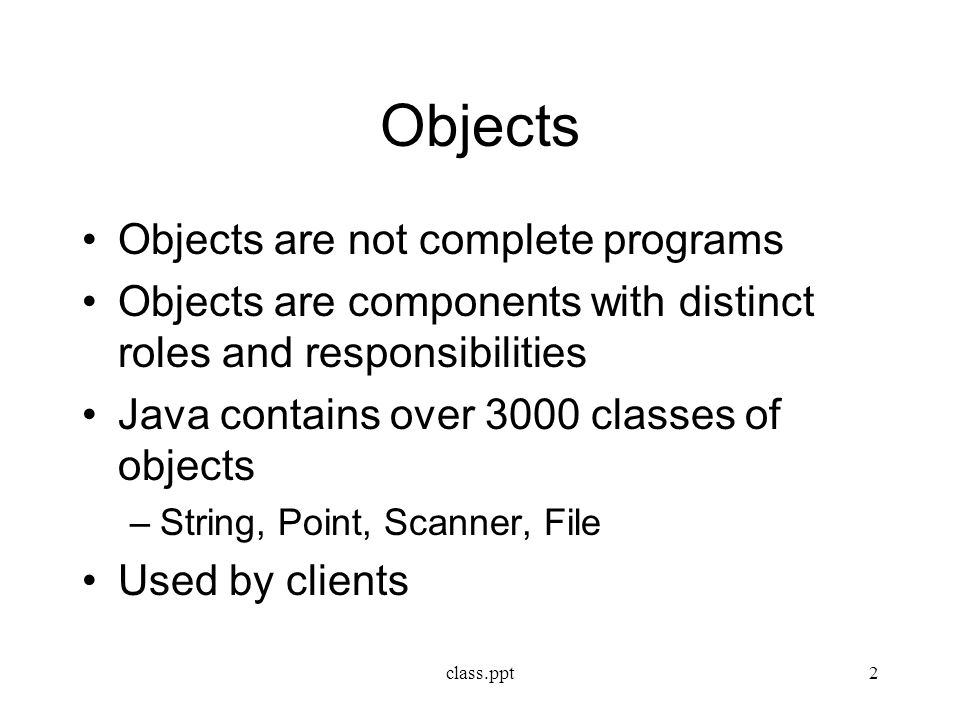

2 Objects Objects are not complete programs Objects are components with distinct roles and responsibilities Java contains over 3000 classes of objects –String, Point, Scanner, File Used by clients class.ppt2

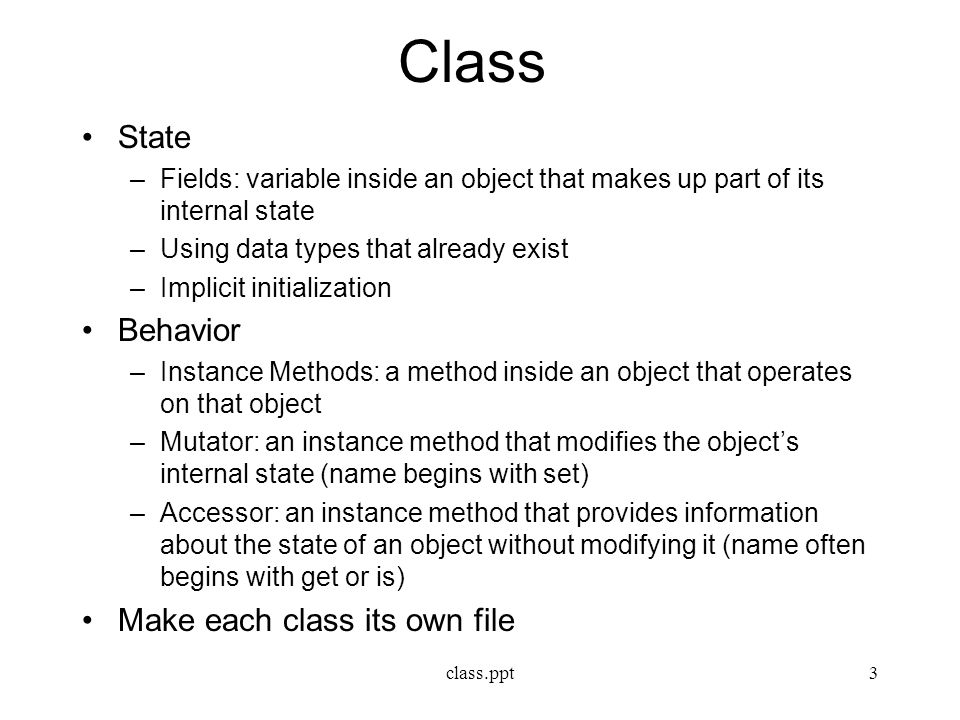

3 3 Class State –Fields: variable inside an object that makes up part of its internal state –Using data types that already exist –Implicit initialization Behavior –Instance Methods: a method inside an object that operates on that object –Mutator: an instance method that modifies the object’s internal state (name begins with set) –Accessor: an instance method that provides information about the state of an object without modifying it (name often begins with get or is) Make each class its own file

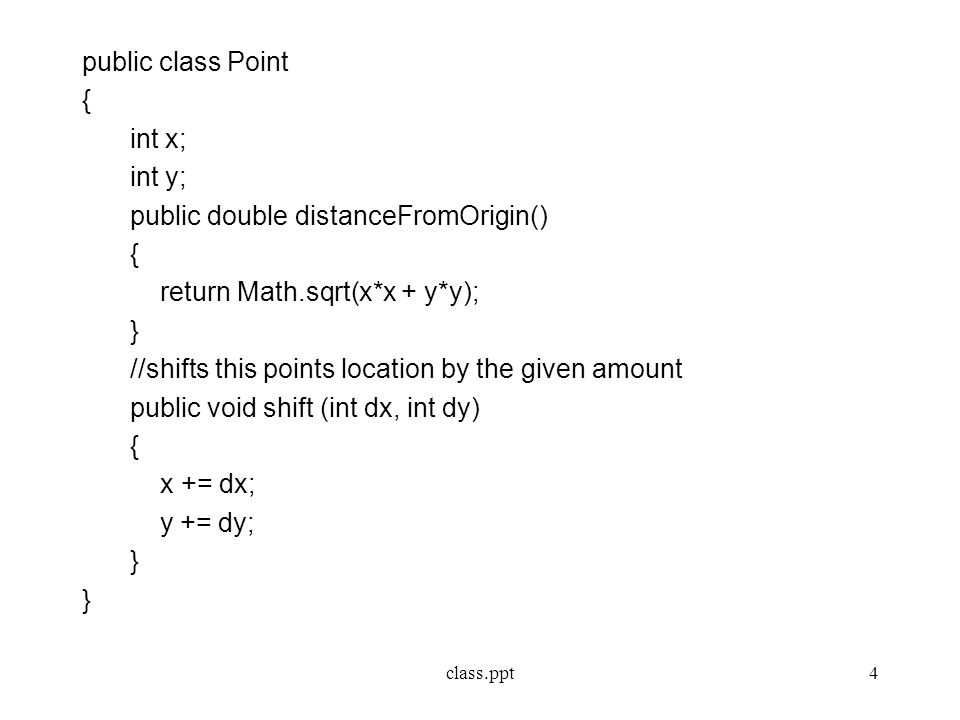

4 public class Point { int x; int y; public double distanceFromOrigin() { return Math.sqrt(x*x + y*y); } //shifts this points location by the given amount public void shift (int dx, int dy) { x += dx; y += dy; } class.ppt4

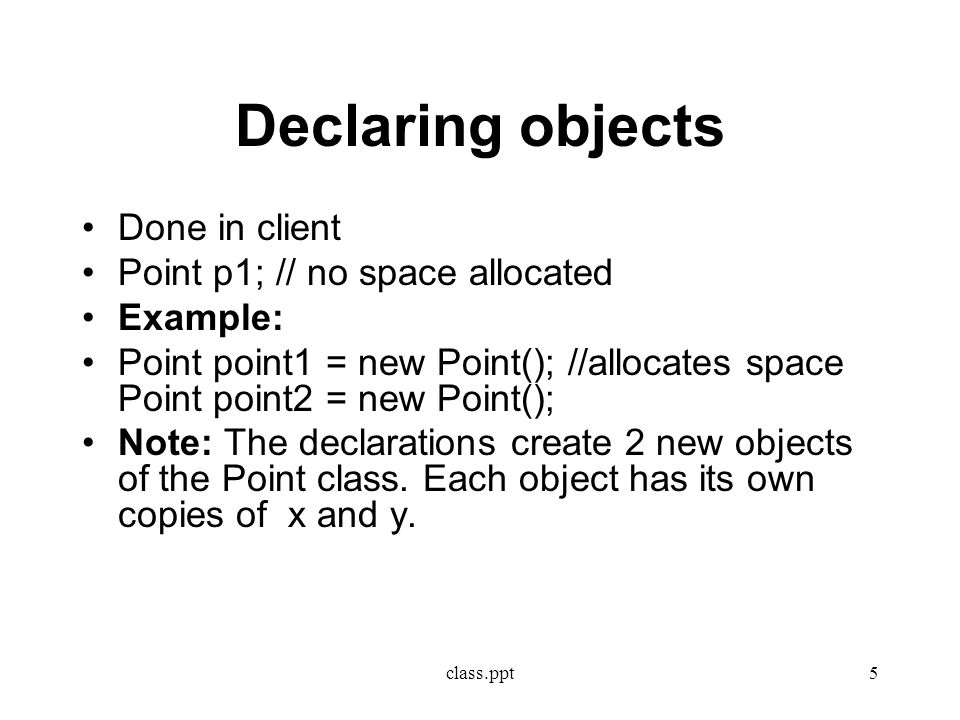

5 5 Declaring objects Done in client Point p1; // no space allocated Example: Point point1 = new Point(); //allocates space Point point2 = new Point(); Note: The declarations create 2 new objects of the Point class. Each object has its own copies of x and y.

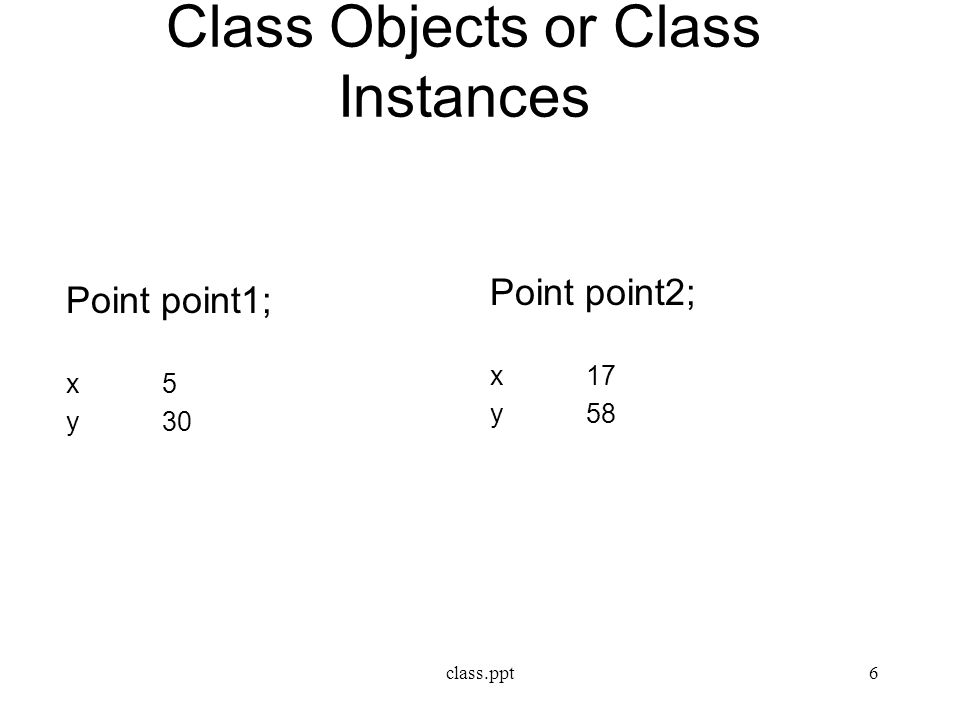

6 class.ppt6 Class Objects or Class Instances Point point1; x5 y30 Point point2; x17 y 58

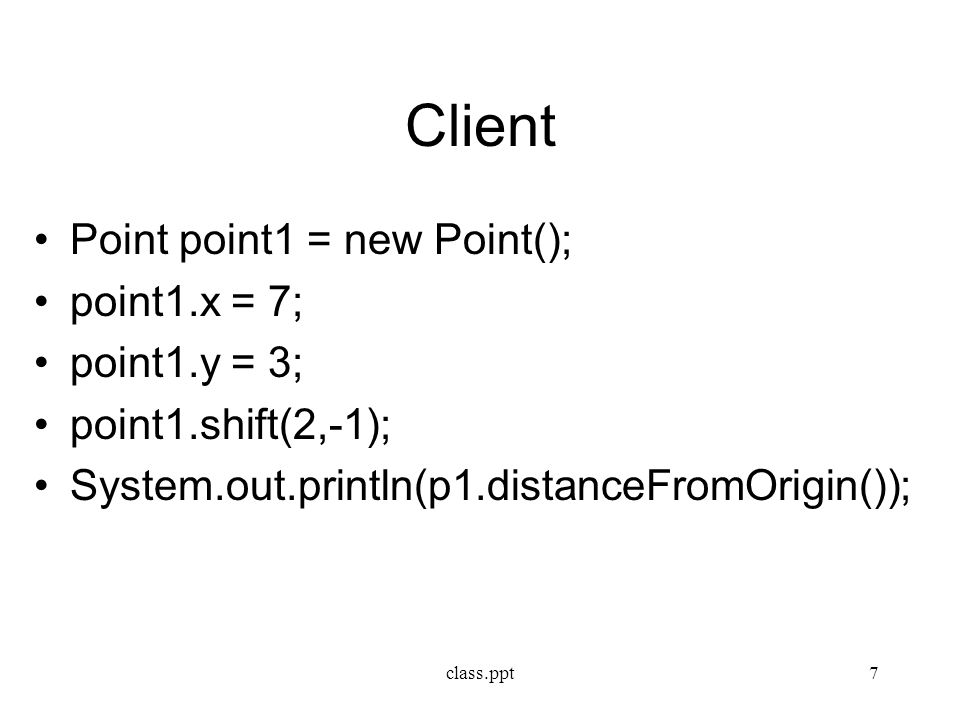

7 Client Point point1 = new Point(); point1.x = 7; point1.y = 3; point1.shift(2,-1); System.out.println(p1.distanceFromOrigin()); class.ppt7

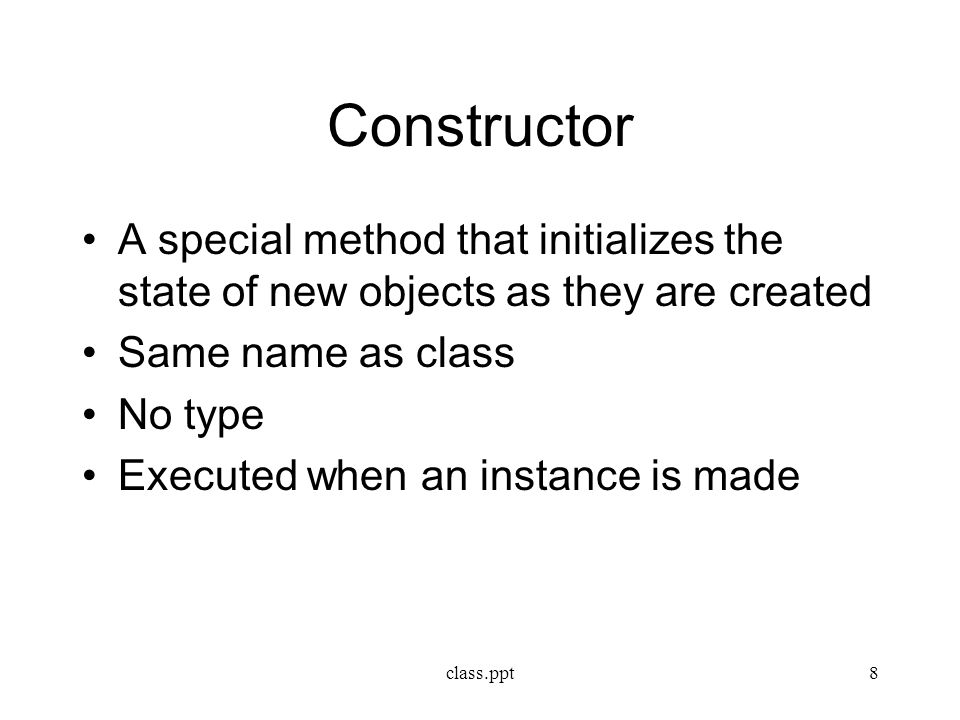

8 Constructor A special method that initializes the state of new objects as they are created Same name as class No type Executed when an instance is made class.ppt8

9 Constructors If you create an alternate constructor, then you must (also) create the default constructor. If you do not include any constructor in a class, then Java automatically provides the default constructor. class.ppt9

10 Constructors public Point() { x = 0; y = 0; } public Point(int initialX, int initialY) { x = initialX; y = initialY; } class.ppt10

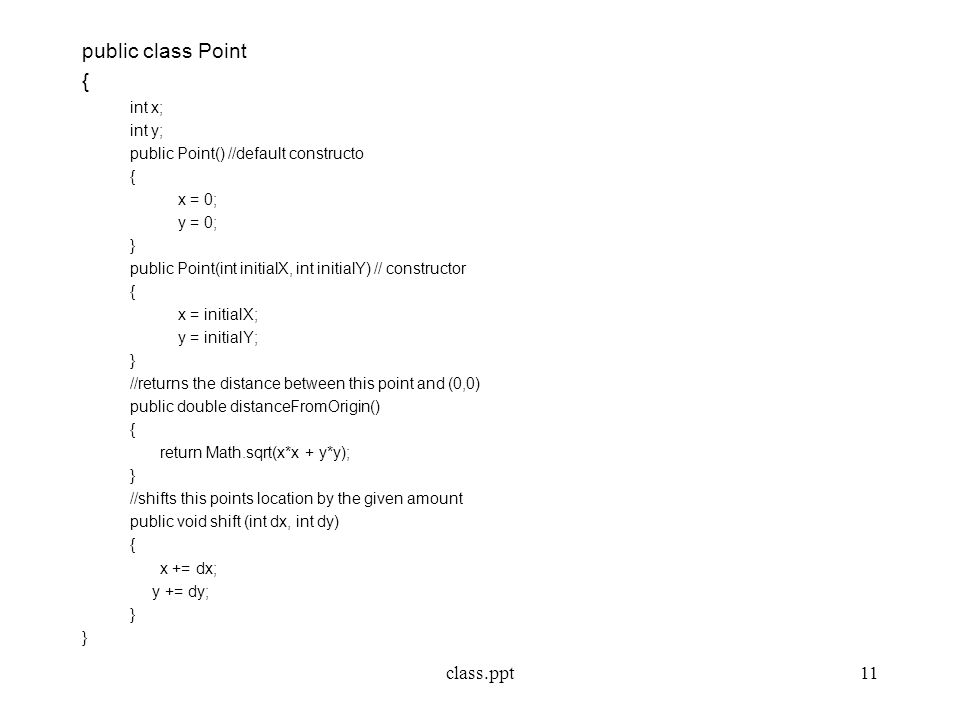

11 public class Point { int x; int y; public Point() //default constructo { x = 0; y = 0; } public Point(int initialX, int initialY) // constructor { x = initialX; y = initialY; } //returns the distance between this point and (0,0) public double distanceFromOrigin() { return Math.sqrt(x*x + y*y); } //shifts this points location by the given amount public void shift (int dx, int dy) { x += dx; y += dy; } class.ppt11

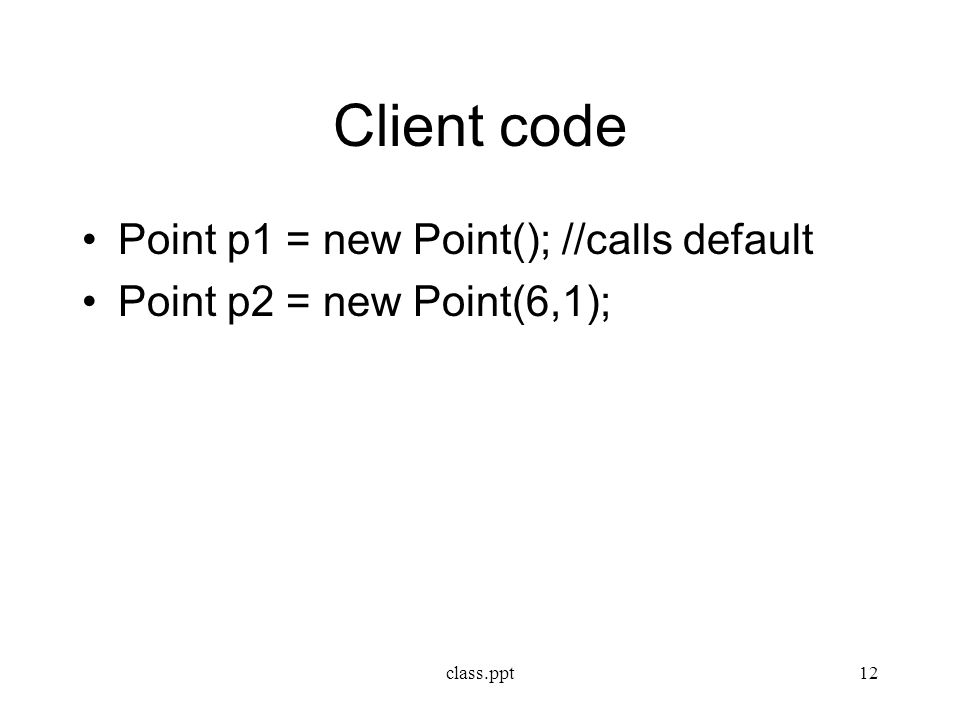

12 Client code Point p1 = new Point(); //calls default Point p2 = new Point(6,1); class.ppt12

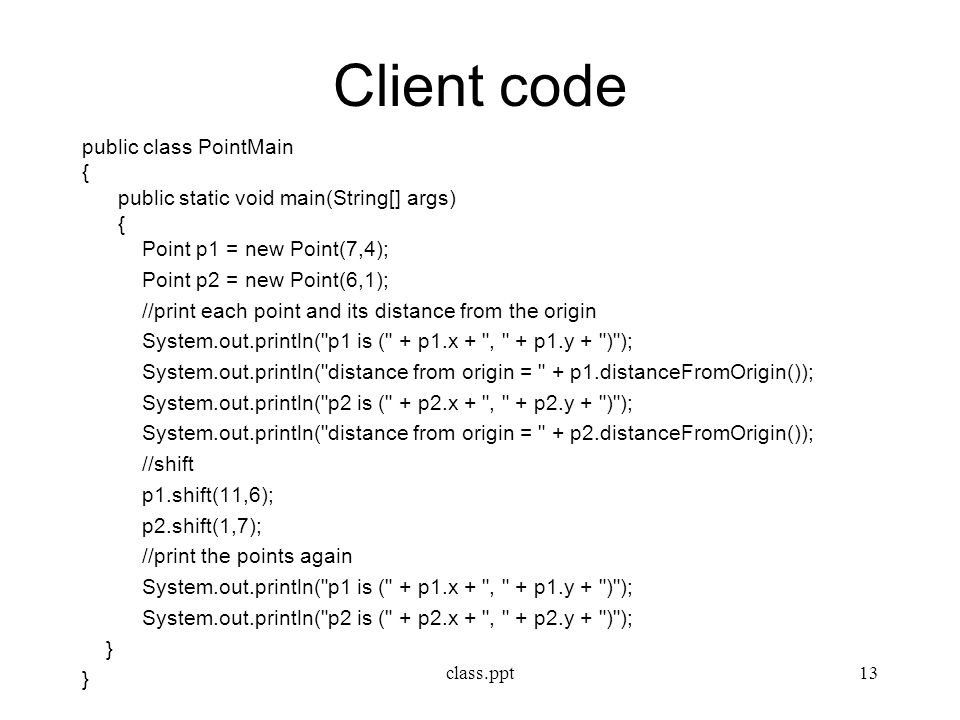

13 Client code public class PointMain { public static void main(String[] args) { Point p1 = new Point(7,4); Point p2 = new Point(6,1); //print each point and its distance from the origin System.out.println("p1 is (" + p1.x + ", " + p1.y + ")"); System.out.println("distance from origin = " + p1.distanceFromOrigin()); System.out.println("p2 is (" + p2.x + ", " + p2.y + ")"); System.out.println("distance from origin = " + p2.distanceFromOrigin()); //shift p1.shift(11,6); p2.shift(1,7); //print the points again System.out.println("p1 is (" + p1.x + ", " + p1.y + ")"); System.out.println("p2 is (" + p2.x + ", " + p2.y + ")"); } class.ppt13

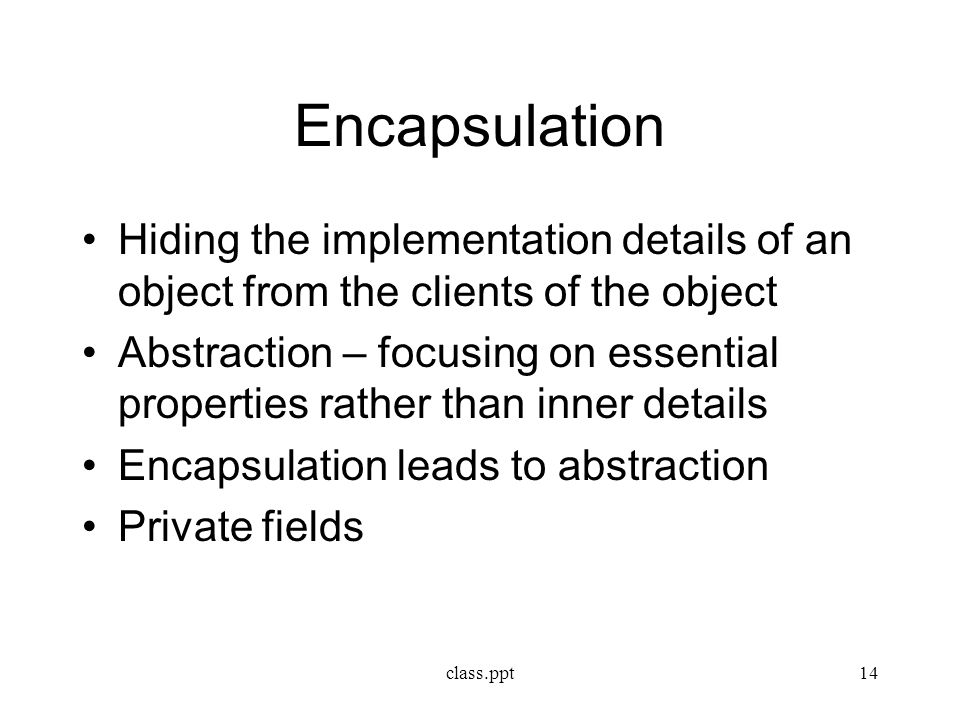

14 Encapsulation Hiding the implementation details of an object from the clients of the object Abstraction – focusing on essential properties rather than inner details Encapsulation leads to abstraction Private fields class.ppt14

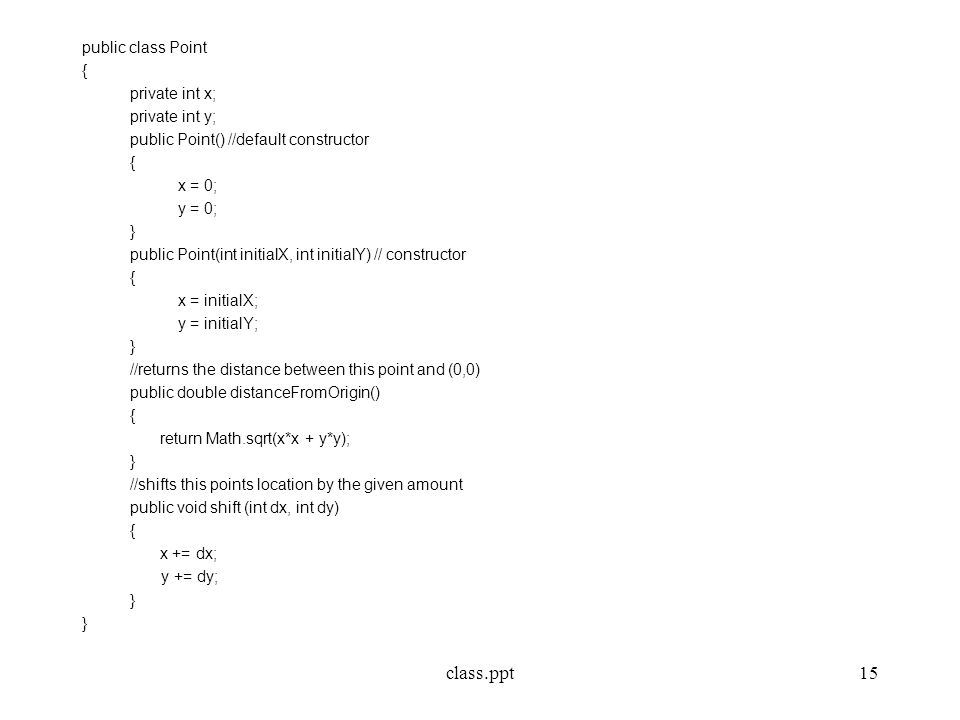

15 public class Point { private int x; private int y; public Point() //default constructor { x = 0; y = 0; } public Point(int initialX, int initialY) // constructor { x = initialX; y = initialY; } //returns the distance between this point and (0,0) public double distanceFromOrigin() { return Math.sqrt(x*x + y*y); } //shifts this points location by the given amount public void shift (int dx, int dy) { x += dx; y += dy; } class.ppt15

16 Accessing Class Members objects within a class definition can access public and private members objects out side of class definition can access only public members class.ppt16

17 Client Point point1 = new Point(); point1.x = 7; point1.y = 3; Yields errors x had private access point in Point y has private access point in Point class.ppt17

18 Add new methods public int getX() { return x; } public int getY() { return y; } public void setX(int newX) { x = newX; } public void getY(int newY) { y = newY; } class.ppt18

19 Client code public class PointMain { public static void main(String[] args) { Point p1 = new Point(7,4); Point p2 = new Point(6,1); //print each point and its distance from the origin System.out.println("p1 is (" + p1.getX() + ", " + p1.getY() + ")"); System.out.println("distance from origin = " + p1.distanceFromOrigin()); System.out.println("p2 is (" + p2.getX() + ", " + p2.getY() + ")"); System.out.println("distance from origin = " + p2.distanceFromOrigin()); / /shift p1.setX(11); p1.setY(6); p2.shift(1,7); //print the points again System.out.println("p1 is (" + p1.getX() + ", " + p1.getY() + ")"); System.out.println("p2 is (" + p2.getX() + ", " + p2.getY() + ")"); } class.ppt19

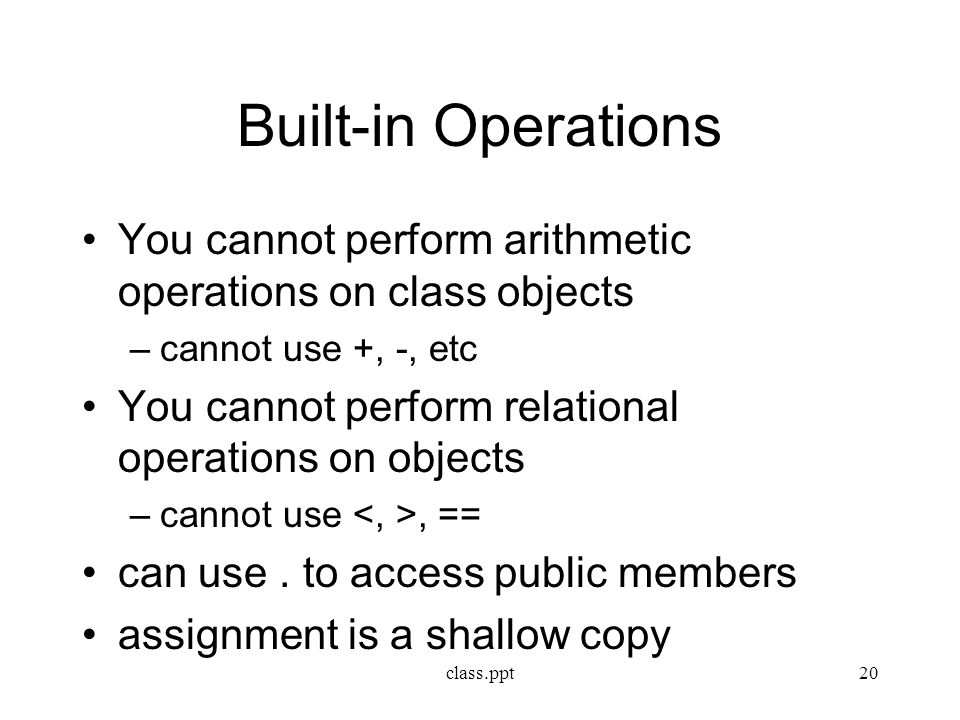

20 Built-in Operations You cannot perform arithmetic operations on class objects –cannot use +, -, etc You cannot perform relational operations on objects –cannot use, == can use. to access public members assignment is a shallow copy class.ppt20

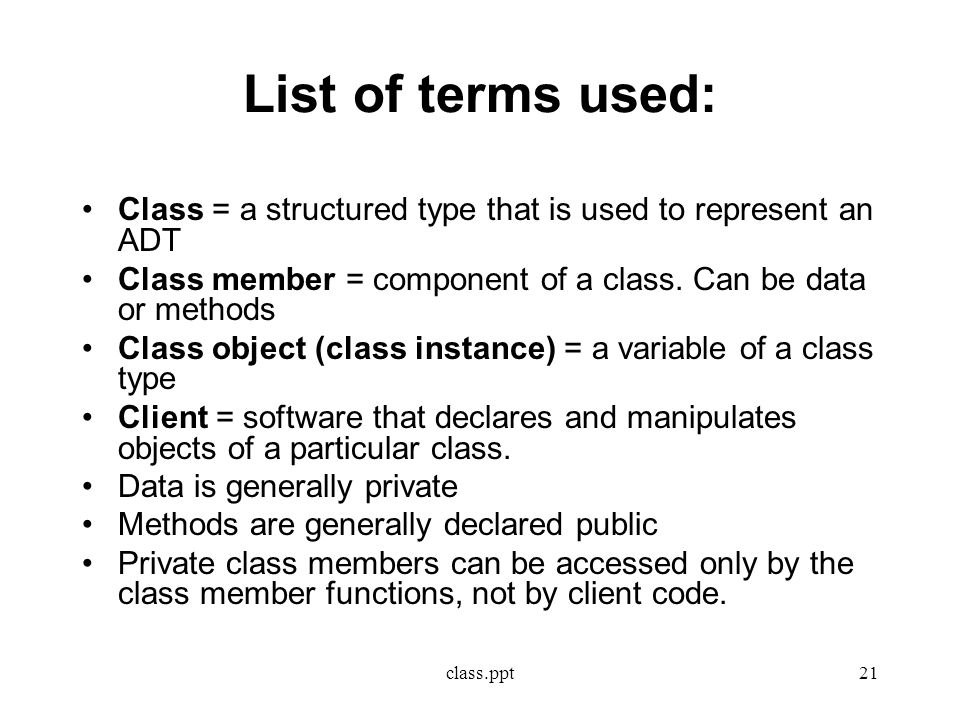

21 class.ppt21 List of terms used: Class = a structured type that is used to represent an ADT Class member = component of a class. Can be data or methods Class object (class instance) = a variable of a class type Client = software that declares and manipulates objects of a particular class. Data is generally private Methods are generally declared public Private class members can be accessed only by the class member functions, not by client code.
