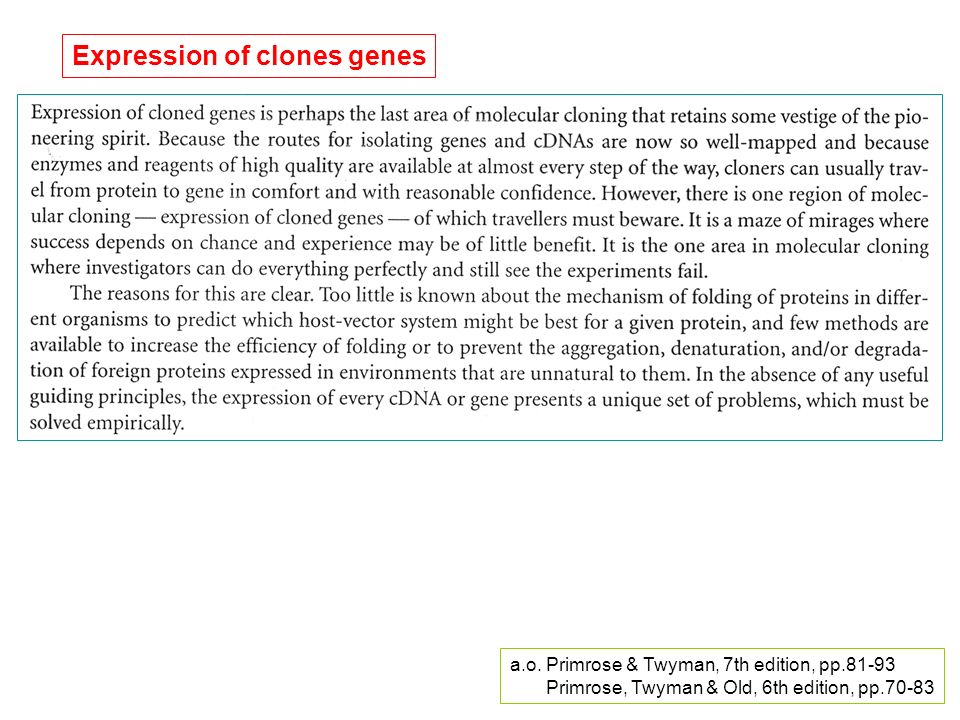

1. Expression of clones genes a.o. Primrose & Twyman, 7th edition, pp.81-93 Primrose, Twyman & Old, 6th edition, pp.70-83

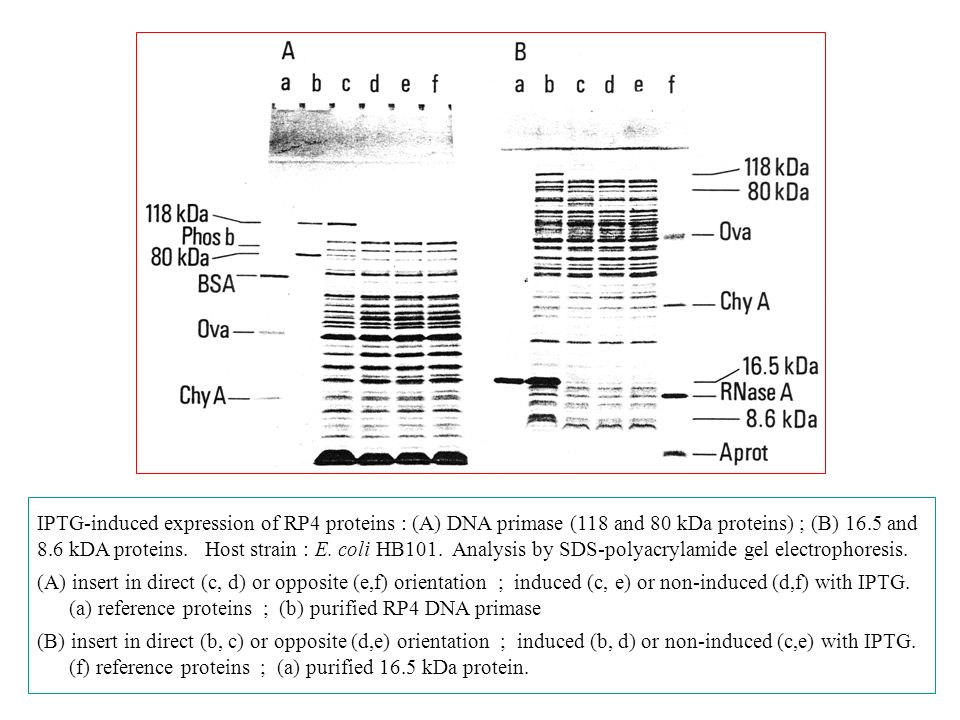

2. IPTG-induced expression of RP4 proteins : (A) DNA primase (118 and 80 kDa proteins) ; (B) 16.5 and 8.6 kDA proteins. Host strain : E. coli HB101. Analysis by SDS-polyacrylamide gel electrophoresis. (A) insert in direct (c, d) or opposite (e,f) orientation ; induced (c, e) or non-induced (d,f) with IPTG. (a) reference proteins ; (b) purified RP4 DNA primase (B) insert in direct (b, c) or opposite (d,e) orientation ; induced (b, d) or non-induced (c,e) with IPTG. (f) reference proteins ; (a) purified 16.5 kDa protein.

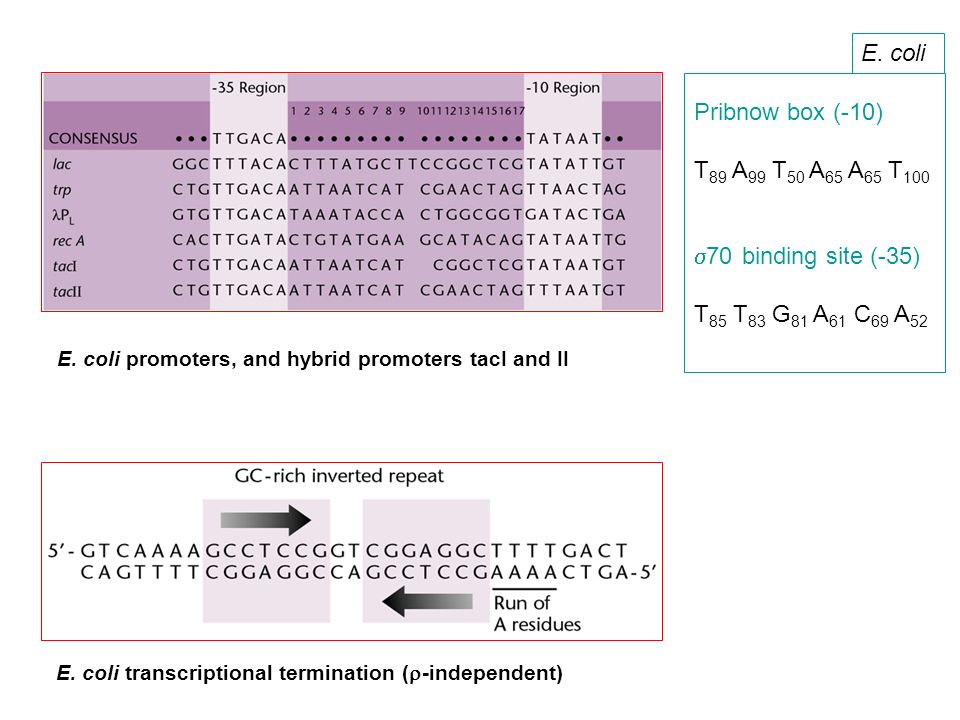

3. Pribnow box (-10) T 89 A 99 T 50 A 65 A 65 T 100  70 binding site (-35) T 85 T 83 G 81 A 61 C 69 A 52 E. coli E. coli promoters, and hybrid promoters tacI and II E. coli transcriptional termination (  -independent)

4. Codeword usage in strongly and weakly expressed E. coli genes. "strong" :24 genes (5253 triplets), a.o. 12 of ribosomal proteins, 7 of outer membrane proteins, and some for RNA polymerase subunits and translation initiation and termination factors. "weak" : 18 genes (5231 triplets), a.o. for different repressor proteins, lac-permease, etc.

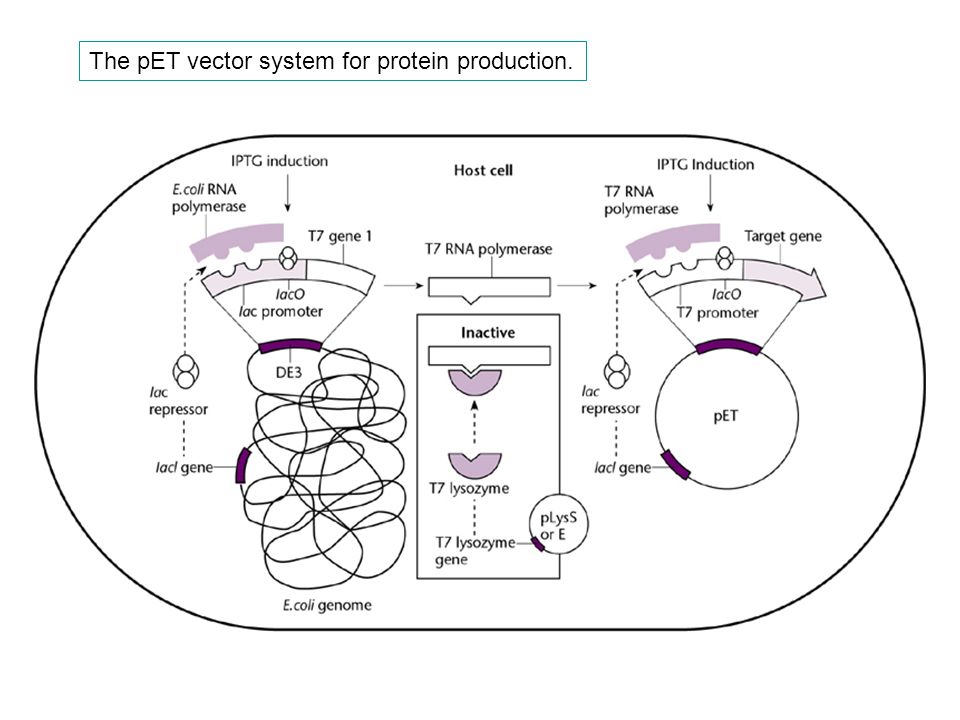

5. The pET vector system for protein production.

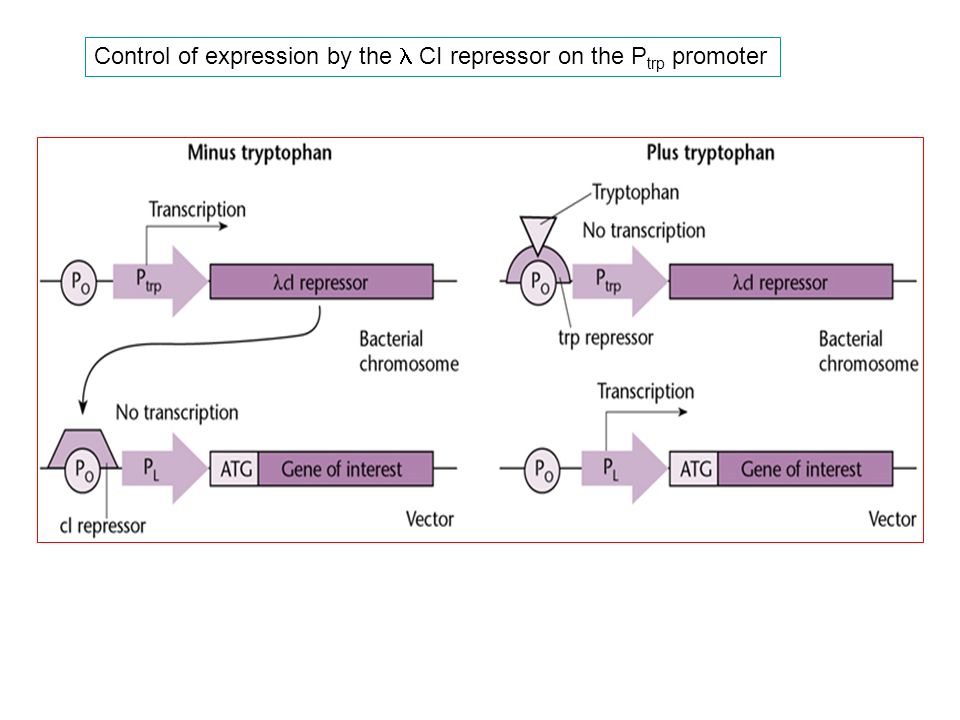

6. Control of expression by the CI repressor on the P trp promoter

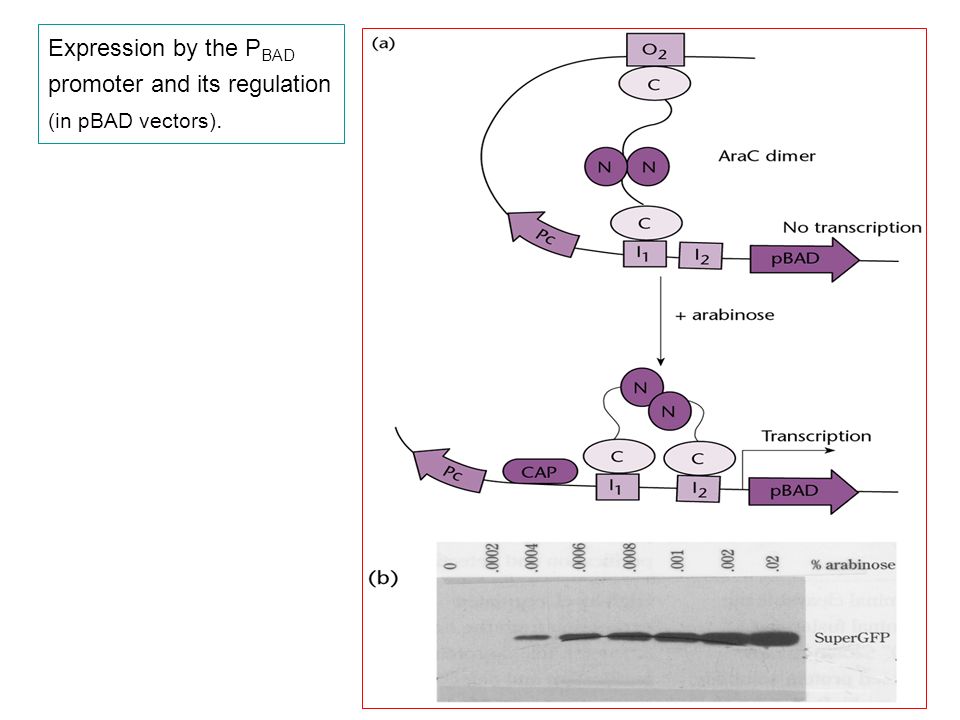

7. Expression by the P BAD promoter and its regulation (in pBAD vectors).

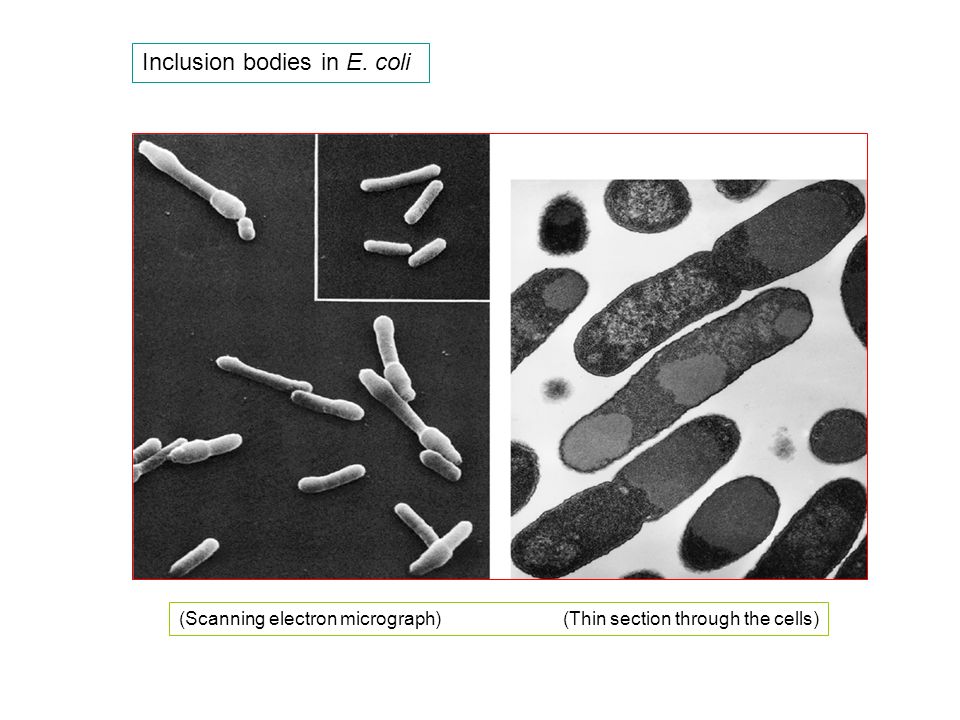

8. Inclusion bodies in E. coli (Scanning electron micrograph)(Thin section through the cells)

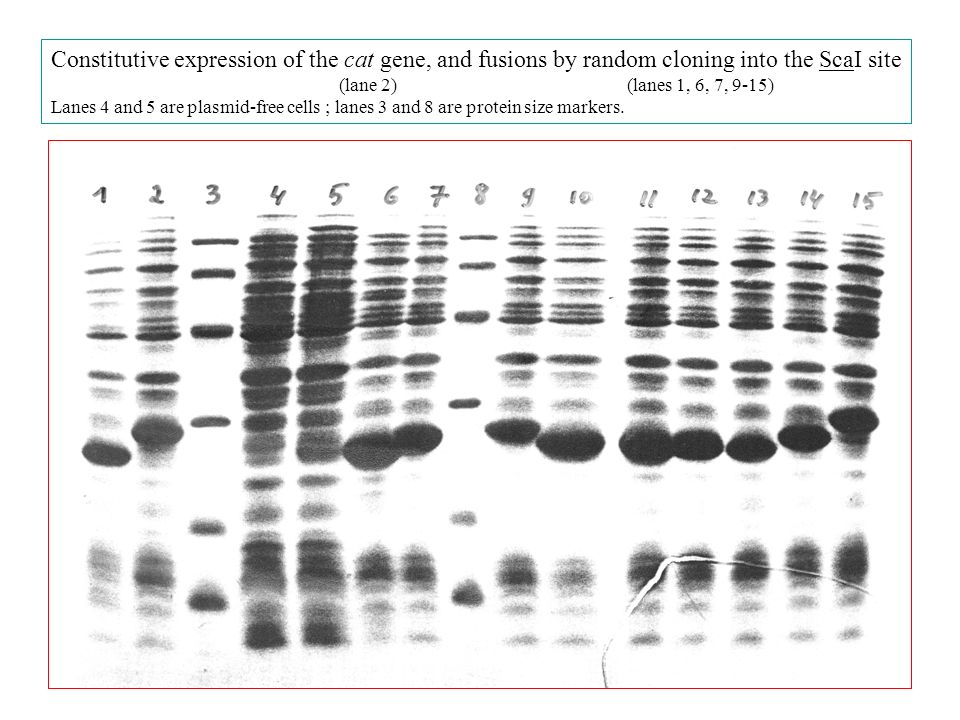

9. Constitutive expression of the cat gene, and fusions by random cloning into the ScaI site (lane 2)(lanes 1, 6, 7, 9-15) Lanes 4 and 5 are plasmid-free cells ; lanes 3 and 8 are protein size markers.

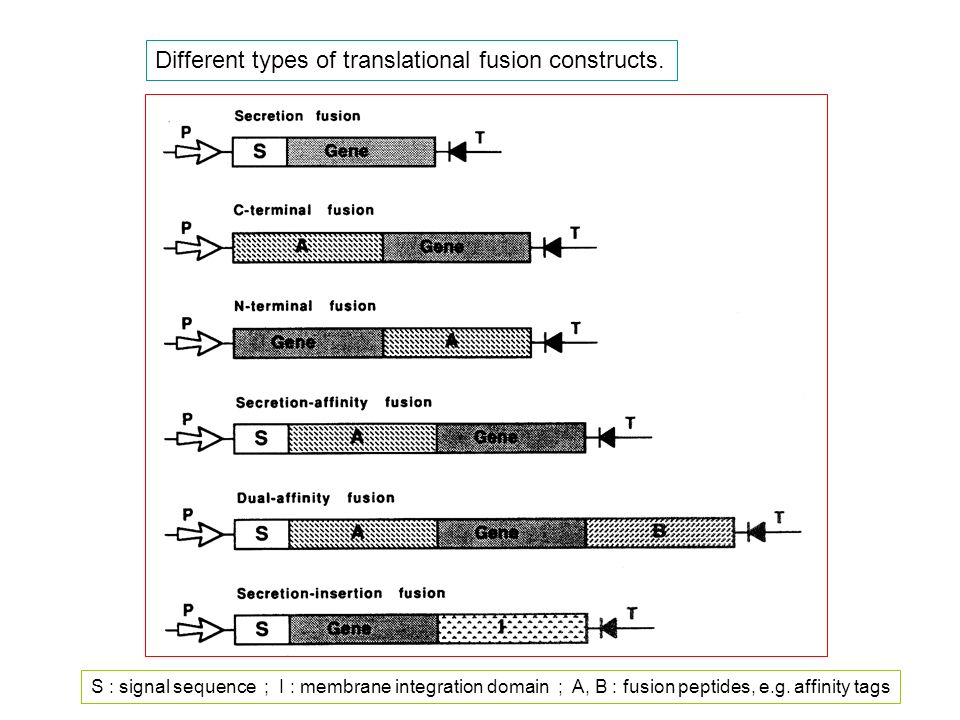

10. Different types of translational fusion constructs. S : signal sequence ; I : membrane integration domain ; A, B : fusion peptides, e.g. affinity tags

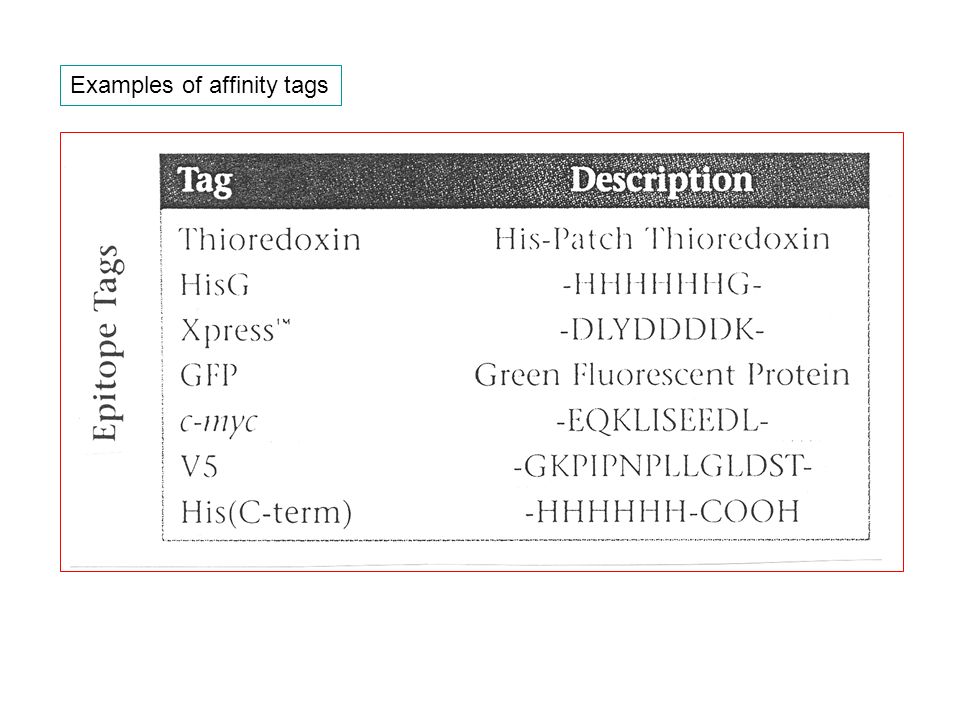

11. Examples of affinity tags

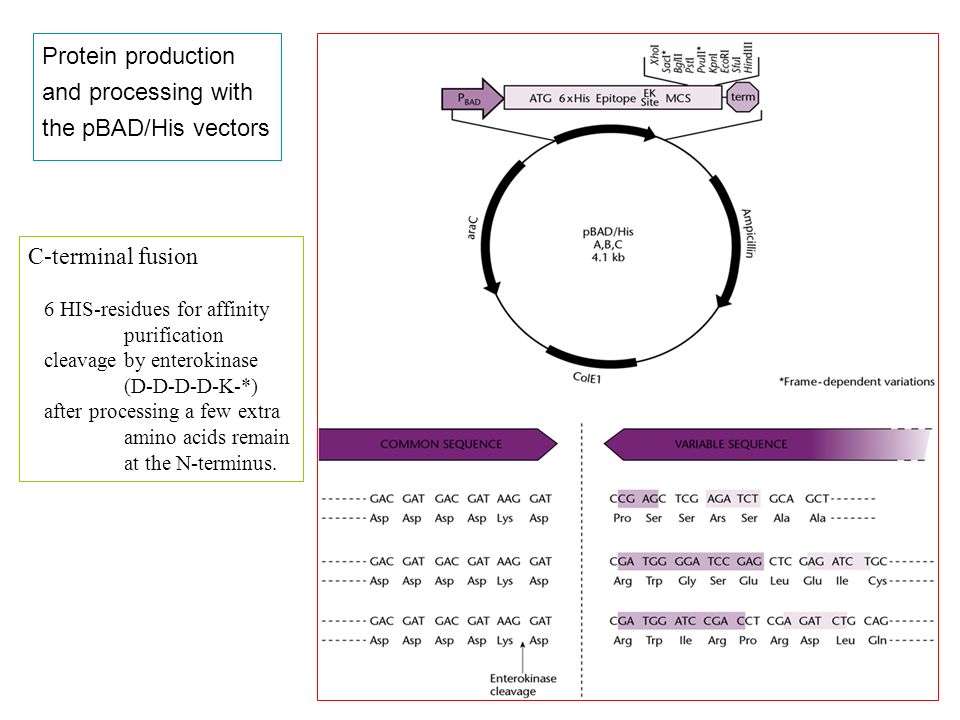

12. Protein production and processing with the pBAD/His vectors C-terminal fusion 6 HIS-residues for affinity purification cleavage by enterokinase (D-D-D-D-K-*) after processing a few extra amino acids remain at the N-terminus.

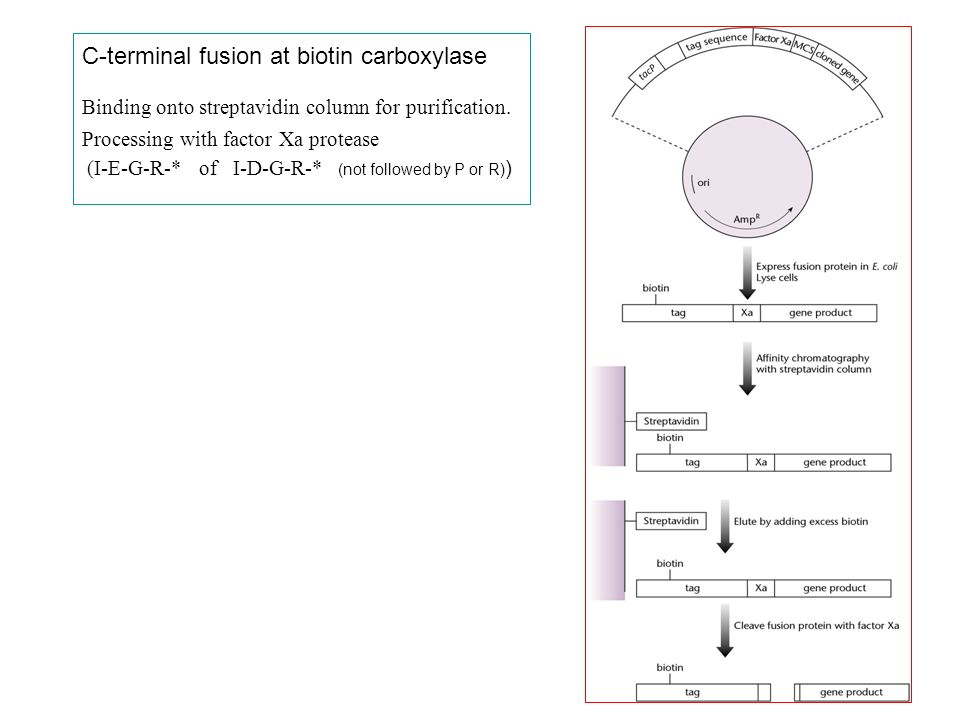

13. C-terminal fusion at biotin carboxylase Binding onto streptavidin column for purification. Processing with factor Xa protease (I-E-G-R-* of I-D-G-R-* (not followed by P or R) )

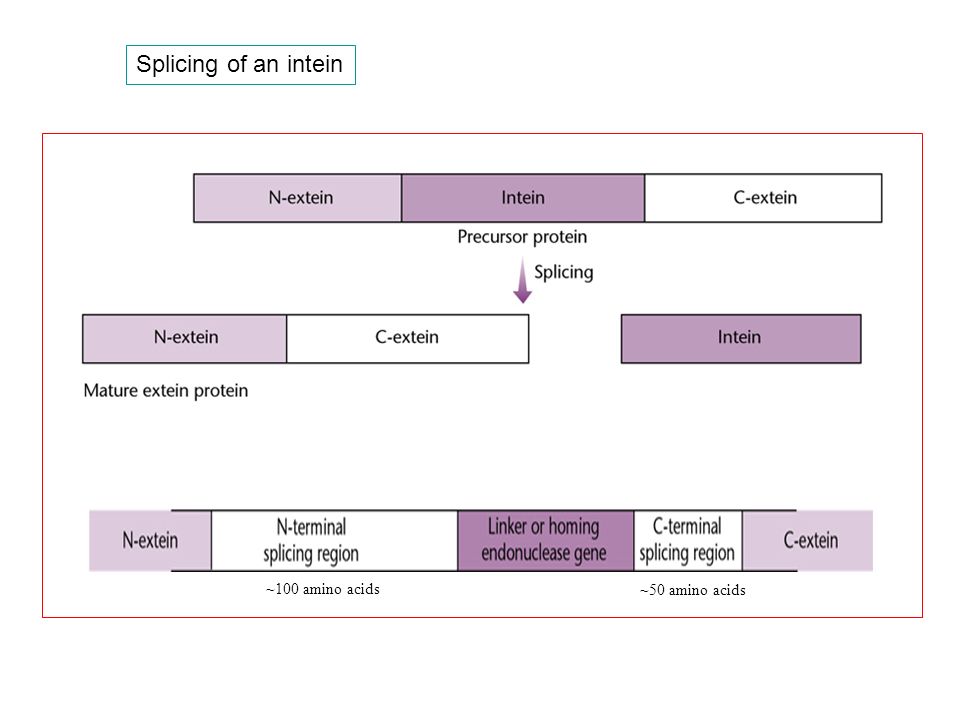

14. Splicing of an intein ~100 amino acids ~50 amino acids

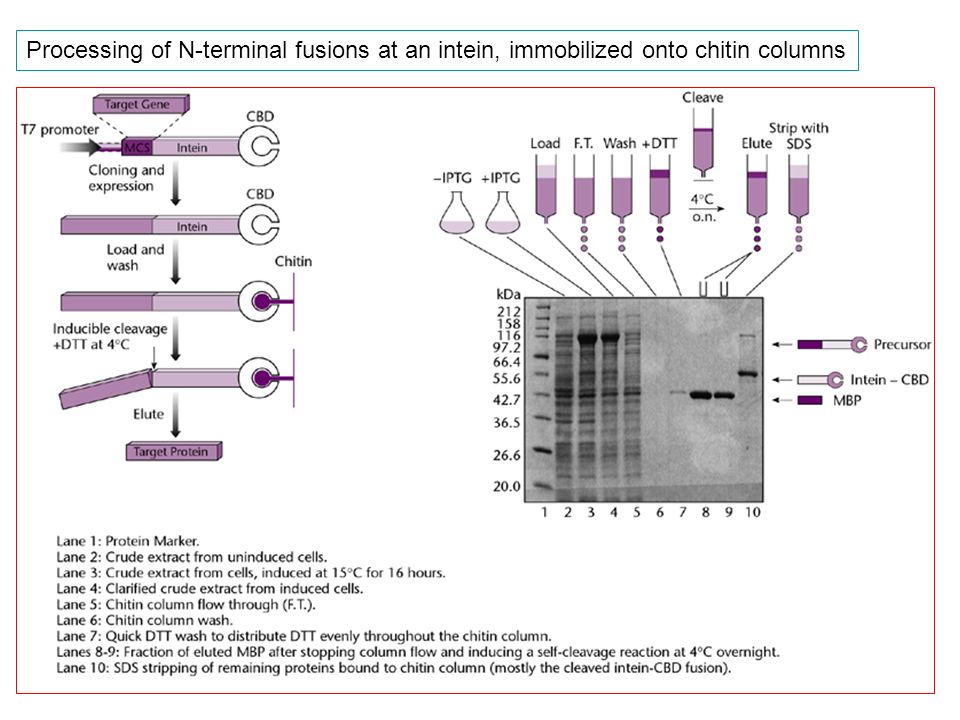

15. Processing of N-terminal fusions at an intein, immobilized onto chitin columns

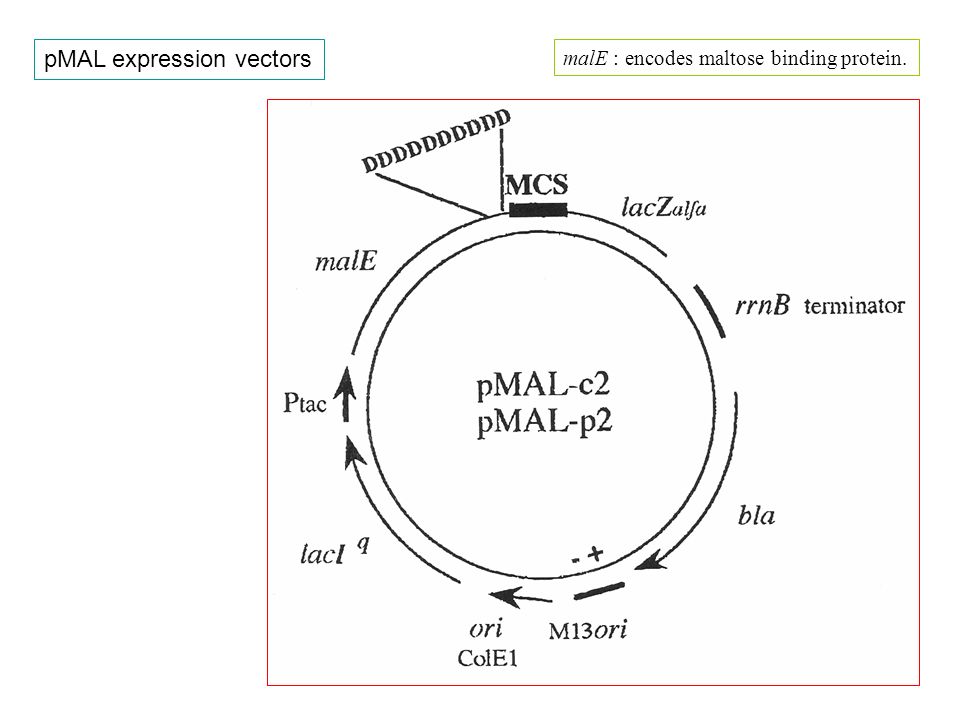

16. pMAL expression vectors malE : encodes maltose binding protein.

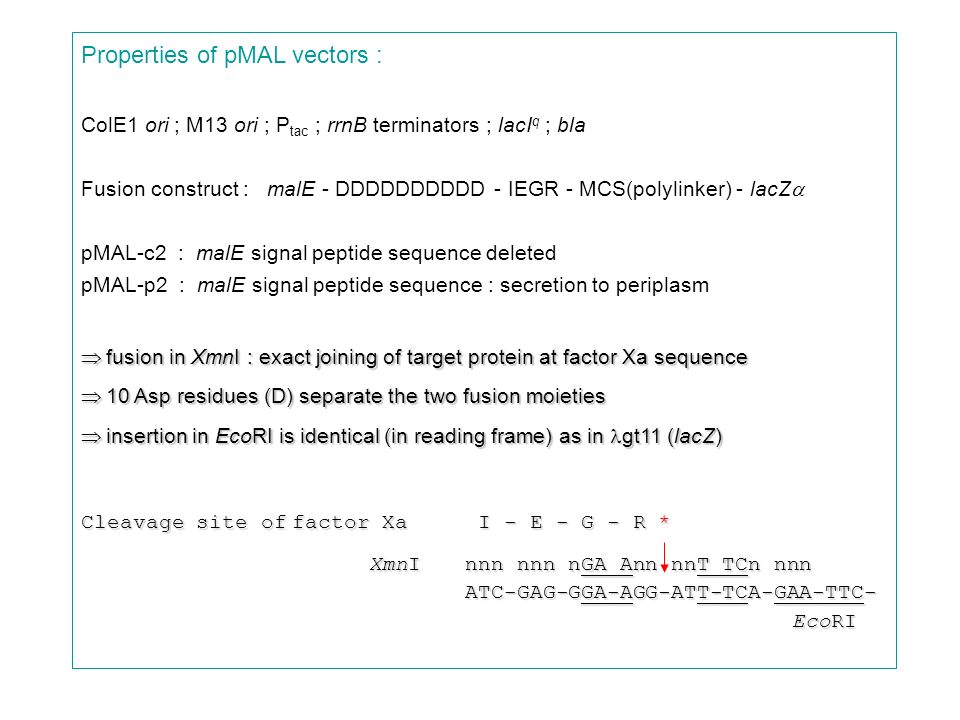

17. Properties of pMAL vectors : ColE1 ori ; M13 ori ; P tac ; rrnB terminators ; lacI q ; bla Fusion construct : malE - DDDDDDDDDD - IEGR - MCS(polylinker) - lacZ  pMAL-c2 : malE signal peptide sequence deleted pMAL-p2 : malE signal peptide sequence : secretion to periplasm  fusion in XmnI : exact joining of target protein at factor Xa sequence  10 Asp residues (D) separate the two fusion moieties  insertion in EcoRI is identical (in reading frame) as in gt11 (lacZ) Cleavage site of factor Xa I - E - G - R * XmnI nnn nnn nGA Ann nnT TCn nnn ATC-GAG-GGA-AGG-ATT-TCA-GAA-TTC- EcoRI EcoRI

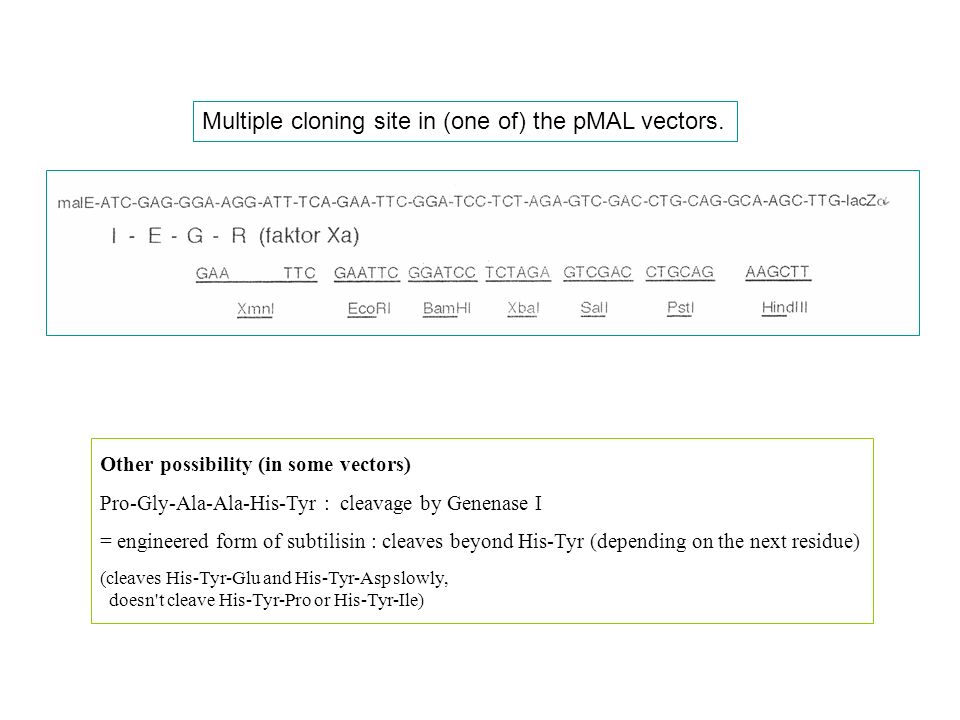

18. Multiple cloning site in (one of) the pMAL vectors. Other possibility (in some vectors) Pro-Gly-Ala-Ala-His-Tyr : cleavage by Genenase I = engineered form of subtilisin : cleaves beyond His-Tyr (depending on the next residue) (cleaves His-Tyr-Glu and His-Tyr-Asp slowly, doesn't cleave His-Tyr-Pro or His-Tyr-Ile)

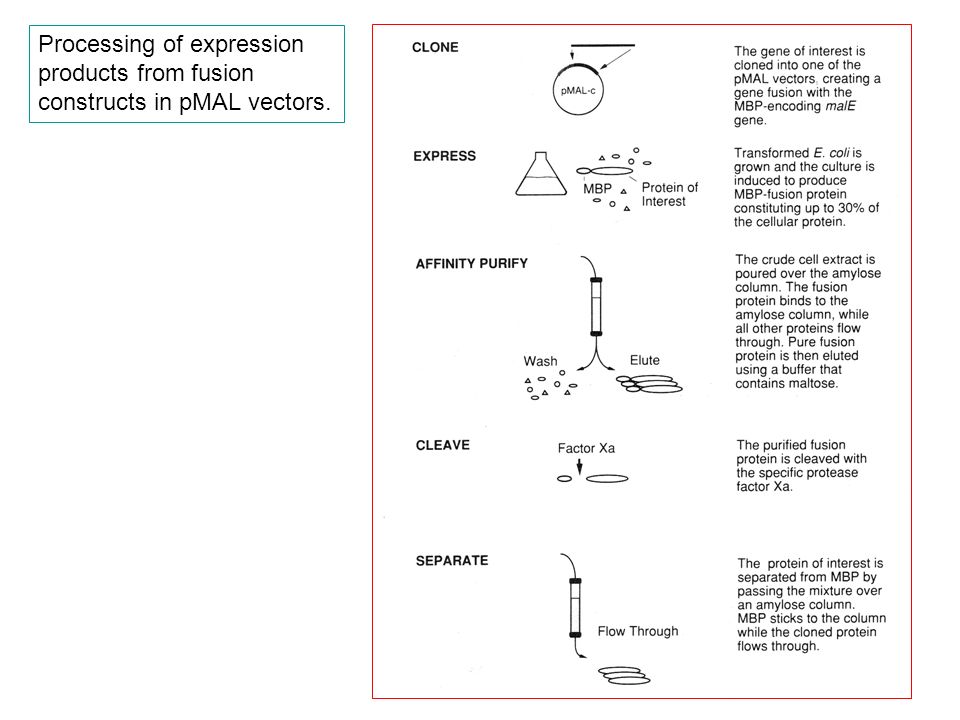

19. Processing of expression products from fusion constructs in pMAL vectors.

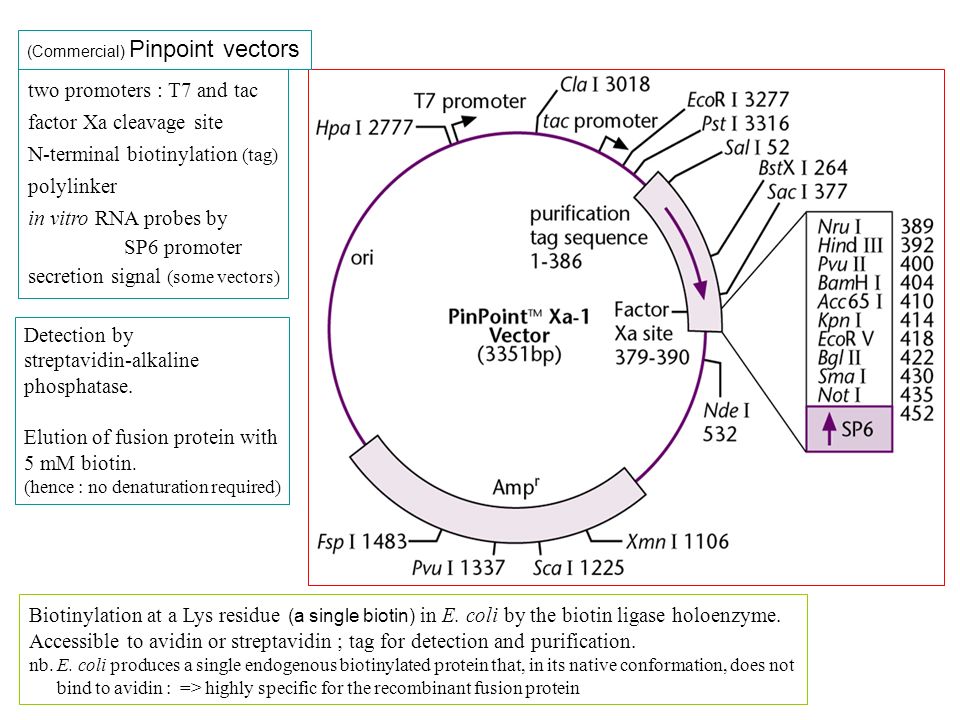

21. (Commercial) Pinpoint vectors two promoters : T7 and tac factor Xa cleavage site N-terminal biotinylation (tag) polylinker in vitro RNA probes by SP6 promoter secretion signal (some vectors) Biotinylation at a Lys residue (a single biotin) in E. coli by the biotin ligase holoenzyme. Accessible to avidin or streptavidin ; tag for detection and purification. nb. E. coli produces a single endogenous biotinylated protein that, in its native conformation, does not bind to avidin : => highly specific for the recombinant fusion protein Detection by streptavidin-alkaline phosphatase. Elution of fusion protein with 5 mM biotin. (hence : no denaturation required)
