1. 1 Subprograms Fundamentals of subprograms Design issues for subprograms –Parameter-passing methods –Type checking of parameters –Static or dynamic storage –Local referencing environments –Nesting of subprogram definitions –Overloaded subprograms –Generic subprograms Design issues for functions Subprograms as parameters User-defined overloaded operators

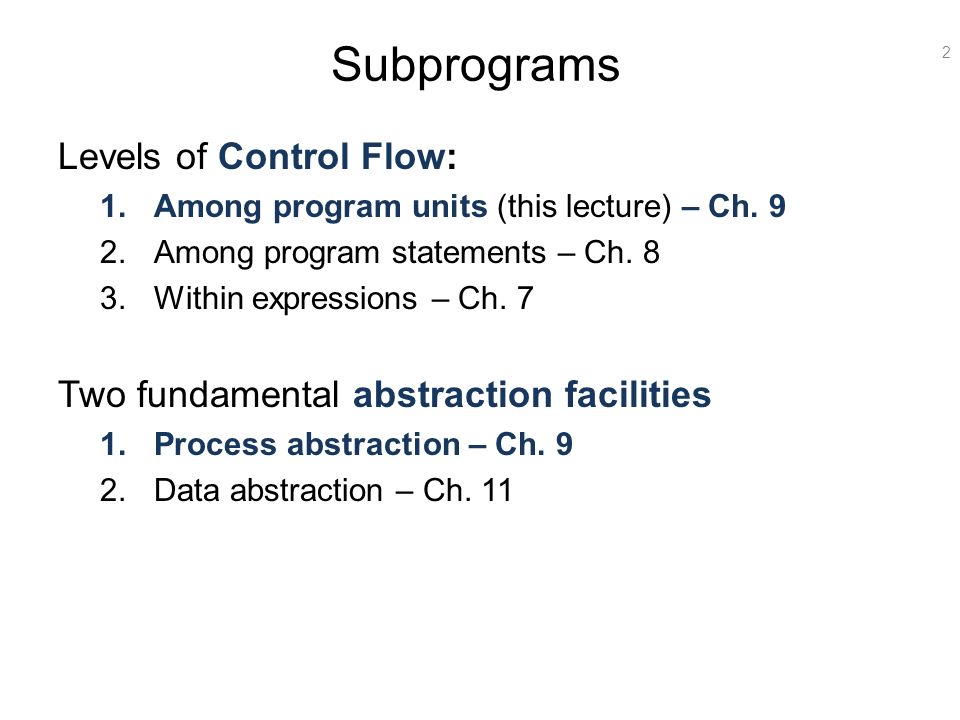

2. 2 Subprograms Levels of Control Flow: 1.Among program units (this lecture) – Ch. 9 2.Among program statements – Ch. 8 3.Within expressions – Ch. 7 Two fundamental abstraction facilities 1.Process abstraction – Ch. 9 2.Data abstraction – Ch. 11

3. 3 Fundamentals of Subprograms General characteristics of subprograms: 1.has a single entry point 2.caller is suspended during execution of the called subprogram 3.control always returns to the caller when the called subprogram’s execution terminates Note: 2. does not apply to concurrent programs

4. 4 Definitions Subprogram –Description of the subprogram's actions Subprogram call –Explicit request to execute the subprogram Subprogram header –the 1 st part of subprogram's definition: its name, type, and formal parameters Parameter profile –the number, order, and types of the formal parameters Subprogram protocol –its parameter profile plus, if it is a function, its return type Subprogram declaration –its name and its protocol, but not the body Formal parameter –“dummy” variable listed in the parameter profile and used in the subprogram body Actual parameter –value or address used in the subprogram call statement

5. 5 Actual/Formal Parameter Correspondence 1.Positional (most common) 2.With keyword –e.g. SORT(LIST => A, LENGTH => N); –Advantage: order is irrelevant –Disadvantages user must know the formal parameter’s names less readable and writeable 3.Default values e.g. procedure SORT(LIST: LIST_TYPE; LENGTH: INTEGER := 100);... SORT(LIST => A);

6. 6 Subprograms (Functions and Procedures) Formal parameter (names) Actual parameters Passing –In –Out –In/Out Subprogram Formal parameters In In/Out Out Result/ Return Value Side Effects Input/Output Actual Parameters

7. 7 Design Issues for Subprograms 1.Parameter passing –can subprograms be used? 2.Type checking of parameters –how strict? 3.Static or dynamic –local variable allocation 4.Nesting –can subprogram be defined in another subprogram definition? 5.Referencing environment –what can be accessed within the caller (sub)program? 6.Overloading –is it allowed? 7.Generic –can subprogram be generic?

8. 8 Parameter Passing Methods How can parameters be transmitted to and/or from the caller and the called subprogram? 1.Pass-by-value (in mode) 2.Pass-by-result (out mode) 3.Pass-by-value-result (in/out mode) 4.Pass-by-reference (in/out mode) 5.Pass-by-name

9. 9 Parameter Passing with Physical Moves (Copy) Caller (sub(a, b, c)) In mode Out mode In/out mode a b c x y z Callee (void sub (int x, int y, int z)) 1 2 3 Return Call Return

10. 10 Design Choices for Parameter Passing Efficiency vs. style and reliability One-way or two-way parameters? –Good programming style limited access to variables, e.g. one-way whenever possible –Efficiency pass by reference is the fastest way to pass big structures, however the access is then a bit slower –Note the conflict! –Also style functions should minimize pass by reference parameters

11. 11 Pass-by-value (In Mode) a.Physical move (copy) –Advantages No need to write-protect in the called subprogram Accesses cost lower (no indirect addressing) –Disadvantages Requires more storage (duplicated space) Cost of the moves (if the parameter is large) b.Access path (reference) –Advantages & Disadvantages Opposite of above

12. 12 Pass-by-result (Out Mode) No value is transmitted to the subprogram Local’s value is passed back to the caller –Physical move is usually used Disadvantages: –If value is passed, time and space –Order dependence may be a problem e.g. procedure sub(y: int, z: int);... sub(x, x); Value of x depends on order of assignments in the callee!!!

13. 13 Pass-by-value-result (In/Out Mode) Combination of pass-by-value and pass-by-result –Also called pass-by-copy Formal parameters have local storage Physical move both ways Advantages/Disadvantages: –Same as for pass-by-result –Same as for pass-by-value

14. 14 Pass-by-Reference (In/Out Mode) Pass an access path (reference) –Also called pass-by-sharing Advantage –Efficient - no copying and no duplicated storage Disadvantages –Slower accesses to formal parameters (than in pass- by value) –Potential for unwanted side effects –Allows aliasing See next slide

15. 15 Pass-by-Reference Aliasing Actual parameter collisions: e.g. procedure sub(a: int, b: int);... sub(x, x); Array element collisions: e.g. sub(a[i], a[j]); /* if i = j */ –Also, sub2(a, a[i]); /* (different one) */ Collision between formal parameters and global variables

16. 16 Pass-by-Reference Problems Root cause –Subprogram has more access to non-locals than necessary –Reference to the memory location allows side effects Pass-by-value-result solves this –It does not allow these aliases –has other problems

17. 17 Pass-by-Name (In/Out Mode) By textual substitution Formal parameters are bound to an access method at the time of the call Actual binding to a value or address takes place at the time of a reference or assignment Advantage –Flexibility in late binding Disadvantages –Reliability: weird semantics

18. 18 Pass-by-name Semantics If actual is a scalar variable, it is pass-by-reference If actual is a constant expression, it is pass-by-value If actual is an array element, it is like nothing else –e.g. procedure sub1(x: int; y: int); begin x := 1; y := 2; x := 2; y := 3; end; sub1(i, a[i]);

19. 19 Multidimensional Arrays as Parameters If a multidimensional array is passed-by- value in a separately compiled subprogram The compiler needs to know the declared size of that array to build the storage mapping function

20. 20 Parameter Passing Methods of Major Languages Fortran –Always used the in/out semantics model –Before Fortran 77: pass-by-reference –Fortran 77 and later: scalar variables are often passed by value result C –Pass-by-value –Pass-by-reference is achieved by using pointers as parameters C++ –A special pointer type called reference type for pass-by-reference Java –All primitive type parameters are passed by value –Object parameters are passed by reference

21. 21 Parameter Passing Methods in PLs (cont.) Ada –Three semantics parameter modes –in can be referenced but not assigned –out can be assigned but not referenced –in/out can be referenced and assigned –in is the default mode C# –Pass-by-value is default –Pass-by-reference ref must precede both the formal and its actual parameter

22. 22 Parameter Passing Methods in PLs PHP –very similar to C# Perl –all actual parameters are implicitly placed in a predefined array named @_

23. 23 Type Checking of Parameters Very important for reliability –Which errors are caught by type checking? FORTRAN 77 and original C –No type checking Pascal, FORTRAN 90, Java, and Ada –Type checking is always done ANSI C and C++, Lisp –User can avoid type checking

24. 24 Subprograms As Parameters Are subprograms allowed as parameters? –if so, are types checked? Early Pascal and FORTRAN 77 –no Later versions of Pascal and FORTRAN 90 –yes C and C++ –pass pointers to functions –parameters can be type checked Java, Ada, Perl –no

25. 25 Referencing Environments What is the correct referencing environment of a subprogram that is passed as a parameter? Possibilities: 1.It is that of the subprogram that declared it Deep binding Most natural for static-scoped PLs 2.It is that of the subprogram that enacted it Shallow binding Most natural for dynamic-scoped PLs 3.It is that of the subprogram that passed it Ad hoc binding (Has never been used)

26. 26 Referencing Environments (cont.) Example: function sub1() { var x; function sub2() { alert(x); } function sub3() { var x=3; call sub4(sub2); } function sub4(subx) { var x=4; call subx(); } x=1; call sub3; } What is the referencing environment of sub2 when it is called in sub4 ? – Shallow binding => sub2 <- sub4 <- sub3 <- sub1 [output = 4] – Deep binding => sub2 <- sub1 [output = 1] – Ad-hoc binding => sub3 local x [output = 3]

27. 27 Nested Subprogram Definitions Does the language allow them? Are there limits on nesting depth? How are non-local variables handled? –Static scope –Dynamic scope

28. 28 Design Issues Specific to Functions 1.Are side effects allowed? Two-way parameters Ada does not allow them Non-local references Allowed in all PLs 2.What types of return values are allowed?

29. 29 Return Types of Functions in PLs FORTRAN, Pascal –only simple types C –any type except functions and arrays Ada –any type (but subprograms are not types) C++ and Java –like C, but also allow classes to be returned Common Lisp –any type, function, class, object, structure, closure, etc.

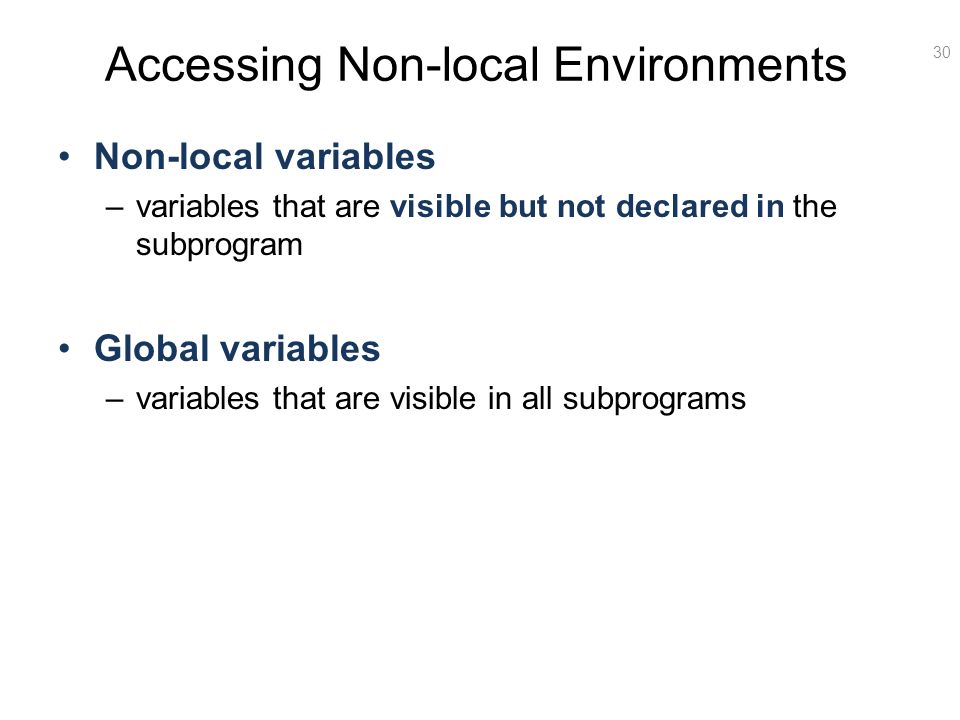

30. 30 Accessing Non-local Environments Non-local variables –variables that are visible but not declared in the subprogram Global variables –variables that are visible in all subprograms

31. 31 Nonlocal Environments in PL FORTRAN COMMON blocks –The only way in pre-90 FORTRAN to access nonlocal variables –Can be used to share data or share storage Static scoping –discussed already External declarations - C –Subprograms are not nested –Globals are created by external declarations they are simply defined outside any function –Access is by either implicit or explicit declaration –Declarations give types to externally defined variables External modules - Ada –More in Chapter 11 5. Dynamic Scope – Common Lisp

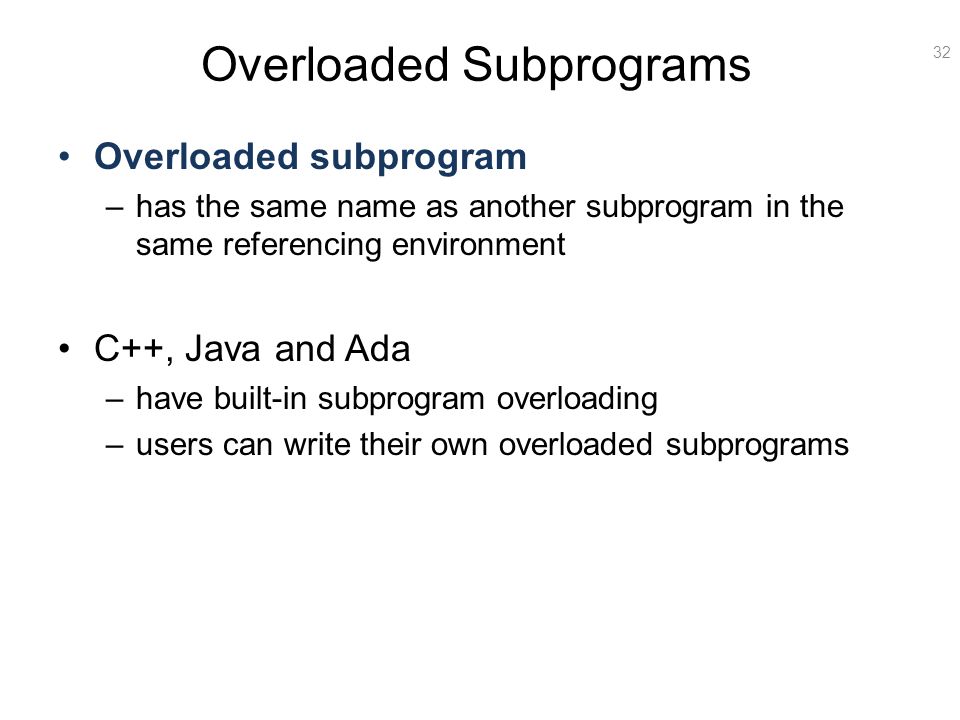

32. 32 Overloaded Subprograms Overloaded subprogram –has the same name as another subprogram in the same referencing environment C++, Java and Ada –have built-in subprogram overloading –users can write their own overloaded subprograms

33. 33 Generic Subprograms A generic or polymorphic subprogram –takes parameters of different types on different activations, or –executes different code on different activations Overloaded subprograms offer –ad hoc polymorphism A subprogram where the type of a parameter is described by a type expression with a generic parameter –parametric polymorphism

34. 34 Generic Subprograms in Ada Ada –types, subscript ranges, constant values, etc., can be generic in subprograms, packages –e.g. generic type element is private; type vector is array (INTEGER range <>) of element; procedure Generic_Sort (list: in out vector);

35. 35 Generic Subprograms in Ada (cont.) procedure Generic_Sort (list : in out vector) is temp: element; begin for i in list'FIRST.. i'PRED(list'LAST) loop for j in i'SUCC(i)..list'LAST loop if list(i) > list(j) then temp := list(i); list(i) := list(j); list(j) := temp; end if; end loop; -- for j end loop; --for i End Generic_Sort procedure Integer_Sort is new Generic_Sort (element => INTEGER; vector => INTEGER_ARRAY);

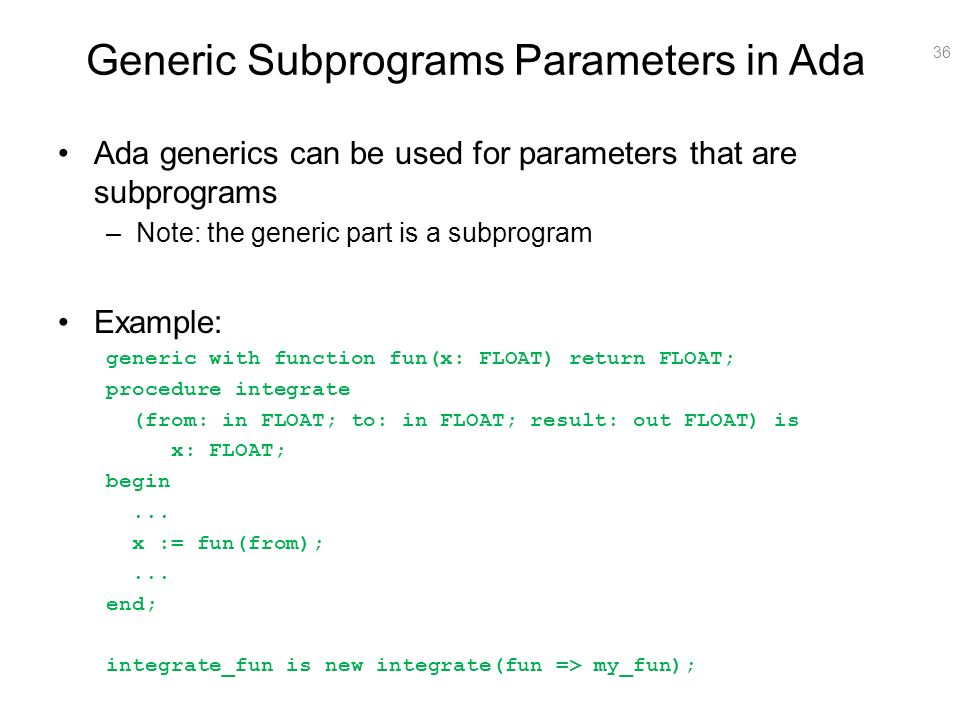

36. 36 Generic Subprograms Parameters in Ada Ada generics can be used for parameters that are subprograms –Note: the generic part is a subprogram Example: generic with function fun(x: FLOAT) return FLOAT; procedure integrate (from: in FLOAT; to: in FLOAT; result: out FLOAT) is x: FLOAT; begin... x := fun(from);... end; integrate_fun is new integrate(fun => my_fun);

37. 37 Parametric Polymorphism in C++ C++ –Template functions –e.g. template Type max(Type first, Type second) { return first > second ? first : second; }

38. 38 C++ Template Functions Template functions are instantiated implicitly when –the function is named in a call, or –its address is taken with the & operator Example: template void generic_sort(Type list[], int len) { int i, j; Type temp; for (i = 0; i < len - 2; i++) for (j = i + 1; j < len - 1; j++) { if (list[i] > list[j]) { temp = list [i]; list[i] = list[j]; list[j] = temp; } //** end if } //** end for j } //** end for i } //** end of generic_sort … float number_list[100]; generic_sort(number_list, 100);// Implicit instantiation

39. 39 Generics in Java Java provides generic types –Syntax: class_name e.g.: class MyList extends ArrayList {…} e.g.: class MyMap extends HashMap {…} –Types substituted when used: e.g.: MyList courses = new MyList (); e.g.: MyMap table = new MyMap (); Type-checking works! courses.add("ics313"); // ok courses.add(313); // incorrect, 313 is not String No casts needed! String course = courses.get(0); //(String)courses.get(0)??

40. 40 Generics in Java (cont.) Generic types can be restricted to subclasses class UrlList {…} Generic types can be used in "for-each" clause for (String course : courses) { System.out.println (course.toUpperCase()); } Generic types are used in standard libraries – Collections: List, ArrayList, Map, Set Primitive types can be substituted for generic types class MyList extends ArrayList {…} MyList numbers = new MyList () numbers.add(313); int sum = 0; for (int number : numbers) {sum += number;}

41. 41 Generics in Java: Parameters, Return Type Generic types can be used –as formal parameters class MyList extends ArrayList { int occurences(Element element) { … if (element.equals(this)) sum++; … } –even as return type class MyList extends ArrayList { Element[] toArray() { Element[] array = new Element[this.size()]; … return array; }

42. 42 Generic Methods in Java Method can be made depend on a generic type –Generic type precedes method's return type –Generic type can be used to As the return type To declare formal parameters To declare local variables –E.g. T succ(T value, T [] array) { T element = null;... return element; } Actual type is inferred from the call Integer [] array = {1, 2, 3, 4, 5, 6}; int successor = succ(3, array);
